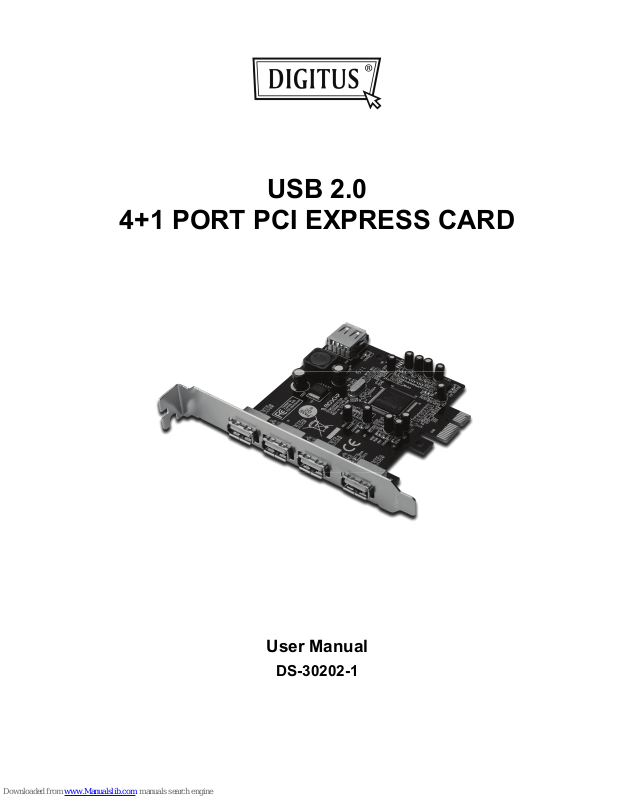

USB 2.0
4+1 PORT PCI EXPRESS CARD
User Manual
DS-30202-1
Page 2
Features and Benefits
1. Fully compliant with PCI Express Base Specification Revision 1.1
2. Single-lane (x1) PCI Express throughput rates up to 2.5 Gbps
3. Compliant with Universal Serial Bus specification revision 2.0
4. Provides independent four external and one internal USB 2.0 high
speed ports (internal port is sharing with the 1
st
external port)
5. Supports simultaneous operation of multiple USB 2.0 and USB 1.1
devices
6. Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps)
Built-in 4-pin power connector for receiving extra power supply from
system
System Requirements
1. Windows® XP/Vista/Win 7 (32/64 bit)
2. One available PCI Express slot
Package Contents
1 x USB2.0 4+1 Port PCI Express Card
1 x Driver CD
1 x User Manual
Hardware Installation
1. Turn off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCIe slot.
4. To install the card, carefully align the card’s bus connector with the
selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Page 3
Driver Installation
For Windows XP (32-bit/64-bit)
Once the Windows XP startup, USB 2.0 PCI Express card will be
installed automatically without driver installation.
For Windows Vista/7 (32-bit/64-bit)
Once the Windows Vista/7 startup, USB 2.0 PCI Express card will be
installed automatically without driver installation.
The USB 2.0 PCI Express card will detect with four instances Standard
EHCI USB Host controller & four standard OHCI USB host controller
ports in Device Manager as shown below.
