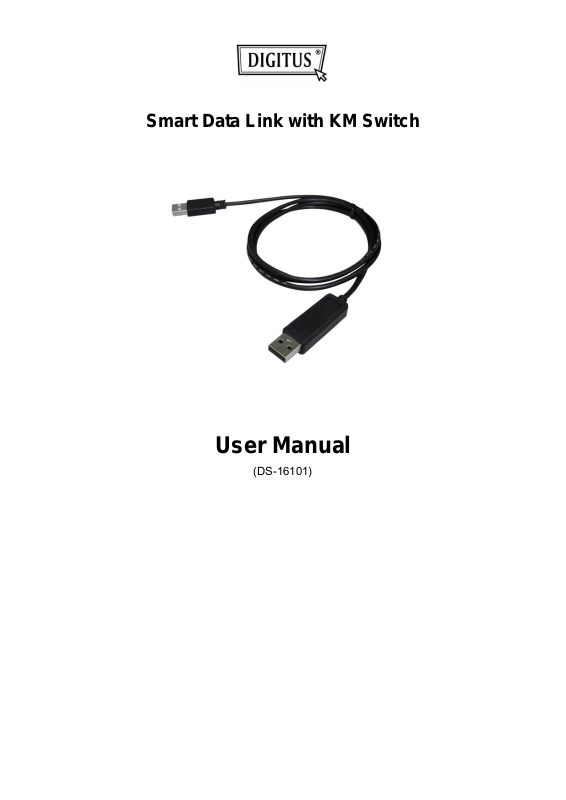

Page 1
Smart Data Link with KM Switch
User Manual
(DS-16101)
Page 2
Table of Contents
Introduction …………………………………………………..…....3
Specifications ………………………………………………...….3
Hardware Installation …………………………….………………...4
Application program installation ………........................................5
Icon Status ……………………………………………………...…10
Remote Control Functions ..…………………………….……10
The Application of USB Cable KVM with Data Link ……...…11
Remark ….…………………………………………………….…….12
2
Page 3
Smart Data Link with KM Switch
Introduction
The Smart Data Link with KM Switch lets you access multiple computers and
associated monitors by sharing a single keyboard and mouse to switch between two
computers. This product has the Data Link function allowing you to copy files on
desktop between two computers. And it is easy for you to cut texts and paste them
between computers. The PIP mode is the value added to this device.
Features
Picture in Picture (PIP) function.
KM function allows user to control computers and associated display monitors.
File transfer and Data transfer between two computers.
Copy and Paste text between two computers.
Data Link function conforms high speed USB specification.
No CD software / driver install is needed.
Switch Mode:
1. Mouse movement.
2. Application icon.
No extra power is required.
Windows XP, Vista and *7 (Home and Professional edition)
compatible.
Specifications
Function Specification
Item Number DS-16101
PC Port 2
Cable Length 1.5m
Operating Voltage USB power (DC 5V)
Power Consumption 85mA
Operating System Windows XP / Vista / *7
Weight 45g
Dimension (L x W x H) 40 x 15 x 10 (mm)
* The specification is subject to change without further notice.
Package Contents
z 1 x KM Switch mit Datentransfer-Funktion
z 1 x User Manual
3
Page 4
Hardware Installation
PC 1
PC 2
OR
PC 1 PC 2
Device - LED status (if applicable):
z Blinking: Connected to computers.
z Lighted: Data transferring or function activity.
* Please connect the device’s “R” connector to PC2 and “L” connector to PC1.
4
Page 5

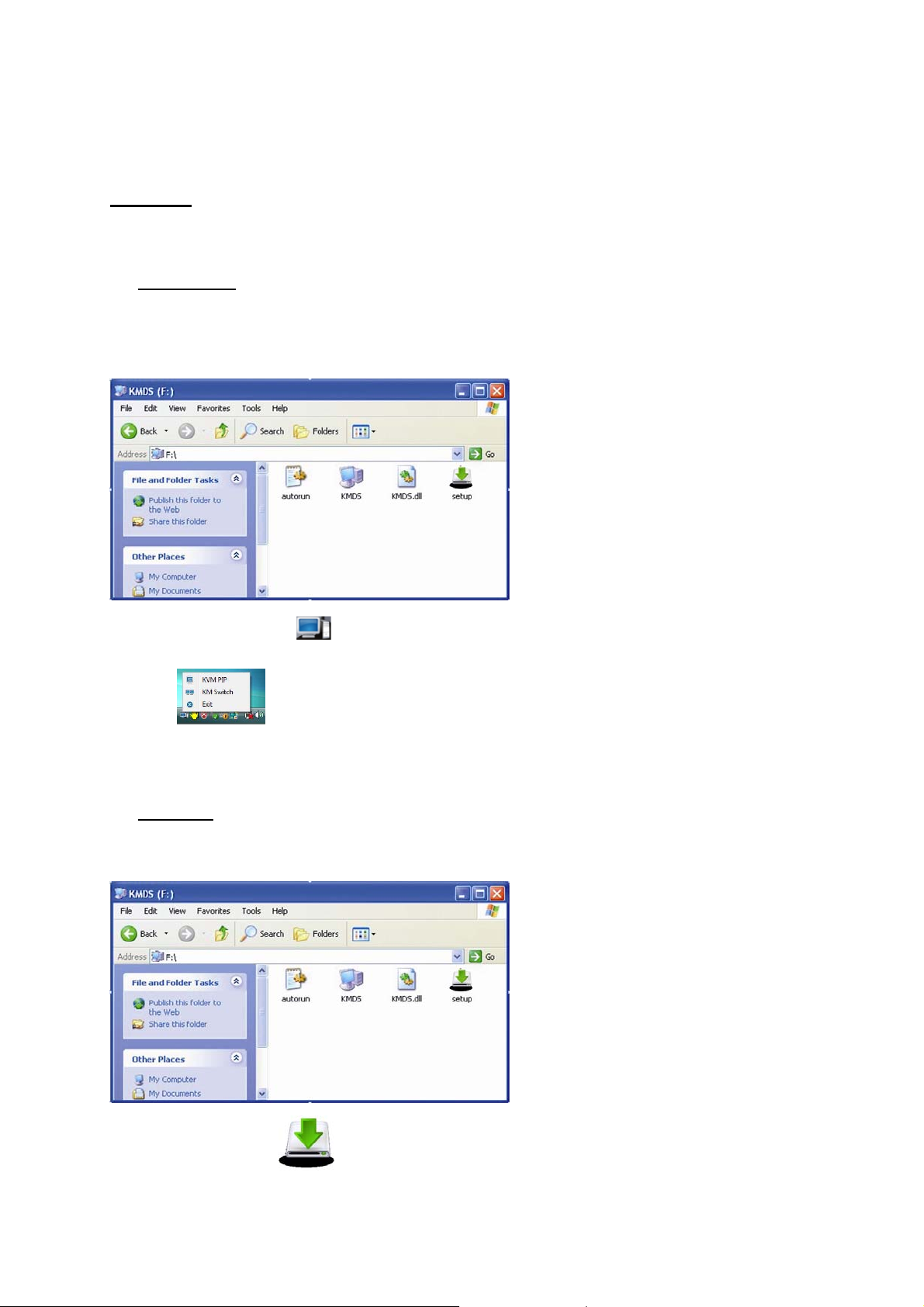

Application program installation
Windows
A. XP
1. ICON PLAY: Turn on your computers and connect the KM Switch with your two
computers (when prompted to restart your computer, click “Yes” to restart your
system for the configuration changes). Please click KMDS icon of both computers
to activate from pop-up screen.
Afterward the icon appears from taskbar to indicate ready status. If you click
Exit to leave or unplug KM Switch, you can double-click KMDS icon
from MY COMPUTER to activate again.
2. AP PLAY: Please connect the KM Switch with your two computers (when prompted
to restart your computer, click “Yes” to restart your system for the configuration
changes). The pop-up screen appears as below.
Please double-click to install by following the installation procedures.
5
Page 6

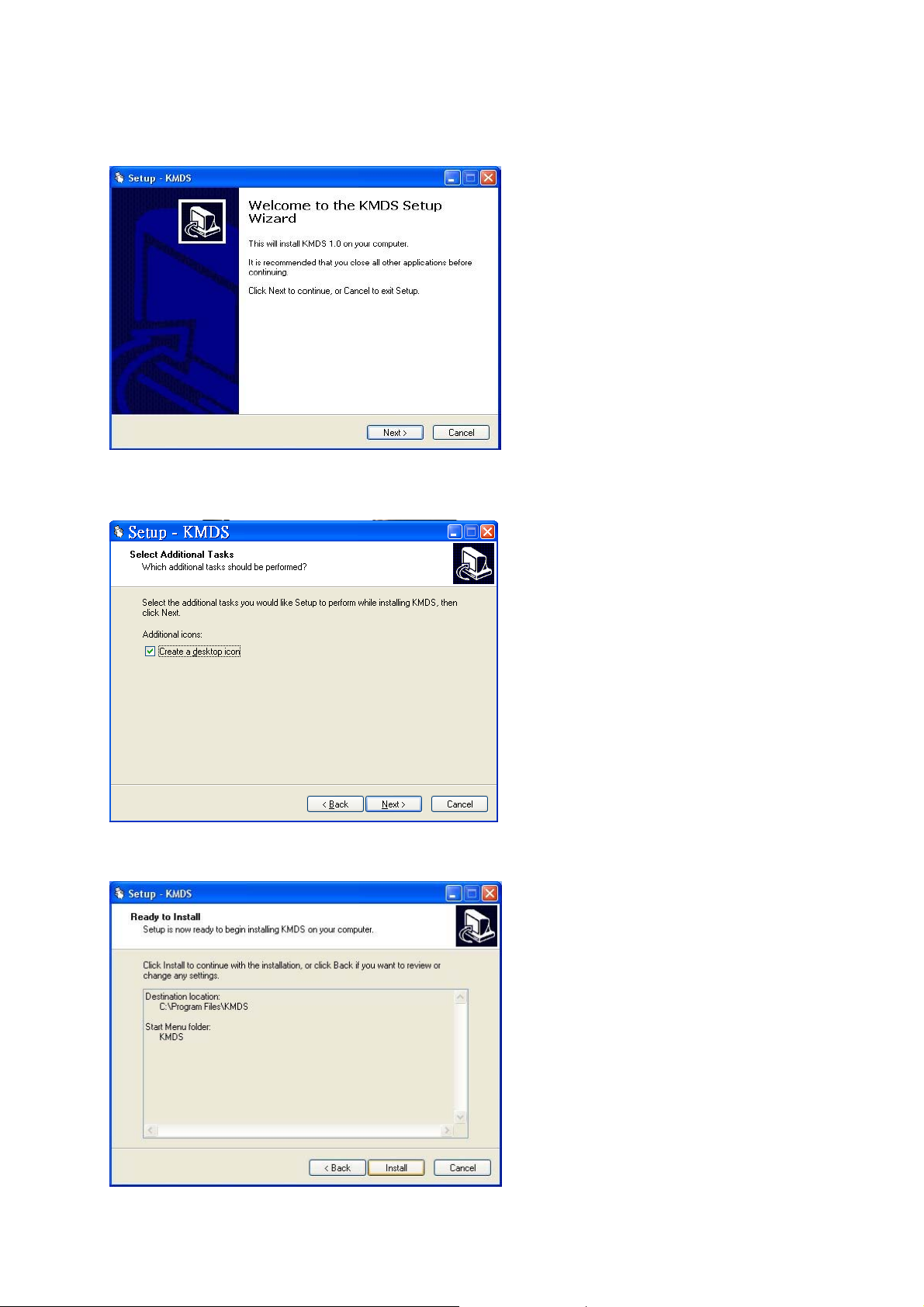

2.1 When the Welcome screen appears, click Next.
2.2 Create a desktop icon.
2.3 Click Install to start the installation.
6
Page 7

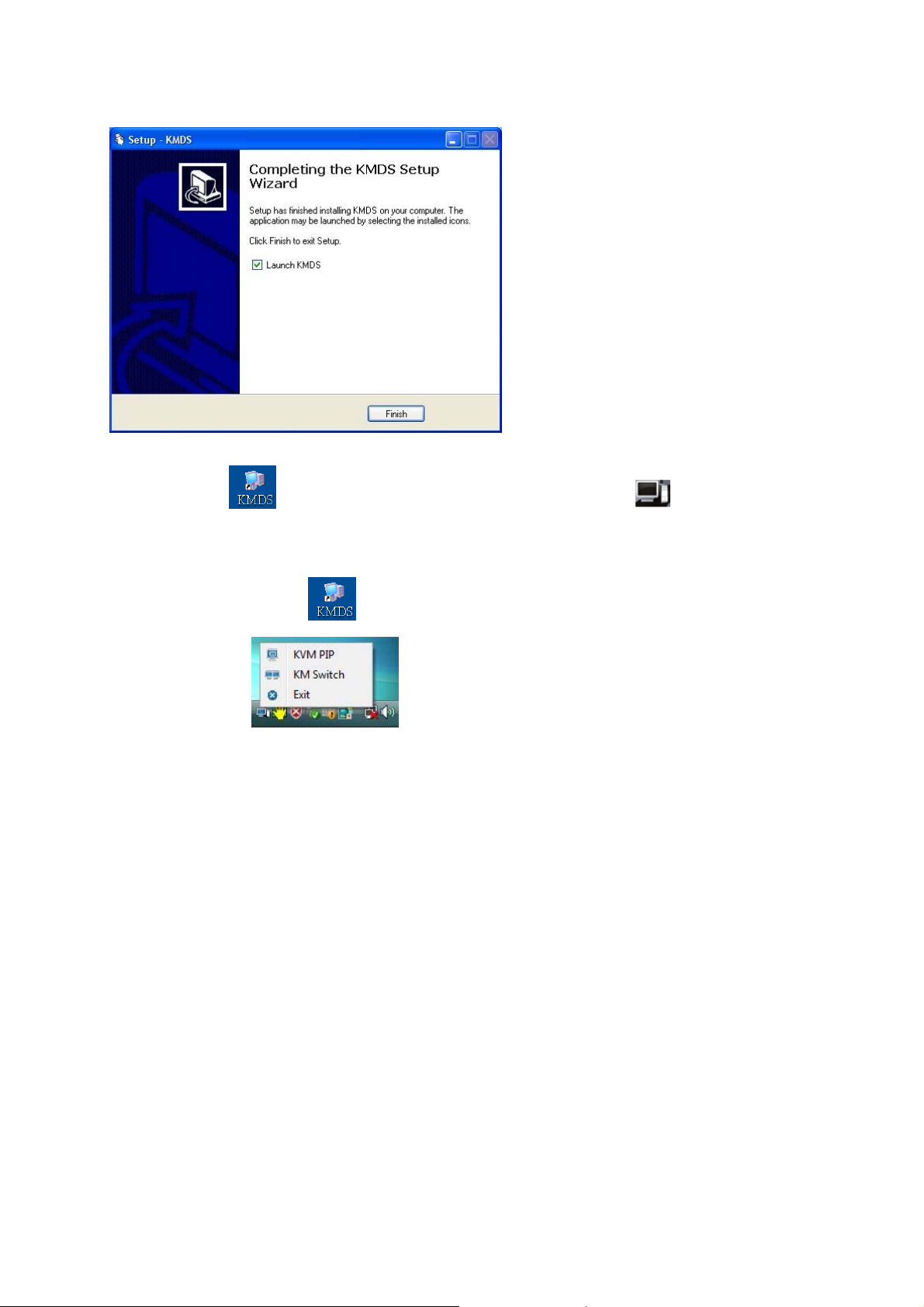

2.4 When the following screen appears, click Finish.
2.5 When the
icon appears on desktop and a small icon appears from
taskbar, the installation is completed.
2.6 Please double click from desktop to activate KMDS if needed.
(*The small icon with green color indicates the ready status.
**After installation is completed, the AP is in your computer. The KMDS can be
automatically activated but please connect KM Switch with your computers before turn
on computers.
***If you exit the function or unplug KM Switch, you can click KMDS from the desktop to
activate).
7
Page 8

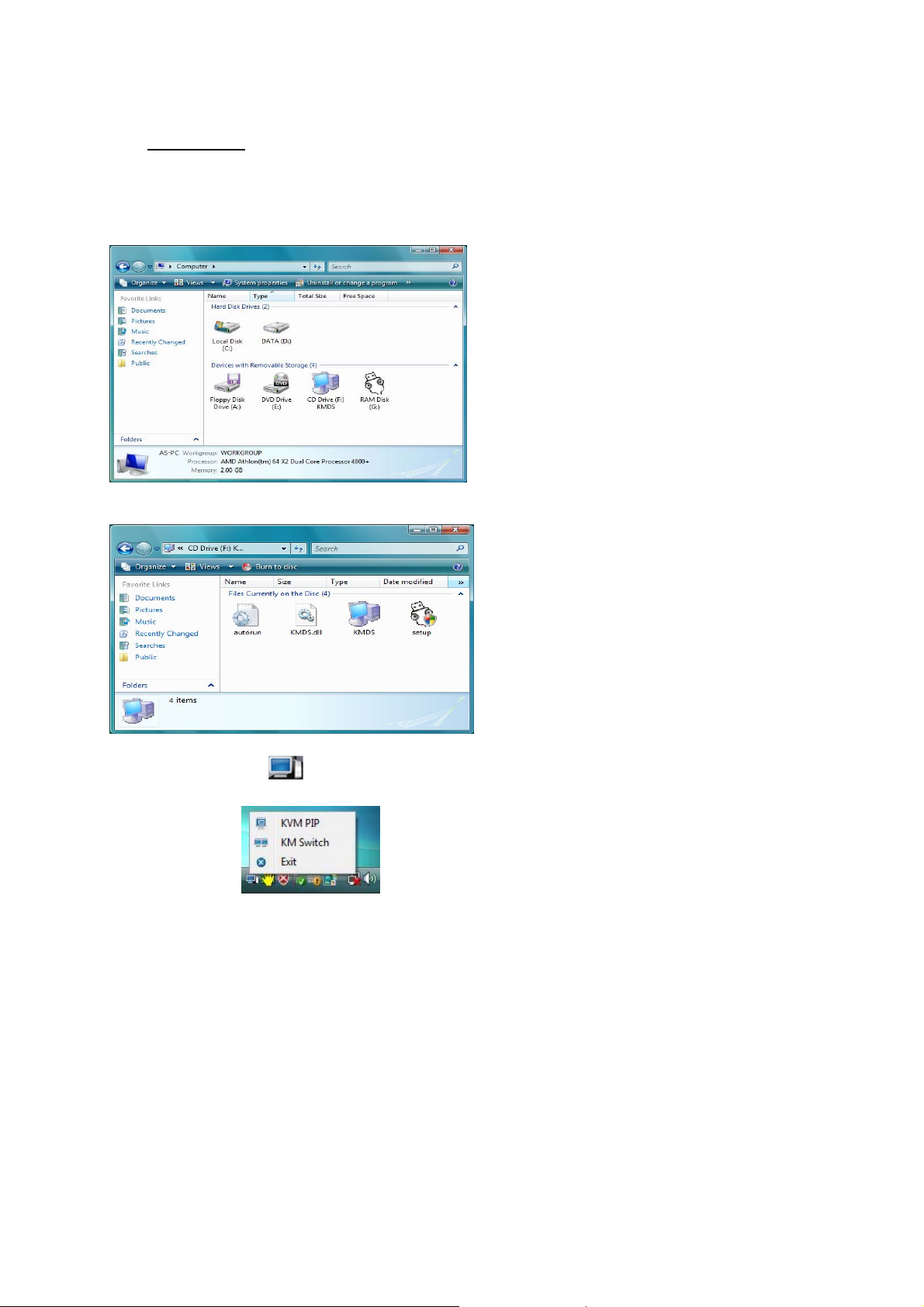

B. Vista / Win 7
1. ICON PLAY: Turn on your computers and connect the KM Switch with your two
computers (when prompted to restart your computer, click “Yes” to restart your system
for the configuration changes). Please open COMPUTER and then click KMDS for
both computers.
Please click KMDS icon of both computers to activate.
Afterward the icon
appears from taskbar to indicate ready status.
If you click Exit to leave or unplug KM Switch, you can click KMDS
from COMPUTER to activate again.
8
Page 9

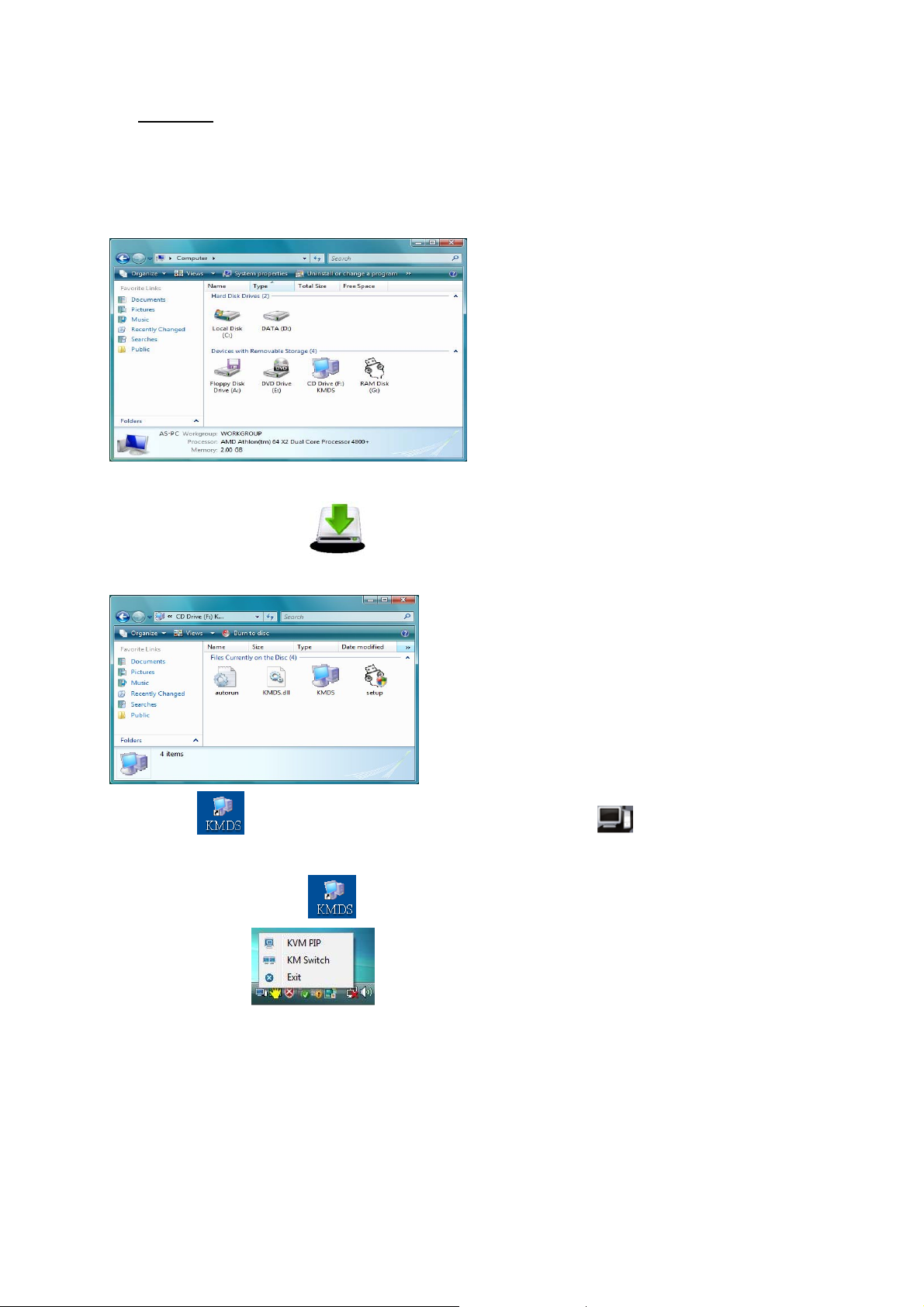

3. AP PLAY: Please connect the KM Switch with your two computers (when prompted
to restart your computer, click “Yes” to restart your system for the configuration
changes). Click COMPUTER to pop-up the screen to find the AP files: 1)KMDS and
2)RAM Disk. Please click KMDS from the screen.
2.1 Please double-click to install KMDS by following the installation
procedures.
When the
icon appears on desktop and a small icon appears from taskbar,
the installation is completed.
2.2 Please double click from desktop to activate KMDS if needed.
(*The small icon with green color indicates the ready status.
**After AP installation is completed, the AP is in your computer. The KMDS can be
automatically activated but please connect KM Switch with your computers before turn
on computers.
***If you exit the function or unplug KM Switch, you can click KMDS from the desktop to
activate).
9
Page 10

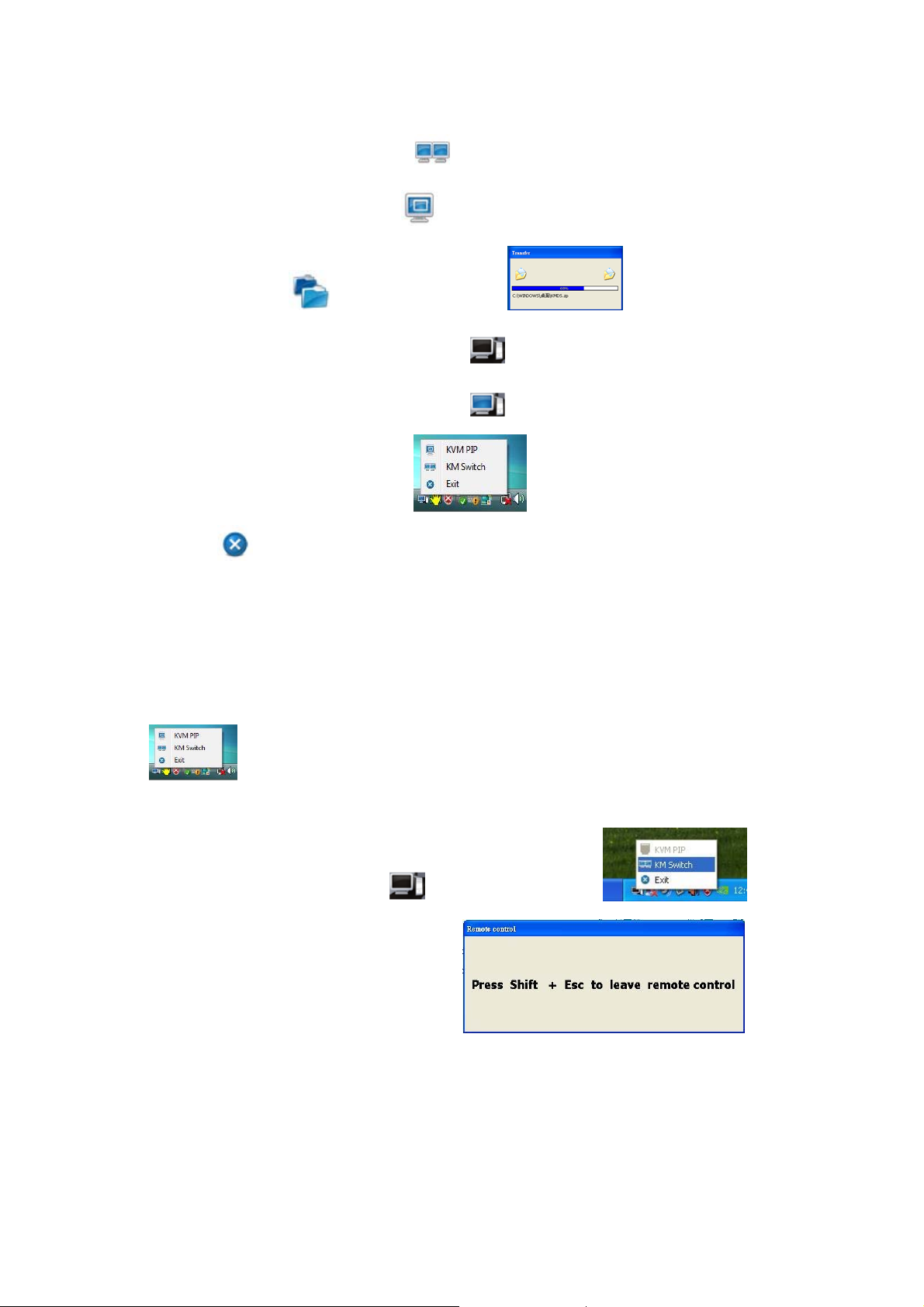

C. Icon Status:
1. KM Switch function selected:
2. KVM PIP function selected:
3. Data transfer: and pop-up window
4. The KMDS on computers is off-line:
5. The KMDS on computers is on-line:
6. The function display window:
(*Click Exit to leave the function.)
Remote Control Functions
When you start your computers every time, you can use the Remote Control function to
type password for the computer that is without the keyboard and mouse connected.
And, you can use this valuable function to activate KMDS of the computer if you click
Exit
1. Please connect the KM Switch with your two computers and then turn on both
computers. Click taskbar icon and KM Switch icon to
to leave or unplug KM Switch.
switch. (During the process the screen
appears. This is to let you switch back to original computer to avoid any unforeseen
circumstances).
10
Page 11

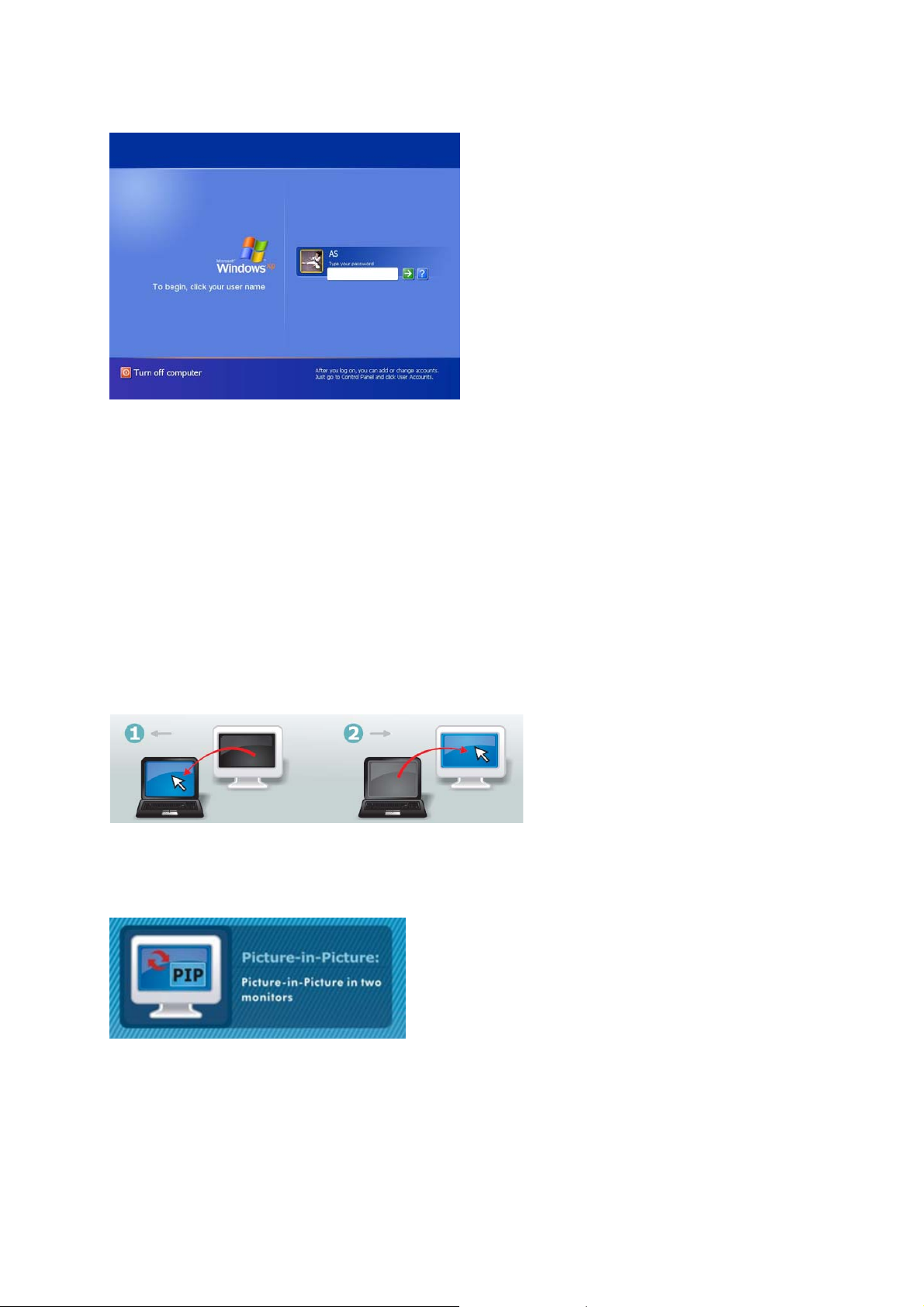

2. Now, you can type your password to start the computer.
3. Please follow the AP installation procedures to select ICON PLAY or AP PLAY if
needed.
The Application of Smart Data Link with KM Switch
A. This device lets you access two computers and associated monitors by sharing a
single keyboard and mouse. It is easy to move the cursor by a mouse sliding to control
between two computers.
B. The Picture in Picture (PIP) mode is the value added to this device and is suitable
for a single display monitor.
11
Page 12

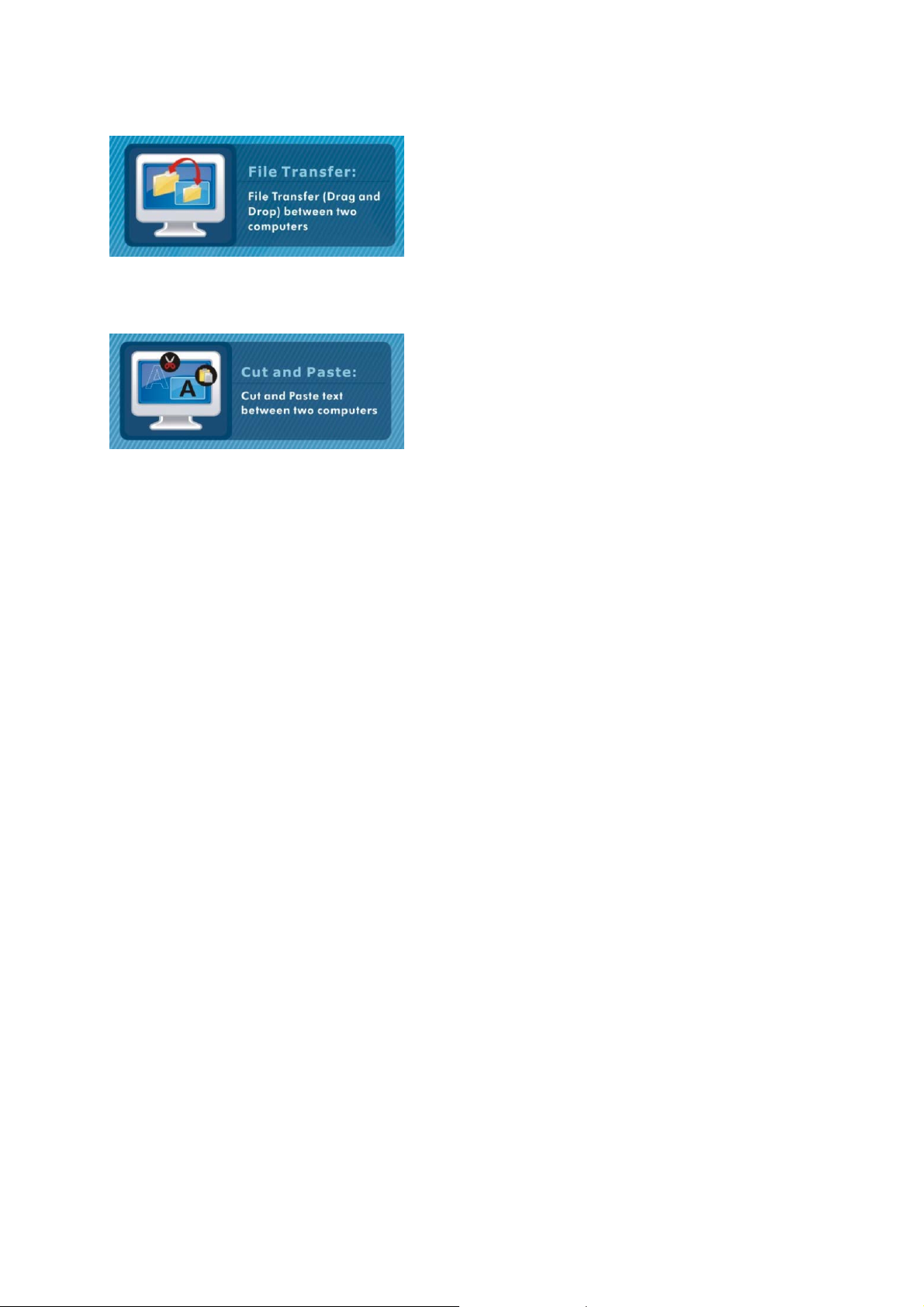

C. This product also combines the Data-Link function allowing you to copy files on
desktop between two computers under KVM PIP mode or KM Switch mode.
D. It is easy for you to cut and paste texts within KVM PIP mode or KM Switch mode.
Remark:
1. The file transfer and cut & paste text function only support same operating
language of PC.
2. The file transfer function only supports desktop file transfer.
3. The Picture in Picture (PIP) mode is not suitable for media watching in inset
window. Please do not function it with KM mode together.
4. Please do not unplug KM Switch device while the current data transfer is in
progress or KMDS is functional. This can cause the unforeseen loss of data or
temporary inactive.
5. The PC authority should be “ADMINISTRATORS” not “USERS” or “GUEST”.
6. If any unforeseen circumstances occur during the use, please unplug & plug KM
device and click KMDS icon to activate.
7. Please note, we do not recommend to use this device with OS Windows XP
(64bit) due to slow data transfer speed.
8. The maximum resolution of monitor is up to 2,560 x 1,920 with KVM PIP mode.
12
