CAT.5 IP COMBO-KVM SWITCH
8-PORT/16-PORT
User Manual
DS-15202-1 / DS-16202-1
Page 2
2
Index
1. INTRODUCTION ....................................................................................................................................... 5
2. SPECIFICATIONS .................................................................................................................................... 7
3. SYSTEM REQUIREMENTS ..................................................................................................................... 8
4. INSTALLATION ........................................................................................................................................ 8
4.1. FRONT VIEW .............................................................................................................................. 8
4.2. REAR VIEW ................................................................................................................................ 9
4.3. SINGLE STAGE INSTALLATION ..................................................................................................... 9
4.3.1. Precaution: ............................................................................................................................. 9
4.3.2. Console connection: ........................................................................................................... 10
4.3.3. System connection: ............................................................................................................. 10
4.4. CASCADE CHAINING ................................................................................................................. 12
4.5. FIRMWARE DOWNLOAD CONNECTOR ......................................................................................... 14
4.6. RACK MOUNTING ..................................................................................................................... 14
5. OPERATION ........................................................................................................................................... 14
6. HOT KEY OPERATION .......................................................................................................................... 15
6.1. CALL OSD MENU .................................................................................................................... 15
6.2. LEADING HOT KEY SELECT ...................................................................................................... 15
6.3. CHANNEL SELECT - SINGLE KVM ............................................................................................. 15
6.3.1. Specific channel selection .................................................................................................. 15
6.3.2. Arrow Key Channel Shift Function .................................................................................... 16
6.3.3. <ALT> Channel Shift Function ........................................................................................... 16
6.4. CHANNEL SELECT - CASCADE CHAIN LAYER ............................................................................ 17
6.5. BUZZER SOUND DISABLE / ENABLE ........................................................................................... 17
6.6. AUTO-SCAN FUNCTION ............................................................................................................ 18
6.6.1. Start auto-scan function ...................................................................................................... 18
6.6.2. Stop auto-scan function ...................................................................................................... 19
6.6.3. Auto-scan mode ................................................................................................................... 19
6.6.4. Auto-scan time interval ....................................................................................................... 19
6.7. CONSOLE LOCK ....................................................................................................................... 19
6.8. CALL ADJUST VIDEO MENU ...................................................................................................... 19
7. OSD OPERATION .................................................................................................................................. 20
7.1. OSD MAIN MENU ..................................................................................................................... 20
7.1.1. KVM layer number ............................................................................................................... 20
7.1.2. Channel name ...................................................................................................................... 20
7.1.3. Computer & KVM status ...................................................................................................... 20
7.1.4. Current active channel number .......................................................................................... 21
7.1.5. Cascade parent channel number ....................................................................................... 21
7.1.6. Page down / up indicator .................................................................................................... 21
7.1.7. Function Control Menu ....................................................................................................... 21
7.2. CHANNEL SELECTION IN OSD ................................................................................................... 22
7.2.1. Channel select to computer ................................................................................................ 22
7.2.2. Channel select to cascade port .......................................................................................... 22
7.2.3. Return from cascade port ................................................................................................... 22
7.3. SETUP IN OSD: <F1> .............................................................................................................. 23
7.3.1. Scan Mode ............................................................................................................................ 23
7.3.2. Scan Time ............................................................................................................................. 23
7.3.3. Banner Time ......................................................................................................................... 23
7.3.4. Position ................................................................................................................................. 24
7.3.5. Hot key .................................................................................................................................. 24
7.3.6. Sound .................................................................................................................................... 24
7.3.7. Language .............................................................................................................................. 25
7.4. AUTO-SCAN IN OSD: <F2> ...................................................................................................... 25
7.4.1. Start to auto-scan in OSD ................................................................................................... 25
7.4.2. Stop auto-scan ..................................................................................................................... 25
7.4.3. Auto-scan mode ................................................................................................................... 25
7.4.4. Auto-scan time interval ....................................................................................................... 25
7.5. CONSOLE LOCK IN OSD: <F3> ................................................................................................ 25
7.6. CHANNEL RENAME: <F4> ......................................................................................................... 26
Page 3
--
3
7.7.
SECURITY SETUP: <F5> ........................................................................................................... 27
7.7.1. Security mode login............................................................................................................. 27
7.7.2. Security Mode ...................................................................................................................... 27
7.7.3. Change administrator password ........................................................................................ 28
7.7.4. Authorized user setup ......................................................................................................... 28
7.7.5. User Authority setup ........................................................................................................... 28
7.8. LOCK PORT: <F6> ................................................................................................................... 29
7.8.1. Lock Port .............................................................................................................................. 29
7.8.2. Channel selection of the locked port ................................................................................. 30
7.8.3. Unlock Port ........................................................................................................................... 30
7.9. EXIT OSD: <ESC> .................................................................................................................. 30
7.10. ADJUST VIDEO IN OSD ............................................................................................................ 30
8. SUN MICROSYSTEMS FUNCTION KEY EMULATION: ....................................................................... 31
9 CONFIGURATION .................................................................................................................................. 32
9.1 NETWORK CONFIGURATION USING PSETUP UTILITY ................................................................... 32
9.2 CONFIGURATION SETUP VIA SERIAL CONSOLE .......................................................................... 37
9.3 KEYBOARD, MOUSE, AND VIDEO CONFIGURATION ..................................................................... 38
9.3.1 CAT5 8-PORT/16-PORT IP-KVM keyboard settings ......................................................... 38
9.3.2 Remote Mouse Settings ...................................................................................................... 38
9.3.3 Automatic mouse speed and mouse synchronization .................................................... 39
9.3.4 Single and Double Mouse Mode ......................................................................................... 39
9.3.5 Host system mouse settings .............................................................................................. 40
9.3.6 Video Modes ......................................................................................................................... 41
10 USAGE .................................................................................................................................................... 42
10.1 PREREQUISITES ....................................................................................................................... 42
10.2 LOG IN/OUT CAT5 8-PORT/16-PORT IP-KVM ....................................................................... 44
10.2.1 LOG IN THE CAT5 8-PORT/16-PORT IP-KVM ........................................................................ 44
10.2.2 LOG OUT FROM THE CAT5 8-PORT/16-PORT IP-KVM ........................................................... 46
10.3 THE REMOTE CONSOLE............................................................................................................ 46
10.3.1 MAIN WINDOW OF REMOTE CONSOLE ....................................................................................... 47
10.3.2 CONTROL BAR OF REMOTE CONSOLE ...................................................................................... 48
10.3.3 STATUS LINE OF REMOTE CONSOLE ......................................................................................... 60
11 MENU OPTION ....................................................................................................................................... 61
11.1 REMOTE CONTROL ................................................................................................................... 61
11.1.1 KVM CONSOLE ...................................................................................................................... 62
11.1.2 TELNET CONSOLE/SSH CONSOLE ............................................................................................. 62
11.1.3 REMOTE WAKEUP ............................................................................................................... 66
11.2 VIRTUAL MEDIA ............................................................................................................................... 69
11.2.1 DRIVE REDIRECTION ................................................................................................................ 70
11.2.2 VIRTUAL DRIVE ........................................................................................................................ 71
11.2.3 CD/DVD IMAGE ....................................................................................................................... 73
11.2.4 FLOPPY DISK ........................................................................................................................... 78
11.2.5 CREATING AN IMAGE ................................................................................................................ 80
11.2.5.1. CREATING A FLOPPY IMAGE ..................................................................................................... 80
11.2.5.2. CREATING A CD/DVD ISO IMAGE ............................................................................................ 81
11.2.6 MAKING A DRIVE REDIRECTION ................................................................................................ 82
11.3 USER MANAGEMENT ................................................................................................................ 86
11.3.1 CHANGE PASSWORD ................................................................................................................ 86
11.3.2 USERS AND GROUPS ............................................................................................................. 87
11.4 KVM SETTINGS ....................................................................................................................... 88
11.4.1 USER CONSOLE ....................................................................................................................... 89
11.4.2 KEYBOARD/MOUSE .................................................................................................................. 93
11.4.3 VIDEO ...................................................................................................................................... 94
11.5 DEVICE SETTINGS .................................................................................................................... 95
11.5.1 NETWORK ................................................................................................................................ 95
11.5.2 DYNAMIC DNS ......................................................................................................................... 98
11.5.3 SECURITY .............................................................................................................................. 100
11.5.5 SERIAL PORT ......................................................................................................................... 107
11.5.6 DATE/TIME ............................................................................................................................ 110
11.5.7 EVENT LOG ........................................................................................................................... 111
11.5.8 AUTHENTICATION ................................................................................................................ 115
11.5.9 USB ..................................................................................................................................... 118
11.5.10 CONFIG FILE .......................................................................................................................... 119
11.6 MAINTENANCE ....................................................................................................................... 119
11.6.1 DEVICE INFORMATION ............................................................................................................ 119
Page 4
4
11.6.2
EVENT LOG ............................................................................................................................ 121
11.6.3 UPDATE FIRMWARE ................................................................................................................ 122
11.6.4 UNIT RESET ........................................................................................................................... 125
11.6.5 RESET FACTORY DEFAULTS ................................................................................................... 126
12. FAQ ....................................................................................................................................................... 128
13. TROUBLESHOOTING .......................................................................................................................... 129
14. KVM FIRMWARE UPGRADE PROCEDURES .................................................................................... 135
15. ADDENDUM ......................................................................................................................................... 139
Page 5
--
5
1. Introduction
Thank you for purchasing CAT5 8-Port / 16-Port Combo Free KVM Switch Over IP
(or CAT5 8-PORT/16-PORT IP-KVM for simplicity)! You now have a high quality,
durable system to control 8 or 16 computers through PS/2 and/or USB connection
from one console (PS/2 & USB Mouse, PS/2 & USB Keyboard, and Monitor). And
it allows you to control one or more computers locally at the server site or remotely
via the Internet using a standard browser. You can securely gain BIOS level access
to systems for maintenance, support, or failure recovery over the Internet.
Communication is secure via SSL authentication and encryption. Use in
conjunction with a KVM switch for multiple-server access.
Features
CAT5 KVM Over IP
1. 1-Console 8/16-Port CAT5 KVM switch
2. Each server can be 40 meters away from this KVM Switch by CAT5 UTP cable
3. Manage servers remotely around the world
4. Remote KVM (keyboard, video, and mouse) access over IP or analogous telephone
line (modem needed)
5. Console your Keyboard / Mouse via PS/2 and/or USB at will
6. Connect computers via PS/2 and/or USB at will
7. Full control under all OS, in BIOS level, during boot, or at Blue Screens
8. On-Screen-Display (OSD) & Cascade Chain functions
9. OSD is intuitive menus driven for quick and efficient navigation
10. Supports cascade chain with 3 level cascades: up to 3 levels; control up to
8 / 64 / 512 ( for 8-Port only ) and 16 / 256 / 4096 PCs ( for 16-Port only ),
from a single console; cascaded chaining units does not need special configuration
11. Emulates PS/2 or USB keyboard on each PC to allow your computers to boot
normally without a keyboard error
12. Supports hot-pluggable. All devices connected to the KVM can be added or
removed at any time, without shutting the unit down
13. Supports 3 types of switching:
Hardware Front Push Buttons
Hot-Keys on PS/2 and/or USB of keyboard
Menu driven OSD (On Screen Display)
14. Supports Auto-Scan function to switch video inputs automatically among computers
in present intervals sequentially by OSD menu driven
15. Supports LED display for PC and/or server status monitoring
16. Supports VGA resolutions up to 1920x1200@60 Hz
17. Supports Beeper during Switching enabled
18. Adjustable control of focus and brightness to improve video quality by Hot-Keys
Page 6
6
19. Fully compliant with the USB 1.1/ 2.0 specification
20. Rack Mountable in 19” system tack (1U )
21. KVM firmware is upgradeable via on-board mini-USB download connector
and external mini-programmer
22. Remote power wakeup on the target computer
23. Remote mass storage control and redirection
24. Remote control over Java-enabled Browsers
25. No additional software necessary on client console side
26. SSL Secure access through certificate authentication and data encryption
27. 256-bit SSL encryption of all transmitted data
28. Persistent logging of all important events
29. Up to 63 users profile with definable, three categories users authorized levels.
30. Auto-optimize the frame rate and video quality according to the bandwidth
availability.
31. Automatically senses video resolution for best possible screen capture
32. High-performance mouse tracking and synchronization
33. KVM firmware is upgradeable via on-board mini-USB download connector and
external mini-programmer and web interface
KVM Transmission
1. Transmission of video signals with up to resolution 1600x1200@ 60 Hz
With 16, 8, 4, 2, 1 Bit video encoding, manual and automatic adjustment.
2. Supports of all standard VGA and VESA modes (graphics and text)
3. Video resolution at the local video port up to 1920x1200@60 Hz
4. Works with all states of the web browsers
Network access
1. Access via 10/100 Mbps LAN
2. Communication over TCP/IP port 80 and port 443 (reconfiguration possible)
3. IP-configuration via DHCP/BOOTP or static
4. HTTP and HTTPS (secure) Web Server
5. Supports of standard Hayes compatible modems
6. Speed of modem up to 115200 bps
7. Automatic adjustment of video compression ratio to available bandwidth
Page 7
--
7
2. Specifications
Specification
Number Of Computer Controlled 8 or 16
Selection Method
Push Button and Hot-Key (PS2 and/or USB keyboard)
Or On-Screen-Display(OSD)
LEDs
Red for PC Selection
Green for PC ON-Line ready
Compliant with USB Version USB1.0 / USB1.1 / USB2.0
Compliant with HID Version USB HID 1.11
PC port Connectors 8 / 16 RJ45 connector
CAT5 Dongle
(DS-19202)
Video 8/16 x HDB-15 male
(KB/MS) (PS2 & USB signal combined)
Data transmit RJ45 connector
Console port
Keyboard 1 x 6 pin mini-DIN female
Mouse 1 x 6 pin mini-DIN female
Video 1 x HDB-15 female
Keyboard 1 x USB – A type female
Mouse 1 x USB – A type female
Firmware upgrade connector 1 x Mini USB female
Serial port 1 x RS232 male
Ethernet port 1 x RJ45
Virtual Media port 1 x Mini USB female
Remote console screen resolution Up to 1600 x 1200 @ 60Hz
DDC,DDC2 monitor
Supports DDC2B,
max resolution up to 1920 x 1200 @60Hz
Operating system supported
Win 98/98SE/ME/2000/XP/Vista/7/2003
Mac OS9/X, Linux, Sun Micro OS
Power By External Adaptor DC 12V 2A
Hot Pluggable Yes
Device driver No
Dimensions (LxWxH) 44 x 15.7 x 4.5 cm (17.3 x 6.1 x 1.5 inch)
Unit Weight 1810g/1960g
Housing material Metal
Operating Temperature 32~122 ℉ (0~50℃)
Storage Temperature 4~140 ℉ (-20~60℃)
Humidity 0%~80%RH
Page 8
8
3. System Requirements
Hardware
Local Host side :
The following equipment must be equipped with each computer or server
A VGA, SVGA or Multisync card
Type A USB port or PS/2 6 pin mini-DIN for Keyboard and Mouse.
Local console side:
A VGA, SVGA, Multisync monitor capable of the highest resolution.
PS/2 and/or USB Keyboard/Mouse.
Remote Console side:
One Computer or Multiple Computers are linked into the network
Cables
The CAT5 IP-KVM Switch must be used CAT5 UTP cables with specific
custom CAT5 dongle (such as DS-19202). To purchase the specific dongle,
please contact your dealer.
Remote Console side
1 Java Runtime Environment : version 1.5 or above.
2 Browser: Microsoft Internet Explorer version 6.0 or above or Netscape or
Mozilla or Safari.
4. Installation
4.1. Front View
8-Port
Figure 1: CAT5 8-Port IP-KVM front view
16-Port
Figure 2: CAT5 16-Port IP-KVM front view
LED Indicators:
Selected:
RED LED indicates that the CAT5 8-PORT/16-PORT IP-KVM is selected to the
Page 9
--
9
corresponding PC.
On-Line:
GREEN LED indicates that the CAT5 8-PORT/16-PORT IP-KVM is ready to the
corresponding PC
.
Reset Switch :
Press Reset switch when you want to reset the system. This switch must be pushed
with a thin object like the end of a paper clip, or a ball point pen.
4.2. Rear View
8-Port
Figure 3: CAT5 8-Port IP-KVM rear view
16-Port
Figure 4: CAT5 16-Port IP-KVM rear view
Ethernet LED Indicators:
IP-Ready:
ORANGE LED blinking per second when system is ready.
Ethernet-Link:
GREEN LED indicates that Ethernet connection established.
4.3. Single stage installation
4.3.1. Precaution:
Please turn off computers and devices when you start to install KVM Switch.
For computers with Keyboard Power On function, please unplug the power cords
in advance. Otherwise, the switch might not work properly.
If your computeres work under Windows 98, please connect KVM switch to
computers via PS/2 ports, because Windows 98 does not support installation at
first time as through USB HID installation driver.
Some kind of old computers must enable USB setting in BIOS in advance to
make USB interface work.
This KVM switch does not guarantee to fully support USB keyboard with USB
HUB.
Page 10
10
(Optional) Connect the USB connectors of USB A-mini cable to the host
computer and the CAT5 8-PORT/16-PORT IP-KVM module while for remote
mass storage control.
Connect one end of Ethernet cable to ethernet jack of CAT5 8-PORT/16-PORT
IP-KVM, and the other end to the Remote Console computer.
4.3.2. Console connection:
Plug keyboard, mouse and monitor to the console ports on the real panel of
CAT5 8-PORT/16-PORT IP-KVM (Figure 5).
Figure 5: Console connection
4.3.3. System connection:
Please use Custom CAT5 cable to connect your computers.
Please refer to the figures and instruction shown below for System connection.
Note: Please contact your dealer to purchase the custom combo 4-in-1 CAT5
dongle (DS-19202) if you need.
Figure 6: Custom combo 4-in-1 CAT5 dongle (DS-19202)
Page 11
--
11
You can connect CAT5 8-PORT/16-PORT IP-KVM to computers via three methods
shown below:
A. Connect USB, PS/2 (keyboard/mouse) and VGA connectors to computers.
We recommand users to connect computers in this way.
Figure 7: USB & PS/2 (Keyboard & Mouse) and VGA connected
B. Connect only PS/2 (keyboard/mouse) and VGA connectors to computers.
Figure 8: PS/2 (Keyboard & Mouse) and VGA connected
Page 12
12
Connect only USB and VGA connectors to computers.
Figure 9: USB and VGA video connected
4.4. Cascade Chaining
CAT5 Combo Free 8-Port & 16-Port KVM switch support 3 level cascades; control
up to 8/64/512 PCs ( for 8-Port only ) and 16/256/4096 PCs ( for 16-Port only ),
from a single console; cascaded chaining units do not need special configuration.
Cascaded configuration expands system ability and allows you to select computers
connected to the Master or Slave. After connected, KVM Switches automatically
configure Master and Slave.
Note: CAT5 8-PORT/16-PORT IP-KVM should be the master KVM Switches,
and the second & third layers could use Standard KVM Switches
without Over-IP function ( Combo KVM Switches connected to 2
nd
& 3rd
layers ).
To Install cascade chain, please follow the instruction below:
A. Please turn off computers and devices when you start to install KVM Switch.
B. Uses the custom combo 4-in-1 CAT5 dongle (DS-19202) (See
Figure 6) to
connect one or more Slave KVM Switches to any PC port of Master KVM Switch.
The connection between KVM to KVM must be connected through PS/2
connection. ( Please refer to Figure 7 & Figure 8 ).
C. You can do console Master KVM Switch via either USB and/or PS/2
keyboard and mouse at will.
D. Plug in the power adapter of the first level Master KVM Switch and connect
Master KVM switch to computers.
Page 13
--
13
E. Next, plug in power adapter for each level Slave KVM Switch and connect Slave
KVM switch to computers .
F. The power on sequence should be:
1. Master KVM Switch
2. Second level Slave KVM Switch (connecting to Master KVM Switch) if any.
3. Third level Slave KVM Switch (connecting to second level Slave KVM
Switch) if any.
4. All computers connecting to Master/Slave KVM Switch.
G. After all KVM Switches are powerd by power adaptor, trun on the computers.
Initial Plug-in Process:
Please plug in the Master KVM Switch first before turning on any other
devices like montior or computers.
Hot plug and Hot Swap:
Combo Free 8-Port & 16-Port KVM switch support Hot plug and Hot swap
function.
Figure 10: Cascade chaining
Page 14
14
4.5. Firmware download connector
The min-USB female connector on the rear of KVM switch is for firmware upgrade
function. To update your KVM firmware, please contact with your dealer.
4.6. Rack Mounting
Figure 11: Rack mounting
Figure 11 shows you how to attach mounting brackets to the KVM Switches unit for
standard 19-inch rack cabinet.
1. Screw the mounting brackets into the sides of the KVM-Switches unit. ( See
Figure 11)
2. Install the KVM-Switches unit into the rack cabinet.
5. Operation
You can control computers via CAT5 8-Port or 16-Port Combo Free KVM Switch
Over IP by push button, hot key and OSD.
Push button operation
Press the front panel push button to select the PC and operate it.
Hot Key operation
Please refer to section 6. Hot Key Operation.
OSD operation
Please refer to section 7. OSD Operation.
Page 15
--
15
6. Hot Key Operation
6.1. Call OSD Menu
Press < Scroll Lock> twice and <Enter>, then the OSD “Main Menu” will be displayed
on the monitor screen. All of the KVM parameters can be setup in OSD mode. You can
also execute some KVM functions in OSD.
<Scroll Lock> → <Scroll Lock> → <Enter>
6.2. Leading Hot Key Select
The two-steps hot key sequence is used for quick function execution.
The leading key is <Scroll Lock> by default. However, you can change the leading
hot key if you want.
By pressing <CTRL> twice, <New Hot Key>, then press <Enter>, you can change the
leading hot key.
The available leading hot key are <Scroll Lock>, < Num Lock > or < Caps Lock >
for option.
Setup leading hot key to < Scroll Lock >
< CTRL > → < CTRL > → < Scroll Lock > → < Enter >
Setup leading hot key to < Num Lock>
< CTRL > → < CTRL > → < Num Lock > → < Enter >
Setup leading hot key to < Caps Lock >
< CTRL > → < CTRL > → < Caps Lock > → < Enter >
Note: You can also change leading hot key by pressing <F1> in OSD main menu.
Please refer to section 7.3.5 Setup in OSD – Hot Key.
6.3. Channel Select - Single KVM
6.3.1. Specific channel selection
You can select the connected computers by using the two-step Hot Key
sequence. Press <Scroll Lock> key twice (Step 1), then press key (1 to 16) and
<Enter> (step 2) to select the computer you want to control.
Page 16
16
Figure 12: Specific channel selection hot key
<Scroll Lock> → <Scroll Lock> → <1> → <Enter> or
<Scroll Lock> → <Scroll Lock> → <2> → <Enter> or
…
…
<Scroll Lock> → <Scroll Lock> → <16> → <Enter>
Note: You can also select computers in OSD menu. Move the indicator bar to
the channel to switch by using <arrow key>, <Page Up> or <Page Down>,
then press <Enter> to select the connected computer. Please refer to
section 7.2 Channel Selection in OSD.
6.3.2. Arrow Key Channel Shift Function
Press <Scroll Lock> twice, and press <Left Arrow> or <Right Arrow> key to
shift left/right one channel.
Switch to left one channel
<Scroll Lock> → <Scroll Lock> → <Left Arrow>
Switch to right one channel
<Scroll Lock> → <Scroll Lock> → <Right Arrow>
6.3.3. <ALT> Channel Shift Function
1. Start <ALT> Channel shift Function
< ALT > channel shift function default was off. You can press Hot-Key <Scroll
Lock> twice, <ALT> and then press <Enter> to turn on or turn off this function
alternately.
2. Shift the channel by <ALT> key
Press left < ALT > or right < ALT > key twice, the PC channel will automatically
shift to left or right one channel (channel decrease / increase to next) when <
ALT > channel shift function is enabled.
Enable/Disable <ALT> channel shift function
Page 17
--
17
<Scroll Lock> → <Scroll Lock> → < ALT > → <Enter>
Switch to left one channel
<Left ALT> → < Left ALT >
Switch to right one channel
<Right ALT> → < Right ALT >
6.4. Channel Select - Cascade Chain Layer
You can select the active channel directly under cascade chain connection.
The following hot key sequence is used for quick channel selection.
Press <Scroll Lock> twice, <D>, the cascade channel number (1, 2, 3……16), and
Press <Enter>.
Channel select to first layer
< Scroll Lock > → < Scroll Lock > → <D> → < CH-L1 > → < Enter >
Channel select to second layer
< Scroll Lock > → < Scroll Lock > → <D> → < CH- L1 >
→ <D> → < CH-L2 > → < Enter >
Channel select to third layer
< Scroll Lock > → < Scroll Lock > → <D> → <CH-L1 >
→ <D> → < CH-L2 >
→ <D> → < CH-L3 > → < Enter >
Note: With cascading 3 layers, you can select last layer directly;
Example: press <Scroll Lock> twice, then D2D5D7, and <Enter>:
D2 : layer 1 channel 2 links to
D5 : layer 2 channel 5 links to
D7 : layer 3 channel 7 selected
Note: You can also select active channel of cascade chain in OSD menu. Move the
indicator bar to the chanel selected to switch by using <arrow key>, <Page
Up> or <Page Down>, and then press <Enter> to switch to the target port.
Please refer to section 7.2.2 Channel select to cascade port.
6.5. Buzzer sound Disable / Enable
Press <Scroll Lock> twice, then <B> and <Enter>. The buzzer sound will be disabled
/ enabled alternately. The buzzer sound default setting is ON.
<Scroll Lock> → <Scroll Lock> → <B> → <Enter>
Page 18
18
Note: You can also enable/disable buzzer sound by pressing <F1> in OSD main menu.
Please refer to section 7.3.6 Setup in OSD - Sound.
.
Figure 13: Buzzer setup hot key
6.6. Auto-Scan Function
You can enable Auto-Scan function by pressing <Scroll Lock> twice, then <S> and
<Enter>. The KVM Switch will shift through all the ports and display them on the
monitor.
The mouse and keyboard will be disabled under this mode. This is necessary to
prevent errors such as erratic movement and wrong characters to display when using
the mouse or keyboard in accident.
6.6.1. Start auto-scan function
<Scroll Lock> → <Scroll Lock> → <S> → <Enter>. The auto-scan banner will
be shown on screen to indicate the scanning channel.
Figure 14: Auto-scan hot key
─┬── ┬ ──┬──────
│
│ └─ Channel Name
│ └────────── Channel Number
└─────────────── Indicate now is Scan Mode
Figure 15: Auto-scan Banner
Page 19
--
19
6.6.2. Stop auto-scan function
Press any key on keyboard to STOP the auto-scan function. Press the push
button on KVM front panel to select active port can stop the auto-scan function,
too.
6.6.3. Auto-scan mode
There are two auto-scan modes, please refer to section 7.3.1 Setup in OSD –
Scan Mode to setup the auto-scan mode.
Scan all working computers.
Scan all computers which are marked for auto-scan.
6.6.4. Auto-scan time interval
The auto-scan time interval can be adjustable by pressing <F1> in OSD main
menu. Please refer section 7.3.1 Setup in OSD – Scan Time.
Note: You can also start auto-scan function by pressing <F2> in OSD main menu.
Please refer section 7.4 Auto-Scan in OSD.
6.7. Console Lock
If the security mode is enabled in OSD mode (by pressing <F5> in OSD mode), you
can lock console by pressing <Scroll Lock> twice, and then <H> and <Enter>. The
KVM will be locked until an authorized user login.
<Scroll Lock> → <Scroll Lock> → <H> → <Enter>
To UNLOCK console, please press any key according to screen message, then key in
User Name and Password. The KVM switch and console devices will be unlocked and
back to normal status.
Note: You can also execute console lock function by pressing <F3> in OSD main
menu. Please refer to section 7.5 Console Lock in OSD.
6.8. Call Adjust Video Menu
Press < Scroll Lock> twice, then <C> and <Enter>, then the OSD “Adjust Video” will
be displayed on the monitor screen. You can adjust video quality for current active
channel in first layer.
<Scroll Lock> → <Scroll Lock> → <C> → <Enter>
Page 20
20
7. OSD Operation
7.1. OSD Main Menu
Press < Scroll Lock> twice and <Enter>, then you will enter to OSD (On Screen
Display) main menu. The channel number, names and the status will be displayed on
the monitor screen. Please refer to (Figure 16)
Figure 16: OSD main menu
7.1.1. KVM layer number
1st, 2nd or 3rd. indicates the current cascade level.
7.1.2. Channel name
The channel name can be defined by using function key F4, it can remind user
which computer is connected to this channel.
A highlighted pink bar is shown in the selected channel row.
A plus mark (+) showing in the left of channel name indicates that the port has
cascades.
7.1.3. Computer & KVM status
KVM buzzer stauts
Buzzer sound on
Buzzer sound off
Logined user name
The system has one administrator and 3 users for security management. The
name of current logined is displayed here.
s
s
Page 21
--
21
Channel LOCK indicator ( Status STA )
L: Indicating this channel is locked.
BLANK:Indicating this channel is normal without locked.
Computer power on indicator ( Status STA ), OSD menu will update the flag
automatically if the computer status is changed
A: Indicating this computer is powered on and ready to select.
BLANK:Indicating this computer is not connected or powered on.
Channel scan indicator ( Status STA )
S: This channel is marked for auto-scan if the scan mode is Select type.
BLANK:Indicating this computer is not marked for auto-scan.
7.1.4. Current active channel number
Indicate current active channel number. The channel of the currently selected
computer is displayed in the right-upper corner.
If the active channel is in 2nd or 3rd cascade layer, the display string is like
XX-YY-ZZ. For example, 02-05-07 means the active channel is layer 1 channel 2
links to layer 2 channel 5, and layer 3 channel 7 is selected as active channel.
7.1.5. Cascade parent channel number
Indicate the parent channel of this cascade layer. The number at the left-upper
corner below KVM layer number shows the number of port for the upper layer,
i.e. 8 means link from channel 8 of upper KVM.
It’s valid only for 2nd and 3rd cascade layer. It will show blank for 1st layer since
there is no parent channel.
7.1.6. Page down / up indicator
This is for 16-Port KVM only. The information of port 1 ~ 8 are display in the first
page, and information of port 9 ~ 16 are display in the second page. Since the
port information is divide to two pages, the page down / up indicator can
remind you to switch to alternative page by using <page down> and <page up>
key.
7.1.7. Function Control Menu
The detail of control functions will be described in later sections. The list of
control functions:
F1: Set up: basic set up menu
F2: Scan: autoscan function
F3: Lock: setup lock/unlock, only available when F5 Security is enabled.
F4: Rename: rename selected channel name.
F5: Security: security function and user authority settings
F6: Lock Port: PC port lock function (for administrator only)
Page 22
22
7.2. Channel selection in OSD
7.2.1. Channel select to computer
Use the <UP> and <DOWN> arrow keys to highlight a computer and then
<ENTER> to select it and leave OSD menu. A banner with the channel name will
be shown on left-upper corner of the screen.
┬ ────┬──────
│ └ Channel Name
└──────────── Channel Number
Figure 17: Channel Banner (Single Layer)
7.2.2. Channel select to cascade port
A plus mark (+) showing in the left of channel name indicates that the port is
under cascade channing. Pressing <ENTER> in this channel will enter one level
down, and the screen pops up the listing of the computers of the slave KVM.
┬ ┬ ┬ ────┬──────
│ │ │ └ Channel Name
│ │ └─────── Channel Number
│ └────────── 2
nd
Layer Channel Number
└────────────── 1
st
Layer Channel Number
Figure 18: Channel Banner (Cascade Layer)
7.2.3. Return from cascade port
After entering cascade port, press <R> will return to upper layer OSD menu.
Page 23
--
23
7.3. Setup in OSD: <F1>
Please use <Up> or <Down> arrow key to select the item you want to change,
and use <Left> or <Right> arrow key to change the settings. Press <ESC> to
exit and save the setup settings.
Figure 19: OSD Setup
7.3.1. Scan Mode
Select:
Scan the selected channels marked with S in STA column on OSD main menu.
PC ON:
Scan all powered on PC channels
7.3.2. Scan Time
The default scan time is 5 seconds. It can be changed up to 90 seconds by
stepping 5 seconds.
7.3.3. Banner Time
The default banner time is 5 seconds. It can be changed to 10 seconds, 15
seconds, or always on (∞).
Page 24
24
7.3.4. Position
Menu:
Use four arrow keys to move the OSD main menu to the desired position. Press
<ESC> to save the changed menu position.
Figure 20: Menu Position Setup
Note: The different resolution setting between PC and KVM will change the
desired position of OSD block shown on screen.
Banner:
Use four arrow keys to move the channel banner to the desired position. Press
<ESC> to save the changed banner position.
Figure 21: Banner Position Setup
7.3.5. Hot key
Scroll Lock: <Scroll Lock> becomes the hot key.
Num Lock: <Num Lock> becomes the hot key.
Cap Lock: <Cap Lock> becomes the hot key.
Note: You can also change leading hot key via hot key by using < CTRL > → <
CTRL > → < New Hotkey > → < Enter > outside the OSD mode. Please refer
to section 6.2 Leading Hot Key Select.
7.3.6. Sound
ON: Buzzer sound enabled.
OFF: Buzzer sound disabled.
Note: You can also enable/disable buzzer sound via hot key by using
<Scroll Lock> → <Scroll Lock> → <B> → <Enter> outside the OSD mode.
Please refer to section 6.5 Buzzer sound Disable / Enable.
Page 25
--
25
7.3.7. Language
English (En) / Deutsch (De) / Francais (Fr), 3 languages are available.
7.4. Auto-Scan in OSD: <F2>
7.4.1. Start to auto-scan in OSD
Press <F2> in OSD main menu. The auto-scan banner will be shown to indicate
the scanning channel.
─┬── ┬ ──┬──────
│
│ └─ Channel Name
│ └────────── Channel Number
└─────────────── Indicate now is Scan Mode
Figure 22: Auto-Scan Banner
Note: You can also start auto-scan function via hot key by using
<Scroll Lock> → <Scroll Lock> → <S> → <Enter> outside the OSD mode.
Please refer to section 6.6.1 Start Auto-Scan Function.
7.4.2. Stop auto-scan
Press any key on keyboard to STOP the auto-scan function. The auto-scan
banner will be disappeared when the scan stopped.
7.4.3. Auto-scan mode
There are two auto-scan modes, please refer to section 7.3.1 Setup in OSD –
Scan Mode to set up the auto-scan mode.
Scan all computers which are power on.
Scan all computers which are marked for auto-scan.
7.4.4. Auto-scan time interval
The auto-scan time interval of each port displayed can be adjustable by pressing
<F1> in OSD main menu. Please refer to section 7.3.2 Setup in OSD – Scan
Time.
7.5. Console Lock in OSD: <F3>
If the security mode is enabled in OSD mode (by pressing <F5> in OSD mode,
please refer to section 7.7 Security Setup in OSD). You can logout to lock console
by pressing <F3> In OSD mode. The Console Lock Banner will be shown on the
screen.
Figure 23: Console Lock Banner
Page 26
26
The KVM will be locked until an authorized user login.
Figure 24: Unlock window
Note: You can also logout to lock console via hot key by using
<Scroll Lock> → <Scroll Lock> → <H> → <Enter> outside the OSD mode.
Please refer to section 6.7 Console Lock.
Note: If you forget the password, the only way to permanently disable the
security function is to key in a universal password to unlock KVM. You need to
key in this unlock password to release your device and KVM, and then you can
restart everything. Please contact with your agency/distributor to get the
universal password.
7.6. Channel rename: <F4>
Select the channel to rename by using up/down arrow key and press <F4> in OSD
main menu. The channel rename window will be shown for setting up the channel
name. Press <ENTER> to save the renamed channel name or <ESC> to cancel.
Figure 25: Channel Rename window
Page 27
--
27
7.7. Security Setup: <F5>
7.7.1. Security mode login
Press <F5> in OSD main menu to enter security setup mode, the administrator
login is required before entering into the security mode.
Figure 26: Security mode login window
The default administrator account is:
User Name: admin
Password: 123456
After login, the security setup main window will be shown on the screen. Please
select the security item to setup via <up arrow> and <down arrow> key, and
press <left arrow> or <right arrow> key to change the settings.
Figure 27: Security setup main window
7.7.2. Security Mode
To change the security mode setting, please move the highlight bar to Security
Mode, and press <left arrow> or <right arrow> key to change it. The <F3>
Console Lock and user authority functions can not be executed until the
security mode is enabled.
Page 28
28
7.7.3. Change administrator password
To change the administrator password, move the highlight bar to
Admin/password, and press <left arrow> or <right arrow> key. The
administrator password setup window will be shown on the screen. Input the
new password twice and press <ENTER> to confirm, or press <ESC> to exit.
Figure 28: Administrator password setup window
7.7.4. Authorized user setup
3 authorized users are admitted to manage the KVM switch. To change the user
name and password, please move the highlight bar to the user for editing.
Press <left arrow> or <right arrow> key, the user name and password setup
window will be shown on the screen. Please Input the new user’s name and
password twice, then press <ENTER> to confirm or <ESC> to cancel.
Figure 29: User name password setup window
7.7.5. User Authority setup
You can setup the authority which only supports Layer 1 and Layer 2, and
Layer 3 authority always enable for each user. Different user has different
Page 29
--
29
access right for each channel. To change the access authority of each channel
for certain user, please move the highlight bar to the channel, and press <A>,
<1>, <2> or <3> to setup the channel access authority for all or certain user. You
don’t have to setup the authority of administrator since the administrator has all
channel access authorized right.
Please refer to section 7.2.2 and 7.2.3 to operate OSD menu properly.
Figure 30: User authority setup window
7.8. Lock Port: <F6>
7.8.1. Lock Port
Only administrator can lock port. Please move the highlight bar to the channel to
lock, and press <F6> to lock the selected channel. A red L mark will be shown in
STA column of locked port.
Figure 31: Lock port in OSD main window
Page 30
30
7.8.2. Channel selection of the locked port
If anyone selects the channel of the locked port either by panel push-button or
hot key, the system will enter OSD mode waiting for administrator to unlock the
port.
7.8.3. Unlock Port
Only administrator login with correct password can unlock the port. After the
administrator login, the red L mark in STA column will disappear.
7.9. Exit OSD: <ESC>
Press <ESC> to exit OSD and to return to the selected computer. A banner with the
channel name will be shown on left-upper corner of the screen.
7.10. Adjust Video in OSD
Please use <Up> or <Down> arrow key to options for video adjustment, and use
<Left> or <Right> arrow key to change the value. Press <ESC> to exit and save the
setup settings.
Figure 32: Adjust video window
Page 31
--
31
8. Sun Microsystems Function Key Emulation:
There are 16 special functions on the Sun Microsystems keyboard, CAT5 Combo
Free KVM Switch can emulate these function keys via PS/2 and/or USB keyboard.
Please refer to the table shown below for Sun Microsystems keyboard special
functions operation.
To active these emulation on the PS/2 and/or USB keyboard, you have to press the
<LEFT Window> key first (this key usually is located between the <LEFT CTRL> and
<LEFT ALT>. Then press the second key ( Sun Microsystems Function Key ) . Please
do not release <LEFT Window> when you press the second key.
Sun Microsystems
Function Key
USB or PS/2 Keyboard
Stop L_Win & L_Alt
Props L_Win & L_Ctrl
Compose L_Win & L_Shift
Front L_Win & F1
Open L_Win & F2
Find L_Win & F3
Again L_Win & F4
Undo L_Win & F5
Copy L_Win & F6
Paste L_Win & F7
Cut L_Win & F8
Help L_Win & F11
Power L_Win & F12
Mute L_Win & 1
Volume Down L_Win & 2
Volume UP L_Win & 3
Page 32
32
9 Configuration
9.1 Network configuration using PSetup utility
After the initial setup, the CAT5 8-PORT/16-PORT IP-KVM can be managed via
the Internet using a standard browser that lets you control the device/s attached
to it. However, to configure the CAT5 8-PORT/16-PORT IP-KVM’s network
access, the user must first run the PSetup Utility software that is included on the
CD-ROM included in your package.
The PSteup Utility lets you set up the CAT5 8-PORT/16-PORT IP-KVM’s network
configuration (IP address, Subnet mask, DHCP, etc) from any computer that is
connected to the same subnet. This program is also useful if you ever need to
view or change the network settings of the unit. If the initial or default basic
configuration does not meet your requirements, use the PSetup program to
change the configuration to suit your needs.

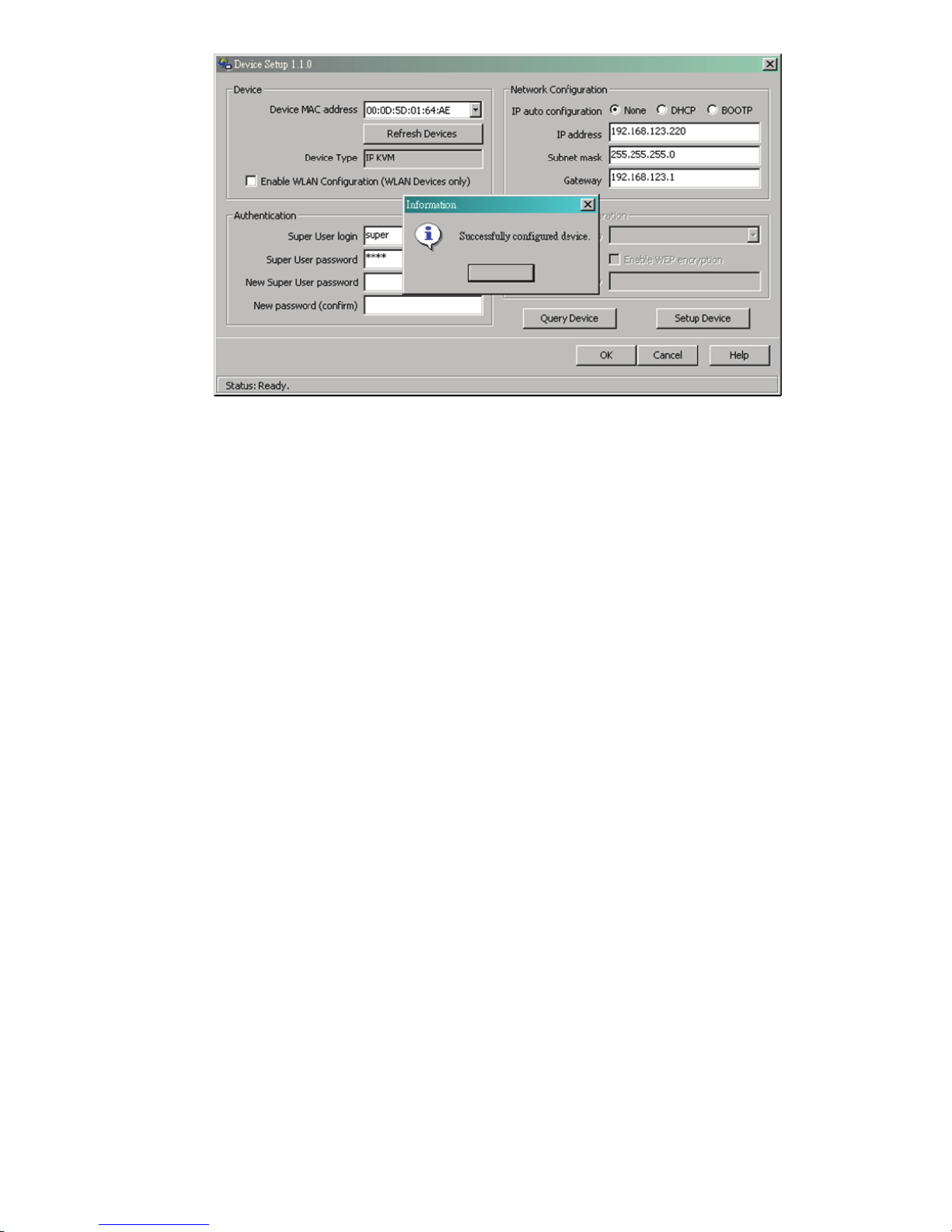

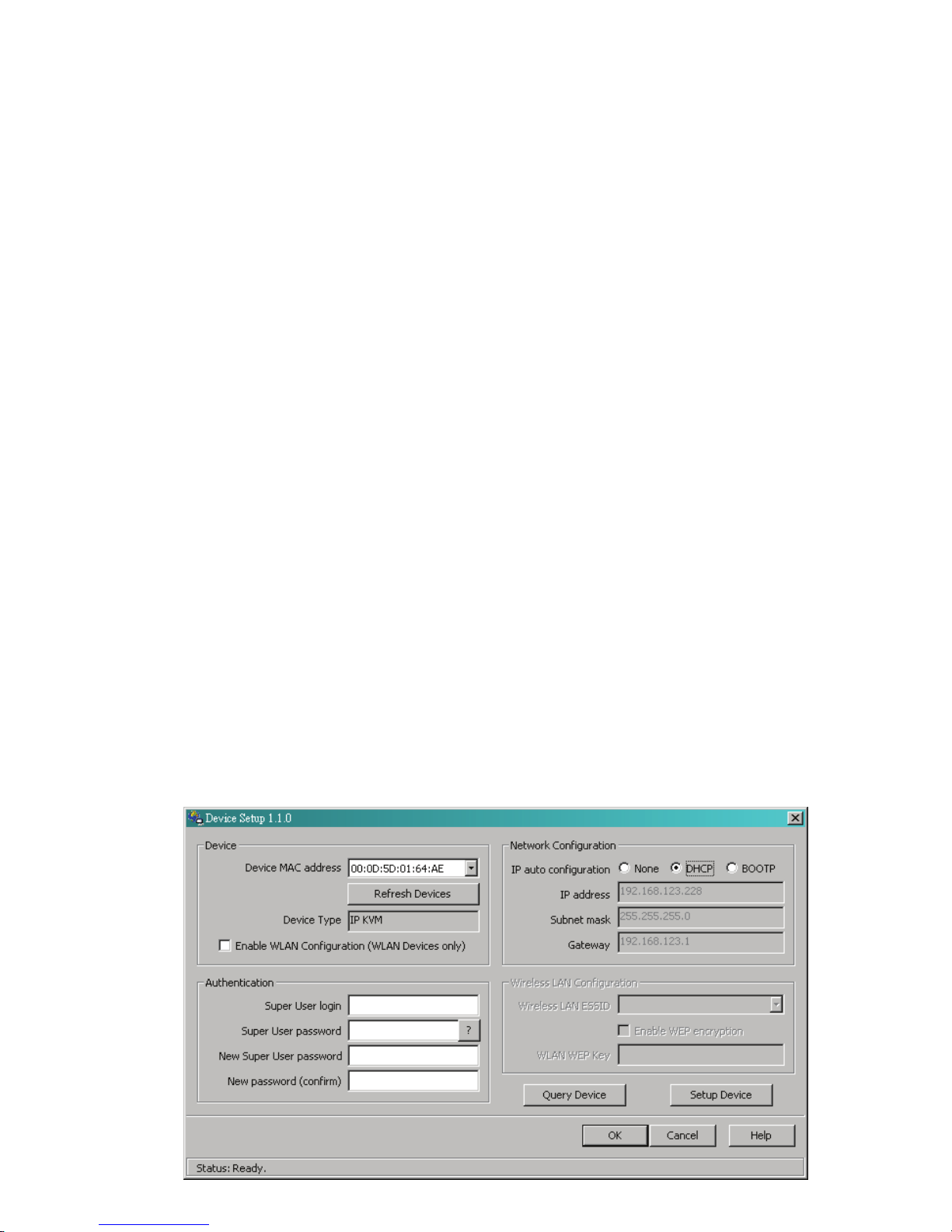

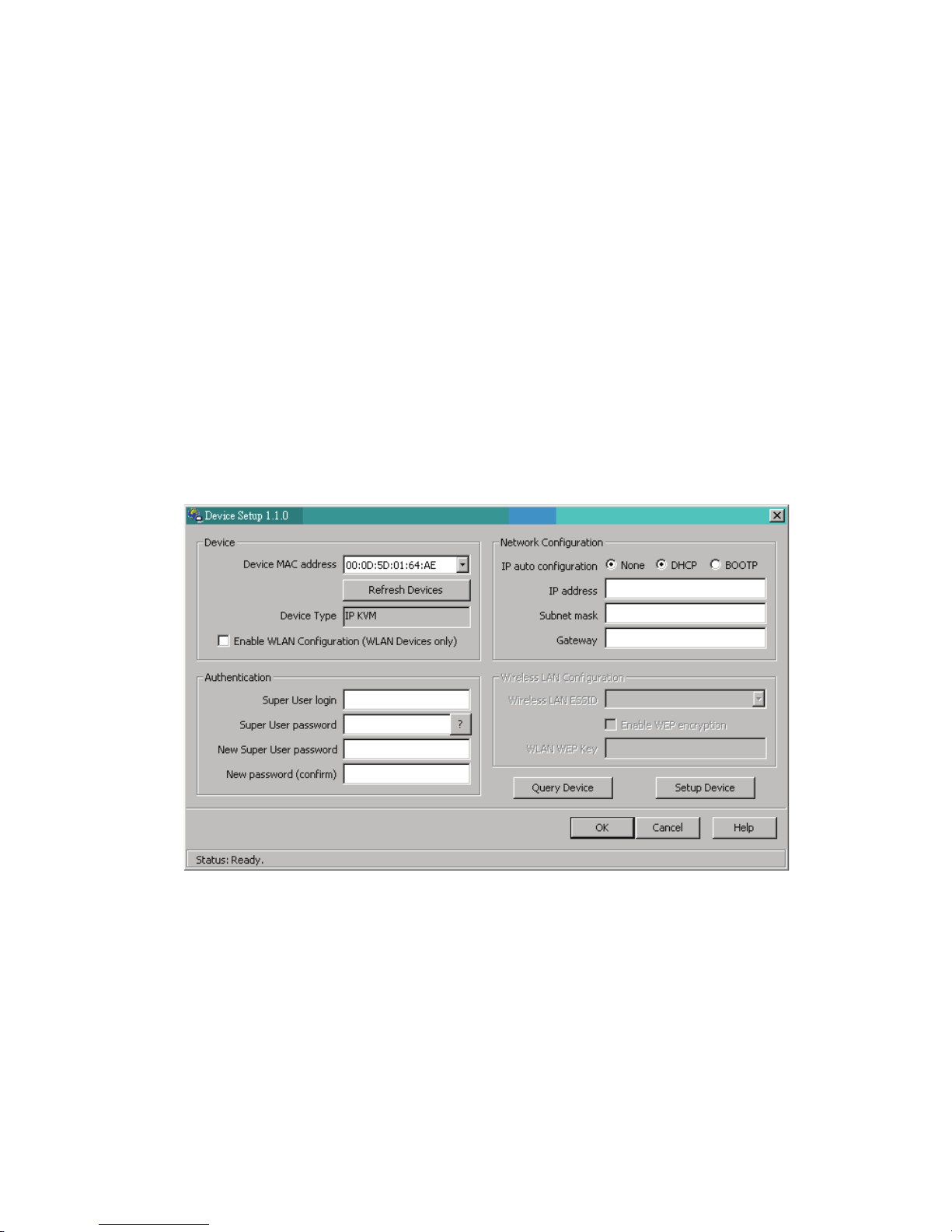

When open the PSetup Utility on your computer, the PSetup Utility window (see
the screenshot below) will appear.
To use the PSetup Utility, please follow the procedures described below.
Finding the CAT5 8-PORT/16-PORT IP-KVM on your network via the Psetup
Utility:
1) Make sure the computer you are using to set up the CAT5 PORT/16-PORT
IP-KVM is connected to the same local network that the CAT5 8-PORT/16-PORT
IP-KVM is connected to.
2) Open the PSetup Utility on your computer. The PSetup Utility window (see
the screenshot above) will appear.
Page 33
--
33
3) Use the PSetup Utility to search for the CAT5 8-PORT/16-PORT IP-KVM on
your network:
a) Click the Refresh Devices button to show the MAC addresses of all
connected devices on your network.
b) Find the MAC address of the CAT5 8-PORT/16-PORT IP-KVM by clicking
on the “Device MAC Address” drop-down box. Select your device’s MAC
address from the dropdown list.
c) After selecting your CAT5 8-PORT/16-PORT IP-KVM’s MAC address,
click Query Device to view the device’s Network Configuration in the top
right area.
d) By default, the DHCP function is disabled, and “None” will be selected for
“IP auto configuration”. This means there would initially be a static IP
address for the device. You can now configure the CAT5 8-PORT/16-PORT
IP-KVM to use a static IP address, or you can turn on DHCP to
automatically obtain an IP address from a DHCP server on your network.
Both configurations are described in the following steps.
Note: We recommend that you manually set up a static IP address that is
linked to the MAC address of your CAT5 8-PORT/16-PORT IP-KVM.
Setting up a static IP via the PSetup Utility:
1) Make sure that the correct MAC address is selected in the “Device” field at
the top left of the PSetup Utility window.
2) Click Query Device (at bottom right) to view the device’s Network
Configuration in the top right area.
3) In the “IP auto configuration” line at the top right, select “None”.
4) Enter the IP address, subnet mask, and gateway you want the CAT5
8-PORT/16-PORT IP-KVM to use.
5) In the Authentication area, enter the Super User login and password for the
CAT5 8-PORT/16-PORT IP-KVM. The default login is super, and the default
password is pass.
6) Click the Setup Device button. If the Super User login and password are
correct, a“Successfully configured device” message will appear.
7) The CAT5 8-PORT/16-PORT IP-KVM’s web management interface can now
be accessed via the Internet by simply browsing to the same IP address
from a web browser.
Page 34
34
OK
Enabling DHCP to get a dynamic IP address:
If you have installed the CAT5 8-PORT/16-PORT IP-KVM on the subnet
(intranet) of a DHCP server, or the subnet of a router that supports DHCP, you
can use the PSetup Utility to find the dynamic IP address of the CAT5
8-PORT/16-PORT IP-KVM. DHCP automatically assigns a dynamic IP address
to the CAT5 8-PORT/16-PORT IP-KVM. This allows a device to be automatically
assigned an IP, eliminating the need for intervention by a network administrator,
who would otherwise have to manually assign the CAT5 8-PORT/16-PORT
IP-KVM a static IP address.
1) Before connecting the CAT5 8-PORT/16-PORT IP-KVM to your network,
make sure you complete the configuration of the network’s DHCP server.
The network’s router may be acting as your network’s DHCP server, or
another device may be acting as the DHCP server.
2) Connect the CAT5 8-PORT/16-PORT IP-KVM to your network by using an
Ethernet cable. Connect one end to your network, and the other end to the
Ethernet port of the CAT5 8-PORT/16-PORT IP-KVM.
3) The DHCP function of the router/server will now automatically assign an IP
address to the CAT5 8-PORT/16-PORT IP-KVM.
4) Make sure that the computer you are using to set up the CAT5
8-PORT/16-PORT IP-KVM is connected to the same network that the CAT5
8-PORT/16-PORT IP-KVM is connected to.
5) Open the PSetup Utility on your computer. The PSetup Utility window (see
the screenshot above) will appear.
Page 35
--
35
6) Use the PSetup Utility to search for the CAT5 8-PORT/16-PORT IP-KVM on
the network (see the image below):
a) Click the Refresh Devices button to detect all connected devices.
b) Find the MAC address of the CAT5 8-PORT/16-PORT IP-KVM by
clicking on the “Device MAC Address” drop-down box. Select your
device’s MAC address from the dropdown list.
c) After selecting your CAT5 8-PORT/16-PORT IP-KVM’s MAC address,
click Query Device (see the screenshot below) to view the device’s
Network Configuration in the top right area.
d) In the “IP auto configuration” line at the top right, select “DHCP”.
e) In the Authentication area, enter the Super User login and password for
the CAT5 8-PORT/16-PORT IP-KVM. The default login is super, and
the default password is pass.
f) Click the Setup Device button. If the Super User login and password
are correct, a “Successfully configured device” message will appear.
g) The CAT5 8-PORT/16-PORT IP-KVM will now try to contact a DHCP
server in the subnet to which it is physically connected. If contact is
made with a DHCP server, it will provide the CAT5 8-PORT/16-PORT
IP-KVM with a dynamic IP address, subnet mask, and gateway.
h) Click the Query Device button again, and the device’s dynamic IP
address and other network information should now be visible in the
Network Configuration field (see the screenshot below).
Page 36
36
Notes:
BOOTP, a static configuration protocol, uses a table that maps
IP addresses to physical addresses.
DHCP, an extension to BOOTP that dynamically assigns
configuration information. DHCP is backward compatible with
BOOTP.
The factory default settings for the CAT5 8-PORT/16-PORT IP-KVM unit are
as below:
DHCP: Disabled
Default IP address: 192.168.0.70
Default Subnet mask: 255.255.255.0
IN SHORT: If the currently selected device has DHCP selected for its Network
Configuration, click OK and the CAT5 8-PORT/16-PORT IP-KVM will try to
contact a DHCP server in the network to which it is physically connected. If
contact is made with a DHCP server, it will provide the CAT5 8-PORT/16-PORT
IP-KVM with a dynamic IP address, gateway address and subnet mask.
Changing your device’s password through the PSetup Utility:
To change your password with the PSetup Utility, select your device from the
Device MAC Address drop-down box, then in the “Authentication” section in the
bottom-left part of the window, enter the Super User login and current password
for your CAT5 8-PORT/16-PORT IP-KVM. The default login is super, and the
default password is pass. Now enter your new password in the “New Super User
password” text box, and enter it again in the “New Password (confirm)” text box
to confirm it.
To save your new password and close the window, click the OK button.
Otherwise, click the Cancel button.
WARNING:
Please make sure that you change the default Super User password
immediately after you have installed and accessed your CAT5
8-PORT/16-PORT IP-KVM for the first time. Leaving the password as it is
represents a severe security risk and may result in unauthorized access to
the CAT5 8-PORT/16-PORT IP-KVM as well as the entire Remote console
system and connected devices. The password can be changed in the setup
program (as described above) or online on the browser-based Web
Management GUI. Make sure you write your password down in a safe
place.
Page 37
--
37
NOTE:
Your web browser has to be set up to accept cookies, or else you won’t be
able to log in. If you experience login problems, check to see if your
browser has been set up to accept cookies.
9.2 Configuration Setup via Serial Console
For connecting to serial-based terminals, the CAT5 8-PORT/16-PORT IP-KVM has
a serial cable interface (for setup on the Host side). This connector is compliant
with the RS-232 serial line standard. The serial connection has to be configured
with the parameters given in Table below.

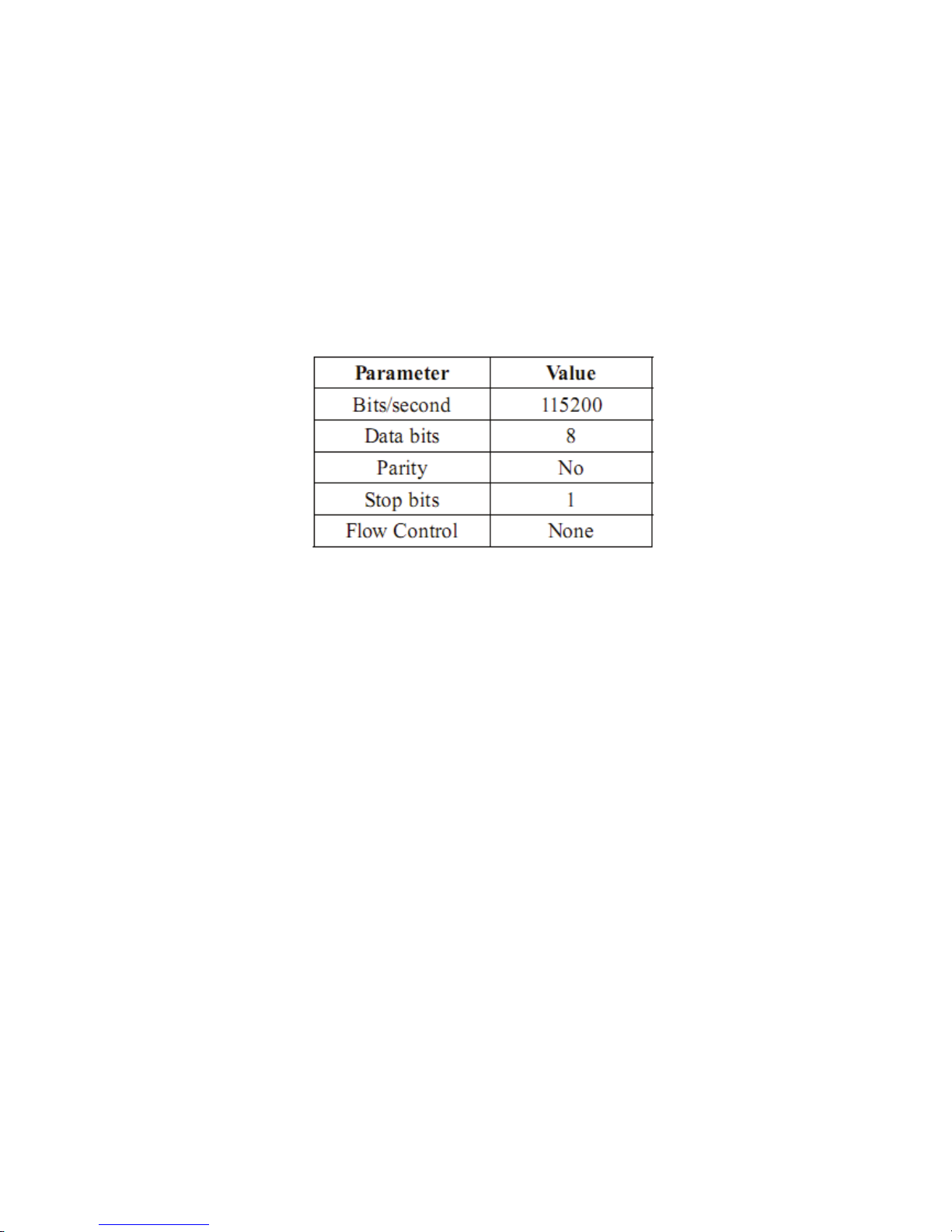

When configuring your device from a serial-based terminal such as Hyper Terminal,
reset the CAT5 8-PORT/16-PORT IP-KVM and immediately press the “ESC” key.
You will see some devices information, and a “=>” prompt. Type in “config”, press
the “Enter” key and wait a few seconds for the configuration questions to appear.
As you proceed, you will be prompted for the following settings one after the other.
To accept the default values shown in square brackets below, press the “Enter”
key.
IP auto configuration: None
IP address: [192.168.0.70]
Net mask: [255.255.255.0]
Gateway: [0.0.0.0] -- (0.0.0.0 for none)
IP auto-configuration
You can specify whether the CAT5 8-PORT/16-PORT IP-KVM should get its
network settings from a DHCP or BOOTP server. To enable IP auto-configuration
via DHCP, type “dhcp” in the “IP auto-configuration” line. For BOOTP, type “bootp”.
Press “Enter” to apply the setting.
If you do not specify either of these two options, IP auto-configuration will be
disabled (it will be static IP configuration) and you will be asked for the following
network settings:
Page 38
38
IP address
Enter the IP address for the CAT5 8-PORT/16-PORT IP-KVM. This option is only
available if IP auto-configuration is disabled.
Net mask
Enter the subnet mask of the connected IP subnet. This option is only available if
IP auto-configuration is disabled.
Gateway address
Enter the IP address of the default router for the connected IP subnet. If you do not
have a default router, enter 0.0.0.0. This option is only available if IP
auto-configuration is disabled.
9.3 Keyboard, Mouse, and Video configuration
Between the CAT5 8-PORT/16-PORT IP-KVM and the host, there are two
interfaces available for transmitting keyboard and mouse data: USB and PS/2.
The correct operation of the remote mouse depends on several settings which
will be discussed in the following subsections.
9.3.1 CAT5 8-PORT/16-PORT IP-KVM keyboard settings
The keyboard model emulated by the CAT5 8-PORT/16-PORT IP-KVM must be
set properly in order for keystrokes received by the Host computer to match the
ones sent by a Remote computer. View these settings in the CAT5
8-PORT/16-PORT IP-KVM’s Web Management GUI.
9.3.2 Remote Mouse Settings
A common problem with KVM devices is the synchronization between the
Host-side and Remote-side mouse cursors. The CAT5 8-PORT/16-PORT
IP-KVM resolved this problem with an intelligent synchronization algorithm.
There are two mouse modes available on the CAT5 8-PORT/16-PORT IP-KVM:
Auto mouse speed
The automatic mouse speed mode tries to detect the speed and acceleration
settings of the host system automatically. See the section below for a more
detailed explanation.
Page 39
--
39
Fixed mouse speed
This mode just translates the mouse movements from the Remote Console so
that one pixel of movement will result in “n” number of pixel moves on the Host
system. The value of “n” is adjustable. Please note that this works only when
mouse acceleration settings are turned off on the Host computer.
9.3.3 Automatic mouse speed and mouse synchronization
The automatic mouse speed mode performs the speed detection during mouse
synchronization. Whenever the Host-side and Remote-side mouse cursors move
synchronously or not, there are two ways for re-synchronizing Host-side and
Remote-side mouse cursors:
Fast Sync
The fast synchronization is used to correct a temporary, but fixed skew. Choose
the option using the Remote Console options menu or press the mouse
synchronization hot-key sequence in case you defined one.
Intelligent Sync
If the fast sync does not work or the mouse settings have been changed on the
host system, use the intelligent resynchronization. This method takes more time
than the fast Sync. It can be accessed with the appropriate item in the Remote
Console option menu. The intelligent synchronization requires a correctly
adjusted picture. Use the auto adjustment function to setup the picture, and
make sure that there are no window at the top left corner of the remote desktop
that are able to change the mouse cursor shape from the normal state. The Sync
mouse button on top of the Remote Console can behave differently, depending
on the current state of mouse synchronization. Usually pressing this button leads
to a fast sync, except in situations where the KVM port or the video mode
changed recently.
Note: At first start, if the local mouse pointer is not synchronized with the remote
mouse pointer, press the Auto Adjust Button once.
9.3.4 Single and Double Mouse Mode
The CAT5 8-PORT/16-PORT IP-KVM features two different mouse
synchronization modes: Double Mouse mode, and Single Mouse mode.
Double Mouse Mode: In this mode, both the Remote and Host mouse pointers
are visible, allowing you to control the Host computer on your Remote computer
while allowing you to move the mouse outside the Remote Console window. In this
Page 40
40
mode, the mouse pointers may need to be synchronized in order to ensure they
are pointing at the same position on your Host computer screen. You can define a
hotkey to quickly sync the two mouse pointers.
Single Mouse Mode: In this mode, only one mouse pointer is visible – the Remote
computer pointer. On the Remote computer, when you click on the Remote
Console window, your mouse pointer will be “captured”, and all mouse movement
will be inside the Remote Console window only. In order to “free” the Remote
computer’s mouse pointer, you will need to use a hotkey to “release” the mouse
pointer from the Remote Console window. The default hotkey for this is “Alt + F12”.
9.3.5 Host system mouse settings
While the CAT5 8-PORT/16-PORT IP-KVM supports accelerated mouse
movements and is able to synchronize the Host-side pointer with the Remote-side
mouse pointer, there are a few operating systems that limit this functionality and
may prevent this synchronization from working properly. If you experience issues
with mouse synchronization, please try the following:
Special Mouse Driver
Specific mouse drivers may influence the synchronization process and impede
synchronization of dual mouse pointers. If this happens, make sure you are not
using a special vendor-specific mouse driver on your Host system.
Windows Settings
All versions of Windows (on Host computer): In the CAT5 8-PORT/16-PORT
IP-KVM’s web GUI, select “Auto Mouse Speed” (in KVM Settings >
Keyboard/Mouse).
Windows 2000 (on Host computer): On the Host computer, you will need to go to
Control Panel > Mouse > Motion > Acceleration and make sure “Improve Mouse
Acceleration” is disabled.
Windows XP/Vista/7 (on Host computer): On the Host computer, you will need to
go to Control Panel > Mouse > Pointer Options and make sure “Enhance Pointer
Precision” is disabled.
Active Desktop
If the “Active Desktop” feature of Microsoft Windows is enabled, do not use a plain
background. Instead, use a wallpaper image. Alternatively, disable “Active
Desktop” completely.
Page 41
--
41
Mac OS X Settings
Mac OS X (on Host computer): If the host computer is running on any version
of Mac OS X, we recommend using Single Mouse mode.
SUN Solaris Settings
SUN Solaris (on Host computer): If the host system is running SUN Solaris,
adjust the mouse settings of the system by entering “xset m 1” into the console, or
use the CDE Control Panel to set the mouse to “1:1, no acceleration”. Alternatively,
you could use the Single Mouse mode only. On SUN operating systems, Double
Mouse Mode only functions if you use SUN JVM 1.5 or higher.
9.3.6 Video Modes
The CAT5 8-PORT/16-PORT IP-KVM recognizes a limited number of common
video modes. If you run X11 on the host system, please do not use any custom
mode lines with special video modes. If you do, the CAT5 8-PORT/16-PORT
IP-KVM may not be able to detect them. We recommend using any of the standard
VESA video modes instead.
.
Page 42
42
10 Usage
10.1 Prerequisites
The CAT5 8-PORT/16-PORT IP-KVM features an embedded operating system
and applications that support two standardized interfaces – HTTP/HTTPS and
Telnet. This chapter will describe both these interfaces in detail, as well as how
to use them. Both interfaces are accessed using the TCP/IP protocol family.
■ HTTP/HTTPS
Full access is provided by the embedded web server. The CAT5
8-PORT/16-PORT IP-KVM environment can be entirely managed by using a
standard web browser. You can access the CAT5 8-PORT/16-PORT IP-KVM
by using the non-secure HTTP protocol, or by using the encrypted HTTPS
protocol. For security purposes, we suggest using HTTPS whenever possible.
■ Telnet
A standard Telnet client can be used to access an arbitrary device that is
connected to the CAT5 8-PORT/16-PORT IP-KVM's serial port in
terminal mode.
■ HTTP as the Primary Interface
The primary interface of the CAT5 8-PORT/16-PORT IP-KVM is the HTTP
interface. This will be covered extensively in this chapter. Other interfaces are
addressed in sub-topics.
In order to open the Remote Console window of your managed host system, the
browser must support version 1.5 or above of the Java Runtime Environment. If
the browser has no Java support (such as on a small handheld device), you can
still manage your CAT5 8-PORT/16-PORT IP-KVM by using the administration
forms displayed by the browser itself.
For a secure connection to the CAT5 8-PORT/16-PORT IP-KVM, we
recommend the following browsers versions:
Microsoft Internet Explorer version 6.0 or higher
Netscape Navigator 7.0
Mozilla 1.6 or higher
In order to access the remote host system using a securely encrypted
connection, you need a browser that supports the HTTPS protocol. Strong
security is only assured by browser that supports a 128-bit passkey. Some older
Page 43
--
43
browsers do not have a strong 128-bit encryption algorithm.
If you are using Internet Explorer, click on the top toolbar menu option marked
“?”, then click on “About Internet Explorer” to see the current “Cipher Strength”
(the passkey length that is currently activated). The dialog box contains a link
that leads you to information on how to upgrade your browser to a more powerful
encryption scheme. The screenshots below shows the dialog boxes presented
by IE 8 and IE 6.

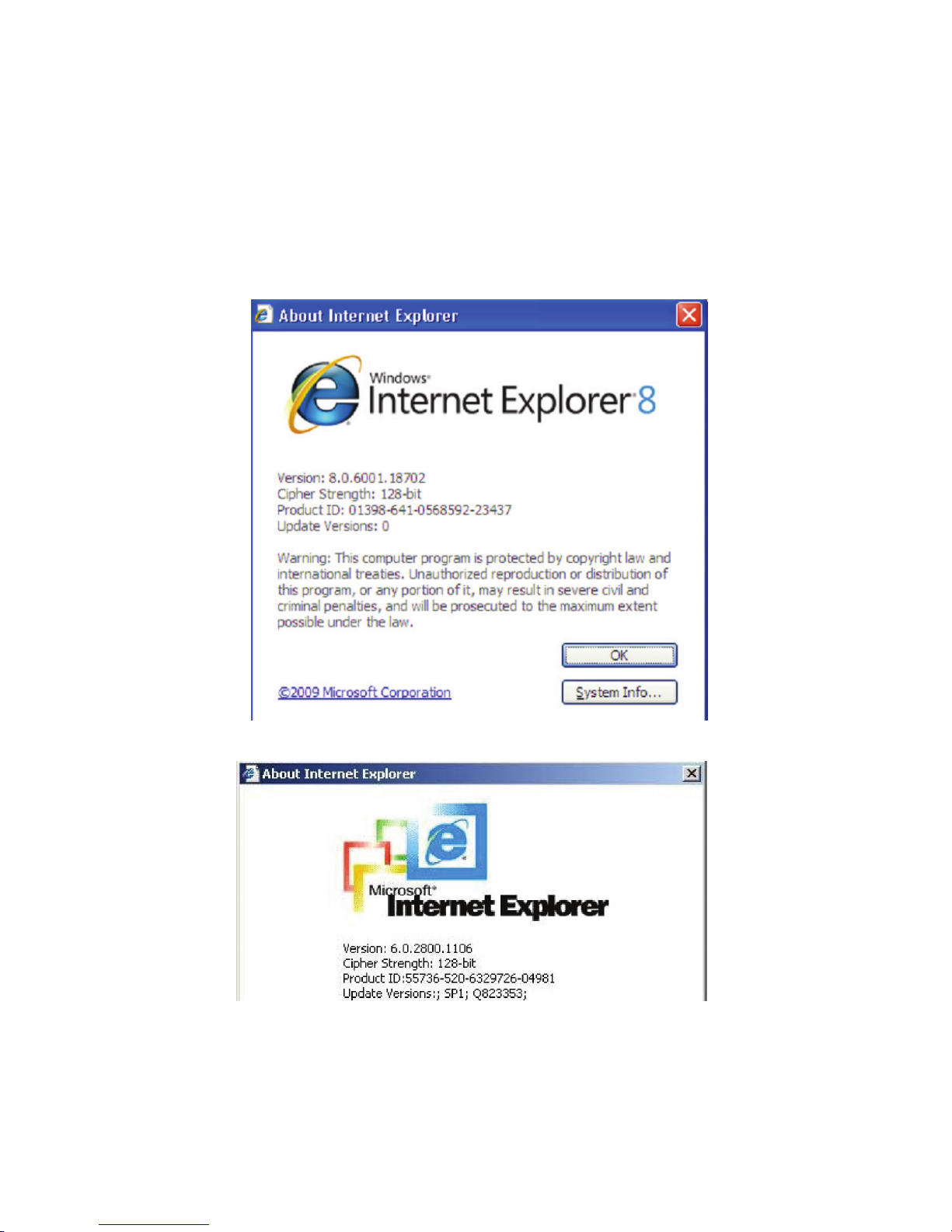

Figure 33: The Internet Explorer displaying the encryption key length
Newer web browsers generally support strong encryption by default.
Page 44
44
10.2 Log in/out CAT5 8-PORT/16-PORT IP-KVM
10.2.1 Log in the CAT5 8-PORT/16-PORT IP-KVM
The CAT5 8-PORT/16-PORT IP-KVM has three levels of access privileges:
User Name
Default
Password
Access Privileges
super
(factory default)
pass
(factory default)
Full access
administrator (user-define)
Partial rights to configure the settings
of critical functions
user (user-define)
Rights to access basic functions of the
Open Remote Console
The super user can add or remove a user easily via the web pages of User
Management > Users. Please refer to Addendum C for details on what access
rights are assigned for each user level.
Launch your web browser and type in the IP address that you configured for your
CAT5 8-PORT/16-PORT IP-KVM during the installation process. The address
might be an IP address or a domain name, in the case where you have given your
CAT5 8-PORT/16-PORT IP-KVM a symbolic name in the DNS. For instance, type
the following in the URL field of your browser when establishing a non-secured
connection:
http://<IP address of IP-KVM>
When using a secure connection, type in:
https://<IP address of IP-KVM>

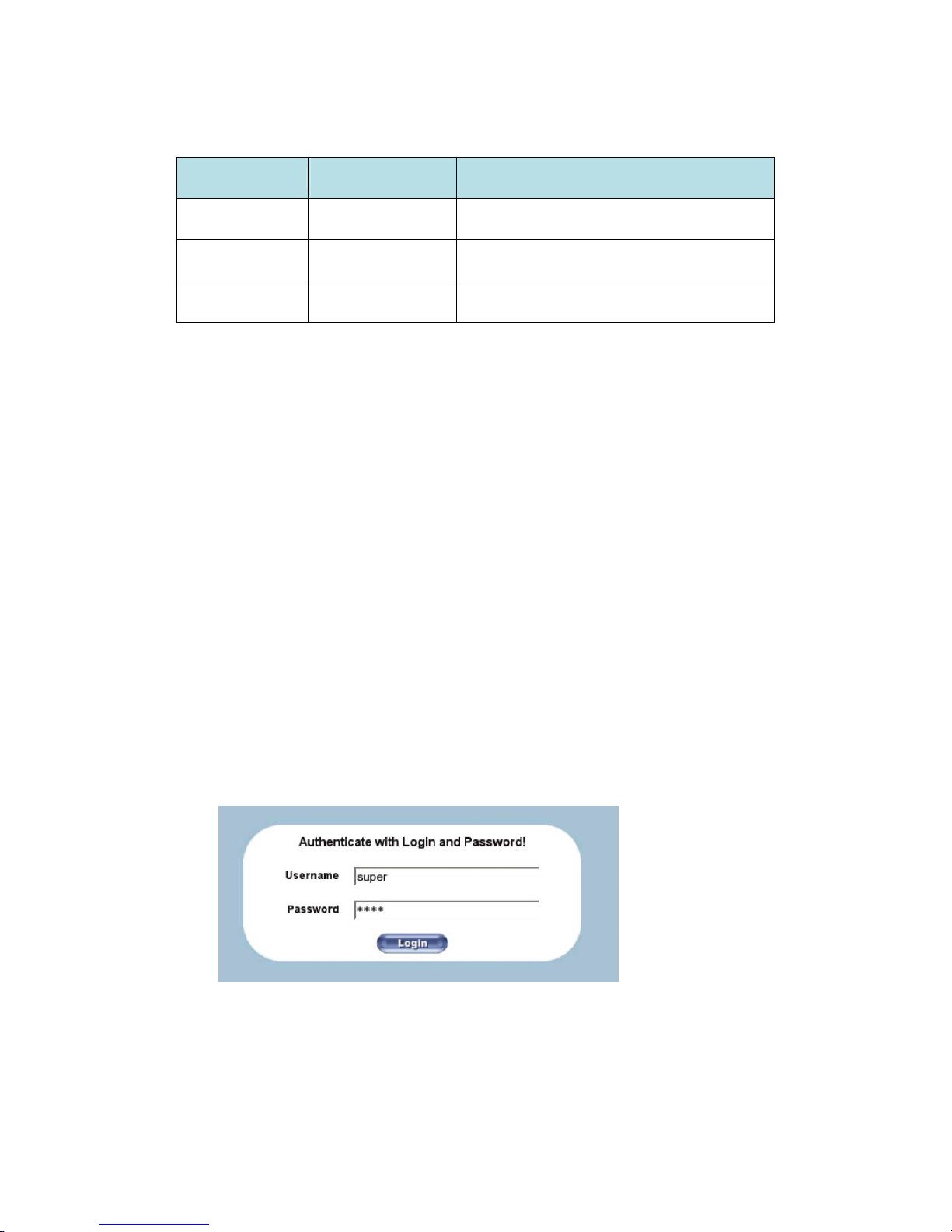

The browser will open the IP-KVM login page, as shown below:
If you connect to the CAT5 8-PORT/16-PORT IP-KVM unit, the CAT5
8-PORT/16-PORT IP-KVM system (via its web server, Telnet server, or SSH
server) will prompt you to enter your username and password in order to access
the system. If this is the first time you log in, log in with the factory default
username super and password pass, after which you will be prompted to change
the default password.
Page 45
--
45
WARNING:
Please make sure that you change the default Super User password
immediately after you have installed and accessed your CAT5
8-PORT/16-PORT IP-KVM for the first time. Leaving the password as it is
represents a severe security risk and may result in unauthorized access to
the CAT5 8-PORT/16-PORT IP-KVM as well as the entire Host system and
connected devices!
NOTE:
Your web browser has to be set up to accept cookies, or else you won’t be
able to log in.

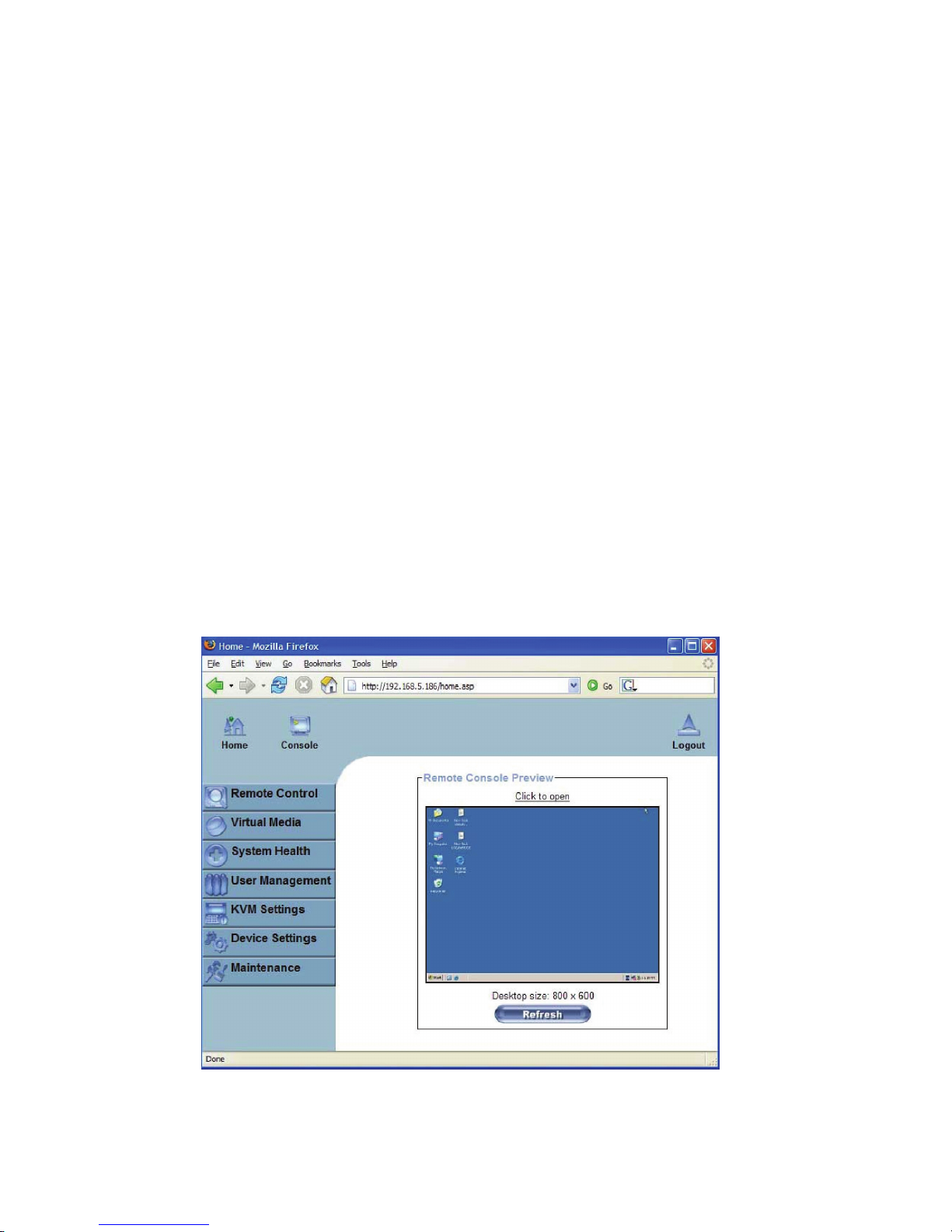

Navigation

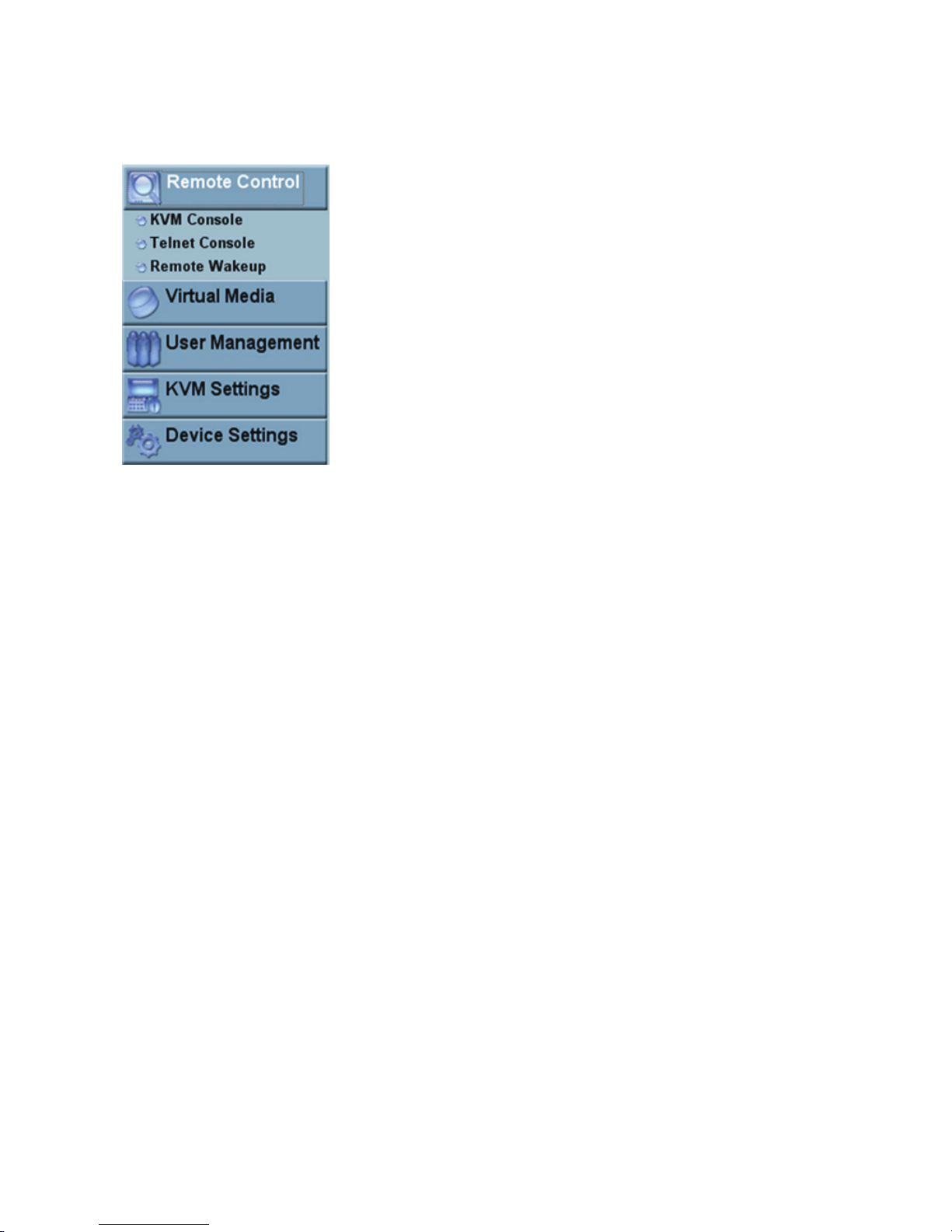

After successfully logging into the CAT5 8-PORT/16-PORT IP-KVM, the main
page of the IP-KVM web management GUI will appears. This page consists of
three parts; each of them contains specific information. The buttons on the upper
side are clickable shortcuts to go to the main page, to open the Remote Console
or to log out. The left-hand column displays the configuration categories. Clicking
on each configuration category will give a submenu of configuration/command
options.
Page 46
46

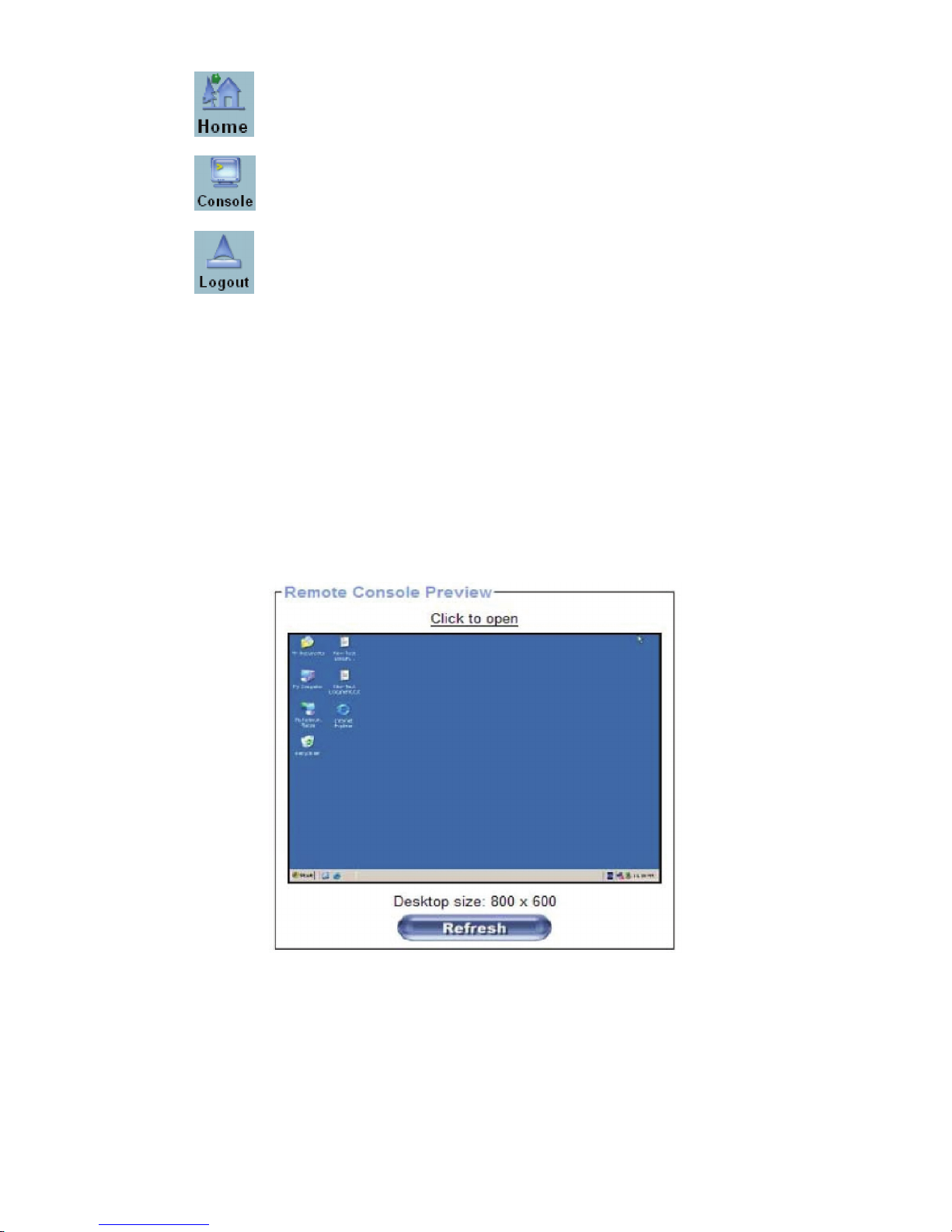

Return to the main page of the IP-KVM’s web GUI
Open the IP-KVM Remote Console
Log out and exit from the IP-KVM’s web GUI.
NOTE:
If there is no user activity for 30 minutes, the CAT5 8-PORT/16-PORT IP-KVM will log you
out automatically. Clicking on any of the menu items will bring you back to the login screen.
Remote Console Preview
Click on Click to open to start the remote console redirection
Click on Refresh to refresh the picture.
10.2.2 Log out from the CAT5 8-PORT/16-PORT IP-KVM
This link logs out the current user and presents a new login screen. Please note
that an automatic logout will be performed in case there is no activity for 30
minutes.
10.3 The Remote Console
Page 47
--
47
The Remote Console is the redirected screen, keyboard and mouse of the
remote host system that CAT5 8-PORT/16-PORT IP-KVM controls.
The Remote Console window is a Java Applet that tries to establish its own TCP
connection to the CAT5 8-PORT/16-PORT IP-KVM. The protocol that is running
over this connection is neither HTTP nor HTTPS, but RFB (Remote Frame
Buffer Protocol). By default, RFB tries to establish a connection to TCP port 443.
Your local network environment must allow this connection to be made, i.e. your
firewall and, in case you have a private internal network, your NAT (Network
Address Translation) settings have to be configured accordingly.
If the CAT5 8-PORT/16-PORT IP-KVM is connected to your local network
environment and your connection to the Internet is available by using a proxy
server without NAT being configured, it is unlikely that the Remote Console will
be able to establish the desired connection. This is because modern web proxies
are not capable of relaying the RFB protocol.
If you experience any problems, please consult your network administrator to
configure an appropriate networking environment.
10.3.1 Main Window of Remote Console
To open the KVM console, either click on the icon Console or Remote Control
> KVM Console of the menu entry in the left-hand column or click the Click to
open link at the top of the Remote Console picture on the right.

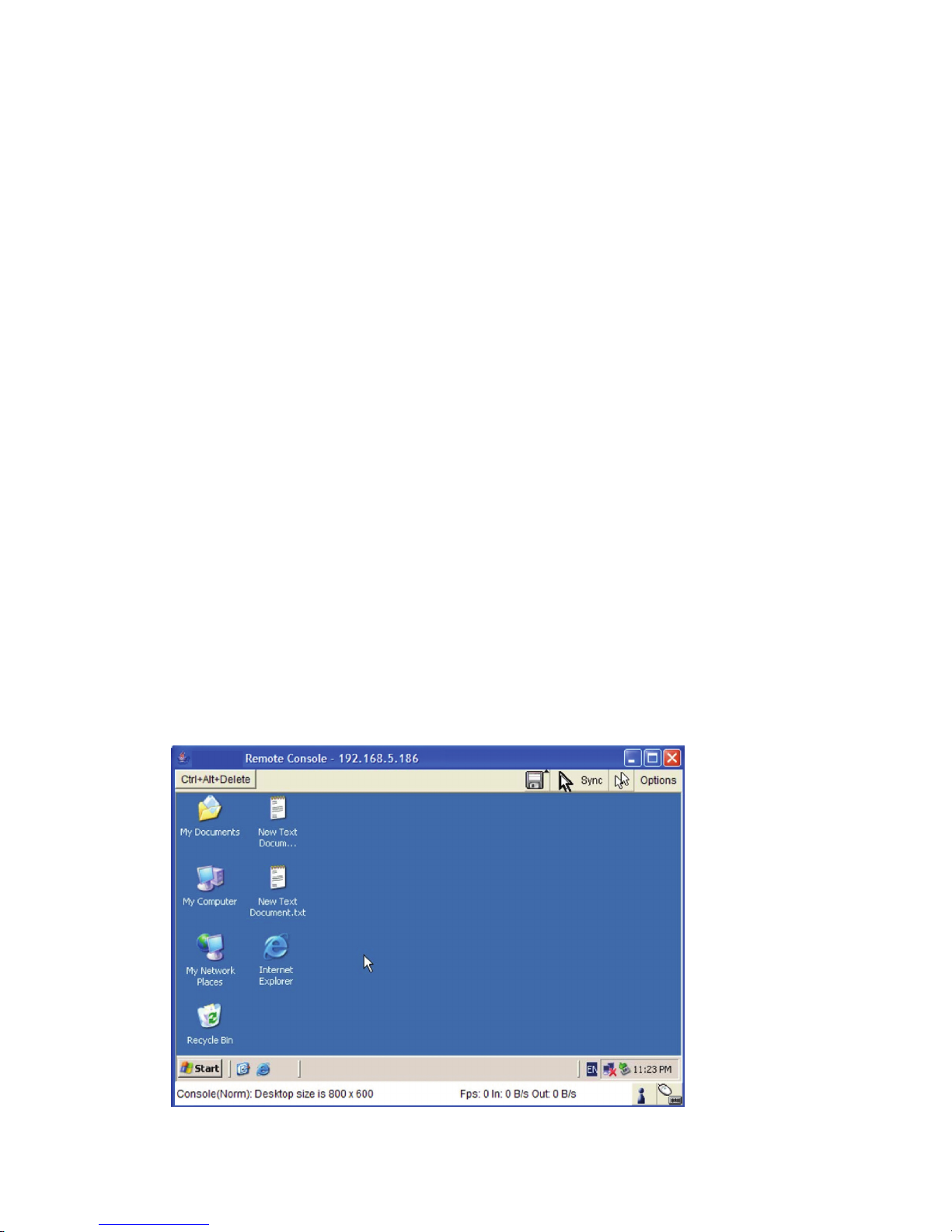

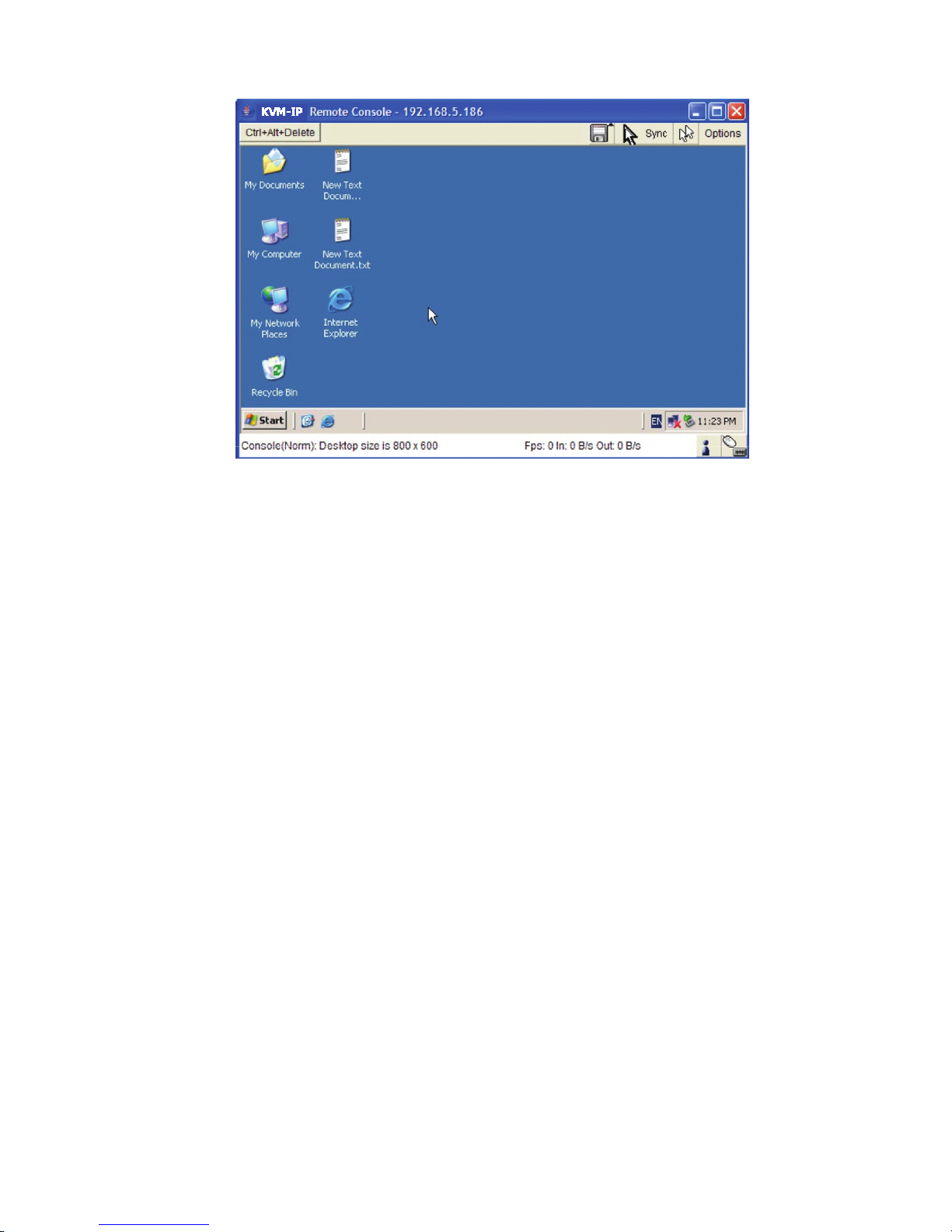

Activating the Remote Console function opens a new window on the Remote-side
user’s screen. This window displays the screen content of your host system. The
Page 48
48
Remote Console will behave exactly in the same way as if you were sitting in front
of it. This means you can use your keyboard and mouse in the usual way. However,
be aware of the fact that the feedback from
keyboard and mouse actions on the
Host system will be slightly delayed. The delay depends on the bandwidth of the
between you and the CAT5 8-PORT/16-PORT IP-KVM.
Differences between the Remote computer’s keyboard layout and the Host
computer’s keyboard settings may lead to some problems. For example, if the
Remote-side user uses a German keyboard layout and the Host system is set up
for an English keyboard layout, special German-specific keys on the German
keyboard will not work as expected. Instead, the keys will have the same effect
as those of an English-layout keyboard. The Remote-side user can circumvent
such problems by adjusting the keyboard settings of the Host system to have the
same mapping as the Remote user’s keyboard.
The Remote Console window always tries to show the remote screen with its
optimal size. That means it will resize the window to fit the Remote-side user’s
screen by default and after the screen resolution of the remote screen has been
changed. However, you can always resize the Remote Console window in your
local window system as usual.
NOTE:
The Remote Console window is just another window on the Remote-side user’s
system. To get control of the Host system, the Remote-side user first needs to
click inside the Host window to give it focus. In Single Mouse mode, this action
will capture the mouse pointer, so all mouse input is directed to the Host
computer, and making the Remote computer’s mouse pointer disappear. To
release the mouse from this captured state, use the Mouse hotkey. The default
hotkey for this is Alt+F12, but this hotkey can be reconfigured manually.
10.3.2 Control Bar of Remote Console
The upper part of the Remote Console window contains a control bar. By clicking on
the icons on this bar, you can view the state of the Remote Console and adjust the
local Remote Console settings. The following is a description for each control:

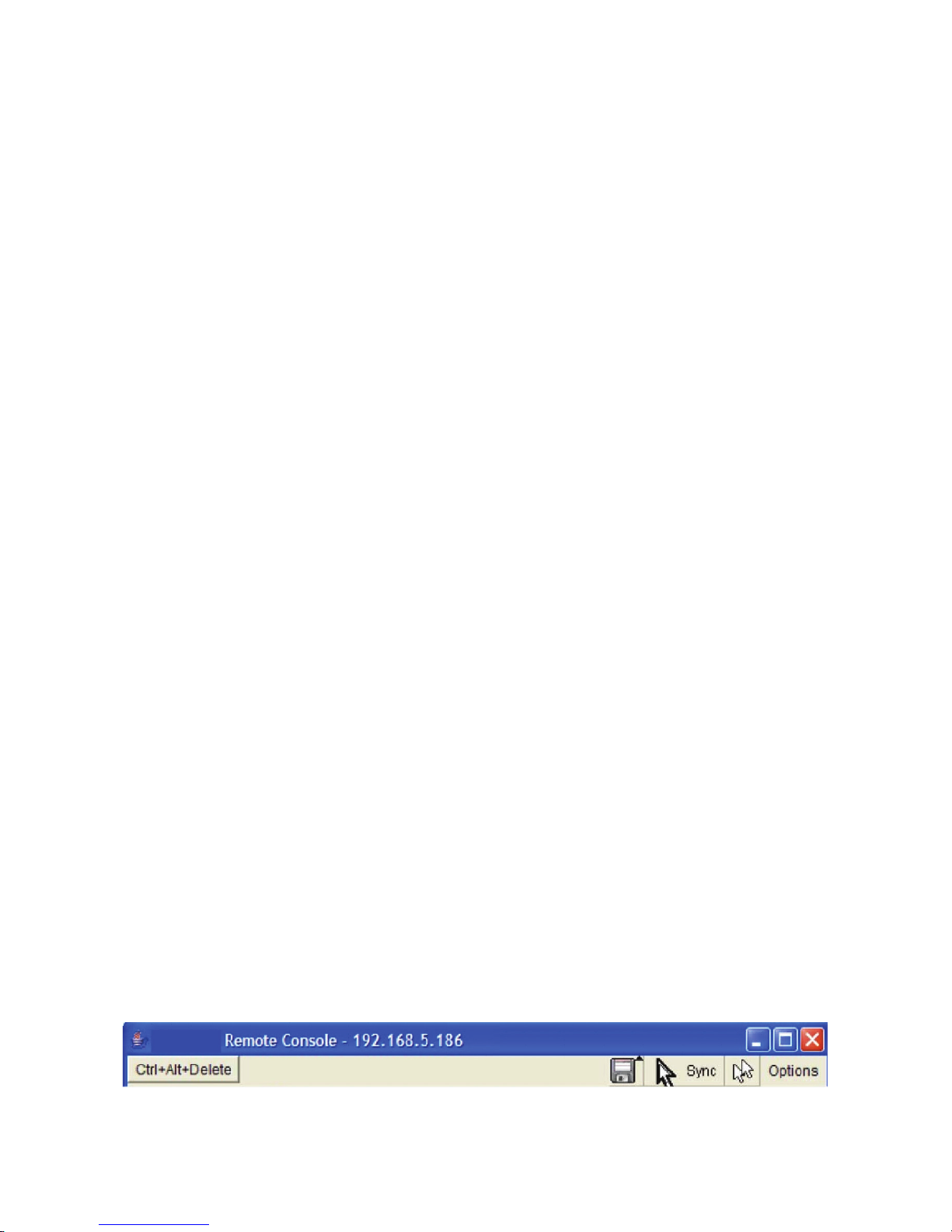

Figure 34: Remote Console Control Bar
Page 49
--
49

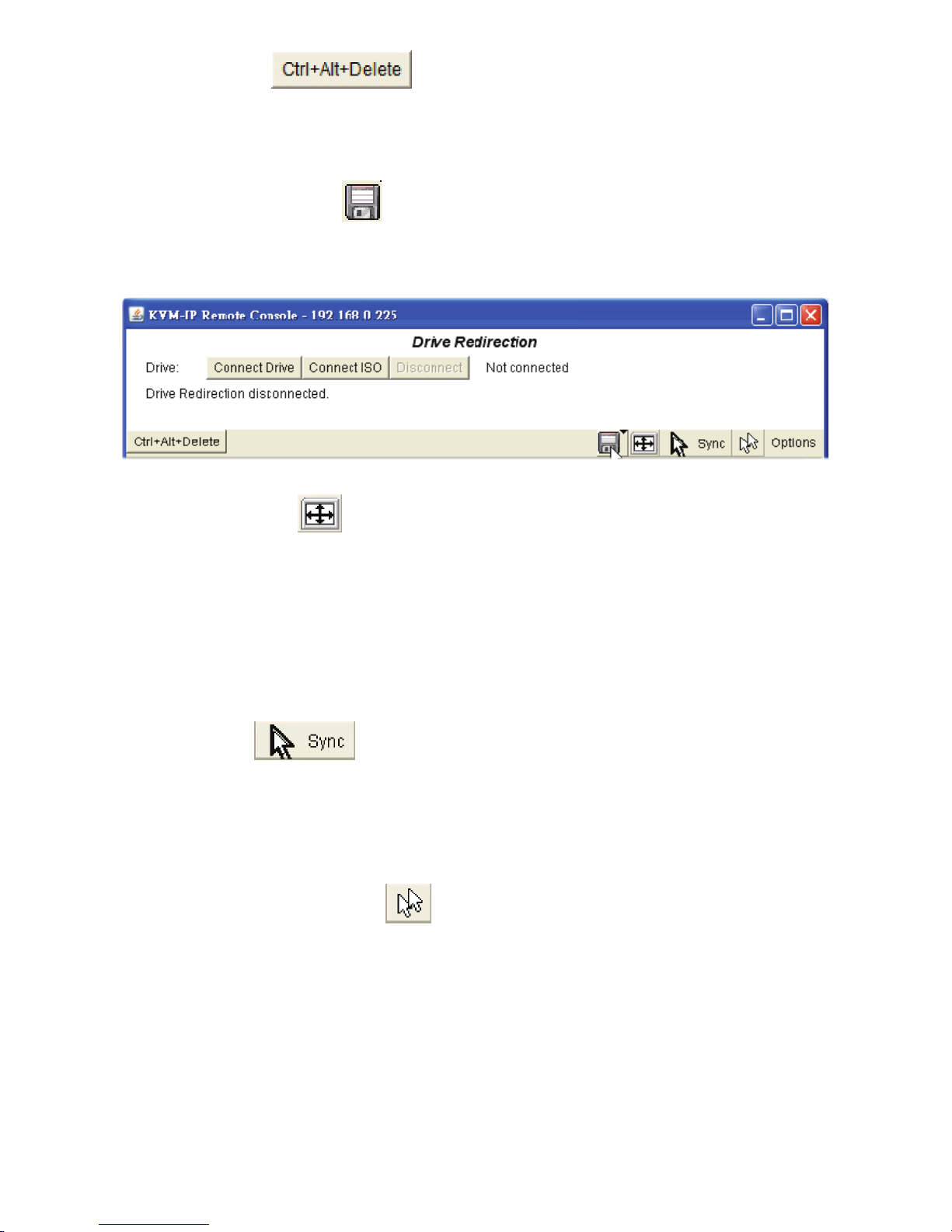

Ctrl+Alt+Delete
Click this button to send the “Control Alt Delete” key-sequence command to the remote
system. (Also, see section 5.4.1 for configuring new key-sequence buttons).

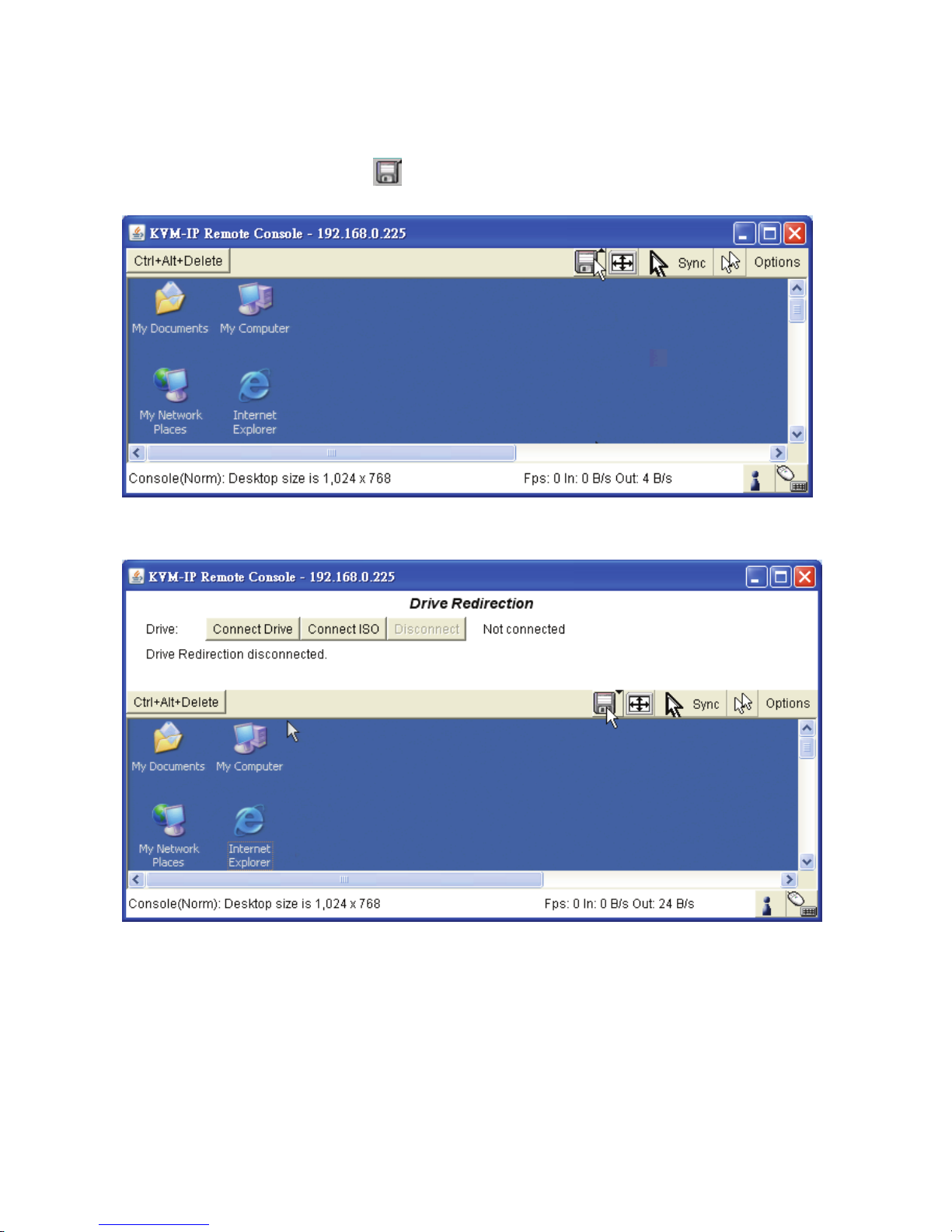

Drive Redirection button
Click this button to open the Drive Redirection options at the top of the Remote Console
window (see the screenshot below). For more details, see section 11.2.
Auto Adjust button
If the quality of the Remote Console video is bad, or if the Remote Console window is
distorted in some way, click this button and wait a few seconds while the CAT5
8-PORT/16-PORT IP-KVM tries to detect the video mode of the VGA connection of the
Host system to the CAT5 8-PORT/16-PORT IP-KVM. Once detection is complete, the
CAT5 8-PORT/16-PORT IP-KVM will adjust itself for the best possible video quality.
Sync mouse
Clicking this button activates the mouse synchronization process. Choose this option to
synchronize the Host-side mouse cursor with the Remote-side mouse cursor. (Double
Mouse Mode only)
.
Single/Double mouse mode
Clicking this button switches between Single Mouse Mode (where only the Host-side
mouse pointer is visible) and the Double Mouse Mode (where the Host-side and
Remote-side mouse pointers are both visible and need to be synchronized). On SUN
operating systems, Double Mouse Mode only functions if you use SUN JVM 1.5 or higher.
We recommend using only Single Mouse Mode on Mac OS X systems. For more
information on Single and Double Mouse mode and troubleshooting mouse
synchronization, please refer to Section 9.3.4.
Page 50
50
Options
Click on this button to open the “Options” menu.

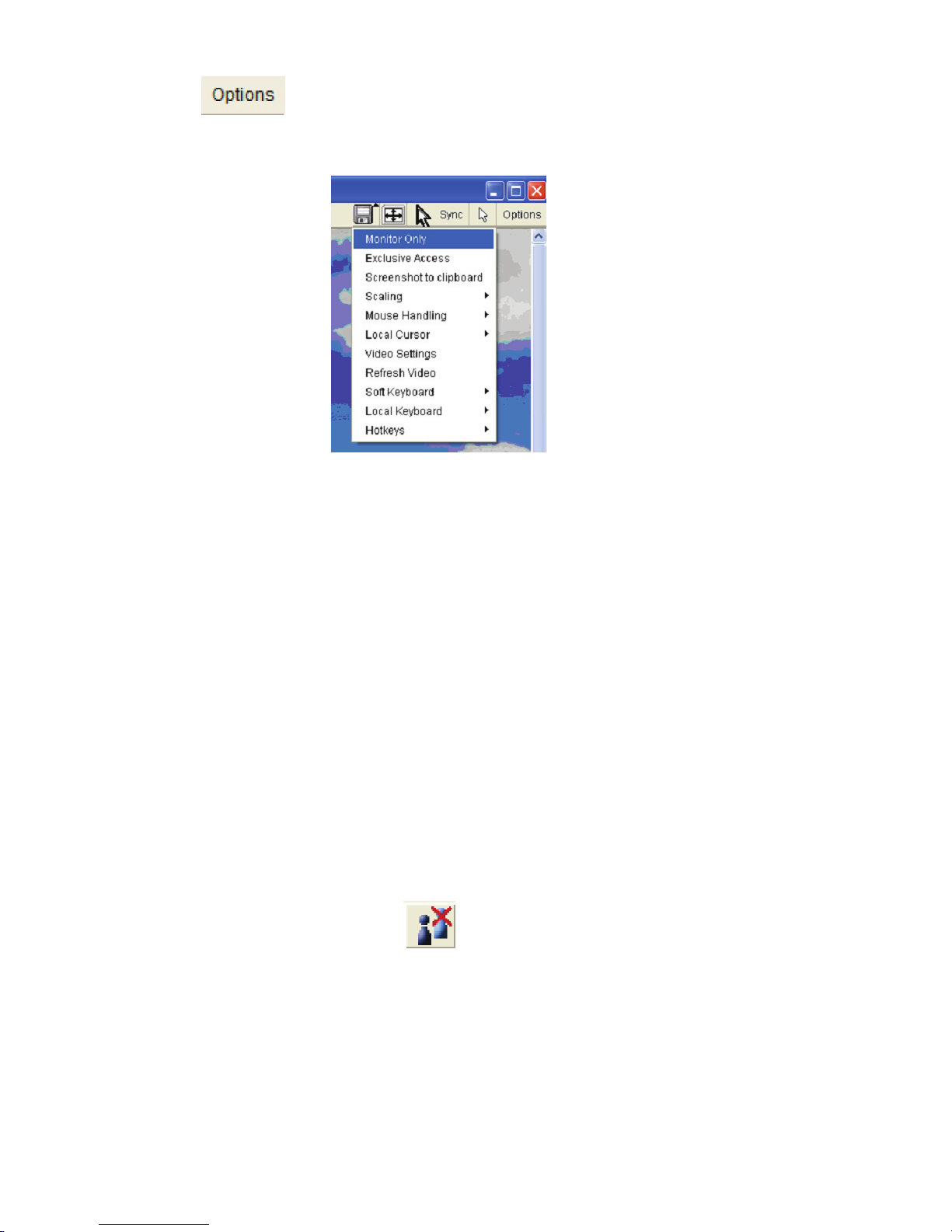

Figure 35: Remote Console Options Menu
A short description of the options as follows.
• Monitor Only
Click this command to toggle the Monitor Only function on or off. If this function is
switched on, the Remote-side user can only monitor the Host-side user’s console, and
cannot control it.
• Exclusive Access
If a user has the appropriate administration rights, he or she can force a shutout of all
other Remote-side users from a Host system, so that he or she alone can control the
Host systems. No one can re-open the selected Remote Consoles until this user
deactivates Exclusive Access, or logs off.
The Access Mode icon in the status bar at the bottom of the screen will indicate the
current status of the Exclusive Access function (see the screenshot below).
Figure 36: Remote Console Exclusive Mode
• Screenshot to Clipboard
Click on this menu item to take a screenshot of the Host view window. The screenshot
will be saved to the clipboard of the Remote computer.
• Scaling
Page 51
--
51
This allows the Remote-side user to scale down the Remote Console window on
their monitor. The mouse and keyboard controls will stay the same, but the
scaling algorithm will not preserve all the display details.
When you select 25%, 50%, or 100% scaling, the size of the Remote Console
window is calculated according to the Host video settings and the scaling
algorithm. When you select “Scale to fit”, the Host video display will fit into the
size and shape of the window for the Remote Console, no matter how this
window is resized by the Remote-side user.

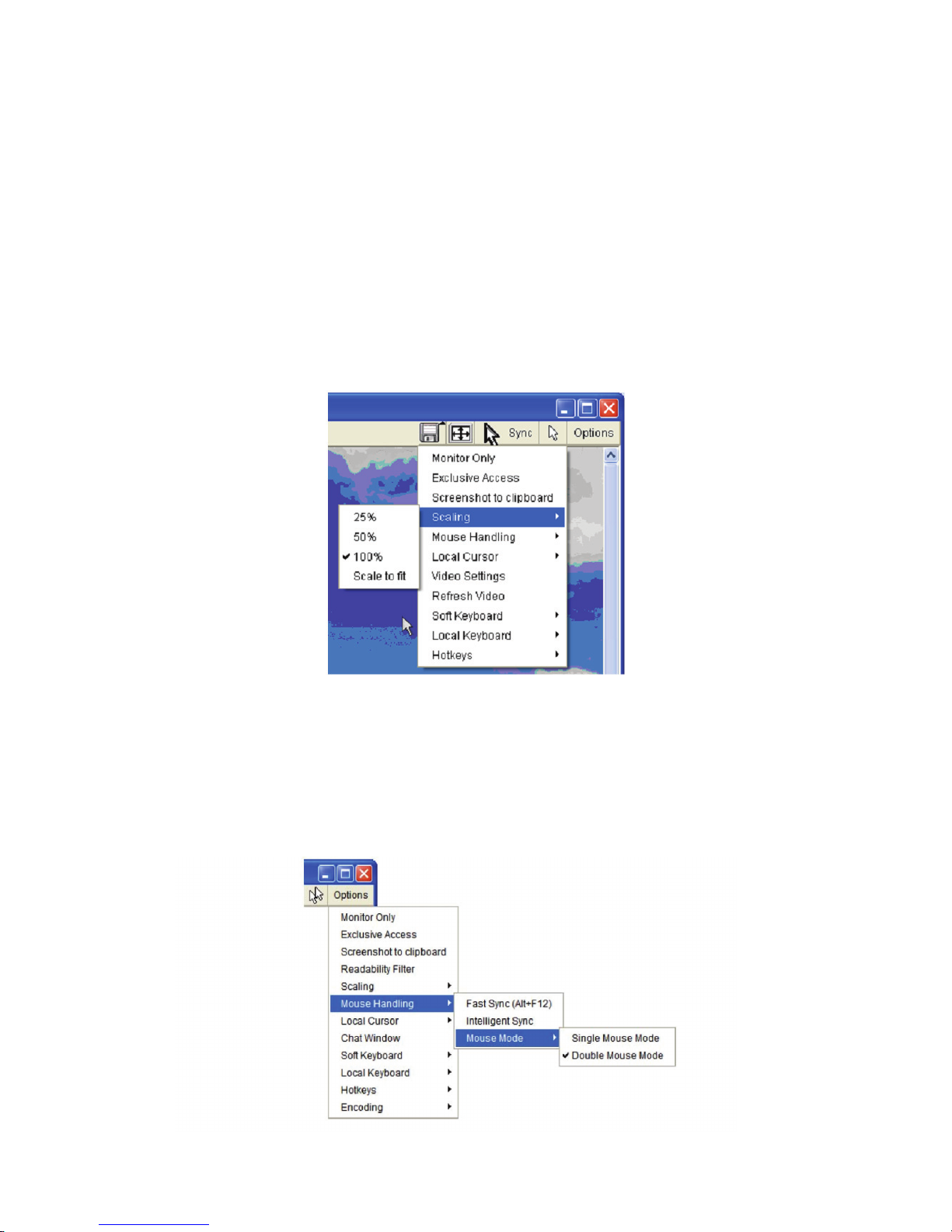

Figure 37: Remote Console Options Menu: Scaling
• Mouse Handling
The submenu for mouse handling offers two options for synchronizing the local and the
remote mouse cursors.
Page 52
52
Fast Sync
The fast synchronization is used to correct a temporary, but fixed skew.
Intelligent Sync
Use this option if the fast sync does not work or the mouse settings have been
changed on the host system.
• Local Cursor
This submenu offers a list of different cursor shapes for the mouse pointer visible by the
Remote user. The selected shape will be saved for the current user and activated the
next time this user opens the Remote Console. The number of available pointer shapes
depends on the version of the Java Virtual Machine installed on the Remote computer;
version 1.5 or above will offer the full list.

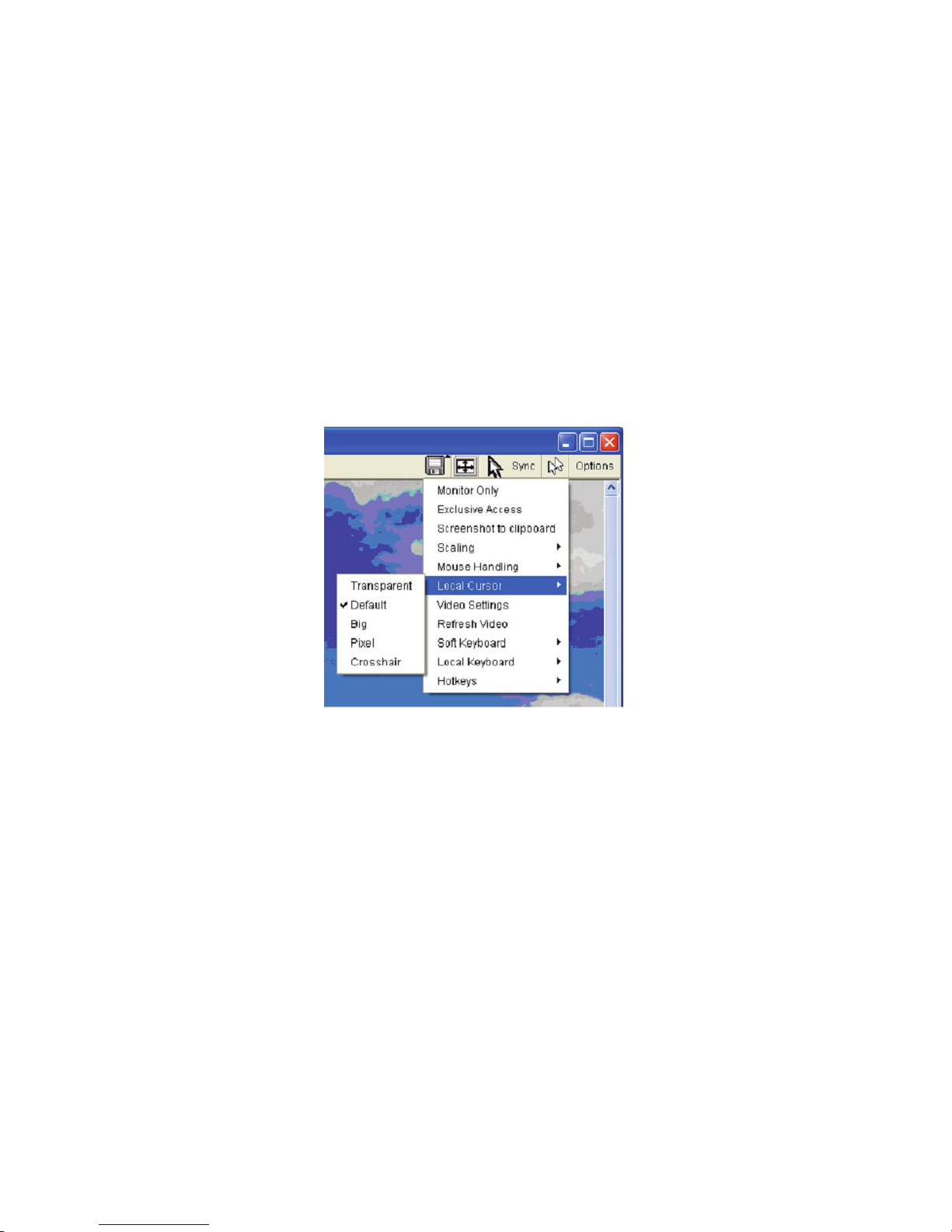

Figure 38: Remote Console Options Menu
• Video Settings
This submenu opens a panel for changing the CAT5 8-PORT/16-PORT IP-KVM video
settings. The CAT5 8-PORT/16-PORT IP-KVM has two separate areas where different
video settings can be configured. One area is the Remote Console window’s Options
menu, the other area is in the CAT5 8-PORT/16-PORT IP-KVM’s web interface
configuration menus.
Page 53
--
53
Video Settings via the Remote Console’s “Options > Video Settings”

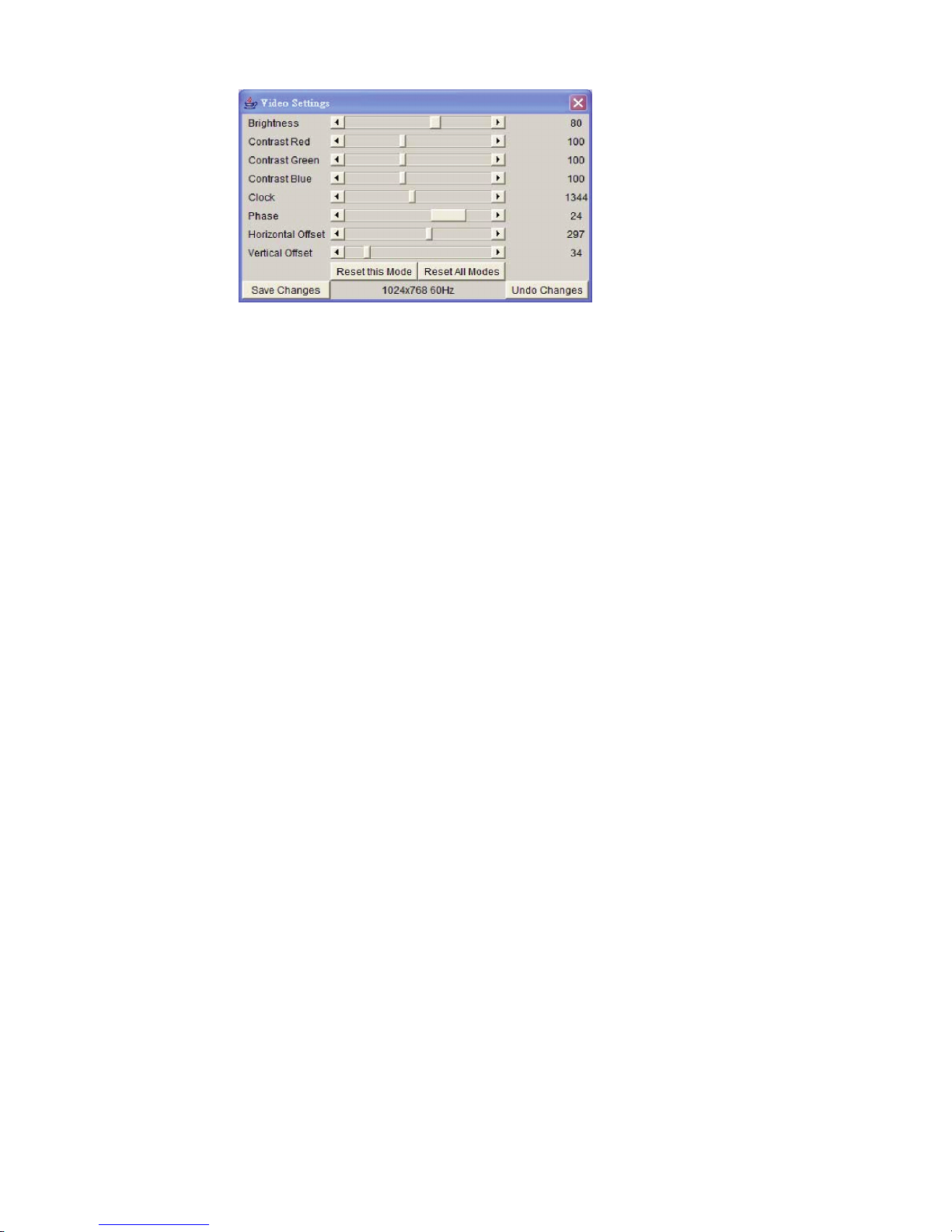

Figure 39: Video Settings Panel
Brightness - Controls the brightness of the picture
Contrast Red/Green/Blue - Controls the contrast of the picture
Clock - Defines the horizontal frequency for the video mode. Different video card
types may require different values here. The default settings in conjunction with
the auto adjustment procedure should be adequate for most configurations. If the
picture quality still has problems after auto adjustment, you can try to adjust this
setting together and the Phase setting, as mentioned below.
Phase - Defines the phase for video sampling. This is used with the
above-mentioned Clock setting to control the display quality.
Horizontal Position - Defines the horizontal positioning of the video.
Vertical Position - Defines the vertical positioning of the video.
Reset this Mode - Resets video mode-specific settings (Clock , Phase and Position)
to the factory defaults.
Reset all Modes - Reset all settings to the factory defaults.
Save changes - Save changes permanently
Undo Changes - Restore last settings
Video Settings via the Web Management GUI
To set the video feed’s “Noise Filter”, use the CAT5 8-PORT/16-PORT IP-KVM’s web
management GUI. In the left-hand column, click on KVM Settings > Video. This will open
the Miscellaneous Video Settings screen.

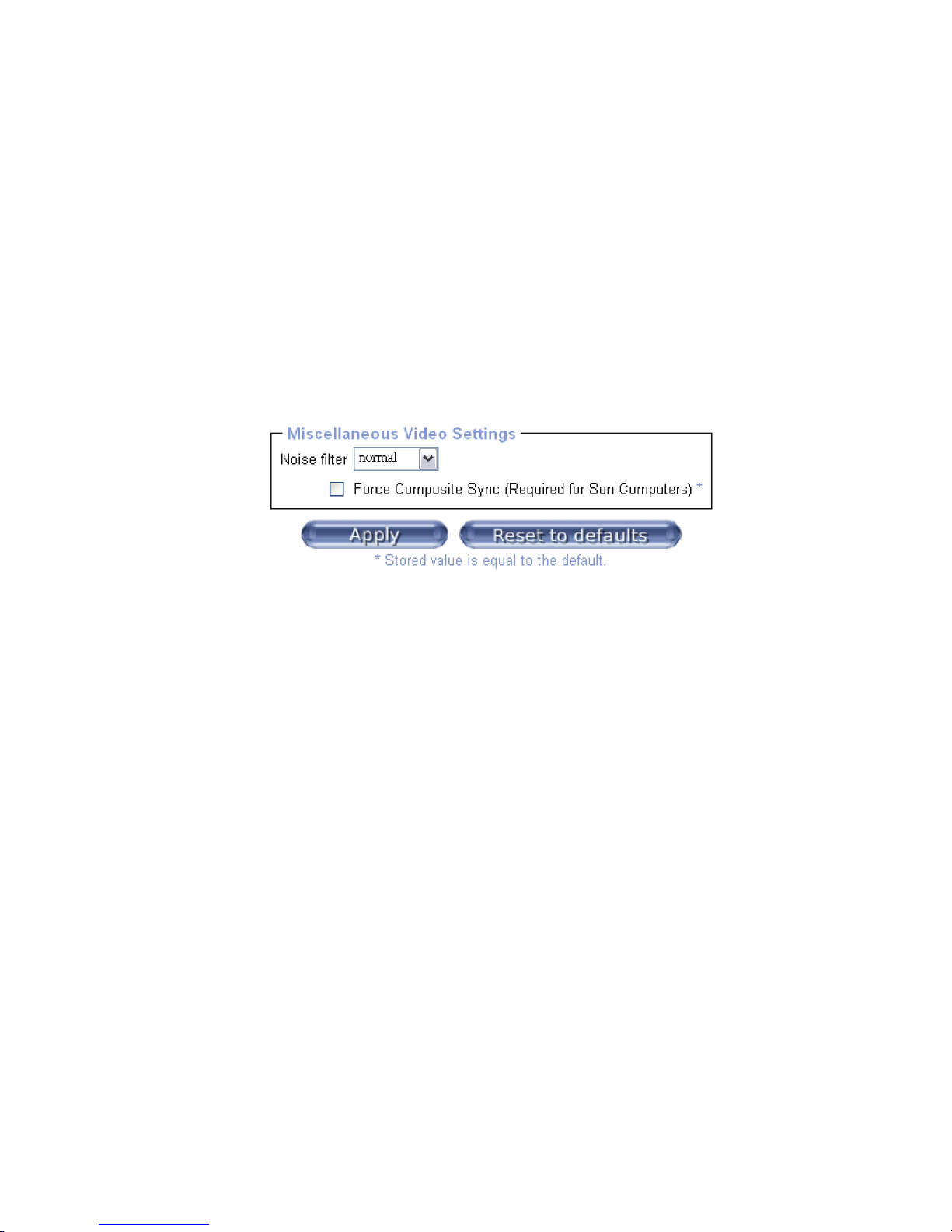

The “Noise Filter” option defines how the CAT5 8-PORT/16-PORT IP-KVM reacts to small
changes in the video input signal. Turning on the noise filter can help reduce video
flickering that is often caused by interference, and can help lower unnecessary bandwidth
consumption. A large filter setting needs less network data traffic and enables a faster
Page 54
54
video display, but some small changes in the display may not be recognized immediately.
A small filter setting displays all changes instantly, but may lead to a constant stream of
network traffic, even if the display content is not actually changing (depending on the
quality of the video input signal). In general, the default setting should be suitable for most
situations.
Click the “Force Composite Sync” button if you are using a SUN computer or server on the
Host-side.
After adjusting any settings, click the Apply button to save your changes.
• Refresh Video
Click this menu item in the Options menu list of the Remote Console to refresh the video
stream coming from the Host system. Usually, only the parts of the video feed that have
changed will be sent from the CAT5 8-PORT/16-PORT IP-KVM in order to save network
bandwidth. This function is mainly for troubleshooting issues that may occur when old
video fragments are not updated quickly for some reason. One of the reasons for this
could be that the “Noise Filter” setting for video has been set too high. To adjust the
Noise Filter setting, please refer to the previous section.
• Soft Keyboard

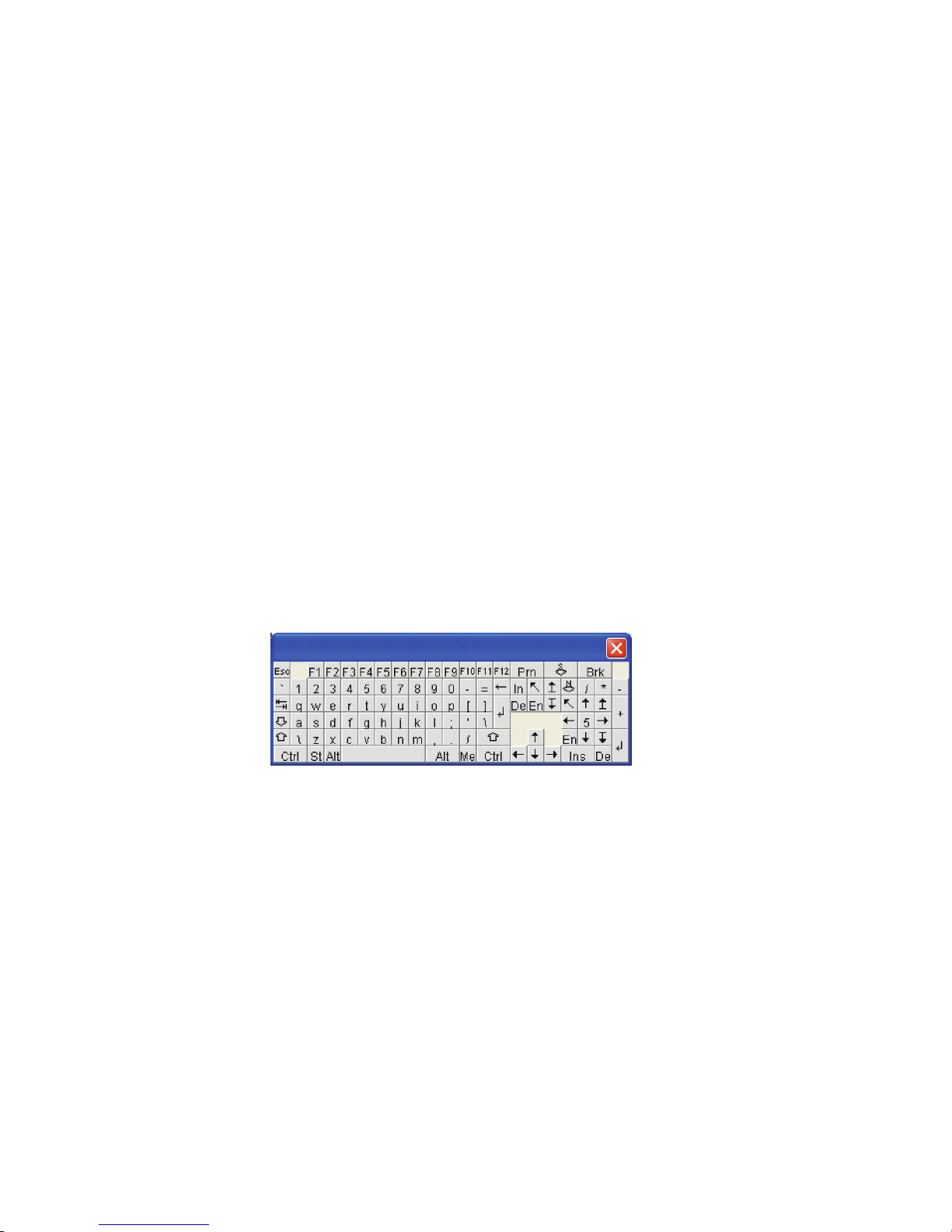

Figure 40: Soft Keyboard
Click this menu item to open up the submenu for the Soft Keyboard.
Show
Clicking this item brings up the Soft Keyboard. The Soft Keyboard may be necessary
if your Host system runs a completely different language and country mapping than
your Remote computer.
Mapping
This menu item is used for choosing the specific language and country mapping of the
Soft Keyboard.
Page 55
--
55

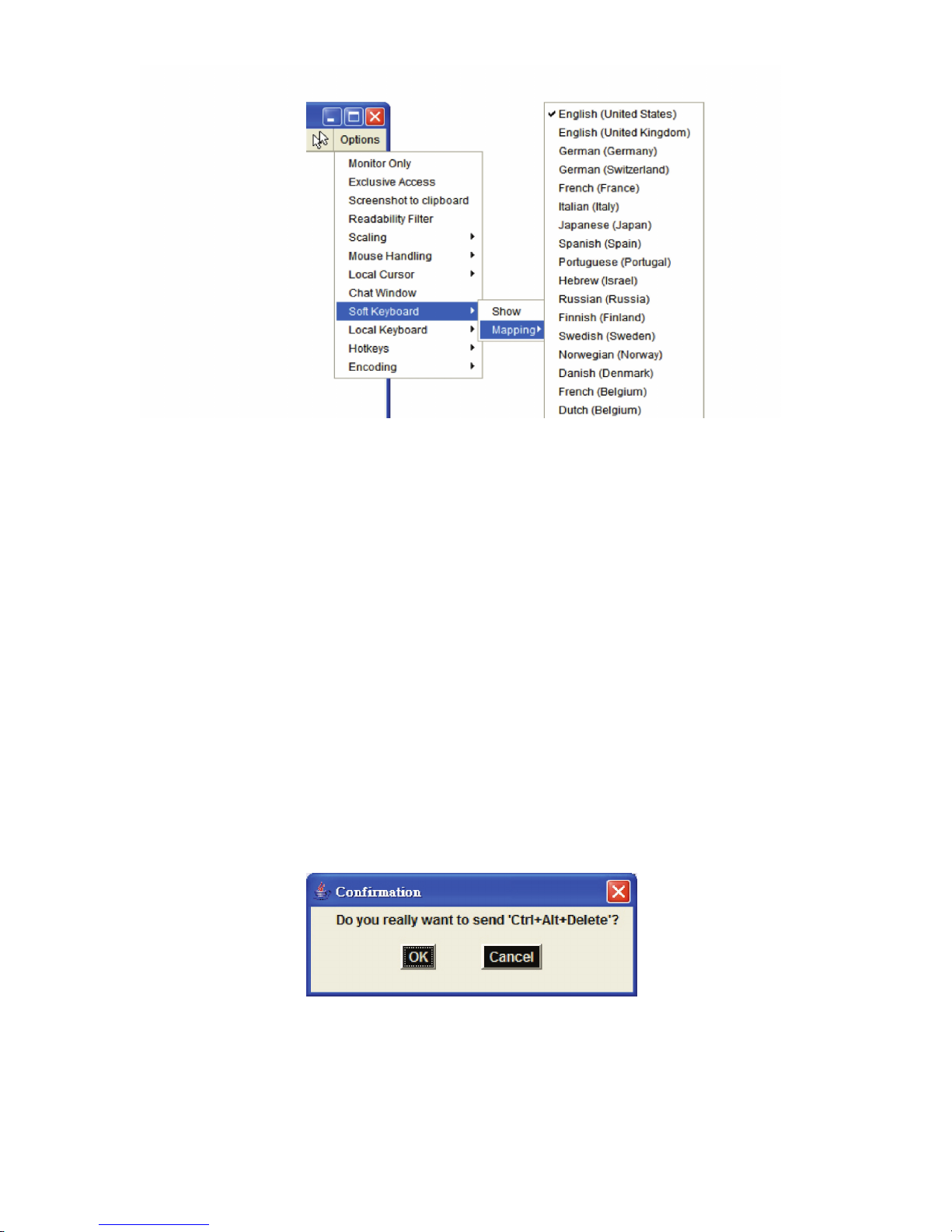

Figure 41: Soft Keyboard Mapping
• Local Keyboard
Used to change the language mapping of your browser machine running the
Remote Console Applet. Normally, the applet determines the correct value
automatically. However, depending on your particular JVM and your browser
settings this is not always possible. A typical example is a German localized system
that uses an US-English keyboard mapping. In this case you have to change the
Local Keyboard setting to the right language, manually.
• Hotkeys
This menu item opens a list of pre-defined hotkeys, which is useful for hotkey
combinations that may be difficult to send, such as CTRL+ALT+DEL. Click any entry and
that specific command will be sent to the Host system.
A confirmation dialog will appear before the system sends the selected command to the
Host system. Click the OK button execute the key combination on the Host system.
Figure 42: Remote Console Confirmation Dialog
• Encoding
These options are used to adjust the encoding level in terms of compression and
color depth. They are available only when "Transmission Encoding" is determined
manually (select Manually in KVM Settings > User Console > Transmission
Encoding of web page).
Page 56
56

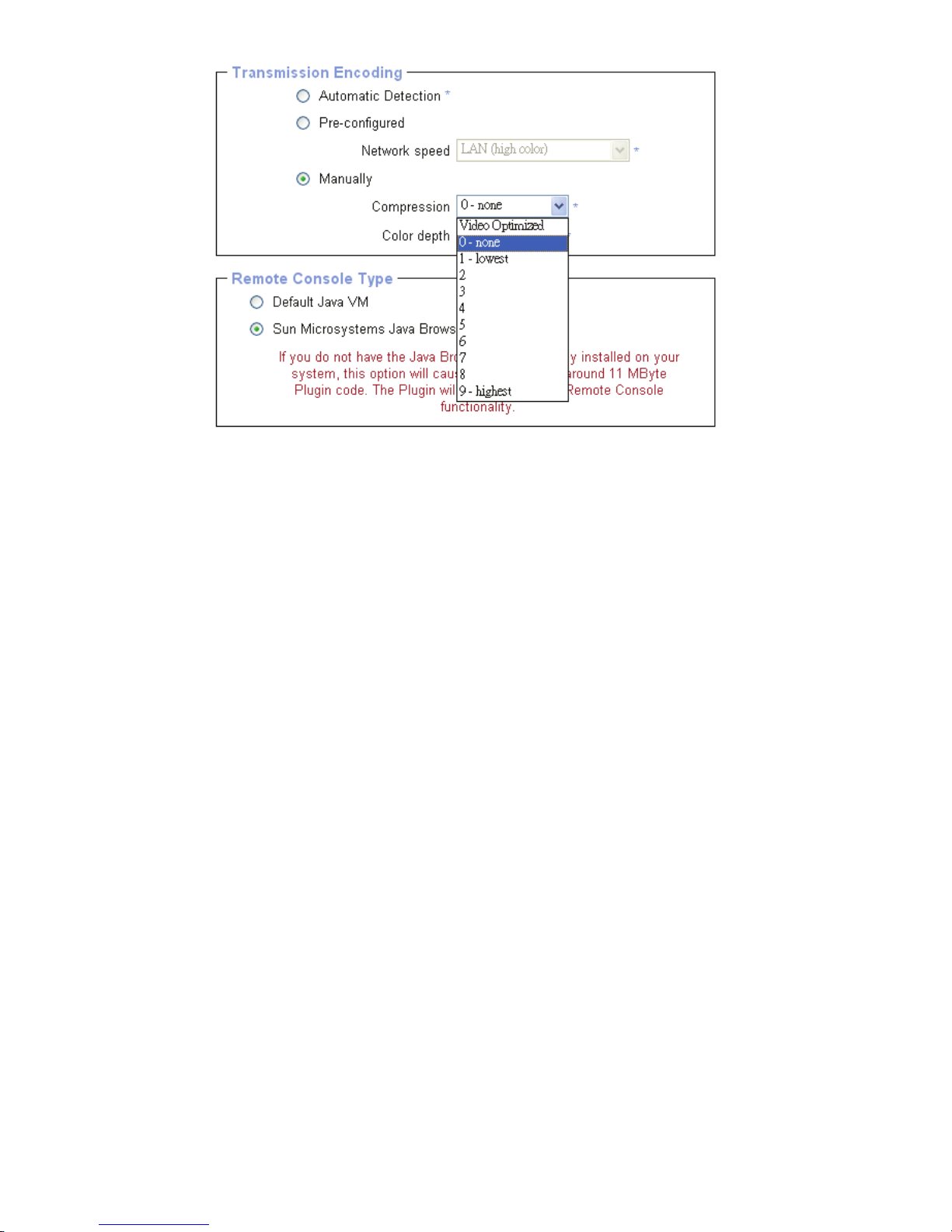

Compression Level
You may select a value between 1 and 9 for the desired compression level with level 1
enabling the fastest compression and level 9 the best compression. The most suitable
compression level should always be seen as a compromise between the network
bandwidth that is available, on your video picture to be transferred, and on the number of
changes between two single video pictures. We recommend to use a higher compression
level if the network bandwidth is low. The higher the compression level the more time is
needed to pack and unpack the video data on either side of the connection. The
compression quality depends on the video picture itself, e.g. the number of the colors or the
diversity of pixels. The lower the compression quality, the more data have to be sent and
the longer it may take to transfer the whole video picture.
If level 0 is chosen the video compression is disabled, completely.
The option "Video Optimized" has its advantages if transferring high-quality motion
pictures. In this case the video compression is disabled, completely and all video data
is transferred via network as full-quality video snippets. Therefore, a high amount of
bandwidth is required to ensure the quality of the video picture.
Page 57
--
57

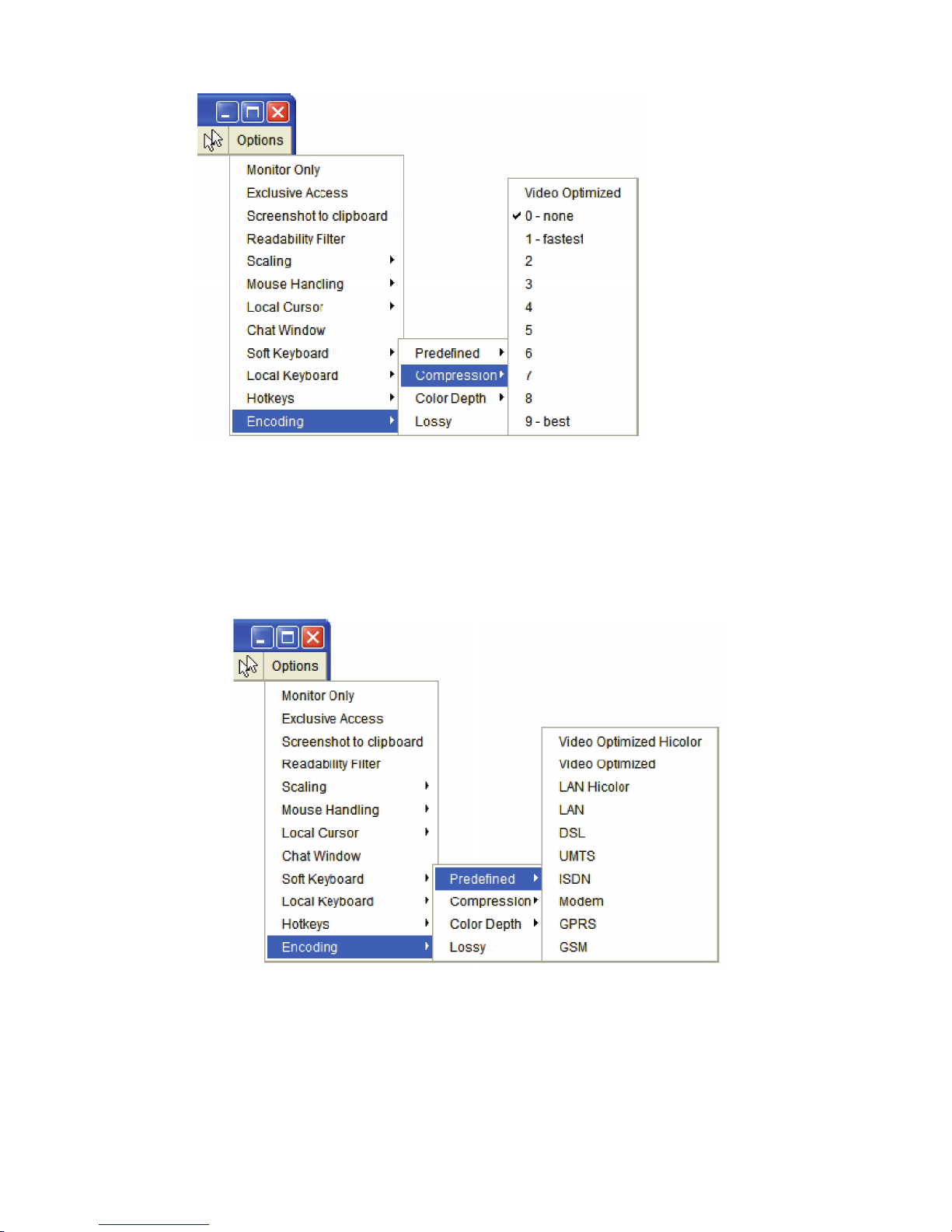

Figure 43: Encoding Compression
The next two options allow you to set the compression level to a predefined level or to set a
level for "lossy" compression. This compresses well, but leads to degradation in image quality.
Figure 44: Predefined Compression
Page 58
58

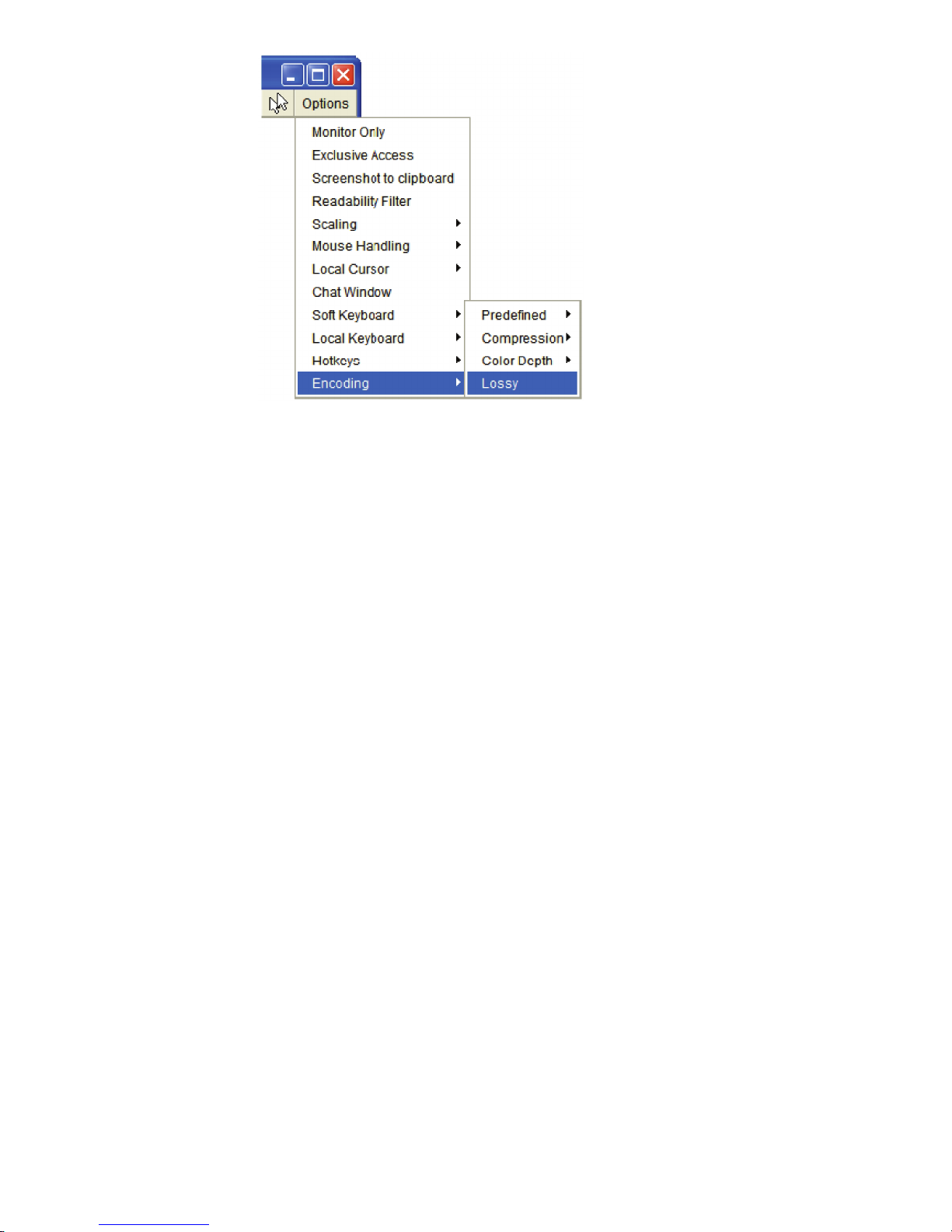

Figure 45: Lossy Compression
Color Depth:
Set the desired color depth. You may select between 8 or 16 bit for Video
Optimized/compression level 0, or between 1 and 8 bit for compression level 1 to 9.
The higher the color depth, the more video information has to be captured and to be
transferred.
Page 59
-59-

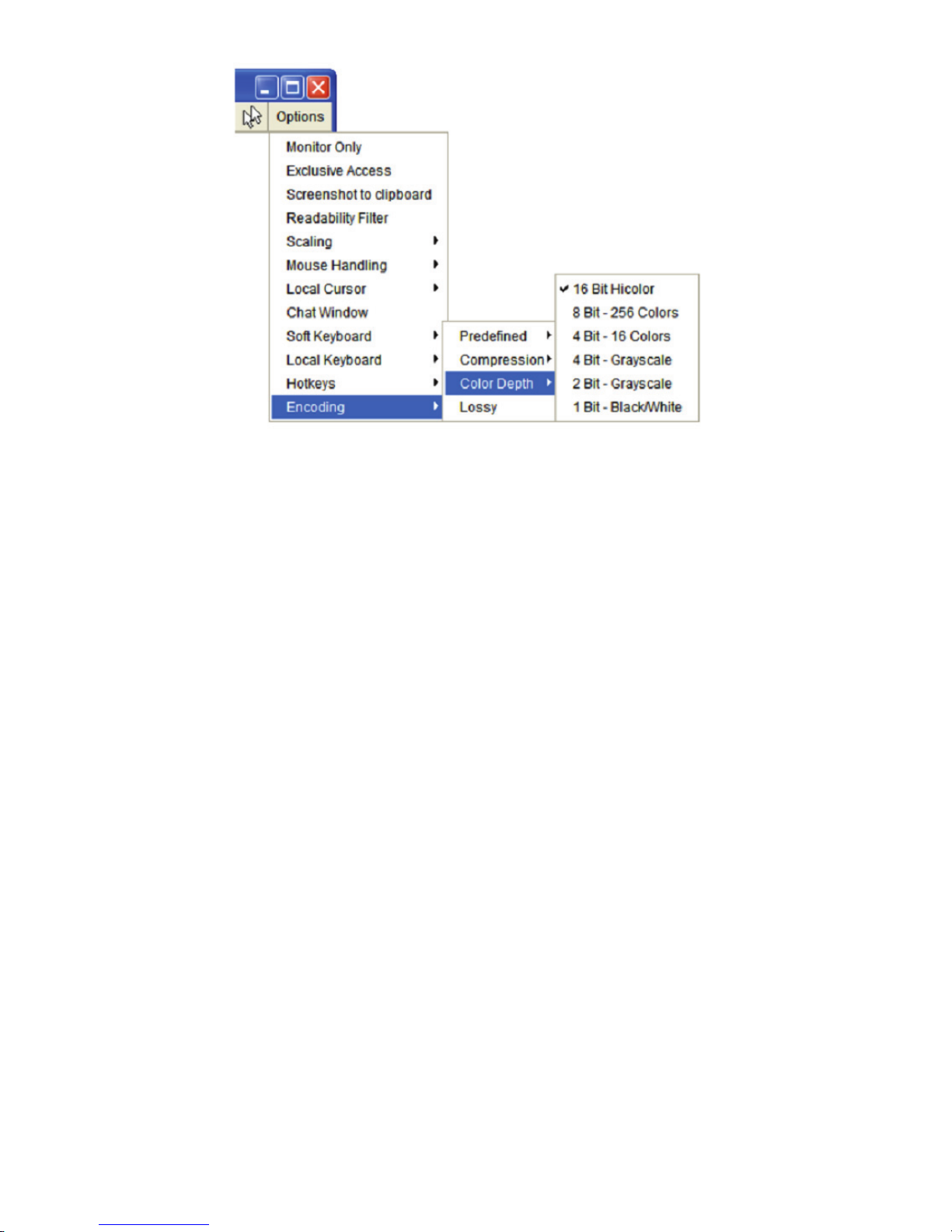

Figure 46: Encoding Color depth
Note: If displaying motion pictures on a connection with low speed you may
achieve an improvement regarding the video transfer rate by lowering the color
depth and disabling the option "Video Optimized". As a general result, the data
rate is reduced (less bits per color). Furthermore, the CAT5 8-PORT/16-PORT
IP-KVM will not have to do any video compression. In total, this will lead to less
transfer time of the motion picture.
Page 60
-60-
10.3.3 Status Line of Remote Console
Status line
The status bar shows the status of the Remote Console as well as the status of the
connection between the Host system and the Remote system. The size of the
remote screen is displayed. Figure below was taken from a Remote Console with
a resolution of 1024x768 pixels. The value in brackets describes the connection to
the Remote Console. “Norm” means a standard connection without encryption;
“SSL” means a secure connection.

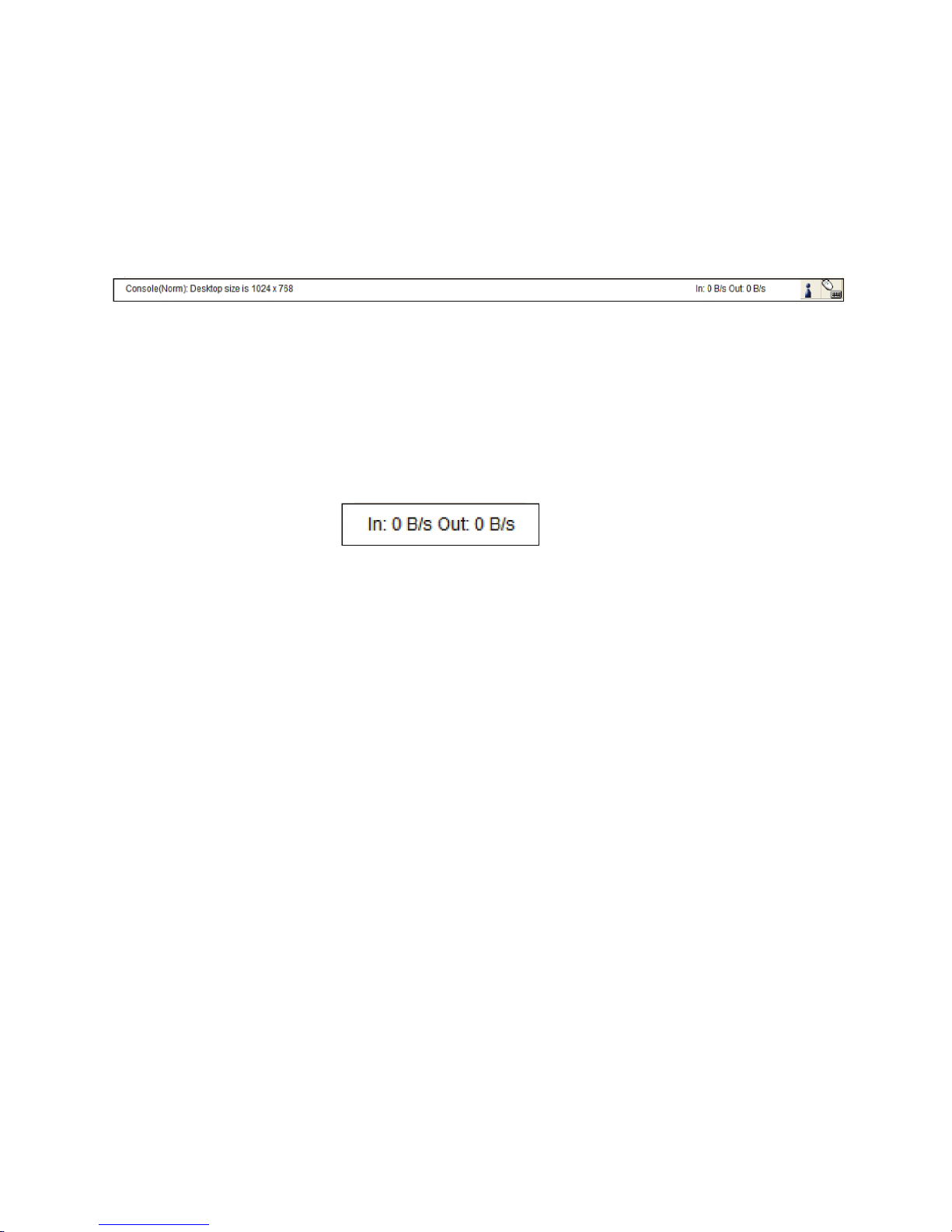

Figure 47: Status line
The right-hand side of the Status Bar may show the frame rate of the video in
frames per second (Fps), and the current incoming (In) and outgoing (Out)
transmission rates. If compressed encoding is enabled, the compressed transfer
rate will be displayed in bracket
Figure 48: Status line transfer rate
For more information about Monitor Only and Exclusive Access settings, see related
sections
Page 61
-61-
11 Menu Option
11.1 Remote Control
The Remote Console is the redirected screen, keyboard and mouse of the remote host
system that CAT5 8-PORT/16-PORT IP-KVM controls. The Remote Console window is a
Java Applet that tries to establish its own TCP connection to the CAT5 8-PORT/16-PORT
IP-KVM.
Starting the Remote Console opens a new window displays screen movement of host
system, with its size automatically adjusted to optimum. Keyboard and mouse are
redirected to control the host system simultaneously. A slight delay may present
depending on the bandwidth of network.
Page 62
-62-
11.1.1 KVM Console
Figure 49: KVM Console
To open the KVM console either click on the icon Console or Remote Control >
KVM Console of the menu entry on the left or Click to open of the console picture
on the right.
11.1.2 Telnet Console/SSH Console
In general, the Telnet or SSH interface supports two operation modes: the
command line mode and the terminal mode. The command line mode is used
to control or display some parameters. In terminal mode, the pass-through
access to serial port is activated (if the serial settings were configured
accordingly). All inputs and outputs are redirected to the device via the serial
port, and its answers are displayed on the Telnet interface.

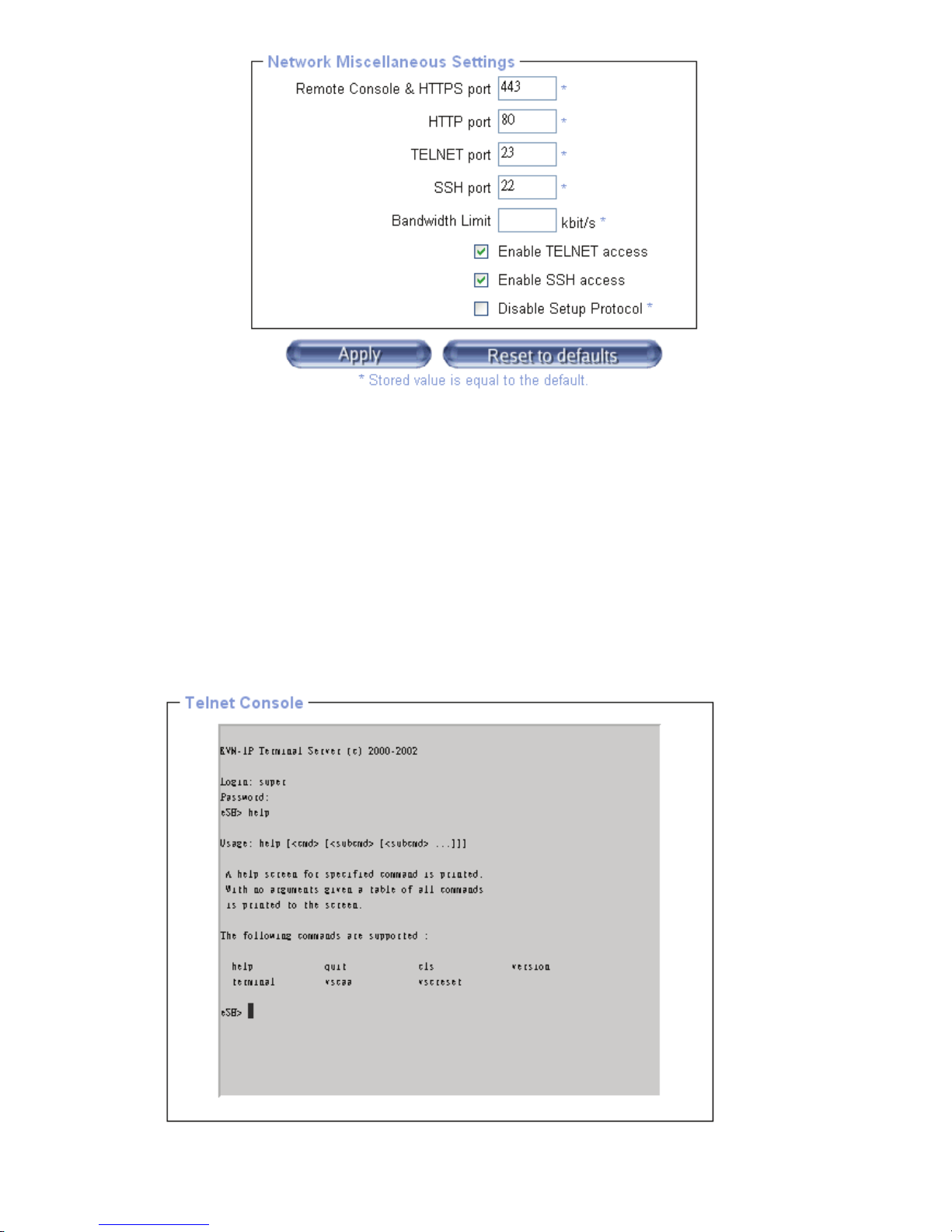

In order to log in with Telnet or SSH, you have to enable the access settings
from

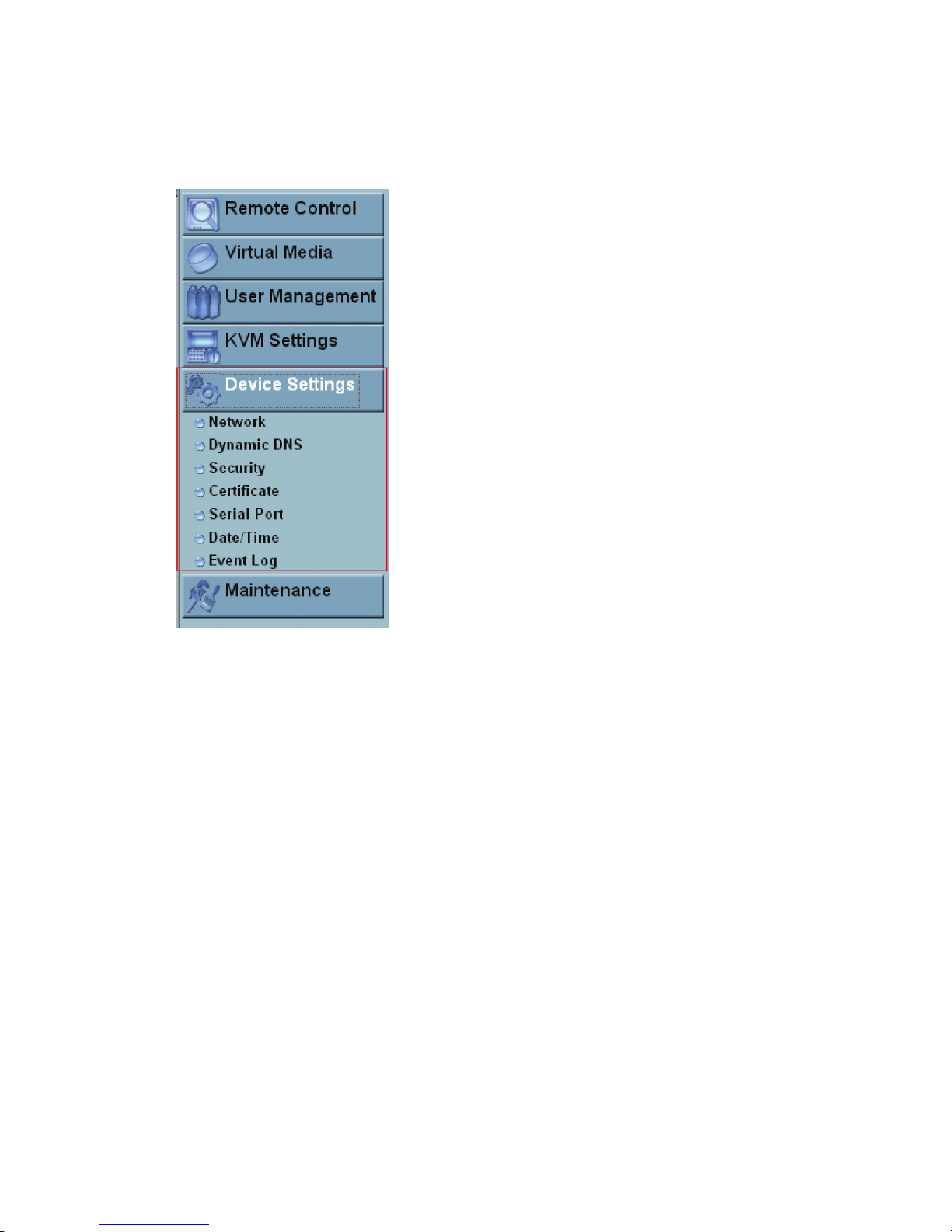

Device Settings > Network.
Page 63
-63-
Telnet Console
The CAT5 8-PORT/16-PORT IP-KVM firmware features a Telnet server that
enables a user to connect via a standard Telnet client. In case the Telnet program is
using a VT 100, VT 102 or VT 220 terminal or an according emulation, it is even
possible to perform a console redirection as long as the CAT5 8-PORT/16-PORT
IP-KVM host machine is using a text mode screen resolution.
To log in Telnet Console by one of the following way:
1. clicking Remote Control > telnet Console
Figure 50: Telnet Console
Page 64
-64-
2. or telnet command as required by the Telnet client, for instance in a UNIX shell:
telnet 192.168.0.70
3. or run the SSH-supported terminal emulation program (such as PuTTY).
Replace the IP address by the one that is actually assigned to the CAT5
8-PORT/16-PORT IP-KVM. This will prompt for username and password in order to
log into the device. The credentials that need to be entered for authentication are
identical to those of the web interface. That means, the user management of the
Telnet interface is entirely controlled with the according functions of the web
interface.
Once you have successfully logged into the CAT5 8-PORT/16-PORT IP-KVM a
command line will be presented and you can enter according management
commands.

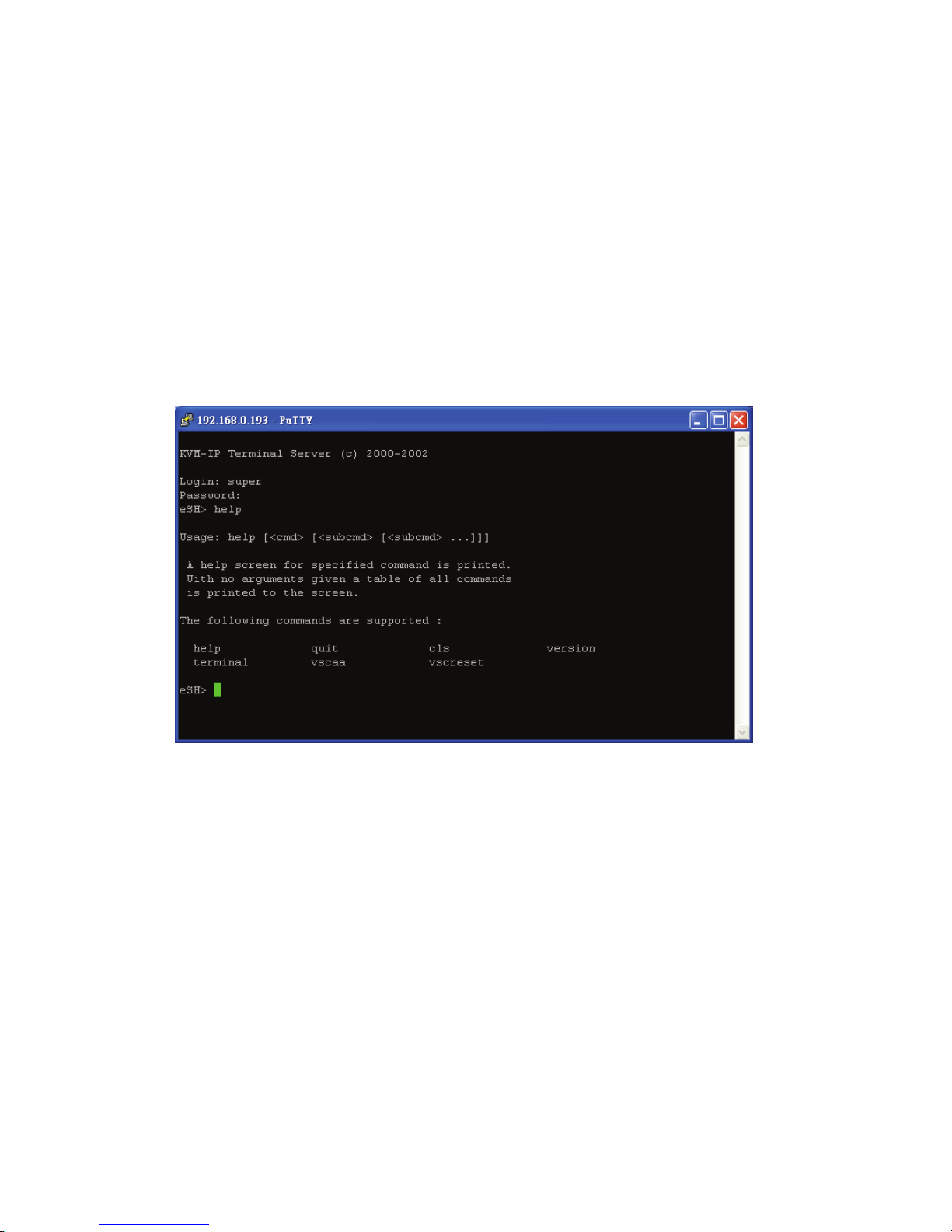

Key in help to list all available commands.
The following list shows the according command mode command syntax and their
usage.
help
Displays the list of possible commands
cls
Clears the screen
quit
Exits the current session and disconnects from the client
Page 65
-65-
version
Displays the release information
terminal
Activate the terminal passthrough mode for RS-232 serial port. This mode
provides Serial over IP functin. The hotkey sequence “ESC + e-x-i-t” (type “exit”
while holding the ESC key) will switch the screen back to command mode.
vscaa
Auto-adjust of the Remote Console.
vscreset [modes/allmodes/all]
Reset the video modes like in the remote console under option “Video Settings”.
vscreset modes: reset settings for the current video mode.
vscreset allmodes: reset settings for all video modes.
vscreset all: reset all video modes and global settings (Brightness and
Contrast).
SSH Console
The CAT5 8-PORT/16-PORT IP-KVM supports the SSH security protocol. The
device uses version 2 of the SSH protocol (SSH2) to encrypt the transferred data
and secure transmissions. The SSH configuration interface is the same as that of
Telnet, except for the fact that SSH is encrypted and therefore more secure.

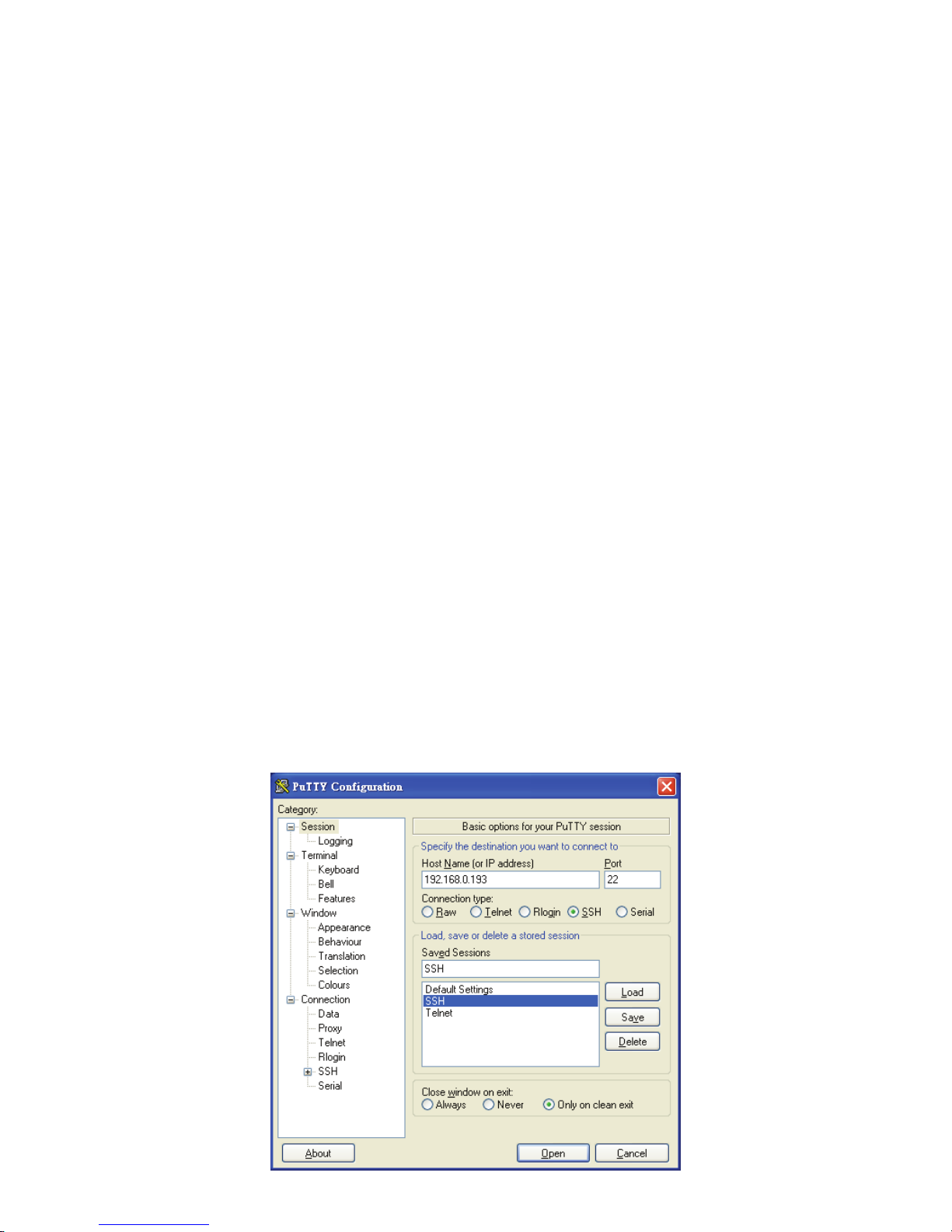

Please run the SSH-supported terminal emulation program (such as PuTTY).
Page 66
-66-
11.1.3 Remote Wakeup
The CAT5 8-PORT/16-PORT IP-KVM provides the remote power wakeup function,
which can remotely wake up the sleeping computer. With this feature, the computers that
are not in use for now can be shut down and remotely wake up the computer when want
to use it, and thus save the power energy.
Settings on target computer:
To wake up a remotely located computer via the CAT5 8-PORT/16-PORT IP-KVM,
some settings have to be pre-configured on the target computer:
1. BIOS setting:
Enable the wakeup function in the BIOS of the target system.
Note: The naming of the wakeup function in BIOS varies depending on the type of
BIOS. It may be listed as Wake On LAN/PME, PME Event Wake Up, or Power
On By PCI Device.
2. Windows Settings:
Enter the Properties of Local Area Connection.
Page 67
-67-

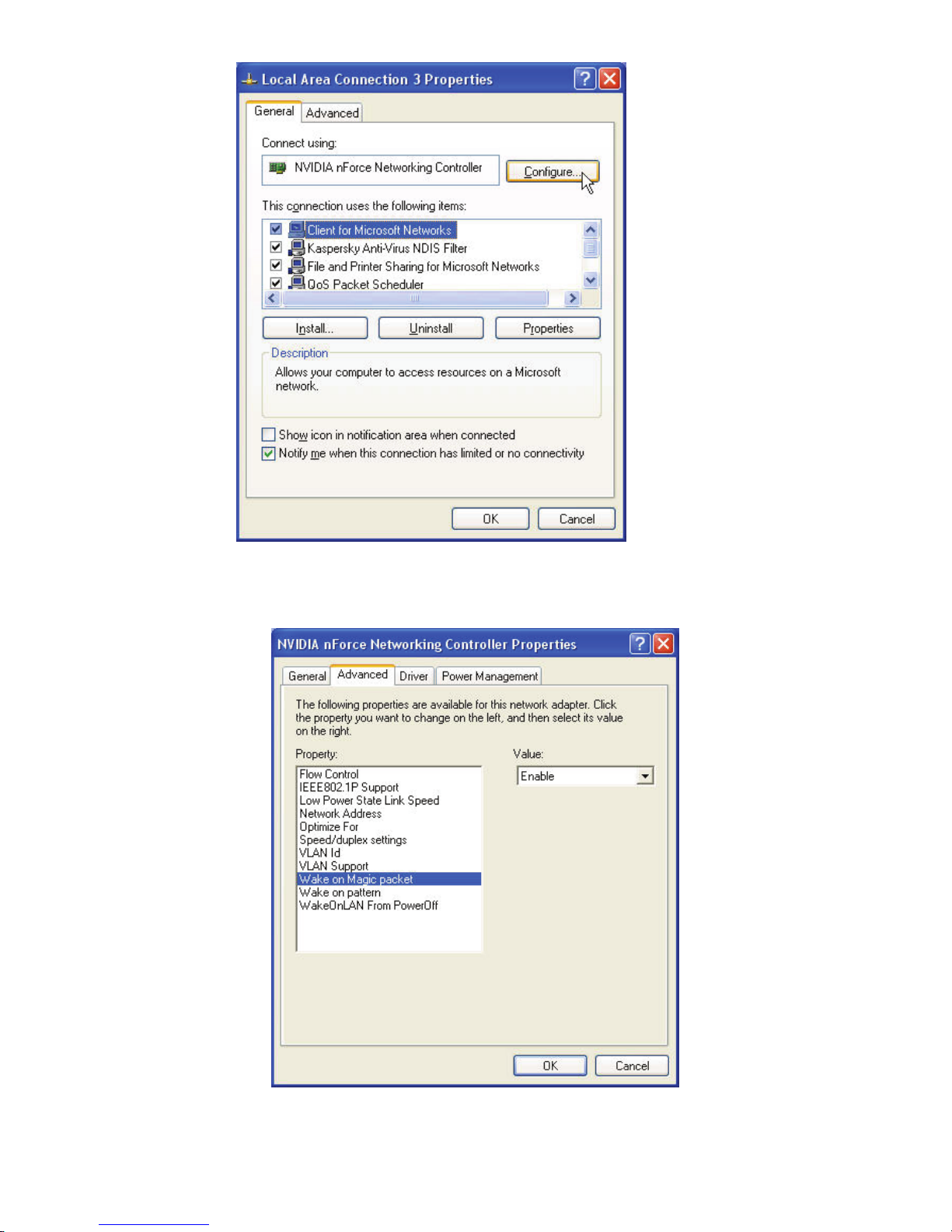

Make sure Wake on Magic packet is Enable.
Page 68
-68-

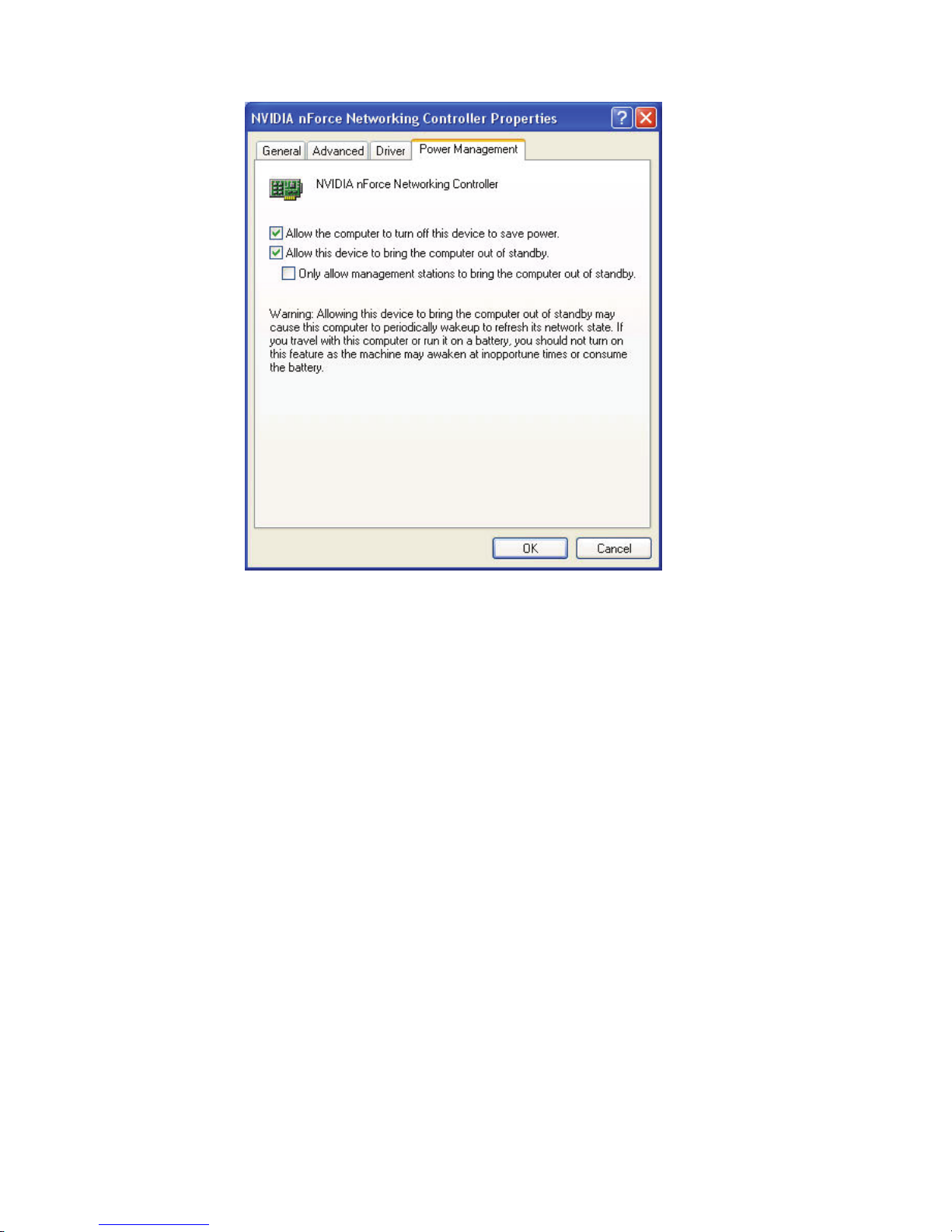

Make sure the following two items are selected.
Settings on CAT5 8-PORT/16-PORT IP-KVM:
The control can be easily configured via web GUI.

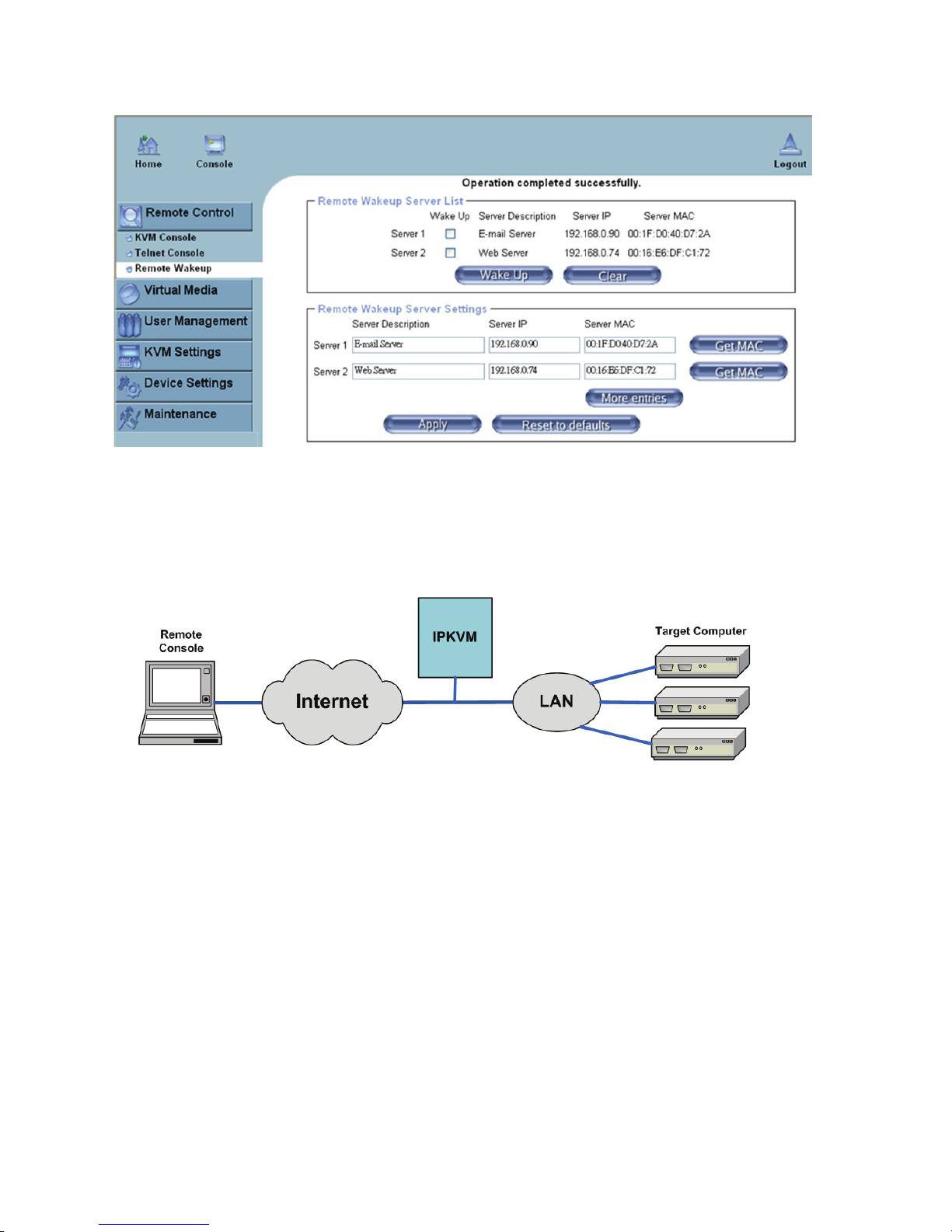

1. Click on Remote Control > Remote Wakeup to bring up the configuration page.
2. Type in the computer/server description and the computer/server’s IP address.
3. Click on the Get MAC button to obtain and automatically add the corresponding
MAC address of the selected computer.
4. Click on the Apply button to save the entry.
5. Click on the Reset to defaults button if you want to clear all entries
6. If you want to configure multiple target systems, click on the More entries button
to add more target computers. Repeat steps 2 to 4 for all target systems
Page 69
-69-

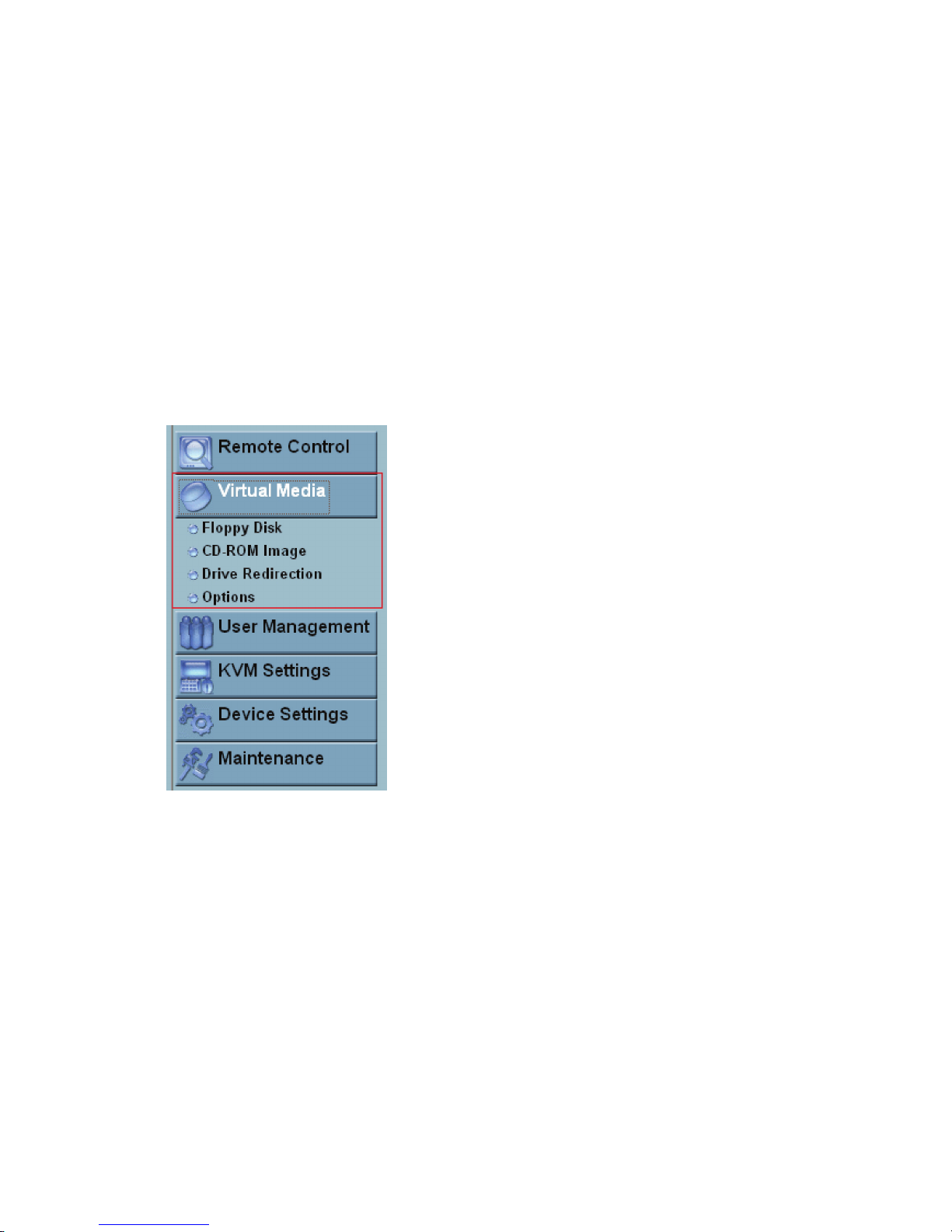

11.2 Virtual Media
The CAT5 8-PORT/16-PORT IP-KVM provides a powerful feature called Virtual Media
(or Virtual Disk). The CAT5 8-PORT/16-PORT IP-KVM can present either a local floppy
disk image (stored on the CAT5 8-PORT/16-PORT IP-KVM) or a redirected remote
CD/DVD-ROM image (redirected from the Remote computer) to the target computer
through the built-in USB port. This can allow for system recovery in conditions including
disk failure or no primary network connection on the target computer.
Drive Redirection allows you to share (redirect) your local drive (floppy drives, hard disks,
CD ROMs and other removable devices like USB sticks) with the remote system over a
TCP network connection. Thus, with Drive Redirection, you can use a virtual disk drive
on the remote computer instead of an image file. It is also possible to enable a remote
machine to write data to your local disk.
Before go ahead with this setup, both remote user computer and local computer (the one
connected with the CAT5 8-PORT/16-PORT IP-KVM unit) would have to have Operating
System Win2000, XP or above. This function would not work on other platforms at this
moment.
Before using Virtual Media, please connect the USB cable from CAT5 8-PORT/16-PORT
IP-KVM to host computer. After connecting the USB cable, you can see a “Removable
Disk” on the host computer. Below is the host computer screen (the computer which
connected with CAT5 8-PORT/16-PORT IP-KVM).
Page 70
-70-
11.2.1 Drive Redirection
The Drive Redirection function gives the administrator another virtual disk drive on the
Host computer. With Drive Redirection, you do not have to use an image file. Instead, the
Remote-side user can open a drive on his or her local computer and use it on the Host
machine. Thus, the drive is shared over a TCP network connection. Devices that can be
redirected are floppy drives, hard disks, CD-ROM drives, and other removable devices
such as USB storage drives.

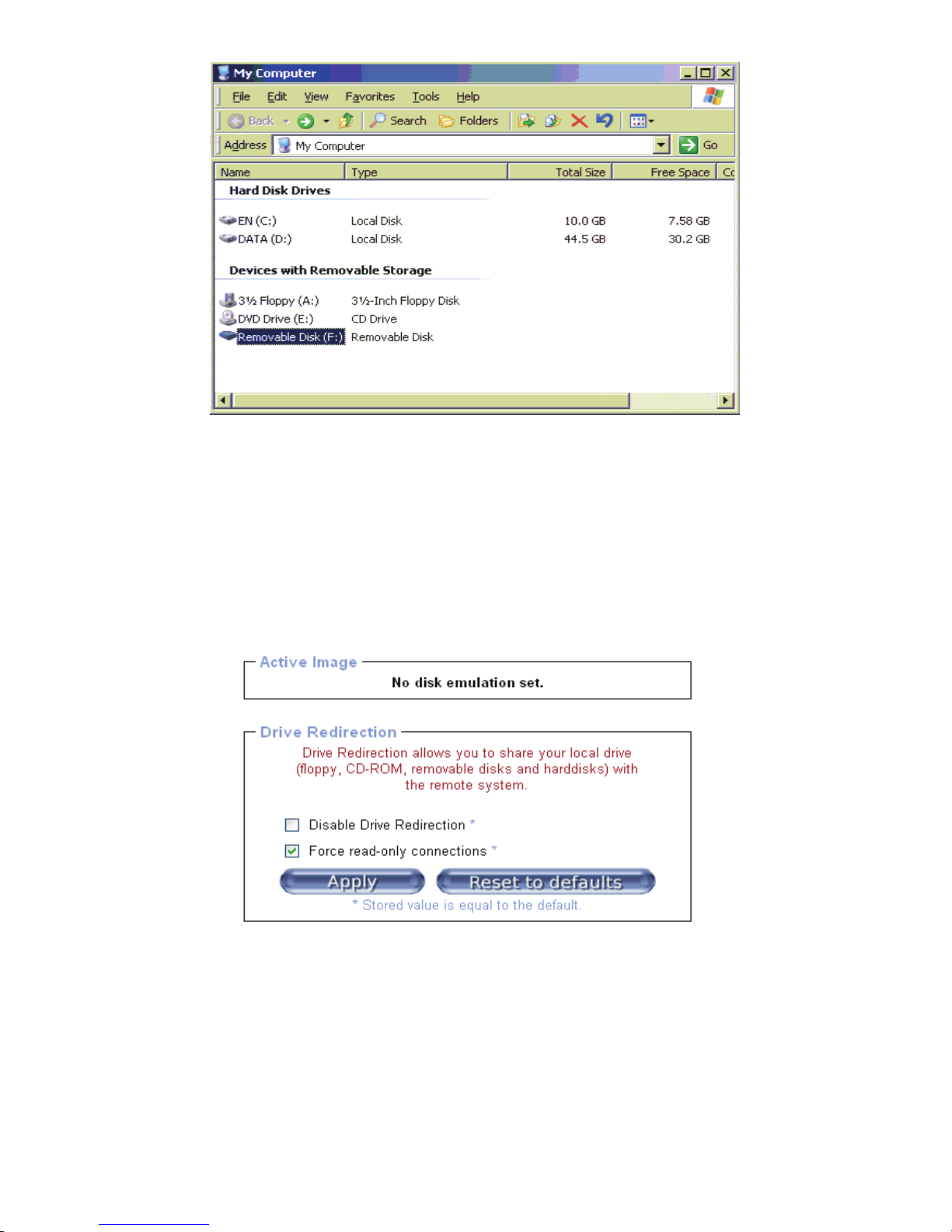

Figure 51: Options of Drive Redirection
It is even possible to enable write support so that the Remote-side user can write data to
his or her local disk from the Host machine. However, if write support is enabled, care
should be taken that the two systems do not write onto the same disk at the same time, as
computer operating systems cannot distinguish a local system from a redirected system.
WARNING: If both the Host system and the Remote system try to write data on the
same device at the same time, data may be damaged and/or lost. Please use this
feature only if you know what you are doing.
Page 71
-71-
Please be noted that Drive Redirection works on a more basic level than the operating
systems of the computers. This means that neither the Remote-side nor the Host-side
operating system is aware that the drive is being redirected. This may lead to inconsistent
data when the operating system (either on the Remote-side or Host-side machine) is
writing data on the device. If write support is enabled, the Host computer might damage
the data and the file system on the redirected device. On the other hand, if the
Remote-side operating system tries to write data to the redirected device, the drive cache
of the Host’s operating system might contain older data.
Because the operating systems are not aware that the drive is being redirected, they could
try to write data at the same time and therefore cause error messages to pop up. We
therefore recommend that the Remote user uses the Drive Redirection function with care,
especially if write support is enabled.
Disable Drive Redirection
To disable the Drive Redirection function.
Force read-only connections
If you enable the Force read-only connections function, write support for the Drive
Redirection feature will be switched off once you click Apply. This will make it
impossible to write on a redirected device, which is a safer option if you don’t want to
take the risk of file-system-destroying write-over collisions between the Remote and.
Click Apply to submit your changes.
11.2.2 Virtual Drive

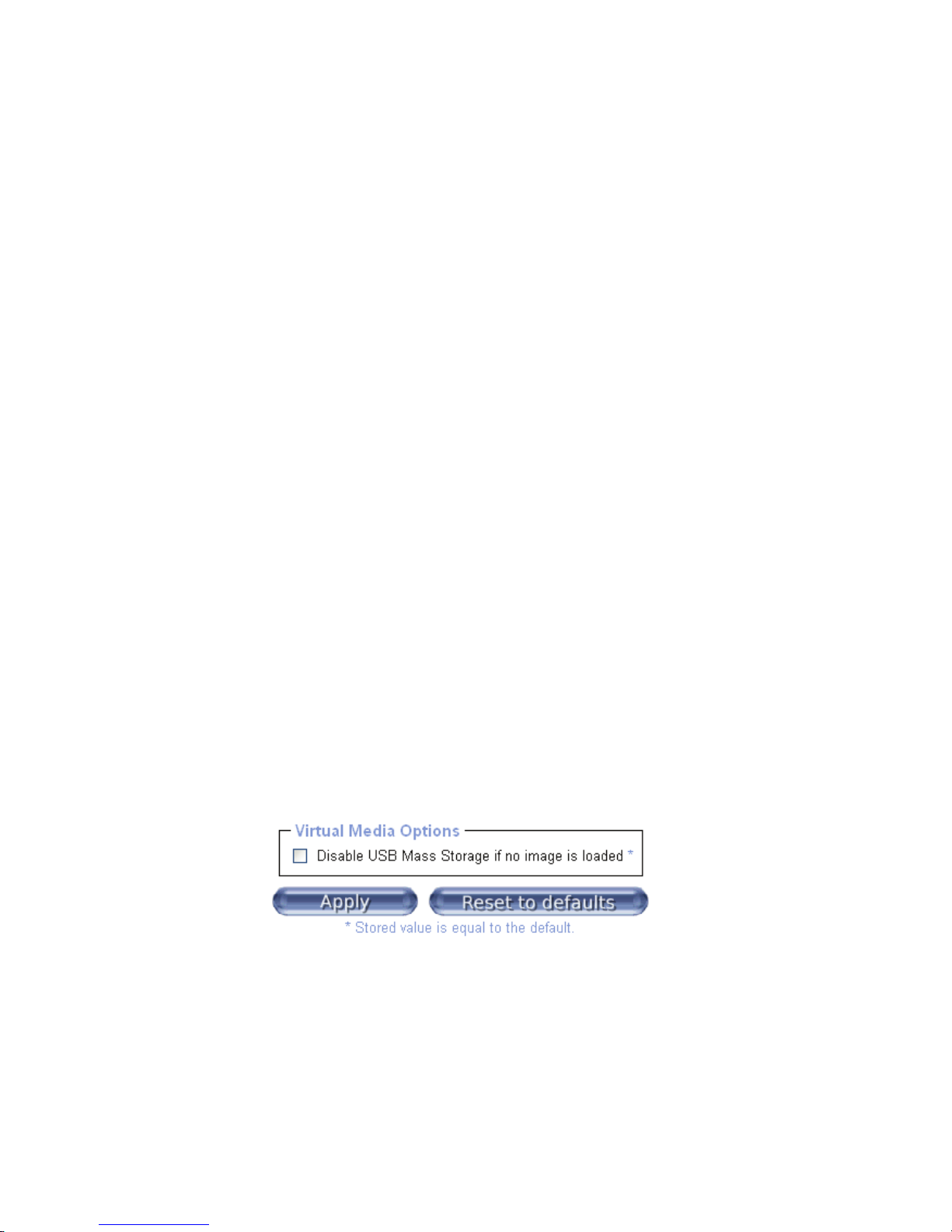

Figure 52: USB mass storage option
Enable this option to disable the mass storage emulation (and hide the virtual drive) if you
are not presenting (or “mounting”) a disk image file or drive to the Host system. After
ticking or unticking the checkbox, click the Apply button to save your changes.
Note: If the above setting is not enabled, and if no disk image file is detected, the Host
Page 72
-72-
system could possibly hang in boot mode due to changes in the boot order or the boot
manager (LILO, GRUB). Such incidents were reported for some Windows versions
(Windows 2000 and Windows XP), and other operating systems might behave in the same
way. The actual OS behavior will depend on the BIOS version used in the specific
machine.
Page 73
-73-
11.2.3 CD/DVD Image
Use Image on Windows Share (via SAMBA)
To include an image from a Windows share, select “CD/DVD Image” from the submenu.

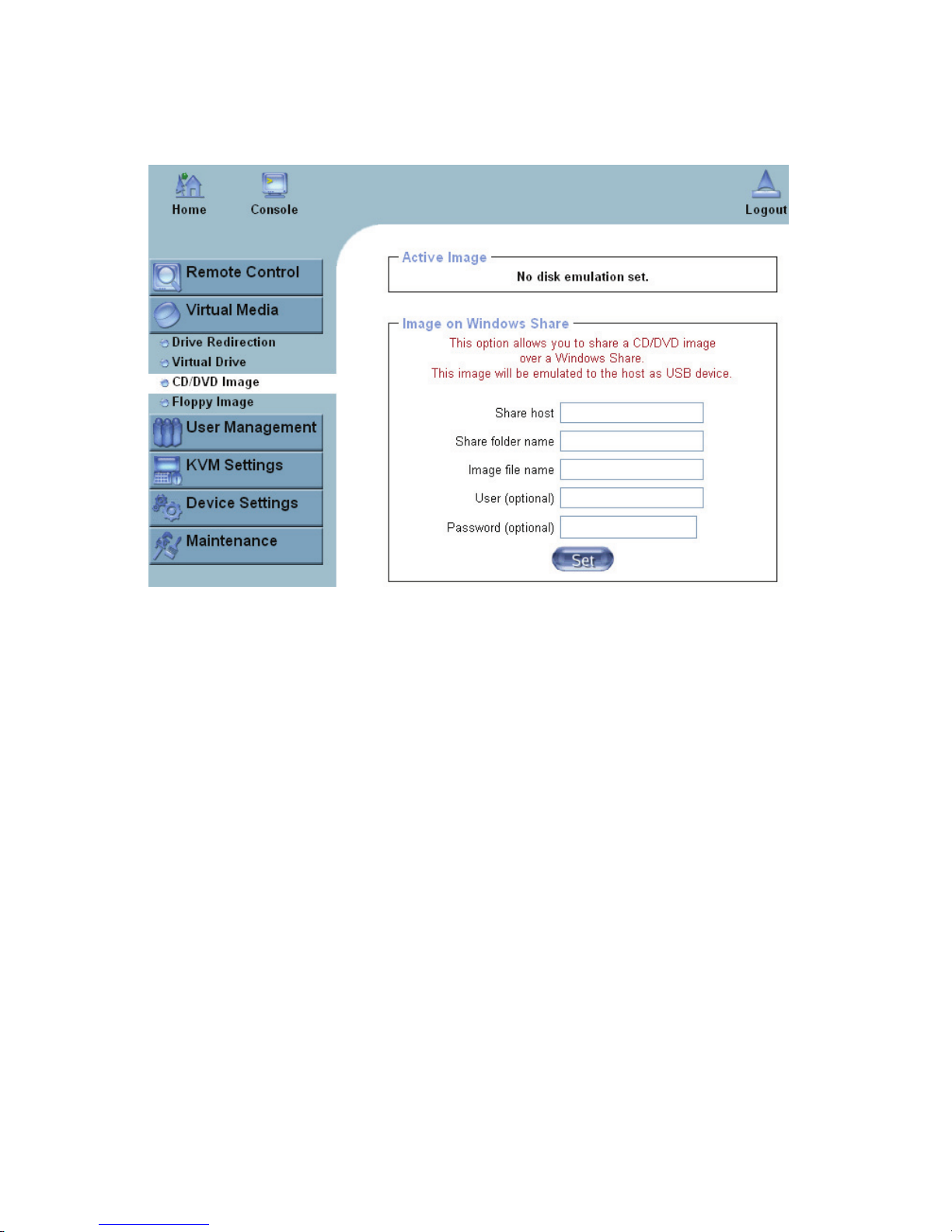

Figure 53: Virtual Media - CD-ROM Image
Share host
Enter the server name or its IP address (the computer/server that shares out the
image file).
Note: For Windows 95, 98 and Windows ME, do not enter the IP address; enter the
server name (e.g. “NetBIOS Name”).
Share folder name
Enter the name of the relevant share folder.
Image file name
Enter the name of the image file as it is on the share folder.
User (optional)
If necessary, specify the username for the share named before. If unspecified and a
guest account is activated, this guest account information will be used as your login.
Password (optional)
If necessary, specify the password for the given user name.
Page 74
-74-
Notes:
1. The output image extension file must be an ISO image file, and the file name
extension must be ‘iso’, e.g. CD-Rom_vir.iso.
2. You can create an ISO file up to 650 MB in size (CD-ROM size). This drive will be
accessible only in read-only mode, you will not be able to write any information to it.
This drive can act as a boot drive if the motherboard/BIOS on the Host computer
supports the USB BOOTABLE function. For emulating a DVD Drive, please use Drive
Redirection function.
3. The information required for the steps above has to be given from the point of view of
the CAT5 8-PORT/16-PORT IP-KVM. Please enter IP addresses and device names
accordingly. Administrative permission is required for this, as regular users may not
have access rights. Please log in as a system administrator (or as “root” on UNIX
systems). It is also important to specify the correct IP-KVM IP addresses and device
names. Otherwise, the CAT5 8-PORT/16-PORT IP-KVM may not be able to access
the referenced image file properly. This will cause the CAT5 8-PORT/16-PORT
IP-KVM to leave the given file unmounted, and instead display an error message.
4. The specified share has to be configured correctly. Administrative permission is
required for this. Normal user may not have a high enough level of authorization. You
should either login in as a system administrator (or as “root” on UNIX systems), or ask
your system administrator for help to complete this task.
Page 75
-75-
Operation Procedures:
1. Please run Nero or any CD/DVD imaging tool to create CD/DVD ISO image.
2. Please create a folder and share this folder on the PC that shares out the image file.
Copy the CD/DVD ISO image file to this sharing folder. (Please make sure password
has to be setup with the authorized user during Sharing => Permission settings)
MS Windows
Open the Explorer, navigate to the directory (or share) and press the right mouse button
to open the context menu. Select Sharing to open the configuration dialog

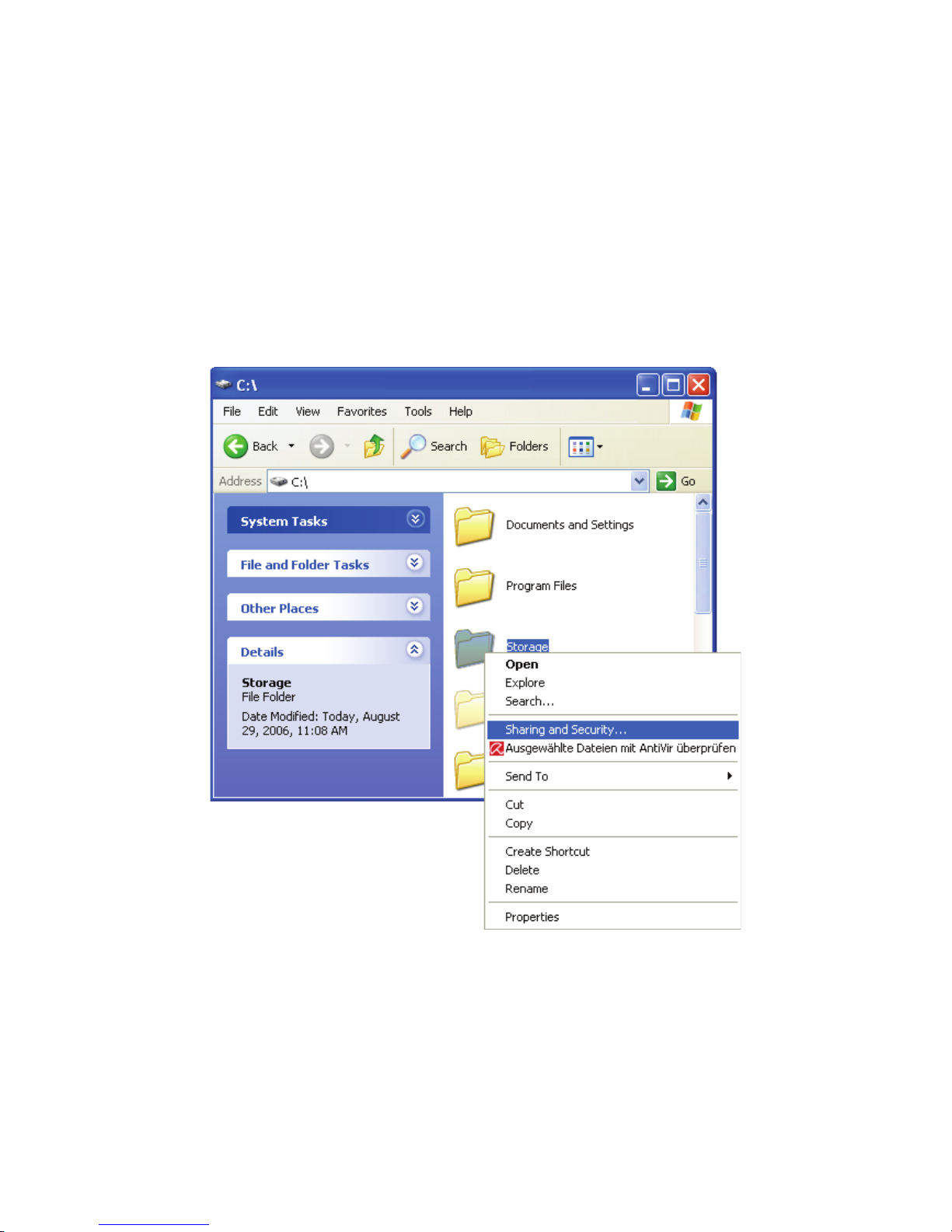

Figure 54: Explorer Context Menu
Page 76
-76-

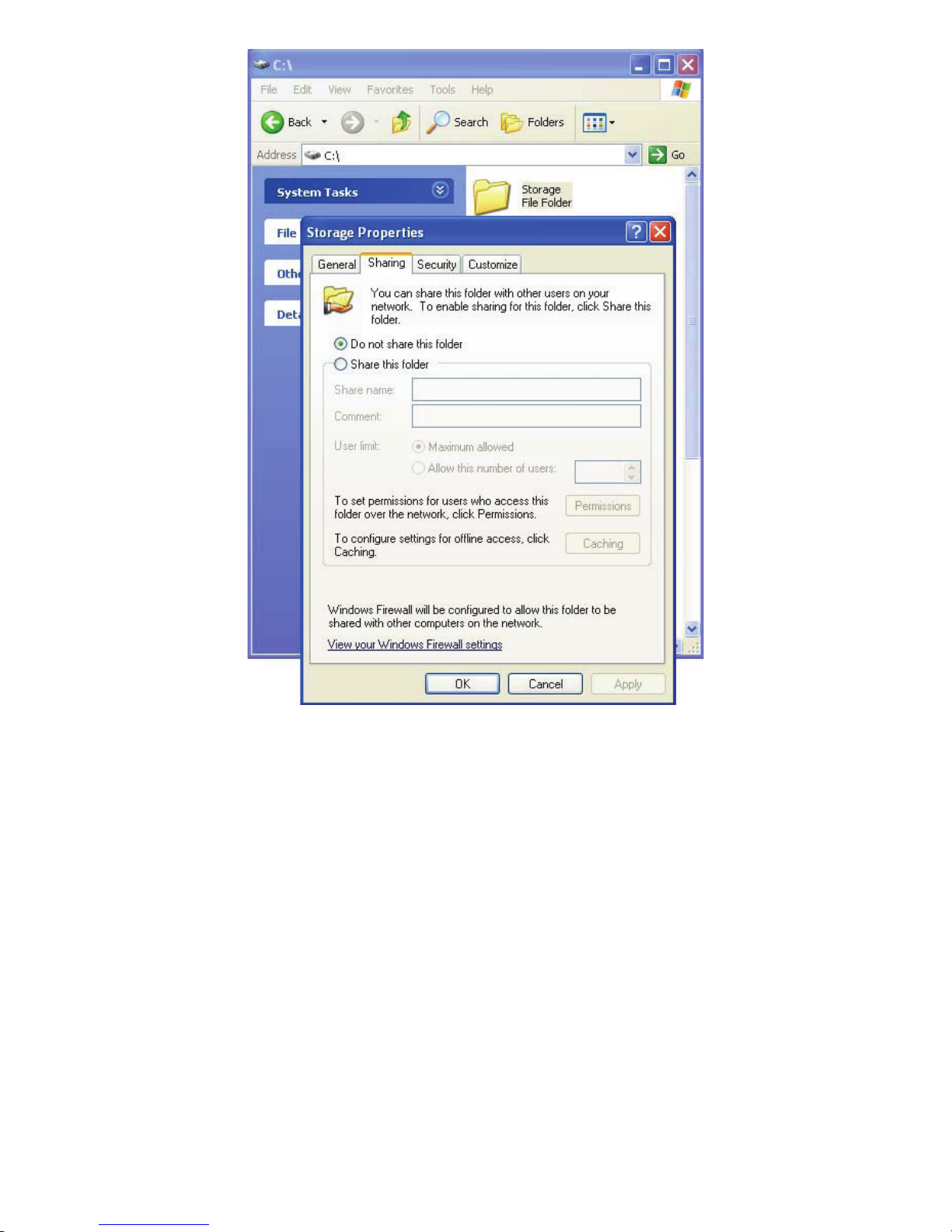

Figure 55: Share Configuration Dialog
Adjust the settings for the selected directory.
■ Activate the selected directory as a share. Select Share this folder.
■ Choose an appropriate name for the share. You may also add a short
description for this folder (input field Comment).
■ If necessary, adjust the permissions (Permissions button).
■ Click OK to set the options for this share.
UNIX and UNIX-like OS (UNIX, Solaris, Linux)
If you like to access the share via SAMBA, SAMBA has to be set up properly. You
may either edit the SAMBA configuration file /etc/samba/smb.conf or use the
Samba Web Administration Tool (SWAT) or WebMin to set the correct
parameters.
Viewing the man-entry of smb.conf may also provide additional help.
Page 77
-77-

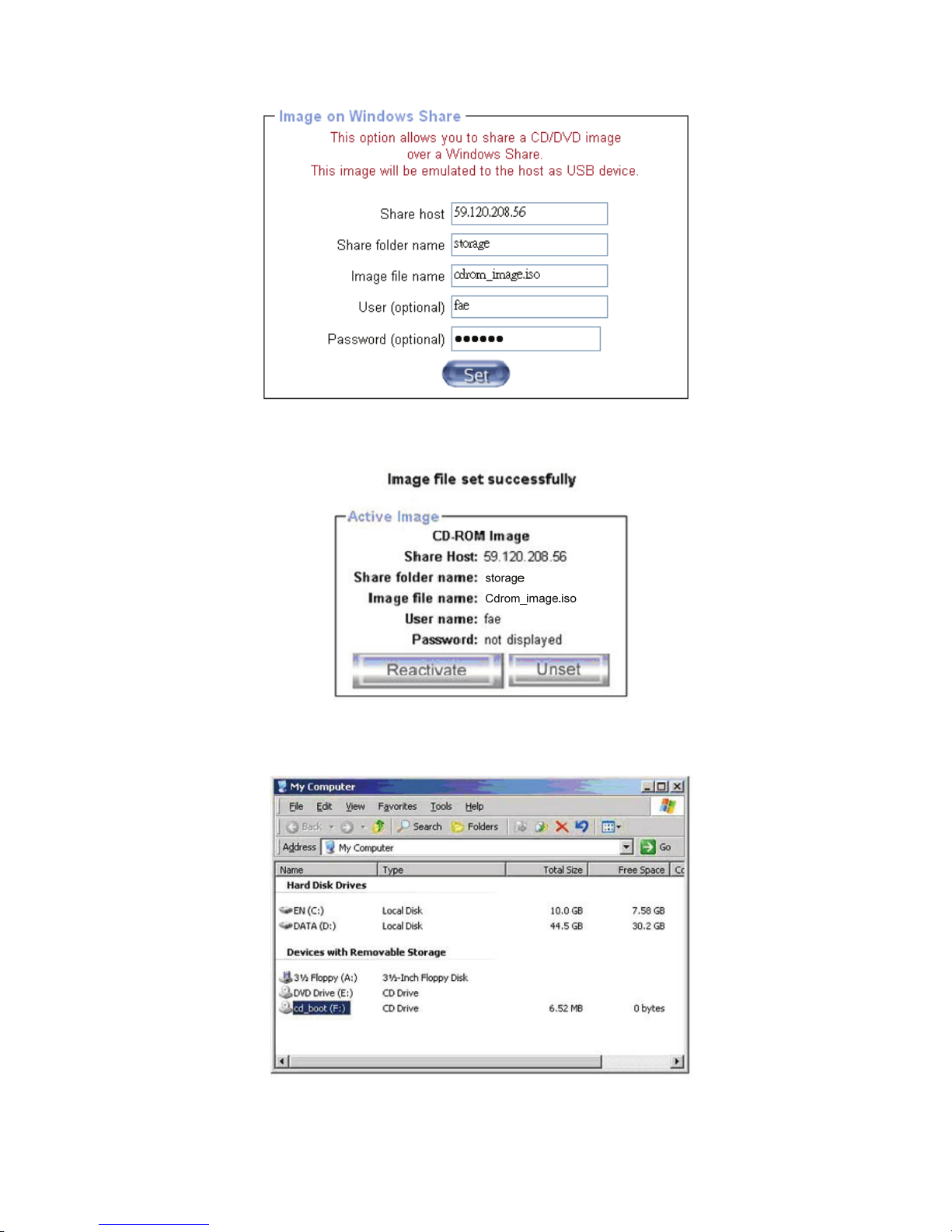

3. Fill in the sharing information on Image on Windows Share, and click the Set button to
save the settings.
4. If the Image file set successfully, a screen like the one below will appear.
5. Open the remote console and you can see the virtual CD as shown below.
Page 78
-78-
11.2.4 Floppy Disk

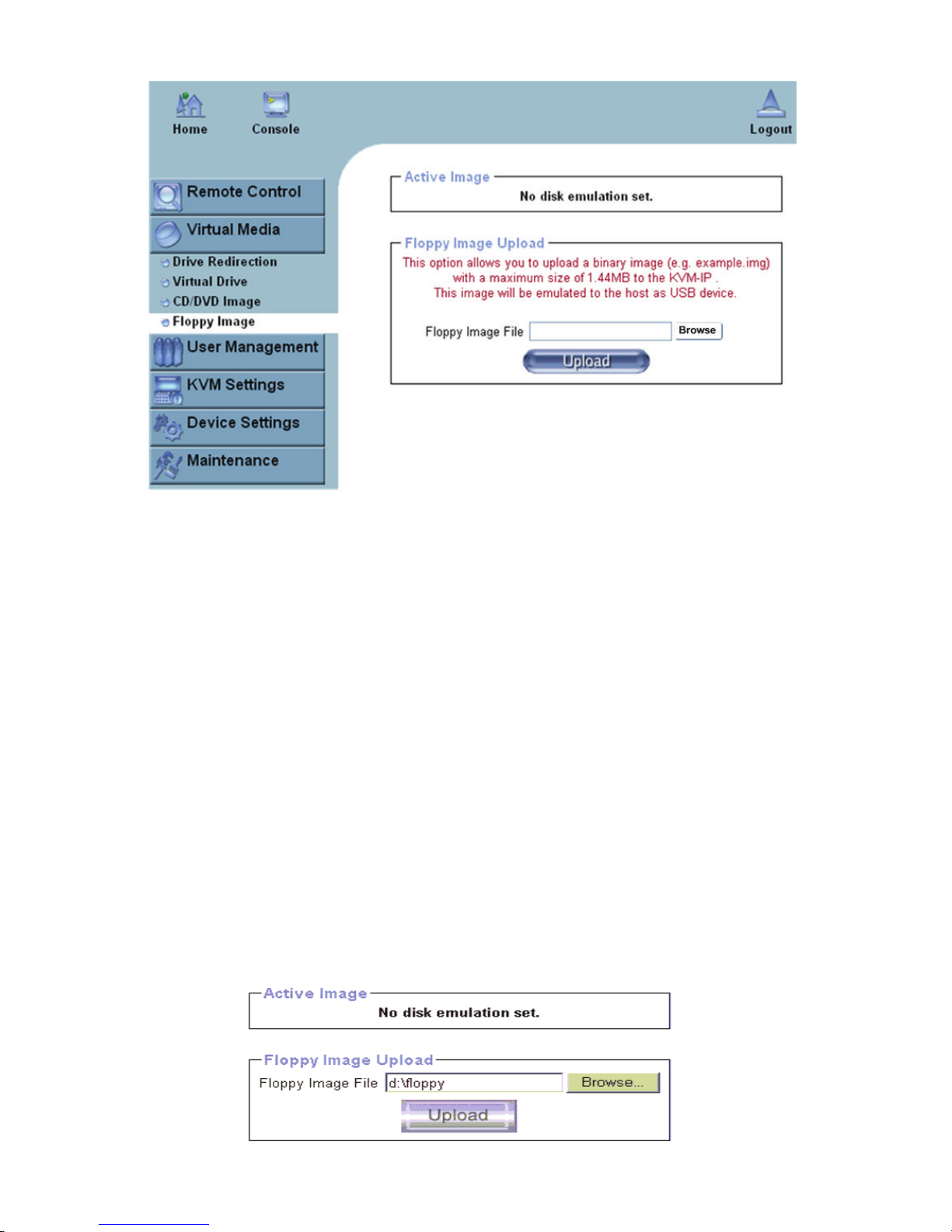

Figure 56: Virtual Media - Floppy Disk
The maximum image size is limited to 1.44MB. To use a larger image, mount this image via
Windows Share (or SAMBA) (see the Section called Use Image on Windows Share (via SAMBA)
for details)
Operation Procedures:
1. You need to create the floppy image file first (Please refer to the section “Creating
a floppy image”). For this example, we used Raw Write program (or any other
image-creator software) to create the floppy image. Please use licensed software
for this purpose.
2. You can find an image file saved at desire destination after you created it with Raw
Write.
3. Open the browser to log into the CAT5 8-PORT/16-PORT IP-KVM. Click Virtual
Media > Floppy Disk. Click
the Browse button to choose the image file.
Click on the button Upload to initiate the transfer of the chosen image file into the CAT5
Page 79
-79-
8-PORT/16-PORT IP-KVM module’s on-board memory

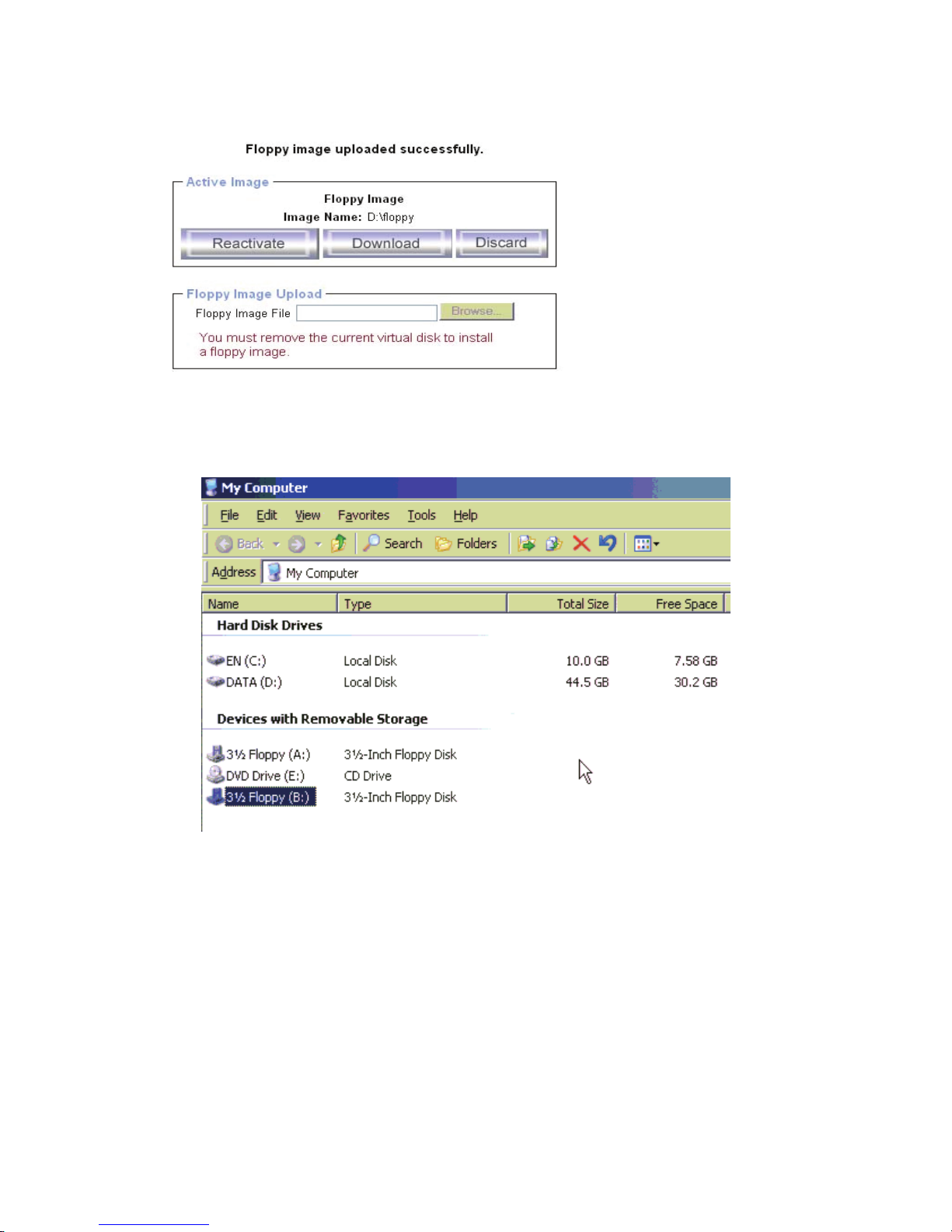

4. After you uploading the image file, you will see the information below.
5. Open the remote console and you will see a virtual Floppy drive is created on the
host computer that connected to CAT5 8-PORT/16-PORT IP-KVM.
The maximum size of the floppy image disk is 1.44MB. This drive is in read-only mode and
does not allow you to write any information on the drive. This drive can act as a boot drive
if the motherboard/BIOS on the Host computer supports the USB BOOTABLE function.
Notes:
1. For any image-creating software, the output image’s file extension must be “.img”, e.g.
“floppy_vir.img”.
2. The uploaded image file will be kept in the onboard memory of the CAT5
8-PORT/16-PORT IP-KVM until the end of the current session. A session ends when
you log out or initiate a reboot of the CAT5 8-PORT/16-PORT IP-KVM.
Page 80
-80-
11.2.5 Creating an Image
11.2.5.1. Creating a Floppy Image
MS Windows
You can use the tool “Raw Write for Windows”. You can get the RawWrite software from
the website http://www.chrysocome.net/rawwrite.

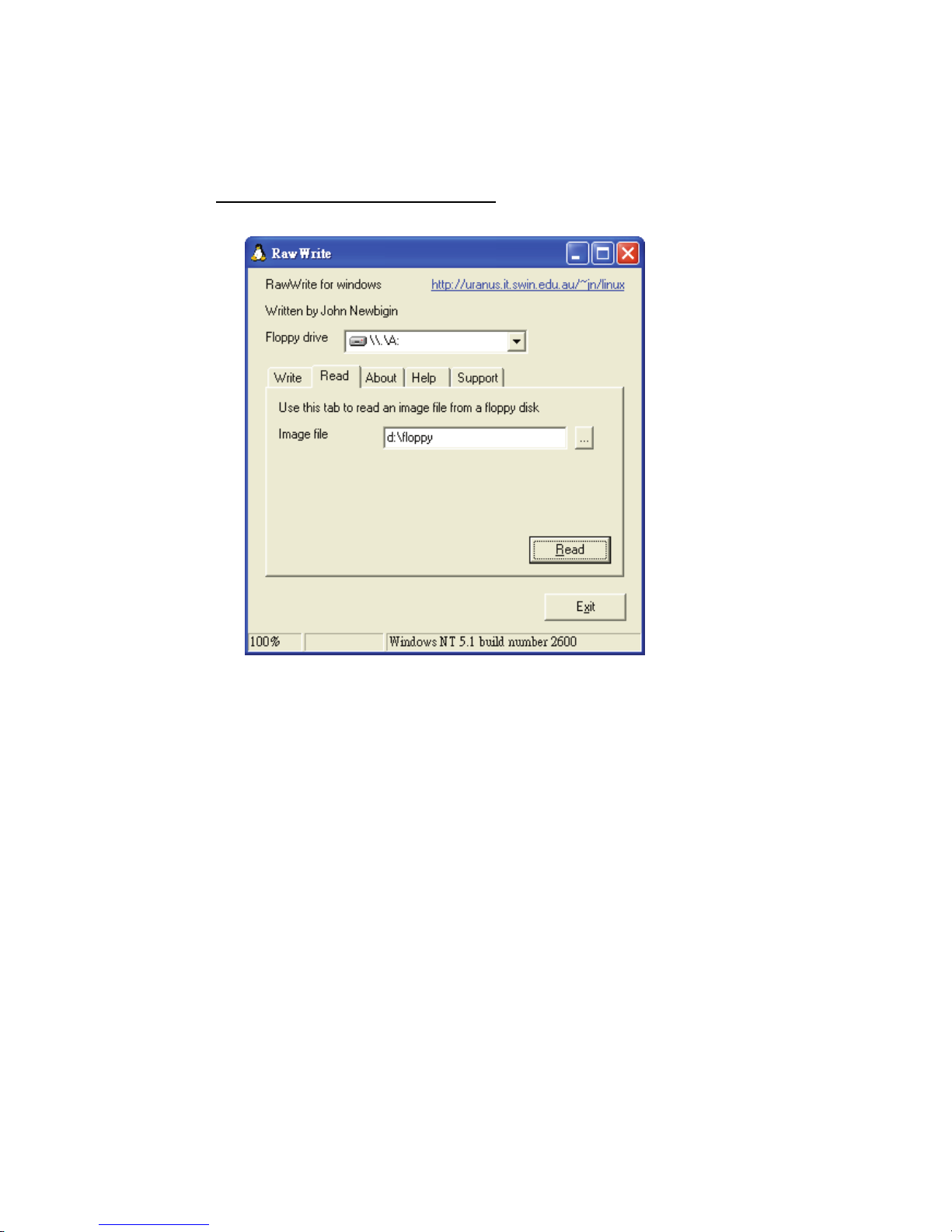

Figure 57: Raw Write for Windows selection dialog
From the menu, select the tab “Read”. Enter (or choose) the name of the file in which you
would like to save the floppy content. Click on the button “Read” to initiate the image
creation process.
UNIX and UNIX-like OS
To create an image file, you can use the “dd” command. This is one of the original UNIX
utilities and is included in every UNIX-like OS (UNIX, Sun Solaris, and Linux).
To create a floppy image file, copy the contents of a floppy to a file. You can use the
following command:
dd [ if=/dev/fd0 ] [ of=/tmp/floppy.image ]
dd reads the entire disk from the device /dev/fd0, and saves the output in the specified
output file /tmp/floppy.image. Adjust both parameters exactly to your needs (input device
etc.).
Page 81
-81-
11.2.5.2. Creating a CD/DVD ISO Image
MS Windows
To create the image file, use your favorite CD imaging tool. Copy the whole contents of the
disk into one single image file on your hard disk.
For example, with “Nero” you should select “Copy and Backup”. Then, click on the “Copy
Disc” section. Select the CD-ROM or DVD drive you would like to create an image from.
Specify the filename of the image, and save the CD-ROM content in that file.

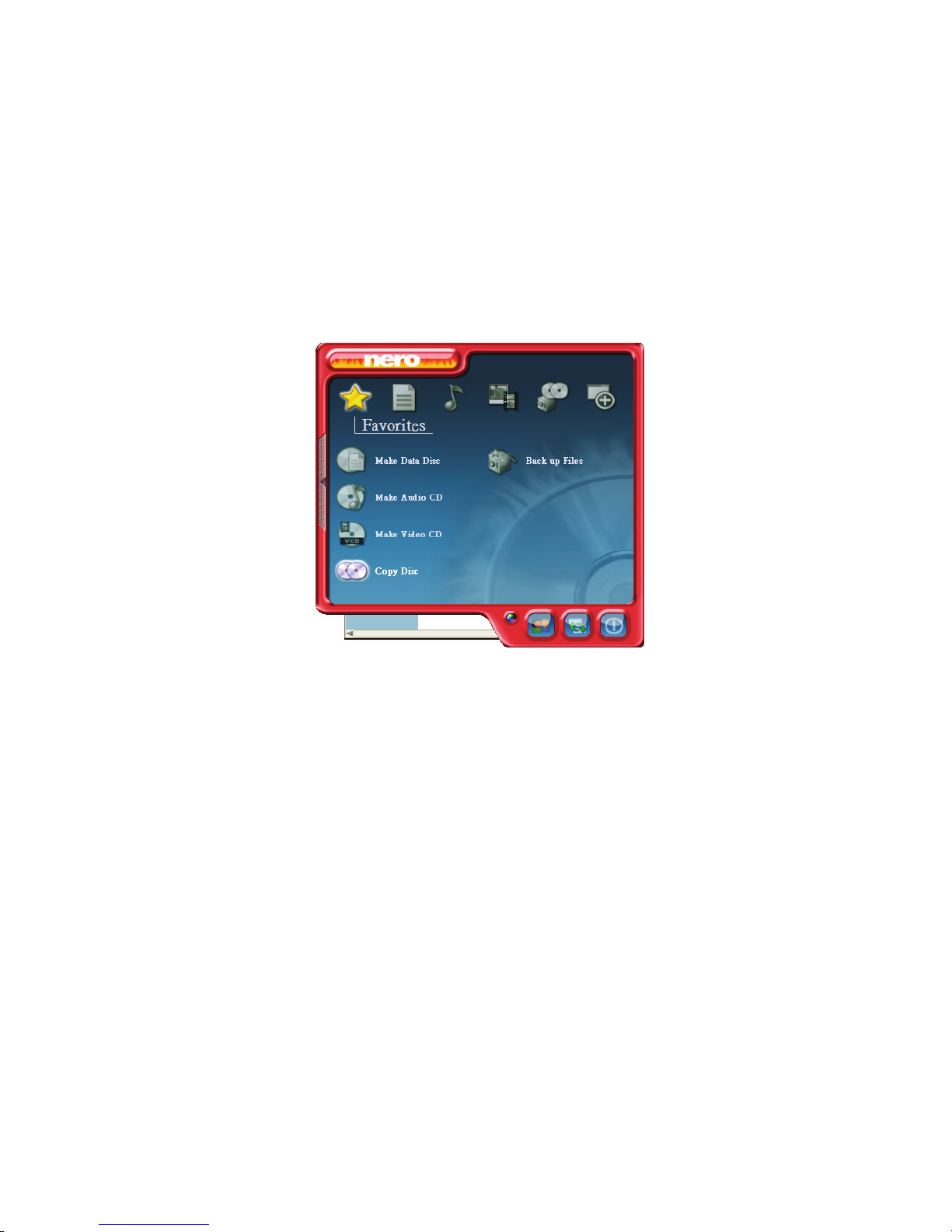

Figure 58: Nero selection dialog
UNIX and UNIX-like OS
To create an image file, you can use “dd” command. This is one of the original UNIX
utilities and is included in every UNIX-like OS (UNIX, Sun Solaris, and Linux).
To create a CD-ROM image file, copy the contents of the CD-ROM to a file. You can use
the following command:
dd [ if=/dev/cdrom ] [ of=/tmp/cdrom.image ]
dd reads the entire disc from the device /dev/cdrom, and saves the output in the specified
output file /tmp/cdrom.image. Adjust both parameters exactly to your needs (input device
etc.).
Page 82
-82-
11.2.6 Making a Drive Redirection
The operation for making a Drive Redirection as below:
1. Click Remote Control > KVM Console.
2. Click on the “Floppy” icon
You will see the Driver Redirection window as below
Figure 59: Built-in Java Drive Redirection
3. You can either redirect a local drive (only available under Windows) or redirect an ISO
CD/DVD image.
Page 83
-83-

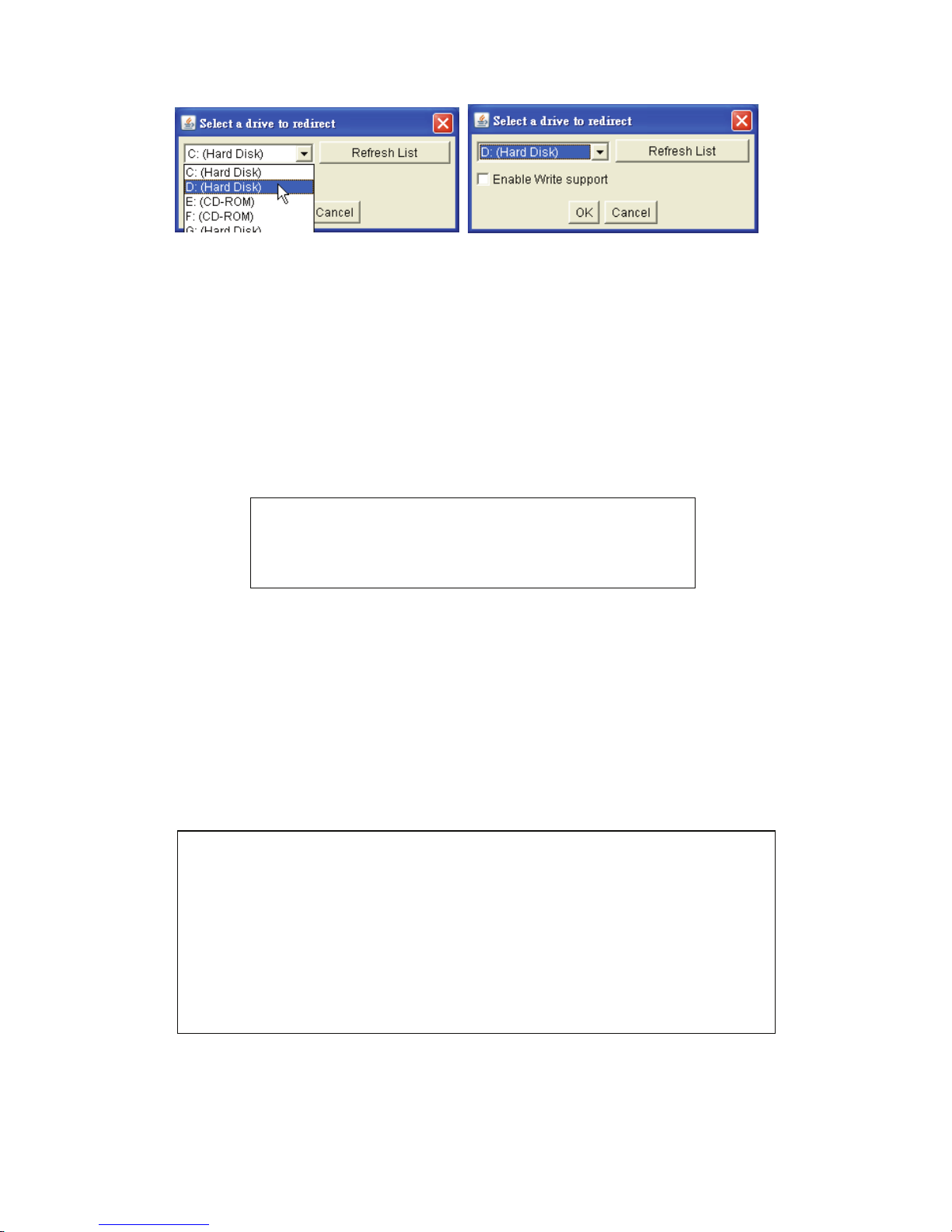

3a. If you click the Connect Drive button in the Drive Redirection field, the following issues
need to be taken into consideration:
Select the drive to be redirected and click OK.
Select the drive that should be redirected. All available devices (drive letters) are
shown here. Please be noted that the entire hard disk that the drive belongs to will be
shared with the Remote computer, not only one partition. If you have a hard disk with
more than one partition, all partitions that belong to this disk will be redirected. The
“Refresh” button can be used to regenerate the list of drive initials. This is especially
handy when working with a USB stick.
Write Support
This feature may be enabled here. Write support means that the remote computer is
allowed to write on your local drive. As you can imagine, this is very dangerous. If both
the remote and the local system try to write data on the same device, this will certainly
destroy the file system on the drive. Please use this feature only if you exactly know
what you are doing.
Warning
Please be cautious that if “Allow Write Support” is
selected, all data on the shred media might be destroyed.
Warning
1. Drive Redirection is only possible with Windows 2000 or later versions.
2. The Drive Redirection works on a low SCSI level and the SCSI protocol
cannot recognize partitions; therefore the whole drive selected will be shared
instead of any particular partition.
Page 84
-84-

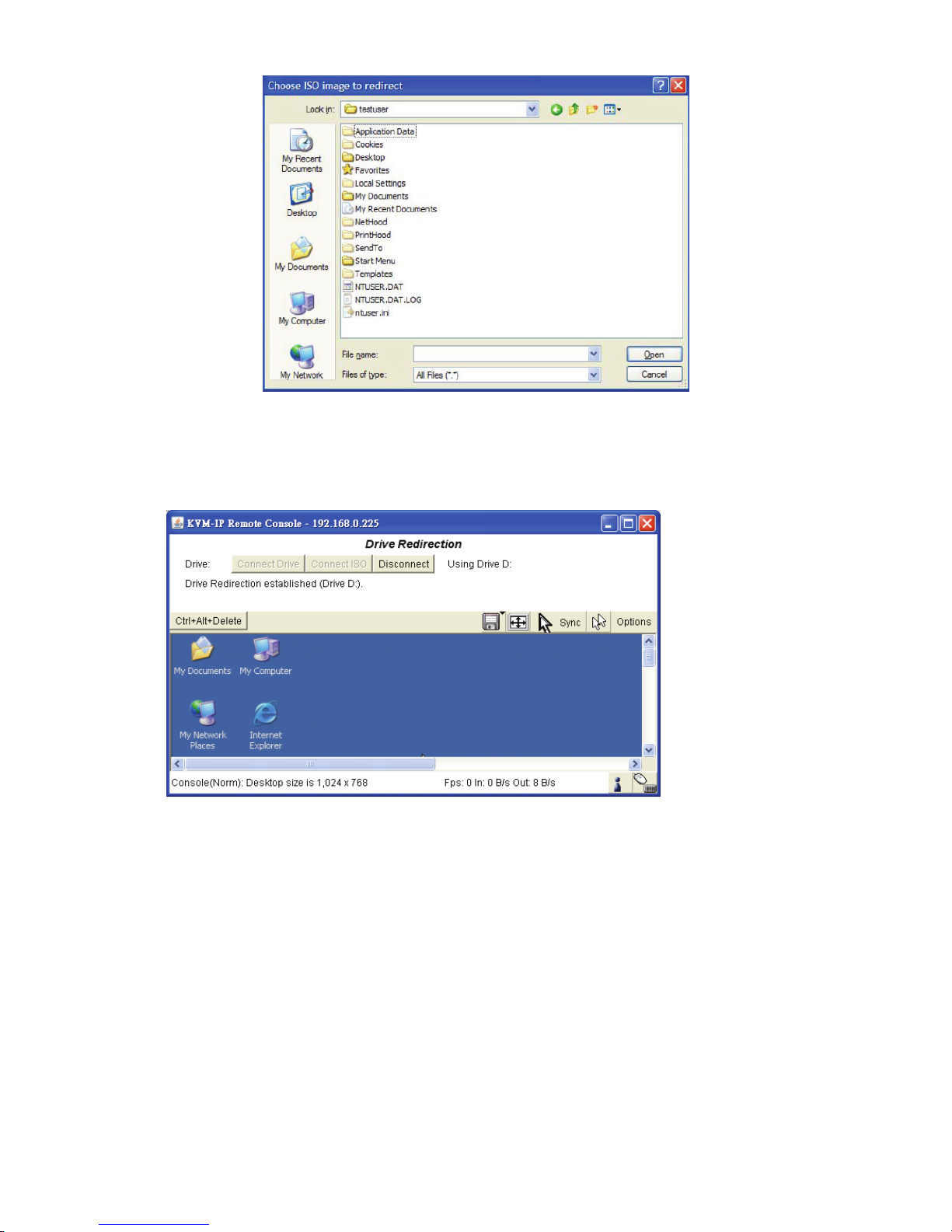

3b. If click on Connect ISO
Select the ISO image file and click Open

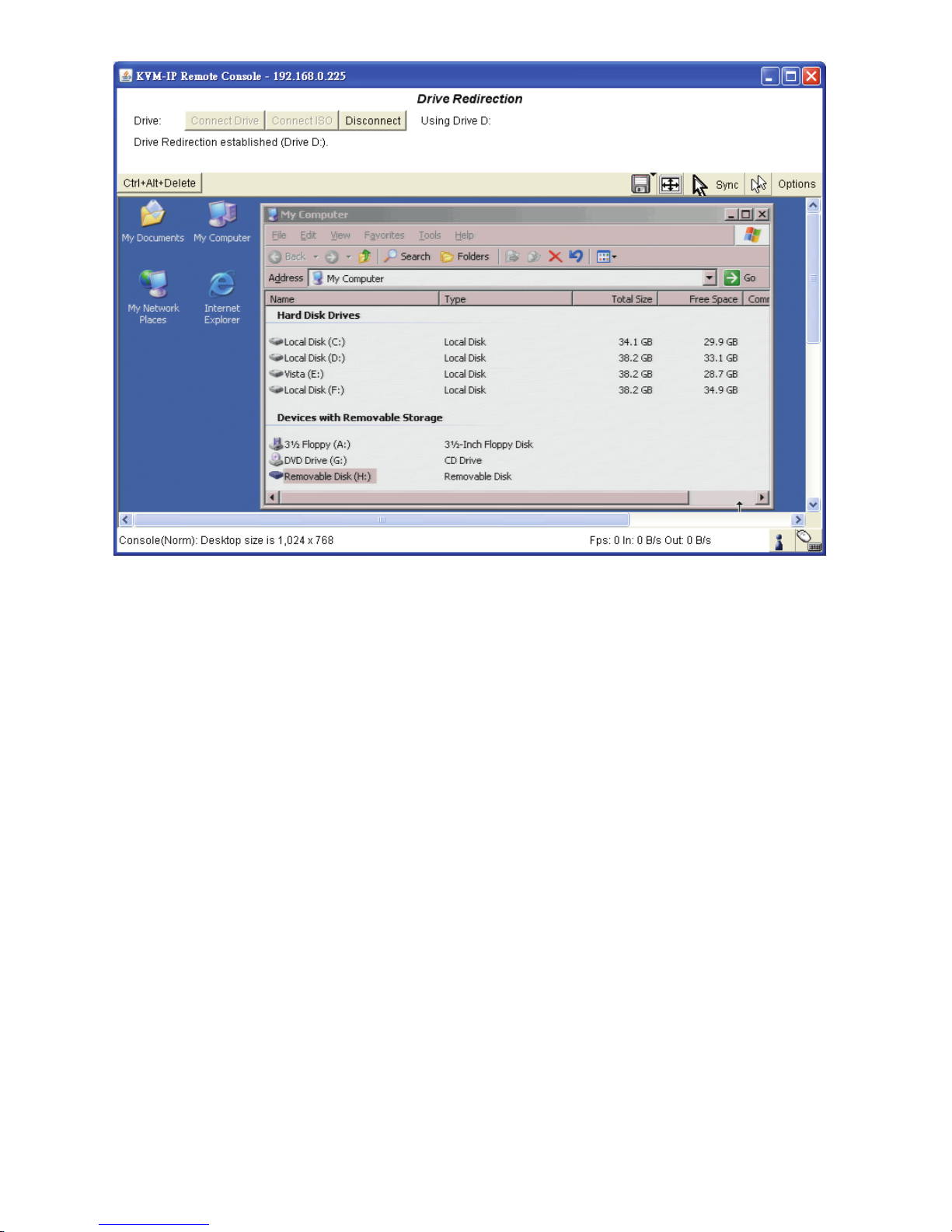

4. Finally the established Drive Redirection connection will be displayed
Open My Computer you will see the virtual drive appears on the remote host PC
window.
Page 85
-85-
The drive redirection software will try to lock the Remote-side local drive before it is
redirected. That means that it will try to prevent the local operating system from accessing
the drive as long as it is redirected. This attempt may fail, especially if a file on the drive is
open when the attempt is made. In the case of such a locking failure, you will be prompted
if you want to establish the connection anyway. If Write Support is enabled, a drive which
is not locked may be damaged by the Drive Redirection. This should not be a serious
problem if the Write Support is disabled.
Clicking on the Disconnect button will disconnect the Drive Redirection connection.
Please note that the Virtual Drive is created on the “device level”, not the “partition level”,
which means that the computer looks for I/O at the BIOS level and sends the
corresponding data to the Host computer. This means that it sends the entire hard drive
(which may consist of multiple partitions) and emulates all of those partitions on the Host
computer. A DVD drive can be emulated in the same way. However, such a “virtual” DVD
drive cannot act as a boot drive like floppy and CD-ROM images can.
Page 86
-86-
11.3 User Management
On an CAT5 8-PORT/16-PORT IP-KVM, each username has permission levels that are
assigned to it. These permission settings affect how the user interfaces with the Remote
Console. Permissions allow or forbid the user from performing various actions on the CAT5
8-PORT/16-PORT IP-KVM’s web pages. There are three permission“ranks” that can be
assigned to any user at any time by any user that has the relevant permission “rank”. The
highest permission rank is “super user”, then “administrator”, then “user” at the bottom of
the rank hierarchy.
11.3.1 Change Password

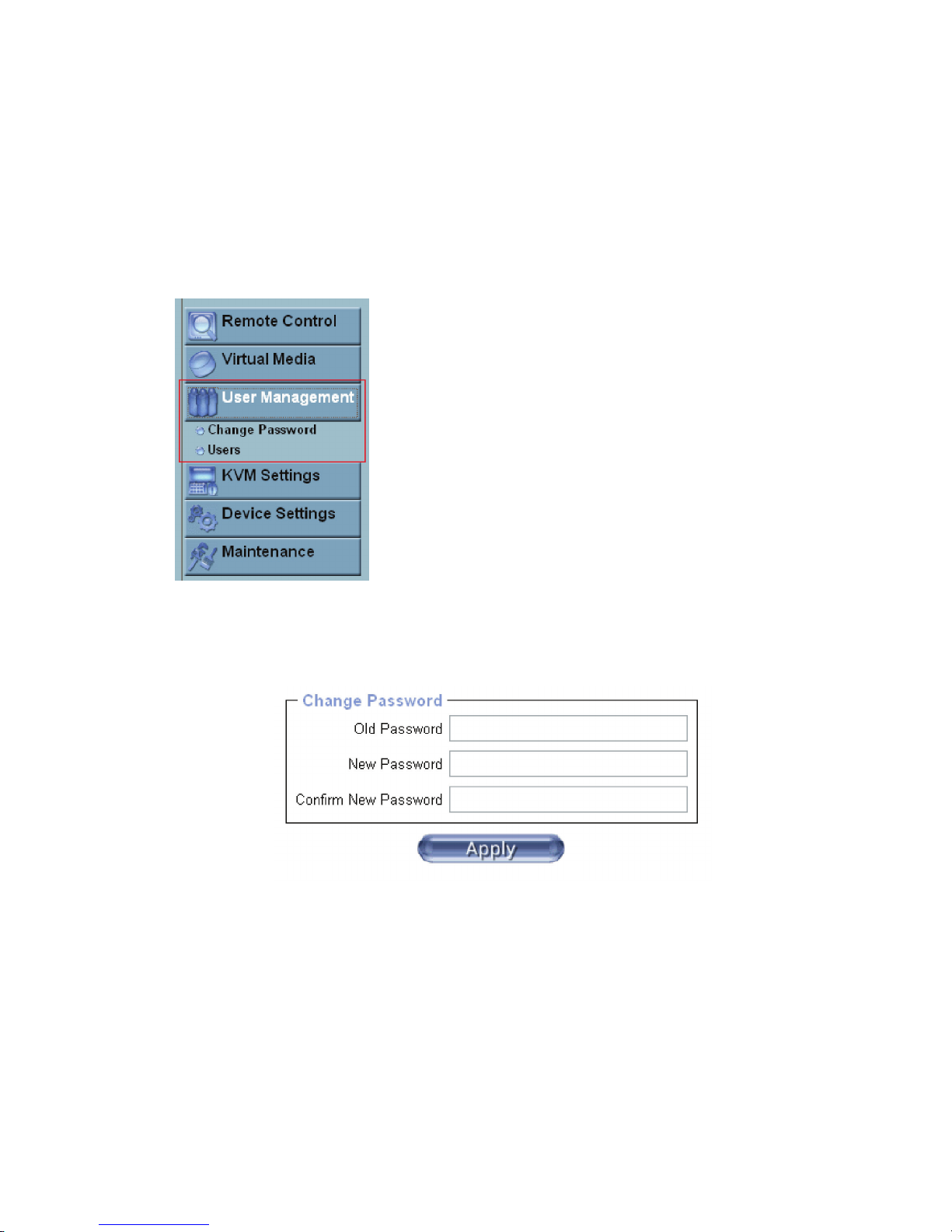

Figure 60: Setting Password
Click on User Management > Change Password to change the password for the
currently logged in user account. Enter the relevant old and new passwords, and
then click the Apply button to save your changes.
Page 87
-87-
11.3.2 Users and Groups

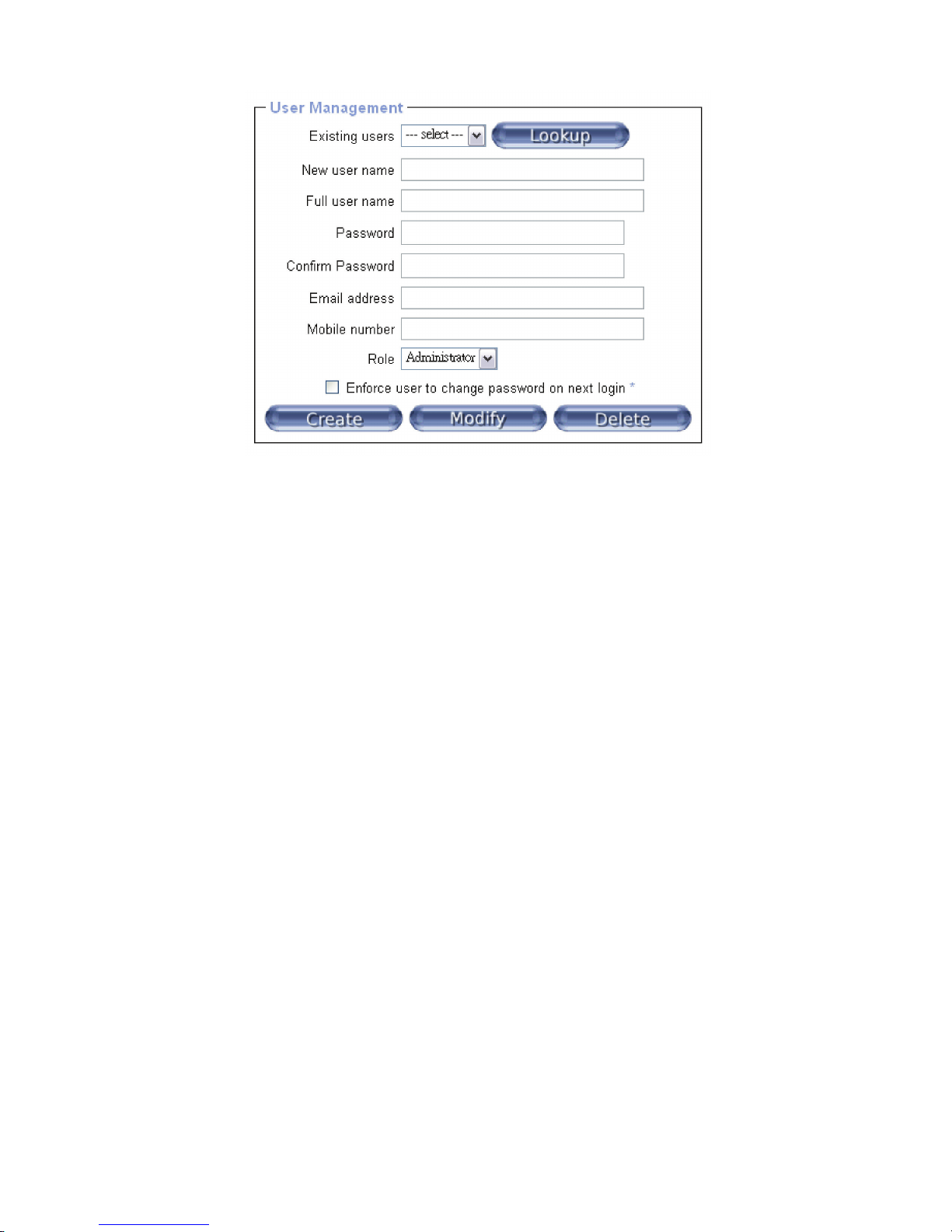

Figure 61: Users and Groups
There are three permission levels of user accounts:
■ Super -- Has permission to change all configurations and use all functions.
■
Administrator -- Has permission to change most configurations and use most
functions
■
User -- Has permission to access only the basic functions of the Remote Console
You can choose the desired level from the selection box role.
The CAT5 8-PORT/16-PORT IP-KVM comes pre-configured with a factory default
“super user” account that is permitted to make all possible configuration changes and
use all the device’s functions.
The factory default username and password for this super user is “super” and
“pass”. Make sure you change the password immediately after you have
installed your CAT5 8-PORT/16-PORT IP-KVM.
Existing users
Select an existing user for modification. Once a user has been selected, click
the Lookup button to display the user’s information.
New User name
Enter a name for the new user account.
Password
Enter a password for the selected user. It must be at least three characters long.
Confirm password
Re-enter the password for the selected user for confirmation.
Page 88
-88-
Email address
Enter the user’s e-mail address here. (optional)
Mobile number
Enter the user’s mobile phone number here. (optional)
Role
Assign a permission level, or role, to the selected user.
To create an user press the button Create. The Modify button changes the displayed
user settings. To delete a user press the button Delete.
Note: The CAT5 8-PORT/16-PORT IP-KVM is equipped with a built-in processor and
memory unit, which both have limitations in terms of the processing instructions and
memory space. To guarantee an acceptable response time, we recommend that you do
not let more than 15 users connect to the CAT5 8-PORT/16-PORT IP-KVM at the same
time. The memory space available on the CAT5 8-PORT/16-PORT IP-KVM mainly
depends on the configuration and usage of the CAT5 8-PORT/16-PORT IP-KVM (log file
entries, etc.). For this reason, we recommend that you do not store more than 63 user
profiles.

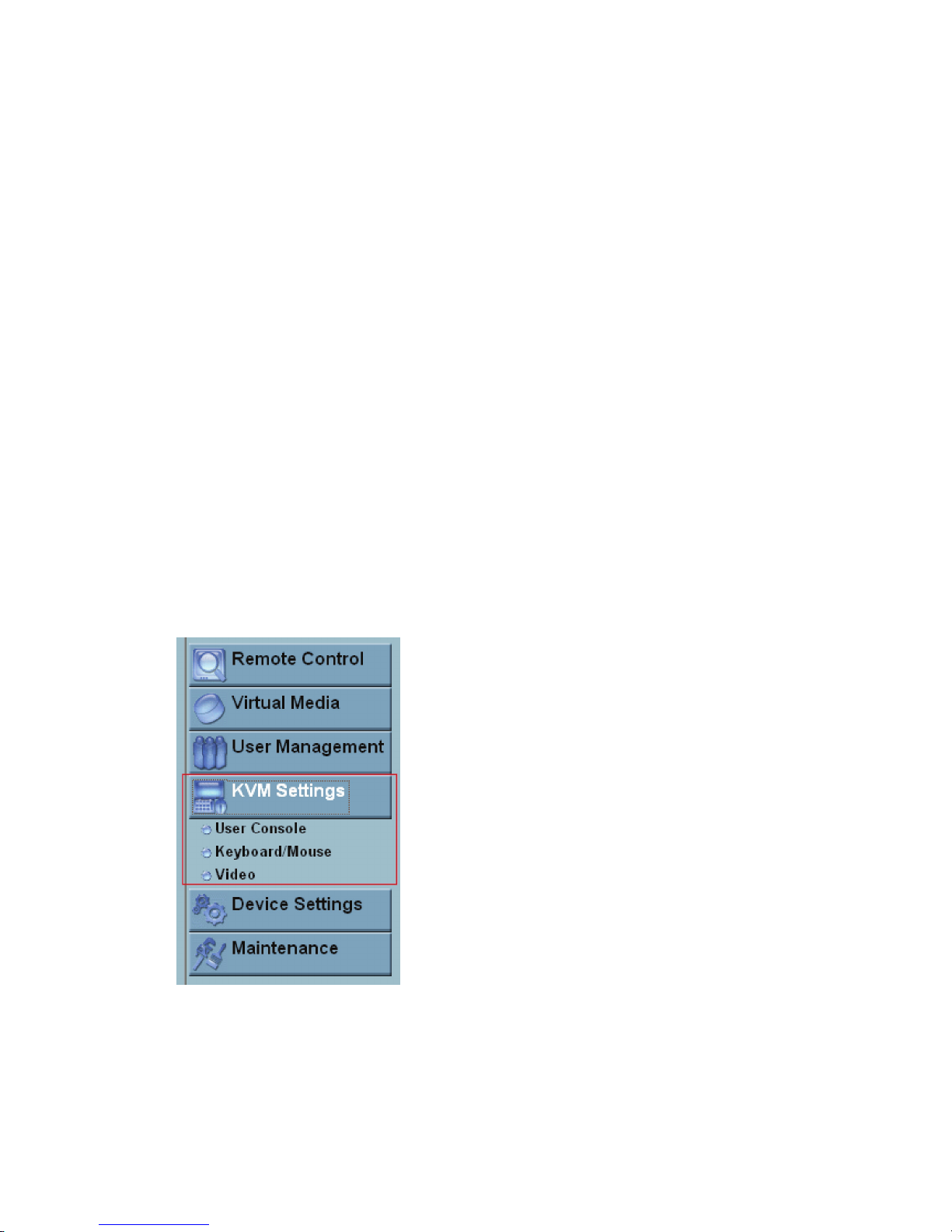

11.4 KVM Settings
Page 89
-89-
11.4.1 User Console
The following settings are user specific. That means, the super user can
customize these settings for every user separately. Changing the settings for
one user does not affect the settings for the other users

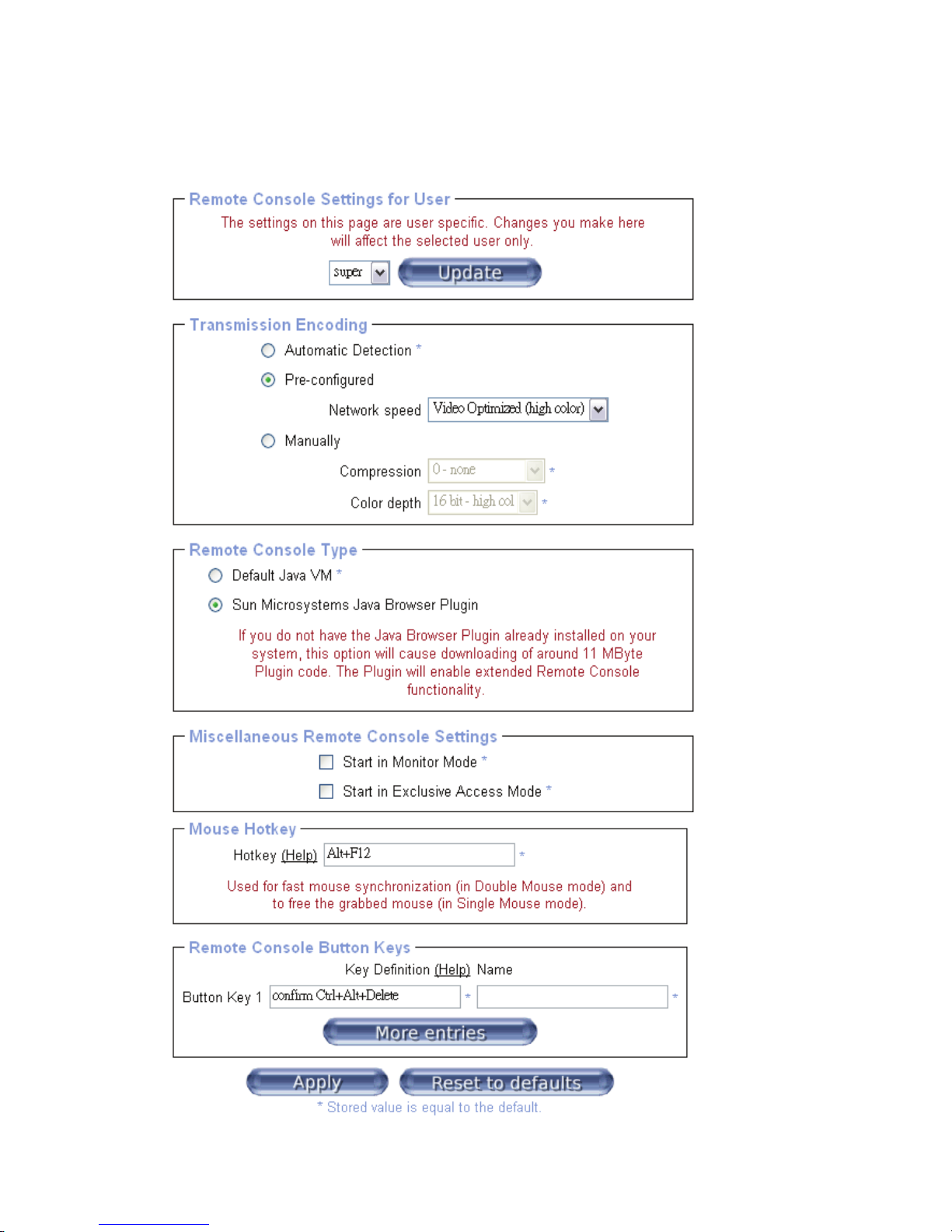

Figure 62: User Console Setting
Page 90
-90-
Remote Console Settings for User (user select box)
This selection box displays the username whose configuration values are displayed
and for which any changes will take effect. You may change the settings of other
users if you have the required permission level. Use the dropdown box to select the
user whose configuration settings you want change, then click the Update button.
Transmission Encoding
The Transmission Encoding setting allows you to change the image-encoding
algorithm that is used to transmit the video data to the Remote Console window. It is
possible to optimize the speed of the remote screen processing depending on the
number of users logged in at the same time and the network bandwidth of the
connection line (Modem, ISDN, DSL, LAN, etc.).
Automatic detection
The encoding and the compression level are determined automatically
from the available bandwidth and the current content of the video image.
Pre-configured
Use the dropdown box to select the network speed that most closely matches the
CAT5 8-PORT/16-PORT IP-KVM’s connection speed to automatically choose the
best settings for compression and color depth for the indicated network speed.
Manually
This field lets you adjust both the compression rate and the color depth
individually. Depending on the selected compression rate, the data stream
between the CAT5 8-PORT/16-PORT IP-KVM and the Remote Console will be
compressed in order to save bandwidth. Since high compression rates use more
of the CAT5 8-PORT/16-PORT IP-KVM’s computing power, they should not be
used while several users are accessing the CAT5 8-PORT/16-PORT IP-KVM
simultaneously.
The standard color depth is 16 -bit (65536 colors). Other color depths are intended
for slower network connections in order to allow for faster transmission of data.
Compression level 0 (no compression) uses only 16-bit color. For low bandwidth
connections, 4-bit (16 colors) and 2-bit (4-color grayscale) are recommended for
typical desktop interfaces. To retain a high-quality image on a low bandwidth
connection, such as when viewing photos, try 4-bit (16-color grayscale). 1-bit color
depth (black/white) should only be used for extremely slow network connections.
Remote Console Type
This field specifies which Remote Console viewer the selected user will use.
Default Java-VM
This viewer uses the default Java Virtual Machine (JVM) of your Browser. This
may be the Microsoft JVM for Internet Explorer, or the Sun JVM if the browser is
configured to use it by default. Use of the Sun JVM may also be forced manually
Page 91
-91-
(see below).
Sun Microsystems Java Browser Plugin
This viewer instructs the web browser that your GUI is running on to use the Sun
Microsystems Java Virtual Machine (JVM). The JVM in the browser is used to run
the code for the Remote Console window, which is actually a Java Applet. If you
check this box for the first time on your administration system, and if the
appropriate Java plug-in is not already installed on your system, it will be
downloaded and installed automatically. However, in order to make the installation
possible, you still need to instruct your browser to download and install the plugin,
usually through prompts that will appear, and an 11 MB plugin will need to be
downloaded. (The CAT5 8-PORT/16-PORT IP-KVM will provide a link to the JVM
plugin if the Remote computer does not already have it installed. The user could
also install the latest Java software later, if needed.)
The advantage of downloading Sun's JVM is that it provides a stable and identical
experience across different platforms. The Remote Console software is optimized
for this JVM version and offers a wider range of functionality when run in Sun's
JVM. Please make sure that you install Sun JVM 1.5 or above in your client
system.
Miscellaneous Remote Console Settings
Start in Monitor Mode
This setting sets the initial value for the Monitor Only mode. By default, Monitor Only
mode is off. If you enable this setting, the Remote Console window will open in
view-only mode.
Start in Exclusive Access Mode
If you enable this setting, the Remote Console will start in Exclusive Access mode.
This means that the Remote Console windows of all other users will be forced to
close if this user opens the Remote Console for the CAT5 8-PORT/16-PORT IP-KVM
on his or her computer. No one else can open the CAT5 8-PORT/16-PORT IP-KVM’s
Remote Console window until this user disables Exclusive Access mode or logs off..
Mouse hotkey
This lets you specify a hotkey combination for this user that will either start the mouse
synchronization process when Double Mouse Mode is active, or will free the mouse
pointer from being captured by the Remote Console when Single Mouse Mode is
active.
Remote Console Button Keys
Button Keys allow keystroke combinations to be sent to the Host computer that
normally cannot be generated on the Remote computer. The reason for this might be
a missing key, or the fact that the local operating system of the Remote computer is
Page 92
-92-
unconditionally catching this key combination already. Typical examples are
“Control+Alt+Delete” in Windows and DOS, or “Control+Alt+Backspace” on Unix or
Unix-like operating systems for restarting X-Server.
The syntax to define a new Button Key is as follows:
[confirm] <keycode>[+|-[*]<keycode>]*
“confirm” programs the system to display a confirmation dialog box (Yes/No) before a
keystroke sequence is sent to the remote host.
“keycode” is the key sequence that will be sent. Multiple key codes can be
concatenated with a plus or a minus sign. The plus sign builds key combinations
where all keys listed will be pressed until a minus sign or the end of the combination
is encountered, where all pressed keys will be released in reversed sequence. The
minus sign builds single, separate key presses and releases. The star(*) inserts a
pause with duration of 100 milliseconds.
Page 93
-93-
11.4.2 Keyboard/Mouse

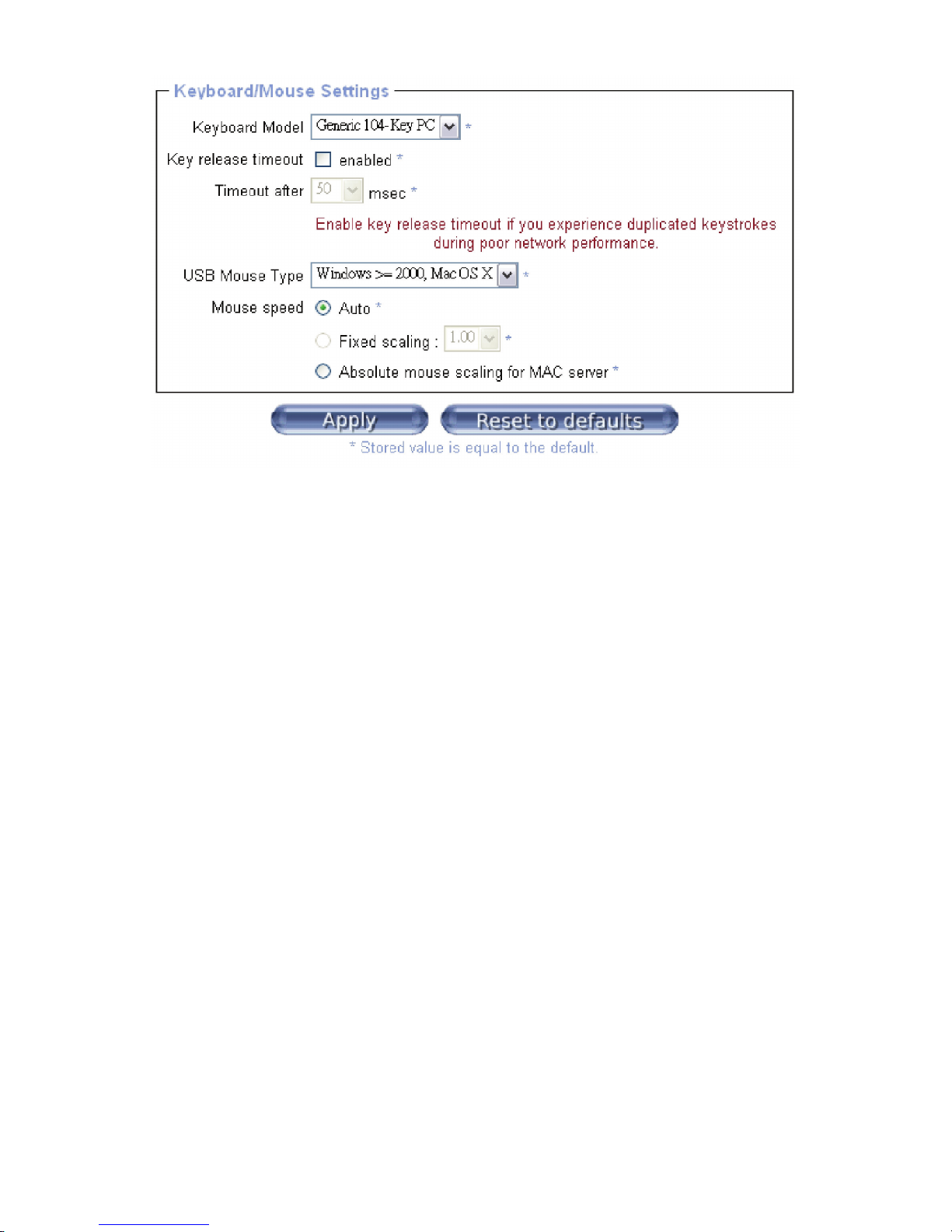

Figure 63: Keyboard and Mouse Settings
Keyboard Model
Select the keyboard configuration that matches the one that will be used by the
Remote user. This will help ensure that keystrokes received by the Host
computer match the ones sent by the Remote computer. You can choose
between “Generic 101-Key PC” for a standard keyboard layout, “Generic
104-Key PC” for a standard keyboard layout extended by three additional
windows keys, “Generic 106-Key PC” for a Japanese keyboard, and “Apple
Macintosh” for the Apple Macintosh.
Keyboard timeout
We recommend that you enable this setting if the Host system runs on a UNIX or
UNIX-like OS.
Mouse Speed
• Auto mouse speed
Use this option if the mouse settings on the Host system use an additional
acceleration setting. The CAT5 8-PORT/16-PORT IP-KVM tries to detect the
acceleration and speed of the mouse during the mouse sync process.
• Fixed mouse speed
This option uses a direct translation of mouse movements between the local and
the remote pointer. You may also adjust the fixed scaling which determines
number of pixels to move the remote mouse pointer when the local mouse
pointer is moved one pixel. This option is used to manually control the remote
Page 94
-94-
mouse speed and only works when the mouse settings on the host are linear.
This means that any mouse acceleration settings of the OS should be disabled.
Also, the Remote Console’s Intelligent Sync function will not be available when
fixed scaling is selected.
• Absolute mouse scaling for MAC server
Enable this option if the Host computer uses Mac OS.
After making any changes, click the Apply button to save your settings.
11.4.3 Video
Figure 64: Video Settings
Miscellaneous Video Settings
Noise filter
This option defines how the CAT5 8-PORT/16-PORT IP-KVM reacts to small
changes in the video input signal. Turning on the noise filter can help reduce
video flickering that is often caused by interference, and can help lower
unnecessary bandwidth consumption. A large filter setting needs less network
data traffic and enables a faster video display, but some small changes in the
display may not be recognized immediately. A small filter setting displays all
changes instantly, but may lead to a constant stream of network traffic, even if
the display content is not actually changing (depending on the quality of the
video input signal). In general, the default setting should be suitable for most
situations.
Force Composite Sync (Required for Sun Computers)
When connecting the device directly to a legacy Sun computer that uses
composite sync as the video output, the CAT5 8-PORT/16-PORT IP-KVM may
not recognize the composite sync video output automatically. To support signal
transmission from a Sun machine, enable this option. If this is not enabled, the
video feed of the Remote Console may not be visible.
Page 95
-95-
After making any changes, click the Apply button to save your settings.
11.5 Device Settings
11.5.1 Network
The Network Settings panel allows the user to change network-related parameters. Each
parameter will be explained below. Once applied, the new network settings will
immediately come into effect.
Page 96
-96-

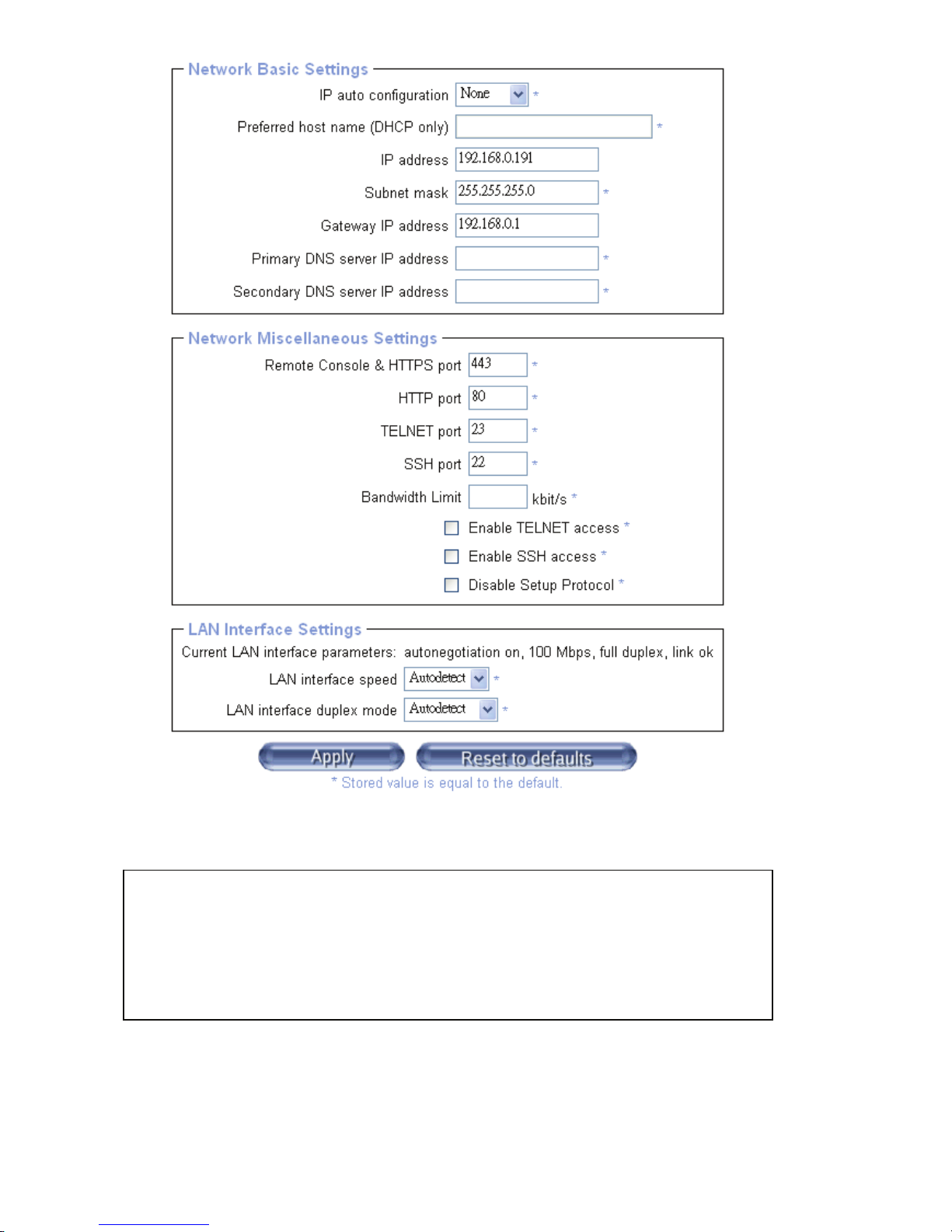

Figure 65: Network Settings
IP auto configuration
With this option you can control whether the CAT5 8-PORT/16-PORT IP-KVM
should fetch its network settings from a DHCP or BOOTP server. For DHCP,
select “dhcp”, and for BOOTP select “bootp”. If you choose “none” then IP auto
configuration is disabled and you will need to set a static IP.
Warning
Changing the network settings of the 8-PORT/16-PORT IP-KVM might result in losing
your connection to it. In case you change the settings remotely make sure that all the
values are correct and that you still have a way to access the 8-PORT/16-PORT IP-KVM
if the connection is lost, such as though a local network.
Page 97
-97-
Preferred host name
This sets the preferred host name to request from DHCP server. Whether the
DHCP server takes the CAT5 8-PORT/16-PORT IP-KVM suggestion into
account or not depends on the DHCP server’s configuration.
IP address
Here you can set the CAT5 8-PORT/16-PORT IP-KVM’s IP address.
Subnet Mask
Here you can set the subnet mask for the CAT5 8-PORT/16-PORT IP-KVM.
Gateway IP address
Here you can set the gateway for the CAT5 8-PORT/16-PORT IP-KVM. In case
the CAT5 8-PORT/16-PORT IP-KVM needs to be accessible from networks
other than the local one, this IP address must be set to the local network router's
IP address.
Primary DNS Server IP Address
Here you can set the primary DNS server for the CAT5 8-PORT/16-PORT
IP-KVM. This option may be left blank, but the CAT5 8-PORT/16-PORT
IP-KVM will then be unable to perform name resolution.
Secondary DNS Server IP Address
Here you can set the secondary DNS server for the CAT5 8-PORT/16-PORT
IP-KVM. It will be used in case the Primary DNS Server cannot be contacted.
Remote Console And HTTPS port
Here you can set the port the CAT5 8-PORT/16-PORT IP-KVM will use for
the Remote Console server and HTTPS server. If this is blank, the default
port of 443 will be used.
HTTP port
Here you can set the port the CAT5 8-PORT/16-PORT IP-KVM will use for the
HTTP server. If this is blank, the default port of 80 will be used.
Telnet port
Here you can set the port the CAT5 8-PORT/16-PORT IP-KVM will use for the
Telnet server. If this is blank, the default port of 23 will be used.
SSH port
Here you can set the port the CAT5 8-PORT/16-PORT IP-KVM will use for the SSH
server. If this is blank, the
default port of 22 will be used.
Page 98
-98-
Bandwidth limitation
This lets you limit the bandwidth used by the CAT5 8-PORT/16-PORT IP-KVM.
If this is blank, no bandwidth limit will be applied.
Enable Telnet access
This enables the Telnet function.
Enable SSH access
This enables the SSH (Secure Shell) function.
Disable Setup Protocol
Enable this option to exclude the CAT5 8-PORT/16-PORT IP-KVM from the setup
protocol. Setup protocol is a proprietary layer-2 MAC-based protocol to allow
some configuration software to detect CAT5 8-PORT/16-PORT IP-KVM devices
in the network, even without IP address, and then configure network related
settings for the CAT5 8-PORT/16-PORT IP-KVM.
11.5.2 Dynamic DNS

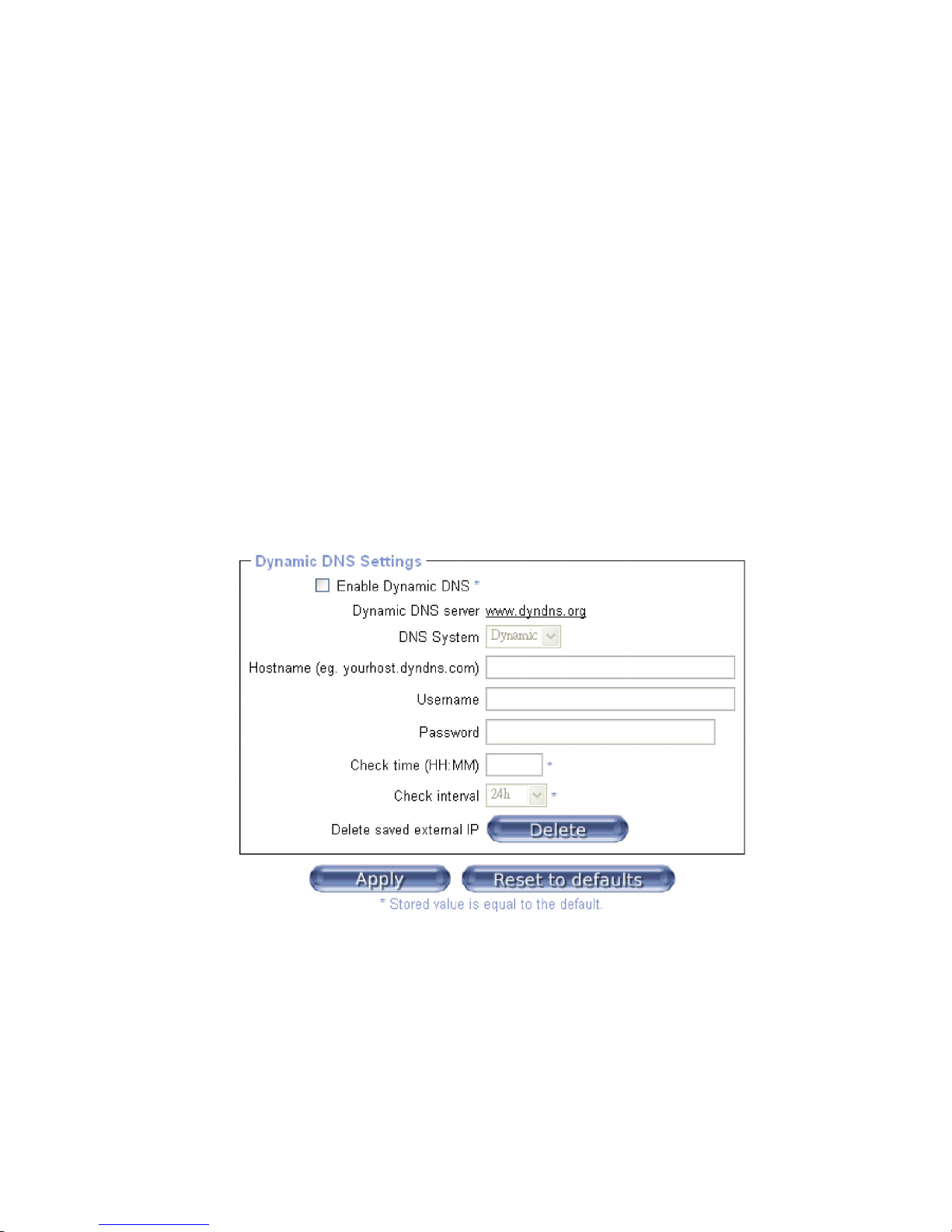

Figure 66: Dynamic DNS
Page 99
-99-
Dynamic DNS allows you to use a Dynamic DNS service to reach your CAT5
8-PORT/16-PORT IP-KVM by an easy to remember domain name rather than by its
IP address. This can also be useful if your IP address changes frequently, such as
when using a DSL connection. When Dynamic DNS is enabled, the CAT5
8-PORT/16-PORT IP-KVM will connect to a DDNS service at regular intervals to
update it with its current IP address. The Remote user can then simply open a web
browser to go to the easy to remember address (e.g. mykvm.dyndns.org) provided by
the DDNS service. There are many freely available DDNS services available, such as
www.dyndns.org, which is used in the example diagram below.

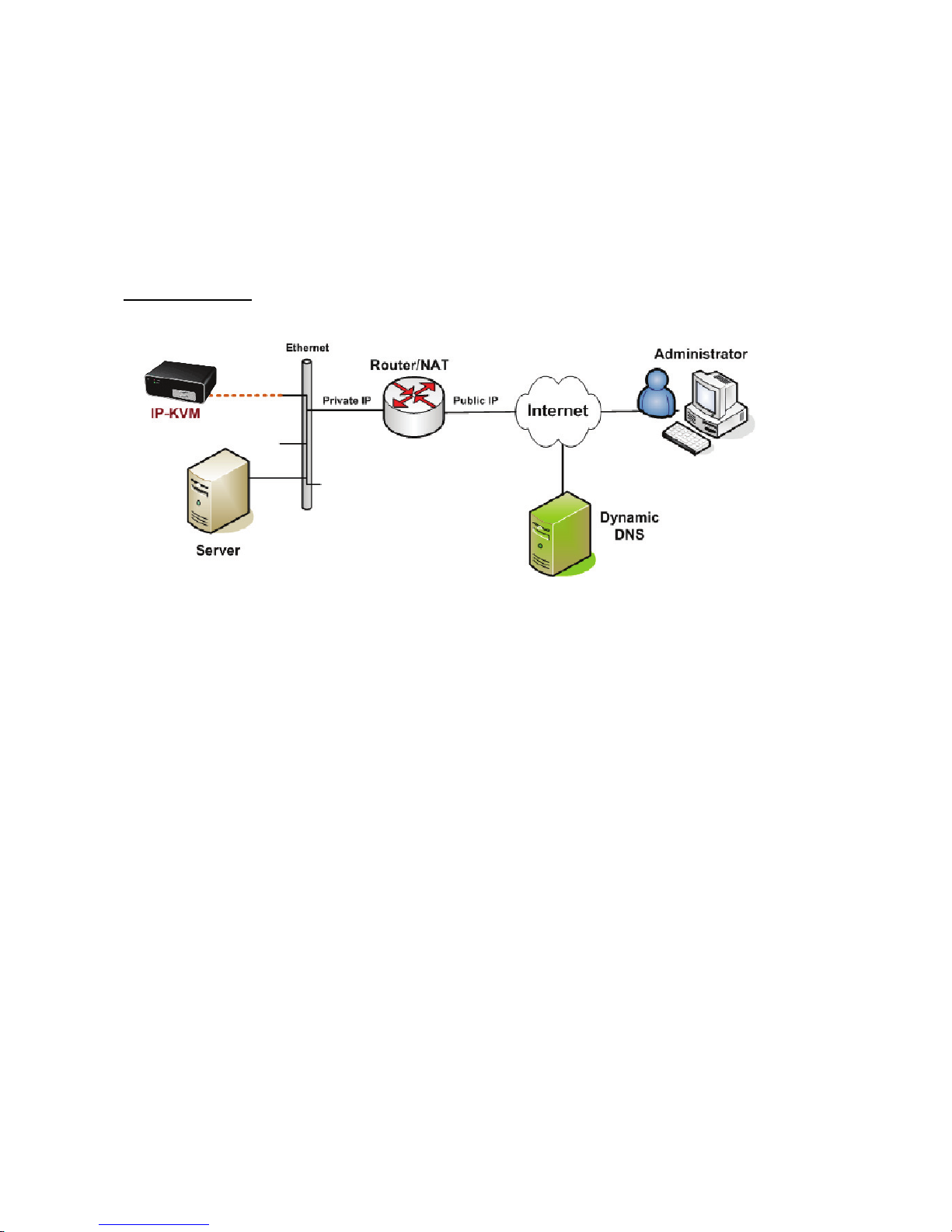

Figure 67: Dynamic DNS Scenario
You have to perform the following steps in order to enable Dynamic DNS:
• Make sure that the LAN interface of the CAT5 8-PORT/16-PORT IP-KVM is properly
configured.
• Create an account with a DDNS service provider and set up a hostname for the CAT5
8-PORT/16-PORT IP-KVM to use. You will need the username and password for your
DDNS account as well as the hostname you will use.
• Enable Dynamic DNS and enter the required settings, as described below. After making
your changes, click the Apply button to save your changes.
Enable Dynamic DNS
This enables the Dynamic DNS service. This requires you to have configured a DNS
server’s IP address.
Dynamic DNS server
This is the address of the DDNS service the CAT5 8-PORT/16-PORT IP-KVM will
use. Currently, this is a fixed setting as only dyndns.org is currently supported.
DNS System
Choose Dynamic for free DNS service. Customize this for your own domain.
Hostname
Enter the hostname of the CAT5 8-PORT/16-PORT IP-KVM that is provided by the
Page 100
-100-
Dynamic DNS service. Make sure you enter the entire hostname, including the
domain. (e.g. testserver.dyndns.org)
Username
Enter the username for your DDNS service account. The username may not contain
any spaces.
Password
Enter the password for your DDNS service account.
Check time
The CAT5 8-PORT/16-PORT IP-KVM registers itself for initiating the IP address of
CAT5 8-PORT/16-PORT IP-KVM stored in the Dynamic DNS server at this time.
Check interval
This is the interval for reporting again to the Dynamic DNS server for updating the
IP address associated with the Domain Name of the CAT5 8-PORT/16-PORT
IP-KVM.
Warning
The CAT5 8-PORT/16-PORT IP-KVM has its own independent real time clock.
Make sure the time setting of the CAT5 8-PORT/16-PORT IP-KVM is correct.
(see the Section Date And Time )
11.5.3 Security

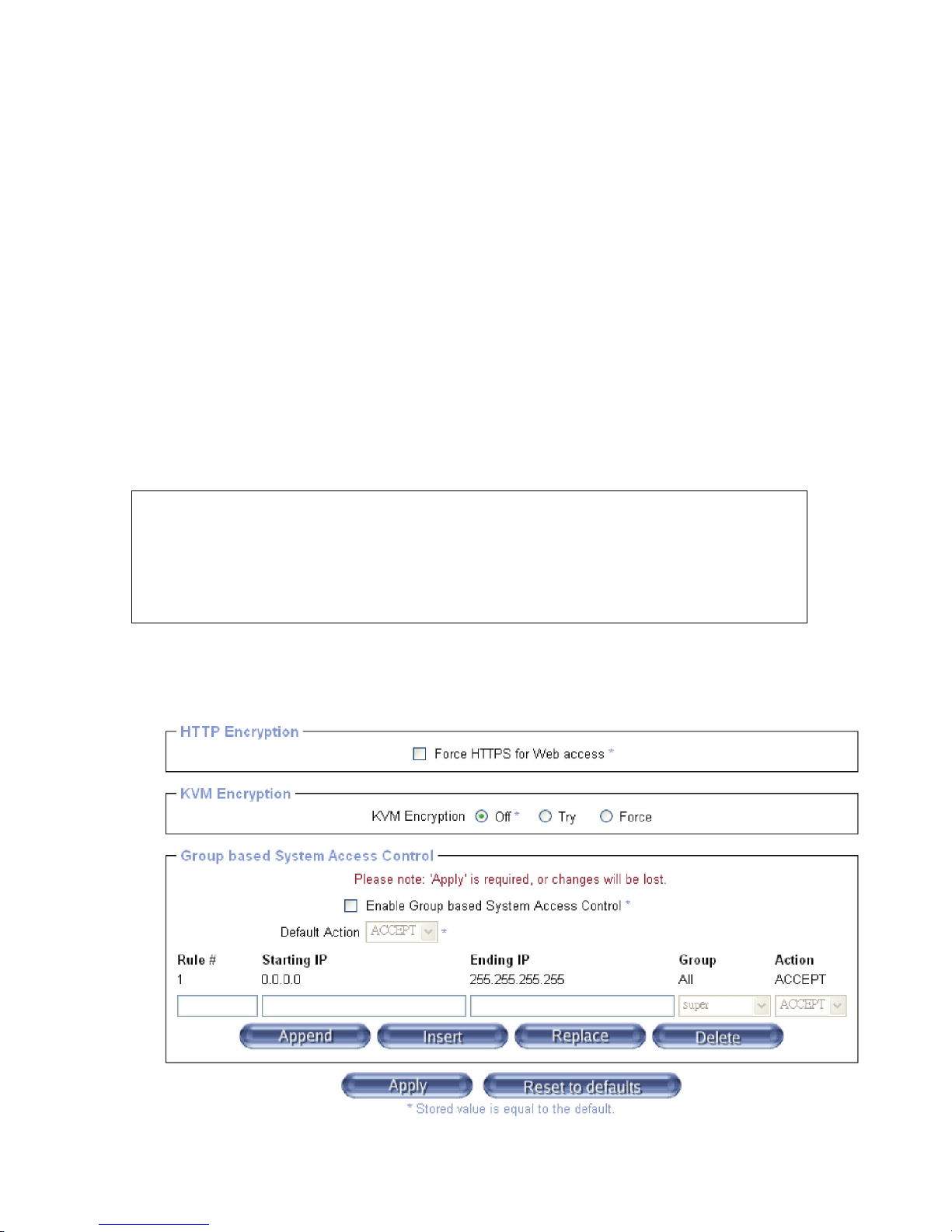

Figure 68: Device Security
Loading...
