Metering PDU
Manual
DN-95601 • DN-95602
Safety Advice
The device must be installed only by qualified personnel according to the following installation
and operating instructions.
The manufacturer does not accept responsibility in case of improper use of the device and
particularly any use of equipment that may cause personal injury or material damage.
The device contains no user-maintainable parts. All maintenance has to be performed
by factory trained service personnel.
Check if the power cord, the plug and the socket are in proper condition.
The device can be connected only to 230V AC (50 or 60 Hz) sockets.
Always connect the device to properly grounded power sockets.
The device is intended for indoor use only. Do NOT install them in an area
where excessive moisture or heat is present.
Because of safety and approval issues it is not allowed to modify the device without our permission.
Please note the safety advises and manuals of connected devices, too.
The device is NOT a toy. It has to be used or stored out or range of children.
Packaging material is NOT a toy. Plastics has to be stored out of range of children.
Please recycle the packaging materials.
In case of further questions, about installation, operation or usage of the device,
which are not clear after reading the manual, please do not hesitate to ask our support team.
Description

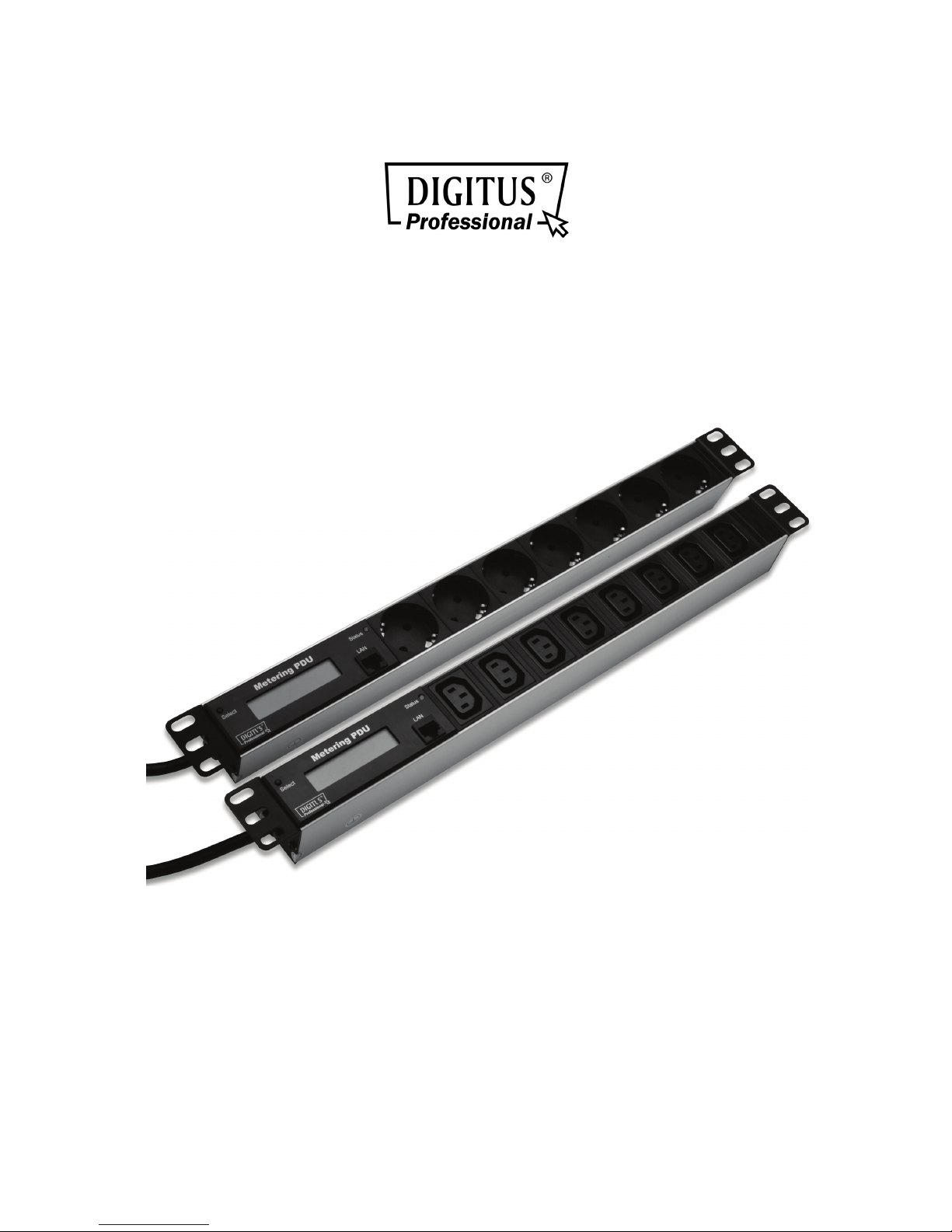

The DIGITUS
®
Metering PDU DN-95601 is a multiple socket outlet with CEE 7/4 sockets (DN-95601) or
IEC C13 sockets (DN-95602). It has a LCD display and can be connected to an Ethernet network.
Integrated in the device is a Web server and a SNMP server to enable remote retrieval of measurement
data. In response to an adjustable threshold syslog messages, emails and SNMP traps can be sent.
Features
Measurement of current, voltage, phase angle, power factor, frequency,
active power, apparent power and reactive power
2 power meter, a counter counts continuously, the other counter is resettable
Backlit LCD Display
Quick and easy Plug & Play installation
Simple and flexible configuration via Web browser or Windows program
Platform independent operation via web browser
Syslog support
SNMP support (SNMPv1, SNMPv2c)
E-mail support (SMTP)
Firmware update via Ethernet during operation
Developed and manufactured in Germany
Hardware
Content of delivery
The delivery includes:
DIGITUS
®
Metering PDU DN-95601
Firmware and manual are available at www.assmann.com
Installation
1. Insert the plug of the AC power cord into an outlet. The device reboots and is ready after a few
moments. The display and the status LED should be lit.
2. Connect your network to the Ethernet port of the DIGITUS
®
Metering PDU DN-95601.
3. Attach up to seven loads to the CEE 7/4 sockets (or IEC sockets for DN-95602) of the
DIGITUS
®
Metering PDU DN-95601.
Usage and Display
Status LED
The status LED shows directly the state of the device:
Red: The device is not connected to the Ethernet.
Orange: The device is connected to the Ethernet, TCP/IP settings are not defined.
Green: Your device is connected to the Ethernet, TCP/IP settings are assigned.
regularly flashing: The device is in bootloader mode.

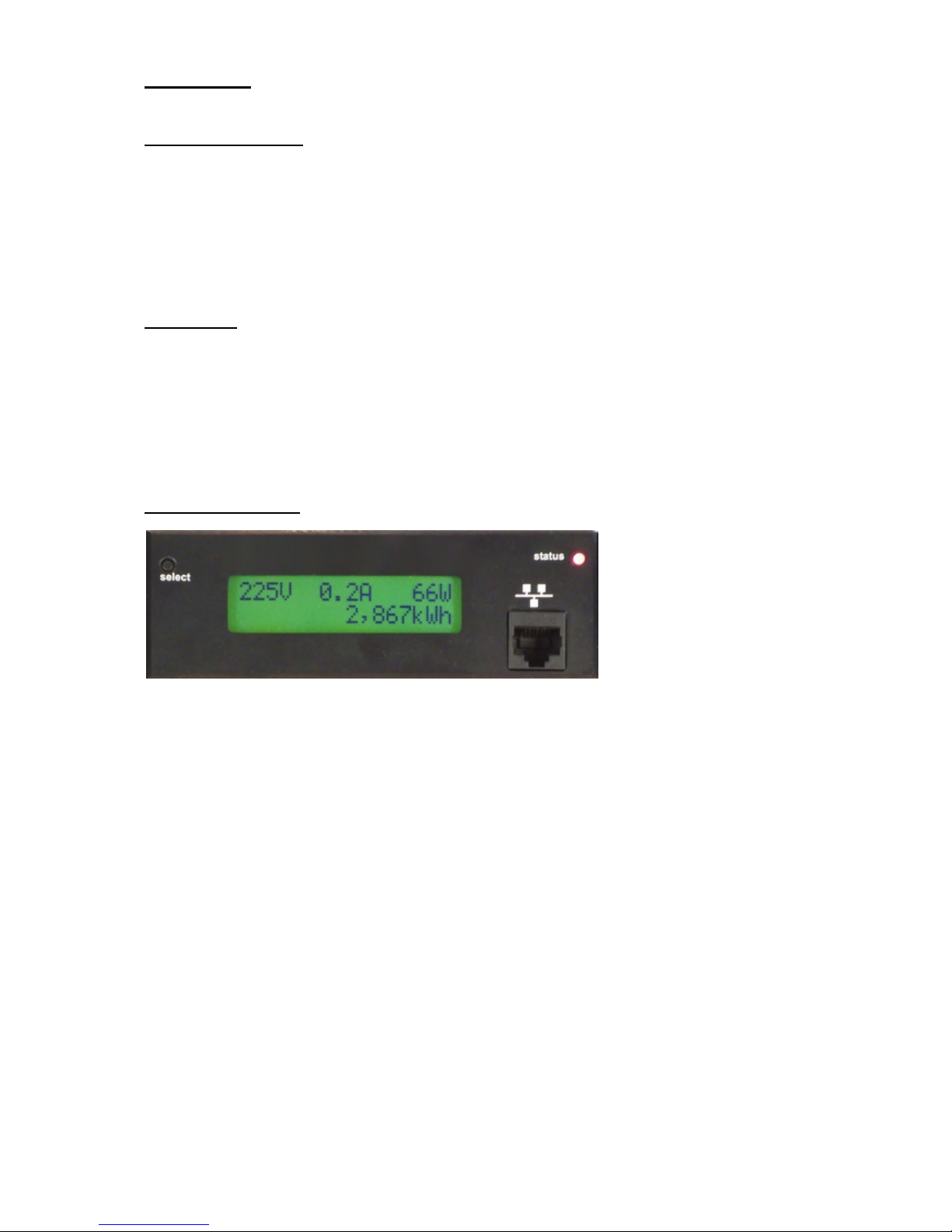

Display views
By pressing the "select" button various informations and statistics are available on the display.
Each time you press the button a new page is shown on the LCD display:
227V 0.0A 0W
0.000kWh
This is the usual energy view. On the top line is printed voltage, current and power.
The bottom line shows the consumed energy (unit kWh). After 10 seconds of waiting time
every other page will resume to this view.
7:48:59
h:m:s
0.000kWh
This page shows in the bottom line the power meter and on the top line the period of time over
the power was measured. The values are stored in an EEPROM every 5 minutes and therefore
preserved during a power outage.
VRMS
225.3V
IRMS 0.000
A
Here, voltage and current are shown.
Active 0W
Reactive 0VAR
Active power and reactive power are shown.
Apparent 0V
A
Phase -83.5deg
The measured values of apparent power and the phase angle of the power.
Freq 50.02Hz
Powerfact -0.3
The power frequency (50Hz in the German electricity grid) and the power factor.
DIGITUS
Metering PDU
192.168.1.123
This page provides information on the product name and the assigned IP address.
Firmware 1.0.0
MAC:001932003f09
The firmware version number and used the MAC ethernet address.
Configuration
DHCP
After turning on, the unit looks for a DHCP server on the Ethernet and requests an available IP address.
Check in the settings of the DHCP server which IP address was assigned, and if necessary set, that the
same IP address will be used each time. To disable DHCP, you can use the software GBL_Conf.exe or
adjust the configuration via the web interface.
Network settings with GBL_Conf
For changing the network properties manually, the program GBL_Conf.exe is required. This tool is
available for free on our website www.assmann.com.
Furthermore GBL_Conf.exe enables you to install firmware updates and to reset to factory settings.
Activate bootloader mode and run GBL_Conf.exe. The program will look automatically for connected
devices and will display their network configuration.
If the displayed IP address accords with the factory settings (192.168.0.2), there is either no DHCP
server available in the network or no free IP address could be allocated.
Enter a free IP address and the according netmask in the entry mask, then save these changes by
clicking on Program Device -> SaveConfig.
Restart the firmware, so that the changes will take effect. Now click on Search in order to have the new
network configuration displayed.
