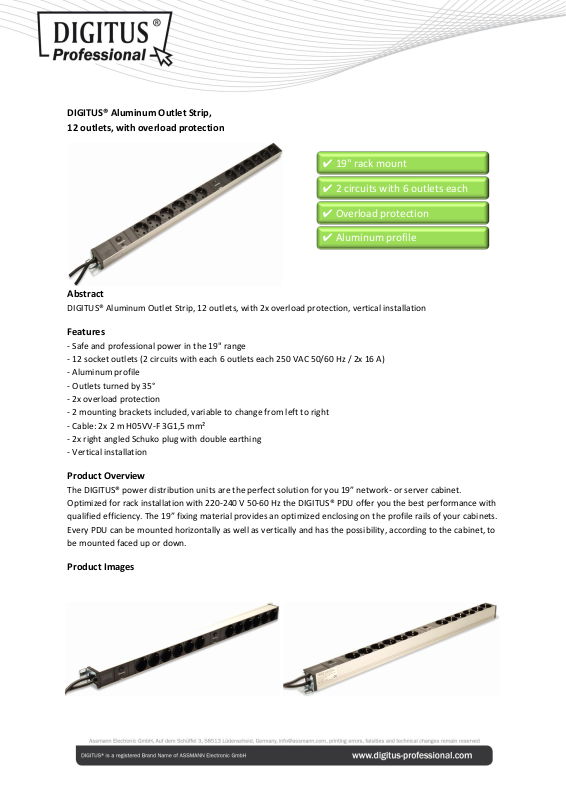

Digitus DN-95405 User Manual

DIGITUS® Aluminum Outlet Strip,

12 outlets, with overload protection

✔ 19" rack mount

✔ 2 circuits with 6 outlets each

✔ Overload protection

✔ Aluminum profile

Abstract

DIGITUS® Aluminum Outlet Strip, 12 outlets, with 2x overload protection, vertical installation

Features

- Safe and professional power in the 19" range

- 12 socket outlets (2 circuits with each 6 outlets each 250 VAC 50/60 Hz / 2x 16 A)

- Aluminum profile

- Outlets turned by 35°

- 2x overload protection

- 2 mounting brackets included, variable to change from left to right

- Cable: 2x 2 m H05VV-F 3G1,5 mm²

- 2x right angled Schuko plug with double earthing

- Vertical installation

Product Overview

The DIGITUS® power distribution units are the perfect solution for you 19” network- or server cabinet.
Optimized for rack installation with 220-240 V 50-60 Hz the DIGITUS® PDU offer you the best performance with

qualified efficiency. The 19” fixing material provides an optimized enclosing on the profile rails of your cabinets.

Every PDU can be mounted horizontally as well as vertically and has the possibility, according to the cabinet, to
be mounted faced up or down.

Product Images

Product Number Information

DN-95405 DIGITUS® 1U Aluminum PDU, rack mount, 2x 16 A, 250 VAC 50/60 Hz, 12x CEE 7/4,
overload protection

More Power Distribution Units (PDU) from DIGITUS®

DN-95401 DIGITUS® 1U Aluminum PDU, rack mount, 16 A, 4000 W, 250 VAC 50/60 Hz,
8x outlet CEE 7/4
DN-95402 DIGITUS® 1U Aluminum PDU, rack mount, 16 A, 4000 W, 250V AC 50/60 Hz,
7x outlet CEE 7/4, switch
DN-95403 DIGITUS® 1U Aluminum PDU, rack mount, 16 A, 4000 W, 250 VAC 50/60 Hz,
7x outlet CEE 7/4, overload protection
DN-95404 DIGITUS® 1U Aluminum PDU, rack mount, 10 A, 2500 W, 250VAC 50/60 Hz,
10x IEC C13, overload protection

DN-95407 DIGITUS® 1U Aluminum PDU, rack mount, 16 A Plug, 250 VAC 50/60 Hz, 7 way, with switch,
surge protection
DN-95408 DIGITUS® 1U Aluminum PDU, 6 way IEC C19, power cable IEC C20
DN-95411 DIGITUS® 1U Aluminum PDU, rack mount, for 254 mm (10") cabinet, 16 A, 4000 W,
250 VAC 50/60 Hz, 3x outlet CEE 7/4

DN-95601 DIGITUS® Metering PDU, 1U, rackmountable, max. 16 A, 7x Schuko, 1xRJ45, LCD panel,
measuring power, electricity, tension
DN-95602 DIGITUS® Metering PDU, 1U, rackmountable, max. 10 A, 8x IEC C13, 1x RJ45, LCD Panel,
measuring power, electricity, tension

A-19-STRIP42-1 18 way outlet strip - 42U in length vertical, dual circuit, aluminum, 2x 16 A,
circuit breaker, vertical mount
