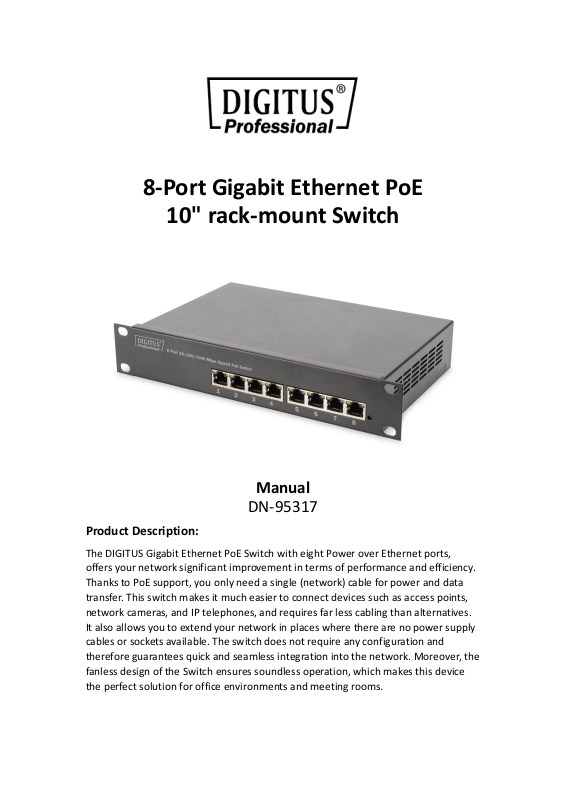

8-Port Gigabit Ethernet PoE
10" rack-mount Switch
Manual
DN-95317
Product Description:
The DIGITUS Gigabit Ethernet PoE Switch with eight Power over Ethernet ports,
offers your network significant improvement in terms of performance and efficiency.
Thanks to PoE support, you only need a single (network) cable for power and data
transfer. This switch makes it much easier to connect devices such as access points,
network cameras, and IP telephones, and requires far less cabling than alternatives.
It also allows you to extend your network in places where there are no power supply
cables or sockets available. The switch does not require any configuration and
therefore guarantees quick and seamless integration into the network. Moreover, the
fanless design of the Switch ensures soundless operation, which makes this device
the perfect solution for office environments and meeting rooms.
PoE IP Camera
PoE IP Camera
PoE IP Camera
Data
Data + Power
PoE IP Camera
Product Features:
• 8-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch
• Ethernet IEEE802.3/802.3u/802.3x/802.3ab/IEEE802.3 af/at
• Power over Ethernet (PoE) - You only need one cable for power and data
transfer
• PoE power budget: 96 Watts (one to eight ports)
• Supports PoE: Provides 8 PoE Port, each port output 30W maximum power
• No configuration necessary
• Maximum power output: 96 Watts
• Status LEDs on each port
• Pin Feet: V- (RJ45 Pin 1, 2) V+ (RJ45 Pin 3, 6)
• Circuit isolation protection
• Backplane: 16Gbps
• MAC address table: 8K
• Dimensions (L x W x H): 250 mm x 150mm x 42 mm
• Weight: 1000 g
• Color: Black
Package Content:
8-Port Gigabit Switch
Manual
AC Power cable
Product Specifications:
Item Description
Summarize
Fixed port 8x 10/100/1000Base-TX ports
LED Indicators PWR, PoE, Link/Act LED
Input voltage 100V~240V AC, 50/60Hz (for power adapter)
48VDC (for switch)
Network Media 10BASE-TX: UTP category 5, 5e cable
100BASE-TX: UTP category 5, 5e cable
1000BASE-TX: UTP category 5, 5e cable
Forwarding Rate 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-TX: 1488000pps/port
Power Supplies 96W
Operating temperature 0°C ~ 40°C
Storage temperature -10°C ~ 70°C
Relative humidity 20% ~ 85% (non-condensing)
Thermal methods Fanless
Switching capacity 16G
MAC address table 8K
Weight <2 Kg
PoE
PoE port 8 10/100/1000Base-TX ports
All 8 PoE ports
PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W
Pin assignment V - (RJ45 Pin1, 2), V+ (RJ45 Pin 3, 6)
Hardware Description:
The Front Panel
The front panel consists of LED Indications.
LED Indicators
Per Device: Power
Per Port: LINK/ACT (Link/Activity)
Per PoE Port: PoE
Figure 1. Front Panel view
LED Status Color Description
Power On Green The switch is supplied with suitable power.
On Green The port is connecting.
LINK/ACT
PoE
Blinks - The port is receiving or transmitting data.
Off - The port is not linked successfully with the device.
On Green PD is connected
Off - No PD is connected or power forwarding fails
Figure 2. Back view
RJ-45 Ports (Auto MDI/MDIX)
8 auto-sensing ports of 10Base-T, 100Base-TX or 1000Base-TX connections.
All ports can support Power over Ethernet to power devices.
Remark: MDI means connecting to another Hub or Switch while MDIX means
connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you can
connect to another Switch or workstation without changing pin-to-pin or crossover
cabling.
AC Power Connector
Plug the female connector into the switch and male connector into a power outlet.
Support input voltages 100~240 VAC.
This is a Class A product. In home environment, this product may cause radio interference. In
this case, the user may be required to take appropriate measures.
Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the
shipping content. If the Declaration of Conformity is missing, you can request it by post
under the below mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
