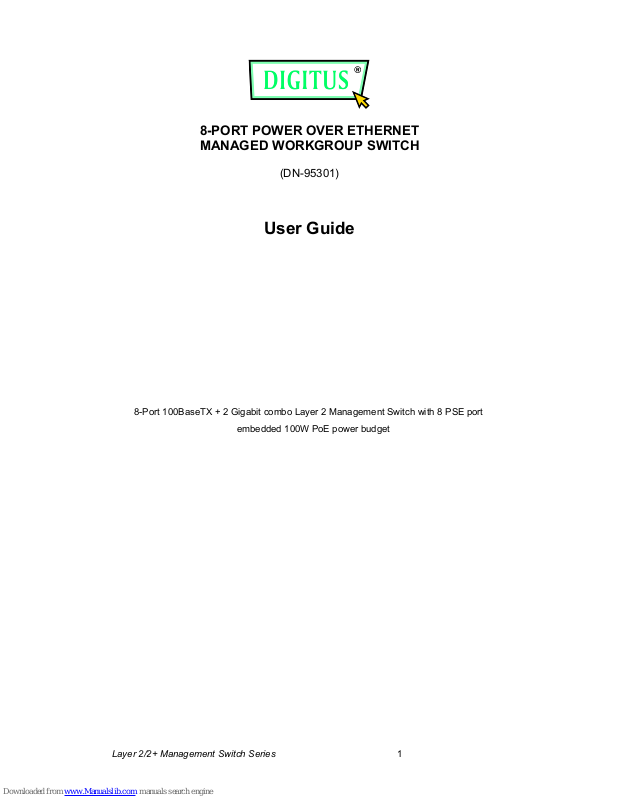

Digitus DN-95301 User Manual

8-PORT POWER OVER ETHERNET
MANAGED WORKGROUP SWITCH

(DN-95301)

User Guide

Layer 2/2+ Management Switch Series 1

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch with 8 PSE port

embedded 100W PoE power budget

The information in this guide may be changed without notice. The
manufacturer assumes no responsibility for any errors which may appear in
this guide.

Ethernet is a trademark of XEROX Corporation. Microsoft, Windows and
Windows logo are trademarks of Microsoft Corporation.

Copyright 2008. All right are reserved. No Part of the contents of this guide
maybe transmitted or reproduced in any form or by any means without the
written permission of us. Printed in Taiwan.

Version 1.0e

FCC Statement

This product has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against such interference when operating in a
commercial environment. This equipment generates uses and can radiate
radio frequency energy, and if not installed and used according to the
instructions, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause
interference, in which case the user, at his or her own expense will be
required to take whatever measures to correct the interference.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate
measures.

Layer 2/2+ Management Switch Series 2

Table of Contents

1.1. Package Contents ..............................................................................5

1.2. How to Use this Guide ........................................................................5

1.1. Product Description Overview ............................................................ 6

1.2. Switch Front and Rear Panel ............................................................. 6

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch

with 8 PSE port embedded 100W PoE power budget ........................ 6

6
6

Power ........................................................... 6

6

1.3. LED Function ....................................................................................... 7

1.4. Reset Button ........................................................................................ 7

1.5. Installing the Switch ............................................................................. 7

2.1. Rack- Mount Placement......................................................................8

2.2. Preparing for configuration ..............................................................10

1.5.1. Connecting a PC or Terminal to the RS-232 Port ................. 10

1.5.2. Terminal Emulation Setup Program ....................................... 10

1.5.3. Logging on to the switch ........................................................ 11

1.6. Web-based configuration .................................................................. 11

1.6.1. Logging on the switch ............................................................. 11

1.7. Command Line Interface (by Console or Telnet) .............................. 11

1.7.1. Mode-based Command Hierarchy .......................................... 11

1.7.2. User Mode commands ............................................................ 13

help 13
? 13
logout 13
ping 13
show 13
enable 14

1.7.3. Privileged Mode commands .................................................... 14

cable-diag...................................................................................14

clear 14

configuration...............................................................................15

copy 15
exit 15
help 15
logout 15
ping 16
reload 16
save 16
show 16
telnet 22

1.7.4. Global Config mode commands .............................................. 22

exit 22
vlan 22
bridge 23

lacp-syspri..................................................................................23

Layer 2/2+ Management Switch Series 3

link-aggregation.........................................................................24

lldp 24
log 25

radius-server..............................................................................25

static-address.............................................................................25

mgmt-accesslist.........................................................................26

monitor 26
dot1x 26
network 27
port-all 28
qos 29
set 30
snmp 32
sntp 33

spanning-tree ............................................................................34

User 36
Interface 36
rmon 36

access list ..................................................................................36

arp 39
dos 39
tacplus 40
green-eth 41

1.7.5. Interface Config mode commands .......................................... 41

exit 41
dot1x 41
lacp 41
addport 41
delport 41
lldp 41

admin-mode...............................................................................42

auto-negotiate .......................................................................42

speed 42

flow-control.................................................................................43

port-security ..............................................................................43

qos 43
rate-limit 43

storm-control..............................................................................43

rmon-counter..............................................................................44

set igmp-router-port ..................................................................44

spanning tree.............................................................................44

vlan 45
poe 45

1.8. Cable specifications .......................................................................... 47

1.9. Technical Specifications ................................................................... 49

1.9.1. Software Specification ............................................................. 49

1.9.2. Hardware Specification ........................................................... 50

1.9.3. Environments Specification

50

1.9.4. Standard Conformance ........................................................... 50

Layer 2/2+ Management Switch Series 4

1. Introduction

Thank you for choosing Layer 2/2+ series Management Switch. These
switches are cost-effective switching solution idea for small business and the
network edge. It provides the Quality of Service (QoS) features, like 802.1p,
DSCP and Rate Control etc, to ensure the traffic is prioritized properly to
deliver real-time applications like voice and video and also have a good
control in network bandwidth usage. The 802.1Q feature enables you
separate the network traffic easily and quickly. The Network Security features,
like ACL, Port Security, Storm Control, 802.1X and Management IP List etc,
enables you to prevent unauthorized access to company network and block
intentional or inadvertent network traffic. The Spanning Tree Protocol (STP)
provides you a loop-free network. The IGMP snooping enables you to have
efficient network usage in IP multicast environment. The one-to-one or many­to-one Port Mirroring feature of the switch enables you to monitor the traffic on
the network. With these features, you can build or expand your network
quickly and easily.

1.1.Package Contents

These L2 Management Switches package contains the following:
> One L2 Management Switch
> One RS-232 cable
> One power cord/adapter
> One set of brackets.
> One CD for user manual and utilities.

If any of the listed items is missing or damaged, please contact the place of
purchase.

1.2.How to Use this Guide

This user guide is structured as follows:

Chapter 2, Installation explains the functions of the switch and how to

physically install it.

Chapter 3, Configuration explains how to set up and modify the configuration

of the switch.

Chapter 4, Specifications contains information about the cables, and the

technical specifications of the switch.
Appendices include the Warranty Statement. Read them as
necessary.

Layer 2/2+ Management Switch Series 5

2. Installation

This chapter describes the function of the management switch components
and shows how to install it on the desktop or shelf. Basic knowledge of
networking is assumed. Read this chapter completely before continuing.

1.1.Product Description Overview

These product is a L2 management switch which supports 802.1Q VLAN,
QoS, 802.1d / 1w/ 1s Spanning Tree Protocol, 802.1x, Port Security, Port
Mirroring, IGMP Snooping, SNTP, Storm Control, Rate Control, SNMP etc.
features.

1.2.Switch Front and Rear Panel

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch with 8 PSE
port embedded 100W PoE power budget

The front panel of this switch has 8 10/100 Mbps copper ports at the left with
2 shared Gigabit SFP slots at the right. The product name indicates at the top
on the right. Figure 2.2.6a shows a front panel of the switch. The rear panel
has a power and console connector, and Figure 2.2.6b shows a rear panel of
the switch. Table 2.2.6c shows the port function of the switch.

Figure 2.2.6a Front Panel

Figure 2.2.6b Rear Panel

Power

Table 2.2.6c Port Function

Port Function
Power

This is where you connect the DC power adapter.

Layer 2/2+ Management Switch Series 6

1.3.LED Function

This section explains the definition of the Switch’s LEDs on the front panel.

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch with 8 PSE port

embedded 100W PoE power budget :

PWR (Green) LED lights up, it shows the system is powered up.
Link/Act (Green) LED lights up, it indicates a successful connection of that

port is established. Otherwise, it indicates the link is off or
no-link detected of that port. When the LED blinks, it
indicates the port is activating and transmitting data;

PoE (Amber) LED lights up only when the corresponding port supply power.

1.4.Reset Button

There is a Reset button on the front panel, which has two functionalities:
a) To restore switch configuration to factory defaults

Press the Reset button for more than 10 seconds, switch configuration will
be restored to factory defaults and then reboots.

b) To reboot switch

Press the Reset button for less than 10 seconds, switch will reboot.
Please note, you will lose unsaved change when doing this.

1.5.Installing the Switch

This section describes how to install and make connection to your Managed
Switch. The following diagram shows the a typical network configuration,
Figure shows the network configuration for L2/L2+ Management Switch with
PoE function.

Figure 2.5.2 Network Configuration for L2 Management Switch with PoE

Layer 2/2+ Management Switch Series 7

Read and perform the following procedures to install the switch,
Pre-Installation Considerations
Gigabit Considerations:
If you will use the switch for Gigabit applications, keep in mind that the
maximum UTP cabling length of Category 5e cable is 328 feet (100 meters).

Positioning the switch:
When choosing a location for the switch, observe the following guidelines:
Keep enough ventilation space between the switch and the surrounding
objects.
Keep cabling away from sources of electrical noise, power lines, and
fluorescent lighting fixtures.
Do not stack free-standing switch more than four units high.

Desktop or Shelf Mounting

To install the switch on a desktop or shelf, simply complete the following
steps:

Step 1 Place the switch on a desktop or shelf near an AC power source.
Step 2 Keep enough ventilation space between the switch and the

surrounding objects.

Note: When choosing a location, keep in mind the environmental restrictions

discussed in Chapter 4, Specifications.
Step 3 Connect the switch to network devices.
A. Connect one end of a standard network cable to the RJ-45 ports on the

front of the switch.
B. Connect the other end of the cable to the network devices such as printer

servers, workstations or routers.
Note: It is recommended to use the UTP Category 5e network cabling with

RJ-45 tips for the network connection. For more information, please

see the Cable Specifications in Chapter 4, Specifications.
Step 4 Supply power to the switch.
A. Connect one end of the power cable to the switch.
B. Connect the power cube end of the power cable to a standard wall outlet.

2.1.Rack- Mount Placement

Before mounting the Switch, please read the following instructions carefully,

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may
be greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such

that the amount of air flow required for safe operation of the equipment is

Layer 2/2+ Management Switch Series 8

not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be

such that a hazardous condition is not achieved due to uneven mechanical
loading.

D) Circuit Overloading - Consideration should be given to the connection of

the equipment to the supply circuit and the effect that overloading of the
circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used
when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be

maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (e.g. use of power
strips)."

To mount the Switch in any standard-sized, 19-inch wide, 1U high rack,
please follow these instructions:
Place the Switch on a hard flat surface with the front panel facing you.
Attach a rack–mount bracket to one side of the Switch with the supplied
screws. Then attach the other bracket to the other side. (Figure 2.6.1)

Figure 2.6.1

Make sure the brackets are properly attached to the Switch.
Use the appropriate screws (not included) to securely attach the brackets to
your rack. (Figure 2.6.2)

Figure 2.6.2

Layer 2/2+ Management Switch Series 9

Configuration

The configuration programs are supplied with these Layer 2 Management
Switches. Unlike the unmanaged switch (dumb switch), the switch performs
"management" functions that make the switch operate more effectively. This
Chapter will describe the use of the switch Management Configuration
program.

2.2. Preparing for configuration

Layer 2 Management Switch offers a console CLI interface for switch
configuration and management. Users can use this interface to perform the
activities such as configuring DHCP, ARP, assigning IP address and
upgrading firmware etc.

There are four methods to manage your switch:

Local Console Management

You can manage the switch locally by connecting the switch to a PC or
workstation with terminal emulation software using the serial port.

Remote Console Management

You can manage the switch by having a remote host establish a Telnet
connection to the switch via an Ethernet or modem link.

SNMP Management

You can manage the switch across a LAN using an SNMP Network
Management Station with a graphical user interface. Note that to use this
management method, your network must use the IP protocol and your switch
must be configured on the Network with a proper IP address. You may use
any of the following method to manage the switch.

Web-Browser

You can manage the switch through a web connection by connecting to the
switch’s IP address using your web browser.

This User Guide provides instructions on how to configure the switch using
the console interface. Read the following sections to start up!

1.5.1.Connecting a PC or Terminal to the RS-232 Port

When you are ready to configure the Management Function of the switch,
make sure you have connected the supplied RS-232 serial cable to the RS­232 port at the front panel of your switch and your PC.

1.5.2.Terminal Emulation Setup Program

Run a terminal emulation program with the following setting.

Emulation: VT-100 compatible
Baud per second: 38400
Data bits: 8
Parity: None
Stop bits: 1

Layer 2/2+ Management Switch Series 10

Flow Control: None

1.5.3.Logging on to the switch

Enter the factory default user name “admin” with no password when logging
on to the switch. The password is set to be empty. If you can enter “?” on the
command line screen, it will display all items so that you can configure by your
requirements.

1.6.Web-based configuration

The Switch provides a Web-based interface for configuring and managing the
Switch. This interface allows you to access the switch using the Web browser
of your choice. This chapter describes how to use the switch’s Web browser
interface to con-figure and manage the switch.

1.6.1.Logging on the switch

To log on to the Switch:

1. In your web browser, specify the IP address of the switch. Default IP

address is 192.168.1.254.

2. Enter the factory default “admin “to login on the Switch with no password.

Refer to the figure 3-1.

Figure 3-1

1.7.Command Line Interface (by Console or Telnet)

1.7.1.Mode-based Command Hierarchy

The Command Line Interface (CLI) groups all the commands in appropriate
modes by the nature of the commands. Examples of the CLI command modes
are described below. Each of the command modes supports specific switch’s

Layer 2/2+ Management Switch Series 11

commands.
The CLI Command Modes table captures the command modes, the prompts
visible in that mode and the exit method from that mode.

Table 1 CLI Command Modes

Command
Mode

Access Method Prompt

Exit or Access
Previous Mode

User Mode

This is the first
level of access.
Perform basic
tasks and list
system
information.

COMMAND>

Enter Logout
command

Privileged
Mode

From the User
Mode, enter the
enable command.

Switch#

To exit to the User
Mode, enter exit or
Logout.

Global
Config Mode

From the
Privileged Mode,
enter the
configuration
command.

Switch (Config)#

To exit to the
Privileged Mode,
enter the exit
command.

Interface
Config Mode

From the Global
Config mode, enter
the interface
<port#> command.

Switch (Interface <port#>)#

To exit to the Global
Config mode, enter
exit.

The CLI is divided into various modes. The commands in one mode are not
available until the operator switches to that particular mode. The commands
available to the operator at any point in time depend upon the mode. Entering
a question mark (?) at the CLI prompt, and displays a list of the available
commands and descriptions of the commands.
The CLI provides the following modes:

User Mode

When the operator logs into the CLI, the User Mode is the initial mode. The
User Mode contains a limited set of commands. The command prompt shown
at this level is:

Command Prompt: COMMAND>

Privileged Mode

To have access to the full suite of commands, the operator must enter the
Privileged Mode. The Privileged Mode requires password authentication.
From Privileged Mode, the operator can issue any Exec command to enter
the Global Configuration mode. The command prompt shown at this level is:

Command Prompt: Switch#

Global Config Mode

This mode permits the operator to make modifications to the running
configuration. General setup commands are grouped in this mode. From the
Global Configuration mode, the operator can enter the Interface Configuration
mode. The command prompt at this level is:

Command Prompt: Switch(Config)#

Layer 2/2+ Management Switch Series 12

From the Global Config mode, the operator may enter the following
configuration modes:

Interface Config Mode

Many features are enabled for a particular interface. The Interface commands
enable or modify the operation of an interface. In this mode, a physical port is
set up for a specific logical connection operation. The command prompt at this
level is:

Command Prompt: Switch(Interface <port#>)#

1.7.2.User Mode commands

help

This command displays help information

Format help
Mode User Mode

?

This command displays help information

Format help
Mode User Mode

logout

This command is used to exit from the telnet

Format logout
Mode User Mode

ping

This command sends echo messages.

Format ping <A.B.C.D>
Mode User Mode

show

1) show port

This command displays port status.

Format show port {<port#> | all}
Mode User Mode

2) show network

This command displays switch IP configuration

Format show network
Mode User Mode

3) show system

This command displays system information.

Format show system
Mode User Mode

4) show port statistics

This command displays port statistics.

Format show port statistics {<port#> | all}
Mode User Mode

Layer 2/2+ Management Switch Series 13

enable

Enter to the Privileged Mode

Format enable
Mode User Mode

1.7.3.Privileged Mode commands

cable-diag

This command is used to proceed cable diagnostic

Format cable-diag port <port ID>
Mode Privileged Mode

e.g. Switch#cable-diag port 1

clear

1) clear arl

This command is used to clear ARL table entries

Format clear arl
Mode Privileged Mode

2) clear arl dynamic

This command is used to Clear dynamic arl table entries

Format clear arl dynamic
Mode Privileged Mode

3) clear arl static

This command is used to clear static arl table entries

Format clear arl static mac <mac-addr>
Mode Privileged Mode

4) clear config

This command is used to restore switch factory default configuration

Format clear config
Mode Privileged Mode

5) clear counters

This command is used to clear RMON statistics for entire switch

Format clear counters
Mode Privileged Mode

6) clear igmpsnooping

This command is used to restore igmpsnooping configuration to factory
default

Format clear igmpsnooping
Mode Privileged Mode

7) clear static-mcast

This command is used to clear static multicast groups

Format clear static-mcast
Mode Privileged Mode

8) clear pass

This command is used to restore administrator’s password to factory default

Format clear pass
Mode Privileged Mode

9) clear lacp

Layer 2/2+ Management Switch Series 14

This command is used to restore LAG and LACP configuration to factory
default

Format clear lacp
Mode Privileged Mode

10) clear logs

This command is used to clear memory/flash logs

Format clear logs
Mode Privileged Mode

11) clear vlan

This command is used to delete all VLAN groups

Format clear vlan
Mode Privileged Mode

configuration

Enter into Global Configuration mode

Format configuration
Mode Privileged Mode

copy

This command is used to upload file from switch to host, or download file to
switch from host

1) copy nvram_config

This command is used to backup switch configuration

Format copy nvram_config tftp <A.B.C.D> file <filename>
Mode Privileged Mode

e.g. Switch#copy nvram_config tftp 192.168.1.100 file switch_configuration

2) copy system_image

This command is used to backup switch runtime image

Format copy system_image tftp <A.B.C.D> <filename>
Mode Privileged Mode

e.g. Switch#copy system_image tftp 192.168.1.100 image_file

3) copy tftp

This command is used to upload configuration or runtime image
Format copy tftp <A.B.C.D> file <filename> {nvram_config |
system_image}
Mode Privileged Mode
e.g. Switch#copy tftp 192.168.1.100 file switch_configuration nvram_config
Switch#copy tftp 192.168.1.100 file runtime_code system_image

exit

This command is used to exit current shell

Format exit
Mode Privileged Mode

help

This command displays help information

Format help
Mode Privileged Mode

logout

This command is used to exit current shell

Layer 2/2+ Management Switch Series 15

Format logout
Mode Privileged Mode

ping

This command is used to proceed ping destination host

Format ping <A.B.C.D>
Mode Privileged Mode

reload

This command is used to reboot system

Format reload
Mode Privileged Mode

save

This command is used to save configuration

Format save
Mode Privileged Mode

show

This command is used to show configured data

1) show qos

This command display class of service information

1.1) show qos cos
This command display the cos mapping

Format show qos cos
Mode Privileged Mode

1.2) show qos queue-settings
This command display the queue-settings mapping

Format show qos queue-settings
Mode Privileged Mode

1. 3) show qos advanced
This command display qos advanced mode information

1.3.1) show qos advanced mode

This command display mode of qos

Format show qos advanced mode
Mode Privileged Mode

1.3.2) show qos advanced dscp

This command display qos dscp mapping

Format show qos advanced dscp
Mode Privileged Mode

1.3.3) show qos advanced ip-precedence

This command display qos ip precedence mapping

Format show qos advanced ip-precedence
Mode Privileged Mode

1.4) show qos port-based
This command is used to display class of service information

1.4.1) show qos port-based port

This command display class of service information

Format show qos port-based port <port-ID>
Mode Privileged Mode

1.4.2) show qos port-based all

Layer 2/2+ Management Switch Series 16

This command display all switch interfaces’ cos settings

Format show qos port-based all
Mode Privileged Mode

2) show dot1x
This command display dot1x information

2.1) show dot1x config

This command display dot1x and port configuration

Format show dot1x config
Mode Privileged Mode

2.2) show dot1x radius

This command display radius configuration

Format show dot1x radius
Mode Privileged Mode

2.3) show dot1x statistics

This command display dot1x statistics

Format show dot1x statistics
Mode Privileged Mode

3) show igmp snooping
This command display IGMP snooping information

3.1) show igmp snooping dynamic_router_port

This command display dynamic router ports information

Format show igmp snooping dynamic_router_port
Mode Privileged Mode

3.2) show IGMP snooping groups

This command is used to display igmp groups information

Format show IGMP snooping groups
Mode Privileged Mode

4) show interface
This command is used to display summary statistics

4.1) show interface history

This command is used to display port RX and TX

Format show interface history <port-ID>
Mode Privileged Mode

4.2) show interface statistics

This command is used to display port summary statistics

Format show interface statistics <port-ID>
Mode Privileged Mode

5) show lag
This command is used to display link aggregation groups information

5.1) show lag lag-index

This command is used to specify an switch lag

Format show lag lag-index <port-ID>
Mode Privileged Mode

5.2) show lag all

This command is used to display all switch lag

Format show lag all <port-ID>
Mode Privileged Mode

6) show lldp
This command is use to display lldp statistics

6.1) show lldp statistic

This command is used to display lldp statistic

Layer 2/2+ Management Switch Series 17

Format show lldp statistic
Mode Privileged Mode

6.2) show lldp local

This command is used to display local information

Format show lldp local
Mode Privileged Mode

6.3) show lldp msap

This command is used to display msap information

Format show lldp msap
Mode Privileged Mode

6.4) show lldp msap-entry

This command is used to display msap details information

Format show lldp msap-entry <1..26>
Mode Privileged Mode

7) show logging
This command is used to display trap records

7.1) show logging memory-log

This command display memory log

Format show logging memory-log
Mode Privileged Mode

7.2) show logging flash-log

This command display flash logs

Format show logging flash-log
Mode Privileged Mode

8) show monitor
This command is used to display port mirroring settings

Format show monitor
Mode Privileged Mode

9) show network
This command is used to configuration for inband connectivity

Format show network
Mode Privileged Mode

10) show port
This command is used to display port mode and settings, display port status

10.1) show port port-index

This command is used to specify an switch interface

Format show port port-index <port-ID>
Mode Privileged Mode

10.2) show port all

This command is used to display all switch interface

Format show port all
Mode Privileged Mode

11) show port-security
This command is used to display port security settings

11.1) show port-security port

This command is used to specify an switch interface

Format show port-security port <port-ID>
Mode Privileged Mode

11.2) show port-security all

This command is used to display all interfaces’ status
Format show port-security all

Layer 2/2+ Management Switch Series 18

Mode Privileged Mode

12) show rate-limit
This command is used to ingress and egress rate limit information

12.1) show rate-limit port

This command is used to specify an switch interface

Format show rate-limit port <port-ID>
Mode Privileged Mode

e.g. Switch#Show rate-limit port 1
Switch#Show rate-limit port g1

12.2) show rate-limit all

This command is used to display all interfaces’ status

Format show Rate-Limit all
Mode Privileged Mode

13) show running-config
This command is used to display switch running config

Format show running-config
Mode Privileged Mode

14) show snmp
This command is used to display all snmp config

14.1) show snmp groups

This command display all snmp groups

Format show snmp groups
Mode Privileged Mode

14.2) show snmp users

This command display all snmp users

Format show snmp users
Mode Privileged Mode

3) show snmp communities

This command display all snmp communities

Format show snmp communities
Mode Privileged Mode

15) show sntp
This command is used to display switch sntp information

Format show sntp
Mode Privileged Mode

16) show spanning-tree
This command displays Spanning Tree information

16.1) show spanning-tree interface

This command displays RSTP ports information

16.1.1) show spanning-tree interface port
This command specify an switch interface

Format show spanning-tree interface port<port-ID>
Mode Privileged Mode

16.1.2) show spanning-tree interface all
This command display all switch interface

Format show spanning-tree interface all
Mode Privileged Mode

16.2) show spanning-tree mst
This command display MST information

16.2.1) show spanning-tree mst detailed

This command display a MST instance information

Layer 2/2+ Management Switch Series 19

Format show spanning-tree mst detailed <0..4094>
Mode Privileged Mode

16.2.2) show spanning-tree mst instance

This command display ports information on a MST instance

Format show spanning-tree mst instance <0..4094>
Mode Privileged Mode

16.2.3) show spanning-tree mst summary

This command display all MST instance information

Format show spanning-tree mst summary
Mode Privileged Mode

16.2.4) show spanning-tree status

This command is used to display spanning-tree status

Format show Spanning-tree status
Mode Privileged Mode

17) show storm-control
This command is used to display storm-control information

Format show storm-control
Mode Privileged Mode

18) show sysinfo
This command is used to display system information including system up
time

Format show sysinfo
Mode Privileged Mode

19) show switch
This command is used to display switch information

19.1) show switch admin-time

This command display the age time of web and console

Format show switch admin-time
Mode Privileged Mode

19.2) show switch age-time

This command display the age time of L2 table

Format show switch age-time
Mode Privileged Mode

19.3) show switch mac-table

This command is used to display address resolution protocol cache

Format show switch mac-table
Mode Privileged Mode

19.4) show switch mcast-table

This command display multicast address table

Format show switch mcast-table
Mode Privileged Mode

20) show trapflags
This command is used to display the value of trap flags that apply to the
switch

Format show trapflags
Mode Privileged Mode

21) show vlan
This command is used to display vlan configuration

21.1)show vlan member

This command display vlan configuration

Format show vlan member <1..4094>

Layer 2/2+ Management Switch Series 20

Mode Privileged Mode

21.2)show vlan number

This command display how many vlan has been created

Format show vlan number
Mode Privileged Mode

22) show rmon

22.1) show rmon event

22.2) show rmon event Index

This command displays rmon Event.

Format show rmon event index <1..65535>
Mode Privileged Mode

22.3) show rmon event

Format Show rmon event<CR>
Mode Privileged Mode

22.4) show rmon event log

This command displays rmon event log.

Format Show rmon Event log event index <1..65535>
Mode Privileged Mode

22.5) show rmon alarm

22.5.1) show rmon alarm index
This command displays rmon Alarm.

Format show rmon alarm index <1..65535>
Mode Privileged Mode

22.5.2) show rmon alarm

Format show rmon alarm<CR>
Mode Privileged Mode

22.5.3) show rmon event log
This command displays rmon event log.

Format show rmon event log event index <1..65535>
Mode Privileged Mode

22.6) show rmon history
This command displays rmon history.

Format show rmon history index <1..65535>
Mode Privileged Mode

22.7) show rmon statistics
This command displays port rmon statistics.

Format Show rmon statistics
Mode Privileged Mode

23 )show poe

This command is used to display poe mode and settings,display poe port
status

23.1) show poe port-index

This command is used to specify an switch poe interface

Format show poe port-index <port-ID>
Mode Privileged Mode

23.2)show poe all

This command is used to display all switch poe interface

Format show poe all
Mode Privileged Mode

24)show tacplus
This command is used to display TACACS+ information, includes

Layer 2/2+ Management Switch Series 21

authentication type and server parameters.

Format show tacplus

Mode Privileged Mode

telnet

This command telnet the other host.

Format telnet <A.B.C.D>
Mode Privileged Mode

1.7.4.Global Config mode commands

exit

This command is used to exit current shell

Format exit
Mode Global Config

vlan

This command is used to configure vlan

1) vlan add
This command is used to create a new vlan

1.1) vlan add number

This command enter a vlan ID

Format vlan add number <vlan-ID>
Mode Global Config

1.2) vlan add range

This command enter a range of vlan ID

Format vlan add range from < vlan-ID > to <vlan-ID>
Mode Global Config

2) vlan delete
This command remove a existed vlan

Format vlan delete <vlan-ID>
Mode Global Config

3) vlan ingress
This command performs ingress vlan source port membership check

3.1) vlan ingress forward

The command is used to forward frame but don’t learn SA into ARL table

Format vlan ingress forward
Mode Global Config

3.2) vlan ingress drop

This command is used to drop frames violation vid

Format vlan ingress drop
Mode Global Config

3.3) vlan ingress bypass

This command is used to forward frame and learn SA into ARL table

Format vlan ingress bypass
Mode Global Config

4) vlan port
This command is used to configure 802.1Q port parameters for vlans

Layer 2/2+ Management Switch Series 22

4.1) vlan port all

This command is used to configure all ports

1.1) vlan port all port-configure
This command is used to configure ports in a specific vlan

Format vlan port all port configure <vlan-ID>
Mode Global Config

1.2) vlan port all protected
This command is used to configure protected ports

Format vlan port all protected {enable|disable}
Mode Global Config

1.3) vlan port all pvid
This command is used to configure port pvid

Format vlan port all pvid <vlan-ID>
Mode Global Config

4.2) vlan port ports

This command is used to configure multiple ports

4.2.1) vlan port ports port-configure
This command is used to configure ports in a specific vlan

Format vlan port ports port-configure <vlan-ID>
Mode Global Config

4.2.2) vlan port ports protected
This command is used to configure protected ports

Format vlan port ports protected {enable|disable}
Mode Global Config

4.2.3) vlan port ports pvid
This command is used to configure port vid

Format vlan port ports pvid < vlan-ID>
Mode Global Config

5) vlan lag
This command is used to configure lag to a special vlan

5.1) vlan lag vlan < vlan-id> exclude

This command is used to remove lag from a vlan

Format vlan lag vlan < vlan-ID> exclude lags <lag-ID>
Mode Global Config

5.2) vlan lag vlan <vlan-ID> untagged

This command is used to set to untagged lag.

Format vlan lag vlan <vlan-ID> untagged lags <lag-ID>
Mode Global Config

5.3) vlan lag vlan <vlan-ID> tagged

This command is used to set to tagged lag.

Format vlan lag vlan <vlan-ID> tagged lags <lag-ID>
Mode Global Config

bridge

This command is used to configure switch aging time

Format bridge aging-time <0-1048575>
Mode Global Config

lacp-syspri

This command is used to configure lacp system priority
Format lacp-syspri system-priority <0-65535>

Layer 2/2+ Management Switch Series 23

Mode Global Config

link-aggregation

This command is used to configure link aggregation

1) link-aggregation addport
This command is used to configure LAG groups

Format Link Aggregation addport lag <LAG-ID>
Mode Global Config

2) link aggregation delport
This command remove ports from LAG

2.1) Link Aggregation delport all

This command remove all ports from a LAG

Format link-aggregation-delport all lag <LAG-ID>
Mode Global Config

2.2) link aggregation delport lag

This command remove specify LAG group

Format link aggregation delport lag <LAG-ID>
Mode Global Config

lldp

1) lldp enable
This command is used to enable lldp functions

Format lldp enable
Mode Global Config

2) lldp disable
This command is used to disable lldp functions

Format lldp disable
Mode Global Config

3) lldp adv-interval
This command is used to specify advertised interval in seconds

Format lldp adv-interval <5-32768>
Mode Global Config

4) lldp fast-startcnt
This command is used to specify fast-start count

Format lldp fast-startcnt <1-10>
Mode Global Config

5) lldp hold
This command is used to specify hold value

Format lldp hold <2-10>
Mode Global Config

6) lldp notify-interval
This command is used to specify notification interval in seconds

Format lldp notify-interval <5-3600>
Mode Global Config

7) lldp reinit-delay
This command is used to specify re-initialization delay in seconds

Format lldp reinit-delay <1-10>
Mode Global Config

8) lldp tx-delay
Transmit Delay in seconds
Format lldp tx-delay <1-8192>

Layer 2/2+ Management Switch Series 24

Mode Global Config

9) lldp mgmt-addrtxport
A range of ports can be set.

Format lldp mgmt-addrtxport ports <port list>
Mode Global Config

e.g. switch(config)# lldp mgmt-addrtxport ports 1
switch(config)# lldp mgmt-addrtxport ports 1-4

log

This command is used to configure log server

1) log log-server
This command is used to configure log server

1.1) log log-server name <WORD>add

This command is used to specify log server name, enter a name, up to
12 characters, add a log server IP address

Format log log-server name <WORD> add ipaddr word
Mode Global Config

1.2) log log-server name <word> delete

This command is used to delete a log server

Format log log-server name <WORD> delete
Mode Global Config

2) log logging-target
This command is used to configure log notification level

2.1) log logging-target memory

This command is used to specify memory log notify-level

Format log logging-target memory {enable|disable}
Mode Global Config

2.2) log logging-target flash

This command is used to specify flash log notify-level

Format log logging-target flash {enable|disable}
Mode Privileged Mode

2.3) log logging-target console

This command is used to specify console log notify-level

Format log logging-target console {enable|disable}
Mode Global Config

2.4) log logging-target server

This command is used to specify console log notify-level

Format log logging-target server name <WORD> {enable|disable}
Mode Global Config

radius-server

This command is used to configure radius server

Format radius-server ip <IP addr>
Mode Global Config

static-address

This command is used to specify static address

1) static-address add
This command is used to add static mac address

Format static-address add <mac addr> vid <vlan-ID> port <port-ID>
Mode Global Config

Layer 2/2+ Management Switch Series 25

2) static-address delete
This command is used to delete static mac address

Format static-address delete <mac addr> vid <vlan-ID>
Mode Global Config

mgmt-accesslist

1) mgmt-accesslist ipaddr
This command specifies a management access IP for the DUT, up to 8 IP
address can be set.

Format mgmt-accesslist ipaddr <IP addr>
Mode Global Config

2) mgmt-accesslist enable
This command enables management access list. Only the IP address
specified in the management list is allowed to access DUT.

Format mgmt-accesslist enable
Mode Global Config

3) mgmt-accesslist disable
This command disables management access list.

Format mgmt-accesslist disable
Mode Global Config

monitor

1) monitor enable
This command enables port mirroring.

Format monitor enable
Mode Global Config

2) monitor disable
This command disables port mirroring.

Format monitor disable
Mode Global Config

3) monitor des
Configure destination port.

3.1) monitor des <port-ID> probetype bidirection

This command configures port monitor probetype as bi-direction traffic.

Format monitor des <port-ID> probetype bidirection src <port list>
Mode Global Config

e.g. Switch(config)# monitor des 1 probetype bidirection src 2-8

3.2) monitor des <port-ID> probetype ingress

This command configures port monitor probetype as ingress traffic.

Format monitor des <port-ID> probetype ingress src <port list>
Mode Global Config

e.g. Switch(config)# monitor des 1 probetype ingress src 2-8

3.3) monitor des <port-ID> probetype egress

This command configures port monitor probetype as egress traffic.

Format monitor des <port-ID> probetype egress src <port list>
Mode Global Config

e.g. Switch(config)# monitor des 1 probetype egress src 2-8

dot1x

1) dot1x enable

Layer 2/2+ Management Switch Series 26

This command enables global 802.1x function.

Format dot1x enable
Mode Global Config

2) dot1x disable
This command disables global 802.1x function.

Format dot1x disable
Mode Global Config

3) dot1x port-control
Configure port auto-authentication mode.

3.1) dot1x port-control enable

This command set auto-authorized on a list of ports.

Format dot1x port-control enable port <port list>
Mode Global Config

3.2) dot1x port-control disable

This command set force authorized on a list of ports.

Format dot1x port-control disable port <port list>
Mode Global Config

e.g. Switch(config)# dot1x port-control disable port 1-4

network

1) network mgmt-vlan
This command changes management vlan.

Format network mgmt-vlan <vlan-ID>
Mode Global Config

2) network parms
This command configures static IP address of the switch.

Format network parms <IP addr> <subnet mask> <gateway>
Mode Global Config

3) network protocol
This command configure switch dhcp client.

Format network protocol {dhcp|none}
Mode Global Config

4) network dhcp-relay
Configure switch dhcp relay functions.

4.1) network dhcp-relay mode

This command configures dhcp relay mode.

Format network dhcp-relay mode {enable|disable}
Mode Global Config

4.2) network dhcp-relay server

This command configures dhcp-relay server ip-address.

Format network dhcp-relay server <A.B.C.D>
Mode Global Config

4.3) network dhcp-relay vlan

Configure dhcp-relay option-82 vlan information.

3.1) network dhcp-relay vlan <vlan-ID> add
This command enters a vlan which will be enable DHCP-relay option82.

Format network dhcp-relay vlan <vlan-ID> add
Mode Global Config

3.2) network dhcp-relay vlan <vlan-ID> remove
This command enters a vlan which will be disable dhcp-relay option82.

Format network dhcp-relay vlan <vlan-ID> remove

Layer 2/2+ Management Switch Series 27

Mode Global Config

5) network sysinfo
Configure switch system information.

5.1) Network sysinfo sysname

This command configures system name.

Format network sysinfo sysname <WORD>
Mode Global Config

5.2) network sysinfo syslocate

This command configures system location.

Format network sysinfo syslocate <WORD>
Mode Global Config

5.3) network sysinfo syscontact

This command configures system contact information.

Format network sysinfo syscontact <WORD>
Mode Global Config

6) network admin-timeout
This command configures web/console admin time out interval.
‘0’ means disable.

Format network admin-timeout <0-65535>
Mode Global Config

port-all

1) port-all admin-mode
This command configures ports admin mode.

Format port-all admin-mode {enable | disable}
Mode Global Config

2) port-all auto-negotiate
This command configures ports auto-negotiation mode.

Format port-all auto-negotiate {enable|disable}
Mode Global Config

3) port-all flow-control
This command configures ports flow control.

Format port-all flow-control {enable|disable}
Mode Global Config

4) port-all portsec-lockmode
Configure port security.

4.1) port-all portsec-lockmode none

This command disable port security.

Format port-all portsec-lockmode none
Mode Global Config

4.2) port-all portsec-lockmode static

Note: This commands only support on 24-Port 100BaseTX + 2 Gigabit

combo Layer 2 Management Switch & 48-Port 100BaseTX + 4 1000BaseT with 2
shared Gigabit SFP Layer 2+ Management Switch models

This command enable static lock mode.

Format port-all portsec-lockmode static
Mode Global Config

4.3) port-all portsec-lockmode dynamic

This command enable limited dynamic lock mode.

Format port-all portsec-lockmode dynamic max-entries <0-24>
Mode Global Config

Layer 2/2+ Management Switch Series 28

5) port-all rate-limit
Configure rate limit value on all ports.

5.1) port-all rate-limit egress

This command specifies egress rate limit.

Format port-all Rate-Limit egress <value>
Mode Global Config

5.2) port-all rate-limit ingress

This command specifies ingress rate limit.

Format port-all rate-limit ingress <value>
Mode Global Config

6) port-all rmon-counter
This command configures rmon counter capability on ports.

Format port-all rmon-counter {enable|disable}
Mode Global Config

7) port-all speed
This command configures ports speed.

Format port-all speed {10hd|10fd|100hd|100fd}
Mode Global Config

8) port-all storm-control
Configure all ports’ storm control settings.

8.1) port-all storm-control disable

This command disables storm control.

Format port-all Storm-Control disable
Mode Global Config

8.2) port-all storm-control broadcast

This command configures storm control for broadcast only.

Format port-all storm-control broadcast <value>
Mode Global Config

8.3) port-all storm-control broadcast-multicast

This command configures storm control for broadcast and multicast.

Format port-all Storm-Control broadcast-multicast <value>
Mode Global Config

8.4) port-all storm-control broadcast-unknown

This command configures storm control for broadcast and unknown
unicast.

Format port-all storm-control broadcast-unknown <value>
Mode Global Config

8.5) port-all storm-control all-cast

This command configures storm control for broadcast, multicast and
unknown unicast.

Format port-all Storm-Control all-cast <value>
Mode Global Config

qos

1) qos qos-advanced
Configure qos advanced mode.

1.1) qos qos-advanced DSCP

This command enables DSCP mode.

Format qos qos-advanced DSCP
Mode Global Config

1.2) qos qos-advanced ip_precedence

Layer 2/2+ Management Switch Series 29

This command enables IP Precedence mode.

Format qos qos-advanced ip_precedence
Mode Global Config

1.3) qos qos-advanced none

This command disables qos advanced mode.

Format qos qos-advanced none
Mode Global Config

2) qos cos
This command configures 802.1p priority queue mapping.

Format Qos cos priority <0-7> queue <1-4>
Mode Global Config

3) qos dscp
This command specifies dscp value to queue mapping.

Format qos dscp <0-63> queue <1-4>
Mode Global Config

4) qos port-based
This command configures port-based priority mapping.

Format qos port-based port <WORD>status {enable | disable}
Mode Global Config

5) qos scheduling
Configure qos scheduling mode.

5.1) qos scheduling strict

This command sets to strict priority.

Format qos scheduling strict
Mode Global Config

5.2) qos scheduling wrr

This command sets to Weight Round-Robin.

Format qos scheduling wrr
Mode Global Config

6) qos ip-precedence
This command configures IP precedence queue mapping.

Format qos ip-precedence <0-7> queue <1-4>
Mode Global Config

7) qos wrr
This command configures queue weight for weight round robin.

Format qos wrr weight <1-15> queue <1-4>
Mode Global Config

8) qos dscp-remark

Note: This command only supports on the following switches,

2. 24-Port 100BaseTX + 2 Gigabit combo Layer 2+ Management Switch

4. 24-Port 1000BaseT with 2 shared Gigabit SFP Layer 2+ Management Switch

5. 48-Port 1000BaseT with 4 shared Gigabit SFP Layer 2+ Management Switch

This command is used to change DSCP value if the outgoing packet is an
IP packet. Select an ACL Entry Name as the criterion and then enter New
DSCP Value as the action. Once the criterion is hit, the DSCP value will be
changed.

Format qos dscp-remark acl_entry_name <name> new_dscp_value <0-63>

Mode Global Config

set

1) set IGMP

Layer 2/2+ Management Switch Series 30

Configure IGMP snooping.

1.1) set igmp enable

This command enables igmp snooping.

Format set igmp enable
Mode Global Config

1.2) set igmp disable

This command disables IGMP snooping.

Format set igmp disable
Mode Global Config

1.3) set igmp last-memberquery

This command specifies last member query interval.

Format set igmp last-memberquery <1-200>
Mode Global Config

1.4) set igmp last-membercount

This command specifies last member count.

Format set igmp last-membercount <1-20>
Mode Global Config

1.5) set igmp query-interval

This command specifies igmp query interval<secs>.

Format set igmp query-interval <10-600>
Mode Global Config

1.6) set igmp query-resinterval

This command specifies igmp query response interval<secs>.

Format set igmp query-resinterval <0-200>
Mode Global Config

1.7) set igmp robustness

This command specifies robustness variable.

Format set igmp robustness <1-20>
Mode Global Config

1.8) set igmp router-port

This command specifies igmp router port.

Format set igmp router-port ports <port list>
Mode Global Config

e.g. Switch(config)# set igmp router-port ports 1-10

2) set igmp-querier
This command configures igmp querier.

Format set igmp-querier {enable | disable}
Mode Global Config

3) set igmp-proxy
This command configures igmp proxy.

Format set igmp-proxy {enable | disable}
Mode Global Config

4) set static-mcast
Configure static multicast.

4.1) set static-mcast name <WORD> add

This command create a multicast group.

Format set static-mcast name <WORD> add vid <vlan-ID> mac <mac-
addr>member port <port list>

Mode Global Config

4.2) set static-mcast name <WORD>delete

This command delete a static multicast group.

Layer 2/2+ Management Switch Series 31

Format set static-mcast name <WORD>delete
Mode Global Config

snmp

1) snmp notify
This command configures snmp notification.

Format snmp notify {enable|disable}
Mode Global Config

2) snmp group

2.1) snmp group add

This command create a snmp group.

Format snmp group add <WORD>version <1-2>
Mode Global Config

2.2) snmp group delete

This command delete a snmp group.

Format snmp group delete <WORD>
Mode Global Config

3) snmp user

3.1) snmp user add

This command creates a snmp user.

Format snmp user add <user name> group <group name> version <1-

3>

Mode Global Config

3.2) snmp user delete

This command deletes a snmp user.

Format snmp user delete <WORD>
Mode Global Config

4) snmp community

4.1) snmp community add

This command creates a community.

Format snmp community add <community name> group <group
name> mgmt-ip <ip-addr>

Mode Global Config

4.2) snmp community delete

This command deletes a community.

Format snmp community delete <community name>.
Mode Global Config

5) snmp trapstation

5.1) snmp trapstation add

Create a snmp trap station.

5.1.1) snmp trapstation add <ip-addr> community <community name>
type bootup

Send trap when system reboot

Format snmp trapstation add <ip-addr> community <community
name> type bootup trap-version {1|2}

Mode Global Config

5.1.2) snmp trapstation add <ip-addr> community <community name>
type linkchange

Send trap when port link change.

Format snmp trapstation add <ip-addr> community <community
name> type linkchange trap-version {1|2}

Layer 2/2+ Management Switch Series 32

Mode Global Config

5.1.3) snmp trapstation add <ip-addr> community <community name>
type both

Send trap when system reboot or port link change.

Format snmp trapstation add <ip-addr> community <community
name> type both trap-version {1-2}

Mode Global Config

5.1.4) snmp trapstation add <ip-addr> community <community name>
type none

Send no trap.

Format snmp trapstation add <ip-addr> community <community
name> type none trap-version {1-2}

Mode Global Config

5.2) snmp trapstation delete

This command delete a trap station.

Format snmp trapstation delete <WORD>
Mode Global Config

sntp

1) sntp daylight
This command enables or disables the daylight saving configuration.

Format sntp daylight {enable|disable}
Mode Global Config

2) sntp localtime
Configure the local time.

2.1) sntp localtime enable

This command enables local time.

Format sntp localtime enable
Mode Global Config

2.2) sntp localtime localtime_date

This command sets local time.
Format sntp localtime localtime_date <year> <month> <date> <hour>

<minute> <second>

Mode Global Config

3) sntp server

3.1) sntp server enable

This command enables sntp server.

Format sntp server enable
Mode Global Config

3.2) sntp server ipaddr

This command sets sntp server IP address.

Format sntp server ipaddr <IP-addr>
Mode Global Config

3.3) sntp server polling

This command sets sntp server polling time interval.

Format sntp serve polling <0-9>
Mode Global Config

4) sntp timezone
This command sets sntp timezone.

Format sntp timezone <1-75>
Mode Global Config

Layer 2/2+ Management Switch Series 33

spanning-tree

1) spanning-tree forceversion
This command configures Spanning Tree protocol version.

1.1) spanning-tree forceversion 8021s

This command selects spanning tree type as 8021.s(multiple Spanning
Tree).

Format spanning-tree forceversion 8021s
Mode Global Config

1.2) spanning-tree forceversion 8021w

This command selects spanning tree type as 802.1w(rapid Spanning
Tree).

Format spanning-tree forceversion 8021w
Mode Global Config

1.3) spanning-tree forceversion none

This command selects none spanning tree type.

Format spanning-tree forceversion none
Mode Global Config

2) spanning-tree configuration
This command configures MSTP region name and revision.

2.1) spanning-tree configuration name

This command configures MSTP region name (Max.32 chars).

Format spanning-tree configuration name <WORD>
Mode Global Config

2.2) spanning-tree configuration revision

This command configures revision level.

Format spanning-trees configuration revision <0-65535>
Mode Global Config

3) spanning-tree forward-time
This configures the bridge forward delay parameter.

Format spanning-tree forward-time <4-30>
Mode Global Config

4) spanning-tree max-age
This command configures the bridge max age parameter.

Format spanning-tree max-age <6-40>
Mode Global Config

5) spanning-tree max-hops
This command configure the number of hops in a region.

Format spanning-tree max-hops <1-40>
Mode Global Config

6) spanning-tree port

6.1) spanning-tree port all

This command specifies RSTP capability for all ports.

Format spanning-tree port all {enable |disable}
Mode Global Config

6.2) spanning-tree port cost

This command configures RSTP port path cost.

Format spanning-tree port cost <0-200000000>
Mode Global Config

6.3) spanning-tree port priority

This command configures RSTP port priority.

Layer 2/2+ Management Switch Series 34

Format spanning-tree port priority <0-24>
Mode Global Config

6.4) spanning-tree port edge

This command configures STP edge .

Format spanning-tree port edge {enable|disable}
Mode Global Config

6.5) spanning-tree port force-p2plink

This command configures force point to point link mode on ports.

Format spanning-tree port force-p2plink {auto|enable|disable}
Mode Global Config

6.6) spanning-tree port migration-check

This command Re-checks the appropriate BPDU format to send on

ports.

Format spanning-tree port migration-check {enable|disable}
Mode Global Config

7) spanning-tree priority
This command configures RSTP bridge priority value.

Format spanning-tree priority <0-61440>
Mode Global Config

8) spanning-tree mst
Configure a multiple spanning tree instance.

8.1) spanning-tree mst instance

This command creates or removes a MST instance

8.1.1) spanning-tree mst instance add
This command creates a MST instance.

Format spanning-tree mst instance add vlan <vlan list> mstpid <MST

ID>

Mode Global Config

e.g. Switch(Config)# Spanning-Tree mst instance add vlan 2-5 mstpid 2
Switch(Config)# Spanning-Tree mst instance add vlan 6 mstpid 3

8.1.2) spanning-tree mst instance delete
This command removes the last MST instance.

Format spanning-tree mst instance delete
Mode Global Config

8.2) spanning-tree mst vlan
This command adds or deletes vlan frome a MSTP instance.

8.2.1) spanning-tree mst vlan <MST ID> <vlan list> add

This command creates a MST instance.

Format spanning-tree mst vlan <MST ID> <vlan list> add
Mode Global Config

e.g. Switch(Config)# Spanning-Tree mst vlan 3 3-5 add

8.2.2) Spanning-Tree mst vlan <MST ID> <vlan list> delete

This command deletes a vlan from a MST instance.

Format Spanning-Tree mst vlan <MST ID> < vlan list> delete
Mode Global Config

8.3) spanning-tree mst bridgepri
This command configures bridge priority for a MST instance.

Format spanning-tree mst bridgepri <MST ID> <priority>
Mode Global Config

8.4) spanning-tree mst cost
This command configures port path cost in a MST instance.

Layer 2/2+ Management Switch Series 35

Format spanning-tree mst cost <MST ID> <path cost> ports <port list>
Mode Global Config

8.5) spanning-tree mst priority
This command configures port priority in a MST instance

Format spanning-tree mst priority <MST ID> <priority> ports <port list>
Mode Global Config

User

This command changes user password.

Format user password
Mode Global Config

Interface

This command enters into configure interface mode.

Format Interface <port-ID>
Mode Global Config

rmon

This command is used to configure RMON.

1) rmon event
This command creates rmon event entry.
Format rmon event index < 1..65535 > desc <WORD> event <1..4>
community <WORD>owner<WORD>
Mode Global Config
e.g. Switch(Config)# rmon event index 1 desc 123 event 4 community 123
owner test

2) rmon alarm
This command creates rmon alarm entry.
Format rmon alarm index < 1..65535 >interval<0..3600>interface<port
number>counter<1..17>sample{absolute|delta}start{rasing|falling|
all}rthreshold<0..65535>fthreshold<0..65535> reindex <0..65535>
feindex<0..65535> owner< WORD>
Mode Global Config
e.g. Switch(Config)# RMON alarm index 1 interval 10 interface counter 1
sample delta start all rthreshold 100 fthreshold 10 reindex 1 feindex 0
owner test

3) rmon del

3.1) rmon del event

This command deletes rmon event entry.

Format rmon del event index< 1..65535 >
Mode Global Config

3.2) rmon del alarm

This command deletes rmon alarm entry.

Format rmon del alarm index< 1..65535 >
Mode Global Config

access list

Note: This commands only support on L2+ Management Switches.

1) access-list name <WORD> add
This command creates a new access-list.

Format access-list name <WORD> add priority <1-65535>

Layer 2/2+ Management Switch Series 36

Mode Global Config

2) access-list name <WORD> action

2.1) access-list name <WORD> action deny

This command denies an ACL entry.

Format access-list name <WORD> action deny
Mode Global Config

2.2) access-list name <WORD> action permit

This command permits an ACL entry and queue 1-4 will assign priority
queue when rule activated.

Format access-list name <WORD> action permit {<cr>|queue <1-4>}
Mode Global Config

3) access-list name <WORD> clear
This command clears ACL entry contents.

3.1) access-list name <WORD> clears SRC IP

This command clears the source IP/subnet mask filter.

Format access-list name <WORD> clear SRC IP
Mode Global Config

3.2) access-list name <WORD> clears DST IP

This command clears the destination IP/subnet mask filter.

Format access-list name <WORD> clear DST IP
Mode Global Config

3.3) access-list name <WORD> clear L4port

3.3.1) access-list name <WORD> clear L4port SRC port
This command clears TCP/UDP source port filter.

Format access-list name <WORD> clear l4port SRC port
Mode Global Config

3.3.2) access-list name <WORD> clear l4port DST port
This command clears TCP/UDP destination port filter.

Format access-list name <WORD> clear l4port DST port
Mode Global Config

3.4) access-list name <WORD> clear packet-type
This command clears packet type filter.

Format access-list name <WORD> clear packet-type
Mode Global Config

3.5) access-list name <WORD> clear mac SA
This command clears a source mac address.

Format Access-list name <WORD> clear mac SA
Mode Global Config

3.6) access-list name <WORD> clear MAC DA
This command clears a destination mac address.

Format Access-list name <WORD> clear mac DA.
Mode Global Config

3.7) access-list name <WORD> clear VID
This command clears the 802.1Q VLAN tag of packet.

Format Access-list name <WORD> clear VID
Mode Global Config

3.8) access-list name <WORD> clear ether-type
This command clears ether type filter.

Format access-list name <WORD> clear ether-type
Mode Global Config

4) access-list name <WORD> deletes.

Layer 2/2+ Management Switch Series 37

This command removes the ACL entry.

Format access-list name <WORD> deletes
Mode Global Config

5) access-list name <WORD> {enable|disable}
This command enables/disables the ACL entry.

Format access-list name <WORD> {enable|disable}
Mode Global Config

6) access-list name <WORD> set

6.1) access-list name <WORD> set priority

This command specifies ACL entry priority.

Format access-list name <WORD> set priority <0-65535>
Mode Global Config

6.2) access-list name <WORD> set IP-mode

6.2.1) access-list name <WORD> set IP-mode SRC IP.
This command specifies a source IP address.
Format access-list name <WORD> set IP-mode SRC IP <IP-
addr> <mask-addr>
Mode Global Config

6.2.2) access-list name <WORD> set IP-mode DST IP
This command specifies a destination IP address.

Format access-list name <WORD> set IP-mode DSP IP <IP-
addr> <mask-addr>

Mode Global Config

6.3) access-list name <WORD> set L4port
This command specifies the TCP/UDP port range.

6.3.1) access-list name <WORD> set l4port SRC-port

This command specifies the source TCP/UDP port range.
Format Access-list name <WORD> set L4 port SRE-port from <1-
65535> to <1-65535>
Mode Global Config

6.3.2) access-list name <WORD> set l4port DST-port

This command specifies the destination TCP/UDP port range.
Format access-list name <WORD> set l4port DST-port from <1-
65535> to <1-65535>
Mode Global Config

6.4) access-list name <WORD> set IP-mode packet-type
This command specifies the packet type.
Format access-list name <WORD> set IP-mode packet-type {ICMP|
IGMP|IP|TCP|UDP|GRE}
Mode Global Config

6.5) access-list name <WORD> set mac-mode
Specify ACL entry priority.

6.5.1) access-list name <WORD> set mac-mode mac SA

This command specifies a source mac address.
Format access-list name <WORD> set mac-mode mac SA <mac-
addr> <mask-addr>
Mode Global Config

6.5.2) access-list name <WORD> set mac-mode mac DA

This command specifies a destination mac address.

Format access-list name <WORD> set mac-mode mac DA <mac-
addr> <mask-addr>

Layer 2/2+ Management Switch Series 38

Mode Global Config

6.6) access-list name <WORD> set mac-mode ether-type
This command specifies the ether type of the packet.
Format access-list name <WORD> set mac-mode ether-type {ipv4|
ARP|xns}
Mode Global Config

7) access-list name <name> set portlist

Note: This command only supports on the following switches,

2. 24-Port 100BaseTX + 2 Gigabit combo Layer 2+ Management Switch

3. 48-Port 100BaseTX + 4 1000BaseT with 2 shared Gigabit SFP Layer 2+
Management Switch

4. 24-Port 1000BaseT with 2 shared Gigabit SFP Layer 2+ Management Switch

5. 48-Port 1000BaseT with 4 shared Gigabit SFP Layer 2+ Management Switch

This command is used to specify an acl entry to be work on a list of ports.

Format access-list name <name> set portlist <LINE | port_id>
Mode Global Config

arp

Note: This commands only support on 24-Port 1000BaseT with 2 shared Gigabit

SFP Layer 2+ Management Switch / 48-Port 1000BaseT with 4 shared Gigabit SFP
Layer 2+ Management Switch models.

1) arp dynamic

1.1) arp dynamic enables and disables.

This command enables and disables dynamic arp functions.

Format arp dynamic {enable|disable}
Mode Global Config

1.2) arp dynamic aging-time

This command set arp dynamic aging-time between 0s and
999s.”0”means disable.

Format arp dynamic aging-time <0~999>
Mode Global Config

1.3) arp dynamic ports

This command set dynamic arp ports to trust and un-trust.

Format arp dynamic ports {trust|untrust} <port-list>
Mode Global Config

e.g. Swtich<Config># arp dynamic ports trust 1-4
Swtich<Config># arp dynamic ports untrust 4

1.4) arp dynamic vlan

This command set add/remove dynamic arp on specified vlan.

Format arp dynamic vlan {add|remove} from < vlan -id> to < vlan -id>
Mode Global Config

e.g. Swtich<Config># arp dynamic vlan add from 1 to 1
Swtich<Config># arp dynamic vlan remove from 1 to 1

2) arp static command
This command set arp static address table for mac address with IP
Address.
Format arp static {add|delete} vid <1~4094> ip <A.B.C.D> mac <mac­address>

Mode Global Config

dos

Layer 2/2+ Management Switch Series 39

Note: This command only supports on the following switches,

3. 48-Port 100BaseTX + 4 1000BaseT with 2 shared Gigabit SFP Layer 2+ Management

Switch

4. 24-Port 1000BaseT with 2 shared Gigabit SFP Layer 2+ Management Switch

5. 48-Port 1000BaseT with 4 shared Gigabit SFP Layer 2+ Management Switch

1) dos land
This command enables and disables land-type attacks prevention.

Format dos land {enable|disable}
Mode Global Config

2) dos blat
This command enables and disables blat-type attack prevention.

Format dos blat {enable|disable}
Mode Global Config

3) dos syn-fin
This command enables and disables SYN-fin-type attack prevention.

Format dos syn-fin {enable|disable}
Mode Global Config

4) dos ports

4.1) dos ports smurf

This command enables and disables Smurf-TYPR attack prevention.

Format dos ports smurf {enable|disable}
Mode Global Config

4.2)dos ports ping-flooding

This command enables and disables ping-flooding-type attack

prevention.

Format dos ports ping-flooding {enable|disable}
Mode Global Config

4.3)dos ports synack-flooding
This command enables and disables SYNACK -flooding -type attack
prevention. Set rate is 64 kbps or 128kbps for port lists (1, 3-5, 7-9.11)
Format dos ports synack -flooding {enable|disable} rate {64|128} <port­list>
Mode Global Config
e.g. Switch<Config>#dos ports synack -flooding enablerate 64 1-4
Switch<Config>#dos ports synack -flooding enablerate 64 5

tacplus

1) tacplus authen_type
This command is used to set authentication type. There are three types for
selecting: local, tacplus, localandtacplus.

Format tacplus authen_type {local | tacplus | localandtacplus}
Mode Global Config

2) tacplus add
This command is used to add a new TACACS+ server and set server IP
address, priority, key string, authentication port and timeout for reply.
Format tacplus add server <IP_addr> priority <0-65535> key <key string>

port <auth port id> timeout <1-30>

Mode Global Config

3) tacplus del
This command is used to delete a TACACS+ server.
Format tacplus del server <IP_addr>

Layer 2/2+ Management Switch Series 40

Mode Global Config

green-eth

Note: This command only supports on the following switches,

4. 24-Port 1000BaseT with 2 shared Gigabit SFP Layer 2+ Management Switch

5. 48-Port 1000BaseT with 4 shared Gigabit SFP Layer 2+ Management Switch.

This command is used to enable/disable green Ethernet function. Enable
green Ethernet mode will reduce system power consumption when the link is
not present.

Format green-eth { enable | disable }
Mode Global Config

1.7.5.Interface Config mode commands

exit

Exit current shell

Format exit
Mode Interface Config

dot1x

Set 802.1x port control.
Set auto-authorized on ports

Format 802.1x port-control {enable|disable}

Mode Interface Config

lacp

1) admin command
Configure admin key of port

Format lacp admin <0 ..65535>
Mode Interface Config

e.g. switch(interface g1)#lacp admin 36768

2) priority command
Configure lacp port priority

Format lacp priority <0..65535>
Mode Interface Config

addport

add one port to a LAG group

Format addport <LAG-ID>
Mode Interface Config

delport

Remove a port from a LAG group

Format delport <LAG-ID>
Mode Interface Config

lldp

An lldp agent can transmit information about the capabilities and current
status of the system associated with its MSAP identifier. The lldp agent can

Layer 2/2+ Management Switch Series 41

also receive information about the capabilities and current status of the
system associated with a remote MSAP identifier. However, lldp agents are
not provided any means of soliciting information from other lldp agents via this
protocol.

1) lldp state set
Only transmit the lldp status

Format lldp state {tx | rx | tx_rx | disable}
Mode Interface Config

2) configure notifications
Enable/disable notification form the agent

Format lldp notification {enable|disable}
Mode Interface Config

3) Configure med notifications
Configure whether or not MED notifications from the agent are enabled.
Enable/disable med notification form the agent

Format lldp med-notification {enable | disable}
Mode Interface Config

e.g. Switch(Interface 1)#lldp med-notification enable

4) Configures which TLVs are enabled for transmission.

4.1) basic set

Format lldp tlvs-tx {enable | disable} option basic {port-desc | sys-name
| sys-desc | sys-capa | sys-capa }
Mode Interface Config

4.2) 8021 set

Status of local-802.1 settings
Format lldp tlvs-tx {enable | disable} option 8021 {pvid | vlanname |
protocol-id}
Mode Interface Config
eg.switch(interdface 1)lldp tlvs enable option 8021 pvid

4.3) 8023 set

Format lldp tlvs-tx {enable | disable} option 8023 {mac-phy | power|
link-aggregation| frame-size}
Mode Interface Config

4.4) MED-set

Status of MED Settings
Format lldp tlvs-tx {enable | disable} option med-set {capabilities | net­policy | location-id | mdi}

Mode Interface Config

admin-mode

Configure administrative mode on a port

Format Switch(Interface 1)# admin-mode {enable | disable}
Mode Interface Config

auto-negotiate

Configure auto-negotiate mode on a port

Format auto-negotiate {enable | disable}
Mode Interface Config

speed

Set port speed to 10Mbps half duplex/ 10Mbps full/ 100Mbps half/ 100Mbps

Layer 2/2+ Management Switch Series 42

full/ 1000Mbps 100FX mode/1000base-x full .

Format speed {10hd | 10fd | 100hd | 100fd | 1000fd | 100fx | 1000base-x}
Mode Interface Config

flow-control

This command enable/disable flow-control at port.

Format flow-control {enable | disable}
Mode Interface Config

port-security

1) port-security

This command add or delete a static mac into mac security table.

Format port-security {add|delete} <sourcemac >
Mode Interface Config

2) port-security lock-mode

This command disable port security or specify static lock mode.

Format port-security lock-mode {none | static}
Mode Interface Config

3) port-security lock-mode dynamic

This command enable limited dynamic lock mode,and specify maximin
learning entries for limited dynamic lock mode.the max-entries value :0~24

Format port-security lock-mode dynamic max-entries 24
Mode Interface Config

qos

This command specifies port-based qos.

Format qos port-based status {enable | disable}
Mode Interface Config

rate-limit

1) rate-limit egress

This command limits egress rate, which the unit is Kbps.

Format rate-limit egress <rate>
Mode Interface Config

2) rate-limit ingress

This command limits ingress rate, which the unit is Kbps.

Format rate-limit ingress <rate>
Mode Interface Config

storm-control

1) Enable/disable storm control.

Format storm-control {enable | disable}
Mode Interface Config

2) storm-control broadcast
This command storm control for broadcast only, and limited value :
0,64,256,1024,10240,65536.102400,1024000,which the unit is Kbps and 0
means no limit.

Format storm-control broadcast <rate>
Mode Interface Config

3) storm-control broadcast-multicast

Layer 2/2+ Management Switch Series 43

This command storm control limited value :
0,64,256,1024,10240,65536.102400,1024000,which the unit is Kbps and 0
means no limit.

Format storm-control broadcast-multicast <rate>
Mode Interface Config

4) storm-control broadcast-unknown
This command storm control limited value :
0,64,256,1024,10240,65536.102400,1024000,which the unit is Kbps and 0
means no limit.

Format storm-control broadcast-unknown <rate>
Mode Interface Config

e.g. Switch(Interface 1)# storm-control broadcast-unknown 64

5) storm-control all-cast
This command storm control limited value :
0,64,256,1024,10240,65536.102400,1024000,which the unit is Kbps and 0
means no limit.

Format storm-control all-cast <rate>
Mode Interface Config

rmon-counter

This command specifies rmon counter capability on a port

Format rmon-counter {enable | disable}
Mode Interface Config

set igmp-router-port

This command specifies igmp router port .

Format set igmp-router-port {enable | disable}
Mode Interface Config

spanning tree

1) spanning-tree cost
This command configure RSTP port path cost, path cost
value:0~200000000.

Format spanning-tree cost <pathcost>
Mode Interface Config

2) spanning-tree edge
This command configure edge property

Format spanning-tree edge {enable|disable}
Mode Interface Config

e.g. Switch(Interface 1)# spanning-tree edge enable

3) spanning-tree force-p2plink
This command configure force point to point link mode.

Format spanning-tree force-p2plink {auto|enable|disable}
Mode Interface Config

4) spanning-tree migration-check
This command re-checks the appropriate BPDU format to send on this port

Format spanning-tree migration-check {enable|disable}
Mode Interface Config

5) spanning-tree mst
This command configures multiple spanning tree instance.

5.1) spanning-tree mst cost

Layer 2/2+ Management Switch Series 44

This command configure the path cost on a MST instance :

1~200000000.

Format spanning-tree mst cost <pathcost>
Mode Interface Config

5.2) spanning-tree mst priority

This command configure the port priority on a MST instance:0~4096.

Format spanning-tree mst priority <1 4096>
Mode Interface Config

6) spanning-tree participation
This command configures RSTP capability on a port.

Format spanning-tree participation {enable|disable}
Mode Interface Config

7) spanning-tree priority
this command configure RSTP port priority:0~240

format spanning-tree priority <0..240>
mode Interface Config

vlan

1) vlan participation
This command join or leave a port to a vlan.

1.1) vlan participation exclude

This command leave a vlan.

Format vlan participation exclude < vlan id>
Mode Interface Config

1.2) vlan participation

This command join a vlan with untagged/tagged mode.

Format vlan participation {untagged |tagged}< vlan id>
Mode Interface Config

2) vlan protected
This command configures port protected property.

Format vlan protected {enable|disable}
Mode Interface Config

3) vlan dropnq
This command configure port drop none 802.1Q frame .

Format vlan dropnq {enable|disable}
Mode Interface Config

4) vlan pvid
This command configure port PVID.

Format vlan pvid <pvid>
Mode Interface Config

e.g. Switch(Interface 1)# vlan pvid 1

Interface commands

This command change another interface

Format Interface <port number>
Mode Interface Config

e.g. Switch(Interface 1)# interface g1

poe

1) func

Layer 2/2+ Management Switch Series 45

This command configure poe function on a port

Format poe func {enable | disable}
Mode Interface Config

2) power-pri
This command configures the power priority on switch ports to decide which
ports have priority to supply power which power devices are connected.
Legal value are low, normal, middle or high priority. If the same power
priority on the ports, the lower port index the higher power priority.
Low Set to low priority
Normal Set to normal priority
Middle Set to middle priority
High Set to high priority

Format poe power-pri level {low | normal | middle | high}
Mode Interface Config

3)detection
This command configures detection type on a port. set to 0,1,2,3,4 or 5
0 No Detection
1 Legacy Capacitive Detection only
2 IEEE 802.3af 4-Point Detection only (Default)
3 IEEE 802.3af 4-Point followed by Legacy
4 IEEE 802.3af 2-Point only
5 IEEE 802.3af 2-Point followed by Legacy

Format poe detection type {0 | 1 | 2 | 3 | 4 | 5}
Mode Interface Config

4)high-power
This command configures power Energy Mode on a port
on Start High Power (Support 30W power device)
off End High Power Mode (Support 15.4W power device)

Format poe high-power status {enable | disable}
Mode interface Config

Layer 2/2+ Management Switch Series 46

3. Specifications

1.8.Cable specifications

Straight-Through and Crossed-Over Cable Specifications Table

Ethernet Type Cable Requirements Maximum Length

10BASE-T Category 3 or better, UTP or STP 328 ft (100M)
100BASE-TX Category 5 or better, UTP or STP 328 ft (100M)
1000BASE-T Category 5e or better, UTP or STP 328 ft (100M)

Caution: Please do not use telephone cables .Telephone cables do not

support Ethernet or Gigabit .

Twisted-pair cabling comes in various grades, or categories. Category 5 is
required for Fast Ethernet, and is also the most reliable and most commonly
used category. You can buy UTP Category 5 (Unshielded Twisted Pair)
Ethernet cabling in precrimped lengths, or you can crimp your own. Crimping
your own can result in faulty connections if the
RJ-45 tips are not attached properly. Precrimped Category 5 cabling is
available at most computer retail stores.

The most reliable and commonly used type of Category 5 cabling used is
UTP, or "unshielded twisted pair." STP, or "shielded twisted pair" wiring is only
necessary for network environments exposed to excessive amounts of
electromagnetic interference, or EMI. These environments include areas with
high sources of electrical power, air conditioning, generators, and radio
signals. STP is also used for wiring outdoors.

There are two types of the wiring: Straight-Through Cables and Crossover
Cables. Category 5 UTP/STP cable has eight wires inside the sheath. The
wires form four pairs. Straight-Through Cables has same pinouts at both ends
while Crossover Cables has a different pin arrangement at each end.

In a straight-through cable, wires 1,2,3,4,5,6,7 and 8 at one end of the cable
are still wires 1~8 at the other end. In a crossover cable, the wires of 1,2,3,6
are reversed so that wire 1 become 3 at the other end of the cable, 2
becomes 6, and so forth.

To determine which wire is wire 1, hold the RJ-45 cable tip with the spring clip
facing towards the ground and the end pointing away from you. The copper
wires exposed upwards to your view. The first wire on the far left is wire 1.
You can also refer to the illustrations and charts of the internal wiring on the
following page.

There are two types of cables: Straight Through Cables and Crossover
Cables. Category 5 UTP/STP cable has eight wires inside the sheath. The
wires form four pairs. Straight Through Cables has same pinouts at both ends

Layer 2/2+ Management Switch Series 47

while Crossover Cables has a different pin arrangement at each end.

Figure 4-1 shows the diagram of Straight Through Cables. Figure 4-2 shows
the diagram of Crossover Cables.

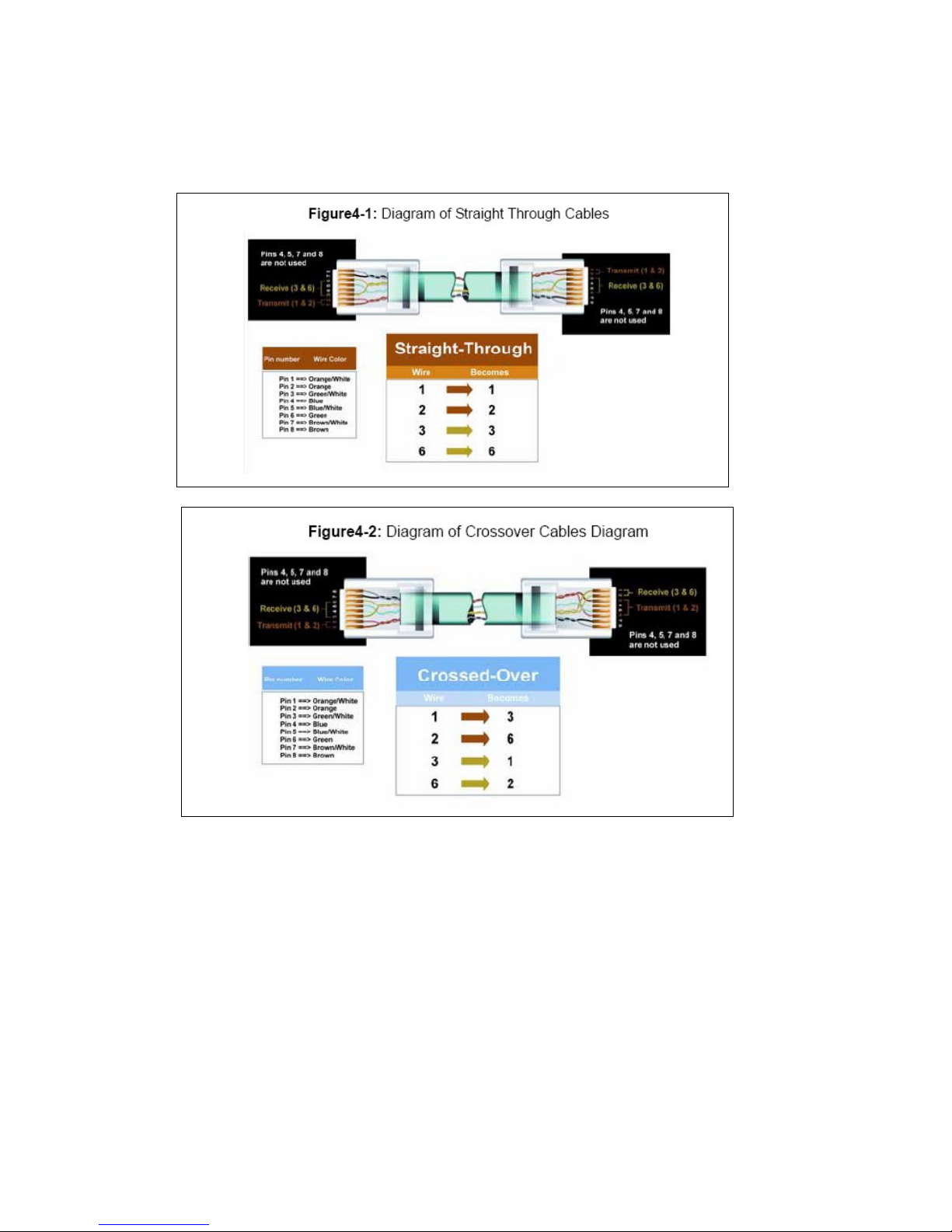

Layer 2/2+ Management Switch Series 48

1.9. Technical Specifications

1.9.1.Software Specification

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch with 8

PSE port embedded 100W PoE power budget

￭ Four groups (history, statistics, alarms, and events) of embedded remote

monitoring (RMON) agents for network monitoring and traffic analysis

￭ Provides SNMP protocol(v1/v2c/v3) to monitor and control the switch by

using SNMP management applications such as HP Open View

￭ IGMP snooping support to limit flooding of IP multicast traffic and filtering

for controlling the set of multicast groups to which hosts on a switch port
can belong

￭ Supports 802.1d/1w/1s Spanning Tree Protocol for loop free installation.
￭ Supports 802.1Q VLAN for assigning users to VLAN associated with

appropriate network resources, traffic patterns, and bandwidth. Up to 256
VLAN entries can be configured

￭ Supports Management VLAN for administration to protect switch to be

attacked by client.

￭ Built-in DHCP client to get IP address from DHCP server automatically

￭ Supports SNTP to synchronize the precision time with Internet Time server.
￭ Supports one-to-one or many-to-one Port Mirroring.

￭ Supports IEEE 802.3ad Link Aggregation, up to 3 aggregation groups.

￭ Supports for IEEE 802.1p/DSCP CoS scheduling for classification and

preferred high-priority voice traffic on a port-port basis

￭ Per port Ingress and Egress Rate Limiting. Minimum rate is 64 Kbps,

granularity is 64 Kbps

￭ Supports Static Mode and Dynamic Learning Mode for Port Security

function. Support up to 24 MAC addresses for each port.

￭ Supports Protected port feature.
￭ Supports 802.1X port-based authentication, and build-in RADIUS client to

co-operate with the RADIUS servers.

￭ Supports broadcast, known-multicast, and unknown unicast storm control

￭ Supports web-based interface for management
￭ Supports CLI interface for local console or remote Telnet management
￭ Supports TFTP, HTTP and X-modem protocol for firmware/configuration

upgrade or backup.

￭ Supports TACACS+ login authentication.

Layer 2/2+ Management Switch Series 49

1.9.2.Hardware Specification

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch with 8

PSE port embedded 100W PoE power budget

￭ Supports 8 ports 100Base-TX (with PoE PSE) and 2 1000BaseT with 2

shared Mini-GBIC.

￭ User configurable 100FX or 1000Base-SX/LX mini-GBIC fiber module on

mini-GBIC ports

￭ IEEE 802.3ab Auto MDI/MDI-X on all 10/100/1000 twisted-pair ports
￭ Automatic polarity detection and correction on all RJ-45 ports for automatic

adjustment of wiring errors

￭ Throughput: Up to 5.6 Gbps.
￭ Provides Flow Control mechanism ensures zero packet loss, IEEE802.3x

Flow Control for full-duplex operation and Back Pressure for half-duplex
operation

￭ Supports 8K MAC address and Up to 3Mb packet buffer
￭ Supports Store & Forward architecture and performs forwarding and

filtering

￭ Provides non-blocking switching performance
￭ Provides a RS-232 port for system configuration.
￭ Total Power Budget 100 W with 8 W guard band. It means system can

provide total 92 W power to power devices.

￭ Supports 30 W high power devices.

1.9.3.Environments Specification

8-Port 100BaseTX + 2 Gigabit combo Layer 2 Management Switch with 8

PSE port embedded 100W PoE power budget:

Size (H x W x D) H44 x W263 x D170 mm
Weight(Net/Gross) 1.3kg /2.0kg (45oz/ 70oz)

Power 48VDC 2.5A, 4pin DC-inlet

Operating Temp. 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉ )

Storage Temp. -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉ )

Operating Humidity 20% to 85%,relative humidity, non-condensing

Storage Humidity 20% to 90%,relative humidity, non-condensing

1.9.4.Standard Conformance

EMC Certification FCC Class A, CE

Layer 2/2+ Management Switch Series 50

5. Warranty statement

We provide this limited warranty for it originally purchased the product
from us or its authorized reseller or distributor. We guarantee that equipment
is free from physical defects in workmanship and material under normal use
from the date of original retail purchase of the Hardware. If the product proves
defective during this warranty period, call our Customer Service in order to
obtain a Return Authorization number. Be sure to have a proof of purchase on
hand when calling. Return requests cannot be processed without proof of
purchase. When returning a product, mark the Return Authorization Number
clearly on the package pack and include you original proof of purchase. All
customers outside the R.O.C shall be held responsible for shipping and
handling charges.

In no event shall our liability exceed the price paid for the product from
direct, incidental or consequential damage resulting from the use of the
product, its accompanying software, or its documentation. We make no
warranty or representation, expressed, implied, or statutory, with respect to its
products or the contents or use of this documentation and all accompanying
software, and specifically disclaim its quality, performance, merchantability, or
fitness for any particular purpose. We reserve the right to revise or update its
products, software, or documentation without obligation to notify any individual
or entity.

Layer 2/2+ Management Switch Series 51
