Digitus DN-93615 User Manual

DIGITUS® CAT 6A Keystone Module, shielded

✔ Category: 6

✔ Shielded

A

✔ 500 MHz

✔ RJ45 jack

Abstract

DIGITUS® CAT 6A Keystone Module, shielded, RJ45 to LSA, tool free installation

Features

- Cable entry: Rear side

- Material enclosure: Zinc diecast - Nickel plated

- Material contacts: Phosphor bronze

- IDC contracts material: Phosphor bronze

- Contacts coating: Nickel, gold plated 0.5 µ

- 360° cable screen connection for enhanced EMI protection

- Lining: 50 µm gold over 40 µm nickel

- Operating temperature: -10 °C up to +60 °C

- Material PCB: FR4, UL 94V-0, multilayer 1.45 mm thickness

- Mating cycles: ≥ 750

- Diameter Cu-Conductor: AWG (26/1 ... 22), stranded and solid

- Wire terminations: Tool free with cap for stranded and solid wires AWG 23-26

- Wiring standard: EIA/TIA 568 A/B

- Conformance: Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC 11801:2002

- Certification: 3P

- Dimensions: 20x14x34 mm

- Weight: ca. 22 g

- Compact form allows an installation of 24x in 483 mm (19") 1U blank Panel (modular)

- Suitable for bracket Types: DN-91402, DN-91410, DN-91411, DN-91412, DN-91412S-ANP, DN-91413S-ANP,
DN-91421, DN-91422, DN-91423, DN-91424

- Opening size acc. Keystone Standard 19.35 mm x 14.8 mm

- Easy installation in floor boxes, surface mount boxes, distribution panels and desk housings due to its compact
design

Product Overview

The Item “DN-93615” from DIGITUS® is an unshielded CAT 6A Keystone Module with tool free installation which
provides best performance and link quality for your network. The compact design allows the installation of 24

pieces in a row of 483 mm (19”) 1U panels. It is conform to Category 6A / 10GBase-T Channel,

ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC11801:2002.

Product Number Information

DN-93615 DIGITUS® CAT 6A Keystone Module, shielded, Re-embedded, 500 MHz
acc. ISO/IEC 11801:2002, AM2:2009/09, tool free installation

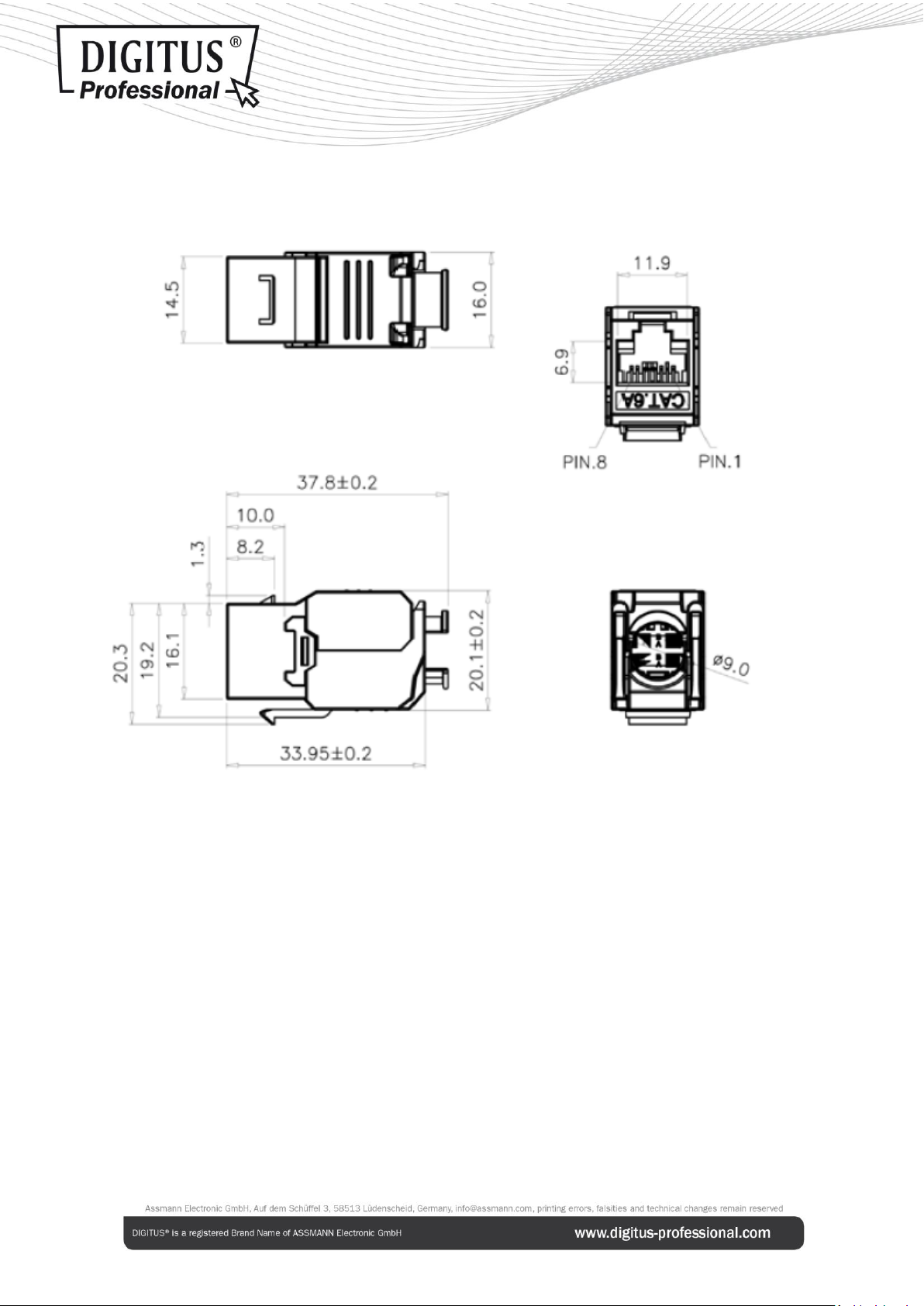

Product Images
