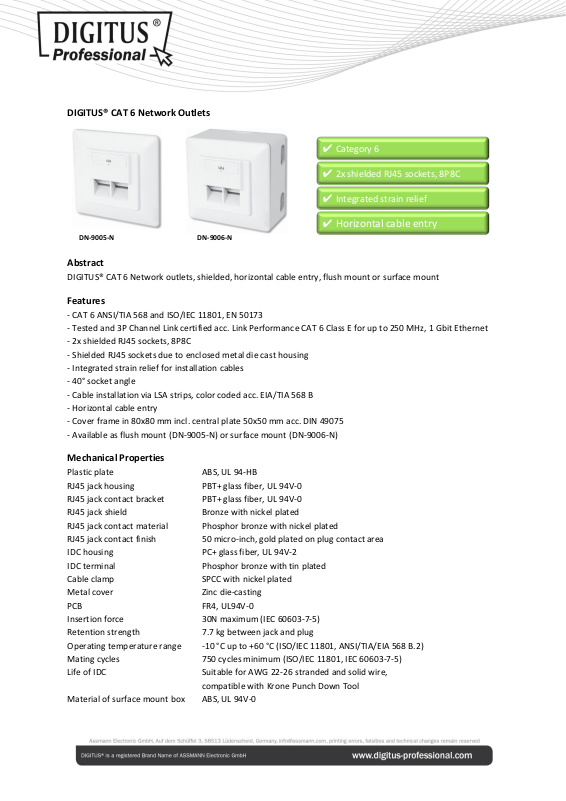

DIGITUS® CAT 6 Network Outlets

✔ Category 6

✔ 2x shielded RJ45 sockets, 8P8C

DN-9005-N DN-9006-N

✔ Integrated strain relief

✔ Horizontal cable entry

Abstract

DIGITUS® CAT 6 Network outlets, shielded, horizontal cable entry, flush mount or surface mount

Features

- CAT 6 ANSI/TIA 568 and ISO/IEC 11801, EN 50173

- Tested and 3P Channel Link certified acc. Link Performance CAT 6 Class E for up to 250 MHz, 1 Gbit Ethernet

- 2x shielded RJ45 sockets, 8P8C

- Shielded RJ45 sockets due to enclosed metal die cast housing

- Integrated strain relief for installation cables

- 40° socket angle

- Cable installation via LSA strips, color coded acc. EIA/TIA 568 B

- Horizontal cable entry

- Cover frame in 80x80 mm incl. central plate 50x50 mm acc. DIN 49075

- Available as flush mount (DN-9005-N) or surface mount (DN-9006-N)

Mechanical Properties

Plastic plate ABS, UL 94-HB
RJ45 jack housing PBT+ glass fiber, UL 94V-0
RJ45 jack contact bracket PBT+ glass fiber, UL 94V-0
RJ45 jack shield Bronze with nickel plated
RJ45 jack contact material Phosphor bronze with nickel plated
RJ45 jack contact finish 50 micro-inch, gold plated on plug contact area
IDC housing PC+ glass fiber, UL 94V-2
IDC terminal Phosphor bronze with tin plated
Cable clamp SPCC with nickel plated
Metal cover Zinc die-casting
PCB FR4, UL94V-0
Insertion force 30N maximum (IEC 60603-7-5)
Retention strength 7.7 kg between jack and plug
Operating temperature range -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA/EIA 568 B.2)
Mating cycles 750 cycles minimum (ISO/IEC 11801, IEC 60603-7-5)
Life of IDC Suitable for AWG 22-26 stranded and solid wire,
compatible with Krone Punch Down Tool
Material of surface mount box ABS, UL 94V-0

Product Overview

The shielded CAT 6 network outlets from DIGITUS® are certificated to CAT 6 ANSI/TIA 568 and ISO/IEC 11801,
EN 50173. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable
entry. All network outlets from DIGITUS® are available flush mount or surface mount.

Product Number Information

DN-9005-N DIGITUS® CAT 6 modular wall outlet, shielded, 2x RJ45, 8P8C, LSA, flush mount
DN-9005/B5-N DIGITUS® CAT 6 modular wall outlet, shielded, 2x RJ45, 8P8C, LSA, flush mount, set= 5 pcs.

DN-9006-N DIGITUS® CAT 6 modular wall outlet, shielded, 2x RJ45, 8P8C, LSA, surface mount
DN-9006/B5-N DIGITUS® CAT 6 modular wall outlet, shielded, 2x RJ45, 8P8C, LSA, surface mount, set= 5 pcs.

Technical Drawings

DN-9005-N & DN-9006-N
