Page 1
WIRELESS
TV STREAMING BOX
Manual DN-70310
Page 2
2
Table of Contents
CHAPTER 1: PRODUCT INTRODUCTION ................................................................................. 3
1-1 Package Contents .......................................................................................................... 3
(1) PC2TV ...................................................................................................................... 4
(2) Media Streaming ...................................................................................................... 4
(3) Screen Mirroring for Android ..................................................................................... 5
(4) i-Play ........................................................................................................................ 5
1-3 Highlights ........................................................................................................................ 5
1-4 Hardware Setup/Installation ............................................................................................ 6
(1) Connect your device ................................................................................................. 6
(2) Connect power and push power button to turn on DN-70310. .................................. 6
CHAPTER 2: DESCRIPTION OF FUNCTIONS ........................................................................... 8
2-1 Using DN-70310 on ScreenShare for PC to TV .............................................................. 8
2-1-1 Basic Usage of application software for Windows and Mac OS .................................. 8
2-2 Using DN-70310 on Android devices via Mirroring ....................................................... 29
2-2-1 Launching Android mirroring ...................................................................................... 29
2-3 Using DN-70310 on i-Play ............................................................................................ 31
2-4 Airfun Media Streaming ................................................................................................. 32
CHAPTER 3: ROUTER CONFIGURATION ............................................................................... 40
APPENDEX A: Supported resolution ......................................................................................... 44
APPENDEX B: Compatible list for Android mirroring ................................................................. 44
Page 3
3
CHAPTER 1: PRODUCT INTRODUCTION
Thank you for choosing DIGITUS Wireless HDMI Receiver Box DN-70310. Please follow the
manual for its use.
1-1 Package Contents
(1) DN-70310
(2) AC Adapter USB
(3) Micro USB Cable (B to A)
(4) CD-ROM
(5) Quick Installation Guide
(6) CVBS cable
Page 4
4
1-2 Hardware Recommendation
(1) PC2TV
DN-70310 is designed to able to stream screen capture from PC (Windows 7 /Window 8/ Win
8.1) & Mac (over 10.6) to your HDTV.
PC or Notebook
CPU: Core 2 Duo 2.0 GHz or better
Memory: 2.0 GB or better
Network: 802.11g/n Wi-Fi and/or 100/1000 Mbps Ethernet
(2) Media Streaming
Stream photo/music/video from your PC, smart phone or laptop or play back
video/Music/photo form USB up to 1080p HD.
PC or Notebook
CPU: 1.6 GHz or better
Memory: 1.0 GB or better
Network: 802.11g/n Wi-Fi and/or 100/1000 Mbps Ethernet
Smart phone
CPU: 800 MHz or better
Memory: 256 MB or better
Network: 802.11g/n Wi-Fi or better
Tablet-PC
CPU: 600 MHz or better
Memory: 256 MB or better
Network: 802.11g/n Wi-Fi or better
Recommend software
PC: Windows Media Player, AirFun
Android OS: AirFun
iOS: AirFun、iMediashare
Page 5
5
(3) Screen Mirroring for Android
Screen mirroring from Miracast-ready smart phone/tablet/NB up to 1080p HD through Miracast
technology.
(4) i-Play
Stream video/photo contents from iPhone or iPad to your TV by Airplay feature.
1-3 Highlights
DN-70310 enables you to mirror whatever is displayed on Windows PC/laptop, Mac, smart
phone & tablet on your HDTV, wirelessly, up to 1080p video resolution without the hassle of
using HDMI cable.
Major features:
802.11 a/b/g/n Wireless compatibility
802.11n 2.4GHz & 5GHz dual band standards
Supports both Wireless and Ethernet connectivity
HDMI connection
Wireless multimedia streaming up to Full HD 1080p
PC contents, movies, photos and more all on your big screen
Compatible with Windows, Apple and Android devices
Network security
Page 6
6
1-4 Hardware Setup/Installation
(1) Connect your device
(2) Connect power and push power button to turn on DN-70310.
After few seconds, when you see the below screen: the device is assigned an IP address, the
system is in standby mode and ready to do file streaming or screen mirroring from your device.
Page 7
7
(3) If your device is already connected to the router, press the switch button to disconnect
with router, press again to connect.
** Please find Chaper 3 about router application
Page 8
8
CHAPTER 2: DESCRIPTION OF FUNCTIONS
DN-70310 is a highly integrated all-in-one receiver, featuring instant and direct peer-to-peer
connection with no need to press switch button between different functions.
Mirroring: Screen mirroring from Android smart phones, or tablet PCs through
Wireless Mirroring technology.
ScreenShare: Mirror your screen from PCs or notebooks for meeting room application
after installing ScreenShare software on the PCs or notebooks (supporting Windows and Mac
OS)
Airfun: Stream photo/music/video from your PC, smart phone or laptop using Airfun
APPs.
i-Play: Stream photo/video from your iPhone or iPad.
2-1 Using DN-70310 on ScreenShare for PC to TV
2-1-1 Basic Usage of application software for windows
Please install ScreenShare application from the CD.
Mirroring
Airfun
Page 9
9
Page 10
10
Page 11
11

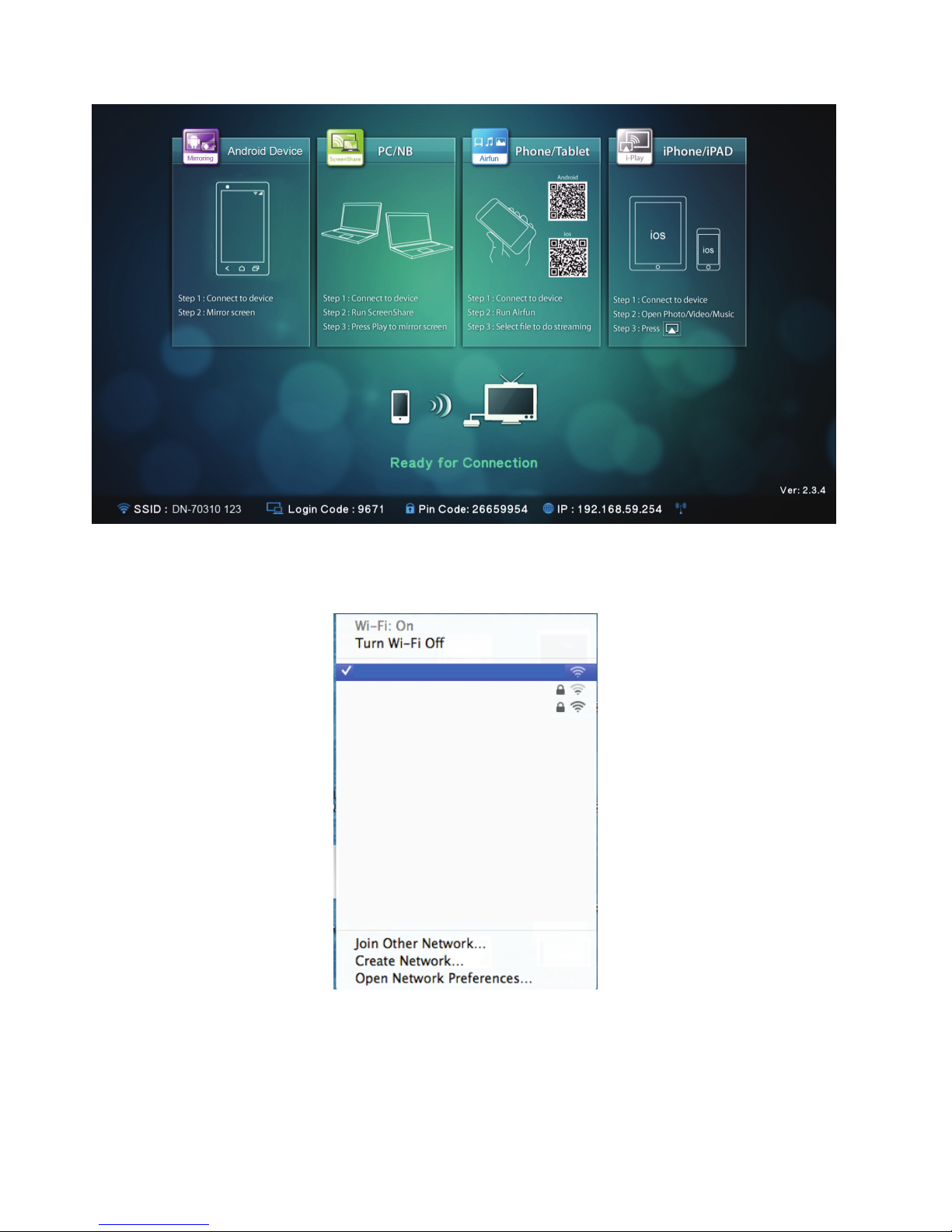

2-1-1-1 Launching ScreenShare
Please follow the steps below to run ScreenShare for Windows OS after DN-70310 is booted up
with the following screen displayed on HDMI TV or monitor.
(1) Search and find the device’s SSID (DN-70310) in Wireless list on your notebook via WiFi.
DN-70310 123
Page 12
12
(2) Connect to this device SSID.
(3) Double click the ScreenShare icon from your desktop.
(4) ScreenShare will auto detect ‘Server IP’, please input login code as shown on instruction
page.
(5) If login code is correct, application software will appear.
DN-70310 123
DN-70310 123
DN-70310 123
DN-70310 123
9671
Page 13
13
2-1-1-2 User Interface of ScreenShare
Main functions
No Name Function Description
1 Play Start / pause presentation. When pausing a progressing
presentation, the displaying image will freeze.
2 Stop Stop a progressing presentation and go back to instruction
page.
3 Menu Access menu list.
4 Login code Show the application login code.
5 Volume Control the slidebar to change the volume. Press the icon to
mute.
6 Information/Minimize/Close Minimize and close the Application Software window.
Information can show the application information.
1
2
3
5
4
6
Page 14
14

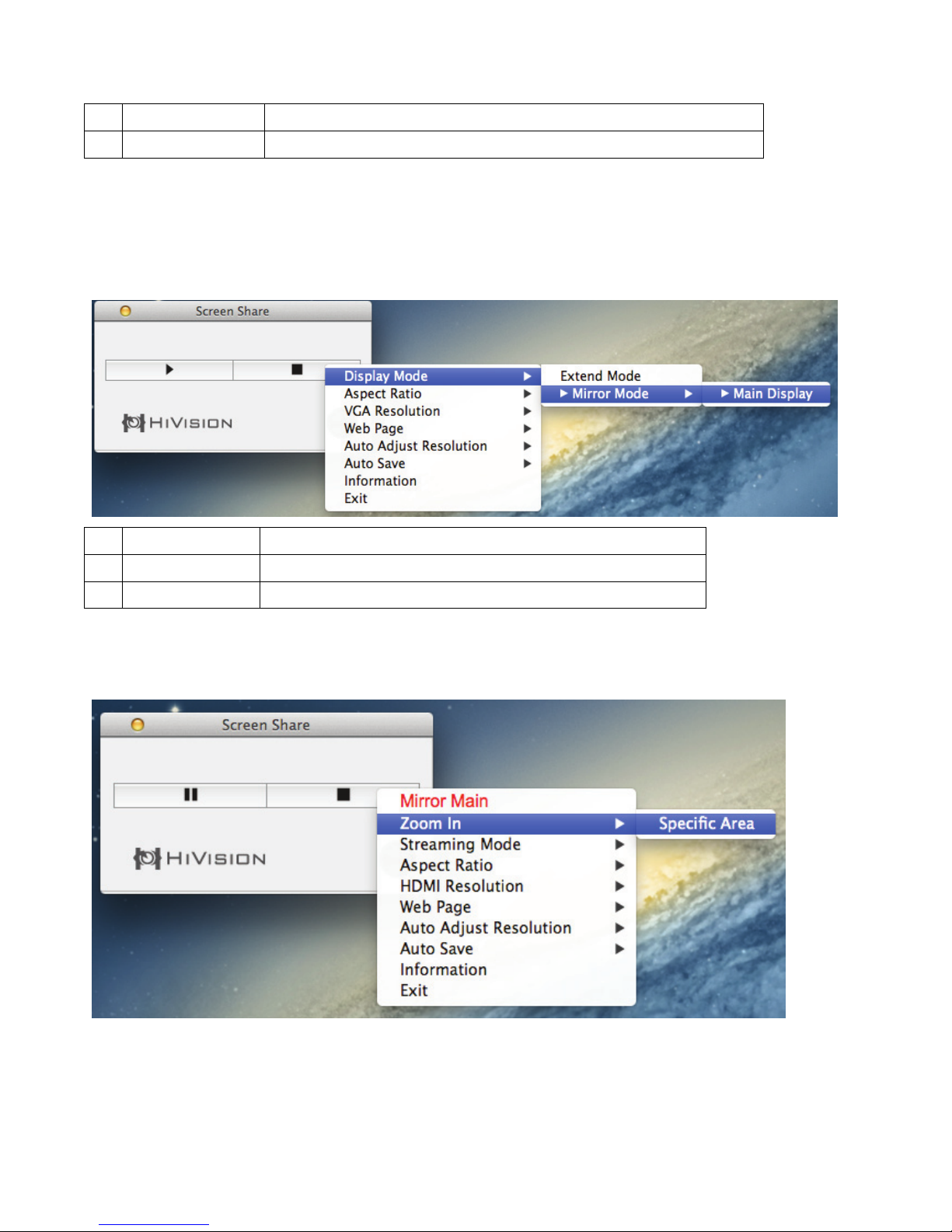

Menu
You can also click ‘Menu’ button to access menu list.
(1) Display Mode
No Name Function Description
1 Main Display Mirror NB/PC display to the Rx monitor.
2 Extend Display Mirror your extend display to the Rx monitor.
(2) Zoom In (This function only can be used when “Main Display” running)
Page 15
15

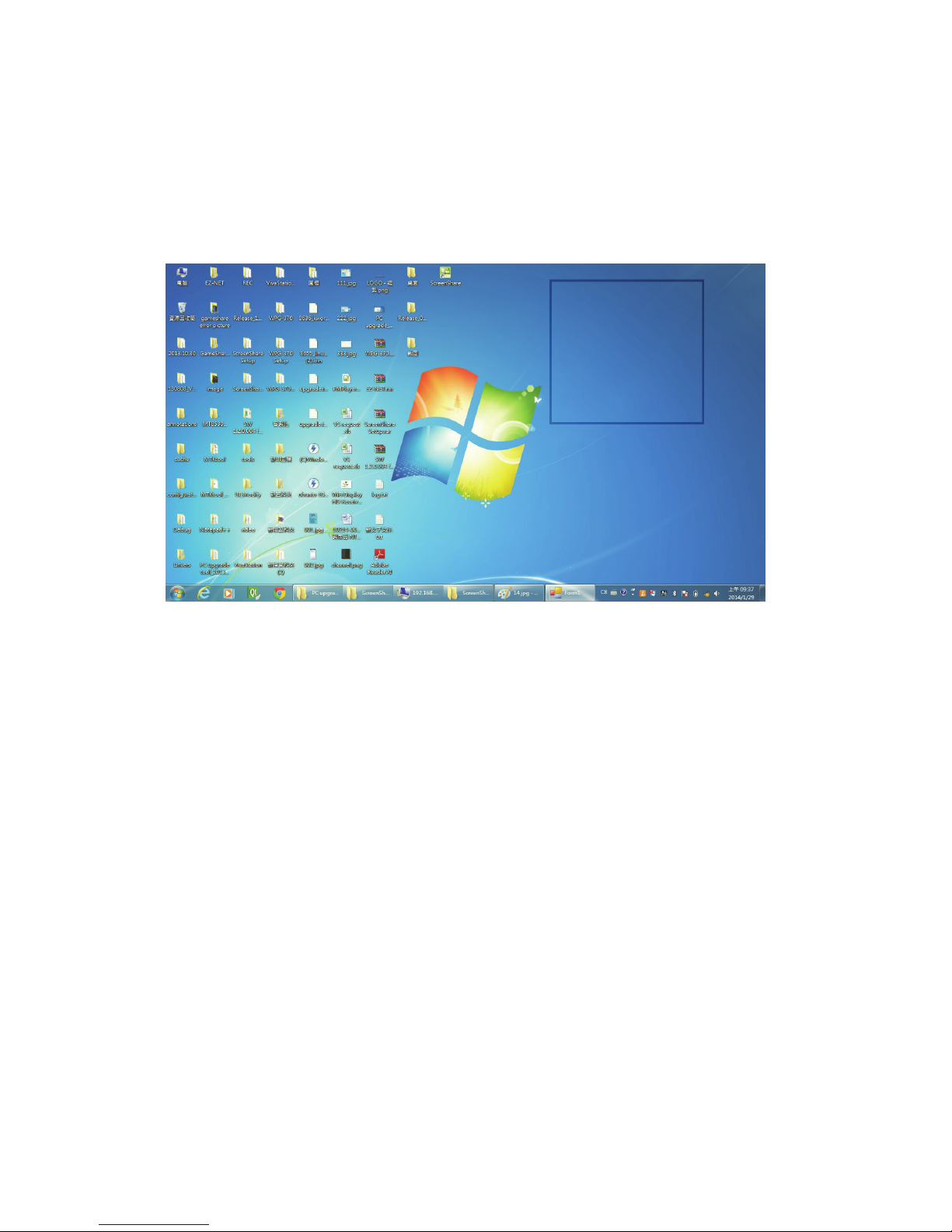

You can decide the region you want to zoom in and display to the monitor.
Step 1. Choose Zoom In→Specific Area
Step 2. Now you can decide the region you want to display to the monitor.(You can slide the
frame and also adjust it size.)After finish, just double click the right button of mouse and then you
can enjoy this function!
Step 3. After finish, just press ”ESC” and you will back to main display function.
Page 16
16

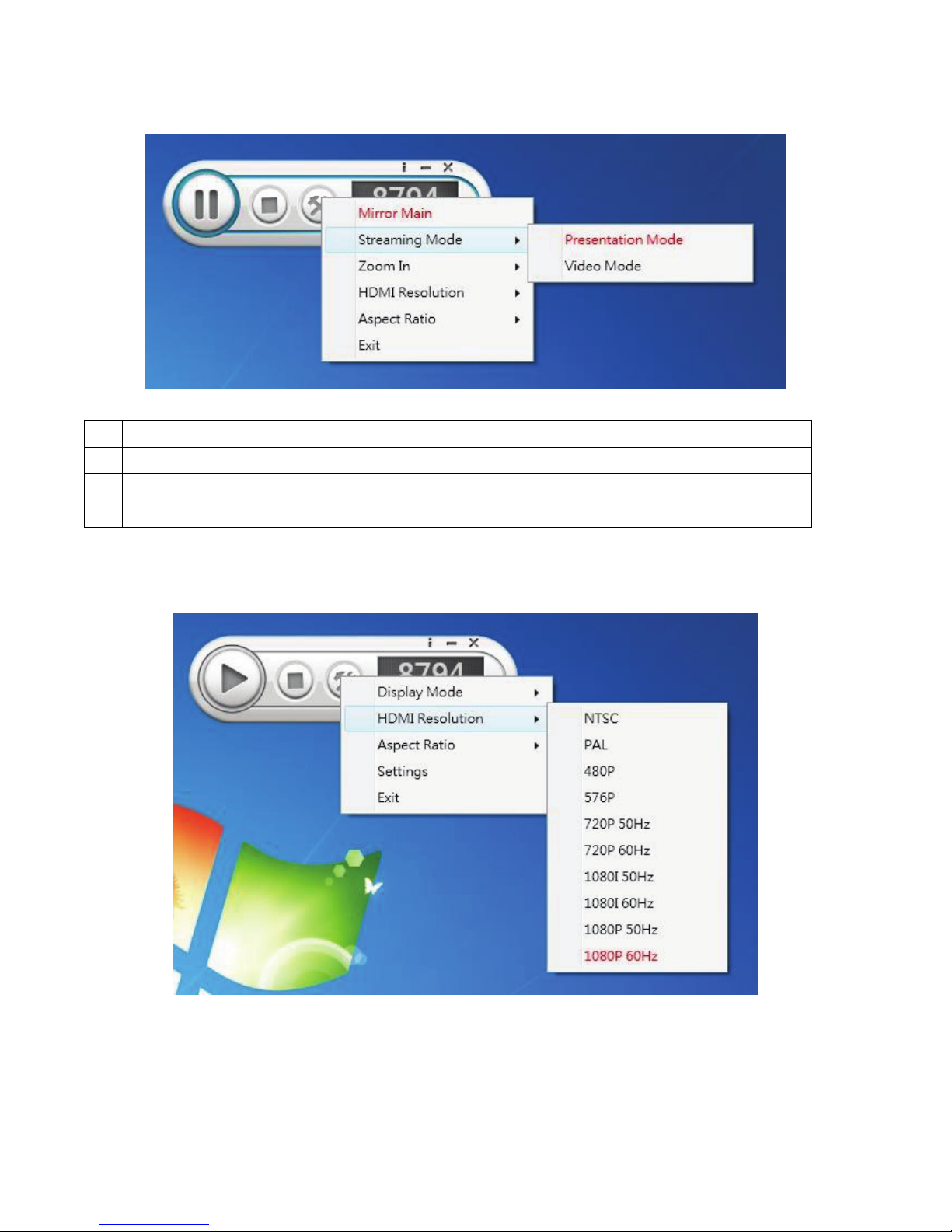

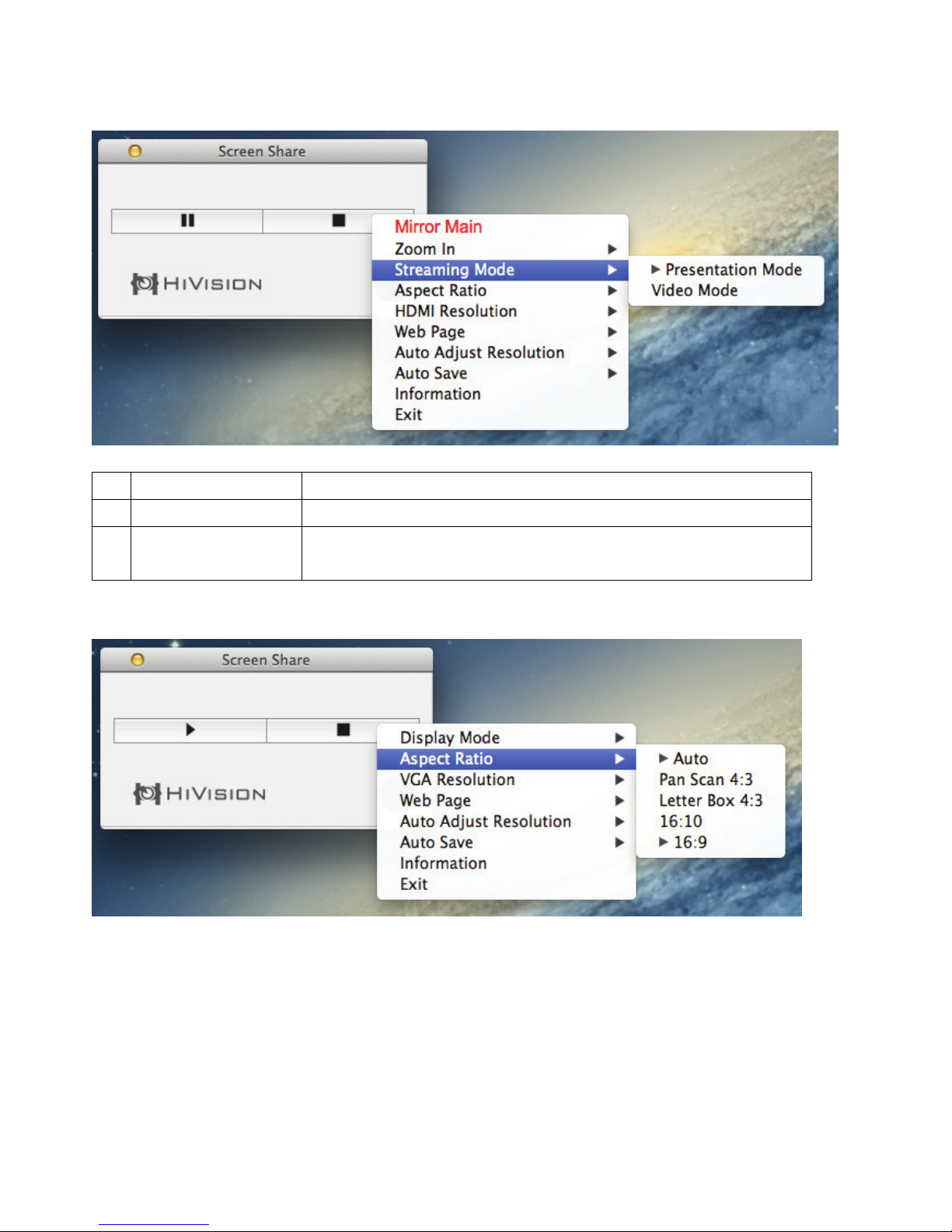

(3) Streaming Mode (This function only can be used when mirroring)
No Name Function Description
1 Presentation Mode Default is presentation mode.
2 Video Mode If play video the performance is not good, select this will be
better.
(4) HDMI Resolution
You can change HDMI output resolution.
Page 17
17

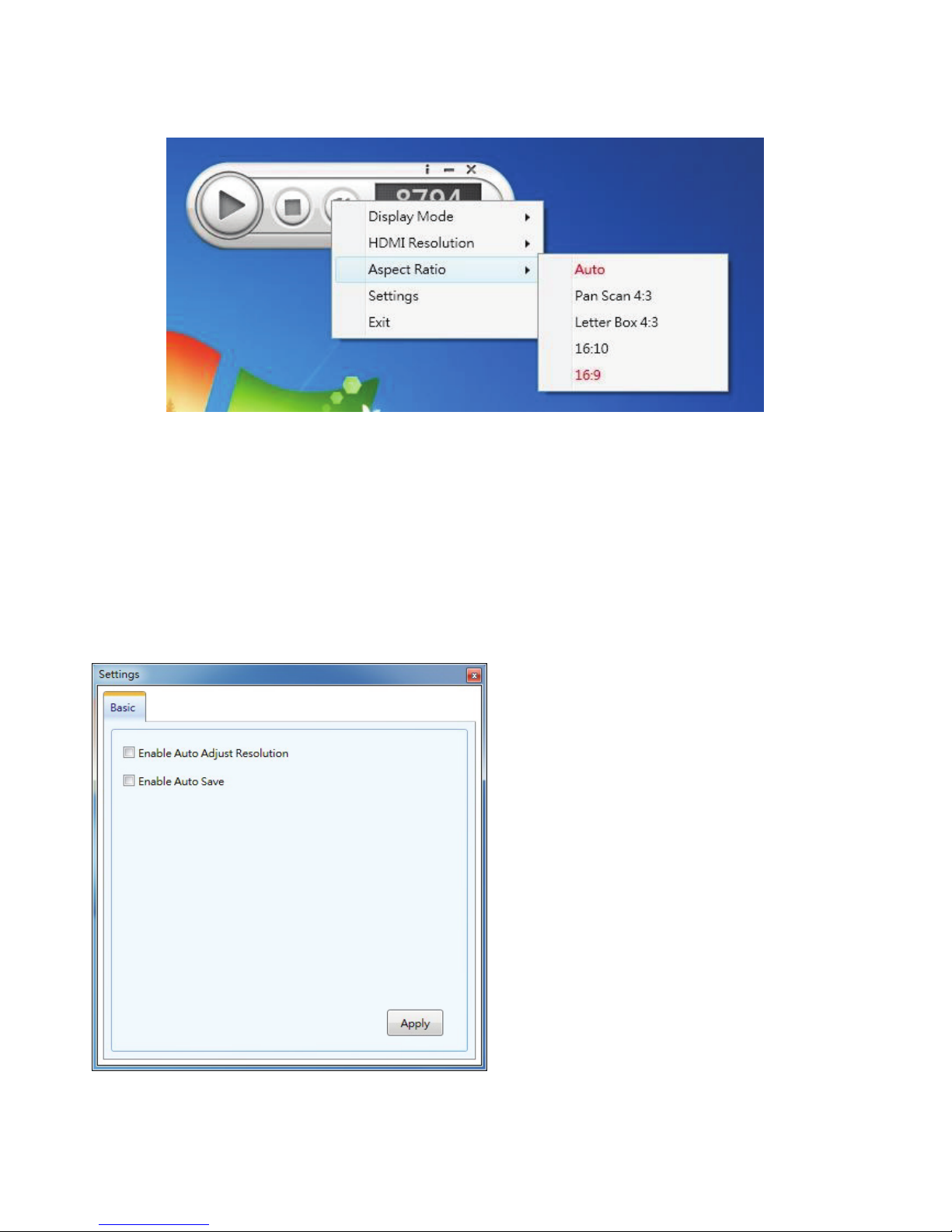

(5) Aspect Ratio
You can change the Rx monitor ratio.
“Auto” means the ratio will follow the display source.
“Pan Scan 4:3” means adjust widescreen images so that they can be shown within the
proportions of a 4:3.
“Letter Box 4:3 ”means adjust widescreen images so that they can be shown within the a
fully 4:3. The resulting image has mattes (black bars) left and right it.
(6) Setting (Option)
Page 18
18
No Name Function Description
1 Auto Adjust
Resolution
Let your pc/notebook resolution changed by Rx monitor resolution.
2 Auto Save After reboot this application, all of the settings will be saved.
(7) Exit
Exit from ScreenShare application, and go back to instruction page.

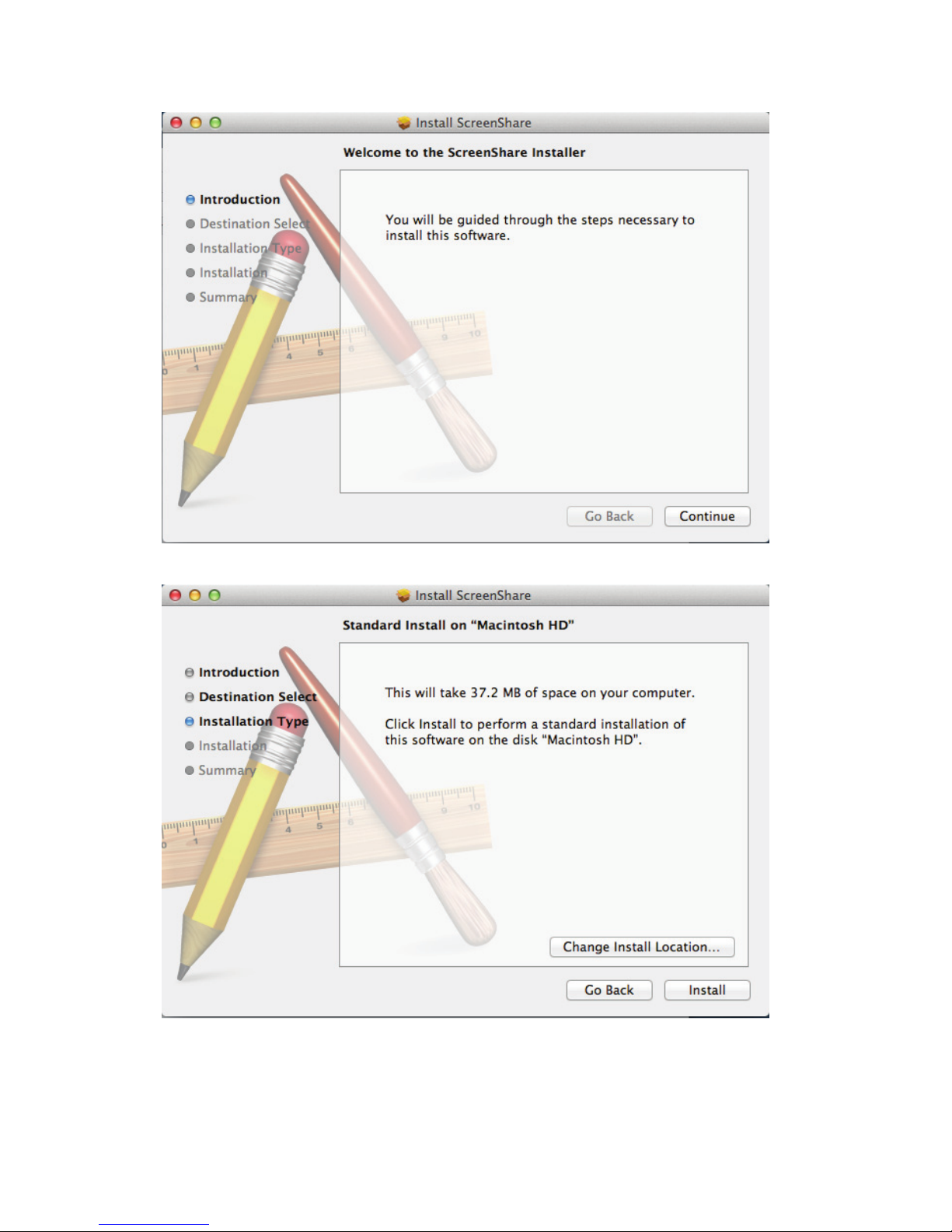

2-1-2 Basic Usage of application software for Mac (Option)
You can install ScreenShare application from the CD onto the Mac devices.

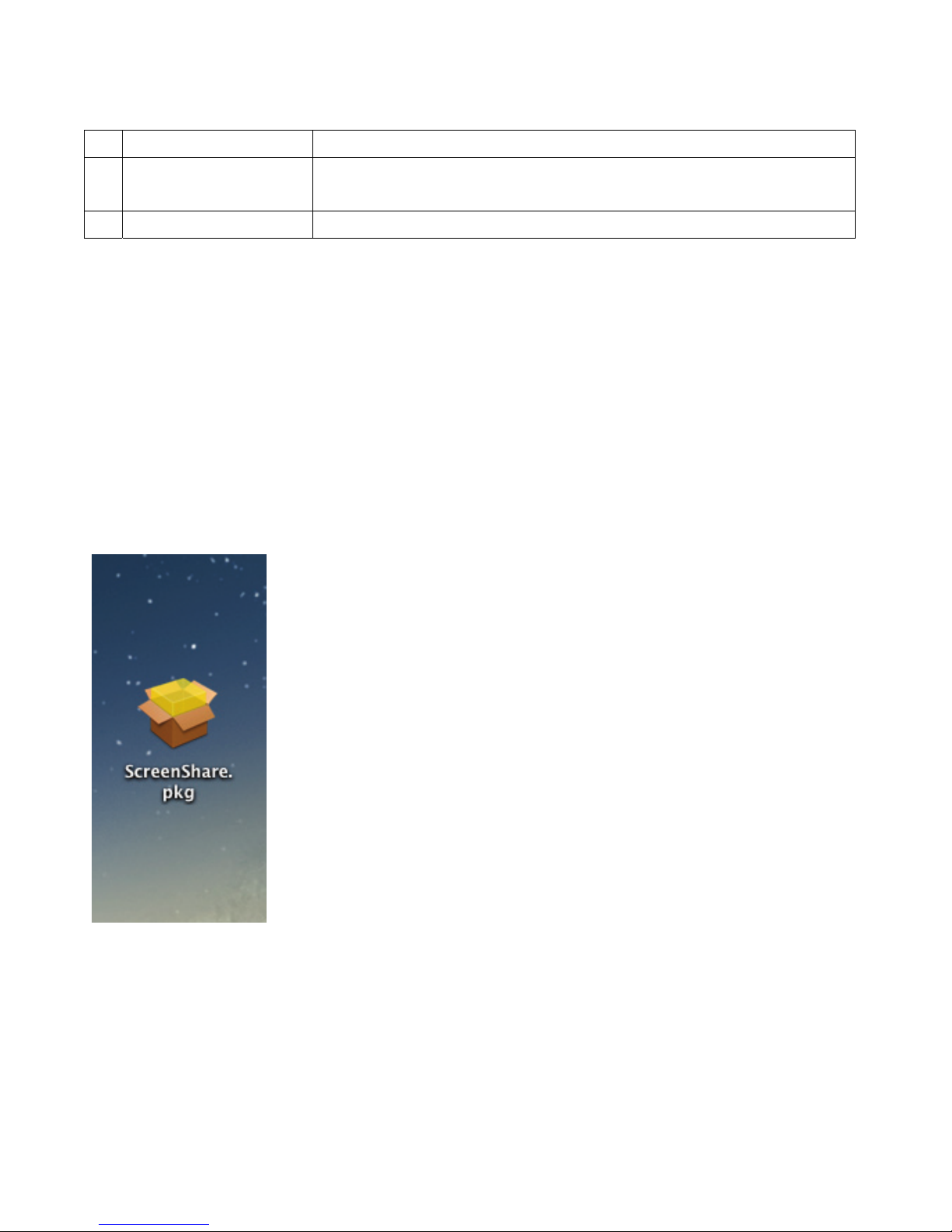

(1) Click twice on the ScreenShare.pkg file to start installing.
(2) Start Installing.
Page 19
19
Page 20
20

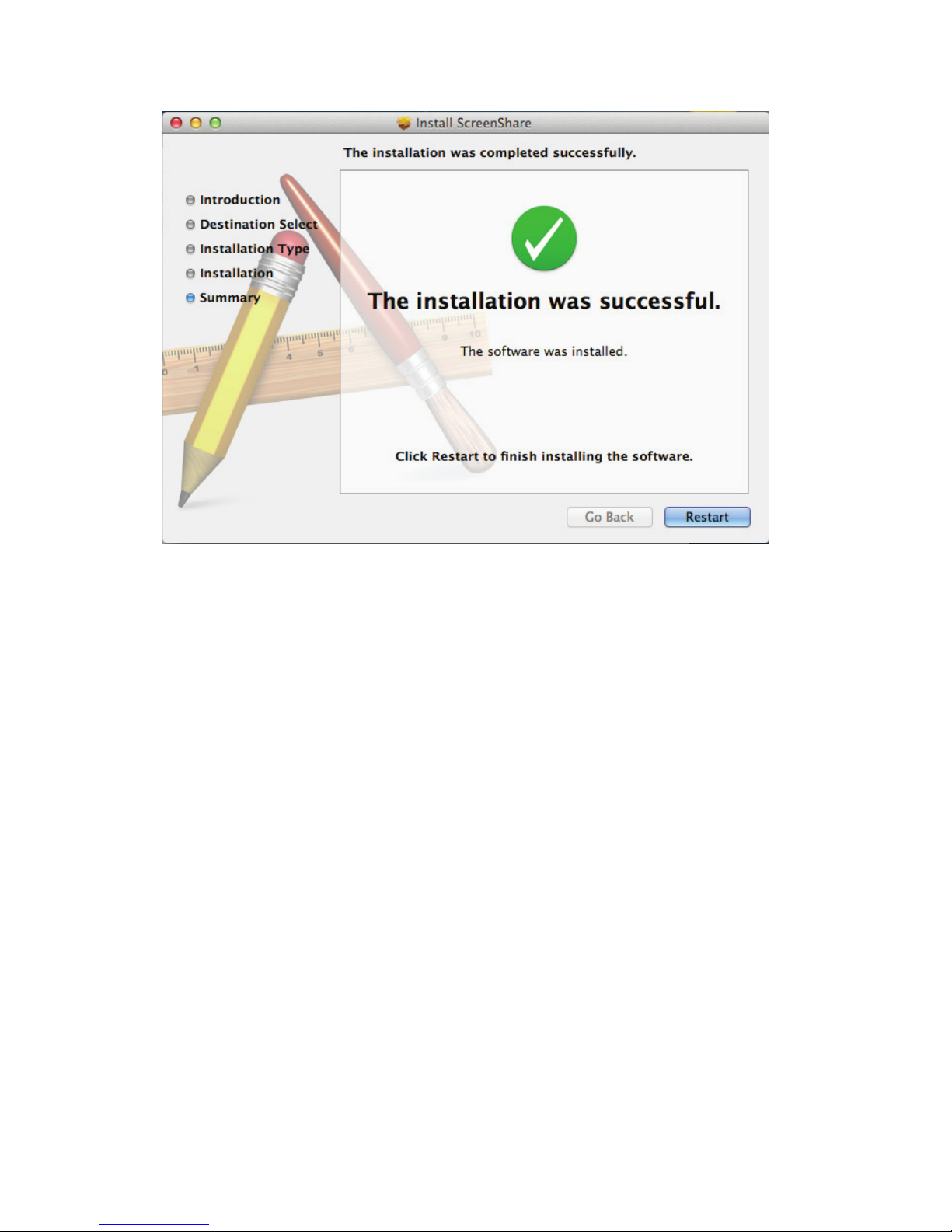

You have finished installing the software。
2-1-2-1 Launching ScreenShare
Please follow the steps below to run ScreenShare for Mac OS after DN-70310 is booted up with
the following screen displayed on HDMI TV or monitor.
Page 21
21
(1) Search and connect to the device’s SSID (DN-70310) on the WiFi list on your notebook.

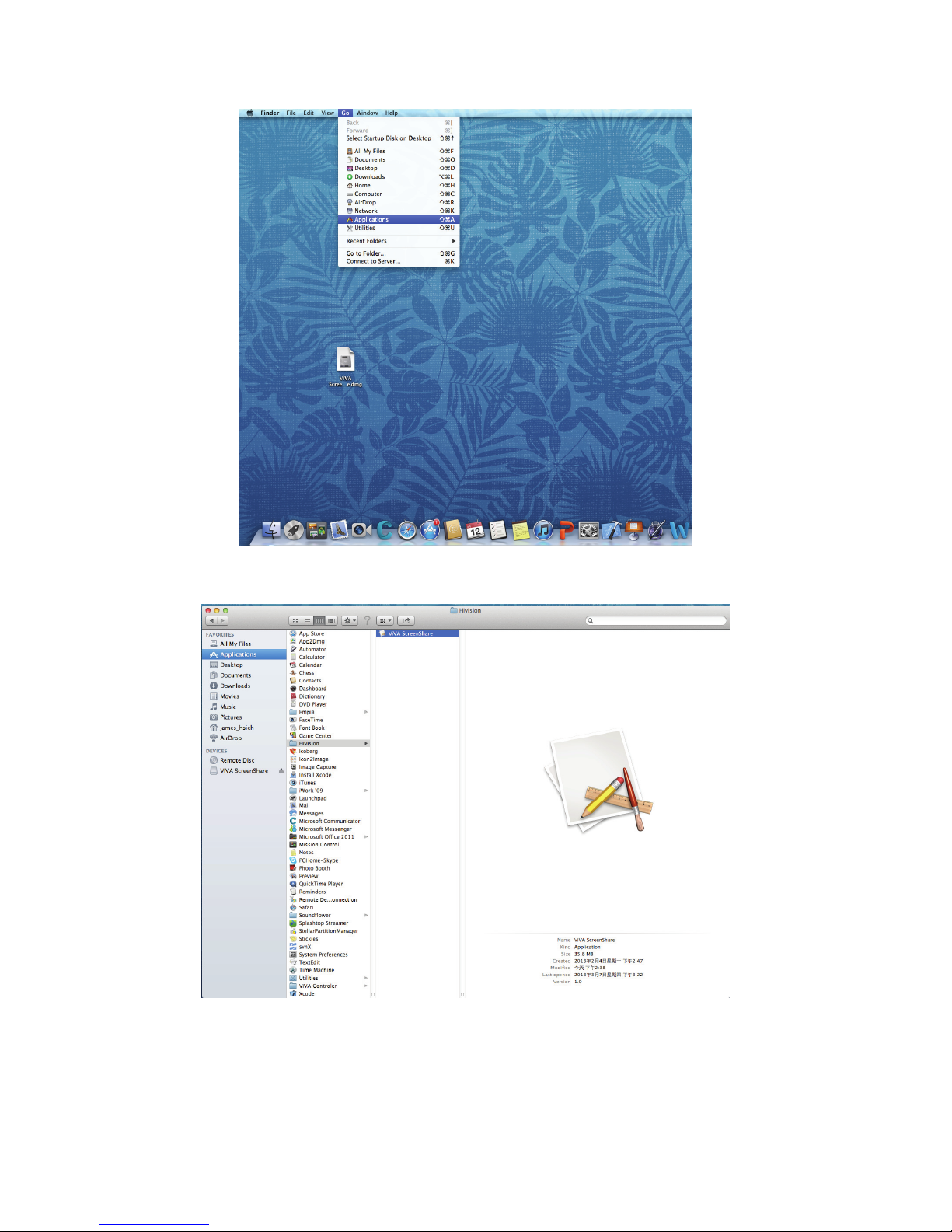

(2) Go -> Applications
DN-70310 123
Digitus test AP
Digitus PMM
Page 22
22
(3) Applications -> Hivision -> ViVA ScreenShare
Press ViVA ScreenShare to start.
(4) ScreenShare will auto detect ‘Server IP’, please input login code as shown on instruction
page.
Page 23
23

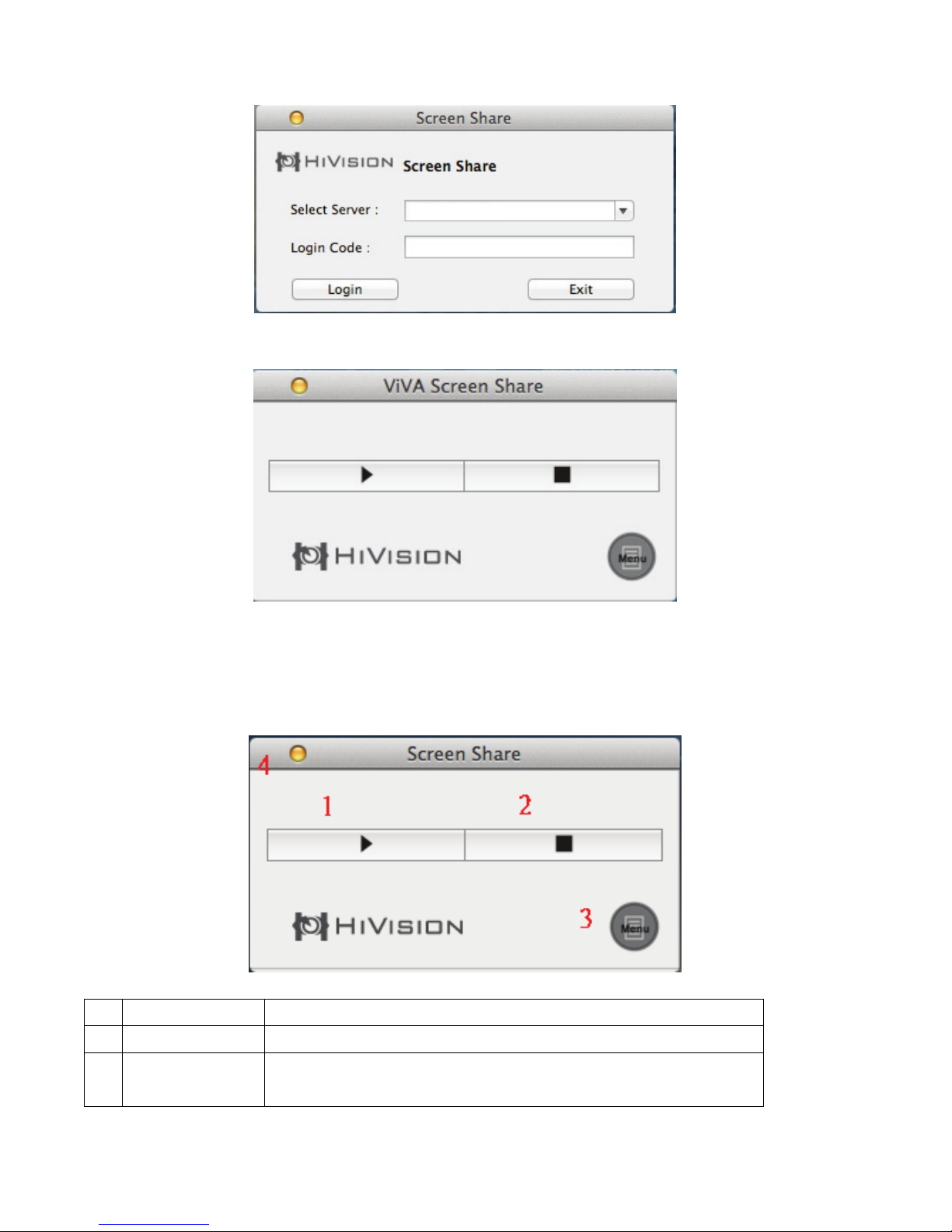

(5) If login code is correct, application software will appear.
2-1-2-2 User Interface of ScreenShare
Main fuctions
No Name Function Description
1 Play Start / pause presentation.
2 Stop Stop a progressing presentation and go back to instruction
page.
DN-70310 123
9671
Page 24
24
3 Memu Access menu list.
4 Minimize/Close Minimize and close the Application Software window.
Menu
You can also click ‘Menu’ button to access menu list.
(1) Display Mode
No Name Function Description
1 Main Display Mirror NB/PC display to the Rx monitor.
2 Extend Display Mirror your extend display to the Rx monitor.
(2) ZoomIn (This function only can be used when “Main Display” running)
You can decide the region you want to zoom in and display to the monitor.
Page 25
25
(3) Streaming Mode (This function only can be used when mirroring)
No Name Function Description
1 Presentation Mode Default is presentation mode.
2 Video Mode If play video the performance is not good, select this will be
better.
(4) Aspect Ratio
You can change the Rx monitor ratio.
Default is “Auto”, means the ratio will follow the display source.
Page 26
26

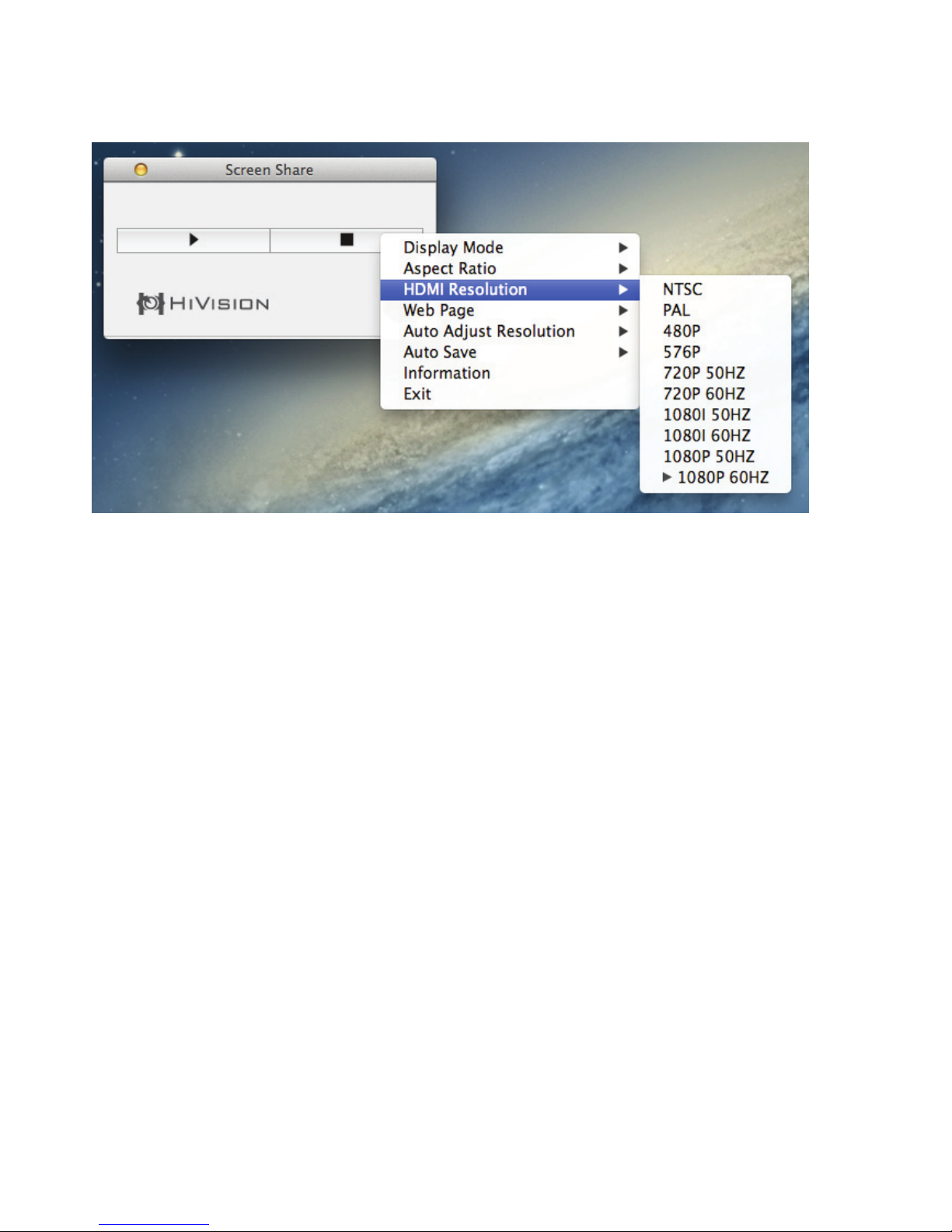

(5) HDMI Resolution
You can change HDMI output resolution.
Page 27
27

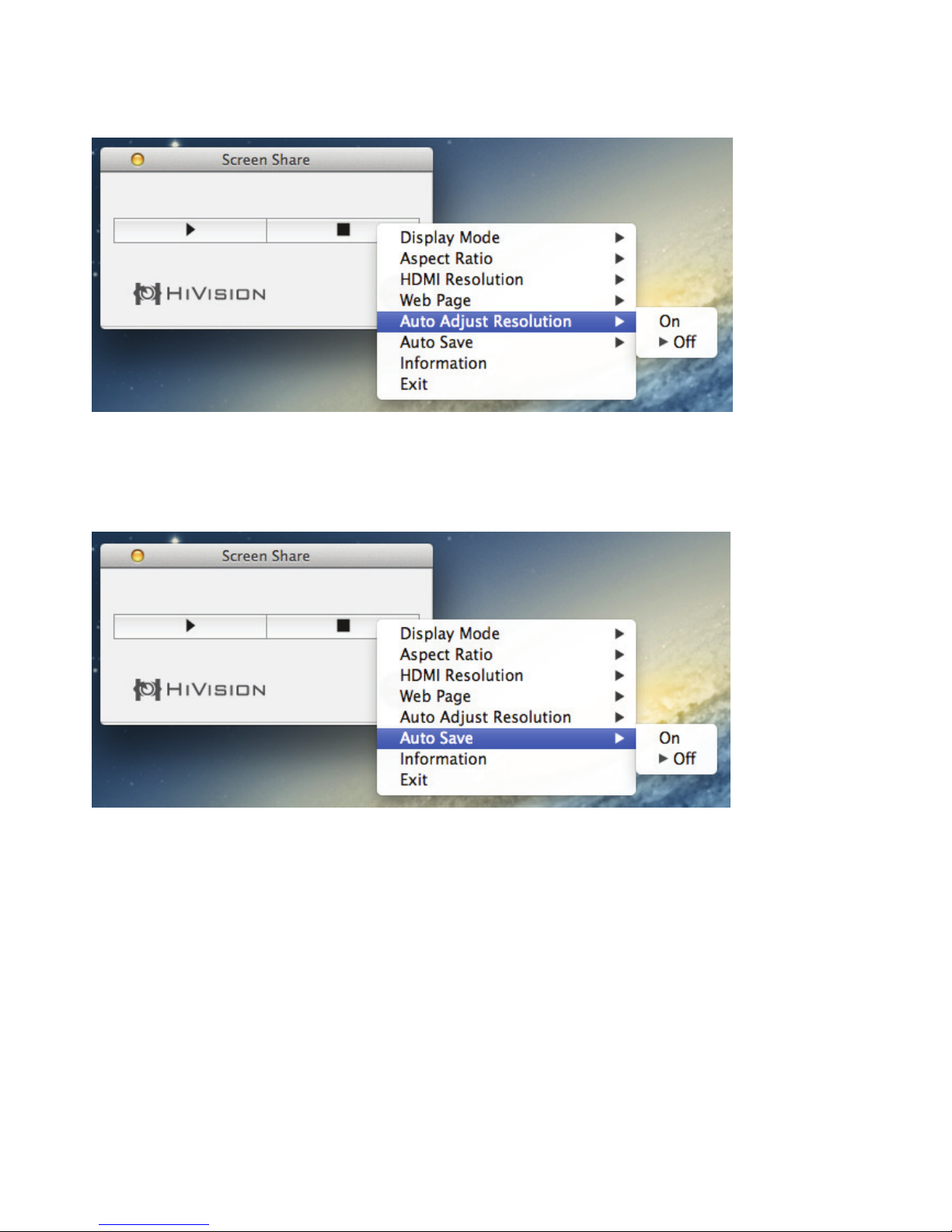

(6) Auto Adjust Resolution
Let your pc/notebook resolution changed by Rx monitor resolution.
(7) Auto Save
After reboot this application, all of the settings will be saved.
Page 28
28

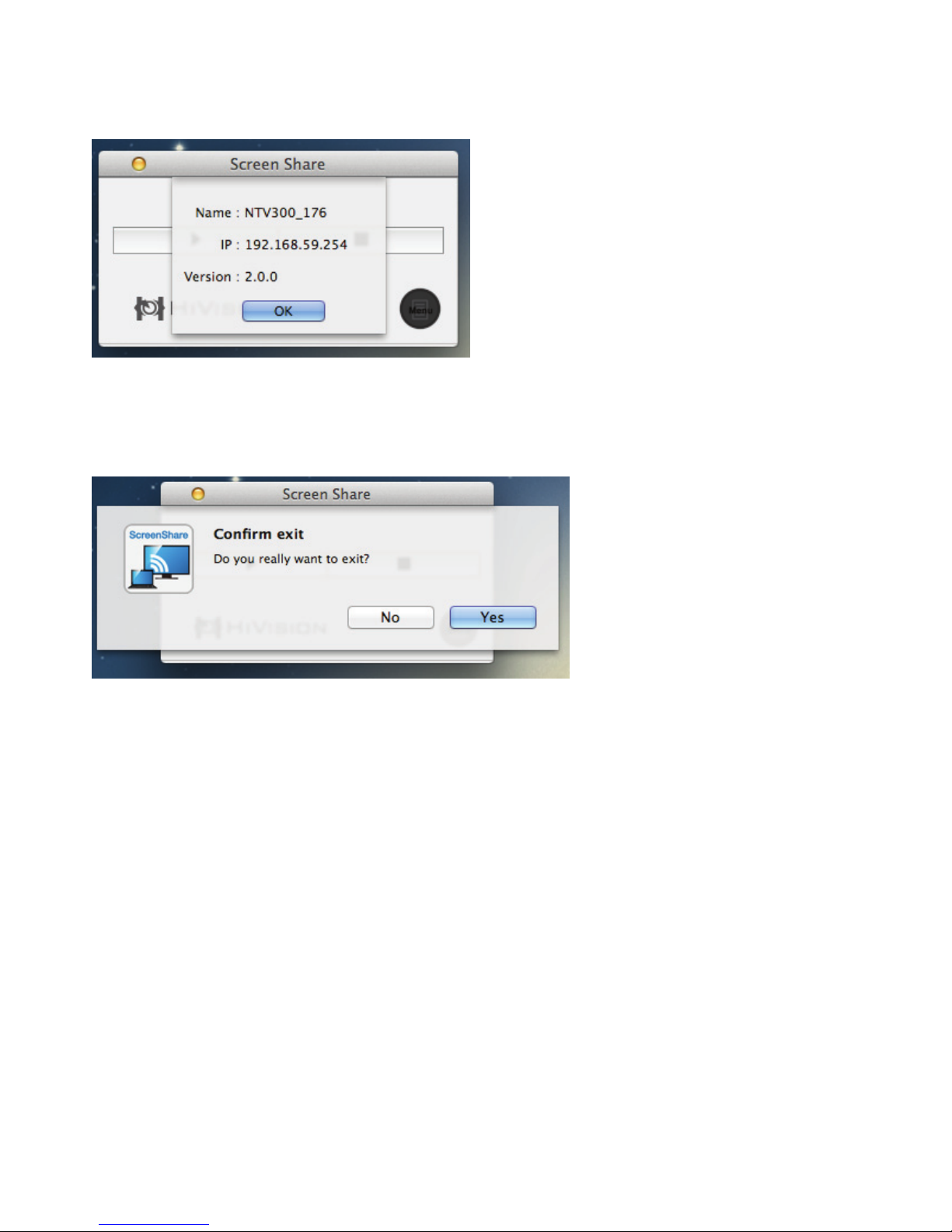

(8) Information
Displays application information, like Adapter name or IP Address and Version number.
(9) Exit
Exit from ScreenShare application, and go back to instruction page.
Page 29
29
2-2 Using DN-70310 on Android devices via Mirroring
2-2-1 Launching Android mirroring
To enable Android mirroring, your smart phone must support this feature. Please refer to
Appendix for the compatible list of smart phones.
Basic Usage
The setup location of Mirroring connection may be different between different brands of
smartphone and tablet PC.
The setup page is usually in “Wi-Fi” => “More setting” or in “Display setting”.
The name normally is called “Screen Mirror”, “Cast Screen”, etc.
Below are the connection guides for some popular brands of Android smartphones.

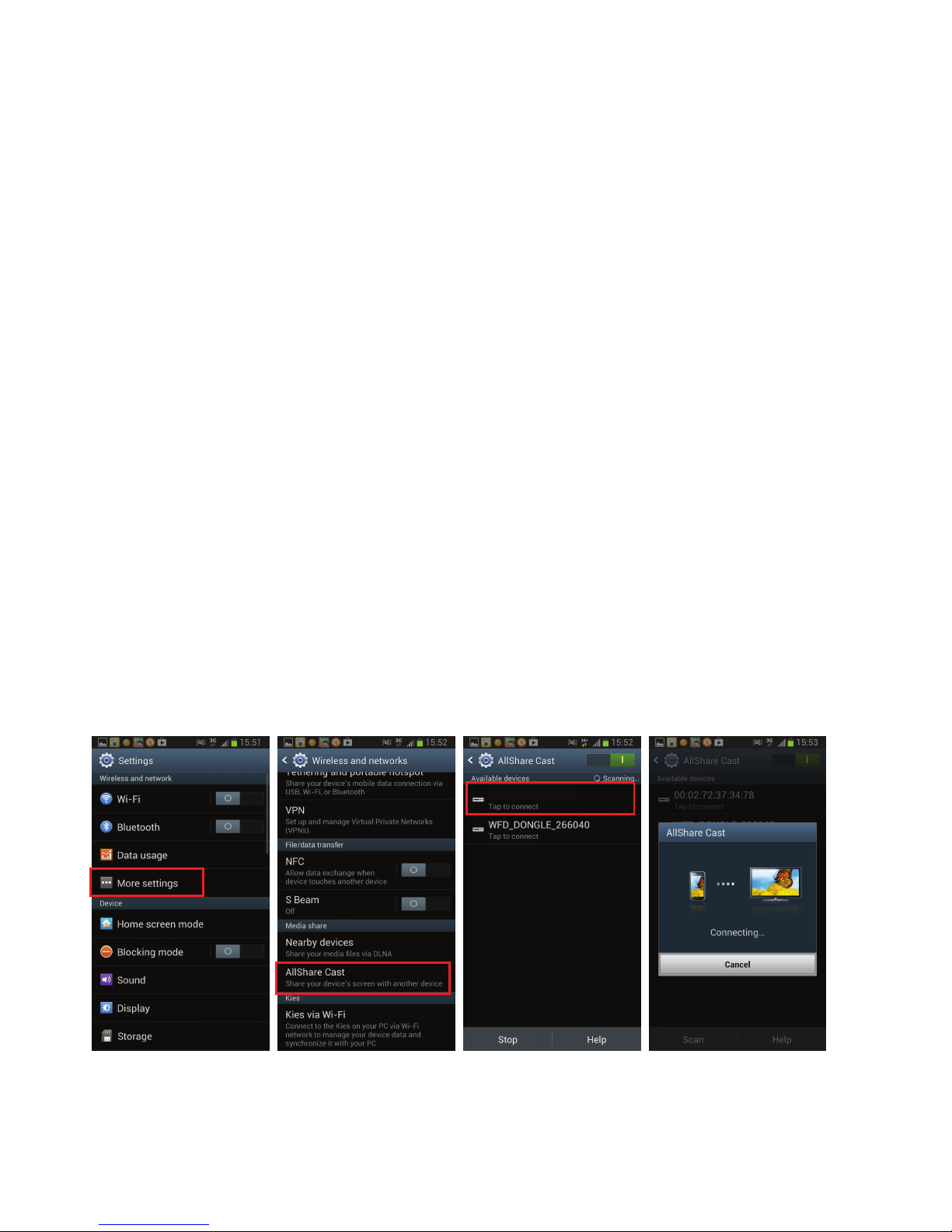

Type1: Please go to “Settings” -> “More settings”=> “Allshare cast”.
Turn “on” AllShare Cast . Your phone will scan the streaming box, and it will show the SSID of the
box. Choose the SSID which you find on the TV, and your phone will connect to the box
automatically and begin screen mirroring.
DN-70310 123
Page 30
30

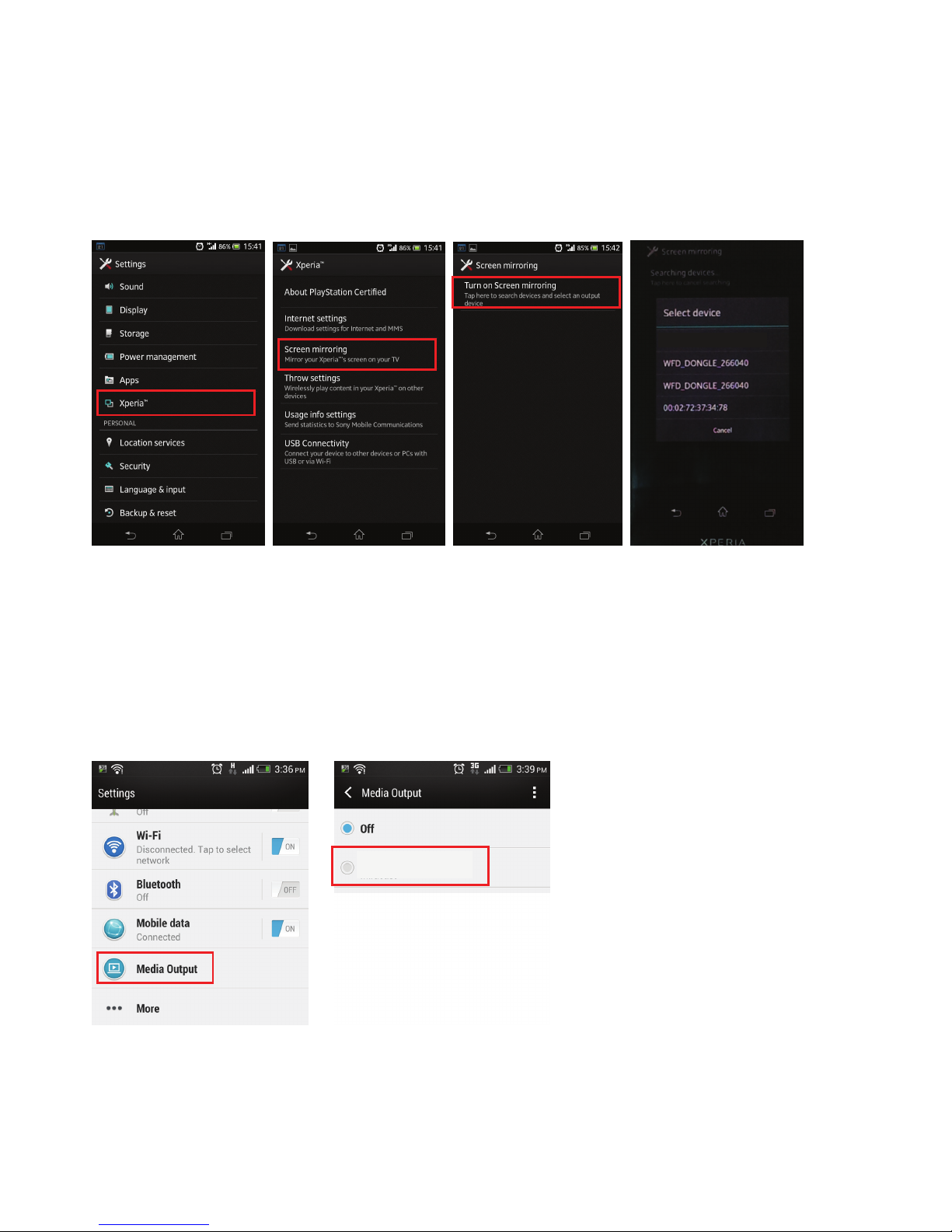

Type2: Please go to “Settings” -> “Xperia” =>“Screen mirroring” => “Turn on Screen mirroring”.
Your phone will scan the streaming box, and it will show the SSID of the box.
Choose the SSID, mirroring will begin while your phone connect to streaming box successfully.
Type3:
Please choose “Settings” -> “Media Output”.
The phone will automatically scan the streaming box, and show the SSID.
Choose the SSID which you find on the TV, and your phone will connect to the box automatically.
Mirroring will begin while your phone is connecting to streaming box successfully.
DN-70310 123
DN-70310 123
Page 31
31
2-3 Using DN-70310 on i-Play

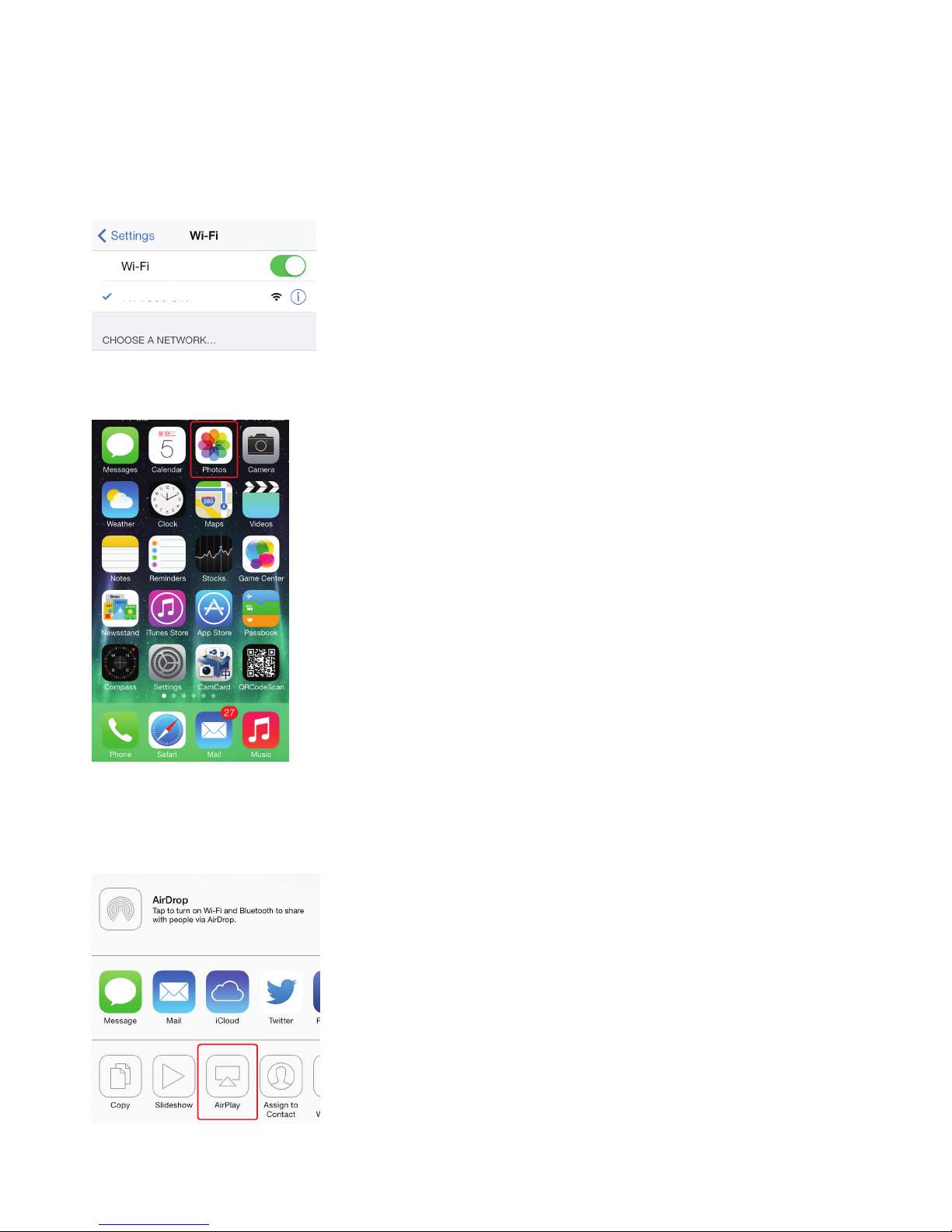

(1) Search and connect the device’s SSID (DN-70310) on the WiFi list on your iPhone/iPad first.
(2) Run “Photos”
(3) Choose the photos or videos witch you want to share.

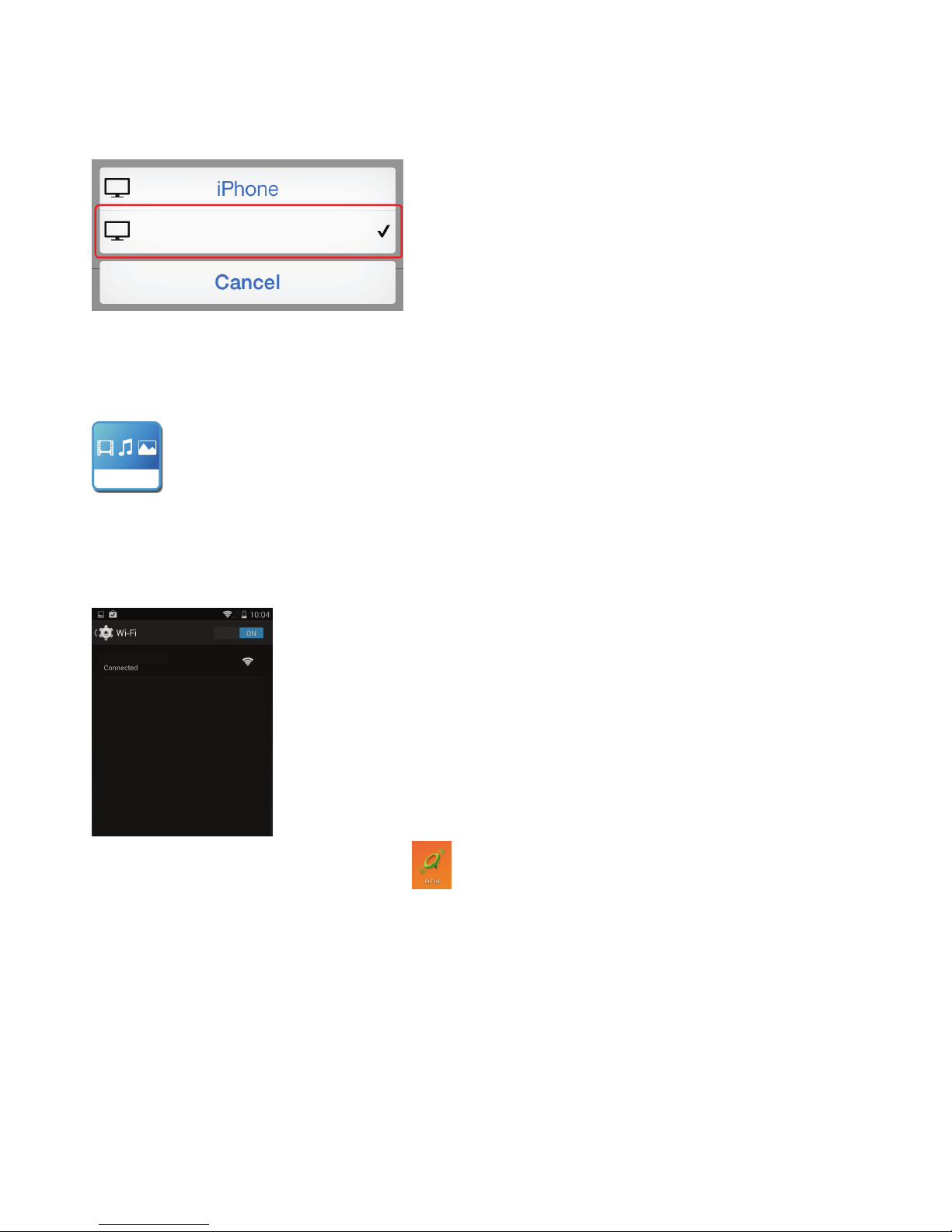

(4) Press the “Airplay” to show the device list.
DN-70310
Page 32
32
(5) Select DN-70310 as your Airplay receiver box, and the photo will be shown on the bigger
screen of the HDMI TV or monitor.
2.4 How to Setup Airfun for media sharing
Airfun Media Streaming
1. Please scan the QR code on the screen or go to the Google play/APP store to download
AirFun APP.
2. Then connect to DN-70310 on your Wi-Fi list from your smart devices.
3. Press the Airfun icon on your screen.

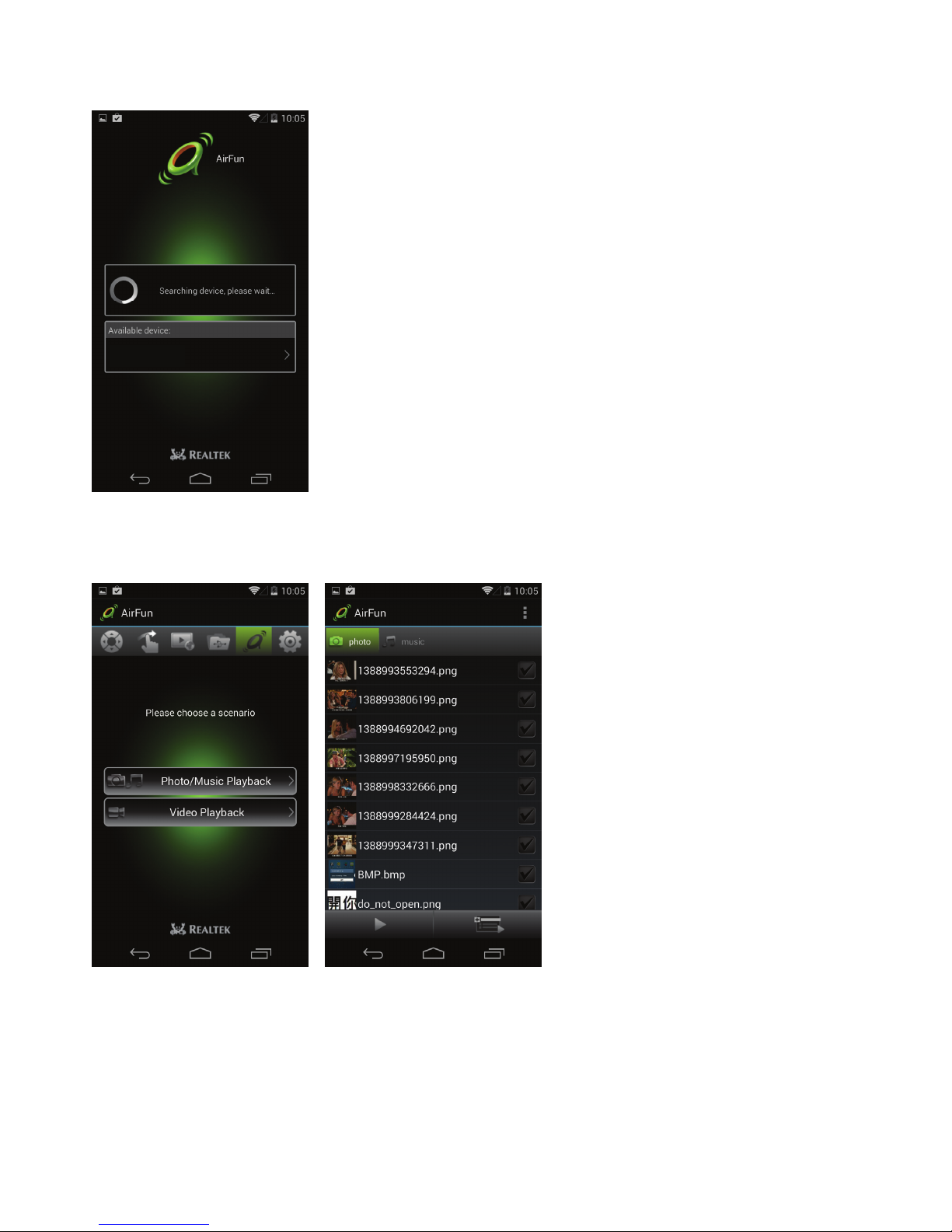

4. The Airfun APP will start to search for any devices that support Airfun media sharing. Please
select DN-70310 from the available device list.
DN-70310
Airfun
DN-70310 123
Page 33
33
5. Select this icon to choose the file type which you want to share and present on the HDMI
screen.
2.4.1 Basic Usage of AIRFUN Utility for Windows software
1. You can install Airfun application in the CD ROM.
DN-70310 123
Page 34
34

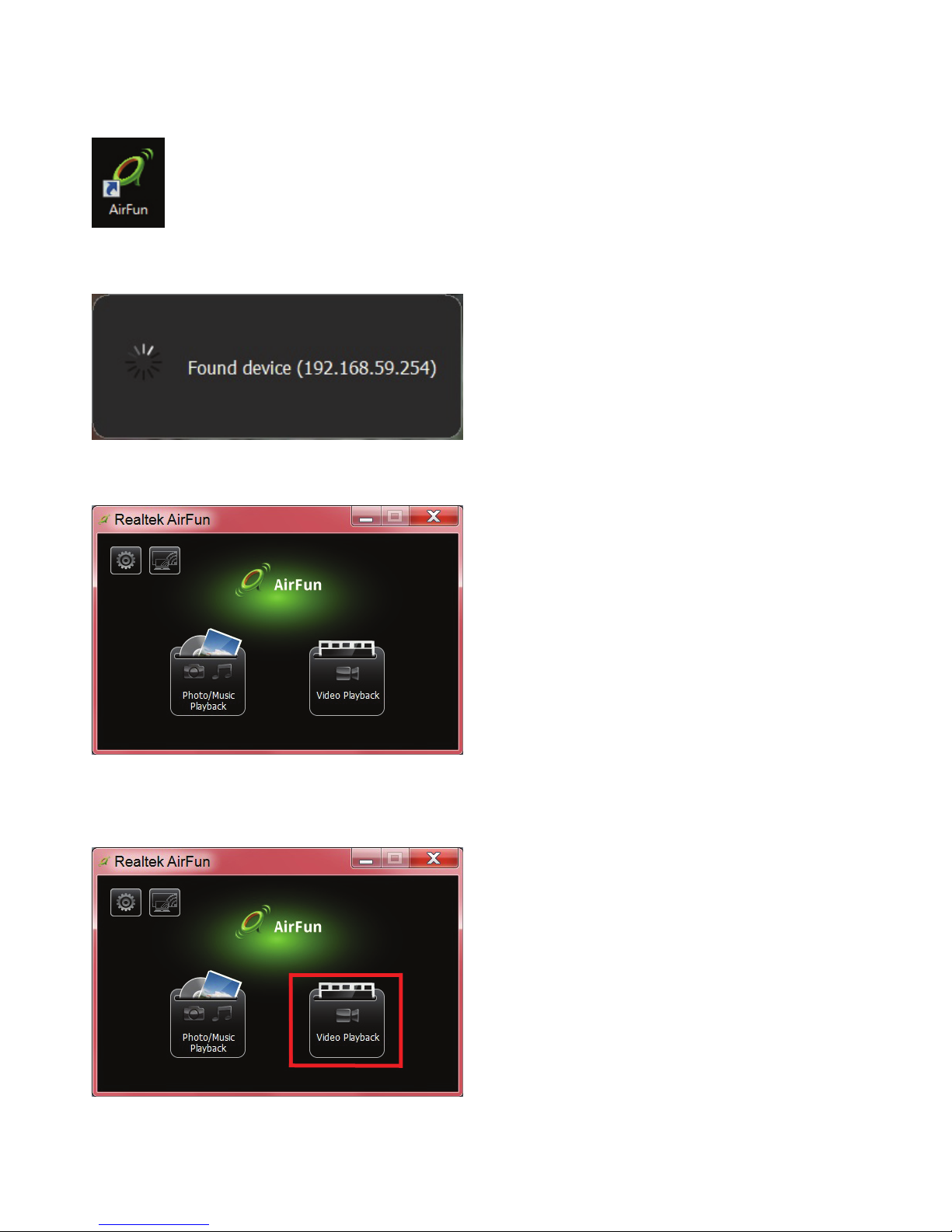

2. Double click the AIRFUN icon from your desktop.
3. The Airfun will start to search device.
4. Then you should be able to see your PC screen on the TV now.
5. You can drag the video/photo/music file to Airfun main menu directly. For video files, please
drag files to the right folder.
Page 35
35

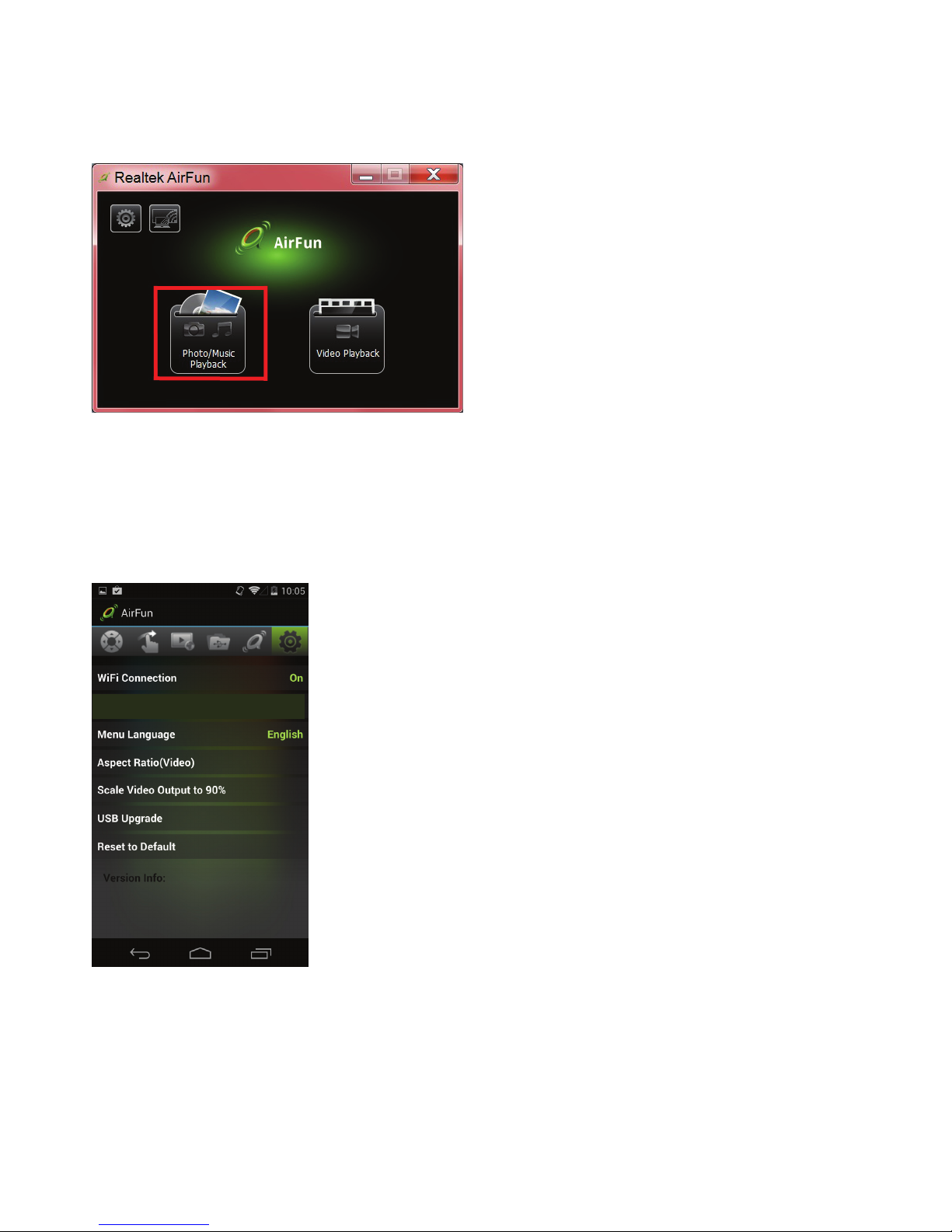

6. For photo/music files, please drag files to the left folder.
2-4-2 Advanced Setup
Please connect WiFi to DN-70310 first, and run the Airfun APP, you should be able to see the UI
bellow.
Now you can do basic settings, such as change the SSID, connect to router, or choose the
language.
Devise SSID
DN-70310
Page 36
36

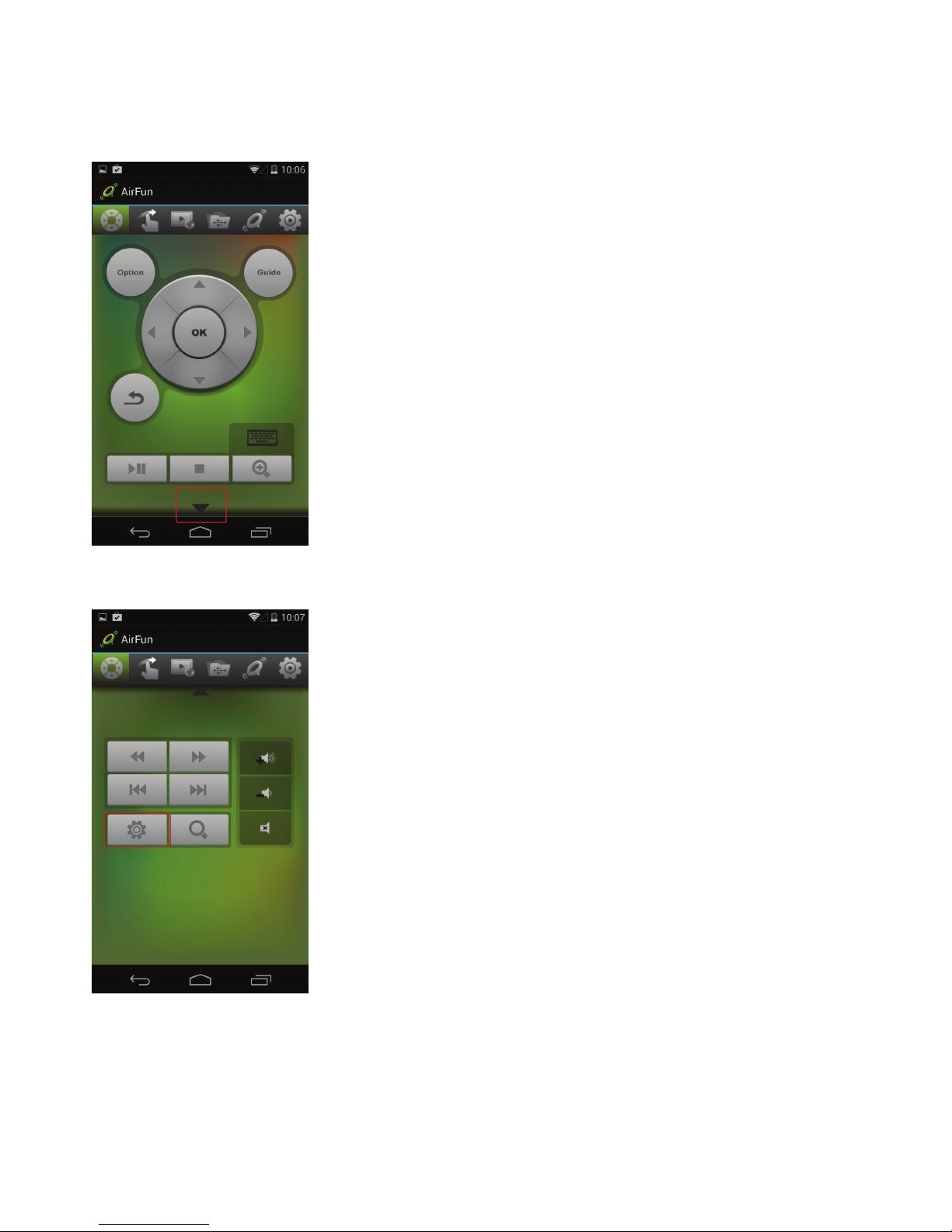

If you need advanced settings, please go to the remote control page below, and choose next
page, as marked in red.
Press the gear icon (marked in red), to enter setup.
Page 37
37

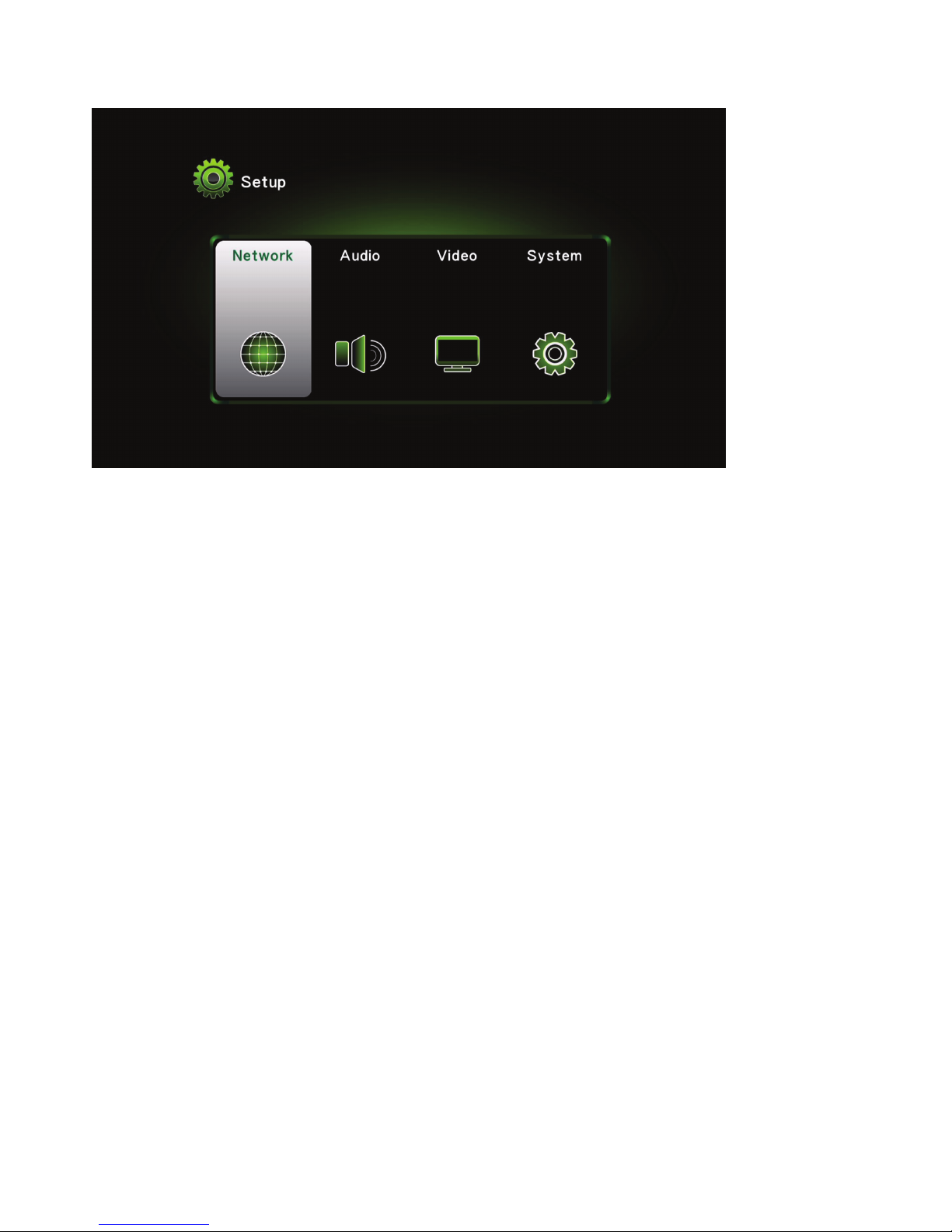

In the setup page, you can use the virtual remote controller to change the setting.
- Select “left/right=> OK” to enter the setting page for Network / Audio / Video / System.
- Select “Return” to go to the previous page or standby screen.
Page 38
38

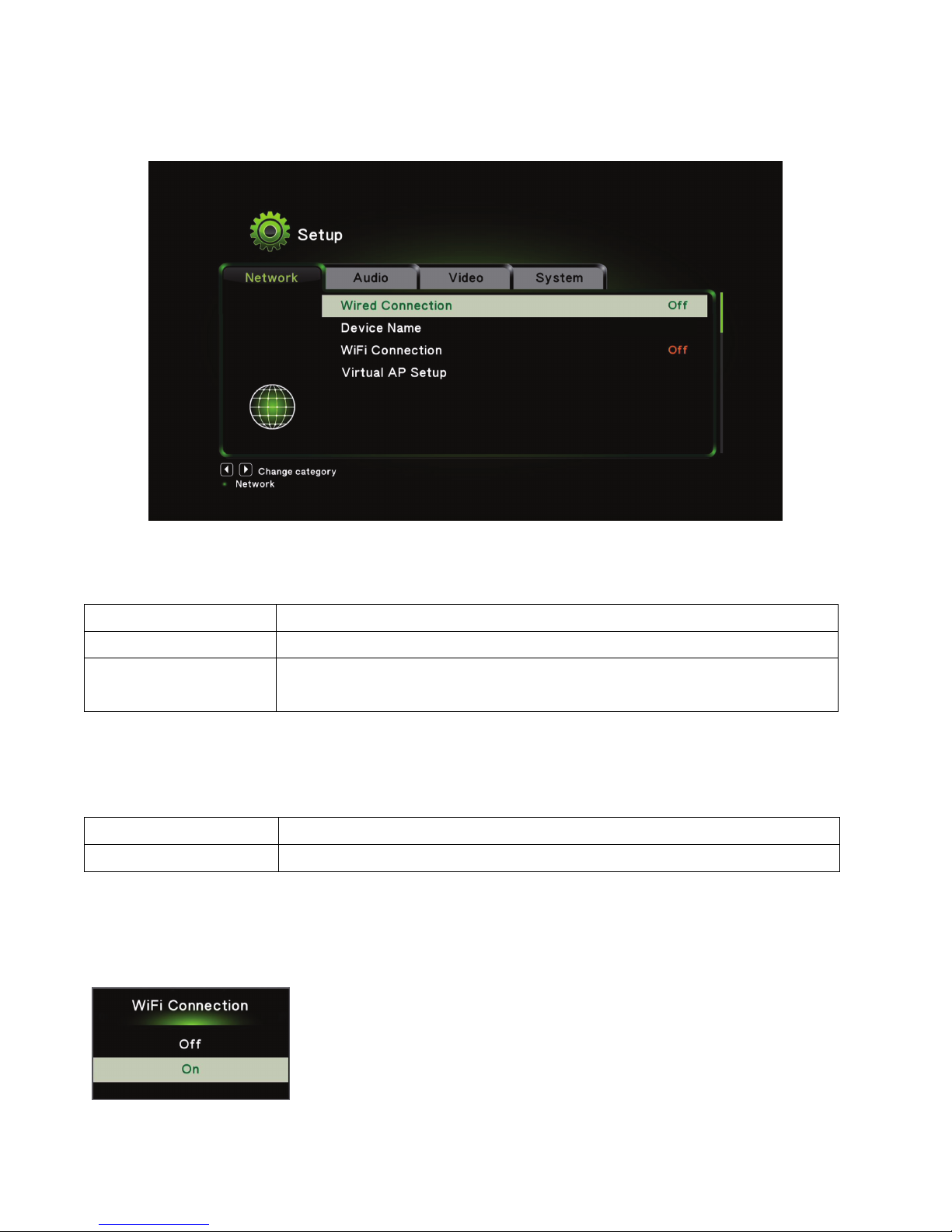

2-4-3-1 Network Setting
Wired Connection
Item Description
DHCP IP (AUTO) DN-70310 will obtain an IP address from DHCP server automatically.
Fixed IP (Manual) Set DN-70310 IP address manually. Fill the fields below to setup IP
address.
Device Name
Item Description
Device Name (SSID) Change the Device Name(SSID). Default is “DN-70310”.
WiFi Connection
If you are setting for the first time, you will see below screen, click “on”.
DN-70310
Page 39
39

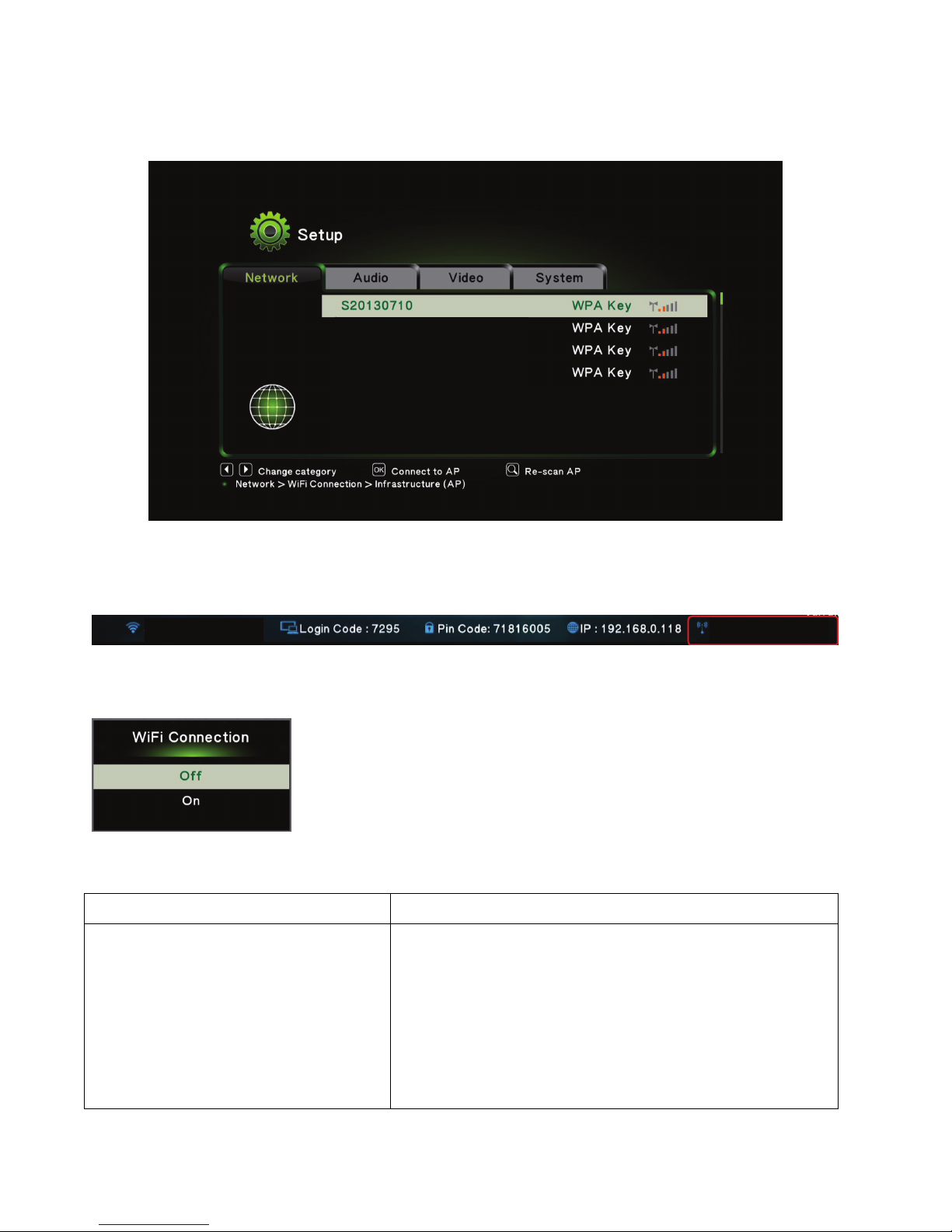

Then there will show the Wireless AP list on the screen. Please choose the AP you want to
connect. The function is to bridge to Internet via another Wireless AP.
When it’s successfully connected, standby screen will show router name at the right bottom
corner.
If you wish to disconnect with router, click “off” on the WiFi connection page.
More information, please reference Chapter 3.
Virtual AP Setup
Item Description
Wireless Security
Open System
Disables wireless encryption.
WPA Key
Enable WPA + WPA2 encryption. Wireless clients must
support WPA encryption and know the encryption
passphrase you set here.
Digitus PMM
Digitus test AP
DN-70590
SSID: DN-70310
AP: Digitus PMM
Page 40
40
Password If Wireless Security is enables, you can set a wireless
password.
Radio Band Set the Radio band to 2.4GHz or 5GHz. Please confirm
your PC/NB support 5GHz before you set the radio
band to 5GHz
5G Preferred Channel If the Radio band is 5GHz now, you can change the 5G
frequency. Default channel is 36,40.
Save Change Save the configuration

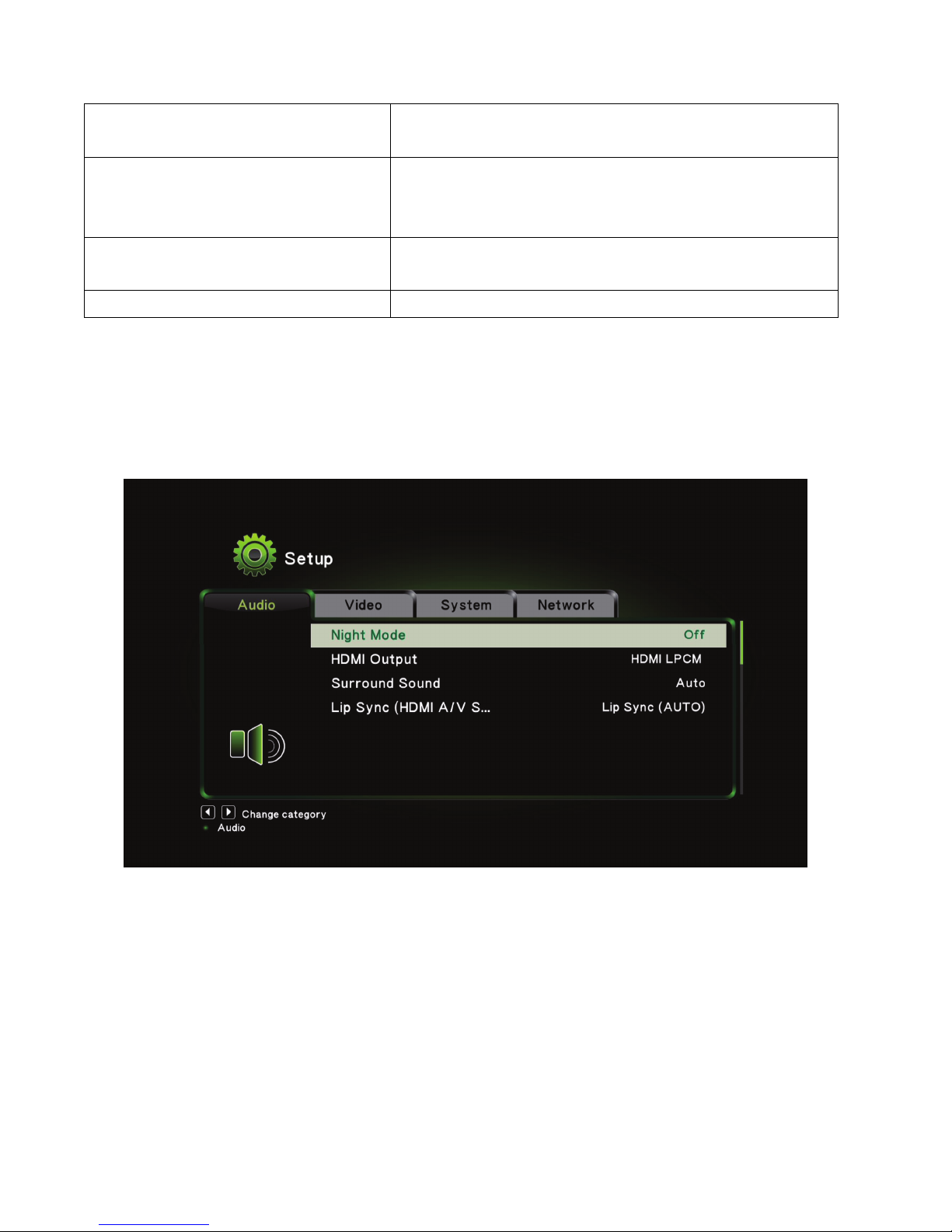

2-4-3-2 Audio Setting
You can adjust the advanced audio setting such as Night mode, HDMI Audio output format,
Surround sound setting and Lip Sync setting in this page.
Page 41
41

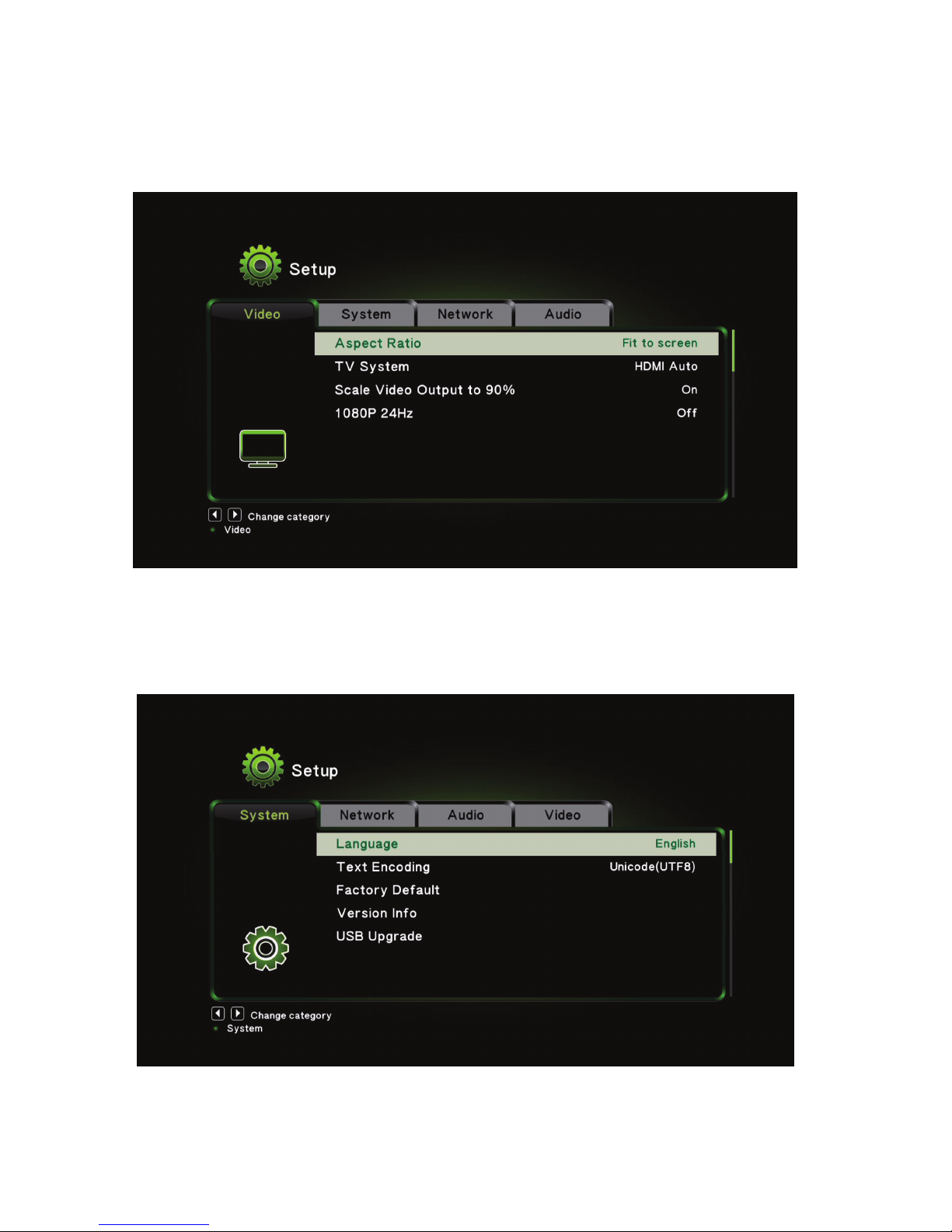

2-4-3-3 Video Setting
You can adjust Aspect Ratio, TV out video format, and other video setting in the video setup
page.
2-4-3-4 System Setting
You can set the OSD language, reset to Factory default, check the firmware version, and do the
firmware upgrade in the system setup page.
Page 42
42
CHAPTER 3: ROUTER APPLICATION
By using a router, it provides a solution for users who are unable to access online contents while
their exist Wi-Fi is occupied to connect to DN-70310. DN-70310 allows two methods ,Wi-Fi, or
Ethernet LAN cable to connect to your router, giving the flexibility to Internet connection
whichever method is most convenient.
While connecting with a router, users will no longer find the original SSID on WiFi list. In such
case, users have to connect your device to your router in advance to use Airfun Mediasharing,
ScreenShare and iPlay function. Please note that for Android Mirroring, it is a direct point to point
connection between the Android device to DN-70310. Therefore the router option under Android
mirroring mode is disabled.
(1) Wi-Fi connection:
Step1: Click and turn on your WiFi connection
Step2: The Wireless AP list will show on the screen. Please choose the router you want to
connect.
When successfully connected, the UI will change as below:
** Please note! File streaming and screen mirroring performance might be deteriorated by using
this method due to limited bandwidth.
DN-70310
Page 43
43

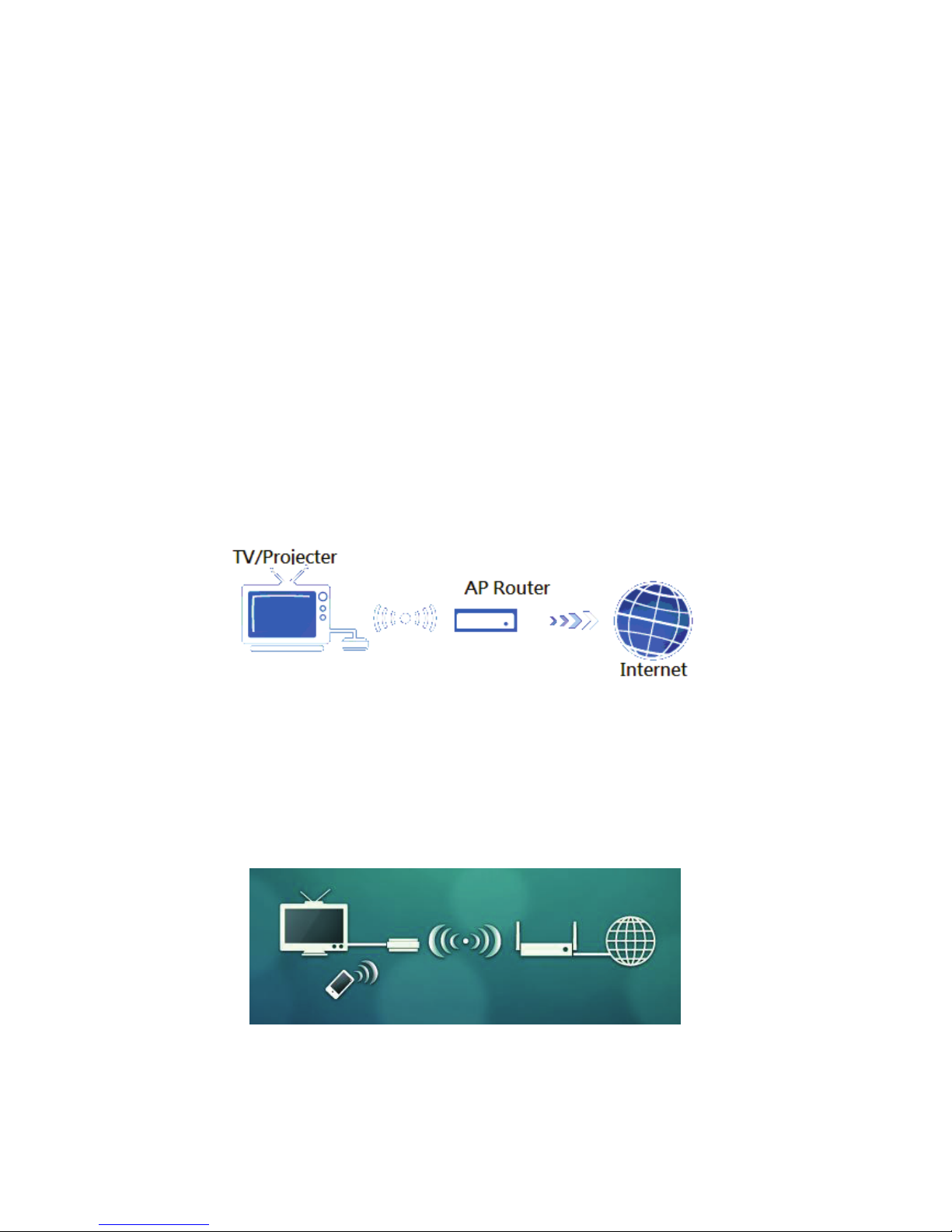

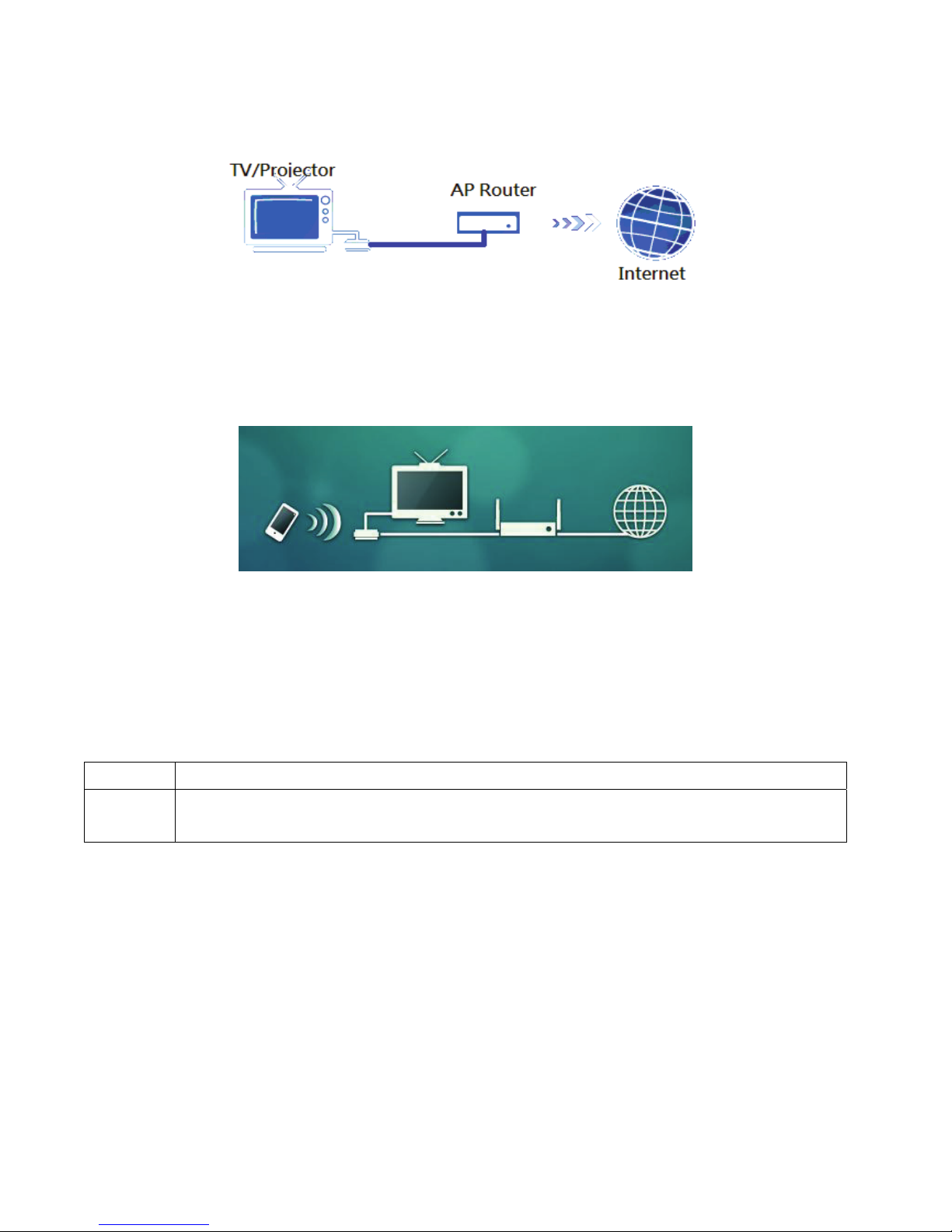

(2) Ethernet LAN connection:
Step1: Connect an Ethernet cable from the LAN port on DN-70310 to an AP router’s LAN port.
Step2: DN-70310 will auto detect LAN connection.
Once it’s successfully connected, the UI will change as below:
** Please note! DN-70310 must connect to AP router and can’t connect to WAN directly.
APPENDIX A: SUPPORT RESOLUTION
Interface Output resolution
HDMI NTSC,PAL,480p,576p,720p50Hz,720p60Hz,1080i50Hz,1080i60hz,1080p50Hz,1080
p60Hz
DN-70310
Page 44
44
APPENDEX B: Compatible list for Android mirroring
Module
Google Nexus 4
Google Nexus 5
Google Nexus 7 II
HTC New One
HTC One mini
HTC Butterfly
HTC Butterfly S
LG Optimus G L180L
LG Optimus G L-E973
LG Optimus G L-01E
Samsung Galaxy S3
Samsung Galaxy S4
Samsung Galaxy Note2
Samsung Galaxy Note3
Samsung Note 10.1
Samsung Galaxy Tab3 8.0
Samsung Galaxy Tab 10.1
Sony Xperia TX
Sony Xperia T
Sony Xperia V
Sony Xperia Z
Sony Xperia Z1
Sony Xperia AX/LV
Sharp SH-09D
Sharp SH-10D
ASUS PadFone Infinity
CoolPad YL-Coolpad 9960
Xiaomi M2/2A/2S
Oppo Find5
www.assmann.com
ASSMANN Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
Loading...
