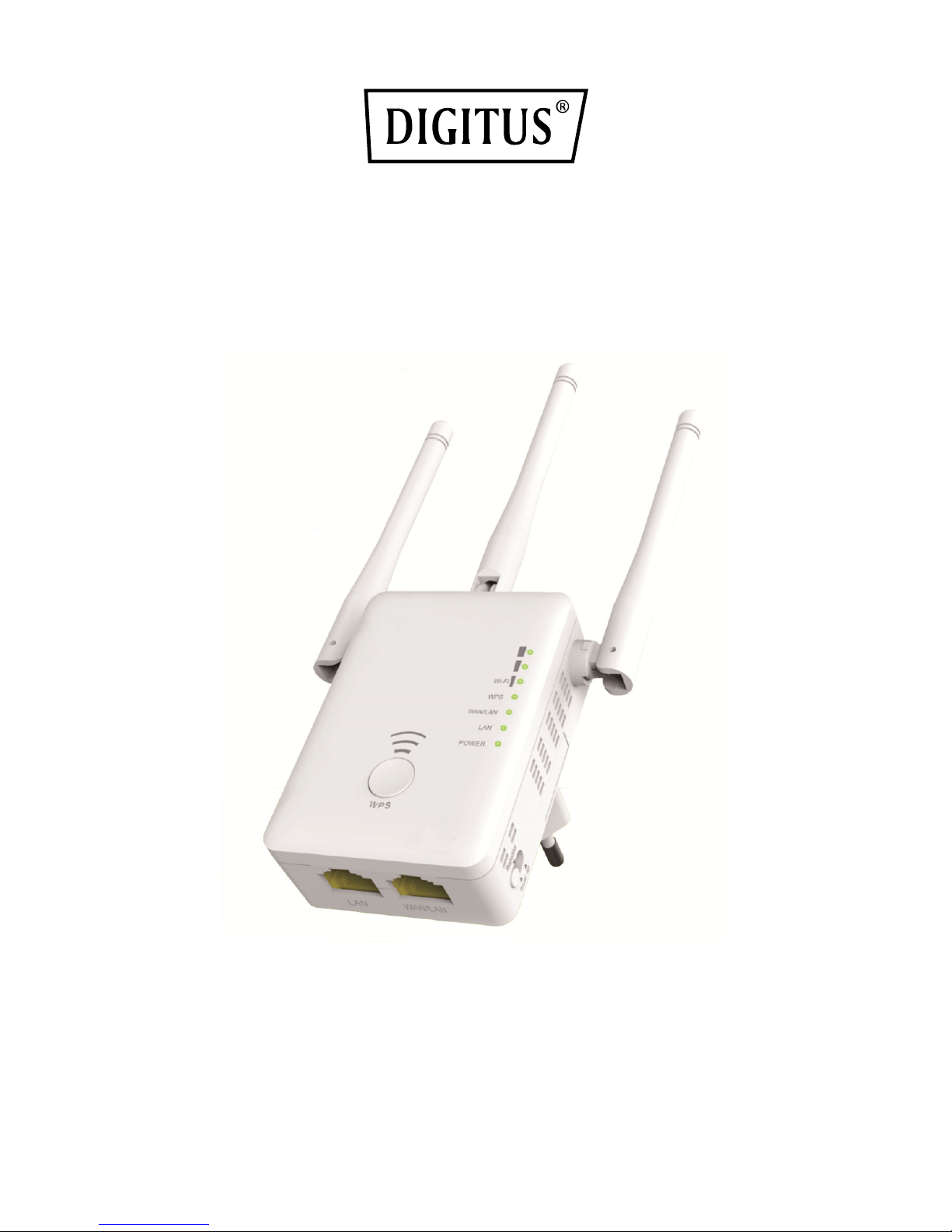

Digitus DN-70184 Quick Installation Manual

Concurrent 11AC

WiFi Repeater/AP/Router

Quick Installation Guide

DN-70184

Open Source Code

This product includes software codes developed by third parties. These software codes are
subject to either the GNU General Public License (GPL), Version 2, June 1991 or the GNU
Lesser General Public License (LGPL), Version 2.1, February 1999. You can copy, distribute,
and/or modify in accordance with the terms and conditions of GPL or LGPL.

The source code should be complete, if you think our need to provide any additional source
code files under GNU General Public License (GPL), please contact us. We are committed to
meeting the requirements of the GNU General Public License (GPL).

You are welcome to contact us local office to get the corresponding software and licenses.
Please inform us your contact details and the product code. We will send you a CD with the
software and license for free.

Please refer to the GNU GPL Web site for further information.

http://www.gnu.org/licenses/licenses.en.html.

Introduction

The AC AP/Router is mainly used for providing free Wi-Fi service in big area such
as factory, community, street or etc. The AP/Router can take an existing 2.4GHz or
5GHz wireless signal, repeat and extend it to a longer range where it is too far
away for the router or access point to reach. The AP/Router simultaneously
supports 2.4G and 5G wireless network connection. It has External Antennas
providing even better wireless performance, transmission rates, stability
technology automatically avoids channel conflicts using its channel selection
feature.

Package Contents

Before you starting to use this router,
please check if there’s anything missing
in the package, and contact your dealer
of purchase to claim for missing items:

1 x Wi-Fi AP/Router
1 x RJ-45 Networking Cable
1 x Quick Installation

Default Parameters

Default IP: 192.168.10.1
URL: http://ap.setup
Login Name: admin
Password: admin

2.4G SSID: Wireless-N
5G/AC SSID: Wireless-AC
Wireless Key: no

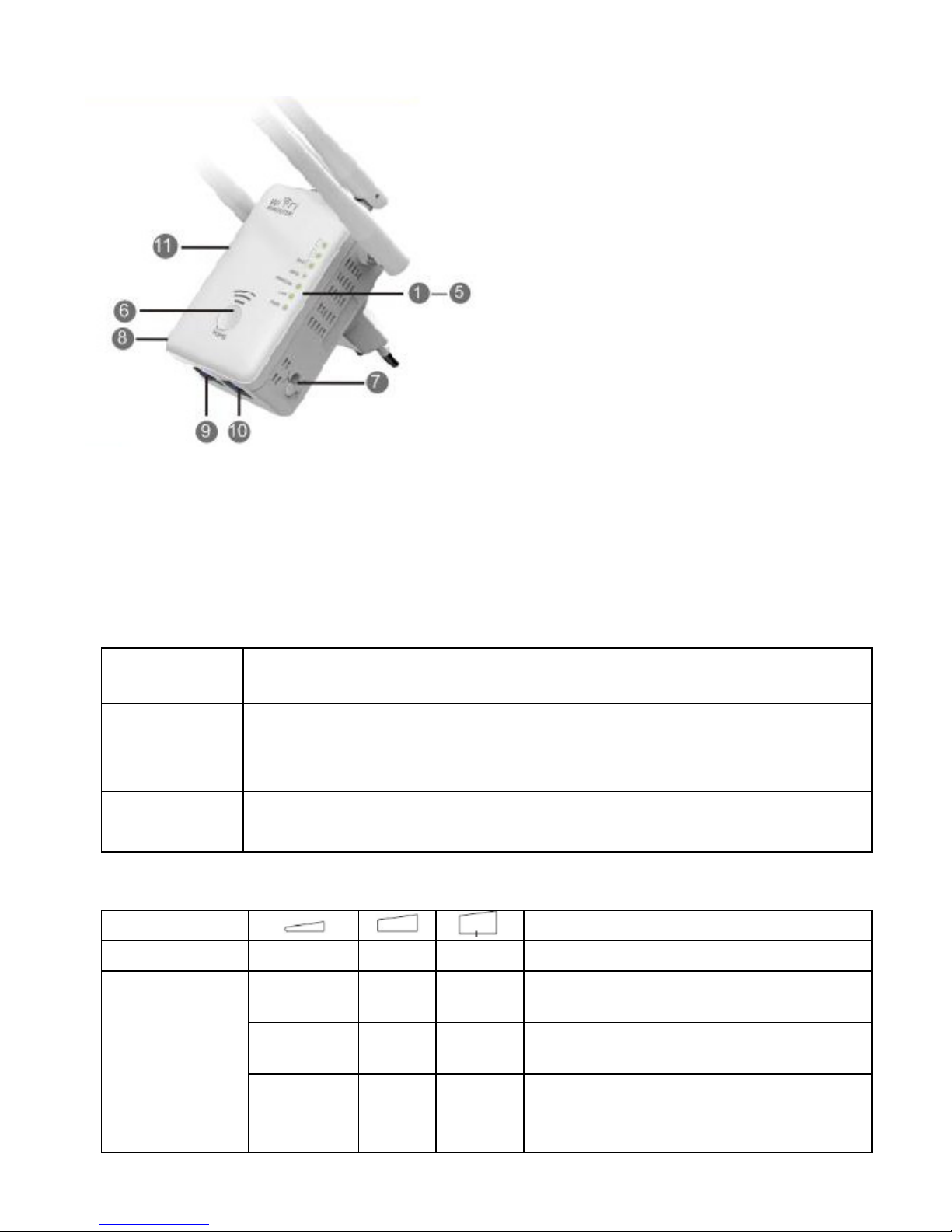

Hardwear Overview

LED indicators

POWER

ON: The

Device is power on

OFF: The Device is not receiving electrical power.

LAN &
LAN/WAN

ON: The

Ethernet port is connected.

OFF: The

Ethernet port is disconnected.

Flashing: Transferring data to/from a network device

WPS Flashing: WPS connection is established or WPS signal of another

device is expected

Wi-Fi Single

Mode

Description

AP/Router

ON ON ON

Wi-Fi Single output power 100%

Repeater
Client

ON ON ON

Excellent reception
signal strength 50% to 100%

ON ON OFF

Good reception
signal strength 25% to 50%

ON OFF OFF

Weak reception
signal strength below 25%

Flashing OFF OFF

Disconnected

1. Power LED

2. LAN LED

3. WAN/LAN LED

4. WPS LED

5. 3 x Wi-Fi Single

6. WPS Button

7. Mode Selector

8. POWER On/Off

9. LAN Port

10. WAN/LAN Port

11. Reset Button: 3 seconds

Getting Started

Setting up a Wireless Infrastructure Network

For a typical wireless setup at home (as shown below), please do the following:

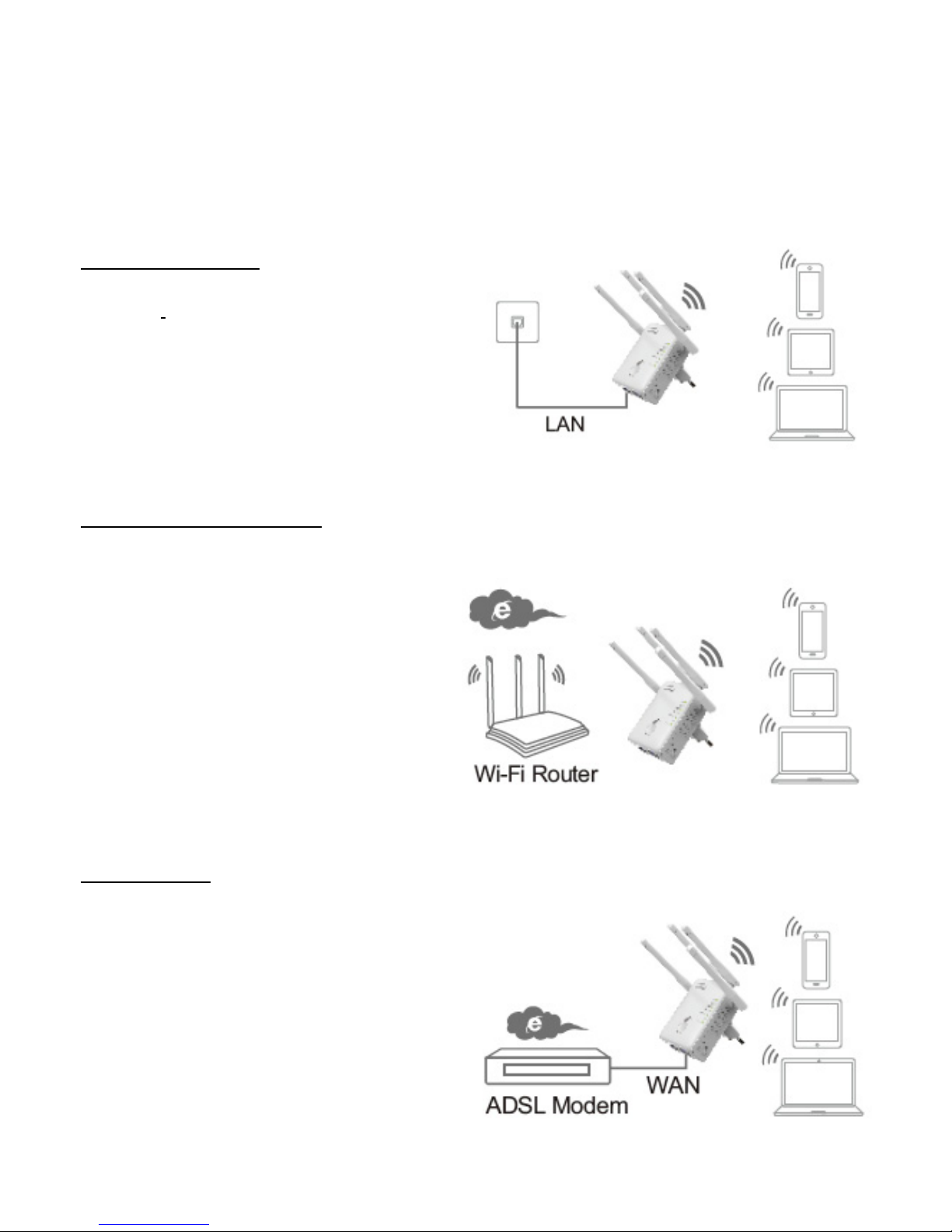

Press MODE Switch Button for AP/ Repeater / Router MODE.

Wireless AP Mode

The AP/Router is connected to a wired
network then transforms the wired
Internet access into wireless so that
multiple devices can share the Internet.
So this mode is fit for office, home and
places where only wired network is
available.

Wireless Repeater Mode

The AP/Router copies and reinforces the existing wireless signal to extend the
coverage of the signal. Don't change
the network’s name (SSID) and
password yet. This mode is
especially useful for a large space to
eliminate signal-blind corners.
So this mode is fit for large house,

off

ice, warehouse or other
spaces where the existing signal
is weak.

Router Mode

The AP/Router is connected to a DSL
or cable modem and works as a
regular wireless router.

So this mode is fit for the
environment which Internet access

from DSL or cable modem is available
for one user but more users need to
share the Internet.

Configure the Wi-Fi Repeater Mode

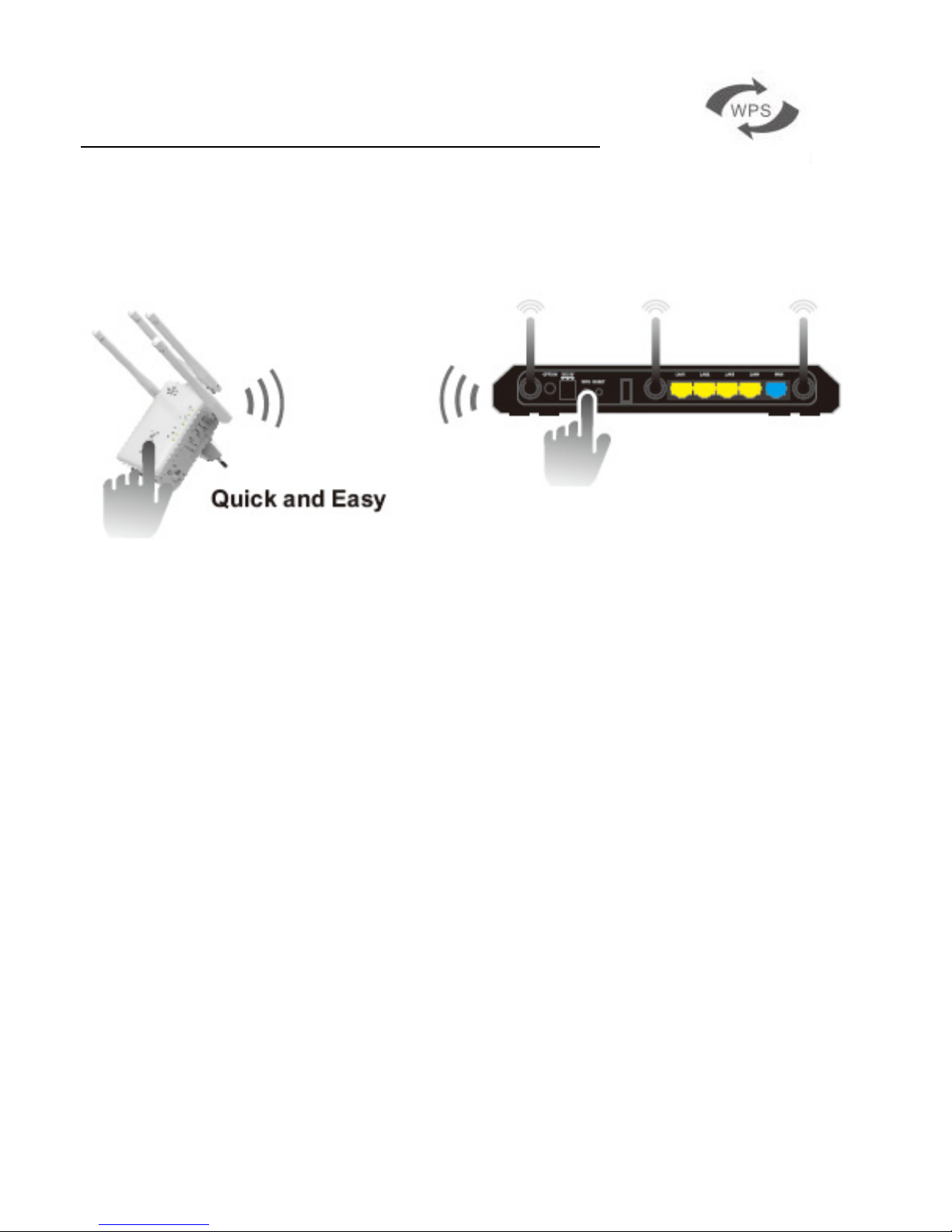

Configure the Wi-Fi Repeater Mode with WPS Button

This is the easiest way to configure the AP/Router. First, check whether your
wireless router supports WPS. For further details, please read the operating
instructions for your wireless router.

1. The mode selector must be set to the "Repeater" position for Repeater

Mode.

2. Plug the AP/Router into a wall socket.

3. Press the WPS button on the AP/Router for at least 6 seconds.

The Wi-Fi/WPS LED now flashes for approx. 2 minutes.

4. Within these 2 minutes, please Press the WPS button of your Wireless

AP/Router directly for 2 - 3 seconds. (For further details, please read the
operating instructions for your wireless router.)

The AP/Router then automatically connects to your wireless router and copies
wireless key of the settings.

The AP/Router can be accessed via the SSID and the wireless key of your wireless
router.

You can configure the Wi-Fi Repeater Mode by connecting it with your
computer/laptop with enclosed RJ45 cable or wirelessly.

A. Configure the Wi-Fi Repeater Mode wirelessly

A1. The mode selector must

be set to the “Repeater"
position for Repeater Mode.
Plug the AP/Router into a wall
socket.

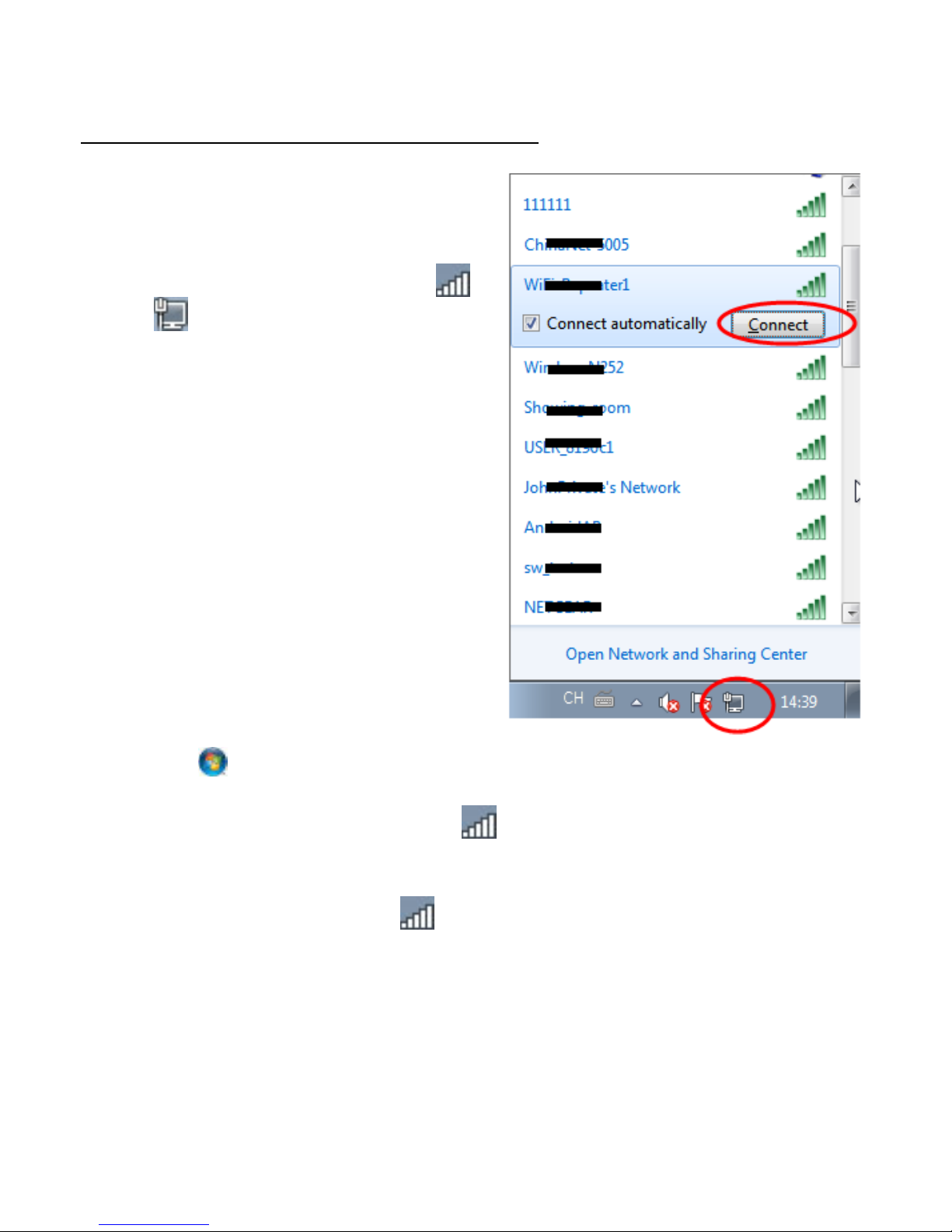

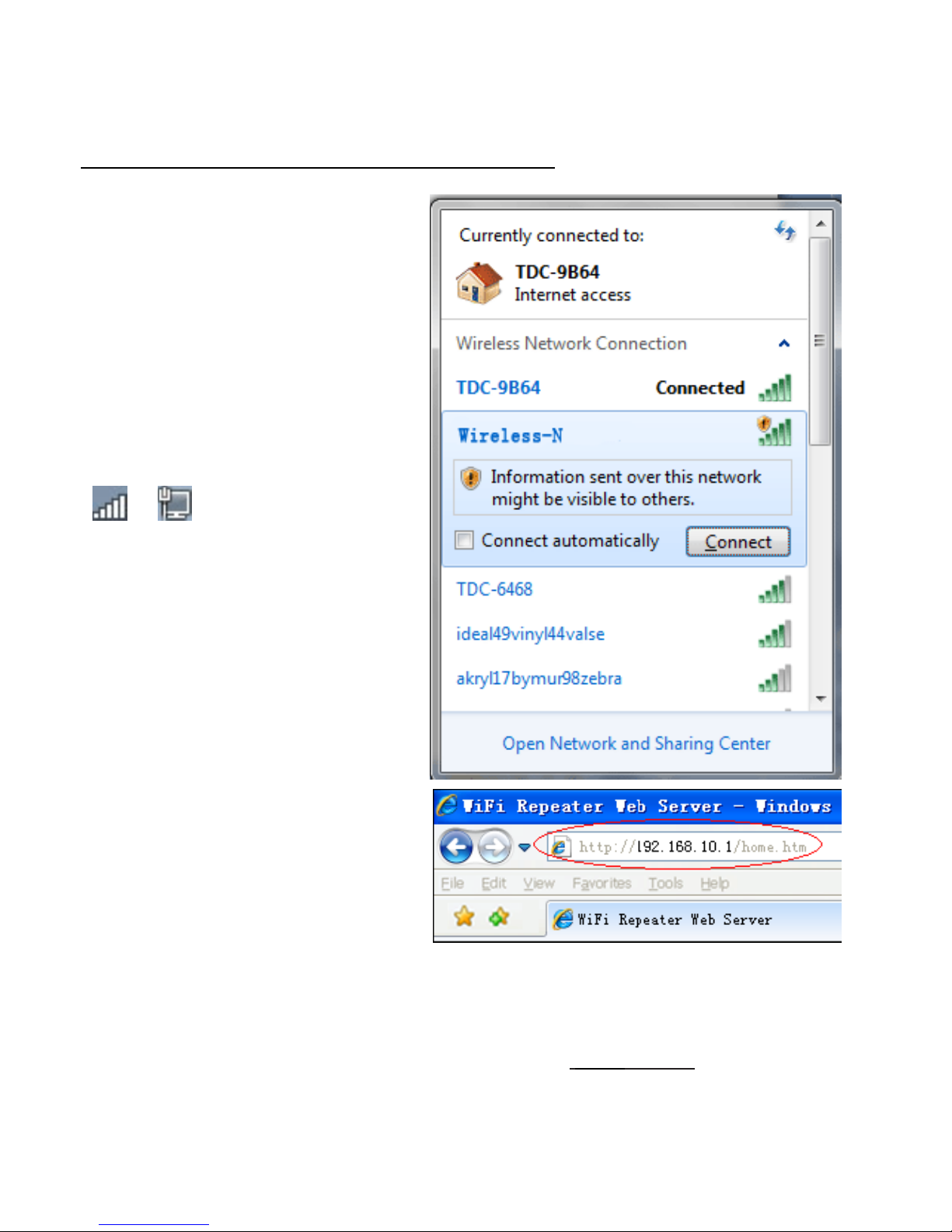

A2.Click on the network icon

(

or ) on the right bottom

of your desktop. You will find the
signal from the Wireless-AC or
Wireless-N. Click on ‘Connect’
then wait for a few seconds.

A3.Open web browser and type
http://192.168.10.1 or
http://ap.setup in the browser

address box. This number is the
default IP address for this device.

Note: Please check whether the AP/Router accord with factory default settings

once you can’t entered http://192.168.10.1. If you are still not sure what reasons,
you can reset the AP/Router, just need to press the reset button for 3 seconds,
then try again.

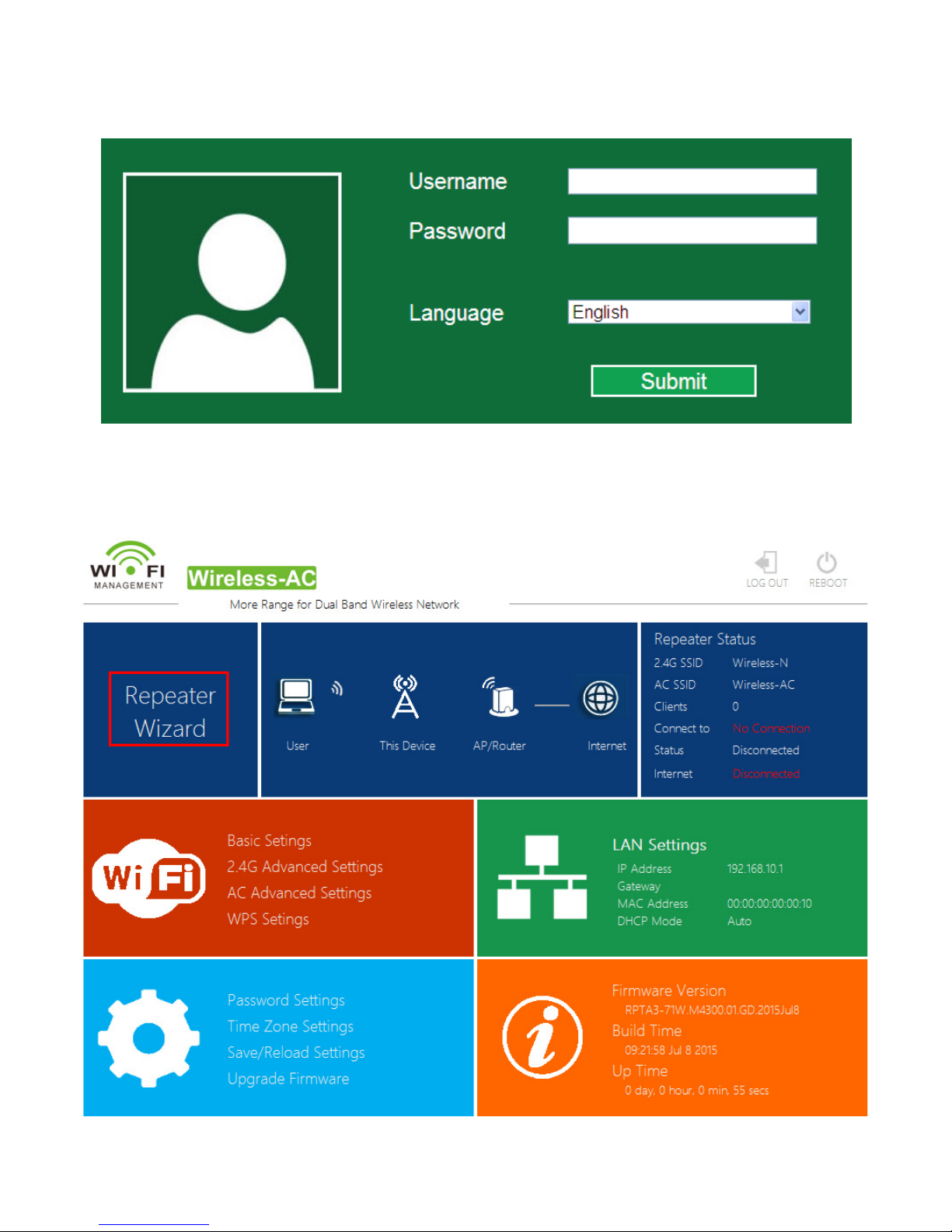

A4.The login screen below will appear. Enter the User Name and Password then
click “Submit” to login. The default User name is “admin” and Password is
“admin”.

A5.After logging in, you will see the web page below:

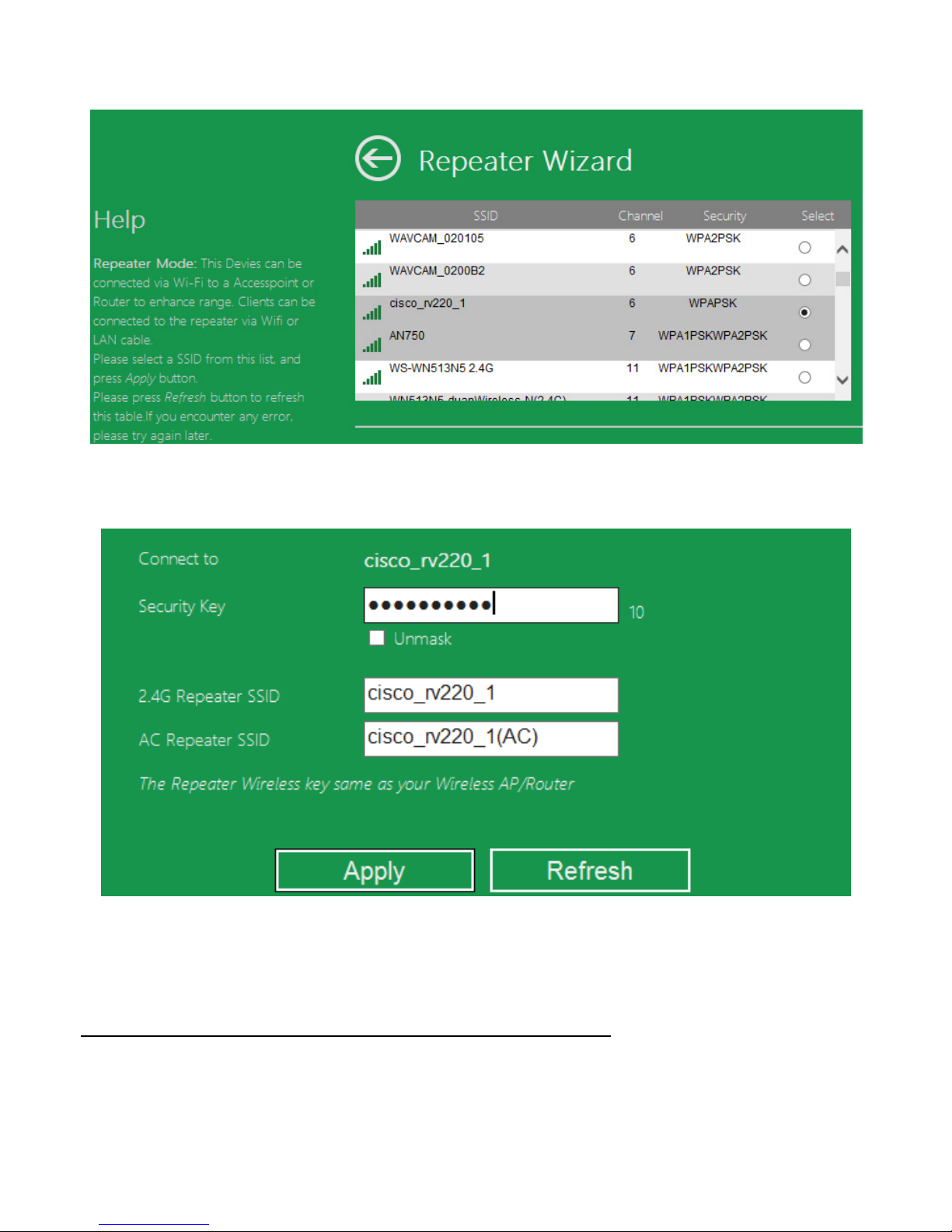

Click on the “Repeater Wizard” button.

A6. From the list, select a wireless network with which you want to connect the
AP/Router by choosing the corresponding network in the "Select" field.

A7.

After having selected a wireless network, you must then specify the network

key of your wireless router for Security key.

After completing the entry, click on the “Apply” button.
After the reboot has been completed, the AP/Router is accessible under the SSID
and the Wireless key of your wireless router.

B. Configure the Wi-Fi Repeater Mode with RJ45 Cable

1. Plug the AP/Router into a wall socket. Connect your computer / laptop with

the AP/Router with RJ45 Cable.

2. Follow process A3 to A7 to configure your AP/Router.

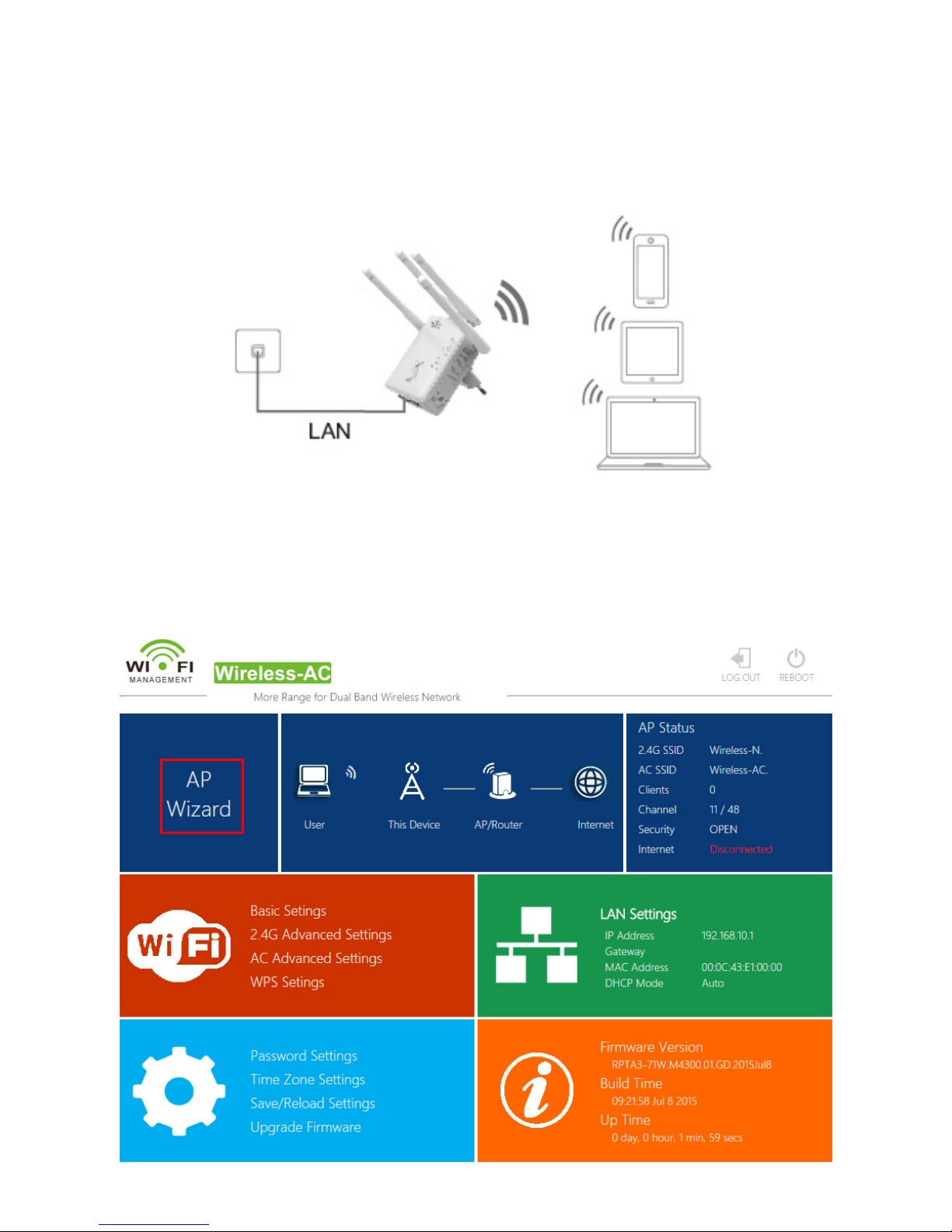

Configure the Wireless AP Mode

Use the AP Mode to obtain a "Wireless Access Point". The wireless end devices will
connect to the AP/Router in this mode. You can also use this mode, for example,
to make a formerly non-wireless-enabled router wireless-enabled.

1. The mode selector must be set to the "AP” position for AP Mode.

2. Plug the AP/Router into a wall socket.

3. Follow process A2 to A4.

4. After logging in, you will see the web page below:

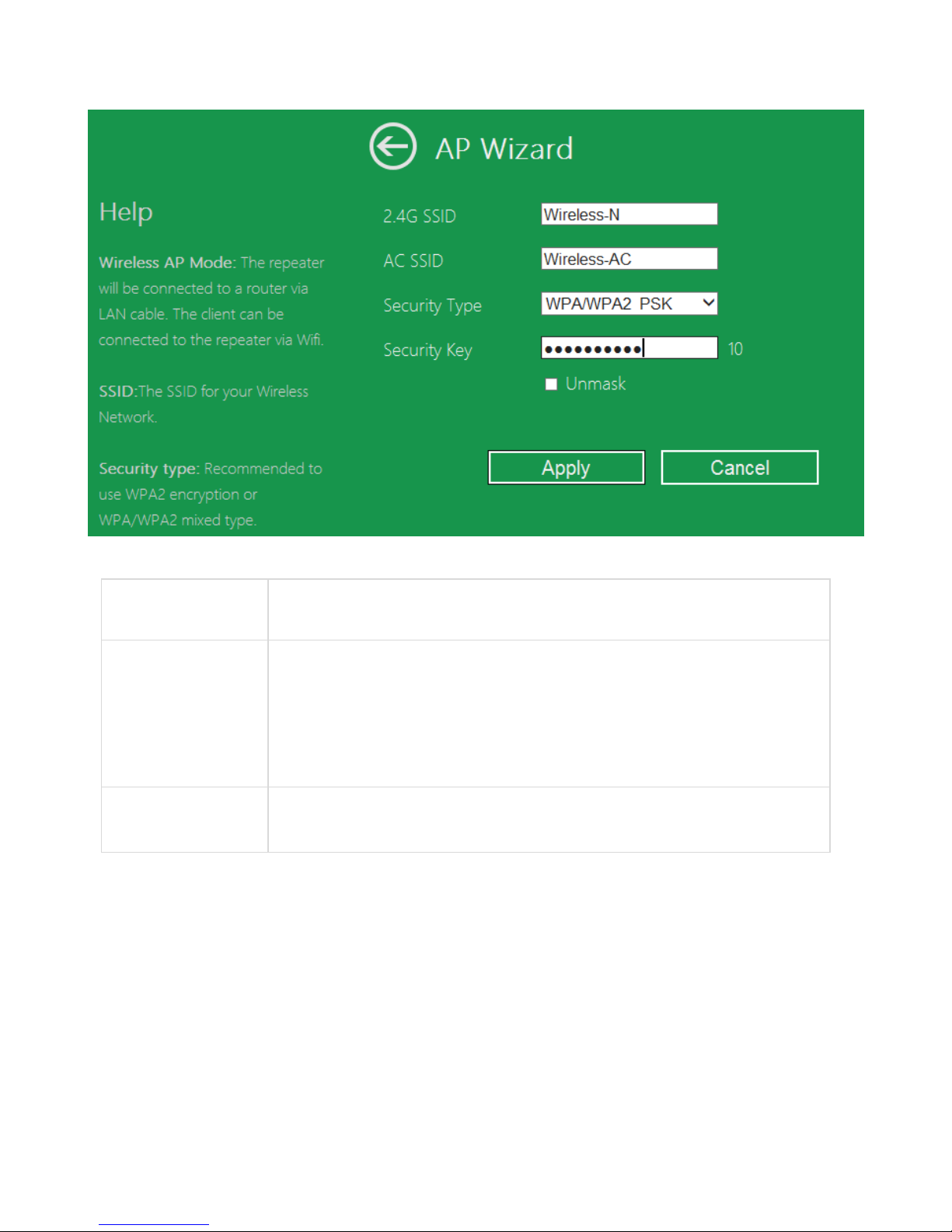

Click on the “AP Wizard” button.

The following message will be displayed on your web browser:

SSID

Wireless SSID of the

AP/Router

Security type

Setup the wireless security and encryption to prevent
from unauthorized access and monitoring.
Supports WPA, WPA2, WPA/WPA2 encryption
methods.

Security key

The "Password" of the

AP/Router

Click on ‘Apply’ button, The AP/Router will restart.

After the reboot has been completed, the AP/Router is accessible under the SSID
and the Wireless key.

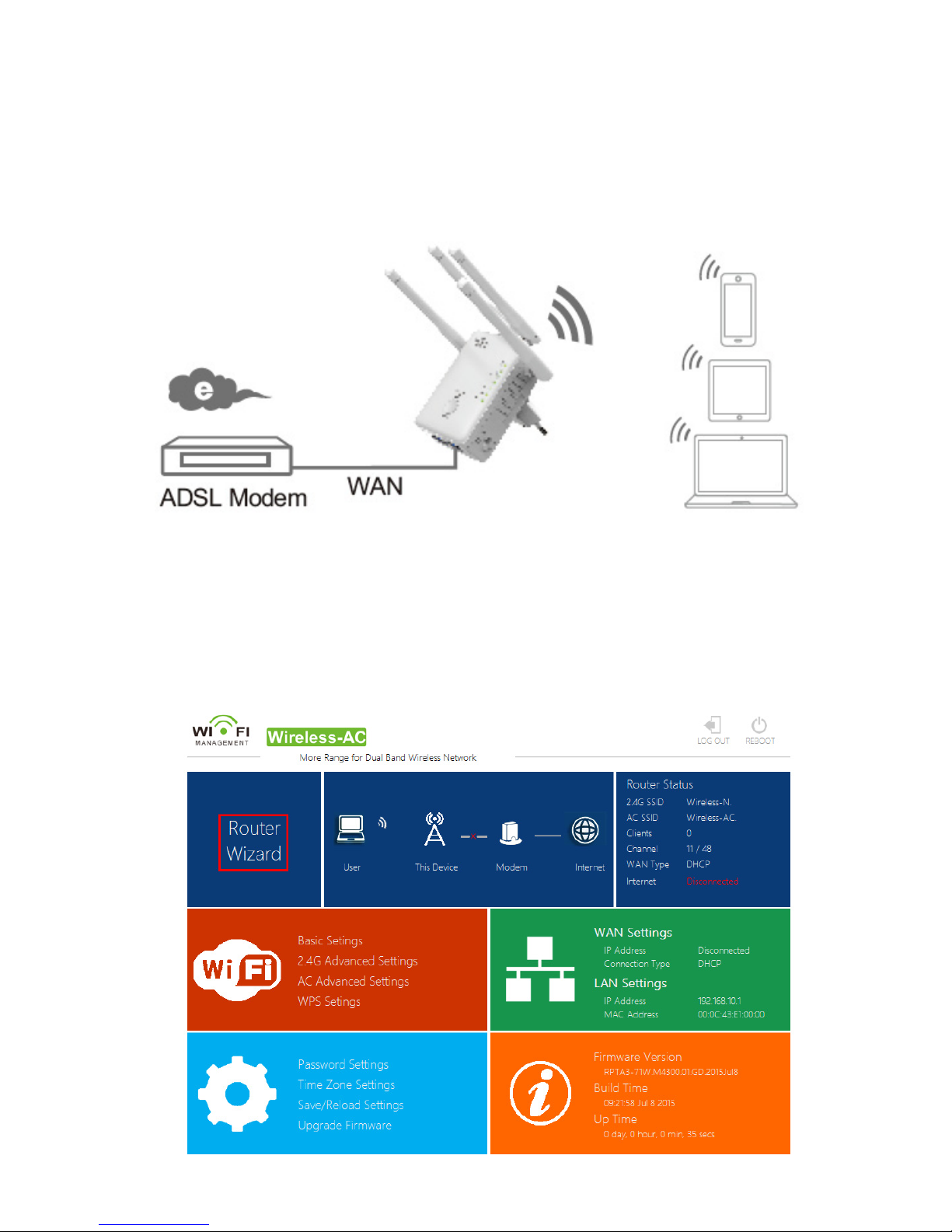

Configure the Wireless Router Mode

The AP/Router is connected to a DSL or cable modem and works as a regular
wireless router.
Internet access from DSL or cable modem is available for one user but more users
need to share the Internet.

1. The mode selector must be set to the "Router" position for Router Mode.

2. Plug the AP/Router into a wall socket

3. Connect your DSL Modem with the AP/Router with RJ45 Cable

4. Follow process A3 to A4.

5. After logging in, you will see the web page below:

Click on the “Router Wizard” button.

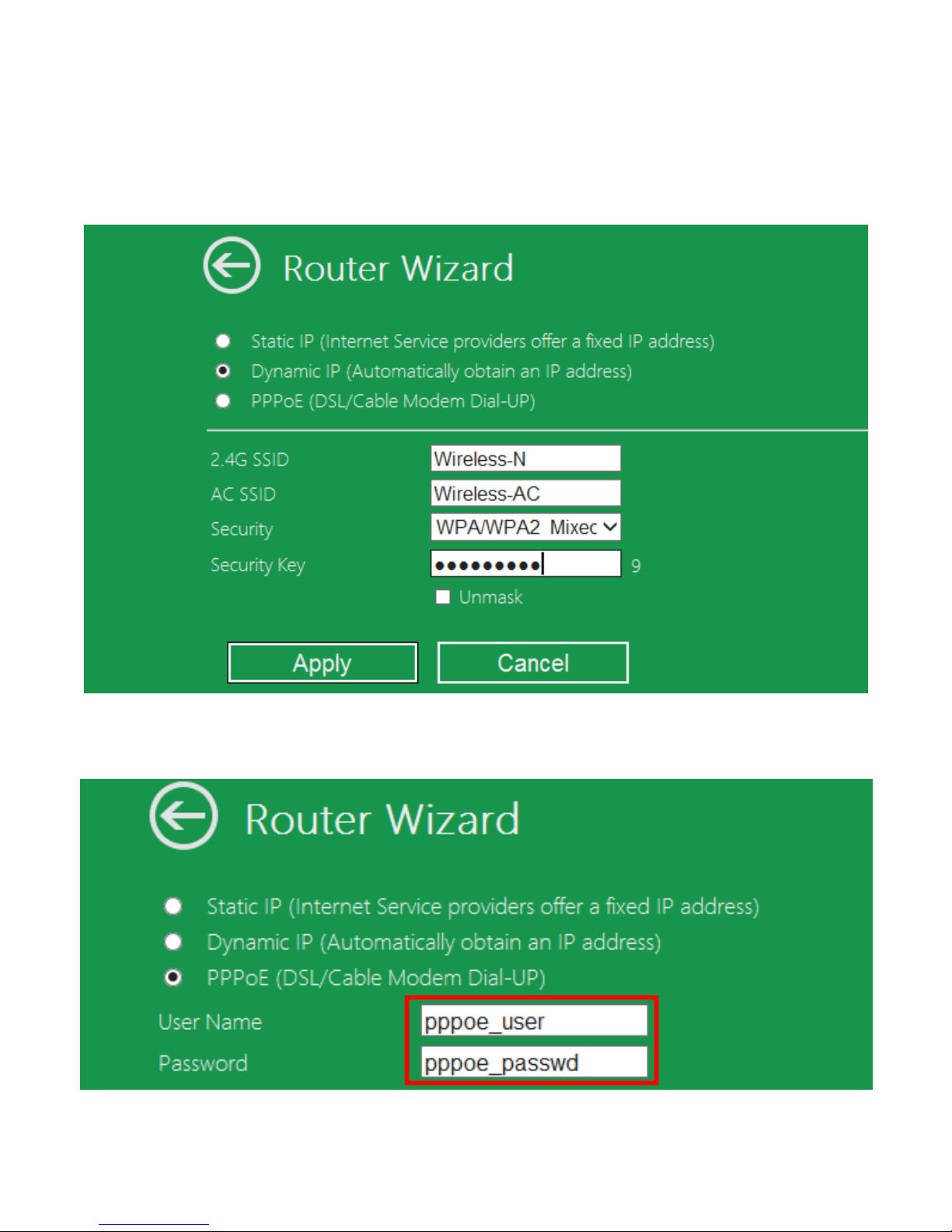

Choose your WAN Connection Type

If Dynamic IP is selected, the Router gets the IP address automatically from the
DHCP server or the ISP. No configuration should be set and you can go on with the
wireless configuration.

If DSL Dial-Up (PPPoE) is selected, please enter the User Name and Password
from your ISP, These fields are case-sensitive.

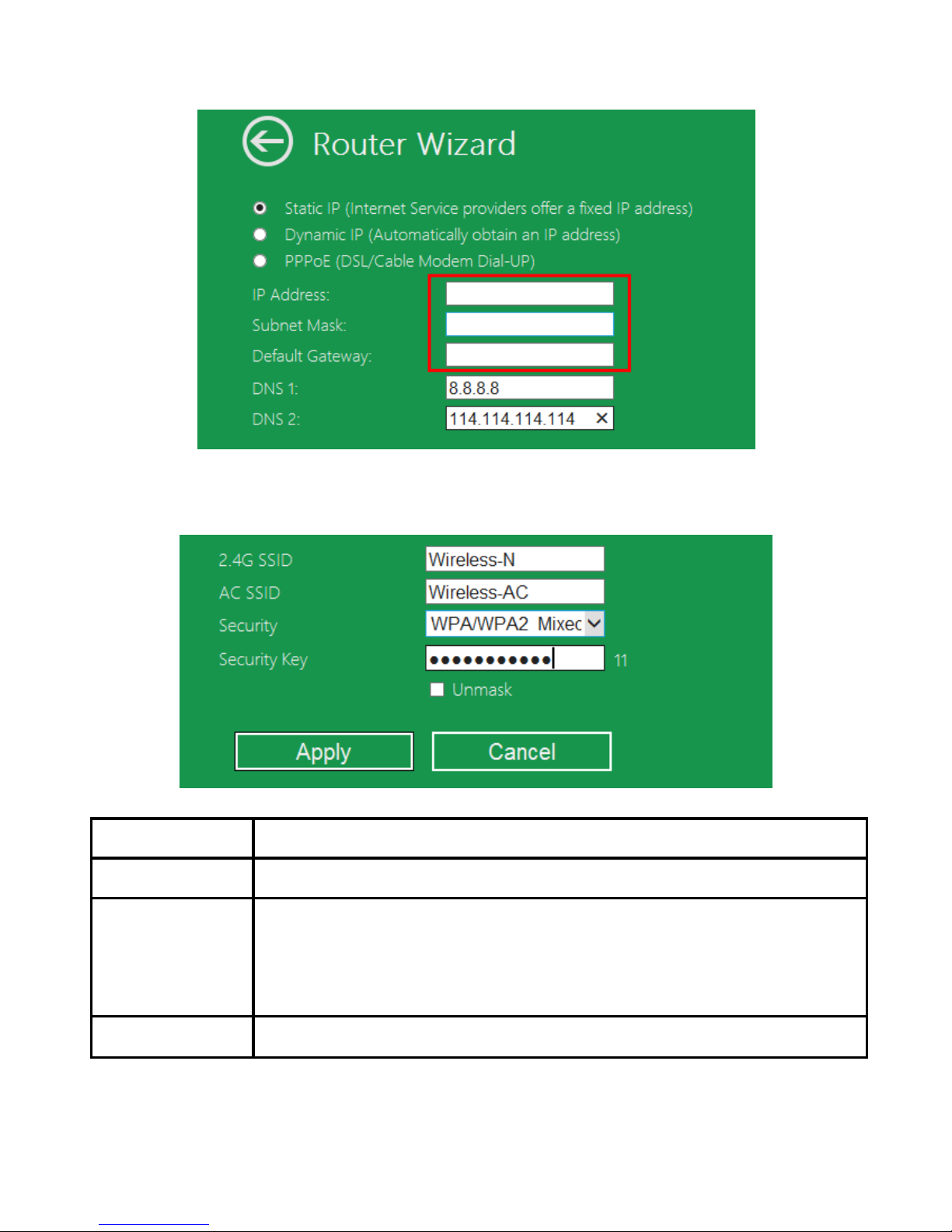

If Static IP is selected, please enter the IP Address, Subnet Mask, Default
Gateway, etc.

Set the wireless parameter. It's recommended that you rename an SSID, choose a
Security Mode and enter a Key.

Click ‘Apply’ button, It will restart.
Wait for a few seconds your AP/Router is ready for use.

SSID

The "SSID" of the

AP/Router

Channel

Auto (

recommend)

Security type

Setup the wireless security and encryption to prevent from
unauthorized access and monitoring.
Supports WPA, WPA2, WPA/WPA2 encryption methods.

Security key

The "Password" of the

AP/Router

Management via Web Browser

Wireless Base Configuration

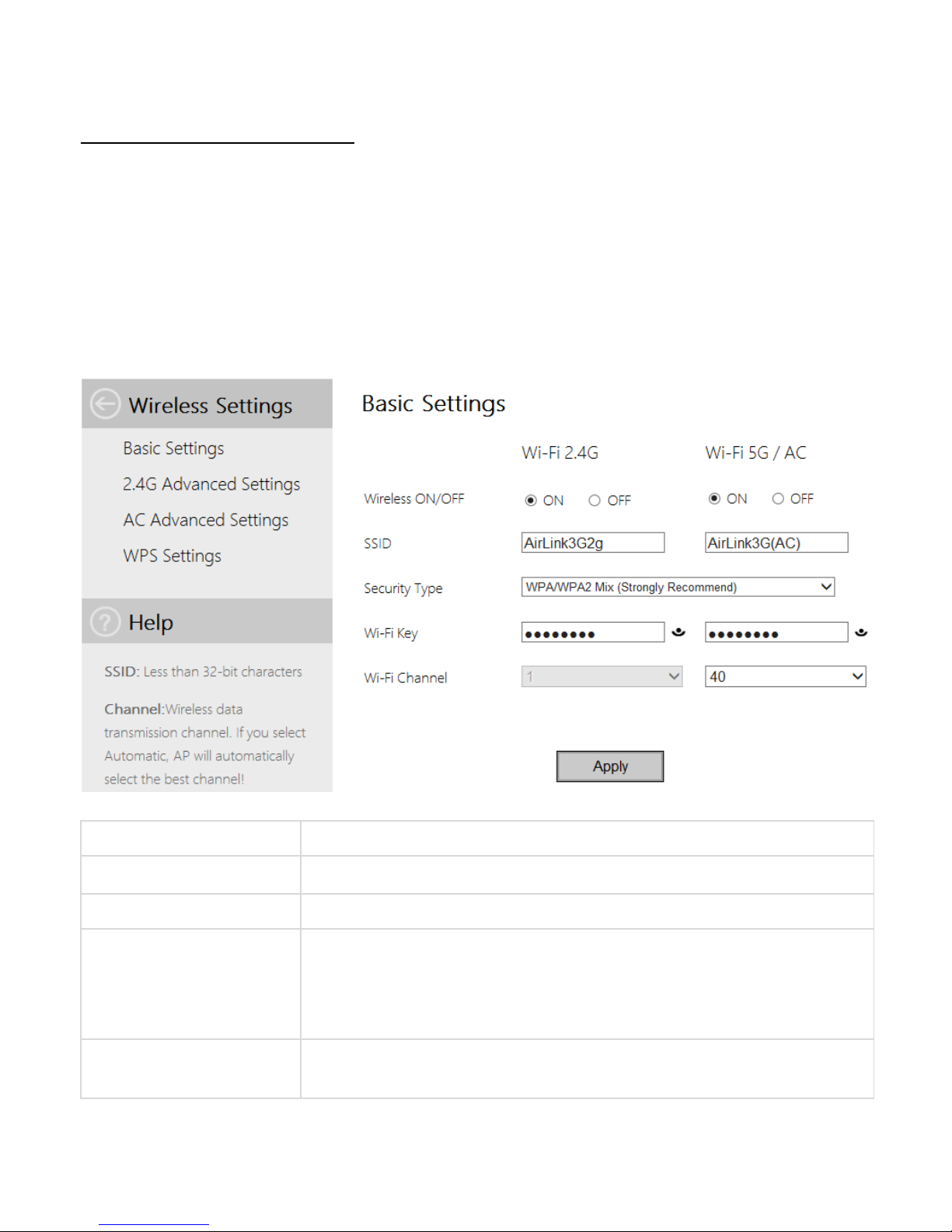

Please follow the following instructions: Click “Wi-Fi -> Basic Settings” located at
the web management interface, the following message will be displayed on your
web browser:

You could configure the basic setting of Wireless settings for communication, such
as Network Name (SSID) and Channel. The Access Point can be set simply with
only the minimum setting items.

Wireless Enable Wireless On/Off

SSID

Wireless SSID of the

AP/Router

Channel Wireless data transmission channel

Security type

Setup the Wireless security and encryption to prevent from
unauthorized access and monitoring.
Supports 64/128-bit WEP, WPA, WPA2, WPA/WPA2 encryption
methods.

Security key

The "Password" of the

AP/Router

Click ‘Apply’ button, The AP/Router will restart.

Change Management password

Default password of Wireless Repeater is “admin”, and it’s displayed on the login
prompt when accessed from web browser. There’s a security risk if you don’t
change the default password, since everyone can see it. This is very important
when you have wireless function enabled.

To change password, please follow the following instructions:

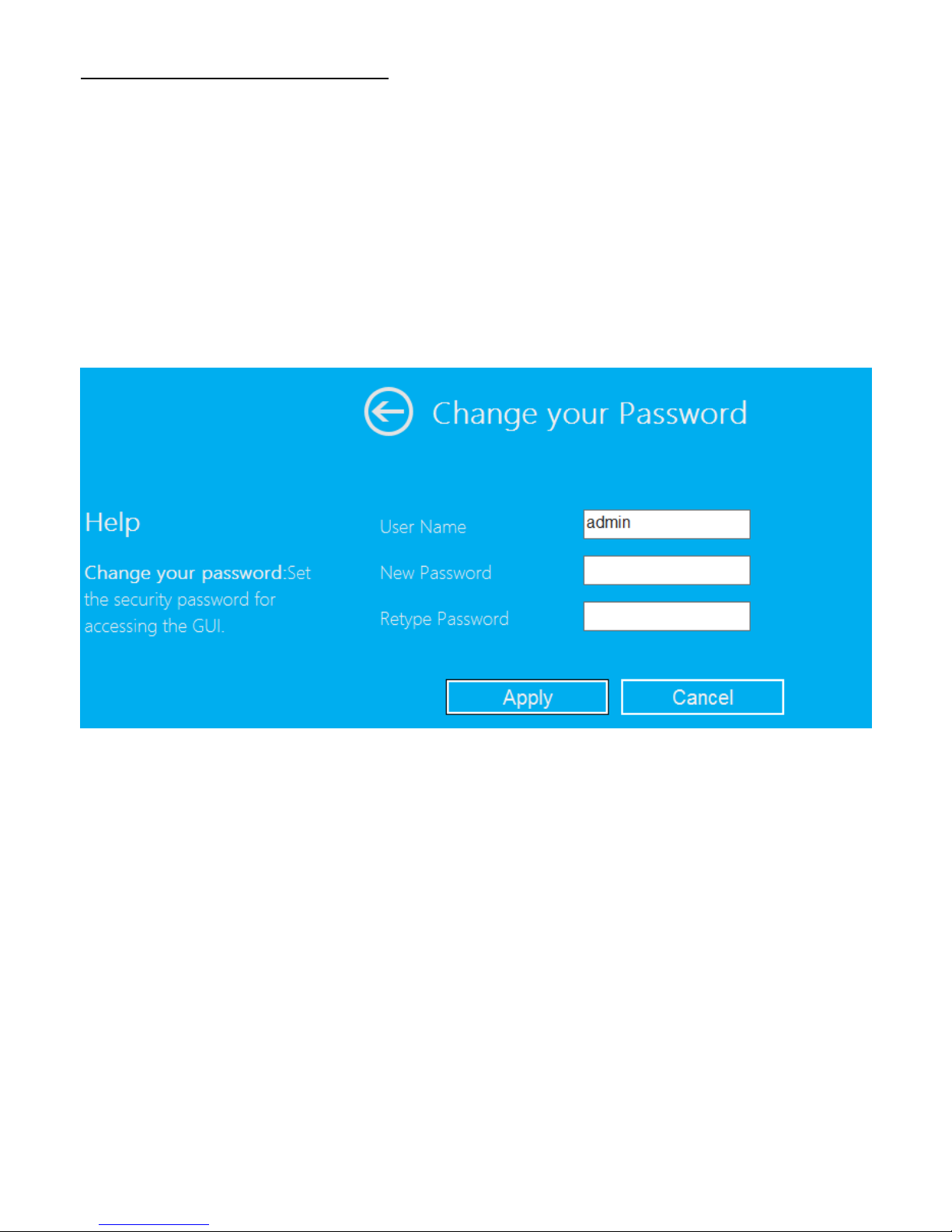

Please click ‘Management ->

Password’ menu on the web management interface,

the following message will be displayed on your web browser:

If you want to keep original password unchanged, click ‘Cancel‘.

Click ‘Apply’ button, The AP/Router will log off.

Firmware Upgrade

The system software used by this router is called ‘firmware’, just like any
applications on your computer, when you replace the old application with a new
one, your computer will be equipped with new function. You can also use this
firmware upgrade function to add new functions to your router, even fix the bugs
of this router.

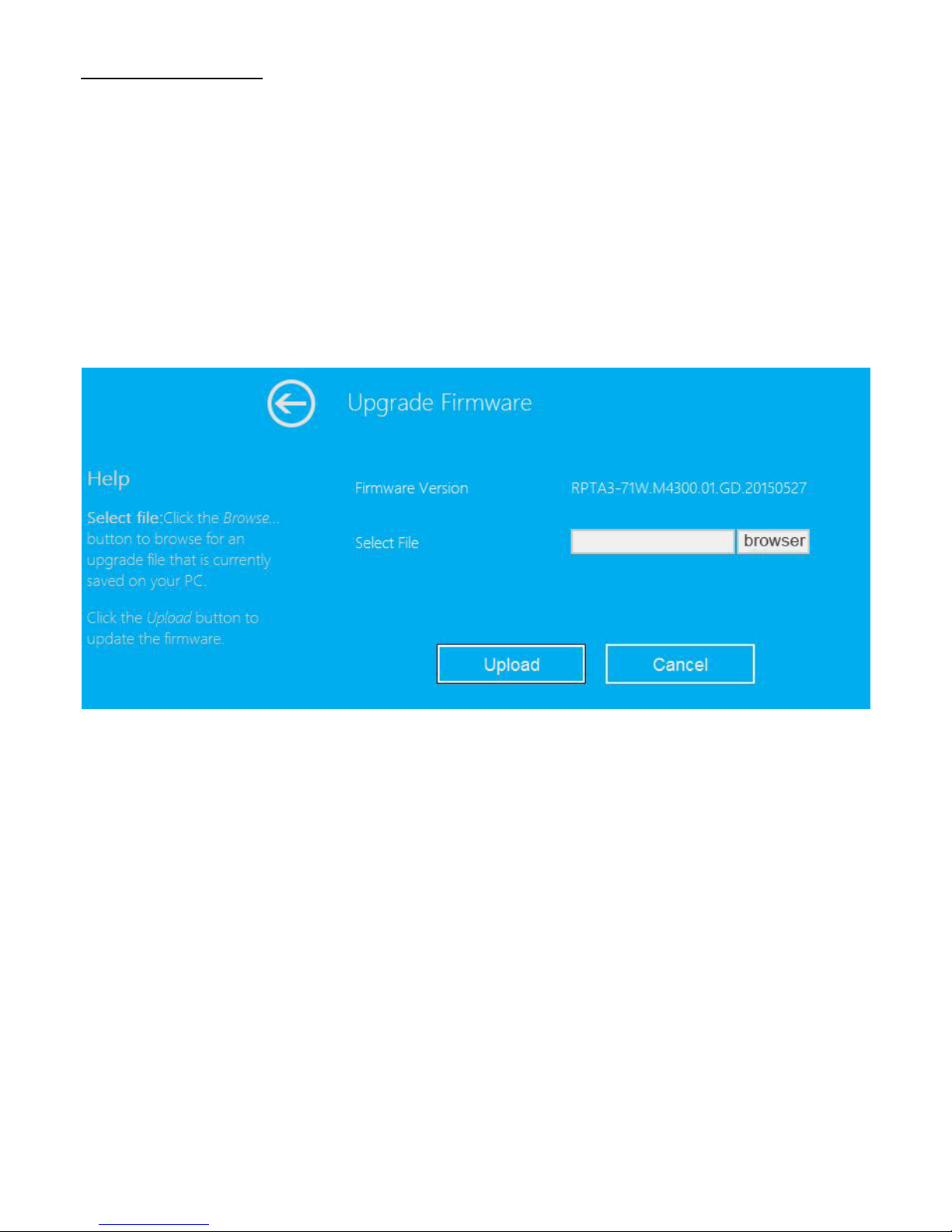

Please click ‘Management-> Upgrade Firmware’ located at the web management
interface, and then the following message will be displayed on your web browser:

Click ‘Browse…’ or ‘Choose File’ button first; you’ll be prompted to provide the
filename of firmware upgrade file. Please download the latest firmware file from
our website, and use it to upgrade your router.

After a firmware upgrade file is selected, click ‘Upload’ button, and the router will
start firmware upgrade procedure automatically.
The procedure may take several minutes, please be patient.

NOTE: Never interrupt the upgrade procedure by closing the web browser or
physically disconnect your computer from router. If the firmware you uploaded is
interrupt, the firmware upgrade will fail, and you may have to return this router to
the dealer of purchase to ask for help.

(Warranty voids if you interrupted the upgrade procedure).

Factory Default and Settings Backup, Restore

You can backup all Setting of this router to a file, so you can make several copied
of router configuration for security reason.

To backup or restore router setting, please follow the following instructions:

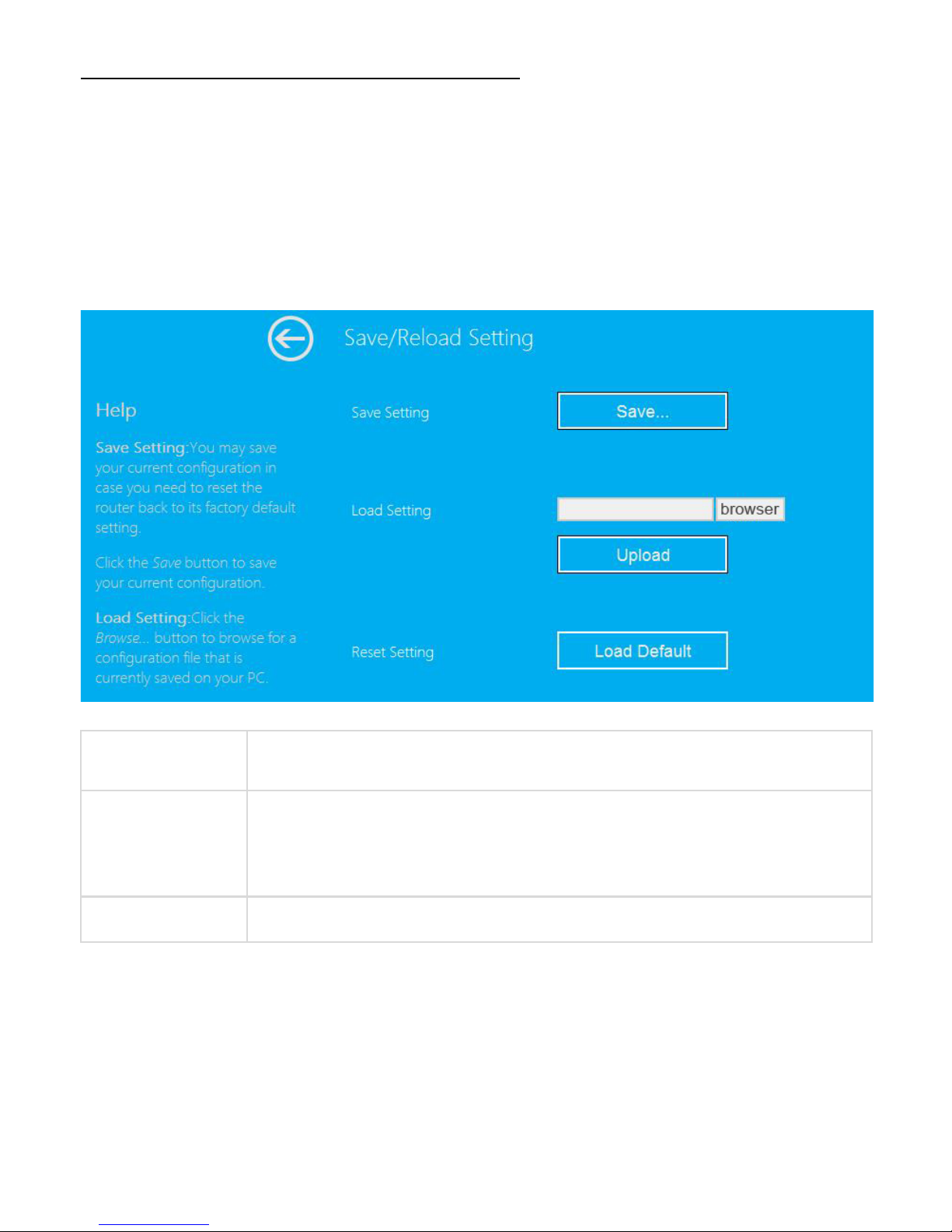

Please click ‘Save/Reload setting’ located at the web management interface, then
the following message will be displayed on your web browser:

Save Settings Press ‘Save…’ button, you can save it as another filename for different

versions, and keep it in a safe place.

Load Settings Press ‘Browse…’ to pick a previously-saved configuration file from your

computer, and then click ‘Upload…

’. After the configuration is

uploaded, the router’s configuration will be replaced by the file you
just uploaded.

Reset Settings Click this ‘Load default‘ button to load default settings

How to connect your computer/laptop with the AP/Router

Adding a Wireless computers to the AP/Router

1.

Log on to the computer.

2.

Open Connect to a Network by
right-clicking the network icon (

or ) in the notification area.

3.

Choose the wireless network from
the list that appears, and then click
Connect.

4.

Type the network security key or
passphrase if you are asked to do
so, and then click OK. You'll see a
confirmation message when you
are connected to the network.

5.

To confirm that you added the
computer, do the following:

Open Network by clicking the Start
button , and then clicking Control Panel. In the search box, type network,
and then, under Network and Sharing Center, click View network computers
and devices. You should see icons for the computer you added and for

the other computers and devices that are part of the network.

Note: If you don't see icons in the Network folder, then network
discovery and file sharing might be turned off.

Adding a Wireless computers to the AP/Router with WPS Button

This is the easiest way to establish a connection to the AP. First, check whether
your end device supports WPS. For further details, please read the operating
instructions for your end device.

1.

Log on to the computer.

2.

Press the WPS button on the AP/Router for 3 seconds. The WPS LED now
flashes for approx. 2 minutes.

3.

Within these 2 minutes, please press the connection button (WPS) on your
end device. (For further details, please read the operating instructions for
your end device.)

Your end device then automatically connects to your AP/Router and applies all of

the settings. You should see icons

for the computer you added and for the

other computers and devices that are part of the network.

Adding a wired (Ethernet) computer to the AP/Router

1. Plug the AP/Router to a socket. Connect your computer / laptop with the

AP/Router with enclosed RJ45 Cable.

2.

To Confirm that you added the computer, do the following:
Open Network by clicking the Start button , and then clicking Control
Panel. In the search box, type network, and then, under Network and

Sharing Center, click View network computers and devices. You should see
icons for the computer you added and for the other computers and

devices that are part of the network.

For more information:

http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network
http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network
http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-network

How to configure your computer/laptop with the Network IP
Address

1. Log on to the computer.

2. Click the “Start” button (it

should be located at the lower­left corner of your screen), then
click “Control Panel”. Click
“View Network Status and

Tasks”, and then click “Manage
Network Connections”. Right-

click “Local Area Network”,

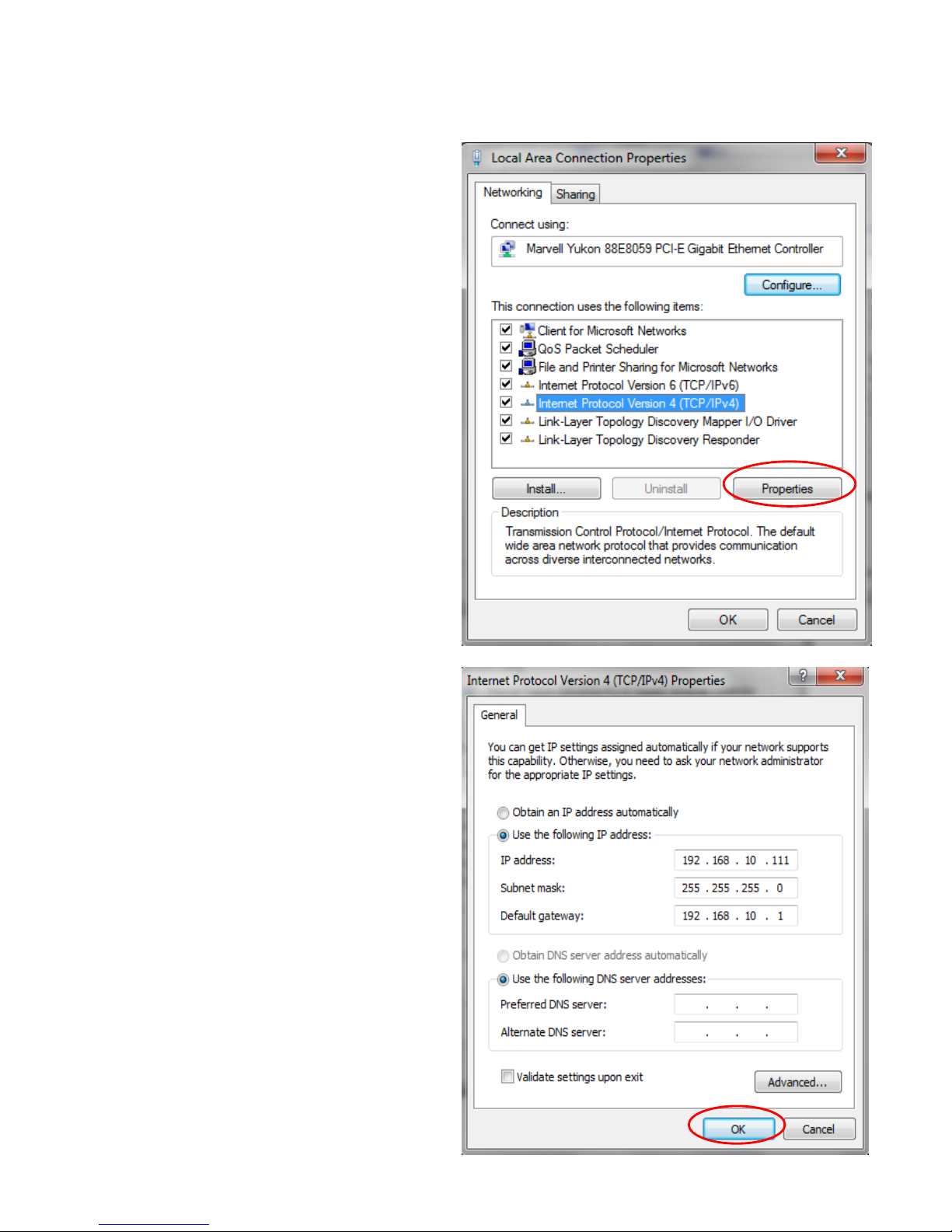

then select “Properties”. When
the “Local Area Connection
Properties” window appears,
select “Internet Protocol
Version 4 (TCP/IPv4)” and then
click “Properties”.

3. Setting IP address manually:

Type IP address is 192.168.10.x
(x is from 2 to 254), and Subnet
mask is 255.255.255.0. Type the
Router’s LAN IP address
(the default IP is 192.168.10.1)
into the Default gateway field.

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with
the requirements of Directive 2014/53/EU and the Directive 2011/65/EU for RoHS
compliance. The complete declaration of conformity can be requested by post under
the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in
living environment. In this case, the user can be requested to undertake appropriate
measures to prevent interference.

www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
