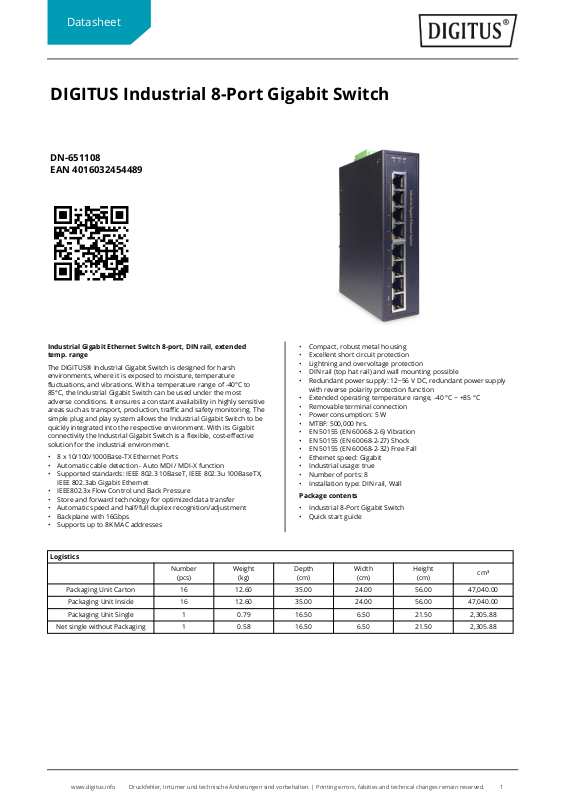

Page 1
Datasheet
DIGITUS Industrial 8-Port Gigabit Switch
DN-651108
EAN 4016032454489
Industrial Gigabit Ethernet Switch 8-port, DIN rail, extended
temp. range
The DIGITUS® Industrial Gigabit Switch is designed for harsh
environments, where it is exposed to moisture, temperature
fluctuations, and vibrations. With a temperature range of -40°C to
85°C, the Industrial Gigabit Switch can be used under the most
adverse conditions. It ensures a constant availability in highly sensitive
areas such as transport, production, traffic and safety monitoring. The
simple plug and play system allows the Industrial Gigabit Switch to be
quickly integrated into the respective environment. With its Gigabit
connectivity the Industrial Gigabit Switch is a flexible, cost-effective
solution for the industrial environment.
• 8 x 10/100/1000Base-TX Ethernet Ports
• Automatic cable detection - Auto MDI / MDI-X function
• Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX,
IEEE 802.3ab Gigabit Ethernet
• IEEE802.3x Flow Control und Back Pressure
• Store and forward technology for optimized data transfer
• Automatic speed and half/full duplex recognition/adjustment
• Backplane with 16Gbps
• Supports up to 8K MAC addresses
Logistics
Number
(pcs)
Packaging Unit Carton 16 12.60 35.00 24.00 56.00 47,040.00
Packaging Unit Inside 16 12.60 35.00 24.00 56.00 47,040.00
Packaging Unit Single 1 0.79 16.50 6.50 21.50 2,305.88
Net single without Packaging 1 0.58 16.50 6.50 21.50 2,305.88
Weight
(kg)
• Compact, robust metal housing
• Excellent short circuit protection
• Lightning and overvoltage protection
• DIN rail (top hat rail) and wall mounting possible
• Redundant power supply: 12~56 V DC, redundant power supply
with reverse polarity protection function
• Extended operating temperature range, -40 °C ~ +85 °C
• Removable terminal connection
• Power consumption: 5 W
• MTBF: 500,000 hrs.
• EN 50155 (EN 60068-2-6) Vibration
• EN 50155 (EN 60068-2-27) Shock
• EN 50155 (EN 60068-2-32) Free Fall
• Ethernet speed: Gigabit
• Industrial usage: true
• Number of ports: 8
• Installation type: DIN rail, Wall
Package contents
• Industrial 8-Port Gigabit Switch
• Quick start guide
Depth
(cm)
Width
(cm)
Height
(cm)
cm³
www.digitus.info Druckfehler, Irrtümer und technische Änderungen sind vorbehalten. | Printing errors, falsities and technical changes remain reserved. 1
Page 2
Datasheet

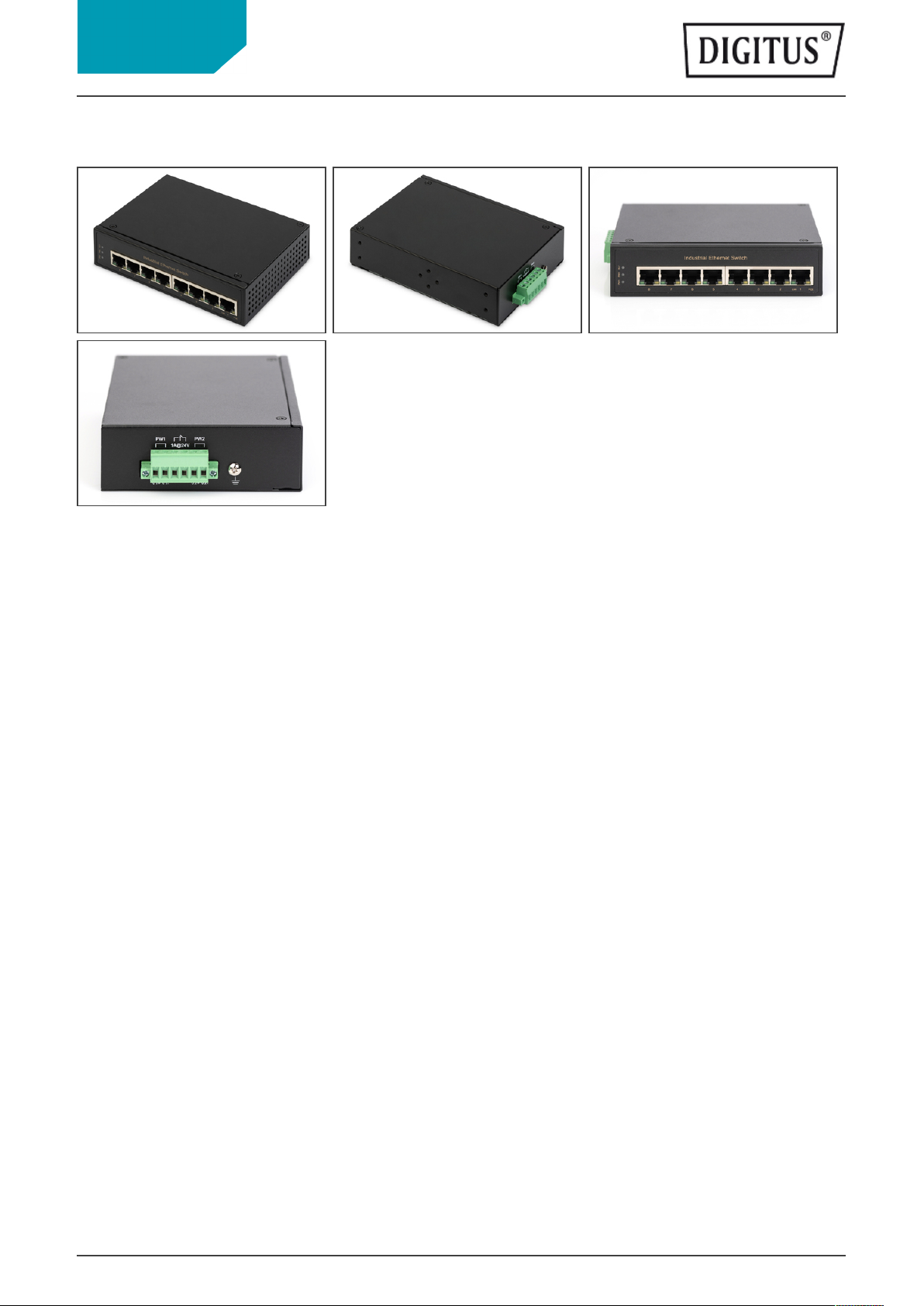

More images:
www.digitus.info Druckfehler, Irrtümer und technische Änderungen sind vorbehalten. | Printing errors, falsities and technical changes remain reserved. 2
