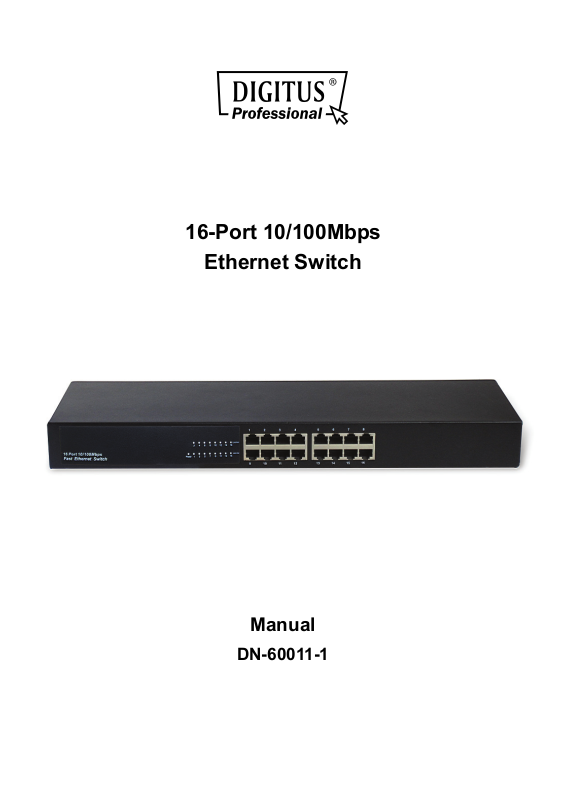

Page 1
16-Port 10/100Mbps
Ethernet Switch
Manual
DN-60011-1
Page 2
Description
DN-60011-1 is 16-port 10/100Mbps unmanaged Ethernet Switch. Adopt professional
IP1717 switch chips, the switch provides 16 x 10/100Mbps Auto-Negotiation RJ45
ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as
uplink port or common port. The Switch delivers superior performance with improving
workgroup, network bandwidth, increasing network node, providing greater flexibility,
installation convenience. It is the best choice for increasing your speed.
Features
Sixteen 10/100BASE-T Ethernet Ports
Support Auto-Negotiation for 10/100Mbps and duplex mode
Support Auto-MDI/MDIX for each port
Support Full/Half duplex transfer mode for 10/100Mbps
Support Store-and-Forward switching method
Complies with IEEE 802.3, IEEE 802.3ab
Support Wire-speed and non-blocking performance
3.2 Gbps Switching Capacity
Support Broadcast and multicast storm control
Supports MAC address auto-learning and auto-aging
4K MAC address table
Page 3
Chapter 1 Introduction
Congratulations on your purchase of this 10/100Mbps switch. Instructions for
installing and configuring this product can be found in this manual. Before you install
and use this product, please read this manual carefully for full exploiting the functions
of this product.
The 10/100Mbps switch is the perfect way of integrating 10Mbps Ethernet and
100Mbps Fast Ethernet devices. All 16-ports are auto speed negotiating, and have
automatic MDI/MDI-X crossover detection, so you don't have to worry about the cable
type. Each port independently negotiates for best speed and half- or full-duplex mode,
for up to 200Mbps of bandwidth per port. Fast store-and-forward switching prevents
damaged packets from being passed on into the network.
1.1 Features
• Sixteen 10/100BASE-T Ethernet Ports
• Support Auto-Negotiation for 10/100Mbps
• Support Auto-MDI/MDIX for each port
• Support Full/Half duplex transfer mode for 10/100Mbps
• Complies with IEEE 802.3, IEEE 802.3u 16-Port 10/100Mbps Ethernet Switch 4
• Support Store-and-Forward switching method
• Support Wire-speed and non-blocking performance
• Support Address learning and aging
• Support Broadcast Storm Filtering Control
• Support Data Flow Control for enhanced transmission reliability
• Support 4K MAC addresses.
• Standard 19’ Rack-mount size
1.2 Environments
• Storage Temperature: -40ºC ~70ºC
• Operating Temperature: 0ºC ~40ºC
• Storage Humidity: 5% ~90% RH Non-condensing
• Operating Humidity: 10% ~90% RH Non-condensing
1.3 Package
• One 10/100Mbps switch
• One Manual
• One AC Power cord 16-Port 10/100Mbps Ethernet Switch 5
Page 4
Chapter 2 Installation
2.1 Front Panel LEDs
Power LED
This green indicator illuminates when the Switch is receiving power.
Link/Act
This green indicator illuminates steadily when a port is connected to a station
successfully, If this green indicator is blinking, it indicates that a port is transmitting or
receiving data on the network.
2.2 Back Panel Features
The power connector is located on the back panel of the switch.
AC Power Connector
This is the three pronged connector that support the power cord. Plug in the
female connector of the provided power cord into this connector, and the male into a
power outlet. Supported input voltages range from 100~240V AC at 50~60Hz. 16-Port
10/100Mbps Ethernet Switch 6
2.3 Connecting Network Devices
To connect network devices to the Switch, follow these instructions.
1. Make sure all the devices you will connect to the Switch are powered off.
2. Connect a Category 5 Ethernet network cable to one of the numbered ports on the
Switch.
3. Connect the other end to a PC or other network devices.
4. Repeat steps 2 and 3 to connect additional devices.
5. Plug in the female connector of the provided power cord into the power connector
on the Switch’s back panel.
6. Plug in the male into a power outlet.
7. Power on the devices connected to the Switch. Each active port’s corresponding
LED will light up on the Switch.
Page 5
Specification
Model DN-60011-1
Chipset IP1717+IP108A
Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
10Base-T: UTP category 3, 4, 5 cable
Network Media (Cable)
Number of Ports 16 x 10/100Mbps Auto-Negotiation ports
LED
indicators
10/100M Link/Act
Other Power
Frame Filtering and Forward
Rate
Transfer Method Store-and-Forward
MAC address table 4K
Backup Bandwidth 3.2Gbps
Power Supply/Consume
(maximum 100m)
100Base-Tx: UTP category 5, 5e cable
(maximum 100m)
10Mbps: 14880pps
100Mbps: 148800pps
Input: 100-240V～50-60Hz 0.6A
Consume: 7 W（MAX）
Environment
www.assmann.com
ASSMANN Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
Operating Temperature: 0 ~40℃℃
Storage Temperature: -40 ~70℃℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
