Digitus DN-19 KEY-1U User Manual

Keyboard Drawer and Document Storages for DIGITUS® 19“ Cabinets

✔ Easy mounting

✔ Fixing at mounting angles

✔ Extensible and lockable

✔ Loading capacity: 25 kg

Abstract

Keyboard Drawer and Document Storages for DIGITUS® 19“ Cabinets

Features

- Fixing at mounting angles

- Extractable and lockable

- Dimensions (WxD): 483x400 mm

- Height Units: 1U - 3U

- Loading capacity: 25 kg

- Available in colors grey (RAL 7035) and black (RAL 9005)

- Inclusive mounting material

Product Overview

The keyboard drawer and document storages from DIGITUS® are suitable for all DIGITUS® 19” cabinets, except
for the unmounted wall mounting cabinets. The installation takes place via fixing at the mounting angles.

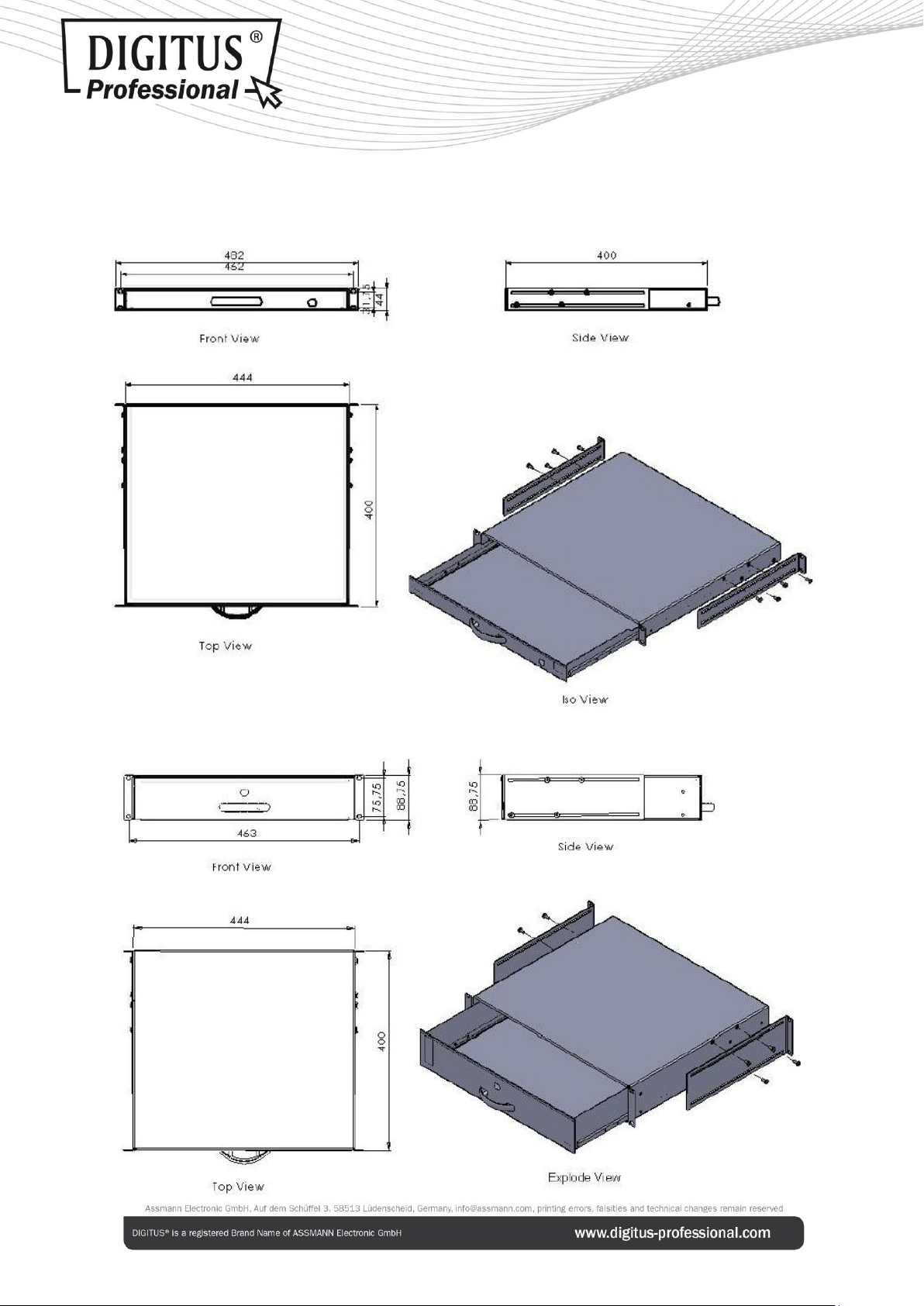

Product Images

Product Number Information

DN-19 KEY-1U DIGITUS® 1U lockable keyboard shelf, color grey (RAL 7035)
DN-19 KEY-1U-SW DIGITUS® 1U lockable keyboard shelf, color black (RAL 9005)
DN-19 KEY-2U DIGITUS® 2U lockable keyboard shelf, color grey (RAL 7035)
DN-19 KEY-2U-SW DIGITUS® 2U lockable keyboard shelf, color black (RAL 9005)
DN-19 KEY-3U DIGITUS® 3U lockable keyboard shelf, color grey (RAL 7035)
DN-19 KEY-3U-SW DIGITUS® 3U lockable keyboard shelf, color black (RAL 9005)
