Digitus DN-16065-1 User Manual
PTZ NETWORK CAMERA
USER MANUAL
DN-16065-1
IMPORTANT SAFEGUARD
All lead-free products offered by the company comply with the requirements of the
European law on the Restriction of Hazardous Substances (RoHS) directive, which means
our manufacture processes and products are strictly “lead-free” and without the hazardous
substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product
must be collected separately at the product end-of-life. This applies to your product and
any peripherals marked with this symbol. Do not dispose of these products as unsorted
municipal waste. Contact your local dealer for procedures for recycling this equipment.
Disclaimer
We reserve the right to revise or remove any content in this manual at any time. We do not warrant or assume
any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of
this manual is subject to change without notice.
Grounding
This is a Safety Class 1 Product (provided with a protective earthing ground incorporated in the power cord).
The mains plug shall only be inserted in a socket outlet provided with a protective earth contact. Any
interruption of the protective conductor inside or outside of the instrument is likely to make the instrument
dangerous. Intentional interruption is prohibited.
Water & Moisture
Do not expose this product to dripping or splashing and that no objects filled with liquids, such as vases, shall
be placed on the product.
Trademark Acknowledgements
iPhone® is the registered trademark of Apple Inc.
BlackBerry® and related trademarks, names and logos are the property of Research In Motion Limited and
are registered and/or used in the U.S. and countries around the world. Used under license from Research In
Motion Limited.
Android™ is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.
Microsoft, Windows, Internet Explorer, Mozilla Firefox, Google Chrome, Safari, Opera, QuickTime, Windows
Mobile & Symbian mentioned in this document are the registered trademarks of their respective holders.
MPEG4 Licensing
THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING
MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY
MPEG LA TO PROVIDE MPEG4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL INTERNAL
AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM.
GPL Licensing
This product contains codes which are developed by Third-Party-Companies and which
are subject to the GNU General Public License (“GPL”) or the GNU Lesser Public License
(“LGPL”).
The GPL Code used in this product is released without warranty and is subject to the
copyright of the corresponding author.
Further source codes which are subject to the GPL-licenses are available upon request.
We are pleased to provide our modifications to the Linux Kernel, as well as a few new
commands, and some tools to get you into the code. The codes are provided on the FTP
site, and please download them from the following site or you can refer to your distributor:
http://download.dvrtw.com.tw/GPL/076D_Series/arm-linux-2.6.tar.gz
TABLE OF CONTENTS
1. OVERVIEW ......................................................................................................................................... 1
1.1 Product Features ....................................................................................................................................... 1
1.2 Package Content ....................................................................................................................................... 1
1.3 Dimensions ............................................................................................................................................... 1
1.4 Cable Overview ......................................................................................................................................... 2
2. BEFORE USING YOUR NETWORK CAMERA .................................................................................. 3
3. ACCESSING THE CAMERA VIA VIDEO VIEWER ............................................................................. 4
3.1 Accessing the camera ............................................................................................................................... 4
3.2 Control panel overview .............................................................................................................................. 4
3.2.1 Simplified Version (Default) .............................................................................................................................. 4
3.2.2 Full Function Version ........................................................................................................................................ 5
3.2.3 Main Button Overview ...................................................................................................................................... 5
3.3 Frequently-used functions ......................................................................................................................... 6
3.3.1 Record .............................................................................................................................................................. 6
3.3.2 Playback ........................................................................................................................................................... 6
3.3.3 Firmware Upgrade ........................................................................................................................................... 7
3.3.4 E-Map ............................................................................................................................................................... 7
3.3.5 PTZ Control .................................................................................................................................................... 11
4. CAMERA CONFIGURATIONS VIA YOUR WEB BROWSER ........................................................... 12
4.1 Accessing the camera ............................................................................................................................. 12
4.2 Control panel overview ............................................................................................................................ 13
4.2.1 Live View Panel .............................................................................................................................................. 13
4.2.2 System Configuration Panel ........................................................................................................................... 15
4.3 Network ................................................................................................................................................... 16
4.3.1 Network .......................................................................................................................................................... 16
4.3.2 QoS ................................................................................................................................................................ 16
4.3.3 DDNS ............................................................................................................................................................. 16
4.3.4 SNTP .............................................................................................................................................................. 16
4.3.5 FTP ................................................................................................................................................................. 17
4.3.6 MAIL ............................................................................................................................................................... 17
4.3.7 SMS ................................................................................................................................................................ 18
4.3.8 Filter ............................................................................................................................................................... 18
4.3.9 UPnP / Bonjour ............................................................................................................................................... 19
4.4 Camera ................................................................................................................................................... 20
4.4.1 System ........................................................................................................................................................... 20
4.4.2 Preset ............................................................................................................................................................. 20
4.4.3 Cruise ............................................................................................................................................................. 21
4.4.4 Auto Tracking ................................................................................................................................................. 22
4.4.5 Color ............................................................................................................................................................... 23
4.4.6 Time ................................................................................................................................................................ 23
4.4.7 Advance .......................................................................................................................................................... 24
4.5 General ................................................................................................................................................... 26
4.5.1 General ........................................................................................................................................................... 26
4.5.2 Server Log ...................................................................................................................................................... 26
4.5.3 Online ............................................................................................................................................................. 27
4.5.4 Account ........................................................................................................................................................... 27
4.5.5 Trigger ............................................................................................................................................................ 28
4.5.6 Video .............................................................................................................................................................. 29
4.5.7 Google Maps .................................................................................................................................................. 29
4.5.8 Upgrade .......................................................................................................................................................... 30
APPENDIX 1 API ID APPLICATION FOR SMS MESSAGING .............................................................. 31
APPENDIX 2 BIT RATE TABLE FOR REFERENCE ............................................................................ 34
1
1. OVERVIEW
1.1 Product Features
Powerful Remote Surveillance on Multiple Mobile Platforms
-- For mobile device platforms, iPad®, iPod®, iPhone®, BlackBerry®, Nokia® Symbian,
Windows
®
Mobile & Android™ (with their built-in web browsers or EagleEyes)
-- For web browsers, Internet Explorer
®
, Mozilla Firefox®, Safari®,
Google Chrome™ and Opera
-- For operating systems, Windows & Mac
-- For multiple device control, our CMS software, Video Viewer, is provided for free
Free CMS software with E-Map for multiple devices control & surveillance
Hot Point support to quickly move the camera to the specified point remotely
Low-latency video streaming with H.264 compression format
Advanced Auto Tracking accuracy to follow moving objects
Rigid & high-speed pan / tilt mechanism with two-million rotation test passed for longer
operating lifetime
Up to 16 preset points & four sequence groups, and Auto Scan
Excellent outdoor ID design with cable management
Motion detection and event notification functions
(DN-16065-1 Only) ONVIF standard supported to simplify system integration
1.2 Package Content
◎ In the camera package:
□ camera module □ Quick Start
□ Power & network cable □ RJ45 cable extender adapter
□ CD-ROM disc (including user manuals
& CMS software “Video Viewer”)
□ Accessory Pack
◎ In the bracket package:
□ Housing □ Bracket
□ Dome Cover □ Accessory pack
1.3 Dimensions
mm
mm
mm
mm
2
1.4 Cable Overview
CABLE DESCRIPTION
RJ45 network cable Connect it to the supplied RJ45 cable extender adapter for cable extension, and
prepare another RJ45 network cable with suitable length for your connection.
Reset wires Remove the insulating coating of these two wires, and twist them together to reset
default. This will reset all parameters, including the IP address to factory default settings.
Note: Disconnect power before twisting these two wires together, and connect to power
again for reset default.
Power cable Connect to DC12V power supply.
3
2. BEFORE USING YOUR NETWORK CAMERA
Before using the network camera, make sure:
1) You have installed the supplied CMS software, “Video Viewer”.
2) You have configured the network settings, and the network connection is fine.
If not, please refer to your the installation guide.
This network camera can be accessed via our supplied CMS software “Video Viewer”, or the web
browser “Microsoft Internet Explorer” or “Mozilla Firefox” depending on different using situations.
To check or configure up to 16 surveillance devices simultaneously with the record function, please use
“Video Viewer”.
For details about using Video Viewer, please refer to “3. ACCESSING THE CAMERA VIA VIDEO
VIEWER” at page 4.
To check or configure this network camera only, it’s recommended to use a web browser, such as
“Microsoft Internet Explorer” or “Mozilla Firefox”.
For details about using the web browser, please refer to “4. CAMERA CONFIGURATIONS VIA YOUR
WEB
BROWSER” at page 12.
4
3. ACCESSING THE CAMERA VIA VIDEO VIEWER
3.1 Accessing the camera
Step1: Double-click “ ” on your PC desktop to open Video Viewer. By defaults, the “Address
Book” panel will be displayed on the right side of the control panel.
Step2: Click “
” to select the IP address of the camera you intend to connect, and double-click
it.
Step3: The live view is displayed in the Video Viewer.
3.2 Control panel overview
Two control panels are available and can be switched depending on your using habit.
3.2.1 Simplified Version (Default)
5
3.2.2 Full Function Version
3.2.3 Main Button Overview
Button
Function Description
Simplified Full Function
Address Book
Click to show the predefined IP address(es). You can add, remove or
search the IP address to log in the DVR remotely.
Miscellaneous
Control
Remote
Config
Click to go to the detailed system configuration.
Record
Setting
Click to go to the detailed record setting. For
details, please refer to “3.3.1 Record” at page 6.
Custom
Setting
Click to choose the language of this program, or
set the password when activating this program.
The changes will take effect when this program
is closed and executed again.
Log
Click to view all event and recording logs, search the desired log(s) by
date, or playback the recording of the selected log.
/ /
Record /
Record Stop
Click to start / stop the manual recording.
The record button will be disabled when the reserved disk capacity set in
“Record Setting” is larger than the current disk capacity. For details,
please refer to “3.3.1 Record” at page 6.
Snapshot
Click to take a snapshot of the current view. The snapshot will be saved
in the path you specified in “Record Setting”.
Information Click to show the current network connection details.
PTZ Control
Click to enter the PTZ control panel. For details, please refer to “3.3.5
PTZ Control’ at page 11.
6
3.3 Frequently-used functions
3.3.1 Record
To record remotely, click “ ” or “ ” → “ ” to go to the “Record Setting” page.
In the “Record Setting” page, you can set the following items:
‧Record type
‧Pre- / post-event record
‧Record time setting
‧Record path
Note: The record function will be disabled when the reserved disk capacity in “Reserved(MB)” is larger than the
current disk capacity in “Free(MB)”.
When “Manual” is checked, click “ ” or “ ” on the main control panel to start the manual recording
immediately, and the recordings will be saved in the location specified in “Record Path”.
When “Motion” and / or “Alarm” are checked, the recording function will be enabled for any motion or alarm event,
and the recordings will be saved in the location specified in “Record Path”.
3.3.2 Playback
To play a recording, click “ ” or “ ”, and select the “Record” tab. A list of all the recordings will be shown by
defaults, and you can also sort out the logs you want to speed up the search time.
7
3.3.3 Firmware Upgrade
This function is used when users need to upgrade the network camera for function scalability.
Note: Before using this function, make sure you have the correct upgrade files provided by your installer or
distributor.

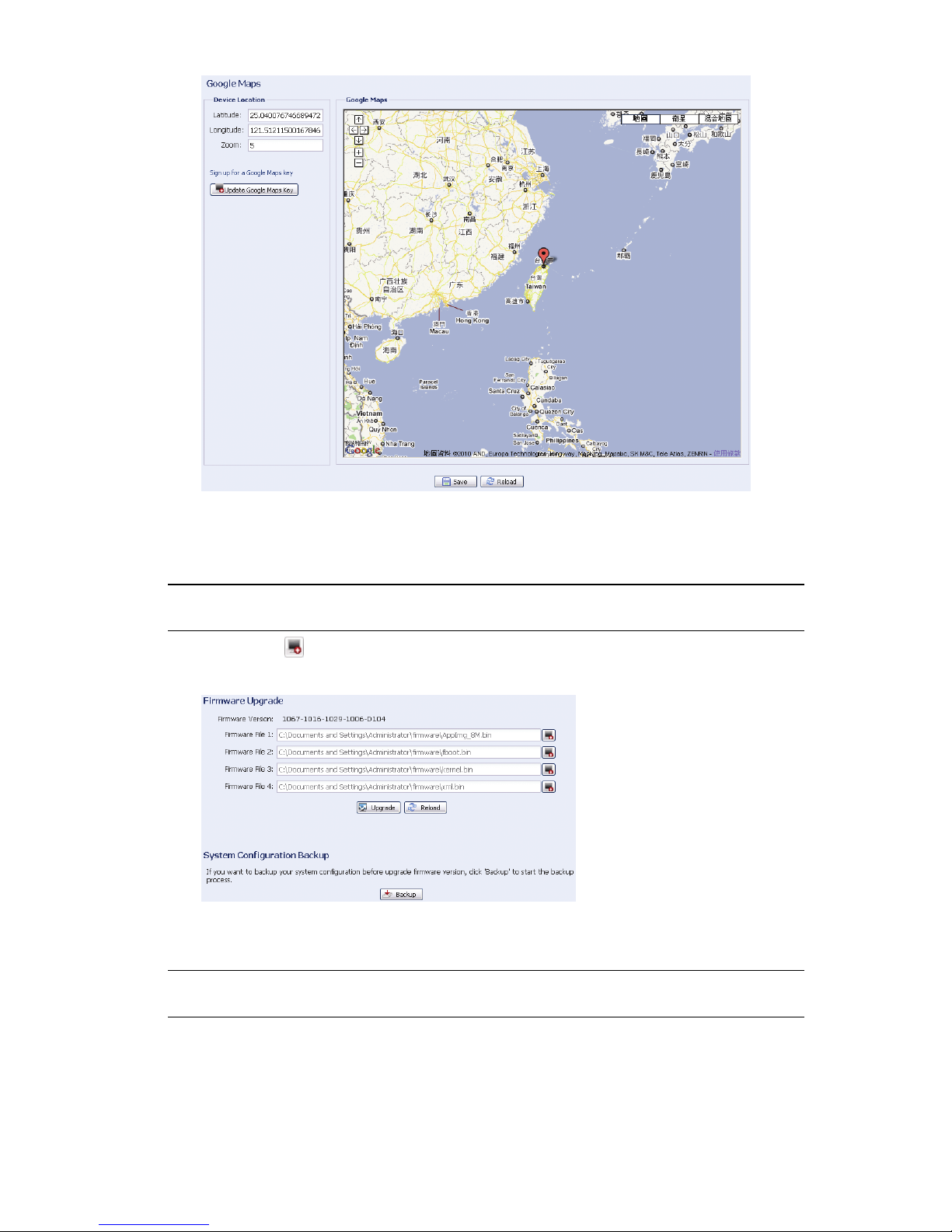

Step1: Click “ ”, and select the IP address of your network camera in the address book.
Step2: Click “ ” to show the upgrade page, “Update Server”.
Step3: Click “Add” to browse to the upgrade files.
Step3: Back up all your configurations if necessary.
Firmware upgrade might reset all configurations to default. To keep all your configurations, select “System
Backup” to back up all your configurations and a “system.bin” file will be generated.
Note: To restore all your configurations after system upgrade, upgrade “system.bin”.
Step4: Click “Upgrade Firmware” to start firmware upgrade.
Note: It takes a few minutes to finish the upgrade process. Do not disconnect the power during firmware upgrade, or
the upgrade may be failed. The camera will reboot after the upgrade.
Step5: Select the IP address of the camera and click “ ” again to check if the firmware is upgraded.
3.3.4 E-Map
Video Viewer is also a Central Management System (CMS) software, which allows network device control &
management for up to 16 devices simultaneously.
Note: Before using this function, make sure Video Viewer is connected to all the devices (up to 16) you want to
monitor.
8
E-Map is ONLY available when the control panel is switch to the full function version.
How to Add an E-Map Group
STEP1: In the simplified version, click “ ” to switch the control panel to the full function version, and click “ ”
to enter the E-Map page as follows.
Note: To know where the buttons are, please refer to “3.2.1 Simplified Version (Default)” at page 4, and “3.2.2 Full
Function Version” at page 5.

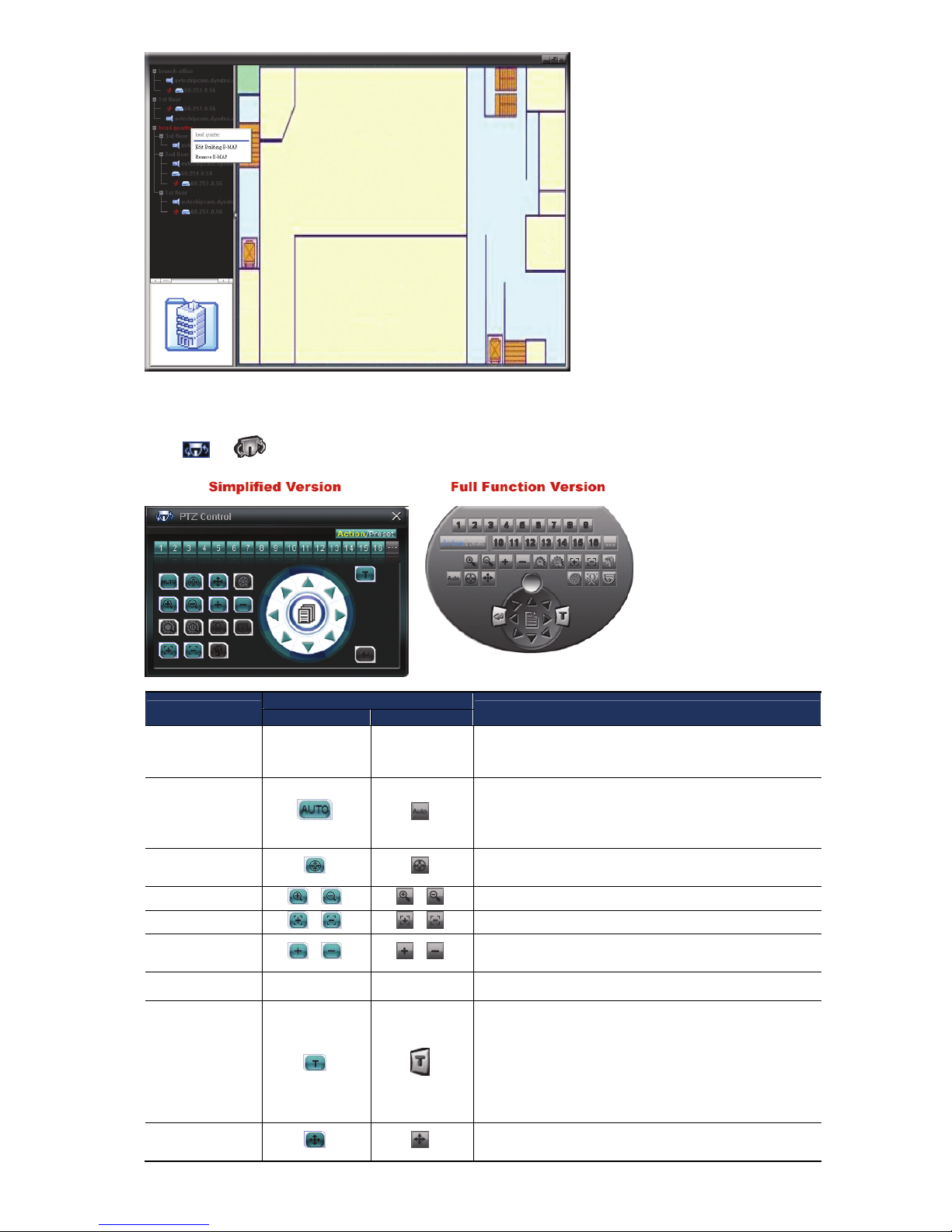

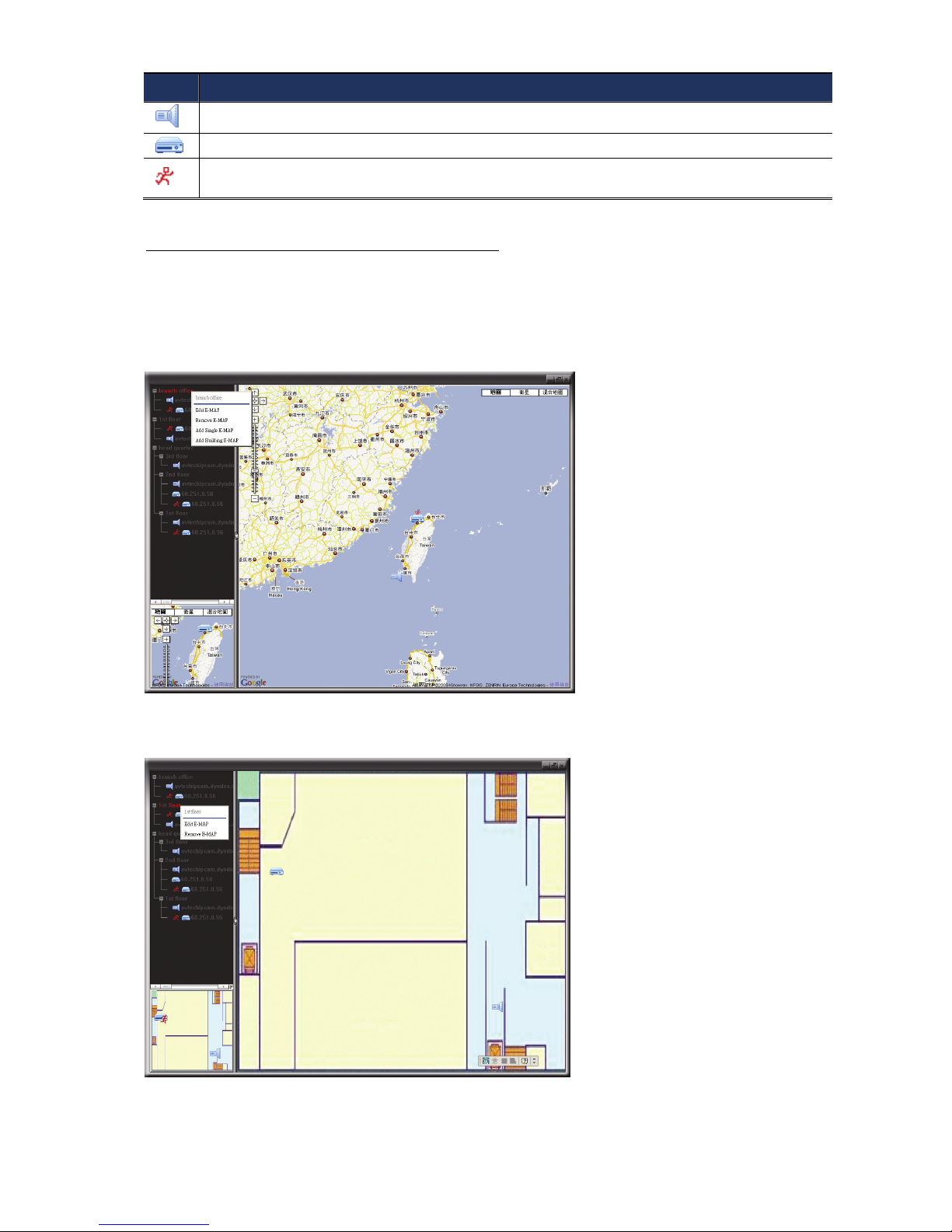

STEP2: Right-click to show the shortcut menu on the top-left panel, and select the E-Map group you want to add.
There are three E-Map groups you can add: Google E-MAP, Single E-MAP, and Building E-MAP.
9
STEP3: When the E-Map group is created, you will see the tree on the top-left panel, showing all the devices
you’ve added to this group.
Loading...
