Page 1
USER MANUAL
VGA EXTENDER
DC-53101
DC-53401
DC-53501/DC-53601/DC-53701
DC-59301 (Remote) DC-59302 (Remote)
Page 2
Package Contents for DC-53101
VGA Local Unit
VGA Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male )
Package Contents for DC-53401
VGA Local 1+1 Unit
VGA Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male )
Package Contents for DC-53501
VGA Local 1+2 Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male )
Package Contents for DC-53601
VGA Local 1+4 Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male )
Package Contents for DC-53701
VGA Local 1+8 Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male )
Package Contents for DC-59301/DC-59302
VGA Remote Unit
1 user manual
1 power adapter DC 12V/600mA
Any thing missed, please contact with your vendor.
Page 3
Features
Through the VGA Extender, you can use one PC to display identical image and extension of
VGA signal up to 180 meter or by usi ng DC-59302 up to 300 meter on monitors.
Equalization length is adjustable.
VGA signal gain is adjustable.
Specifications
DC-53101
Function Local Unit Remote Unit
VGA In/Out Connector HD-15 Female x 1
RJ-45 Connector 1
Max. Resolution 1280x1024 60Hz
Cable Distance 180 m (Max.)
Power Adapter (Min.) DC 12V 600mA
Housing Metal
Weight 135g 140g
Dimensions (LxWxH) mm 92x34x22
Function DC-53401 DC-53501 DC-53601 DC-53701
VGA In Connector HD-15 Female x 1
VGA Out Connector HD-15 Female x 1
RJ-45 Connector 1 2 4 8
Max. Resolution 1280x1024 60Hz
Cable Distance 180 m / 300 m (mit DC-59301 / DC-59302)
Power Adapter (Min.) DC 12V 600mA
Housing Metal Aluminum
Weight 290g 230g 247g 345g
Dimensions (LxWxH) mm 118x75x29 130x83.5x29.5 200x83.5x29.5
Page 4

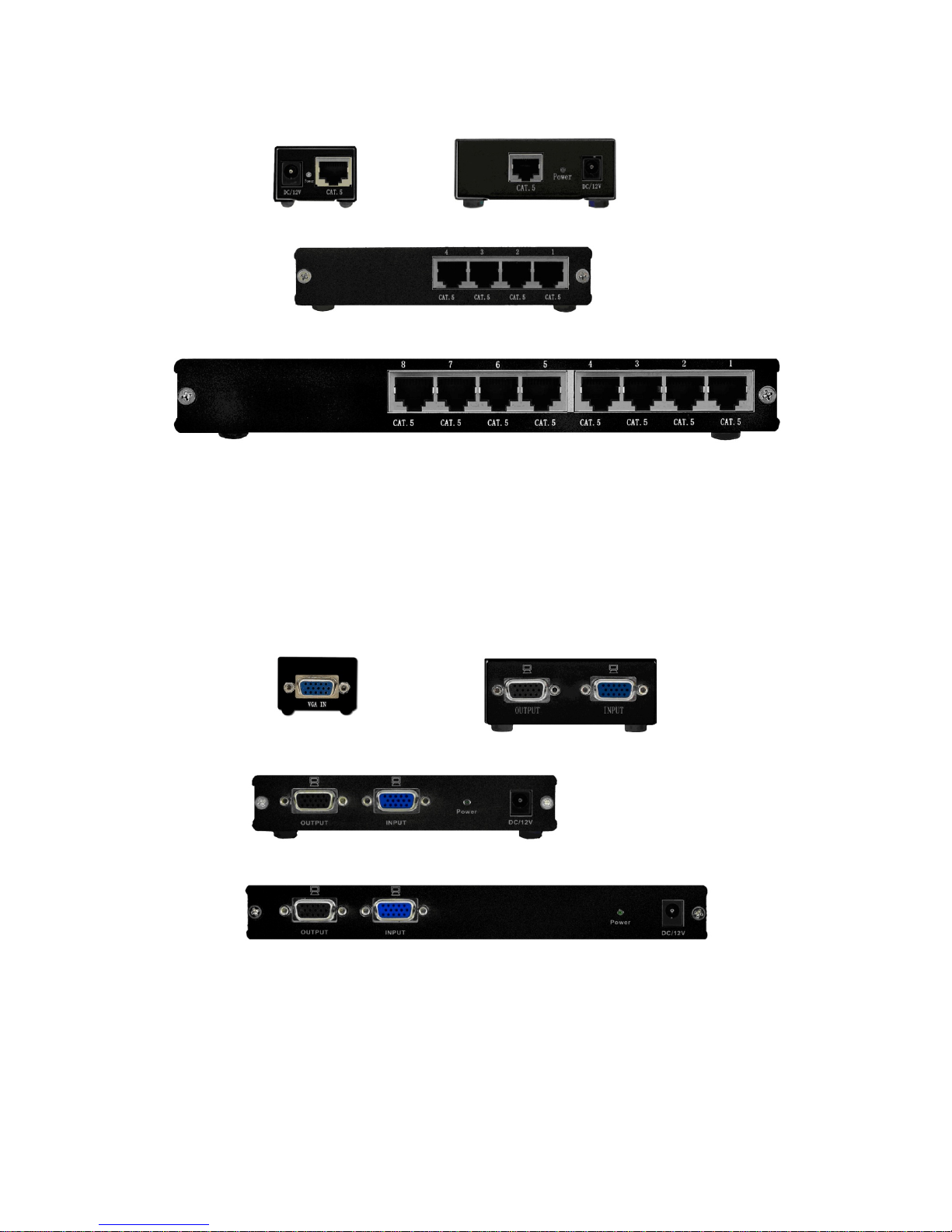

LOCAL FRONT VIEW
DC-53101 DC-53401
DC-53601
DC-53701
1. CAT. 5 (RJ-45 Connector)
2. Power LED
3. Power jack
LOCAL REAR VIEW
DC-53701 DC-53401
DC-53501 / DC-53601
DC-53701
1. VGA In (HD-15 Female Connector)
2. VGA Out (HD-15 Female Connector)
3. Power LED
4. Power jack
Page 5

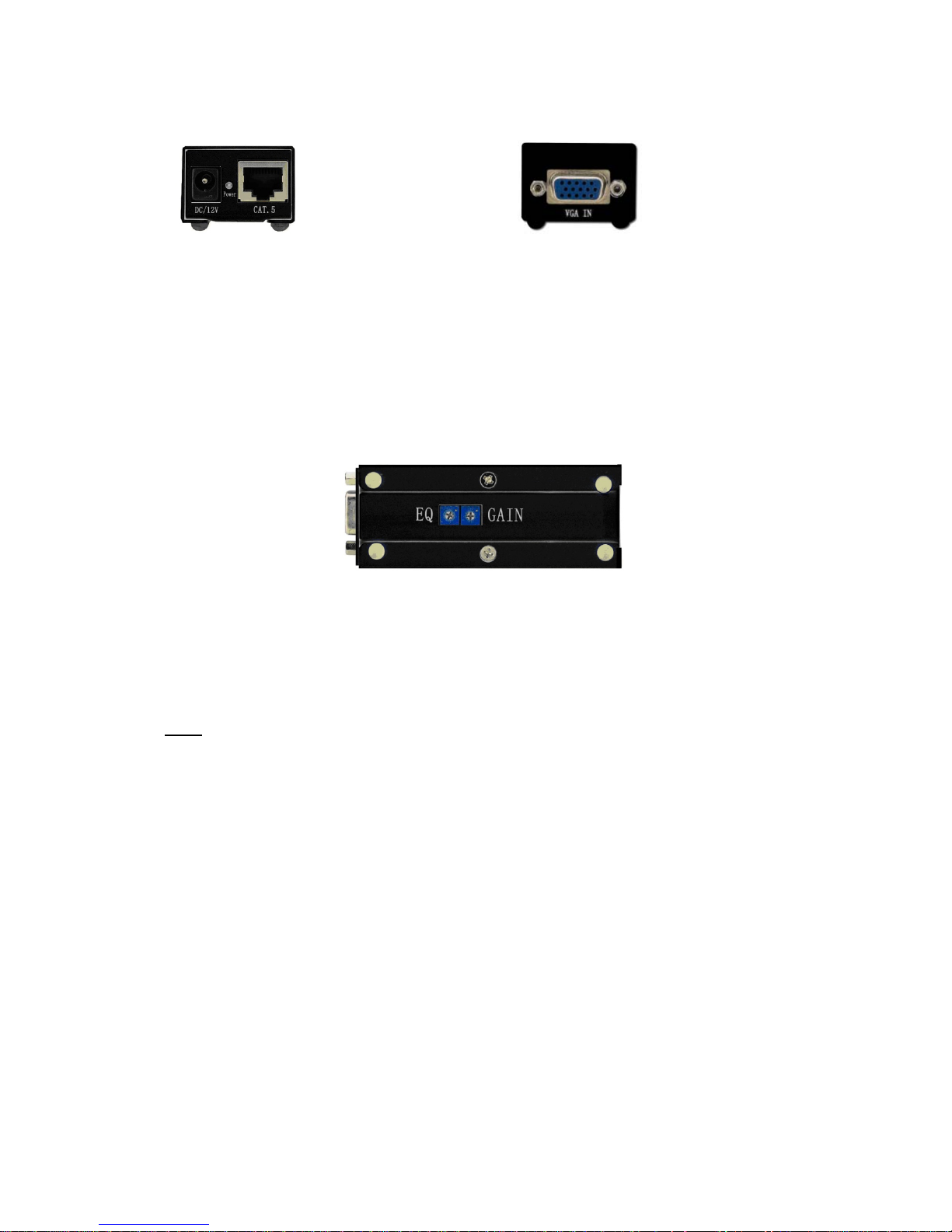

REMOTE FRONT VIEW REMOTE REAR VIEW
DC-59301/DC-59302
DC-59301/DC-59302
1. Power jack 1. VGA Out (HD-15 Female Connector)
2. Power LED
3. CAT.5 (RJ-45 Connector)
REMOTE BOTTOM VIEW
DC-59301/DC-59302
1. EQ – Equalization length adjust (Adjust it and weak characters be sharp)
2. GAIN – Adjust brightness
Note:
The DC-59301 is part of the article DC-53101 and DC-53401!
But for the articles DC-53501, DC-53601 and DC-53701 a remote control (DC-59301 / DC-59 302)
has to be bought separately.
Installation
1. Turn off the PC.
2. Connect VGA-Extender Local Unit HD-15 female input connector with HD-15 male to male
cable from PC.
3. Connect VGA-Extender Local Unit HD-15 female output connector with HD-15 male to male
cable from monitor.
4. Connect the VGA-Extender Local and Remote Unit with CAT.5 cable.
5. Connect VGA-Extender Remote Unit HD-15 female connector with HD-15 male to male cable
from monitor.
6. Connect the power cord each side.
7. Turn on the monitor and PC.
Page 6

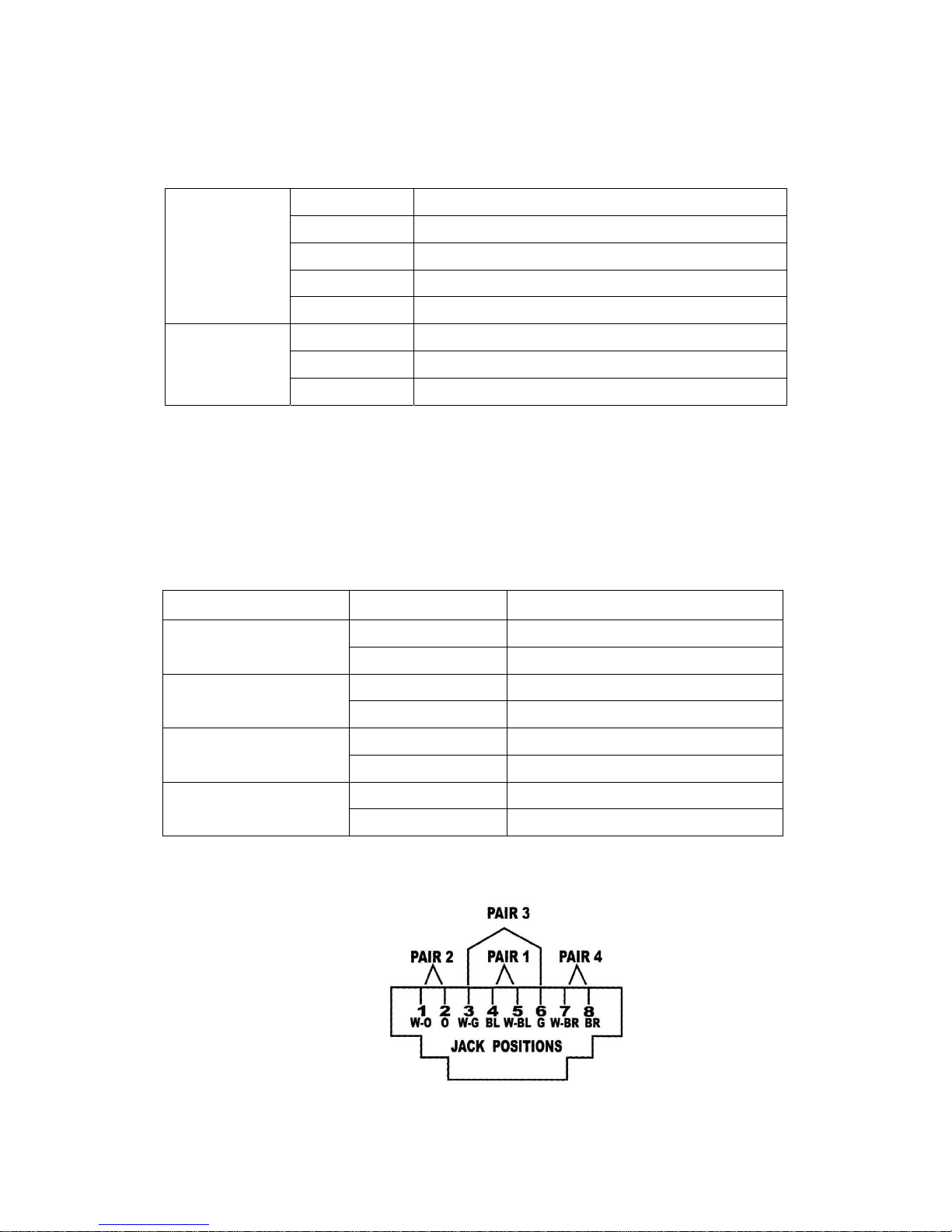

Distances and Resolutions for CAT.5/5E and CAT.6
cables
CAT 5/5e
50 m 2048 × 1536
100 m 1280 × 1024
180 m 1024 × 768
200 m 800 x 600
300 m 640 x 480
CAT 6
30 m 1920 × 1440
50 m 1280 × 1024
100 m 800 × 600
PS. We suggest to use CAT.5 cable because the performance is
better than others.
Wiring Information & Coding
Conductor Identification RJ45 Pin Assignment Color Code for Conductor
Pair 1
5 White-Blue
4 Blue
Pair 2
1 White-Orange
2 Orange
Pair 3
3 White-Green
6 Green
Pair 4
7 White-Brown
8 Brown
Page 7

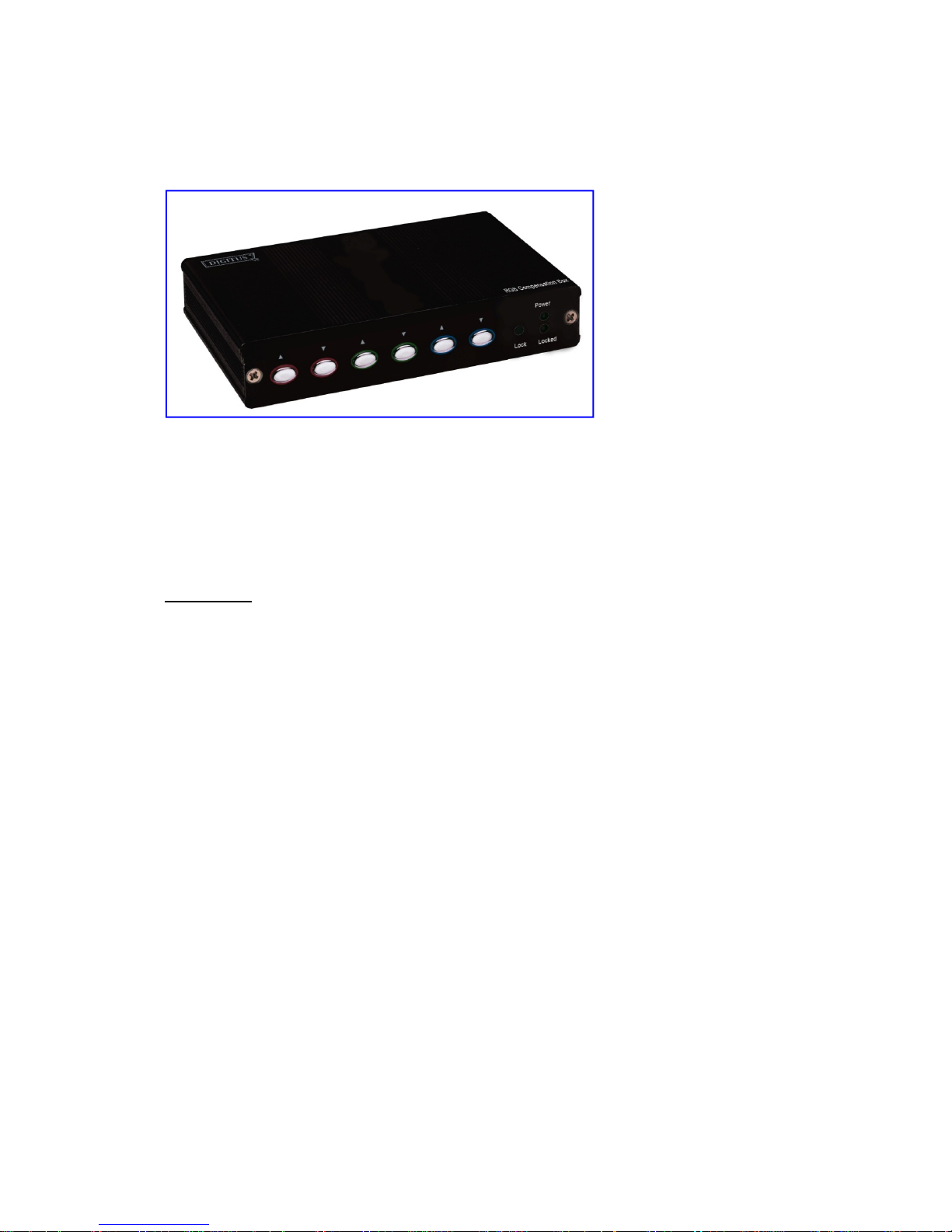

Additional Options for longer distances:
For transmitted RGB signals over Cat 5 cable with more than 150 meter the skew delay
becomessignificant and a correction is necessary. Below 150 meter the delay is negligible.
This unit DC-59100 allows a perfect skew delay correction of the video signals for a brilliant and
sharp picture.
© Assmann Electronic GmbH. All rights reserved.
Trademarks:
All the companies, brand names, and product names referred to this manual are the
trademarks or registered trademarks belonging to their respective companies.
