JMicron/JMS578 product brief
Revision 1.0.0
© JMicron 2016. All rights reserved.
Page 1
Copying prohibited.
Overview
JMS578
USB 3.1 Gen1 to SATA 6Gb/s
Bridge Controller
The JMS578 is a USB 3.1 Gen1 to SATA 6Gb/s bridge controller. It provides a low power and highperformance solution for external solid state drive (SSD), hard disk drive (HDD), and optical disc drive
(ODD).
The JMS578 supports higher data transmission rate and lower power consumption than its predecessors
ever, meanwhile, a two-layer printed circuit board (PCB) design for a cost-sensitive data storage
solution.
Moreover, the JMS578 can combine with JMicron’s SATA port multipliers to construct a data storage
device with multiple bays of HDDs to meet the requirement for large capacity data storage applications.
JMicron/JMS578 product brief
Revision 1.0.0
© JMicron 2016. All rights reserved.
Page 2
Copying prohibited.
Features
➢ Complies with Gen 2i/Gen 2m of Serial ATA II Electrical Specification 2.6
➢ Complies with Gen 3 of Serial ATA III Electrical Specification 3.2
➢ Complies with USB 3.0 Specification, USB Mass Storage Class, Bulk-Only Transport
Specification
➢ Complies with USB Attached SCSI Protocol (UASP) Specification
➢ Supports USB Super-Speed/High-Speed/Full-Speed Operation
➢ Supports USB 2.0 and USB 3.0 power saving modes
➢ Supports SHA-1/SHA-256 for IEEE-1667 digest calculation
➢ Supports external SPI NVRAM for Vendor VID/PID of USB 2.0/USB 3.0 device controller
➢ Supports ATA/ATAPI PACKET command set
➢ Supports ten GPIOs for customization
➢ Provides hardware controlled PWM
➢ Provides software utilities for downloading the upgraded firmware code under USB 2.0/USB 3.0
➢ Designed for Windows XP, Windows 7, Windows 8.1, Windows 10 and MAC 10.7.4 or later
versions
➢ Supports 30MHz external crystal
➢ Embedded 5V to 1.2V voltage regulator
➢ Embedded 5V to 3.3V voltage regulator (LDO)

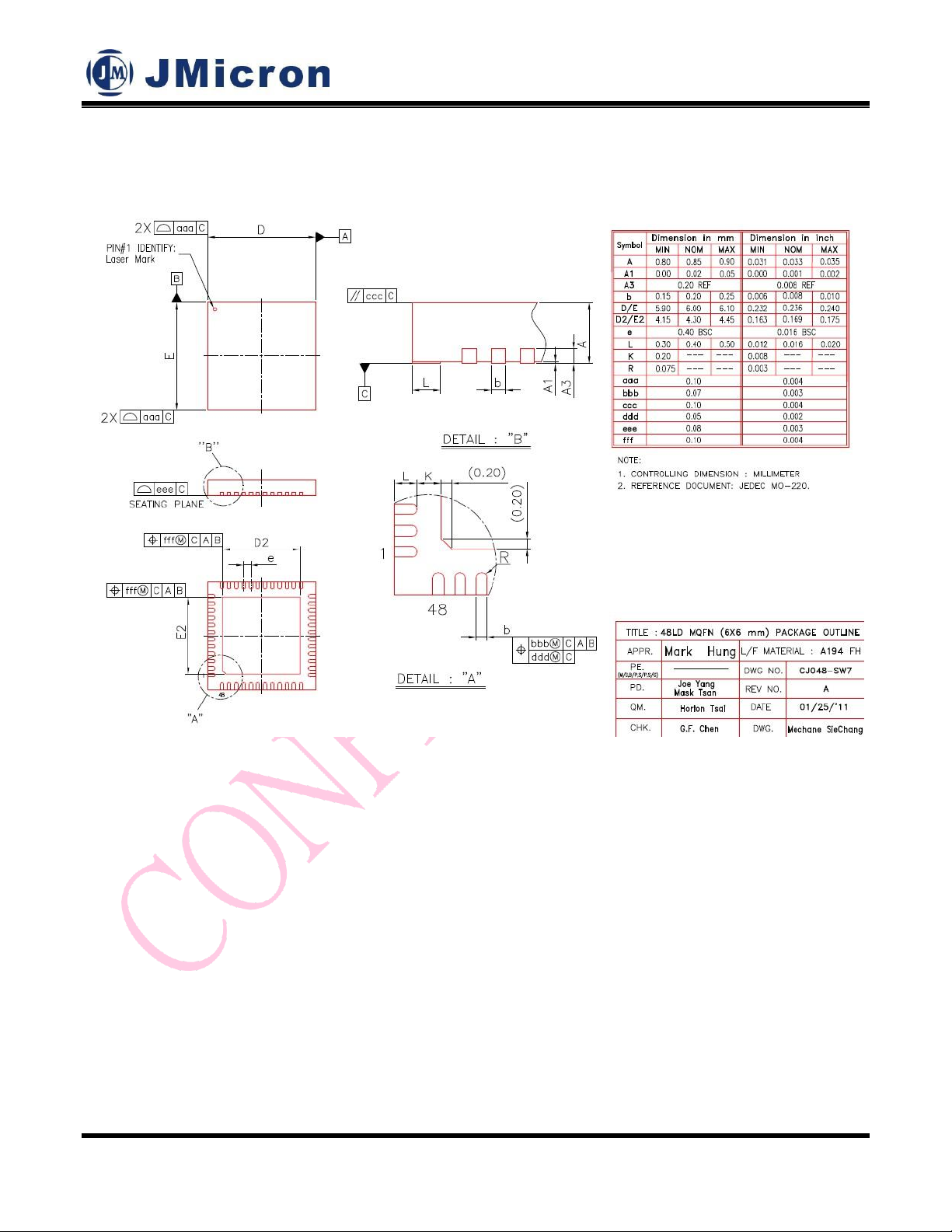

➢ QFN48 package (6x6)
