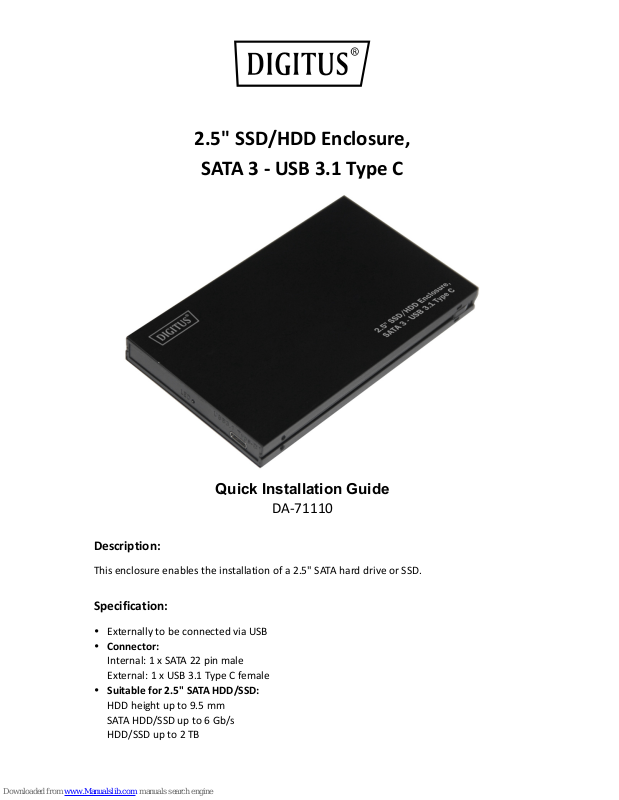

Digitus DA-71110 Quick Installation Manual

2.5" SSD/HDD Enclosure,
SATA 3 - USB 3.1 Type C

Quick Installation Guide

DA-71110

Description:

This enclosure enables the installation of a 2.5" SATA hard drive or SSD.

Specification:

 Externally to be connected via USB
 Connector:

Internal: 1 x SATA 22 pin male
External: 1 x USB 3.1 Type C female

 Suitable for 2.5" SATA HDD/SSD:

HDD height up to 9.5 mm
SATA HDD/SSD up to 6 Gb/s
HDD/SSD up to 2 TB

 Data transfer rate:

USB 3.1 up to 10 Gb/s
SATA up to 6 Gb/s
LED indicator for power and access

 Dimensions (LxWxH): ca. 126 x 78 x 13 mm
 Cable data:

1 x cable USB 3.1 Type C male to USB 3.0 Type-A male ca. 30 cm (incl. connector)

System requirements:

Windows Vista/7/8/8.1/10.
Linux Kernel 3.19; MAC OS X Yosemite-10.10.3
Google Chrome OS
PC or laptop with a free USB Type-A port

Package content:

 2.5" SSD/HDD Enclosure, SATA 3 - USB 3.1 Type C
 1 x cable USB 3.1 Type C male to USB 3.0 Type-A male ca. 30 cm (incl. connector)
 USB Type C male to USB A female adapter
 Screwdriver
 Screws
 User manual

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of
Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance. The complete declaration of
conformity can be requested by post under the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to prevent
interference.

www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
