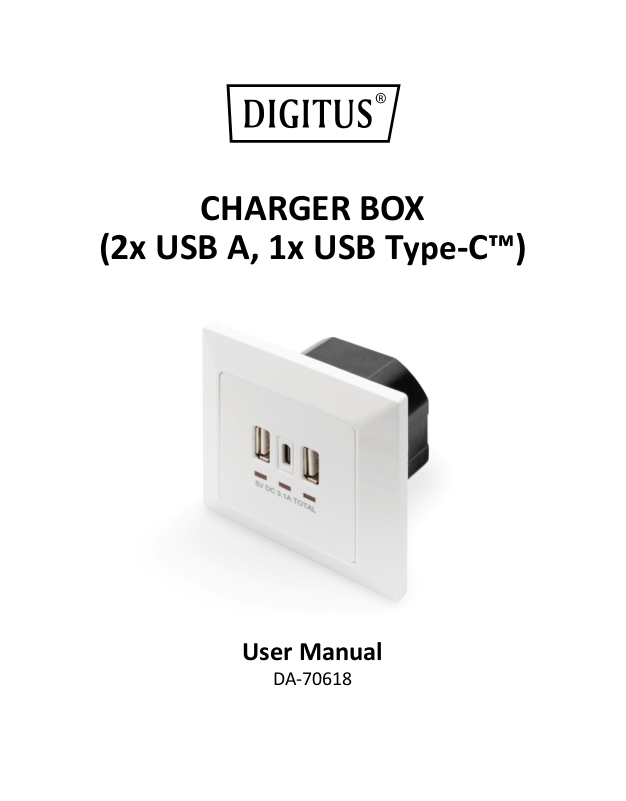

CHARGER BOX
(2x USB A, 1x USB Type-C™)
User Manual
DA-70618
Package Content
1x Main unit
1x User Manual
Connections
1. Turn power off before installation.
2. To connect the base as shown in Diagram A before installing
in into the mounting boxes, make sure there is no wire
exposed at the connection. Note the phases cannot be
ground trough to another safety wall outlet nearby. We
recommend installing the safety outlet at the end of the
row.(ATTENTION: the cross-sectional area of wire connect
power is at least 1.5mm^2 not exceed 2.5mm^2）
3. To fix the base by the screw or claw as Diagram B or
Diagram C, then put the frame onto the base.
2
3.1 FOR:
3
For indoor use only
SMPS (switch mode power supply unit)
SMPS incorporating a Short-circuit-proof safety
isolating transformer (inherently or non-inherently)
Symbol for class II
E
Protective earth
Protective earth
Important Notes
DO NOT OVERLOAD.
To install the product needed by a qualified electrician.
The symbol in manual
4
Warning
For your safety, please read the following cautions before installing or
using your device.
• Do not open the device or attempt to repair it.
• Use the device in a dry location, and avoid placing it in a humid
environment.
• Do not submerge the device in liquid or attempt to clean it with
liquids or solvents. To clean the device, disconnect it from the
power outlet and use a damp towel.
• This device should only be used indoors.
• USB Charger Adaptor for IT-equipment: do not exceed the total
max output from both USB outputs.
• Only use the device within the specified temperature range for:
0 ~ 40°C
• Do not let the indoor devices come into contact with liquids.
• During thunderstorms, there is a danger of lightning strike and
due to overvoltage damage to connected electrical appliances.
• Do not install the product during a thunderstorm.
• Disconnect the product from power source during a
thunderstorm.
• Keep the devices outside the reach of children, since these
components can be dangerous.
• Never try to repair the device by yourself. Repair and
maintenance work must be carried out by specialists.
• In case of problems contact our customer service.
• Dust, humidity and vapours as well as sharp cleaning agents or
solvents can damage the product.
5
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part
of the shipping content. If the Declaration of Conformity is missing, you can request it
by post under the below mentioned manufacturer address.
