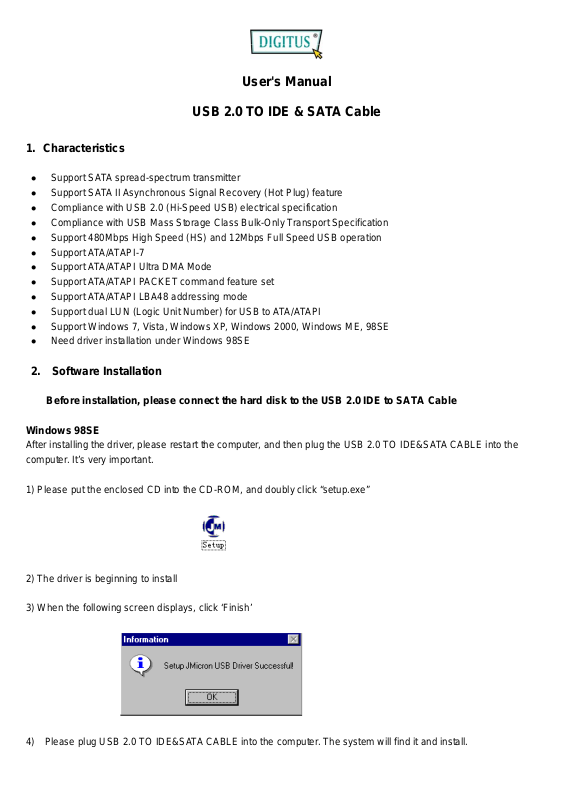

User's Manual

USB 2.0 TO IDE & SATA Cable

1. Characteristics

 Support SATA spread-spectrum transmitter
 Support SATA II Asynchronous Signal Recovery (Hot Plug) feature
 Compliance with USB 2.0 (Hi-Speed USB) electrical specification
 Compliance with USB Mass Storage Class Bulk-Only Transport Specification
 Support 480Mbps High Speed (HS) and 12Mbps Full Speed USB operation
 Support A T A/A TAPI-7
 Support ATA/ATAPI Ultra DMA Mode
 Support ATA/ATAPI PACKET command feature set
 Support ATA/ATAPI LBA48 addressing mode
 Support dual LUN (Logic Unit Number) for USB to ATA/ATAPI
 Support Windows 7, Vista, Windows XP, Windows 2000, Windows ME, 98SE
 Need driver installation under Windows 98SE

2. Software Installation

Before installation, please connect the hard disk to the USB 2.0 IDE to SATA Cable

Windows 98SE

After installing the driver, please restart the computer, and then plug the USB 2.0 TO IDE&SATA CABLE into the
computer. It’s very important.

1) Please put the enclosed CD into the CD-ROM, and doubly click “setup.exe”

2) The driver is beginning to install

3) When the following screen displays, click ‘Finish’

4) Please plug USB 2.0 TO IDE&SATA CABLE into the computer. The system will find it and install.

Windows ME/2000/XP/Vista/7

No need driver installation in those OS platform.

3. Verification

Please track the path "My computer” and "My computer” -- > “System Properties” -- > “Device Manager" and expand
the item "Hard disk controllers”, you should meet the following screen.
