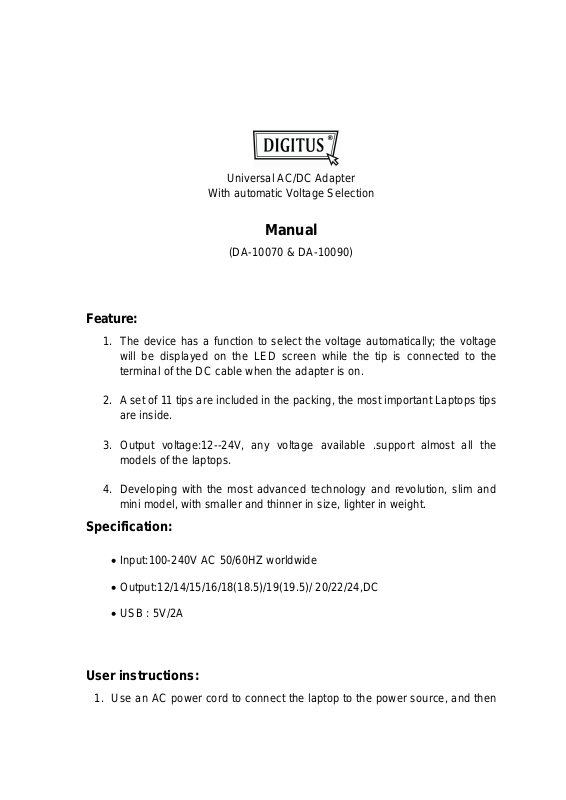

Digitus DA-10070, DA-10090 User manual

Universal AC/DC Adapter

With automatic Voltage Selection

Manual

(DA-10070 & DA-10090)

Feature:

1. The device has a function to select the voltage automatically; the voltage
will be displayed on the LED screen while the tip is connected to the
terminal of the DC cable when the adapter is on.

2. A set of 11 tips are included in the packing, the most important Laptops tips
are inside.

3. Output voltage:12--24V, any voltage available .support almost all the
models of the laptops.

4. Developing with the most advanced technology and revolution, slim and
mini model, with smaller and thinner in size, lighter in weight.

Specification:

· Input:100-240V AC 50/60HZ worldwide

· Output:12/14/15/16/18(18.5)/19(19.5)/ 20/22/24,DC

· USB : 5V/2A

User instructions:

1. Use an AC power cord to connect the laptop to the power source, and then

the LED light will be blinking, indicating the voltage of the laptop.

2. Select the correct tip and connect it to the terminal of the DC cable, the
voltage will be displaying on the LED screen, please make sure if it is
correspondent voltage with the laptop under using.

3. Finally, please connect to the laptop.

Warning:

1. Be award not to expose the unit in rain or moisture environment.

2. Do not try to open or disassemble the unit.

3. Keep away from children

Environment friendly disposal

Please remember to respect the local regulations: hand in the non-working
electrical equipments to an appropriate waste disposal center. The packaging
material is recyclable. Dispose of the packaging in an environmentally friendly
manner and make it available for the recyclable material collection-service.
