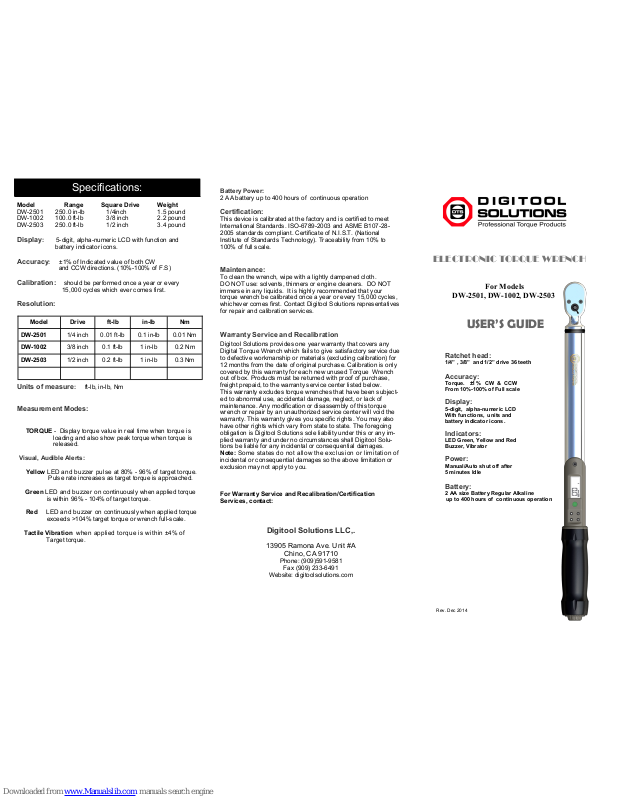

Digitool Solutions DW-2501, DW-1002, DW-2503 User Manual

Model Range Square Drive Weight

DW-2501 250.0 in-lb 1/4inch 1.5 pound
DW-1002 100.0 ft-lb 3/8 inch 2.2 pound
DW-2503 250.0 ft-lb 1/2 inch 3.4 pound

Display: 5-digit, alpha-numeric LCD with function and

battery indicator icons.

Accuracy: ±1% of Indicated value of both CW

and CCW directions. (10%-100% of F.S)

Calibration: should be performed once a year or every

15,000 cycles which ever comes first.

Resolution:

Units of measure: ft-lb, in-lb, Nm

Measurement Modes:

TORQUE - Display torque value in real time when torque is
loading and also show peak torque when torque is
released.

Visual, Audible Alerts:

Yellow LED and buzzer pu lse at 80% - 96% of target torque.
Pulse rate increases as target torque is approached.

Green LED and buzzer on continuously when applied torque
is within 96% - 104% of target torque.

Red LED and b uzzer on continuously when applied torque

exceeds >104% target torque or wrench full-scale.

Tactile Vibration when appl ied tor qu e is w it hin ±4% of
Target torque.

Battery Power:

2 AA battery up to 400 hours of continuous operation

Certification:

This device is calibrated at the factory and is certified to meet
International Standards. ISO-6789-2003 and ASME B107-28­2005 standards compliant. Certificate of N.I.S.T. (National
Institute of Standards Technology). Traceability from 10% to
100% of full scale.

Maintenance:

To clean the wrench, wipe with a lightly dampened cloth.
DO NOT use: solvents, thinners or engine cleaners. DO NOT
immerse in any liquids. It is highly recommended that your
torque wrench be calibrated once a year or every 15,000 cycles,

whichever comes first. Contact Digitool Solutions representatives

for repair and calibration services.

Warranty Service and Recalibration

Digitool Solutions provides one year warranty that covers any
Digital Torque Wrench which fails to give satisfactory service due
to defective workmanship or materials (excluding calibration) for
12 months from the date of original purchase. Calibration is only
covered by this warranty for each new unused Torque Wrench
out of box. Products must be returned with proof of purchase,
freight prepaid, to the warranty service center listed below.
This warranty excludes torque wrenches that have been subject­ed to abnormal use, accidental damage, neglect, or lack of
maintenance. Any modification or disassembly of this torque

wrench or repair by an unauthorized service center will void the

warranty. This warranty gives you specific rights. You may also
have other rights which vary from state to state. The foregoing
obligation is Digitool Solutions sole liability under this or any im­plied warranty and under no circumstances shall Digitool Solu­tions be liable for any incidental or consequential damages.
Note: Some s tates do no t all ow the ex cl usion or lim it atio n o f
incidental or consequential damages so the above limitation or
exclusion may not apply to you.

For Warranty Service and Recalibration/Certification
Services, contact:

Digitool Solutions LLC,.

13905 Ramona Ave. Unit #A

Chino, CA 91710

Phone: [phone]

Fax [phone]

Website: digitoolsolutions.com

Ratchet head:

1/4” , 3/8” and 1/2” drive 36 teeth

Accuracy:

Torque. ±1% CW & CCW
From 10%-100% of Full scale

Display:

5-digit, alpha-numeric LCD

With functions, units and
battery indicator icons.

Indicators:

LED Green, Yellow and Red
Buzzer, Vibrator

Power:

Manual/Auto shut off after
5 minutes Idle

Battery:

2 AA size Battery Regular Alkaline

up to 400 hours of continuous operation

Model Drive ft-lb in-lb Nm

DW-2501 1/4 inch 0.01 ft-lb 0.1 in-lb 0.01 Nm

DW-1002 3/8 inch 0.1 ft-lb 1 in-lb 0.2 Nm

DW-2503 1/2 inch 0.2 ft-lb 1 in-lb 0.3 Nm

Specifications:

ELECTRONIC TORQUE WRENCH

For Models

DW-2501, DW-1002, DW-2503

USER’S GUIDE

Rev. Dec 2014

Keypad Functions:

Power ON - M key
U - Unit Selection - ft-lb, in-lb or Nm

- Zero Tare Torque (Press and hold key 3 seconds)

M - Mode - Manual power off, (Press and hold key 3 seconds)

▲ - Increase TARGET TORQUE value

(Press and Hold Key for rapid scrolling Up )
▼ - Decrease TARGET TORQUE value
(Press and Hold Key for rapid scrolling Down)

Automatic Power OFF after 5 minutes of idle time.

Note: For resolutions and decimal point, see table on back.

1. Setup:

a. Turn on the torque wrench by pushing the M key.

b. In TORQUE mode
Press the U key to view the units of measure.
Repeatedly push the U key to display the desired units
of measure, ft-lb, in-lb or Nm.

c. Manual Power off: Hold the M key for more than 5 sec

d. Push the ▲ or ▼ key to view the TARGET TORQUE
value. Use these same keys to increase or decrease to
the desired value.
During loading, the torque wrench will display applied
torque in real time. The yellow LED and the buzzer will

begin to pulse at 80% of TARGET TORQUE, and getting

faster as the TARGET TORQUE value is approached.

2. Application:

a. With the power on, insert the torque wrench driver into

the socket.

b. Apply torque load to the fasterner in either CW or CCW

directions. During loading, the torque wrench will display
applied torque in real time.

c. When the applied torque is within 4% of the TARGET

TORQUE value, the green LED, buzzer and vibrator
(optional) will output continuously. Stop applying torque,
as the installation is complete.

Release Indications:

Should the applied torque exceed the TARGET

TORQUE value by more than 4%, the red LED and
buzzer will alert continuously. If the torque applied is
exceeded 125% of torque range, the display will
indicate “OVER TORQUE.”

Temperature Drift: ± 0.0015%/F
Storage Temperature 0ºF to 125ºF
Operating Temperature 40ºF to 110ºF
Humidity - up to 90% non-condensing

Re-Order Components :

 DW Torque wrench P/N DW-XXXX

 User ‘s Guide P/N DTS-UG– DWA

Warning - Risk of flying particles.

 Read this entire User’s Guide before using

this torque wrench

 Always follow good professional tool practices.

Wear Safety goggles.

 Insure that all equipment is in good working

order and that ratings of the torque wrench,
tools and drives exceed the torque being
applied.

 Never use the torque wrench with the power

off.

 Never initiate ZeroTare with torque applied.

 Do not use the wrench as a breaker bar to

loose nuts, bolts or fasteners

 Save these instructions.

The “DW” series of electronic torque wrenches establishes a

new standard in threaded faster installation tools. It features the

latest state-of-the-art sensing and micro-controller technology in a
robust tool designed for the professional mechanic.

The DW series feature +/-1% accuracy of torque reading between
10% and 100% of full scale in both CW and CCW directions
which exceeds the ASME B107.28 Standard. The wrench is
usable down to 5% of full scale at +/-3% of reading precision. Its
integral 36-tooth ratchet drive provides strength as well as versa­tility in use. Three wrench sizes are available, providing 1/4in,
3/8in and 1/2in square drive ratchet heads, covering 20 in-lb to
250 ft-lb torque capacity.

The wrench is powered by two easily replaceable AA Alkaline
cells. This battery provides up to 400 hours of continuous opera-

tion. This electronic torque wrench is intended for use in industri-

al, aerospace, automotive repair, reliability labs and quality assur­ance environments.

One modes are featured:

 TORQUE - Display torque value in real time when torque is

loading and also show peak torque when torque is released.

.

Important Safety Instructions

Introduction

Operator Instructions Front Panel Display and Keypad
