Digitogo SP-DDL102A, SP-DDL104A User Manual

© Digitogo, Inc. (D2G) www.digitogo.com

User Manual

DVI Dual Link Splitter Series

SP-DDL102A

DVI Dual Link 1 x 2 Splitter with Audio

SP-DDL104A

DVI Dual Link 1 x 4 Splitter with Audio

Introduction

D2G proudly introduces the DVI Dual Link Splitter series. DVI Dual Link Splitters with
Audio can broadcast one DVI source and Stereo audio to multiple DVI display devices at
the same time. Single Link or Dual Link mode can be selected according to the needs of
the applications. DVI Dual Link Splitters support high resolution up to 2560 x 1600 at
Dual Link Mode. It is perfect for high resolution public exhibition, video conference, and
multimedia presentations, etc. Crystal clear image quality is maintained throughout,
even when DVI signal is splitting to multiple monitors.

Features

♦ Single Link or Dual Link compliant.
♦ Supports all PC mode resolutions up to 1920 x 1200 @ 60Hz at DVI Single Link mode,

and up to 2560 x 1600 @ 60Hz at DVI Dual Link mode.

♦ Passive port #1 – splitter will function properly without needing extra power supply.
♦ Plug and Play - no driver or software installation needed.
♦ Built-in EDID function - detects the supporting resolutions of the monitor connected

to Port #1 and transmits the signal to other ports accordingly.

♦ Connects up to 2 / 4 DVI displays with stereo audio and displays simultaneously.
♦ Full HDCP compliant.
♦ Equipped with Stereo Audio for quality audio performance.
♦ Locking DC 5V Power Jack.

1

Panel Description

SP-DDL102A / SP-DDL104A
Front (sample SP-DDL104A)

Rear

2

Installation & Operation

Before installing the device:

1. Please read the User Manual before installation.

2. Use high performance DVI & Audio cables.

3. Please turn off power for all the sources and display devices.

Installing SP-DDL102A / SP-DDL104A:

1. Connect DVI & Audio cable to your DVI source and DVI Splitter Input.

2. Connect DVI & Audio cables to your DVI Outputs and Displays.

3. After connecting all the cables, please plug in the power supply.
LED light will turn ON to indicate power status.

4. Please turn on the DVI source and display devices. The Built-In EDID function will
detect the supporting resolution of the display connected to Port #1 as priority.

3

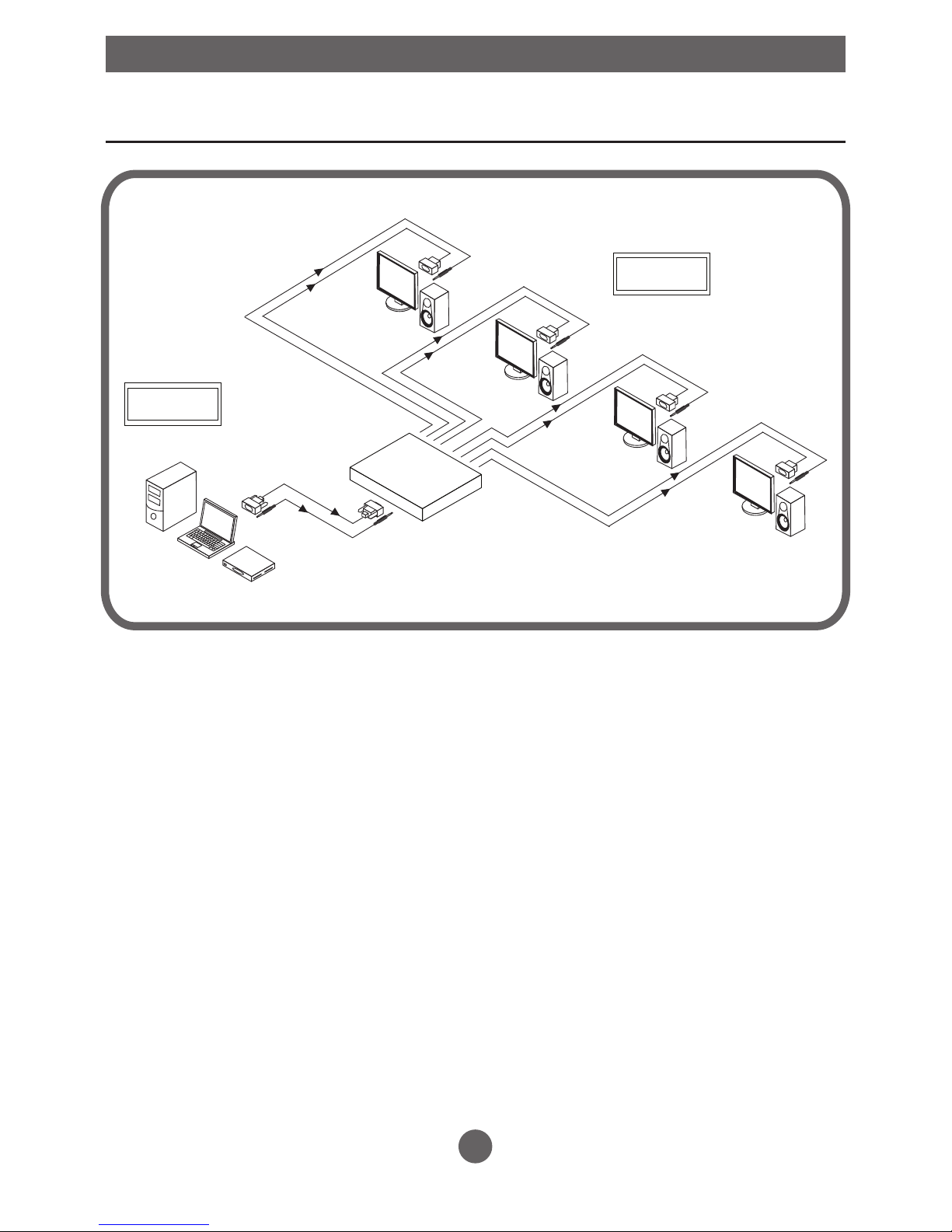

Diagram

4

DVD

PC

Laptop

SP-VS104A

Source

DVI

DVI

DVI

DVI

DVI

audio

audio

audio

audio

audio

Display

Specication

5

Model/Order #

SP-DDL102A SP-DDL104A

Model Name

DVI Dual Link

1 x 2 Splitter with Audio

DVI Dual Link

1 x 4 Splitter with Audio

Video

DVI x 1

Audio

3.5mm Phone Jack x 1

Input

USB power

USB x 1 (Spare Power)

Output

DVI x 2

+ 3.5mm Phone Jack x 2

DVI x 4

+ 3.5mm Phone Jack x 4

Max. DVI Cable Length

3m

Support Resolution

Single Mode: up to 1920 x 1200 resolution @ 60Hz

Dual Mode: up to 2560 x 1600 resolution @ 60Hz

Bandwidth

165MHz (Single-Link Mode)

159MHz x 2 (Dual-Link Mode)

Support Audio

PC Stereo Audio

Power Supply

DC 5V / 2A

Material

Metal

Dimensions (mm)

440 x 153 x 44 440 x 153 x 44

Operating

Temperature

0° C ~48° C

Remarks

● Please read the operation manual carefully before operating the devices.

● High quality cable to ensure optimal performance.

● Any unauthorized changes or modifications to the devices without approval from the

manufacturer could void the warranty of the device.

● Please ensure the DC power of the source and display are on the same phase and
correct grounding to prevent the potential power damage.

● Please use the included power supply only. Usage of different power supply may
cause impair performance, damage the devices or fire.

● Avoid sudden change in humidity or temperature.

● Please do not open or make any change on the devices.

Attempting to do so could cause electrical shock or other hazards, and warranty will
be voided.

Warranty

Digitogo warrants that product has limited warranty for 2 years from the date of receipt.
Items that are physically damaged, misused, or altered are void of warranty. In the even
if product fails because of defects, Digitogo will replace or repair provided that the
equipment has been proven malfunction not subject to damage in transit, damage
caused by natural catastrophes or environmental conditions. Product with missing or
defaced labeling will also be excluded from warranty coverage.

Replacement Condition:Product failure under conditions other than specified above
will be replaced 90 days from the day of receipt.
Repair Condition:Product failure after 90 days of receipt and up to 1 year will be
repaired at no charge. Product received over 1 year but less than two years will be
charged for parts only.

In case of cost associated with repair, Digitogo will inform charges prior to proceeding.
Functional test will be done before returning repaired product.
Proof of sale will be required in order to process warranty claim. Customers will be
responsible for shipping charges to and from Digitogo for returned product.

In no events shall Digitogo be liable for direct or indirect, special, incidental, or
consequential damages for personal injury, loss of business profit, loss of business
information arising out of the use of or inability to use of this product.

Digitogo reserves the right to revise or update product information without obligation
to notify users of such revision or updates.

6
