DigitalZone HDMI 208L, HDMI 204L User Manual [en, ko, ja, zh]

Download

Page 1

Page 2

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug, A

polarized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety, If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus. When

a cart is used. Use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when

unused for long periods of time

14. Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

Page 3

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

ClassⅠ construction

An apparatus with CLASSⅠ construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Page 4

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so

Apparatus shall not be exposed to dripping or splashing and no objects filled

with liquids, such as vases, shall not be placed on the apparatus.

※ DigitalZone will not be responsible

for any problems caused by using

any other adopter we don't provide.

Where the MAIN plug or an appliance coupler is used as the disconnect device,

The disconnect device shall remain readily operable.

Page 5

User’s Manual

FCC Information (for U.S.A)

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment under FCC rules.

NOTE ON RECYCLING (for EUROPE)

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with the local recycling regulations. When discarding the unit, comply with local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations concerning chemical waste.

This product and the accessories packed together constitute the applicable product according to the WEEE directive except batteries

Page 6

NEXD HDMI Splitter

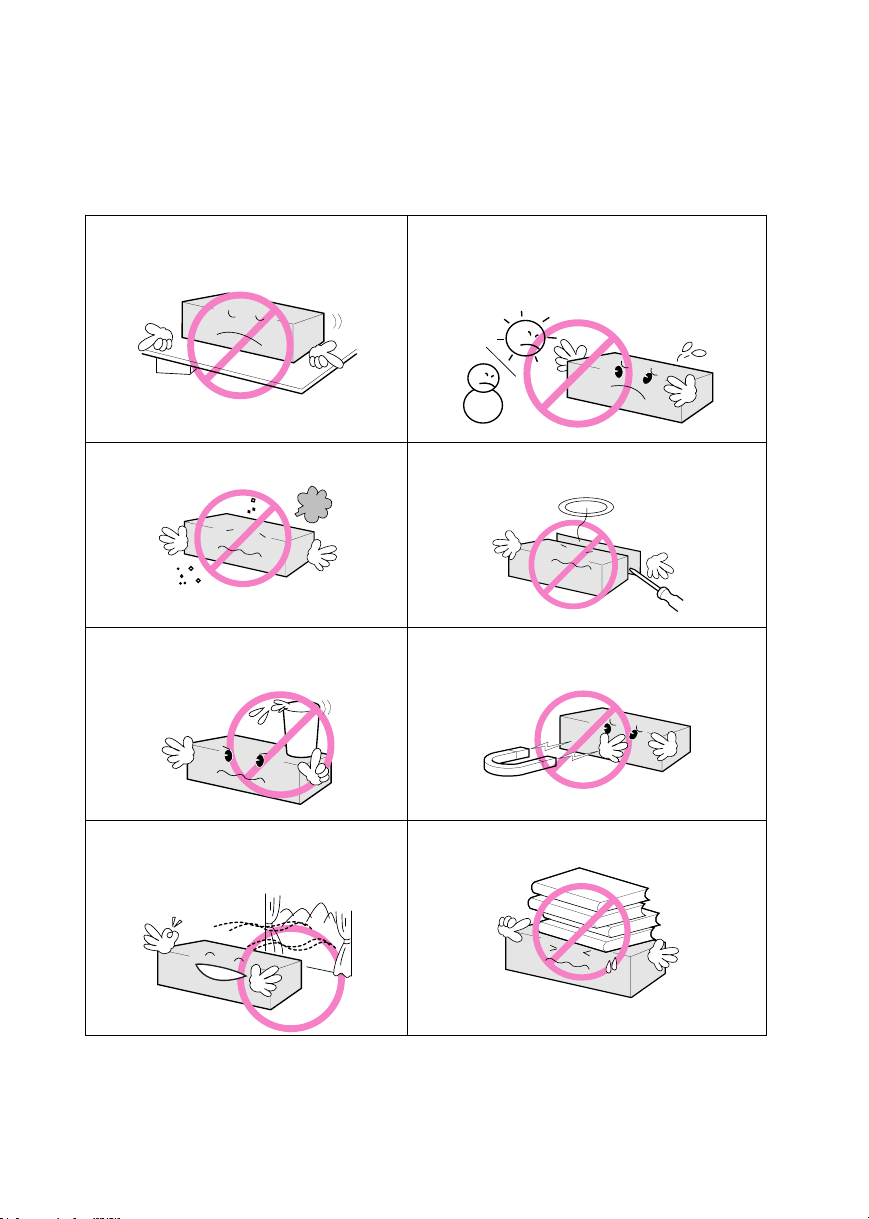

안전을 위한 주의사항

신체적 위험이나 재산상의 피해를 막기 위한 내용으로 반드시 지켜주시기 바랍니다.

평평한 곳에 설치해주세요.

햇빛이 직접 비치거나 추운 곳에서 사용하지 마세요.

먼지나 물 등이 들어가지 않도록 하세요.

분해하거나 수리, 개조하지 마세요.

제품 위에 물컵 등을 얹어 놓지 마세요.

진동이 심한 곳이나 자석류가 있는 곳에서 멀리 놓아주세요.

통풍이 잘 되는 곳에 놓아주세요.

제품 위에 물건을 올려 놓지 마세요.

- 제품의 사양은 기능 향상을 위하여 예고 없이 변경될 수 있습니다.

- 디지털존 로고와 NEXD 는 ㈜디지털존의 등록상표입니다.

- 기타 명칭이나 상표는 각 소유자의 등록상표입니다.

- 이 기기는 업무용(A 급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는

이 점을 주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.

- A/S 접수: 02-6330-2343

Page 7

User’s Manual

Contents

안전을 위한 주의사항 ····························································································· 6 목차·························································································································· 7 각 부분의 이름 ········································································································ 8 제품 구성물 ············································································································· 9 리모컨 버튼의 이름과 기능 ·················································································· 10 리모컨 건전지 삽입하기 ······················································································· 10 연결하기 ················································································································ 11 NEXD HDMI Splitter 사용법 ·················································································· 12 문제해결하기 ········································································································· 12

CEC, USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤) ····································· 13 EDID Emulation Mode 선택 방법 ········································································· 13

1. Dynamic mode ······························································································ 13

2. Static mode ·································································································· 14

고장신고 전 확인 사항 ························································································· 15 제품 규격 ··············································································································· 16

Important Safety Instruction ················································································· 18 Control & Connection options ················································································ 19 Packages and accessories ·················································································· 20 Remote control Unit ····························································································· 21 Insert battery ·········································································································· 21 Connection ············································································································· 22 How to use NEXD HDMI Splitter ············································································ 23 Troubleshooting for no power ················································································ 23 CEC, USB (Fi r mw a re upgrade) & RS-232 (Remote Control) ····························· 23 How to use EDID Emulation Mode ········································································ 24

Dynamic mode ··································································································· 24

Static mode ········································································································ 24 Troubleshooting Guide for Splitters ······································································· 25 Specification ·········································································································· 26 Troubleshooting for no power ················································································ 26

Chinese ················································································································ 27 Japanese ············································································································· 34

Page 8

NEXD HDMI Splitter

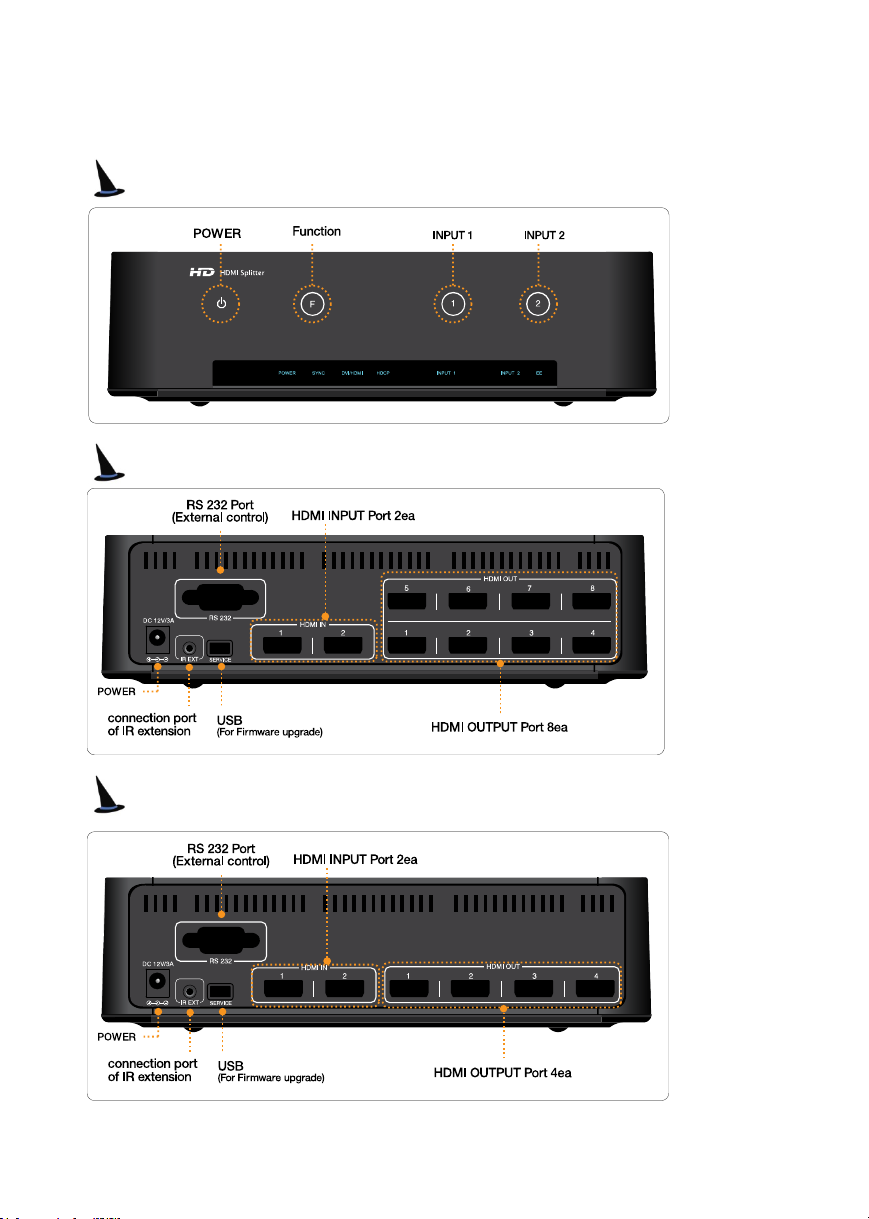

각 부분의 이름

앞면

뒷면 (208L)

뒷면 (204L)

Page 9

User’s Manual

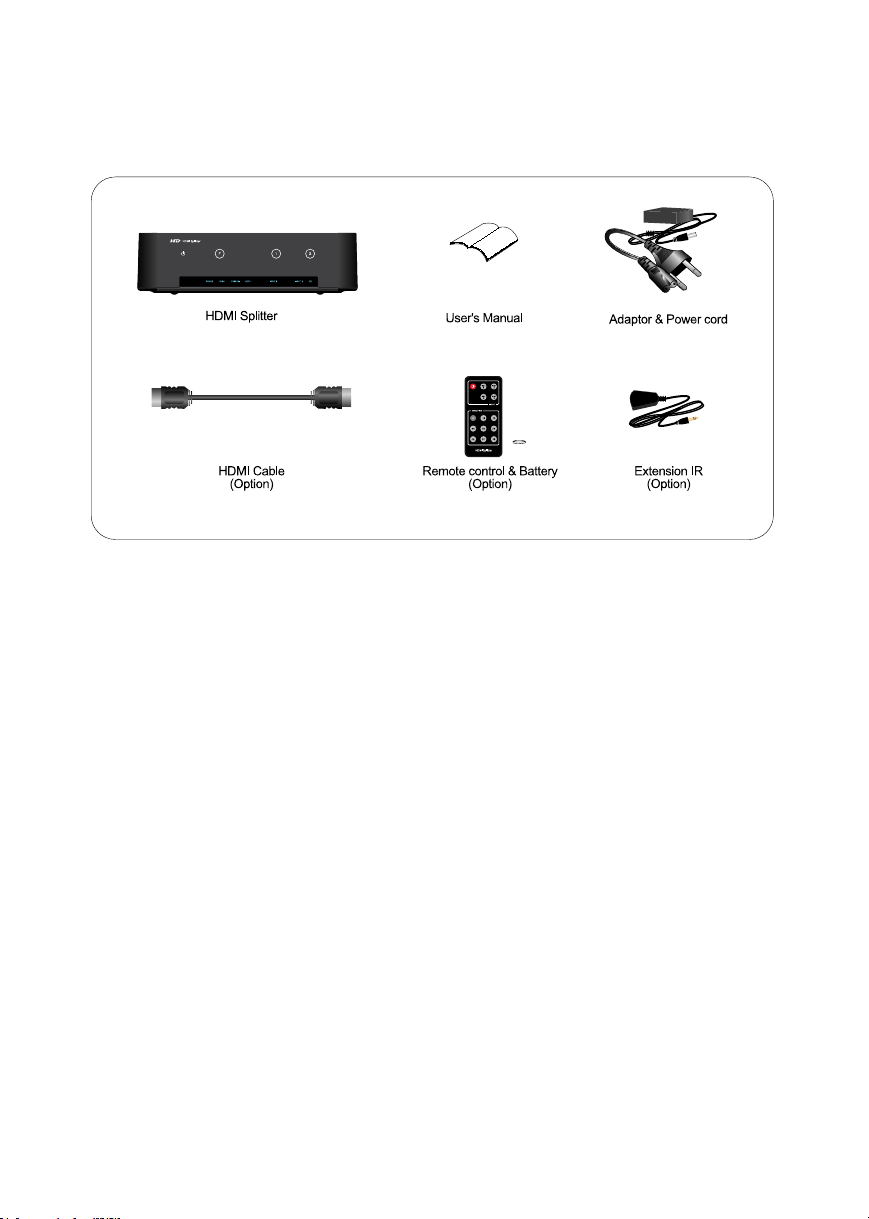

제품 구성물

사용 전에 내용물이 빠짐없이 들어있는지 확인하세요.

※ 제품구성은 사전에 공지 없이 변경될 수 있습니다.

※ 당사에서 제공하는 아답터를 반드시 사용하시기 바랍니다. 다른 아답터를

사용하여 발생되는 문제점에 대해서는 당사가 책임을 지지 않습니다.

※ 이 기기는 업무용(A 급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는

이 점을 주의하시기 바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.

※ 구성물 이외에 추가 물품은 별도로 구매 하시려면 제조사 또는 구매처에 문의 하시기

바랍니다. ( 전화 0 2- 6330-2343)

Page 10

NEXD HDMI Splitter

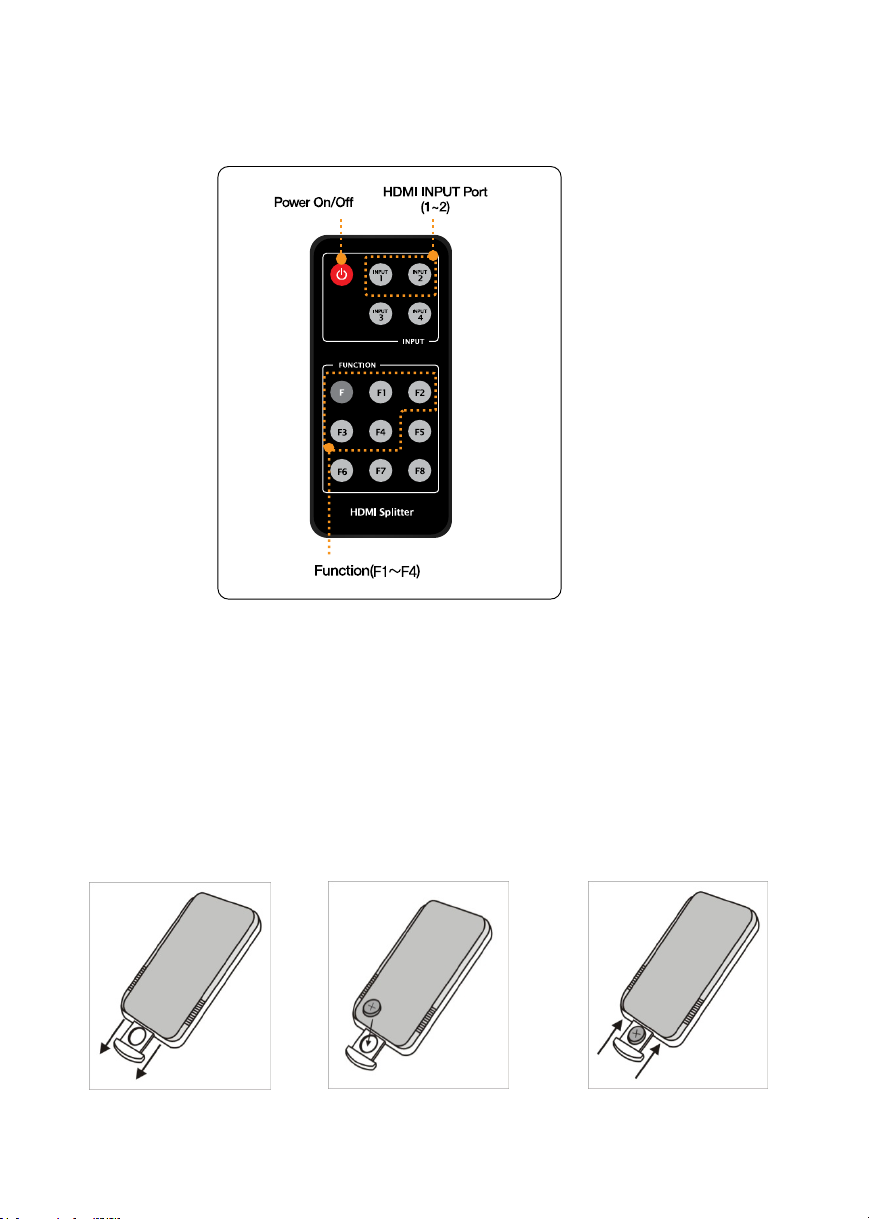

리모컨 버튼의 이름과 기능(옵션)

※ 리모컨은 본체에서 3~ 5M 거리에 좌우상하 60도에서 작동합니다 ※ 본체와 리모컨의 거리가 멀거나 다른 물체에 가려 사용이 불가능 할 경우 외부 리모컨 수신부를 이용하여 작동 시킬 수 있습니다.

- “외부 리모컨 수신부” 삽입전에는 본체의 전원을 꺼 주세요.

리모컨 건전지 삽입하기

1. 건전지 삽입부를 당겨 뺍니다. 2. "+"극이 위로 향하게 삽입하세요. 3. 삽입부를 밀어

넣으세요.

Page 11

User’s Manual

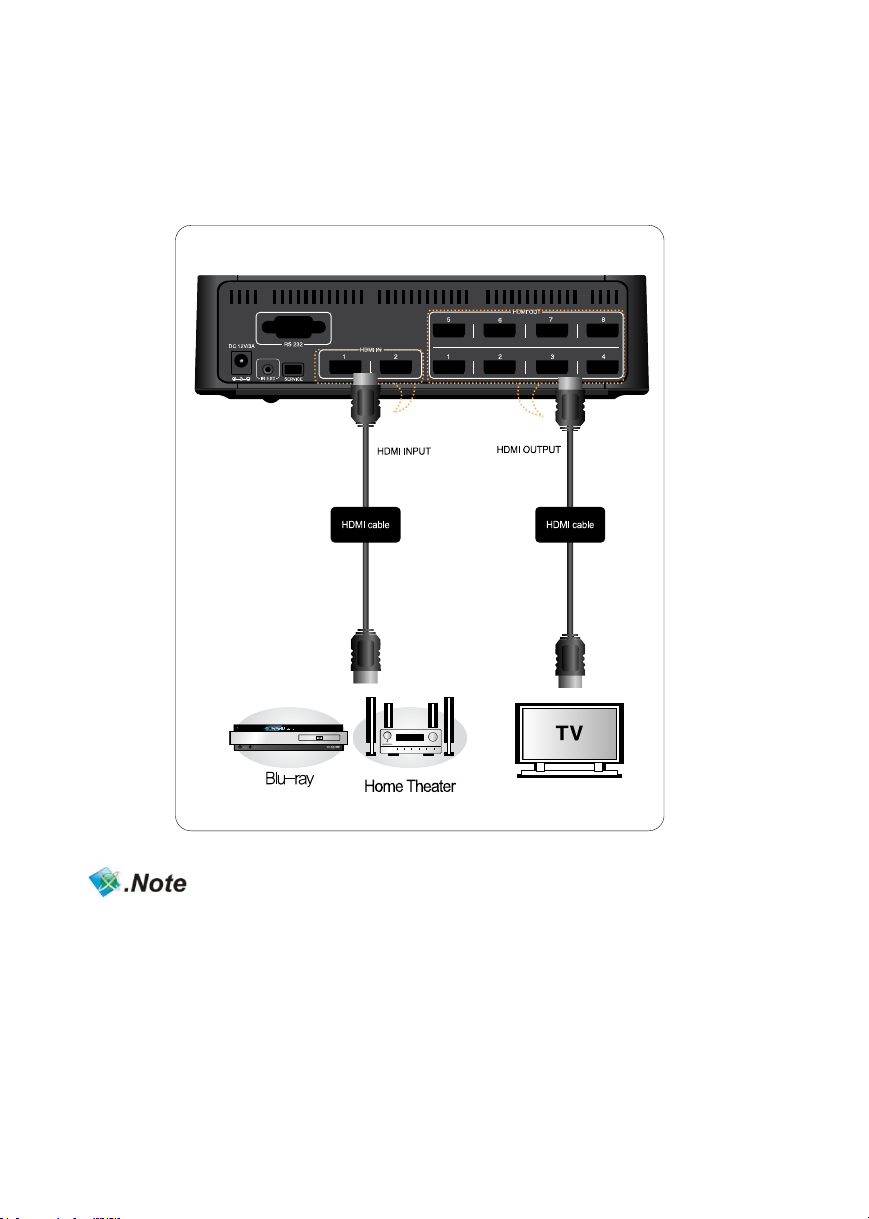

연결하기

HDM I 케이블로 연결하는 방법입니다. (ex. 입력: Blu-ray Player, HD Stream Generator, 출력: PDP, LCD TV)

※ 1080 p/5 0~6 0Hz 이상의 해상도, 720p/1080i/50~60Hz/Deep Color,

720p/1080i/1080p/100~120Hz(High Refresh Rate) 를 지원하기 위해서는 Hi gh

spe ed HDM I C abl e(V er sio n 1 .3) 을 반드시 사용하시기 바랍니다.

※ 영상의 분배를 위해 별도의 케이블이 필요하시면 제조사 또는 구매처에 문의하시기

바랍니다.

Page 12

NEXD HDMI Splitter

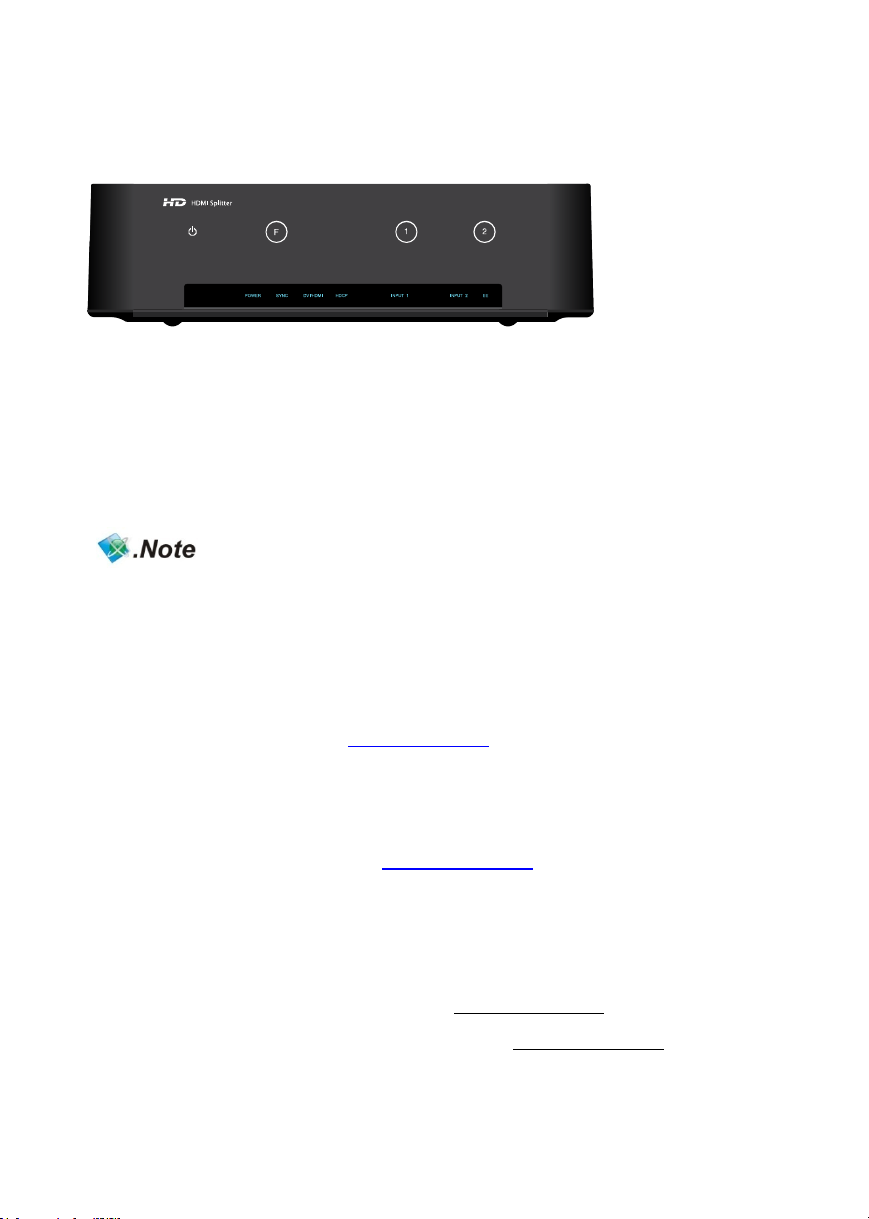

NEXD HDMI Splitter 사용법

1. NEX D S pli tt er의 전원 스위치를 켭니다.

2. 사용 하려는 영상입력기기(B lu-r ay Pl aye r o r H D Set- to p b ox, et c. )의 전원을 켭니다.

3. 디스플레이 기기(L CD TV, PD P T V etc )의 전원을 켭니다.

4. 사용 하려는 영상출력 기기와 연결된 입력 번호를 선택합니다.

NEX D H DMI Sp lit ter 전면부의 “ In put 1~I npu t2” 버튼을 누르면 됩니다.

HD(1080p)급의 고화질 영상 출력장비( Bl u- ray Pl aye r, HD se t-t op box )를 연결하여 사용하는 경우 Outp ut 단자와 연결된 디스플레이 기기는 HD급 고화질 TV의 H D급 입력 단자 이어야 합니다.

문제해결하기

1. NEX D H DMI 전면부의 L ED 가 켜져 있는지 확인 하시기 바랍니다.

2. NEX D H DMI 와 연결된 기기들의 전원 케이블이 제대로 연결되어 있는지 확인 합니다. 좀 더 자세한 사항은 www.d igi ta lzo ne. co. kr 에서 확인 하시기 바랍니다.

Page 13

CEC, USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤)

1. CEC : CEC 기능의 자세한 사항은 www.digitalzone.co.kr

에서 확인하시기 바랍니다.

2. USB : 펌웨어 업그레이드가 있다면, USB 를 통하여 손쉽게

업그레이드가 가능합니다.

3. RS-232 : 당사의 컨트롤 프로토콜이 제공하는 시리얼 포트를

통해 외부 컨트롤이 가능합니다.

SDK 는 당사 홈페이지 www.digitalzone.co.kr

예정입니다. 다운로드와 사용법에 대한 좀 더 자세한 정보를 원하시면 www.digitalzone.co.kr 을 확인해 주시기 바랍니다.

을 통해 출시될

EDID Emulation Mode 선택 방법

1. Dynamic mode

User’s Manual

Function

Number

F1 Normal

F2 Copy 1st HDMI Port

Mode

Summary

Safety

configuration

모든 출력 장치의 교집합을 취함

첫 번째 출력장치의

Description

EDID를

사용함

설정 방법

1.전면부의 F키를 2초 이상 누릅니다.

2.기존에 설정된 모드가 깜박인 후 input1~2까지 전체가 깜박입니다.

3.1~2번 중 선택합니다.

4.1번->F1번 2번->F2번 Mode로 선택 됩니다.

5.선택한 Function Number(input1~input2)LED가 깜박이며 설정이 됩니다

Page 14

NEXD HDMI Splitter

2. Static mode

Function

Number

설정 방법

1.전면부의 F키를 더블클릭 합니다

2.기존에 설정된 모드가 깜박인 후 input1~2까지 전체가 깜박입니다.

3.1~2번 중 선택합니다.

4.1번->F3번 2번->F4번으로 선택 됩니다.

5.선택한 Function Number(input1~input2)LED가 깜박이며 설정이 됩니다.

F3 1080i Force 1080i

F4 1080p Force 1080p

Mode

Summary

Audio : 2Ch, PCM Video : 1080i/50,60Hz

Audio : 2Ch, PCM Video : 1080p/50,60Hz

Description

1. F1이외의 모드 선택 시 전면의 “EE” LED가 On됩니다.

2. 리모컨 사용시에는 F키를 누르고 F1~F4 Mode 중에서 선택합니다.

Page 15

User’s Manual

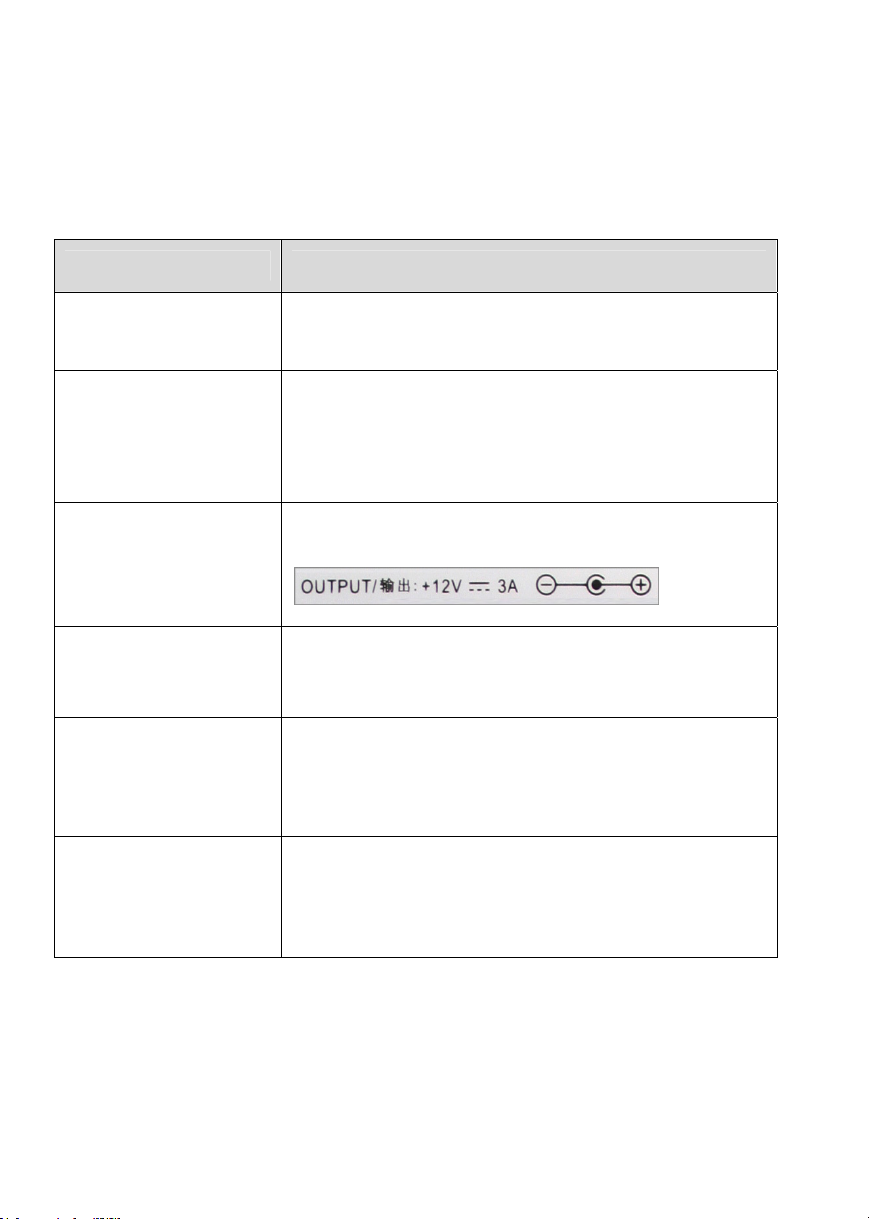

고장신고 전 확인 사항 (Splitter Trouble Shooting Guide)

- 서비스를 의뢰 하기 전에 아래 내용을 확인 부탁 드립니다.

상태 : TV화면이 보이지 않거나, TV화면이 깜박일 때.

확인사항 조치사항

제품과 HDMI Cable이 연결 되어 있습니까?

제품 앞면에 “POWER, SYNC, DVI/HDMI, INPUT, EE LED” LED 불이 꺼져있 거나, 깜박 입니까?

당사가 지급한 아답터 입니 까?

영상소스장비(Generator Blu-Ray)가 켜져 있습니 까?

Input 번호가 정확하게 선 택 되어 있습니까?

Full HD TV, HD TV을 혼합 하여 데모 하고 계십니까?

1) Cable을 재 연결 하세요.

2) Cable을 교체하여 연결 하세요.

1) 전원 아답터가 연결 되어있는지 확인 하세요.

2) 제품 전면에 있는 “Power”버튼을 눌러 주세요.

3) AC전원이 연결 되었는지 확인 하세요.

4) 아답터를 교체하세요.

1) 당사가 지급한 아답터만 사용하세요.

1)영상소스장비(Generator, Blu-Ray)와 TV을 직접 연결하 여 정상 동작하는지 확인하세요.

1) 소스영상이 1개라면 “Input1”에 연결하세요.

2) 소스영상이 “Input2”에 연결 할 경우, “,Input2”버튼을 강제 선택 하세요.

1) 소스장비(Generator, Blu-ray)의 해상도를 낮춰 주세요.

2) Splitter 장비의 F Mode를 “F1” 로 변경 해 주세요.

※ Spliiter 제품에 TV의 추가 연결 또는 연결 제거 시, EDID 초기화로 인해 TV화면에서 깜박임 발생 후 동작합니다.(깜박임이 발생 하여도 정상동작임)

Page 16

NEXD HDMI Splitter

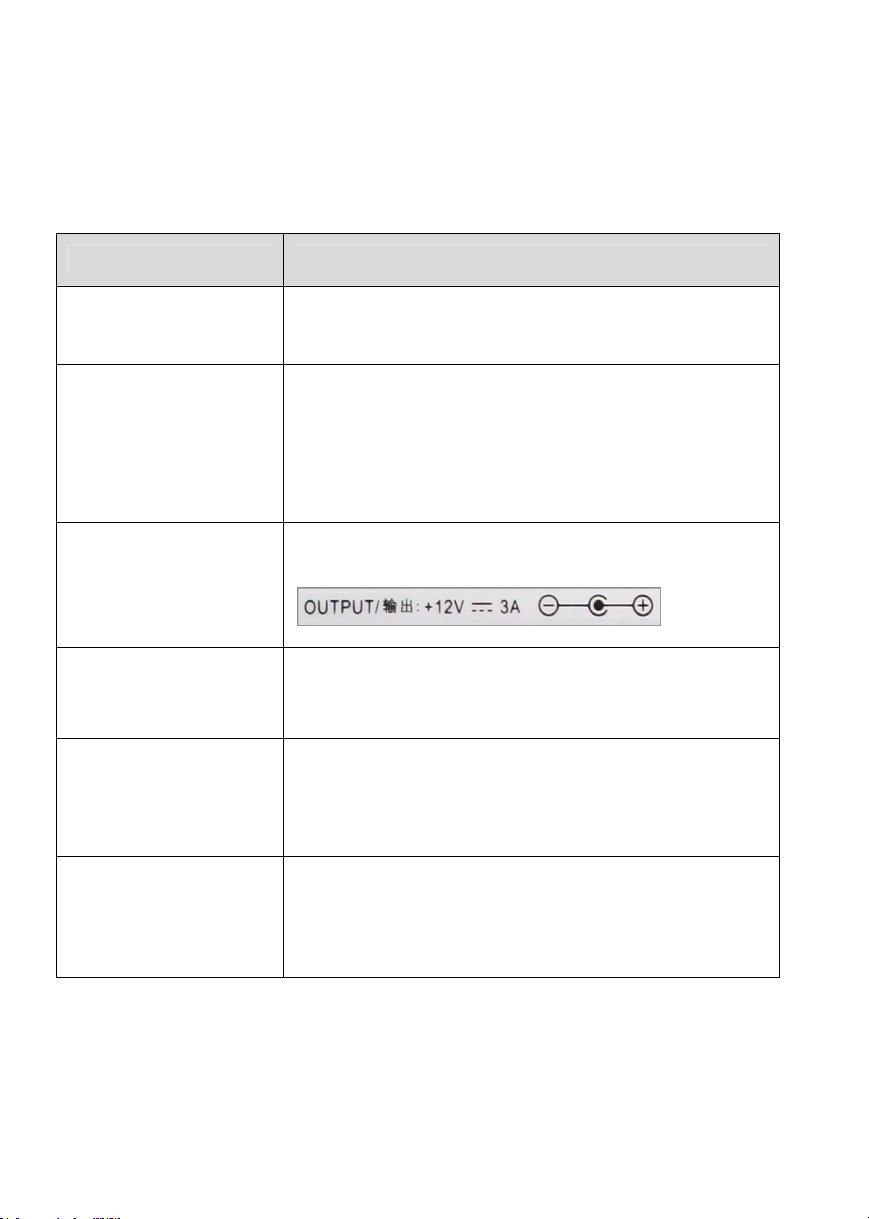

제품 규격

(Input) 2조 HDMI Type A

입력

(Output) 8조 Default (Model: HDMI 208L)

출력

4조 Optional (Model: HDMI 204L)

사용자 인터페이스

Interface)

전원

Firmware

Upgrade

HDMI Version 1.3 지원 Deep Color

(User

+12V/ 3A DC Jack

IR (옵션)

리모컨

RS232 Remote PC/ Device

LED

버튼

(Buttons)

Mini-USB B type connector

지원

POWER (전원) : On / Off

표시등

SYNC : 입력 신호 유무 표시

HDMI : HDMI 혹은 DVI 입력 신호 유무 표시

HDCP : HDCP 사용 유무 표시

EE : EDID Emulation

터치 센서 사용

(POWER)

전원

(Input 1 ~ input 2) 선택 가능

입력

(F1~F4) 선택 가능

기능

Higher refresh rate (~120hz)

Colorimetry RGB / YCbCr / xvYCC

표시

사용 유무 표시

CEC

EDID Emulation EDID Emulation mode supporting

Auto switching (자동 입력 소스 선택 기능)

지원

Page 17

User’s Manual

English

Page 18

NEXD HDMI Splitter

Important Safety Instructions

Please read following recommended safety instructions carefully.

Do not place this product on an uneven

surface.

Prevent water or dust from the product. Do not attempt to repair this product yourself.

Do not install on a surface where exposed to

direct sunlight, near heating .equipment or

heavy cold area.

Do not place glass contained of liquid

on the product.

Place the product at proper ventilation

area.

Do not install this product near

any magnetic source.

Do not place heavy items on the product.

© Copyright 2011, DigitalZone Co., Ltd. All rights reserved. Read these operating instructions carefully before using the product. Follow the safety instructions on the unit and the safety precautions listed in the

manual. Keep this manual handy for future reference.

Page 19

User’s Manual

Controls & Connection Options

Front

Rear (208L)

Rear (204L)

Page 20

NEXD HDMI Splitter

Packages and accessories

※ Contents are subject to change without prior notice.

※Distributors and users should keep in mind that the device is for commercial

use (Grade A), which acquired EMC (Electronicmagnetic Capability), and it is

intended to be used in areas, except for a domestic purpose.

※ DigitalZone will not be responsible for any problems caused by using any

other adopter we don't provide.

※ Additional accessories should be purchased separately.

※ HDMI cable is optional accessories.

Page 21

User’s Manual

Remote Control Unit

It’s possible to use a remote controller within 3~5m, 60 degree of angle scope.

※

You can use an extension receiver for a remote controller if it’s far away from the system.

※

The receiver in the system will not work when the extension reciever is connected.

- Turn the unit off before connecting the extension reciever.

Insert battery

1. Pull out the insert part. 2. Insert battery after checking. 3. Push in the insert part.

“+” polarity

Page 22

NEXD HDMI Splitter

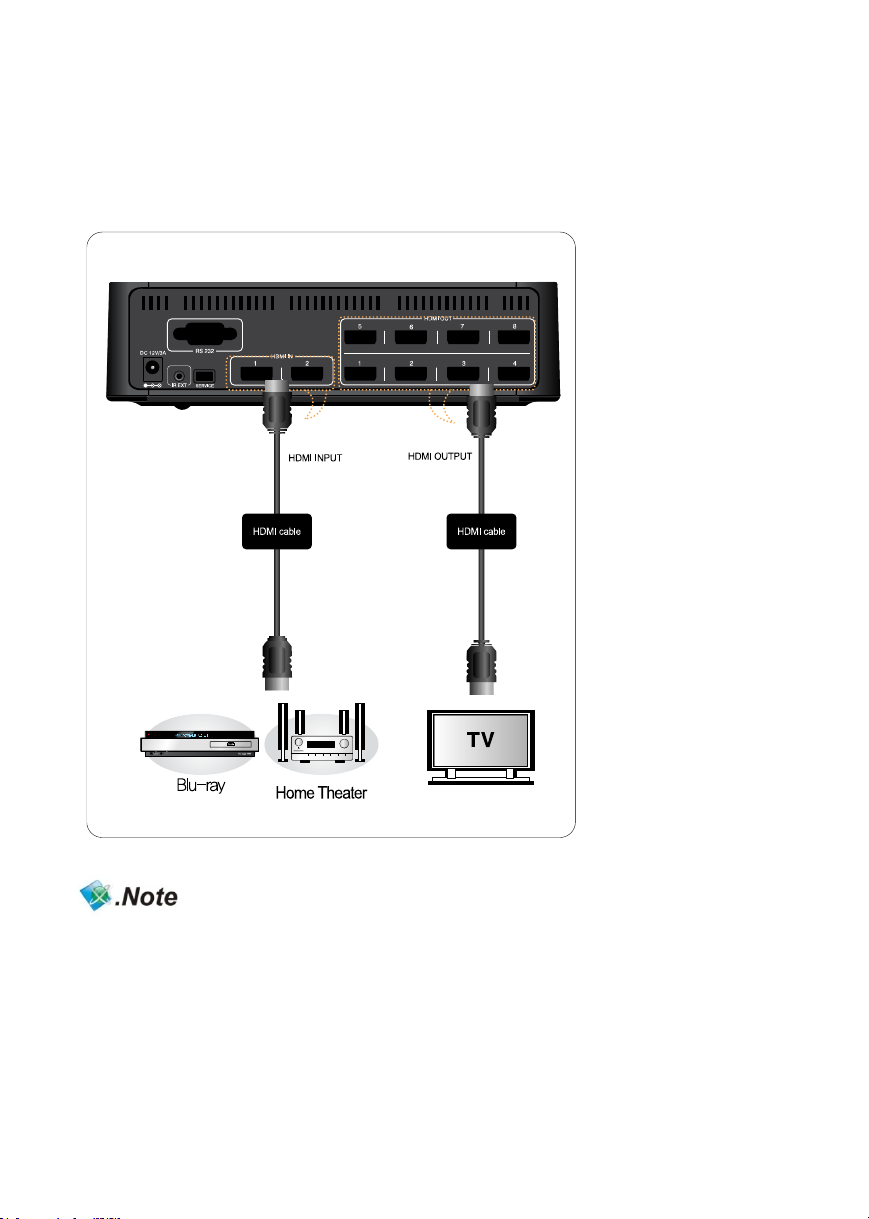

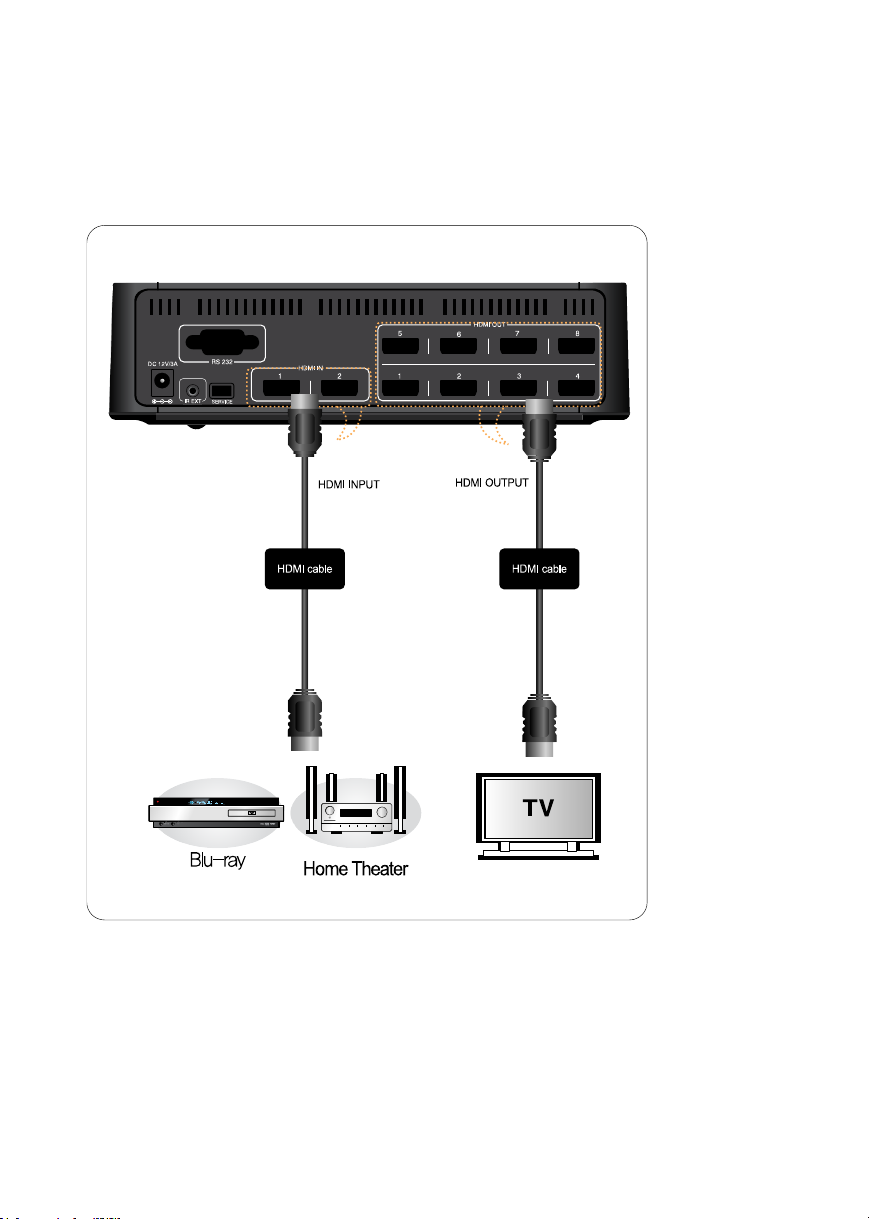

Connection

How to connect devices with splitter

(- Input: Blu-ray Player, HD Stream Generator -Output: PDP, LCD TV)

※ You must use High Speed HDMI cable supporting HDMI 1.3 if you like to use Deep Color,

High refresh rate and resolution above 1080p50~60hz. (720p/1080i/50~60Hz/Deep Color, 720p/1080i/1080p/100~120Hz High Refresh Rate)

※ Please ask manufacturer or store you purchased, if you need additional HDMI cables

for more connection.

Page 23

User’s Manual

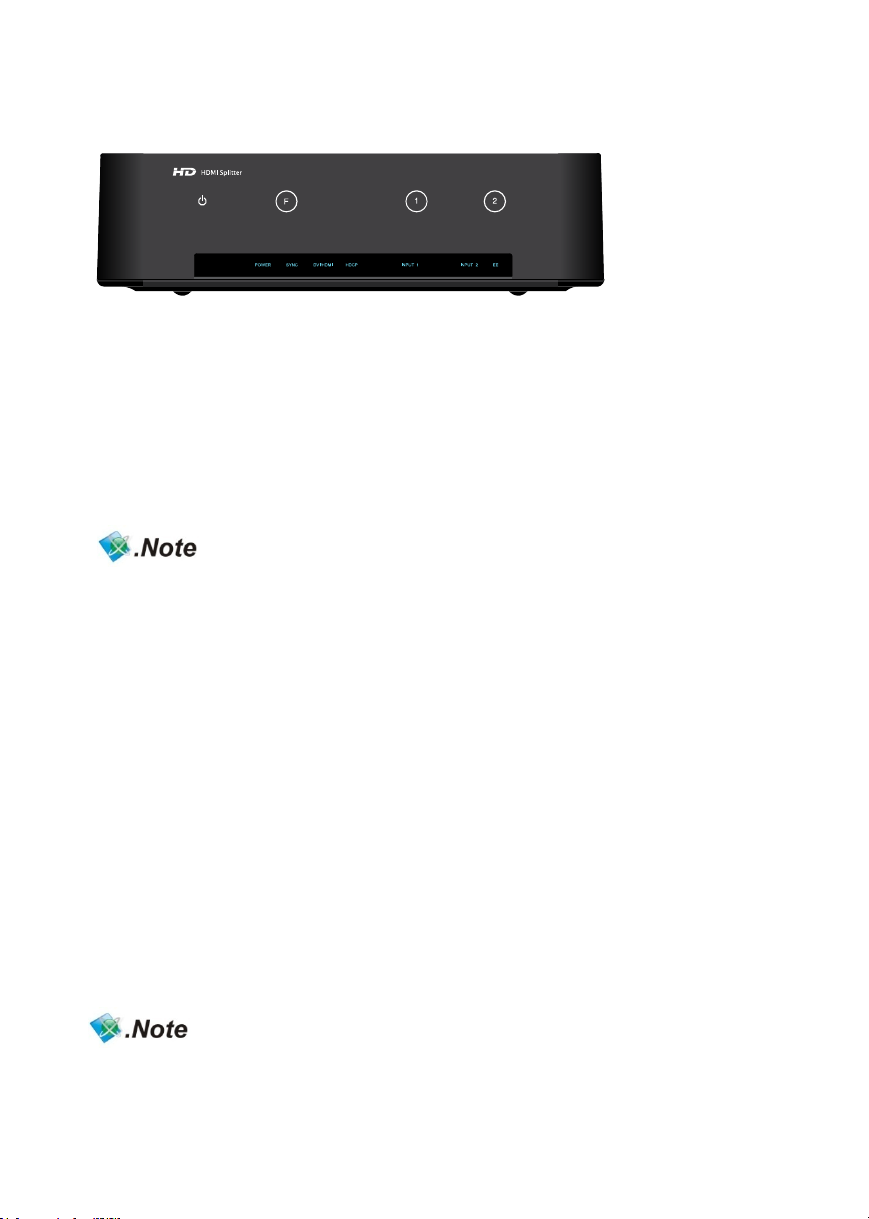

How to use NEXD HDMI Splitter

1. Power ON NEXD HDMI splitter.

2. Power on source players to use such as Blu-ray Player or HD Set-top box, etc

3. Power on display devices

4. Choose one of the input no. for the source player to use.

It’s possible to select the input number by touching the number button in the front panel or by pressing the button in the remote control unit.

You must connect Full HD TV to use HD player supporting 1080p

( Blu-ray player, HD set top box)

Troubleshooting for no power

- Check if LED light on the front is turned on.

- Make sure the power cord connectors on both ends are firmly attached.

Please refer to the webpage, www.dzonei.com

for the troubleshooting

for more detailed information

CEC, USB (Firmware upgrade) & RS-232 (Remote Control)

1. CEC : Refer to the webpage, www.dzonei.com for the information of CEC function.

2. USB : You can upgrade firmware by USB easily when new firmware is released.

3. RS-232 : RS-232 is capable of external control via serial port provided

control protocol by DigitalZone.

4. Remark: The SDK will be released in www.dzonei.com

Please check more detailed information in www.dzonei.com regarding download and how to use.

Page 24

NEXD HDMI Splitter

How to use EDID Emulation Mode

1. Dynamic mode

Function

Number

F1 Normal

F2 Copy 1st HDMI Port

Mode

Summary

Safety

configuration

Intersection of all those display devices

Follow EDID information of the display device connected 1

Description

HDMI output.

How to set Dynamic mode.

1. Keep touching “F” key on front over 2sec.

2. All LEDs of input1~2 are blinking after pre-registered mode LED blinking.

3. Select No. 1~2.

4. No.1->F1 No.2->F2

5. Selected LED function Number (input1~input2) is blinking and be set. .

2. Static mode

Function

Number

F3 1080i Force 1080i

F4 1080p Force 1080p

Mode

Summary

Audio : 2Ch, PCM

Video : 1080i/50,60Hz

Audio : 2Ch, PCM

Video : 1080p/50,60Hz

Description

How to set Static mode.

1. Double-click “F” key.

2. All LEDs of input1~2 are blinking after pre-registered mode LED blinking.

3. Select No. 1~2.

4. No.1->F3 No.2->F4

5. Selected LED function Number (input1~input2) is blinking and be set. .

- When above functions are selected, “EE” LED will be ON except F1.

- In case of using remote control, select F1~F4 after pressing "F" key.

Page 25

User’s Manual

Troubleshooting Guide for Splitters

- Please check the following before contacting the Customer Center for service.

Status: When the TV screen does not show anything or is blinking

Check List Measures

Is the product connected to

the HDMI Cable properly?

Is the LED for “POWER,

SYNC, DVI/HDMI, INPUT,

EE LED” on the front blinking

or off?

Is the adapter enclosed with

the product supplied by

DIGITALZONE?

Are the video source

equipments (Generator and

Blu-Ray) turned on?

Has the Input number been

selected properly?

Are you displaying the Full

HD TV and the HD TV

together?

When additionally connecting or removing a TV to or from a splitter, the TV screen may blink for a few

※

seconds and then become normal due to the initialization of EDID. (This is not an error but a normal

operation.)

1) Connect the product to the cable correctly.

2) Replace the cable and connect the new one.

1) Check if the power adapter is connected properly.

2) Press the “Power” button on the front.

3) Check if the AC power is connected properly.

4) Replace the adapter.

1) Use an adapter supplied by DIGITALZONE only.

1) Directly connect the video source equipments (Generator and

Blu-Ray) to the TV to see if they work normally.

1) Select “Input1” for one video source.

2) If “Input2” is selected, press the “Input2” button on the front.

1) Please change the resolution of source player(HD stream

generator or Blu-ray player) to lower resolution.

2) Please change F Mode of HDMI splitter to “F1”.

Page 26

NEXD HDMI Splitter

Specification

Input 2EA HDMI Type A

Output

User Interface

Power +12V/ 3A DC Jack

Firmware Upgrade Yes Mini-USB B type connector

HDMI Version 1.3

8EA Default (Model: HDMI 208L)

4EA Optional (Model: HDMI 204L)

Remote Control IR (Option)

RS232 Remote PC/ Device

POWER : On / Off

SYNC : Indication of valid input signal

LED

Buttons

HDMI: Input signal is HDMI or DVI

HDCP: HDCP being used

EE : EDID Emulation being used.

Touch sensors

POWER

Selectable Input 1 ~ input 2

Selectable function F1~F4

Deep Color

Higher refresh rate (~120hz)

Colorimetry RGB / YCbCr / xvYCC

CEC Yes Auto switching

EDID Emulation EDID Emulation mode supporting

Troubleshooting for no power

- Check if LED light on the front is turned on.

- Make sure the power cord connectors on both ends are firmly attached.

Please refer to the webpage, www.dzonei.com

for the troubleshooting

for more detailed information

Page 27

User’s Manual

Chinese

Page 28

NEXD HDMI Splitter

NEXD HDMI 分配器手册

1. 跟NEXD HDMI

开电视

3. 开NEXD NEXD HDMI Splitter.

开播放器例如

选择输入端子号码

为了选择输入号码按遥控器的输入号码或前面触屏钮

注意

和播放器和电视用

Blu-ray

播放器HD机顶盒

HDMI

线连接

※

为了连接

※ 为了用 Deep Color(沈颜色)及高 Refresh Rate 及高分辨率得

1080p50~60hz 跟高速 HDMI 1.3 线连接(720p/1080i/50~60Hz/Deep Color,

720p/1080i/1080p/100~120Hz High Refresh Rate)

1080p

播放器得跟

Full HD

电视连接

解决问题

1. 请确认 NEXD HDMI 前端的 LED是否打开;

2. 请确认连接于 NEXD HDMI 的机器的电源线是否连接正确。欲了解更多详情，

请在 www.dzonei.com 进行确认。

CEC, USB (

1. CEC : 在 www.dzonei.com参考.

2. USB : 有新固定软件用USB升级

3. RS-232 : 跟DigitalZone提供议定命令语用RS-232遥远控制

※ 参考: 新固定软件及 RS-232议定命令语在 www.dzonei.com下载

固定软件升级

) & RS-232 (

遥远控制）

Page 29

EDID Emulation Mode

1. Dynamic mode

的选择方法

User’s Manual

Function

Number

F1 Normal

F2 Copy 1st HDMI Port

Mode

Summary

Safety

configuration

选择所有输出设备的交集

使用第一个输出设备的

Description

设置方法

1.前端的F键按下2秒以上；

2.现有已设定模块闪烁以后，直到input1~2全部闪烁；

3.从1~2键中进行选择；

4.依次选择1键->F1键 2键->F2键

5.所选 Function Number(input1~input2)LED闪烁，设置到位。

EDID

Page 30

NEXD HDMI Splitter

2. Static mode

Function

Number

F3 1080i Force 1080i

F4 1080p Force 1080p

Mode

Summary

Description

Audio : 2Ch, PCM Video : 1080i/50,60Hz

Audio : 2Ch, PCM Video : 1080p/50,60Hz

How to set Static mode.

1. 双击前端的F键；

2. 现有已设定模块闪烁以后，直到input1~2全部闪烁；

3. 从1~2键中进行选择；

4. 依次选择1键->F3键 2键->F4键

5. 所选 Function Number(input1~input2)LED闪烁，设置到位。

1.选择F1以外模块时，前端的“EE” LED会打开；

2.使用遥控器时，通过按F键从F1~F4 Mode中进行选择。

经销商和用户应牢记该设备用于商业用途（A级

Electronicmagnetic能力

（

并打算将用于地区，除了国内的目的。

），

EMC公司收购了

），

Page 31

User’s Manual

例如：连接

(-输入: Blu-Ray Player, HD Stream Generator - 输出: PDP, LCD TV)

Page 32

NEXD HDMI Splitter

问题.对策(分流器故障分析指南

- 顾客朋友，在您申请服务之前，请先阅读以下须知事项。

状态：TV画面不能显示或者不停闪动时

确认事项

请确认产品和材）是否连接完好。

请确认产品前方显示 “

T, E E L ED

输入，着，或者是否在闪烁。

请确认是不是我司配套提供的指定适配器。

请确认影像设备（发电机，蓝光）是否有打开？

HDMI Cable（HDMI

POWER, SYNC, DVI/HDMI, INPU

（电源,同步，

EE LED）的LED

DVI/HDMI

灯是否关

，

解决对策

线

）请将电线正确地再连接一次。

）换一根电线，重新连接一次。

）请确认电源适配器是否连接完好。

）请按一下产品前面的“电源”按钮。

）请确认AC电源是否连接完好。

）请换一个新的适配器。

）请务必使用我司提供的适配器

）画像输入设备（发电机，蓝光）是否有和TV直接连

接好并正常工作。

)

）影像源如果只有1个，请和“

是否正确选择了

是否同时选择了 Full HD TV 和 HD T V？

※在 Splitter（分流器）产品上和电视附加连接或者切断连接时，由于

的初始化，电视画面在出现几秒的闪烁之后会重新恢复正常。（闪烁的发生是很正常的现象）

Input

号码？

）若影像源是和“

“

Input2”

）请改变源播放器（高清流发生器或蓝光播放机）分辨

率较低的分辨率。

）请更改

HDMI

Input1

Input2

”连接，那么请选择前台上的

分配器F模式为“

EDID(

”连接。

F1“键。

扩展显示标识数据

)

Page 33

User’s Manual

NEXD HDMI Splitter

Input

Output

User Interface

2EA HDMI Type A

8EA Default (Model: HDMI 208L)

4EA Optional (Model: HDMI 204L)

Remote Control IR

RS232 Remote PC/ Device

LED POWER : On / Off

Buttons Touch sensors

规格

SYNC : Indication of valid input signal

HDMI: Input signal is HDMI or DVI

HDCP: HDCP being used.

EE : EDID Emulation

POWER

可以选择输入

可以选择功能

表示是否使用

(Input 1 ~ input 2)

(F1~F4)

Power

Firmware Upgrade

HDMI Version

CEC

EDID Emulation

+12V/ 3A DC Jack

Yes Mini-USB B type connector

1.3 Deep Color

Higher refresh rate (~120hz)

Colorimetry RGB / YCbCr / xvYCC

Yes Auto switching

EDID Emulation mode supporting

Page 34

NEXD HDMI Splitter

Japanese

Page 35

User’s Manual

NEXD HDMI Splitter 使用方法

1. NEXD HDMI 電源スイッチをつけます。

2. 使用したい映像入力機器(Blu-ray Player or HD Set-top box, etc.)

の電源をつけます。

3. ディスプレイ機器(TV or Plasma TV, etc.)の電源をつけます。

4. 使用したい映像出力機器と接続されている入力番号を選択します。 NEXD HDMI 前面部の“Input1~Input2”ボタンを押します。

HD(1080p)用の高画質映像出力機器(Blu-ray Player, HD set top boxes)を接続して使用する場合、出力端子に接続されたディスプレイ機器はHD用高画質テレビのHD用入力端子でなければなりません。

問題解決

1. NEXD HDMI 前面部の LE D がつけてあるかどうかご確認ください。

2. NEXD HDMI に接続されている機器の電源ケーブルが正しく接続されているかどうかをご確認ください。詳しくは、www.dzonei.com でご確認ください。

CEC、USB

1. CEC : CE C 機能の詳細は、w w w. d zo n ei. com でご確認ください。

2. USB : ファームウェアがリリースされると、USB を使って簡単にア

3. RS-232 : 本社のコントロールプロトコルが提供するシリアルポー

SDK は本社のホームページ www.dzonei.com を通してリリース

(ファームウェアアップグレード) &RS-232(外部コントロール)

ップグレードできます。

トを通し外部コントロールができます。

される予定です。ダウンロードと使用方法につきましての詳細は、 www.dzonei.com をご確認ください。

Page 36

NEXD HDMI Splitter

EDID Emulation Mode

選択方法

1. Dynamic mode

Function

Number

F1 Normal

F2 Copy 1st HDMI Port 1番目出力装置のEDIDを使う。

Mode

Summary

Safety

configuration

Description

すべての出力装置の共通集合を取る。

設定方法

1.前面部のFキーを2秒以上押します。

2.既存に設定されたモードがちらついた後、 input1~2まで全体がちらつきます。

3.1~2番の中で選択します。

4.1番->F1番 2番->F2番番に選択されます。

5.選択したFunction Number(input1~input2)LEDがちらついて設定されます。

Page 37

2. Static mode

User’s Manual

Function

Number

F3 1080i Force 1080i

F4 1080p Force 1080p

Mode

Summary

Audio : 2Ch, PCM Video : 1080i/50,60Hz

Audio : 2Ch, PCM Video : 1080p/50,60Hz

Description

設定方法

1.前面部のFキーをダブルクリックします。

2.既存に設定されたモードがちらついた後、 input1~2まで全体がちらつきます。

3.1~2番の中で選択します。

4.1番->F3番 2番->F4番番に選択されます。

5.選択したFunction Number(input1~input2)LEDがちらついて設定されます。

1. F1以外のモード選択時に前面の“EE” LEDがオンになります。

2. リモコン使用時にはFキーを押しF1~F4 Modeの中で選択します。

※代理店、ユーザは、デバイスが商業用されていることを覚えておいてください（Aグレード）が買収のEMC（Electronicmagnetic機能）、およびそれが国内の目的以外に、地域で使用されることを意図しています。

Page 38

NEXD HDMI Splitter

接続

HDMI ケーブルで接続する方法です。 (ex 入力： Blu-ray Player, HD Stream Generator、出力： PDP, LCD TV)

※ 1080p/50~60Hz 以上の解像度、720p/1080i/50~60Hz/Deep

Color、720p/1080i/1080p/100~120Hz(High Refresh Rate)を支援するためには、High

Speed HDMI ケーブルを必ずお使いください。

※ 映像の分配のために別のケーブルが必要であれば、製造メーカーまたは購入先までお問い合わせください。

Page 39

User’s Manual

問題解決(Splitter Trouble Shooting Guide)

・サービス依頼の前に次の内容を必ずご確認ください。

状態：テレビ画面が見えない場合やテレビ画面が点滅する場合

確認事項措置事項

製品が HDMI Cable に接続されていますか?

製品の前面の「POWER，SYN C，DVI/HDMI，INPUT，EE LE D」の LED ライトが消えていたり、点滅していますか?

付属のアダプタですか?

画像ソース装置(Generato, Blu-Ray)がオンになっていますか?

Input 番号が正確に選択されていますか?

Full HD TV、HD TV を混合して展示していますか?

※ S plitt er 製品にテレビを追加接続したり、テレビの接続を除去すると、EDID 初期化によりテレビ画面が数秒間点滅して正常に戻ります(点滅しても正常動作です)

1) Cabl e をもう一度正しく接続してください。

2) Cabl e を交換して接続してください。

1) 電源アダプタが接続されているか確認してください。

2) 製品の前面にある「P ower 」ボタンを押してください。

3) AC 電源が接続されているか確認してください。

4) アダプタを交換してください。

1) 付属のアダプタを使用してください。

1) 画像ソース装置(Generator，Blu-Ray)とテレビを直接接続して正常に動作するか確認してください。

1) ソース画像が 1 つの場合は「Input1」に接続してください。

2) ソース画像が「I nput2」に接続されている場合は、フロントの「Input2 」ボタンを選択してください。

1）低解像度のソースプレーヤー（HD ストリームジェネレータまたは Blu - ray プレーヤー）の解像度を変更してください。 2）"F1"キーに HDMI スプリッタの変化 F モードしてください。

Page 40

NEXD HDMI Splitter

製品規格

入力 (Input) 2組 HDMI Type A

出力 (Output) 8組 Default (Model: HDMI 208L)

4組 Optional (Model: HDMI 204L)

ユーザーインターフェース (User Interface)

電源 +12V/ 3A DC Jack

Firmware Upgrade

HDMI Version 1.3 支援 Deep Color

リモコン IR

RS232 Remote PC/ Device

LED 表示灯 POWER (電源) : On / Off 表示

SYNC : 入力信号有無表示

HDMI : HDMIまたはDVI入力信号有無表示

HDCP : HDCP 使用有無表示

EE : EDID Emulation 使用有無表示

ボタン (Buttons)

支援 Mini-USB B type connector

タッチセンサー使用

電源(POWER)

入力(Input 1 ~ input 2) 選択機能可能

機能(F1~F4) 選択可能

Higher refresh rate (~120hz)

Colorimetry RGB / YCbCr / xvYCC

CEC 支援 Auto switching (自動入力ソース選択可能)

EDID Emulation EDID Emulation mode supporting
