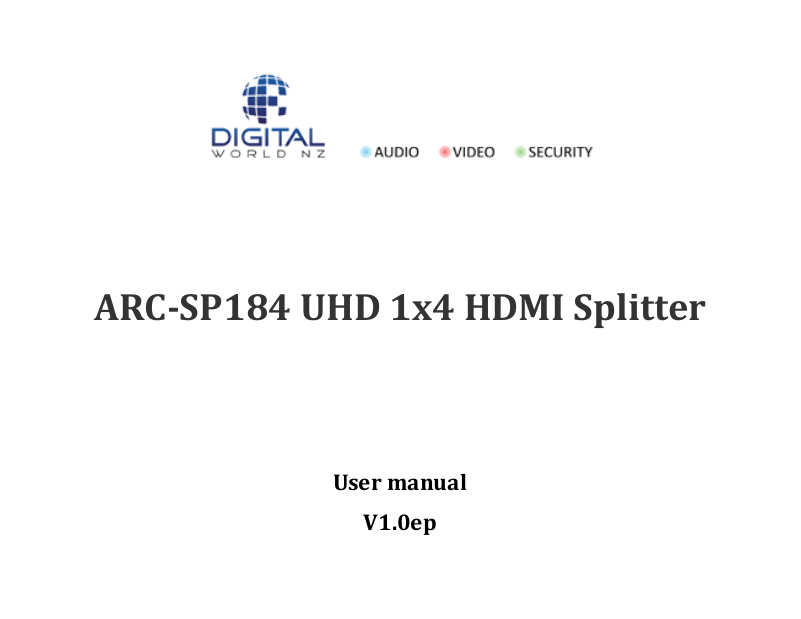

digital world ARC-SP184 User Manual

ARC-SP184 UHD 1x4 HDMI Splitter

User manual

V1.0ep

Thank you for purchasing this product. For optimum performance and safety, please read

these instructions carefully before connec ting, operating or adjusting this product. Please keep this

manual for future reference.

I. I ntroduc tion

This 1 by 4 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a si ngle

HDMI input to four HDMI outputs. It provides high performance audio and video output through

HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of receiving and transmitting

up to 18Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of

reliable and high quality HDMI distribution.

II. Features

1. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

2. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up

to 4k2k@60Hz with 12bit YCBCR 4:4:4;

www.digitalworld.net.nz 1

3. Support 3D frame sequential video format up to 1080p@60;

4. Support high resolution VESA mode video format up to QSXGA@60Hz;

5. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;

6. Supports smart EDID control;

III. Package

1. UHD 1x4 HDMI Splitter ------------------------------------------------------------------ 1PC

2. 5V2A DC Power adapter ----------------------------------------------------------------- 1PC

3. Operation Manual ------------------------------------------------------------------------- 1PC

IV. Specifications

1. Video Bandwidth 600MHz/18Gbps

2. I np ut Po rts 1 × HDMI (Female type)

3. Output Ports 4 × HDMI (Female type),

4. Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz

www.digitalworld.net.nz 2
