Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
ABOUT MANUAL
01312012
User Manual
V3363D, V3363D922
V3363DH
V3367WD, V3367WTIR
Vandal Dome Camera
32
■
Do not open or modify.
■
Do not open the case except during maintenance and installation,
for it may be dangerous and can cause damages.
■
Do not put objects into the unit.
■
Keep metal objects and ammable substances from entering the camera. It can cause re, short- circuits,
or other damages.
■
Be careful when handling the unit.
■
To prevent damages, do not drop the camera or subject it to shock or vibration.
■
Do not install near electric or magnetic elds.
■
Protect from humidity and dust.
■
Protect from high temperature.
■
Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to
high levels.
■
Cleaning
■
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
■
Mounting Surface
■
The material of the mounting surface must be strong enough to support the camera.
PRECAUTIONS
Before sending your camera for repair, check the following or contact our technical specialist.
No VIDEO
Check the coaxial cable and make sure it is connected securely.
Check the lens’ iris adjustment at the menu setup of the camera.
Check the power supply and make sure the camera has the proper voltage and current.
Out-of-Focus VIDEO
Check the clear dome cover and the lens for dirt or ngerprints. Use a soft cloth and gently clean.
Check the lens manual focal and zoom adjustment. Field test monitor is recommended.
TROUBSHOOTING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to Provide reasonable protection against harmful
interference .when the equipment is operated in a residential environment. This equipment generates, uses,
and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction
manual, it may cause harmful interference to radio communications.
WARNING : Changes or modications are not expressly approved by the manufacturer.
FCC COMPLIANCE
54
FEATURES
*
- V3363D
FEATURES
*
- V3363D922
■
1/3" High Resolution CCD
■
High Resolution 560 TV Lines
■
3.3 ~ 12mm Varifocal Auto Iris Lens
■
Electronic Day and Night
■
Star-Light (Super Low Light Technology)
■
DRC (Dynamic Range Compressor)
Dark spots in images particularly become more visible without overexposing the bright
spots to create one perfect image.
■
3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
■
HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
■
BLC (Back Light Compensation)
■
Programmable Privacy Zone (8) & Motion Detection
■
Easy Icon Driven OSD Menu with Built-In Joystick
■
Auto Sensing 12VDC or 24VAC with Line Lock
■
No Fog or Condensation under Any Weather Condition
■
1/3" High Resolution CCD
■
High Resolution 560 TV Lines
■
9~22mm Varifocal Auto Iris Lens
■
Electronic Day and Night
■
Star-Light (Super Low Light Technology)
■
DRC (Dynamic Range Compressor)
Dark spots in images particularly become more visible without overexposing the bright
spots to create one perfect image.
■
3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
■
HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
■
BLC (Back Light Compensation)
■
Programmable Privacy Zone (8) & Motion Detection
■
Easy Icon Driven OSD Menu with Built-In Joystick
■
Auto Sensing 12VDC or 24VAC with Line Lock
■
No Fog or Condensation under Any Weather Condition
76
FEATURES
*
- V3363DH
FEATURES
*
- V3367WD
■
1/3" High Resolution CCD
■
High Resolution 560 TV Lines
■
3.3~12mm Varifocal Auto Iris Lens
■
Electronic Day and Night
■
Star-Light (Super Low Light Technology)
■
DRC (Dynamic Range Compressor)
Dark spots in images particularly become more visible without overexposing the bright
spots to create one perfect image.
■
3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
■
HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
■
BLC (Back Light Compensation)
■
Programmable Privacy Zone (8) & Motion Detection
■
Easy Icon Driven OSD Menu with Built-In Joystick
■
Auto Sensing 12VDC or 24VAC with Line Lock
■
Built-in Heater , Withstand Temperatures as Low as -40°F
■
No Fog or Condensation under Any Weather Condition
■
1/3” Sony Super HAD II CCD
■
High Resolution 560 TV Lines
■
3.3~12mm Varifocal Auto Iris Lens
■
Electronic Day and Night
■
Star-Light (Super Low Light Technology)
■
DRC (Dynamic Range Compressor)
Dark spots in images particularly become more visible without overexposing the bright
spots to create one perfect image.
■
3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
■
HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
■
SLC (Side Light Compensation)
■
DIS (Digital Image Stabilizer)
■
Programmable Privacy Zone (6) & Motion Detection
■
Easy Icon Driven OSD Menu with Built-In Joystick
■
Auto Sensing 12VDC or 24VAC with Line Lock
■
No Fog or Condensation under Any Weather Condition
98
DIMENSIONS IN MILLIMETERS
*
1. ROTATE ZOOM LEVER TO DISPLAY DESIRED VIEW.
2. ROTATE FOCUS LEVER TO ADJUST THE FOCUS.
FEATURES
*
- V3367WTIR
■
1/3” Sony Super HAD II CCD
■
High Resolution 560 TV Lines
■
3.3~12mm Varifocal Auto Iris Lens
■
100ft Range IR with Intelligent Camera Sync
■
True Day & Night / TDN5 (Electro Magnetic Mechanism)
■
Star-Light (Super Low Light Technology)
■
Max-DR (Electronic Wide Dynamic Range)
Enables the camera to capture perfect images in both bright and dark environments
simultaneously.
■
3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
■
HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
■
SLC (Side Light Compensation)
■
DIS (Digital Image Stabilizer)
■
Programmable Privacy Zone (6) & Motion Detection
■
Easy Icon Driven OSD Menu with Built-In Joystick
■
Auto Sensing 12VDC or 24VAC with Line Lock
■
No Fog or Condensation under Any Weather Condition
61.8
91.0
R2.5
91.0
VIDEO(yellow)
BNC JACK
RED
BLACK
L=300mm
DC12V or AC24V
5mm TWIST SOLD DERING
85.0
85.0
47.8
32.8
ø140.1
102.0
1. Mounting Template
2. User Manual
3. Security L-Key
4. Single Sided Hex Key
5. Double Sided Hex Key
6. Secondary BNC Cable for Field
Monitor
7. Four (4) Screws and Four (4) Dry
Wall Anchors
8. 3 Axis Gimbal Guide
Camera Installation
Use the mounting template to mount the camera.
Using the security L-key to loosen the four screws that secure the vandal proof dome cover,
Remove the vandal proof dome cover to access the screw holes to mount the camera.
NOTE: Keep the lens and the vandal proof cover free from dust or ngerprint.
INSTALLATION
*
INSTALLATION
*
A. Use the supplied L Wrench to remove the four xing
screws from the dome cover.
B. Align the camera unit with the surface of the ceiling.
Draw marks on the ceiling in the places where the
screw holes will be drilled. Drill the four holes.
C. Cut a small hole in the ceiling for the cables.
D. Pass the power cable and video cable from the camera
unit through the cable hole in the ceiling.
E. Align the four screw holes in the camera unit with the
screw holes on the ceiling, and then secure the camera
in place by tightening the four screws through the
washers.
F. Carry out the settings and adjustments for the camera.
G. Secure the dome cover by tightening the screws.
1
2
3 4 5 6
7
8
1110
D
F
G
E
C
B
A
CONNECTION
*
CAUTION : CHECK FOR POLARITY WHEN USING A DC12V POWER SUPPLY.
12VDC/24VAC VIDEO OUT
300.0
CMAERA SETTINGS
*
1. Set the zoom level as desired positiong by moving Zoom lever.
2. Set the Focus level as the image is focussed by moving Focus lever.
■
LENS ADJUSTMENT
a. Focus lever
b. Zoom Lever
1312

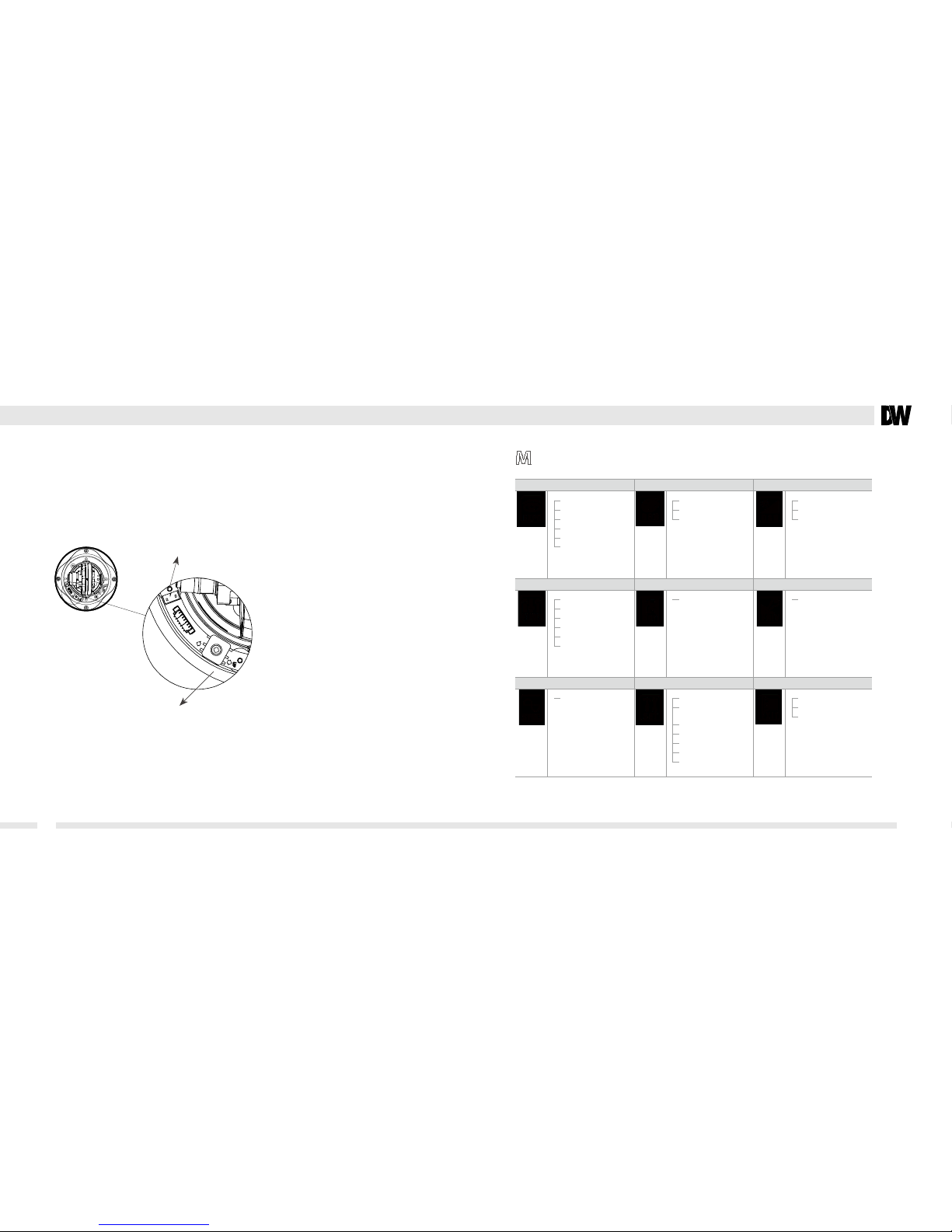

CAMERA SETTING FOR SIDE OSD CONTROL BOARD
*
CAUTION : CHECK FOR POLARITY WHEN USING A DC12V POWER SUPPLY.
2nd Video
JoyStick Key
Joystick Key
The functions of joystick are
camera zoom in/out and OSD
control.
2nd Video
Video Test output connector.
MODULE OSD MENU
*
-V3363D, V3363D922, V3363DH
1514
EXPOSURE COLOR DAY&NIGHT
BRIGHTNESS
AE PREFERENCE
BLC / HME
AGC
STARLIGHT
NIGHT-UP
WB MODE
R-Y GAIN
B-Y GAIN
D&N MODE
C_SUP
A_SUP
FUNCTION MOTION PRIVACY
MIRROR
SHARPNESS
FREEZE
D-ZOOM
3D DNR
DRC
MOTION PRIVACY
SYNC SETUP EXIT
SYNC TITLE EDIT
PC CONTROL
(RS485 Control)
LANGUAGE
MONITOR
OSD COLOR
OMNI LENS
DEFECT
EXIT
SAVE & EXIT
FACTORY SET
EXPOSURE
BRIGHTNESS 0 ~ 100
SHUTTER 1/60 / FLK / 1/250 ~ 10000 / STARLIGHT x2 ~ x256
BLC/HME OFF / BLC / HME
AGC
HIGH / MIDDLE / LOW / OFF
AGC(Auto Gain Control)
STARLIGHT AUTO(x2 ~ x256) / OFF
NIGHT-UP NORMAL / HIGH
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
COLOR
WB MODE AWC / AWT / PUSH LOCK / MANUAL / INDOOR / OUTDOOR
R-Y GAIN 0 ~ 100
B-Y GAIN 0 ~ 100
EXIT JUMP
DAY & NIGHT
Day & Night Mode
AUTO : READ TIME(0~63) / S-LEVEL / E-LEVEL
COLOR---->BW : B&W : Switching from COLOR to BW; If the number is higher, the camera
will only switch during a super low light condition
BW ---->COLOR : Switching from BW to COLOR; This number should be always lower than
COLOR to BW
Read Time : time interval to switch from COLOR to BW
COLOR
B&W Mode : BURST (OFF / ON) There is less noise when the BURST is OFF.
SMART IR (OFF / ON)
C-SUP
Color Suppression :
Color will be reduced at low illumination, if the C-SUP Level is set higher. 0 ~ 63
A-SUP
Aperture Suppression : The sharpness of the edges will be reduced at low illumination, if
A-SUP level is set higher. 0 ~ 15
EXIT JUMP
FUNCTION
MIRROR OFF/MIRROR/V-FLIP/ROTATE
SHARPNESS 0 ~ 31
FREEZE OFF / ON
NEG.IMAGE OFF / ON
D-ZOOM OFF / ON (x1.0 ~ x32 PTZ)
3D-DNR
ON (0~100) / OFF
3D Digital Noise Reduction
DRC OFF / INDOOR / OUTDOOR
Dynamic Range Compressor
EXIT JUMP
MOTION (OMNI-Plus Camera Only)
MOTION
OFF
ON
AREA SELECT (AREA 1~4)
AREA SET (POSITION / SIZE)
SENSITIVITY (0~40)
MOTION TRACE (OFF / ON)
MOTION VIEW (OFF / ON)
RETURN
EXIT JUMP
PRIVACY
PRIVACY
OFF
ON
AREA SELECT (1~8)
AREA SET (POSITION / SIZE)
COLOR (0~15)
RETURN
EXIT JUMP
OSD MENU
*
-V3363D, V3363D922, V3363DH
1716
SYNC
SYNC INTERNAL / AUTO
EXIT JUMP
SETUP
TITLE EDIT OFF / ON
PC CONTROL
(RS485 Control)
CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400/4800/9600/19200/38400/57600)
The protocol is xed pelco-D.
LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL
MONITOR
CRT / LCD / USER
Select LCD only if the camera is directly connected to the LCD monitor.
OSD COLOR 0 ~ 15
OMNI LENS
OFF (OMNI-Plus Camera Only)
ON
ALARM / READ TIME / ALARM ZOOM / STAND BY / RETURN
DEFECT WHITE DEFECT CANCEL MODE
EXIT JUMP
EXIT
EXIT
SAVE&EXIT
FACTORY SET
1918
MODULE OSD MENU
*
-V3367WD, V3367WTIR
EXPOSURE COLOR DAY&NIGHT
BRIGHTNESS
E.SHUTTER
BLC
MAX_DR
AGC
STARGLIGHT
WB MODE
R-Y GAIN
B-Y GAIN
D&N MODE
C_SUP
A_SUP
FUNCTION MOTION PRIVACY
MIRROR
SHARPNESS
GAMMA
FREEZE
NEGA.
3D DNR
D-ZOOM
SLC
HME
DIS
MOTION MASK 1
MASK 2
MASK 3
MASK 4
MASK 5
MASK 6
SYNC SETUP EXIT
SYNC MODE CAMERA ID
TITLE
DPC
MONITOR
LANGUAGE
BAUDRATE
OMNI LENS
EXIT
SAVE & EXIT
FACTORY RESET
EXPOSURE
BRIGHTNESS 0 ~ 99
E.SHUTTER 1/60, 1/100FLC, 1/120~1/100000
BLC
OFF / ON
BLC (Back Light Compensation)
AGC
HIGH / MIDDLE / LOW / OFF
AGC(Auto Gain Control)
MAX_DR OFF / ON (0~20) (Electronic Wide Dynamic Range)
STARLIGHT AUTO (x2 ~ x256) / OFF (x32 is recommended for low light application.)
EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET
COLOR
WB MODE AWC / ATW / MANUAL / PUSHLOCK
R-Y GAIN 0 ~ 255
B-Y GAIN 0 ~ 255
EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET
DAY & NIGHT
D & N Mode
AUTO / COLOR / BW
COLOR---->BW : Switching from COLOR to BW; If the number is higher, the camera will only
switch during a super low light condition.
BW ---->COLOR : Switching from BW to COLOR; This number should be always lower than
COLOR to BW
Read Time : time interval to switch from COLOR to BW
COLOR
B&W Mode : (BURST : OFF/ON) When the burst is OFF, the picture will have less noise.
C-SUP
Color Suppression : Color will be reduced at low illumination, if the C_SUP Level is higher.
0 ~ 100 (not available when 3D-DNR is on)
A-SUP
Aperture Suppression : Edge sharpness will be reduced at low illumination, if A_SUP Level
is higher. 0 ~ 100 (not available when 3D-DNR is on)
EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET
FUNCTION
MIRROR OFF/MIRROR/V-FLIP/ROTATE
SHARPNESS 0 ~ 49
GAMMA 0.45 ~ 1.00 / USER
FREEZE OFF / ON
NEGA. OFF/ ON
3D-DNR
OFF / LOW / MIDDLE / HIGH
3D DNR (3D Digital Noise Reduction)
D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ)
SLC
OFF / ON
SLC (Side Light Compensation)
HME
OFF / ON
HME (Highlight Masking Exposure)
DIS OFF /ON
DIS (Digital Image Stabilizer)
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
MOTION
MOTION
OFF / ON
SET WINDOW
ALL SET (Set the Entire Screen)
ALL CLEAR (Clear the Entire Screen)
SENSITI.(1~120)
SHOW INDI.(OFF / ICON / TRACE)
DELAY OUT (1 ~ 15)
Motion Alarm Zoom-In Delay
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
OSD MENU
*
-V3367WD, V3367WTIR
2120
PRIVACY
MASK 1 OFF / ON
MASK 2 OFF / ON
MASK 3 OFF / ON
MASK 4 OFF / ON
MASK 5 OFF / ON
MASK 6 OFF / ON
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
SYNC
SYNC MODE INTER / AUTO
V-PHASE 0 ~ 199
EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET
SETUP
CAMERA ID 0 ~ 254 (RS485 ID)
TITLE OFF / ON
DPC
OFF / AUTO
DPC (Dead Pixels Cancellation)
MONITOR CRT / LCD (Select LCD only if the camera is directly connected to LCD monitor.)
LANGUAGE English / Chinese
BAUDRATE
2400 / 4800 / 9600 / 14400 / 19200 / 38400
The protocol is Pelco-D. Fixed and cannot be changed.(Hardcoded onto the DSP.)
OMNI LENS OFF / 0
EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET
EXIT
EXIT Exit the menu
SAVE&EXIT Exit the menu and save the setting
FACTORY SET Reset the menu setting to factory default
2322
Digital Watchdog (referred to as “the Warrantor”)
warrants the Camera Series against defects in
materials or workmanship as follows.
LABOR : For the initial two (2) years from the date of original purchase,
if the camera is determined to be defective,
the Warrantor will repair or replace the unit, with new or refurbished
product at its option, at no charge.
PARTS : In addition, the Warrantor will supply
replacement parts for the initial two (2) years.
To obtain warranty or out of warranty service,
please contact a Technical Support Representative at
1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM Eastern.
A purchase receipt or other proof of the original purchase date is required
before warranty service is rendered. This warranty only covers failures due to
defects in materials and workmanship which arise during normal use.
This warranty does not cover damage which occurs in shipment or failures
which are caused by products not supplied by the Warrantor or failures
which result from accident, misuse, abuse, neglect, mishandling,
misapplication, alteration, modication, faulty installation, set-up adjustments,
improper antenna, inadequate signal pickup, maladjustment of consumer controls,
improper operation, power line surge, improper voltage supply, lightning damage,
rental use of the product or service by anyone other than an authorized repair
facility or damage that is attributable to acts of God.
WARRANTY INFORMATION*
2524
SPECIFICATIONS
*
-V3363D
Camera TYPE Color/BW V3363D
Mount Surface
Image Size 1/3"
Pixels-Total 811(H) X 508(V)
Pixels-Eective 768(H) X 494(V)
Scanning System 525 line, 2:1 Interlace
Horizontal Frequency Internal Mode
15,734Hz
Vertical Frequency Internal Mode
59.94Hz
Min. Scene Illumination
F1.2
x256 Star-Light
0.14 Lux
0.0005 Lux in Color
Functions BLC ON / OFF
AGC HIGH / MIDDLE / LOW / OFF
DRC OFF / INDOOR / OUTDOOR
Mirror OFF / MIRROR / VFLIP / ROTATE
STAR-LIGHT AUTO (x2~x256) / OFF
3D-DNR OFF / ON 0~100
HME OFF / ON
Privacy Zone 8 Programmable Zone / Size
Lens
Focal Length 3.3 ~ 12mm Varifocal Auto Iris Lens
Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 52dB
OSD OSD YES
Environmental Conditions Operating Temperature -10
o
C ~ 55oC (14oF ~ 131oF)
Humidity Less than 90%
Power Power Requirement 12VDC / 24VAC
Power Consumption 1.96 [W] / 2.2 [W ]
Physical Specication Dimensions 109.6 X 140.1mm
Weight 1.9lbs
Nema Type IP66
Certications FCC, RoHS, CE
There are no express warranties except as listed above.
The Warrantor will not be liable for incidental or consequential
damages (including, without limitation, damage to recording media)
resulting from the use of these products, or arising out of any breach
of the warranty. All express and implied warranties, including the
warranties of merchantability and tness for particular purpose,
are limited to the applicable warranty period set forth above.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specic legal rights, and you
may also have other rights that vary from state to state.
If the problem is not handled to your satisfaction,
then write to the Address listed on the next page.
Service calls which do not involve defective materials or
workmanship as determined by the Warrantor, in its sole
discretion, are not covered. Costs of such service calls are
the responsibility of the purchaser.
LIMITS AND EXCLUSIONS*
2726
SPECIFICATIONS
*
-V3363D922
Camera TYPE Color/BW V3363D922
Mount Surface
Image Size 1/3"
Pixels-Total 811(H) X 508(V)
Pixels-Eective 768(H) X 494(V)
Scanning System 525 line, 2:1 Interlace
Horizontal Frequency Internal Mode
15,734Hz
Vertical Frequency Internal Mode
59.94Hz
Min. Scene Illumination
F1.2
x256 Star-Light
0.14 Lux
0.0005 Lux in Color
Functions BLC ON / OFF
AGC HIGH / MIDDLE / LOW / OFF
DRC OFF / INDOOR / OUTDOOR
Mirror OFF / MIRROR / VFLIP / ROTATE
STAR-LIGHT AUTO (x2~x256) / OFF
3D-DNR OFF / ON 0~100
HME OFF / ON
Privacy Zone 8 Programmable Zone / Size
Lens
Focal Length 9 ~ 22mm Varifocal Auto Iris Lens
Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 52dB
OSD OSD YES
Environmental Conditions Operating Temperature -10
o
C ~ 55oC (14oF ~ 131oF)
Humidity Less than 90%
Power Power Requirement 12VDC / 24VAC
Power Consumption 1.96 [W] / 2.2 [W ]
Physical Specication Dimensions 109.6 X 140.1mm
Weight 1.9lbs
Nema Type IP66
Certications FCC, RoHS, CE
SPECIFICATIONS
*
-V3363DH
Camera TYPE Color/BW V3363DH
Mount Surface
Image Size 1/3"
Pixels-Total 811(H) X 508(V)
Pixels-Eective 768(H) X 494(V)
Scanning System 525 line, 2:1 Interlace
Horizontal Frequency Internal Mode
15,734Hz
Vertical Frequency Internal Mode
59.94Hz
Min. Scene Illumination
F1.2
x256 Star-Light
0.14 Lux
0.0005 Lux in Color
Functions BLC ON / OFF
AGC HIGH / MIDDLE / LOW / OFF
DRC OFF / INDOOR / OUTDOOR
Mirror OFF / MIRROR / VFLIP / ROTATE
STAR-LIGHT AUTO (x2~x256) / OFF
3D-DNR OFF / ON 0~100
HME OFF / ON
Privacy Zone 8 Programmable Zone / Size
Lens
Focal Length 3.3 ~ 12mm Varifocal Auto Iris Lens
Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 52dB
OSD OSD YES
Environmental Conditions Operating Temperature -10
o
C ~ 55oC (14oF ~ 131oF)
Humidity Less than 90%
Power Power Requirement 12VDC / 24VAC
Power Consumption
1.8 [W] / 2.4 [ W] (Heater O)
13.6 [W] / 14.7 [ W] (Heater O)
Physical Specication Dimensions 109.6 X 140.1mm
Weight 1.6lbs
Nema Type IP66
Certications FCC, RoHS, CE
2928
SPECIFICATIONS
*
-V3367WD
SPECIFICATIONS
*
-V3367WTIR
Camera TYPE Color/BW V3367WD
Mount Surface
Image Device Super HADⅡCCD
Size 1/3"
Pixels-Total 811(H) X 508(V)
Pixels-Eective 768(H) X 494(V)
Scanning System 525 line, 2:1 Interlace
Horizontal Frequency Internal Mode
15,734Hz
Vertical Frequency Internal Mode
59.94Hz
Min. Scene Illumination
F1.2
x256 Star-Light
0.14 Lux
0.0005 Lux in Color
Functions BLC ON / OFF
AGC HIGH / MIDDLE / LOW / OFF
MAX-DR OFF / ON
Mirror OFF / MIRROR / VFLIP / ROTATE
STAR-LIGHT AUTO (x2~x256) / OFF
3D-DNR OFF / ON
SLC OFF / ON
HME OFF / ON
DIS OFF / ON
Privacy Zone 6 Programmable Zone / Size
Lens
Focal Length 3.3 ~ 12mm Varifocal Auto Iris Lens
Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 50dB
OSD OSD YES
Environmental Conditions Operating Temperature -10
o
C ~ 55oC (14oF ~ 131oF)
Humidity Less than 90%
Power Power Requirement 12VDC / 24VAC
Power Consumption 1.8 [W] / 2.4 [W ]
Camera TYPE Color/BW V3367WTIR
Mount Surface
Image Device Super HADⅡCCD
Size 1/3"
Pixels-Total 811(H) X 508(V)
Pixels-Eective 768(H) X 494(V)
Scanning System 525 line, 2:1 Interlace
Horizontal Frequency Internal Mode
15,734Hz
Vertical Frequency Internal Mode
59.94Hz
Min. Scene Illumination
IR LED ON 0.0 Lux
IR Distance 100ft Range
Functions BLC ON / OFF
AGC HIGH / MIDDLE / LOW / OFF
MAX-DR OFF / ON
Mirror OFF / MIRROR / VFLIP / ROTATE
STAR-LIGHT AUTO (x2~x256) / OFF
3D-DNR OFF / ON
SLC OFF / ON
HME OFF / ON
DIS OFF / ON
Privacy Zone 6 Programmable Zone / Size
Lens
Focal Length 3.3 ~ 12mm Varifocal Auto Iris Lens
Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 50dB
OSD OSD YES
Environmental Conditions Operating Temperature -10
o
C ~ 55oC (14oF ~ 131oF)
Humidity Less than 90%
Power Power Requirement 12VDC / 24VAC
Power Consumption 1.8 [W] / 2.4 [W ] LED O, 4.6 [W] / 4.9 [W ] LED On
MEMO MEMO
Loading...
