Digital Watchdog Snapit DWC-D4363D, Snapit DWC-D4363DB, Snapit DWC-D4363TIRB, Snapit DWC-D4363TIR User Manual

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.

Indoor Dome Camera

DWC-D4363D/ D4363DB

DWC-D4363TIR/ D4363TIRB

12132012

2

PRECAUTIONS

FCC COMPLIANCE

Do not open or modify.
Do not open the case except during maintenence and installation, for it may be dangerous and can
cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of kitchen or a boiler room, as the temperature may rise
to high levels.
Cleaning:
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface:
The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference, when the equipment is operated in a residential environment. This equipment
generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance
with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

3

Introduction

Installation

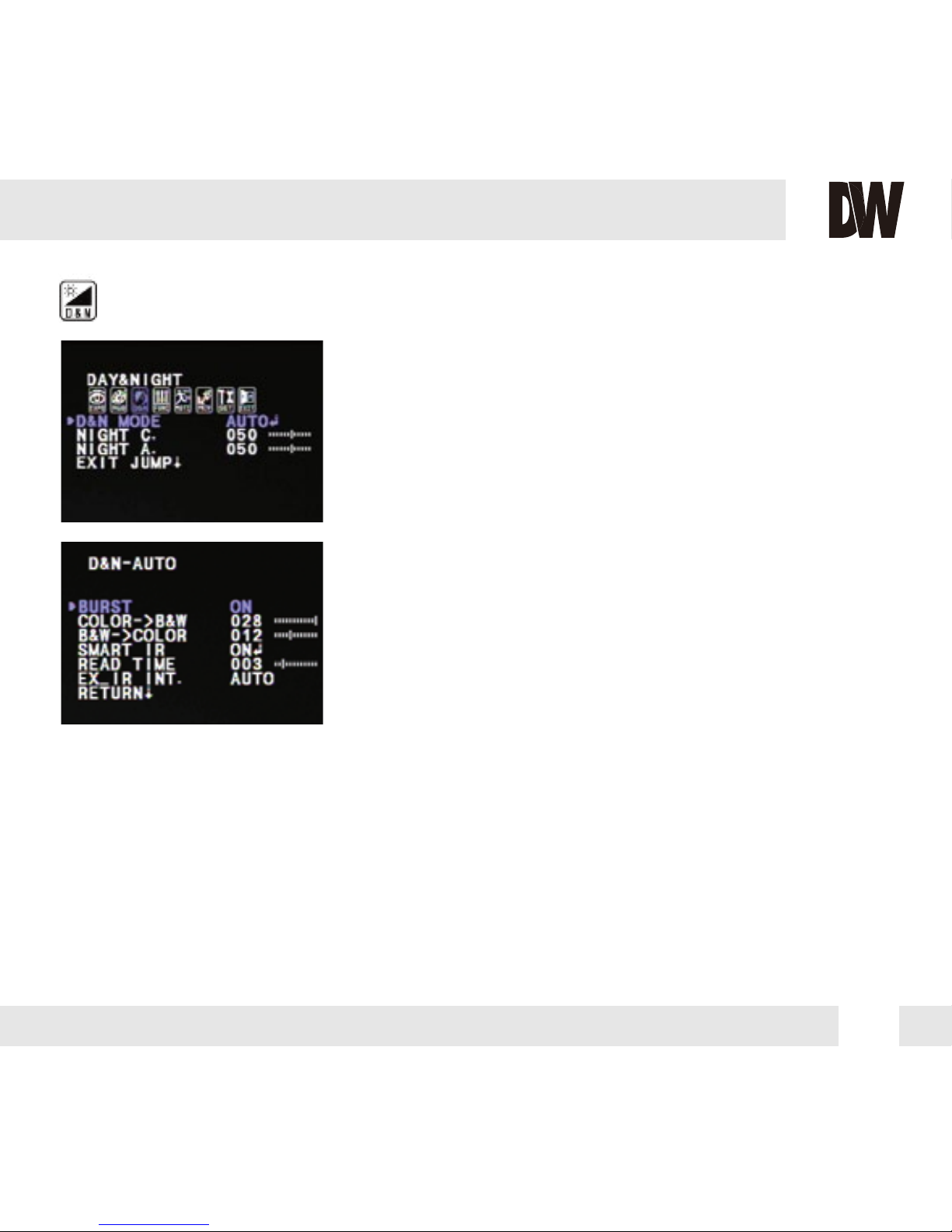

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

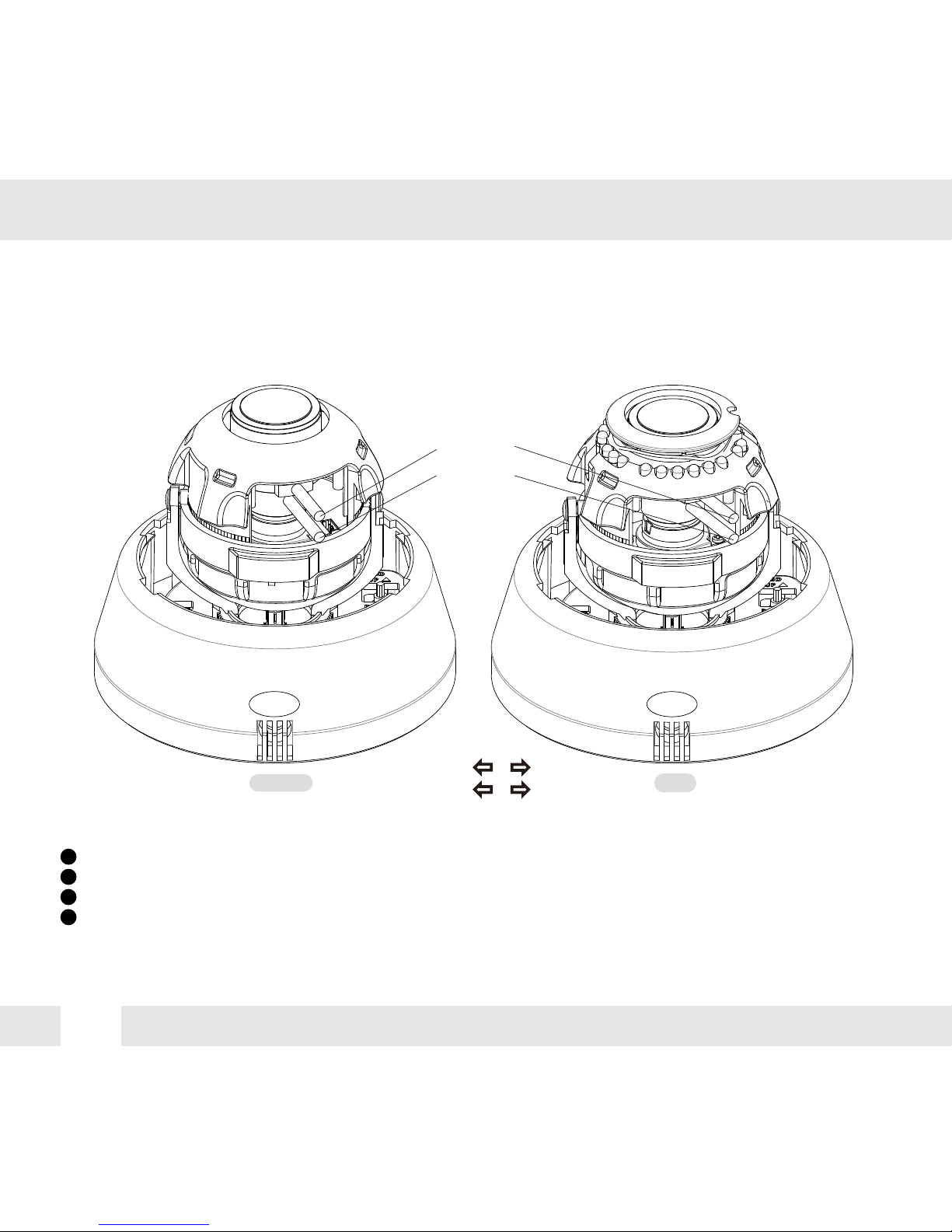

Adjusting the Camera Lens

4

5

6

7

8-9

10-11

12

14-25

26

27-28

29-30

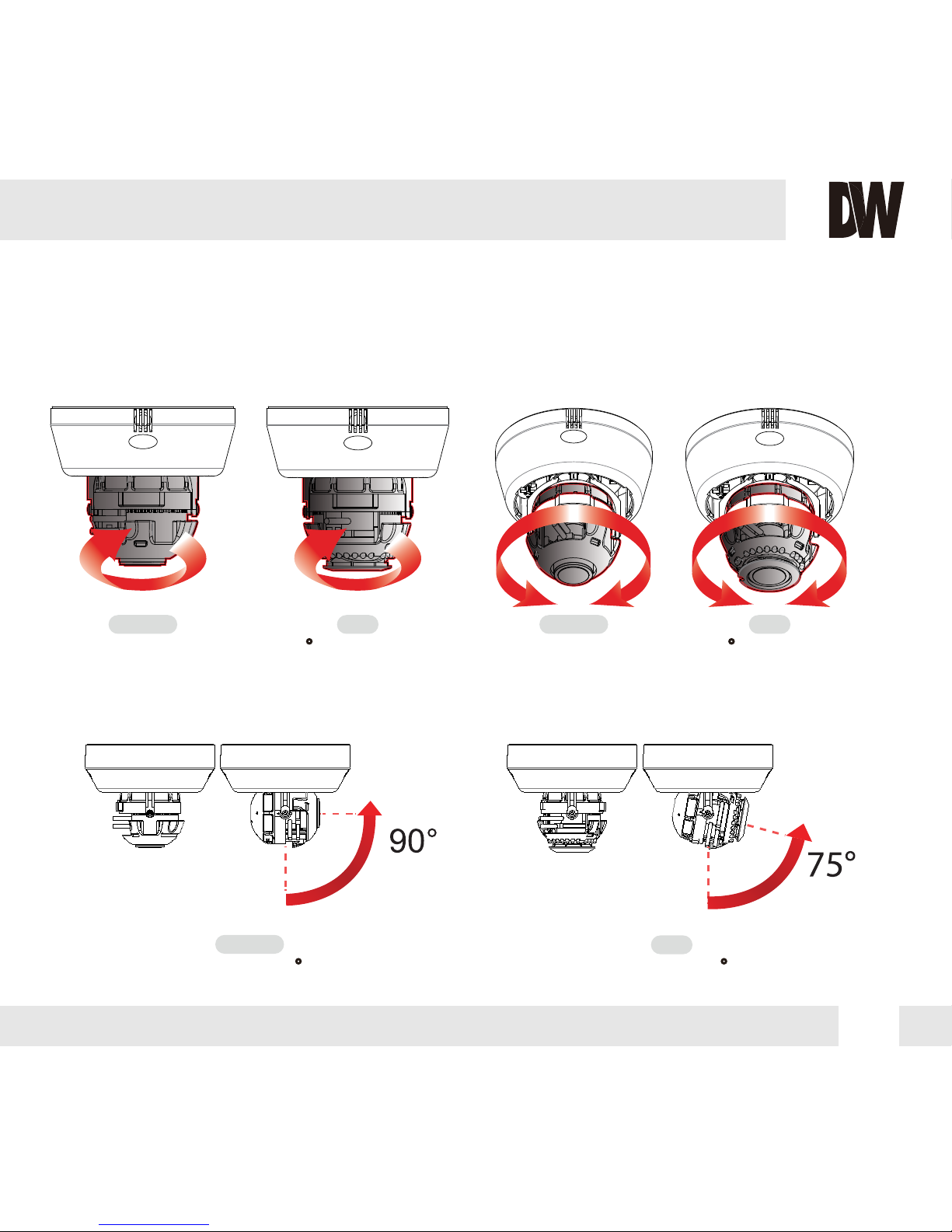

Adjusting the 3-Axis Gimbal 13

4

FEATURES*

1/3” CCD

620 TV Lines (B&W), 600 TV Lines (Color)

3.3~12mm Varifocal Auto Iris Lens

70ft Range IR with Intelligent Camera Sync [DWC-D4363TIR Only]

Electronic Day and Night [DWC-D4363D Only]

TDN (True Day and Night / IR Cut Filter) [DWC-D4363TIR Only]

Smart DNR (Digital Noise Reduction)

DRC (Dynamic Range Compressor)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

Programmable Privacy Zones & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

UTP & RS485 Built-In

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

5

PART & DESCRIPTIONS*

1

Lens

3

UTP

4

RS-485

2

Power Input Connctor
12VDC/24VAC Dual Voltage

6

Primary Video BNC-Output Connector

5

10

Secondary Video-BNC
Output Connector

9

Camera Control Board

7

Bubble Dome Cover

8

Upper Case

Mounting Screws

2

3

4

8

1

NO IR

IR

5

6

7

10

9

6

DIMENSIONS IN MILLIMETERS (IN)*

Surface Mount

89

(3.5”)

108(7.09”)

Top View

40.5(1.59”)

56.3(4.25”)

96.8(3.81”)

108(4.25”)

7

INSIDE THE BOX*

Included with Snapit Indoor Dome Camera

User Manual
Mounting Template
2 Machine Screws and 2 Dry Wall Anchors
Secondary Video-BNC Cable

1

2

3

4

4

8

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

Squeeze the sides of the
camera and separate the
camera module from the
dome cover.

Use the camera’s mounting
template or your camera to
mark the holes as required.

Drill holes into the drywall and
insert the drywall mounts into
the holes.

Pull wires through and make
connections. Then, mount the
camera to the wall using the
included machine screws.

1 2 3

4

Adjust the camera lens
position by using the 3-Axis
Gimbal.

Snap the dome cover over
the camera module.

5 6

WALL MOUNT INSTALLATION INSTRUCTIONS*

Check to see all parts are in
the box.

Use the mount to mark the
pilot holes that are required.
Drill holes into the drywall and
insert the drywall mounts.

Secure the wall mount to the
wall using the mounting
screws.

Attach the base of the camera
to the wall mount with the
smaller machine screws.

Adjust the camera lens, and
snap the dome cover over
the camera module.

9

1 2 3

4 5

CONNECTING TO MONITORS*

Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection)
All cameras are equipped with a second video output for on-site configuration.

Use the diagram below to connect to a Monitor or CRT Monitor properly.

DC 12V / AC 24V

CCTV Monitor

Monitor

300.0mm(11.8”)

Second Video Output

NO IRIR
