Digital Watchdog PTZ39X User Manual

Super Speed Dome

PTZ Outdoor Dome Camera

Version 1.00

Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.

User’s Manual

PTZ39X

2

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

This symbol indicates that dangerous voltage
consisting a risk of electric shock is present within
this unit.

This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK). THERE ARE NO

USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

:

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to
rain or moisture.

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any
other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric
shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal
heat generation or fire.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.

5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or containers filled
with water on top of the camera. Doing so may cause personal injury due to fire, electric shock,
or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product. In such case,
immediately disconnect the power source and contact the service center. Continued use in such
a condition may cause fire or electric shock.

9. If this product fails to operate normally, contact the nearest service center. Never disassemble or
modify this product in any way.

10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or
electric shock.

11. When ambient temperature is below the freezing point, the dome cover will frost and the power.
will fail. In this case, install or reboot the system, and the frost will disappear 3 hours after turning
on the power.
[Note that the lowest guaranteed operating temperature is -45°C/-49°F without wind.]

WARNING

WARNING

Safety Information

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject
to excessive vibration or magnetic interference.

2. Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C),
or high humidity. Doing so may cause fire or electric shock.

3. If you want to relocate the already installed product, be sure to turn o the power and then move
or reinstall it.

4. Remove the power plug from the outlet when there is a lightning. Neglecting to do so may cause
fire or damage to the product.

5. Keep out of direct sunlight and heat radiation sources. It may cause fire.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards extremely bright objects such as the sun, for this may
damage the CCD image sensor.

8. The camera shall not be exposed to dripping or splashing, and no objects filled with liquids, such as
vases, shall be placed on the camera.

9. The main plug used to disconnect the device shall stay readily operable at any time.

CAUTION

3

WARNING

1. Read these instructions.

2. Keep these instructions.

3. Regard all warnings.

4. Follow all instructions.

5. Do not use this camera near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatuses that

produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for a replacement.

10. Protect the power cord from being walked on or pinched particularly at or near plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied by the

manufacturer or sold with the camera.

13. Unplug this camera when a cart is used. Use caution when

moving the cart that contains the camera to avoid injuries that can result from the camera
falling over.

14. Refer all servicing to qualied service personnel. Servicing is required when the camera has

been damaged in any way, such as power supply cord or plug is damaged, liquid has spilled on
the the camera, objects have fallen into the camera, the camera has been exposed to rain
or moisture, the camera does not operate normally, or the camera has dropped.

Safety Instructions

4

5

Contents

6
7
8

Features
Product & Accessories
Parts Name

24Safety Information

Safety Instructions

INTRODUCTION

9
11
14

DIP Switch Setup
Installation
Cabling

INSTALLATION

16
17
18
19
20
21
22
24
26
28
29
30
32
34
35
37
38
39
40
42

Check Points before Operation
Functions
OSD Display of Main Screen
General Rules of Key Operation for Menu
OSD - ROOT MENU & SYSTEM INFORMATION
OSD - DISPLAY SETUP > CAMERA ID
OSD - DISPLAY SETUP > PRIVACY ZONE
OSD - MOTION SETUP
OSD - FUNCTION SETUP > PRESET SETUP
OSD - FUNCTION SETUP > SCAN SETUP
OSD - FUNCTION SETUP > PATTERN SETUP
OSD - FUNCTION SETUP > GROUP SETUP
OSD - FUNCTION SETUP > SCHEDULE SETUP
OSD - CAMERA SETUP > WB SETUP
OSD - CAMERA SETUP > AE SETUP
OSD - CAMERA SETUP > SPECIAL
OSD - INTELLIGENCE > MASK AREA
OSD - INTELLIGENCE > ALARM OUT
OSD - SYSTEM SETUP
OSD - SYSTEM INITIALIZE

OSD MENU

4344Dimension

Specification PTZ39X

SPECIFICATIONS

x39

Features

6

CAMERA SPECIFICATIONS

• CCD Sensor: EX-View HADTM CCD

•

Zoom Magnification: ×39 Optical, ×12 Digital Zoom

• Wide Dynamic Range

• Day & Night Function: ICR (IR Cut filter Removal)

• Various Focus Mode: Auto Focus/Manual Focus/
Semi-Auto Focus

• Independent or Global Camera Settings for Each
Preset Location

POWERFUL PAN/TILT FUNCTIONS

• Maximum 360°/SEC High Speed Pan/Tilt Motion

• Vector Drive Technology: Pan/Tilt Motions are

accomplished in the shortest path. As a result,
time to target view is reduced dramatically and
the video on the monitor is very natural to watch.

• Ultra low speed (0.05°/SEC) enables operator to

locate camera to desired target view with accuracy
and ease.

• Zoom-Proportional Pan/Tilt speed helps operator
to move the camera easily.

PRESET, PATTERN, SCAN, GROUP, PRIVACY
ZONE, SCHEDULE, AND MORE...

• Maximum 127 presets are assignable. Each of
them have independent characteristics, such as
white balance, auto exposure, label, alarm
input/output, etc.

• Maximum 8 set of scans can be stored. This

enables user to move camera repetitively between
two preset positions with designated speed.

• Maximum 4 patterns can be recorded and played

back. This enables the camera to follow any
trajectory operated by the joystick as closely as
possible.

• Maximum 8 set of group actions can be stored.
This enables the camera to move repetitively
between different combination of preset, pattern,
or scan. A group is composed of maximum 20
entities of preset, pattern, or scan.

•

Maximum 8 privacy zones can be set up to protect

privacy of other people.

• 7 rules of schedule can be assigned by day and

time. Appropriate actions (such as home, preset,
scan, pattern, and group) can be defined for each
rule. Also, it is possible to use weekday and all days
to simplify the rule.

PTZ (PAN/TILT/ZOOM) CONTROL

• With RS485 communication, a maximum of 255
cameras can be controlled at the same time.

• Auto, Pelco-D, Pelco-P, Samsung, Panasonic, Kalatel,

AD(American Dynamics) protocol can be selected
as a control protocol in the current version of
firmware.

OSD(ON-SCREEN DISPLAY) MENU

• OSD Menu is provided to display the status of
camera and to configure the functions interactively.

•

Camera ID, Pan/Tilt/Zoom/Direction

, Alarm Input/

Output, Date/Time, Current Temperature, and
Preset are displayed on screen.

• Each display item can be turned on or off
independently.

ALARM I/O FUNCTIONS

• 8 alarm sensor inputs and 4 relay output are
available.

• To reject external electric noise and shock perfectly,
alarm sensor input is decoupled with photo coupler.

• The signal range of sensor input is from DC 5.0 to

12.0 volts to adopt various applications.

• If an external sensor is activated, camera can be set

to move to the corresponding preset position.

•

Relay outputs can be assigned to work with a certain

preset.

RESERVED PRESETS FOR SPECIAL PURPOSE

• Most of camera settings are directly changed by

calling reserved presets, not entering into OSD
menu. For more information, refer to “Reserved
Presets”(page 18) of this manual.

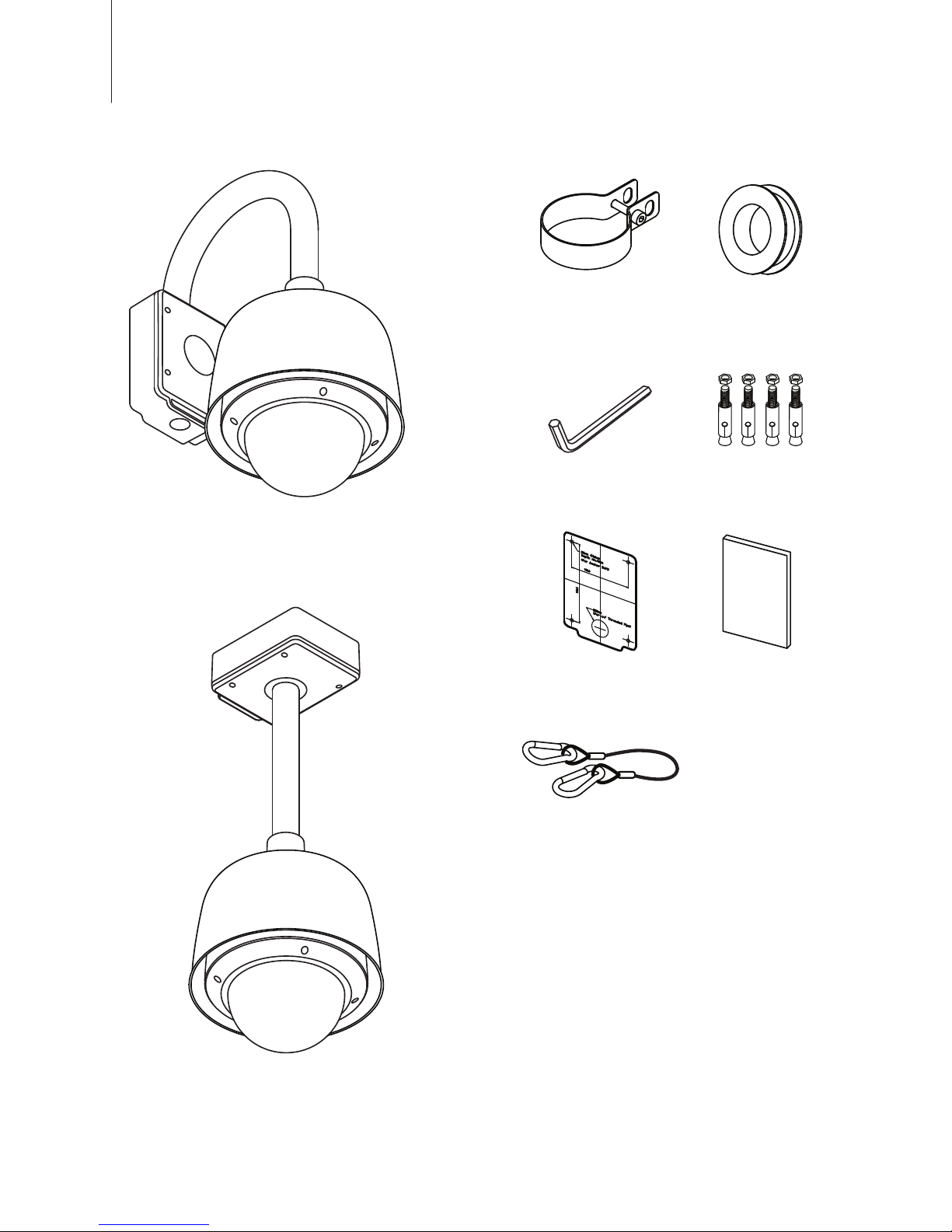

Product & Accessories

7

Wall Mount

Pendant Mount

Housing Safety

Cable Hanger

Waterproof Tape

Hole Template

Hexagonal Wrench

User’s Manual

Anchor Bolt (4pcs)

Safety Wire

102.0

142.0

User’s Manual

Product Accessories

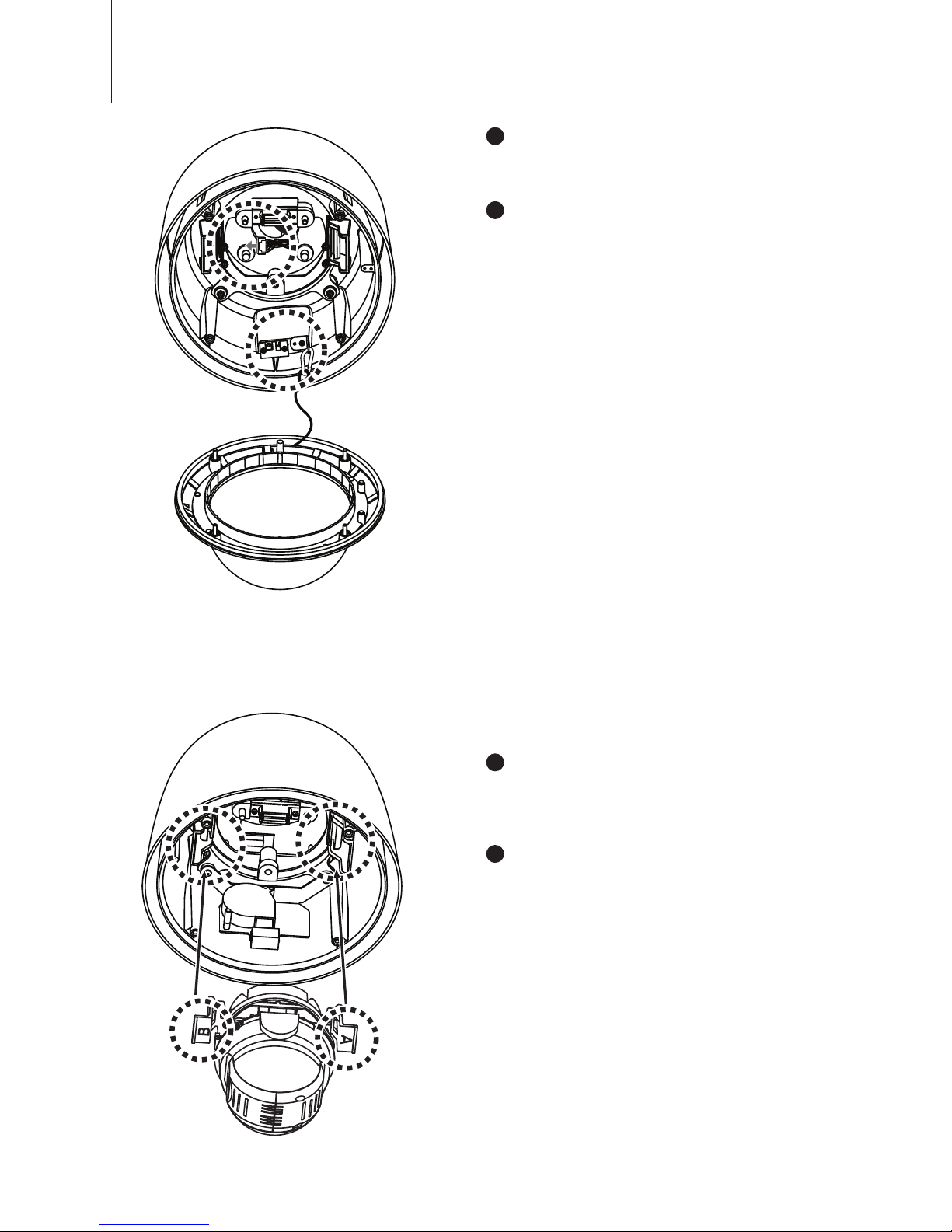

Part Name

8

Wall or Pendant Mount Bracket

The Wall or Pendant Mount Bracket is used to
install the camera onto the wall or ceiling. It
includes a built-in junction box.
Th junction box accommodates the inner box.

Sunshield & Upper Housing

PTZ Mechanism

Dome Safety Wire

Dome Cover

Inner Box

Housing Safety
Cable Hanger

Wall Mount Bracket

Pendant Mount Bracket

1

1

2

3

4

Inner Box

The inner box has many important roles. On top of the
box, there are dip switches and terminal locks for
power supply, video, audio, alarm input and alarm
output.

Sunshield & Upper Housing

The Sunshield protects the bubble dome cover from
sun rays and rainfall. The upper housing, which
is attached to the sunshield, accommodates the PTZ
mechanism. Also, the upper housing will be connected
to both the mounting brackets and the dome cover.

Dome Cover

Do not detach the protection vinyl from dome cover
until the installation process is completed. The vinyl
will protect the dome cover from scratches and dust.
The dome cover has a built-in fan and heater to
remove moisture from the bubble dome.

4

3

2

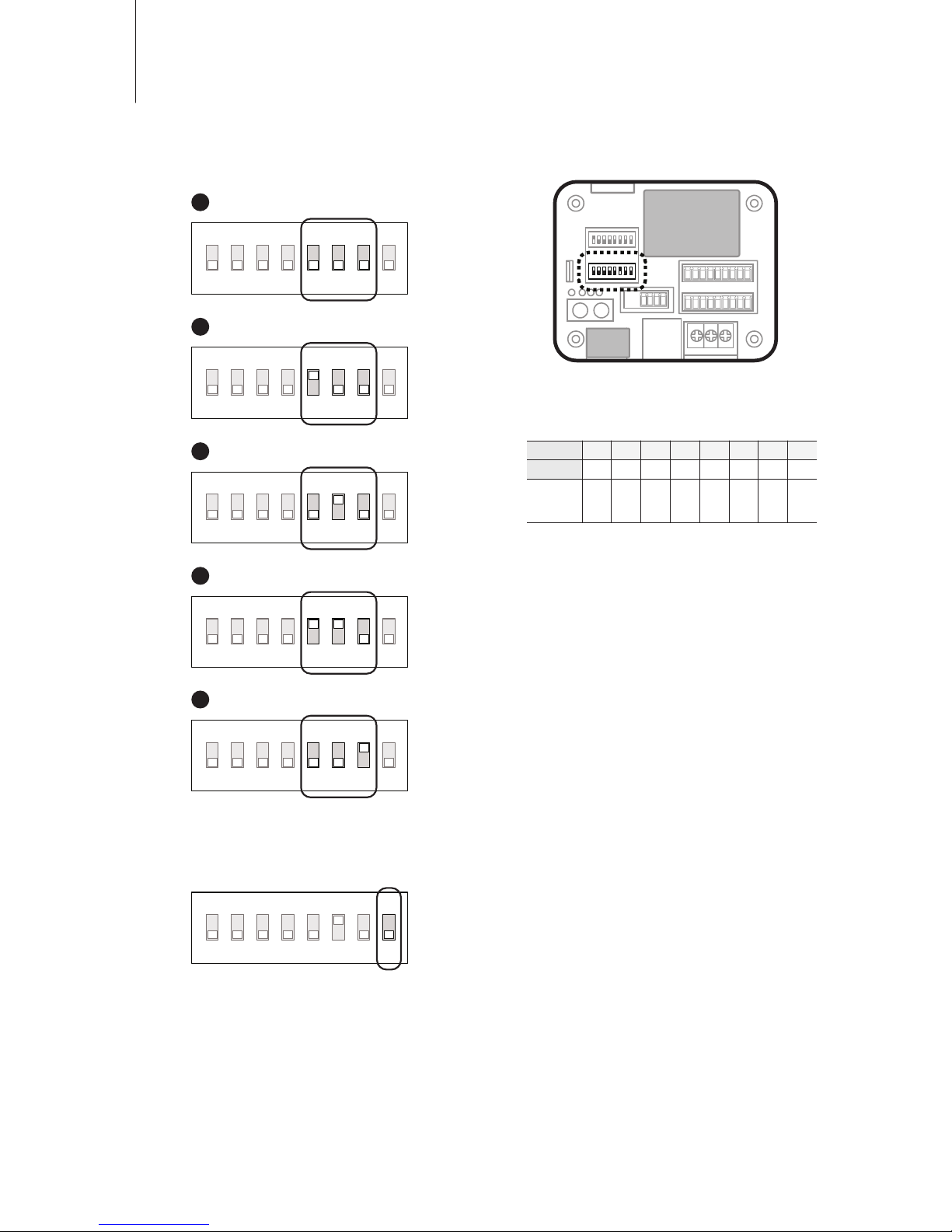

DIP Switch Setup

9

Before installing the camera,
you should first set the DIP Switch
to configure the Camera ID
(Communication Protocol).

Inner Box

1. Communication Protocol Setup

Congure the appropriate protocol using the
DIP switch combination.

- If you set the protocol as AUTO, camera will
automatically recognize the type of protocol

being used; however, this will not recognize
the AD protocol.)

-

If you want to control the camera using the DVR

or a system

keyboard, the protocol must be.
identical to the camera protocol. Otherwise, you
w

ill not be able to control the camera.

- If you change the camera protocol by adjusting
the

DIP switch, the change will be eective after

you reboot the camera.

Protocol Setup Baud Rate Setup

RS-485

Termination Resistor

ON

8J

21 3 4 5 6 7 8

ON

8J

21 3 4 5 6 7 8

AUTO- Factory Default

1

ON

8J

21 3 4 5 6 7 8

PELCO-D

2

ON

8J

21 3 4 5 6 7 8

PELCO-P

3

ON

8J

21 3 4 5 6 7 8

SAMSUNG

4

ON

8J

21 3 4 5 6 7 8

PANASONIC

5

ON

8J

21 3 4 5 6 7 8

GE(Kalatel)

6

ON

8J

21 3 4 5 6 7 8

AD (American Dynamics)

7

DIP Switch Setup

10

2. Communication Baud Rate Setup

Select the appropriate Baud Rate using the
following DIP switch combination.

4. Camera ID Setup

The ID number of camera is set using

binary

number.

The examples are shown below.

Inner Box

3. RS-485 Termination Resistor

- Pin 8 is used to turn ON / OFF the
the

RS-485 termination.

Normally, it should be set as OFF.

- When you have trouble with long daisy chain
style connection, turn ON this termination
switch for the last camera.

ON

8J

21 3 4 5 6 7 8

2400 BPS

1

ON

8J

21 3 4 5 6 7 8

4800 BPS

2

ON

8J

21 3 4 5 6 7 8

9600 BPS - Factory Default

3

ON

8J

21 3 4 5 6 7 8

19200 BPS

4

38400 BPS

5

ON

8J

21 3 4 5 6 7 8

ON

8J

21 3 4 5 6 7 8

Pin 1 2 3 4 5 6 7 8

1 2 4 8 16 32 64 128ID Value

ex) ID=5

ex) ID=10

ON

OFF

OFFONON

OFF

OFFONOFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

-

If you want to control a certain camera, you must
match the Camera ID with the CAM ID setting
of your DVR or keyboard controller.

- The range of Camera ID is 0~255. Factory default
of Camera ID is 1.

Installation

5

6

You have to detach the PTZ mechanism from the
upper housing to plug the cable connector.
To detach PTZ mechanism, press down and hold
against both sides of the black handles on the
PTZ mechanism.

[2]

[1]

[3]

[1] Wind the waterproof tape around the pipe of
the upper housing.
[2] Hook the safety wire to the hole of the safety
cable hanger.
[3] Attach the upper housing to wall mount
bracket by turning it at least seven times.

To secure the upper body orientation, turn
the handle of double nuts clockwise until it is
tight.

11

Installation

7

8

9

10

Plug the cable connector from the junction box
properly. Align the one touch connectors in the upper
housing with that of the PTZ mechanism
and force into place.

To lock the PTZ mechanism to the upper housing,
press the two black handles and push the PTZ
mechanisim into the upper housing until it
sounds snap.

Plug the main cable into the main connector
that is located on the upper housing and press
the main cable until it sounds snap to lock.

Plug safety wire into the connectors located
on the upper housing.

12

Installation

13

11

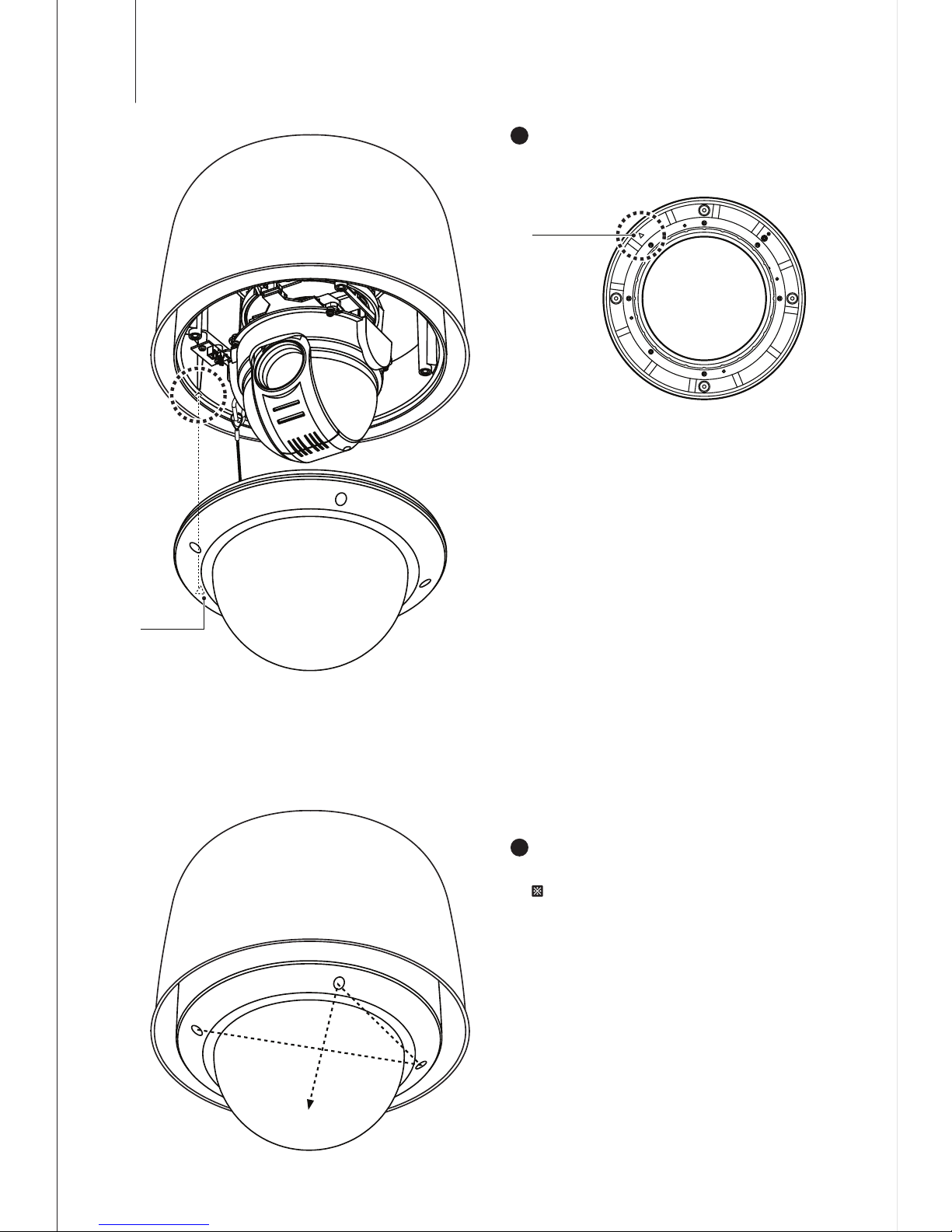

Close the dome cover carefully. Match the
“Arrow Mark” to nd the right location.

Tighten the four screws on the dome cover in
the same sequence shown in the picture.

To maintain the best sealing, the torque of each
screw must be in the range between

0.5 ~ 1.0 N·m (0.3 ~ 0.73 lbf·ft).

Arrow Mark

Arrow Mark

12

Cabling

14

RS-485

(Keyboard Controller/DVR)

Video

Power

Video Connection

Connect with BNC coaxial cable.

RS-485 Communication (DVR/Keyboard)

For PTZ control, connect this line to keyboard and
DVR. To control multiple cameras at the same time,
the RS-485 communication lines are connected in
parallel as shown below.

1

Power Connection

Please check the voltage and the current capacity of
rated power carefully.

2

3

BNC Video

Inner Box

1

2

3

Rate Power

Current

Consumption

Input

Voltage Range

AC 24V 2.5AAC 19V ~ 29V

Keyboard Controller/DVR

RS-485

#1 #2 #n

~

~

~

RS-485

15

Cabling

N.C

Activation

Activation

N.O

In 2

COM

In 2

COM

In 2

COM

In 2

COM

Alarm Output

Alarm Input

Inner Box

Alarm Input/Sensor

5

It is noted that short circuit between GND and Input Pin
means alarm activation.

Sensor Input

To use alarm input, select the type of sensor to
you wish to use. The sensor types are “Normal
Open” and “Normal Close.” If sensor type
is not selected properly, the alarm can be activated
reversely.

4

Alarm Output

The 4 alarm outputs are the relay contact type.
Therefore, you do not have to worry about the
polarity, AC/DC, and isolations between
channels. However, regard the power capacity
of relay contact written above.

5

COM

In 1

COM

In 1

In 8

Alarm Output

4

ALARM INPUT

GND1

2 3 4 5 6 7 8

OUT1

OUT2

OUT3

OUT4

OUT1

OUT2

OUT3

OUT4

Out Out

ALARM INPUT

GND1

2 3 4 5 6 7 8

Check Points Before Operation

16

1. Before power is applied, please check the cables carefully.

2. The camera ID of the controller must be identical to that of the camera you wish to control. You can check the
camera ID in the system information of the OSD menu.

3. If your controller supports multi-protocols, the protocol must be changed to match that of the camera.

4.

If you changed camera protocol by changing DIP switch, the change will be eective after you reboot the camera.

5. Since the operation method can be dierent for each controller available, refer to the manual for your controller
if camera can not be controlled properly.

Auto Calibration

If the camera is continuously subject to very high
temperatures (over 50°C or 122°F) for a long period,
the camera can lose focus and produce blurry
images. In this case, it is recommended to turn on
AUTO CALIBRATION by running preset 165.

If you execute AUTO CALIBRATION, the camera will
calibrate its focus for 10 seconds every 24 hours.
To turn OFF this function, please, run preset 166.

Open OSD Menu

Using the OSD menu, preset, pattern, scan, group, and
alarm input function can all be configured for your
application. Run preset 95 to open your OSD menu
and begin configuring your camera.

Preset and Pattern Function Pre-check

Check how to operate preset, pattern, scan, and group
functions with keyboard controller or DVR in advance
to operate the PTZ camera with it.
(Refer to your keyboard or DVR manual.)

If keyboard controller/DVR has no pattern key or
function, use shortcut keys with preset numbers.
For more information, refer to “Reserved Preset”
below.

Reserved Preset

Some preset numbers are reserved for special functions.

Preset key + 95: Opens OSD menu
Preset key + 131~134: Runs pattern function 1 ~ 4
Preset key + 141~148: Runs scan function 1 ~ 8
Preset key + 151~158: Runs group function 1 ~ 8
Preset key + 161~164: Sets relay 1~ 4 output to OFF
Set key + 161~164: Sets relay 1~ 4 output to ON
Preset key + 165: Sets auto calibration to ON
Preset key + 166: Sets auto calibration to OFF
Preset key + 167: Zoom proportional jog ON
Set key + 167: Zoom proportional jog OFF
Preset key + 170: Sets camera BLC mode to OFF
Preset key + 171: Sets camera BLC mode to HIGH
Preset key + 174: Sets camera focus mode to AUTO
Preset key + 175: Sets camera focus mode to MANUAL
Preset key + 176: Sets camera focus mode to SEMI-AUTO
Preset key + 177: Sets day & night mode to AUTO
Preset key + 178: Sets day & night mode to NIGHT
Preset key + 179: Sets day & night mode to DAY
Preset key + 190: Sets OSD display mode to AUTO

(except privacy mask)
Preset key + 191: Sets OSD display mode to OFF

(except privacy mask)
Preset key + 192: Sets OSD display mode to ON

(except privacy mask)

Preset key + 193: Sets all privacy mask display to OFF
Preset key + 194: Sets all privacy mask display to ON
Preset key + 200: Sets digital zoom to ON
Preset key + 201: Sets digital zoom to OFF

1 3

4

2

17

Functions

1. Set Preset
Method 1) Use keyboard controller:

Refer to your system keyboard manual.
Method 2) Use OSD menu.

2. Run Preset

Method 1) Use keyboard controller:
Preset key + Number key (1~128)

3. Delete Preset

To delete preset, use OSD menu.

Preset

Maximum 127 positions can be stored as preset
positions. The numbers 1 to 128 can be assigned as
preset numbers, but 95 is reserved for starting the
OSD menu.

See section ROOT MENU > FUNCTION SETUP >
PRESET SETUP.

1

Scan

The scan function allows camera to move repeatedly
between 2 preset positions.

See section ROOT MENU > FUNCTION SETUP >
SCAN SETUP.

2

1. Set Scan

To set scan, use OSD menu.

2. Run Scan

Method 1)

Scan key + Scan no. (1~8) + Enter key

Ex. Run scan 2 = Scan key + [2] + Enter key
Method 2) Preset key + [Scan no. (1~8) + 140]

Ex. Run scan 2 = Preset key + [142]

3. Delete Scan

To delete scan, use OSD menu.

Pattern

Pattern function allows the camera to memorize a
path created by a joystick controller and then
revive the path exactly as it memorized for an
assigned time.

See section ROOT MENU > FUNCTION SETUP >
PATTERN SETUP.

3

1. Set Pattern

To set pattern, use OSD menu.

2. Run Pattern

Method 1)

Pattern key + Pattern no. (1~4) + Enter key

Ex. Run pattern 2 = Pattern key + [2] + Enter key
Method 2) Preset key + [Pattern no. (1~4) + 130]

Ex. Run pattern 2 = Preset key + [132]

3. Delete Pattern

To delete pattern, use OSD menu.

Group

The group function allows you to run a sequence of
presets,

pattern, and/or scans.

See section ROOT MENU > FUNCTION SETUP >
GROUP SETUP.

4

Schedule

The schedule function allows you to run an appropriate
function like preset, scan, group, pattern, home, or
move at a designated day and time.

See section ROOT MENU > FUNCTION SETUP >
SCHEDULE

SETUP.

5

When the pattern is saved or executed, the pan/tilt is
operated with AUTO FLIP-OFF.

1. Set Group

To set group, use OSD menu.

2. Run Group

Method 1) Group key + Group no. (1~8) + Enter key
Ex. Run group 2 = Group key + [2] + Enter key

Method 2) Preset key + [Group no. (1~8) + 150]
Ex. Run group 2 = Preset key + [152]

3. Delete Group

To delete group, use OSD menu.

OSD Display of Main Screen

PATTERN

1

PRESET LABEL
CAMERA ID_TOP
CAMERA ID_TOP

CAMERA ID_BOT
CAMERA ID_BOT

23/MAR/2009
24 00 00
CAM 1

O 1234

I 12345678

359/180/x100/SE

F

Preset Label

- The label stored for a specific preset.

- See section ROOT MENU > FUNCTION SETUP >
PRESET SETUP > LABEL.

Camera ID_Top

- If CAMERA ID is set to TOP, Camera ID will display
in this area.

- See section ROOT MENU > DISPLAY SETUP >
CAMERA ID.

Camera ID_Bottom

- If CAMERA ID is set to BOT, Camera ID will display
in this area.

- See section ROOT MENU > DISPLAY SETUP >
CAMERA ID.

Date / Time

- Shows the current date and time.

- See section ROOT MENU > SYSTEM SETUP >
DATE/TIME SETUP.

Image Flip

- Indicates the images that has been reversed
by the auto flip function.

- See section ROOT MENU > CAMERA SETUP >
IMAGE FLIP.

Address

- Shows the current RS-485 address information.

-

See section ROOT MENU > SYSTEM INFORMATION.

Action Title

The following are examples of action titles with
their descriptions.

Action Title Description

SET PRESET 123

PRESET 123
PATTERN 9

SCN 1/PRESET 123
RANGE OVER

Store preset 123.

It reached preset 123.
The camera is running pattern 9.

The camera is running scan 1.
The action received is not within the

range supported.

UNDEFINED The action received is not defined.

Alarm I/O Information

- This information shows the current status of alarm
input and output.

- “I” means input, and “O” means output.

- If the alarm input is ON, it will show the number of
the input. If an input is OFF, “-” will be displayed.
“O:1 - - -” means output 1 is ON and other outputs
are OFF.

- Ex. When input 2 is ON and output 1 is ON, OSD will
display as below.

Compass Direction

- Shows the current compass direction of the camera.

- The direction is shown as N(North), S(South), E(East),
W(West), NE(Northeast), NW(Northwest),
SE(Southeast), SW(Southwest).

- See section ROOT MENU > SYSTEM SETUP >
SET NORTH DIRECTION.

Zoom Magnification

Shows the current zoom magnification.

Tilt / Pan Angle in Degree

Shows the current tilt (0 ~ 180) and pan(0 ~ 359) angle.

1

2

3

4

5

6

7

8

9

111012

23/MAR/2009
24 00 00

CAM

1

O 1---

I -2------

359/180/x100/SE

Date / Time

Action Title

Preset Label

Camera ID_Top

Camera ID_Bottom

1

2

3

Compass Direction

Zoom Magnification

Tilt Angle in Degree

Pan Angle in Degree

Alarm I/O Information

5

6

Image Flip

Address

4

8

9

10

11

12

7

18

General Rules of Key Operation for Menu

19

The characters < > that surround the menu item
indicate that there is a sub menu.

Move among the different selections in the menu
list using the joystick in the Up/Down or Left/Right
direction.

To enter a sub-menu, press Near or Enter key.

To go back a menu, press Far key.

To change a value of an item, move the joystick in
the Up/Down direction.

Press Near or Enter key to save values and press Far
key to cancel values.

1

2

3

5

6

4

6

Press
Near/Enter
or
Far Key

>

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

ON
AUTO
AUTO
AUTO
AUTO
ON

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

ON
AUTO
AUTO
AUTO
AUTO
ON

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

OFF
AUTO
AUTO
AUTO
AUTO
ON

ROOT MENU

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<SYSTEM INFORMATION>
<DISPLAY SETUP>
<MOTION SETUP>
<FUNCTION SETUP>
<CAMERA SETUP>
<SYSTEM SETUP>
<SYSTEM INITIALIZE>

EXIT

ROOT MENU

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<SYSTEM INFORMATION>
<DISPLAY SETUP>
<MOTION SETUP>
<FUNCTION SETUP>
<CAMERA SETUP>
<SYSTEM SETUP>
<SYSTEM INITIALIZE>

EXIT

Joystick
Down

Joystick
Down

Joystick

Up

Joystick

Up

>

>

Press
Near/Enter
Key

Press

Far Key

>

>

Press
Near/Enter
Key

Press Far Key

>

>

>

>

5

1

3

4

2

OSD

-

ROOT MENU & SYSTEM INFORMATION

20

ROOT MENU

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<SYSTEM INFORMATION>
<DISPLAY SETUP>
<MOTION SETUP>
<FUNCTION SETUP>
<CAMERA SETUP>
<INTELLIGENCE>
<SYSTEM SETUP>
<SYSTEM INITIALIZE>

EXIT

FIRMWARE VER

Shows the current firmware version.

COLOR SYSTEM

Shows the current analog video system.

PROTOCOL

Shows the current PTZ control protocol.

BAUD RATE

Shows the current baud rate of the PTZ control.

ADDRESS

Shows the current camera ID of the PTZ control.

<SYSTEM INFORAMTION>

Shows system information and current system configuration.

<DISPLAY SETUP>

Enable/Disable OSD display on main screen.

<MOTION SETUP>

Configures motion related settings.

<FUNCTION SETUP>

Configures various functions such as preset, scan, pattern, group,
and schedule.

<CAMERA SETUP>

Configures camera related functions and data.

<INTELLIGENCE>

Configures camera to detect an object moving or changing.

<SYSTEM SETUP>

Configures the basic system setup.

<SYSTEM INITIALIZE>

Initializes system configuration and sets all data to factory default
configuration.

EXIT

Exits the OSD setting.

SYSTEM INFORMATION

- - - - - - - - - - - - - - - - - - - - - - - - - - -

FIRMWARE VER
COLOR SYSTEM
PROTOCOL
BAUD RATE
ADDRESS

BACK
EXIT

1

.0

NTSC
AUTO
9600

1

1

1

ROOT MENU

1

SYSTEM INFORMATION

1

OSD

-

DISPLAY SETUP > CAMERA ID

21

5

1

2

4

3

> > >>

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ADDRESS
CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

ON
BOT
ON
ON
ON
ON
ON

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ADDRESS
CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

ON
BOT
ON
ON
ON
ON
ON

Press
Near/Enter
Key

Press
Near/Enter
Key

Press
Near/Enter
Key

Joystick
Right

DISPLAY SETUP

This menu defines what is displayed on the OSD of the
main screen. If an item is set to be AUTO, the item is
displayed only when its is changed.

ADDRESS

CAMERA ID

Select the camera ID location. Refer to “OSD Display of Main Screen.”

PTZ INFORMATION

ACTION TITLE

PRESET LABEL

ALARM I/O

DATE/TIME

<PRIVACY ZONE>

Starts Privacy Zone Mask Setup Menu.

ON / OFF

BOT / TOP / OFF

ON / OFF / AUTO

ON / OFF / AUTO

ON / OFF / AUTO

ON / OFF / AUTO

ON / OFF

1

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ADDRESS
CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

ON

BOT

ON
ON
ON
ON
ON

CAMERA ID

- - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - -

OK
CANCEL

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

CAMERA ID

- - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - -

OK
CANCEL

CAMERA ID

- - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - -

OK
CANCEL

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

AAAAAAAAAAAAAAAAAAAAAAAA
BBBBBBBBBBBBBBBBBBBBBBBB

CAMERA ID - Alphabet Input

- Set the Camera ID to display on top (TOP) or bottom (BOT).
Give the Camera ID a unique name. The menu will appear
when TOP or BOT is selected.

- Maximum 48 characters, including space, are allowed.

3

CAMERA ID - Complete Editing

When you complete the camera ID editing, move the cursor to
OK and press Near key to save the completed camera ID. To
disregard the current change, move the cursor to CANCEL and
press the Near key.

4

a

b

c

d

Current Cursor Position: In the CAMERA ID menu, a black box
functions as a cursor. As soon as a character is selected, the
cursor moves to the next digit.

Selecting Alphabet: Move the joystick Up/Down/Left/Right to
the appropriate character from the character set you wish to select.
To choose the character, press the Near or Enter key.

Space: If you want to use blank, choose space character (” “).
Backspace:

If you want to delete a character in front, use back

space character (” “).

d

a

b

c

OSD

-

DISPLAY SETUP > PRIVACY ZONE

22

5

1

2

4

3

DISPLAY SETUP

See the previous page.

1 ~ 12

ON / OFF

CANCEL / OK

<COLOR> / MOSAIC 1 ~ 4

EDIT MASK - Move to Target Position

Move camera to area you wish to mask. Then the menu to
adjust the mask size will be displayed.

If the tilt angle is located in the range between 90° to 90°, you can
not set up privacy zone mask.

If a tilt angle over 90° (image flipped region) is designated, camera
will automatically move to that position by moving the pan angle
180° and then adjusting the tilt angle as necessary.

3

PRIVACY ZONE

Selects area in image to mask.

MASK NO.

Selects mask number. If the selected mask has already been saved,
camera moves as it was set. Otherwise, “UNDEFINED” will be
displayed under MASK NO.

DISPLAY

Sets the camera to display or hide the masks on images.

CLEAR MASK

Deletes data in the selected mask no.

STYLE

Sets the style of the mask.
See the next page.

Move Camera to Area to Mask,
Press Near/Enter Key

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASK NO.

<

EDIT MASK>

BACK
EXIT

1

UNDEFINED

EDIT MASK 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION
[ENTER : SELECT]

0/0/x1/E

> > >>

Select <EDIT MASK>,
Press Near/Enter Key

EDIT MASK 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ADJUST MASK WIDTH]
[ ADJUST MASK HEIGHT]
[ENTER : SELECT]

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASK NO.

<

EDIT MASK>

DISPLAY
CLEAR
STYLE

BACK
EXIT

1

ON
CANCEL

<

COLOR>

Press
Near/Enter
Key

Press Near Key to Save

1

EDIT MASK - Adjust Mask Size

Adjust mask size. Use joystick or arrow buttons to adjust mask
size.

- Move Joystick Left/Right( ): Adjust Mask Width.

- Move Joystick Up/Down( ): Adjust Mask Height.

To hide a certain zone completely regardless of high speed pan/
tilt motions, it is recommended that the size of mask must be
20% bigger than original target size.

It is noted that during pan/tilt control like jog action, the object
behind the privacy mask can be disclosed in a short period of time.

4

5

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ADDRESS
CAMERA ID
PTZ INFORMATION
ACTION TITLE
PRESET LABEL
ALARM I/O
DATE/TIME
<

PRIVACY ZONE>

BACK
EXIT

ON
BOT
ON
ON
ON
ON
ON

OSD

-

DISPLAY SETUP > PRIVACY ZONE

23

5

6

8

7

PRIVACY ZONE - STYLE > COLOR

Sets the color of the mask.

0 ~ 100

0 ~ 100

0 ~ 100

Y-LEVEL

Set the Y-LEVEL of the mask.

RED ADJUST

BLUE ADJUST

> >>

Press
Near/Enter
Key

Press
Near/Enter
Key

Press
Near/Enter
Key

7

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASK NO.

<

EDIT MASK>

DISPLAY
CLEAR
STYLE

BACK
EXIT

1

ON
CANCEL

<

COLOR>

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASK NO.

<

EDIT MASK>

DISPLAY
CLEAR
STYLE

BACK
EXIT

1

ON
CANCEL

<

COLOR>

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

STYLE
Y-LEVEL
RED ADJUST
BLUE ADJUST

BACK
EXIT

COLOR
0
0
0

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

STYLE
Y-LEVEL
RED ADJUST
BLUE ADJUST

BACK
EXIT

COLOR
0
0
0

OSD

-

MOTION SETUP

24

PRESET LOCK

If motion lock is set to ON, it will be impossible to setup or delete a
preset, scan, pattern, and/or group. It will only be possible to run
those functions. To setup and delete those functions, go to OSD
menu.

PWR UP ACTION

This function enables you to resume the last action executed before
the power went down. Most actions such as preset, pattern, scan,
and group resume for this function, but jog action does not resume
with this function.

AUTO FLIP

When the tilt angle arrives to the top of tilt orbit (90°), zoom module
camera continues moving opposite of the tilt direction (180°) to continue
tracing targets. As soon as zoom module camera passes through the
top of the tilt direction (90°), images should be reversed automatically

and F

appears on the screen. If this function is set to OFF, tilt movement

range is 0° ~ 90°.

JOG MAX SPEED

Sets maximum jog speed. Jog speed is inversely proportional to
zoom magnification. As zoom magnification goes up, pan/tilt speed
goes down.

JOG DIRECTION

If you set this to NORMAL, the view on the screen is moving in the
same direction with jog tilting. If INVERSE is selected, the view on
the screen is moving reversely.

FRZ IN PRESET

When present movement begins, the camera captures the image of
the beginning point. Camera will display the captured image during
the present movement and will not display the images the camera
receives during the movement. As soon as the camera stops at the
preset end point, the camera begins to display the live images it
receives at the end point.

<PARKING ACTION SETUP>

Opens PARKING ACTION SETUP screen.

<ALARM INPUT SETUP>

Opens ALARM INPUT ACTION screen.

MOTION SETUP

Configures the general functions of pan/tilt motions.

ON / OFF

ON / OFF

ON / OFF

2/SEC ~ 200/SEC

INVERSE / NORMAL

ON / OFF

PARKING ACTION SETUP

If PARK ENABLE is set to ON, camera runs assigned function
automatically if there is no PTZ command during assigned
WAIT TIME.

2

PARK ENABLE

WAIT TIME

The time is displayed in "HH:MM:SS" format, and the time can be
changed by 1 second unit.

1. To place the cursor on the time marked as shown below, press
Near key.

2. Move joystick left/right to adjust hours, minutes and seconds.

3. Move joystick up/down to select the digit.

4. By pressing Near key, save the current setting.

PARKING ACTION

Ex. If HOME is selected for park action, camera will move to home
position when there is no PTZ command during the assigned
WAIT TIME.

00:10:00

MOTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET LOCK
PWR UP ACTION
AUTO FLIP
JOG MAX SPEED
JOG DIRECTION
FRZ IN PRESET
<

PARKING ACTION SETUP>

<ALARM INPUT SETUP>
BACK
EXIT

OFF
ON
ON

140/SEC

NORMAL
OFF

PARKING ACTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PARK ENABLE
WAIT TIME
PARK ACTION

BACK
EXIT

>

OFF
00:

10:00

HOME

Press
Near/Enter
Key

1

2

1

ON / OFF

00:00:05 ~ 04:00:00

HOME / PRESET 1~128 / SCAN 1~8 /
PATTERN 1~4 / GROUP 1~8

OSD

-

MOTION SETUP

25

ALARM INPUT SETUP

If an external sensor is activated, camera will move to
the corresponding action.

5

1

2

4

3

2

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O
ALARM 2 N.O
ALARM 3

N.O

ALARM 4 N.O
ALARM 5

N.O
ALARM 6 N.O
ALARM 7 N.O
ALARM 8 N.O
BACK
EXIT

MOTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET LOCK
PWR UP ACTION
AUTO FLIP
JOG MAX SPEED
JOG DIRECTION
FRZ IN PRESET
<

PARKING ACTION SETUP>

<ALARM INPUT SETUP>
BACK
EXIT

>

OFF
ON
ON

1

40/SEC
NORMAL
OFF

NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED

> >

NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O
ALARM 2 N.O
ALARM 3

N.O

ALARM 4 N.O
ALARM 5

N.O
ALARM 6 N.O
ALARM 7 N.O
ALARM 8 N.O
BACK
EXIT

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O
ALARM 2 N.O
ALARM 3

N.O
ALARM 4 N.O
ALARM 5

N.O
ALARM 6 N.O
ALARM 7 N.O
ALARM 8 N.O
BACK
EXIT

NOT USED

NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED

>

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O
ALARM 2 N.O
ALARM 3

N.O
ALARM 4 N.O
ALARM 5

N.O
ALARM 6 N.O
ALARM 7 N.O
ALARM 8 N.O
BACK
EXIT

PRESET 1

NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED

Press
Near/Enter
Key

Press
Near/Enter
Key

Joystick
Right

Joystick
Down

Alarm Type:

Sets the sensor input type.

Alarm Action

For each alarm input, you can assign the counteraction functions
(Preset, Scan, Pattern, Group).

N.O (Normal Open) / N.C (Normal Close)

NOT USED / HOME / PRESET 1~128 /
SCAN 1~8 / PATTERN 1~4 / GROUP 1~8

OSD

-

FUNCTION SETUP > PRESET SETUP

26

1

FUNCTION SETUP

Configure 5 special functions with this menu.

PRESET SETUP - Undefined

127 presets (1 ~ 128) can be assigned excluding the number
95, which is reserved for OSD menu.

PRESET NO.

If a selected preset is already defined, camera moves to pre-defined
position and preset characteristics such as label and relay outputs
appear on monitor. (Refer to screen ) If a selected preset is not
defined, UNDEFINED will appear on monitor.

<EDIT SCENE>

Redefine the current preset scene position (i.e. PTZ).

1 ~ 128 (Excluding 95)

1 ~ 128 (Excluding 95)

GENERAL / SPECIAL

- - - - ~ 1 2 3 4

PRESET SETUP

If the preset is defined, the information will be shown on the
OSD menu with the setting, and the alarm device (if defined)
will be activated.

PRESET NO.

<EDIT SCENE>

<LABEL>

Edits Label to show on the monitor when the preset runs.
Maximum 10 characters are allowed.

CAM ADJUST

- WB (White Balance) and AE (Auto Exposure) can be set
independently for each preset.

- GENERAL: WB or AE can be set completely and simultaneously for all
presets in ROOT MENU > CAMERA SETUP menu.

- SPECIAL: WB or AE can be set independently or separately for each
preset in each preset setup menu.

- Each special WB/AE value should be activated correspondingly
when camera arrives at each preset location. During jog operation,
general WB/AE value should be applied.

- The special WB/AE value should not be changed when the general
WB/AE value is changed. If SPECIAL is selected, the menu to set
the special WB/AE appears on the monitor.

ALARM OUT

The status of four alarm outputs can be freely controlled in conjunction
with preset run. The character “-” means the alarm output is OFF, and
the number which represents the alarm means ON.

Ex. “ - 2 3 - ” means output relay 2 and 3 will be ON, and 1 and 4 will
be OFF, when you run this preset.

EDIT SCENE

1. Using the joystick, move camera to the desired position.

2. By pressing Near key, save the current PTZ data.

3. Press Far key to cancel.

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<PRESET SETUP>
<SCAN SETUP>
<PATTERN SETUP>
<GROUP SETUP>
<SCHEDULE SETUP>

BACK
EXIT

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

<

EDIT SCENE>

BACK
EXIT

1

UNDEFINED

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

<

EDIT SCENE>

<LABEL>
CLR PRESET
CAM ADJUST
ALARM OUT

BACK
EXIT

1

CANCEL
GENERAL

- - - -

> > >

EDIT SCENE -PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION
[NEAR:SELECT/FAR:CANCEL]

0/0/x1/E

Press
Near/Enter
Key

Press
Near/Enter
Key

Select <EDIT SCENE>,
Press Near/Enter Key

1

2

4

3

2

3

4

4

OSD

-

FUNCTION SETUP > PRESET SETUP

27

LABEL

Edits the label to show on monitor when camera arrives at
presets.

2

1

2

1

3

2

CAM ADJUST

Edits label to show on monitor when the camera arrives at
presets.

2

LABEL - Complete Editing

If you complete the label editing, move the cursor to OK and
press Near key to save the completed label. To disregard the
current change, move the cursor to CANCEL and press the
Near key

3

LABEL PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

OK
CANCEL

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

a

b

c

d

Current Cursor Position: In edit label menu, a black box acts as
a cursor. As soon as you select a character, the cursor moves to
the next digit.

Selecting Alphabet: Using left/right/up/down of joystick, move
to an appropriate character from the character set. To select the
character, press the Near or Enter key.

Space: If you want to use blank, choose space character (” “).
Backspace:

If you want to delete a character in front, use back

space character (” “).

<WHITE BALANCE SETUP>

See the section ROOT MENU > CAMERA SETUP > WB SETUP.

<AUTO EXPOSURE SETUP>

See the section ROOT MENU > CAMERA SETUP > AE SETUP.

d

a

b

c

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

<

EDIT SCENE>

<LABEL>
CLR PRESET
CAM ADJUST
ALARM OUT

BACK
EXIT

1

CANCEL
GENERAL

- - - -

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

<

EDIT SCENE>

<LABEL>
CLR PRESET
CAM ADJUST
ALARM OUT

BACK
EXIT

1

CANCEL

<

SPECIAL>

- - - -

CAM ADJUST -PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<WHITE BALANCE SETUP>
<AUTO EXPOSURE SETUP>

BACK
EXIT

>

LABEL PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

OK
CANCEL

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

>

LABEL PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

OK
CANCEL

SKY

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

Press
Near/Enter
Key

Press
Near/Enter
Key

Press
Near/Enter
Key

OSD

-

FUNCTION SETUP > SCAN SETUP

28

1

2

2

1st POS.

1. CW direction

2. CCW direction

2nd POS.

SCAN SETUP

By using the scan function, you can make the camera to move
between

2 preset positions repeatedly.

When the scan function runs, the camera moves from the
preset assigned as the 1st point to the preset assigned as the
2nd point in CW (Clockwise) direction. Then the camera moves
from the preset assigned as the 2nd point to the preset
assigned as the 1st point in CCW (Counterclockwise) direction.

In case that the preset assigned as the 1st point is same as the
preset assigned as the 2nd point, the camera turns on its axis
by 360° in CW direction and then it turns on its axis by 360°
in CCW direction.

SCAN NO.

Selects the scan number to edit. If a selected scan has not defined,
NOT USED is displayed in 1st position and 2nd position.

1ST POS. / 2 ND POS.

Set up the 2 position for scan function. If a selected preset is not
defined, UNDEFINED will be displayed as shown below.

SCAN SPEED

Sets the speed of the scan.

CLEAR SCAN

Deletes the current scan data.

1 ~ 8

PRESET 1 ~ 128 / NOT USED

1/SEC ~ 180/SEC

CANCEL / OK

SCAN SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

SCAN NO.

1ST POS.

2ND POS.

SCAN SPEED

1

PRESET 1
NOT USED

30

/SEC

UNDEFINED

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<PRESET SETUP>
<SCAN SETUP>
<PATTERN SETUP>
<GROUP SETUP>
<SCHEDULE SETUP>

BACK
EXIT

SCAN SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

SCAN NO.
1

ST POS.

2ND POS.

SCAN SPEED
CLEAR SCAN

BACK
EXIT

1

NOT USED
NOT USED

30

/SEC

CANCEL

>

Press
Near/Enter
Key

OSD

-

FUNCTION SETUP > PATTERN SETUP

29

PATTERN SETUP

Pattern function is when a camera memorizes the path (mostly
curve path) created by a joystick controller and revives the
path exactly as it memorized for an assigned time.

4 patterns are available and maximum 1000 communication
commands can be stored in a pattern.

2

1

2

1

3

2

3

PATTERN NO.

Select pattern number to edit. If a selected pattern number is not
defined, UNDEFINED will be displayed under the selected pattern
number.

CLEAR PATTERN

Deletes data in the current pattern.

<EDIT PATTERN>

Starts editing pattern.

1 ~ 4

CANCEL / OK

EDIT PATTERN - Selects the Position

1.

By using joystick, move to the start position with appropriate

zoom.

2. To start the pattern recording, press Near or Enter key.

3. To exit this menu, press Far key.

EDIT PATTERN - Recording

1. Move the camera with joystick controller or run preset
function to memorize the path (mostly curve path) in a
selected pattern.

2. The total memory size and the rest memory size is displayed
in the form of a bar.

3. To save data and exit, press Near key.

4. To cancel recording and delete the recorded data, press Far
key.

EDIT PATTERN 1

[NEAR:SAVE / FAR:DELETE]

0/0/x1/E

EDIT PATTERN 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO START POSITION
[NEAR:START/ FAR:CANCEL]

0/0/x1/E

EDIT PATTERN 1

[NEAR:SAVE / FAR:DELETE]

0/0/x1/E

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<PRESET SETUP>
<SCAN SETUP>
<PATTERN SETUP>
<GROUP SETUP>
<SCHEDULE SETUP>

BACK
EXIT

PATTERN SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PATTERN NO.

CLEAR PATTERN
<

EDIT PATTERN>

BACK
EXIT

1
UNDEFINED
CANCEL

> > > >

Select <EDIT PATTERN>,
Press Near/Enter Key

Press
Near/Enter
Key

Move Camera to Area,
Press Near/Enter Key

Record the Path of the Pattern
by Camera Control

4

OSD

-

FUNCTION SETUP > GROUP SETUP

30

2

GROUP SETUP

The group function allows you to run sequence of presets, pattern,
and/or scans. Maximum 8 groups can be stored. Each group can
have

a maximum of 20 action entities which can be preset,

pattern, or scan.

The preset speed and the repeat number of pattern & scan can
be configured in group setup. Dwell time between actions can
also be adjusted.

EDIT GROUP - Initial Screen

Press Near or Enter key in NO list to start group setup.

EDIT GROUP – Select Function Sequence

Note that maximum 20 functions are allowed in a group.
Move cursor up/down and press Near or Enter key to set.

EDIT GROUP - Assign Function

Set up ACTION, DWELL and OPT. Note that selected item is
displayed in reverse. Move cursor left/right to select items and
move cursor up/down to change each value.

GROUP NO.

Selects group number to edit. If a selected group number is not
defined, UNDEFINED will be displayed under the selected group
number.

CLEAR GROUP

Deletes the data in the current group.

<EDIT GROUP>

Starts editing the group function.

1 ~ 8

CANCEL / OK

ACTION NO.

DWELL TIME

Sets dwell time between function by moving joystick up/down.

OPT

Represents preset speed (2~360) when preset is selected. It should
be the number of repetition (1~255) when pattern or scan is
selected for ACTION.

NONE / PRESET 1~128(Excluding 95) /
PATTERN 1~4 / SCAN 1~4

00:03 ~ 04:00 (min:sec)

PRESET: 2~360 / PATTERN & SCAN: 1~255

Preset

1

Preset

120

Pattern5

1 Times

Pattern5

n Times

Dwell Time

Max. 20 Entities

Scan

1

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<PRESET SETUP>
<SCAN SETUP>
<PATTERN SETUP>
<GROUP SETUP>
<SCHEDULE SETUP>

BACK
EXIT

GROUP SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

GROUP NO.

CLEAR GROUP
<

EDIT GROUP>

BACK
EXIT

1
UNDEFINED
CANCEL

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1

NONE

2 NONE

3 NONE
4 NONE
5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE
CANCEL [NEAR:EDIT]

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1

NONE

2 NONE

3 NONE
4 NONE
5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE
CANCEL

[NEAR:EDIT ACT]
[FAR :EDIT END]

Select <EDIT GROUP>,
Press Near/Enter Key

> > > >

[ :

MOVE CURSOR

]

[ : CHANGE VAL.]

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1

NONE

2 NONE

3 NONE
4 NONE
5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE
CANCEL

Press
Near/Enter
Key

Press
Near/Enter
Key

Press
Near/Enter
Key

3

4

5 6

5

1

2

4

3

OSD

-

FUNCTION SETUP > GROUP SETUP

31

6

7

8

> >

[ :

MOVE CURSOR

]

[ : CHANGE VAL.]

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1

PATTERN 1 00:0

3 1

2 NONE

3 NONE
4 NONE
5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE
CANCEL

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1

PATTERN 1 00:0

3 1

2 NONE

3 NONE
4 NONE
5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE
CANCEL

[NEAR:EDIT ACT]
[FAR :EDIT END]

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1

PATTERN 1 00:0

3 1

2 NONE

3 NONE
4 NONE
5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE
CANCEL

Press
Near/Enter
Key

Press
Far Key

EDIT GROUP - Selects Function Sequence

When you finish setting up an ACTION, press Near or Enter key.
Move cursor up/down to select another ACTION NO. and
repeat to step 4 ~ step 6 to edit the selected group.

EDIT GROUP - Saves the Setting

After completing the setup of all ations, press Far key to exit.
Then move the cursor to SAVE. Press Near or Enter key to
save the data.

64

7

8

OSD

-

FUNCTION SETUP > SCHEDULE SETUP

32

2

5

1

2

4

3

SCHEDULE SETUP SCREEN

The schedule function allows running an appropriate function
like preset, scan, pattern, group, home move at a
designated day and time.

Ex. If you setup a rule “Tuesday at 9:00AM” and “Preset 1(say main
gate),” the camera will move to the main gate every Tuesday at
9:00 AM. If you choose weekday, camera will move to main gate
everyday except on weekends.

It is noted that due to the real time clock (ROOT MENU >
SYSTEM SETUP > DATA/TIME SETUP), the time data will be kept
regardless of a blackout. The initial time and day setup is
essential to proper schedule function.

SCHEDULE SETUP - Assign Value

Each field (DAY, TIME, ACT, NO, ON) can be selected by left/
right keys and the values in the field are changed using up/
down keys.

MASTER ENABLE

Decide whether schedule function is active or not.

DAY

Set the day for scheduling.

- Undefined: Inactivate.

- All: Applies to every day of the week

- WKD: Applies to every day except for Saturday and Sunday.

- SUN-MON: Applies to designated day only.

TIME

Set the time.

ACT NO

Set the function and number.

ON

Turn ON / OFF this rule.

ON / OFF

UNDEFINED / ALL / WKD / SUN ~ MON

00:00 ~ 23:59 (hour:min)

HOM(HOME) / PRS(Preset) 1~255(Excluding 95)
/ SCN(Scan) 1~8 / PTN(Pattern) 1~4
/ GRO(Group) 1~8

ON /OFF

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<PRESET SETUP>
<SCAN SETUP>
<PATTERN SETUP>
<GROUP SETUP>
<SCHEDULE SETUP>

BACK
EXIT

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF
DAY TIME ACT NO ON
1

UNDEFINED

2 UNDEFINED

3 UNDEFINED
4 UNDEFINED
5 UNDEFINED
6 UNDEFINED

7 UNDEFINED
BACK

> > > >

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF
DAY TIME ACT NO ON
1

UNDEFINED

2 UNDEFINED

3 UNDEFINED
4 UNDEFINED
5 UNDEFINED
6 UNDEFINED

7 UNDEFINED
BACK

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF
DAY TIME ACT NO ON
1

ALL 00:00 HOM OFF

2 UNDEFINED

3 UNDEFINED
4 UNDEFINED
5 UNDEFINED
6 UNDEFINED

7 UNDEFINED
BACK

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF
DAY TIME ACT NO ON
1

ALL 12:00 PRS 128 ON

2 UNDEFINED

3 UNDEFINED
4 UNDEFINED
5 UNDEFINED
6 UNDEFINED

7 UNDEFINED
BACK

Press
Near/Enter
Key

Joystick
Down

Assign Value

Joystick Down,
Press Near Key

4

5

OSD

-

FUNCTION SETUP > SCHEDULE SETUP

33

EX.

The second rule means camera will move to preset 12 at 7:00
every Wednesday.

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE ON
DAY TIME ACT NO ON
1

MON 01:20 HOM ON

2 WED 07:00 PRS 1

2 ON

3 THU 11

:40 SCN 3 ON

4 ALL 1

2:00 SCN 1 ON

5 UNDEFINED
6 UNDEFINED

7 UNDEFINED
BACK

If the rules conflict with each other, the higher number will have
priority over the others.

If you assign an undefined function, there will be no action
that takes place.

Using reserved preset, you can make various schedules.
For example, PRS179 and PRS178 are DAY and NIGHT mode
respectively.
(Refer to “Reserved Preset” list on page 18 in this manual.)

OSD

-

CAMERA SETUP > WB SETUP

34

WB SETUP - DAY

DAY/NIGHT

The day/night mode can be set independently.
Night mode will only be deactivated if AGC in CAMERA SETUP

is set to OFF or FIX.

WB MODE

- ATW1: The color temperature is adjusted automatically between

2500K and 9300K.

- ATW2: The color temperature is adjusted automatically between
2000K and 10000K.

- AWC: The color temperature is adjusted automatically once, then
adjusted value of R-GAIN, B-GAIN are maintained. Gain value can
be adjusted manually by the user. It can be fixed as 3200K or 5600K.

- OFF: Only activated when NIGHT is selected. At night, the setting
will be same as day’s setting.

RED/BLUE ADJUST

In every mode except OFF, users can adjust the red/blue color
value to have the image they want.

R/B - GAIN

If AWC is on, the adjusted value will be marked. Also, the user can
adjust the values even after it has been adjusted automatically.

DAY / NIGHT

ATW1 / ATW2 / AWC / 3200K / 5600K / OFF

-32 ~ +32

0 ~ 1023

>

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DAY/NIGHT

- WB MODE

- RED ADJUST

- BLUE ADJUST

BACK
EXIT

DAY
ATW2
0
0

Press
Near/Enter
Key

> >

2

WB SETUP - NIGHT

6

BRIGHTNESS

When NIGHT is selected, it sets the criterion of the automatic
day/night selection.
If set to LOW, the image has to be very dark to be recognized as
night among 3 settings. If set to HIGH, the image will be recognized
as night even though it is a little dark.

LOW / MIDDLE / HIGH

ZOOM CAMERA SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

FOCUS MODE
DIGITAL ZOOM
IMAGE FLIP
FLICKERLESS
DIS MODE
<

WHITE BALANCE SETUP>
<AUTO EXPOSURE SETUP>
<SPECIAL>
BACK
EXIT

SEMIAUTO
ON
OFF
OFF
OFF

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DAY/NIGHT

- WB MODE

- RED ADJUST

- BLUE ADJUST

BACK
EXIT

DAY
ATW2
0
0

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DAY/NIGHT

- WB MODE

- RED ADJUST

- BLUE ADJUST

- R-GAIN

- B-GAIN

BACK
EXIT

DAY
AWC

>

0
0
0
0

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DAY/NIGHT

- WB MODE

- RED ADJUST

- BLUE ADJUST

- R-GAIN

- B-GAIN

BACK
EXIT

DAY
AWC

>

0
0
74

52

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DAY/NIGHT

- WB MODE

- BRIGHTNESS

- RED ADJUST

- BLUE ADJUST

- R-GAIN

- B-GAIN

BACK
EXIT

NIGHT
AWC

>

MIDDLE
0
0
74

52

>

Joystick Down,
Press Near Key

Joystick Down

Joystick Right

5

1

2

4

3

1

DIS MODE

Sets the Digital Image Stablization mode.

<SPECIAL>

Goes to SPECIAL SETUP screen.

ON / OFF

ZOOM CAMERA SETUP

OSD

-

CAMERA SETUP > AE SETUP

35

>

Press Near/Enter Key

>

Select BACKLIGHT > BLC,
Press Near/Enter Key

AE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS
DAY/NIGHT
MOTION
SHUTTER SPD
SENS-UP

BACK
EXIT

AE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS

- IRIS LEVEL

- BACKLIGHT

BACK
EXIT

<ALC>
<AUTO>

F.FAST

- - ­AUTOx4

<

ALC>

0
OFF

<ALC>
0
BLC
CENTER

>

Select AREA > USER,
Press Near/Enter Key

>

Move Camera to BLC Area,
Press Near/Enter Key

AE SETUP

IRIS

See below AE SETUP - IRIS > ALC

DAY/NIGHT

Color filter or B/W filter can be selected. If DAY/NIGHT is set to <AUTO>,
the DAY/NIGHT editing screen will appear. See the next page
DAY/NIGHT.

This is changed to AGC or MOTION according to the SENS-UP
setting.

AGC

Enhances the brightness of the image by amplifying gain when the
illumination is low.

MOTION

If MOTION is set as S.SLOW, the shutter speed will be slower to
obtain more light. There will be less noise but this can cause
the ghost effect of the moving object.
If MOTION is set towards F.FAST, there will be more noise but this
will reduce the ghost effect for any moving object.

SHUTTER SPD

If this speed is faster, the moving object can be photographed
without the ghost effect. However, the images can be dark if the
scene lacks sufficient lighting.

If SENS-UP is set to AUTO, SHUTTER SPD is deactivated.

SENS-UP

Activates the slow shutter function when the luminance of image
is too dark for the CCD to accumulate the amount of light it is set
to obtain.

IRIS LEVEL

BACKLIGHT

This function improves the backlight effect, which is when the
subject is dark on the monitor because the intensive backlight

- BLC: You can select the desired area you wish to brighten. If it
is set on a bright area, note that the area will appear even more

brighter.

- WDR: See AE SETUP-IRIS > ALC > BACKLIGHT > WDR on the next

page.

AREA

If set to USER, the user can set the specific area.
See screen on this page.

ALC / MANUAL

DAY / NIGHT / AUTO

VERY LOW / LOW / MIDDLE / HIGH /
VERY HIGH / USER 1~16 / FIX 1~16

S.SLOW / SLOW / NORMAL / FAST / F.FAST

OFF / 1/100 ~ 1/10K

OFF / AUTO x2 ~ AUTO x256 /
FIX x2 ~ FIX x256

-32 ~ +32

OFF / BLC / WDR

TOP / BOTTOM / LEFT / RIGHT / USER

1

AE SETUP - IRIS > ALC

If ALC is selected, the iris will be controlled automatically.

2

BLC AREA

3

BLC AREA

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS

- IRIS LEVEL

- BACKLIGHT

- AREA

BACK
EXIT

BLC AREA

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION
[ENTER : SELECT]

BLC AREA

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ADJUST MASK WIDTH]
[ ADJUST MASK HEIGTH]
[ENTER : SELECT]

5

1

2

4

3

2

2

2

4

5

OSD

-

CAMERA SETUP > AE SETUP

36

1

2

2

1

AE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS
DAY/NIGHT
MOTION
SHUTTER SPD
SENS-UP

BACK
EXIT

<

ALC>

<AUTO>

F.FAST

- - ­AUTOx4

DAY/NIGHT

- - - - - - - - - - - - - - - - - - - - - - - - - - -

-BURST

[

DAY NIGHT

]

-BRIGHTNESS

-DWELL TIME

[

NIGHT DAY

]

-BRIGHTNESS

-DWELL TIME

-MASK AREA
BACK
EXIT

OFF

MIDDLE

5 SEC

MIDDLE

5 SEC

1 2

AE SETUP - IRIS > ALC > BACKLIGHT > WDR

In WDR mode, the brightness is adjusted in all area of the
picture by combining high speed shutter and low speed
shutter.

2

>

Press
Near/Enter
Key

>

Joystick Down

AE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS

- IRIS LEVEL

- BACKLIGHT

BACK
EXIT

<

ALC>

0
OFF

AE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS

- IRIS LEVEL

- BACKLIGHT

- WEIGHT

- WDR LEVEL

- WHITE BAL

BACK
EXIT

<ALC>
0
WDR
MIDDLE
0
INDOOR

BURST

If BURST is set to ON, the burst signal is produced although the
camera is hcange to B/W filter.

BRIGHTNESS

As the camera switches from Color to B/W with BRIGHTNESS set as
LOW, the images will appear darker. As the camera switches from B/W
to Color with BRIGHTNESS set as HIGH, the image will appear brighter.

DWELL TIME

When the switching criterions are satisfied, the filter is changed after
the status is maintained during the dwell time.

MASK AREA

If the streetlights or traffic lights are present in a night scene, the
mode might not change to B/W. In this incident, setting MASK AREA
to those lights will correct the problem.

If BACKLIGHT is set to BLC, MASK AREA function is deactivated.

ON / OFF

LOW / MIDDLE / HIGH

2 SEC / 3 SEC / 5 SEC / 10 SEC / 15 SEC /
20 SEC / 25 SEC / 30 SEC

1 / 2

DAY/NIGHT

The camera automatically detects the change by the
brightness of the scene.

2

WEIGHT

If WEIGHT goes to HIGH, the area applying high speed shutter is
expanded.

WDR LEVEL

If WDR LEVEL goes up, the speed of the high speed shutter becomes
faster.

WHITE BAL

If WHITE BAL is set to INDOOR, the color temperature adjusts
based on the darker areas. If WHITE BAL is set to OUTDOOR, the
color temperature adjusts based on the brighter areas.

LOW / MIDDLE / HIGH

-9 ~ +9

INDOOR / OUTDOOR

When WDR is used, the internally operating VPS function stops.

OSD

-

CAMERA SETUP > SPECIAL

37

1

DIS MODE

Sets the Digital Image Stablization mode.

<SPECIAL>

Opens SPECIAL SETUP menu.

ON / OFF

OFF / LOW / MIDDLE / HIGH / USER 1~16

1 ~ 4

0 ~ 3

LOW / MIDDLE / HIGH

ON / OFF

+ / -

>

Press
Near/Enter
Key

1

2

ZOOM CAMERA SETUP

DNR

Reduces the noise caused by AGC. If set towards HIGH, the noise
will be reduced but the ghost effect on moving objects will be
increased.

ZOOM SPEED

The speed it takes to adjust zoom in/zoom out. 1 is the slowest, and
4 is the fastest.

DETAIL

The distinction are separated into 4 levels.
If the level is high, the outline is clear but the noise is increased.

AGC COLOR SUP

The color range of the noise caused by AGC can be reduced.
If set to HIGH, the color range of the noise will decrease, but the
overall quality of the color will also decrease

PIP

Turn ON to display the sub-screen.
Sub-screen will appear on the bottom right side of the main display.
Even though the main display enables digital zoom, the sub-screen
will only display with maximum optical zoom.

POSI/NEGA

If set as +, the camera will produce the normal image; however, if set
as - , the brightness signal and color signal of the produced image
will be reversed.

SPECIAL

Sets the special function related to the image.

ZOOM CAMERA SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

FOCUS MODE
DIGITAL ZOOM
IMAGE FLIP
FLICKERLESS
DIS MODE
<

WHITE BALANCE SETUP>
<AUTO EXPOSURE SETUP>
<SPECIAL>
BACK
EXIT

SPECIAL

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DNR
ZOOM SPEED
DETAIL
AGC COLOR SUP
PIP
POSI/NEGA

BACK
EXIT

SEMIAUTO
ON
OFF
OFF
OFF

MIDDLE
4
2
MIDDLE
OFF
+

2

OSD

-

INTELLIGENCE > MASK AREA

38

INTELLIGENCE

MOTION

Enable motion detection and tracking functions.
If you set it to DETECTION, both the FIX/MOVE option of

ADVANCED will be disabled.
In the following situations, DETECTION and TRACKING may

not work properly.

- when there is a sudden change of brightness

- when the device moves

- when a certain object’s movement fills most of the framing area

- when there are difficulties in distinguishing the moving object
and background

ADVANCED

This option enables you to detect motion and track the
movement.

FIX/MOVE will mark a region if an existing object disappears or
a new object appears and stays fixed for a certain period of time.

In the following situations, FIX/MOVE may not work properly.

- when multiple motions continue arbitrarily

- when the object continues to move within the same
position.

- when a new object suddenly appears and conceals another
object that is moving.

MASK AREA

Selects the MASK AREA number that you wish to exclude from
motion detection.

DISPLAY

Turn ON to display the motion detection and the detection of the
configured advanced function.

SENSITIVITY

Sets the sensitivity of the motion sensor.

RESOLUTION

As the resolution setting gets higher, motion detection becomes
more precise. Higher resolution settings allow the detection of
smaller objects.

<ALARM OUT>

Opens ALARM OUT menu.

OFF / DETECTION / TRACKING

OFF / FIX/MOVE

1 / 2 / 3 / 4

ON / OFF

0 ~ 6

0 ~ 6

> > > >

Press
Near/Enter
Key

Press
Near/Enter
Key

Joystick Up or Down

Press
Near/Enter
Key

5

1

2

4

3

INTELLIGENCE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOTION
ADVANCED
MASK AREA
DISPLAY
SENSITIVITY
RESOLUTION
<

ALARM OUT>

BACK
EXIT

OFF
OFF

1 2 3 4

OFF
0
0

1

INTELLIGENCE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOTION
ADVANCED
MASK AREA
DISPLAY
SENSITIVITY
RESOLUTION
<

ALARM OUT>

BACK
EXIT

OFF
OFF

1 2 3 4

OFF
0
0

INTELLIGENCE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOTION
ADVANCED
MASK AREA
DISPLAY
SENSITIVITY
RESOLUTION
<

ALARM OUT>

BACK
EXIT

OFF
OFF

1 2 3 4

OFF
0
0

INTELLIGENCE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION
[ENTER : SELECT]

INTELLIGENCE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ADJUST MASK WIDTH]
[ ADJUST MASK HEIGHT]
[ENTER : SELECT]

OSD

-

INTELLIGENCE > ALARM OUT

39

1

2

ALARM OUT

When ALARM OUT is set to ON, the camera will produce
alarm signals when motion is detected or when the
configured advanced function is detected.

2

>

Press
Near/Enter
Key

INTELLIGENCE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOTION
ADVANCED
MASK AREA
DISPLAY
SENSITIVITY
RESOLUTION
<

ALARM OUT>

BACK
EXIT

OFF
OFF

1 2 3 4

OFF
0
0

ALARM OUT

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOTION
FIX/MOVE

BACK
EXIT

ON
ON

MOTION

FIX/MOVE

ON / OFF

ON / OFF

OSD

-

SYTEM SETUP

40

1

1

2

4

3

SYSTEM SETUP

DATE/TIME SETUP

After you press the Near or Enter key, move between the
different fields using the left/right keys. Use the up/down keys
to change the values of each field. To save the updated data,
press the Near or Enter key again.

<DATE/TIME SETUP>

Opens DATE/TIME SETUP menu.

<RELAY TYPE>

Opens RELAY TYPE menu.

<PASSWORD>

Opens PASSWORD menu.

<SET HOME POSITION>

Opens SET HOME POSITION menu.

<SET NORTH DIRECTION>

Opens SET NORTH DIRECTION setup.

LANGUAGE

Select a preferred language for the OSD display.
After selecting a language, press Near or Enter key.

DATE

Date is displayed in dd/mm/yy format.
The day is automatically calculated when you set the date.

TIME

Time is displayed in HH:MM:SS format.

ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH
/ ITALIANO / РУССКИЙ / PORTUGUÊS

01 / JAN / 2000 ~ 31 / DEC / 2037

RELAY1, 2, 3, 4

Define the type of relay output for each of the four relays.

NORMAL OPEN / NORMAL CLOSE

SYSTEM SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<DATE/TIME SETUP>
<RELAY TYPE>
<PASSWORD>
<SET HOME POSITION>
<SET NORTH DIRECTION>
LANGUAGE

BACK
EXIT

>

ENGLISH

DATE/TIME SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DATE
TIME

BACK
EXIT

01/JAN/2008(TUE)
00:00:01(H/M/S)

RELAY TYPE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

RELAY1
RELAY2
RELAY

3

RELAY4

BACK
EXIT

NORMAL OPEN
NORMAL OPEN
NORMAL OPEN
NORMAL CLOSE

EDIT PASSWORD

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

OK
CANCEL

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J
K L M N O P Q R S T

U V W X Y Z a b c d

e f g h i j k l m n
o p q r s t u v w x
y z

< >

- / : .

DISABLE

Press
Near/Enter
Key

2

RELAY TYPE SETUP

3

EDIT PASSWORD

Sets a password that consist of 4 characters. If this function
is set as ENABLE, the password is required whenever you
open the OSD Menu.

The default password is “4321” and the master password
is “- - > g.”

4

OSD

-

SYTEM SETUP

41

5

6

Set Home Position?

When the camera block is replaced or the orientation of the
camera is changed due to maintenance operations, it is very
difficult to maintain the same pan orientation. All the data
for the functions that depend on pan orientation, such as preset,
scan, pattern, group,

and privacy zone mask, are no longer
useful. However, even in this case, you can reuse the data if
you redefine the set home position to the previous home
position.

SET NORTH DIRECTION

By using the joystick, move the camera to the desired
northern position and press Near or Enter key.
The direction will be displayed on the screen

Direction will be displayed as one of the following:
N(North) / S(South) / E(East) / W(West) / NE(Northeast) /
NW(Northwest) / SE(Southeast) / SW(Southwest).

SET HOME POSOTION

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION
[NEAR:SELECT/FAR:CANCEL]

0/0/x1/E

SET NORTH DIRECTION

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION
[NEAR:SELECT/FAR:CANCEL]

0/0/x1/N

SET HOME POSITION

Home position means the origin of pan angle calculation.
The value of pan angle displayed on the screen is based on
this home position.

By using joystick, move the camera to the desired position
and press Near key.

Home position does not effect the tilt angle.
If you change the location of the home position, all horizontal

locations of your set functions such as preset, scan, pattern,
group, and privacy zone mask will be shifted based on the new
home position.

If there are no saved locations for preset, pattern, scan,
and/or group, the camera will automatically move to the
home position after rebooting.

If power up action is set as ON, camera will continue the
last function that was executed right before reboot.

5

6

[NEAR:SELECT/FAR:CANCEL]

0/0/x1/N

OSD

-

SYSTEM INITIALIZE

42

1

1

SYSTEM INITIALIZE

NO / YES

NO / YES

NO / YES

NO / YES

NO / YES

NO / YES

NO / YES

Initial Configuration Table

SYSTEM INITIALIZE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CLEAR ALL DATA
CLR DISPLAY SET
CLR CAMERA SET
CLR MOTIOM SET
CLR FUNCTION SET
REBOOT CAMERA
REBOOT SYSTEM

BACK
EXIT

NO
NO
NO
NO
NO
NO
NO

CLEAR ALL DATA

Deletes all configuration data such as display, camera,
motion setup, and so on.

CLR DISPLAY SET

Initializes display configuration.

CLR CAMERA SET

Initializes camera configuration.

CLR MOTION SET

Initializes motion configuration.

CLR FUNCTION SET

Deletes preset data, scan data, pattern data, group data,
and schedule data.

REBOOT CAMERA

Reboots zoom camera module.

REBOOT SYSTEM

Reboots speed dome camera.

Display

Motion

Communication

Camera

Function

ON
OFF
AUTO
AUTO
AUTO
AUTO
ON
Undefined

Address
Camera ID
PTZ Information
Action Title
Preset Label
Alarm I/O
Date/Time
Privacy Zone

OFF
ON
ON
140°/sec
NORMAL
OFF
OFF
OFF

Preset Lock
Power Up Action
Auto Flip
Jog Max Speed
Jog Direction
Freeze In Preset
Park Action
Alarm I/O Action

Intelligence

OFF
OFF
Undefined
ON
4
3
ON
ON

Motion
Advanced
Mask Area
Display
Sensitivity
Resoluition
Alarm Out>Motion
Alarm Out>Fix/Move

AUTO
9600

Protocol
Baud Rate

Focus Mode
Digital Zoom
Image Flip
Flickerless
DIS Mode

Day/Night
WB Mode
Red Adjust
Blue Adjust
Day/Night
WB Mode

Iris
Iris Level
Backlight
Day/Night
Burst
Brightness
Dwell Time
Mask Area
Motion
Sens-up
DNR
Zoom Speed
Detail
AGC Color Sup
PIP
Posi/Nega

Undefined
Undefined
Undefined
Undefined
Undefined

Preset 1~128
Auto Pan 1~8
Pattern 1~4
Scan 1~8
Schedule 1~7

AUTO
ON
OFF
OFF
Off

DAY
ATW2
0
0
NIGHT
OFF

ALC
0
OFF
AUTO
OFF
MIDDLE
5 SEC
Undefined
F.FAST
AUTOx4
MIDDLE
4
2
MIDDLE
OFF
+

Specications

-

Dimension

unit: mm

170

101.5

260

43

Specications

-

Specication PTZ39X

44

Image Device

410K Pitxels, 811 (H) x 508 (V)

1/4” EX View-HAD PS CCD

380K Pixels, 768 (H) x 494 (V)

470K Pixels, 795 (H) x 596 (V)

440K Pixels, 752 (H) x 582 (V)

Color: 550 TV Lines B/W: 600 TV Lines

52 dB (AGC OFF)

COLOR / BW / AUTO (Day&Night Filter)

AUTO / MANUAL / SEMI-AUTO

AUTO / MANUAL

1/60 (1/50) ~ 1/10K.sec

X2 ~ X256

ATW1(2,500 ~ 9,500°K) / ATW2(2,000 ~ 10,000°K) / AWC / MANUAL

ON / OFF

ON / OFF

MOTION / FIX/MOVE
VBS: 1.0 Vp-p (75Ohm Terminated)

Frame Freeze Function, Detail, Reverse, Posi/Nega, PIP

Pan: 360° (Endless)

Tilt: 0° ~ 180° (Auto-Flip On), 0° ~ 90° (Auto-Flip O)

Preset: 360°/sec

Manual: 0.05° ~ 200°/sec (Zoom Proportional)

Scan: 1° ~ 180°/sec

127 Presets with Labels / Independent Camera Setup

4 Patterns, 1000 Commands/Pattern (Approximately 5 Minutes for Each Pattern)

8 Scans

8 Groups (Maximum 20 Entries per Group)

7 Rules (Condition: Day, Time Action: Preset, Scan, Group, Pattern)

Image Auto Flip, Auto Parking, Power-Up Action, etc.

RS-485

Auto, Pelco-D, Pelco-P, Samsung, Panasonic, Kalatel, AD (American Dynamics)

12 Zones

8 Input / 4 Relay Output

Available, Supports 7 Languages:
ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / РУССКИЙ / PORTUGUÊS

Total Pixel

Eective Pixel

H. Resolution

S/N Ratio

Zoom

Focal Length

Angle of View

Min. Illumination

Day & Night

Focus

Iris

Shutter Speed

Sens-Up

ON / OFFFlickerless

ON / OFFAGC

BLC

WDR

DNR

DIS

Intelligent Video

Video Out

Other Functions

Range

Pan/Tilt Speed

Preset

Pattern

Scan

Group

Schedule

Other Functions

Communication

Protocol

Privacy Zone

Sensor In/Out

OSD

Camera

Pan/Tilt

General

AC 24V: 24W, 1A / 57W, 2.38A HEATER ON

Net: 260 x 552 x 405 mm, 10.2 x 21.7 x 15.9 in

Package: 390 x 580 x 500 mm, 15.4 x 22.8 x 19.7 in

6.4kg, 14.1lbs

-45°C ~ 50°C / -49°F ~ 122°F

Power

Dimension

Weight

Operating Temperature

IP 66/ Vandal Proof Structure
(Housing & Accessories: AL Die-cast), (Dome Cover: PC)

Outdoor Housing

Signal Format NTSC PAL

X39 Optical Zoom, X12 Digital Zoom

F 1.6 (W) 3.7 (T) f=3.4 ~ 132.6mm

H: 57.54° (W) ~ 1.56° (T) V: 44.44° (W) ~ 1.16° (T)

Color: 1.2 Lux / F1.6 (50 IRE) B/W: 0.12 Lux / F1.6 (50 IRE)

ON / OFF

ON / OFF

White Balance

WARRANTY INFORMATION

Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against
defects in materials or workmanship as follows:

LABOR : For the initial two (2) years from the original purchase date, if the camera is determined
to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at
its option at no charge.

PARTS : In addition, the Warrantor will supply replacement parts for the initial two (2) years.

To obtain warranty or out of warranty service, please contact a Technical Support Representative
at 1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM Eastern Standard Time.

A purchase receipt or other proof of the original purchase date is required before warranty service
is rendered. This warranty only covers failures due to defects in materials and workmanship which
arise during normal use. This warranty does not cover damage which occurs in shipment or failures
which are caused by products not supplied by the Warrantor or failures which result from accident,
misuse, abuse, neglect, mishandling, misapplication, alteration, modication, faulty installation,
set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer
controls, improper operation, power line surge, improper voltage supply, lightning damage, rental
use of the product or service by anyone other than an authorized repair facility or damage that is
attributable to acts of God.

45

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above. The Warrantor will not be liable for
incidental or consequential damages (including, without limitation or damage to recording media)
resulting from the use of these products, or arising out of any breach of the warranty. All express
and implied warranties, including the warranties of merchantability and tness for particular
purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the exclusions or limitations listed above may
not apply to you. This warranty gives you specic legal rights, and you may also have other rights
that vary from state-to-state.

If the problem is not handled to your satisfaction, then write to the Address listed on the next page.

Service calls which do not involve defective materials or workmanship as determined by the
Warrantor, in its sole discretion, are not covered. Costs of such service calls are the responsibility of
the purchaser.

46

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government oce,
for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

5436 W Crenshaw St. Tampa, FL 33634

Toll Free : 866-446-3595

Tel : [phone] Fax : [phone]

www.Digital-Watchdog.com

[e-mail]
Technical Support Hours : Monday-Friday
8:30AM to 8:00PM Eastern Standard Time
