Digital Watchdog Infinity C233W User Manual

Infinity C233W

11192010

User Manual Version #2:
Camera with ICON Menu

PRECAUTIONS

 Do not open or modify.
 Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.
 Do not put objects into the unit.
 Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
 Be careful when handling the unit.
 To prevent damages, do not drop the camera or subject it to shock or vibration.
 Do not install near electric or magnetic fields.
 Protect from humidity and dust.
 Protect from high temperature.
 Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.
 Cleaning
 To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
 Mounting Surface
 The material of the mounting surface must be strong enough to support the camera.

TROUBSHOOTING

Before sending your camera for repair, check the following or contact our technical specialist.

No VIDEO

Check the coaxial cable and make sure it is connected securely.
Check the lens’ iris adjustment at the menu setup of the camera.
Check the power supply and make sure the camera has the proper voltage and current.

Out-of-Focus VIDEO

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.
Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
Provide reasonable protection against harmful interference .when the equipment is operated in a residential environment. This equipment generates, uses, and
radiates radio frequency energy; and if it is not installed and used in accordance
with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacture.

FEATURES

1/3” Sony Super HAD II CCD

High Resolution 560 TV Lines

True Day & Night / TDN5 (Electro Magnetic Mechanism)

Star-Light (Super Low Light Technology)

Max-DR (Electronic Wide Dynamic Range)

Enables the camera to capture perfect images in both bright and dark environments simultaneously.

3D-DNR (3D Digital Noise Reduction)

Produces less noise and more color during low-light application.

HME (Highlight Mask Exposure)

Masks overly exposed light to produce a true video image of any environment.

SLC (Side Light Compensation)

DIS (Digital Image Stabilizer)

Programmable Privacy Zone (6) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Negative Imaging

Mirror Image Control

Auto Sensing 12VDC or 24VAC with Line Lock

No Fog or Condensation under Any Weather Condition

ADJUSTMENT OF BACK FOCUS

1. Please make sure the lens is C or CS Mount.
To use C Mount lens, please fix the lens into front camera
after mounting the included C ring to the lens.
To use CS Mount lens, fix the lens directly into the front
camera without the C ring.

2. To adjust the focus, slide the focus lever on the side of the
front camera.

3. Please tighten the focus lever after the adjustment in order
to prevent being out of focus.

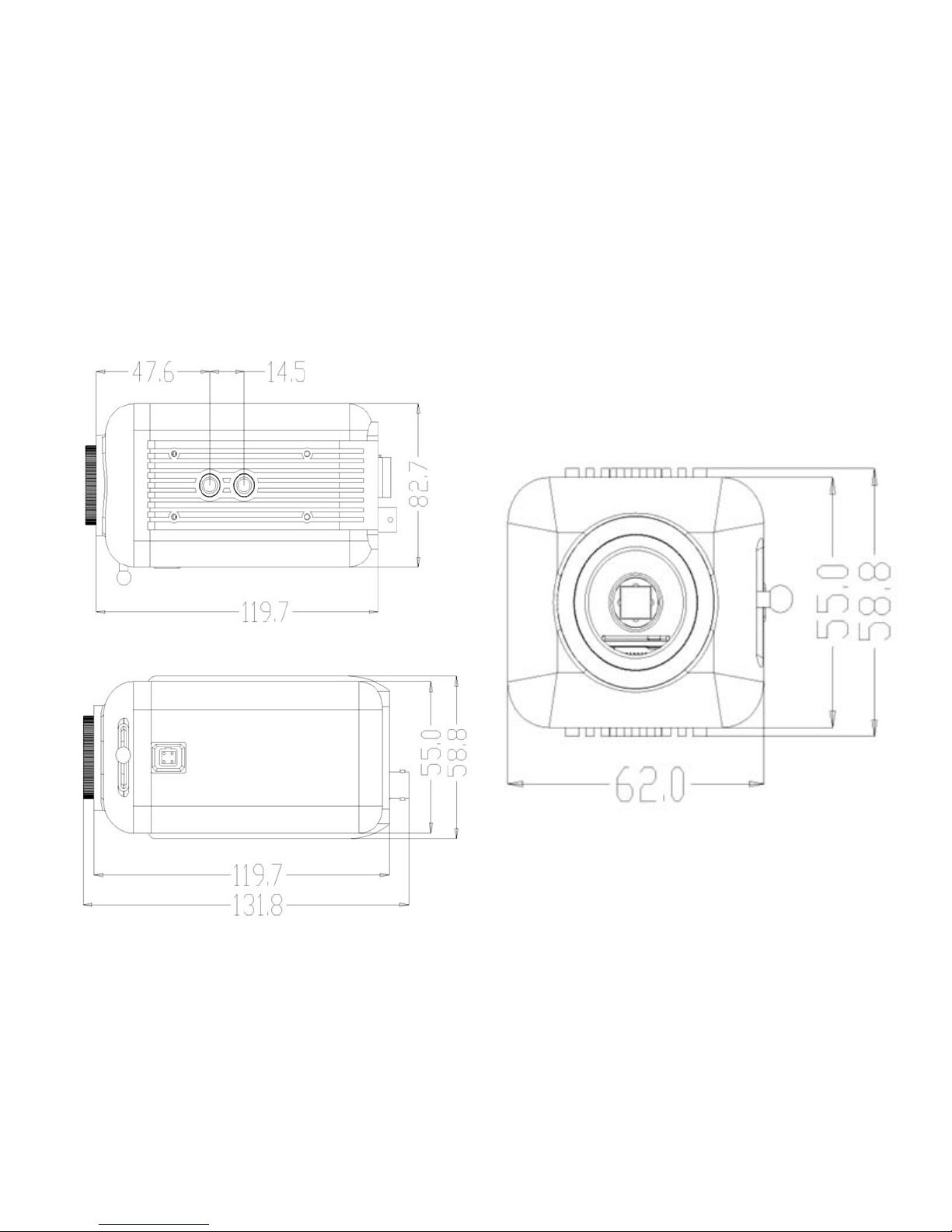

DIMENSIONS (mm)

COLOR

WB MODE AWC / ATW / MANUAL / PUSH LOCK

R-Y GAIN 0 ~ 100

B-Y GAIN 0 ~ 100

DAY & NIGHT

Day & Night Mode

AUTO / COLOR / BW / EX-CONT

COLOR ----BW : Switching from color to BW; if the number is higher, the camera will only switch during a super low light condition.
BW ----COLOR : Switching from BW to color; this number should always be lower than COLOR to BW
Read Time: Time interval to switch from Color to Black-and-White

COLOR

B&W: (BURST:OFF/ON) When the burst is OFF will make less noise

C-SUP

Color Suppression :Color will be reduced at low illumination, if the C-SUP Level is higher.

0 ~ 100 (Not Available when DNR is On.)

A-SUP

Aperture Suppression: The sharpness of the edges will be reduced at low illumination, if A-SUP Level is higher.

0 ~ 100 (Not Available when DNR is On.)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

EXPOSURE

LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.)

SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250

BLC

OFF / ON
BLC (Back Light Compensation)

AGC

HIGH / MIDDLE / LOW / OFF
AGC (Auto Gain Control)

MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)

STAR-LIGHT AUTO (x2 ~ x250) / OFF (x32 is recommended.)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY RESET

FUNCTION

MIRROR OFF / MIRROR / V-FLIP / ROTATE

SHARPNESS 0 ~ 31

GAMMA 0.05 ~ 1.00 / USER

FREEZE OFF / ON

NEGATIVE OFF/ ON

3D-DNR

OFF / LOW / MIDDLE / HIGH
3D-DNR (3D Digital Noise Reduction)

D-ZOOM OFF / ON (x1.0 ~ x32 PTZ)

SLC

OFF / ON
SLC (Side Light Compensation)

HME

OFF / ON

HME (Highlight Masking Exposure)

DIS

OFF / ON
DIS (Digital Image Stabilizer)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

MOTION

(OMNI-Focus Lens Only)

MOTION OFF / ON

SET WINDOW

ALL SET (Set the Entire Screen)

ALL CLEAR (Clear the Entire Screen)

SENSITIVITY (1 ~ 120)

SHOW INDICATOR (OFF / ICON / TRACE)

DELAY OUT (1 ~ 15)
Motion Alarm Zoom-In Delay

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

PRIVACY

MASK 1 OFF / ON

MASK 2 OFF / ON

MASK 3 OFF / ON

MASK 4 OFF / ON

MASK 5 OFF / ON

MASK 6 OFF / ON

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

SETUP

CAMERA ID 0 ~ 255

TITLE OFF / ON

DPC

OFF / AUTO
DPC (Dead Pixels Cancellation)

MONITOR CRT / LCD

LANGUAGE English, Japanese, Chinese

BAUDRATE

2400 / 4800 / 9600 / 14400 / 19200 / 38400.

Protocol is Pelco-D (fixed cannot be changed; hardcoded into the DSP)

OMNI LENS OFF / 1 ~ 10 (for OMNI-PLUS CAMERA only)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

SYNC

SYNC INTERNAL / AUTO

V-PHASE 0 ~ 199

EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET

EXIT

EXIT Exit the menu

SAVE&EXIT Exit the menu and save the setting

FACTORY SET Reset the menu setting to factory default

Camera TYPE Color / BW C233W

Mount 3D Bracket

Image Device Super HAD II CCD

Size 1/3"

Pixels-Total 811(H) x 508 (V)

Pixels-Effective 768(H) x 494 (V)

Scanning System 525 line, 2:1Interl ace

Horizontal Frequency Internal Mode 15,734Hz

Vertical Frequenc y Internal Mode 59.94Hz

Min. Scene Ill umination

F1.2

x256 Star-Light

0.14 Lux

0.0005 Lux in Color

Functions BLC ON / OFF

AGC HIGH / MIDDLE / LOW /OFF

MAX-DR OFF / ON

Mirror OFF / MIRROR / V-FLIP / ROTATE

STAR-LIGHT AUTO (x2 ~ x250) / OFF

3D-DNR OFF / ON

SLC OFF / ON

HME OFF / ON

DIS OFF / ON

Privacy Zone 6 Programmable Zone / Size

Lens Focal Length 3.3~12mm Varifocal Auto Iris Lens

Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]

Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)

S/N Ratio S/N Ratio 50dB

OSD OSD YES

Environmental Conditions Operating Temperature -10℃~ +55℃(14℉~ 131℉)

Humidity Less than 90%

Power Power Requirement 12VDC / 24VAC

Power Consumption 1.8 [W] / 2.4 [W]

SPECIFICATIONS:

5436 W Crenshaw St. Tampa, FL 33634

Tel: [phone]

Fax: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support Hours: Monday-Friday

8:30am to 8:00pm Eastern Time
