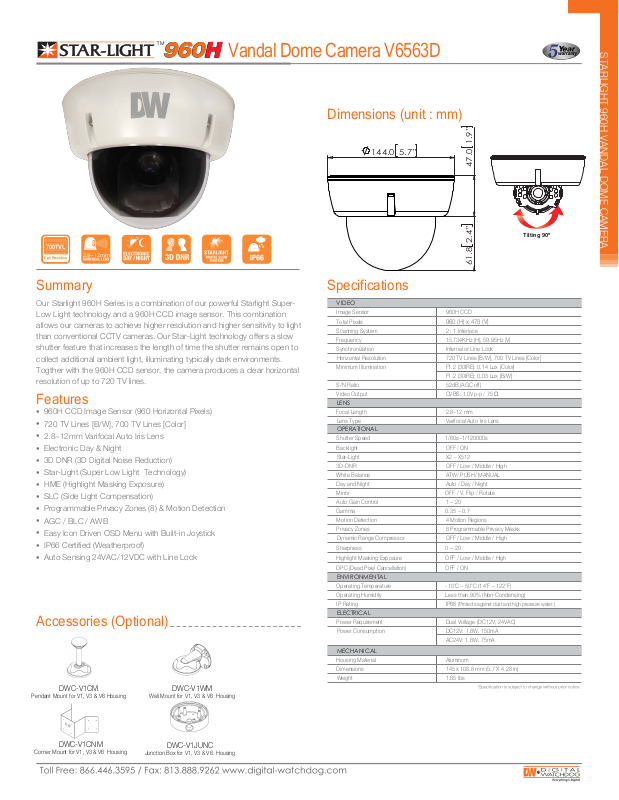

Digital Watchdog DWC-V6563D Specsheet

700TVL

High Resolution

2.8~12 mm

Vandal Dome Camera V6563D

Dimensions (unit : mm)

144.0 5.7”

STARLIGHT 960H VANDAL DOME CAMERA

47.0 1.9”

Tilting 90º

61.8 2.4”

Summary

Our Starlight 960H Series is a combination of our powerful Starlight Super­Low Light technology and a 960H CCD image sensor. This combination
allows our cameras to achieve higher resolution and higher sensitivity to light
than conventional CCTV cameras. Our Star-Light technology offers a slow
shutter feature that increases the length of time the shutter remains open to
collect additional ambient light, illuminating typically dark environments.
Togther with the 960H CCD sensor, the camera produces a clear horizontal
resolution of up to 720 TV lines.

Features

•

960H CCD Image Sensor (960 Horizontal Pixels)

•

720 TV Lines [B/W], 700 TV Lines [Color]

•

2.8~12mm Varifocal Auto Iris Lens

•

Electronic Day & Night

•

3D DNR (3D Digital Noise Reduction)

•

Star-Light (Super Low Light Technology)

•

HME (Highlight Masking Exposure)

•

SLC (Side Light Compensation)

•

Programmable Privacy Zones (8) & Motion Detection

•

AGC / BLC / AWB

•

Easy Icon Driven OSD Menu with Built-in Joystick

•

IP66 Certified (Weatherproof)

•

Auto Sensing 24VAC/12VDC with Line Lock

Accessories (Optional)

DWC-V1CM

Pendant Mount for V1, V3 & V6 Housing

DWC-V1WM

Wall Mount for V1, V3 & V6 Housing

Specifications

VIDEO

Image Sensor 960H CCD

Total Pixels

Scanning System 2 : 1 Interlace

Frequency 15.734KHz (H), 59.95Hz (V)

Synchronization Internal or Line Lock

Horizontal Resolution 720 TV Lines [B/W], 700 TV Lines [Color]

Minimum Illumination F1.2 (30IRE): 0.14 Lux [Color]

F1.2 (30IRE): 0.03 Lux [B/W]

S/N Ratio 52dB (AGC off)
Video Output CVBS: 1.0Vp-p / 75 Ω

LENS

Focal Length 2.8~12 mm

Lens Type Varifocal Auto Iris Lens

OPERATIONAL

Shutter Speed 1/60s~1/120000s

Backlight OFF / ON

Star-Light X2 ~ X512

3D-DNR OFF / Low / Middle / High

White Balance ATW/ PUSH/ MANUAL

Day and Night Auto / Day / Night

Mirror OFF / V. Flip / Rotate

Auto Gain Control 1 ~ 20

Gamma 0.35 ~ 0.7
Motion Detection 4 Motion Regions

Privacy Zones 8 Programmable Privacy Masks

Dynamic Range Compressor OFF / Low / Middle / High

Sharpness 0 ~ 20

Highlight Masking Exposure OFF / Low / Middle / High

DPC (Dead Pixel Cancellation) OFF / ON

ENVIRONMENTAL

Operating Temperature -10oC ~ 50oC (14oF ~ 122oF)

Operating Humidity Less than 90% (Non-Condensing)

IP Rating IP66 (Protects against dust and high pressure water.)

ELECTRICAL

Power Requirement Dual Voltage (DC12V, 24VAC)

Power Consumption DC12V: 1.8W, 150mA

AC24V: 1.8W, 75mA

MECHANICAL

Housing Material Aluminum

Dimensions 145 x 108.8 mm (5.7 X 4.28 in)

Weight 1.65 lbs

960 (H) x 478 (V)

DWC-V1CNM

Corner Mount for V1, V3 & V6 Housing

DWC-V1JUNC

Junction Box for V1, V3 & V6 Housing
