Digital Watchdog DWC-LPR650 User Manual

Download
License Plate Recognition
DWC-LPR650
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
07132012
PRECAUTIONS
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference, when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications.
WARNING: Changes or modifications are not expressly approved by the manufacturer.
2
TABLE OF CONTENTS
Table of Contents
Introduction
Installation
Module OSD Menu
Troubleshooting
Warranty Information
Specifications
Features Parts and Descriptions Dimensions
Inside the Box Mount Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Lens Adjusting the Camera Angle 12
13-24
26-27
28-29
3
4 5 6
7 8
9 10 11
25
FEATURES*
1/3” CCD 620 TV Lines 6~50mm Varifocal Auto Iris Lens 13~30ft Capture Range Plate Recognition Technology Capture License Plates up to 50mph Smart DNR (Digital Noise Reduction) DRC (Dynamic Range Compressor) Star-Light (Super Low Light Technology) HME (Highlight Masking Exposure) Programmable Privacy Zones & Motion Detection Easy Icon Driven OSD Menu with Built-In Joystick IP66 Certified (Weatherproof) No Fog or Condensation under Any Weather Condition Auto Sensing 12VDC or 24VAC with Line Lock RS-485 Built-in Secondary Video-BNC Output
4
PARTS & DESCRIPTION*
3
9
10
11
12
1
Front Case
2
Zoom & Focus Housing
3
Sunshield
4
Lens
5
Rear Case
6
Control Board
7
Control Cap
1 2 4 65 7 8
8
Double Arm Bracket
9
Second Video-BNC Output Connector
10
Power Input Connector (Dual Voltage)
11
RS-485
12
Assembly Screw
13
Mounting Screw
14
Set Screw
Set Screw
13
14
5
DIMENSIONS IN MILLIMETERS (IN)*
230(9.06”)
86.5
(3.41”)
122(4.80”) 96.5(3.80”)
78.0(3.07”)
68.0
(2.68”)
96.0(3.78”)
68.0(2.68”)
6
5.0(0.2”)
INSIDE THE BOX*
Included with License Plate Recognition Camera
1
User Manual
2
Mounting Template
3
4 Machine Screws and 4 Dry Wall Anchors
4
Secondary Video-BNC Cable
Bullet Camera
DWC-B1363D
DWC-B1363TIR
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
5
L-Key
6
Double-Sided TORX-T20 Hex Key
7
SURFACE MOUNT INSTALLATION INSTRUCTIONS*
Use the 4 mounting screws to install the camera on the
*Installation Using a Junction Box
8
wall or ceiling.
Then, follow the next step on pages 9-12.
NPT 3/4” Pipe
*Note: Electrical junction box and required screws are sold separately.
CONNECTING TO MONITORS*
Use the diagram below to connect to a Monitor or CRT Monitor properly.
12VDC/24VAC
Left
Second Video Output
Monitor
Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.
CCTV Monitor
Up
Right
Down
9
CONTROL BOARD*
Joystick: Controls the OSD menu.
Secondary Connector: Video Output Connector for On-Site Configuration
1
Remove clear plastic ring from the control cap.
2
Turn control cap counter-clockwise until cap separates completely from the camera body.
10
ADJUSTING THE CAMERA LENS*
Follow the instructions provided below to make any lens adjustments.
FOCUS
1
To adjust the field of view, use the L-Key to turn the zoom screw (located on the bottom of the camera) counter-clockwise to zoom in, or clockwise to zoom out.
2
Adjust the focus the same way as descriped above AFTER the desired zoom position is established.
ZOOM
11

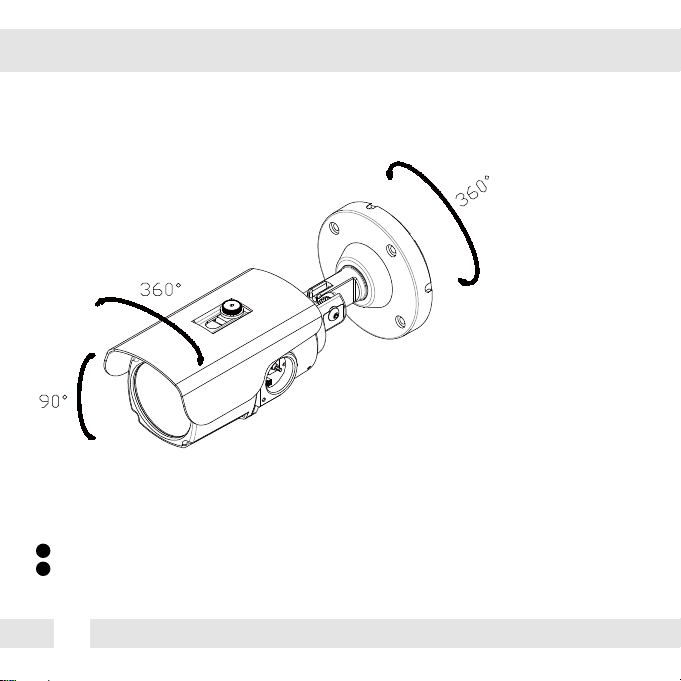

ADJUSTING THE CAMERA ANGLE*
CAUTION :
1
Do not rotate more than 360o.
2
Do not unnecessarily twist too many times.
12
MODULE OSD MENU*
EXPOSURE
LENS
MANUAL / DC
BACKLIGHT
OFF / BLC / HME / DRC
AGC
OFF / LOW / MID / HIGH / HIGHEST
STARLIGHT
OFF / x2 ~ x1024
3D DNR
OFF / LOW / MID / HIGH / SMART
EXIT JUMP
SAVE & EXIT / EXIT
COLOR
WB MODE
AWC / ATW / MANUAL / PUSHLOCK
RED GAIN
0 ~ 255 (128 Default)
BLUE GAIN
0 ~ 255 (128 Default)
COLOR MODE
NORMAL / COOL / WARM
EXIT JUMP
SAVE & EXIT / EXIT
DAY & NIGHT
D&N MODE
AUTO / COLOR / B&W
NIGHT C.
0 ~ 100 (50 Default)
NIGHT A.
0 ~ 100 (50 Default)
EXIT JUMP
SAVE & EXIT / EXIT
FUNCTION
MIRROR
MIRROR / OFF
SHARPNESS
0 ~ 30 (15 Default)
GAMMA
MANUAL / 0.45 / 0.60 / 1.0
SLC
OFF / ON
NIGHT UP
OFF / ON
EXIT JUMP
SAVE & EXIT / EXIT
MOTION
AREA 1~4 > OFF / ON
SENSITIV.
1 ~ 30 (20 Default)
SHOW INDI.
OFF / ICON / TRACE
EXTER-OUT.
OFF / ON
EXIT JUMP
SAVE & EXIT / EXIT
Note: Bold settings are the camera’s factory default settings
PRIVACY
MASK 1AREA SET
OFF / ON
MASK 2
OFF / ON
MASK 3
OFF / ON
MASK 4
OFF / ON
MASK 5
OFF / ON
MASK 6
OFF / ON
MASK 7
OFF / ON
MASK 8
OFF / ON
EXIT JUMP
SAVE & EXIT / EXIT
SETUP
TITLE EDIT
OFF / ON
DPC SET
OFF / AUTO
MONITOR
MODE 1 / MODE 2
LANGUAGE
繁體中文/简体中文/日本語
ENGLISH / DEUTSCH / FRENCH / ITALIAN / RUSSIAN / SPANISH / DUTCH
OSD COLOR
BLUE / GREEN / CYAN / RED / MAGENTA / YELLOW / PURPLE /
GRAY
COMMUNICATION
OFF / ON
FACTORY SET.
NO / YES
EXIT JUMP
SAVE & EXIT / EXIT
EXIT
SAVE & EXIT
EXIT
/
13
EXPOSURE
14
LENS
Manual Manual mode supports the fixed board lens or the
manual iris lens.
DC DC mode supports the auto-iris varifocal lens.
NOTE: Both MANUAL and DC mode have FOCUS TARGET. You can adjust the focus by finding the highest number on the FOCUS TARGET. See page 16 for focus information.
ELC Levels and DC Levels are adjustable. The higher the number, the brighter the image.
E. Shutter sets the shutter speed levels from 1/60 to 1/100000.
*For LENS-MANUAL Mode, the default E.SHUTTER is AUTO.
*For LENS-DC Mode, the default E.SHUTTER is 1/60. Select DC-AUTO for
*outdoor use.
Select 1/100FLC to run camera in flickerless mode.
Note: The STARLIGHT option cannot be controlled if the E.SHUTTER setting is above 1/60.
EXPOSURE
BACKLIGHT OFF BLC BACK LIGHT COMPENSATION
MANUAL User can manually adjust the BLC level in five areas of the scene (TOP, BOTTOM,
CENTER, LEFT, RIGHT). Increase the BLC levels to make the image brighter.
SMART This is recommended. Camera will automatically detect and adjust the BLC zone.
BLC levels to choose from include: LOWEST, LOW, MID, HIGH.
HME HIGHLIGHT MASKING EXPOSURE
HME masks highlights to allow objects to appear clearly on the screen. If ON is selected, HME levels are adjustable. The lower the number, the darker the masking areas.
DRC DYNAMIC RANGE COMPRESSOR With the advanced light compensation technology DRC, dark spots in images particularly
become more visible without overexposing the bright spots to create one perfect image. The higher the number, the better the performance of DRC.
15
EXPOSURE
AGC AUTO GAIN CONTROL
OFF / LOW / MID / HIGH / HIGHEST AGC enhances the picture brightness in low light conditions.
A higher level AGC setting makes the images brighter; however, it could increase the amount of noise.
STARLIGHT
OFF / x2 ~ x1024 Starlight mode automatically activates slow shutter function
when the image is too dark. x4 is the default. We do not recommend you to increase the setting, for it causes the image to lag.
Note: Starlight menu cannot be controlled if the E.SHUTTER setting is above 1/60.
3D DNR 3D DIGITAL NOISE REDUCTION
OFF / LOW / MID / HIGH / SMART 3D-DNR reduces the noise on the screen in low light conditions and allows for clearer images, even at night. The SMART option
will adjust the camera to prevent lagging when there is motion.
EXIT JUMP
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
16
COLOR
*The changes made to this setting will not affect the camera, for the LPR650 is a B&W Camera.
WB MODE
AWC Auto White Balance Control compensates for color temperature changes between 2000K
and 18000K.
ATW Auto Tracking White Balance Control compensates for color temperature changes
between 2500K and 9500K.
MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN. PUSHLOCK Pushlock is to fix the white balance based on the lighting.
RED GAIN
0 ~ 255 Adjusts the amount of red in the image.
BLUE GAIN
0 ~ 255 Adjust the amount of blue in the image.
COLOR MODE
NORMAL Color is similar to actual color. COOL Color has more blue. WARM Color has more red.
EXIT JUMP
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
17
DAY & NIGHT
*B&W is the factory default setting. Please do not switch the setting to AUTO or COLOR.
D&N MODE
AUTO / In AUTO mode, camera switches between day and night automatically depending on light COLOR / level. If COLOR is selected, camera always stays in day/color mode. If B&W is selected, B&W camera always stays in night/B&W mode.
If AUTO is selected, please define the following settings:
*BURST: If ON is selected, the camera provides a color burst signal in night mode.
*COLOR->B&W: Adjusts the light level at which the camera switches from day (color) to night (B&W) mode. The higher the
*number, the lower the light level.
*B&W->COLOR: Adjusts the light level at which the camera switches from night (B&W) to day (color) mode. This number
*should be lower than the value of COLOR->B&W above.
*READ TIME: 3s~12s. Time interval delay before switching from day mode to night mode.
*EX_IR INT.: AUTO/EXT. If using IR LEDs built into the camera, select AUTO. If using external IR LEDs separately,
*select EXT.
NIGHT C.
0 ~ 100 Color will be reduced in low light conditions.
NIGHT A.
0 ~ 100 Edge sharpness will be reduced in low light conditions. (This level cannot be adjusted
when 3D-DNR is ON.)
EXIT JUMP
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
18
FUNCTION
MIRROR
OFF MIRROR Flips the image horizontally.
SHARPNESS
0 ~ 30 Sets the image sharpness. The higher the number,
the sharper the image.
GAMMA
0.45 / 0.60 / Select the desired gamma level. 0.45 is default setting.
1.0 / MANUAL
SLC (SIDE LIGHT COMPENSATION)
OFF / ON Increase the brightness on sides of the image.
NIGHT-UP
OFF / ON Adjusts sensitivity in low light conditions by setup level. If ON is selected, the setup
level becomes higher, and the images become brighter.
EXIT JUMP
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
19
MOTION
The camera can detect the movement and display an alarm on the screen when movement is detected.
AREA SET
AREA 1 ~ 4 If ON, motion areas can be selected and moved OFF / ON accordingly. Select Areas 1-4 and adjust using controls
for TOP, BOTTOM, LEFT, or RIGHT.
SENSITIV.
1 ~ 30 Sensitivity level of the motion detection is adjustable.
Motion Detection will be more sensitive at a higher number.
SHOW INDI.
OFF / ICON Set the Show Indicator to OFF, ICON, or TRACE. If ICON TRACE is selected, a bell will appear in the upper right hand corner
when motion is detected. If TRACE is selected, the area where motion was detected will be highlighted.
EXTER OUT (ALARM SIGNAL, EXTERNAL OUTPUT)
OFF / ON If ON is selected, you can set how long (0~15s) the alarm
is displayed on the screen when motion is detected.
EXIT JUMP
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
20
PRIVACY
You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available.
MASK 1 ~ MASK 8
OFF / ON Select ON or OFF for each mask (MASK 1 through 8).
If ON is selected you can set the area to be masked and the shape and color of the mask. *START POINT: Select the START POINT to adjust the size of the
*privacy zone. *L_TOP (Left Top) *R_TOP (Right Top) *L_BOT (Left Bottom) *R_BOT (Right Bottom)
*MODIFY: After selecting the START POINT, you can modify the
*size of the privacy zone by moving the joystick left or right.
*POSITION: You can move the privacy zone by moving the joystick
*left or right.
*COLOR SET:
*This setting will not have an affect on the camera.
21
SETUP
TITLE
OFF / ON If ON is selected, you can display the camera title on the screen.
*CLR: Clear the title. *POS: Position the title on the screen.
DPC (DEAD PIXEL CANCELLATION)
OFF DPC automatically removes defective pixels in real time. AUTO If AUTO is selected, you can define the following settings:
*WHITE THR: Cancels the white defective pixels. *BLACK THR: Cancels the black defective pixels. *DPC LEVEL: Adjusts the sensitivity level of the dead*pixel cancellation.
NOTE: Adjust the WHITE THR/BLACK THR and DPC LEVEL at the same time.
MONITOR
MODE 1-2 MODE 1 is the default. If the displayed image is not good enough, try MODE 2.
22
SETUP
LANGUAGE
The camera supports the following languages: ENGLISH, CANTONESE, MANDARIN, JAPANESE, GERMAN, FRENCH, ITALIAN, RUSSIAN, SPANISH, AND DUTCH.
OSD COLOR
If the camera is set to B&W, the OSD color will always be displayed in WHITE. This setting will not have an affect on the camera.
COMMUNICATION
OFF ON If ON is selected, you can define the following:
*PROTOCOL: PELCO-D only. *CAMERA ID: Provide an ID number for the camera *(0~255). *BAUDRATE: 9600bps is the default. There are four *options: 2400bps, 4800bps, 9600bps, and 19200bps.
FACTORY SET
If selected, the camera reverts back to factory default settings. NOTE: FACTORY SET does not affect the LENS, DAY & NIGHT, CAMERA ID, and DPC SETTINGS.
EXIT JUMP
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
23
EXIT
EXIT
SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.
24
TROUBLESHOOTING
Before sending your camera for repair, check the following or contact our technical specialist.
FOR NO VIDEO
Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
FOR OUT-OF-FOCUS VIDEO
Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean. Check the lens’ manual focal and zoom adjustment. The use of a field test monitor is recommended.
25
WARRANTY INFORMATION*
Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows:
LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
PARTS: In addition, the Warrantor will supply replacement parts for the initial five (5) years and one (1) year on IR LED.
To obtain warranty or out of warranty service, please contact a Technical Support Representative at 1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM Eastern Standard Time.
A purchase receipt or other proof of the original purchase date is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damage which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.
26
LIMITS & EXCLUSIONS*
There are no express warranties except as listed. The warrantor will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitatons on how long an implied warranty lasts, so the exclusions or limitations listed above may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.
If the problem is not handled to your satisfaction, then write to the following address:
Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street Tampa, FL 33634
Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Costs of such service calls are the responsibility of the purchaser.
27
SPECIFICATIONS*
DWC-LPR650 (This is a B&W Camera.)
VIDEO
Image Sensor 1/3" CCD
Total Pixels 811 (H) x 508 (V), 411K Pixels
Effective Pixels 768 (H) x 494 (V)
Frequency 15.734KHz (H), 59.95Hz (V)
Synchronization Internal
Horizontal Resolution 620 TV Lines [B&W]
Minimum Illumination F1.2 (30IRE): 0.0 Lux
S/N Ratio 52dB (AGC off)
Video Output CVBS: 1.0Vp-p / 75 Ω
LENS
Focal Length 6-50mm
Lens Type DC Auto Iris
IR LED Built-in
OPERATIONAL
3D Digital Noise Reduction OFF / LOW / MID / HIGH / SMART
Back Light Compensation OFF / BLC / HME / DRC
Auto Gain Control OFF / LOW / MID / HIGH / HIGHEST
Privacy Zones OFF / ON (8 Programmable Zones)
Language ENGLISH / JAPANESE / MANDARIN / CANTONESE / GERMAN
RUSSIAN / FRENCH / SPANISH / ITALIAN / DUTCH
28
ENVIRONMENTAL
Operating Temperature -10oC ~ 55oC (14oF ~ 131oF)
Operating Humidity Less than 90% (Non-Condensing)
Storage Temperature -20oC ~ 70oC (-4oF ~ 158oF)
ELECTRICAL
Power Requirement Dual (12VDC & 24VAC)
Power Consumption 12VDC: 3.3W, 275mA / LED ON 6.6W, 550mA
24VAC: 3.8W, 158.3mA / LED ON 7.1W, 295.8mA
MECHANICAL
Housing Material Aluminum
Dimensions 230 x 86.5 mm (∅9.06 X 3.41 in)
Weight 1.52 lbs
*Specification is subject to change without prior notice.
29
MEMO*
30
MEMO*
31
5436 W Crenshaw St. Tampa, FL 33634
Tel : 866-446-3595 / 813-888-9555
Fax : 813-888-9262
www.Digital-Watchdog.com
technicalsupport@dwcc.tv
Technical Support Hours : Monday-Friday
8:30am to 8:00pm EST
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
