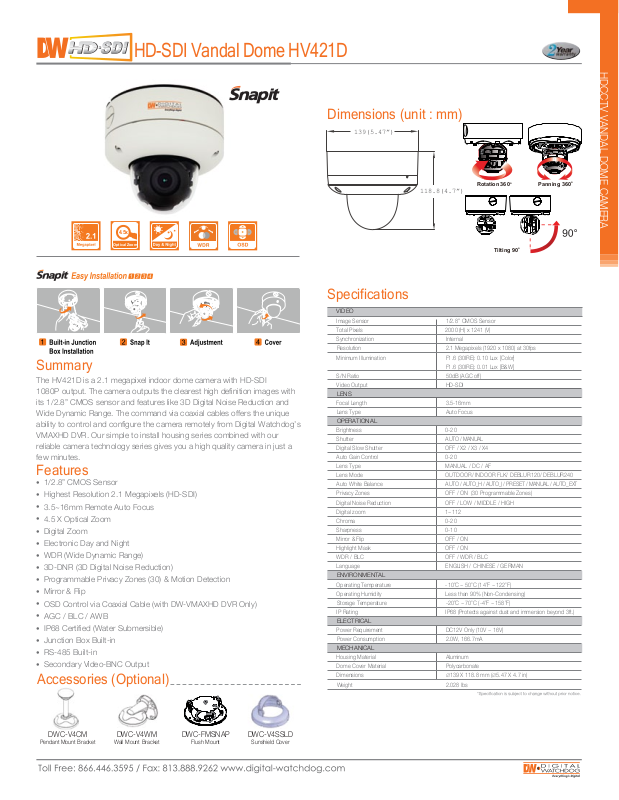

HD-SDI Vandal Dome HV421D
Dimensions (unit : mm)
HDCCTV VANDAL DOME CAMERA
139(5.47”)
4.5x
Optical Zoom
Summary
The HV421D is a 2.1 megapixel indoor dome camera with HD-SDI
1080P output. The camera outputs the clearest high definition images with
its 1/2.8” CMOS sensor and features like 3D Digital Noise Reduction and
Wide Dynamic Range. The command via coaxial cables offers the unique
ability to control and configure the camera remotely from Digital Watchdog’s
VMAXHD DVR. Our simple to install housing series combined with our
reliable camera technology series gives you a high quality camera in just a
few minutes.
Features
•
1/2.8” CMOS Sensor
•
Highest Resolution 2.1 Megapixels (HD-SDI)
•
3.5~16mm Remote Auto Focus
•
4.5 X Optical Zoom
•
Digital Zoom
•
Electronic Day and Night
•
WDR (Wide Dynamic Range)
•
3D-DNR (3D Digital Noise Reduction)
•
Programmable Privacy Zones (30) & Motion Detection
•
Mirror & Flip
•
OSD Control via Coaxial Cable (with DW-VMAXHD DVR Only)
•
AGC / BLC / AWB
•
IP68 Certified (Water Submersible)
•
Junction Box Built-in
•
RS-485 Built-in
•
Secondary Video-BNC Output
Accessories (Optional)
o
o
Panning 360
118.8(4.7”)
Rotation 360
Tilting 90
Specifications
VIDEO
Image Sensor 1/2.8” CMOS Sensor
Total Pixels 2000 (H) x 1241 (V)
Synchronization Internal
Resolution 2.1 Megapixels (1920 x 1080) at 30fps
Minimum Illumination F1.6 (30IRE): 0.10 Lux [Color]
F1.6 (30IRE): 0.01 Lux [B&W]
S/N Ratio 50dB (AGC off)
Video Output HD-SDI
LENS
Focal Length 3.5-16mm
Lens Type Auto Focus
OPERATIONAL
Brightness 0-20
Shutter AUTO / MANUAL
Digital Slow Shutter OFF / X2 / X3 / X4
Auto Gain Control 0-20
Lens Type MANUAL / DC / AF
Lens Mode OUTDOOR/ INDOOR FLK/ DEBLUR120/ DEBLUR240
Auto White Balance AUTO / AUTO_H / AUTO_l / PRESET / MANUAL / AUTO_EXT
Privacy Zones OFF / ON (30 Programmable Zones)
Digital Noise Reduction OFF / LOW / MIDDLE / HIGH
Digital zoom 1~112
Chroma 0-20
Sharpness 0-10
Mirror & Flip OFF / ON
Highlight Mask OFF / ON
WDR / BLC OFF / WDR / BLC
Language ENGLISH / CHINESE / GERMAN
ENVIRONMENTAL
Operating Temperature -10oC ~ 50oC (14oF ~ 122oF)
Operating Humidity Less than 90% (Non-Condensing)
Storage Temperature -20oC ~ 70oC (-4oF ~ 158oF)
IP Rating IP68 (Protects against dust and immersion beyond 3ft.)
ELECTRICAL
Power Requirement DC12V Only (10V ~ 16V)
Power Consumption 2.0W, 166.7mA
MECHANICAL
Housing Material Aluminum
Dome Cover Material Polycarbonate
Dimensions
Weight 2.028 lbs
∅
139 X 118.8 mm (∅5.47 X 4.7 in)
o
DWC-V4CM
Pendant Mount Bracket
DWC-V4WM
Wall Mount Bracket
DWC-FMSNAP
Flush Mount
DWC-V4SSLD
Sunshield Cover
