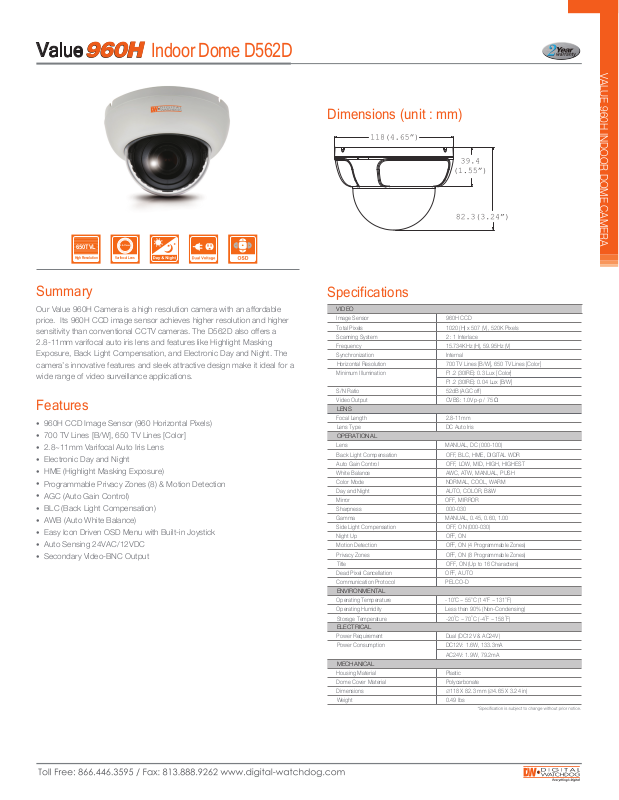

Indoor Dome D562D
VALUE 960H INDOOR DOME CAMERA
Dimensions (unit : mm)
650TVL
High Resolution
2.8~11mm
Varifocal Lens
Summary
Our Value 960H Camera is a high resolution camera with an affordable
price. Its 960H CCD image sensor achieves higher resolution and higher
sensitivity than conventional CCTV cameras. The D562D also offers a
2.8-11mm varifocal auto iris lens and features like Highlight Masking
Exposure, Back Light Compensation, and Electronic Day and Night. The
camera’s innovative features and sleek attractive design make it ideal for a
wide range of video surveillance applications.
Features
•
960H CCD Image Sensor (960 Horizontal Pixels)
•
700 TV Lines [B/W], 650 TV Lines [Color]
•
2.8~11mm Varifocal Auto Iris Lens
•
Electronic Day and Night
•
HME (Highlight Masking Exposure)
•
Programmable Privacy Zones (8) & Motion Detection
•
AGC (Auto Gain Control)
•
BLC (Back Light Compensation)
•
AWB (Auto White Balance)
•
Easy Icon Driven OSD Menu with Built-in Joystick
•
Auto Sensing 24VAC/12VDC
•
Secondary Video-BNC Output
Specifications
VIDEO
Image Sensor 960H CCD
Total Pixels 1020 (H) x 507 (V), 520K Pixels
Scanning System 2 : 1 Interlace
Frequency 15.734KHz (H), 59.95Hz (V)
Synchronization Internal
Horizontal Resolution 700 TV Lines [B/W], 650 TV Lines [Color]
Minimum Illumination F1.2 (30IRE): 0.3 Lux [Color]
F1.2 (30IRE): 0.04 Lux [B/W]
S/N Ratio 52dB (AGC off)
Video Output CVBS: 1.0Vp-p / 75 Ω
LENS
Focal Length 2.8-11mm
Lens Type DC Auto Iris
OPERATIONAL
Lens MANUAL, DC (000-100)
Back Light Compensation OFF, BLC, HME, DIGITAL WDR
Auto Gain Control OFF, LOW, MID, HIGH, HIGHEST
White Balance AWC, ATW, MANUAL, PUSH
Color Mode NORMAL, COOL, WARM
Day and Night AUTO, COLOR, B&W
Mirror OFF, MIRROR
Sharpness 000-030
Gamma MANUAL, 0.45, 0.60, 1.00
Side Light Compensation OFF, ON (000-030)
Night Up OFF, ON
Motion Detection OFF, ON (4 Programmable Zones)
Privacy Zones OFF, ON (8 Programmable Zones)
Title OFF, ON (Up to 16 Characters)
Dead Pixel Cancellation OFF, AUTO
Communication Protocol PELCO-D
ENVIRONMENTAL
Operating Temperature -10oC ~ 55oC (14oF ~ 131oF)
Operating Humidity Less than 90% (Non-Condensing)
Storage Temperature -20oC ~ 70oC (-4oF ~ 158oF)
ELECTRICAL
Power Requirement Dual (DC12V & AC24V)
Power Consumption DC12V: 1.6W, 133.3mA
AC24V: 1.9W, 79.2mA
MECHANICAL
Housing Material Plastic
Dome Cover Material Polycarbonate
Dimensions
Weight 0.49 lbs
∅
118 X 82.3 mm (∅4.65 X 3.24 in)
