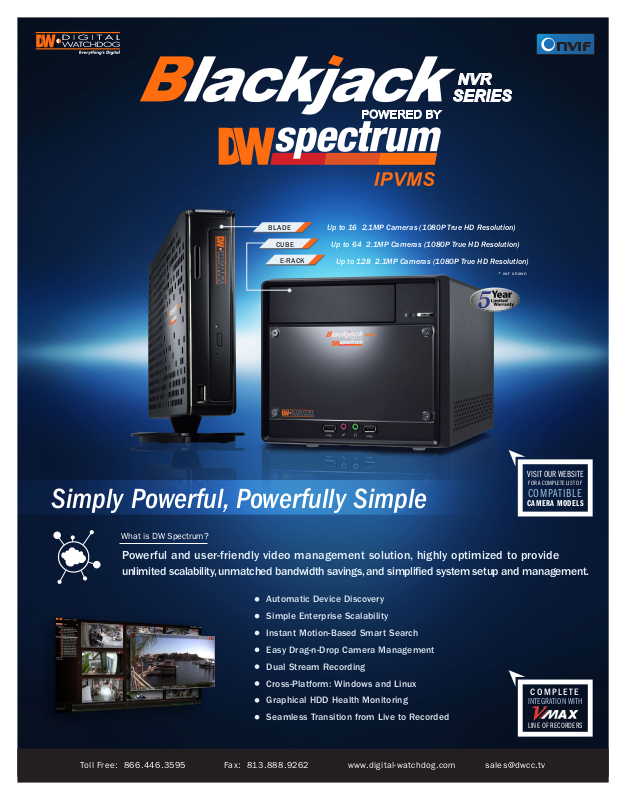

CUBE
BLADE
Up to 16 2.1MP Cameras (1080P True HD Resolution)
Automatic Device Discovery
Simple Enterprise Scalability
Instant Motion-Based Smart Search
Easy Drag-n-Drop Camera Management
Dual Stream Recording
Cross-Platform: Windows and Linux
Graphical HDD Health Monitoring
Seamless Transition from Live to Recorded
* not shown
E-RACK
Up to 64 2.1MP Cameras (1080P True HD Resolution)
Up to 128 2.1MP Cameras (1080P True HD Resolution)
Simply Powerful, Powerfully Simple
VISIT OUR WEBSITE
FOR A COMPLETE LIST OF
COMPATIBLE
CAMERA MODELS
What is DW Spectrum?
Powerful and user-friendly video management solution, highly optimized to provide
unlimited scalability, unmatched bandwidth savings, and simplied system setup and management.
Toll Free: 866.446.3595 Fax: 813.888.9262 www.digital-watchdog.com sales@dwcc.tv
COMPLETE
INTEGRATION WITH
LINE OF RECORDERS
CUSTOMIZABLE LAYOUTS
DW Spectrum allows users to fully customize their
layout views. No more limited pre-set views. As a
user, you are free to customize a layout that fits your
individual viewing and management preferences.
THUMBNAIL SEARCH
Chronologically narrow down your search to
frame-by-frame detail for finding that critical
moment.
MOTION/ SMART SEARCH
Easily pinpoint and identify general motion, missing
and foreign objects. Quickly and continuously watch
video on user-selected areas (marked in red).
INSTANT VIDEO EXPORT
Mark your selection and export as an avi file in a
quick, simple, and intuitive timeline interface.
ZOOM / AUTOFOCUS
Digital Watchdog’s HD Megapix Cameras are fully
integrated with DW Spectrum. Remotely access all
camera features including zoom, autofocus, WDR,
brightness, etc.
SEAMLESS TRANSITION
FROM LIVE TO RECORDED
Easily switch between live and review mode by
simply scrolling back in time.
PLAYBACK
LIVE
ADVANCED SEARCH
CAPABILITIES
DW Spectrum offers a number of ways to quickly
and accurately isolate the critical video security
evidence users need, including calendar search and
panoramic search.
PANORAMIC CAMERA
SINGLE LICENSING
DW Spectrum offers seamless simplicity with our
single license requirement for all cameras including
Arecont’s SurroundVideo 20 Megapixel IP Cameras
(180° and 360° Coverage)
GRAPHICAL
HDD HEALTH MONITORING
Access vital information about the HDD health
through informative, easy-to-understand graphical
format.
AUTO NETWORK CONFIGURATION
DW Spectrum will automatically discover, populate, and configure cameras on the network. Easily
drag and drop cameras across servers and observe seamless enterprise recording!
• Cross Platform: Windows and Linux
• Advanced Pan Temporal Timeline
• System Health Monitoring
• Simple Enterprise Scalability
• Auto Device Discovery
• Advanced Motion Detection
• HD Screen Recording
• Fully Customizable Layouts
DUAL STREAM RECORDING
Cameras can be set to record at high resolution when motion is detected and low resolution (at all other times). This highly optimized feature saves hard drive space
while continuous uninterrupted recording.
BANDWIDTH OPTIMIZATION
ARCHITECTURE
Extreme Bandwidth Optimizer NVR
H.264 NVR- Hyper-Optimized Architecture
Summary
The Blackjack NVR powered by DW Spectrum is a powerful and user-
friendly video management solution, highly optimized to provide
unlimited scalability, unmatched bandwidth savings and simplified
system setup and management. The architecture is cross-platform
supporting both Windows and Linux.
Features
• Cross-Platform: Windows and Linux Supported
• Graphical System Health Monitoring
• Simple Enterprise Scalability
GENERAL
• Fully Customizable Layouts
• Easy Drag-n-Drop Camera Management and Recording
• Advanced Motion Masking and Sensitivity Settings
LIVE
• PTZ Control
• Instant Motion-Based Smart Search
• Advanced Thumbnail Search and Calendar Search
• Dual Stream Recording
PLAYBACK
• Automatic Device Discovery and Display
• HD (1080p) Screen Recording
• Panic Recording
SPECIAL
• ONVIF Conformant
• Instant Motion-Based Smart Search
• Advanced Thumbnail Search and Calendar Search
• Dual Stream Recording
• Plays in Timeline
ALARM
• Live Steam Indicator
NOTIFICATION
Video Monitoring System
Unlimited Cameras, Advanced Motion Detection, Easy to use GUI,
Enterprise Scalability, Extreme Bandwidth Savings
Hardware Specification
Blackjack Blade Blackjack Cube Blackjack E-Rack
# Cameras 16 64 128
Recording
Performance
CPU Atom D2700 i-5 3550 i-5 2500
Memory 2GB 4GB 8GB
Network
Video On Board On Board (Intel) NVidia
Video Port
OS
HDD Up to 2TB Up to 9TB Up to 30TB
Optional - -
Dimensions
(in)
Max 80 Mbps* Max 360 Mbps* Max 256 Mbps*
1000 Mbps
VGA / HDMI
Linux
10 (L)
1.6 (W)
6.4 (H)
1000 Mbps (2x)
Dual NIC Card
DVI-I (for HDMI)
DVI-D (for analog)
Windows 7
12.8 (L)
8.5 (W)
7.5 (H)
1000 Mbps (2x)
Dual NIC Card
3 Head Video /
HDMI
Windows 7
RAID,
Dual Power
Supply
-
Compatible IP Cameras (Live and Record Only)
*See Website for Complete List and Details
Weight
Power
Consumption
Specifications are subject to change without prior notice.
*Max Recording throughput (360Mbps): Approx. 64ch 5-Megapixel H.264
cameras at 10fps when server is streaming out 16 channels of live or playback
video.
4.53 lbs
40 Watts,
19V DC,
2.1 Amps
Depends on
HDD Space
250 Watts,
100 AC,
2.5 Amps
Depends on
HDD Space
-
Client Hardware Recommendations:
Processor
Graphics
Ram
NIC
OS
MOBILE ACCESS
Web
Intel Core i5 or greater
1920 x 1080
4GB
10/100/1000 Base-T Ethernet
Windows 7, Server 2008, Vista, XP, Linux Ubuntu 10.0
Windows Explorer, Firefox, Safari, Opera, Chrome
