Digital Watchdog DW-BJ1NAS8T, DW-BJ1NAS6T, DW-BJ1NAS4T, DW-BJ1NAS10T User Manual

Single

DW-BJ1NAS4T

DW-BJ1NAS6T

DW-BJ1NAS8T

DW-BJ1NAS10T

Username : admin

Password : admin1234

Tel: [phone] www.digital- watchdog.com
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday

Default login Information for Blackjack® NAS

Important

Read Before System Operation. Follow these details to prevent material damage or personal injury.

Warning

1. Use the power cord, which is supplied or recommended by the supplier, or it may cause fire.

2. Do not disassemble or reassemble the product. It may cause malfunction or fire.

3. Enquire to your vendor for repair. It may cause electric shock or fire if the repair is not done properly.

4. Do not touch the product with wet hands. It may cause malfunction or electric shock.

5. Product installation must be ensured to a professional for product installation, or it may cause malfunction,
electric shock or fire.

6. Ground connection must not touch gas pipe, water pipe or telephone line. If grounding is not done properly, it
may cause electric shock.

7. Prevent metallic foreign substance from going inside the product. It may cause malfunction or electric shock.

8. Do not spray insecticide or flammable spray while driving. It may cause fire.

9. Place the system in an open place where air ventilation is guaranteed, or it may cause over-heating and seriously
damage the system to be fired.

10. Prevent water from instilling inside electrical parts. Clean with a dry towel or malfunction or electric shock
could result.

11. Must use the outlet of the grounding to connect the power cord, or it may cause fire.

12. Do not connect on the middle of power cord or use extension cord. It may generate heat or cause fire.

13. Do not touch the power cord with wet hands. It may cause electric shock.

14. Keep power cord dry and protect from humidity. It may generate heat or cause fire. The power cord is not
waterproof.

15. Hold the body of the plug while removing the power plug. Do not pull the power cord. Damage to the power
cord may generate heat or cause fire.

16. Check the power plug regularly. Humidity and moderation in smoking may cause fire.

17. Remove power cord from outlet when product is not used for a long time. It may cause short-circuit or electric
shock.

Cautions

1. Do not drop, give strong vibration, or shock to the product. It may cause malfunction.

2. Do not touch the product or the power cord when there is thunder. It may cause electric shock.

3. Do not install the product near or on top of heating source. The internal temperature of the product would be
greater than allowable and could cause malfunction or fire.

4. Do not install the product on inclined or unstable location or where vibration could be committed. It may cause
malfunction.

5. Do not cut off the power artificially, or give shock or vibration to unit while the hard disk is activating. It may
cause hard disk failure or loss of data.

Remarks

※ Pictures and buttons are subject to be changed or modified up to different models.

※ Function or configuration is subject to be changed or modified without prior notice for improvement of the

product.

3

User manual

Table of Contents

1. Getting started................................................................................................................................. 4

1.1. Checking supplied items .............................................................................................................. 4

1.2. Blackjack® NAS hardware overview.............................................................................................. 4

2. Setup ............................................................................................................................................... 5

2.1. Setting up the Blackjack® NAS ...................................................................................................... 5

2.2. Add storage to DW Spectrum® IPVMS .......................................................................................... 6

3. Web manager .................................................................................................................................. 8

3.1. Web login ................................................................................................................................... 8

3.2. Storage management .................................................................................................................. 9

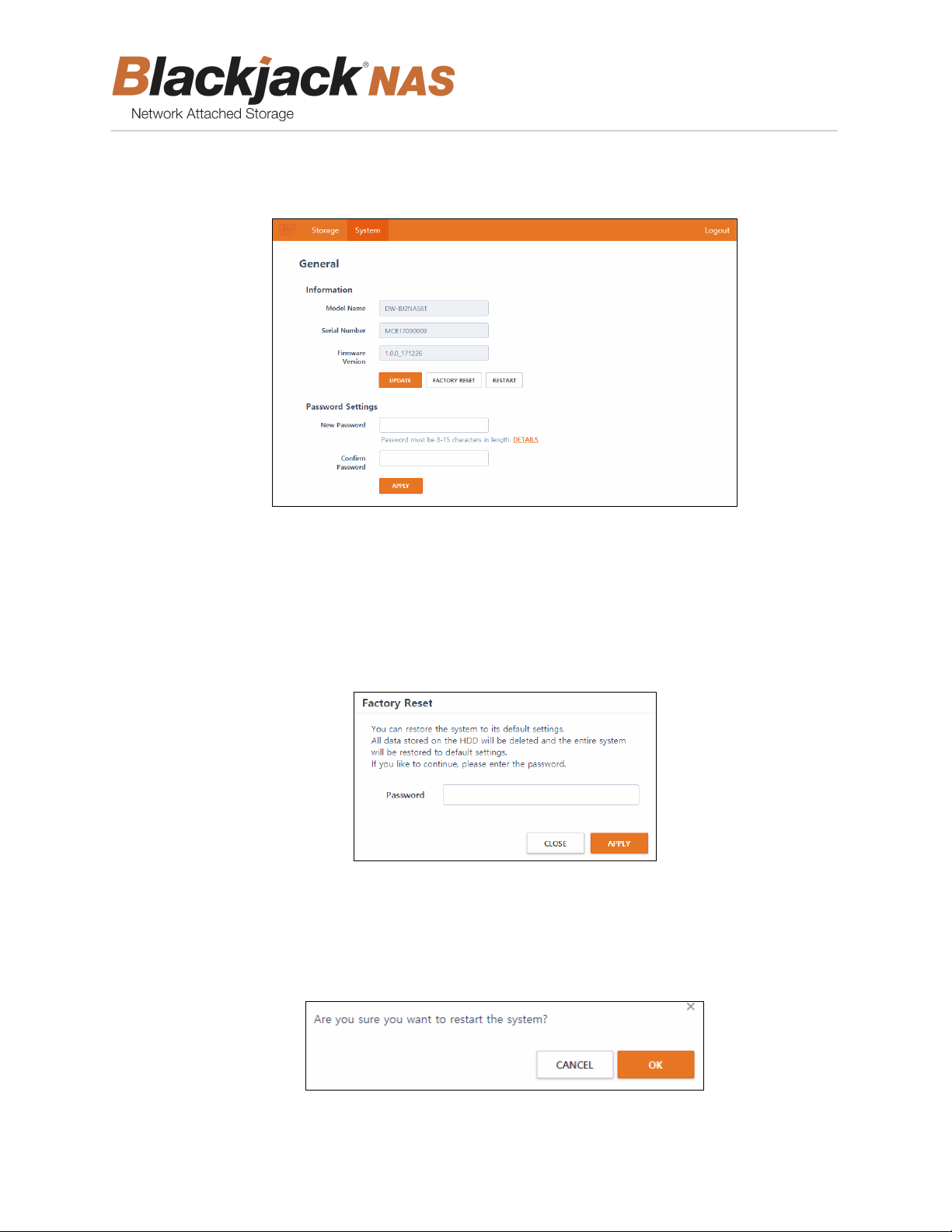

3.3. General management ............................................................................................................... 11

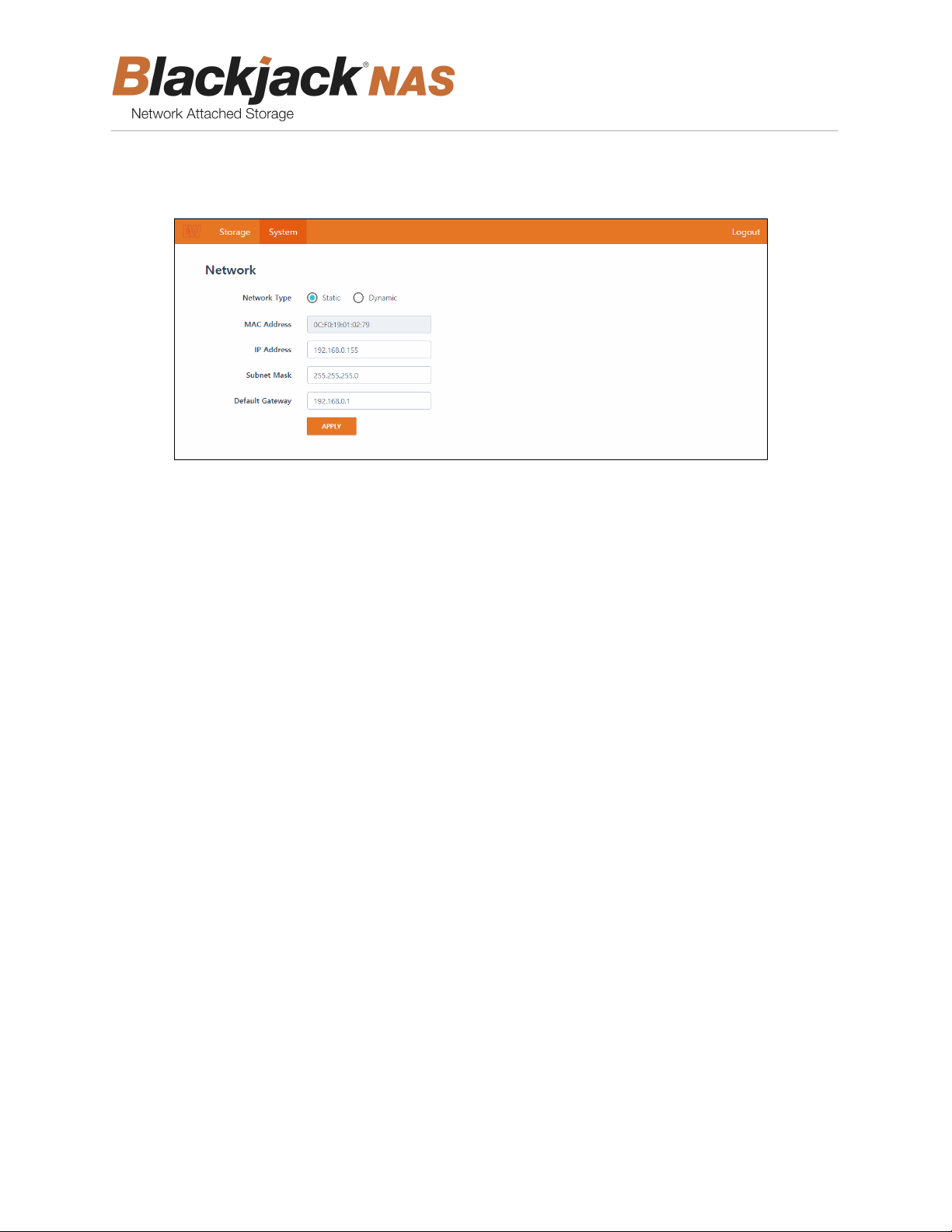

3.4. Network management .............................................................................................................. 12

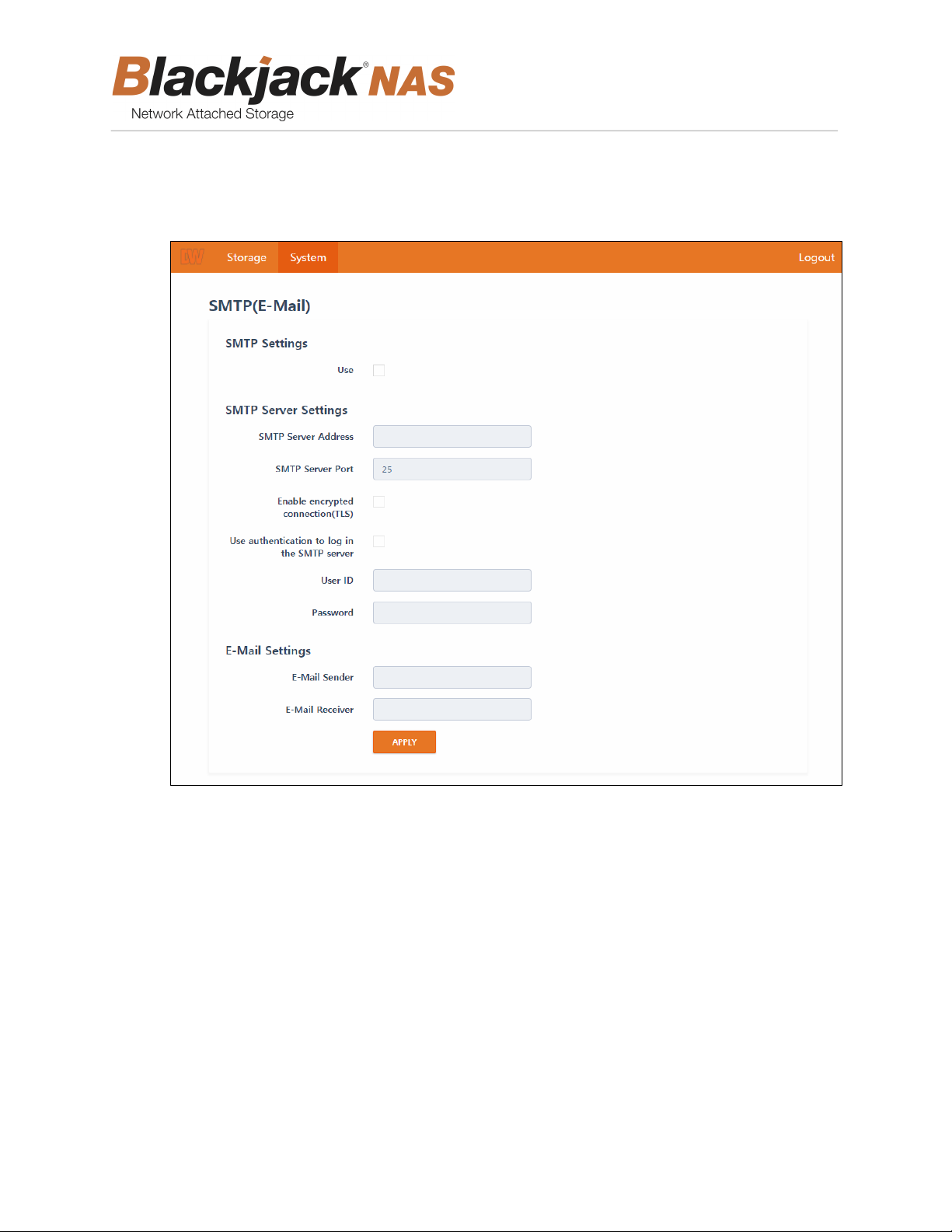

3.5. SMTP (e-mail) management ...................................................................................................... 13

3.6. Date & time management ......................................................................................................... 13

3.7. Log management ...................................................................................................................... 14

4

User manual

Items


Quantity

12V DC Adapter &

Power Cable

1 set

F1

F2

F3

F1

F2

F3

HDD 1 LED

HDD 2 LED

POWER LED

B1

B2

NETWORK PORT
(RJ- 45)

DC POWER PORT
(12V)

B1

B2

1. Getting started

1.1. Checking supplied items

Make sure that you have following items supplied. If any of these items are missing or damaged, notify
your vendor immediately. Keep the packing utilities for moving or storage purposes.

1.2. Blackjack® NAS hardware overview

Front-side

Back-side

5

User manual

NOTE Initial network information

• Network type: Static

• IP Address: 192.168.1.200

• Netmask: 255.255.255.0

• Gateway : 192.168.1.1

NOTE It is recommended to use Gigabit switch for a stable storage performance.

B2

B1

F3

2. Setup

2.1. Setting up the Blackjack® NAS

STEP 1: Connecting the network cable.

1. Connect the network cable to the network port . and a network switch.

STEP 2: Connecting the power cable

1. Connect the power cable to the DC power port . The Blackjack

2. The front power LED will indicate whether the Blackjack® NAS is on.

STEP 3: Configure the network settings

On a computer in the same network as your Blackjack® NAS unit:

1. Go to: http://www.digital-watchdog.com

2. Search for ‘IP Finder’ on the quick search bar at the top of the page.

3. The latest IP Finder software will appear in the search results. Click on the link to download the
file to your computer.

4. The software will scan your network for all supported cameras and display the results in the
table. Allow up to 5 seconds for the IP Finder to find the camera on the network.

5. Find “Blackjack NAS” on the devices list, click on the “Click” button in the column of “IP Conf.”

®

NAS will turn on.

6. Enter the network information, username and password.

7. Click on the “Apply” button.
