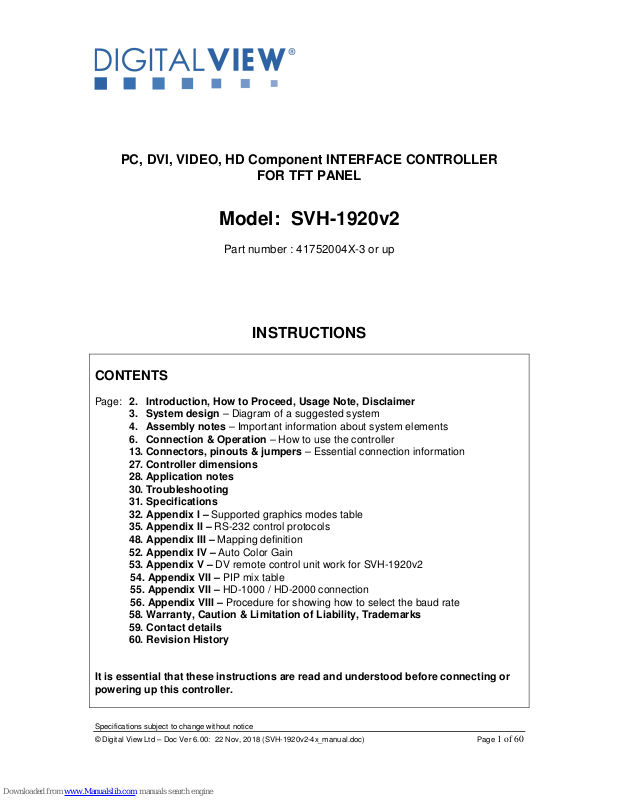

Digital View SVH-1920v2 Instructions Manual

PC, DVI, VIDEO, HD Component INTERFACE CONTROLLER

FOR TFT PANEL

Model: SVH-1920v2

Part number : 41752004X-3 or up

INSTRUCTIONS

CONTENTS

Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer

3. System design – Diagram of a suggested system

4. Assembly notes – Important information about system elements

6. Connection & Operation – How to use the controller

13. Connectors, pinouts & jumpers – Essential connection information

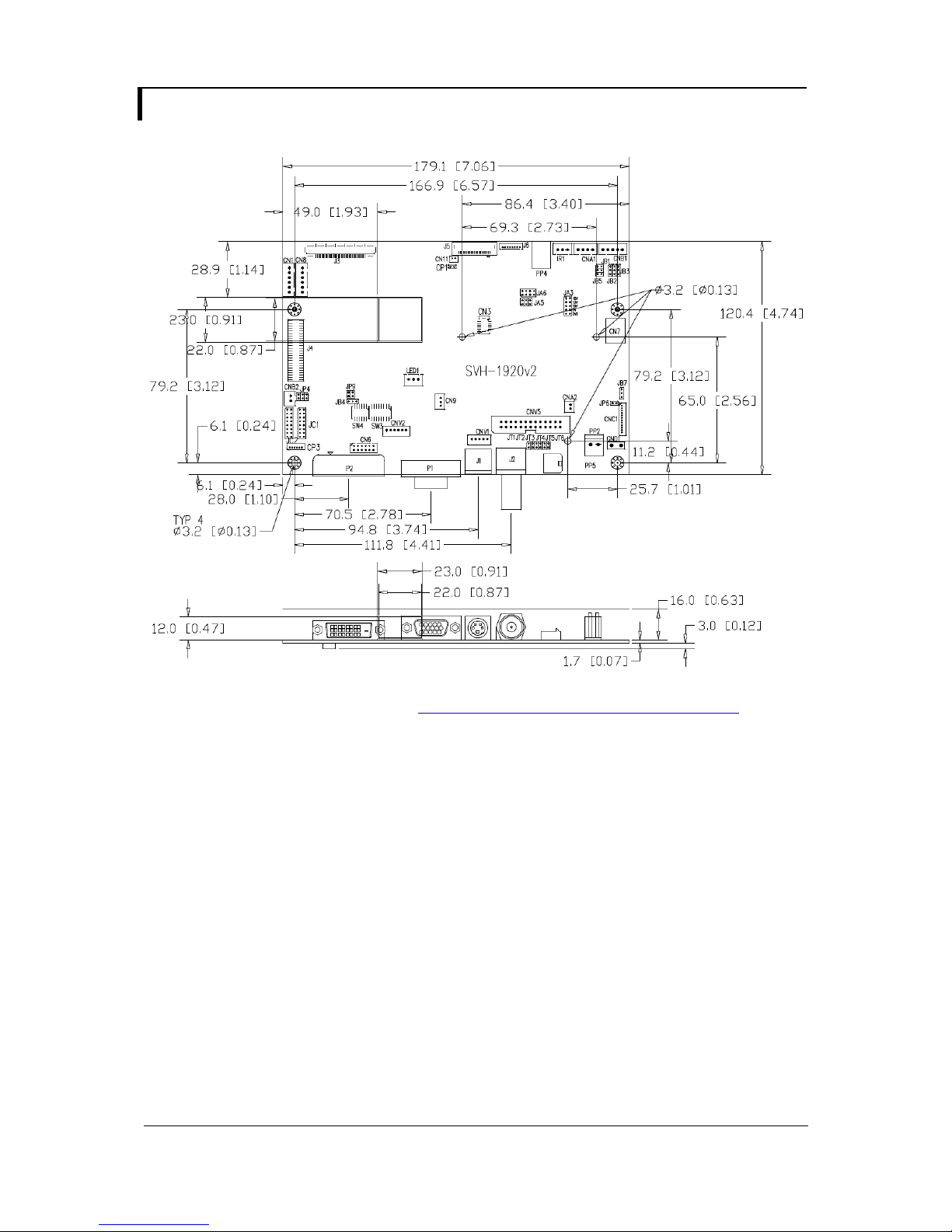

27. Controller dimensions

28. Application notes

30. Troubleshooting

31. Specifications

32. Appendix I – Supported graphics modes table

35. Appendix II – RS-232 control protocols

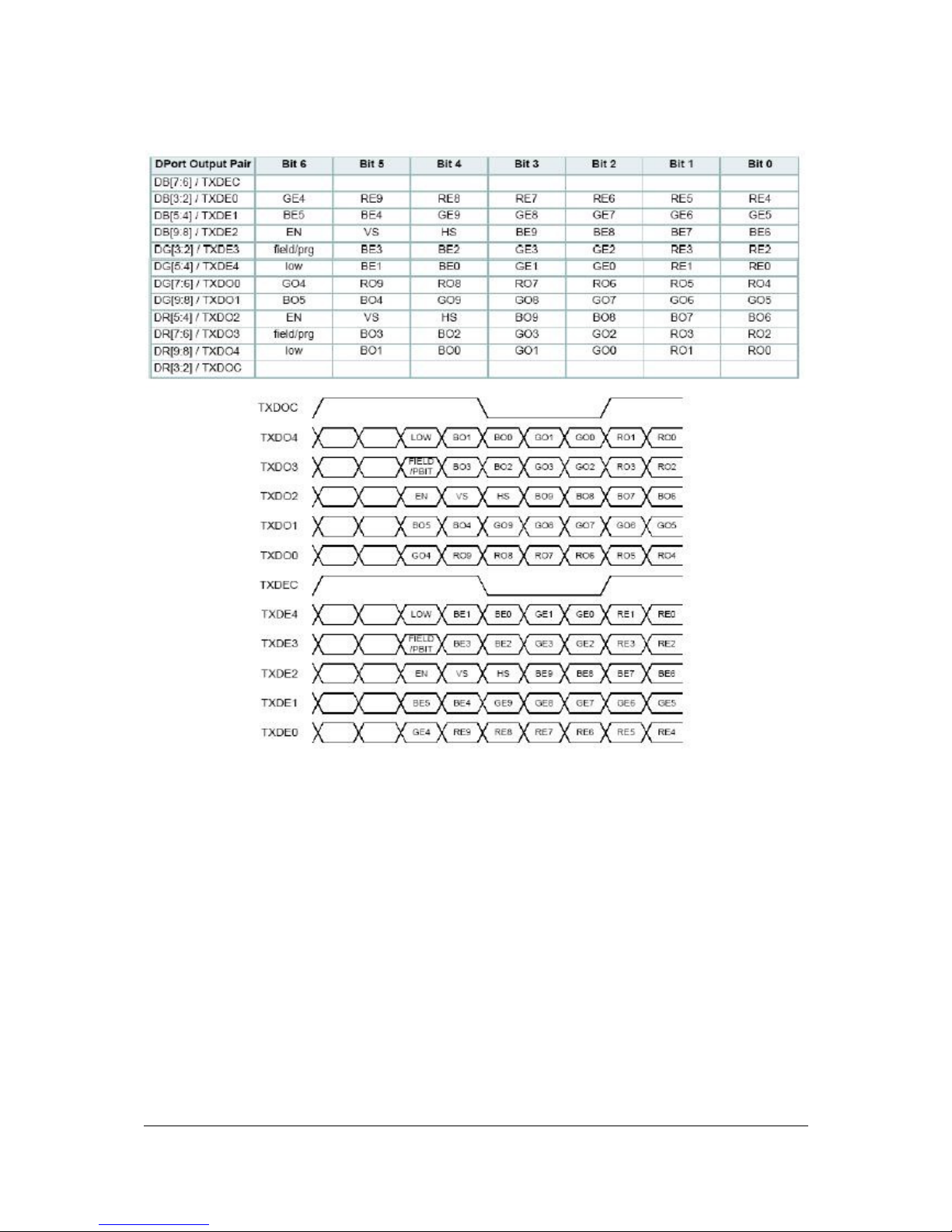

48. Appendix III – Mapping definition

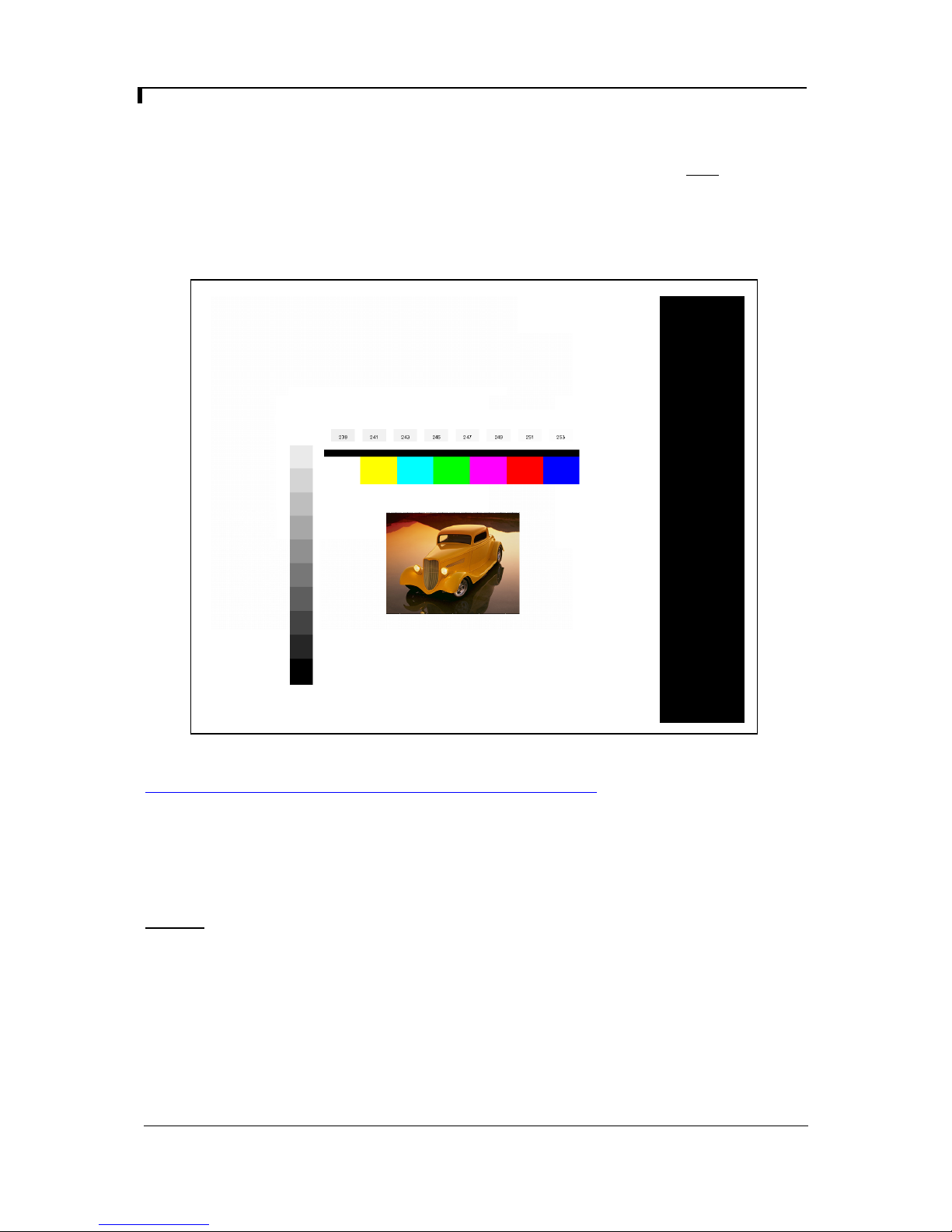

52. Appendix IV – Auto Color Gain

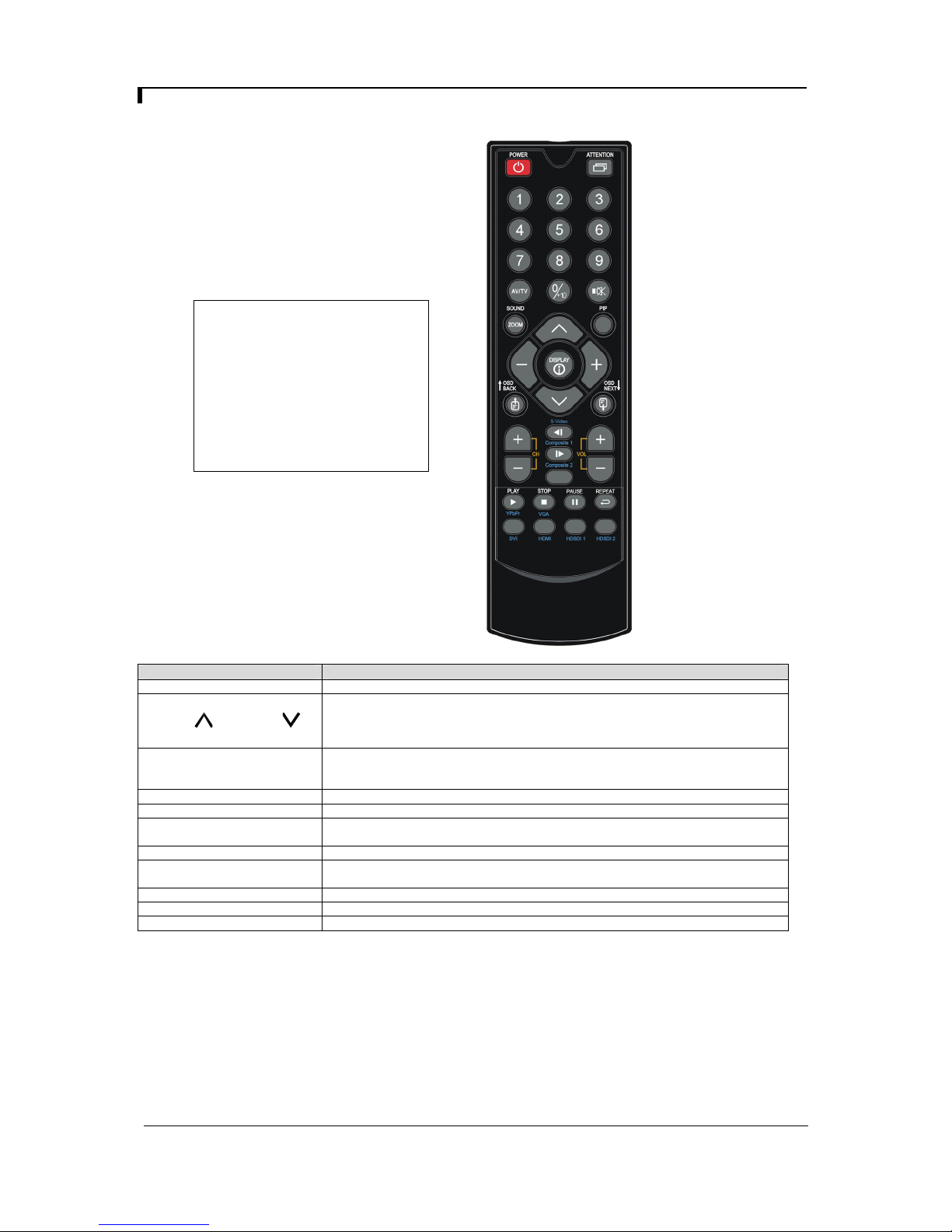

53. Appendix V – DV remote control unit work for SVH-1920v2

54. Appendix VII – PIP mix table

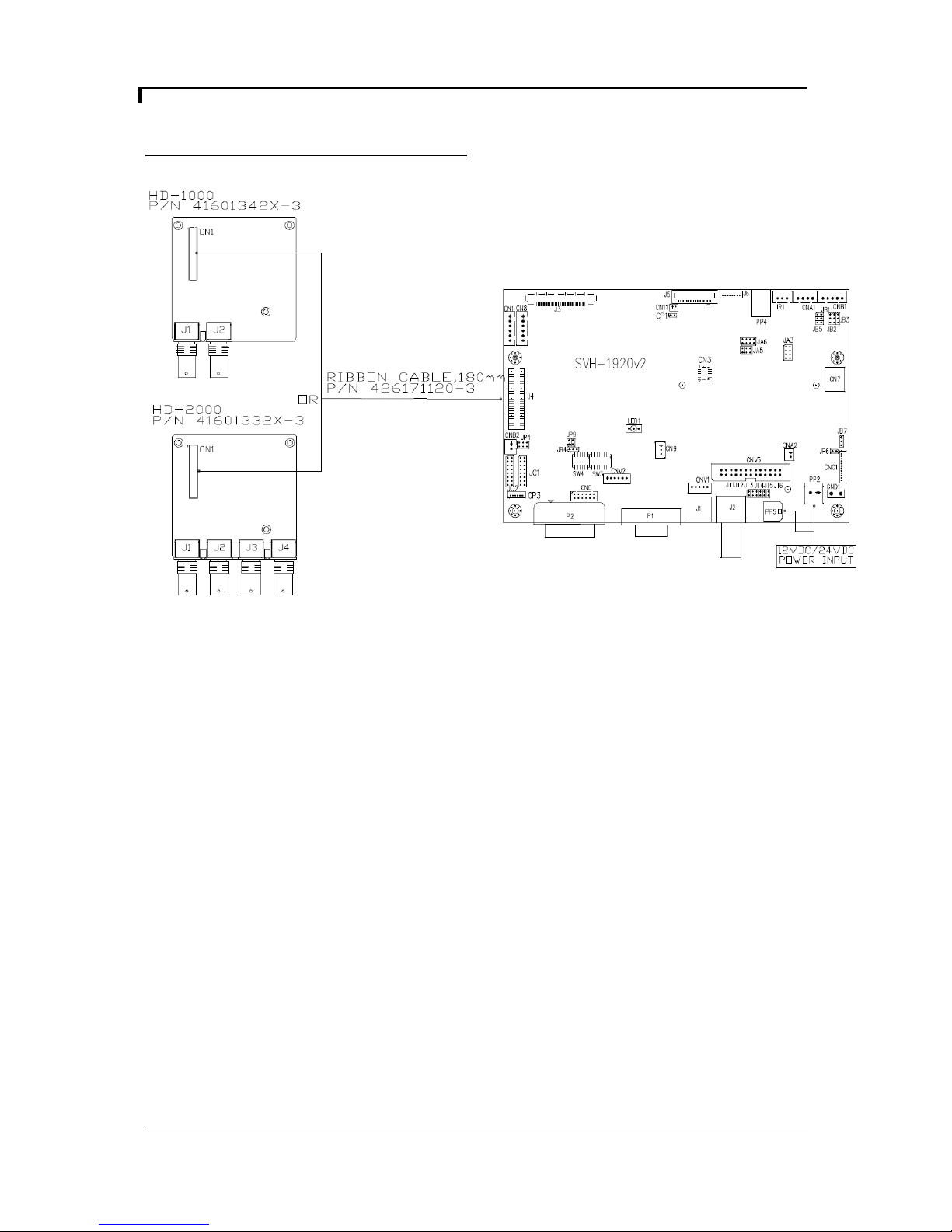

55. Appendix VII – HD-1000 / HD-2000 connection

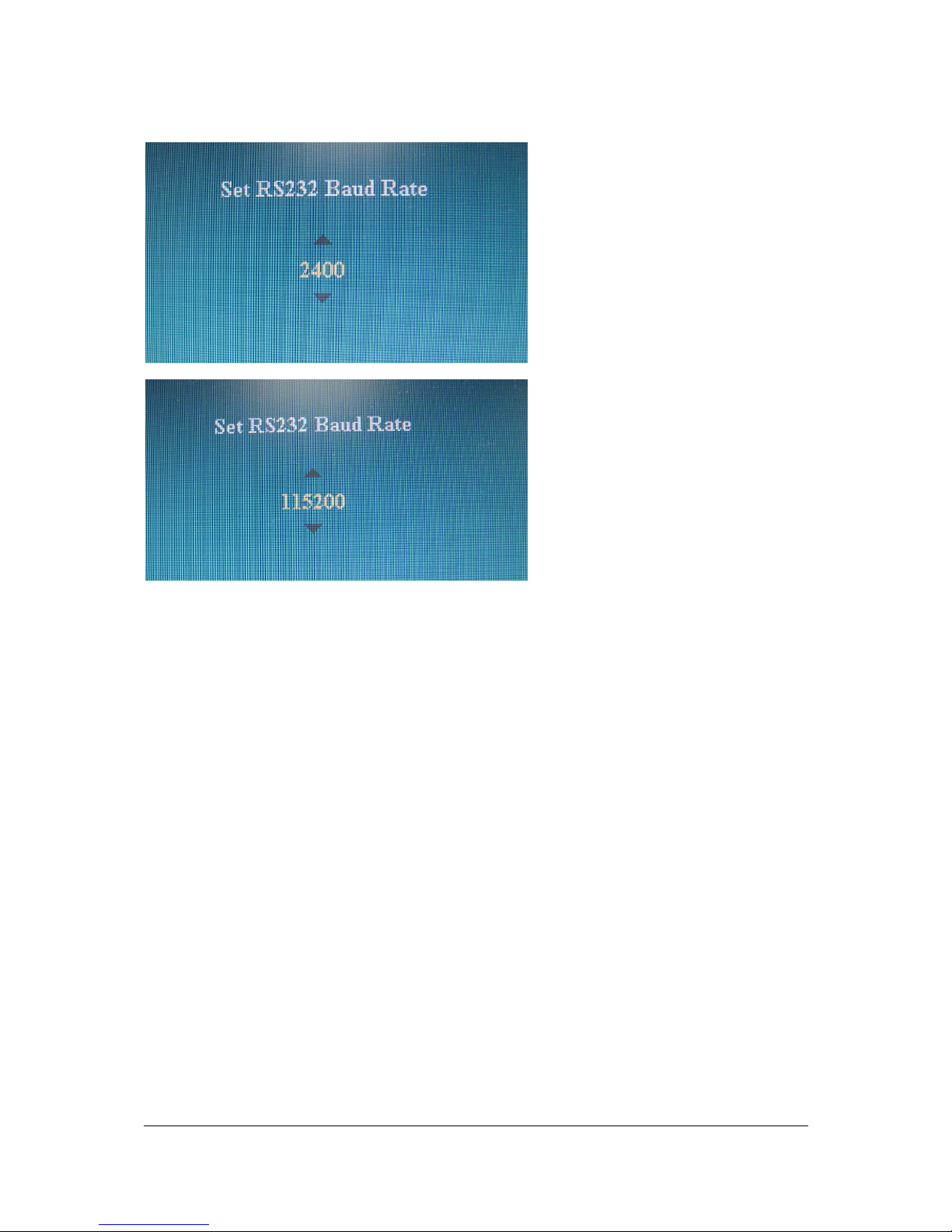

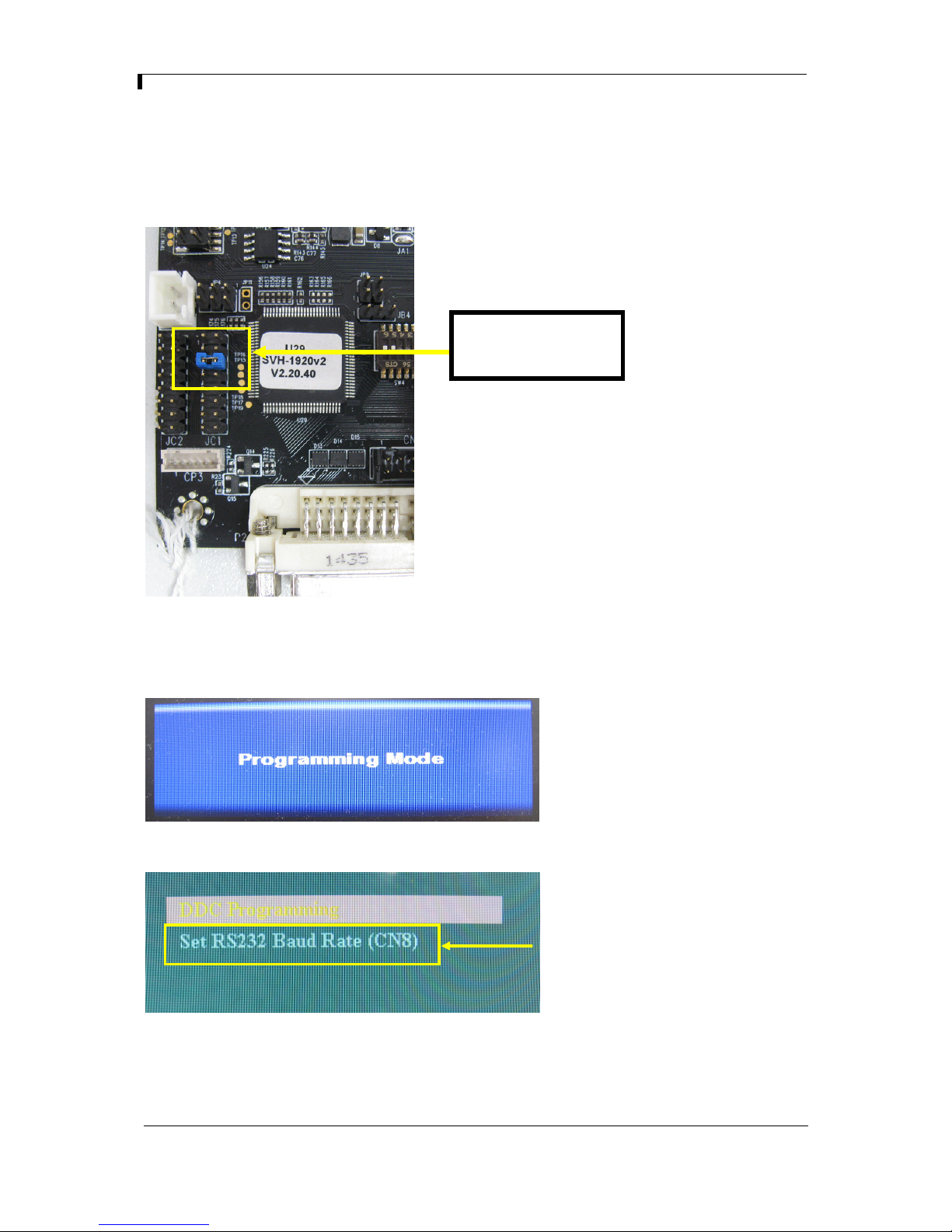

56. Appendix VIII – Procedure for showing how to select the baud rate

58. Warranty, Caution & Limitation of Liability, Trademarks

59. Contact details

60. Revision History

It is essential that these instructions are read and understood before connecting or powering up this controller.

Specifications subject to change without notice

1 of 60

See at : http://www.digitalview.com/controllers/csg.php

Introduction

Designed for LCD monitor and other flat panel display applications, the SVH-1920v2 is a feature rich interface controller for :

 TFT (active matrix) LCD panels of 1920x1200, 1920x1080, 1920x480, 1600x1200, 1600x900, 1680x1050, 1440x900,

1366x768, 1280x1024, 1280x800, 1280x768 1024x768, 1024x600, 800x600, 800x480 and 640x480 resolutions.

 Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard.  Video signals of NTSC, PAL and SECAM standard.  DVI input support up to 1920x1200 60Hz input signals  HD-SDI input support by using optional HD-SDI adaptor board (Kit P/N 546013410-3 / P/N 546013310-3 )

Ordering information :

Controller Part number Ordering part number SVH-1920v2 P/N 41752004X-3 P/N 4175200XX-3

HOW TO PROCEED

 Ensure you have all parts & that they are correct, refer to:

• Connection diagram

 Check controller switch & jumper settings (errors may damage the panel)  Prepare the PC  Connect the parts  Understand the operation & functions

IMPORTANT USAGE NOTE

This equipment is for use by developers and integrators, the manufacturer accepts no liability for damage or injury caused by the use of this product. It is the responsibility of the developer, integrators or other user of this product to:

• Ensure that all necessary and appropriate safety measures are taken.

• Obtain suitable regulatory approvals as may be required.

• Check power settings to all component parts before connection.

DISCLAIMER

There is no implied or expressed warranty regarding this material.

Controller Solution Generator

Full web resource matching controllers & panels with connection diagrams for download.

• Connector reference (in following section)

• Assembly notes (refer to page 4 – 5)

Specifications subject to change without notice

2 of 60

SYSTEM DESIGN

A typical LCD based display system utilizing this controller is likely to comprise the following:

Specifications subject to change without notice

3 of 60

ASSEMBLY NOTES

This controller is designed for monitor and custom display projects using 1920x1200 or 1920x1080 or 1600x1200 or 1600x900 or 1680x1050 or 1440x900 or 1366x768 or 1280 x 1024 or 1280x800 or 1024 x 768 or or 1024x600 or 800x600 or 800x480 or 640x480 resolution TFT panels with a VGA, SVGA, WXGA, XGA, SXGA, UXGA or WUXGA signal input. The following provides some guidelines for installation and preparation of a finished display solution.

Preparation: Before proceeding it is important to familiarize yourself with the parts making up the system and the various connectors, mounting holes and general layout of the controller. As much as possible connectors have been labeled. Guides to connectors and mounting holes are shown in the following relevant sections.

1. LCD Panel: This controller is designed for typical LVDS interfaced panels with panel voltage 3.3V, 5V or 12V, External for 12V~18V interface. Due to the variation between manufacturers of panels signal timing and other panel characteristics, factory setup and confirmation should be obtained before connecting to a panel. (NOTE: Check panel power jumper settings before connection)

2. Controller: Handle the controller with care as static charge may damage electronic components. Make sure correct jumper and dip switches settings to match the target LCD panel.

3. LCD signal cable (LVDS panel): In order to provide a clean signal it is recommended that LVDS signal cables are no longer than 46cm (18 inches). If those wire cabling is utilized these can be made into a harness with cable ties. Care should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems to add ferrite cores to the cable to minimize signal noise.

5. Inverter: This will be required for the backlight of an LCD, some LCD panels have an inverter built in. As LCD panels may have 1 or more backlight tubes and the power requirements for different panel backlights may vary it is important to match the inverter in order to obtain optimum performance. See Application notes page 18 for more information on connection.

6. Inverter Cables: Different inverter models require different cables and different pin assignment. Make sure correct cable pin out to match inverter. Using wrong cable pin out may damage the inverter.

7. Function Controls: The following section discusses the controls required and the section on connectors provides the detail. The controls are minimal: On/Off, Backlight Brightness (depends on inverter), OSD (5 momentary buttons) analog VR type or (8 momentary buttons) digital type.

The 8 momentary buttons OSD switch mount P/N 416100520-3 or OSD membrane interface P/N 416100120-3 must be used when 24VDC input.

8. Function controls cable: The cables to the function switches should be of suitable quality and length so that impedance does not affect performance. Generally lengths up to 1 meter (3 feet) should be acceptable.

9. Status LED: The pin direction of the LED should be corrected for right colour indication. Red colour stands for standby. Green colours stands for signal on. The status LED is an optional part only, can be unconnected.

10. IR sensor: It is an optional part only, can be unconnected if not using IR remote control. See Appendix V in details.

11. RS-232 control interface : Firmware upgrade and serial control via CN8 interface port.

12. Audio add-on board P/N 416940020-3: The audio add-on board gives the audio input and output signal connection. It is

an optional part only, can be unconnected if not using audio.

13. VGA Input Cable: Plug the VGA cable to the connector P1 (for VGA 1) or P2 / CN6 (for VGA 2) on the controller board.

As this may affect regulatory emission test results and the quality of the signal to the controller a suitably shielded cable should be utilized.

14. DVI-D input cable : Plug the DVI cable to the connector P2 on the controller board.

15. Composite video input : Standard Composite cables can be used. Reasonable quality cable should be used to avoid

image quality degradation.

16. S-Video input : Standard S-video cables can be used. Reasonable quality cable should be used to avoid image quality degradation.

17. Alternate composite 1 and S-video 1 input : Plug the video input cable P/N 426000500-3 on CNV1 connector

18. HD component video input : Plug the component video input cable P/N 426000600-3 on CNV2 connector

Specifications subject to change without notice

4 of 60

20. Interface for connecting to HD-SDI adaptor board

HD-SDI (1-in-1-out) adaptor board, Kit number P/N 546013410-3 includes : HD-1000 adaptor (1-in-1-out) P/N 416013410-3 Ribbon cable P/N 426171120-3, 180mm

HD-SDI (2-in-2-out) adaptor board, Kit number P/N 546013310-3 includes : HD-2000 adaptor (2-in-2-out) P/N 416013310-3 Ribbon cable P/N 426171120-3, 180mm

21. Power Input: 12V/24VDC is required, this should be a regulated supply. The power rating is depending on the panel and

inverter used. Normally, power supply with 3.5Amp current output should enough for most of 4x CCFT panels. Although the controller provides power regulation for the LCD power this does not relate to the power supplied to the backlight inverter. If an unregulated power supply is provided to an inverter any fluctuations in power may affect operation, performance and lifetime of the inverter and or backlight tubes.

22. External panel power input : Allow to supply external power to the panel separately for max 3.3V (7A) or 5V (7A) or 12V (5A) or 18V (3.5A) via PP4 power input connector.

23. Auxiliary video input : This port provides Composite video 1 & 2, S-video 1 & 2. The video input selection can be switched via RS-232 command (0x98).

24. Auxiliary +5VDC output : 2 ways connector provides +5VDC output.

25. Ambient light sensor connection : 3 ways connector provides interface for ambient light sensor connection.

26. Backlight status input : 2 ways connector provides interface for connection with panel which support the panel with

backlight status monitoring function.

•••• Power output: Note the controller has an overall 3Amp current limit and the current available from the auxiliary power output will be dependent on the power input and other system requirements.

•••• Power Safety: Note that although only 12V / 24VDC is required as ‘power-in’ a backlight inverter for panel backlighting produces significantly higher voltages (the inverter does not connect to the ground plane). We strongly advise appropriate insulation for all circuitry.

•••• EMI: Shielding will be required for passing certain regulatory emissions tests. Also the choice of external Controller to PC signal cable can affect the result.

•••• Ground: The various PCB mounting holes are connected to the ground plane.

•••• Servicing: The board is not user serviceable or repairable. Warranty does not cover user error in connecting up to the

controller and is invalidated by unauthorized modification or repairs.

•••• Controller Mounting: It is recommended that a clearance of at least 10mm is provided above and 5mm below the controller when mounted. Additionally consideration should be given to:

• Electrical insulation.

• Grounding.

• EMI shielding.

• Cable management. Note: It is important to keep panel signal cables apart from the inverter & backlight cables to

prevent signal interference.

• Heat & Ventilation: Heat generated from other sources, for example the backlight of a very high brightness panel

may generate significant heat which could adversely affect the controller.

• Other issues that may affect safety or performance.

•••• PC Graphics Output: A few guidelines:

• Signal quality is very important, if there is noise or instability in the PC graphics output this may result in visible noise

on the display.

• Refer to graphics modes table in specifications section for supported modes.

• Non-interlaced & interlaced video input is acceptable.

IMPORTANT: Please read the Application Notes section for more information.

Specifications subject to change without notice

5 of 60

CONNECTION & OPERATION

CAUTION: Never connect or disconnect parts of the display system when the system is powered up as this may cause serious

damage.

CONNECTION

Connection and usage is quite straight forward (it is useful to have the relevant connection diagram available at this time):

1. LCD panel & Inverter: Connect the inverter (if it is not built-in the panel) to the CCFT lead connector of the LCD panel. LVDS type panels: The controller board has the built-in LVDS transmitter driver. Plug the LVDS cable to J3. Insert the panel end of the cable the LCD panel connector.

2. Inverter & Controller: Plug the inverter cable to CNB1 and CNA1 (if necessary). Plug another end to the connector on the inverter.

3. Function switch & Controller: Plug the OSD switch mount cable to CNC1 on the controller board and another to the OSD switch mount.

4. LED & Controller: Plug in a 3-way with dual colour LED to connector LED1 on the controller board.

5. IR & Controller: Plug in a 3-way with IR sensor to connector IR1 on the controller board.

6. Jumpers & Switches: Check all jumpers and switches (SW3, SW4) are set correctly. Details referring the connection diagram (a separate document) or the jumpers and switches setting table (in the following section).

7. Jumpers & Inverter & Panel voltage: Particularly pay attention to the settings of JA3, JA5, JA6, JB2 and JB3. JB2 & JB3 are used for inverter control (read inverter specification and information on the jumper table to define the correct settings). JA3 & JA5 & JA6 is used for panel voltage input (read panel specification and information on the jumper table to define the correct settings).

8. VGA cable & Controller: Plug the VGA cable to the connector P1 on the controller board. VGA 2 is supported via P2

9. DVI cable & Controller : Plug the DVI cable to the connector P2 on the controller board.

10. Power supply & Controller: Plug the DC 12V/24V power in to the connector PP5 or PP2. You can consider to use

DigitalView mating power cable P/N 426013800-3, 160mm for PP5 connection.

11. External panel power input : Plug power cable : P/N 426013700-3 for external panel power input (3.3 (max 7A) / 5V

(max 7A) / 12V (max 5A) / 18V (max3.5))

12. Power on: Switch on the controller board and panel by using the OSD switch mount.

LED status (LED1) :

General:

• If you are using supplied cables & accessories, ensure they are correct for the model of panel and controller.

• If you are making your own cables & connectors refer carefully to both the panel & inverter specifications and the section

PC SETTINGS

The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance we recommend choosing 60Hz vertical refresh rate – this will not cause screen flicker.

OPERATION

Once the system has been connected and switched on there are a number of functions available to adjust the display image as summarized in the following sections. The settings chosen will be saved for each mode independently.

(DVI-I) or CN6 connector.

State LED color Backlight OFF RED Backlight ON GREEN

in this manual, “Connectors, Pinouts & Jumpers” to ensure the correct pin to pin wiring.

Specifications subject to change without notice

6 of 60

–

LCD DISPLAY SYSTEM SETTINGS

NOTE: By way of explanation the following refers to a set of sample buttons that may be obtained as an option. In addition to power on/off and connection for backlight brightness the controller provides an On Screen Display of certain functions which are controlled by 5 momentary type buttons (analog VR type) or 8 momentary type buttons (digital type):

Controls Analog VR type Digital type On/Off – turns controller board power on VR toggle switch On/Off button Brightness – controls backlight brightness Rotary VR Brightness +/- buttons Menu

– Turns OSD menu On or Off (it will auto time

off)

Back to previous OSD menu page

Select down

– Moves the selector to the next function (down)

Select up

– Moves the selector to the previous function (up) +

– Increase the OSD parameter values

– Go into the sub-menu page from the top

Confirm to select the OSD function

-

– Decrease the OSD parameter values

- Go into the sub-menu page from the bottom Reset to Factory Defaults Press and hold SEL DN button,

Access “Programming Mode” Press and hold MENU button,

Menu button Menu button

SEL DN SEL DN

SEL UP SEL UP

+ +

- -

then power on the controller

Press and hold SEL DN button, then power on the controller Press and hold MENU button, then power on the controller

ON/Off/Brightness

-

Menu

Analog VR type

Dig ital type

SEL UP

SEL DN

+

12V / 24VDC power input :

Analog 10K VR Type OSD switch mount uses P/N 410680550-3 or up

12V / 24VDC power input :

Digital 10K Type OSD switch mount uses P/N 416100520-3 or up

Specifications subject to change without notice

7 of 60

Picture :

###

Volume

Brightness Increase/decrease panel brightness level, total: 100 steps

Contrast Increase/decrease panel contrast level, total: 100 steps

Saturation Increase/decrease saturation, total: 100 steps

Hue ** Increase/decrease Hue level, total: 100 steps

Sharpness Increase/decrease sharpness, total: 30 steps

Backlight Backlight brightness adjustment (Functions when light detector sets OFF) Position##

Aspect / Size 4444

- Fill Screen : Enable full screen expansion for lower resolution Image

- 4 : 3 : scaling format in 4:3

- 16 : 9 : scaling format in 16:9

- 16 : 10 : scaling format in 16:10

- 2.35 : 1 : scaling format in 2.35:1

- 2 : 1 : scaling format in 2:1

- 1 : 1 : Display the exact image resolution on the screen without image expansion.

Increase/decrease volume level, total: 100 steps

Move the image position upward

Move the image position downward

Move the image position to the left

Move the image position to the right

- Fill to Aspect Ratio: Enable fill screen expansion for lower resolution image according to aspect ratio

** : FUNCTION IN ARGB/ DVI / VIDEO NTSC MODE ONLY

## : FUNCTION IN ARGB MODE ONLY

### : DISPLAY WHEN AUDIO ADD-ON BOARD CONNECTED

Specifications subject to change without notice

8 of 60

Source : Select the input video signal

Main Port Change 4 VGA 1 VGA 2 DVI Composite 1 Composite 2 S-Video 1 S-Video 2 Component 1 HD/SD SDI 1++ HD/SD SDI 2++

PIP Port change4 PIP Off / VGA 1/ VGA 2/ DVI / Composite 1 / Composite 2 / S-Video 1 / S-Video 2 / Component 1 / HD/SD SDI 1 / HD/SD SDI 2

PIP Size4: Off / PIP Size 1~18 / Size by Size / Size by Size Tall The PIP capability on display input sources refer to Appendix VII – PIP mix table

PIP Position :

Move the PIP position upward

Move the PIP position downward

Move the PIP position to the left

PIP Blend Level : 6.25% ~ 100% : PIP Transparency PIP Swap : Swap between the main window and PIP window

PIP Auto Turn off : : OFF / ON ON : When PIP is no signal input after 30 seconds, the PIP window will turn off automatically. OFF : PIP window keeps on

Utilities :

Setup 4

Auto Picture Setup# : Auto adjust the image position, phase and size Auto Color Gain+ 4444 : Auto Color Calibration (See appendix IV)

- Return

- Execute Wide Screen Mode Selection# 4444 : Recognize the wide screen mode coming from ARGB port

- Group 1

- Group 2

Manual Clock# : Adjust the image horizontal size

Manual Phase# : Fine tune the data sampling position (adjust image quality) Auto Source Seek :

- Auto : : OFF / ON ON – Auto source select always enable OFF – Disable auto source select function

- Setup4444 Selection for the corresponding input sources detection

VGA 1

Specifications subject to change without notice

Move the PIP position to the right

++ DISPLAY WHEN HD-1000/-2000 CONNECTED

- 1024x768

- 1280x768

- 1360x768

- 1366x768

- 1440x900

- 1600x900

9 of 60

VGA 2

DVI

Composite 1

Composite 2

S-Video 1

S-Video 2

HD/SD SDI 1++

HD/SD SDI 2++

The corresponding input port name display on OSD menu will disappear once setting “OFF”.

Auto Power : OFF / ON ON – Enable soft power off function if absence of input signals OFF – Disable soft power function Video Standard (SD) AUTO NTSC* NTSC 4.43* PAL* PAL M* SECAM* (* - No image found when non-matching video system signal input)

Anti Image Retention :

Anti Image Retention : Method : Flash / Pixel Shift / Horizontal Pan / Vertical Pan Flash : Flashing the screen Pixel Shift : Image shift pixel by pixel around the screen Horizontal Pan : Display a pattern moving horizontally on screen. Vertical Pan : Display a pattern moving horizontally on screen. Horizontal Pan Setting : Height > Panel Height : ÷2 / ÷4 / ÷6 / ÷8 : Configure the pattern height W idth > Panel Width : ÷2 / ÷4 / ÷6 / ÷8 : Configure the pattern width Pattern : Black / White : Configure the pattern color Pass : 1 ~ 100 : Configure the pattern moving cycle Vertical Pan Setting : Height > Panel Height : ÷2 / ÷4 / ÷6 / ÷8 : Configure the pattern height W idth > Panel Width : ÷2 / ÷4 / ÷6 / ÷8 : Configure the pattern width Pattern : Black / White : Configure the pattern color Pass : 1 ~ 100 : Configure the pattern moving cycle Flash Setting : Timer : 1 ~ 100s : Configure the flashing duration Flash Period : 1 ~ 100 : Configure the flashing cycle Note : Anti Image retention state will be cleared once you press the MENU button.

Gamma : 1.8 / 1.9 / 2.0 / 2.1 / 2.2 / 2.3 / 2.4 / 2.5 / 2.6 (default 2.2) (Effective on V1.27.00.00 or later firmware revision)

Image Orientation** 4 Normal Horizontal Flip Vertical Flip Rotate

OSD 4

OSD position :

OSD Timeout (sec) : ON – 60 : Adjust the OSD menu timeout period in a step of 5

Specifications subject to change without notice

+++

4

Move the OSD menu image position upward

Move the OSD menu position downward

Move the OSD menu position to the left

Move the OSD menu position to the right

10 of 60

seconds (max 60 seconds) ON = Continuous to display OSD menu. 60 = 60 seconds later will turn off the OSD menu.

Language : English / Spanish / French / German / Chinese :Select OSD menu language display

Display Input : OFF / ON : Display input source info after switching source.

IR Remote control : IR Remote Enable : Set enable on IR remote control IR Remote Disable : Set disable on IR remote control

Freeze : Freeze the image (use “+” button)

Zoom 4

Zoom level : : Enable the zoom in function on the image displayed. Use “+” button to zoom in the image Use “-“ button to decrease the zoomed image

Horizontal pan : : Pan the image horizontally

Vertical pan : : Pan the image vertically Factory Reset Note : Freeze state will be cleared when you using zoom function.

Color Temperature 4

5000K

Red Gain :

Green Gain :

Blue Gain :

Red Offset :

Green Offset :

Blue Offset : Reset to Defaults : Resume to the default values 6500K

Red Gain :

Green Gain :

Blue Gain :

Red Offset :

Green Offset :

Blue Offset : Reset to Defaults : Resume to the default values 8000K

Red Gain :

Green Gain :

Blue Gain :

Red Offset :

Green Offset :

Blue Offset : Reset to Defaults : Resume to the default values 9300K

Red Gain :

Green Gain :

Blue Gain :

Red Offset :

Green Offset :

Blue Offset : Reset to Defaults : Resume to the default values

User setting :

Red Gain :

Green Gain :

Blue Gain :

Specifications subject to change without notice

11 of 60

Red Offset :

B/L Control : D/A / PWM : Selection for voltage level dimming control / PWM

Green Offset :

Blue Offset : Reset to Defaults : Resume to the default values

Reset All to Defaults : Resume all color temperature settings to the default values.

Hot Key 4

Hot key 1 : Brightness / Contrast / Inputs / Aspect Ratio/ Zoom / Freeze / PIP Size / PIP Swap / PIP ON/OFF / Saturation / Hue / Backlight / Auto Picture Setup / Image Orientation*** /No Function

Hot key 2 : Brightness / Contrast / Inputs / Aspect Ratio/ Zoom / Freeze / PIP Size / PIP Swap / PIP ON/OFF / Saturation / Hue / Backlight / Auto Picture Setup / Image Orientation*** / No Function

Monochrome Mode4 (Effective on V1.26.00.00 or later firmware revision)

- Color

- Red Monochrome

- Green Monochrome

- Blue Monochrome

- Red Only (Display when JP4 position 5-6 is closed)

- Green Only (Display when JP4 position 5-6 is closed)

- Blue Only (Display when JP4 position 5-6 is closed)

Backlight Setup4444

- B/L Invert : : Invert for the backlight brightness

dimming control

- Backlight Frequency : 100 ~ 440Hz in a step of 20

- Light Detector : : Enable ambient light detector function by using KIT 70220-3

- Min Backlight Level : 0 ~ 50% : Default the minimum backlight adjustment.

Default Setting 4444

Reset to Factory Defaults 4444 (Activate when JC1 position 4 sets open) Are you sure ? Yes/No Reset to Factory Defaults with (Color Temp.) 4444 (Activate when JC1 position 4 sets open) Are you sure ? Yes/No Save Current Settings as Calibrated Values 4444 (Activate when JC1 position 2 sets closed) Are you sure ? Yes/No Recall Stored Calibrated Values 4444 Are you sure ? Yes/No

+ DISPLAY IN ARGB & COMPONENT MODE ONLY

++ DISPLAY WHEN HD-1000/-2000 CONNECTED

+++ DISPLAY IN COMPOSITE & S-VIDEO MODE ONLY

** The image orientation function is not support under the following conditions :

- PIP

- Component 1 (via CNV2 connector) input.

- Driving with 1366x768 panel

- Zoom *** Support on V1.26.00.00 firmware or later version. Once it selects the image orientation on hotkey 1 or hotkey 2, it will cycle through the 4 image orientation modes (Normal/Horizontal Flip/Vertical Flip/Rotate) by pressing each time of hotkey button (SEL UP/SEL DN or + /

- buttons). Not support rotate mode when running with PIP mode or Component input.

# : DISPLAY IN ARGB MODE ONLY

Firmware V1.27.00.00 or up

Specifications subject to change without notice

12 of 60

CONNECTORS, PINOUTS & JUMPERS

The various connectors are:

Summary: Connectors

Ref Purpose Description

CN1 Second RS-232 serial control JST 6-way, B6B-XH-A (Matching type : XHP-6) CN3 Panel connector HIROSE DF20G-10DP-1V (Matching type : DF20A-10DS-1C) CN6 VGA 2 input connector Hirose 12-pin, DF11-12DP-2DSA (Matching type : DF11-12DS-2C) CN7 Audio board connector DIL socket header 5x2 right angle

CN8 RS-232 serial control JST 6-way, B6B-XH-A (Matching type : XHP-6)

CN9 Ambient light sensor connector JST 3-way, B3B-PH-K (Matching type : PHR-3) CNA1 Auxiliary power output JST 4-way, B4B-XH-A (Matching type : XHP-4) CNA2 Auxiliary +5VDC output JST 2 way, B2B-PH-K (Matching type : XHP-2) CNB1 Backlight inverter JST 5-way, B5B-XH-A (Matching type : XHP-5) CNB2 Backlight status input connector JST 2 way, B2B-XH-A (Matching type : XHP-2) CNC1 OSD controls Hirose DF13-12P-1.25H (Mating type : DF13-12S-1.25C)

CNV1 Alternate video in (Composite 1 & S-

CNV2 Component (YPbPr) video input

CNV5 Auxiliary video input (Composite 1&2,

J1 S-video 1 in Mini din 4-way J2 Composite video 1 in BNC connector

Specifications subject to change without notice

Video 2)

connector:

S-Video 1&2)

(Matching audio Add-on Board P/N 416940020-3)

(Matching OSD switch mount cable P/N 426122200-3 (150mm) or 426122210-3 (250mm) JST 5-way, B5B-PH-K (Matching type : PHR-5) (Matching video cable P/N 426000500-3) JST 6-way, B6B-PH-K (Matching type : PHR-6)

Header pin 13x2 (Matching video cable P/N 426000800-3)

13 of 60

J3 Panel signal for LVDS panel JAE FI-RE51S-HF (Matching type : FI-RE51HL)

0200 compatible)

J4 HD-SDI adaptor board interface

J5 Display port output for panel

J6 Panel power output for Disport port

IR1 Infra-Red sensor connector JST 3-way, B3B-XH-A (Matching type : XHP-3)

LED1 Dual color LED connector JST B3B-XH-A (for 4x-3 or up version) (Matching type : XHP-3)

P1 VGA analog input DB-15 way high density 3 row

P2 DVI-I (DVI-D or VGA 2) input DVI-I connector PP2 Power input (alternative) DC power Molex 2 pin 0.156” pitch PP4 External panel power input Molex 43045-0400 compatible

PP5 Power input Molex 43650-0200 compatible

Summary: Jumpers setting

Ref

JA3 Panel power voltage select

JA5 Panel power voltage select

JA6 Panel power voltage select

JB1 Backlight brightness voltage range 1-2 closed = 5V max

JB2 Backlight inverter on/off control – signal

JB3 Backlight inverter on/off control – polarity 1-2 = control signal ‘high’ = CCFT ON

JB4 GPIO pins voltage selection 1-2 = 3.3V

JB5 Backlight control type selection 1-2 = VR/Digital switch mount control

JB7 Backlight control voltage on CNB1 pin 4

JC1 Custom configuration Position 1 :

JC2 Custom configuration Position 1 : Enable J3 – pin 16 (OP1) controlled by JB4

JP4 Custom configuration 1-2 closed = Reserved

JP6 Input power control Short = External switch control

connector

connection

interface panel use.

Purpose Note

CAUTION: Incorrect setting can damage

panel

CAUTION: Incorrect setting will cause panel damage

level

(Function when JB5 sets 1-2 closed)

2 x 25 ways, 2.54x1.27 header (Matching connector type : DF13-40DS-1.25C) (Matching ribbon cable : P/N 426171100-3) I-PEX 20455-030E-12 (Matching type : I-PEX 20454-030T)

JS-1147A-08 Top 1.25mm (Matching type : Molex 51021-0800)

(Matching connector type : Molex 43025-0400 compatible) (Matching power cable : P/N 426013700-3)

(Matching connector type : Molex 43645 (Matching power cable : P/N 426013800-3)

See panel voltage setting table 1

2-3 closed = 3.3V max 2-3 = On/Off control signal ‘High’ = +5V 1-2 = On/Off control signal ‘High’ = +3.3V Open = On/Off control signal ‘High’ = Open collector CAUTION: Incorrect setting can damage inverter.

2-3 = control signal ‘low’ = CCFT ON

2-3 = 5V

3-4 = Analog backlight brightness - voltage range 0~5V 5-6 = PWM (Pulse Width Modulation) brightness Open = For OSD switch mount control (Default) 1-2 = 0V 2-3 = 3.3V / 5V controlled by JB1

Closed = Disable B/L setup menu

Position 2 : Closed = Enable save Current Settings as Calibrated Values on OSD menu

Position 3 : Closed = Enable baud rate selection function in programming mode

Position 4 : Closed = Hide “Reset to Factory Defaults” and “Reset to Factory Defaults with (Color Temp.)” from OSD menu.

Position 7 : Closed = Enable for selection of the “RM-DN5 Assembly” menu on Programming mode.

Position 2 : Enable J3 – pin 17 (OP2) controlled by JB4

3-4 closed = On-board programming 5-6 closed = Display "Red/Green/Blue only selection under Monochrome mode on OSD menu

Specifications subject to change without notice

14 of 60

JP9 Factory use Default Open

JT1 Composite video-in terminator enable Open = composite video 1 input is not terminated

JT2 S-Video luma-in terminator enable Open = S-video 1 luma input is not terminated

JT3 S-Video chroma-in terminator enable Open = S-video 1 chroma input is not terminated

JT4 Component luma-in terminator enable Open = S-video 2 luma input is not terminated

JT5 Component Cr-in terminator enable Open = S-video 2 chroma input is not terminated

JT6 Component Cb-in terminator enable Open = composite video 2 input is not terminated

SW3 Panel & function selection See table 2 SW4 Panel & function selection See table 3

Open = Switch mount control

Close = composite video 1 input is terminated with 75Ω

Close = S-video 1 luma input is terminated with 75Ω

Close = S-video 1 chroma input is terminated with 75Ω

Close = S-video 2 luma input is terminated with 75Ω

Close = S-video 2 chroma input is terminated with 75Ω

Close = composite video 2 input is terminated with 75Ω

Specifications subject to change without notice

15 of 60

Table 1 : Panel voltage setting table :

Input voltage via

PP2, PP5 Panel Voltage JA3 JA5

3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4

JA6 Jumper on board

12VDC

CAUTION: Incorrect setting can damage panel & controller

Input voltage via

PP2, PP5 Panel Voltage JA3

5V 5V closed 1-3 & 2-4 1-3 & 2-4

12V OPEN 1-3 & 2-4 5-7 & 6-8

JA5 JA6 Jumper on board

3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4

5V 5V closed 1-3 & 2-4 1-3 & 2-4

24VDC**

CAUTION: Incorrect setting can damage panel & controller

10V 10V closed 1-3 & 2-4 3-5 & 4-6

12V 12V closed 1-3 & 2-4 3-5 & 4-6

18V

18V closed 1-3 & 2-4 3-5 & 4-6

** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input. Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2/PP3 or PP5.

Specifications subject to change without notice

16 of 60

Input voltage via

PP4 Panel Voltage JA3

3.3V OPEN 3-5 & 4-6 1-3 & 2-4

JA5 JA6 Jumper on board

3.3 / 5 / 12 / 18VDC*

5V OPEN 3-5 & 4-6 1-3 & 2-4

10V OPEN 3-5 & 4-6 3-5 & 4-6

12V OPEN 3-5 & 4-6 3-5 & 4-6

18V

OPEN 3-5 & 4-6 3-5 & 4-6

* Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V =

3.5A

Specifications subject to change without notice

17 of 60

JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5 & JA6 which are red in color)

JA6 & JA5

! ! JA3

Specifications subject to change without notice

18 of 60

Table 2 : DIP Switch selection – SW3

Pos #1 Pos #2 Pos #3 Pos.#4 Description Panel resolution

OFF ON ON OFF LG LM260WU1-SLB1 1920x1200

ON ON ON OFF LG LM240WU2-SLA1 1920x1200

OFF OFF OFF OFF Sharp LQ445D3LZ19 1920x1080

ON OFF OFF OFF Samsung LTA460H2-L02 1920x1080

OFF ON OFF OFF Sharp LQ170M1LZ04 1920x1200

ON ON OFF OFF Samsung LTA700HH-LH1 (1st trial testing) 1920x1080 OFF OFF ON OFF Samsung LTA700HH-LH1 (2nd trial testing) 1920x1080 OFF OFF ON ON AU Optronics P645HW03 V0 (1920x1080) 1920x1080 OFF OFF ON ON AU Optronics P645HW03 V0 1920x1080 OFF ON ON ON Samsung ASI545FB01-0 (OLED)* 1920x1080

OFF OFF OFF OFF Fujitsu FLC59UXC8V-02A 1600x1200

ON OFF OFF OFF Samsung LTM213U6-L01 1600x1200

OFF OFF OFF OFF LG LC420W02-A4 1366x768

ON OFF OFF OFF Sharp LQ315T3LZ24 1366x768

ON ON OFF OFF Samsung LTA320W2-L01 / LTA230W1-L02 1366x768

ON ON ON ON NEC NL12876BC26-21 / Samsung LTM170W1-L01 1280x768 OFF ON ON ON CHI MEI N154I4-L01 1280x800 OFF OFF ON OFF AU Optronics M190PW01 1440x900 OFF OFF ON ON Sharp LQ072K1LA03 1280x768

OFF OFF OFF OFF Sharp LQ181E1LW31 1280x1024

ON OFF OFF OFF AU Optronics M170EN05 1280x1024

ON ON OFF OFF Sharp LQ121S1LG81* 800x600

OFF OFF OFF OFF Sharp LQ150X1LGN2A 1024x768

Sharp LQ150X1LGB1 1024x768

OFF OFF OFF OFF Sharp LQ121S1DG11/41 800x600

Toshiba LTM08C351 800x600

OFF OFF OFF OFF NEC NL8048BC24-01 800x480

ON OFF OFF OFF Kyocera TCG085WV1AB-G00 800x480

ON OFF ON OFF Sharp LQ070Y3LG4A 800x480

OFF OFF OFF OFF Sharp LQ104V1DG51 640x480

ON OFF OFF OFF Sharp LQ104V1DG21 640x480

Kyocera TCG075VG2AC-G00 640x480

OFF ON OFF OFF AU Optronics M201EW02 V8 1680x1050

ON OFF OFF ON Samsung LTM201M1-L01 1680x1050 OFF OFF ON ON Hitachi TX48D02VM0BAA / JDI TX48D02VM0BAA* 1680x1050 OFF OFF ON OFF Samsung LTI430LA01 1920x480 OFF ON ON OFF NEC NL10260BC19-01D 1024x600

ON ON ON OFF AU Optronics M200RW01 1600x900

Samsung LTM200KP01 1600x900 Remark : * Effective on V1.26.00.00 version or up.

For WUXGA panels

For UXGA panels

For WXGA panels

For SXGA panel

For XGA panel

For SVGA panel

For WVGA panel

For VGA panel

Others

Remark : The above panel timings are generated based on the panel specification. Some of

the panel timings settings may not exactly to match the panel model we specified in this table.

Pos #5 Pos #6 Pos #7 Description

OFF OFF OFF WUXGA

ON OFF OFF UXGA

OFF ON OFF SXGA

ON ON OFF WXGA

OFF OFF ON XGA

ON OFF ON SVGA

OFF ON ON VGA

ON ON ON WVGA / Others

Pos. #8 Video lock ON – Disable : Always fix the output be 60Hz.

Specifications subject to change without notice

OFF – Enable : The output refresh rate locks to the input for 50Hz / 60Hz mode (other resolution lock the output be 60Hz. )

19 of 60

Table 3 : DIP switch selection – SW4

Pos. # Function Description

1 Reserved Reserved 2 Panel pixel format OFF : Double Pixel

3 Panel selection Default ON : Single / Double pixel LVDS panel (controlled by SW4

4 LVDS data mapping select

(Refer to Table 2)

If SW4 position 5 = ON (10 bit)

5 Output LVDS display mode selection OFF : 8 bit

6 LVDS mapping swap OFF : Normal

ON : Single Pixel

position 2) If SW4 position 5 = OFF (8 bit) OFF : Mapping B ON : Mapping A Please adjust to get the correct picture. See as Appendix I for details of mapping of A and B.

OFF : JEIDA (LVDS panel) ON : VESA (LVDS panel) Please adjust to get the correct picture. See as Appendix I for details of mapping of VESA and JEIDA.

ON : 10 bit

ON : Swap

Support "Resolution default by EDID" for different resolution panel.

The controller will set the preferred timing based off the dip switch setting (SW3 position 1-7) selection, but also be able to go higher to 1920x1200. For example, if the panel is a 1024x768 and the dip switch setting are set for 1024x768. The preferred EDID resolution should be 1024x768. It should also have the capability to set the max resolution to 1920x1200. * This function is only effective on V1.26.00.00 or later firmware revision.

Specifications subject to change without notice

20 of 60

CN1 – Slave RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6)

PIN SYMBOL DESCRIPTION

1 EXT_MSTR2_SCL Reserved 2 EXT_MSTR2_SDA Reserved 3 VCC +5V 4 TXD RS-232 Tx data 5 GND Ground 6 RXD RS-232 Rx data

CN3 – Panel connector: HIROSE DF20G-10DP-1V (Matching type : DF20A-10DS-1C)

PIN SYMBOL DESCRIPTION

1 OP1 Reserved 2 OP2 Reserved 3 OP3 Reserved 4 OP4 Reserved 5 IP1 Reserved 6 IP2 Reserved 7 IP3 Reserved 8 IP4 Reserved 9 EXT_MSTR2_SDA Reserved

10 EXT_MSTR2_SCL Reserved

CN6 - VGA 2 input connector : Hirose 12-pin, DF11-12DP-2DSA (Matching type : DF11-12DS-2C)

PIN SYMBOL DESCRIPTION

1 R Red, analog 2 DDC_5V +5V power supply for DDC (optional) 3 G Green, analog 4 GND Ground 5 B Blue, analog 6 GND Ground 7 HS Horizontal sync or composite sync, input 8 GND Ground

9 VS Vertical sync, input 10 DDC_SCL DDC serial clock 11 NC No connection 12 DDC_SDA DDC serial data

CN7 - Audio connector: DIL socket header 5x2 right angle

PIN SYMBOL DESCRIPTION

1 VCC Audio board logic power supply, +5V

2 VOLSEL0 Reserved

3 VOLSEL1 Reversed

4 TUNAUDSEL Reserved

5 CLK/CNT Reserved

6 GND Ground

7 +12V/+24V Audio board power supply, +12V/+24V

8 NC No connection

9 NC No connection 10 GND Ground

CN8 – RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6)

PIN SYMBOL DESCRIPTION

1 SDATA Reserved

2 SCLK Reserved

3 VCC +5V

4 TXD RS-232 Tx data

5 GND Ground

6 RXD RS-232 Rx data

CN9 – Ambient light sensor connector : JST B3B-PH-K (Matching type : PHR-3)

PIN SYMBOL DESCRIPTION

1 GND Ground

2 VCC_5V VCC 5V

3 ALSF Ambient light sensing feedback

CN11 – SPDIF audio output connector : JST B3B-PH-K (Matching type : PHR-3)

PIN SYMBOL DESCRIPTION

1 SPDIF SPDIF Digital audio output

2 GND Ground

Specifications subject to change without notice

21 of 60

CNA1 - Auxiliary power output: JST B4B-XH-A (Matching type : XHP-4)

PIN SYMBOL DESCRIPTION

1 AUX 12V / 24V +12V / +24V DC

2 GND Ground

3 GND Ground

4 AUX 5V +5V DC, 500mA max

CNA2 - Auxiliary power output: JST B2B-PH-K (Matching type : XHP-2)

PIN SYMBOL DESCRIPTION

1 Vcc_5V +5V DC, 500mA max with fuse

2 GND Ground

CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)

PIN SYMBOL DESCRIPTION

1 GND Ground

2 VBKL +12V / +24V DC, backlight power supply

3 BLCTRL On/Off control (enable) – see JB2 & JB3

4 BVR_WIP Brightness VR – WIP

5 BVR_A Brightness VR A

CNB2 – Backlight status input inverter connector: JST B2B-XH-A (Matching type : XHP-2 )

PIN SYMBOL DESCRIPTION

1 BL_STATUS Backlight status (Normal = High)

2 GND Ground

CNC1 – OSD switch mount control, Hirose DF13-12P-1.25H (Mating type : DF13-12S-1.25C)

PIN SYMBOL DESCRIPTION

1 PSWIN Power button A 2 SW_ON Power button B 3 BVR_A Backlight Brightness VR pin A 4 BVR_W IP Backlight Brightness R pin WIP 5 BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc) 6 GND Ground 7 MENU OSD menu 8 -/LEFT OSD -/Left

9 +/RIGHT OSD +/Right 10 SEL_DN OSD Select down 11 SEL_UP OSD Select up 12 NC No connection

The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

CNV1 – Alternate Video in input, JST B5B-PH-K (Matching type : PHR-5)

PIN DESCRIPTION

1 S-Video : Chroma in 2 S-Video : Luma in 3 Ground 4 Ground 5 Composite video in

CNV2 – Component (YPbPr) video input connector: JST 6-way, B6B-PH-K (Matching type : PHR-6)

PIN SYMBOL DESCRIPTION

1 A_Y1 Luma in / Green in 2 GND Ground 3 A_Pb1 Pb in / Blue in 4 GND Ground 5 A_Pr1 Pr in / Red in 6 GND Ground

Specifications subject to change without notice

22 of 60

CNV5 – Auxiliary Video input connector, DIL socket header 13x2

PIN DESCRIPTION

1 S-Video : Chroma in 2 Ground 3 S-Video : Luma in 4 Ground 5 Composite video in 6 Ground 7 No connection 8 Ground

9 No connection 10 Ground 11 No connection 12 Ground 13 S-Video_2 : Chroma in 14 Ground 15 S-Video_2 : Luma in 16 Ground 17 Composite video in_2 18 Ground 19 No connection 20 Ground 21 No connection 22 Ground 23 No connection 24 Ground 25 No connection 26 Ground

IR1 – Infra-Red sensor connector: JST B3B-XH-A (Matching type : XHP-3)

PIN SYMBOL DESCRIPTION

1 GND Ground

2 STDBY_Vcc Stand by voltage

3 IR Data IR data

J3 – LVDS output connector: JAE FI-RE51S-HF (Matching type : JAE FI-RE51HL)

PIN SYMBOL DESCRIPTION

1 VLCD_HV Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6)

2 VLCD_HV Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6)

3 VLCD_HV Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6)

4 VLCD_HV Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6)

5 VLCD_HV Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6)

6 VLCD_LV Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

7 VLCD_LV

8 VLCD_LV

9 VLCD_LV 10 VLCD_LV 11 GND Ground 12 GND Ground 13 GND Ground 14 GND Ground 15 GND Ground 16 OP1 17 OP2 18 NC No function 19 NC No function 20 GND Ground 21 GND Ground 22 LVDS_OUT1_A4+ Positive differential LVDS data bit A4 23 LVDS_OUT1_A4- Negative differential LVDS data bit A4 24 LVDS_OUT1_A3+ Positive differential LVDS data bit A3 25 LVDS_OUT1_A3- Negative differential LVDS data bit A3 26 GND Ground 27 LVDS_OUT1_AC+ Positive LVDS clock for A channel 28 LVDS_OUT1_AC- Negative LVDS clock for A channel 29 GND Ground 30 LVDS_OUT1_A2+ Positive differential LVDS data bit A2 31 LVDS_OUT1_A2- Negative differential LVDS data bit A2

Specifications subject to change without notice

Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

23 of 60

32 LVDS_OUT1_A1+ Positive differential LVDS data bit A1 33 LVDS_OUT1_A1- Negative differential LVDS data bit A1 34 LVDS_OUT1_A0+ Positive differential LVDS data bit A0 35 LVDS_OUT1_A0- Negative differential LVDS data bit A0 36 GND Ground 37 LVDS_OUT1_B4+ Positive differential LVDS data bit B4 38 LVDS_OUT1_B4- Negative differential LVDS data bit B4 39 LVDS_OUT1_B3+ Positive differential LVDS data bit B3 40 LVDS_OUT1_B3- Negative differential LVDS data bit B3 41 GND Ground 42 LVDS_OUT1_BC+ Positive LVDS clock for B channel 43 LVDS_OUT1_BC- Negative LVDS clock for B channel 44 GND Ground 45 LVDS_OUT1_B2+ Positive differential LVDS data bit B2 46 LVDS_OUT1_B2- Negative differential LVDS data bit B2 47 LVDS_OUT1_B1+ Positive differential LVDS data bit B1 48 LVDS_OUT1_B1- Negative differential LVDS data bit B1 49 LVDS_OUT1_B0+ Positive differential LVDS data bit B0 50 LVDS_OUT1_B0- Negative differential LVDS data bit B0 51 GND Ground

J4 – HD-SDI adaptor board interface connector: 2 x 25 ways, 2.54x1.27 header (Matching ribbon cable : P/N 426171100-3)

PIN SYMBOL DESCRIPTION

1 GND Ground

2 GND Ground

3 CbCr0 (Input) CbCr0 (Input)

4 Y0 (Input) Y0 (Input)

5 CbCr1 (Input) CbCr1 (Input)

6 Y1 (Input) Y1 (Input)

7 CbCr2 (Input) CbCr2 (Input)

8 Y2 (Input) Y2 (Input)

9 CbCr3 (Input) CbCr3 (Input) 10 Y3 (Input) Y3 (Input) 11 CbCr4 (Input) CbCr4 (Input) 12 Y4 (Input) Y4 (Input) 13 CbCr5 (Input) CbCr5 (Input) 14 Y5 (Input) Y5 (Input) 15 CbCr6 (Input) CbCr6 (Input) 16 Y6 (Input) Y6 (Input) 17 CbCr7 (Input) CbCr7 (Input) 18 Y7 (Input) Y7 (Input) 19 CbCr8 (Input) CbCr8 (Input) 20 Y8 (Input) Y8 (Input) 21 CbCr9 (Input) CbCr9 (Input) 22 Y9 (Input) Y9 (Input) 23 N.C No connection 24 N.C No connection 25 VCC(5V) VCC(5V) 26 VCC (5V) VCC (5V) 27 CLOCK (Input) CLOCK (Input) 28 SCLK_TCK(control pin) SCLK_TCK(control pin) 29 GND Ground 30 SDIN_TDI(control pin) SDIN_TDI(control pin) 31 Field (Input) Field (Input) 32 SDOUT_TDO(control pin) SDOUT_TDO(control pin) 33 V sync (Input) V sync (Input) 34 CS_TMS(control pin) CS_TMS(control pin) 35 H sync (Input) H sync (Input) 36 GND Ground 37 DE (Input) DE (Input) 38 N.C No connection 39 N.C No connection 40 N.C No connection 41 HDSDI_LOCK (control pin) HDSDI_LOCK (control pin) 42 N.C No connection 43 GND Ground 44 GND Ground 45 N.C No connection 46 N.C No connection

Specifications subject to change without notice

24 of 60

47 N.C No connection

DP_PWR

Power for connector (3.3 V 500 mA)

Hot Plug Hot Plug Detect

AUX CH (n) Auxiliary Channel (negative)

AUX CH (p) Auxiliary Channel (positive)

CONFIG2

connected to

Ground

ML_Lane

3

(n) Lane 3 (negative)

ML_Lane

3

(p) Lane 3 (positive)

ML_Lane

2

(n) Lane 2 (negative)

ML_Lane

1

(p) Lane 1 (positive)

ML_Lane

0

(n) Lane 0 (negative)

ML_Lane

0

(p) Lane 0 (positive)

48 HDSDI_IPSEL (control pin) HDSDI_IPSEL (control pin) 49 Videomux_CAB (control pin) Video mux detected pin 50 HDSDI_CAB (control pin) HDSDI_CAB (control pin)

J5 – Display port output for panel connector: I-PEX 20455-030E-12 (Matching type : I-PEX 20454-030T)

PIN SYMBOL DESCRIPTION

1 GND Ground

2 GND Ground

3 GND Ground

4 GND Ground

5 VLCD_LV Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

6 VLCD_LV Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

7 VLCD_LV Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

8 VLCD_LV Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

9 NC No connection 10 11 12 13 14 GND Ground 15 16 17 18 19 GND Ground 20 21 22 GND Ground 23 24 ML_Lane 1 (n) Lane 1 (negative) 25 GND Ground 26 27 28 GND Ground 29 30 GND Ground

J6 – Panel power output: JS-1147A-08 Top 1.25mm (Matching type : Molex 51021-0800)

PIN SYMBOL DESCRIPTION

1 PVLCD_Low (3,3V/5V)

2 PVLCD_Low (3,3V/5V)

3 GND Ground

4 GND Ground

5 GND Ground

6 PVLCD_High (12V/18V)

7 PVLCD_High (12V/18V)

8 PVLCD_High (12V/18V)

Return Return for Power

CONFIG1 connected to Ground

ML_Lane 2 (p) Lane 2 (positive)

Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6) Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6) Panel power supply (+12V / 18V) (selected by JA3, JA5 & JA6)

LED1 – Status LED connector: 3-pin header

PIN DESCRIPTION

1 Green LED pin (anode)

2 LED pin common (cathode)

3 Red LED pin (anode)

P1 - Analog VGA in - 15 way connector

PIN SYMBOL DESCRIPTION

1 PCR Red, analog 2 PCG Green, analog 3 PCB Blue analog 4 ID2 Reserved for monitor ID bit 2 (grounded) 5 DGND Digital ground 6 AGND Analog ground red 7 AGND Analog ground green 8 AGND Analog ground blue 9 DDC_5V +5V power supply for DDC (optional)

10 DGND Digital ground

Specifications subject to change without notice

25 of 60

11 ID0 Reserved for monitor ID bit 0 (grounded) 12 DDC_SDA DDC serial data 13 HS_IN Horizontal sync or composite sync, input 14 VS_IN Vertical sync, input 15 DDC_SCL DDC serial clock

P2 – DVI-I input

PIN SYMBOL DESCRIPTION

1 /RX2 TMDS Data 22 RX2 TMDS Data 2+ 3 GND Digital Ground 4 NC No connection 5 NC No connection 6 DDC_CLK DDC Clock 7 DDC_DAT DDC Data 8 VS_IN Analog vertical Sync

9 /RX1 TMDS Data 110 RX1 TMDS Data 1+ 11 GND Digital Ground 12 NC No connection 13 NC No connection 14 DDC_5V +5V power supply for DDC (optional) 15 GND Ground (+5, Analog H/V Sync) 16 HPD Hot Plug Detect 17 /RX0 TMDS Data 018 RX0 TMDS Data 0+ 19 GND Digital Ground 20 NC No connection 21 NC No connection 22 GND Digital Ground 23 RXC TMDS Clock+ 24 /RXC TMDS Clock-

C1 R Red C2 G Green C3 B Blue C4 HS_IN Analog horizontal sync C5 GND Ground C6 NC No connection

PP2 – Alternate 12V/24VDC input power supply

PIN DESCRIPTION

1 +12VDC / +24VDC in 2 Ground

PP4 – External panel power input

PIN DESCRIPTION

1 External panel power 2 Ground 3 External panel power 4 Ground

PP5 – 12V/24VDC input power supply

PIN DESCRIPTION

1 +12V / +24VDC 2 Ground

Specifications subject to change without notice

26 of 60

CONTROLLER DIMENSIONS

Ready-made 3D Pro-E (SLDPRT) drawing files - Save time and effort for your system volumetric analysis design.

Includes jpg file previews. Please go to download at http://www.digitalview.com/products/svh-1920v2-lcd-controller

The maximum thickness of the controller is 20.7mm with or without video add-on board (measured from bottom of PCB to top of components, including any underside components & leads). We recommend clearances of:

• 5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation material is added to the mounting plate surface.

• 10mm above the components

• 3~5mm around the edges

Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.

CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high voltage parts such as the inverter.

Specifications subject to change without notice

27 of 60

APPLICATION NOTES

USING THE CONTROLLER WITHOUT BUTTONS ATTACHED

This is very straightforward:

• Firstly setup the controller/display system with the buttons. With controls attached and display system active make any settings for colour, tint and image position as required then switch everything off.

• Remove the control switches, the 12-way (CNC1) cable.

• Use a jumper or similar to connect pins 1 & 2 on CNC1, this will fix the board On.

• Refer to inverter specifications for details as to fixing brightness to a desired level, this may require a resistor, an open

circuit or closed circuit depending on inverter.

Summary: On CNC1 the only pins that are used are for On/Off and Brightness (if controller mounted inverter is used). On CNC1 the pins are for momentary type buttons so it doesn’t matter that no buttons are attached.

INVERTER CONNECTION

There are potentially 3 issues to consider with inverter connection:

• Power

• Enable

• Brightness

Please read the following sections for a guide to these issues.

Inverter Power: As per the table for CNB1 pin 1 is ground and pin 2 provides 12V/24V DC. This should be matched with the inverter specification: see table.

CNB1

PIN DESCRIPTION

1 Ground

2 +12V/+24VDC

Remark: For higher power inverter, more current (for 12V/24V) can be taken from CNA1 pin 1.

Enable: This is a pin provided on some inverters for On/Off function and is used by this panel controller for VESA DPMS compliance. If the inverter does not have an enable pin or the enable pin is not used then DPMS will not be operational. Pin 3 should be matched to the inverters specification for the ‘enable’ or ‘disable’ pin.

CNB1

PIN DESCRIPTION

3 Enable

Further, jumpers JB2 & JB3 should be set to match the inverters specification for the enable pin power and High or Low setting: see table.

Ref

JB2 Inverter enable voltage 1-2 H = 3.3VV, 2-3 H = 5V (Vcc), OPEN H = open collector JB3 Inverter control 1-2 H = On, 2-3 L = On

Brightness: There are various methods for brightness control and it is important to consider the specifications for the inverter to be used. Generally the situation is:

• Brightness can control by using a resistor or VR (Variable Resistor).

• Brightness controlled by adding a circuit such as PW M (Pulse Width Modulation).

• No adjustment of brightness is possible.

CNB1 pins 4 & 5 are available for connecting to an inverter or circuit where VR control is supported.

CNB1

PIN DESCRIPTION

4 VR WIP

5 VR A

This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table.

CNC1

PIN DESCRIPTION

3 VR A

4 VR WIP

5 VR B

Specifications subject to change without notice

Purpose Note

28 of 60

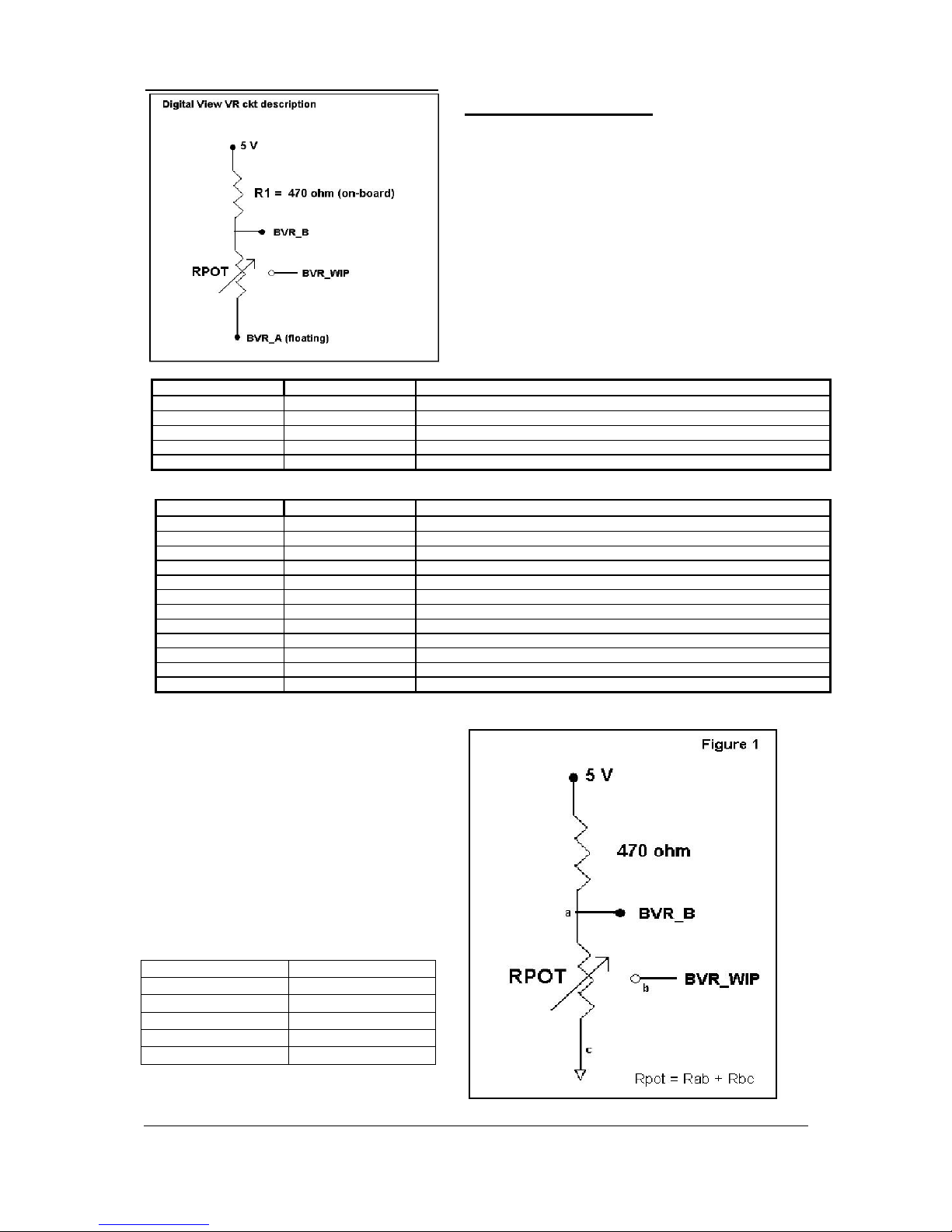

Design Guideline for making VR circuitry :

available at CNC1 pin 6).

7.5 K

3.6 V

Signal description / Notes :

1) R1 : 470ohm on board

2) RPOT is an external potentiometer (in-line dip style) that can be plugged directly into CNC1 pins 3,4,5. RPOT must be supplied / installed by user.

3) BVR_B : Voltage tapped from “top” of potentiometer, the node of R1 and RPOT.

4) BVR_WIP : Voltage tapped from wiper arm of RPOT.

5) BVR_A : Voltage tapped from “bottom” of RPOT.

Note : BVR_A voltage is left floating on the controller board. To use this circuit, you need to tie this point to a potential (usually GND,

CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)

PIN SYMBOL DESCRIPTION

1 GND Ground 2 VBKL +12V/24VDC, backlight power supply 3 BLCTRL On/Off control (enable) – see JB2 & JB3 4 BVR_WIP Brightness VR - WIP 5 BVR_A Brightness VR A

CNC1 – Control switch, JST B12B-XH-A (Matching type : XHP-12)

PIN SYMBOL DESCRIPTION

1 PSWIN Power button A 2 SW_ON Power button B 3 BVR_A Backlight Brightness VR pin A 4 BVR_W IP Backlight Brightness R pin WIP 5 BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc) 6 GND Ground 7 MENU OSD menu 8 -/LEFT OSD -/Left

9 +/RIGHT OSD +/Right 10 SEL_DN OSD Select down 11 SEL_UP OSD Select up 12 NC No connection

The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

Example for circuit design :

1.)Choose RPOT = 10K

2.) Tie BVR_A to GND

3.) Circuit analysis gives BVR_WIP as the following (see Figure 1)

BVR_WIP = 5 x (Rbc/10.47)

where BVR_WIP is in Volts. And Rbc is the resistance from the wiper arm to bottom of pot in Kohms.

To evaluate, plug in different values of Rbc :

Rbc BVR_WIP

0 0 V

2.5 K 1.2 V 5 K 2.4 V

10 K 4.8 V So this circuit could provide Brightness adjust voltage ranging from 0V to 5V.

Specifications subject to change without notice

29 of 60

TROUBLESHOOTING

General

A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as:

 Controller (jumpers, PC settings)  Panel (controller, cabling, connection, panel, PC settings)  Backlight (inverter, cabling, backlight tubes)  Cabling  Computer system (display settings, operating system)

Through step by step cross checking with instruction manuals and a process of elimination to isolate the problem it is usually possible to clearly identify the problem area.

No image:

 If the panel backlight is not working it may still be possible to just see some image on the display.  A lack of image is most likely to be caused by incorrect connection, lack of power, failure to provide a signal or incorrect

graphic card settings.

Image position:

If it is impossible to position the image correctly, i.e. the image adjustment controls will not move the image far enough, then test using another graphics card. This situation can occur with a custom graphics card that is not close to standard timings or if something is in the graphics line that may be affecting the signal such as a signal splitter (please note that normally a signal splitter will not have any adverse effect).

Image appearance:

 A faulty panel can have blank lines, failed sections, flickering or flashing display  Incorrect graphics card refresh rate, resolution or interlaced mode will probably cause the image to be the wrong size, to

scroll, flicker badly or possibly even no image.

 Incorrect jumper settings on the controller may cause everything from total failure to incorrect image. CAUTION: Do not

set the panel power input incorrectly.

 Sparkling on the display: faulty panel signal cable.  Found "Loading" message displayed on screen message at DVI input indicates the unstable DVI source

detected (especially connected to DVI splitter) causing flashing image.  No image found when non-matching video system signal input. For example, the condition of setting NTSC video system (under OSD menu > Video System (SD)) and input PAL signal.

Backlight:

Items to check include: Power input, Controls, Inverter and Tubes generally in this order. If half the screen is dimmer than the other half:

 Check cabling for the inverter.  For a specific backlight tube check the AC pins orientation (CAUTION: Never reverse any DC power pins).

Also:  If adjusting brightness control has no effect the chances are that the VR rating or method of adjusting brightness is not

compatible or correctly connected to the inverter.

 If system does not power down when there is a loss of signal

Continued failure:

If unit after unit keeps failing consider and investigate whether you are short circuiting the equipment or doing something else seriously wrong.

Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to isolate the problem.

Specifications subject to change without notice

30 of 60

SPECIFICATIONS

Panel compatibility Compatible with 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900

No. of colours Up to 3 x 8 bit providing 16.7 million colours. Panel power DC 3.3V, 5V, 10V, 12V, 18V Panel signal LVDS Vertical refresh rate 60Hz at 1920x1200, 60Hz at 1920x1080, 60Hz at UXGA and up to 75Hz other

Display clock maximum 165MHz ADC clock maximum 195 MHz DVI differential input clock maximum 165MHz Graphics formats Standard VESA VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA

Graphics auto mode detect VGA, SVGA, XGA, SXGA, WXGA, UXGA & WUXGA interlaced and non-interlaced Standard input at source (analog RGB)

Video formats PAL, NTSC & SECAM Video inputs VGA 1

Functions display On screen display (OSD) of functions OSD menu functions Image controls:

OSD menu controls available Power On/Off

Control interface Buttons, RS-232, Remote control Settings memory Settings are stored in non volatile memory PC Connectivity VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital Controller dimensions 179mm x 120.4mm (7.” x 4.74”) Power consumption 10w approx. (not including panel power consumption) Power load maximum The controller has an overall 3Amp current limit. Input voltage 12V/24VDC +/- 5% Power protection Fuse fitted (Resettable) DC Power handling Reverse power polarity protection is equipped on the board Storage temperature limits -40oC to +70oC Operating temperature limits 0oC to +60oC Use of memory on board - 2pcs DDR3-1600 1Gbit which is a volatile memory for system processing and

NOTES

Please note the following:

• For specific panel setup a sample of an LCD may be required (this will be returned) and a copy of the full technical specifications for the panel from the manufacturer.

• Re-layout and custom development services are available.

1366x768, 1280x1024, 1024x768, 800x600 & 640x480 resolutions of TFT LCD panels.

A specified BIOS and some factory adjustment may be required for individual panel timings.

lower resolution

Other special formats through specified BIOS and factory adjustment.

VGA analog (15 pin) standard with automatic detection of: Digital Separate Sync; Composite Sync Sync On Green.

DVI-I (DVI-D + VGA 2) HD Component video Composite video 1 Composite video 2 S-Video S-Video 2 HD-SDI 1 (via HD-1000/2000) HD-SDI 2 (via HD-2000)

Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Video Scaling, PIP, OSD position, OSD timeout, Image orientation, Auto Source Seek, etc.

Backlight brightness OSD Menu OSD Select up OSD Select down Setting + Setting -

frame buffer

- 1pc flash 32Mbit which is a non-volatile(NVRAM) memory for system program

- 2pcs EEPROM 2Kbit which is a non-volatile(NVRAM) memory for DDC information.

- 1pc EEPROM 512Kbit which is a non-volatile(NVRAM) for system and user settings

Specifications subject to change without notice

31 of 60

640x480

800x600

APPENDIX I – SIGNAL SUPPORT MODE TABLE

VGA PORT :

Mode Resolution Clk [MHz] Horizontal

V_60

60Hz

V_60

60Hz

V_72

72Hz

V_72

72Hz

V_72

72Hz

V_75 640x480

75Hz

V_75

75Hz

V_75

75Hz

SV_56

56Hz

SV_56

56Hz

SV_60

60Hz

SV_60

60Hz

SV_60

60Hz

SV_72

72Hz

SV_72

72Hz

SV_72

72Hz

SV_75 800x600

75Hz

SV_75 800x600

75Hz

SV_75 800x600

75Hz

X_60 1024x768

60Hz

X_60 1024x768

60Hz

X_60 1024x768

60Hz

X_70 1024x768

70Hz

X_70 1024x768

70Hz

25.175 31.469 59.940 Digital Separate Sync

25.175 31.469 59.940 Composite Sync

31.500 37.861 72.809 Digital Separate Sync

31.500 37.861 72.809 Sync On Green

31.500 37.861 72.809 Composite Sync

31.500 37.500 75.000 Digital Separate Sync

31.500 37.500 75.000 Sync On Green

31.500 37.500 75.000 Composite Sync

36.000 35.156 56.250 Digital Separate Sync

36.000 35.156 56.250 Composite Sync

40.000 37.879 60.317 Digital Separate Sync

40.000 37.879 60.317 Sync On Green

40.000 37.879 60.317 Composite Sync

50.000 48.077 72.188 Digital Separate Sync

50.000 48.077 72.188 Sync On Green

50.000 48.077 72.188 Composite Sync

49.500 46.875 75.000 Digital Separate Sync

49.500 46.875 75.000 Sync On Green

49.500 46.875 75.000 Composite Sync

65.000 48.363 60.004 Digital Separate Sync

65.000 48.363 60.004 Sync On Green

65.000 48.363 60.004 Composite Sync

75.000 56.476 70.069 Digital Separate Sync

75.000 56.476 70.069 Sync On Green

freq [KHz]

Vertical

freq [Hz]

Sync Mode

Specifications subject to change without notice

32 of 60

X_70 1024x768

1024x768

70Hz

X_75 1024x768

75Hz

X_75

75Hz

X_75

75Hz

SX_60 1280x1024

60Hz

SX_60 1280x1024

60Hz

SX_60 1280x1024

60Hz

SX_75 1280x1024

75Hz

SX_75 1280x1024

75Hz

SX_75 1280x1024

75Hz

WUX_60 1920x1080

60Hz

WUX_60 1920x1080

60Hz

WUX_60 1920x1080

60Hz

Remark : The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance we recommend choosing 60Hz vertical refresh rate. To support on higher refresh rate over 60Hz, the LCD panel may not support.

75.000 56.476 70.069 Composite Sync

78.750 60.023 75.029 Digital Separate Sync

78.750 60.023 75.029 Sync On Green

78.750 60.023 75.029 Composite Sync

108 63.81 60.020 Digital Separate Sync

108 63.81 60.020 Sync On Green

108 63.81 60.020 Composite Sync

135 79.976 75 Digital Separate Sync

135 79.976 75 Sync On Green

135 79.976 75 Composite Sync

172.8 67.5 60 Digital Separate Sync

172.8 67.5 60 Sync On Green

172.8 67.5 60 Composite Sync

Specifications subject to change without notice

33 of 60

720p30

1080p59.94

1080p50

DVI input port :

Mode Resolution Clk [MHz] Horizontal

freq [KHz]

V_60 640x480 60Hz 25.175 31.469 59.940 V_67 640x480 67Hz 31.5 37.5 67

V_75 640x480 75Hz 31.5 37.5 75 SV_56 800x600 56Hz 36 35.156 56 SV_60 800x600 60Hz 40.000 37.879 60.317 SV_72 800x600 72Hz 50 48.077 72 SV_75 800x600 75Hz 49.5 46.875 75

X_60 1024x768 60Hz 65.000 48.363 60.004

X_70 1024x768 70Hz 75 56.476 70

X_75 1024x768 75Hz 78.75 60.023 75

SX_60 1280x1024 60Hz 108 63.81 60.020

SX_75 1280x1024 75Hz 135 79.976 75 UX_60 1600x1200 60Hz 162 75.000 60

WUX_60 1920x1080 60Hz 172.8 67.5 60

1080p60 1920x1080p 60Hz 135 67.5 60 1080p59 1920x1080 59Hz 148.35 67.433 60

1080p50 1920x1080 50Hz 149 62.75 50

720p60 576p50

480p60

1280x720P 60Hz

720x576P 50Hz

720x480P 60Hz

74.25 45 60

26.9568 31.2 50

26.9568 31.4 60

HD-COMPONENT PORT :

[KHz]

Vertical freq

[Hz]

Mode

720p60

720p59.94

720p50

720p29.97

1080p30

1080p29.97

1080p25 1080p24

1080p23.98

1080i60

1080i59.94

1080i50

1080p60

COMPOSITE, S-VIDEO INPUT PORT :

System Resolution Horizontal freq

NTSC 720x480i 15.7 60

NTSC 4.43 720x480i 15.7 60

PAL 720x576i 15.6 50

PAL M 720x576i 15.6 50

SECAM 720x576i 15.6 50

Vertical

freq [Hz]

Specifications subject to change without notice

34 of 60

5

4

9

1

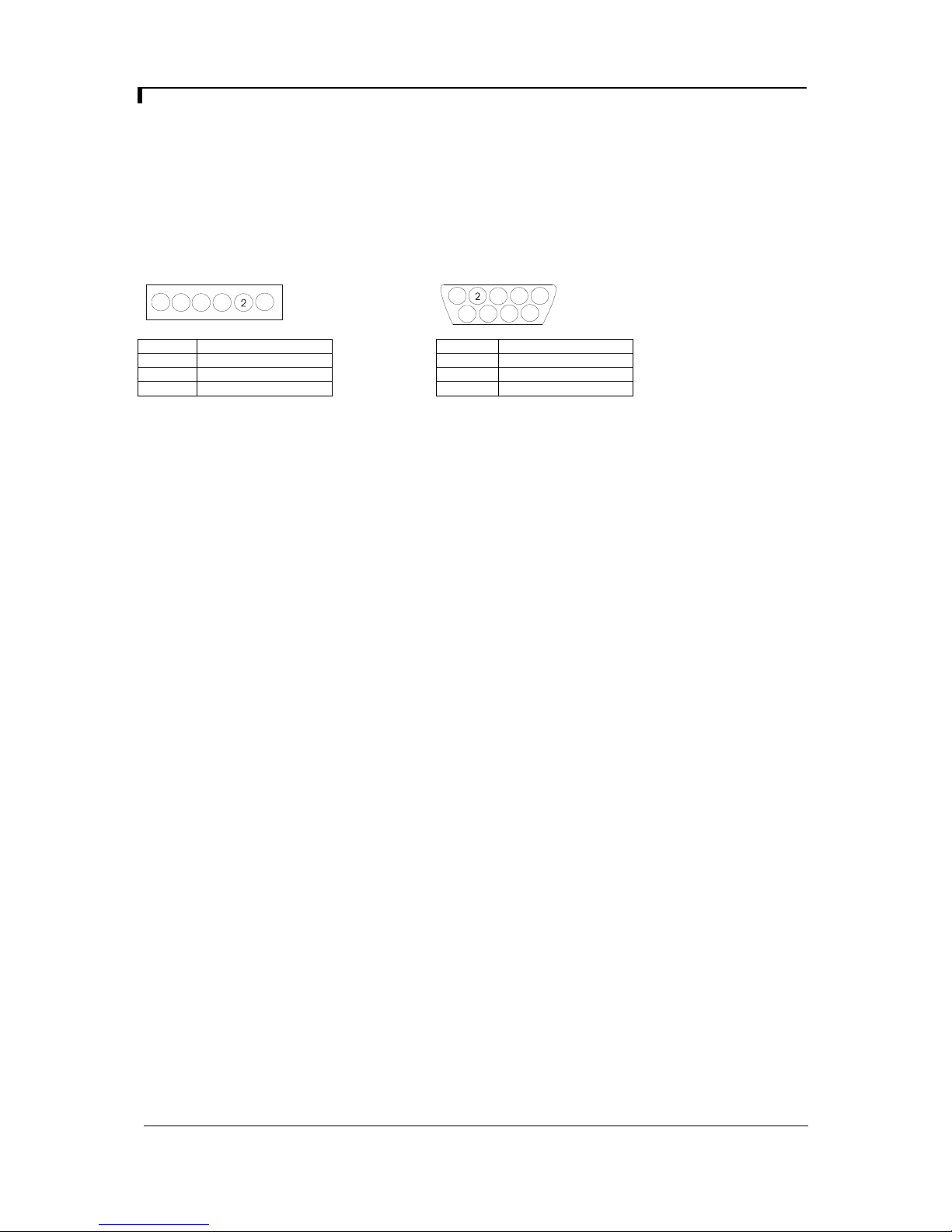

Appendix II – RS-232 control protocols

RS-232 Serial control (Baud rate 2400/4800/9600/14400/19200/38400/57600/115200, 8 bits, 1 stop bit and no parity

Please refer to Appendix VIII for the procedure how to select different baud rate to be used.

Physical connection :

Controller side Computer side Connector interface : CN8 Connector interface : Serial port Mating connector : JST XHP-6 Mating connector : DB9 Female

5 463

PIN# Description PIN# Description

4 RS-232 Tx Data 2 RS-232 Rx Data 5 Ground 3 RS-232 Tx Data 6 RS-232 Rx Data 5 Ground

Remark : (1) : RS-232 connection cable, 600mm P/N 4260902-00 can be ordered separately for connection.

Software connection :

The OSD function can be controlled through sending the RS-232 protocol. The RS-232 program can be custom-made to fit for application or it can be used the serial control program, like Accessport, Telix or Serial Utility program developed by DigitalView. Please contact your local support for information.

)

1

Mating face of CN8 Mating face of RS-232 DB9 Male

3

8

7

6

Specifications subject to change without notice

35 of 60

1. Commands to implement switch mount control buttons

Right/+ button

0xfc Right/+ button pressed

Button equivalent

Function Command Description Remark

Menu button 0xf7 Menu button pressed Button equivalent Select-down button Select-up button 0xfb Select-up button pressed Button equivalent

Left/- button 0xfd Left/- button pressed Button equivalent

2. Parameter setting - immediate, relative, reset and query

Function Command Description Acknowledge (if enabled)

Brightness control 0x81,

Contrast control all channels

Saturation control 0x83,

Hue control 0x84,

Phase (tuning) control

Image H position 0x86,

Image V position 0x87,

Sharpness 0x8a,

Frequency 0x8b, Set frequency = Graphic mode H active size (in

Specifications subject to change without notice

0xfa Select-down button pressed Button equivalent

nn | “+” | “-” | “r” | “R” | “?” “m” “n” “i” , ss, nn “o”, ss, 0x82, “a” | “A”, nn | “+” | “-” | “r” | “R” | “?” “m” “n” “i ” , ss, nn “o”, ss,

nn | “+” | “-” | “r” | “R” | “?” “m” “n” “i” , ss, nn “o”, ss,

nn | “+” | “-” | “r” | “R” | “?” “m” “n” “i” , ss, nn “o”, ss, 0x85, nn | “+” | “-” | “?”

nnnn | “+” | “-” | “?”

nn | “+” | “-” | “r” | “R” | “?”

Set brightness = value/increment/decrement Reset Query Current Source Maximum query *1 Minimum query *1 Set, Source, value *1 Query, Source *1 Set all contrast = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, value *1 Query, Source *1 Set color = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, value *1 Query, Source *1

Set tint = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, value *1 Query, Source *1 Set dot clock phase = value/increment/decrement Query Set img_hpos = value/increment/decrement Query Set img_vpos = value/increment/decrement Query Set sharpness = value/increment/decrement Reset Query

Brightness.

Range : “4””E”-“B””2” Default : “8””0”

ss - reference by Input main select(0x98)

Contrast

Range : “1””C”-“E””4” Default : “8””0”

ss - reference by Input main select(0x98)

PAL/NTSC color (In video mode only )

Range : “0””1”-“F””F” Default : “8””0”

ss - reference by Input main select(0x98) NTSC tint (In NTSC mode only)

Range : “0”"1”-“F””F” Default : “8””0”

ss - reference by Input main select(0x98)

Dot clock phase. (In PC mode only)

Image horizontal position. (In PC mode only)

Image vertical position. (In PC mode only)

Sharpness. (Video Mode Source only)

Default : “0””C”

36 of 60

nnnn | “+” | “-“ | “?”

Scaling Mode 0x8c,

“0” | “1” | “2” | “3” | “9” | “A” | “B” | “C” | “D” | “r” | “R” | “?”

Value/increment/decrement Query Set graphic image scaling mode = value Reset Query

pixels)

Image expansion on/off. “0” – 1:1 “1” – fill screen “2” – fill to aspect ratio “9” – 4:3 “A” – 16:9 “B” – 16:10 “C” – 2.35:1

“D” – 2:1

Set display orientation

(Effective on V1.26.00.00 or later firmware revision)

OSD H position 0x90,

OSD V position 0x91,

OSD menu timeout

0x8e, n | “r” | “R” | “?”

nnn | “+” | “-” | “r” | “R” | “?”

nnn | “+” | “-” | “r” | “R” | “?” 0x93, nn | “+” | “-” | “r” | “R” | “?”

Set display orientation = value/increment/decrement Reset Query

Set osd_hpos = value/increment/decrement Reset Query Set osd_vpos = value/increment/decrement Reset Query Select menu timeout = value/increment/decrement Reset Query

“0” – Normal.

“1” – Vertical Flip.

“2” – Horizontal Flip.

“3” – Rotate.

“N” – Not support.

OSD horizontal position.

OSD vertical position.

OSD menu timeout value.

“0””0” – Continuous.

value – Round up to nearest

available step.

if value > max available step, set

it to the max available step. Select OSD language

0x95, n | “r” | “R” | “?”

Select language = English, Chinese,… Reset Query

“0” – English.

“2” - French

“3” – Spanish

“6” - German

“8” – Chinese

Input main select 0x98,

nn | “+” | “-” | “r” | “R” | “?”

Select input main = PC or VIDEO or next available Reset Query

Main selected.

“0x41,0x31” VGA 1

“0x41,0x32” VGA 2

“0x42,0x31” Composite 1

“0x42,0x32” Composite 2

“0x43,0x31” S-video 1

“0x43,0x32” S-video 2

“0x44,0x31” HD/SD Component

“0x45,0x31” HDSDI 1++

“0x45,0x32” HDSDI 2

“0x46,0x31” DVI

Auto Source Seek 0x99,

nn , “0” | “1” | “?” | ”o”

Set Auto source enable = *1 Source Disable/ Enable Query Valid Source query

“nn” =

“0x41,0x31” VGA 1

“0x41,0x32” VGA 2

“0x42,0x31” Composite 1

“0x42,0x32” Composite 2

“0x43,0x31” S-video 1

“0x43,0x32” S-video 2

“0x44,0x31” HD/SD Component

“0x45,0x31” HDSDI 1 ++

“0x45,0x32” HDSDI 2

“0x46,0x31” DVI

Source Layout 0x9a,

n | “r” | “R” | “?”

Specifications subject to change without notice

Select source layout = Single, PIP, PBP, PBPT Reset, Query

Query:

“0”- Single

“1”- Picture in Picture (PIP)

“2”- Picture by Picture (PBP)

37 of 60

++

Gamma value select

(Effective on V1.27.00.00 or later firmware revision)

0x9d, n | “r” | “R” “?”

Auto power off 0x9f,

“0” | “1” | “r” | “R” | “?”

Hotkey 1

0xa0, “1”, n | “r” | “R” | “?”

Hotkey 2

0xa0, “2”, n | “r” | “R” | “?”

Runtime counter 0xa1,

nnnnn | “r” | “R” | “?”

PIP H position 0xa4,

nnn | “+” | “-” | “r” | “R” | “?”

PIP V position 0xa5,

nnn | “+” | “-” | “r” | “R” |

“?” PIP window size select

0xa6,

nn |

“r” | “R” |

“?”

Select GAMMA value = Value Reset Query

Set power down option = On/Off Reset Query Set Hotkey 1= Value Reset Query

Set Hotkey 2 = value Reset Query

runtime counter value = nnnnn (* 0.5 hour) Reset Query Set PIP_hpos = value/increment/decrement Reset Query Set PIP_vpos = value/increment/decrement Reset Query Select PIP window size = PIP window size value Reset Query

“3”- Picture by Picture Tall (PBPT) “F” – Turn ON PIP Window

GAMMA value:

“5” – 1.8, “6” – 1.9, “7” – 2.0, “8” – 2.1, “2” – 2.2, “9” – 2.3, “A” – 2.4, “B” – 2.5, “C” – 2.6

***

“0” – Off. “1” – On.

“2” – brightness.(Default) “3” – contrast. “4” – colour. “5” – input source. “7” – zoom “8” – freeze "9" - PIP “B” – No function "D" - PIP Swap “E” – Aspect Ratio “G” – Hue “H” – Backlight “I” – Auto Picture Setup "K" - PIP ON/OFF “2” – brightness. “3” – contrast. (Default) “4” – colour. “5” – input source. “7” – zoom “8” – freeze "9" - PIP “B” – No function "D" - PIP Swap “E” – Aspect Ratio “G” – Hue “H” – Backlight “I” – Auto Picture Setup "K" - PIP ON/OFF

Runtime = nnnnn.

PIP window horizontal position.

"0""0""0" ~"0""6""4" Default : "0""5""5"

PIP window vertical position.

"0""0""0" ~"0""6""4" Default : "0""1""4"

Main selected. PIP off if “nn” = “0””0”

“0””0” ~ “1””2” “1””9” : Size by Size

Specifications subject to change without notice

38 of 60

“1””A” : Size by Size Tall Default : "0""0"

PIP source select 0xa7,

n |

“r” | “R” |

“?”

Zoom level

Zoom H position 0xa9,

Zoom V position 0xaa,

Colour temperature select

Red level for selected colour temperature

Green level for selected colour temperature

Blue level for selected colour temperature

Specifications subject to change without notice

0xa8,

nnnn | “+” | “-” |

“r” | “R” |

“?”

nnnn | “+” | “-” |

“r” | “R” |

“?”

nnnn | “+” | “-” |

“r” | “R” |

“?”

0xb3,

n |

“r” | “R” |

“?”

0xb4,

nn | “+” | “-” |

“r” | “R” |

“?”

“m”

“n”

“i” , ss, c, nn

“o”, ss, c

0xb5,

nn | “+” | “-” |

“r” | “R” |

“?”

“m”

“n”

“i” , ss, c, nn

“o”, ss, c

0xb6,

nn | “+” | “-” |

“r” | “R” |

“?”

Select input main = Video source value Reset Query

Set Zoom level = value/increment/decrement Reset Query Set Zoom_hpos = value/increment/decrement Reset Query

Set Zoom_vpos = value/increment/decrement Reset Query

Select colour temperature = value Reset Query

Set the level of the red channel for the selected colour temp. = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, Temperature Group, value *1 Query, Source *1 Set the level of the green channel for the selected colour temp. = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, Temperature Group, value *1 Query, Source *1 Set the level of the blue channel for the selected colour temp. = value/increment/decrement Reset Query

Main selected.

“0x41,0x31” VGA 1 “0x41,0x32” VGA 2 “0x42,0x31” Composite 1 “0x42,0x32” Composite 2 “0x43,0x31” S-video 1 “0x43,0x32” S-video 2 “0x44,0x31” HD/SD Component “0x45,0x31” HDSDI 1++ “0x45,0x32” HDSDI 2 “0x46,0x31” DVI

Zoom level.

Zoom window horizontal position.

Default : 0x30 0x30 0x30 0x30 The min and max values will change depends on input resolution.

Zoom window vertical position.

Default : 0x30 0x30 0x30 0x30 The min and max values will change depends on input resolution.

Main selected.

“0” – 9300K. “1” – 8000K.(Default) “2” – 6500K. “3” – 5000K “4” - User

Red level for selected colour temperature.

Range : “9””C”-“F””F” Default : “E””3” for 8000K

c – reference by Color Temperature ss - reference by Input main select(0x98) Green level for selected colour temperature

Range : “9””C”-“F””F” Default : “E””3” for 8000K

c – reference by Color Temperature ss - reference by Input main select(0x98). Blue level for selected colour temperature.

Range : “9””C”-“F””F” Default : “E””3” for 8000K

39 of 60

++

“m”

“o”, ss, c

Query, Source *1

select(0x98).

or

Progressive(p) feedback.

“n”

“i” , ss, c, nn

Maximum query *1 Minimum query *1 Set, Source, Temperature Group, value *1

c – reference by Color Temperature ss - reference by Input main

Graphic horizontal resolution enquiry Graphic vertical resolution enquiry Graphic horizontal sync frequency enquiry Graphic vertical sync frequency enquiry

0xb7 Horizontal resolution (in pixels) in

3 digit hex number

0xb8 Vertical resolution (in lines) in 3

digit hex number

0xb9 Horizontal sync frequency (in

units of 100Hz) in 3 digit hex number

0xba Vertical sync frequency (in units

of Hz) in 3 digit hex number and 1 char

“nnn” = horizontal resolution

“nnn” = vertical resolution

“nnn” = horizontal frequency

“nnnn” = vertical frequency nnn = 3 digit hex c= “i” or “p” interlace or Progressive

0xba added the interlace(i)

OSD status enquiry Display Video Source Select

0xbb Status of OSD “0” – OSD turned off

“1” – OSD turned on

0xbc, “?” | “0” | “1”

Display Video source select Query Name of video source not displayed.

“0” – Disabled.

“1” – Enabled.

After switching to a new video source, the name of the video source is displayed for 5 seconds.

OSD turn off 0xbd Turn off the OSD. “0” – fail.

“1” – successful.

Query External Memory

0xcb, “2” Check External Menory 24c256 “0” – Not Installed

“1” – Installed

“?” – Not Support

Query Revision Number

0xcb, “3” Read Revision Number “nn” = Revision number

Backlight control 0xe0,

nn | “+” | “-” | "="| “R” | “r” | “?”

Set Backlight = value/increment/decrement Display OSD indicator Reset Query

Backlight.

Range:

D/A : “0””0” ~ “5””2”

100Hz : “0””0” ~ “8””3”

120Hz : “0””0” ~ “6”"D”

140Hz : “0””0” ~ “5””D”

160Hz : “0””0” ~ “5””2”

180Hz : “0””0” ~ “4””8”

200Hz : “0””0” ~ “4””2”

220Hz : “0””0” ~ “3””B”

240Hz : “0””0” ~ “3””6”

260Hz : “0””0” ~ “3””2”

280Hz : “0””0” ~ “2””E”

300Hz : “0””0” ~ “2””B”

320Hz : “0””0” ~ “2””8”

340Hz : “0””0” ~ “2””6”

360Hz : “0””0” ~ “2””4”

380Hz : “0””0” ~ “2””2”

400Hz : “0””0” ~ “2””0”

420Hz : “0””0” ~ “1””E”

440Hz : “0””0” ~ “1””D”

Backlight On/Off 0xe1,

“0” | “1” | “R” | “r”

Specifications subject to change without notice

Backlight Off / Backlight On /Status

“0” – Backlight Off

“1” – Backlight On.(Default)

“?” – Backlight On/Off Query

40 of 60

”?”

Query, Source

*1

select(0x98)

Color Monochrome mode selection (Output Channel Select)

(Effective on V1.26.00.00 or later firmware revision)

Backlight D/A / PWM

0xe2 “0” | “1” | “2” | “3” | | “4” | “5” | “6” | “R” | “r”| ”?”

0xe5 “0” | “1” | “R” | “r” ”?”

Backlight PWM Frequency

0xe6, nnn | “+” | “-” | “R” | “r” | “?”

Backlight Invert 0xe7

“0” | “1” | “R” | “r” ”?”

Red Offset for selected colour temperature

0xe8,

nn | “+” | “-” | “r” | “R” | “?” “m” “n” “i” , ss, c, nn

“o”, ss, c

Green Offset for selected colour temperature

0xe9,

nn | “+” | “-” | “r” | “R” | “?” “m” “n” “i” , ss, c, nn

“o”, ss, c

Off/ Blue Only/ Red Only/ Green Only/ Blue Mono/ Red Mono/ Green Mono/

Set : PWM or D/A

Reset Query Set Backlight PWM Frequency = value/increment/decrement Reset Query

Set On or Off

Reset Query Set the Offset of the red channel for the selected colour temp. = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, Temperature Group, value *1 Query, Source *1 Set the Offset of the green channel for the selected colour temp. = value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, Temperature Group, value *1

“0” – Off

“1” – Blue Only

“2” – Red Only

“3” – Green Only

“4” – Blue Mono

“5” – Red Mono

“6” – Green Mono

“0” – PWM

“1” – D/A (Default)

+/- 20Hz

Value

100Hz : “0”,”6”,”4”

120Hz : “0”,”7”,”8”

140Hz : “0”,”8”,”C”

160Hz : “0”,”A”,”0” (Default)

180Hz : “0”,”B”,”4”’

200Hz : “0”,”C”,”8”

220Hz : “0”,”D”,”C”

240Hz : “0”,”F”,”0”

260Hz : “1”,”0”,”4”

280Hz : “1”,”1”,”8”

300Hz : “1”,”2”,”C”

320Hz : “1”,”4”,”0”

340Hz : “1”,”5”,”4”

360Hz : “1”,”6”,”8”

380Hz : “1”,”7”,”C”

400Hz : “1”,”9”,”0”

420Hz : “1”,”A”,”4”

440Hz : “1”,”B”,”8”

“0” – Off

“1” – On

Red Offset for selected colour

temperature.

Range : “8””0”-“7””F”

Default : "0""0"

c – reference by Color

Temperature

ss - reference by Input main

select(0x98)

Green Offset for selected colour

temperature.

Range : “8””0”-“7””F”

Default : "0""0"

c – reference by Color

Temperature

ss - reference by Input main

Blue Offset for selected colour temperature

Specifications subject to change without notice

0xea,

nn | “+” | “-” |

Set the Offset of the blue channel for the selected colour temp. =

Blue Offset for selected colour

temperature.

41 of 60

“r” | “R” |

“?” “m” “n” “i” , ss, c, nn

“o”, ss, c

PIP Window Blend Level

0xed, nn | “+” | “-” | “R” | “r” | “?”

value/increment/decrement Reset Query Maximum query *1 Minimum query *1 Set, Source, Temperature Group, value *1 Query, Source *1 Select PIP Transparency Level PIP Transparency value Reset Query

Range : “8””0”-“7””F”

Default : "0""0"

c – reference by Color

Temperature

ss - reference by Input main

select(0x98)

PIP Transparency

“0”F” = 6.25% “0”E” = 12.5%

“0”D” = 18.75% “0”C” = 25%

“0”B” = 31.25% “0”A” = 37.5%

“0”9” = 43.75% “0”8” = 50%

“0”7” = 56.25% “0”6” = 62.5%

“0”5” = 68.75% “0”4” = 75%

“0”3” = 81.25% “0”2” = 87.5%

“0”1” = 93.75% “0”0” = 100%.

Light Detector

Access Programming Mode

Minimum Backlight Value

“0xee”, “0x4A” “0” | “1” | “R” | “r” ”?” “S” | “s” "0xee", "0x59" "0" | "1" "2" "?" 0xee, "0x5C" nn| "+" | "-"| "R" | "r" | "?"

Light Detector Off / Light Detector On Light Detector On/Off Query Light Detector Value Query

Cancel Access / Set Access Run Smart ISP programming Query Set Minimum Backlight value = value / increment / decrement Reset Query

“0” –Light Detector Off (Default)

“1” –Light Detector On.

“?” – Light Detector On/Off

Query “S”|”s” –Light Detector

Value Query 0x00~0xFF

"0" - Cancel Access

"1' - Set next start up to access

the programming mode.

Minimum Backlight value/

Range :

D/A : "0""0" ~ "3""2"

100Hz : "0""0" ~ "3""2"

120Hz : "0""0" ~ "3""2"

140Hz : "0""0" ~ "3""2"

160Hz : "0""0" ~ "3""2"

180Hz : "0""0" ~ "3""2"

200Hz : "0""0" ~ "3""2"

220Hz : "0""0" ~ "3""2"

240Hz : "0""0" ~ "3""2"

260Hz : "0""0" ~ "3""2"

280Hz : "0""0" ~ "3""2"

300Hz : "0""0" ~ "3""2"

320Hz : "0""0" ~ "3""2"

340Hz : "0""0" ~ "3""0"

360Hz : "0""0" ~ "3""0"

380Hz : "0""0" ~ "3""0"

400Hz : "0""0" ~ "3""1"

420Hz : "0""0" ~ "3""1"

440Hz : "0""0" ~ "3""1"

OSD Switch Mount Lock

Anti image retention

"0xee", "0x62" "0" | "1" "?"

“0xee”, “0x6C” “E” , “1” | “0”

Unlock / Lock Query

Anti image retention On / Off

"0" - Unlock

"1" - Lock

Anti image retention Method

“0xee”, “0x6C” “M” , “0” | “1”| “2”| “3”

Run Anti image retention Method Horizontal Pan Vertical Pan Flash Pixel Shift

Anti image “0xee”, “0x6C”

Specifications subject to change without notice

42 of 60

retention Pixel

acknowledge

acknowledge.

“1” –

acknowledge enabled.

Shift Manual

“P” ,

“H” | “V”| “nn” | “+” | “-” | “R” | “r” | “?”

Anti image retention Pixel Shift Manual Horizontal / Vertical Shift value/increment/decrement Reset Query

Remark : ++ - Support when HD-1000/-2000/-3000S connected.

3. Other control

Function Command Description Acknowledge (if enabled)

Select RS-232

0xc1, “0” | “1”

Disable/enable command

“0” – acknowledge disabled.

Auto-setup 0xc3 Start auto-setup of current

vmode. Command availability

0xc4, n Check whether a command is

available. Auto-calibration 0xc5 Start auto-calibration of gain

of the RGB amplifier. Freeze frame

0xc6, “0” | “1” "="|

Unfreeze / freeze frame

Display OSD indicator

Soft Power On/Off 0xc8,

“0” | “1” | “?”

Query video input

0xc9 Query the status of the

status

Query BIOS

0xcb, “0” Read BIOS version BIOS version “VV.YY.ZZ”

Soft power

off/on

query

primary & pip status

version

“0” – fail. “1” – successful. “0” – not available. “1” – available. “0” – fail. “1” – successful. “0” – unfreeze. “1” – freeze.

"0" - Soft power off "1" - Soft power on

“nn,nn” = input status “nn,xx” digit = primary status:

“0”,”0” : invalid “A”,”1” VGA 1 “A”,”2” VGA 2 “B”,”1” Composite 1 “B”,”2” Composite 2 “C”,”1” S-video 1 “C”,”2” S-video 2 “D”,”1” Component 1 (via CNV2) “E”,”1” HDSDI 1++ “E”,”2” HDSDI 2 “F”,”1” DVI

++

“xx,nn”= PIP input status: “0”,”0” : invalid “A”,”1” VGA 1 “A”,”2” VGA 2 “B”,”1” Composite 1 “B”,”2” Composite 2 “C”,”1” S-video 1 “C”,”2” S-video 2 “D”,”1” Component 1 (via CNV2) “E”,”1” HDSDI 1++ “E”,”2” HDSDI 2

++

“F”,”1” DVI

VV = V0 or E0, V0 = Release version E0 = Engineering Sample

YY= Version Number

Specifications subject to change without notice

43 of 60

Query PCBA

number

SVH-

1920v2

= “41

752”

Function

Command

Description

Acknowledge (if enabled)

ZZ= Customer Number

0xcb, “1” Read PCBA number “nnnnn” = PCBA number

Reset to Factory Defaults Reset to Factory Defaults with (color

0xce Reset all parameters to

default value

0xcf Reset all parameters for all

video modes to default value

“1” – successful.

“1” - successful.

temp) Saved Calibrated default Load Calibrated default

0xd7 Saving all parameters to user

default value

0xd8 Loading all parameters to

user default value

“1” - successful.

“1” - successful. “0” - not successful

“E” – Checksum Error

Wide Screen Mode Selection

0xd9, “n""n” “r” | “R” “?”

Wide Screen Mode Reset Query

“n,n” = input status

“n,x” digit = Group 1 mode select:

"0" – 1024x768 (Default)

“1” – 1280x768

“2” – 1366x768

"3" - 1360x768

“x,n”= :Group 2 mode select

"4" - 1440x900 (Default)

"5" - 1600x900

The following commands for sending texts by using RS-232 command.

Send Line 0xF0,

|”S” |”LL”|”TEXT”| “0x0A” Return “1”

“S” = “0x53 or 0x73” Send command

-------------------------------------------

“LL” = “0x30,0x31~0x30,0x34” Line number (Rang 0~4 lines)

“S” – Send Command “LL” – Line Number “Text” – Character “0x0A” – End of Line “1” - successful.

-------------------------------------------

“Text”= ASCII code, “0x20~0x7E” Character( Rang 0~34 )

-------------------------------------------

0x0A = End of line

e.g Display “Send Text” message on screen: RS232 Code:“0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A” Return Code: “0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A 0x31”

Clear Line 0xF0,

|”C” |”LL”| Return “nn”

“C” = “0x43 or 0x63” Clear command

-------------------------------------------

“C” – Clear command “LL” – Line Number “nn” – Return Line number

“LL” = “0x30,0x31~0x30,0x34” Line number (Rang 0~4 lines)

e.g Clear Line 1 RS232 Code: “0xF0 0x43 0x30 0x31” Return Code: “0xF0 0x43 0x30 0x31 0x30 0x31”

Specifications subject to change without notice

44 of 60

Text Window Horizontal Position

0xF0, |”H” |”ss”| Return “nn”

“H” = “0x48 or 0x68”

------------------------------------------

--“nn” = “0x30,0x30~0x46,0x46”

e.g Set Text Window Horizontal Position RS232 Code: “0xF0 0x48 0x30 0x31” Return Code: “0xF0 0x48 0x30 0x31 0x30 0x31”

Text Window Vertical Position

0xF0, |”V” |”ss”| Return “nn”

“V” = “0x56 or 0x76”

------------------------------------------

--“nn” = “0x30,0x30~0x46,0x46”

e.g Set Text Window Vertical Position RS232 Code: “0xF0 0x56 0x30 0x31” Return Code: “0xF0 0x56 0x30 0x31 0x30 0x31”

Left offset 0xF0,

|”O” |”SSS”| Return “nnn”

“O” = “0x4F or 0x6F” Set Left Offset command

-------------------------------------------

“SSS” = “0x30,0x30,0x30~ 0x33,0x46,0x46” Offset Value (Rang 000~3ff)

e.g Set Left Offset = 100 pixels ( 0x64 (HEX)) RS232 Code: “0xF0 0x4F 0x30 0x36 0x34” Return Code: “0xF0 0x4F 0x30 0x36 0x34 0x30 0x36 0x34”

Text Window Horizontal Size

0xF0, |”X” |”SSS”| Return “nnn”

“X” = “0x58” Set Horizontal Size command

-------------------------------------------

“SSS” = “0x31,0x45,0x30~ 0x37,0x38,0x30” Horizontal Size Value (Rang 000~3ff)

e.g Set Text Window Horizontal Size = 640 pixels ( 0x280 (HEX)) RS232 Code: “0xF0 0x58 0x32 0x38 0x30” Return Code: “0xF0 0x58 0x32 0x38 0x30 0x32 0x38 0x30”

Background Transparency

0xF0, |”B”|”N”| Return “n”

“B” = “0x42 or 0x62” Set Transparency command

------------------------------------------“N” = “0x30~0x46” Transparency Value (Rang 00~0F)

Set background Transparency value is 8 RS232 Code: “0xF0 0x42 0x38” Return Code: “0xF0 0x42 0x38 0x38”

Text Overlay Background On or Off

0xF0, |”Q”| “N” Return “n”

“Q” = “0x51 or 0x71” Set Background Enable or Disable ---------------------“N” = “0x30~0x31”

“H” – Horizontal Position command “ss” – Set Horizontal Position

number

“nn” – Return Position number

“V” – Vertical Position command “ss” – Set Vertical Position number “nn” – Return Position number

“O” – Left Offset Command “SSS”- Offset Value (pixels) “nnn”- Return Value(pixels)

“X” –Horizontal Size “SSS”- Size Value (pixels) “nnn”- Return Value(pixels)

“B” - Transparency command “N” – Transparency Value “n”- Return Value

0x00 =opaque

“B” - command “1” Turn On Text Overlay

Background

“0” Turn Off Text Overlay

Specifications subject to change without notice

45 of 60

Background

“n”- Return Value

Set background Transparency value is 8 RS232 Code: “0xF0 0x51 0x31” Return Code: “0xF0 0x51 0x31 0x31”

Please set the "Background Transparency” and "Left offset" commands before the "Send Line" command.

Specifications subject to change without notice

46 of 60

The RS-232 command strings sent in one time can support up to 380 bytes via CN8 port

0x52

R 0x72

r

The RS-232 command string sent in one time can support up to 50 bytes via CN1 or J1 port.

n = 1-byte ascii-coded hex number, e.g., parameter value of 0x1 is represented by “1” (0x31). mn or nn = 2-byte ascii-coded hex number, e.g., parameter value of 0x1e is represented by “1”, “e” | “E” (0x31, 0x6e|0x4e).

Please refer to the ASCII to Hex convert table below.

Hex to ASCII conversion table

Hex ASCII Hex ASCII Hex ASCII Hex ASCII 0x30 0 0x41 A 0x61 a 0x2B + 0x31 1 0x42 B 0x62 b 0x2D - 0x32 2 0x43 C 0x63 c 0x3F ? 0x33 3 0x44 D 0x64 d 0x34 4 0x45 E 0x65 e 0x35 5 0x46 F 0x66 f 0x36 6 0x47 G 0x67 g 0x37 7 0x48 H 0x68 h 0x38 8 0x49 I 0x69 i 0x39 9 0x4A J 0x6A j 0x4B K 0x6B k 0x4C L 0x6C l 0x4D M 0x6D m 0x4E N 0x6E n 0x4F O 0x6F o 0x50 P 0x70 p 0x51 Q 0x71 q

0x53 S 0x73 s 0x54 T 0x74 t 0x55 U 0x75 u 0x56 V 0x76 v 0x57 W 0x77 w 0x58 X 0x78 x 0x59 Y 0x79 y 0x5A Z 0x7A z

Specifications subject to change without notice

47 of 60

Appendix III – Mapping definition

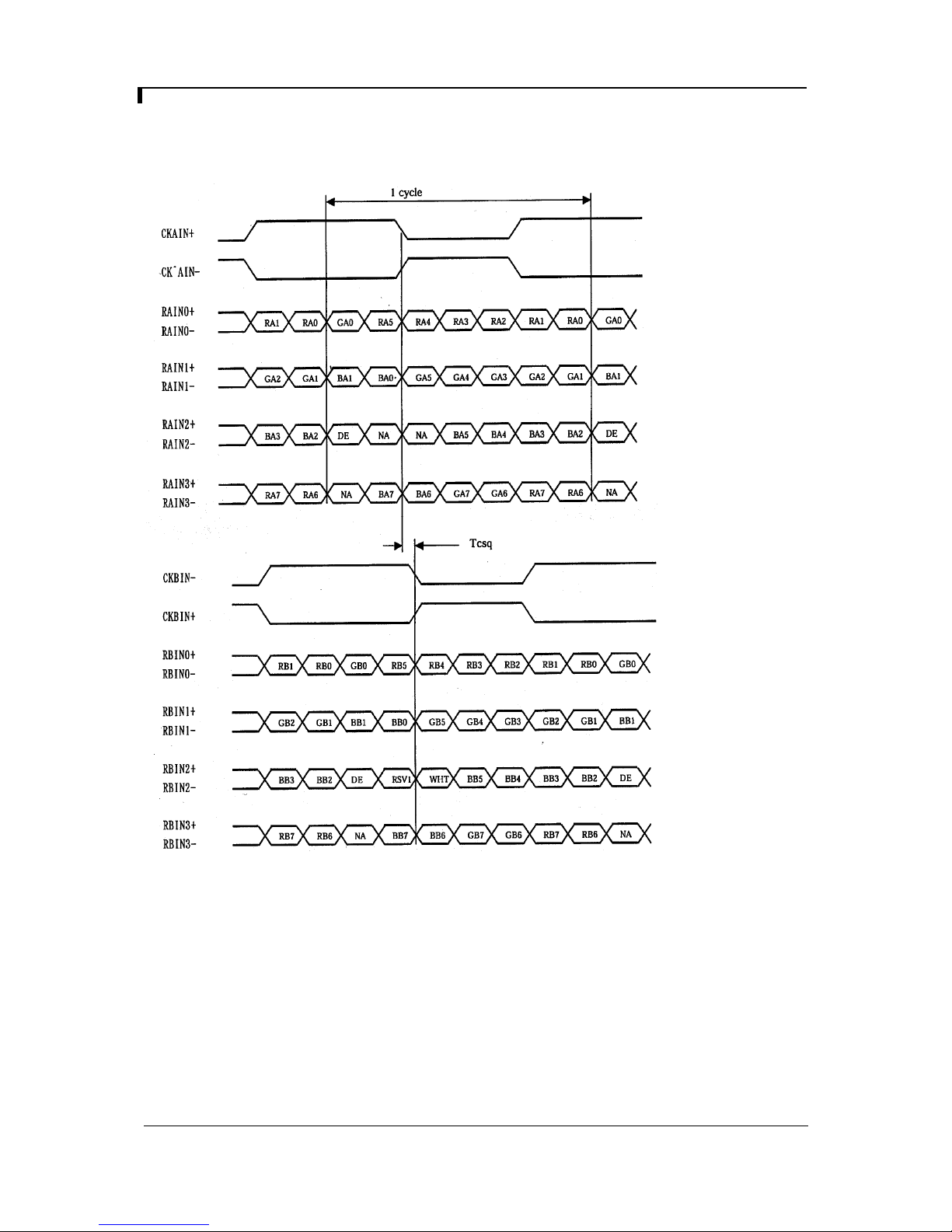

• Definition of Mapping A :

Specifications subject to change without notice

48 of 60

• Definition of Mapping B :

Specifications subject to change without notice

49 of 60

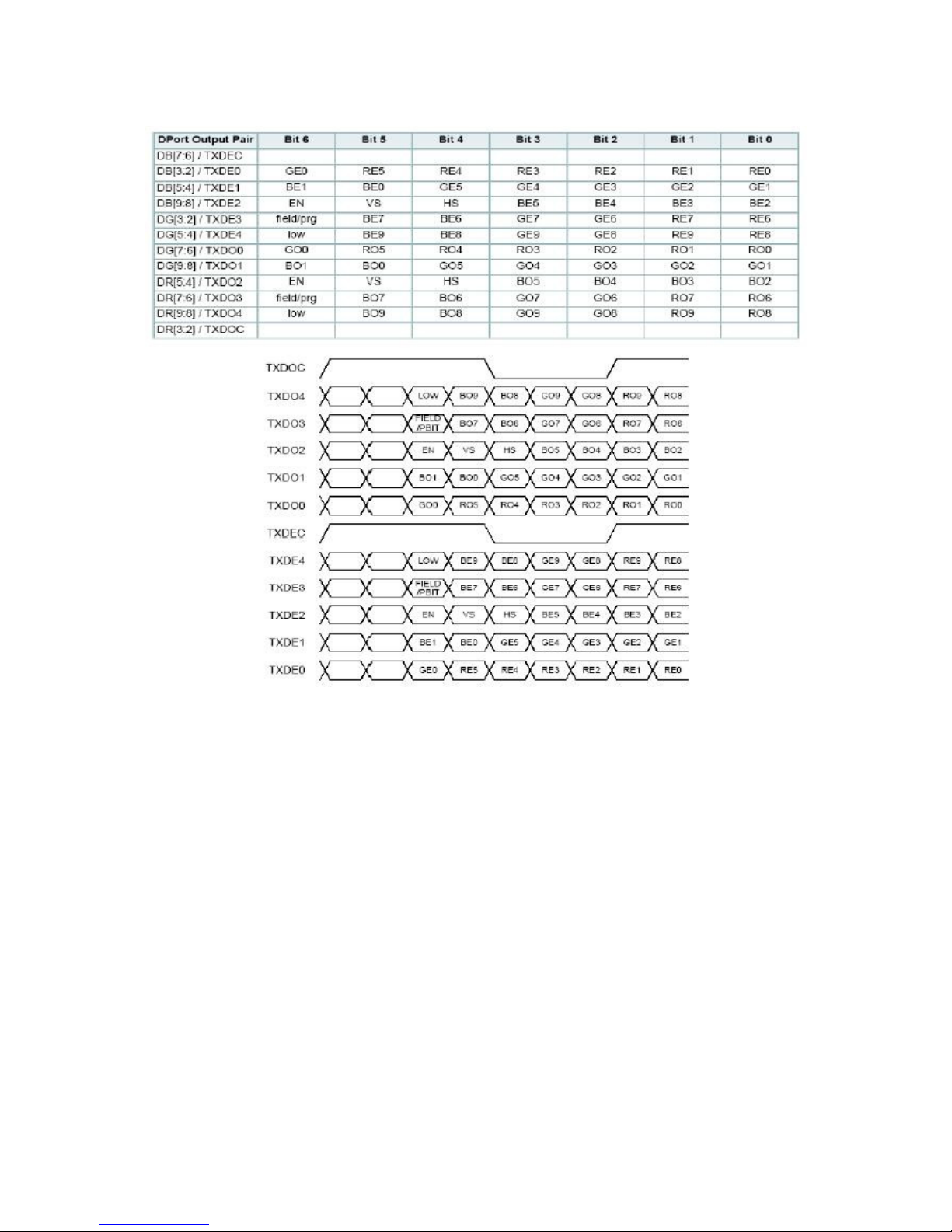

• Definition of VESA :

Specifications subject to change without notice

50 of 60

• Definition of JEIDA :

Specifications subject to change without notice

51 of 60

Appendix IV – Auto Color Gain

The Auto Color Gain function is supported in the VGA mode only and is designed to calibrate the controller to the incoming video signal. In order to calibrate correctly, the display must be displaying an image containing both black and white data (see illustration below) when the function is used. The internal processor of the video controller chip will then execute a process to adjust the relative values of the RGB signals to achieve the best performance. The parameters of the corrected RGB values are then stored in the controller and are unaffected by the Reset Factory Defaults function.

The reference pattern can be downloaded at :

http://www.digitalview.com/support/downloads/TestPattern_1280.BMP

This reference pattern is for 1280x1024 resolution and it needs to set your VGA input source to 1280x1024 resolution before performing the Auto Color Gain function. The position of the black vertical bar in the pattern at the right side is important. It will affect the calibration result if you are setting the VGA input to other resolution.

Warning - If the Auto Color Gain is executed without an appropriate image being displayed, then the process will set incorrect values and the display colors will be distorted. If this occurs, then it can either be corrected by performing the process correctly or if this is not possible then the Reset Color Gain function can be used. This function will reset the stored RGB values to a set of approximate values.

Specifications subject to change without notice

52 of 60

Appendix V – DV remote control unit work for SVH-1920v2

P/N 559000106-3 :

DigitalView remote control unit (without DV logo silk screen printing)

P/N 559000105-3 :

DigitalView remote control unit (with DigitalView logo silk screen printing)

POWER BUTTON Soft power ON/OFF button.

SEL UP ( ) / SEL DN ( )

+ / - BUTTON

OSD BACK BUTTON Use to display the OSD menu and go to the previous OSD screen. OSD NEXT BUTTON Use to display the OSD menu and go to the next OSD screen.

DISPLAY BUTTON

AV/TV BUTTON Use to select the input source. (VGA/DVI/..)

SOUND (ZOOM) BUTTON

PLAY (YPbPr) BUTTON Press this button in the non OSD menu display mode to select Component 1 source. STOP (VGA) BUTTON Press this button in the non OSD menu display mode to select VGA source. DVI BUTTON Press this button in the non OSD menu display mode to select DVI source.

BUTTON FUNCTION

Use this button to direct control the hotkey function. Press the “SEL UP” button to increase the pre-set hotkey parameter value and the “SEL DN” button to decrease the pre-set hotkey parameter value. In OSD menu, pressing this button to select the items. Use this button to direct control the hotkey function. Press the “+” button to increase the pre-set hotkey parameter value and the “-” button to decrease the pre-set hotkey parameter value. In OSD menu, pressing this button to adjust the settings.

Use to view an on-screen information. When OSD menu displayed, press this button to turn it off.

Use to display the zoom menu. Press the “+” to zoom in the picture and the “-” to zoom out the picture.

Specifications subject to change without notice

53 of 60

Specifications subject to change without notice

54 of 60

Appendix VI – PIP mix table

VGA 1

(P1)

VGA 2

(P2/CN6)

DVI

(P2)

Composite 1

(J2/CNV1/CNV5)

Composite 2

(CNV5)

S-Video 1

(J1/CNV1/CNV5)

S-Video 2

(CNV5)

HD Component 1

(CNV2) HD-SDI 1** HD-SDI 2##

VGA 1 (P1) X X

    

X

 

VGA 2 (P2/CN6) X X

    

X

 

DVI (P2)

 

X

   

  

Composite 1 (J2/CNV2/CNV5)

  

X

X X X



Composite 2 (CNV5)

  

X

X X X



S-Video 1 (J1/CNV1/CNV5)

  

X

X X X



S-Video 2 (CNV5)

  

X

X X X



HD-Component 1 (CNV2) X X  X X X X X  

HD-SDI 1**

 



   



X

HD-SDI 2##

 



   



X

** - via HD-1000/HD-2000 ## - via HD-2000

Appendix VII – HD-1000 / HD-2000 connection

SVH-1920v2 & HD-1000 / HD-2000 connection :

Specifications subject to change without notice

55 of 60

function

Appendix VIII – Procedure for showing how to select the baud rate

Jumper function : JC1-3 = Closed : Enable the baud rate selection function JC1-3 = Open : Disable the baud rate selection function and default set as 2400.

STEP 1 :

Set JC1-3 = closed.

JC1-3 closed to enable the baud rate selection

STEP 2 :

Press and hold “MENU” button on the OSD switch mount and turn on the controller to enter the “Programming mode”.

“Programming mode” wordings will display on screen on the target programming board. (See below) :

Step 3 :

Press “MENU” key to go into the “DDC Programming” & “Set RS232 Baud Rate (CN8)” page.

(See below) :

Step 4 :

Select “Set RS232 Baud Rate(CN8)” setting, then press “+” to enter the sub menu page.

Specifications subject to change without notice

56 of 60

Step 5 :

Choose the appropriate baud rate settings (2400 / 4800 / 9600 / 14400 / 19200 / 38400 /

57600 / 115200).

Step 5 :

Step 6 :

Press “MENU” key to return previous menu.

Shut off the controller

Specifications subject to change without notice

57 of 60

WARRANTY

The products are warranted against defects in workmanship and material for a period of three (3) year from the date of purchase provided no modifications are made to it and it is operated under normal conditions and in compliance with the instruction manual.

The warranty does not apply to:

• Product that has been installed incorrectly, this specifically includes but is not limited to cases where electrical short

circuit is caused.

• Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s consent).

• Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or electrical.

• Ordinary wear and tear.

Except for the above express warranties, the manufacturer disclaims all warranties on products furnished hereunder, including all implied warranties of merchantability and fitness for a particular application or purpose. The stated express warranties are in lieu of all obligations or liabilities on the part of the manufacturer for damages, including but not limited to special, indirect consequential damages arising out of or in connection with the use of or performance of the products.

CAUTION

Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as an exhaustive source of information. This product is for use by suitably qualified persons who understand the nature of the work they are doing and are able to take suitable precautions and design and produce a product that is safe and meets regulatory requirements.

LIMITATION OF LIABILITY

The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in no event exceed the purchase price of said product.

TRADEMARKS

The following are trademarks of Digital View Ltd:

• Digital View

• SVH-1920v2

Specifications subject to change without notice

58 of 60

CONTACT DETAILS

Digital View has offices in Asia, Europe and USA :

USA

Digital View Inc. 18440 Technology Drive Building 130 Morgan Hill, California, 95037 USA

Tel: (1) 408-782 7773 Fax: (1) 408-782 7883

Sales: [email protected]

EUROPE

Digital View Ltd. The Lake House Knebworth Park Herts, SG3 6PY UK

Tel: +44-(0)20-7631-2150 Fax: Fax: +44-(0)20-7631-2156

Sales: [email protected]

ASIA

Digital View Ltd Units 705-708, 7/F Texwood Plaza 6 How Ming Street Kwun Tong Hong Kong

Tel: (852) 2861 3615 Fax: (852) 2520 2987

Sales: [email protected]

WEBSITE

www.digitalview.com

Specifications subject to change without notice

59 of 60

Revision History

Date Rev No. Page Summary 30 Oct 2015 1.00 All First issued 10 Feb 2016 2.00 8

29 Apr 2016 3.00 24-25

15 Aug 2016 4.00 10, 38

15 Aug 2016 5.00 13 & 22 - Revised matching CNV2 connector to 'PHR-6' 22 Nov 2016 6.00

12

19

22

31

44-45

38

19

26

3, 13, 18, 27 12, 41

12, 37

14

16, 17 19

20

Add "Volume" adjustment function on OSD menu page. Add a remark to state the limitation of the image orientation function. Add the definition of SW3 position 8 for video lock function.

- Correct typo for the definition of CNV2 pin 3 is Pb and pin 4 is Pr

- Add "Use of memory on board" section in the Specification table.

- Add text overlay function RS-232 commands.

- Revised J4 pin definition

- Add default value and range for PIP H position (0xa4) & PIP V position (0xa5) RS-232 command and default PIP size.

- Add standard Gamma selection (0.6~2.6) support on OSD menu and RS-232 command (0x9d) start effective from V1.18.00.00 firmware version.

- Add SVGA & VGA panel timings selection in table 2.

- Revised DVI connector (P2) pin 16 to "Hot Plug Detect" pin.

For SVH-1920v2 (P/N 41752004X-3) :

- Update PCBA diagram

- Add monochrome mode on OSD menu and RS-232 command control.

- Add "Image Orientation" on Hotkey 1 & Hotkey 2 on OSD menu and RS-232 command.

- Change to use JST B3B-XH-A compatible type connector on LED1.

- Add 10V panel power selection jumper on JA3

- Add three new panel timings support on SW3 dip switch setting table done on V1.26.00.00 firmware.

- Support "Resolution default by EDID" for different resolution panel.

Specifications subject to change without notice

60 of 60
