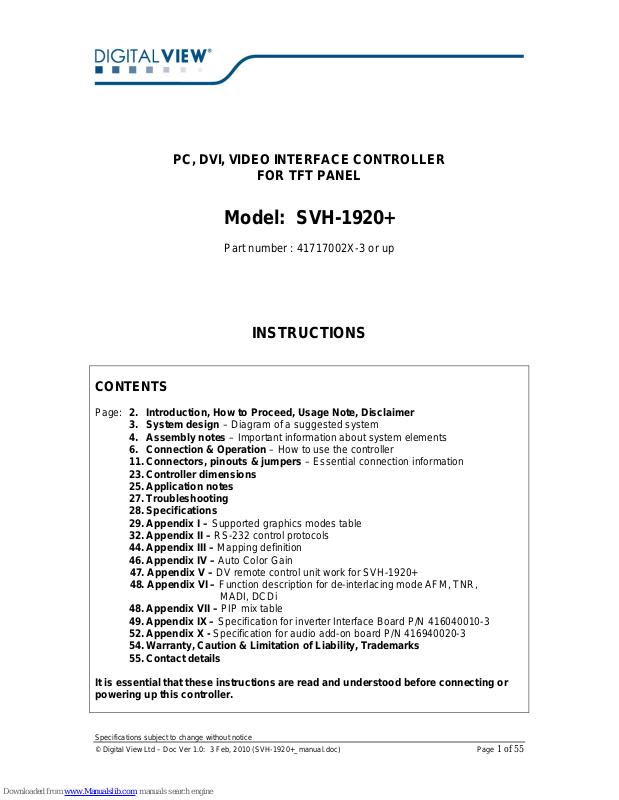

PC, DVI, VIDEO INTERFACE CONTROLLER
FOR TFT PANEL
Model: SVH-1920+
Part number : 41717002X-3 or up
INSTRUCTIONS
CONTENTS
Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design – Diagram of a suggested system
4. Assembly notes – Important information about system elements
6. Connection & Operation – How to use the controller
11. Connectors, pinouts & jumpers – Essential connection information
23. Controller dimensions
25. Application notes
27. Troubleshooting
28. Specifications
29. Appendix I – Supported graphics modes table
32. Appendix II – RS-232 control protocols
44. Appendix III – Mapping definition
46. Appendix IV – Auto Color Gain
47. Appendix V – DV remote control unit work for SVH-1920+
48. Appendix VI – Function description for de-interlacing mode AFM, TNR,
MADI, DCDi
48. Appendix VII – PIP mix table
49. Appendix IX – Specification for inverter Interface Board P/N 416040010-3
52. Appendix X - Specification for audio add-on board P/N 416940020-3
54. Warranty, Caution & Limitation of Liability, Trademarks
55. Contact details
It is essential that these instructions are read and understood before connecting or
powering up this controller.
Page 2
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
2 of 55
Introduction
Designed for LCD monitor and other flat panel display applications, the SVH-1920+ is a feature rich interface controller
for :
TFT (active matrix) LCD panels of 1920x1200, 1920x1080, 1600x1200, 1680x1050, 1440x900, 1366x768, 1280x1024,
1280x800, 1280x768 1024x768, 800x600, 800x480 and 640x480 resolutions.
Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard.
Video signals of NTSC, PAL and SECAM standard.
DVI input support up to 1920x1200 60Hz input signals
Support up to 8 bits panel
Support DVI, VGA, S-Video, Composite, Component Video input
HOW TO PROCEED
Ensure you have all parts & that they are correct, refer to:
• Connection diagram
• Connector reference (in following section)
• Assembly notes
Check controller switch & jumper settings (errors may damage the panel)
Prepare the PC
Connect the parts
Understand the operation & functions
IMPORTANT USAGE NOTE
This equipment is for use by developers and integrators, the manufacturer accepts no liability for damage or injury
caused by the use of this product. It is the responsibility of the developer, integrators or other user of this product to:
• Ensure that all necessary and appropriate safety measures are taken.
• Obtain suitable regulatory approvals as may be required.
• Check power settings to all component parts before connection.
DISCLAIMER
There is no implied or expressed warranty regarding this material.
Controller Solution Generator
Full web resource matching controllers & panels with connection diagrams for download.
See at : http://www.digitalview.com/controllers/csg.php
Page 3
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
3 of 55
SYSTEM DESIGN
A typical LCD based display system utilizing this controller is likely to comprise the following:
Summary:
1. LCD panel
2. LCD controller card, SVH-1920+
3. LCD signal cable (use for LVDS panel)
4. LCD signal cable (use for TTL single pixel panel)
5. Inverter for backlight (if not built into LCD)
6. Inverter cable
7. Function controls
8. Function controls cable
9. Status LED (optional)
10. IR sensor (optional)
11. RS-232 control interface
12. Panel control signal
13. Audio add-on board (optional)
14. Ambient light sensor connection
15. Connect to HD-SDI adaptor board
16. Alternate Composite & S-video input
17. HD/SD Component video input
18. DVI-D input
19. Analog RGB input
20. S-Video input
21. Composite input
22. Auxiliary video input
23. +12V / +24V DC power input
24. External panel power input
Digital View provides a range of parts, such as listed above, to make up complete display solutions.
Page 4
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
4 of 55
ASSEMBLY NOTES
This controller is designed for monitor and custom display projects using 1920x1200 or 1920x1080 or 1600x1200 or 1680x1050
or 1440x900 or 1366x768 or 1280 x 1024 or 1024 x 768 or 800x600 or 640x480 resolution TFT panels with a VGA, SVGA,
WXGA, XGA, SXGA, UXGA or WUXGA signal input. The following provides some guidelines for installation and preparation of
a finished display solution.
Preparation: Before proceeding it is important to familiarize yourself with the parts making up the system and the various
connectors, mounting holes and general layout of the controller. As much as possible connectors have been labeled. Guides
to connectors and mounting holes are shown in the following relevant sections.
1. LCD Panel: This controller is designed for typical LVDS or TTL interfaced panels with panel voltage 3.3V, 5V or 12V,
External for 12V~18V interface. Due to the variation between manufacturers of panels signal timing and other panel
characteristics, factory setup and confirmation should be obtained before connecting to a panel. (NOTE: Check panel
power jumper settings before connection)
2. Controller: Handle the controller with care as static charge may damage electronic components. Make sure correct
jumper and dip switches settings to match the target LCD panel.
3. LCD signal cable (LVDS panel): In order to provide a clean signal it is recommended that LVDS signal cables are no
longer than 46cm (18 inches). If those wire cabling is utilized these can be made into a harness with cable ties. Care
should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems to
add ferrite cores to the cable to minimize signal noise.
4. LCD signal cable (Single pixel TTL panel): In order to provide a clean signal it is recommended that LCD signal cables
should not longer than 33cm (13 inches). If loose wire cabling is utilized these can be made into a harness with cable ties.
Care should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some
systems to add ferrite cores to the cables to minimize signal noise.
5. Inverter: This will be required for the backlight of an LCD, some LCD panels have an inverter built in. As LCD panels may
have 1 or more backlight tubes and the power requirements for different panel backlights may vary it is important to match
the inverter in order to obtain optimum performance. See Application notes page 23 for more information on connection.
6. Inverter Cables: Different inverter models require different cables and different pin assignment. Make sure correct cable
pin out to match inverter. Using wrong cable pin out may damage the inverter.
7. Function Controls: The following section discusses the controls required and the section on connectors provides the
detail. The controls are minimal: On/Off, Backlight Brightness (depends on inverter), OSD (5 momentary buttons) analog
VR type or (8 momentary buttons) digital type.
The 8 momentary buttons OSD switch mount P/N 416100520-3 or OSD membrane interface P/N 416100120-3 must be
used when 24VDC input.
8. Function controls cable: The cables to the function switches should be of suitable quality and length so that impedance
does not affect performance. Generally lengths up to 1 meter (3 feet) should be acceptable.
9. Status LED: The pin direction of the LED should be corrected for right colour indication. Red colour stands for standby.
Green colours stands for signal on. The status LED is an optional part only, can be unconnected.
10. IR sensor: It is an optional part only, can be unconnected if not using IR remote control. See Appendix V in details.
11. RS-232 control interface : Firmware upgrade and serial control via this interface port.
12. Panel control signal : Use for specific panel model.

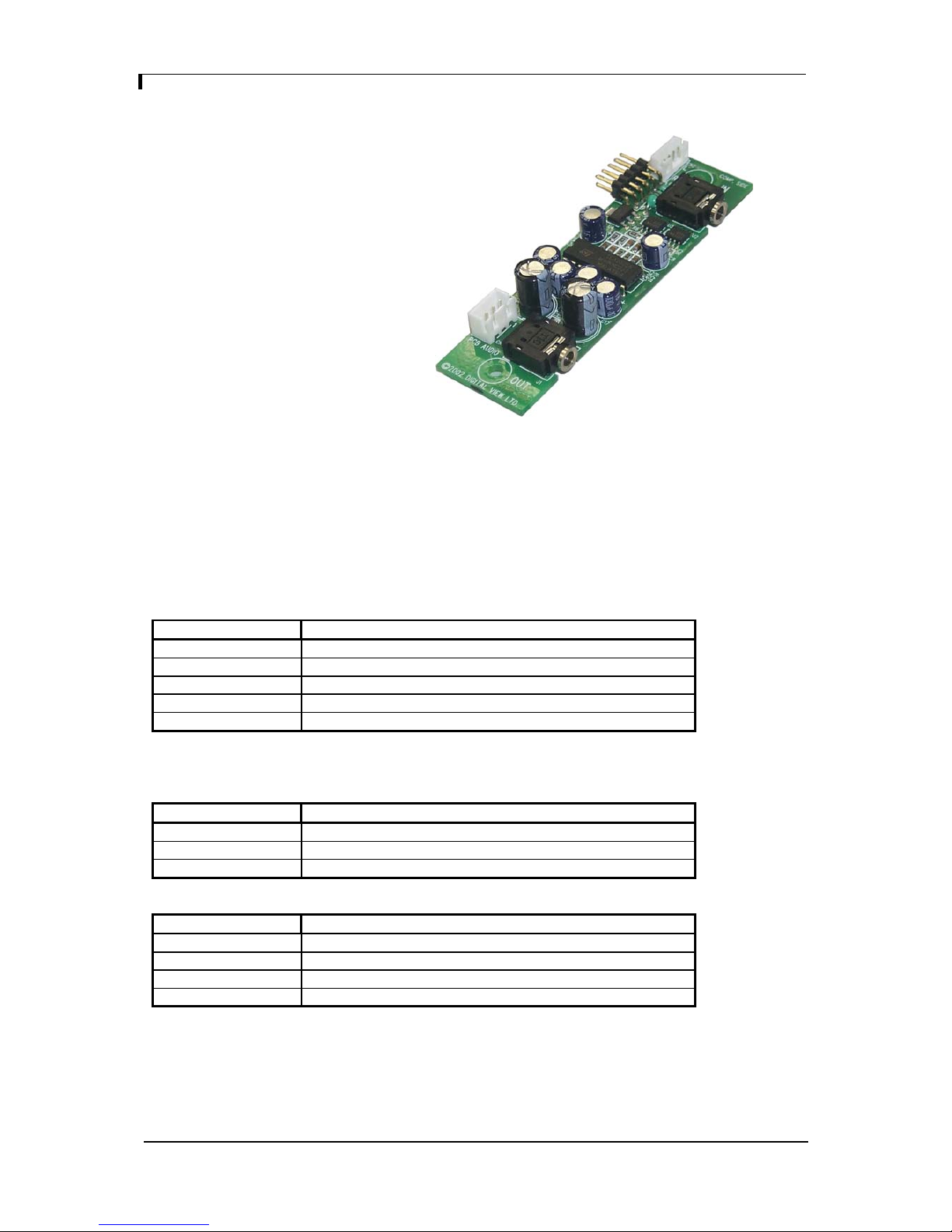

13. Audio add-on board P/N 416040010-3: Provide the interface for the audio add-on board to be connected. The audio add-
on board gives the audio input and output signal connection. But the volume cannot be controlled by the OSD menu on the
controller. It is an optional part only, can be unconnected if not using audio.
CAUTION : The Audio Add-on Board P/N 416940020-3 is only operate under 12VDC power input environment.
14. Ambient light sensor connection : 3 ways connector provides interface for ambient light sensor connection.
15. Interface for connecting to HD-SDI adaptor board
HD-SDI (1-in-1-out) adaptor board, Kit number P/N 546013410-3 includes :
HD-1000 adaptor (1-in-1-out) P/N 416013410-3
Ribbon cable P/N 426171120-3, 180mm
HD-SDI (2-in-2-out) adaptor board, Kit number P/N 546013310-3
includes :
HD-2000 adaptor (2-in-2-out) P/N 416013310-3
Ribbon cable P/N 426171120-3, 180mm
16. Alternate video input for S-Video and composite video
17. HD/SD component video input : Plug the component video input signal on CNV2 connector
Page 5
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
5 of 55
18. DVI-D input cable : Plug the DVI cable to the connector P3 on the controller board
19. Analog RGB Input : As this may affect regulatory emission test results and the quality of the signal to the controller a
suitably shielded cable should be utilized.
20. S-video input : Standard S-Video cables can be used. Reasonable quality cable should be used to avoid image quality
degradation.
21. Composite input : Composite video input cable with BNC connector can be used. Reasonable quality cable should be
used to avoid image quality degradation.
22. Auxiliary video input : This port provides Composite video 1 & 2, S-video 1 & 2, Component 1 & 2. The video input
selection can be switched via RS-232 command (0x98).
23. Power Input: 12V/24VDC is required, this should be a regulated supply. The power rating is depending on the panel and
inverter used. Normally, power supply with 3.5Amp current output should enough for most of 4x CCFT panels. Although the
controller provides power regulation for the LCD power this does not relate to the power supplied to the backlight inverter. If an
unregulated power supply is provided to an inverter any fluctuations in power may affect operation, performance and lifetime of
the inverter and or backlight tubes.
24. External panel power input : Allow to supply external power to the panel separately for max 3.3V (7A) or 5V (7A) or 12V
(5A) or 18V (3.5A) via PP4 power input connector.
• Power output: Note the controller has an overall 3Amp current limit and the current available from the auxiliary power
output will be dependent on the power input and other system requirements.
• Power Safety: Note that although only 12V / 24VDC is required as ‘power-in’ a backlight inverter for panel backlighting
produces significantly higher voltages (the inverter does not connect to the ground plane). We strongly advise appropriate
insulation for all circuitry.
• EMI: Shielding will be required for passing certain regulatory emissions tests. Also the choice of external Controller to PC
signal cable can affect the result.
• Ground: The various PCB mounting holes are connected to the ground plane.
• Servicing: The board is not user serviceable or repairable. Warranty does not cover user error in connecting up to the
controller and is invalidated by unauthorized modification or repairs.
• Controller Mounting: It is recommended that a clearance of at least 10mm is provided above and 5mm below the
controller when mounted. Additionally consideration should be given to:
• Electrical insulation.
• Grounding.
• EMI shielding.
• Cable management. Note: It is important to keep panel signal cables apart from the inverter & backlight cables to
prevent signal interference.
• Heat & Ventilation: Heat generated from other sources, for example the backlight of a very high brightness panel may
generate significant heat which could adversely affect the controller.
• Other issues that may affect safety or performance.
• PC Graphics Output: A few guidelines:
• Signal quality is very important, if there is noise or instability in the PC graphics output this may result in visible noise
on the display.
• Refer to graphics modes table in specifications section for supported modes.
• Non-interlaced & interlaced video input is acceptable.
IMPORTANT: Please read the Application Notes section for more information.
Page 6
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
6 of 55
CONNECTION & OPERATION
CAUTION: Never connect or disconnect parts of the display system when the system is powered up as this may cause serious
damage.
CONNECTION
Connection and usage is quite straight forward (it is useful to have the relevant connection diagram available at this time):
1. LCD panel & Inverter: Connect the inverter (if it is not built-in the panel) to the CCFT lead connector of the LCD panel.
2. TTL type (Single pixel) panels: Plug the signal cables direct to CN3 on the controller board. Plug the other end of cables
to the LCD connector board (if connector board is required, otherwise the signal can be direct plug to the LCD panel connector).
Then plug the board connector to the LCD panel connector.
3. LVDS type panels: The controller board has the built-in LVDS transmitter driver. Plug the LVDS cable to J3. Insert the
panel end of the cable the LCD panel connector.
4. Inverter & Controller: Plug the inverter cable to CNB1 and CNA1 (if necessary). Plug another end to the connector on
the inverter.
5. Function switch & Controller: Plug the OSD switch mount cable to CNC1 on the controller board and another to the
OSD switch mount.
6. LED & Controller: Plug in a 3-way with dual colour LED to connector LED1 on the controller board.
7. IR & Controller: Plug in a 3-way with IR sensor to connector IR1 on the controller board.
8. Jumpers & Switches: Check all jumpers and switches (SW3, SW4) are set correctly. Details referring the connection
diagram (a separate document) or the jumpers and switches setting table (in the following section).
9. Jumpers & Inverter & Panel voltage: Particularly pay attention to the settings of JA3, JA5, JA6, JB2 and JB3. JB2 & JB3
are used for inverter control (read inverter specification and information on the jumper table to define the correct settings).
JA3 & JA5 & JA6 is used for panel voltage input (read panel specification and information on the jumper table to define the
correct settings).
10. VGA cable & Controller: Plug the VGA cable to the connector P1 on the controller board.
11. Power supply & Controller: Plug the DC 12V/24V power in to the connector PP5 or PP2/3. You can consider to use
DigitalView mating power cable P/N 426013800-3, 160mm for PP5 connection.
11. External panel power input : Plug power cable : P/N 426013700-3 for external panel power input (3.3 (max 7A) / 5V
(max 7A) / 12V (max 5A) / 18V (max3.5))
12. Power on: Switch on the controller board and panel by using the OSD switch mount.
13. Audio Board : The Audio Add-on Board P/N 416940020-3 is only operate under 12VDC power input environment.
General:
• If you are using supplied cables & accessories, ensure they are correct for the model of panel and controller.
• If you are making your own cables & connectors refer carefully to both the panel & inverter specifications and the section
in this manual, “Connectors, Pinouts & Jumpers” to ensure the correct pin to pin wiring.
PC SETTINGS
The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance
we recommend choosing 60Hz vertical refresh rate – this will not cause screen flicker.
OPERATION
Once the system has been connected and switched on there are a number of functions available to adjust the display
image as summarized in the following sections. The settings chosen will be saved for each mode independently.
Page 7
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
7 of 55
LCD DISPLAY SYSTEM SETTINGS
NOTE: By way of explanation the following refers to a set of sample buttons that may be obtained as an option. In addition
to power on/off and connection for backlight brightness the controller provides an On Screen Display of certain functions
which are controlled by 5 momentary type buttons (analog VR type) or 8 momentary type buttons (digital type):
Controls Analog VR type Digital type
On/Off – turns controller board power on VR toggle switch On/Off button
Brightness – controls backlight brightness Rotary VR Brightness +/- buttons
Menu
– Turns OSD menu On or Off (it will auto time
off)
– Back to previous OSD menu page
Menu button Menu button
Select down
– Moves the selector to the next function (down)
SEL DN SEL DN
Select up
– Moves the selector to the previous function
(up)
SEL UP SEL UP
+
– Increase the OSD parameter values
– Go into the sub-menu page from the top
– Confirm to select the OSD function
+ +
-
– Decrease the OSD parameter values
- Go into the sub-menu page from the bottom
- -
Reset to Factory Defaults Press and hold SEL DN button,
then power on the controller
Press and hold SEL DN button,
then power on the controller
ON/Off/Brightness
SEL UP
SEL DN
+
-
Menu
Analog VR type
Digital type
12V / 24VDC power input :
Analog 10K VR Type OSD
switch mount uses
P/N 410680550-3 or up
12V / 24VDC power input :
Digital 10K Type OSD
switch mount uses
P/N 416100520-3 or up
12VDC power input :
Digital 10K Type OSD
switch mount uses
P/N 416100510-3
Page 8
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
8 of 55
OSD functions
Picture :
Volume
###
Increase/decrease volume level, total: 100 steps
Brightness
Increase/decrease panel brightness level, total: 100 steps
Contrast
Increase/decrease panel contrast level, total: 100 steps
Saturation
Increase/decrease saturation, total: 100 steps
Hue **
Increase/decrease Hue level, total: 100 steps
Sharpness*
Increase/decrease sharpness, total: 30 steps
Backlight
Backlight brightness adjustment (Functions when
light detector sets OFF)
Position
##
Aspect / Size 4
- Fill Screen : Enable full screen expansion for lower resolution Image
- Fill to Aspect Ratio: Enable fill screen expansion for lower resolution
image according to aspect ratio
- 4 : 3 : scaling format in 4:3
- 16 : 9 : scaling format in 16:9
- 16 : 10 : scaling format in 16:10
- 2.35 : 1 : scaling format in 2.35:1
- 2 : 1 : scaling format in 2:1
- 1 : 1 : Display the exact image resolution on the screen without
image expansion.
- Custom Sizing
####
:
- Overscan
- Normal
- Custom 4
H Size
V Size
H Pan
V Pan
Blue Only
ON / OFF : Turn off the "Red" & "Green" channel (i.e. output all
zero to Red & Green channel)
[This function will display on OSD menu when JP4 – 5-6 closed]
* : DISPLAY IN VIDEO MODE ONLY
** : FUNCTION IN ARGB/ DVI / VIDEO NTSC MODE ONLY
# : DISPLAY IN ARGB / DVI MODE ONLY
## : FUNCTION IN ARGB MODE ONLY
### : DISPLAY WHEN AUDIO ADD-ON BOARD CONNECTED
#### : DISPLAY IN VIDEO / HD/SD SDI 1 / HD/SD SDI 2 MODE ONLY
Move the image position upward
Move the image position downward
Move the image position to the left
Move the image position to the right
Page 9
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
9 of 55
Source : Select the input video signal
Main Port Change 4
VGA
DVI
HD/SD SDI 1
HD/SD SDI 2***
Composite 1
Composite 2***
S-Video 1
S-Video 2***
Component 1
Component 2***
PIP Port change4
PIP Off / Composite 1 / S-Video 1 / Component 1 / DVI / HD/SD SDI 1
PIP Size : Off / Small / Medium / Large / PBP
The PIP capability on display input sources refer to Appendix VII – PIP mix table
PIP Position :
PIP Transparency : 6.25% ~ 100%
PIP Swap : Swap between the main window and PIP window
PIP Auto Turn off :
: OFF / ON
ON : When PIP is no signal input after 30 seconds, the PIP
window will turn off automatically.
OFF : PIP window keeps on
*** DISPLAY WHEN SETTING ON UNDER SETUP AUTO SOURCE SEEK
Utilities :
Setup 4
Auto Picture Setup
#
: Auto adjust the image position, phase and size
Auto Color Gain
##
: Auto Color Calibration (See appendix IV)
Wide Screen Mode detection
#
4 : Recognize the wide screen mode coming from ARGB port
- Off
- 1280x768
- 1360x768
- 1366x768
Manual Clock
##
: Adjust the image horizontal size
Manual Phase
#
: Fine tune the data sampling position (adjust image
quality)
Auto Source Seek :
- Auto : : OFF / ON
ON – Auto source select always enable
OFF – Disable auto source select function
- Setup4 Selection for the corresponding input sources detection
VGA
DVI
HD/SD SDI 1
HD/SD SDI 2
Composite 1
Composite 2
S-Video 1
S-Video 2
Move the PIP position upward
Move the PIP position downward
Move the PIP position to the left
Move the PIP position to the right
Page 10
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
10 of 55
Component 1
Component 2
The corresponding input port name display on OSD menu will disappear once
setting “OFF”.
De-interlacing Mode* 4
AFM
: Auto Film Mode
TNR
: Temporal Noise Reduction
MADI
: Motion Adaptive De-interlacing
DCDi
: Low Angled De-interlacing
[See Appendix VI for AFM, TNR, MADI, DCDi function description]
Auto Power :
OFF / ON
ON – Enable soft power off function if absence of input signals
OFF – Disable soft power function
Video Standard (SD)* : Auto / NTSC / NTSC 4.43 / PAL / PAL M / SECAM
Gamma : 0.6 / 0.7/ 0.8 / 1.0 / 1.6 / 1.8 / 1.9 / 2.0 / 2.1 / 2.2 / 2.3 / 2.4 / 2.5 / 2.6 / User Setting
OSD 4
OSD position :
H POS
: Move the OSD menu image horizontally
V POS
: Move the OSD menu image vertically
OSD Timeout (sec) : ON – 60 : Adjust the OSD menu timeout period in a step of 5
seconds (max 60 seconds)
ON =
Continuous to display OSD menu.
60 = 60 seconds later will turn off the OSD menu.
Language : English / Spanish / French / German / Chinese :Select OSD menu language display
Transparency :
OFF / ON : Set OSD transparency
Display Input :
OFF / ON : Display input source info after switching source.
Freeze : Freeze the image (use “+” button)
Zoom 4
Zoom level :
: Enable the zoom in function on the image displayed.
Use “+” button to zoom in the image
Use “-“ button to decrease the zoomed image
Horizontal pan :
: Pan the image horizontally
Vertical pan :
: Pan the image vertically
Factory Reset
Note : Freeze state will be cleared when you using zoom function.
Color Temperature 4
5000K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
6500K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
8000K
Red Gain :
Green Gain :
Blue Gain :
Page 11
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
11 of 55
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
9300K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
User setting :
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :
Reset to Defaults : Resume to the default values
Reset All to Defaults : Resume all color temperature settings to the default values.
Hot Key 4
Hot key 1 : Volume / Brightness / Contrast / Inputs / Aspect Ratio/ Zoom / Freeze / PIP Size /
PIP Swap / Saturation / Hue / Backlight / Auto Picture Setup / No Function
Hot key 2 : Volume / Brightness / Contrast / Inputs / Aspect Ratio / Zoom / Freeze / PIP Size /
PIP Swap / Saturation / Hue / Backlight / Auto Picture Setup / No Function
Monochrome Mode 4
- Color
- Red Monochrome
- Green Monochrome
- Blue Monochrome
Backlight Setup4
- B/L Invert :
: Invert for the backlight brightness
- B/L Control : D/A / PWM : Selection for voltage level dimming control / PWM
dimming control
- Backlight Frequency :
100 ~ 440Hz in a step of 20
- Light Detector :
: Enable ambient light detector function by using KIT
70220-3
Default Setting 4
Reset to Factory Defaults
Reset to Factory Defaults (with Color Temp.)
Restore to Calibrated Defaults
Save to Calibrated Defaults (Activate when JC1 set position 2 closed)
* : DISPLAY IN VIDEO MODE ONLY
# : DISPLAY IN ARGB MODE ONLY
## : DISPLAY IN ARGB MODE ONLY
Page 12
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
12 of 55

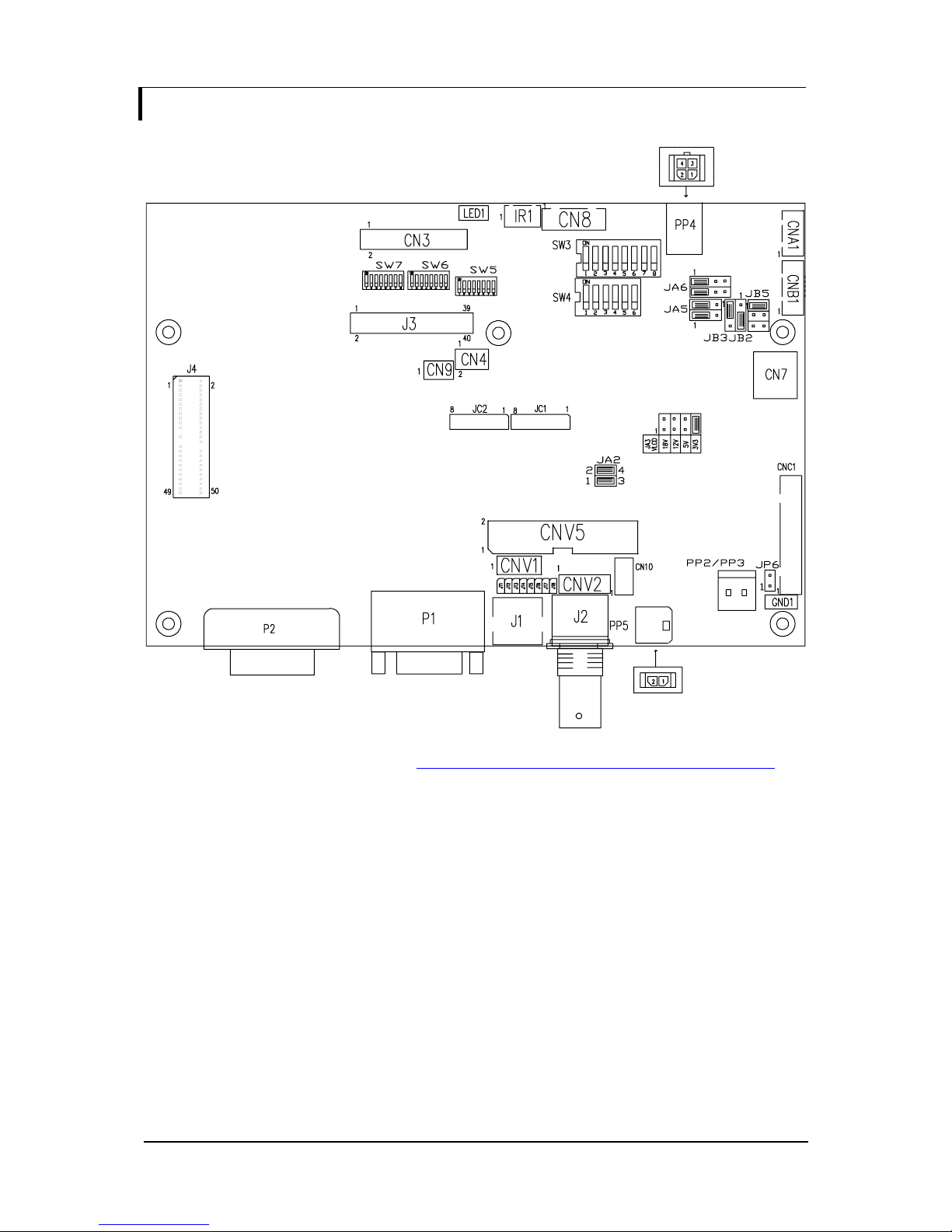

CONNECTORS, PINOUTS & JUMPERS
The various connectors are:
Summary: Connectors
Ref Purpose Description
CN3 Panel signal for TTL panel Hirose 50-pin, DF20G-50DP-1V (Matching type : DF20A-50DS-1C)
CN7 Audio board connector DIL socket header 5x2 right angle
(Matching audio Add-on Board P/N 416940020-3)
CN8 RS-232 serial control JST 6-way, B6B-XH-A (Matching type : XHP-6)
CN9 Ambient light sensor connector JST 3-way, B3B-PH-K (Matching type : PHR-3)
CNA1 Auxiliary power output JST 4-way, B4B-XH-A (Matching type : XHP-4)
CNB1 Backlight inverter JST 5-way, B5B-XH-A (Matching type : XHP-5)
CNC1 OSD controls JST 12-way, B12B-XH-A (Mating type : XHP-12)
CNV1 Alternate Composite and S-video in JST 5-way, B5B-PH-K (Matching type : PHR-5)
(Matching video cable P/N 426000500-3)
CNV2 HD / SD Component video in JST 6-way, B6B-PH-K (Matching type : PHR-6)
(Matching video cable P/N 426000600-3)
CNV5 Auxiliary video input Header pin 13x2 (Matching video cable P/N 426000800-3)
J1 S-video in Mini din 4-way
J2 Additional panel power output Hirose 20-pin, DF13-20DP-1.25 (Matching type : DF13-20DS-1.25C)
J3 Panel signal for LVDS panel Hirose 40 pin, DF13-40DP-1.25DSA
(Matching type : DF13-40DS-1.25C)
J4 HD-SDI adaptor board interface
connector
2 x 25 ways, 2.54x1.27 header
(Matching connector type : DF13-40DS-1.25C)
(Matching ribbon cable : P/N 426171100-3)
IR1 Infra-Red sensor connector JST 3-way, B3B-XH-A (Matching type : XHP-3)
LED1 Dual color LED connector Header pin 3x1
P1 VGA analog input DB-15 way high density 3 row
P2 DVI-D input DVI-D connector
Page 13
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
13 of 55
PP2/PP3 Power input (alternative) DC power Molex 2 pin 0.156” pitch
PP4 External panel power input Molex 43045-0400 compatible
(Matching connector type : Molex 43025-0400 compatible)
(Matching power cable : P/N 426013700-3)
PP5 Power input Molex 43650-0200 compatible
(Matching connector type : Molex 43645-0200 compatible)
(Matching power cable : P/N 426013800-3)
SW3 Panel selection 8-way DIP Switch
SW4 Function selection 6-way DIP Switch
Page 14
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
14 of 55
Summary: Jumpers setting
Ref
Purpose Note
JA2 On board +3.3V logic power enable 1-2 & 3-4 closed, factory set, do not remove
JA3 Panel power voltage select
CAUTION: Incorrect setting can damage
panel
See panel voltage setting table 1
JA5 Panel power voltage select
CAUTION: Incorrect setting will cause panel
damage
See panel voltage setting table 1
JA6 Panel power voltage select
CAUTION: Incorrect setting will cause panel
damage
See panel voltage setting table 1
JB2 Backlight inverter on/off control – signal level 2-3 = On/Off control signal ‘High’ = +5V
1-2 = On/Off control signal ‘High’ = +3.3V
Open = On/Off control signal ‘High’ = Open collector
CAUTION: Incorrect setting can damage inverter.
JB3 Backlight inverter on/off control – polarity 1-2 = control signal ‘high’ = CCFT ON
2-3 = control signal ‘low’ = CCFT ON
JB5 Backlight control type selection 1-2 = VR/Digital switch mount control
3-4 = Analog backlight brightness - voltage range 0~5V
5-6 = PWM (Pulse Width Modulation) brightness
JC1 Custom configuration Position 2 :
Closed = Enable saved color calibrated function
Position 3 :
Closed = Enable baud rate selection function
JC2 Custom configuration Position 1 : Enable J3 – pin 5 (OP1) controlled by JB4
Position 2 : Enable J3 – pin 6 (OP2) controlled by JB4
Position 3 : Enable J3 – pin 21 (OP3) controlled by JB4
Position 4 : Enable J3 – pin 22 (OP4) controlled by JB4
JP6 Input power control Short = External switch control
Open = Switch mount control
JT1 S-Video Chroma -in terminator enable Open = S-video chroma input is not terminated
Close = S-video chromainput is terminated with 75Ω
JT2 S-Video luma-in terminator enable Open = S-video luma input is not terminated
Close = S-video luma input is terminated with 75Ω
JT3 Composite video-in terminator enable Open = composite input is not terminated
Close = composite input is terminated with 75Ω
JT4 Component luma-in terminator enable Open = component luma input is not terminated
Close = component luma input is terminated with 75Ω
JT5 Component Cb/Pb-in terminator enable Open = component Cb/Pb input is not terminated
Close = component Cb/Pb input is terminated with 75Ω
JT6 Component Cr/Pr-in terminator enable Open = component Cr/Pr input is not terminated
Close = component Cr/Pr input is terminated with 75Ω
JT7 Composite video 2-in terminator enable Open = composite video 2 input is not terminated
Close = composite video 2 input is terminated with 75Ω
JT8 Reserved Reserved
SW3 Panel & function selection See table 2
SW4 Panel & function selection See table 3
Page 15
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
15 of 55
Table 1 : Panel voltage setting table :
Input voltage via
PP2/PP3, PP5 Panel Voltage JA3 JA5
JA6 Jumper on board
3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4
5V 5V closed 1-3 & 2-4 1-3 & 2-4
12VDC
12V OPEN 1-3 & 2-4 5-7 & 6-8
CAUTION: Incorrect setting can damage panel & controller
Input voltage via
PP2/PP3, PP5 Panel Voltage JA3
JA5 JA6 Jumper on board
3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4
5V 5V closed 1-3 & 2-4 1-3 & 2-4
12V 12V closed 1-3 & 2-4 3-5 & 4-6
24VDC**
18V
18V closed 1-3 & 2-4 3-5 & 4-6
CAUTION: Incorrect setting can damage panel & controller
** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input.
Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2/PP3 or PP5.
Page 16
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
16 of 55
Input voltage via
PP4 Panel Voltage JA3 JA5 JA6 Jumper on board
3.3V OPEN 3-5 & 4-6 1-3 & 2-4
5V OPEN 3-5 & 4-6 1-3 & 2-4
12V OPEN 3-5 & 4-6 3-5 & 4-6
3.3 / 5 / 12 /
18VDC*
18V
OPEN 3-5 & 4-6 3-5 & 4-6
* Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V =
3.5A
JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5
& JA6 which are red in color)
!
!
JA3
Page 17
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
17 of 55
Table 2 : DIP Switch selection – SW3
Pos #1 Pos #2 Pos #3 Pos.#4 Description Panel resolution
For WUXGA panels
OFF ON ON OFF LG LM260WU1-SLB1 1920x1200
ON ON ON OFF LG LM240WU2-SLA1 1920x1200
OFF OFF OFF OFF Sharp LQ445D3LZ19 1920x1080
ON OFF OFF OFF Samsung LTA460H2-L02 1920x1080
OFF ON OFF OFF Sharp LQ170M1LZ04 1920x1200
ON ON OFF OFF Samsung LTA700HH-LH1 (1st trial testing) 1920x1080
OFF OFF ON OFF Samsung LTA700HH-LH1 (2nd trial testing) 1920x1080
For UXGA panels
OFF OFF OFF OFF Fujitsu FLC59UXC8V-02A 1600x1200
ON OFF OFF OFF Samsung LTM213U6-L01 1600x1200
For WXGA panels
OFF OFF OFF OFF LG LC420W02-A4 1366x768
ON OFF OFF OFF Sharp LQ315T3LZ24 1366x768
ON ON OFF OFF Samsung LTA320W2-L01 / LTA230W1-L02 1366x768
ON ON ON ON NEC NL12876BC26-21 / Samsung LTM170W1-L01 1280x768
OFF ON ON ON CHI MEI N154I4-L01 1280x800
OFF OFF ON OFF AU Optronics M190PW01 1440x900
OFF OFF ON ON Sharp LQ072K1LA03
(1)
1280x768
For SXGA panel
OFF OFF OFF OFF Sharp LQ181E1LW31 1280x1024
ON OFF OFF OFF AU Optronics M170EN05 1280x1024
For XGA panel
OFF OFF OFF OFF Sharp LQ150X1LGN2A 1024x768
Sharp LQ150X1LGB1 1024x768
For SVGA panel
OFF OFF OFF OFF Sharp LQ121S1DG11/41 800x600
Toshiba LTM08C351 800x600
For WVGA panel
OFF OFF OFF OFF NEC NL8048BC24-01 800x480
ON OFF OFF OFF Kyocera TCG085WV1AB-G00 800x480
For VGA panel
OFF OFF OFF OFF Sharp LQ104V1DG51 640x480
ON OFF OFF OFF Sharp LQ104V1DG21 640x480
Kyocera TCG075VG2AC-G00 640x480
Others
OFF ON OFF OFF AU Optonics M201EW02 V8 1680x1050
Remark : The above panel timings are copy the panel data direct from SVX-1920. Some of the panel timings settings
may not exactly to match the panel model we specified in this table.
Pos #5 Pos #6 Pos #7 Description
OFF OFF OFF WUXGA
ON OFF OFF UXGA
OFF ON OFF SXGA
ON ON OFF WXGA
OFF OFF ON XGA
ON OFF ON SVGA
OFF ON ON VGA
ON ON ON WVGA / Others
Pos. #8 Reserved
Table 3 : DIP switch selection – SW4
Pos. # Function Description
1 Reserved
2 Panel pixel format OFF : Double Pixel
ON : Single Pixel
3 Panel selection ON : LVDS panel
OFF : Reserved
4 LVDS data mapping select
(Refer to Table 2)
If SW4 position 5 = OFF (8 bit)
OFF : Mapping B
ON : Mapping A
Please adjust to get the correct picture. See as Appendix I for details of
mapping of A and B.
5 Output LVDS display mode selection OFF : 8 bit
6 Reserved
Page 18
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
18 of 55
CN3 – Panel connector: HIROSE DF20G-50DP-1V (Matching type : DF20A-50DS-1C)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 GND Ground
3 P_R0 Data bit R0
4 P_R1 Data bit R1
5 P_R2 Data bit R2
6 P_R3 Data bit R3
7 P_R4 Data bit R4
8 P_R5 Data bit R5
9 P_R6 Data bit R6
10 P_R7 Data bit R7
11 Reserved Reserved
12 Reserved Reserved
13 GND Ground
14 GND Ground
15 P_G0 Data bit G0
16 P_G1 Data bit G1
17 P_G2 Data bit G2
18 P_G3 Data bit G3
19 P_G4 Data bit G4
20 P_G5 Data bit G5
21 P_G6 Data bit G6
22 P_G7 Data bit G7
23 Reserved Reserved
24 Reserved Reserved
25 GND Ground
26 GND Ground
27 P_B0 Data bit B0
28 P_B1 Data bit B1
29 P_B2 Data bit B2
30 P_B3 Data bit B3
31 P_B4 Data bit B4
32 P_B5 Data bit B5
33 P_B6 Data bit B6
34 P_B7 Data bit B7
35 Reserved Reserved
36 Reserved Reserved
37 GND Ground
38 GND Ground
39 VS Vertical sync
40 CLK Dot clock
41 HS Horizontal sync
42 DE Display enable
43 PWR Power down control signal (5v TTL)
44 VLCD Panel power supply (3.3v/5v configurable)
45 VLCD Panel power supply (3.3V/5v configurable)
46 VLCD Panel power supply (3.3V/5v configurable)
47 NC No connection
48 VLCD12/18 +12V / +18V panel supply (selected by JA3, JA5 & JA6)
49 VLCD12/18 +12V / +18V panel supply (selected by JA3, JA5 & JA6)
50 VLCD12/18 +12V / +18V panel supply (selected by JA3, JA5 & JA6)
CN4 – Panel connector: HIROSE DF20G-10DP-1V (Matching type : DF20A-10DS-1C)
PIN SYMBOL DESCRIPTION
1 OP1 Reserved
2 OP2 Reserved
3 OP3 Reserved
4 OP4 Reserved
5 IP1 Reserved
6 IP2 Reserved
7 IP3 Reserved
8 IP4 Reserved
9 EXT_MSTR2_SDA Reserved
10 EXT_MSTR2_SCL Reserved
CN7 - Audio connector: DIL socket header 5x2 right angle [OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]
PIN SYMBOL DESCRIPTION
1 VCC Audio board logic power supply, +5V
2 VOLSEL0 Reserved
Page 19
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
19 of 55
3 VOLSEL1 Reversed
4 TUNAUDSEL Reserved
5 CLK/CNT Reserved
6 GND Ground
7 +12V/+24V Audio board power supply, +12V/+24V
8 NC No connection
9 NC No connection
10 GND Ground
CN8 – RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6)
PIN SYMBOL DESCRIPTION
1 SDATA Reserved
2 SCLK Reserved
3 VCC +5V
4 TXD RS-232 Tx data
5 GND Ground
6 RXD RS-232 Rx data
CN9 – Ambient light sensor connector : JST B3B-PH-K (Matching type : PHR-3)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 VCC_5V VCC 5V
3 ALSF Ambient light sensing feedback
CNA1 - Auxiliary power output: JST B4B-XH-A (Matching type : XHP-4)
PIN SYMBOL DESCRIPTION
1 AUX 12V / 24V +12V / +24V DC, 500mA max
2 GND Ground
3 GND Ground
4 AUX 5V +5V DC, 500mA max
CNA2 - Auxiliary power output: JST B2B-PH-K (Matching type : PHR-2)
PIN SYMBOL DESCRIPTION
1 Vcc_5V +5V DC, 500mA max with fuse
2 GND Ground
CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 VBKL +12V / +24V DC, backlight power supply
3 BLCTRL On/Off control (enable) – see JB2 & JB3
4 BVR_WIP Brightness VR – WIP
5 BVR_A Brightness VR A
CNC1 – Function controls connector: JST B12B-XH-A (Matching type : XHP-12)
PIN SYMBOL DESCRIPTION
1 PSWIN Power switch A
2 SW_ON Power switch B
3 BVR_A Backlight brightness VR pin A
4 BVR_WIP Backlight brightness VR pin WIP
5 BVR_B
Backlight brightness VR pin B (470Ω resistor to +5V Vcc)
6 GND Ground
7 MENU OSD menu button
8 -/LEFT OSD -/Left button
9 +/RIGHT OSD +/Right button
10 SEL_DN OSD Select down button
11 SEL_UP OSD Select up button
12 NC No connection
The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.
CNV1 – Alternate Video in input, JST B5B-PH-K (Matching type : PHR-5)
PIN DESCRIPTION
1 S-Video 1 : Chroma in
2 S-Video 1 : Luma in
3 Ground
4 Ground
5 Composite video 1 in
CNV2 – Component Video in input, JST B6B-PH-K (Matching type : PHR-6)
PIN DESCRIPTION
Page 20
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
20 of 55
1 Y in_1 /Green in
2 Ground
3 Cb/Pb in_1 / Blue in
4 Ground
5 Cr/Pr in_1 / Red in
6 Ground
CNV5 – Auxiliary Video input connector, DIL socket header 13x2
PIN DESCRIPTION
1 S-Video 1 : Chroma in
2 Ground
3 S-Video 1 : Luma in
4 Ground
5 Composite video 1 in
6 Ground
7 Y in_1
8 Ground
9 Cb/Pb in_1
10 Ground
11 Cr/Pr in_1
12 Ground
13 S-Video 2 : Chroma in
14 Ground
15 S-Video 2 : Luma in
16 Ground
17 Composite video in 2
18 Ground
19 Cr/Pr in_2
20 Ground
21 Y in_2
22 Ground
23 Cb/Pb in_2
24 Ground
25 NC
26 Ground
IR1 – Infra-Red sensor connector: JST B3B-XH-A (Matching type : XHP-3)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 STDBY_Vcc Stand by voltage
3 IR Data IR data
J3 – LVDS Panel connector: Hirose, DF13A-40DP-1.25DSA (Matching type : DF13-40DS-1.25C)
PIN SYMBOL DESCRIPTION
1 TXA0+ Positive differential LVDS data bit A0
2 TXA0- Negative differential LVDS data bit A0
3 TXA1+ Positive differential LVDS data bit A1
4 TXA1- Negative differential LVDS data bit A1
5 OP1 6 OP2 7 TXA2+ Positive differential LVDS data bit A2
8 TXA2- Negative differential LVDS data bit A2
9 TXA3+ Positive differential LVDS data bit A3
10 TXA3- Negative differential LVDS data bit A3
11 TXA4+ Positive differential LVDS data bit A4
12 TXA4- Negative differential LVDS data bit A4
13 TXAC+ Positive LVDS clock for A channel
14 TXAC- Negative LVDS clock for A channel
15 TXB4+ Positive differential LVDS data bit B4
16 TXB4- Negative differential LVDS data bit B4
17 TXB0+ Positive differential LVDS data bit B0
18 TXB0- Negative differential LVDS data bit B0
19 TXB1+ Positive differential LVDS data bit B1
20 TXB1- Negative differential LVDS data bit B1
21 OP3 22 OP4 23 TXB2+ Positive differential LVDS data bit B2
24 TXB2- Negative differential LVDS data bit B2
25 TXB3+ Positive differential LVDS data bit B3
26 TXB3- Negative differential LVDS data bit B3
Page 21
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
21 of 55
27 GND Ground
28 GND Ground
29 TXBC+ Positive LVDS clock for B channel
30 TXBC- Negative LVDS clock for B channel
31 GND Ground
32 GND Ground
33 VDD (3,3V/5V) Panel power supply (3,3V/5V)
34 VDD (3,3V/5V) Panel power supply (3,3V/5V)
35 VDD (3,3V/5V) Panel power supply (3,3V/5V)
36 VDD (3,3V/5V) Panel power supply (3,3V/5V)
37 NC No connection
38 VDD +12V / +18V Panel power supply (+12V/18V) (selected by JA3, JA5 & JA6)
39 VDD +12V / +18V Panel power supply (+12V/18V) (selected by JA3, JA5 & JA6)
40 VDD +12V / +18V Panel power supply (+12V/18V) (selected by JA3, JA5 & JA6)
J4 – LVDS Panel connector: Hirose, DF13A-40DP-1.25DSA (Matching type : DF13-40DS-1.25C)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 GND Ground
3 N.C No connection
4 N.C No connection
5 N.C No connection
6 N.C No connection
7 CbCr0 (Input) CbCr0 (Input)
8 Y0 (Input) Y0 (Input)
9 CbCr1 (Input) CbCr1 (Input)
10 Y1 (Input) Y1 (Input)
11 CbCr2 (Input) CbCr2 (Input)
12 Y2 (Input) Y2 (Input)
13 CbCr3 (Input) CbCr3 (Input)
14 Y3 (Input) Y3 (Input)
15 CbCr4 (Input) CbCr4 (Input)
16 Y4 (Input) Y4 (Input)
17 CbCr5 (Input) CbCr5 (Input)
18 Y5 (Input) Y5 (Input)
19 CbCr6 (Input) CbCr6 (Input)
20 Y6 (Input) Y6 (Input)
21 CbCr7 (Input) CbCr7 (Input)
22 Y7 (Input) Y7 (Input)
23 N.C No connection
24 N.C No connection
25 VCC(5V) VCC(5V)
26 VCC (5V) VCC (5V)
27 CLOCK (Input) CLOCK (Input)
28 SCLK_TCK(control pin) SCLK_TCK(control pin)
29 GND Ground
30 SDIN_TDI(control pin) SDIN_TDI(control pin)
31 Field (Input) Field (Input)
32 SDOUT_TDO(control pin) SDOUT_TDO(control pin)
33 V sync (Input) V sync (Input)
34 CS_TMS(control pin) CS_TMS(control pin)
35 H sync (Input) H sync (Input)
36 GND Ground
37 GND Ground
38 N.C No connection
39 N.C No connection
40 N.C No connection
41 HDSDI_LOCK (control pin) HDSDI_LOCK (control pin)
42 N.C No connection
43 GND Ground
44 GND Ground
45 N.C No connection
46 N.C No connection
47 N.C No connection
48 HDSDI_IPSEL (control pin) HDSDI_IPSEL (control pin)
49 GND Ground
50 HDSDI_CAB (control pin) HDSDI_CAB (control pin)
Page 22
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
22 of 55
LED1 – Status LED connector: 3-pin header
PIN DESCRIPTION
1 Green LED pin (anode)
2 LED pin common (cathode)
3 Red LED pin (anode)
P1 - Analog VGA in - 15 way connector
PIN SYMBOL DESCRIPTION
1 PCR Red, analog
2 PCG Green, analog
3 PCB Blue analog
4 ID2 Reserved for monitor ID bit 2 (grounded)
5 DGND Digital ground
6 AGND Analog ground red
7 AGND Analog ground green
8 AGND Analog ground blue
9 DDC_5V +5V power supply for DDC (optional)
10 DGND Digital ground
11 ID0 Reserved for monitor ID bit 0 (grounded)
12 DDC_SDA DDC serial data
13 HS_IN Horizontal sync or composite sync, input
14 VS_IN Vertical sync, input
15 DDC_SCL DDC serial clock
P2 – DVI-D in
PIN SYMBOL DESCRIPTION
1 /RX2 TMDS Data 2-
2 RX2 TMDS Data 2+
3 GND Digital Ground
4 NC No connection
5 NC No connection
6 DDC_CLK DDC Clock
7 DDC_DAT DDC Data
8 NC No connection
9 /RX1 TMDS Data 110 RX1 TMDS Data 1+
11 GND Digital Ground
12 NC No connection
13 NC No connection
14 DDC_5V +5V power supply for DDC (optional)
15 GND Ground (+5, Analog H/V Sync)
16 NC No connection
17 /RX0 TMDS Data 018 RX0 TMDS Data 0+
19 GND Digital Ground
20 NC No connection
21 NC No connection
22 GND Digital Ground
23 RXC TMDS Clock+
24 /RXC TMDS Clock-
C1 NC No connection
C2 NC No connection
C3 NC No connection
C4 HS_IN Analog horizontal sync
C5 GND Ground
C6 NC No connection
PP2/PP3 – Alternate 12V/24VDC power supply
PIN DESCRIPTION
1 +12VDC / 24VDC in
2 Ground
PP4 – External panel power input
PIN DESCRIPTION
1 External panel power
2 Ground
3 External panel power
4 Ground
Page 23
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
23 of 55
PP5 - 12V/24VDC power supply
PIN DESCRIPTION
1 +12V / +24VDC
2 Ground
Page 24
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
24 of 55

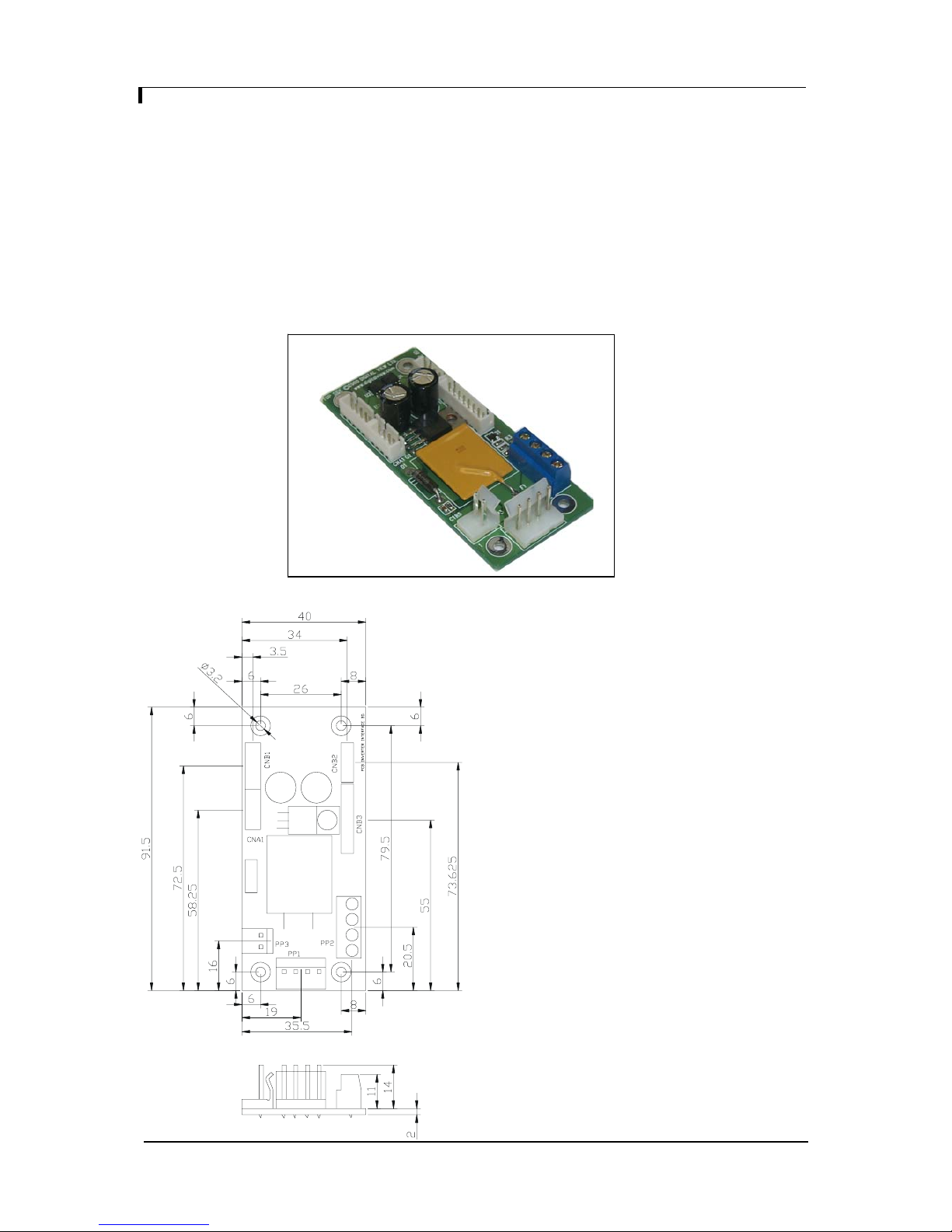

CONTROLLER DIMENSIONS
Ready-made 3D Pro-E (SLDPRT) drawing files - Save time and effort for your system volumetric analysis design.
Includes jpg file previews. Please go to download at http://www.digitalview.com/drawing/SVH-1920+_-2X_3D_Drawing.zip
.
The maximum thickness of the controller is 20.65mm with or without video add-on board (measured from bottom of
PCB to top of components, including any underside components & leads). We recommend clearances of:
• 5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation
material is added to the mounting plate surface.
• 10mm above the components
• 3~5mm around the edges
Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.
CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high
voltage parts such as the inverter.
Page 25
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
25 of 55
APPLICATION NOTES
USING THE CONTROLLER WITHOUT BUTTONS ATTACHED
This is very straightforward:
• Firstly setup the controller/display system with the buttons. With controls attached and display system active make any
settings for colour, tint and image position as required then switch everything off.
• Remove the control switches, the 12-way (CNC1) cable.
• Use a jumper or similar to connect pins 1 & 2 on CNC1, this will fix the board On.
• Refer to inverter specifications for details as to fixing brightness to a desired level, this may require a resistor, an open
circuit or closed circuit depending on inverter.
Summary: On CNC1 the only pins that are used are for On/Off and Brightness (if controller mounted inverter is used). On
CNC1 the pins are for momentary type buttons so it doesn’t matter that no buttons are attached.
INVERTER CONNECTION
There are potentially 3 issues to consider with inverter connection:
• Power
• Enable
• Brightness
Please read the following sections for a guide to these issues.
Inverter Power: As per the table for CNB1 pin 1 is ground and pin 2 provides 12V/24V DC. This should be matched with the
inverter specification: see table.
CNB1
PIN DESCRIPTION
1 Ground
2 +12V/+24VDC
Remark: For higher power inverter, more current (for 12V/24V) can be taken from CNA1 pin 1.
Enable: This is a pin provided on some inverters for On/Off function and is used by this panel controller for VESA DPMS
compliance. If the inverter does not have an enable pin or the enable pin is not used then DPMS will not be operational. Pin 3
should be matched to the inverters specification for the ‘enable’ or ‘disable’ pin.
CNB1
PIN DESCRIPTION
3 Enable
Further, jumpers JB2 & JB3 should be set to match the inverters specification for the enable pin power and High or Low setting:
see table.
Ref
Purpose Note
JB2 Inverter enable voltage 1-2 H = 12V/24V, 2-3 H = 5V (Vcc), OPEN H = open collector
JB3 Inverter control 1-2 H = On, 2-3 L = On
Brightness: There are various methods for brightness control and it is important to consider the specifications for the inverter to
be used. Generally the situation is:
• Brightness can control by using a resistor or VR (Variable Resistor).
• Brightness controlled by adding a circuit such as PWM (Pulse Width Modulation).
• No adjustment of brightness is possible.
CNB1 pins 4 & 5 are available for connecting to an inverter or circuit where VR control is supported.
CNB1
PIN DESCRIPTION
4 VR WIP
5 VR A
This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table.
CNC1
PIN DESCRIPTION
3 VR A
4 VR WIP
5 VR B
Page 26
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
26 of 55
Design Guideline for making VR circuitry :
CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)
PIN SYMBOL DESCRIPTION
1 GND Ground
2 VBKL +12V/24VDC, backlight power supply
3 BLCTRL On/Off control (enable) – see JB2 & JB3
4 BVR_WIP Brightness VR - WIP
5 BVR_A Brightness VR A
CNC1 – Control switch, JST B12B-XH-A (Matching type : XHP-12)
PIN SYMBOL DESCRIPTION
1 PSWIN Power button A
2 SW_ON Power button B
3 BVR_A Backlight Brightness VR pin A
4 BVR_WIP Backlight Brightness R pin WIP
5 BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc)
6 GND Ground
7 MENU OSD menu
8 -/LEFT OSD -/Left
9 +/RIGHT OSD +/Right
10 SEL_DN OSD Select down
11 SEL_UP OSD Select up
12 NC No connection
The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

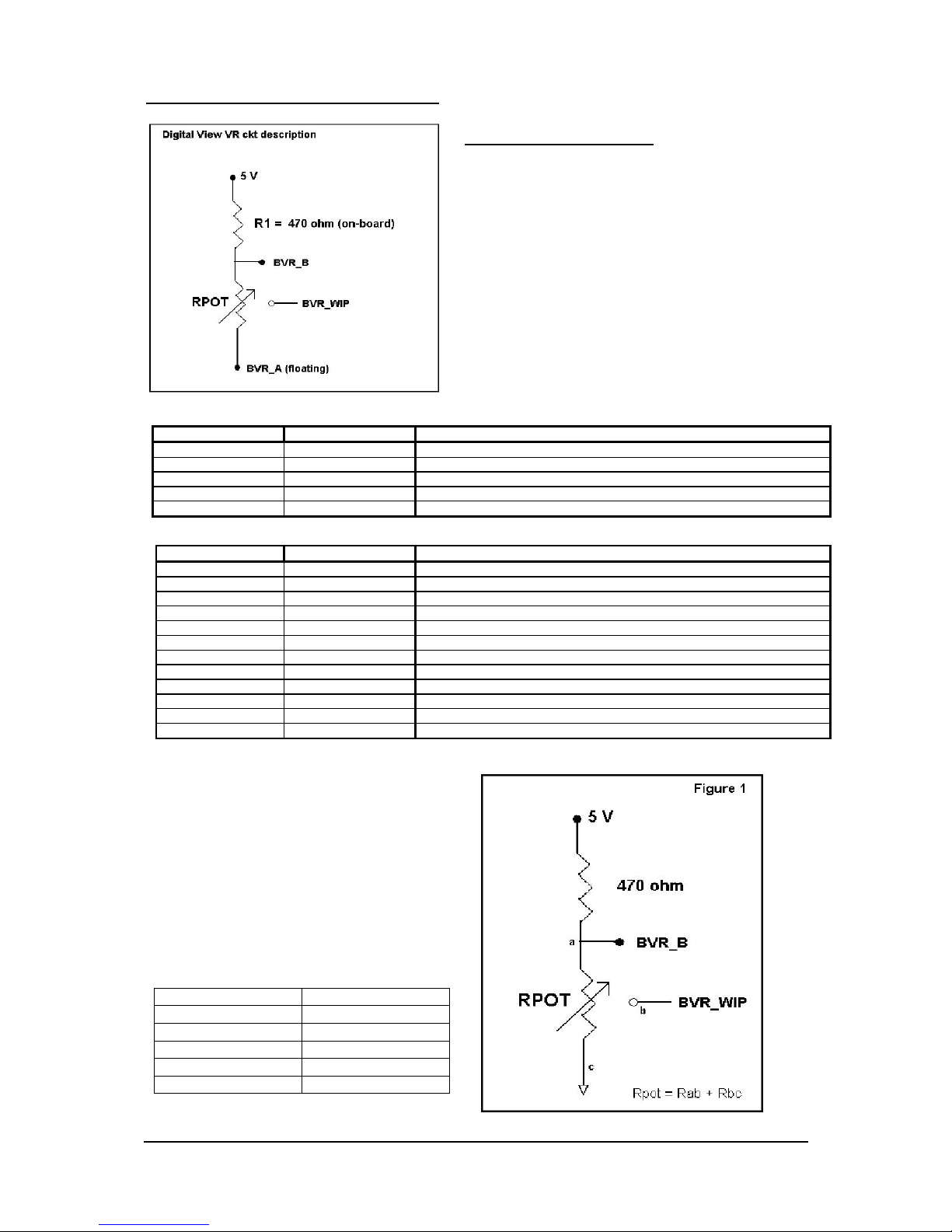

Example for circuit design :
Signal description / Notes :
1) R1 : 470ohm on board
2) RPOT is an external potentiometer (in-line dip
style) that can be plugged directly into CNC1 pins
3,4,5. RPOT must be supplied / installed by user.
3) BVR_B : Voltage tapped from “top” of
potentiometer, the node of R1 and RPOT.
4) BVR_WIP : Voltage tapped from wiper arm of
RPOT.
5) BVR_A : Voltage tapped from “bottom” of
RPOT.
Note : BVR_A voltage is left floating on the
controller board. To use this circuit, you need
to tie this point to a potential (usually GND,
available at CNC1
p
in 6).
1.)Choose RPOT = 10K
2.) Tie BVR_A to GND
3.) Circuit analysis gives BVR_WIP as the
following (see Figure 1)
BVR_WIP = 5 x (Rbc/10.47)
where BVR_WIP is in Volts.
And Rbc is the resistance from the wiper arm
to bottom of pot in Kohms.
To evaluate, plug in different values of Rbc :
Rbc BVR_WIP
0 0 V
2.5 K 1.2 V
5 K 2.4 V
7.5 K 3.6 V
10 K 4.8 V
So this circuit could provide Brightness
adjust voltage ranging from 0V to 5V.
Page 27
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
27 of 55
TROUBLESHOOTING
General
A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as:
Controller (jumpers, PC settings)
Panel (controller, cabling, connection, panel, PC settings)
Backlight (inverter, cabling, backlight tubes)
Cabling
Computer system (display settings, operating system)
Through step by step cross checking with instruction manuals and a process of elimination to isolate the problem it is usually
possible to clearly identify the problem area.
No image:
If the panel backlight is not working it may still be possible to just see some image on the display.
A lack of image is most likely to be caused by incorrect connection, lack of power, failure to provide a signal or incorrect
graphic card settings.
Image position:
If it is impossible to position the image correctly, i.e. the image adjustment controls will not move the image far enough, then
test using another graphics card. This situation can occur with a custom graphics card that is not close to standard timings or if
something is in the graphics line that may be affecting the signal such as a signal splitter (please note that normally a signal
splitter will not have any adverse effect).
Image appearance:
A faulty panel can have blank lines, failed sections, flickering or flashing display
Incorrect graphics card refresh rate, resolution or interlaced mode will probably cause the image to be the wrong size, to
scroll, flicker badly or possibly even no image.
Incorrect jumper settings on the controller may cause everything from total failure to incorrect image. CAUTION: Do not set
the panel power input incorrectly.
Sparkling on the display: faulty panel signal cable.
Backlight:
Items to check include: Power input, Controls, Inverter and Tubes generally in this order.
If half the screen is dimmer than the other half:
Check cabling for the inverter.
For a specific backlight tube check the AC pins orientation (CAUTION: Never reverse any DC power pins).
Also:
If adjusting brightness control has no effect the chances are that the VR rating or method of adjusting brightness is not
compatible or correctly connected to the inverter.
If system does not power down when there is a loss of signal
Continued failure:
If unit after unit keeps failing consider and investigate whether you are short circuiting the equipment or doing something else
seriously wrong.
Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to
isolate the problem.
Page 28
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
28 of 55
SPECIFICATIONS
Panel compatibility Compatible with 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900
1366x768, 1280x1024, 1024x768, 800x600 & 640x480 resolutions of TFT LCD
panels.
A specified BIOS and some factory adjustment may be required for individual panel
timings.
No. of colours Up to 3 x 10 bit providing 1.06 billion colours.
Panel power DC 3.3V, 5V, 12V, 18V
Panel signal LVDS, TTL single pixel
Vertical refresh rate 60Hz at 1920x1200, 60Hz at 1920x1080, 60Hz at UXGA and up to 75Hz other
lower resolution
Display clock maximum 165MHz
ADC clock maximum 195 MHz
DVI differential input clock maximum 165MHz
Graphics formats Standard VESA VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA
Other special formats through specified BIOS and factory adjustment.
Graphics auto mode detect VGA, SVGA, XGA, SXGA, WXGA, UXGA & WUXGA interlaced and non-interlaced
Standard input at source (analog RGB) VGA analog (15 pin) standard with automatic detection of:
Digital Separate Sync;
Composite Sync
Sync On Green.
Video formats PAL, NTSC & SECAM
Video inputs ARGB
DVI-D
Composite video 1
Composite video 2
S-Video 1
S-Video 2
Component video 1
Component video 2
HD-SDI 1
HD-SDI 2
Functions display On screen display (OSD) of functions
OSD menu functions Image controls:
Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Video
Scaling, PIP, OSD position, OSD timeout, Image orientation, Auto Source Seek,
etc.
OSD menu controls available Power On/Off
Backlight brightness
OSD Menu
OSD Select up
OSD Select down
Setting +
Setting Control interface Buttons, RS-232, Remote control
Settings memory Settings are stored in non volatile memory
PC Connectivity VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital
Controller dimensions 179mm x 120.4mm (7.” x 4.74”)
Power consumption 10w approx. (not including panel power consumption)
Power load maximum The controller has an overall 3Amp current limit.
Input voltage 12V/24VDC +/- 5%
Power protection Fuse fitted (Resettable)
DC Power handling Reverse power polarity protection is equipped on the board
Storage temperature limits -40oC to +70oC
Operating temperature limits 0oC to +60oC
NOTES
Please note the following:
• For specific panel setup a sample of an LCD may be required (this will be returned) and a copy of the full
technical specifications for the panel from the manufacturer.
• Re-layout and custom development services are available.
Page 29
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
29 of 55
APPENDIX I – SIGNAL SUPPORT MODE TABLE
ARGB (P1) PORT :
Mode Resolution Clk [MHz] Horizontal
freq [KHz]
Vertical
freq [Hz]
Sync Mode
T_70 720x400
70Hz
28.322 31.469 70.087 Digital Separate Sync
T_70 720x400
70Hz
28.322 31.469 70.087 Sync On Green
V_60 640x480
60Hz
25.175 31.469 59.940 Digital Separate Sync
V_60 640x480
60Hz
25.175 31.469 59.940 Sync On Green
V_60 640x480
60Hz
25.175 31.469 59.940 Composite Sync
V_72 640x480
72Hz
31.500 37.861 72.809 Digital Separate Sync
V_72 640x480
72Hz
31.500 37.861 72.809 Sync On Green
V_72 640x480
72Hz
31.500 37.861 72.809 Composite Sync
V_75 640x480
75Hz
31.500 37.500 75.000 Digital Separate Sync
V_75 640x480
75Hz
31.500 37.500 75.000 Sync On Green
V_75 640x480
75Hz
31.500 37.500 75.000 Composite Sync
SV_56 800x600
56Hz
36.000 35.156 56.250 Digital Separate Sync
SV_56 800x600
56Hz
36.000 35.156 56.250 Sync On Green
SV_56 800x600
56Hz
36.000 35.156 56.250 Composite Sync
SV_60 800x600
60Hz
40.000 37.879 60.317 Digital Separate Sync
SV_60 800x600
60Hz
40.000 37.879 60.317 Sync On Green
SV_60 800x600
60Hz
40.000 37.879 60.317 Composite Sync
SV_72 800x600
72Hz
50.000 48.077 72.188 Digital Separate Sync
SV_72 800x600
72Hz
50.000 48.077 72.188 Sync On Green
SV_72 800x600
72Hz
50.000 48.077 72.188 Composite Sync
SV_75 800x600
75Hz
49.500 46.875 75.000 Digital Separate Sync
SV_75 800x600
75Hz
49.500 46.875 75.000 Sync On Green
SV_75 800x600
75Hz
49.500 46.875 75.000 Composite Sync
X_60 1024x768
60Hz
65.000 48.363 60.004 Digital Separate Sync
Page 30
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
30 of 55
X_60 1024x768
60Hz
65.000 48.363 60.004 Sync On Green
X_60 1024x768
60Hz
65.000 48.363 60.004 Composite Sync
X_70 1024x768
70Hz
75.000 56.476 70.069 Digital Separate Sync
X_70 1024x768
70Hz
75.000 56.476 70.069 Sync On Green
X_70 1024x768
70Hz
75.000 56.476 70.069 Composite Sync
X_75 1024x768
75Hz
78.750 60.023 75.029 Digital Separate Sync
X_75 1024x768
75Hz
78.750 60.023 75.029 Sync On Green
X_75 1024x768
75Hz
78.750 60.023 75.029 Composite Sync
SX_60 1280x1024
60Hz
108 63.81 60.020 Digital Separate Sync
SX_60 1280x1024
60Hz
108 63.81 60.020 Sync On Green
SX_60 1280x1024
60Hz
108 63.81 60.020 Composite Sync
SX_75 1280x1024
75Hz
135 79.976 75 Digital Separate Sync
SX_75 1280x1024
75Hz
135 79.976 75 Sync On Green
SX_75 1280x1024
75Hz
135 79.976 75 Composite Sync
UX_60 1600x1200
60Hz
162 75.000 60 Digital Separate Sync
UX_60 1600x1200
60Hz
162 75.000 60 Sync On Green
UX_60 1600x1200
60Hz
162 75.000 60 Composite Sync
WUX_60 1920x1080
60Hz
172.8 67.5 60 Digital Separate Sync
WUX_60 1920x1080
60Hz
172.8 67.5 60 Sync On Green
WUX_60 1920x1080
60Hz
172.8 67.5 60 Composite Sync
WUX_60 1920x1200
60Hz
193.2 74.5 60 Digital Separate Sync
WUX_60 1920x1200
60Hz
193.2 74.5 60 Sync On Green
WUX_60 1920x1200
60Hz
193.2 74.5 60 Composite Sync
Remark :
The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics
performance we recommend choosing 60Hz vertical refresh rate. To support on higher refresh rate over 60Hz, the
LCD panel may not support.
Page 31
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
31 of 55
COMPOSITE, S-VIDEO & COMPONENT VIDEO INPUT PORT :
System Resolution Horizontal freq
[KHz]
Vertical freq
[Hz]
NTSC 720x480i 15.7 60
NTSC 4.43 720x480i 15.7 60
PAL 720x576i 15.6 50
PAL M 720x576i 15.6 50
SECAM 720x576i 15.6 50
Page 32
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
32 of 55
Appendix II – RS-232 control protocols
RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity)

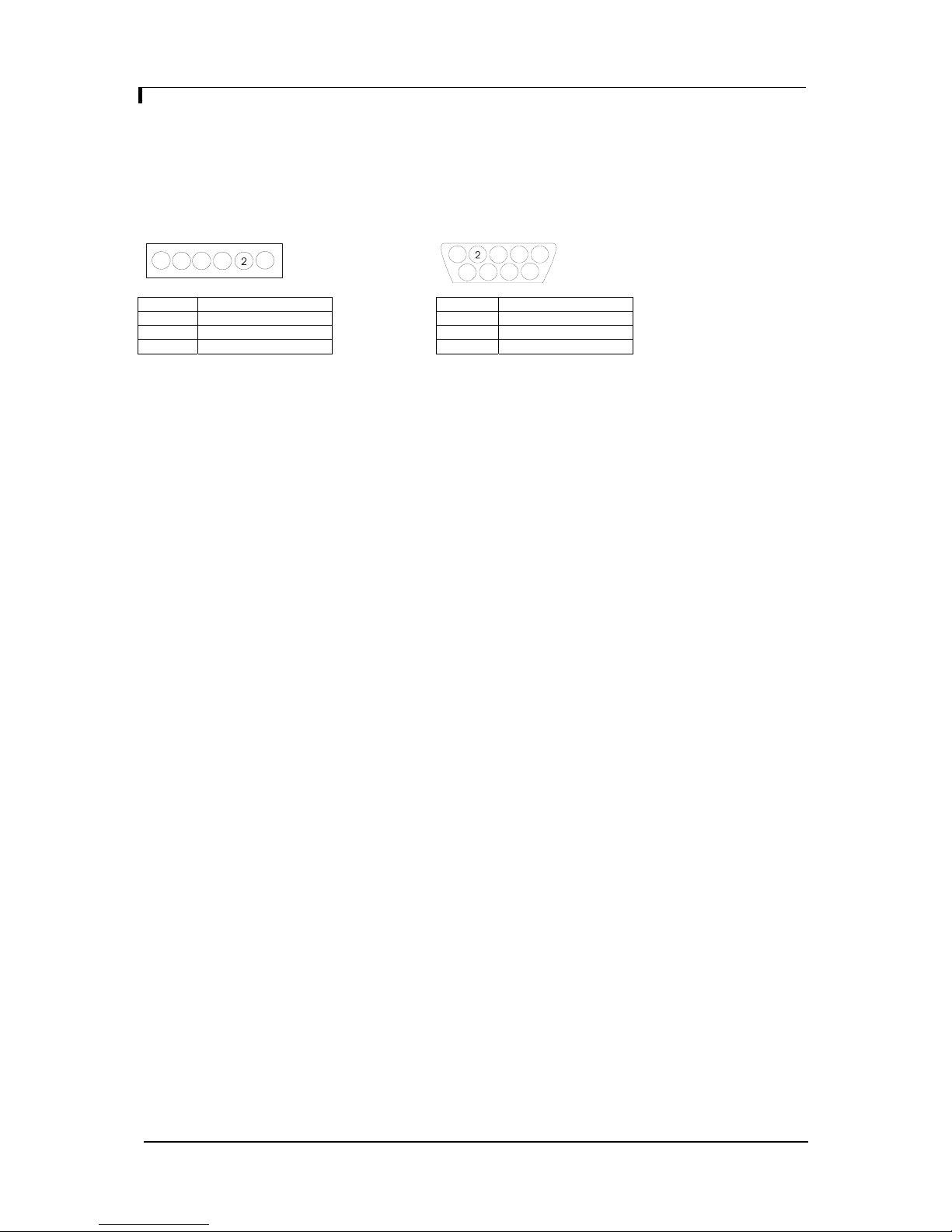

Physical connection :
Controller side Computer side
Connector interface : CN8 Connector interface : Serial port
Mating connector : JST XHP-6 Mating connector : DB9 Female
PIN# Description PIN# Description
4 RS-232 Tx Data 2 RS-232 Rx Data
5 Ground 3 RS-232 Tx Data
6 RS-232 Rx Data 5 Ground
Remark :
(1) : RS-232 connection cable, 600mm P/N 4260902-00 can be ordered separately for connection.
Software connection :
The OSD function can be controlled through sending the RS-232 protocol.
The RS-232 program can be custom-made to fit for application or it can be used the serial control program, like Accessport,
Telix or Serial Utility program developed by DigitalView. Please contact your local support for information.
54
6
3
1
7
8
9
Mating face of CN8 Mating face of RS-232 DB9 Male
5 463
1
Page 33
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
33 of 55
1. Commands to implement switch mount control buttons
Function Command Description Remark
Menu button 0xf7 Menu button pressed Button equivalent
Select-down
button
0xfa Select-down button pressed Button equivalent
Select-up button 0xfb Select-up button pressed Button equivalent
Right/+ button 0xfc Right/+ button pressed Button equivalent
Left/- button 0xfd Left/- button pressed Button equivalent
2. Parameter setting - immediate, relativ e, reset and query
Function Command Description Acknowledge (if enabled)
Volume control left+right channel
0x80, “a” | “A”,
nn | “+” | “-” |
“r” | “R” |
“?”
Set audio (L+R) volume =
value/increment/decrement
Reset
Query
volume
Range : “0””0”-“1””E”
Default : “0””F”
Volume control on/off (mute)
0x80, “m” | “M”,
“0” |
“1” |
“r” | “R” |
“?”
Disable audio output.
Enable audio output.
Reset
Query
“0” - audio off (muted).
“1” - audio on.
Brightness control 0x81,
nn | “+” | “-” |
“r” | “R” |
“?”
Set brightness =
value/increment/decrement
Reset
Query
Brightness.
Range : “4””E”-“B””2”
Default : “8””0”
Contrast control all channels
0x82, “a” | “A”,
nn | “+” | “-” |
“r” | “R” |
“?”
Set all contrast =
value/increment/decrement
Reset
Query
Contrast
Range : “1””C”-“E””4”
Default : “8””0”
Saturation control 0x83,
nn | “+” | “-” |
“r” | “R” |
“?”
Set saturation =
value/increment/decrement
Reset
Query
Range : “0””1”-“F””F”
Default : “8””0”
Hue control 0x84,
nn | “+” | “-” |
“r” | “R” |
“?”
Set hue =
value/increment/decrement
Reset
Query
NTSC tint (In NTSC mode only)
Range : “5””3”-“9””F”
Default : “7””9”
Phase (tuning)
control
0x85,
nn | “+” | “-” |
“?”
Set dot clock phase =
value/increment/decrement
Query
Dot clock phase.
(In PC mode only)
Image H position 0x86,
nnnn | “+” | “-” |
“?”
Set img_hpos =
value/increment/decrement
Query
Image horizontal position.
(In PC mode only)
Image V position 0x87,
nnnn | “+” | “-” |
“?”
Set img_vpos =
value/increment/decrement
Query
Image vertical position.
(In PC mode only)
Sharpness 0x8a,
nn | “+” | “-” |
“r” | “R” |
“?”
Set sharpness =
value/increment/decrement
Reset
Query
Sharpness.
(Video Mode Source only)
Range : “F””4”-“0””C”
Default : “0””0”
Frequency 0x8b,
nnnn | “+” | “-“ |
“?”
Set frequency =
Value/increment/decrement
Query
Graphic mode H active size (in
pixels)
Scaling Mode 0x8c,
“0” | “1” | “2” | “3” |
“9” | “A” |
“B” | “C” | “D” |
“r” | “R” |
Set graphic image scaling mode
=
value
Reset
Query
Image expansion on/off.
“0” – 1:1
“1” – fill screen
“2” – fill to aspect ratio
“9” – 4:3
Page 34
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
34 of 55
“?” “A” – 16:9
“B” – 16:10
“C” – 2.35:1
“D” – 2:1
OSD H position 0x90,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set osd_hpos =
value/increment/decrement
Reset
Query
OSD horizontal position.
Range : “0””0”-“F””F”
Default : “8””0”
OSD V position 0x91,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set osd_vpos =
value/increment/decrement
Reset
Query
OSD vertical position.
Range : “0””0”-“F””F”
Default : “8””0”
OSD
Transparency
0x92,
n | “+” | “-” |
“r” | “R” |
“?”
Set OSD transparency =
value/increment/decrement
Reset
Query
OSD transparency.
“0” – ON
“1” - OFF
OSD menu
timeout
0x93,
nn | “+” | “-” |
“r” | “R” |
“?”
Select menu timeout =
value/increment/decrement
Reset
Query
OSD menu timeout value.
“0””0” – Continuous.
value – Round up to nearest
available step.
if value > max available step, set
it to the max available step.
Range : “0””5”-“3””C”
Default : “0””A”
Select OSD
language
0x95,
n |
“r” | “R” |
“?”
Select language =
English, Chinese,…
Reset
Query
“0” – English.
“2” - French
“3” – Spanish
“6” - German
“8” – Chinese
Input main select 0x98,
nn | “+” | “-” |
“r” | “R” |
“?”
Select input main =
PC or VIDEO or next available
Reset
Query
Main selected.
“0x41,0x31” ARGB
“0x42,0x31” Composite
“0x42,0x32” Composite2
“0x43,0x31” S-video
“0x43,0x32” S-video2
“0x44,0x31” Component
“0x44,0x32” Component2
“0x45,0x31” HDSDI
“0x45,0x32” HDSDI2
“0x46,0x31” DVI
Auto Source Seek 0x99,
nn ,
“0” | “1” |
“?” |
”o”
Set Auto source enable = *1
Source
Disable/ Enable
Query
Valid Source query
“nn” =
“0x41,0x31”- ARGB
“0x42,0x31”- Composite
“0x42,0x32”- Composite 2
“0x43,0x31”- S-video
“0x43,0x32”- S-video 2
“0x44,0x31”- Component
“0x44,0x32”- Component 2
“0x45,0x31”- HDSDI
“0x45,0x32”- HDSDI2
“0x46,0x31”- DVI
Source Layout 0x9a,
n |
“r” | “R” |
“?”
Select source layout =
Single, PIP, PBP, PBPT
Reset,
Query
Query:
“0”- Single
“1”- Picture in Picture (PIP)
“2”- Picture by Picture (PBP)
“3”- Picture by Picture Tall
(PBPT)
Video System
(Composite, Svideo and
0x9b,
“0” | “1” | “2” | “3” |
“r” | “R” |
Set video system =
Auto/NTSC/PAL/SECAM
Reset
Query
“0” – Auto.
“1” – NTSC_M_358
Page 35
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
35 of 55
Component Only) “S” | “s”|
“?”
Video State Query
Query
“2” – PAL_N_443
“3” – SECAM
“4” – NTSC_M_443
“5” - PAL_M_358
“7” – PAL_M_443
“9” – PAL_N_358
Video State Query
“0” – No video.
“1” – NTSC
“2” – PAL
“3” – SECAM
“4” – NTSC 443
“5” – PAL M 358
GAMMA value
select
0x9d,
n |
“r” | “R”
“?”
Select GAMMA value =
Value
Reset
Query
GAMMA value:
“0” – 1.0, “1” – 1.6
“2” – 2.2, “3” – User Defined
“4” – 1.7, “5” – 1.8,
“6” – 1.9, “7” – 2.0,
“8” – 2.1, “9” – 2.3,
“A” – 2.4, “B” – 2.5,
“C” – 2.6,
“D” – 0.6, “E” – 0.7,
“F” – 0.8, “G” – 0.9,
“H” – 1.1, “I” – 1.2,
“J” – 1.3, “K” – 1.4,
“L” – 1.5
Auto power off 0x9f,
“0” | “1” |
“r” | “R” |
“?”
Set power down option =
On/Off
Reset
Query
“0” – Off.
“1” – On.
Hotkey 1
0xa0, “1”,
n |
“r” | “R” |
“?”
Set Hotkey 1=
Value
Reset
Query
“1” – volume.
“2” – brightness.
“3” – contrast.
“4” – colour.
“5” – input source.
“7” – zoom
“8” – freeze
“9” – PIP
“B” – No function
“D” – PIP Swap
“E” – Aspect Ratio
“G” – Hue
“H” – Backlight
“I” – Auto Picture Setup
Hotkey 2
0xa0, “2”,
n |
“r” | “R” |
“?”
Set Hotkey 2 =
value
Reset
Query
“1” – volume.
“2” – brightness.
“3” – contrast.
“4” – colour.
“5” – input source.
“7” – zoom
“8” – freeze
“9” – PIP
“B” – No function
“D” – PIP Swap
“E” – Aspect Ratio
“G” – Hue
“H” – Backlight
“I” – Auto Picture Setup
Runtime counter 0xa1, runtime counter value = Runtime = nnnnn.
Page 36
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
36 of 55
nnnnn |
“r” | “R” |
“?”
nnnnn (* 0.5 hour)
Reset
Query
PIP brightness
control
0xa2,
nn | “+” | “-” |
“r” | “R” |
“?”
Set PIP window brightness =
value/increment/decrement
Reset
Query
PIP window brightness.
Range : “4””E”-“B””2”
Default : “8””0”
PIP contrast
control
0xa3,
nn | “+” | “-” |
“r” | “R” |
“?”
Set PIP window contrast =
value/increment/decrement
Reset
Query
PIP window contrast.
Range : “1””C”-“E””4”
Default : “8””0”
PIP H position 0xa4,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set PIP_hpos =
value/increment/decrement
Reset
Query
PIP window horizontal position.
Range : “0””0””0”-“0””6””4”
Default : “0””5””5”
PIP V position 0xa5,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set PIP_vpos =
value/increment/decrement
Reset
Query
PIP window vertical position.
Range : “0””0””0”-“0””6””4”
Default : “0””1””4”
PIP window size
select
0xa6,
nn |
“r” | “R” |
“?”
Select PIP window size =
PIP window size value
Reset
Query
Main selected.
PIP off if “nn” = “0””0”.
“0””0”~”1””2”
“0””0” ~ “1””2”
“1””9” : Size by Size
“1””A” : Size by Size Tall
PIP source select 0xa7,
n |
“r” | “R” |
“?”
Select input main =
Video source value
Reset
Query
Main selected.
0x41, 0x31 : ARGB
0x42, 0x31 : Composite
0x43, 0x31 : S-video
0x44, 0x31 : Component 1
0x45, 0x31 : HDSDI 1
0x46, 0x31 : DVI
0x42, 0x32 : Composite 2
0x43, 0x32 : S-video 2
0x44, 0x32 : Component 2
0x45, 0x32 : HDSDI 2
Zoom level
0xa8,
nnnn | “+” | “-” |
“r” | “R” |
“?”
Set Zoom level =
value/increment/decrement
Reset
Query
Zoom level.
Min : 0x30 0x30 0x30 0x30
(Default)
Max : 0x30 0x30 0x41 0x33
Zoom H position 0xa9,
nnnn | “+” | “-” |
“r” | “R” |
“?”
Set Zoom_hpos =
value/increment/decrement
Reset
Query
Zoom window horizontal
position.
Default : 0x30 0x30 0x30 0x30
The min and max values will
change depends on input
resolution.
Zoom V position 0xaa,
nnnn | “+” | “-” |
“r” | “R” |
“?”
Set Zoom_vpos =
value/increment/decrement
Reset
Query
Zoom window vertical position.
Default : 0x30 0x30 0x30 0x30
The min and max values will
change depends on input
resolution.
Horizontal Size 0xad,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set horizontal size for
Aspect Size =
value/increment/decrement
Reset
Query
Scalar horizontal stretch
PAL(576i) / NTSC (480i) :
Min : 0x30 0x30 0x30 (Default)
Max : 0x30 0x46 0x30
Vertical Size 0xb0, Set Vertical Size for Scalar vertical stretch.
Page 37
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
37 of 55
nnn | “+” | “-” |
“r” | “R” |
“?”
Aspect Size =
value/increment/decrement
Reset
Query
PAL(576i) / NTSC (480i) :
Min : 0x30 0x30 0x30 (Default)
Max : 0x30 0x46 0x30
Horizontal Pan 0xb1,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set horizontal pan position
for Aspect Size =
value/increment/decrement
Reset
Query
Scalar horizontal pan position
PAL(576i) / NTSC (480i) :
Assume max H-Size & max V-
size :
Min : 0x46 0x38 0x38
Max : 0x30 0x37 0x38
Default : 0x30 0x30 0x30
The min and max values will
change depends on different
value of H-Size, V-Size and input
resolution.
Vertical Pan 0xb2,
nnn | “+” | “-” |
“r” | “R” |
“?”
Set Vertical pan position
for Aspect Size =
value/increment/decrement
Reset
Query
Scalar vertical pan position
PAL(576i) / NTSC (480i) :
Assume max H-Size & max V-
size :
Min : 0x46 0x38 0x38
Max : 0x30 0x37 0x38
Default : 0x30 0x30 0x30
The min and max values will
change depends on different
value of H-Size, V-Size and input
resolution.
Colour
temperature select
0xb3,
n |
“r” | “R” |
“?”
Select colour temperature =
value
Reset
Query
Main selected.
“0” – 9500K.
“1” – 8000K.
“2” – 6500K.
“3” – 5000K
“4” - User
Red level for
selected colour
temperature
0xb4,
nn | “+” | “-” |
“r” | “R” |
“?”
Set the level of the red channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Red level for selected colour
temperature.
Range : “9””C”-“F””F”
Default : “E””C”
Green level for
selected colour
temperature
0xb5,
nn | “+” | “-” |
“r” | “R” |
“?”
Set the level of the green
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Green level for selected colour
temperature.
Range : “9””C”-“F””F”
Default : “E””C”
Blue level for
selected colour
temperature
0xb6,
nn | “+” | “-” |
“r” | “R” |
“?”
Set the level of the blue channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Blue level for selected colour
temperature.
Range : “9””C”-“F””F”
Default : “E””C”
Graphic horizontal
resolution enquiry
0xb7 Horizontal resolution (in pixels)
in 3 digit hex number
“nnn” = horizontal resolution
Graphic vertical
resolution enquiry
0xb8 Vertical resolution (in lines) in 3
digit hex number
“nnn” = vertical resolution
Graphic horizontal
sync frequency
enquiry
0xb9 Horizontal sync frequency (in
units of 100Hz) in 3 digit hex
number
“nnn” = horizontal frequency
Graphic vertical
sync frequency
enquiry
0xba Vertical sync frequency (in units
of Hz) in 3 digit hex number and
1 char
“nnnn” = vertical frequency
nnn = 3 digit hex
c= “i” or “p”
interlace or Progressive
Page 38
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
38 of 55
0xba added the interlace(i)
or Progressive(p) feedback.
OSD status
enquiry
0xbb Status of OSD “0” – OSD turned off
“1” – OSD turned on
OSD turn off 0xbd Turn off the OSD. “1” – successful.
Set gamma data
for user defined
gamma curve
0xbf, mm, c, “?”
0xbf, “R” | “r”
0xbf, mm, c, nn
Query gamma data for color c
index mm ( c = 0 for color Red,
c=1 for color Green,
c=2 for color Blue)
Set user gamma curve to linear
Set gamma data for color c
index mm. (If c= 3, then gamma
data for red, green & blue will be
set at the same time.)
“nn” = gamma data
“1”
“nn” = gamma data
Backlight control 0xe0,
nn | “+” | “-” |
“R” | “r” |
“?”
Set Backlight =
value/increment/decrement
Reset
Query
Backlight.
Range:
D/A : “0””0” ~ “1””6”
100Hz : “0””0” ~ “8””A”
120Hz : “0””0” ~ “7””3”
140Hz : “0””0” ~ “6””3”
160Hz : “0””0” ~ “5””6”
180Hz : “0””0” ~ “4””D”
200Hz : “0””0” ~ “4””5”
220Hz : “0””0” ~ “3””E”
240Hz : “0””0” ~ “3””9”
260Hz : “0””0” ~ “3””5”
280Hz : “0””0” ~ “3””1”
300Hz : “0””0” ~ “2””E”
320Hz : “0””0” ~ “2””B”
340Hz : “0””0” ~ “2””8”
360Hz : “0””0” ~ “2””6”
380Hz : “0””0” ~ “2””4”
400Hz : “0””0” ~ “2””2”
420Hz : “0””0” ~ “2””0”
440Hz : “0””0” ~ “1””F”
Backlight On/Off 0xe1,
“0” | “1” |
“R” | “r”
”?”
“S” | “s”
Backlight Off / Backlight On
/Status
“0” – Backlight Off
“1” – Backlight On.
“?” – Backlight On/Off Query
“S”|”s” – Backlight Status Query
Color
Monochrome
mode selection
(Output Channel
Select)
0xe2
“0” | “1” | “2” | “3” |
| “4” | “5” | “6” |
“R” | “r”|
”?”
Off/
Blue Only/
Red Only/
Green Only/
Blue Mono/
Red Mono/
Green Mono/
“0” – Off
“1” – Blue Only
“2” – Red Only
“3” – Green Only
“4” – Blue Mono
“5” – Red Mono
“6” – Green Mono
PIP Swap 0xe3 Swap Main and PIP source
"0" - Fail.
"1" - Successful.
Backlight D/A /
PWM
0xe5
“0” | “1” |
“R” | “r”
”?”
Set : PWM or D/A
Reset
Query
“0” – PWM
“1” – D/A
Backlight PWM
Frequency
0xe6,
nnn | “+” | “-” |
“R” | “r” |
“?”
Set Backlight PWM Frequency =
value/increment/decrement
Reset
Query
+/- 20Hz
Value
100Hz : “0”,”6”,”4”
120Hz : “0”,”7”,”8”
140Hz : “0”,”8”,”C”
160Hz : “0”,”A”,”0”
180Hz : “0”,”B”,”4”’
Page 39
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
39 of 55
200Hz : “0”,”C”,”8”
220Hz : “0”,”D”,”C”
240Hz : “0”,”F”,”0”
260Hz : “1”,”0”,”4”
280Hz : “1”,”1”,”8”
300Hz : “1”,”2”,”C”
320Hz : “1”,”4”,”0”
340Hz : “1”,”5”,”4”
360Hz : “1”,”6”,”8”
380Hz : “1”,”7”,”C”
400Hz : “1”,”9”,”0”
420Hz : “1”,”A”,”4”
440Hz : “1”,”B”,”8”
Backlight Invert 0xe7
“0” | “1” |
“R” | “r”
”?”
Set On or Off
Reset
Query
“0” – Off
“1” – On
Red Offset for
selected colour
temperature
0xe8,
nn | “+” | “-” |
“r” | “R” |
“?”
Set the Offset of the red channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Red Offset for selected colour
temperature.
Green Offset for
selected colour
temperature
0xe9,
nn | “+” | “-” |
“r” | “R” |
“?”
Set the Offset of the green
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Green Offset for selected colour
temperature.
Blue Offset for
selected colour
temperature
0xea,
nn | “+” | “-” |
“r” | “R” |
“?”
Set the Offset of the blue
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Blue Offset for selected colour
temperature.
PIP Window
Transparency
0xed,
nn | “+” | “-” |
“R” | “r” |
“?”
Select PIP Transparency Level
PIP Transparency value
Reset
Query
PIP Transparency
“0”F” = 6.25% “0”E” = 12.5%
“0”D” = 18.75% “0”C” = 25%
“0”B” = 31.25% “0”A” = 37.5%
“0”9” = 43.75% “0”8” = 50%
“0”7” = 56.25% “0”6” = 62.5%
“0”5” = 68.75% “0”4” = 75%
“0”3” = 81.25% “0”2” = 87.5%
“0”1” = 93.75% “0”0” = 100%.
PIP Window Auto
Off
“0xee”, “0x41”
“0” |”1”
“?”
Auto Off / Auto On
Query
“0”- Off
“1”- On
Custom Sizing 0xef,
“0” | “1” | “2”
”?”
Custom sizing selection :
Overscan / Normal / Custom
Query
“0” – Overscan
“1” – Custom
“2” – Normal
Function Command Description Acknowledge (if enabled)
Send Display
Mark
0xF1,
”S” |
”0x21” | ”0x40”
”0x60” | ”0x7E”
Return “1”
“S” = “0x53 or 0x73”
ASCII “0x21,0x40,0x60,0x7E”
Return “ 0x31”
“S” – Send Command
“Text” – Character
“1” - successful.
Page 40
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
40 of 55
e.g Send Display Mark
RS232 Code: “0xF1 0x53 0x21”
Return Code: “0xF1 0x53 0x21 0x31”
Clear Display
Mark
0xF1,
”C”
Return “1”
“C” = “0x43 or 0x63”
Return “ 0x31”
“C” – Clear command
“1” - successful.
e.g Clear Display Mark
RS232 Code: “0xF1 0x43”
Return Code: “0xF1 0x43 0x31”
Display Mark
Horizontal
Position
0xF1,
|”H” |”ss”|
Return “nn”
“H” = “0x48 or 0x68”
-----------------------------------------“nn” = “0x30,0x30~0x46,0x46”
“H” – Horizontal Position command
“ss” – Set Horizontal Position number
“nn” – Return Position number
e.g Set Display Mark Horizontal Position
RS232 Code: “0xF1 0x48 0x30 0x31”
Return Code: “0xF1 0x48 0x30 0x31 0x30 0x31”
Display Mark
Vertical
Position
0xF1,
|”V” |”ss”|
Return “nn”
“V” = “0x56 or 0x76”
-----------------------------------------“nn” = “0x30,0x30~0x46,0x46”
“V” – Vertical Position command
“ss” – Set Vertical Position number
“nn” – Return Position number
e.g Set Display Mark Vertical Position
RS232 Code: “0xF1 0x56 0x30 0x31”
Return Code: “0xF1 0x56 0x30 0x31 0x30 0x31”
Display Mark
Background
Transparency
0xF1,
|”B”|”N”|
Return “n”
“B” = “0x42 or 0x62”
Set Transparency command
-----------------------------------------“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)
“B” - Transparency command
“N” – Transparency Value
“n”- Return Value
0x00 =opaque
Set Display Mark background Transparency value is 8
RS232 Code: “0xF1 0x42 0x38”
Return Code: “0xF1 0x42 0x38 0x38”
3. Other control
Function Command Description Acknowledge (if enabled)
Select RS-232
acknowledge
0xc1, “0” | “1” Disable/enable command
acknowledge.
“0” – acknowledge disabled.
“1” – acknowledge enabled.
Auto-setup 0xc3 Start auto-setup of current
vmode.
“0” – fail.
“1” – successful.
Command
availability
0xc4, n Check whether a command is
available.
“0” – not available.
“1” – available.
Auto-calibration 0xc5 Start auto-calibration of gain
of the RGB amplifier.
“0” – fail.
“1” – successful.
Freeze frame
0xc6, “0” | “1”
Unfreeze / freeze frame
“0” – unfreeze.
“1” – freeze.
Soft Power On/Off 0xc8,
“0” | “1” |
“?”
Soft power
off/on
query
“0” – Turn off the LCD power and
backlight. Turn off memory
controller, Power down DVI
Power down ADC, Power
down Fclk PLL
“1” – Turn on the unit
Query video input
status
0xc9 Query the status of the
primary & pip status
“nn,nn” = input status
“nn,xx” digit = primary status:
“0”,”0” : invalid
“A”,”1” ARGB
“B”,”1” Composite
“B”,”2” Composite 2
Page 41
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
41 of 55
“C”,”1” S-video
“C”,”2” S-video 2
“D”,”1” Component
“D”,”2” Component 2
“E”,”1” HDSDI
“E”,”2” HDSDI 2
“F”,”1” DVI
“xx,nn”= PIP input status:
“0”,”0”: invalid
“A”,”1” ARGB
“B”,”1” Composite
“B”,”2” Composite 2
“C”,”1” S-video
“C”,”2” S-video 2
“D”,”1” Component
“D”,”2” Component 2
“E”,”1” HDSDI
“E”,”2” HDSDI 2
“F”,”1” DVI
Video de-interlace
method
0xca,
“0” | “1”
“r” | “R”
“?”
De-interlace mode
Reset
Query
“3” ”1”- enable AFM
“3” ”0”- disable AFM
“4” ”1”- enable TNR
“4” ”0”- disable TNR
“5” ”1”- enable MADI
“5” ”0”- disable MADI
“7” ”1”- enable DCDi
“7” ”0”- disable DCDi
Query BIOS
version
0xcb, “0” Read BIOS version BIOS version “VV.YY.ZZ”
VV = V0 or E0,
V0 = Release version
E0 = Engineering Sample
YY= Version Number
ZZ= Customer Number
Query PCBA
number
0xcb, “1” Read PCBA number “nnnnn” = PCBA number
SVH-1920+= “41717”
Reset parameter 0xce Reset all parameters to
default value
“1” – successful.
Wide Screen
Mode Selection
0xd9,
“0” | “1”| “2”
“r” | “R”
“?”
Wide Screen Mode
Reset
Query
“0” – Normal Mode
“1” – 1280x768
“2” – 1366x768
Page 42
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
42 of 55
The following commands for sending texts by using RS-232 command.
Function Command Description Acknowledge (if enabled)
Send Line 0xF0,
|”S” |”LL”|”TEXT”|
“0x0A”
Return “1”
“S” = “0x53 or 0x73”
Send command
------------------------------------------“LL” = “0x30,0x31~0x30,0x34”
Line number (Rang 0~4 lines)
------------------------------------------“Text”= ASCII code,
“0x20~0x7E”
Character( Rang 0~34 )
------------------------------------------0x0A = End of line
“S” – Send Command
“LL” – Line Number
“Text” – Character
“0x0A” – End of Line
“1” - successful.
e.g Display “Send Text” message on screen:
RS232 Code:“0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A”
Return Code: “0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A 0x31”
Clear Line 0xF0,
|”C” |”LL”|
Return “nn”
“C” = “0x43 or 0x63”
Clear command
------------------------------------------“LL” = “0x30,0x31~0x30,0x34”
Line number (Rang 0~4 lines)
“C” – Clear command
“LL” – Line Number
“nn” – Return Line number
e.g. Clear Line 1
RS232 Code: “0xF0 0x43 0x30 0x31”
Return Code: “0xF0 0x43 0x30 0x31 0x30 0x31”
Text Window
Horizontal Position
0xF0,
|”H” |”ss”|
Return “nn”
“H” = “0x48 or 0x68”
-----------------------------------------“nn” = “0x30,0x30~0x46,0x46”
“H” – Horizontal Position
command
“ss” – Set Horizontal Position
number
“nn” – Return Position number
e.g. Set Text Window Horizontal Position
RS232 Code: “0xF0 0x48 0x30 0x31”
Return Code: “0xF0 0x48 0x30 0x31 0x30 0x31”
Text Window
Vertical Position
0xF0,
|”V” |”ss”|
Return “nn”
“V” = “0x56 or 0x76”
-----------------------------------------“nn” = “0x30,0x30~0x46,0x46”
“V” – Vertical Position command
“ss” – Set Vertical Position
number
“nn” – Return Position number
e.g. Set Text Window Vertical Position
RS232 Code: “0xF0 0x56 0x30 0x31”
Return Code: “0xF0 0x56 0x30 0x31 0x30 0x31”
Left offset* 0xF0,
|”O” |”SSS”|
Return “nnn”
“O” = “0x4F or 0x6F”
Set Left Offset command
------------------------------------------“SSS” = “0x30,0x30,0x30~
0x33,0x46,0x46”
Offset Value (Rang 000~3ff)
“O” – Left Offset Command
“SSS”- Offset Value (pixels)
“nnn”- Return Value(pixels)
e.g. Set Left Offset = 100 pixels ( 0x64 (HEX))
RS232 Code: “0xF0 0x4F 0x30 0x36 0x34”
Return Code: “0xF0 0x4F 0x30 0x36 0x34 0x30 0x36 0x34”
Background
Transparency*
0xF0,
|”B”|”N”|
Return “n”
“B” = “0x42 or 0x62”
Set Transparency command
-------------------------------------------
“B” - Transparency command
“N” – Transparency Value
“n”- Return Value
Page 43
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
43 of 55
“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)
0x00 =opaque
Set background Transparency value is 8
RS232 Code: “0xF0 0x42 0x38”
Return Code: “0xF0 0x42 0x38 0x38”
Text Window
Horizontal Size
0xF0,
|”X” |”SSS”|
Return “nnn”
“X” = “0x58”
Set Horizontal Size command
------------------------------------------“SSS” = “0x31,0x45,0x30~
0x37,0x38,0x30”
Horizontal Size Value (Range
000~3ff)
“X” –Horizontal Size
“SSS”- Size Value (pixels)
“nnn”- Return Value(pixels)
e.g Set Text Window Horizontal Size = 640 pixels ( 0x280 (HEX))
RS232 Code: “0xF0 0x58 0x32 0x38 0x30”
Return Code: “0xF0 0x58 0x32 0x38 0x30 0x32 0x38 0x30”
* Note :
Please set the "Background Transparency” and "Left offset" commands before the "Send Line"
command.
The RS-232 command strings sent in one time can support up to 380 bytes via CN8 port
The RS-232 command string sent in one time can support up to 50 bytes via CN1 or J1 port.
n = 1-byte ascii-coded hex number, e.g., parameter value of 0x1 is represented by “1” (0x31).
mn or nn = 2-byte ascii-coded hex number, e.g., parameter value of 0x1e is represented by “1”, “e” | “E”
(0x31, 0x6e|0x4e).
Please refer to the ASCII to Hex convert table below.
Hex to ASCII conversion table
Hex ASCII Hex ASCII Hex ASCII Hex ASCII
0x30 0 0x41 A 0x61 a 0x2B +
0x31 1 0x42 B 0x62 b 0x2D -
0x32 2 0x43 C 0x63 c 0x3F ?
0x33 3 0x44 D 0x64 d
0x34 4 0x45 E 0x65 e
0x35 5 0x46 F 0x66 f
0x36 6 0x47 G 0x67 g
0x37 7 0x48 H 0x68 h
0x38 8 0x49 I 0x69 i
0x39 9 0x4A J 0x6A j
0x4B K 0x6B k
0x4C L 0x6C l
0x4D M 0x6D m
0x4E N 0x6E n
0x4F O 0x6F o
0x50 P 0x70 p
0x51 Q 0x71 q
0x52 R 0x72 r
0x53 S 0x73 s
0x54 T 0x74 t
0x55 U 0x75 u
0x56 V 0x76 v
0x57 W 0x77 w
0x58 X 0x78 x
0x59 Y 0x79 y
0x5A Z 0x7A z
Page 44
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
44 of 55
Appendix I – Mapping definition

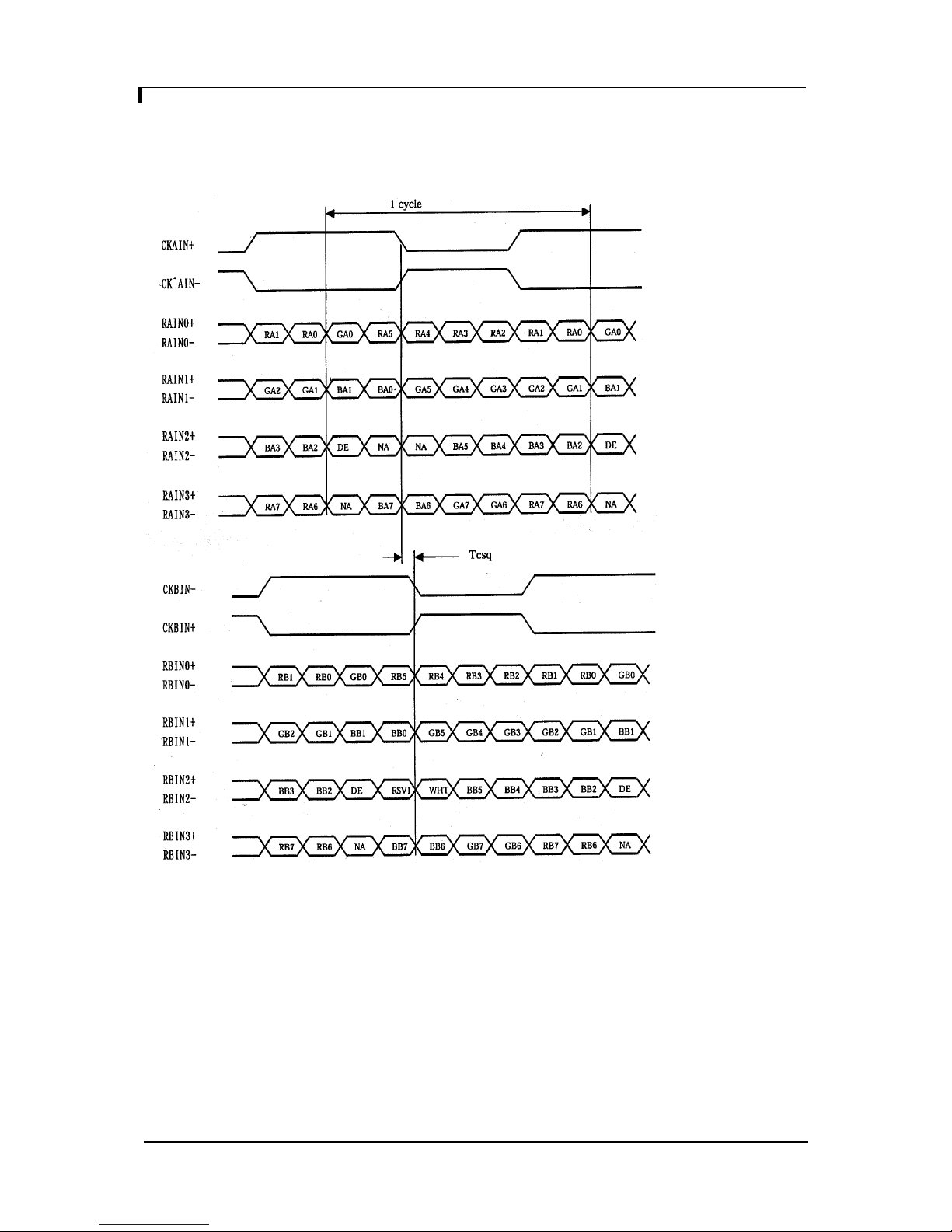

• Definition of Mapping A :
Page 45
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
45 of 55

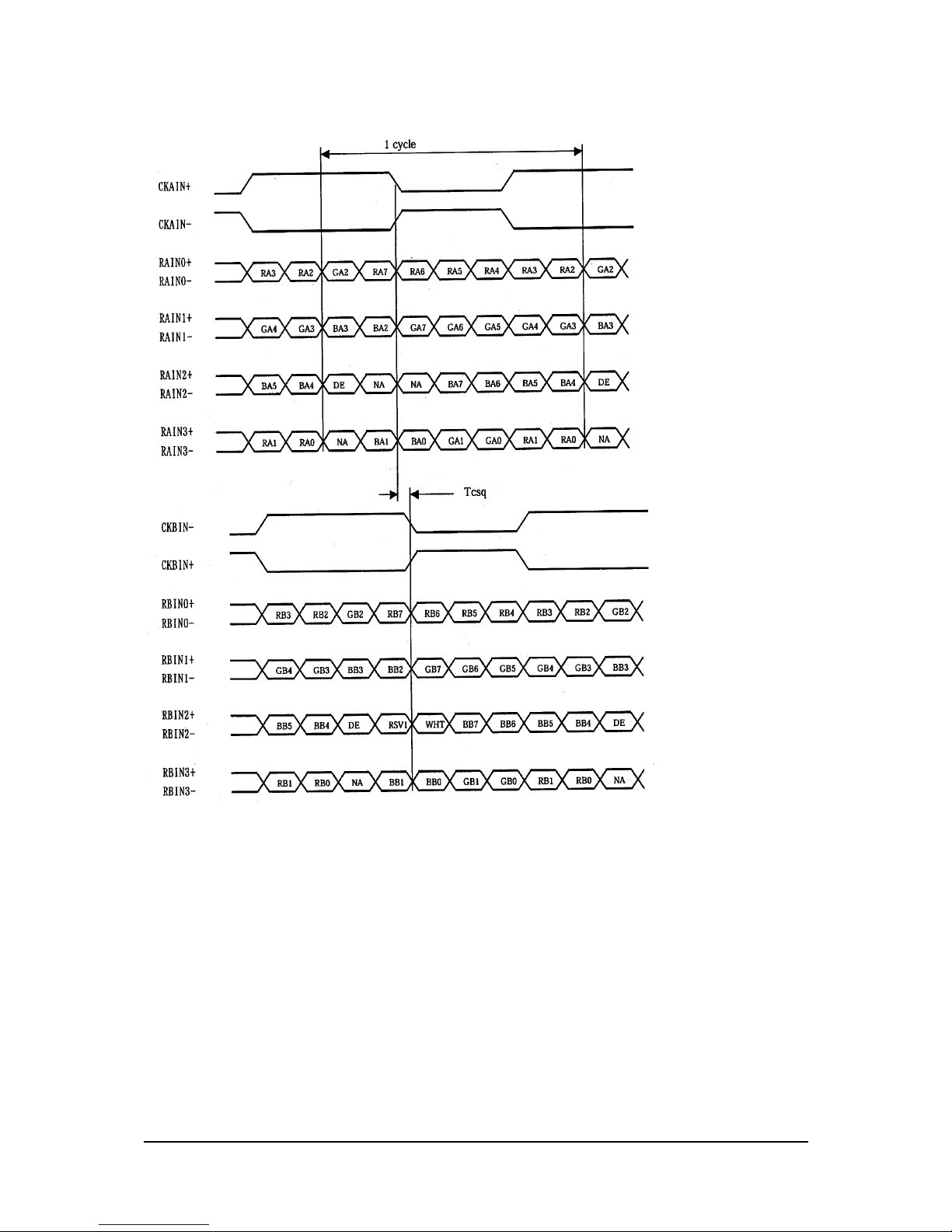

• Definition of Mapping B :
Page 46
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
46 of 55

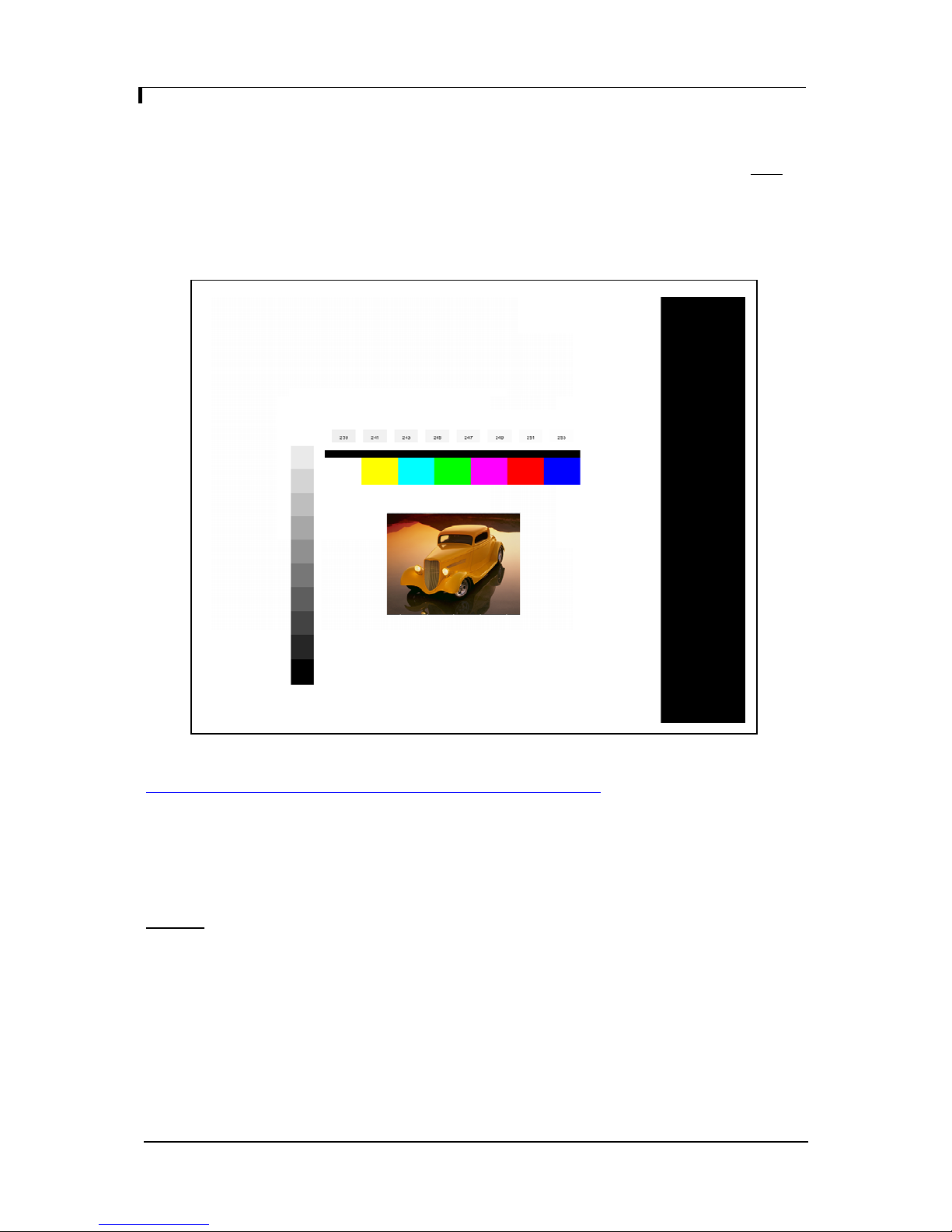

Appendix IV – Auto Color Gain
The Auto Color Gain function is supported in the ARGB mode only and is designed to
calibrate the controller to the incoming video signal. In order to calibrate correctly, the display must be
displaying an image containing both black and white data (see illustration below) when the function is
used. The internal processor of the video controller chip will then execute a process to adjust the
relative values of the RGB signals to achieve the best performance. The parameters of the corrected
RGB values are then stored in the controller and are unaffected by the Reset Factory Defaults
function.
The reference pattern can be downloaded at :
http://www.digitalview.com/support/downloads/TestPattern_1280.BMP
This reference pattern is for 1280x1024 resolution and it needs to set your ARGB input source to
1280x1024 resolution before performing the Auto Color Gain function. The position of the black
vertical bar in the pattern at the right side is important. It will affect the calibration result if you are
setting the ARGB input to other resolution.
Warning
- If the Auto Color Gain is executed without an appropriate image being displayed, then the
process will set incorrect values and the display colors will be distorted. If this occurs, then it can
either be corrected by performing the process correctly or if this is not possible then the Reset Color
Gain function can be used. This function will reset the stored RGB values to a set of approximate
values.
Page 47
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
47 of 55
Appendix V – DV remote control unit work for SVH-1920+
BUTTON FUNCTION
POWER BUTTON Soft power ON/OFF button.
ATTENTION BUTTON
Use combined with digit keys to enable/disable the IR function.
SVH-1920+ : “Attention” + “1”
MUTE BUTTON ( )
Switch to mute on/off mode.
AV/TV BUTTON Use to select the input source. (RGB/Composite/S-Video/Component/..)
SOUND (ZOOM) BUTTON
Use to display the zoom menu. Press the “+” to zoom in the picture and the
“-” to zoom out the picture.
SEL UP ( ) / SEL DN ( )
Use this button to direct control the hotkey function. Press the “SEL UP” button to
increase the pre-set hotkey parameter value and the “SEL DN” button to decrease the
pre-set hotkey parameter value. In OSD menu, pressing this button to select the items.
VOLUME (-/+) BUTTON Press the “+” button to increase the volume and the “-” to decrease the volume.
+ / - BUTTON
Use this button to direct control the hotkey function. Press the “+” button to increase
the pre-set hotkey parameter value and the “-” button to decrease the pre-set hotkey
parameter value. In OSD menu, pressing this button to adjust the settings.
PIP BUTTON Use to display the PIP (picture in picture) window on screen.
OSD BACK BUTTON Use to display the OSD menu and go to the previous OSD screen.
OSD NEXT BUTTON Use to display the OSD menu and go to the next OSD screen.
DISPLAY BUTTON
Use to view an on-screen information. When OSD menu displayed, press this button to
turn it off.
STOP (RGB) BUTTON In input source selection mode, pressing this button to select RGB source.
PLAY (YCrCb) BUTTON In input source selection mode, pressing this button to select Component source.
TRACK (S-Vid) BUTTON In input source selection mode, pressing this button to select S-Video source.
TRACK (Comp) BUTTON In input source selection mode, pressing this button to select Composite source.
FREEZE BUTTON Use this button to freeze and release the picture on your screen.
P/N 559000104-3 :
DigitalView remote control unit
(without DV logo silk screen
printing)
P/N 559000103-3 :
DigitalView remote control unit
(with DigitalView logo silk
screen printing)
Page 48
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
48 of 55
Appendix VI – Function description for de-interlacing mode AFM, TNR, MADI, DCDi
AFM = Auto Film Mode :
It is a frame based method which used for the input ODD and EVEN fields have a fixed relation
between each other, such as static image, 3:2 pull down mode.
If two fields are correctly merged, it can get the best quality. But if it merges two wrong fields, it will
have artifact and get the worst quality.
TNR = Temporal Noise Reduction :
It is a frame based method which assume field to field have a fixed relationship.
If the object moving too fast, it will have image artifact and get worst quality.
MADI = Motion adaptive de-interlacing :
It is a pixel based method which used for the input fields have no fixed relation between them
If the object moving very too fast, it will get worst quality.
DCDi = Directional Correlation Deinterlacing :
It is a digital enhancement method developed by Faroudja. DCDi technology is primarily used for
improving the image quality of low resolution images. This is done by deinterlacing the image and
blending rough edges occurring in diagonal lines.
Appendix VII – PIP mix table
VGA
Composite 1 Composite 2 S-Video 1 S-Video 2 Component 1 Component 2 HD-SDI
1
HD-SDI
2 DVI
VGA X
Composite 1
X
Composite 2
X
S-Video 1
X
S-Video 2
X
Component 1
X
Component 2
X
HD-SDI 1
X X X
HD-SDI 2
X X X
DVI
X X X
Page 49
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
49 of 55
Appendix IX - Inverter Interface Board P/N 416040010-3
[OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]
The Inverter interface board provides interface to drive up the high current
consumption panel inverter in excess of 3.5A. This board enables current of up to 8
Amps to be managed safely while retaining the capability for inverter dimming and
management of the inverter enable signal according to VESA DPMS standards.
Additionally, the inverter interface board provides over-voltage protection via a
resettable fuse when the input voltage exceeds 13V and reverse polarity protection
against accidental misconnection.
Connector Type :
CNA1, CNB2 : JST 4 ways, B4B-XH-A
CNB1 : JST 5 ways, B5B-XH-A
CNB3 : JST 8 ways, B8B-XH-A
PP1 : PWR 4 way
PP2 : Terminal Block 2 poles x 2
PP3 : PWR 2 ways
Page 50
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
50 of 55

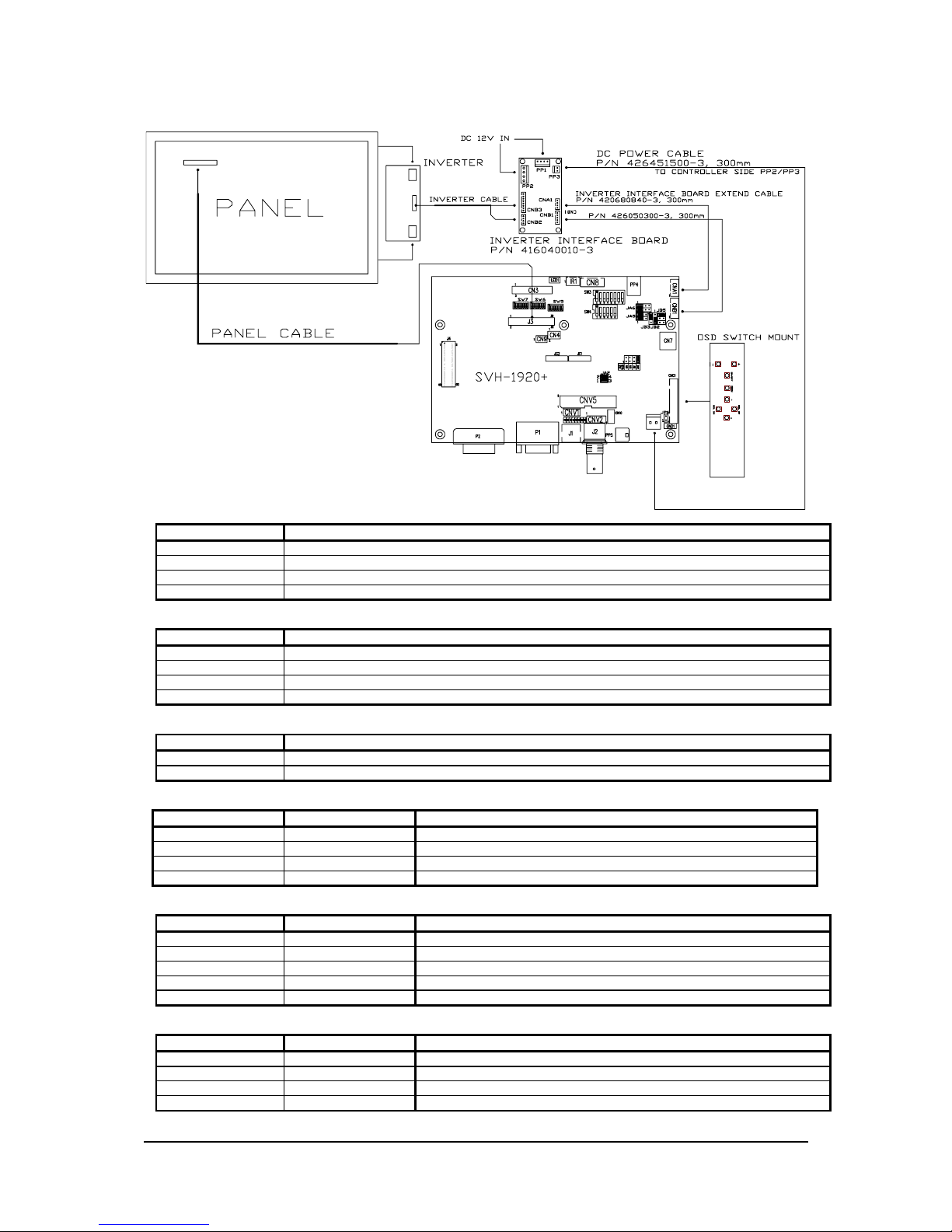

Illustrated Diagram
PP1 - 12VDC power supply – input, Power header 4 ways 0.156” pitch
PIN DESCRIPTION
1 +12VDC
2 +12VDC
3 Ground
4 Ground
PP2 – Alternate 12VDC power supply – input, Terminal Block 2 poles
PIN DESCRIPTION
1 +12VDC
2 +12VDC
3 Ground
4 Ground
PP3 – 12VDC power supply to controller – Output, Power header 2 ways, 0.156” pitch
PIN DESCRIPTION
1 +12VDC
2 Ground
CNA1 - Inverter interface to controller, JST B4B-XH-A
PIN SYMBOL DESCRIPTION
1 NC No connection
2 AUX_GND Ground
3 AUX_GND Ground
4 AUX_Vcc +5V DC, 500mA max
CNB1 – Inverter interface to controller, JST B5B-XH-A
PIN SYMBOL DESCRIPTION
1 GND Ground
2 BL_ON Backlight power
3 BLCTRL Backlight on/off control signal
4 BVR_WIP Backlight brightness VR pin WIP
5 BVR_A Backlight brightness VR pin A
CNB2 – Inverter interface to backlight inverter, JST B4B-XH-A
PIN SYMBOL DESCRIPTION
1 VLCD12 Panel power
2 AUX_GND Ground
3 AUX_GND Ground
4 AUX Vcc +5V DC, 500mA max
Page 51
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
51 of 55
CNB3 – Inverter interface to backlight inverter, JST B8B-XH-A
PIN SYMBOL DESCRIPTION
1 VLCD12 Panel power
2 VLCD12 Panel power
3 GND Ground
4 GND Ground
5 VLCD12 Panel power
6 BLCTRL Backlight on/off control signal
7 BVR_WIP Backlight brightness VR pin WIP
8 BVR_A Backlight brightness VR pin A
Page 52
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
52 of 55
Appendix X - Audio Add-on Board P/N 416940020-3
[OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]
Electrical Specification :
Supply Voltage : +12V, +5V
Supply current : 35mA for +12V, 6mA for +5V
Input impedance 6.8kohm
Output power : 2.0W for 4ohm load
1.0W for 8ohm load
Distortion : <2%
Voltage gain : 0 to 21 dB
Use of connectors :
Connector Connector type
CN1 JST B3B-XH-A
CN2 JST B4B-PH-K
CN3 0.1 inches 2 row x 5 pin header strips (right angle)
J1 Ø3.5mm stereo jack socket
J2
Ø3.5mm stereo jack socket
Pin Assignments :
CN1: Output alternate connector
Pin Number Description
1 Speaker out left
2 Ground
3 Speaker out right
CN2: Input alternate connector
Pin Number Description
1 Ground
2 Audio input left
3 Ground
4 Audio input right
The Audio add-on board P/N
416940020-3 design for connection with
DV controllers on the audio connector
CN7. It provides audio input ports and
output port for sound amplification.
Page 53
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
53 of 55
CN3 : Controller interface connector
Pin Number Description
1 +5V
2 Left trimpot chip select
3 Right trimpot chip select
4 Trimpot serial data
5 Trimpot serial clock
6 Digital Ground
7 +12V
8 Audio input left
9 Audio input right
10 Audio Ground

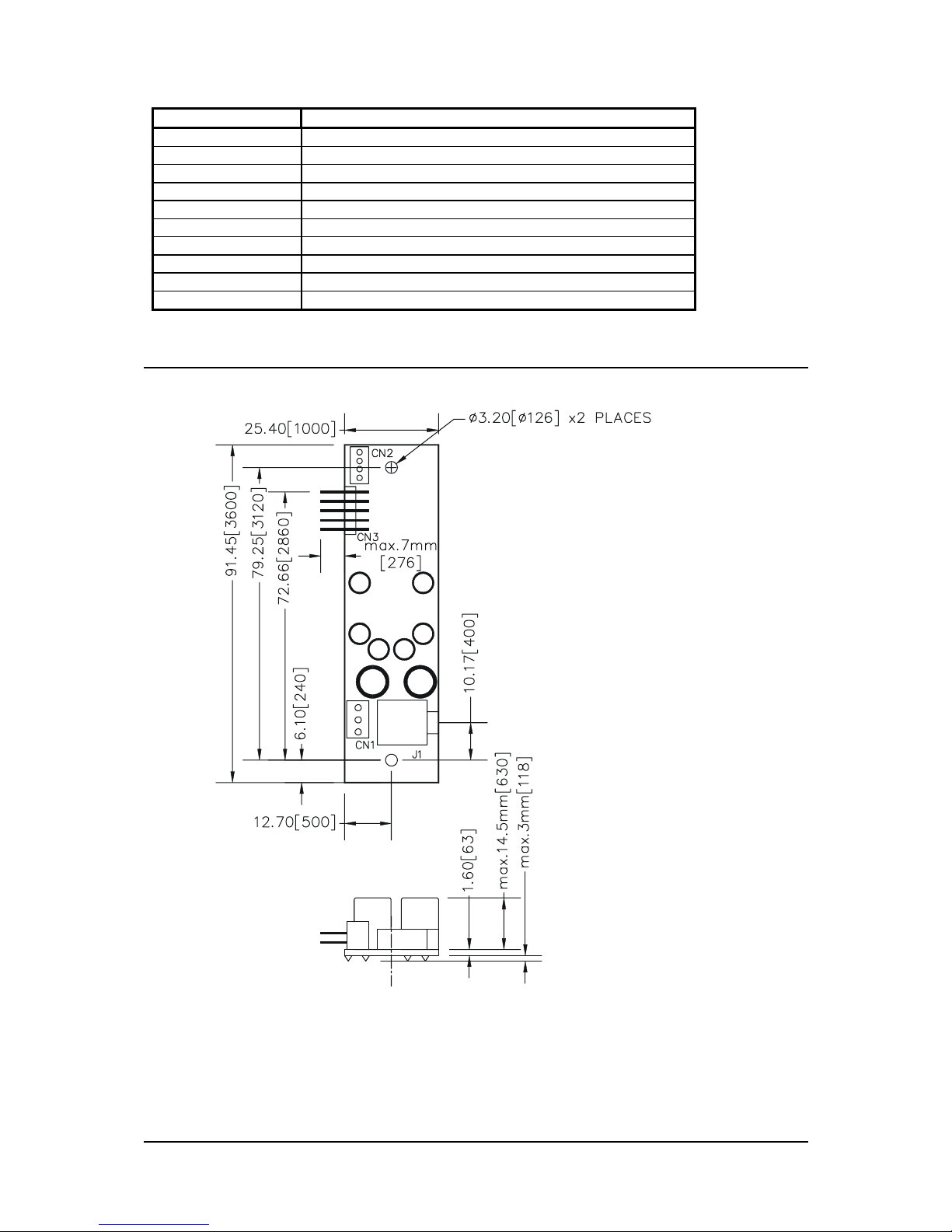

Mechanical Drawing :
Page 54
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
54 of 55
WARRANTY
The products are warranted against defects in workmanship and material for a period of three (3) year from the date of
purchase provided no modifications are made to it and it is operated under normal conditions and in compliance with the
instruction manual.
The warranty does not apply to:
• Product that has been installed incorrectly, this specifically includes but is not limited to cases where electrical short circuit
is caused.
• Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s consent).
• Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or electrical.
• Ordinary wear and tear.
Except for the above express warranties, the manufacturer disclaims all warranties on products furnished hereunder, including
all implied warranties of merchantability and fitness for a particular application or purpose. The stated express warranties are in
lieu of all obligations or liabilities on the part of the manufacturer for damages, including but not limited to special, indirect
consequential damages arising out of or in connection with the use of or performance of the products.
CAUTION
Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as
an exhaustive source of information. This product is for use by suitably qualified persons who understand the nature
of the work they are doing and are able to take suitable precautions and design and produce a product that is safe
and meets regulatory requirements.
LIMITATION OF LIABILITY
The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in
no event exceed the purchase price of said product.
TRADEMARKS
The following are trademarks of Digital View Ltd:
• Digital View
• SVH-1920+
Page 55
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.0: 3 Feb, 2010 (SVH-1920+_manual.doc) Page
55 of 55
CONTACT DETAILS
Digital View has offices in Asia, Europe and USA :
USA
Digital View Inc.
18440 Technology Drive
Building 130
Morgan Hill,
California, 95037
USA
EUROPE
Digital View Ltd.
6 Marylebone Passage,
London, W1W 8EX,
ASIA
Digital View Ltd
16 th Floor Millennium City 3
370 Kwun Tong Road
Kwun Tong
Hong Kong
WEBSITE
www.digitalview.com
Loading...
