Digital View SP-1600, 416990030/4X-3 Instruction Manual

PC, DVI & VIDEO INTERFACE CONTROLLER

FOR TFT PANEL

Model: SP-1600

Part number : 416990030/4X-3

INSTRUCTIONS

CONTENTS

Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer

3. System design – Diagram of a suggested system

4. Assembly notes – Important information about system elements

6. Connection & Operation – How to use the controller

10. Connectors, pinouts & jumpers – Essential connection information

19. Controller dimensions

20. Application notes

22. Troubleshooting

23. Specifications

24. Appendix I – Supported modes table

26. Appendix II – RS-232 control protocols

31. Appendix III – Mapping definition

33. Appendix IV – Auto Color Gain

34. Specification for inverter Interface Board P/N 416040010-3

37. Warranty, Caution & Limitation of Liability, Trademarks

38. Contact details

It is essential that these instructions are read and understood before connecting or powering up this controller.

Introduction

Design for LCD monitor and other flat panel display applications, the SP-1600 controller provides easy to use interface controller for :

¾ TFT (active matrix) LCD panels of 1600x1200, 1366x768, 1280x1024, 1280x 800, 1280x768, 1024x768, 800x600,

800x480 and 640x480 resolutions.

¾ Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA standard. ¾ Video signals of NTSC, PAL and SECAM standard. ¾ Embedded 3D comb filter on video decoder to display excellent video picture quality. ¾ DVI input support up to 1600x1200 60Hz input signals

HOW TO PROCEED

¾ Ensure you have all parts & that they are correct, refer to:

• Connection diagram (separate document for each panel)

• Connector reference (in following section)

• Assembly notes

¾ Check controller switch & jumper settings (errors may damage the panel) ¾ Prepare the PC ¾ Connect the parts ¾ Understand the operation & functions

IMPORTANT USAGE NOTE

This equipment is for use by developers and integrators, the manufacturer accepts no liability for damage or injury caused by the use of this product. It is the responsibility of the developer, integrators or other user of this product to:

• Ensure that all necessary and appropriate safety measures are taken.

• Obtain suitable regulatory approvals as may be required.

• Check power settings to all component parts before connection.

DISCLAIMER

There is no implied or expressed warranty regarding this material.

Controller Solution Generator

Full web resource matching controllers & panels with connection diagrams for download. See at : http://www.digitalview.com/controllers/csg.php

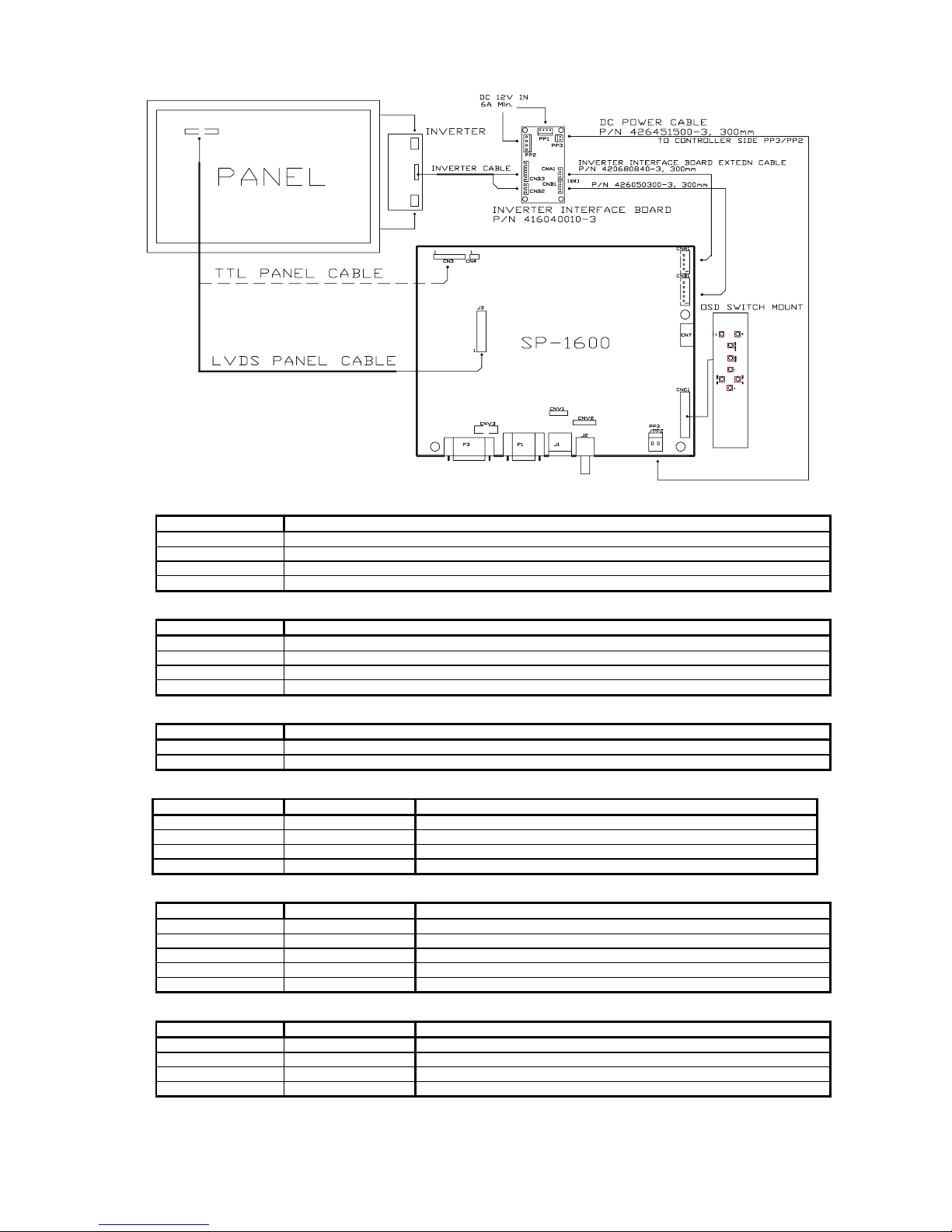

SYSTEM DESIGN

A typical LCD based display system utilizing this controller is likely to comprise the following:

Summary:

1. LCD panel

2. LCD controller card, SP-1600

3. LCD signal cable (use for LVDS panel)

4. LCD signal cable (use for TTL panel)

5. Inverter for backlight (if not built into LCD)

6. Inverter cable

7. Function controls

8. Function controls cable

9. RS-232 control interface

10. IR sensor (optional)

11. Status LED (optional)

12. Audio add-on board (optional)

13. External type signal inputs

- Analog VGA 1 input

- AV input (J1: S-video, J2: Composite video)

14. DVI-I input

15. Alternate composite / S-Video input

16. HD/SD Component video input

17. Analog VGA 2 input

18. 12V/24V DC power input

19. External panel power input

Digital View provides a range of parts, such as listed above, to make up complete display solutions.

ASSEMBLY NOTES

This controller is designed for monitor and custom display projects using 1600x1200 or 1366x768 or 1280x1024 or 1280x800 or 1280x768 or 1024 x 768 or 800x600 or 800x480 or 640x480 resolution TFT panels with a VGA, SVGA, WXGA, XGA, SXGA or UXGA signal input. The following provides some guidelines for installation and preparation of a finished display solution.

Preparation: Before proceeding it is important to familiarize yourself with the parts making up the system and the various connectors, mounting holes and general layout of the controller. As much as possible connectors have been labeled. Guides to connectors and mounting holes are shown in the following relevant sections.

1. LCD Panel: This controller is designed for typical LVDS or TTL single interface panels with panel voltage 3.3V, 5V or 12V or 18V. Due to the variation between manufacturers of panels signal timing and other panel

characteristics, factory setup

and confirmation should be obtained before connecting to a panel. (NOTE: Check panel power jumper settings before connection)

2. Controller: Handle the controller with care as static charge may damage electronic components. Make sure correct jumper and dip switches settings to match the target LCD panel.

3. LCD signal cable (Single pixel TTL panel): In order to provide a clean signal it is recommended that LCD signal cables should not longer than 33cm (13 inches). If loose wire cabling is utilized these can be made into a harness with cable ties. Care should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems to add ferrite cores to the cables to minimize signal noise.

4. LCD signal cable (LVDS panel): In order to provide a clean signal it is recommended that LVDS signal cables are no longer than 46cm (18 inches). If those wire cabling is utilized these can be made into a harness with cable ties. Care should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems to add ferrite cores to the cable to minimize signal noise.

5. Inverter: This will be required for the backlight of an LCD, some LCD panels have an inverter built in. As LCD panels may have 1 or more backlight tubes and the power requirements for different panel backlights may vary it is important to match the inverter in order to obtain optimum performance. See Application notes page 18 for more information on connection.

6. Inverter Cables: Different inverter models require different cables and different pin assignment. Make sure correct cable pin out to match inverter. Using wrong cable pin out may damage the inverter.

7. Function Controls: The following section discusses the controls required and the section on connectors provides the detail. The controls are minimal: On/Off, Backlight Brightness (depends on inverter), OSD (5 momentary buttons) analog VR type or (8 momentary buttons) digital type.

8. Function controls cable: The cables to the function switches should be of suitable quality and length so that impedance does not affect performance. Generally lengths up to 1 meter (3 feet) should be acceptable.

9. Status LED: The pin direction of the LED should be corrected for right colour indication. Red colour stands for standby. Green colour stands for signal on. The status LED is an optional part only, can be unconnected.

10. IR sensor: It is an optional part only, can be unconnected if not using IR remote control.

11. Audio add-on board: Provide the interface for the audio add-on board to be connected. The audio add-on board gives

the audio input and output signal connection. But the volume cannot be controlled by the OSD menu on the controller. It is an optional part only, can be unconnected if not using audio.

12. VGA Input Cable: As this may affect regulatory emission test results and the quality of the signal to the controller a suitably shielded cable should be utilized.

• AV cables: Standard Composite or S-video cables can be used. Reasonable quality cable should be used to avoid image quality degradation.

13. DVI-D input cable : Plug the DVI cable to the connector P2 on the controller board.

14. Alternate video input for S-Video and composite video

15. HD/SD component video input : Plug the component video input signal on CNV2 connector

• Power Input: 12V/24VDC is required, this should be a regulated supply. The power rating is depending on the panel and

inverter used. Normally, power supply with 3.5Amp current output should enough for most of 4x CCFT panels. Although the controller provides power regulation for the LCD power this does not relate to the power supplied to the backlight inverter. If an unregulated power supply is provided to an inverter any fluctuations in power may affect operation, performance and lifetime of the inverter and or backlight tubes.

• Power output: Note the controller has an overall 3Amp current limit and the current available from the auxiliary power output will be dependent on the power input and other system requirements.

• Power Safety: Note that although only 12VDC / 24VDC is required as ‘power-in’ a backlight inverter for panel backlighting produces significantly higher voltages (the inverter does not connect to the ground plane). We strongly advise appropriate insulation for all circuitry.

• EMI: Shielding will be required for passing certain regulatory emissions tests. Also the choice of external Controller to PC signal cable can affect the result.

• Ground: The various PCB mounting holes are connected to the ground plane.

• Servicing: The board is not user serviceable or repairable. Warranty does not cover user error in connecting up to the

controller and is invalidated by unauthorized modification or repairs.

• Controller Mounting: It is recommended that a clearance of at least 10mm is provided above and 5mm below the controller when mounted. Additionally consideration should be given to:

• Electrical insulation.

• Grounding.

• EMI shielding.

• Cable management. Note: It is important to keep panel signal cables apart from the inverter & backlight cables to

prevent signal interference.

• Heat & Ventilation: Heat generated from other sources, for example the backlight of a very high brightness panel may

generate significant heat which could adversely affect the controller.

• Other issues that may affect safety or performance.

• PC Graphics Output: A few guidelines:

• Signal quality is very important, if there is noise or instability in the PC graphics output this may result in visible noise

on the display.

• Refer to graphics modes table in specifications section for supported modes.

• Non-interlaced & interlaced video input is acceptable.

IMPORTANT: Please read the Application Notes section for more information.

CONNECTION & OPERATION

CAUTION: Never connect or disconnect parts of the display system when the system is powered up as this may cause serious

damage.

CONNECTION

Connection and usage is quite straight forward (it is useful to have the relevant connection diagram available at this time):

1. LCD panel & Inverter: Connect the inverter (if it is not built-in the panel) to the CCFT lead connector of the LCD panel.

2. TTL type (Single pixel) panels: Plug the signal cables direct to CN3 and CN4 (CN4 will not be used for 3x6-bit panel) on the controller board. Plug the other end of cables to the LCD connector board (if connector board is required, otherwise the signal can be direct plug to the LCD panel connector). Then plug the board connector to the LCD panel connector. LVDS type panels: The controller board has the built-in LVDS transmitter driver. Plug the LVDS cable to J3. Insert the panel end of the cable the LCD panel connector.

3. Inverter & Controller: Plug the inverter cable to CNB1 and CNA1 (if necessary). Plug another end to the connector on the inverter.

4. Function switch & Controller: Plug the OSD switch mount cable to CNC1 on the controller board and another to the OSD switch mount.

5. LED & Controller: Plug in a 3-way with dual colour LED to connector LED1 on the controller board.

6. IR & Controller: Plug in a 3-way with IR sensor to connector IR1 on the controller board.

7. Jumpers & Switches: Check all jumpers and switches (JP7, SW3, SW4) are set correctly. Details referring the connection diagram (a separate document) or the jumpers and switches setting table (in the following section).

8. Jumpers & Inverter & Panel voltage: Particularly pay attention to the settings of JA3, JA5 & JA6, JB2 and JB3. JB2 & JB3 are used for inverter control (read inverter specification and information on the jumper table to define the correct settings). JA3, JA5 & JA6 are used for panel voltage input (read panel specification and information on the jumper table to define the correct settings).

9. VGA cable & Controller: Plug the VGA cable to the connector P1 on the controller board.

10. Power supply & Controller: Plug the DC 12V/24V power in to the connector PP5 or PP2/3. You can consider to use

DigitalView mating power cable P/N 426013800-3, 160mm for PP5 connection.

11. External panel power input : Plug power cable : P/N 426013700-3 for external panel power input (3.3 (max 7A) /

5V (max 7A) / 12V (max 5A) / 18V (max3.5))

12. Power on: Switch on the controller board and panel by using the OSD switch mount.

The red LED will light up when power on. The LED will change to green when VGA signal on. General:

• If you are using supplied cables & accessories, ensure they are correct for the model of panel and controller.

• If you are making your own cables & connectors refer carefully to both the panel & inverter specifications and the section

in this manual, “Connectors, Pinouts & Jumpers” to ensure the correct pin to pin wiring.

PC SETTINGS

The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance we recommend choosing 60Hz vertical refresh rate – this will not cause screen flicker.

OPERATION

Once the system has been connected and switched on there are a number of functions available to adjust the display image as summarized in the following sections. The settings chosen will be saved for each mode independently.

LCD DISPLAY SYSTEM SETTINGS

NOTE: By way of explanation the following refers to a set of sample buttons that may be obtained as an option. In addition to power on/off and connection for backlight brightness the controller provides an On Screen Display of certain functions which are controlled by 5 momentary type buttons (analog VR type) or 8 momentary type buttons (digital type):

Controls Analog VR type Digital type On/Off – turns controller board power on VR toggle switch On/Off button Brightness – controls backlight brightness Rotary VR Brightness +/- buttons Menu

– Turns OSD menu On or Off (it will auto time off)

Menu button Menu button

Select down

– Moves the selector to the next function (down)

SEL DN SEL DN

Select up Moves the selector to the previous function (up)

SEL UP SEL UP

+

– Increase/Select the OSD parameter values – Go into the sub-menu page – Confirm to select the OSD function

+ +

-

– Decrease/Select the OSD parameter values

- -

Reset to Factory Defaults Press and hold SEL DN

button, then power on the controller

Press and hold SEL DN button, then power on the controller

ON/Off/Brightness

SEL UP

SEL DN

+

-

Menu

Analog VR type

Digital type

12V / 24VDC power input :

Analog 10K VR Type OSD switch mount uses P/N 410680550-3 or up

12V / 24VDC power input :

Digital 10K Type OSD switch mount uses P/N 416100520-3 or up

12VDC power input :

Digital 10K Type OSD switch mount uses P/N 416100510-3

OSD functions

Picture :

Volume

Increase/decrease volume level, total 31 steps

Brightness

Increase/decrease panel brightness level, total: 100 steps

Contrast

Increase/decrease panel contrast level, total: 100 steps

Hue *

Increase/decrease Hue level, total: 100 steps

Saturation *

Increase/decrease saturation, total: 100 steps

Sharpness

Increase/decrease sharpness, total: 15 steps

Aspect Size 4 Aspect Ratio : Fill Screen / Fill Aspect / 1 to 1 (UNDER ARGB / DVI mode) Auto / Fill Screen / 1 to 1 / Anamorphic (UNDER VIDEO MODE)

- Fill Screen : Enable full screen expansion for lower resolution Image

- Fill Aspect : Enable fill screen expansion for lower resolution image according to aspect ratio

- 1 to 1 : Display the exact image resolution on the screen without image expansion.

Horz Position

Move the image position horizontally

Vert Position

Move the image position vertically

Blue Only : OFF / ON : Turn off the "Red" & "Green" channel (i.e. output all zero to Red & Green channel)

* : DISPLAY IN VIDEO MODE ONLY

Main Source : Select the input video signal VGA 1 / Composite Video / S-Video / VGA 2 / DVI / HD/SD Component

Utilities :

Setup 4

Auto Picture Setup

#

4 : Auto adjust the image position, phase and size

Auto Color Gain

#

4 : Auto Color Calibration (Function in ARGB mode ONLY – See

appendix IV) Manual Clock

#

: Adjust the image horizontal size

Manual Phase

#

: Fine tune the data sampling position (adjust image quality) Auto Source Seek : OFF / ON ON – Auto source select always enable OFF – Disable auto source select function Auto Power : OFF / ON ON – Enable soft power off function if absence of input signals OFF – Disable soft power function Video Standard (SD)** : Auto / NTSC / PAL / SECAM / NTSC 443 Gamma : 1.0 / 1.6 / 2.2

OSD 4

H Position

: Move the OSD menu image horizontally

V Position

: Move the OSD menu image vertically Timeout (sec) : 1 – 20 : Adjust the OSD menu timeout period in a step of 1 seconds (max 20 seconds) Language : English / Simplified Chinese : Select OSD menu language display

Transparency :

0 – 100 steps

Color Temperature 4

Color Temp : 9300K / 8000K / 6500K / 5000K Red : Green : Blue :

Hot Key 4

Hot key 1 : Brightness / Contrast / Input / Aspect / Volume Hot key 2 : Brightness / Contrast / Input / Aspect / Volume

Reset to Factory Defaults 4 Factory Defaults Reset Color Gain

#

DDC Updates

** : FUNCTION IN VIDEO MODE ONLY

# : DISPLAY AND FUNCTION IN VGA MODE ONLY

Firmware : V0.15.00 or up

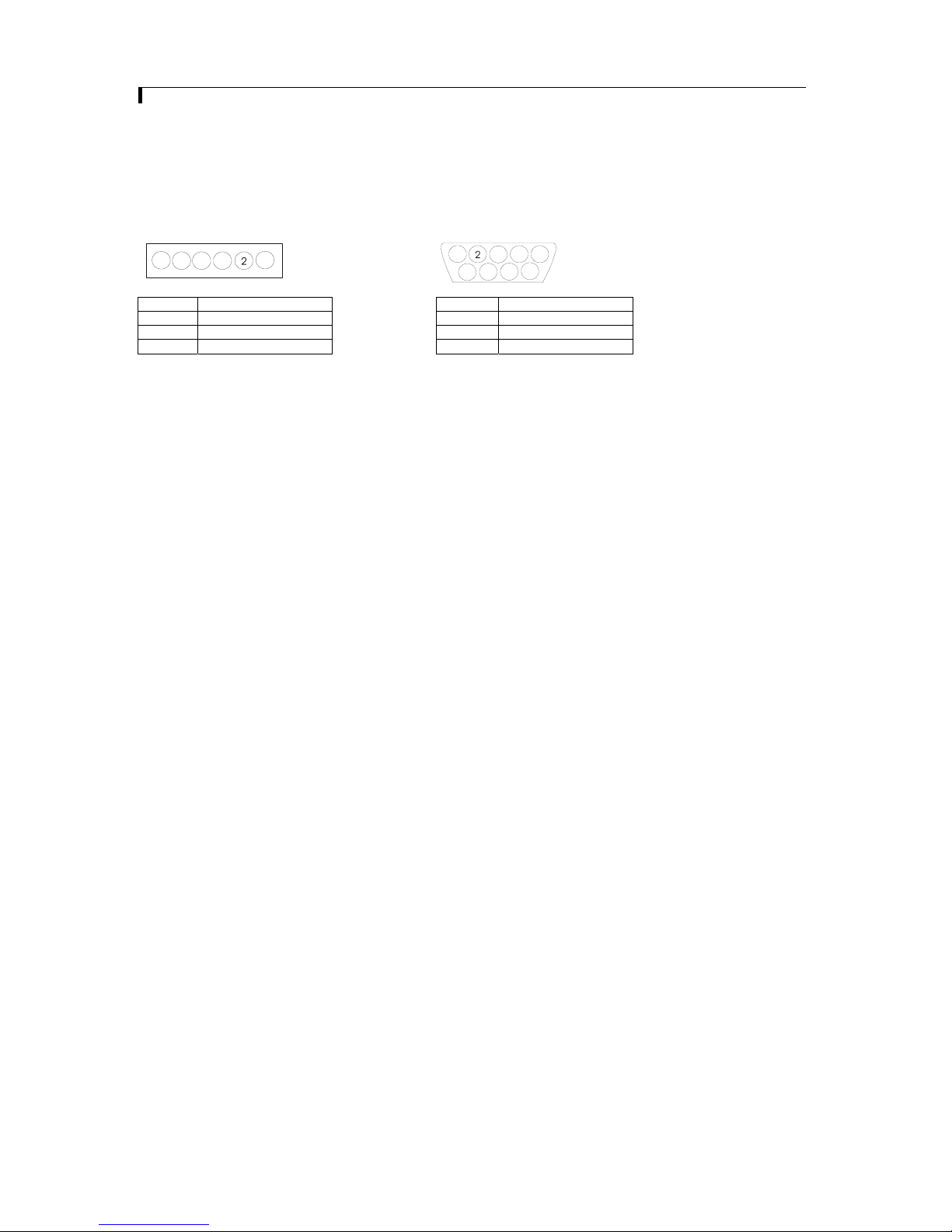

CONNECTORS, PINOUTS & JUMPERS

The various connectors are:

Summary: Connectors

Ref Purpose Description

CN3 Panel signal for TTL panel Hirose 50-pin, DF20G-50DP-1V (Matching type : DF20A-50DS-1C) CN4 Panel signal for TTL panel Hirose 10-pin, DF20G-10DP-1V (Matching type : DF20A-10DS-1C) CN7 Audio board connector DIL socket header 5x2 right angle

(Matching audio Add-on Board P/N 416940020-3)

CN8 RS-232 serial control JST 6-way, B6B-XH-A (Matching type : XHP-6) CNA1 Auxiliary power output JST 4-way, B4B-XH-A (Matching type : XHP-4) CNB1 Backlight inverter JST 5-way, B5B-XH-A (Matching type : XHP-5) CNC1 OSD controls JST 12-way, B12B-XH-A (Mating type : XHP-12) CNV1 Alternate video in JST 5-way, B5B-PH-K (Matching type : PHR-5) CNV2 Component video in JST 6-way, B6B-PH-K (Matching type : PHR-6) CNV3 ARGB 2 input 12-way pin header (Matching cable : P/N 426003300-3) CNV5 Reserved Reserved

J1 S-video in Mini din 4-way J2 Composite video in BNC connector J3 Panel signal for LVDS panel Hirose 40 pin, DF13-40DP-1.25DSA

(Matching type : DF13-40DS-1.25C)

IR1 Infra-Red sensor connector JST 3-way, B3B-XH-A (Matching type : XHP-3)

LED1 Dual color LED connector Header pin 3x1

P1 VGA analog input DB-15 way high density 3 row P2 DVI-I input DVI-I connector

PP2/3 Power input (alternative) DC power Molex 2 pin 0.156” pitch

PP4 External panel power input

Molex 43045-0400 compatible (Mating type : Molex 43025-0400 or compatible)

PP5 Power input Molex 43650-0200 compatible (Mating type : Molex 43645-0200

compatible)

(Matching power cable : P/N 426013800-3) SW3 Panel selection 8-way DIP Switch SW4 Function selection 4-way DIP Switch

Summary: Jumpers setting

Ref

Purpose Note

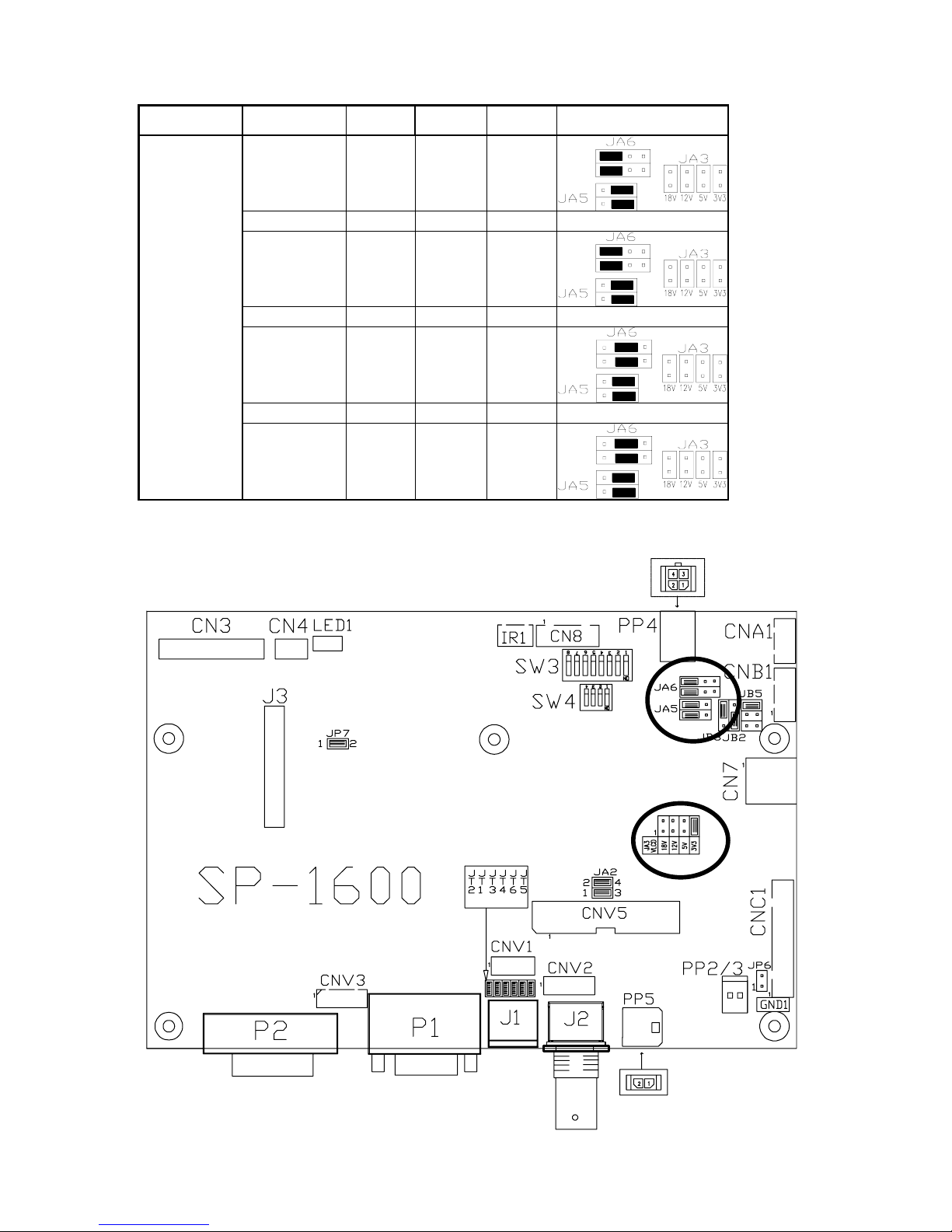

JA2 On board +3.3V logic power enable 1-3 & 2-4 closed, factory set, do not remove JA3 Panel power voltage select

CAUTION: Incorrect setting can damage panel

See panel voltage setting table 1

JA4 Panel power voltage select

CAUTION: Incorrect setting can damage panel

See panel voltage setting table 1

JA5 Panel power voltage select

CAUTION: Incorrect setting can damage panel

See panel voltage setting table 1

JB2 Backlight inverter on/off control – signal level

1-2 = On/Off control signal ‘High’ = +12V/24V 2-3 = On/Off control signal ‘High’ = +5V Open = On/Off control signal ‘High’ = Open collector CAUTION: Incorrect setting can damage inverter.

JB3 Backlight inverter on/off control – polarity 1-2 = control signal ‘high’ = CCFT ON

2-3 = control signal ‘low’ = CCFT ON

JB5 Backlight control type selection 1-2 = VR/Digital switch mount control

3-4 = RS-232 backlight brightness control 5-6 = Reserved

JP6 Input power control Short = External switch control

Open = Switch mount control

JP7 LVDS or TTL panel selection Close = LVDS panel

OFF = TTL panel

JT1 Composite video-in terminator enable Open = composite video input is not terminated

Close = composite video input is terminated with 75Ω

JT2 S-Video luma-in terminator enable Open = S-video luma input is not terminated

Close = S-video luma input is terminated with 75Ω

JT3 S-Video chroma-in terminator enable Open = S-video chroma input is not terminated

Close = S-video chroma input is terminated with 75Ω

JT4 Component luma-in terminator enable Open = component luma input is not terminated

Close = component luma input is terminated with 75Ω

JT5 Component Cr-in terminator enable Open = component Cr input is not terminated

Close = component Cr input is terminated with 75Ω

JT6 Component Cb-in terminator enable Open = component Cb input is not terminated

Close = component Cb input is terminated with 75Ω SW3 Panel & function selection See table below SW4 Panel & function selection See table below

Table 1 : Panel voltage setting table :

Input voltage via

PP2/PP3, PP5 Panel Voltage JA3 JA5

JA6 Jumper on board

3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4

5V 5V closed 1-3 & 2-4 1-3 & 2-4

12VDC

12V OPEN 1-3 & 2-4 5-7 & 6-8

CAUTION: Incorrect setting can damage panel & controller

Input voltage via

PP2/PP3, PP5 Panel Voltage JA3

JA5 JA6 Jumper on board

3.3V 3V3 closed 1-3 & 2-4 1-3 & 2-4

5V 5V closed 1-3 & 2-4 1-3 & 2-4

12V 12V closed 1-3 & 2-4 3-5 & 4-6

24VDC**

18V

18V closed 1-3 & 2-4 3-5 & 4-6

CAUTION: Incorrect setting can damage panel & controller

** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input. Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2/PP3 or PP5.

Input voltage via

PP4 Panel Voltage JA3 JA5 JA6 Jumper on board

3.3V OPEN 3-5 & 4-6 1-3 & 2-4

5V OPEN 3-5 & 4-6 1-3 & 2-4

12V OPEN 3-5 & 4-6 3-5 & 4-6

3.3 / 5 / 12 / 18VDC*

18V

OPEN 3-5 & 4-6 3-5 & 4-6

* Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V = 3.5A

JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5 & JA6 which are red in color)

!

JA3

DIP Switch selection – SW3

Pos #1 Pos #2 Pos #3 Pos.#4 Description Panel resolution

For UXGA panels ON OFF OFF OFF NEC NL160120BC27-14 1600x1200 ON ON OFF OFF Sharp LQ231U1LW01 / Fujitsu FLC59UXC8V-02A

(3)

1600x1200

For SXGA panels

OFF OFF OFF OFF Sharp LQ181E1LW31 1280x1024

Fujitsu FLC48SXC8V 1280x1024

ON OFF OFF OFF AU Optronics M190EN04 1280x1024

OFF

ON

OFF

AU Optronics M190EN02

(1)

/ M190EN04

(1)

– Not

tested

1280x1024

For WXGA panels

OFF OFF OFF OFF NEC NL12876BC26-21 1280x768

ON OFF OFF OFF Sharp LQ255T3LZ28 - Not tested 1366x768

OFF ON OFF OFF LG LC420W02-A4 – Not tested 1366x768

ON ON OFF OFF Samsung LTA320W2-L01 – Not tested 1366x768

OFF OFF ON OFF Samsung LTA260W2-L01 1366x768 OFF ON ON ON Samsung LTM170W1-L01 – Not tested 1280x768

ON ON ON ON AU Optronics M170XW01 – Not tested 1280x768 ON OFF ON OFF NEC NL12880BC20-02D

(2)

1280x800

For XGA panel

OFF OFF OFF OFF Sharp LQ150X1LGN2A 1024x768

Sharp LQ150X1LGB1 1024x768 Samsung LTM150XH-L01 1024x768 LG LM151X2 1024x768 AU Optronics M150XN07 1024x768

ON OFF OFF OFF Fujitsu FLC38XGC6V-06 1024x768

OFF ON OFF OFF LG LM151X2 1024x768

For SVGA panel

ON OFF OFF OFF Sharp LQ121S1DG41 800x600

OFF ON OFF OFF Sharp LQ104S1LG61

(2)

800x600

ON ON OFF OFF Sharp LQ070Y3LG4A

(3)

800x480

For VGA panel

ON OFF OFF OFF Sharp LQ104V1DG21 640x480

Sharp LQ104S1DG51 640x480 (1) - Support on firmware V0.12.00 or up revision. (2) - Support on firmware V0.15.00 or up revision. (3) – Support on firmware V0.20.00 or up revision. For additional and recent added panels, see SP-1600 panel support table at http://www.digitalview.com/controllers/csg.php

Pos #5 Pos #6 Pos #7 Description

OFF OFF OFF Reserved

ON OFF OFF UXGA

OFF ON OFF SXGA

ON ON OFF WXGA

OFF OFF ON XGA

ON OFF ON SVGA

OFF ON ON VGA

ON ON ON Others (Reserved)

SW3 Pos 8 = Reserved.

DIP switch selection – SW4

Pos. # Function Description

1 Clock phase OFF : Normal

ON : Invert

2 Panel pixel format OFF : Double Pixel

ON : Single Pixel

3 Selection of TTL / LVDS panel

connection

ON : LVDS OFF : TTL

4 LVDS data mapping select

ON : Mapping A (LVDS panel) OFF : Mapping B (LVDS panel) Please adjust to get the correct picture. See as Appendix II for details of mapping A and B. No function for TTL panels.

CN3 – Panel connector: HIROSE DF20G-50DP-1V (Matching type : DF20A-50DS-1C)

PIN SYMBOL DESCRIPTION

1 GND Ground 2 GND Ground 3 Reserved Reserved 4 Reserved Reserved 5 P_R0 Data bit R0 6 P_R1 Data bit R1 7 P_R2 Data bit R2 8 P_R3 Data bit R3

9 P_R4 Data bit R4 10 P_R5 Data bit R5 11 P_R6 Data bit R6 12 P_R7 Data bit R7 13 GND Ground 14 GND Ground 15 Reserved Reserved 16 Reserved Reserved 17 P_G0 Data bit G0 18 P_G1 Data bit G1 19 P_G2 Data bit G2 20 P_G3 Data bit G3 21 P_G4 Data bit G4 22 P_G5 Data bit G5 23 P_G6 Data bit G6 24 P_G7 Data bit G7 25 GND Ground 26 GND Ground 27 Reserved Reserved 28 Reserved Reserved 29 P_B0 Data bit B0 30 P_B1 Data bit B1 31 P_B2 Data bit B2 32 P_B3 Data bit B3 33 P_B4 Data bit B4 34 P_B5 Data bit B5 35 P_B6 Data bit B6 36 P_B7 Data bit B7 37 GND Ground 38 GND Ground 39 VS Vertical sync 40 CLK Dot clock 41 HS Horizontal sync 42 DE Display enable 43 PWR Power down control signal (5v TTL) 44 VLCD Panel power supply (3.3v/5v configurable) 45 VLCD Panel power supply (3.3V/5v configurable) 46 VLCD Panel power supply (3.3V/5v configurable) 47 NC No connection 48 VLCD12/18 +12V / +18V panel supply (selected by JA3, JA5 & JA6) 49 VLCD12/18 +12V / +18V panel supply (selected by JA3, JA5 & JA6) 50 VLCD12/18 +12V / +18V panel supply (selected by JA3, JA5 & JA6)

CN4 – Panel connector: HIROSE DF20G-10DP-1V (Matching type : DF20A-10DS-1C)

PIN SYMBOL DESCRIPTION

1 OP1 Reserved

2 OP2 Reserved

3 OP3 Reserved

4 OP4 Reserved

5 IP1 Reserved

6 IP2 Reserved

7 IP3 Reserved

8 IP4 Reserved

9 NC No connection 10 NC No connection

CN7 - Audio connector: DIL socket header 5x2 right angle [OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]

PIN SYMBOL DESCRIPTION

1 VCC Audio board logic power supply, +5V 2 VOLSEL0 Reserved 3 VOLSEL1 Reversed 4 TUNAUDSEL Reserved 5 CLK/CNT Reserved 6 GND Ground 7 +12V / +24V Audio board power supply, +12V / +24V 8 NC No connection 9 NC No connection

10 GND Ground

CN8 – RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6)

PIN SYMBOL DESCRIPTION

1 SDATA Reserved 2 SCLK Reserved 3 VCC +5V 4 TXD RS-232 Tx data 5 GND Ground 6 RXD RS-232 Rx data

CNA1 - Auxiliary power output: JST B4B-XH-A (Matching type : XHP-4)

PIN SYMBOL DESCRIPTION

1 AUX 12V / 24V +12V / +24V DC, 500mA max 2 GND Ground 3 GND Ground 4 AUX 5V +5V DC, 500mA max

CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)

PIN SYMBOL DESCRIPTION

1 GND Ground 2 VBKL +12V / 24V DC, backlight power supply 3 BLCTRL On/Off control (enable) – see JB2 & JB3 4 BVR_WIP Brightness VR – WIP 5 BVR_A Brightness VR A

CNC1 – Function controls connector: JST B12B-XH-A (Matching type : XHP-12)

PIN SYMBOL DESCRIPTION

1 PSWIN Power switch A 2 SW_ON Power switch B 3 BVR_A Backlight brightness VR pin A 4 BVR_WIP Backlight brightness VR pin WIP 5 BVR_B

Backlight brightness VR pin B (470Ω resistor to +5V Vcc) 6 GND Ground 7 MENU OSD menu button 8 -/LEFT OSD -/Left button 9 +/RIGHT OSD +/Right button

10 SEL_DN OSD Select down button 11 SEL_UP OSD Select up button 12 NC No connection

The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

CNV1 – Alternate Video in input, JST B5B-PH-K (Matching type : PHR-5)

PIN DESCRIPTION

1 S-Video : Chroma in 2 S-Video : Luma in 3 Ground 4 Ground 5 Composite video in

CNV2 – Component Video in input, JST B6B-PH-K (Matching type : PHR-6)

PIN DESCRIPTION

1 Luma in /Green in 2 Ground 3 Cb in / Blue in 4 Ground 5 Cr in / Red in 6 Ground

CNV3 - ARGB 2 input – Double row 2mm pitch pin header

PIN SYMBOL DESCRIPTION

1 R Red, analog 2 VGA_PWR +5V power supply for DDC (optional) 3 G Green, analog 4 GND Ground 5 B Blue analog 6 GND Ground 7 HS Horizontal sync, input 8 GND Ground

9 VS_IN Vertical sync, input 10 DDC_SCL DDC serial clock 11 NC No connection 12 DDC_SDA DDC serial data

IR1 – Infra-Red sensor connector: JST B3B-XH-A (Matching type : XHP-3)

PIN SYMBOL DESCRIPTION

1 GND Ground 2 STDBY_Vcc Stand by voltage 3 IR Data IR data

J3 – LVDS Panel connector: Hirose, DF13A-40DP-1.25DSA (Matching type : DF13-40DS-1.25C)

PIN SYMBOL DESCRIPTION

1 TXA0+ Positive differential LVDS data bit A0 2 TXA0- Negative differential LVDS data bit A0 3 TXA1+ Positive differential LVDS data bit A1 4 TXA1- Negative differential LVDS data bit A1 5 Reserved 6 Reserved 7 TXA2+ Positive differential LVDS data bit A2 8 TXA2- Negative differential LVDS data bit A2

9 TXA3+ Positive differential LVDS data bit A3 10 TXA3- Negative differential LVDS data bit A3 11 GND Ground 12 GND Ground 13 TXAC+ Positive LVDS clock for A channel 14 TXAC- Negative LVDS clock for A channel 15 GND Ground 16 GND Ground 17 TXB0+ Positive differential LVDS data bit B0 18 TXB0- Negative differential LVDS data bit B0 19 TXB1+ Positive differential LVDS data bit B1 20 TXB1- Negative differential LVDS data bit B1 21 Reserved 22 Reserved 23 TXB2+ Positive differential LVDS data bit B2 24 TXB2- Negative differential LVDS data bit B2 25 TXB3+ Positive differential LVDS data bit B3 26 TXB3- Negative differential LVDS data bit B3 27 GND Ground 28 GND Ground 29 TXBC+ Positive LVDS clock for B channel 30 TXBC- Negative LVDS clock for B channel 31 GND Ground 32 GND Ground 33 VDD (3,3V/5V) Panel power supply (3,3V/5V) 34 VDD (3,3V/5V) Panel power supply (3,3V/5V) 35 VDD (3,3V/5V) Panel power supply (3,3V/5V) 36 VDD (3,3V/5V) Panel power supply (3,3V/5V) 37 NC No connection 38 VDD +12V/18 Panel power supply (+12V / +18V) 39 VDD +12V/18 Panel power supply (+12V / +18V) 40 VDD +12V/18 Panel power supply (+12V / +18V)

LED1 – Status LED connector: 3-pin header

PIN DESCRIPTION

1 Green LED pin (anode)

2 LED pin common (cathode)

3 Red LED pin (anode)

P1 - Analog VGA in - 15 way connector

PIN SYMBOL DESCRIPTION

1 PCR Red, analog 2 PCG Green, analog 3 PCB Blue analog 4 ID2 Reserved for monitor ID bit 2 (grounded) 5 DGND Digital ground 6 AGND Analog ground red 7 AGND Analog ground green 8 AGND Analog ground blue

9 DDC_5V +5V power supply for DDC (optional) 10 DGND Digital ground 11 ID0 Reserved for monitor ID bit 0 (grounded) 12 DDC_SDA DDC serial data 13 HS_IN Horizontal sync or composite sync, input 14 VS_IN Vertical sync, input 15 DDC_SCL DDC serial clock

P2 – DVI-I input

PIN SYMBOL DESCRIPTION

1 /RX2 TMDS Data 2-

2 RX2 TMDS Data 2+

3 GND Digital Ground

4 NC No connection

5 NC No connection

6 DDC_CLK DDC Clock

7 DDC_DAT DDC Data

8 VS_IN Analog vertical Sync

9 /RX1 TMDS Data 110 RX1 TMDS Data 1+ 11 GND Digital Ground 12 NC No connection 13 NC No connection 14 DDC_5V +5V power supply for DDC (optional) 15 GND Ground (+5, Analog H/V Sync) 16 NC No connection 17 /RX0 TMDS Data 018 RX0 TMDS Data 0+ 19 GND Digital Ground 20 NC No connection 21 NC No connection 22 GND Digital Ground 23 RXC TMDS Clock+ 24 /RXC TMDS ClockC1 R Red C2 G Green C3 B Blue C4 HS_IN Analog horizontal sync C5 GND Ground C6 NC No connection

PP2/PP3 – Alternate 12V / 24V DC power supply - DC power Molex 2 pin 0.156” pitch

PIN DESCRIPTION

1 +12V / +24V DC in 2 Ground

PP4 - External panel power input - Molex 43045-0400 compatible (Mating type : Molex 43025-0400 or compatible)

PIN DESCRIPTION

1 External panel power output 2 Ground 3 External panel power output 4 Ground

PP5 - Molex 43650-0200 compatible (Mating type : Molex 43645-0200 or compatible)

PIN DESCRIPTION

1 +12V / +24V DC 2 Ground

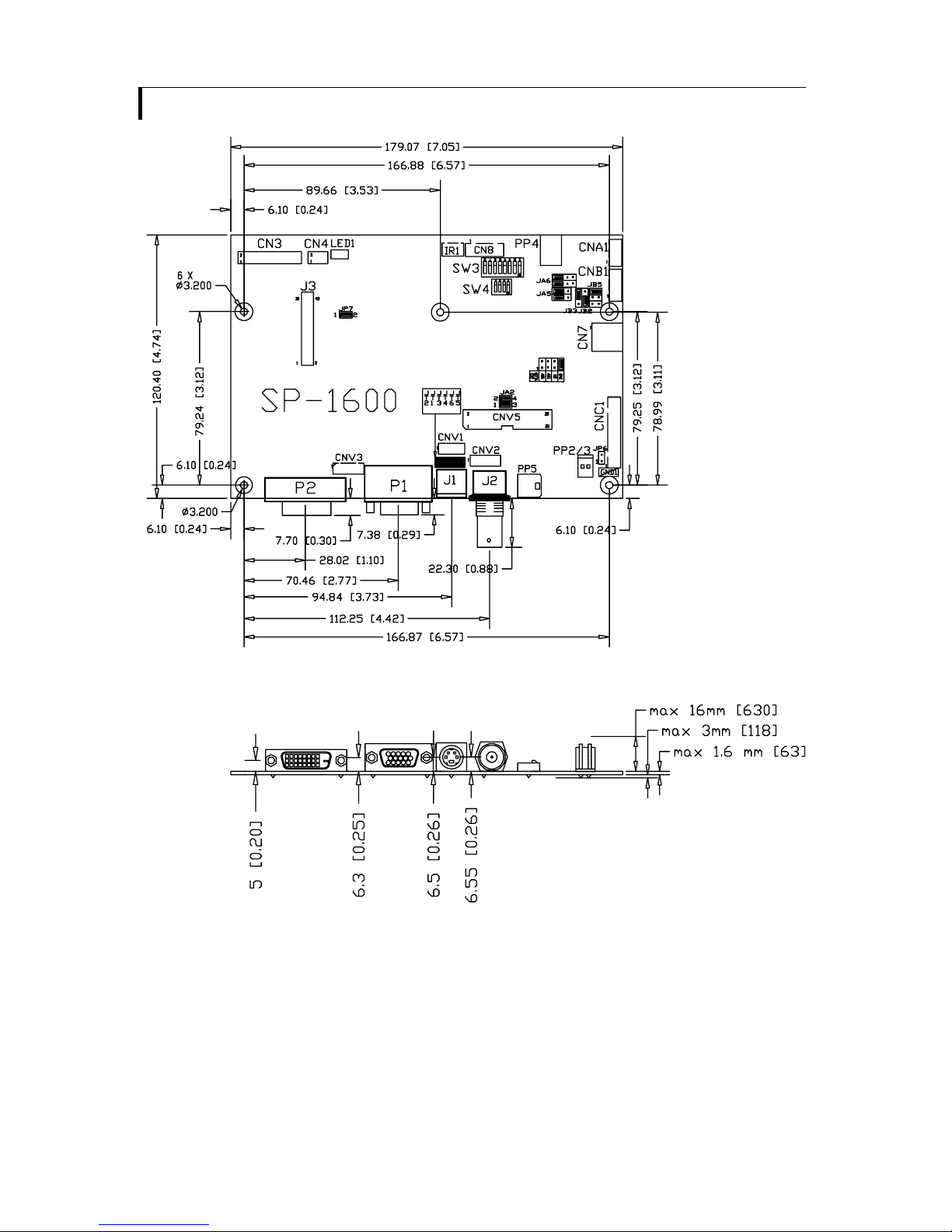

CONTROLLER DIMENSIONS

The maximum thickness of the controller is 20.6mm with or without video add-on board (measured from bottom of PCB to top of components, including any underside components & leads). We recommend clearances of:

• 5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation material is added to the mounting plate surface.

• 10mm above the components

• 3~5mm around the edges

Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.

CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high voltage parts such as the inverter.

APPLICATION NOTES

USING THE CONTROLLER WITHOUT BUTTONS ATTACHED

This is very straightforward:

• Firstly setup the controller/display system with the buttons. With controls attached and display system active make any settings for colour, tint and image position as required then switch everything off.

• Remove the control switches, the 12-way (CNC1) cable.

• Use a jumper or similar to connect pins 1 & 2 on CNC1, this will fix the board On.

• Refer to inverter specifications for details as to fixing brightness to a desired level, this may require a resistor, an open

circuit or closed circuit depending on inverter.

Summary: On CNC1 the only pins that are used are for On/Off and Brightness (if controller mounted inverter is used). On CNC1 the pins are for momentary type buttons so it doesn’t matter that no buttons are attached.

INVERTER CONNECTION

There are potentially 3 issues to consider with inverter connection:

• Power

• Enable

• Brightness

Please read the following sections for a guide to these issues. Inverter Power: As per the table for CNB1 pin 1 is ground and pin 2 provides 12V / 24V DC. This should be matched with the

inverter specification: see table.

CNB1

PIN DESCRIPTION

1 Ground 2 +12V / +24V DC

Remark: For higher power inverter, more current (for 12V) can be taken from CNA1 pin 1.

Enable: This is a pin provided on some inverters for On/Off function and is used by this panel controller for VESA DPMS compliance. If the inverter does not have an enable pin or the enable pin is not used then DPMS will not be operational. Pin 3 should be matched to the inverters specification for the ‘enable’ or ‘disable’ pin.

CNB1

PIN DESCRIPTION

3 Enable

Further, jumpers JB2 & JB3 should be set to match the inverters specification for the enable pin power and High or Low setting: see table.

Ref

Purpose Note

JB2 Inverter enable voltage 1-2 H = 12V / 24V,, 2-3 H = 5V (Vcc), OPEN H = open collector JB3 Inverter control 1-2 H = On, 2-3 L = On

Brightness: There are various methods for brightness control and it is important to consider the specifications for the inverter to be used. Generally the situation is:

• Brightness can control by using a resistor or VR (Variable Resistor).

• Brightness controlled by adding a circuit such as PWM (Pulse Width Modulation).

• No adjustment of brightness is possible.

CNB1 pins 4 & 5 are available for connecting to an inverter or circuit where VR control is supported.

CNB1

PIN DESCRIPTION

4 VR WIP 5 VR A

This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table.

CNC1

PIN DESCRIPTION

3 VR A 4 VR WIP 5 VR B

Design Guideline for making VR circuitry :

CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)

PIN SYMBOL DESCRIPTION

1 GND Ground 2 VBKL +12V / 24VDC, backlight power supply 3 BLCTRL On/Off control (enable) – see JB2 & JB3 4 BVR_WIP Brightness VR - WIP 5 BVR_A Brightness VR A

CNC1 – Control switch, JST B12B-XH-A (Matching type : XHP-12)

PIN SYMBOL DESCRIPTION

1 PSWIN Power button A 2 SW_ON Power button B 3 BVR_A Backlight Brightness VR pin A 4 BVR_WIP Backlight Brightness R pin WIP 5 BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc) 6 GND Ground 7 MENU OSD menu 8 -/LEFT OSD -/Left

9 +/RIGHT OSD +/Right 10 SEL_DN OSD Select down 11 SEL_UP OSD Select up 12 NC No connection

The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

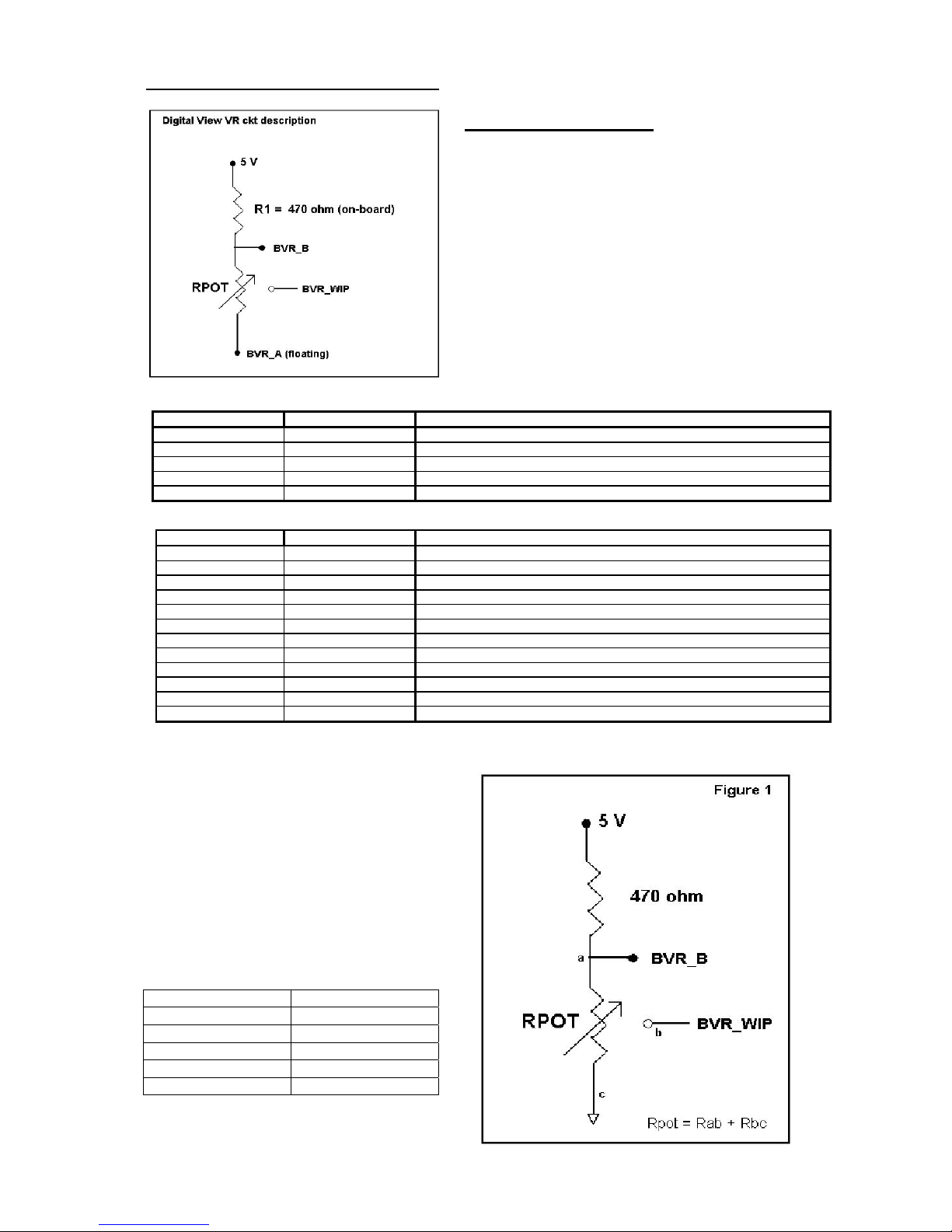

Example for circuit design :

Signal description / Notes :

1) R1 : 470ohm on board

2) RPOT is an external potentiometer (in-line dip style) that can be plugged directly into CNC1 pins 3,4,5. RPOT must be supplied / installed by user.

3) BVR_B : Voltage tapped from “top” of potentiometer, the node of R1 and RPOT.

4) BVR_WIP : Voltage tapped from wiper arm of RPOT.

5) BVR_A : Voltage tapped from “bottom” of RPOT.

Note : BVR_A voltage is left floating on the controller board. To use this circuit, you need to tie this point to a potential (usually GND, available at CNC1 pin 6).

1.)Choose RPOT = 10K

2.) Tie BVR_A to GND

3.) Circuit analysis gives BVR_WIP as the following (see Figure 1)

BVR_WIP = 5 x (Rbc/10.47) where BVR_WIP is in Volts.

And Rbc is the resistance from the wiper arm to bottom of pot in Kohms.

To evaluate, plug in different values of Rbc :

Rbc BVR_WIP

0 0 V

2.5 K 1.2 V 5 K 2.4 V

7.5 K 3.6 V

10 K 4.8 V

So this circuit could provide Brightness adjust voltage ranging from 0V to 5V.

TROUBLESHOOTING

General

A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as:

¾ Controller (jumpers, PC settings) ¾ Panel (controller, cabling, connection, panel, PC settings) ¾ Backlight (inverter, cabling, backlight tubes) ¾ Cabling ¾ Computer system (display settings, operating system)

Through step by step cross checking with instruction manuals and a process of elimination to isolate the problem it is usually possible to clearly identify the problem area.

No image:

¾ If the panel backlight is not working it may still be possible to just see some image on the display. ¾ A lack of image is most likely to be caused by incorrect connection, lack of power, failure to provide a signal or incorrect

graphic card settings.

Image position:

If it is impossible to position the image correctly, i.e. the image adjustment controls will not move the image far enough, then test using another graphics card. This situation can occur with a custom graphics card that is not close to standard timings or if something is in the graphics line that may be affecting the signal such as a signal splitter (please note that normally a signal splitter will not have any adverse effect).

Image appearance:

¾ A faulty panel can have blank lines, failed sections, flickering or flashing display ¾ Incorrect graphics card refresh rate, resolution or interlaced mode will probably cause the image to be the wrong size, to

scroll, flicker badly or possibly even no image.

¾ Incorrect jumper settings on the controller may cause everything from total failure to incorrect image. CAUTION: Do not

set the panel power input incorrectly.

¾ Sparkling on the display: faulty panel signal cable.

Backlight:

Items to check include: Power input, Controls, Inverter and Tubes generally in this order. If half the screen is dimmer than the other half:

¾ Check cabling for the inverter. ¾ For a specific backlight tube check the AC pins orientation (CAUTION: Never reverse any DC power pins).

Also: ¾ If adjusting brightness control has no effect the chances are that the VR rating or method of adjusting brightness is not

compatible or correctly connected to the inverter.

¾ If system does not power down when there is a loss of signal

Continued failure:

If unit after unit keeps failing consider and investigate whether you are short circuiting the equipment or doing something else seriously wrong.

Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to isolate the problem.

SPECIFICATIONS

Panel compatibility Compatible with 1600x1200, 1366x768, 1280x1024, 1280x800, 1280x768,

1024x768, 800x600 800x480 & 640x480 resolutions of TFT LCD panels from manufacturers

A specified firmware version and some factory adjustment may be required for

individual panel timings. No. of colours Up to 3 x 8 bit providing 16.7 million colours. Panel power DC 3.3V, 5V, 12V, 18V Panel signal TTL(Single pixel) / LVDS Vertical refresh rate 60Hz at UXGA & SXGA and up to 75Hz for other lower resolutions Graphics formats Standard VESA VGA, SVGA, XGA, SXGA, WXGA, UXGA.

Other special formats through specified firmware version and factory adjustment. Graphics auto mode detect VGA, SVGA, XGA, SXGA, WXGA & UXGA interlaced and non-interlaced Standard input at source (analog RGB) VGA analog (15 pin) standard with automatic detection of:

Digital Separate Sync;

Composite Sync

Sync On Green. Video formats PAL, NTSC & SECAM Video inputs ARGB 1

ARGB 2

DVI-I

Composite video

S-Video

SD Component video (YCbCr) Functions display On screen display (OSD) of functions OSD menu functions Image controls:

Brightness, Contrast, Saturation, Hue, Sharpness, Aspect size, Color temperature,

Video Scaling, OSD position, OSD timeout, Source select, Hot keys, etc. OSD menu controls available Power On/Off

Backlight brightness

OSD Menu

OSD Select up

OSD Select down

Setting +

Setting Control interface Buttons/IR / RS-232 Settings memory Settings are stored in non volatile memory PC Connectivity VGA / SVGA / XGA / SXGA / UXGA analog or digital Controller dimensions 179mm x 120.4mm (7.” x 4.74”) Power consumption 10w approx. (not including panel power consumption) Power load maximum The controller has an overall 3Amp current limit. Input voltage 12V/ 24VDC +/- 5% Power protection Fuse fitted (Resettable) Storage temperature limits -40oC to +70oC Operating temperature limits 0oC to +60oC

NOTES

Please note the following:

• For specific panel setup a sample of an LCD may be required (this will be returned) and a copy of the full

technical specifications for the panel from the manufacturer.

• Re-layout and custom development services are available.

APPENDIX I – SUPPORTED MODES TABLE AT ARGB PORT

Mode Resolution Clk [MHz] Horizontal

freq [KHz]

Vertical

freq [Hz]

Sync Mode

E1_70 640x350

70Hz

25.175 31.469 70.087 Digital Separate Sync

E2_70 640x400

70Hz

25.175 31.469 70.087 Digital Separate Sync

T_70 720x400

70Hz

28.322 31.469 70.087 Digital Separate Sync

T_70 720x400

70Hz

28.322 31.469 70.087 Sync On Green

V_60 640x480

60Hz

25.175 31.469 59.940 Digital Separate Sync

V_60 640x480

60Hz

25.175 31.469 59.940 Sync On Green

V_60 640x480

60Hz

25.175 31.469 59.940 Composite Sync

V_72 640x480

72Hz

31.500 37.861 72.809 Digital Separate Sync

V_72 640x480

72Hz

31.500 37.861 72.809 Sync On Green

V_72 640x480

72Hz

31.500 37.861 72.809 Composite Sync

V_75 640x480

75Hz

31.500 37.500 75.000 Digital Separate Sync

V_75 640x480

75Hz

31.500 37.500 75.000 Sync On Green

V_75 640x480

75Hz

31.500 37.500 75.000 Composite Sync

SV_56 800x600

56Hz

36.000 35.156 56.250 Digital Separate Sync

SV_56 800x600

56Hz

36.000 35.156 56.250 Sync On Green

SV_56 800x600

56Hz

36.000 35.156 56.250 Composite Sync

SV_60 800x600

60Hz

40.000 37.879 60.317 Digital Separate Sync

SV_60 800x600

60Hz

40.000 37.879 60.317 Sync On Green

SV_60 800x600

60Hz

40.000 37.879 60.317 Composite Sync

SV_72 800x600

72Hz

50.000 48.077 72.188 Digital Separate Sync

SV_72 800x600

72Hz

50.000 48.077 72.188 Sync On Green

SV_72 800x600

72Hz

50.000 48.077 72.188 Composite Sync

SV_75 800x600

75Hz

49.500 46.875 75.000 Digital Separate Sync

SV_75 800x600

75Hz

49.500 46.875 75.000 Sync On Green

SV_75 800x600

75Hz

49.500 46.875 75.000 Composite Sync

X_60 1024x768

60Hz

65.000 48.363 60.004 Digital Separate Sync

X_60 1024x768

60Hz

65.000 48.363 60.004 Sync On Green

X_60 1024x768

60Hz

65.000 48.363 60.004 Composite Sync

X_70 1024x768

70Hz

75.000 56.476 70.069 Digital Separate Sync

X_70 1024x768

70Hz

75.000 56.476 70.069 Sync On Green

X_70 1024x768

70Hz

75.000 56.476 70.069 Composite Sync

X_75 1024x768

75Hz

78.750 60.023 75.029 Digital Separate Sync

X_75 1024x768

75Hz

78.750 60.023 75.029 Sync On Green

X_75 1024x768

75Hz

78.750 60.023 75.029 Composite Sync

SX_60 1280x1024

60Hz

108 63.81 60.020 Digital Separate Sync

SX_60 1280x1024

60Hz

108 63.81 60.020 Sync On Green

SX_60 1280x1024

60Hz

108 63.81 60.020 Composite Sync

UX_60 1600x1200

60Hz

162 75.000 60 Digital Separate Sync

UX_60 1600x1200

60Hz

162 75.000 60 Sync On Green

UX_60 1600x1200

60Hz

162 75.000 60 Composite Sync

SUN1166 1152x900

66Hz

94.5 61.8 66 Digital Separate Sync

SUN1176_

1152x900

76Hz

108 71.8 76.1 Digital Separate Sync

SUN1276G

1280x1024

76Hz

135 81.1 76.1 Digital Separate Sync

Remark : The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance we recommend choosing 60Hz vertical refresh rate. To support on higher refresh rate over 60Hz, the LCD panel may not support.

Appendix II – RS-232 control protocols

RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity)

Physical connection :

Controller side Computer side Connector interface : CN8 Connector interface : Serial port Mating connector : JST XHP-6 Mating connector : DB9 Female

PIN# Description PIN# Description

4 RS-232 Tx Data 2 RS-232 Rx Data 5 Ground 3 RS-232 Tx Data 6 RS-232 Rx Data 5 Ground

Remark : (1) : RS-232 connection cable, 600mm P/N 426090200-3 can be ordered separately for connection.

Software connection :

The OSD function can be controlled through sending the RS-232 protocol. The RS-232 program can be custom-made to fit for application or it can be used the program provided by DigitalView on request. Please contact your local sales for information.

54

6

3

1

7

8

9

Mating face of CN8 Mating face of RS-232 DB9 Male

5 463

1

1. Commands to implement switch mount control buttons

Function Command Description Remark

Menu button 0xf7 Menu button pressed Button equivalent Select-down button

0xfa Select-down button pressed Button equivalent

Select-up button 0xfb Select-up button pressed Button equiva lent Right/+ button 0xfc Right/+ button pressed Button equivalent Left/- button 0xfd Left/- button pressed Button equivalent

2. Parameter setting - immediate, relative, reset and query

Function Command Description Acknowledge (if enabled)

Volume control left+right channel

0x80, “a” | “A”, nn | “+” | “-” | “r” | “R” | “?”

Set audio (L+R) volume = value/increment/decrement Reset Query

volume

Range : “0” “0” ~ “1” ”F”

Default : “0” “A”

Volume control on/off (mute)

0x80, “m” | “M”, “0” | “1” | “r” | “R” | “?”

Disable audio output. Enable audio output. Reset Query

“0” - audio off (muted).

“1” - audio on (Default)

Brightness control 0x81,

nn | “+” | “-” | “r” | “R” | “?”

Set brightness = value/increment/decrement Reset Query

Brightness.

Range : “0” “0” ~ “6” “4”

Default : “3” “2”

Contrast control 0x82, “a” | “A”,

nn | “+” | “-” | “r” | “R” | “?”

Set all contrast = value/increment/decrement Reset Query

Contrast

Range : “0” “0” ~ “6” “4”

Default : “3” “2”

Saturation control 0x83,

nn | “+” | “-” | “r” | “R” | “?”

Set saturation = value/increment/decrement Reset Query

PAL/NTSC saturation (In video

mode only)

Range : “0” “0” ~ “6” “4”

Default : “3” “2”

Hue control 0x84,

nn | “+” | “-” | “r” | “R” | “?”

Set hue = value/increment/decrement Reset Query

NTSC hue (In NTSC mode only)

Range : “0” “0” ~ “6” “4”

Default : “3” “2”

Manual Phase 0x85,

nn | “+” | “-” | “?”

Set dot clock phase = value/increment/decrement Query

Dot clock phase.

(In PC mode only) Image H position 0x86,

nnnn | “+” | “-” | “r” | “R” | “?”

Set img_hpos = value/increment/decrement Reset Query

Image horizontal position.

(In PC mode only)

Image V position 0x87,

nnnn | “+” | “-” | “r” | “R” | “?”

Set img_vpos = value/increment/decrement Reset Query

Image vertical position.

(In PC mode only)

Sharpness 0x8a,

nn | “+” | “-” | “r” | “R” | “?”

Set sharpness = value/increment/decrement Reset Query

Sharpness.

Range : “0” “0” ~ “0” “F”

Default : “0” “0”

Manual Clock 0x8b,

nnnn | “+” | “-“ | “?”

Set H active size = Value/increment/decrement Query

Graphic mode H active size (in

pixels) Scaling Mode 0x8c,

“0” | “1” | “2” | “3” “r” | “R” | “?”

Set graphic image scaling mode = value Reset Query

Image expansion on/off.

“0” – 1:1

“1” – fill screen (Default)

“2” – fill aspect

OSD H position 0x90,

nnn | “+” | “-” | “r” | “R” | “?”

Set osd_hpos = value/increment/decrement Reset Query

OSD horizontal position.

OSD V position 0x91,

nnn | “+” | “-” | “r” | “R” | “?”

Set osd_vpos = value/increment/decrement Reset Query

OSD vertical position.

OSD Transparency

0x92, n | “+” | “-” | “r” | “R” | “?”

Set OSD transparency = value/increment/decrement Reset Query

OSD transparency.

Range : “0” “0” ~ “6” “4”

Default : “3” “2”

Select menu timeout

0x93, nn | “+” | “-” | “r” | “R” | “?”

Select menu timeout = value/increment/decrement Reset Query

OSD menu timeout value.

Range : “0” “0” ~ “1” “4”

Default : “0” “A”

“0” “0” – 0 second

value – Round up to nearest

available step.

if value > max available step, set

it to the max available step. Select OSD language

0x95, n | “r” | “R” | “?”

Select language = English, Italian,… Reset Query

“0” – English. (Default)

“8” – Chinese

Input main select 0x98,

nn | “+” | “-” | “r” | “R” | “?”

Select input main = PC or VIDEO or next available Reset Query

Main selected.

0x41 0x31 : VGA 1

0x41 0x32 : VGA 2

0x42 0x31 : Composite

0x43 0x31 : S-video

0x44 0x31 : HD/SD Component

0x46 0x31 : DVI

0x47 0x31 : HD/SD Component

(Source sequence : VGA 1 Æ

Composite Æ S-Video Æ VGA 2

Æ DVI Æ HD/SD Component)

Video System 0x9b,

“0” | “1” | “2” | “3” | “r” | “R” | “?”

Set video system = Auto/NTSC/PAL/SECAM Reset Query

“0” – Auto (Default)

“1” – NTSC

“2” – PAL

“3” – SECAM

“4” – NTSC_443

(In video mode only) GAMMA value select

0x9d, n | “r” | “R” “?”

Select GAMMA value = Value Reset Query

GAMMA value:

“0” – 1.0 (Default), “1” – 1.6

“2” – 2.2, “3” – User Defined

Auto power off 0x9f,

“0” | “1” | “r” | “R” | “?”

Set power down option = On/Off Reset Query

“0” – Off.

“1” – On (Default)

Direct Access (Hotkeys)

0xa0, “1”, n | “r” | “R” | “?”

Set Hotkey 1= Value Reset Query

“1” – volume.

“2” – brightness (Default)

“3” – contrast.

“5” – input source

“C” - Aspect

Direct Access (Hotkeys)

0xa0, “2”, n | “r” | “R” | “?”

Set Hotkey 2 = value Reset Query

“1” – volume.

“2” – brightness.

“3” – contrast (Default)

“5” – input source

“C” - Aspect

Set runtime 0xa1, Set runtime counter value = Runtime = nnnnn.

counter nnnnn |

“r” | “R” | “?”

nnnnn (* 0.5 hour) Reset

Query Colour temperature select

0xb3, n | “r” | “R” | “?”

Select colour temperature =

value

Reset

Query

Main selected.

“0” – 9300K. “1” – 8000K. (Default) “2” – 6500K.

“3” – 5000K.

Red level for selected colour temperature

0xb4, nn | “+” | “-” |

“r” | “R” | “?”

Set the level of the red channel for the selected colour temp. = value/increment/decrement Reset Query

Red level for selected colour

temperature.

Green level for selected colour temperature

0xb5, nn | “+” | “-” |

“r” | “R” | “?”

Set the level of the green channel for the selected colour temp. = value/increment/decrement Reset Query

Green level for selected colour

temperature.

Blue level for selected colour temperature

0xb6, nn | “+” | “-” |

“r” | “R” | “?”

Set the level of the blue channel for the selected colour temp. = value/increment/decrement Reset Query

Blue level for selected colour

temperature.

Graphic horizontal resolution enquiry

0xb7 Horizontal resolution (in pixels)

in 3 digit hex number

“nnn” = horizontal resolution Graphic vertical

resolution enquiry

0xb8 Vertical resolution (in lines) in 3

digit hex number

“nnn” = vertical resolution Graphic horizontal

sync frequency

0xb9 Horizontal sync frequency (in

units of 100Hz) in 3 digit hex number

“nnn” = horizontal frequency

Graphic vertical sync frequency

0xba Vertical sync frequency (in units

of Hz) in 3 digit hex number

“nnn” = vertical frequency OSD turn off 0xbd Turn off the OSD. “1” – successful.

Set gamma data for user defined gamma curve

0xbf, mm, c, “?”

0xbf, “R” | “r” 0xbf, mm, c, nn

Query gamma data for color c index mm ( c = 0 for color Red, c=1 for color Green, c=2 for color Blue) Set user gamma curve to linear Set gamma data for color c index mm. (If c= 3, then gamma data for red, green & blue will be set at the same time.)

“nn” = gamma data

“1”

“nn” = gamma data

Query firmware version

0xcb, “0”

Read BIOS version

BIOS version “VV.YY.ZZ”

VV = V0 or E0,

V0 = Release version

E0 = Engineering Sample

YY= Version Number

ZZ= Customer Number

Backlight Brightness control

0xe0, nn | “+” | “-” | “r” | “R” | “?”

Set Backlight = value/increment/decrement Reset Query

Set backlight brightness to “10”

Æ 0xe0 0x31 0x30

* Need to short JB5 to 3-4 closed

for enabling the backlight

brightness control.

* Apply for inverter control

voltage in range of 0~5V. Backlight On/Off 0xe1,

“0” | “1” |

Backlight Off / Backlight On /Status

“0” – Backlight Off

“1” – Backlight On.

”?”

“?” – Backlight On/Off Query

3. Other control

Function Command Description Acknowledge (if enabled)

Auto-setup 0xc3 Start auto-setup of current

vmode.

“0” – fail.

“1” – successful.

Command availability

0xc4, nn Check whether a command is

available.

“0” – not available.

“1” – available.

Auto-calibration 0xc5 Start auto-calibration of gain of

the RGB amplifier.

“0” – fail.

“1” – successful.

Soft Power On/Off 0xc8,

“0” | “1” | “?”

Soft power off/on query

“0” – soft power off.

“1” – soft power on.

Query video input status

0xc9 Query the status of the primary

& pip status

“nn,nn” = input status

“nn,xx” digit = primary status:

“0”,”0” : invalid

“A”,”1” ARGB

“A”, “2” ARGB 2

“B”,”1” Composite

“C”,”1” S-video

“D”,”1” HD/SD Component

“F”,”1” DVI

“xx,nn”= PIP input status:

“0”,”0”: invalid

Reset to factory defaults

0xce Reset all parameters to default

value

“1” – successful.

n = 1-byte ascii-coded hex number, e.g., parameter value of 0x1 is represented by “1” (0x31). mn or nn = 2-byte ascii-coded hex number, e.g., parameter value of 0x1e is represented by “1”, “e” | “E” (0x31, 0x6e|0x4e).

Hex to ASCII conversion table

Hex ASCII Hex ASCII Hex ASCII Hex ASCII 0x30 0 0x41 A 0x61 a 0x2B + 0x31 1 0x42 B 0x62 b 0x2D - 0x32 2 0x43 C 0x63 c 0x3F ? 0x33 3 0x44 D 0x64 d 0x34 4 0x45 E 0x65 e 0x35 5 0x46 F 0x66 f 0x36 6 0x47 G 0x67 g 0x37 7 0x48 H 0x68 h 0x38 8 0x49 I 0x69 i 0x39 9 0x4A J 0x6A j 0x4B K 0x6B k 0x4C L 0x6C l 0x4D M 0x6D m 0x4E N 0x6E n 0x4F O 0x6F o 0x50 P 0x70 p 0x51 Q 0x71 q 0x52 R 0x72 r 0x53 S 0x73 s 0x54 T 0x74 t 0x55 U 0x75 u 0x56 V 0x76 v 0x57 W 0x77 w 0x58 X 0x78 x 0x59 Y 0x79 y 0x5A Z 0x7A z

Appendix III – Mapping definition

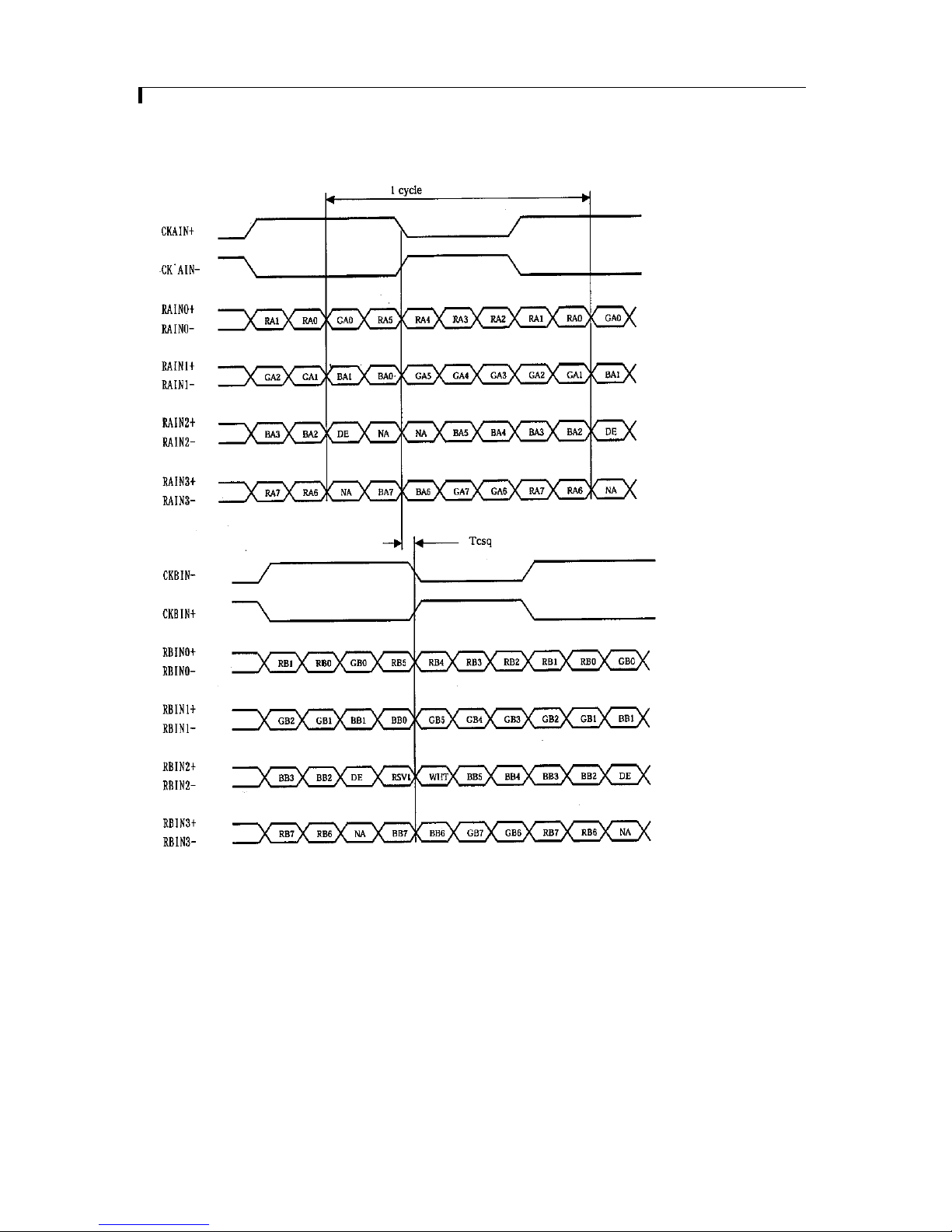

• Definition of Mapping A :

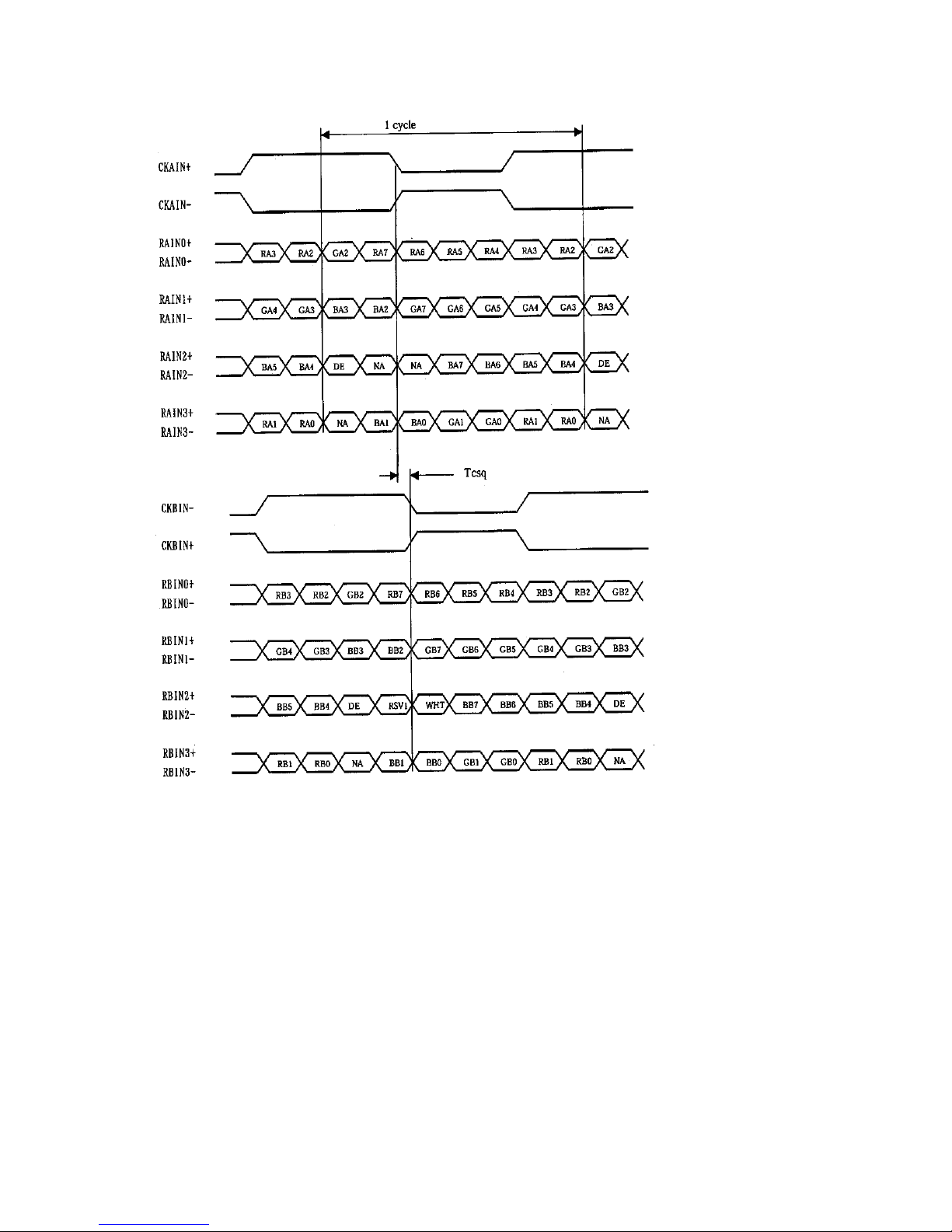

• Definition of Mapping B :

Appendix IV – Auto Color Gain

The Auto Color Gain function is supported in the ARGB mode only and is designed to calibrate the controller to the incoming video signal. In order to calibrate correctly, the display must

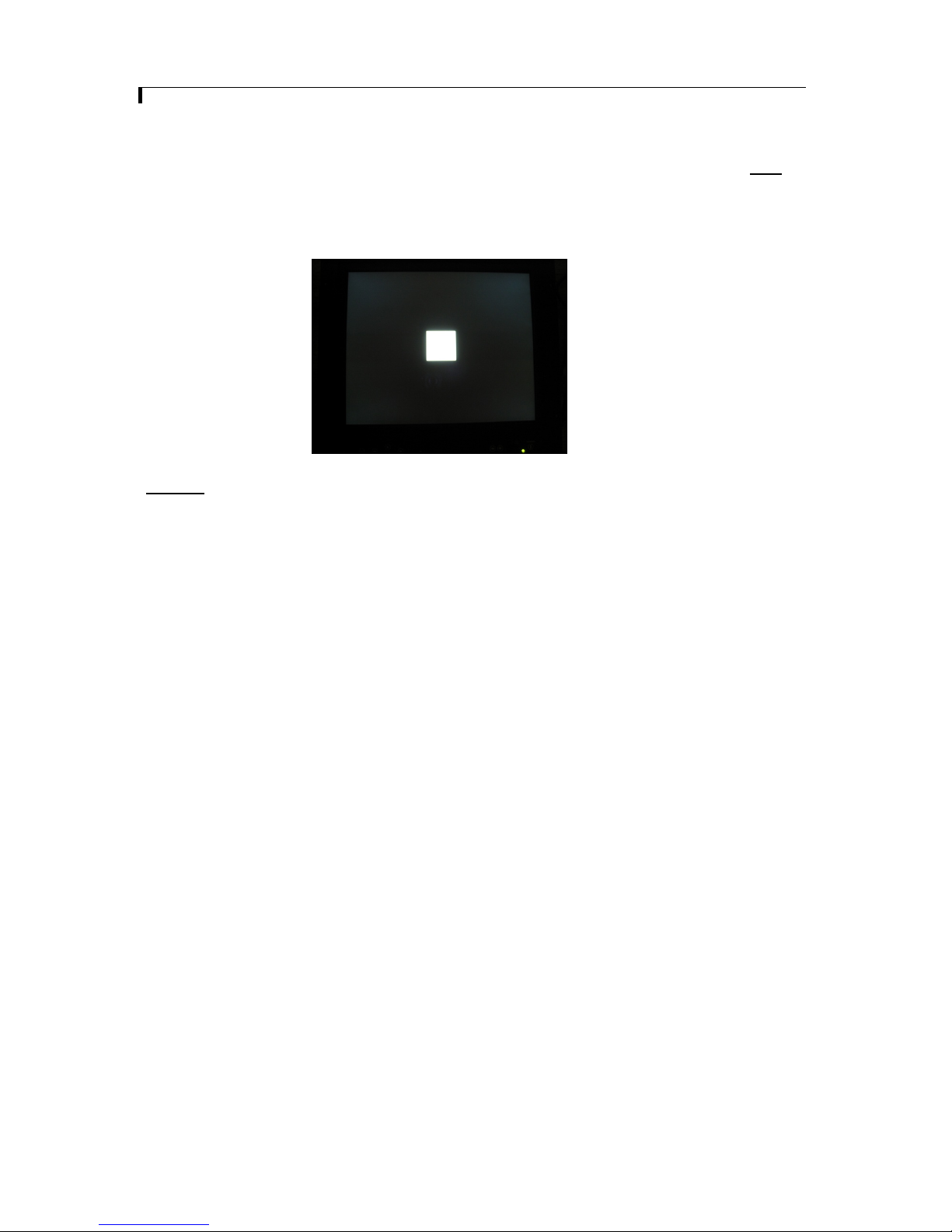

be displaying an image containing both black and white data (see illustration below) when the functio n is used. The internal processor of the video controller chip will then execute a process to adjust the relative values of the RGB signals to achieve the best performance. The parameters of the corrected RGB values are then stored in the controller and are unaffected by the Reset Factory Defaults function.

Warning - If the Auto Color Gain is executed without an appropriate image being displayed, then the process will set incorrect values and the display colors will be distorted. If this occurs, then it can either be corrected by performing the process correctly or if this is not possible then the Reset Color Gain function can be used. This function will reset the stored RGB values to a set of approximate values.

Appendix V – Inverter Interface Board P/N 416040010-3

[OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]

The Inverter interface board provides interface to drive up the high current consumption panel inverter in excess of 3.5A. This board enables current of up to 8 Amps to be managed safely while retaining the capability for inverter dimming and management of the inverter enable signal according to VESA DPMS standards. Additionally, the inverter interface board provides over-voltage protection via a resettable fuse when the input voltage exceeds 13V and reverse polarity protection against accidental misconnection.

Connector Type :

CNA1, CNB2 : JST 4 ways, B4B-XH-A CNB1 : JST 5 ways, B5B-XH-A CNB3 : JST 8 ways, B8B-XH-A PP1 : PWR 4 way PP2 : Terminal Block 2 poles x 2 PP3 : PWR 2 ways

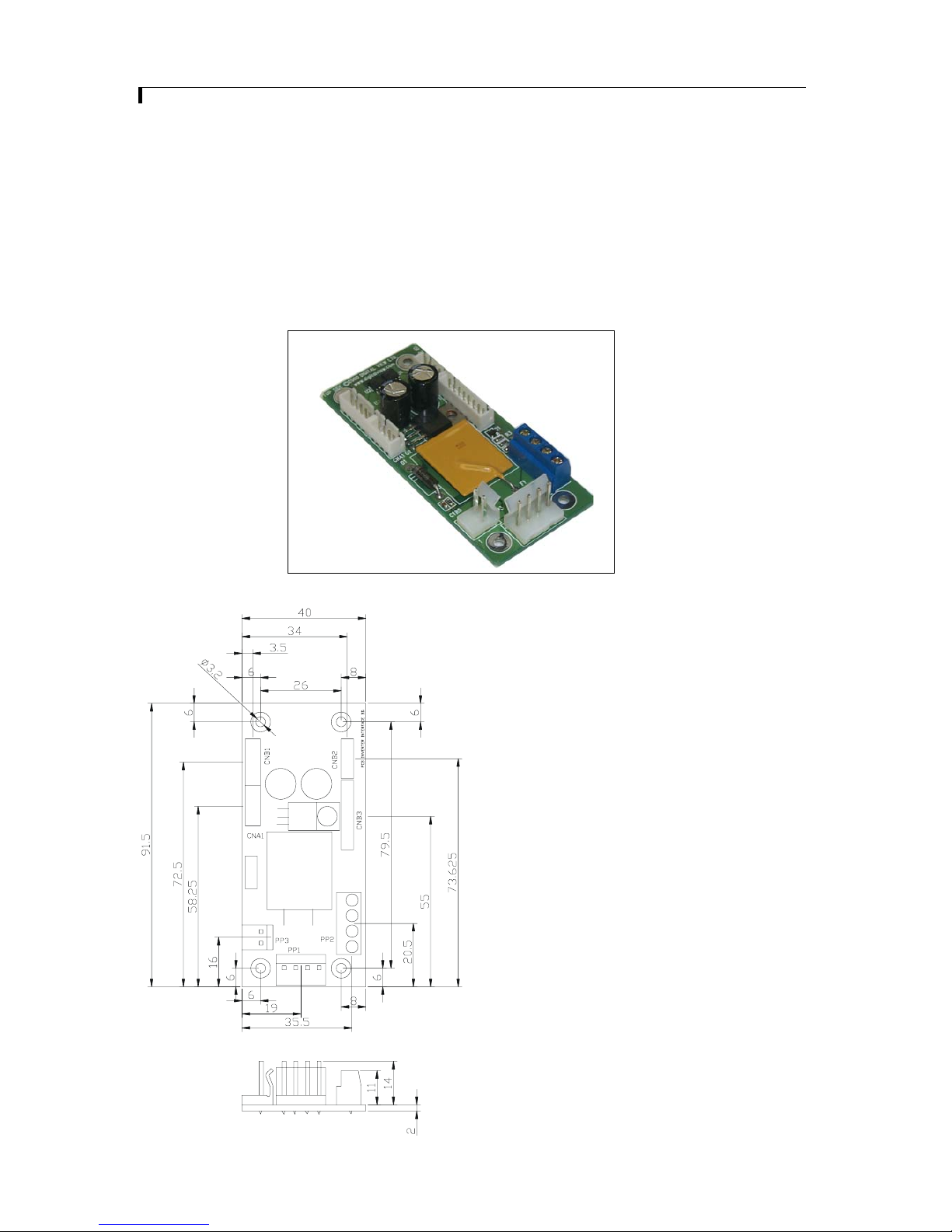

Illustrated Diagram

PP1 - 12VDC power supply – input, Power header 4 ways 0.156” pitch

PIN DESCRIPTION

1 +12VDC 2 +12VDC 3 Ground 4 Ground

PP2 – Alternate 12VDC power supply – input, Terminal Block 2 poles

PIN DESCRIPTION

1 +12VDC 2 +12VDC 3 Ground 4 Ground

PP3 – 12VDC power supply to controller – Output, Power header 2 ways, 0.156” pitch

PIN DESCRIPTION

1 +12VDC 2 Ground

CNA1 - Inverter interface to controller, JST B4B-XH-A

PIN SYMBOL DESCRIPTION

1 NC No connection 2 AUX_GND Ground 3 AUX_GND Ground 4 AUX_Vcc +5V DC, 500mA max

CNB1 – Inverter interface to controller, JST B5B-XH-A

PIN SYMBOL DESCRIPTION

1 GND Ground 2 BL_ON Backlight power 3 BLCTRL Backlight on/off control signal 4 BVR_WIP Backlight brightness VR pin WIP 5 BVR_A Backlight brightness VR pin A

CNB2 – Inverter interface to backlight inverter, JST B4B-XH-A

PIN SYMBOL DESCRIPTION

1 VLCD12 Panel power 2 AUX_GND Ground 3 AUX_GND Ground 4 AUX Vcc +5V DC, 500mA max

CNB3 – Inverter interface to backlight inverter, JST B8B-XH-A

PIN SYMBOL DESCRIPTION

1 VLCD12 Panel power 2 VLCD12 Panel power 3 GND Ground 4 GND Ground 5 VLCD12 Panel power 6 BLCTRL Backlight on/off control signal 7 BVR_WIP Backlight brightness VR pin WIP 8 BVR_A Backlight brightness VR pin A

WARRANTY

The products are warranted against defects in workmanship and material for a period of three (3) year from the date of purchase provided no modifications are made to it and it is operated under normal conditions and in compliance with the instruction manual.

The warranty does not apply to:

• Product that has been installed incorrectly, this specifically includes but is not limited to cases where electrical short circuit

is caused.

• Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s consent).

• Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or electrical.

• Ordinary wear and tear.

Except for the above express warranties, the manufacturer disclaims all warranties on products furnished hereunder, including all implied warranties of merchantability and fitness for a particular application or purpose. The stated express warranties are in lieu of all obligations or liabilities on the part of the manufacturer for damages, including but not limited to special, indirect consequential damages arising out of or in connection with the use of or performance of the products.

CAUTION

Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as an exhaustive source of information. This product is for use by suitably qualified persons who understand the nature of the work they are doing and are able to take suitable precautions and design and produce a product that is safe and meets regulatory requirements.

LIMITATION OF LIABILITY

The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in no event exceed the purchase price of said product.

TRADEMARKS

The following are trademarks of Digital View Ltd:

• Digital View

• SP-1600

CONTACT DETAILS

USA: Digital View Inc.

18440 Technology Drive Building 130 Morgan Hill, CA 95037

USA

Tel: (1) 408-782 7773 Fax: (1) 408-782 7883 Sales: [email protected]

EUROPE: Digital View Ltd 6 Marylebone Passage London W1W 8EX UK

Tel: (44) (0)20 7631 2150 Fax: (44) (0)20 7631 2156 Sales: [email protected]

ASIA: Digital View Ltd 16

th

floor Millennium City 3 370 Kwun Tong Road Kwun Tong Hong Kong

Tel: (852) 2861 3615 Fax: (852) 2520 2987 Sales: [email protected]

WEBSITE

www.digitalview.com

Brand names belong to their respective owners. Specifications subject to change without notice.

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Digital View: 426003300-3
