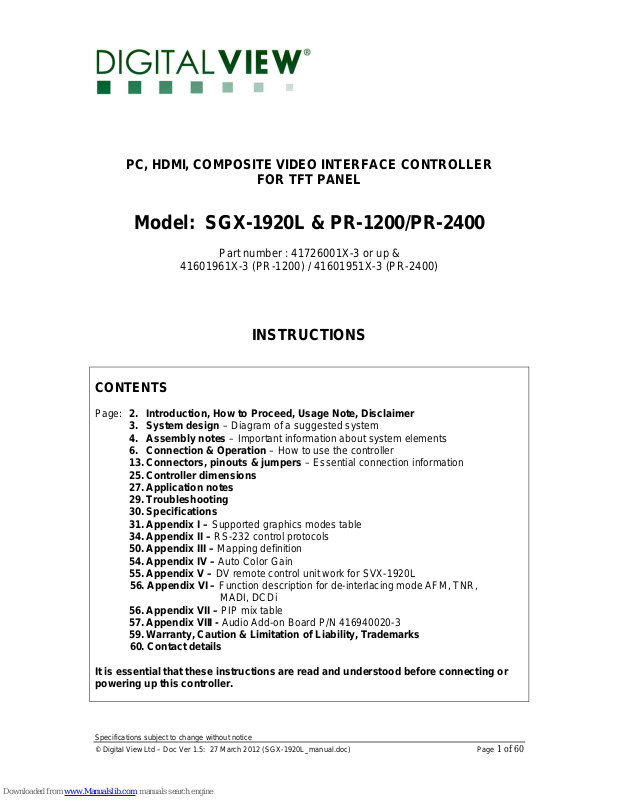

Digital View SGX-1920L, PR-1200, PR-2400 Instructions Manual

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

1 of 60

PC, HDMI, COMPOSITE VIDEO INTERFACE CONTROLLER

FOR TFT PANEL

Model: SGX-1920L & PR-1200/PR-2400

Part number : 41726001X-3 or up &

41601961X-3 (PR-1200) / 41601951X-3 (PR-2400)

INSTRUCTIONS

CONTENTS

Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer

3. System design – Diagram of a suggested system

4. Assembly notes – Important information about system elements

6. Connection & Operation – How to use the controller

13. Connectors, pinouts & jumpers – Essential connection information

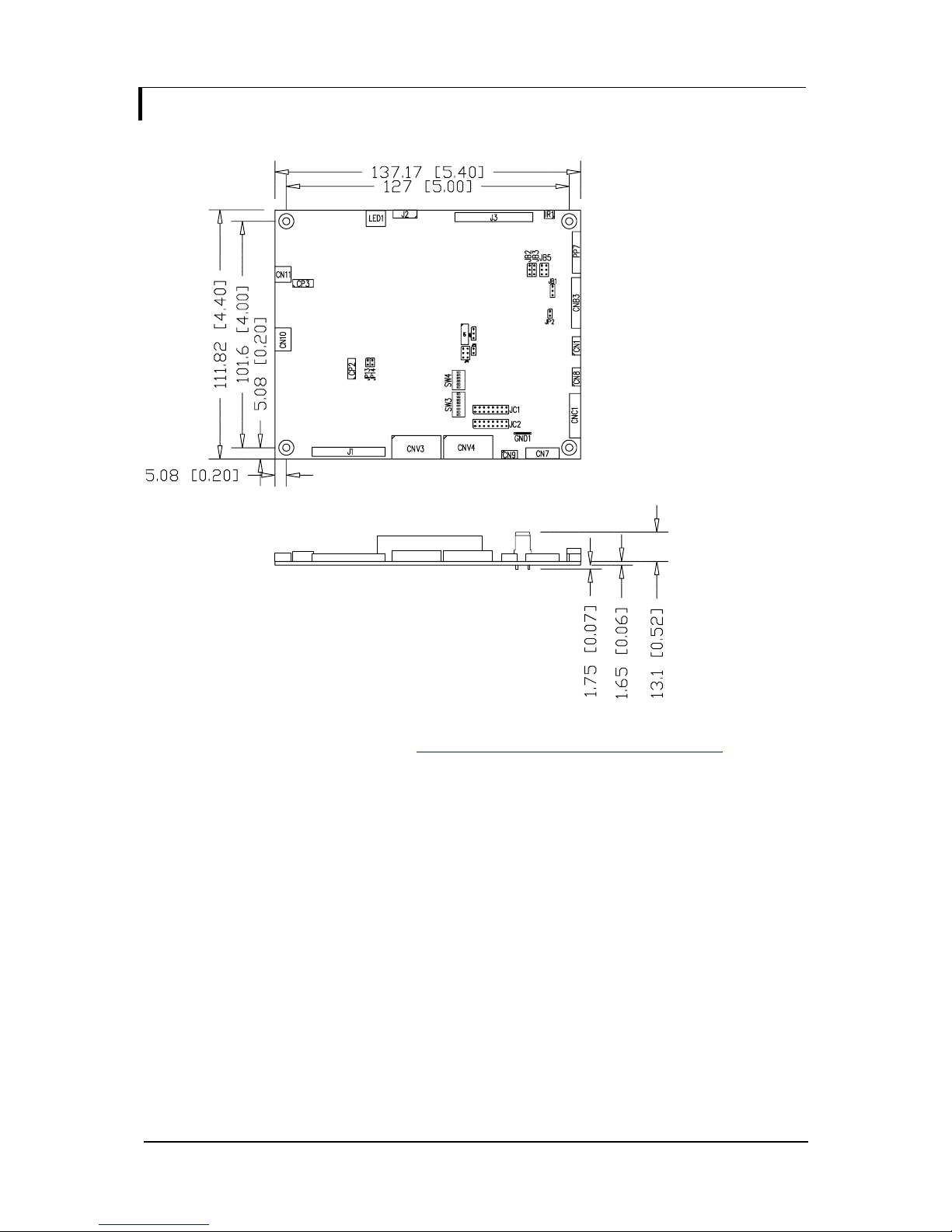

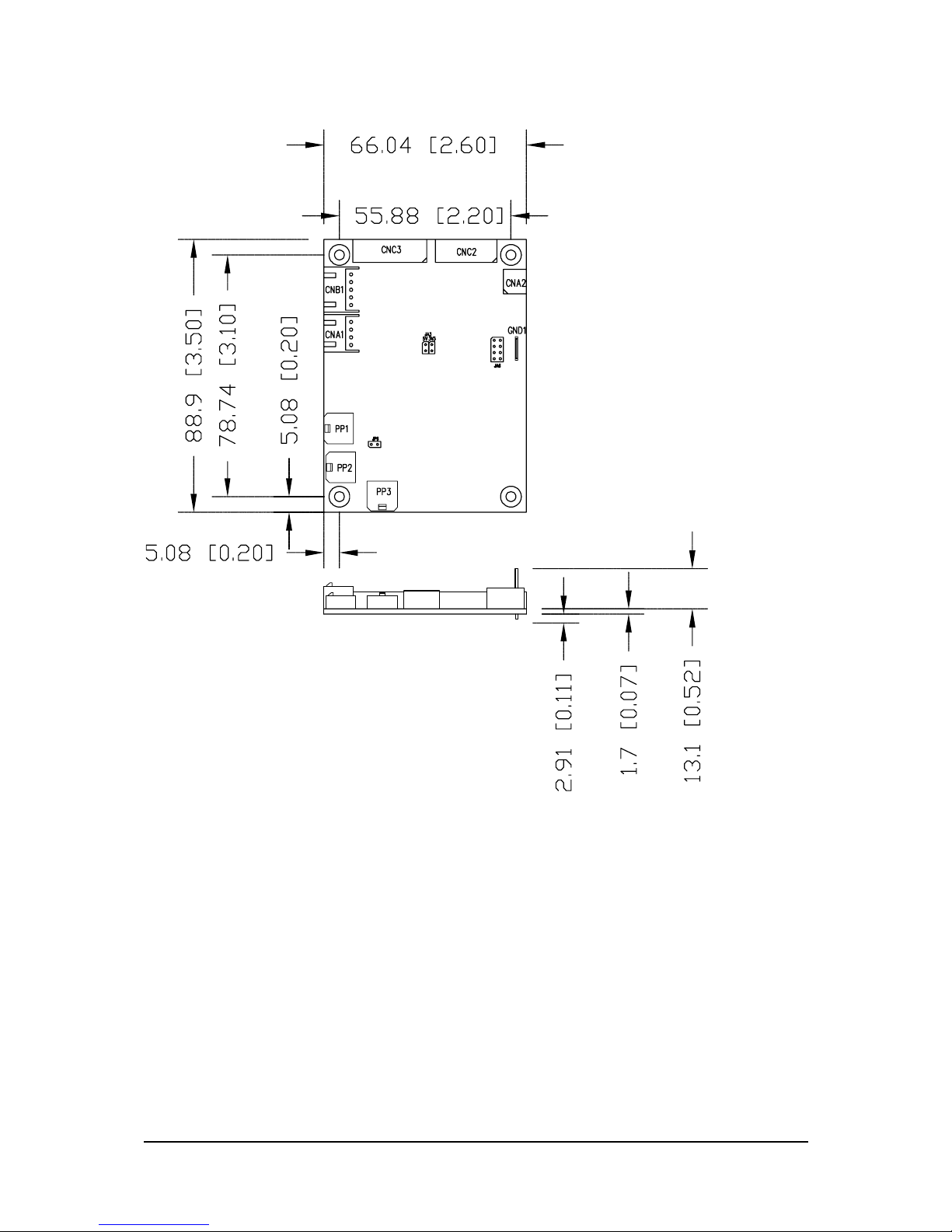

25. Controller dimensions

27. Application notes

29. Troubleshooting

30. Specifications

31. Appendix I – Supported graphics modes table

34. Appendix II – RS-232 control protocols

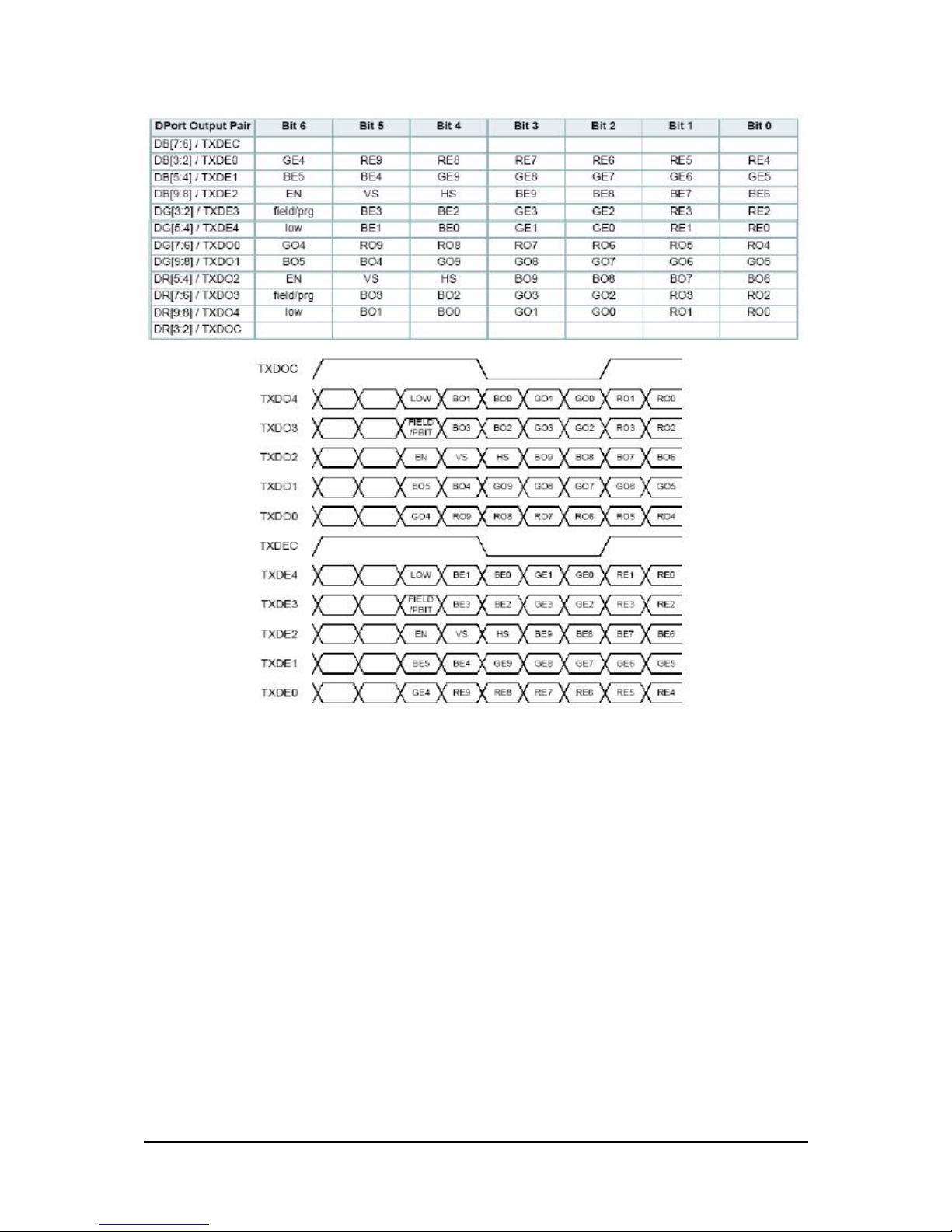

50. Appendix III – Mapping definition

54. Appendix IV – Auto Color Gain

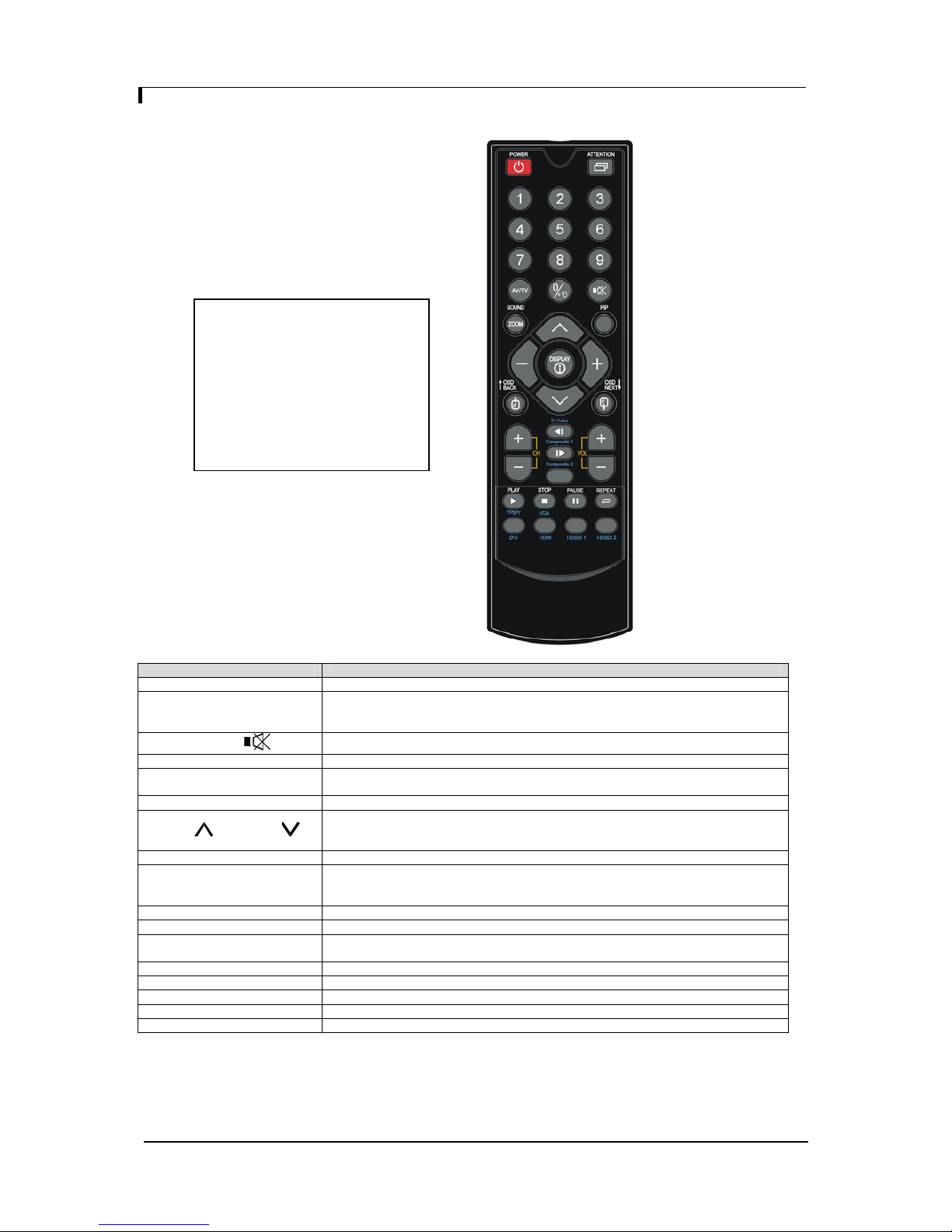

55. Appendix V – DV remote control unit work for SVX-1920L

56. Appendix VI – Function description for de-interlacing mode AFM, TNR,

MADI, DCDi

56. Appendix VII – PIP mix table

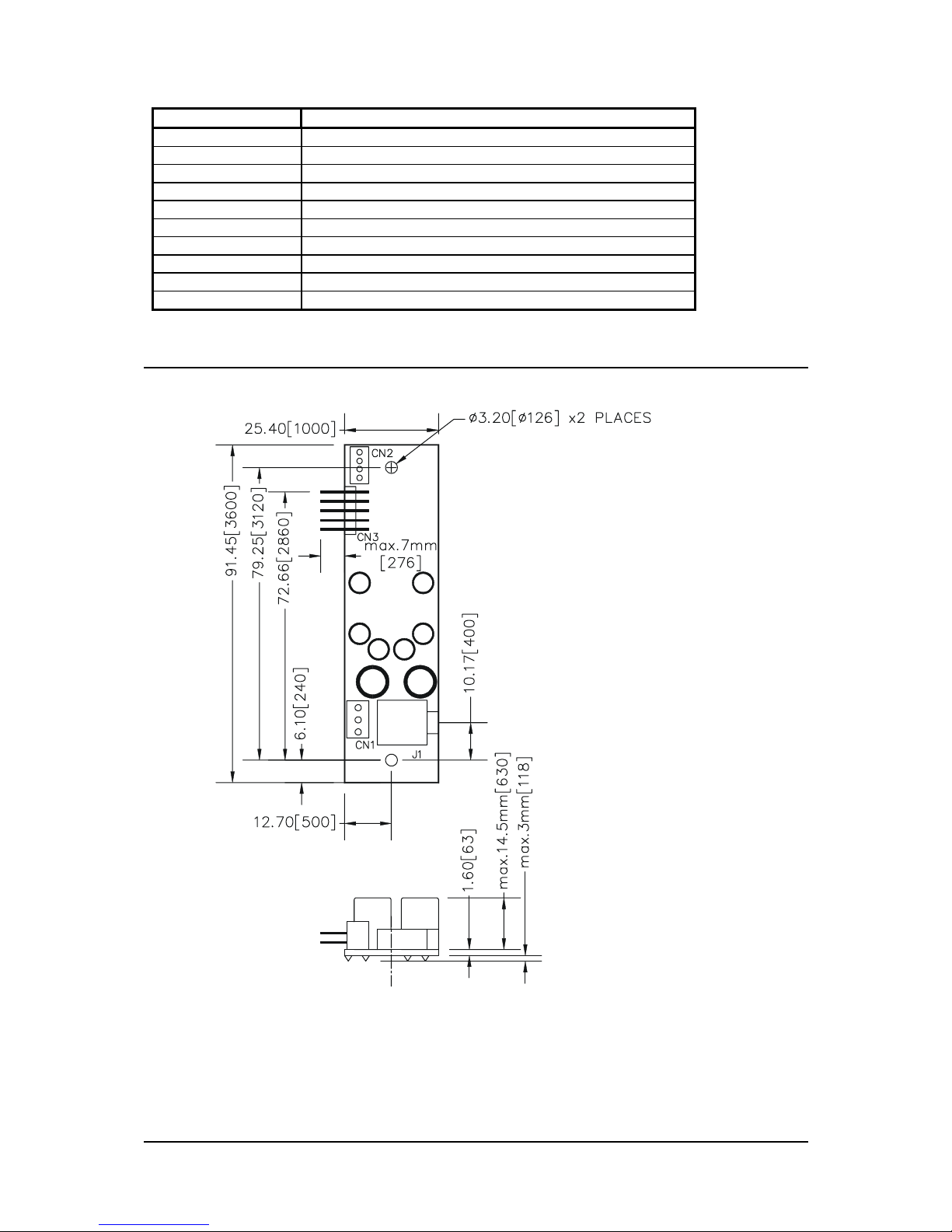

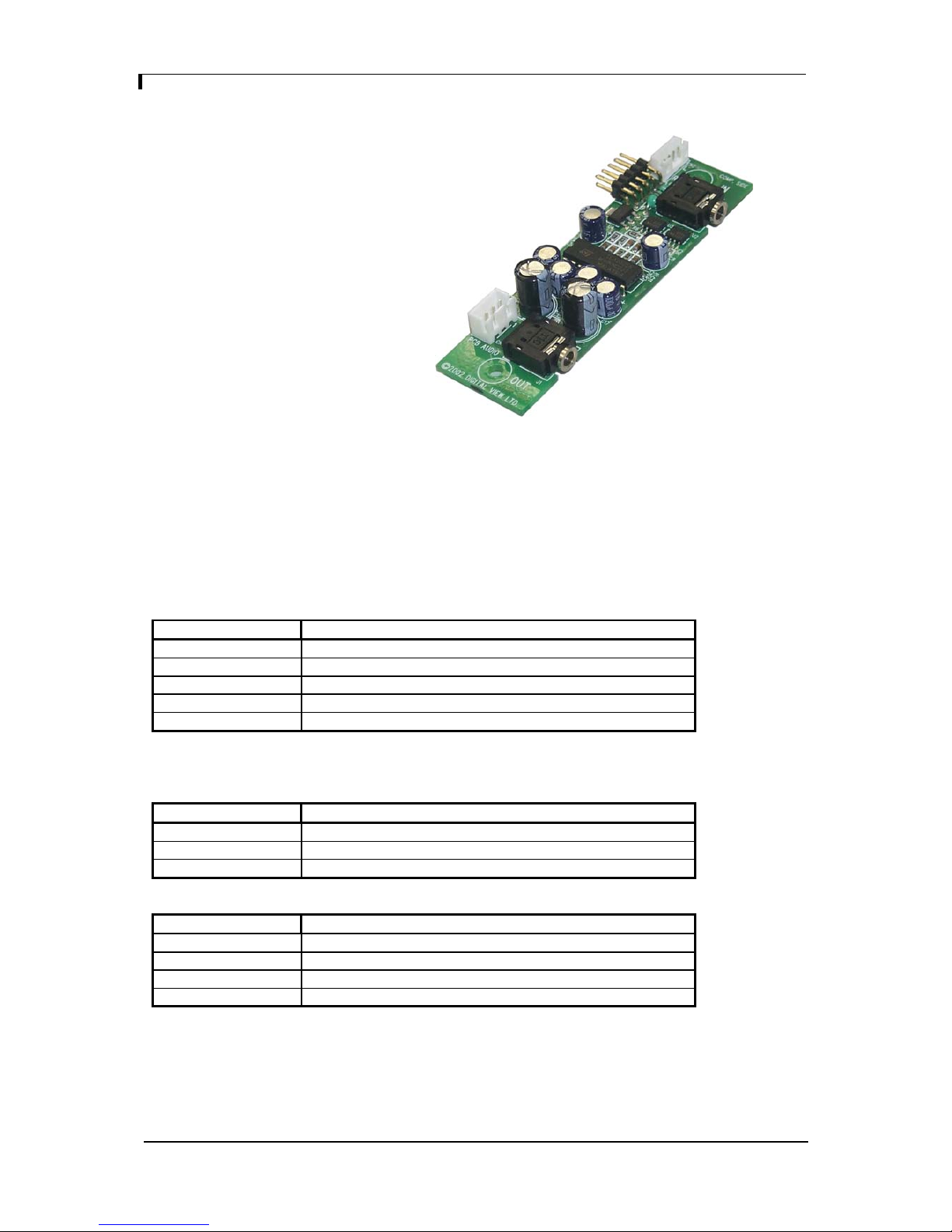

57. Appendix VIII - Audio Add-on Board P/N 416940020-3

59. Warranty, Caution & Limitation of Liability, Trademarks

60. Contact details
It is essential that these instructions are read and understood before connecting or

powering up this controller.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

2 of 60

Introduction

Designed for LCD monitor and other flat panel display applications, the SGX-1920L is a feature rich interface controller
for :

 TFT (active matrix) LCD panels of 1920x1200, 1920x1080, 1600x1200, 1680x1050, 1440x900, 1366x768, 1280x1024,

1280x800, 1280x768 1024x768, 800x600, 800x480 and 640x480 resolutions.

 Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard.
 Video signals of NTSC, PAL and SECAM standard.
 Support Dual HDMI 1.3 input
 Dual VGA input support and four composite video input support.
 Support true 10 bits panel

Ordering information :

Controller Part number Ordering part number
SGX-1920L P/N 41726001X-3 P/N 4172600XX-3
Power Board Part number
PR-1200 P/N 41601961x-3 P/N 4160196xx-3
PR-2400 P/N 41601951x-3 P/N 4160195xx-3

HOW TO PROCEED

 Ensure you have all parts & that they are correct, refer to:

• Connection diagram

• Connector reference (in following section)

• Assembly notes

 Check controller switch & jumper settings (errors may damage the panel)
 Prepare the PC
 Connect the parts
 Understand the operation & functions

IMPORTANT USAGE NOTE

This equipment is for use by developers and integrators, the manufacturer accepts no liability for damage or injury
caused by the use of this product. It is the responsibility of the developer, integrators or other user of this product to:

• Ensure that all necessary and appropriate safety measures are taken.

• Obtain suitable regulatory approvals as may be required.

• Check power settings to all component parts before connection.

DISCLAIMER

There is no implied or expressed warranty regarding this material.

Controller Solution Generator

Full web resource matching controllers & panels with connection diagrams for download.
See at : http://www.digitalview.com/csg

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

3 of 60

SYSTEM DESIGN

A typical LCD based display system utilizing this controller is likely to comprise the following:

Summary:

1. LCD panel

2. LCD controller card, SGX-1920L

3. LCD signal cable (use for LVDS panel)

4. Inverter for backlight (if not built into LCD)

5. Inverter cable

6. OSD Function controls

7. OSD Function controls cable

8. Status LED (optional)

9. IR sensor (optional)

10. RS-232 control interface

11. Secondary RS-232 control interface

12. External panel power output

13. Audio adaptor board (optional)

14. Controller power in and backlight control

15. Panel power input

16. SPDIF Audio output

17. HDMI audio (stereo) output

18. Ambient light sensor connection

19. 2 x HDMI input

20. 1 x Analog RGB & 2 x composite video input

21. 1 x Analog RGB & 2 x composite video input

22. Power Board (PR-1200 / PR-2400)

23. Audio board power cable

Digital View provides a range of parts, such as listed above, to make up complete display solutions.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

4 of 60

ASSEMBLY NOTES

This controller is designed for monitor and custom display projects using 1920x1200 or 1920x1080 or 1600x1200 or 1680x1050
or 1440x900 or 1366x768 or 1280 x 1024 or 1024 x 768 or 800x600 or 640x480 resolution TFT panels with a VGA, SVGA,
WXGA, XGA, SXGA, UXGA or WUXGA signal input. The following provides some guidelines for installation and preparation of
a finished display solution.

Preparation: Before proceeding it is important to familiarize yourself with the parts making up the system and the various
connectors, mounting holes and general layout of the controller. As much as possible connectors have been labeled. Guides
to connectors and mounting holes are shown in the following relevant sections.

1. LCD Panel: This controller is designed for typical LVDS interfaced panels with panel voltage 3.3V, 5V or 12V interface.
Due to the variation between manufacturers of panels signal timing and other panel

characteristics, factory setup and

confirmation should be obtained before connecting to a panel. (NOTE: Check panel power jumper settings before

connection)

2. Controller: Handle the controller with care as static charge may damage electronic components. Make sure correct

jumper and dip switches settings to match the target LCD panel.

3. LCD signal cable (LVDS panel): In order to provide a clean signal it is recommended that LVDS signal cables are no
longer than 46cm (18 inches). If those wire cabling is utilized these can be made into a harness with cable ties. Care
should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems to
add ferrite cores to the cable to minimize signal noise.

4. Inverter: This will be required for the backlight of an LCD, some LCD panels have an inverter built in. As LCD panels may
have 1 or more backlight tubes and the power requirements for different panel backlights may vary it is important to match
the inverter in order to obtain optimum performance. See Application notes page 28 for more information on connection.

5. Inverter Cables: Different inverter models require different cables and different pin assignment. Make sure correct cable
pin out to match inverter. Using wrong cable pin out may damage the inverter.

6. Function Controls: The following section discusses the controls required and the section on connectors provides the
detail. The controls are minimal: On/Off, Backlight Brightness (depends on inverter), OSD (5 momentary buttons) analog
VR type or (8 momentary buttons) digital type.

7. Function controls cable: The cables to the function switches should be of suitable quality and length so that impedance
does not affect performance. Generally lengths up to 1 meter (3 feet) should be acceptable.

8. Status LED: The pin direction of the LED should be corrected for right colour indication. Red colour stands for standby.
Green colours stands for signal on. The status LED is an optional part only, can be unconnected.

9. IR sensor: It is an optional part only, can be unconnected if not using IR remote control. See Appendix V in details.

10. RS-232 control interface : Firmware upgrade and serial control via this interface port.

11. Second RS-232 control interface : Serial control via this interface port.

12. External panel power output : User for specific panel model.

13. Audio add-on board P/N 416940020-3: Provide the interface for the audio add-on board P/N 416940020-3 to be

connected. The audio add-on board gives the audio input and output signal connection. The volume can be controlled by
the OSD menu on the controller. It is an optional part only, can be unconnected if not using audio.
CAUTION : The Audio Add-on Board P/N 416940020-3 is only operate under 12VDC power input environment.

14. Controller (+5VDC) Power in & Backlight control : Controller power and backlight control signal send from PR-1200/PR-

2400.

15. Panel power input : Panel power input send from PR-1200/PR-2400.

16. SPDIF Audio output : This port support SPDIF audio output from the HDMI audio source inputted.

17. HDMI Audio (Stereo) output : This port support Stereo audio output from the HDMI audio source inputted. This port has

the same audio path output from CN11.

18. Ambient light sensor connection : 3 ways connector provides interface for ambient light sensor connection by using Kit

70220-3.

19. 2 x HDMI input : Plug the dual HDMI input cable to the connector J1 on the controller board.

20. 1 x VGA & 2 x Composite Input : : As this may affect regulatory emission test results and the quality of the signal to the

controller a suitably shielded cable should be utilized. Reasonable quality cable should be used to avoid image quality
degradation.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

5 of 60

21. : 1 x VGA & 2 x Composite Input : : As this may affect regulatory emission test results and the quality of the signal to the

controller a suitably shielded cable should be utilized. Reasonable quality cable should be used to avoid image quality
degradation.

22. Power board PR-1200 / PR-2400 : The power board provide controller power, backlight control signal to the SGX-1920L

board.

• Power Input: SGX-1920L should be powered by power board PR-1200 (P/N 4160196xx-3) and PR-2400(P/N 4160195xx-

3)

Power Board Part number Support input power
PR-1200 P/N 4160196xx-3 12VDC
PR-2400 P/N 4160195xx-3 24VDC

• EMI: Shielding will be required for passing certain regulatory emissions tests. Also the choice of external Controller to PC
signal cable can affect the result.

• Ground: The various PCB mounting holes are connected to the ground plane.

• Servicing: The board is not user serviceable or repairable. Warranty does not cover user error in connecting up to the

controller and is invalidated by unauthorized modification or repairs.

• Controller Mounting: It is recommended that a clearance of at least 10mm is provided above and 5mm below the
controller when mounted. Additionally consideration should be given to:

• Electrical insulation.

• Grounding.

• EMI shielding.

• Cable management. Note: It is important to keep panel signal cables apart from the inverter & backlight cables to

prevent signal interference.

• Heat & Ventilation: Heat generated from other sources, for example the backlight of a very high brightness panel may

generate significant heat which could adversely affect the controller.

• Other issues that may affect safety or performance.

• PC Graphics Output: A few guidelines:

• Signal quality is very important, if there is noise or instability in the PC graphics output this may result in visible noise

on the display.

• Refer to graphics modes table in specifications section for supported modes.

• Non-interlaced & interlaced video input is acceptable.

IMPORTANT: Please read the Application Notes section for more information.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

6 of 60

CONNECTION & OPERATION

CAUTION: Never connect or disconnect parts of the display system when the system is powered up as this may cause serious

damage.

CONNECTION

Connection and usage is quite straight forward (it is useful to have the relevant connection diagram available at this time):

1. LCD panel & Inverter: Connect the inverter (if it is not built-in the panel) to the CCFT lead connector of the LCD panel.

2. LVDS type panels: The controller board has the built-in LVDS transmitter driver. Plug the LVDS cable to J3. Insert the

panel end of the cable the LCD panel connector.

4. Inverter & Controller: Plug the inverter cable to CNB1 and CNA1 on PR-1200/PR-2400 (if necessary). Plug another end

to the connector on the inverter.

5. Function switch & Controller: Plug the OSD switch mount cable to CNC1 on the controller board and another to the

OSD switch mount.

6. Interconnection cables : Panel power input cable P/N 426101100-3 and controller power in and backlight control cable
P/N 426101200-3 are required to connect between SGX-1920L and PR-1200/PR-2400.

7. LED & Controller: Plug in a 3-way with dual colour LED to connector LED1 on the controller board.

8. IR & Controller: Plug in a 3-way with IR sensor to connector IR1 on the controller board.

9. Jumpers & Switches: Check all jumpers and switches (SW3, SW4) are set correctly. Details referring the connection

diagram (a separate document) or the jumpers and switches setting table (in the following section).

10. Jumpers & Inverter & Panel voltage: Particularly pay attention to the settings of JA3 & JA6 on SGX-1920L, JB2 and JB3
on PR-1200/PR-2400. JB2 & JB3 are used for inverter control (read inverter specification and information on the jumper
table to define the correct settings). JA3 & JA6 is used for panel voltage input (read panel specification and information on
the jumper table to define the correct settings).

11. Input signal cable : Plug the HDMI input signal to J1 or VGA & Composite signal to CNV3, CNV4 on the controller board.

12. Power supply & Controller: Plug the DC 12V power to PR-1200 P/N 416019610-3 on PP2/PP3 & DC 24V power to PR-

2400 P/N 416019510-3 on PP2/PP3. You can consider to use DigitalView mating power cable P/N 426013800-3, 160mm
for PP2/PP3 connection.

12. Power on: Switch on the controller board and panel by using the OSD switch mount.

13. Audio Board : The Audio Add-on Board P/N 416940020-3 is only operate under 12VDC power input environment.

Suggested to use the matching audio cable P/N 426454500-3 for connection to audio add-on board P/N 416940020-3 and
PR-1200/-2400)

General:

• If you are using supplied cables & accessories, ensure they are correct for the model of panel and controller.

• If you are making your own cables & connectors refer carefully to both the panel & inverter specifications and the section

in this manual, “Connectors, Pinouts & Jumpers” to ensure the correct pin to pin wiring.

PC SETTINGS

The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics performance
we recommend choosing 60Hz vertical refresh rate – this will not cause screen flicker.

OPERATION

Once the system has been connected and switched on there are a number of functions available to adjust the display
image as summarized in the following sections. The settings chosen will be saved for each mode independently.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

7 of 60

LCD DISPLAY SYSTEM SETTINGS

NOTE: By way of explanation the following refers to a set of sample buttons that may be obtained as an option. In addition
to power on/off and connection for backlight brightness the controller provides an On Screen Display of certain functions
which are controlled by 5 momentary type buttons (analog VR type) or 8 momentary type buttons (digital type):

Controls Analog VR type Digital type
On/Off – turns controller board power on VR toggle switch On/Off button
Brightness – controls backlight brightness Rotary VR Brightness +/- buttons
Menu

– Turns OSD menu On or Off (it will auto time

off)

– Back to previous OSD menu page

Menu button Menu button

Select down

– Moves the selector to the next function (down)

SEL DN SEL DN

Select up

– Moves the selector to the previous function

(up)

SEL UP SEL UP

+

– Increase the OSD parameter values
– Go into the sub-menu page from the top
– Confirm to select the OSD function

+ +

-

– Decrease the OSD parameter values

- Go into the sub-menu page from the bottom

- -

Reset to Factory Defaults Press and hold SEL DN button,

then power on the controller

Press and hold SEL DN button,
then power on the controller

Access “Programming Mode” Press and hold MENU button,

then power on the controller

Press and hold MENU button,
then power on the controller

ON/Off/Brightness

SEL UP

SEL DN

+

-

Menu

Analog VR type

Digital type

12V / 24VDC power input :

Analog 10K VR Type OSD
switch mount uses
P/N 410680550-3 or up

12V / 24VDC power input :

Digital 10K Type OSD
switch mount uses
P/N 416100520-3 or up

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

8 of 60

OSD functions

Picture :

Volume

###

Increase/decrease volume level, total: 100 steps

Brightness

Increase/decrease panel brightness level, total: 100 steps

Contrast

Increase/decrease panel contrast level, total: 100 steps

Saturation

Increase/decrease saturation, total: 100 steps

Hue **

Increase/decrease Hue level, total: 100 steps

Sharpness*

Increase/decrease sharpness, total: 30 steps

Backlight

Backlight brightness adjustment (Functions when
light detector sets OFF)
Position

##

Aspect / Size 4

- Fill Screen : Enable full screen expansion for lower resolution Image

- Fill to Aspect Ratio: Enable fill screen expansion for lower resolution
image according to aspect ratio

- 4 : 3 : scaling format in 4:3

- 16 : 9 : scaling format in 16:9

- 16 : 10 : scaling format in 16:10

- 2.35 : 1 : scaling format in 2.35:1

- 2 : 1 : scaling format in 2:1

- 1 : 1 : Display the exact image resolution on the screen without
image expansion.

- Custom Sizing* : (The name will change depends on the scaling mode
selected.)

- Overscan

- Normal

- Custom/Underscan Sizing 4

H Size
V Size
H Pan
V Pan

Blue Only

ON / OFF : Turn off the "Red" & "Green" channel (i.e. output all

zero to Red & Green channel)

[This function will display on OSD menu when JP4 – 5-6 closed]

* : DISPLAY IN VIDEO MODE ONLY

** : FUNCTION IN ARGB/ DVI / VIDEO NTSC MODE ONLY

# : DISPLAY IN ARGB / DVI MODE ONLY

## : FUNCTION IN ARGB MODE ONLY

### : DISPLAY WHEN AUDIO ADD-ON BOARD CONNECTED

Move the image position upward

Move the image position downward

Move the image position to the left

Move the image position to the right

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

9 of 60

Source : Select the input video signal
Main Port Change 4

VGA 1
VGA 2
HDMI 1
HDMI 2
Composite 1
Composite 2
Composite 3***
Composite 4***

PIP Port change4
PIP Off / Composite 1 / Composite 2 / Composite 3 / Composite 4 / VGA 1 / VGA 2 / HDMI 1 /
HDMI 2)

PIP Size4: Off / PIP Size/ 1~18 / Size by Size / Size by Size Tall
The PIP capability on display input sources refer to Appendix VII – PIP mix table

PIP Position :

PIP Blend Level : 6.25% ~ 100%
PIP Swap : Swap between the main window and PIP window

PIP Auto Turn off :

: OFF / ON
ON : When PIP is no signal input after 30 seconds, the PIP
window will turn off automatically.
OFF : PIP window keeps on

*** DISPLAY WHEN SETTING ON UNDER SETUP  AUTO SOURCE SEEK

Utilities :

Setup 4

Auto Picture Setup

#

: Auto adjust the image position, phase and size

Auto Color Gain

#

: Auto Color Calibration (See appendix IV)

Wide Screen Mode detection

#

4 : Recognize the wide screen mode coming from ARGB port

- Off

- 1280x768

- 1360x768

- 1366x768

Manual Clock

#

: Adjust the image horizontal size

Manual Phase

#

: Fine tune the data sampling position (adjust image
quality)
Auto Source Seek :

- Auto : : OFF / ON
ON – Auto source select always enable
OFF – Disable auto source select function

- Setup4 Selection for the corresponding input sources detection
VGA 1
VGA 2
HDMI 1
HDMI 2
Composite 1
Composite 2
Composite 3
Composite 4

The corresponding input port name display on OSD menu will disappear once

Move the PIP position upward

Move the PIP position downward

Move the PIP position to the left

Move the PIP position to the right

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

10 of 60

setting “OFF”.
De-interlacing Mode* 4

AFM

: Auto Film Mode

TNR

: Temporal Noise Reduction

MADI

: Motion Adaptive De-interlacing

DCDi

: Low Angled De-interlacing

[See Appendix VI for AFM, TNR, MADI, DCDi function description]
Auto Power :

OFF / ON
ON – Enable soft power off function if absence of input signals
OFF – Disable soft power function

Enable RGB SOG: OFF / ON
Video Standard (SD)* : Auto / NTSC / NTSC 4.43 / PAL / PAL M / SECAM
Gamma : 0.6 / 0.7/ 0.8 / 1.0 / 1.6 / 1.8 / 1.9 / 2.0 / 2.1 / 2.2 / 2.3 / 2.4 / 2.5 / 2.6 / User Setting

OSD 4

OSD position :
H POS

: Move the OSD menu image horizontally

V POS

: Move the OSD menu image vertically
OSD Timeout (sec) : ON – 60 : Adjust the OSD menu timeout period in a step of 5
seconds (max 60 seconds)
ON =

Continuous to display OSD menu.

60 = 60 seconds later will turn off the OSD menu.
Screen Marker 4
All Marker : On/Off
Center Marker : On/Off
Safe Area : On/ Off
Edge Marker : On/Off
Safe Area Marker : 80%~99%
Aspect Marker : 4:3 / 16:9
Transparency Level : 0% / 25% / 50% / 75% / 100%
Exit menu

Language : English / Spanish / French / German / Chinese :Select OSD menu language display
Transparency :

OFF / ON : Set OSD transparency

Display Input :

OFF / ON : Display input source info after switching source.
IR Remote Control : IR Enable / IR Disable : Enable or disable the IR function control.
Real time clock 4 show and edit the real time clock (This function is valid when “Display Input”
sets ON.)
DATE : DD/MM/YYYY : Date/Month/Year
TIME : HH/MM/SS (AM/PM): Hour/Minute/Second
SETUP 4
Month / Day / Year
Hour / Minute / AM/PM

Display Clock

: Disable or enable to display the real time clock when

display video source info after switching source.

Freeze : OFF / ON

: Freeze the image

Zoom 4
Zoom level :

: Enable the zoom in function on the image displayed.
Use “+” button to zoom in the image
Use “-“ button to decrease the zoomed image

Horizontal pan :

: Pan the image horizontally

Vertical pan :

: Pan the image vertically
Factory Reset
Note : Freeze state will be cleared when you using zoom function.

Color Temperature 4

5000K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :

Reset to Defaults : Resume to the default values

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

11 of 60

6500K
Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :

Reset to Defaults : Resume to the default values
8000K

Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :

Reset to Defaults : Resume to the default values
9300K

Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :

Reset to Defaults : Resume to the default values
User setting :

Red Gain :
Green Gain :
Blue Gain :
Red Offset :
Green Offset :
Blue Offset :

Reset to Defaults : Resume to the default values
Reset All to Defaults : Resume all color temperature settings to the default values.

Hot Key 4

Hot key 1 : Volume / Brightness / Contrast / Inputs / Aspect Ratio/ Zoom / Freeze / PIP Size /
PIP Swap / Saturation / Hue / Backlight / Auto Picture Setup / Markers / No Function

Hot key 2 : Volume / Brightness / Contrast / Inputs / Aspect Ratio / Zoom / Freeze / PIP Size /
PIP Swap / Saturation / Hue / Backlight / Auto Picture Setup / Markers / No Function

Monochrome Mode 4

- Color

- Red Monochrome

- Green Monochrome

- Blue Monochrome

- Red Only

- Green Only

- Blue Only

Backlight Setup4

- B/L Invert :

: Invert for the backlight brightness

- B/L Control : D/A / PWM : Selection for voltage level dimming control / PWM
dimming control

- Backlight Frequency :

100 ~ 440Hz in a step of 20

- Light Detector :

: Enable ambient light detector function by using KIT

70220-3
Default Setting 4

Reset to Factory Defaults 4 (Activate when JC1 position 4 sets open)
Are you sure ? Yes/No

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

12 of 60

Reset to Factory Defaults with (Color Temp.) 4 (Activate when JC1 position 4 sets open)
Are you sure ? Yes/No
Save Current Settings as Calibrated Values 4 (Activate when JC1 position 2 sets closed)
Are you sure ? Yes/No
Recall Stored Calibrated Values 4
Are you sure ? Yes/No

* : DISPLAY IN VIDEO MODE ONLY

# : DISPLAY IN ARGB MODE ONLY

Firmware : V0.39.00.00 or up

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

13 of 60

CONNECTORS, PINOUTS & JUMPERS

SGX-1920L : The various connectors are:

Summary: Connectors

Ref Purpose Description

CN1 Second RS-232 serial control Molex 53261-0671, 6 ways 1.25mm pitch

(Mating type : Molex 51021-0600)
(Matching connection cable P/N 426091300-3)

CN7 Audio board connector Hirose DF13A-8P-1.25H

(Mating type : Hirose

DF13-8S-1.25C)

(Matching audio cable P/N 426454500-3 for connection to audio add­on board P/N 416940020-3 and PR-1200/-2400)

CN8 RS-232 serial control Molex 53261-0671, 6 ways 1.25mm pitch

(Mating type : Molex 51021-0600)
(Matching connection cable P/N 426091300-3)

CN9 Ambient light sensor connector Molex 53261-0571 (Matching type : Molex 51021-0500)

(Matching connection cable P/N 426031600-3)

CN10 HDMI audio (Stereo) output JST S4B-ZR-SM4A (Matching type : JST ZHR-4 )

(Matching connection cable P/N 426454400-3)

CN11 SPDIF Audio output JST B2B-ZR (Matching type : JST ZHR-2)

(Matching extend cable P/N 426007400-3)
CP1 Reserved for factory use Reserved
CP2 Reserved for factory use Reserved
CP3 Reserved for factory use Reserved

CNB3 Controller (+5VDC power in &

backlight control)

JST S10B-PH-SM4 (Matching type : JST PHR-10)

(Matching connection cable P/N 426101100-3 connected with PR-

1200/-2400)

CNC1 OSD controls Hirose DF13A-12P-1.25H (Mating type : DF13-12S-1.25C)

(Matching OSD switch mount cable P/N 426122200-3 (150mm) or

426122210-3 (250mm)

CNV3 1 x VGA & 2 x Composite Video Input JST S20B-PHDSS (Mating type : JST PHDR-20VS)

(Matching connection cable P/N 426301400-3)

CNV4 1 x VGA & 2 x Composite Video Input JST S20B-PHDSS (Mating type : JST PHDR-20VS)

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

14 of 60

(Matching connection cable P/N 426301400-3)

J1 2 x HDMI Input JAE FI-RE41S-HF (Matching type : JAE FI-RE41HL)

(Matching connection cable P/N 426300900-3)

J2 Additional panel power output Molex 53261-0871 (Matching type : Molex 51021-0800 )
J3 Panel signal for LVDS panel JAE FI-RE51S-HF (Matching type : JAE FI-RE51HL)

IR1 Infra-Red sensor connector Molex 53261-0371, 3 way 1.25mm pitch (Mating type : 51021-0300)

(Matching connection cable P/N 426031500-3)

LED1 Dual color LED connector JST 3-way, S3B-ZR-SM4A (Mating type : ZHR-3)

(Matching connection cable P/N 426031400-3)
PP7 Panel power input JST S8B-PH-SM4-TB (Matching type : JST PHR-8)

(Matching connection cable P/N 426101200-3 connected with PR-

1200/-2400)

SW3 Panel selection 8-way DIP Switch
SW4 Function selection 6-way DIP Switch

Summary: SGX-1920L Jumpers setting

Ref

Purpose Note

JB1 Backlight brightness voltage range 1-2 closed = 5V max

2-3 closed = 3.3V max

JB2 Backlight inverter on/off control – signal level 2-3 = On/Off control signal ‘High’ = +5V

1-2 = On/Off control signal ‘High’ = +3.3V
Open = On/Off control signal ‘High’ = Open collector
CAUTION: Incorrect setting can damage inverter.

JB3 Backlight inverter on/off control – polarity 1-2 = control signal ‘high’ = CCFT ON

2-3 = control signal ‘low’ = CCFT ON

JB5 Backlight control type selection 1-2 = VR/Digital switch mount control

3-4 = Analog backlight brightness - voltage range 0~5V
5-6 = PWM (Pulse Width Modulation) brightness

JC1 Custom configuration Position 2 :

Closed = Enable save Current Settings as Calibrated
Values on OSD menu

Position 3 :
Closed = Enable baud rate selection function in
programming mode

Position 4 :
Closed = Hide “Reset to Factory Defaults” and “Reset to
Factory Defaults with (Color Temp.)” from OSD menu.

JC2 Custom configuration Position 1 : Enable J3 – pin 5 (OP1) controlled by JB4

Position 2 : Enable J3 – pin 6 (OP2) controlled by JB4
Position 3 : Enable J3 – pin 21 (OP3) controlled by JB4

Position 4 : Enable J3 – pin 22 (OP4) controlled by JB4
JP2 Reserved for internal use Reserved
JP4 Custom configuration 1-2 closed = Reserved

3-4 closed = On-board programming

5-6 closed = Display “Blue only”, “Green only”, “Red

only” function on OSD menu

JP13 Reserved for internal use Reserved
JP14 Reserved for internal use Reserved
SW3 Panel & function selection See table 2
SW4 Panel & function selection See table 3

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

15 of 60

PR-1200/PR-2400 : The various connectors are:

Ref Purpose Description

CNA1 Auxiliary power output JST 4-way, S4B-XH-A (Mating type : XHP-4)
CNA2 Auxiliary +5VDC, 500mA output JST 2-way, S2B-PH-SM3-TB (Mating type : PHR-2)
CNB1 Backlight inverter JST 5-way, S5B-XH-A (Mating type : XHP-5)
CNC2 Controller (+5VDC power in &

backlight control)

JST S8B-PH-SM4-TB (Matching type : JST PHR-8)
(Matching connection cable P/N 426101200-3 connected with PR-1200/-

2400)

CNC3 Panel power input JST S10B-PH-SM4 (Matching type : JST PHR-10)

(Matching connection cable P/N 426101100-3 connected with PR-1200/-

2400)

PP1 +12VDC power output

Molex 43045-0400 compatible
(Matching connector type : Molex 43025-0400 compatible)
(Matching power cable : P/N 426013700-3)

PP2 Power input

(PR-1200 : +12VDC power input)
(PR-2400 : +24VDC power input)

Molex 43650-0200 compatible (Mating type : Molex 43645-0200
compatible)

(Matching power cable : P/N 426013800-3, 160mm)

PP3 Power input

(PR-1200 : +12VDC power input)
(PR-2400 : +24VDC power input)

Molex 43650-0200 compatible (Mating type : Molex 43645-0200
compatible)

(Matching power cable : P/N 426013800-3, 160mm)

Summary: PR-1200/PR-2400 Jumpers setting

Ref

Purpose Note

JA3 Panel power voltage select (3.3V/5V)

CAUTION: Incorrect setting can damage
panel

PR-1200 : See panel voltage setting table 1

PR-2400 : See panel voltage setting table 2
JA6 Panel power voltage select

CAUTION: Incorrect setting will cause panel
damage

PR-1200 : See panel voltage setting table 1

PR-2400 : See panel voltage setting table 2
JP6 Input power control Short = External switch control

Open = Switch mount control

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

16 of 60

Table 1 : PR-1200 > Panel voltage setting table :

Input voltage via

PP2 or PP3 Panel Voltage JA3

JA6 Jumper on board

3.3V 3V3 1-3 & 2-4

5V 5V 1-3 & 2-4

12VDC

12V OPEN 5-7 & 6-8

CAUTION: Incorrect setting can damage panel & controller

Table 2 : PR-2400 > Panel voltage setting table :

Input voltage via

PP2 or PP3 Panel Voltage JA3

JA6 Jumper on board

3.3V 3V3 1-3 & 2-4

5V 5V 1-3 & 2-4

24VDC**

12V OPEN 5-7 & 6-8

CAUTION: Incorrect setting can damage panel & controller
** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input. Because CNA1 pin 1
and CNB1 pin 2 will output 24VDC.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

17 of 60

JA3 & JA6 location on board : (Please pay attention to the jumper settings on JA3 & JA6
which are red in color)

! ! JA6

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

18 of 60

Table 2 : DIP Switch selection – SW3

Pos #1 Pos #2 Pos #3 Pos.#4 Description Panel resolution

For WUXGA panels

OFF ON ON OFF LG LM260WU1-SLB1 1920x1200

ON ON ON OFF LG LM240WU2-SLA1 1920x1200

OFF OFF OFF OFF Sharp LQ445D3LZ19 1920x1080

ON OFF OFF OFF Samsung LTA460H2-L02 1920x1080

OFF ON OFF OFF Sharp LQ170M1LZ04 1920x1200

ON ON OFF OFF Samsung LTA700HH-LH1 (1st trial testing) 1920x1080
OFF OFF ON OFF Samsung LTA700HH-LH1 (2nd trial testing) 1920x1080
OFF OFF ON ON AU Optronics P645HW03 V0 (1920x1080) 1920x1080

For UXGA panels

OFF OFF OFF OFF Fujitsu FLC59UXC8V-02A 1600x1200

ON OFF OFF OFF Samsung LTM213U6-L01 1600x1200

For WXGA panels

OFF OFF OFF OFF LG LC420W02-A4 1366x768

ON OFF OFF OFF Sharp LQ315T3LZ24 1366x768

ON ON OFF OFF Samsung LTA320W2-L01 / LTA230W1-L02 1366x768

ON ON ON ON NEC NL12876BC26-21 / Samsung LTM170W1-L01 1280x768
OFF ON ON ON CHI MEI N154I4-L01 1280x800
OFF OFF ON OFF AU Optronics M190PW01 1440x900
OFF OFF ON ON Sharp LQ072K1LA03 1280x768

For SXGA panel

OFF OFF OFF OFF Sharp LQ181E1LW31 1280x1024

ON OFF OFF OFF AU Optronics M170EN05 1280x1024

For XGA panel

OFF OFF OFF OFF Sharp LQ150X1LGN2A 1024x768

Sharp LQ150X1LGB1 1024x768

For SVGA panel

OFF OFF OFF OFF Toshiba LTM08C351 800x600

For WVGA panel

OFF OFF OFF OFF NEC NL8048BC24-01 800x480

ON OFF OFF OFF Sharp LQ070Y3LG4A 800x480

Others
OFF ON OFF OFF AU Optronics M201EW02 V8 1680x1050
OFF OFF ON OFF Samsung LTI430LA01 1920x480
OFF ON ON OFF NEC NL10260BC19-01D 1024x600

Remark : The above panel timings are copy the panel data direct from SVX-1920. Some of the panel timings settings
may not exactly to match the panel model we specified in this table.

Pos #5 Pos #6 Pos #7 Description

OFF OFF OFF WUXGA

ON OFF OFF UXGA

OFF ON OFF SXGA

ON ON OFF WXGA

OFF OFF ON XGA

ON OFF ON SVGA

OFF ON ON VGA

ON ON ON WVGA / Others

Pos. #8 Reserved

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

19 of 60

Table 3 : DIP switch selection – SW4

Pos. # Function Description

1 Reserved
2 Panel pixel format OFF : Double Pixel

ON : Single Pixel

3 Panel selection ON : LVDS panel

OFF : Reserved

4 LVDS data mapping select

(Refer to Table 2)

If SW4 position 5 = OFF (8 bit)
OFF : Mapping B
ON : Mapping A

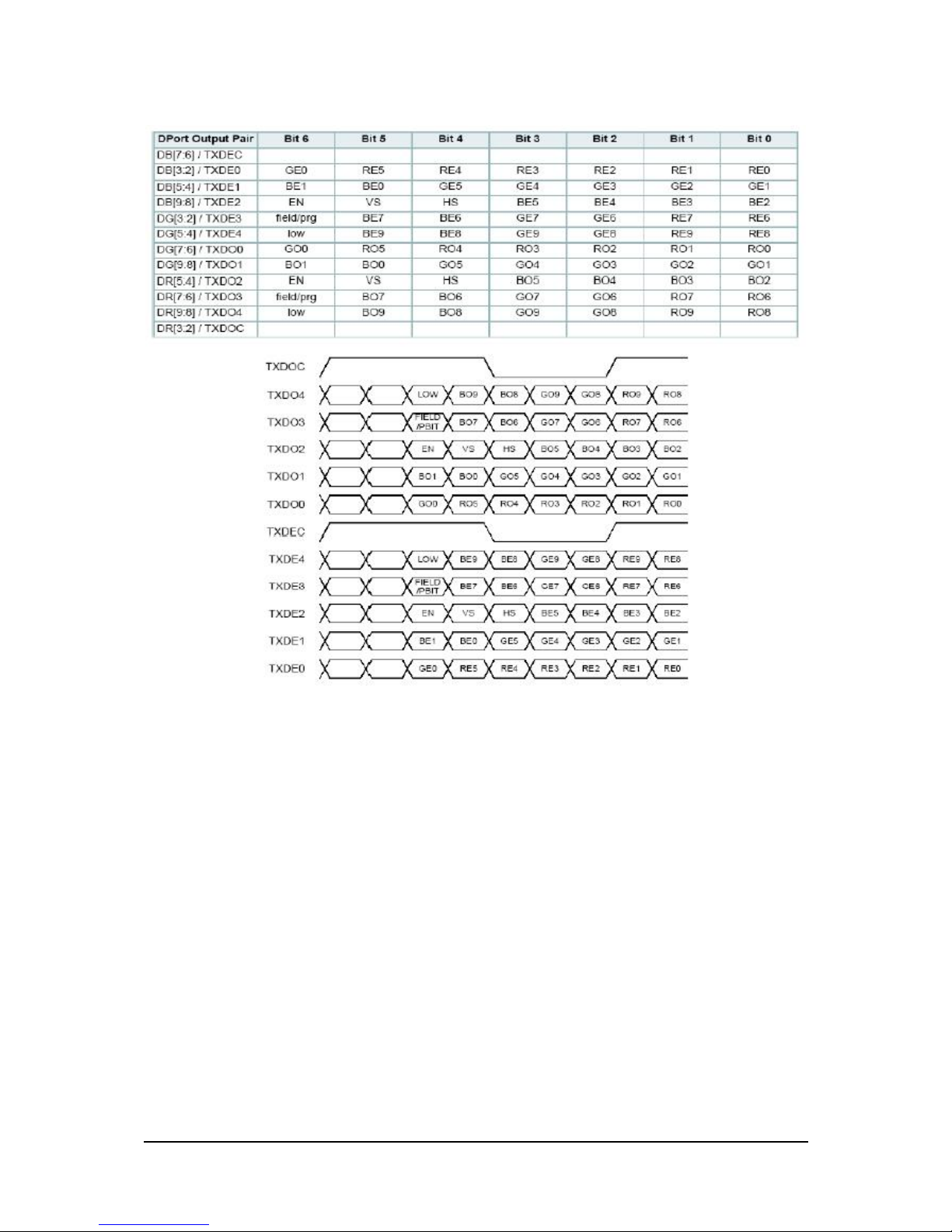

Please adjust to get the correct picture. See as Appendix I for details of
mapping of A and B.

If SW4 position 5 = ON (10 bit)

OFF : JEIDA (LVDS panel)
ON : VESA (LVDS panel)
Please adjust to get the correct picture. See as Appendix I for details of
mapping of VESA and JEIDA.

5 Output LVDS display mode selection OFF : 8 bit

ON : 10 bit

6 Reserved

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

20 of 60

SGX-1920L connectors definitions :
CN1 – Slave RS-232 serial control: Molex 53261-0671 (Matching type : Molex 51021-0600)

PIN SYMBOL DESCRIPTION

1 EXT_SLAVE_SCL Reserved
2 EXT_SLAVE_SDA Reserved
3 VCC +5V
4 TXD RS-232 Tx data
5 GND Ground
6 RXD RS-232 Rx data

CN7 - Audio board connector: Hirose DF13A-8P-1.25H

PIN SYMBOL DESCRIPTION

1 VCC Audio board logic power supply, +5V
2 VOLSEL0 Reserved
3 VOLSEL1 Reversed
4 TUNAUDSEL Reserved
5 CLK/CNT Reserved
6 GND Ground
9 GND Ground

10 GND Ground

CN8 – RS-232 serial control: Molex 53261-0671 (Matching type : Molex 51021-0600)

PIN SYMBOL DESCRIPTION

1 EXT_SLAVE_SCL Reserved
2 EXT_SLAVE_SDA Reserved
3 VCC +5V
4 TXD RS-232 Tx data
5 GND Ground
6 RXD RS-232 Rx data

CN9 – Ambient light sensor connector : Molex 53261-0571 (Matching type : Molex 51021-0500)

PIN SYMBOL DESCRIPTION

1 IP1 Reserved
2 IP2 Reserved
3 VCC_5V VCC 5V
4 ALSF Ambient light sensing feedback
5 GND Ground

CN10 - HDMI Audio (Stereo) out (Matching type : JST S4B-ZR-SM4A (Matching type : JST ZHR-4)

PIN SYMBOL DESCRIPTION

1 GND GND
2 AUDIO LOUT HDMI LEFT OUT
3 GND GND
4 AUDIO ROUT HDMI RIGHT OUT

CN11 – SPDIF audio output connector : JST B2B-ZR (Matching type : JST ZHR-2)

PIN SYMBOL DESCRIPTION

1 SPDIF SPDIF Digital audio output
2 GND Ground

CNB3 – Controller (+5VDC power in & backlight control) : JST S10B-PH-SM4 (Matching type : JST PHR-10)

PIN SYMBOL DESCRIPTION

1 VCC +5VDC power in
2 VCC +5VDC power in
3 PSWIN Power switch A
4 SW_ON Power switch B
5 BLCTRL On/Off control (enable) – see JB2 & JB3
6 BRIGHTNESS Brightness VR – WIP
7 BVR_A Brightness VR A
8 PPWR +12V, backlight power supply
9 GND Ground

10 GND Ground

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

21 of 60

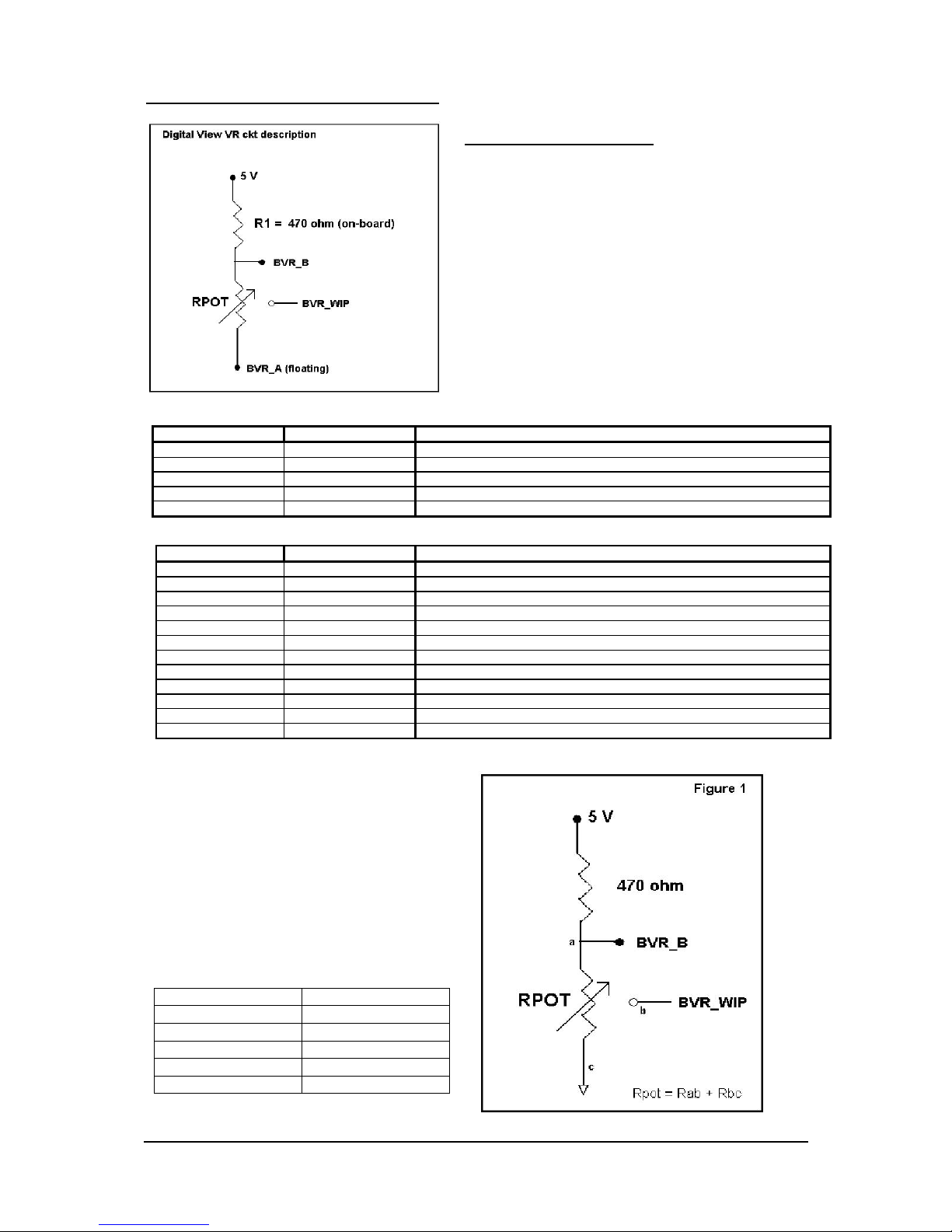

CNC1 – Function controls connector: Hirose DF13A-12P-1.25H (Matching type : Hirose DF13-12S-1.25C)

PIN SYMBOL DESCRIPTION

1 PSWIN Power switch A
2 SW_ON Power switch B
3 BVR_A Backlight brightness VR pin A
4 BVR_WIP Backlight brightness VR pin WIP
5 BVR_B

Backlight brightness VR pin B (470Ω resistor to +5V Vcc)
6 GND Ground
7 MENU OSD menu button
8 -/LEFT OSD -/Left button
9 +/RIGHT OSD +/Right button

10 SEL_DN OSD Select down button
11 SEL_UP OSD Select up button
12 NC No connection

The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

CNV3 – 1 x VGA & 2 x Composite Video Input, JST S20B-PHDSS (Matching type : JST PHDR-20VS)

PIN SYMBOL DESCRIPTION

1 IN_VGA1_R Red, analog 1
2 GND Ground
3 IN_VGA1_G Green, analog 1
4 GND Ground
5 IN_VGA1_B Blue analog 1
6 GND Ground
7 IN_VGA1_HS Horizontal sync or composite sync, input 1
8 GND Ground
9 IN_VGA1_VS Vertical sync, input 1

10 GND Ground
11 IN_VGA1_SCL DDC serial clock 1
12 GND Ground
13 IN_VGA1_SDA DDC serial data 1
14 GND Ground
15 ARGB1_VCC +5V power supply for DDC 1 (optional)
16 GND Ground
17 AV_IN1 Composite video 1 in
18 GND Ground
19 AV_IN2 Composite video 2 in
20 GND Ground

CNV4 – 1 x VGA & 2 x Composite Video Input, JST S20B-PHDSS (Matching type : JST PHDR-20VS)

PIN SYMBOL DESCRIPTION

1 IN_VGA2_R Red, analog 2
2 GND Ground
3 IN_VGA2_G Green, analog 2
4 GND Ground
5 IN_VGA2_B Blue analog 2
6 GND Ground
7 IN_VGA2_HS Horizontal sync or composite sync, input 2
8 GND Ground
9 IN_VGA2_VS Vertical sync, input 2

10 GND Ground
11 IN_VGA2_SCL DDC serial clock 2
12 GND Ground
13 IN_VGA2_SDA DDC serial data 2
14 GND Ground
15 ARGB2_VCC +5V power supply for DDC 2 (optional)
16 GND Ground
17 AV_IN3 Composite video 3 in
18 GND Ground
19 AV_IN4 Composite video 4 in
20 GND Ground

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

22 of 60

J1 – 2 x HDMI Input, JAE FI-RE41S-HF (Matching type : JAE FI-RE41HL)

PIN SYMBOL DESCRIPTION

1 GND Ground
2 B_HPD Hot plug detection (B)
3 B_5V +5V power supply for DDC (optional) (B)
4 GND Ground
5 B_SDA B_SDA (I²C Serial Data Line for DDC)
6 B_SCL B_SCL (I²C Serial Clock for DDC)
7 NC No connection
8 B_CEC Ground
9 B_CLK- TMDS B_Clock -

10 B_CLKS TMDS B_Clock Shield
11 B_CLK+ TMDS B_Clock +
12 B_DATA0- TMDS B_Data 0­13 B_DATA0S TMDS B_Data 0 Shield
14 B_DATA0+ TMDS B_Data 0+
15 B_DATA1- TMDS B_Data 1­16 B_DATA1S TMDS B_Data 1 Shield
17 B_DATA1+ TMDS B_Data 1+
18 B_DATA2- TMDS B_Data 2­19 B_DATA2S TMDS B_Data 2 Shield
20 B_DATA2+ TMDS B_Data 2+
21 GND Ground
22 HPDET Hot plug detection
23 +5V +5V power supply for DDC (optional)
24 CEC/GND CEC/GND
25 SDA SDA (I²C Serial Data Line for DDC)
26 SCL SCL (I²C Serial Clock for DDC)
27 NC No connection
28 CEC Ground
29 CLK- TMDS Clock ­30 CLKS TMDS Clock Shield
31 CLK+ TMDS Clock +
32 DATA0- TMDS Data 0­33 DATA0S TMDS Data 0 Shield
34 DATA0+ TMDS Data 0+
35 DATA1- TMDS Data 1­36 DATA1S TMDS Data 1 Shield
37 DATA1+ TMDS Data 1+
38 DATA2- TMDS Data 2­39 DATA2S TMDS Data 2 Shield
40 DATA2+ TMDS Data 2+
41 GND Ground

J2 – Additional panel power input connector : Molex 53261-0871 (Matching type : Molex 51021-0800)

PIN SYMBOL DESCRIPTION

1 PVLCD Panel power supply (3,3V/5V)
2 PVLCD Panel power supply (3,3V/5V)
3 GND Ground
4 GND Ground
5 GND Ground
6 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6 from PR-1200/-2400)
7 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6 from PR-1200/-2400)
8 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6 from PR-1200/-2400)

J3 – LVDS output connector: JAE FI-RE51S-HF (Matching type : JAE FI-RE51HL)

PIN SYMBOL DESCRIPTION

1 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
2 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
3 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
4 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
5 VDD (+12/18V) Panel power supply (+12/18V) (selected by JA3, JA5 & JA6)
6 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
7 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
8 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
9 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)

10 VDD (3,3V/5V) Panel power supply (3,3V/5V) (selected by JA3, JA5 & JA6)
11 GND Ground
12 GND Ground
13 GND Ground
14 GND Ground
15 GND Ground

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

23 of 60

16 OP1 ­17 OP2 ­18 OP3 ­19 OP4 ­20 GND Ground
21 GND Ground
22 TXA4+ Positive differential LVDS data bit A4
23 TXA4- Negative differential LVDS data bit A4
24 TXA3+ Positive differential LVDS data bit A3
25 TXA3- Negative differential LVDS data bit A3
26 GND Ground
27 TXAC+ Positive LVDS clock for A channel
28 TXAC- Negative LVDS clock for A channel
29 GND Ground
30 TXA2+ Positive differential LVDS data bit A2
31 TXA2- Negative differential LVDS data bit A2
32 TXA1+ Positive differential LVDS data bit A1
33 TXA1- Negative differential LVDS data bit A1
34 TXA0+ Positive differential LVDS data bit A0
35 TXA0- Negative differential LVDS data bit A0
36 GND Ground
37 TXB4+ Positive differential LVDS data bit B4
38 TXB4- Negative differential LVDS data bit B4
39 TXB3+ Positive differential LVDS data bit B3
40 TXB3- Negative differential LVDS data bit B3
41 GND Ground
42 TXBC+ Positive LVDS clock for B channel
43 TXBC- Negative LVDS clock for B channel
44 GND Ground
45 TXB2+ Positive differential LVDS data bit B2
46 TXB2- Negative differential LVDS data bit B2
47 TXB1+ Positive differential LVDS data bit B1
48 TXB1- Negative differential LVDS data bit B1
49 TXB0+ Positive differential LVDS data bit B0
50 TXB0- Negative differential LVDS data bit B0
51 GND Ground

IR1 – Infra-Red sensor connector: Molex 53261-0371 (Matching type : Molex 51021-0300)

PIN SYMBOL DESCRIPTION

1 GND Ground
2 STDBY_Vcc Stand by voltage
3 IR Data IR data

LED1 – Status LED connector: JST S3B-ZR=SM4A (Matching type : ZHR-3)

PIN DESCRIPTION

1 Green LED pin (anode)
2 LED pin common (cathode)
3 Red LED pin (anode)

PP7 – Panel power input : JST S8B-PH-SM4-TB (Matching type : JST PHR-8)

PIN SYMBOL DESCRIPTION

1 PVLCD Panel power supply (3,3V/5V)
2 PVLCD Panel power supply (3,3V/5V)
3 GND Ground
4 GND Ground
5 GND Ground
6 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6 from PR-1200/-2400)
7 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6 from PR-1200/-2400)
8 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6 from PR-1200/-2400)

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

24 of 60

PR-1200 / PR-2400 connectors definitions :
CNA1 - Auxiliary power output: JST B4B-XH-A (Matching type : XHP-4)

PIN SYMBOL DESCRIPTION

1 AUX 12V / 24V +12V DC, 500mA max
2 GND Ground
3 GND Ground
4 AUX 5V +5V DC, 500mA max

CNA2 - Auxiliary +5VDC, 500mA output: JST 2-way, S2B-PH-SM3-TB (Mating type : PHR-2)

PIN SYMBOL DESCRIPTION

1 VCC +5VDC, 500mA output
2 GND Ground

CNB1 – Backlight inverter connector: JST S5B-XH-A (Matching type : XHP-5)

PIN SYMBOL DESCRIPTION

1 GND Ground
2 VBKL Backlight power supply, +12VDC / +24V DC, 3A max
3 BLCTRL Backlight On/Off control signal (refer to JB2 & JB3 from SGX-1920L)
4 BVR_WIP Backlight brightness VR pin WIP
5 BVR_A Backlight brightness VR pin A

CNC2 – Panel power input : JST S8B-PH-SM4-TB (Matching type : JST PHR-8)

PIN SYMBOL DESCRIPTION

1 PVLCD Panel power supply (3,3V/5V)
2 PVLCD Panel power supply (3,3V/5V)
3 GND Ground
4 GND Ground
5 GND Ground
6 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6)
7 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6)
8 PVLCD12 Panel power supply (+12V) (selected by JA3 & JA6)

CNC3 – Controller (+5VDC power in & backlight control) : JST S10B-PH-SM4 (Matching type : JST PHR-10)

PIN SYMBOL DESCRIPTION

1 VCC +5VDC power in
2 VCC +5VDC power in
3 PSWIN Power switch A
4 SW_ON Power switch B
5 BLCTRL On/Off control (enable) – see JB2 & JB3
6 BRIGHTNESS Brightness VR – WIP
7 BVR_A Brightness VR A
8 PPWR +12V, backlight power supply
9 GND Ground

10 GND Ground

PP2 & PP3 – 12V/24VDC power input : Molex 43650-0200 compatible

(Matching connector type : Molex 43645-0200 compatible)

PIN DESCRIPTION

1 PP-1200 : +12VDC in

PP-2400 : +24VDC in

2 Ground

PP1 – +12VDC power output: Molex 43045-0400 compatible (Matching connector type : Molex 43025-0400 compatible)

PIN DESCRIPTION

1 PP-1200: +12VDC out

PP-2400 : +12VDC out
2 Ground
3 PP-1200: +12VDC out

PP-2400 : +12VDC out
4 Ground

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

25 of 60

CONTROLLER DIMENSIONS

SGX-1920L :

Ready-made 3D Pro-E (SLDPRT) drawing files - Save time and effort for your system volumetric analysis design.

Includes jpg file previews. Please go to download at http://www.digitalview.com/products/svx-1920-lcd-controller
The maximum thickness of the controller is 17.65mm with or without video add-on board (measured from bottom of

PCB to top of components, including any underside components & leads). We recommend clearances of:

• 5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation
material is added to the mounting plate surface.

• 10mm above the components

• 3~5mm around the edges

Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.

CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high
voltage parts such as the inverter.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

26 of 60

PR-1200 / PR-2400 :

The maximum thickness of the controller is 17.71mm with or without video add-on board (measured from bottom of
PCB to top of components, including any underside components & leads). We recommend clearances of:

• 5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation
material is added to the mounting plate surface.

• 10mm above the components

• 3~5mm around the edges

Any of the holes shown above can be used for mounting the PCB, they are 3.2mm in diameter.

CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high
voltage parts such as the inverter.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

27 of 60

APPLICATION NOTES FOR PR-1200/PR-2400

USING THE CONTROLLER WITHOUT BUTTONS ATTACHED

This is very straightforward:

• Firstly setup the controller/display system with the buttons. With controls attached and display system active make any
settings for colour, tint and image position as required then switch everything off.

• Remove the control switches, the 12-way (CNC1) cable.

• Use a jumper or similar to connect pins 1 & 2 on CNC1, this will fix the board On.

• Refer to inverter specifications for details as to fixing brightness to a desired level, this may require a resistor, an open

circuit or closed circuit depending on inverter.

Summary: On CNC1 the only pins that are used are for On/Off and Brightness (if controller mounted inverter is used). On
CNC1 the pins are for momentary type buttons so it doesn’t matter that no buttons are attached.

INVERTER CONNECTION

There are potentially 3 issues to consider with inverter connection:

• Power

• Enable

• Brightness

Please read the following sections for a guide to these issues.
Inverter Power: As per the table for CNB1 pin 1 is ground and pin 2 provides 12V/24V DC. This should be matched with the

inverter specification: see table.

CNB1

PIN DESCRIPTION

1 Ground
2 PR-1200 : +12VDC

PR-2400 : +24VDC

Remark: For higher power inverter, more current (for 12V/24V) can be taken from CNA1 pin 1.

Enable: This is a pin provided on some inverters for On/Off function and is used by this panel controller for VESA DPMS
compliance. If the inverter does not have an enable pin or the enable pin is not used then DPMS will not be operational. Pin 3
should be matched to the inverters specification for the ‘enable’ or ‘disable’ pin.

CNB1

PIN DESCRIPTION

3 Enable

Further, jumpers JB2 & JB3 should be set to match the inverters specification for the enable pin power and High or Low setting:
see table.

Ref

Purpose Note

JB2 Inverter enable voltage 1-2 H = 12V/24V, 2-3 H = 5V (Vcc), OPEN H = open collector
JB3 Inverter control 1-2 H = On, 2-3 L = On

Brightness: There are various methods for brightness control and it is important to consider the specifications for the inverter to
be used. Generally the situation is:

• Brightness can control by using a resistor or VR (Variable Resistor).

• Brightness controlled by adding a circuit such as PWM (Pulse Width Modulation).

• No adjustment of brightness is possible.

CNB1 pins 4 & 5 are available for connecting to an inverter or circuit where VR control is supported.

CNB1

PIN DESCRIPTION

4 VR WIP
5 VR A

This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table.

CNC1

PIN DESCRIPTION

3 VR A
4 VR WIP
5 VR B

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

28 of 60

Design Guideline for making VR circuitry :

CNB1 – Backlight inverter connector: JST B5B-XH-A (Matching type : XHP-5)

PIN SYMBOL DESCRIPTION

1 GND Ground
2 VBKL +12VDC(PR-1200)/24VDC(PR-2400), backlight power supply
3 BLCTRL On/Off control (enable) – see JB2 & JB3
4 BVR_WIP Brightness VR - WIP
5 BVR_A Brightness VR A

CNC1 – Control switch, JST B12B-XH-A (Matching type : XHP-12)

PIN SYMBOL DESCRIPTION

1 PSWIN Power button A
2 SW_ON Power button B
3 BVR_A Backlight Brightness VR pin A
4 BVR_WIP Backlight Brightness R pin WIP
5 BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc)
6 GND Ground
7 MENU OSD menu
8 -/LEFT OSD -/Left

9 +/RIGHT OSD +/Right
10 SEL_DN OSD Select down
11 SEL_UP OSD Select up
12 NC No connection

The VR for brightness depends on the inverter. The main power load for On/Off is handled by a relay on the controller.

Example for circuit design :

Signal description / Notes :

1) R1 : 470ohm on board

2) RPOT is an external potentiometer (in-line dip
style) that can be plugged directly into CNC1 pins
3,4,5. RPOT must be supplied / installed by user.

3) BVR_B : Voltage tapped from “top” of
potentiometer, the node of R1 and RPOT.

4) BVR_WIP : Voltage tapped from wiper arm of
RPOT.

5) BVR_A : Voltage tapped from “bottom” of
RPOT.

Note : BVR_A voltage is left floating on the
controller board. To use this circuit, you need
to tie this point to a potential (usually GND,
available at CNC1

p

in 6).

1.)Choose RPOT = 10K

2.) Tie BVR_A to GND

3.) Circuit analysis gives BVR_WIP as the
following (see Figure 1)

BVR_WIP = 5 x (Rbc/10.47)
where BVR_WIP is in Volts.

And Rbc is the resistance from the wiper arm
to bottom of pot in Kohms.

To evaluate, plug in different values of Rbc :

Rbc BVR_WIP

0 0 V

2.5 K 1.2 V
5 K 2.4 V

7.5 K 3.6 V

10 K 4.8 V
So this circuit could provide Brightness
adjust voltage ranging from 0V to 5V.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

29 of 60

TROUBLESHOOTING

General

A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as:

 Controller (jumpers, PC settings)
 Panel (controller, cabling, connection, panel, PC settings)
 Backlight (inverter, cabling, backlight tubes)
 Cabling
 Computer system (display settings, operating system)

Through step by step cross checking with instruction manuals and a process of elimination to isolate the problem it is usually
possible to clearly identify the problem area.

No image:

 If the panel backlight is not working it may still be possible to just see some image on the display.
 A lack of image is most likely to be caused by incorrect connection, lack of power, failure to provide a signal or incorrect

graphic card settings.

Image position:

If it is impossible to position the image correctly, i.e. the image adjustment controls will not move the image far enough, then
test using another graphics card. This situation can occur with a custom graphics card that is not close to standard timings or if
something is in the graphics line that may be affecting the signal such as a signal splitter (please note that normally a signal
splitter will not have any adverse effect).

Image appearance:

 A faulty panel can have blank lines, failed sections, flickering or flashing display
 Incorrect graphics card refresh rate, resolution or interlaced mode will probably cause the image to be the wrong size, to

scroll, flicker badly or possibly even no image.

 Incorrect jumper settings on the controller may cause everything from total failure to incorrect image. CAUTION: Do not set

the panel power input incorrectly.

 Sparkling on the display: faulty panel signal cable.

Backlight:

Items to check include: Power input, Controls, Inverter and Tubes generally in this order.
If half the screen is dimmer than the other half:

 Check cabling for the inverter.
 For a specific backlight tube check the AC pins orientation (CAUTION: Never reverse any DC power pins).

Also:
 If adjusting brightness control has no effect the chances are that the VR rating or method of adjusting brightness is not

compatible or correctly connected to the inverter.

 If system does not power down when there is a loss of signal

Continued failure:

If unit after unit keeps failing consider and investigate whether you are short circuiting the equipment or doing something else
seriously wrong.

Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to
isolate the problem.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

30 of 60

SPECIFICATIONS :

Panel compatibility Compatible with 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900

1366x768, 1280x1024, 1024x768, 800x600 & 640x480 resolutions of TFT LCD
panels.

A specified BIOS and some factory adjustment may be required for individual panel

timings.
No. of colours Up to 3 x 10 bit providing 1.06 billion colours.
Panel power DC 3.3V, 5V, 12V
Panel signal LVDS
Vertical refresh rate 60Hz at 1920x1200, 60Hz at 1920x1080, 60Hz at UXGA and up to 75Hz other

lower resolution
Display clock maximum 165MHz
ADC clock maximum 195 MHz
DVI differential input clock maximum 165MHz
Graphics formats Standard VESA VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA

Other special formats through specified BIOS and factory adjustment.
Graphics auto mode detect VGA, SVGA, XGA, SXGA, WXGA, UXGA & WUXGA interlaced and non-interlaced
Standard input at analog RGB VGA analog (15 pin) standard with automatic detection of:

Digital Separate Sync;

Composite Sync

Sync On Green.
Video formats PAL, NTSC & SECAM
Standard input at HDMI Dual-Input HDMI 1.3, and DVI 1.0 compliant Receiver
Video inputs ARGB

ARGB 2

Composite video 1

Composite video 2

Composite video 3

Composite video 4

HDMI 1

HDMI 2
Functions display On screen display (OSD) of functions
OSD menu functions Image controls:

Panel brightness/contrast, Saturation, Hue, Color temperature, Sharpness, Video

Scaling, PIP, OSD position, OSD timeout, Image orientation, Auto Source Seek,

etc.
OSD menu controls available Power On/Off

Backlight brightness

OSD Menu

OSD Select up

OSD Select down

Setting +

Setting ­Control interface Buttons, RS-232, Remote control
Settings memory Settings are stored in non volatile memory
PC Connectivity VGA / SVGA / XGA / SXGA / UXGA / WUXGA analog or digital
Controller dimensions 137mm x 111mm (approx 5.4.” x 4.4”)
Power consumption 10w approx. (not including panel power consumption) for SGX-1920L
Power load maximum The controller has an overall 3Amp current limit for PR-1200/PR-2400
Input voltage 5VDC +/- 5% for SGX-1920L
Power protection Fuse fitted (Resettable) is equipped on PR-1200/PR-2400
DC Power handling Reverse power polarity protection is equipped on the PR-1200/PR-2400.
Storage temperature limits -40oC to +70oC
Operating temperature limits 0oC to +60oC

NOTES

Please note the following:

• For specific panel setup a sample of an LCD may be required (this will be returned) and a copy of the full

technical specifications for the panel from the manufacturer.

• Re-layout and custom development services are available.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

31 of 60

APPENDIX I – SIGNAL SUPPORT MODE TABLE
ARGB PORT :

Mode Resolution Clk [MHz] Horizontal

freq [KHz]

Vertical

freq [Hz]

Sync Mode

T_70 720x400

70Hz

28.322 31.469 70.087 Digital Separate Sync

T_70 720x400

70Hz

28.322 31.469 70.087 Sync On Green

V_60 640x480

60Hz

25.175 31.469 59.940 Digital Separate Sync

V_60 640x480

60Hz

25.175 31.469 59.940 Sync On Green

V_60 640x480

60Hz

25.175 31.469 59.940 Composite Sync

V_72 640x480

72Hz

31.500 37.861 72.809 Digital Separate Sync

V_72 640x480

72Hz

31.500 37.861 72.809 Sync On Green

V_72 640x480

72Hz

31.500 37.861 72.809 Composite Sync

V_75 640x480

75Hz

31.500 37.500 75.000 Digital Separate Sync

V_75 640x480

75Hz

31.500 37.500 75.000 Sync On Green

V_75 640x480

75Hz

31.500 37.500 75.000 Composite Sync

SV_56 800x600

56Hz

36.000 35.156 56.250 Digital Separate Sync

SV_56 800x600

56Hz

36.000 35.156 56.250 Sync On Green

SV_56 800x600

56Hz

36.000 35.156 56.250 Composite Sync

SV_60 800x600

60Hz

40.000 37.879 60.317 Digital Separate Sync

SV_60 800x600

60Hz

40.000 37.879 60.317 Sync On Green

SV_60 800x600

60Hz

40.000 37.879 60.317 Composite Sync

SV_72 800x600

72Hz

50.000 48.077 72.188 Digital Separate Sync

SV_72 800x600

72Hz

50.000 48.077 72.188 Sync On Green

SV_72 800x600

72Hz

50.000 48.077 72.188 Composite Sync

SV_75 800x600

75Hz

49.500 46.875 75.000 Digital Separate Sync

SV_75 800x600

75Hz

49.500 46.875 75.000 Sync On Green

SV_75 800x600

75Hz

49.500 46.875 75.000 Composite Sync

X_60 1024x768

60Hz

65.000 48.363 60.004 Digital Separate Sync

X_60 1024x768

60Hz

65.000 48.363 60.004 Sync On Green

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

32 of 60

X_60 1024x768

60Hz

65.000 48.363 60.004 Composite Sync

X_70 1024x768

70Hz

75.000 56.476 70.069 Digital Separate Sync

X_70 1024x768

70Hz

75.000 56.476 70.069 Sync On Green

X_70 1024x768

70Hz

75.000 56.476 70.069 Composite Sync

X_75 1024x768

75Hz

78.750 60.023 75.029 Digital Separate Sync

X_75 1024x768

75Hz

78.750 60.023 75.029 Sync On Green

X_75 1024x768

75Hz

78.750 60.023 75.029 Composite Sync

SX_60 1280x1024

60Hz

108 63.81 60.020 Digital Separate Sync

SX_60 1280x1024

60Hz

108 63.81 60.020 Sync On Green

SX_60 1280x1024

60Hz

108 63.81 60.020 Composite Sync

SX_75 1280x1024

75Hz

135 79.976 75 Digital Separate Sync

SX_75 1280x1024

75Hz

135 79.976 75 Sync On Green

SX_75 1280x1024

75Hz

135 79.976 75 Composite Sync

UX_60 1600x1200

60Hz

162 75.000 60 Digital Separate Sync

UX_60 1600x1200

60Hz

162 75.000 60 Sync On Green

UX_60 1600x1200

60Hz

162 75.000 60 Composite Sync

WUX_60 1920x1080

60Hz

172.8 67.5 60 Digital Separate Sync

WUX_60 1920x1080

60Hz

172.8 67.5 60 Sync On Green

WUX_60 1920x1080

60Hz

172.8 67.5 60 Composite Sync

WUX_60 1920x1200

60Hz

193.2 74.5 60 Digital Separate Sync

WUX_60 1920x1200

60Hz

193.2 74.5 60 Sync On Green

WUX_60 1920x1200

60Hz

193.2 74.5 60 Composite Sync

Remark :
The controller has been designed to take a very wide range of input signals however to optimize the PC’s graphics
performance we recommend choosing 60Hz vertical refresh rate. To support on higher refresh rate over 60Hz, the
LCD panel may not support.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

33 of 60

COMPOSITE 1 – 4 VIDEO INPUT PORT :

System Resolution Horizontal freq

[KHz]

Vertical freq

[Hz]

NTSC 720x480i 15.7 60

NTSC 4.43 720x480i 15.7 60

PAL 720x576i 15.6 50

PAL M 720x576i 15.6 50

SECAM 720x576i 15.6 50

HDMI input port :

Mode Resolution Clk [MHz] Horizontal

freq [KHz]

Vertical

freq [Hz]

T_70 720x400 70Hz 28.322 31.469 70.087
V_60 640x480 60Hz 25.175 31.469 59.940

SV_60 800x600 60Hz 40.000 37.879 60.317

X_60 1024x768 60Hz 65.000 48.363 60.004

SX_60 1280x1024 60Hz 108 63.81 60.020

UX_60 1600x1200 60Hz 162 75.000 60
WUX_60 1920x1080 60Hz 172.8 67.5 60
WUX_60 1920x1200 60Hz 193.2 74.5 60
1080p60 1920x1080p 60Hz 135 67.5 60

1080i60 1920x1080i 60Hz 74.14 33.7 60
1080i50 1920x1080i 50Hz 74.184 28.1 50

720p60

1280x720P 60Hz

74.25 45 60

576p50

720x576P 50Hz

26.9568 31.2 50

480p60

720x480P 60Hz

26.9568 31.4 60

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

34 of 60

Appendix II – RS-232 control protocols

RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity)

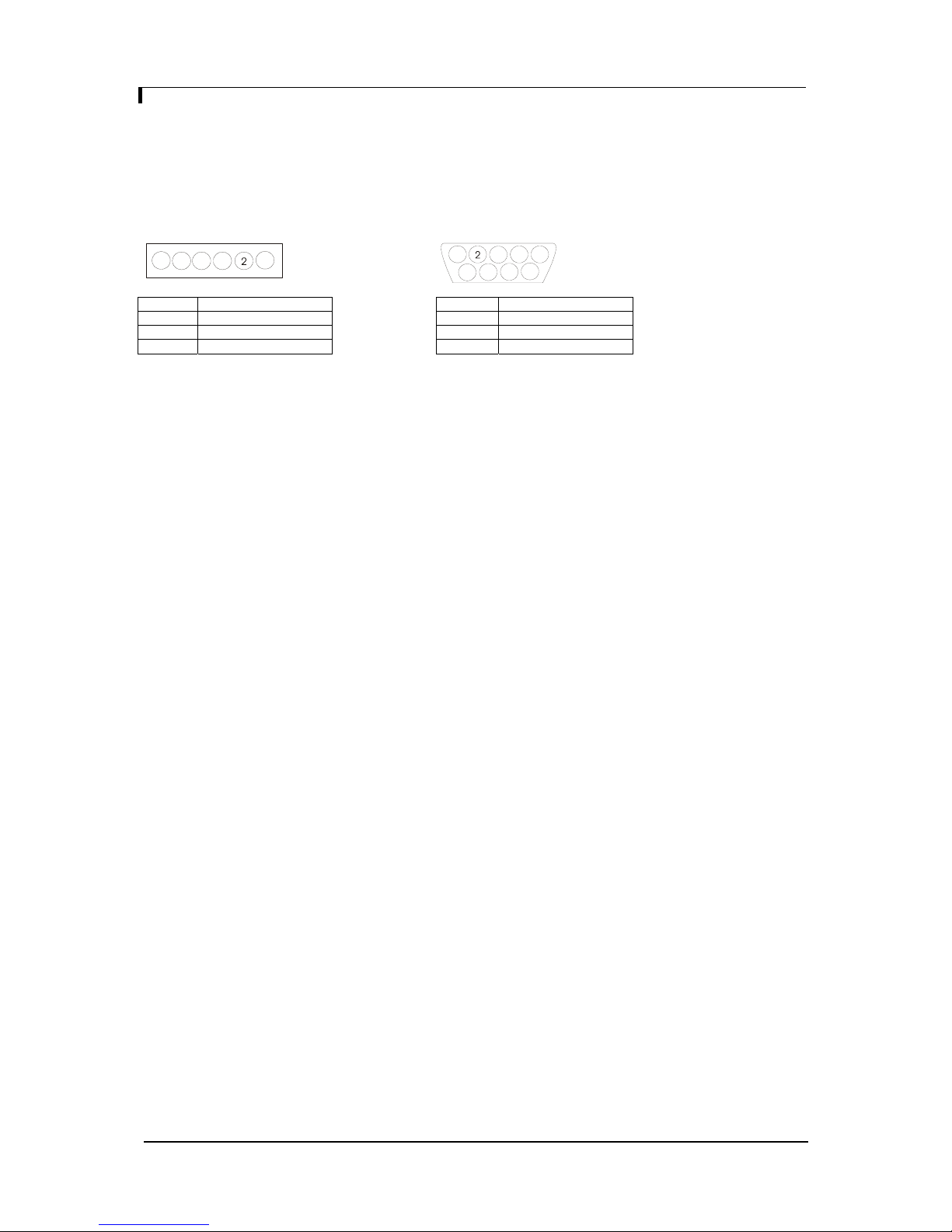

Physical connection :

Controller side Computer side
Connector interface : CN8 Connector interface : Serial port
Mating connector : Molex 51021-0600 Mating connector : DB9 Female

PIN# Description PIN# Description

4 RS-232 Tx Data 2 RS-232 Rx Data
5 Ground 3 RS-232 Tx Data
6 RS-232 Rx Data 5 Ground

Software connection :

The OSD function can be controlled through sending the RS-232 protocol.
The RS-232 program can be custom-made to fit for application or it can be used the serial control program, like Accessport,
Telix or Serial Utility program developed by DigitalView. Please contact your local support for information.

54

6

3

1

7

8

9

Mating face of CN8 Mating face of RS-232 DB9 Male

5 463

1

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

35 of 60

1. Commands to implement switch mount control buttons

Function Command Description Remark

Menu button 0xf7 Menu button pressed Button equivalent
Select-down
button

0xfa Select-down button pressed Button equivalent

Select-up button 0xfb Select-up button pressed Button equivalent
Right/+ button 0xfc Right/+ button pressed Button equivalent
Left/- button 0xfd Left/- button pressed Button equivalent

2. Parameter setting - immediate, relativ e, reset and query

Function Command Description Acknowledge (if enabled)

Volume control ­ left+right channel

0x80, “a” | “A”,
nn | “+” | “-” |
“r” | “R” |
“?”

Set audio (L+R) volume =
value/increment/decrement
Reset
Query

volume

Range : “0””0”-“1””E”

Default : “0””F”

Volume control ­ on/off (mute)

0x80, “m” | “M”,
“0” |
“1” |
“r” | “R” |
“?”

Disable audio output.
Enable audio output.
Reset
Query

“0” - audio off (muted).

“1” - audio on.

Brightness control 0x81,

nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, nn
“o”, ss,

Set brightness =
value/increment/decrement
Reset
Query Current Source
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1

Brightness.

Range : “4””E”-“B””2”

Default : “8””0”

ss - reference by Input main

select(0x98)
Contrast control -

all channels

0x82, “a” | “A”,
nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i ” , ss, nn
“o”, ss,

Set all contrast =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1

Contrast

Range : “1””C”-“E””4”

Default : “8””0”

ss - reference by Input main

select(0x98)
Saturation control 0x83,

nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, nn
“o”, ss,

Set color =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1

PAL/NTSC color (In video mode

only )

Range : “0””1”-“F””F”

Default : “8””0”

ss - reference by Input main

select(0x98)
Hue control 0x84,

nn | “+” | “-” |
“r” | “R” |
“?”
“m”
“n”
“i” , ss, nn
“o”, ss,

Set tint =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, value *1
Query, Source *1

NTSC tint (In NTSC mode only)

Range : “5””3”-“9””F”

Default : “7””9”

ss - reference by Input main

select(0x98)
Phase (tuning)
control

0x85,
nn | “+” | “-” |
“?”

Set dot clock phase =
value/increment/decrement
Query

Dot clock phase.

(In PC mode only)
Image H position 0x86, Set img_hpos = Image horizontal position.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

36 of 60

nnnn | “+” | “-” |
“?”

value/increment/decrement
Query

(In PC mode only)
Image V position 0x87,

nnnn | “+” | “-” |
“?”

Set img_vpos =
value/increment/decrement
Query

Image vertical position.

(In PC mode only)
Sharpness 0x8a,

nn | “+” | “-” |
“r” | “R” |
“?”

Set sharpness =
value/increment/decrement
Reset
Query

Sharpness.

(Video Mode Source only)

Range : “F””4”-“0””C”

Default : “0””0”

Frequency 0x8b,

nnnn | “+” | “-“ |
“?”

Set frequency =
Value/increment/decrement
Query

Graphic mode H active size (in

pixels)
Scaling Mode 0x8c,

“0” | “1” | “2” | “3” |
“9” | “A” |
“B” | “C” | “D” |
“r” | “R” |
“?”

Set graphic image scaling mode
=
value
Reset
Query

Image expansion on/off.

“0” – 1:1

“1” – fill screen

“2” – fill to aspect ratio

“9” – 4:3

“A” – 16:9

“B” – 16:10

“C” – 2.35:1

“D” – 2:1

OSD H position 0x90,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set osd_hpos =
value/increment/decrement
Reset
Query

OSD horizontal position.

Range : “0””0”-“F””F”

Default : “8””0”

OSD V position 0x91,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set osd_vpos =
value/increment/decrement
Reset
Query

OSD vertical position.

Range : “0””0”-“F””F”

Default : “8””0”

OSD
Transparency

0x92,
n | “+” | “-” |
“r” | “R” |
“?”

Set OSD transparency =
value/increment/decrement
Reset
Query

OSD transparency.

“0” – ON

“1” - OFF

OSD menu
timeout

0x93,
nn | “+” | “-” |
“r” | “R” |
“?”

Select menu timeout =
value/increment/decrement
Reset
Query

OSD menu timeout value.

“0””0” – Continuous.

value – Round up to nearest

available step.

if value > max available step, set

it to the max available step.

Range : “0””5”-“3””C”

Default : “0””A”

Select OSD
language

0x95,
n |
“r” | “R” |
“?”

Select language =
English, Chinese,…
Reset
Query

“0” – English.

“2” - French

“3” – Spanish

“6” - German

“8” – Chinese

Input main select 0x98,

nn | “+” | “-” |
“r” | “R” |
“?”

Select input main =
PC or VIDEO or next available
Reset
Query

Main selected.

“0x41,0x31”- ARGB

“0x41, 0x32” – ARGB 2

“0x42,0x31”- Composite

“0x42,0x32”- Composite 2

“0x42, 0x33” – Composite 3

“0x42, 0x34” – Composite 4

“0x48, 0x31” – HDMI

“0x48, 0x32” – HDMI2

Auto Source Seek 0x99,

nn ,
“0” | “1” |
“?” |
”o”

Set Auto source enable = *1
Source
Disable/ Enable
Query
Valid Source query

“nn” =

“0x41,0x31”- ARGB

“0x41, 0x32” – ARGB 2

“0x42,0x31”- Composite

“0x42,0x32”- Composite 2

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

37 of 60

“0x42, 0x33” – Composite 3

“0x42, 0x34” – Composite 4

“0x48, 0x31” – HDMI

“0x48, 0x32” – HDMI2

Source Layout 0x9a,

n |
“r” | “R” |
“?”

Select source layout =
Single, PIP, PBP, PBPT
Reset,
Query

Query:

“0”- Single

“1”- Picture in Picture (PIP)

“2”- Picture by Picture (PBP)

“3”- Picture by Picture Tall

(PBPT)

Video System
(Composite, S­video and
Component Only)

0x9b,
“0” | “1” | “2” | “3” |
“r” | “R” |
“S” | “s”|
“?”

Set video system =
Auto/NTSC/PAL/SECAM
Reset
Video State Query
Query

Query

“0” – Auto.

“1” – NTSC_M_358

“2” – PAL_N_443

“3” – SECAM

“4” – NTSC_M_443

“5” - PAL_M_358

“7” – PAL_M_443

“9” – PAL_N_358

Video State Query

“0” – No video.

“1” – NTSC

“2” – PAL

“3” – SECAM

“4” – NTSC 443

“5” – PAL M 358

GAMMA value
select

0x9d,
n |
“r” | “R”
“?”

Select GAMMA value =
Value
Reset
Query

GAMMA value:

“0” – 1.0, “1” – 1.6

“2” – 2.2, “3” – User Defined

“4” – 1.7, “5” – 1.8,

“6” – 1.9, “7” – 2.0,

“8” – 2.1, “9” – 2.3,

“A” – 2.4, “B” – 2.5,

“C” – 2.6,

“D” – 0.6, “E” – 0.7,

“F” – 0.8, “G” – 0.9,

“H” – 1.1, “I” – 1.2,

“J” – 1.3, “K” – 1.4,

“L” – 1.5

Auto power off 0x9f,

“0” | “1” |
“r” | “R” |
“?”

Set power down option =
On/Off
Reset
Query

“0” – Off.

“1” – On.

Hotkey 1

0xa0, “1”,
n |
“r” | “R” |
“?”

Set Hotkey 1=
Value
Reset
Query

“1” – volume.

“2” – brightness.

“3” – contrast.

“4” – colour.

“5” – input source.

“7” – zoom

“8” – freeze

“9” – PIP

“B” – No function

“D” – PIP Swap

“E” – Aspect Ratio

“G” – Hue

“H” – Backlight

“I” – Auto Picture Setup

Hotkey 2

0xa0, “2”,
n |

Set Hotkey 2 =
value

“1” – volume.

“2” – brightness.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

38 of 60

“r” | “R” |
“?”

Reset
Query

“3” – contrast.

“4” – colour.

“5” – input source.

“7” – zoom

“8” – freeze

“9” – PIP

“B” – No function

“D” – PIP Swap

“E” – Aspect Ratio

“G” – Hue

“H” – Backlight

“I” – Auto Picture Setup

Runtime counter 0xa1,

nnnnn |
“r” | “R” |
“?”

runtime counter value =
nnnnn (* 0.5 hour)
Reset
Query

Runtime = nnnnn.

PIP brightness
control

0xa2,
nn | “+” | “-” |
“r” | “R” |
“?”

Set PIP window brightness =
value/increment/decrement
Reset
Query

PIP window brightness.

Range : “4””E”-“B””2”

Default : “8””0”

PIP contrast
control

0xa3,
nn | “+” | “-” |
“r” | “R” |
“?”

Set PIP window contrast =
value/increment/decrement
Reset
Query

PIP window contrast.

Range : “1””C”-“E””4”

Default : “8””0”

PIP H position 0xa4,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set PIP_hpos =
value/increment/decrement
Reset
Query

PIP window horizontal position.

Range : “0””0””0”-“0””6””4”

Default : “0””5””5”

PIP V position 0xa5,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set PIP_vpos =
value/increment/decrement
Reset
Query

PIP window vertical position.

Range : “0””0””0”-“0””6””4”

Default : “0””1””4”

PIP window size
select

0xa6,
nn |
“r” | “R” |
“?”

Select PIP window size =
PIP window size value
Reset
Query

Main selected.

PIP off if “nn” = “0””0”.

“0””0”~”1””2”

“0””0” ~ “1””2”

“1””9” : Size by Size

“1””A” : Size by Size Tall

PIP source select 0xa7,

n |
“r” | “R” |
“?”

Select input main =
Video source value
Reset
Query

Main selected.

0x40 0x30 : PIP OFF

0x41, 0x31 : ARGB

0x41, 0x32 : ARGB2

0x42, 0x31 : Composite

0x42, 0x32 : Composite 2

0x42, 0x33 : Composite 3

0x42, 0x34 : Composite 4

0x48, 0x31 : HDMI

0x48, 0x32 : HDMI2

Zoom level

0xa8,
nnnn | “+” | “-” |
“r” | “R” |
“?”

Set Zoom level =
value/increment/decrement
Reset
Query

Zoom level.

Min : 0x30 0x30 0x30 0x30

(Default)

Max : 0x30 0x30 0x41 0x33

Zoom H position 0xa9,

nnnn | “+” | “-” |
“r” | “R” |
“?”

Set Zoom_hpos =
value/increment/decrement
Reset
Query

Zoom window horizontal

position.

Default : 0x30 0x30 0x30 0x30

The min and max values will

change depends on input

resolution.

Zoom V position 0xaa, Set Zoom_vpos = Zoom window vertical position.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

39 of 60

nnnn | “+” | “-” |

“r” | “R” |
“?”

value/increment/decrement
Reset
Query

Default : 0x30 0x30 0x30 0x30

The min and max values will

change depends on input

resolution.

Horizontal Size 0xad,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set horizontal size for
Aspect Size =
value/increment/decrement
Reset
Query

Scalar horizontal stretch

PAL(576i) / NTSC (480i) :

Min : 0x30 0x30 0x30 (Default)

Max : 0x30 0x46 0x30

Vertical Size 0xb0,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set Vertical Size for
Aspect Size =
value/increment/decrement
Reset
Query

Scalar vertical stretch.

PAL(576i) / NTSC (480i) :

Min : 0x30 0x30 0x30 (Default)

Max : 0x30 0x46 0x30

Horizontal Pan 0xb1,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set horizontal pan position
for Aspect Size =
value/increment/decrement
Reset
Query

Scalar horizontal pan position

PAL(576i) / NTSC (480i) :

Assume max H-Size & max V-

size :

Min : 0x46 0x38 0x38

Max : 0x30 0x37 0x38

Default : 0x30 0x30 0x30

The min and max values will

change depends on different

value of H-Size, V-Size and input

resolution.

Vertical Pan 0xb2,

nnn | “+” | “-” |
“r” | “R” |
“?”

Set Vertical pan position
for Aspect Size =
value/increment/decrement
Reset
Query

Scalar vertical pan position

PAL(576i) / NTSC (480i) :

Assume max H-Size & max V-

size :

Min : 0x46 0x38 0x38

Max : 0x30 0x37 0x38

Default : 0x30 0x30 0x30

The min and max values will

change depends on different

value of H-Size, V-Size and input

resolution.

Colour
temperature select

0xb3,
n |
“r” | “R” |
“?”

Select colour temperature =
value
Reset
Query

Main selected.

“0” – 9500K.

“1” – 8000K.

“2” – 6500K.

“3” – 5000K

“4” - User

Red level for
selected colour
temperature

0xb4,
nn | “+” | “-” |

“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn

“o”, ss, c

Set the level of the red channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1

Red level for selected colour

temperature.

Range : “9””C”-“F””F”

Default : “E””C”

c – reference by Color

Temperature

ss - reference by Input main

select(0x98)
Green level for
selected colour
temperature

0xb5,
nn | “+” | “-” |

“r” | “R” |
“?”
“m”

Set the level of the green
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query

Green level for selected colour

temperature

Range : “9””C”-“F””F”

Default : “E””C”

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

40 of 60

“n”
“i” , ss, c, nn

“o”, ss, c

Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1

c – reference by Color

Temperature

ss - reference by Input main

select(0x98).
Blue level for

selected colour
temperature

0xb6,
nn | “+” | “-” |

“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn

“o”, ss, c

Set the level of the blue channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1

Blue level for selected colour

temperature.

Range : “9””C”-“F””F”

Default : “E””C”

c – reference by Color

Temperature

ss - reference by Input main

select(0x98).
Graphic horizontal
resolution enquiry

0xb7 Horizontal resolution (in pixels)

in 3 digit hex number

“nnn” = horizontal resolution
Graphic vertical

resolution enquiry

0xb8 Vertical resolution (in lines) in 3

digit hex number

“nnn” = vertical resolution
Graphic horizontal

sync frequency
enquiry

0xb9 Horizontal sync frequency (in

units of 100Hz) in 3 digit hex
number

“nnn” = horizontal frequency

Graphic vertical
sync frequency
enquiry

0xba Vertical sync frequency (in units

of Hz) in 3 digit hex number and
1 char

“nnnn” = vertical frequency

nnn = 3 digit hex

c= “i” or “p”

interlace or Progressive

0xba added the interlace(i)

or Progressive(p) feedback.
OSD status
enquiry

0xbb Status of OSD “0” – OSD turned off

“1” – OSD turned on

“2” – Text Overlay on

“3” – Display Mark on

“4” – Screen Marker on

Display Video
Source Select

0xbc,
“?” |
“0” |
“1”

Display Video source select
Query
Name of video source not
displayed.
After switching to a new video
source, the name of the video
source is displayed for 5
seconds.

“0” – Disabled.

“1” – Enabled.

OSD turn off 0xbd Turn off the OSD. “0” – fail.

“1” – successful.

Set gamma data
for user defined
gamma curve

0xbf, mm, c, “?”

0xbf, “R” | “r”
0xbf, mm, c, nn

Query gamma data for color c
index mm ( c = 0 for color Red,
c=1 for color Green,
c=2 for color Blue)
Set user gamma curve to linear
Set gamma data for color c
index mm. (If c= 3, then gamma
data for red, green & blue will be
set at the same time.)

“nn” = gamma data

“1”

“nn” = gamma data

Query External
Memory

0xcb, “2” Check External Menory 24c256 “0” – Not Installed

“1” – Installed

“?” – Not Support

Query Revision
Number

0xcb, “3” Read Revision Number “nn” = Revision number

Backlight control 0xe0,

nn | “+” | “-” |

Set Backlight =
value/increment/decrement

Backlight.

Range:

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

41 of 60

“R” | “r” |
“?”

Reset
Query

D/A : “0””0” ~ “1””F”

100Hz : “0””0” ~ “B””F”

120Hz : “0””0” ~ “9””F”

140Hz : “0””0” ~ “8””8”

160Hz : “0””0” ~ “7””7”

180Hz : “0””0” ~ “6””A”

200Hz : “0””0” ~ “5””F”

220Hz : “0””0” ~ “5””6”

240Hz : “0””0” ~ “4””F”

260Hz : “0””0” ~ “4””9”

280Hz : “0””0” ~ “4””4”

300Hz : “0””0” ~ “3””F”

320Hz : “0””0” ~ “3””B”

340Hz : “0””0” ~ “3””7”

360Hz : “0””0” ~ “3””4”

380Hz : “0””0” ~ “3””1”

400Hz : “0””0” ~ “2””F”

420Hz : “0””0” ~ “2””D”

440Hz : “0””0” ~ “2””B”

Backlight On/Off 0xe1,

“0” | “1” |
“R” | “r”
”?”
“S” | “s”

Backlight Off / Backlight On
/Status

“0” – Backlight Off

“1” – Backlight On.

“?” – Backlight On/Off Query

“S”|”s” – Backlight Status Query

Color
Monochrome
mode selection
(Output Channel
Select)

0xe2
“0” | “1” | “2” | “3” |
| “4” | “5” | “6” |
“R” | “r”|
”?”

Off/
Blue Only/
Red Only/
Green Only/
Blue Mono/
Red Mono/
Green Mono/

“0” – Off

“1” – Blue Only

“2” – Red Only

“3” – Green Only

“4” – Blue Mono

“5” – Red Mono

“6” – Green Mono

PIP Swap 0xe3 Swap Main and PIP source

"0" - Fail.

"1" - Successful.

Backlight D/A /
PWM

0xe5
“0” | “1” |
“R” | “r”
”?”

Set : PWM or D/A

Reset
Query

“0” – PWM

“1” – D/A

Backlight PWM
Frequency

0xe6,
nnn | “+” | “-” |
“R” | “r” |
“?”

Set Backlight PWM Frequency =
value/increment/decrement
Reset
Query

+/- 20Hz

Value

100Hz : “0”,”6”,”4”

120Hz : “0”,”7”,”8”

140Hz : “0”,”8”,”C”

160Hz : “0”,”A”,”0”

180Hz : “0”,”B”,”4”’

200Hz : “0”,”C”,”8”

220Hz : “0”,”D”,”C”

240Hz : “0”,”F”,”0”

260Hz : “1”,”0”,”4”

280Hz : “1”,”1”,”8”

300Hz : “1”,”2”,”C”

320Hz : “1”,”4”,”0”

340Hz : “1”,”5”,”4”

360Hz : “1”,”6”,”8”

380Hz : “1”,”7”,”C”

400Hz : “1”,”9”,”0”

420Hz : “1”,”A”,”4”

440Hz : “1”,”B”,”8”

Backlight Invert 0xe7

“0” | “1” |
“R” | “r”
”?”

Set On or Off

Reset
Query

“0” – Off

“1” – On

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

42 of 60

Red Offset for
selected colour
temperature

0xe8,
nn | “+” | “-” |

“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn

“o”, ss, c

Set the Offset of the red channel
for the selected colour temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1

Red Offset for selected colour

temperature.

c – reference by Color

Temperature

ss - reference by Input main

select(0x98)
Green Offset for
selected colour
temperature

0xe9,
nn | “+” | “-” |

“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn

“o”, ss, c

Set the Offset of the green
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1

Green Offset for selected colour

temperature.

c – reference by Color

Temperature

ss - reference by Input main

select(0x98)
Blue Offset for

selected colour
temperature

0xea,
nn | “+” | “-” |

“r” | “R” |
“?”
“m”
“n”
“i” , ss, c, nn

“o”, ss, c

Set the Offset of the blue
channel for the selected colour
temp. =
value/increment/decrement
Reset
Query
Maximum query *1
Minimum query *1
Set, Source, Temperature
Group, value *1
Query, Source *1

Blue Offset for selected colour

temperature.

c – reference by Color

Temperature

ss - reference by Input main

select(0x98)
PIP Window Blend

Level

0xed,
nn | “+” | “-” |
“R” | “r” |
“?”

Select PIP Transparency Level
PIP Transparency value
Reset
Query

PIP Transparency

“0”F” = 6.25% “0”E” = 12.5%

“0”D” = 18.75% “0”C” = 25%

“0”B” = 31.25% “0”A” = 37.5%

“0”9” = 43.75% “0”8” = 50%

“0”7” = 56.25% “0”6” = 62.5%

“0”5” = 68.75% “0”4” = 75%

“0”3” = 81.25% “0”2” = 87.5%

“0”1” = 93.75% “0”0” = 100%.

PIP Window Auto
Off

“0xee”, “0x41”
“0” |”1”
“?”

Auto Off / Auto On
Query

“0”- Off

“1”- On

ScreenMarker

“0xee”, “0x42”
“0” |”1”

Screen Marker Off / Screen
Marker On

“0”- Off

“1”- On

CenterMarker

“0xee”, “0x43”
“0” |”1”

Center Marker Off / Center
Marker On

“0”- Off

“1”- On

AspectMarker

“0xee”, “0x44”
“0” |”1”

Preliminary
4:3 /16:9

“0”- 4:3

“1”- 16:9

Marker
Background
Transparency

“0xee”, “0x45”
“0” |”1” |”2” |”3”

Preliminary
0% /25%/50%/95%

“0”- 0%

“1”- 25%

“2”- 50%

“3”- 95%

Safe Area Marker* “0xee”, “0x47”

“0x53”~”0x63”

Preliminary

80%~99%

“36”, “33”- 99%

“36”, “32”- 98%

“36”, “31”- 97%

“36”, “30”- 96%

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

43 of 60

“35”, “46”- 95%

“35”, “45”- 94%

“35”, “44”- 93%

“35”, “43”- 92%

“35”, “42”- 91%

“35”, “41”- 90%

“35”, “39”- 89%

“35”, “38”- 88%

“35”, “37”- 87%

“35”, “36”- 86%

“35”, “35”- 85%

“35”, “34”- 84%

“35”, “33”- 83%

“35”, “32”- 82%

“35”, “31”- 81%

“35”, “30”- 80%

IR Lock “0xee”, “0x48”

n | “0” | “1” |
“r” | “R” |
“?”

IR Lock Disable / IR Lock
Enable
Reset
Query

“0” – IR Lock Disable
“1” – IR Lock Enable

Light Detector

“0xee”, “0x4A”
“0” | “1” |
“R” | “r”
”?”
“S” | “s”

Light Detector Off / Light
Detector On
Light Detector On/Off Query
Light Detector Value Query

“0” –Light Detector Off
“1” –Light Detector On.
“?” – Light Detector On/Off

Query “S”|”s” –Light Detector
Value Query 0x00~0xFF

Safe Area Marker
Enable

“0xee”, “0x4B”
“0” |”1”

Safe Area Marker Off / Safe
Area Marker On

“0”- Off
“1”- On

Aspect Marker
Enable

“0xee”, “0x4C”
“0” |”1”

Aspect Marker Off / Aspect
Marker On

“0”- Off
“1”- On

Display real time
clock

“0xee”, “0x4D”
“0” |”1”

Real Time Clock Display Off /
Real Time Clock Display

“0”- Off
“1”- On

Custom Sizing 0xef,

“0” | “1” | “2”
”?”

Custom sizing selection :
Overscan / Normal / Custom
Query

“0” – Overscan
“1” – Custom / Underscan
“2” – Normal

Function Command Description Acknowledge (if enabled)

Send Display
Mark

0xF1,
”S” |
”0x21” | ”0x40”
”0x60” | ”0x7E”
Return “1”

“S” = “0x53 or 0x73”
ASCII “0x21,0x40,0x60,0x7E”

Return “ 0x31”

“S” – Send Command
“Text” – Character

“1” - successful.

e.g Send Display Mark
RS232 Code: “0xF1 0x53 0x21”
Return Code: “0xF1 0x53 0x21 0x31”

Clear Display
Mark

0xF1,
”C”
Return “1”

“C” = “0x43 or 0x63”
Return “ 0x31”

“C” – Clear command
“1” - successful.

e.g Clear Display Mark
RS232 Code: “0xF1 0x43”
Return Code: “0xF1 0x43 0x31”

Display Mark
Horizontal
Position

0xF1,
|”H” |”ss”|
Return “nn”

“H” = “0x48 or 0x68”

-----------------------------------------­“nn” = “0x30,0x30~0x46,0x46”

“H” – Horizontal Position command
“ss” – Set Horizontal Position number
“nn” – Return Position number

e.g Set Display Mark Horizontal Position
RS232 Code: “0xF1 0x48 0x30 0x31”
Return Code: “0xF1 0x48 0x30 0x31 0x30 0x31”

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

44 of 60

Display Mark
Vertical
Position

0xF1,
|”V” |”ss”|
Return “nn”

“V” = “0x56 or 0x76”

-----------------------------------------­“nn” = “0x30,0x30~0x46,0x46”

“V” – Vertical Position command
“ss” – Set Vertical Position number
“nn” – Return Position number

e.g Set Display Mark Vertical Position
RS232 Code: “0xF1 0x56 0x30 0x31”
Return Code: “0xF1 0x56 0x30 0x31 0x30 0x31”

Display Mark
Background
Transparency

0xF1,
|”B”|”N”|
Return “n”

“B” = “0x42 or 0x62”
Set Transparency command

-----------------------------------------­“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)

“B” - Transparency command
“N” – Transparency Value
“n”- Return Value

0x00 =opaque

Set Display Mark background Transparency value is 8
RS232 Code: “0xF1 0x42 0x38”
Return Code: “0xF1 0x42 0x38 0x38”

3. Other control

Function Command Description Acknowledge (if enabled)

Select RS-232
acknowledge

0xc1, “0” | “1” Disable/enable command

acknowledge.

“0” – acknowledge disabled.
“1” – acknowledge enabled.

Auto-setup 0xc3 Start auto-setup of current

vmode.

“0” – fail.

“1” – successful.

Command
availability

0xc4, n Check whether a command is

available.

“0” – not available.

“1” – available.

Auto-calibration 0xc5 Start auto-calibration of gain

of the RGB amplifier.

“0” – fail.

“1” – successful.

Freeze frame

0xc6, “0” | “1”

Unfreeze / freeze frame

“0” – unfreeze.

“1” – freeze.

Soft Power On/Off 0xc8,

“0” | “1” |
“?”

Soft power
off/on
query

“0” – Turn off the LCD power and

backlight. Turn off memory

controller, Power down DVI

Power down ADC, Power

down Fclk PLL

“1” – Turn on the unit

Query video input
status

0xc9 Query the status of the

primary & pip status

“nn,nn” = input status

“nn,xx” digit = primary status:

“0”,”0” : invalid

“A”,”1” ARGB

“A”,”2” : ARGB2

“B”,”1” Composite

“B”,”2” Composite 2

“B”,”3” Composite 3

“B”,”4” Composite 4

“H”,“1” HDMI

“H”,”2” HDMI2

“xx,nn”= PIP input status:

“0”,”0”: invalid

“A”,”1” ARGB

“A”,”2” : ARGB2

“B”,”1” Composite

“B”,”2” Composite 2

“B”,”3” Composite 3

“B”,”4” Composite 4

Video de-interlace
method

0xca,
“0” | “1”
“r” | “R”
“?”

De-interlace mode
Reset
Query

“3” ”1”- enable AFM

“3” ”0”- disable AFM

“4” ”1”- enable TNR

“4” ”0”- disable TNR

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

45 of 60

“5” ”1”- enable MADI

“5” ”0”- disable MADI

“7” ”1”- enable DCDi

“7” ”0”- disable DCDi

Query BIOS
version

0xcb, “0” Read BIOS version BIOS version “VV.YY.ZZ”

VV = V0 or E0,

V0 = Release version

E0 = Engineering Sample

YY= Version Number

ZZ= Customer Number

Query PCBA
number

0xcb, “1” Read PCBA number “nnnnn” = PCBA number

SGX-1920L= “41726”

Reset to Factory
Defaults

0xce Reset all parameters to

default value

“1” – successful.

Reset to Factory
Defaults with
(color temp)

0xcf Reset all parameters for all

video modes to default value

“1” - successful.

Saved Calibrated
default

0xd7 Saving all parameters to user

default value

“1” - successful.

Load Calibrated
default

0xd8 Loading all parameters to

user default value

“1” - successful.

“0” - not successful

“E” – Checksum Error

Wide Screen
Mode Selection

0xd9,
“0” | “1”| “2”
“r” | “R”
“?”

Wide Screen Mode
Reset
Query

“0” – Normal Mode

“1” – 1280x768

“2” – 1366x768

ScreenMarker

“0xee”, “0x42”
“0” |”1”

Screen Marker Off / Screen Marker On

“0”- Off
“1”- On

CenterMarker

“0xee”, “0x43”
“0” |”1”

Center Marker Off / Center Marker On

“0”- Off
“1”- On

AspectMarker

“0xee”, “0x44”
“0” |”1”

Preliminary
4:3 /16:9

“0”- 4:3
“1”- 16:9

Marker
Background
Transparency

“0xee”, “0x45”
“0” |”1” |”2” |”3”

Preliminary
0% /25%/50%/95%

“0”- 0%
“1”- 25%
“2”- 50%
“3”- 95%

Safe Area Marker “0xee”, “0x46”

“0x53”~”0x63”

Preliminary
64%~98%

“36”, “33”- 98%
“36”, “32”- 96%
“36”, “31”- 94%
“36”, “30”- 92%
“35”, “46”- 90%
“35”, “45”- 88%
“35”, “44”- 86%
“35”, “43”- 84%
“35”, “42”- 83%
“35”, “41”- 81%
“35”, “39”- 79%
“35”, “38”- 77%
“35”, “37”- 76%
“35”, “36”- 74%
“35”, “35”- 72%
“35”, “34”- 71%
“35”, “33”- 69%
“35”, “32”- 67%
“35”, “31”- 66%
“35”, “30”- 64%

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

46 of 60

The following commands for sending texts by using RS-232 command.

Function Command Description Acknowledge (if enabled)

Send Line 0xF0,

|”S” |”LL”|”TEXT”|
“0x0A”
Return “1”

“S” = “0x53 or 0x73”
Send command

-------------------------------------------

­“LL” = “0x30,0x31~0x30,0x34”
Line number (Rang 0~4 lines)

-------------------------------------------

­“Text”= ASCII code,
“0x20~0x7E”
Character( Rang 0~34 )

-------------------------------------------

­0x0A = End of line

“S” – Send Command
“LL” – Line Number
“Text” – Character
“0x0A” – End of Line
“1” - successful.

e.g Display “Send Text” message on screen:
RS232 Code:“0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A”
Return Code: “0xF0 0x53 0x30 0x31 0x53 0x65 0x6E 0x64 0x20 0x54 0x65 0x78 0x74 0x0A 0x31”

Clear Line 0xF0,

|”C” |”LL”|
Return “nn”

“C” = “0x43 or 0x63”
Clear command

-------------------------------------------

­“LL” = “0x30,0x31~0x30,0x34”
Line number (Rang 0~4 lines)

“C” – Clear command
“LL” – Line Number
“nn” – Return Line number

e.g Clear Line 1
RS232 Code: “0xF0 0x43 0x30 0x31”
Return Code: “0xF0 0x43 0x30 0x31 0x30 0x31”

Text Window
Horizontal Position

0xF0,
|”H” |”ss”|
Return “nn”

“H” = “0x48 or 0x68”

------------------------------------------

--“nn” = “0x30,0x30~0x46,0x46”

“H” – Horizontal Position
command
“ss” – Set Horizontal Position

number

“nn” – Return Position number
e.g Set Text Window Horizontal Position
RS232 Code: “0xF0 0x48 0x30 0x31”
Return Code: “0xF0 0x48 0x30 0x31 0x30 0x31”

Text Window
Vertical Position

0xF0,
|”V” |”ss”|
Return “nn”

“V” = “0x56 or 0x76”

------------------------------------------

--“nn” = “0x30,0x30~0x46,0x46”

“V” – Vertical Position command

“ss” – Set Vertical Position

number

“nn” – Return Position number
e.g Set Text Window Vertical Position
RS232 Code: “0xF0 0x56 0x30 0x31”
Return Code: “0xF0 0x56 0x30 0x31 0x30 0x31”

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

47 of 60

Left offset 0xF0,

|”O” |”SSS”|
Return “nnn”

“O” = “0x4F or 0x6F”
Set Left Offset command

-------------------------------------------

­“SSS” = “0x30,0x30,0x30~
0x33,0x46,0x46”
Offset Value (Rang 000~3ff)

“O” – Left Offset Command

“SSS”- Offset Value (pixels)

“nnn”- Return Value(pixels)

e.g Set Left Offset = 100 pixels ( 0x64 (HEX))
RS232 Code: “0xF0 0x4F 0x30 0x36 0x34”
Return Code: “0xF0 0x4F 0x30 0x36 0x34 0x30 0x36 0x34”

Text Window
Horizontal Size

0xF0,
|”X” |”SSS”|
Return “nnn”

“X” = “0x58”
Set Horizontal Size command

-------------------------------------------

­“SSS” = “0x31,0x45,0x30~
0x37,0x38,0x30”
Horizontal Size Value (Rang
000~3ff)

“X” –Horizontal Size

“SSS”- Size Value (pixels)

“nnn”- Return Value(pixels)

e.g Set Text Window Horizontal Size = 640 pixels ( 0x280 (HEX))
RS232 Code: “0xF0 0x58 0x32 0x38 0x30”
Return Code: “0xF0 0x58 0x32 0x38 0x30 0x32 0x38 0x30”

Background
Transparency

0xF0,
|”B”|”N”|
Return “n”

“B” = “0x42 or 0x62”
Set Transparency command

------------------------------------------­“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)

“B” - Transparency command

“N” – Transparency Value

“n”- Return Value

0x00 =opaque

Set background Transparency value is 8
RS232 Code: “0xF0 0x42 0x38”
Return Code: “0xF0 0x42 0x38 0x38”

Text Overlay
Background
On or Off

0xF0,
|”Q”|
“N”
Return “n”

“Q” = “0x51 or 0x71”
Set Background Enable or
Disable ---------------------­“N” = “0x30~0x31”

“B” - command

“1” Turn On Text Overlay

Background

“0” Turn Off Text Overlay

Background

“n”- Return Value

Set background Transparency value is 8
RS232 Code: “0xF0 0x51 0x31”
Return Code: “0xF0 0x51 0x31 0x31”

Please set the "Background Transparency” and "Left offset" commands before the "Send Line"
command.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

48 of 60

Display Mark Command

Function Command Description Acknowledge (if enabled)

Send Display Mark 0xF1,

”S” |
”0x21” | ”0x40”
”0x60” | ”0x7E”
Return “1”

“S” = “0x53 or 0x73”
ASCII “0x21,0x40,0x60,0x7E”

Return “ 0x31”

“S” – Send Command

“Text” – Character

“1” - successful.
e.g Send Display Mark

RS232 Code: “0xF1 0x53 0x21”
Return Code: “0xF1 0x53 0x21 0x31”

Clear Display Mark 0xF1,

”C”
Return “1”

“C” = “0x43 or 0x63”
Return “ 0x31”

“C” – Clear command

“1” - successful.
e.g Clear Display Mark

RS232 Code: “0xF1 0x43”
Return Code: “0xF1 0x43 0x31”

Display Mark
Horizontal Position

0xF1,
|”H” |”ss”|
Return “nn”

“H” = “0x48 or 0x68”

------------------------------------------

--“nn” = “0x30,0x30~0x46,0x46”

“H” – Horizontal Position

command

“ss” – Set Horizontal Position

number

“nn” – Return Position number
e.g Set Display Mark Horizontal Position
RS232 Code: “0xF1 0x48 0x30 0x31”
Return Code: “0xF1 0x48 0x30 0x31 0x30 0x31”

Display Mark
Vertical Position

0xF1,
|”V” |”ss”|
Return “nn”

“V” = “0x56 or 0x76”

------------------------------------------

--“nn” = “0x30,0x30~0x46,0x46”

“V” – Vertical Position command

“ss” – Set Vertical Position

number

“nn” – Return Position number
e.g Set Display Mark Vertical Position
RS232 Code: “0xF1 0x56 0x30 0x31”
Return Code: “0xF1 0x56 0x30 0x31 0x30 0x31”

Display Mark
Background
Transparency

0xF1,
|”B”|”N”|
Return “n”

“B” = “0x42 or 0x62”
Set Transparency command

------------------------------------------­“N” = “0x30~0x46”
Transparency Value
(Rang 00~0F)

“B” - Transparency command

“N” – Transparency Value

“n”- Return Value

0x00 =opaque

Set Display Mark background Transparency value is 8
RS232 Code: “0xF1 0x42 0x38”
Return Code: “0xF1 0x42 0x38 0x38”

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

49 of 60

The RS-232 command strings sent in one time can support up to 380 bytes via CN8 port
The RS-232 command string sent in one time can support up to 50 bytes via CN1 or J1 port.

n = 1-byte ascii-coded hex number, e.g., parameter value of 0x1 is represented by “1” (0x31).
mn or nn = 2-byte ascii-coded hex number, e.g., parameter value of 0x1e is represented by “1”, “e” | “E”
(0x31, 0x6e|0x4e).
Please refer to the ASCII to Hex convert table below.

Hex to ASCII conversion table

Hex ASCII Hex ASCII Hex ASCII Hex ASCII
0x30 0 0x41 A 0x61 a 0x2B +
0x31 1 0x42 B 0x62 b 0x2D -
0x32 2 0x43 C 0x63 c 0x3F ?
0x33 3 0x44 D 0x64 d
0x34 4 0x45 E 0x65 e
0x35 5 0x46 F 0x66 f
0x36 6 0x47 G 0x67 g
0x37 7 0x48 H 0x68 h
0x38 8 0x49 I 0x69 i
0x39 9 0x4A J 0x6A j
0x4B K 0x6B k
0x4C L 0x6C l
0x4D M 0x6D m
0x4E N 0x6E n
0x4F O 0x6F o
0x50 P 0x70 p
0x51 Q 0x71 q
0x52 R 0x72 r
0x53 S 0x73 s
0x54 T 0x74 t
0x55 U 0x75 u
0x56 V 0x76 v
0x57 W 0x77 w
0x58 X 0x78 x
0x59 Y 0x79 y
0x5A Z 0x7A z

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

50 of 60

Appendix III – Mapping definition

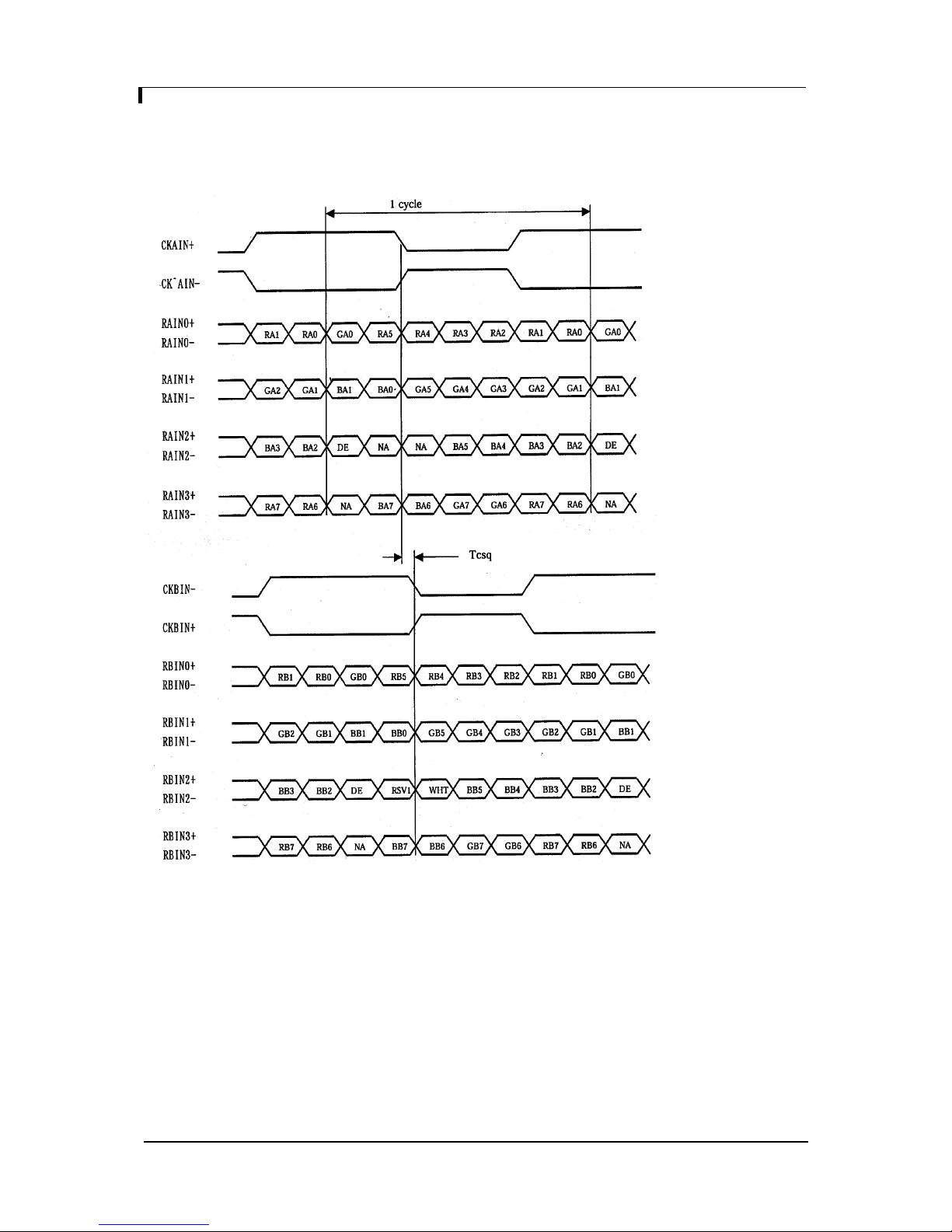

• Definition of Mapping A :

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

51 of 60

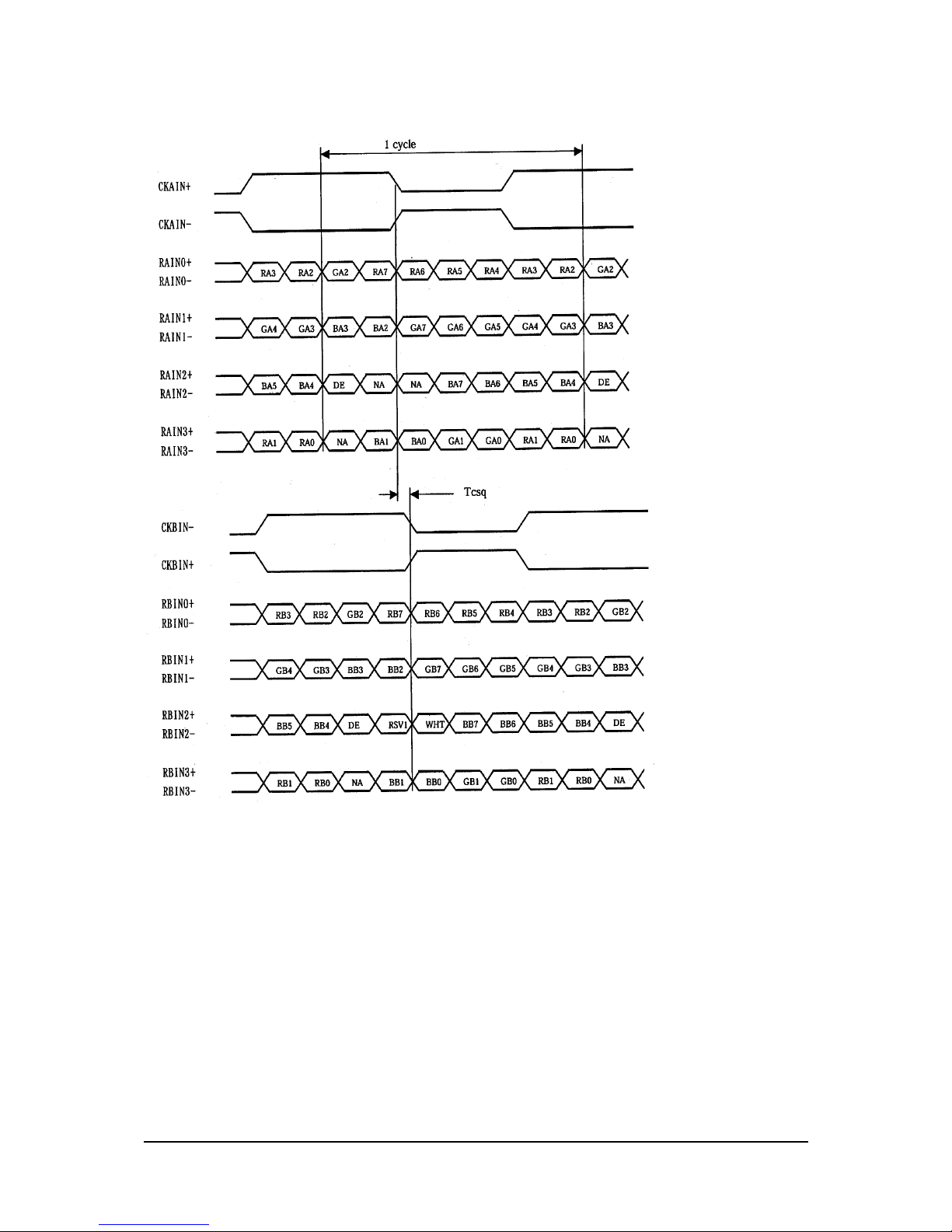

• Definition of Mapping B :

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

52 of 60

• Definition of VESA :

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

53 of 60

• Definition of JEIDA :

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

54 of 60

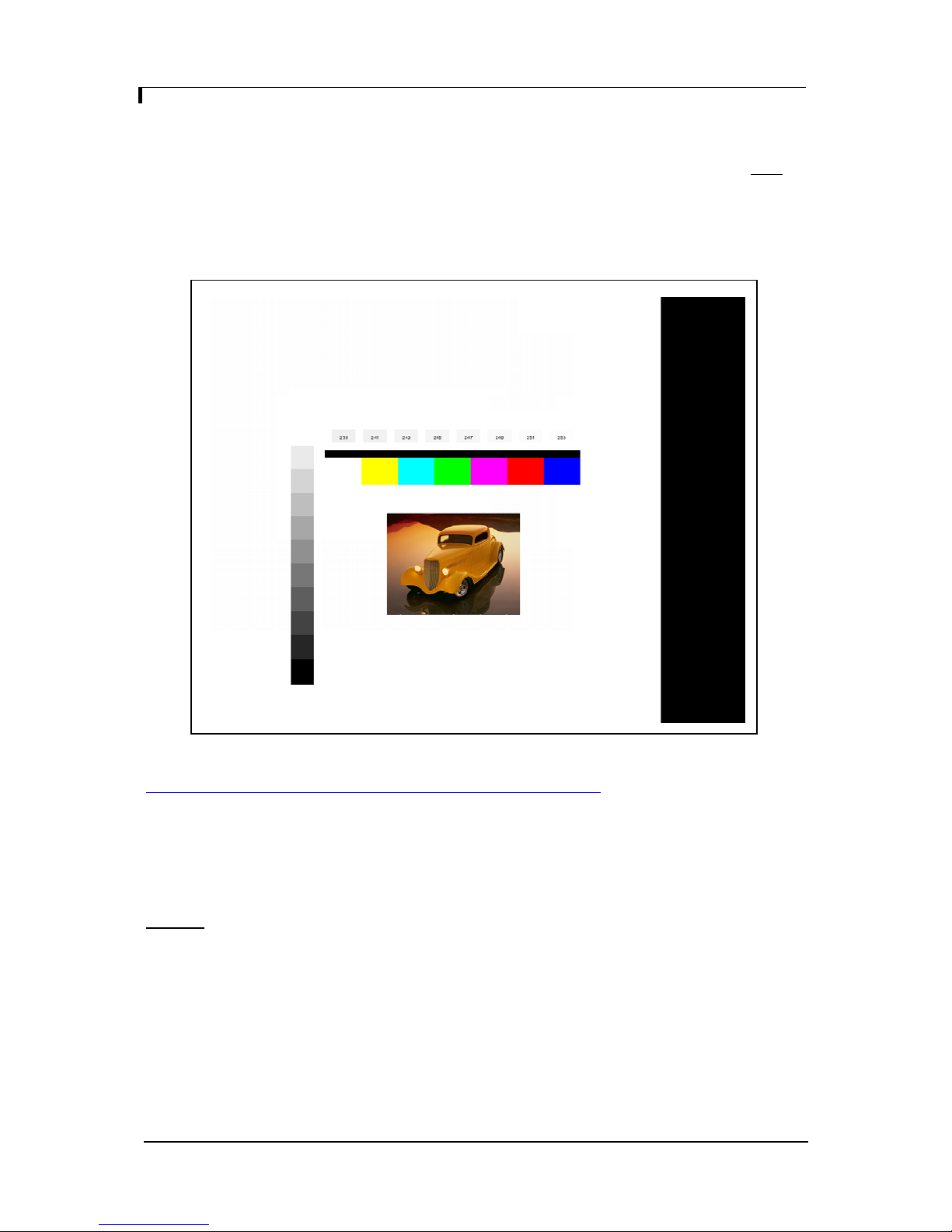

Appendix IV – Auto Color Gain

The Auto Color Gain function is supported in the ARGB mode only and is designed to
calibrate the controller to the incoming video signal. In order to calibrate correctly, the display must be
displaying an image containing both black and white data (see illustration below) when the function is
used. The internal processor of the video controller chip will then execute a process to adjust the
relative values of the RGB signals to achieve the best performance. The parameters of the corrected
RGB values are then stored in the controller and are unaffected by the Reset Factory Defaults
function.

The reference pattern can be downloaded at :

http://www.digitalview.com/support/downloads/TestPattern_1280.BMP

This reference pattern is for 1280x1024 resolution and it needs to set your ARGB input source to
1280x1024 resolution before performing the Auto Color Gain function. The position of the black
vertical bar in the pattern at the right side is important. It will affect the calibration result if you are
setting the ARGB input to other resolution.

Warning

- If the Auto Color Gain is executed without an appropriate image being displayed, then the
process will set incorrect values and the display colors will be distorted. If this occurs, then it can
either be corrected by performing the process correctly or if this is not possible then the Reset Color
Gain function can be used. This function will reset the stored RGB values to a set of approximate
values.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

55 of 60

Appendix V – DV remote control unit work for SGX-1920L

BUTTON FUNCTION

POWER BUTTON Soft power ON/OFF button.
ATTENTION BUTTON

Use combined with digit keys to enable/disable the IR function.
SGX-1920L : “Attention” + “1”

MUTE BUTTON ( )

Switch to mute on/off mode.

AV/TV BUTTON Use to select the input source. (VGA/DVI/HDMI/..)
SOUND (ZOOM) BUTTON

Use to display the zoom menu. Press the “+” to zoom in the picture and the
“-” to zoom out the picture.

PIP BUTTON Use to select the PIP (Picture in Picture) setting

SEL UP ( ) / SEL DN ( )

Use this button to direct control the hotkey function. Press the “SEL UP” button to
increase the pre-set hotkey parameter value and the “SEL DN” button to decrease the
pre-set hotkey parameter value. In OSD menu, pressing this button to select the items.

VOLUME (-/+) BUTTON Press the “+” button to increase the volume and the “-” to decrease the volume.
+ / - BUTTON

Use this button to direct control the hotkey function. Press the “+” button to increase
the pre-set hotkey parameter value and the “-” button to decrease the pre-set hotkey

parameter value. In OSD menu, pressing this button to adjust the settings.
OSD BACK BUTTON Use to display the OSD menu and go to the previous OSD screen.
OSD NEXT BUTTON Use to display the OSD menu and go to the next OSD screen.

DISPLAY BUTTON

Use to view an on-screen information. When OSD menu displayed, press this button to

turn it off.
TRACK (Composite 1) BUTTON Press this button in the non OSD menu display mode to select Composite 1 source.
Composite 2 BUTTON Press this button in the non OSD menu display mode to select Composite 2 source.
STOP (VGA) BUTTON Press this button in the non OSD menu display mode to select VGA source.
FREEZE (II) BUTTON Use this button to freeze and release the picture on your screen.
HDMI BUTTON Press this button in the non OSD menu display mode to select HDMI source.

P/N 559000106-3 :

DigitalView remote control unit
(without DV logo silk screen
printing)

P/N 559000105-3 :

DigitalView remote control unit
(with DigitalView logo silk
screen printing)

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

56 of 60

Appendix VI – Function description for de-interlacing mode AFM, TNR, MADI, DCDi

AFM = Auto Film Mode :
It is a frame based method which used for the input ODD and EVEN fields have a fixed relation
between each other, such as static image, 3:2 pull down mode.
If two fields are correctly merged, it can get the best quality. But if it merges two wrong fields, it will
have artifact and get the worst quality.

TNR = Temporal Noise Reduction :
It is a frame based method which assume field to field have a fixed relationship.
If the object moving too fast, it will have image artifact and get worst quality.

MADI = Motion adaptive de-interlacing :
It is a pixel based method which used for the input fields have no fixed relation between them
If the object moving very too fast, it will get worst quality.

DCDi = Directional Correlation Deinterlacing :
It is a digital enhancement method developed by Faroudja. DCDi technology is primarily used for
improving the image quality of low resolution images. This is done by deinterlacing the image and
blending rough edges occurring in diagonal lines.

Appendix VII – PIP mix table

VGA 1 VGA 2 Composite 1 Composite 2 Composite 3 Composite

4

HDMI

1*

HDMI

2*

VGA 1 X X

     

VGA 2 X X

     

Composite 1

 

X

    

Composite 2

  

X

   

Composite 3

   

X

  

Composite 4

 



 

X

 

HDMI 1*

 



  

X



HDMI 2*

     



X

* The PIP/PBP/PBPT windows will turn off automatically when absence of (HDMI1 / HDMI2) signal coming from main window

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

57 of 60

Appendix VIII - Audio Add-on Board P/N 416940020-3
[OPERATE UNDER 12VDC POWER INPUT ENVIRONMENT]

Electrical Specification :

Supply Voltage : +12V, +5V
Supply current : 35mA for +12V, 6mA for +5V

Input impedance 6.8kohm
Output power : 2.0W for 4ohm load

1.0W for 8ohm load
Distortion : <2%
Voltage gain : 0 to 21 dB

Use of connectors :

Connector Connector type

CN1 JST B3B-XH-A
CN2 JST B4B-PH-K

CN3 0.1 inches 2 row x 5 pin header strips (right angle)

J1 Ø3.5mm stereo jack socket
J2

Ø3.5mm stereo jack socket

Pin Assignments :

CN1: Output alternate connector

Pin Number Description

1 Speaker out left

2 Ground
3 Speaker out right

CN2: Input alternate connector

Pin Number Description

1 Ground
2 Audio input left

3 Ground

4 Audio input right

The Audio add-on board P/N
416940020-3 design for connection with
DV controllers on the audio connector
CN7. It provides audio input ports and
output port for sound amplification.

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

58 of 60

CN3 : Controller interface connector

Pin Number Description

1 +5V
2 Left trimpot chip select

3 Right trimpot chip select

4 Trimpot serial data
5 Trimpot serial clock
6 Digital Ground
7 +12V
8 Audio input left
9 Audio input right

10 Audio Ground

Mechanical Drawing :

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

59 of 60

WARRANTY

The products are warranted against defects in workmanship and material for a period of three (3) year from the date of
purchase provided no modifications are made to it and it is operated under normal conditions and in compliance with the
instruction manual.

The warranty does not apply to:

• Product that has been installed incorrectly, this specifically includes but is not limited to cases where electrical short circuit

is caused.

• Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s consent).

• Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or electrical.

• Ordinary wear and tear.

Except for the above express warranties, the manufacturer disclaims all warranties on products furnished hereunder, including
all implied warranties of merchantability and fitness for a particular application or purpose. The stated express warranties are in
lieu of all obligations or liabilities on the part of the manufacturer for damages, including but not limited to special, indirect
consequential damages arising out of or in connection with the use of or performance of the products.

CAUTION

Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as
an exhaustive source of information. This product is for use by suitably qualified persons who understand the nature
of the work they are doing and are able to take suitable precautions and design and produce a product that is safe
and meets regulatory requirements.

LIMITATION OF LIABILITY

The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in
no event exceed the purchase price of said product.

TRADEMARKS

The following are trademarks of Digital View Ltd:

• Digital View

• SGX-1920L

Specifications subject to change without notice
© Digital View Ltd – Doc Ver 1.5: 27 March 2012 (SGX-1920L_manual.doc) Page

60 of 60

CONTACT DETAILS

Digital View has offices in Asia, Europe and USA :

USA

Digital View Inc.
18440 Technology Drive
Building 130
Morgan Hill,
California, 95037
USA

Tel: [phone] Fax: [phone]
Sales: [email protected]

EUROPE

Digital View Ltd.
The Lake House
Knebworth Park
Herts, SG3 6PY

UK
Tel: [phone] Fax: Fax: [phone]
Sales: [email protected]

ASIA

Digital View Ltd
16 th Floor Millennium City 3
370 Kwun Tong Road
Kwun Tong
Hong Kong

Tel: [phone] Fax: [phone]
Sales: [email protected]

WEBSITE

www.digitalview.com

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Digital View:
426031600-3
