Page 1
TM
Model MF-8000, MF-8104, MF-8115
Premium Edition
User Manual (rev 3)
Page 2
Product Introduction
Congratulations! You are the proud owner of a MemoryFrameTM Wireless Digital Picture Frame. Boas ting high-quality image resolution the MemoryFrameTM is the perfect product for displaying your favorite digital images, video files, or
listening to your favorite MP3’s. The MemoryFrame
TM
includes a patented changeable frame capture system. This allows you to use a standard 8x10 and 15” frame so your MemoryFrameTM never goes out of style. You can decorate as your
lifestyle and tastes change, whether in the home or office. The MemoryFrame
TM
displays images in a slide show format, which may also be accompanied by background music. Embedded 802.11 b/g wireless functionality allows the
MemoryFrame
TM
to seamlessly becomes part of your home network. This allows the transferring of images, clips, and tracks; no wires, no hassle. The Premium edition of MemoryFrameTM is also web enabled so that you can play or download
images from popular photo sharing sites. MemoryFrame
TM
Premium also works with Windows Vista or Windows XP equipped with Media Player 11 as a sharing device. This way Vista or XP can be your own home sharing site.
Features
9 Display digital images and videos with or without a computer
9 Listen to MP3 audio while displaying images
9 Built-in stereo speakers with volume control and Mute
9 Built-in 802.11 b/g wireless
9 Bluetooth Capable (Requires Bluetooth USB Dongle – Not Included)
9 The frame is changeable with standard 8x10 and 15” frames. Your choice is unlimited!
∗
9 Generous internal memory
9 Web enabled for photo sharing
9 Support for – CF/SD/XD/MMC memory cards
9 Works with Windows Vista
®
and Windows XP equipped with WMP 11
9 TFT-LCD with high resolution, wide view angle and rich color
9 Easy to use remote control for displaying and managing your content
9 Desktop/Wall Mount
9 Landscape/Portrait
Package Contents
MemoryFrameTM comes packaged with the following items:
A. MemoryFrame
TM
unit
B. Removable Desktop Stand
C. A.C. Power Adapter
D. Remote Control
E. USB Cable
F. User Manual
G. xD Card reader
Setting up the MemoryFrameTM
A. Open the package and remove the protective foam. Remove the protective sleeve from the unit.
B. Install the removable Desktop Stand. There are 3 positions, Landscape, Portrait, and Insert/Remove.
C. Plug in the AC adapter into the power outlet. Plug the other end into the unit.
D. Turn power to the On position via the Power switch. The Power switch is on the right side of the MemoryFrame
TM
, in the rear.
E. During Power Up the display will present an opening screen with progress bar. When co mplete it will play the default slide show.
F. If the content is stored on a target flash media card, insert the media into the proper slot.
Connectivity – USB and Media Cards
MemoryFrameTM is equipped with both USB port types for complete USB connectivity. One USB port is used to connect to the PC. In this manner content can be sent to the frame from the PC. In Explorer, the frame will be
identified as an external storage device. The other USB port is for connecting devices such as cameras and thumb drives. A CF slot is provided for CF cards and CF adapters. A MMC/SD slot is provided for MMC/SD. An external
USB card reader is included to support XD media.
∗
U.S. Patent 6,826,863 B1
Page 3
Remote Control
Function Description
Power On/Off
Mute Audio On/Off
Vol+ Increase Volume
Vol- Decrease Volume
Back Go back one screen
Play Play content
Clock Display Clock
Menu Go to Menu
Enter Enter/Select
◄
Left
►
Right
▲
Up
▼
Down
Page 4

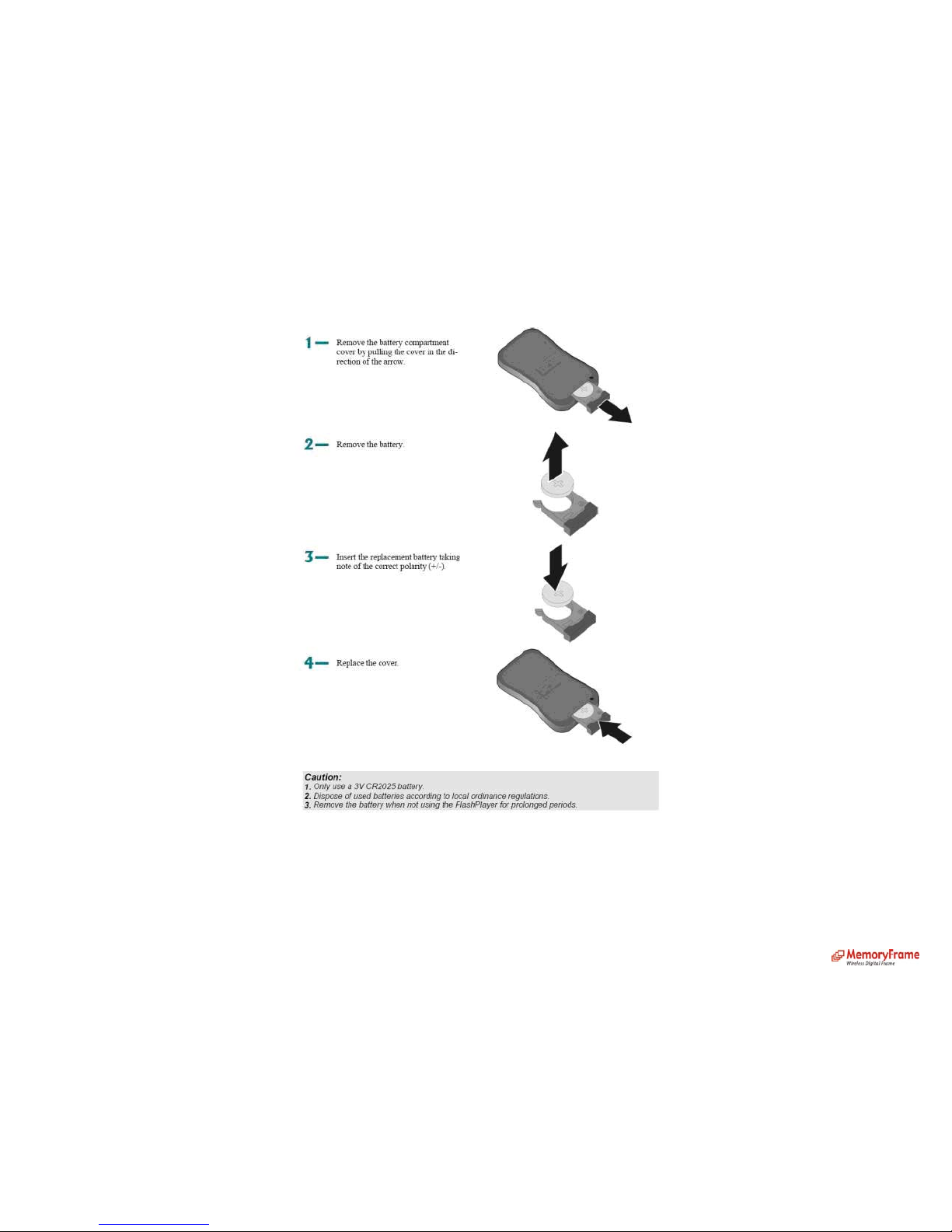

Replacing Remote Control Battery
Page 5
On Screen Menu Controls
This feature is included so that content can be managed and controlled. The menu system is activated by pressing the Menu button. The Main Menu is shown below.
Main Menu
The Main Menu is the starting point to navigate to the desired function.
Function Description Sample Screen
User can play a picture
slideshow. User can
specify the source
location for picture files
and can select specific
pictures to play. User
can copy pictures to
internal memory and
delete pictures from
internal memory.
Video
User can play Windows
Media Video (WMV)
files*. User can specify
the source location for
video and can select
specific videos to play.
User can copy videos to
internal memory and
delete videos from
internal memory.
Music
User can play music.
User can specify the
source location for
music files and can
select specific songs to
play. User can copy
music files to internal
memory and delete
music from internal
memory.
Theme
Change the background
color.
Resume
Slideshow
User can resume a
slideshow for playback.
Settings
Change
MemoryFrame
TM
settings
Page 6
Search
wireless
network
Search for available
wireless networks in
the area
Stop music
Stops music playback.
If music is playing
selecting “Stop
music” will end the
music.
*A WMV Converter utility is included with the MemoryFrame
TM
CD to allow users to convert different video formats into WMV.
Pictures
Function Description Sample Screen
Play
slideshow
Play picture slideshow
and specify source
location. Playback
functions support Play
All, Choose Individual,
or Pictures by date.
Copy
picture(s)
Copy pictures from a
specified source location
into internal memory
Delete
picture(s)
Delete pictures from
internal memory
Play
slideshow
Play picture slideshow
and specify source
location. Playback
functions support Play
All, Choose Individual,
or Pictures by date.
Share
picture(s)
Share pictures from
device to another
MemoryFrame
TM
Premium Edition.
Page 7
Play Slideshow
When Play Slideshow is selected, the user can specify the location of the picture files.
Note – The entire list of media sources may not be displayed. MemoryFrame
TM
will only display the removable media types which are inserted and have media files.
Picture Selection
When a source location is selected, the user can specify playing all the pictures found or individual photo selections.
Function Description Sample Screen
Play all
picture(s)
Play all the pictures found in the
source location
Choose
individual
picture(s)
Select specific pictures for
playback, once selection is
complete, press ‘Play’ button in
remote control

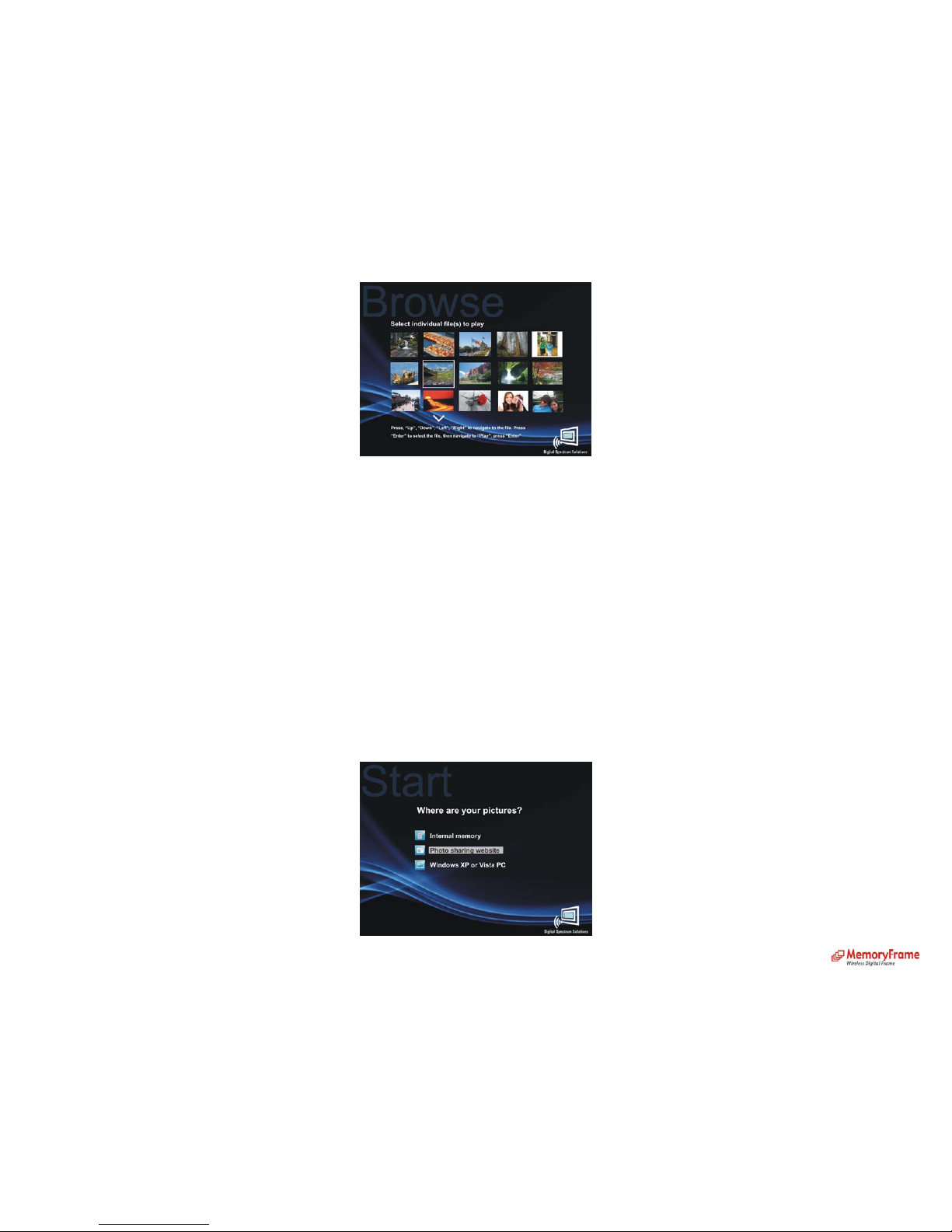

Choose Individual Picture(s)
Press the arrow keys to navigate to the desired pictures. Press ENTER to select a picture. Press ENTER again to unselect a picture. Once all the selections have been made, press ‘Play’ in remote control or navigate to Play option
and press ENTER.
Page 8
Photo Sharing
MemoryFrameTM is web enabled; allowing content to be retrieved over the Internet if a network connection is available. The MemoryFrameTM Premium Edition is also capable of sharing pictures to another MemoryFrameTM Premium
Edition. MemoryFrame
TM
is pre-configured to be compatible with several popular photo sharing sites such as Flickr, FrameChannel, Microsoft Live Space, Webshots, and Memoryframe.com. As other sites are integrated, updates
will be posted at www.dsicentral.com.

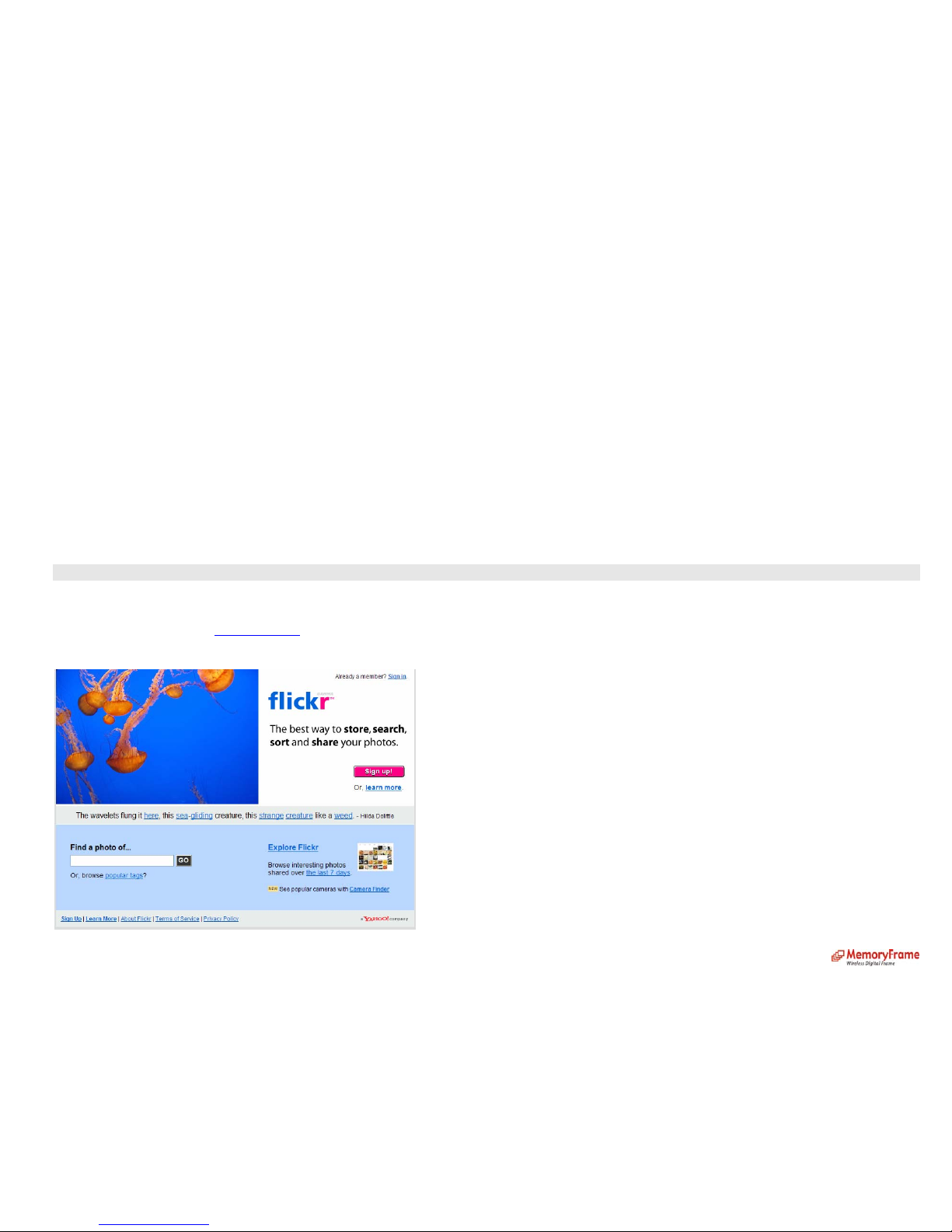

Photo Sharing Account Set Up

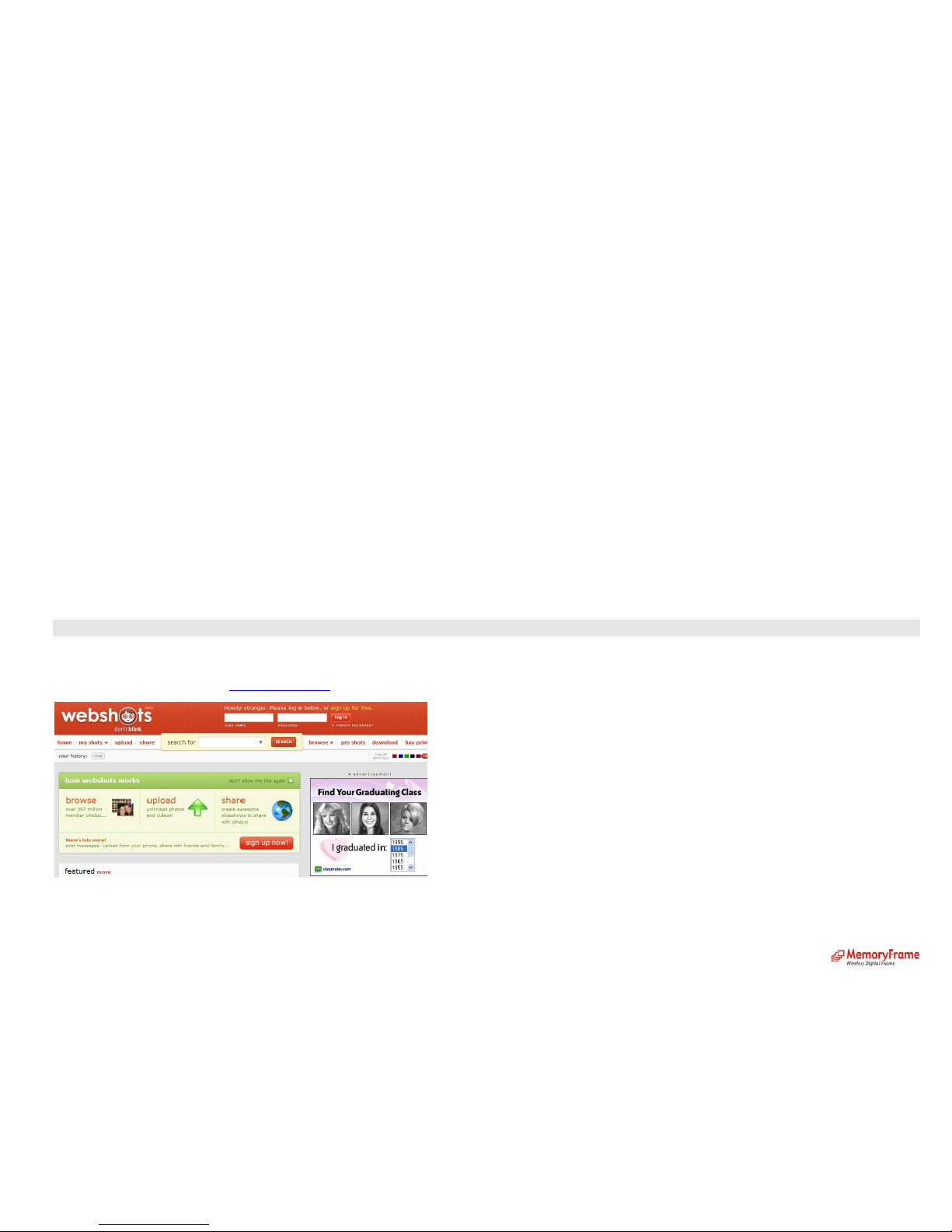

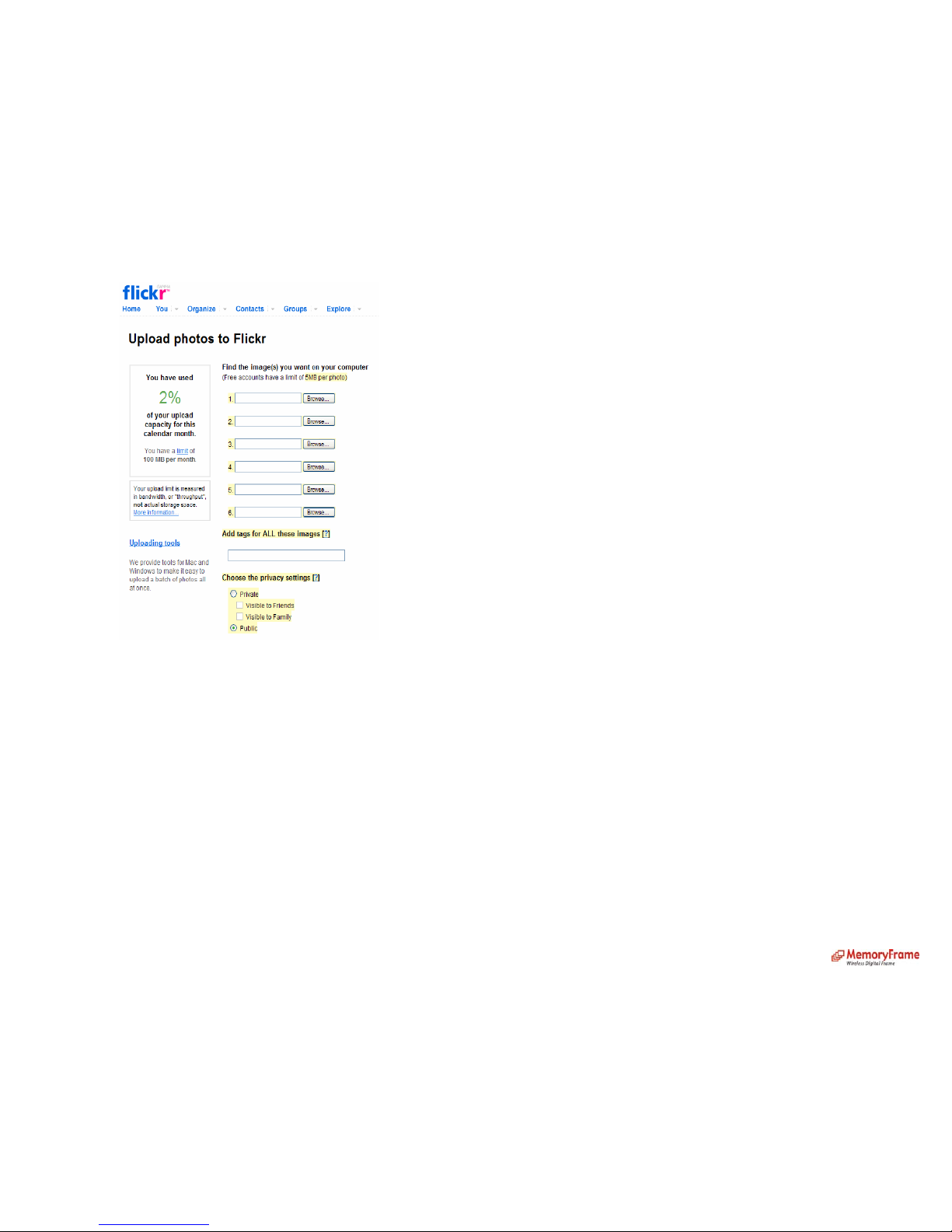

In order to connect to a photo sharing website, you must first set up a user account. Sign up and picture upload/share procedures may vary from site to site. Please refer to each respective website for procedures.

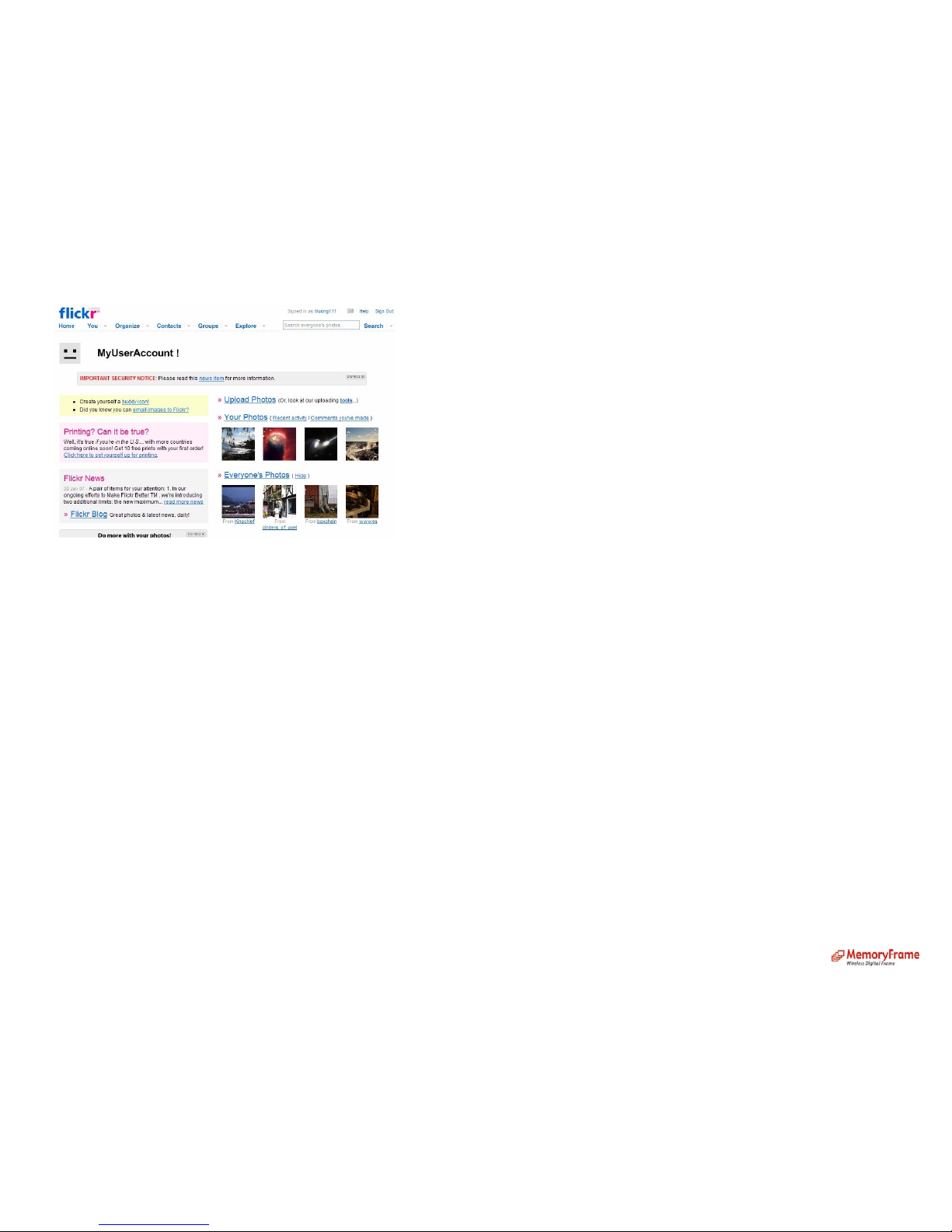

Configure MemoryFrameTM for Photo Sharing
After a photo sharing account has been set up and pictures have been uploaded and shared, MemoryFrameTM can be configured to access those pictures. Refer to the Settings section of this User Guide for detailed procedures on
configuration settings.
Save picture while playing slideshow
While slideshow is playing, press ‘Enter’ in remote control, then press ‘Yes’ to save current slide to memory.
Play Pictures from a Photo Sharing Site
Once MemoryFrameTM has been properly configured for specific photo sharing sites and an internet connection is available, MemoryFrameTM is ready to play pictures from the photo sharing site.
Follow the previous procedures on playing a slideshow. When prompted for the source location for your pictures, select “Photo sharing site” and press ENTER.
Page 9
MemoryFrame
TM

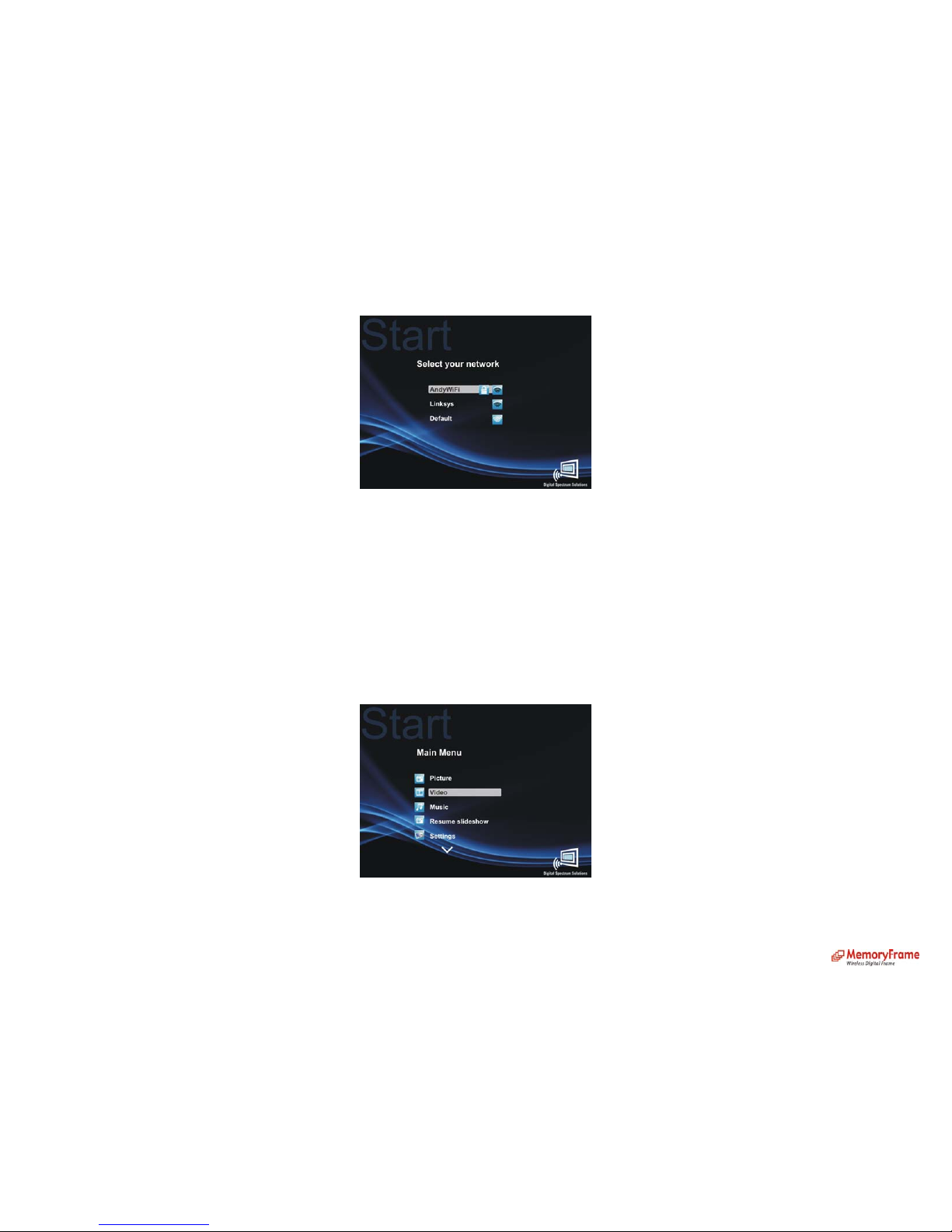

will search for available networks and display a list of SSID’s, including indicators for security detected and signal strength.
MemoryFrame
TM
will automatically save connection settings for the networks which have been previously accessed, so that the user will not need to re-enter them every time a connection is made.
If MemoryFrame
TM
does not have the selected network cached, it will prompt the user to specify additional information such as the type of authentication which is required to connect to the wireless access point and an encryption
key, if necessary. An on-screen keyboard will appear so that a security key can be entered. MemoryFrame
TM
supports connectivity to unsecured, WEP, and WPA networks.
Note: Some network management utilities allow users to enter a pass phrase to generate a security key. MemoryFrame
TM
requires the actual security key to be entered.
If WPA security mode is used, the pass phrase is case sensitive’
If the SSID of your wireless router is not displayed, configure your wireless router to broadcast its SSID.

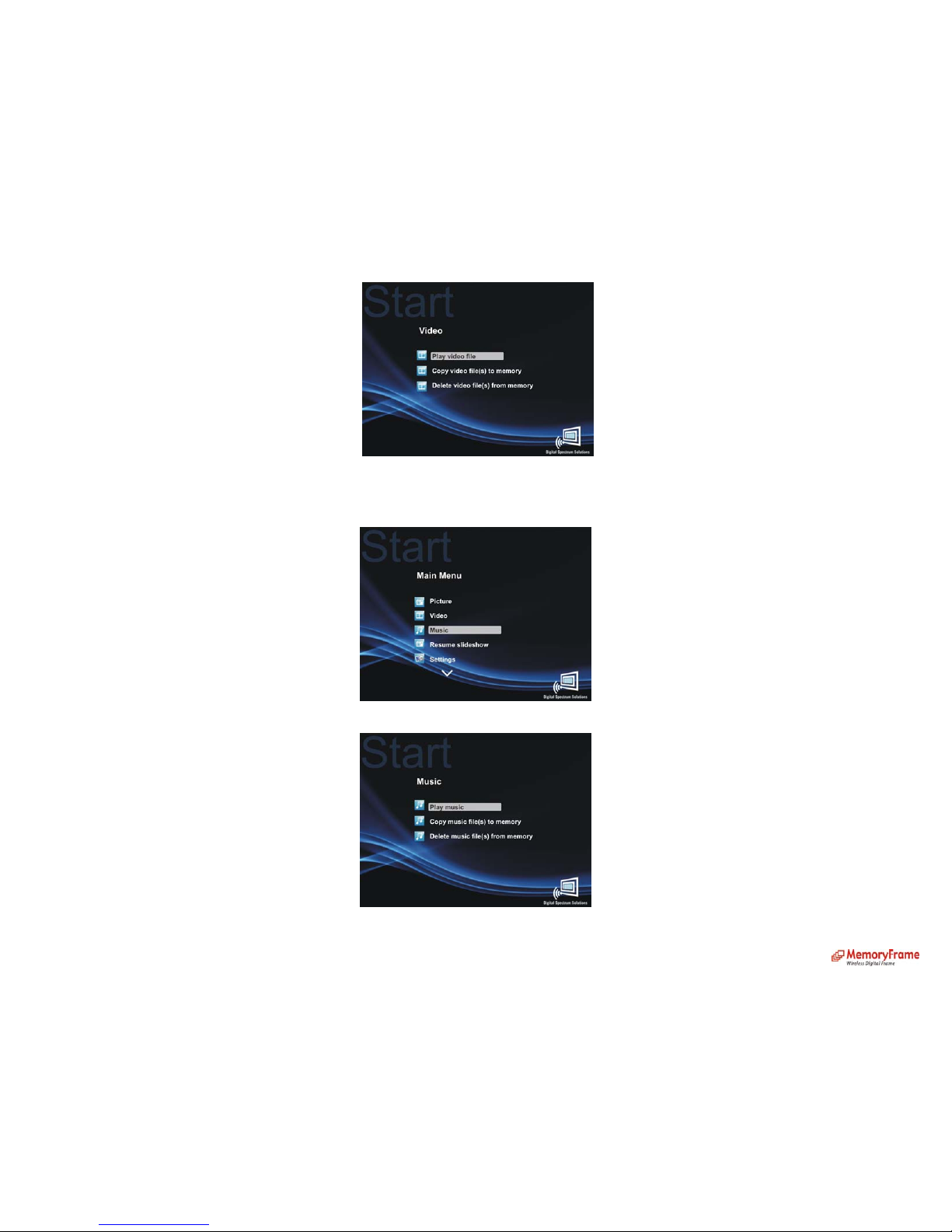

Video
MemoryFrameTM can play properly formatted WMV video files. A WMV converter utility is provided on the software CD to ensure a consistent video experience, and to allow compatibility with a variety of popular video formats.
From the Main Menu, select Video and press ENTER.
The Video Menu features the option to play a specific video file as well as the ability to copy video files into MemoryFrame’s
TM
internal memory or delete video files from internal memory.
The procedures to play, copy, or delete video files are the same as the corresponding procedures to play, copy, or delete picture files.
Page 10
Note: Video playback over a network is not currently supported. Video files must originate from internal memory or removable media inserted into MemoryFrame
TM
.
Music

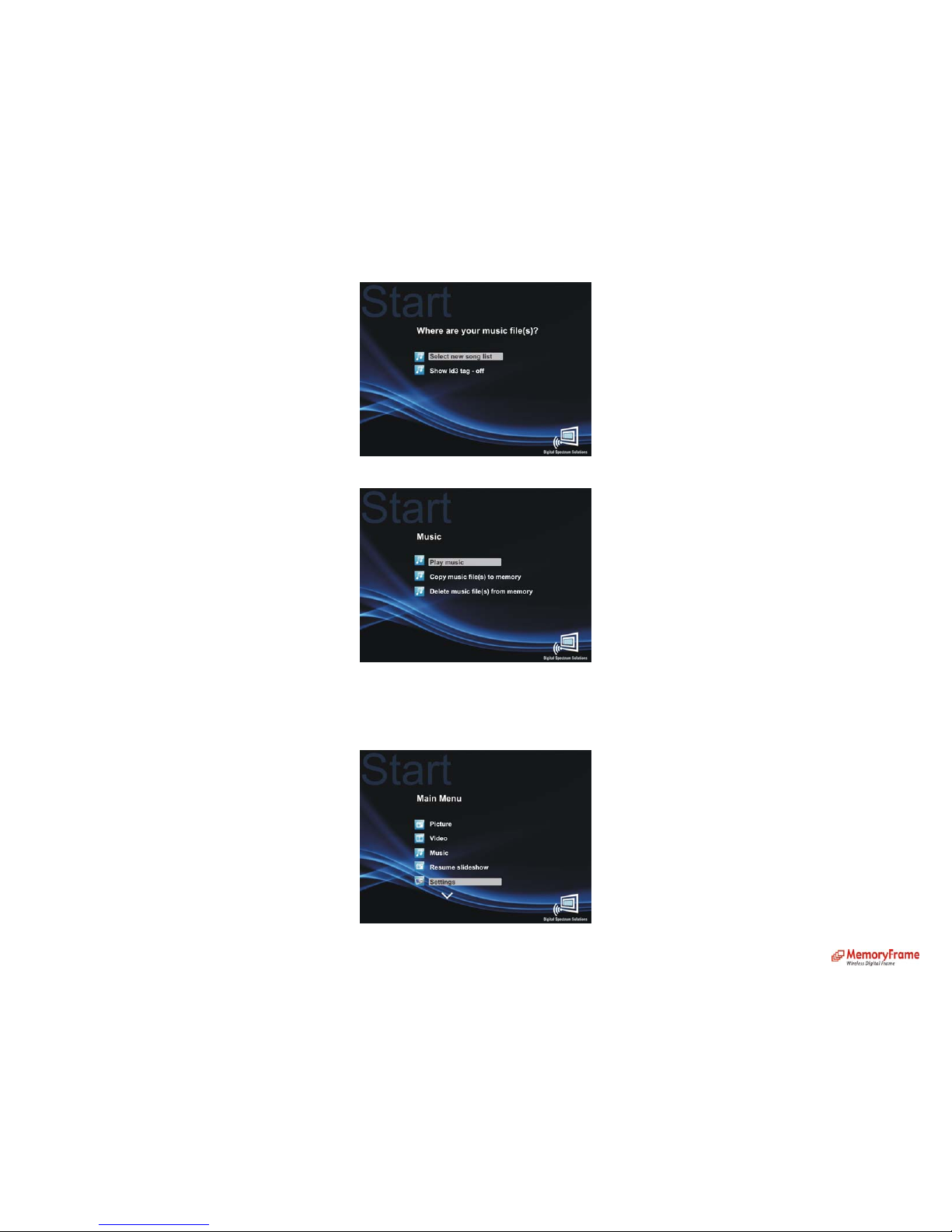

MemoryFrameTM can play MP3 and WMA music files. From the Main Menu, select Music and press ENTER.
The Music Menu features the option to create a song list, as well as the ability to copy music files into MemoryFrame’s
TM
internal memory or delete music files from internal memory.
Press ‘Select new song list’ to select songs that will be added to the song list.
Page 11
The procedures to play, copy, or delete music files are the same as the corresponding procedures to play, copy, or delete picture files.
Playing Background Music during Picture Slide Show
While a song list is being played, the user can resume the previous picture slideshow by pressing the PLAY button on the remote control. Volume can be adjusted using the Vol+ and Vol- buttons on the remote control. During
slideshow playback, volume can also be adjusted by pressing the up and down arrow buttons on the MemoryFrame
TM
.
Settings
This function is used to personalize the frame operation and configuration. This includes slideshow, photo sharing, set clock, sleep settings, language, orientation, network information, and automatic updates.
From the Main Menu, select Settings and press ENTER.
Page 12
Function Description Sample Screen
Resume slideshow
Exits the
Settings menu
and resumes
playback of
previous picture
slideshow
Frame orientation
Toggles between
landscape
(horizontal) and
portrait (vertical)
display settings
Slideshow settings
Sets slideshow
preferences,
including slide
duration,
transition type,
picture order,
music options,
and auto-updates
for photo
sharing
Set time
Sets the date and
time.
Page 13
Set time zone
Specify the local
time zone
Language
Specify the
language.
Configure Photo
Sharing
Enter User
Account
information for
photo sharing
site. User may
enter more than
1 account. User
may also input
RSS Feeds by
imputing RSS
URL.
Network Info
Displays
network status
and
configuration
information
Page 14
Check Updates
Checks if a
software update
is available.
This feature
requires an
Internet
connection.
Copyright & about
Click on
“About” to get
frame
information,
including
FrameID, Frame
Email, Software
version #,
Firmware
version #.
Register your
frame
To register your
frames go to
http://www.mem
oryframe.com
and sign up for a
free account.
This allows
pushing
albums/pictures
to the frame
from
Memoryframe.c
om photo
sharing site.
Restore factory
settings
Restore all
setting to default
Page 15
Auto check update
Toggles Auto
Update
checking. Press
Enter to toggle
between On/Off.
Set standby time
Set the time
duration in
which the frame
will go to ‘sleep
mode’. While
the frame is in
‘sleep mode’
pressing any
button will
resume previous
slideshow
Enable standby
mode
Enable/disable
standby feature
Daylight time
Set frame to
synchronize with
world clock
(with Daylight
saving time)
Play rec’d pics only
Play received
pictures only
from email,
shared by other
frames, or from
www.memoryfra
me.com
Page 16
Prompt me for new
pics
Prompt user if
frame is about to
receive new
pictures
Show OnLine
status
Display status
when frame is
online and ready
to receive
pictures

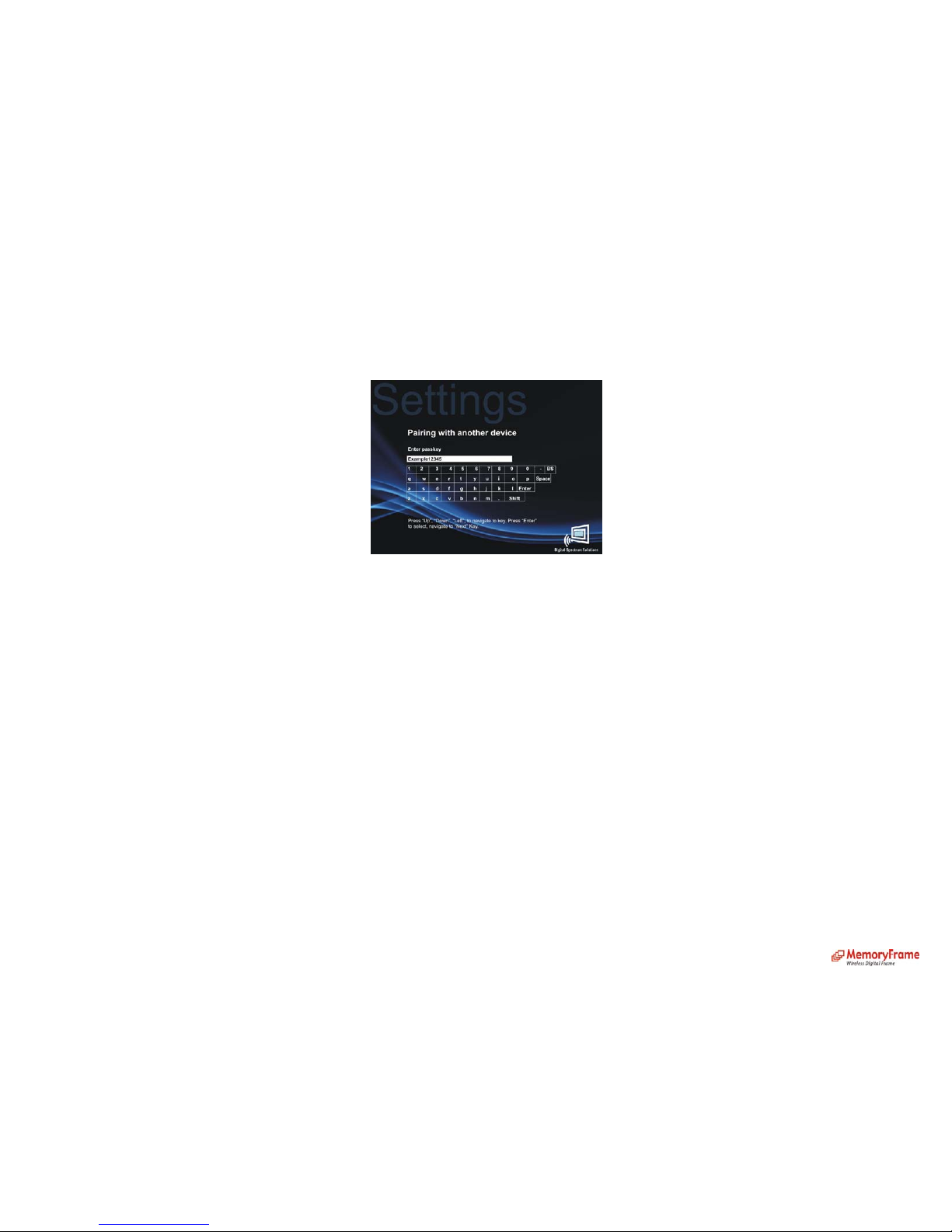

Bluetooth
Allows
Bluetooth
connectivity to
either Accept all
pictures
(Default), Reject
all pictures, or
by prompt upon
receipt.
Network Requirement:
If your home network already has a wireless router, you are set. If your home network has a regular router, you need to purchase a wireless access point. Please refer to the manufacturer of the router and access point to configure
them.
Test your Network/Access Point:
• Use your computer to connect to the router/access point, and make sure you can get on the internet.
In your Digital Picture Frame with slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘Photo Sharing site’ and press ‘Enter’
• If ‘Which site would you prefer’ screen is displayed, your network is OK
• If not, a list of access points will be displayed
• Select your access point.
• Important: If your access point is configured with ‘WPA-PSK’ or ‘WPA’. The pass phrase is case sensitive.
• If your access point is secure, a ‘Security key’ screen will display. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you
enter the wrong character, select ‘BS’ to clear the character.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control for capital letters or other characters.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control to return to current keyboard.
• Once, you are done entering the security key, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control.
• Digital Picture Frame will attempt to connect to your wireless network. It will take a few minutes. If the connection is successful, the ‘Which site would you prefer’ screen will display. If it is not successful, repeat the
above procedure. If it fails again, try to place the Digital Picture Frame closer to your router/access point.
• Select ‘From Webshots’ and press ‘Enter’. An album will be displayed.
• If no album is displayed, or you encountered an error, please do the following:
The Digital Picture Frame might be too far away from the access point. Move it closer.
Wrong security key might be used. Check your access point security key and repeat the above procedure.
Page 17
Auto Configure your Digital Picture Frame:
• You will need a computer to auto configure your Digital Picture Frame.
• Insert the included CD into a CD-ROM drive of your computer,
• Go to the folder ‘Auto Configuration’
• Double click Setup.exe to install Auto Configuration to your computer.
• Follow the instructions to complete the installation
• After the installation is complete, go to ‘Start’ menu in your computer, ‘Auto Configuration – Digital Spectrum Inc’, and launch ‘Auto Configuration – Digital Spectrum Inc’.
• Follow the instruction in the tool to configure your Digital Picture Frame.
Push Slideshow to your Digital Picture Frame:
Get a FREE account
If you don’t have an account with www.memoryframe.com, go to www.memoryframe.com
and create your account. Once you have an account, login and upload your pictures.
You can also set caption for each slide, the picture with caption will be sent to the frame.
Register your Digital Picture Frame
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Use ‘Up’ ‘Down’ buttons on the remote control to select ‘Settings’ and press ‘Enter’
• Select ‘Register your frame’ and press ‘Enter’
• Follow the on-screen instruction to register your frame.
• After registration is complete, the frame email address is displayed.
Push Slideshow to your Digital Picture Frame
After you have registered your Digital Picture Frame, it will be available in www.memoryframe.com
. You can manage your frame, you can invite others to send pictures to your frame, you can change the email address of your
frame, or you can send pictures directly to your frame.
Or, you can email with picture attachments directly to your frame.
Play Slideshow from Photo Sharing Site:
A. From Memoryframe.com
Get a FREE account
Sign up for a free account at www.memoryframe.com. You can upload your favorite pictures and send them directly to your frame. Give it a try, it’s FREE.
Page 18
Configure Digital Picture Frame:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Configure photo sharing’ and press ‘Enter’ on the remote control
• Select ‘Set Memoryframe info’ and press ‘Enter’ on the remote control
• Enter your Memoryframe username. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong character, select
‘BS’ to clear the character.
• Once, you are done entering your Memoryframe username, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to Enter your password screen
• Enter your Memoryframe password. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong character, select
‘BS’ to clear the character.
• Once, you are done entering your password, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to the previous menu.
• Your Digital Picture Frame is now ready to retrieve pictures from Memoryframe.com.
Retrieve your Pictures:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘Photo Sharing website’ and press ‘Enter’
• Select ‘From MemoryFrame’ and press ‘Enter’ on the remote control
• Choose your album by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, select ‘Select’ and press ‘Enter’ on the remote control
• Choose your picture by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, press ‘Play’ on the remote control to play selected picture(s). Or select ‘Play All’ to play all the pictures.
B. From Webshots:
Get a FREE account
If you don’t have an account with Webshots, go to http://www.webshots.com
and create your account. Once you have an account, upload your pictures.
See example:
Configure Digital Picture Frame:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
Page 19
• Select ‘Configure photo sharing’ and press ‘Enter’ on the remote control
Select ‘Set Webshots site info’ and press ‘Enter’ on the remote control.
• Select ‘Add new id’ and press ‘Enter’ on the remote control
• Enter your Webshots User ID. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong character, select ‘BS’ to
clear the character.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control for capital letters or other characters.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control to return to current keyboard.
• Once, you are done entering your Webshots User ID, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to the ‘Enter password’ screen.
• Enter your Webshots password.
• Once, you are done entering your Webshots password, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to the previous menu.
• Your Digital Picture Frame is now ready to retrieve pictures from Webshots photo sharing site
Retrieve your Pictures:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘Photo Sharing website’ and press ‘Enter’
• Select ‘From Webshots’ and press ‘Enter’ on the remote control
• Choose your album by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, select ‘Select’ and press ‘Enter’ on the remote control
• Choose your picture by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, press ‘Play’ on the remote control to play selected picture(s). Or select ‘Play All’ to play all the pictures.
C. From Flickr:
Get a FREE account
If you don’t have an account with Flickr, go to http://www.flickr.com
and create your account. Once you have an account, upload your pictures.
See example on how to create an account:
Page 20
See example on how to upload pictures:
See example on how to upload pictures. Set all your pictures privacy settings to ‘public’
Page 21
Configure Digital Picture Frame:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Configure photo sharing’ and press ‘Enter’ on the remote control
• Select ‘Set Flickr site info’ and press ‘Enter’ on the remote control
• Select ‘Add new id’ and press ‘Enter’ on the remote control
• Enter your Flickr User ID. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong character, select ‘BS’ to
clear the character.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control for capital letters or other characters.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control to return to current keyboard.
• Once, you are done entering your Flickr User ID, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to the previous menu.
• Your Digital Picture Frame is now ready to retrieve pictures from Flickr photo sharing site
Retrieve your Pictures:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Page 22
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘Photo Sharing website’ and press ‘Enter’
• Select ‘From Flickr’ and press ‘Enter’ on the remote control
• Choose your album by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, select ‘Select’ and press ‘Enter’ on the remote control
• Choose your picture by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, press ‘Play’ on the remote control to play selected picture(s). Or select ‘Play All’ to play all the pictures.
D. From Windows Live Space
Get a FREE account
If you don’t have an account with Windows Live Spaces, go to http://spaces.live.com. Click on ‘Create your space’ button to create one.
Once you have an account, click on ‘Go to your space’ button. Login and upload your album.
See example:
Configure Digital Picture Frame:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Configure photo sharing’ and press ‘Enter’ on the remote control
• Select ‘Set Windows Live Spaces site info’ and press ‘Enter’ on the remote control
• Select ‘Add new id’ and press ‘Enter’ on the remote control
• Enter your Windows Live Space User ID. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong character,
select ‘BS’ to clear the character.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control for capital letters or other characters.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control to return to current keyboard.
• Once, you are done entering your Windows Live Space User ID, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to the previous menu.
• Your Digital Picture Frame is now ready to retrieve pictures from Windows Live Space photo sharing site
Retrieve your Pictures:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘Photo Sharing website’ and press ‘Enter’
Page 23
• Select ‘From Windows Live Space’ and press ‘Enter’ on the remote control
• Choose your album by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, select ‘Select’ and press ‘Enter’ on the remote control
• Choose your picture by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, press ‘Play’ on the remote control to play selected picture(s). Or select ‘Play All’ to play all the pictures.
E. From FrameChannel
Get a FREE account
If you don’t have an account with FrameChannel, go to http://www.framechannel.com. Click on ‘Create an account’ button to create your account.
Then, enter your Framechannel PIN. It is needed to configure the Digital Picture Frame. Click on ‘My feed address’ and enter the 4 digit PIN for your account.
Once you have an account, login and click on ‘Upload photos’ to upload your pictures.
See example:
Configure Digital Picture Frame:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Configure photo sharing’ and press ‘Enter’ on the remote control
• Select ‘Set Framechannel info’ and press ‘Enter’ on the remote control
• Enter your Framechannel username. Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong character, select
‘BS’ to clear the character.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control for capital letters or other characters.
• Select ‘SHIFT’ key and press ‘Enter’ on the remote control to return to current keyboard.
• Once, you are done entering your Framechannel username, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to Enter your PIN screen
• Enter your Framechannel PIN (created previously). Use the ‘left’, ‘right’, ‘up’, ‘down’ buttons to navigate the keyboard. Once the key is highlighted, press ‘Enter’ button to select the character. If you enter the wrong
character, select ‘BS’ to clear the character.
• Once, you are done entering your PIN, select ‘NEXT’ on the keyboard, and press ‘Enter’ button on the remote control to go to the previous menu.
• Your Digital Picture Frame is now ready to retrieve pictures from Framechannel photo sharing site
Retrieve your Pictures:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘Photo Sharing website’ and press ‘Enter’
• Select ‘From Framechannel’ and press ‘Enter’ on the remote control
Page 24
Play Slideshow from Media Server (Windows Media Player 11)
Supported Media Server:
Windows XP or Vista (Home Premium, Business, and Ultimate) Windows Media Player 11 is required for Windows XP.
Configure Media Server:
Launch Windows Media Player 11
Access right:
• Click on ‘Library’ and select ‘Media Sharing…’
• Click on the ‘Settings’ button, place check on check box ‘Allow new devices and computers automatically (not recommended)’. Click on ‘OK’ button.
• Place check on check box ‘Share my media to’. Click ‘OK’ button.
Media sharing:
• Click on ‘Library’ and select ‘Add to library…’. Select button ‘My personal folders’. Click on ‘OK’ button.
Add your media:
• Go to your computer local drive (C: or D:).
• Go to ‘Documents and Settings’ folder.
• Go to ‘All Users’ folder.
• Go to ‘Shared Documents’ folder.
• For audio clips, go to ‘Shared Music’ folder, add your music clips.
• For pictures, go to ‘Shared Pictures’, add your pictures.
Retrieve your Pictures from your Media Server:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Pictures’ and press ‘Enter’
• Select ‘Play Slideshow’ and press ‘Enter’
• Select ‘From WinXP or Vista’ and press ‘Enter’ on the remote control
• A list of media servers, discovered in your network will be displayed.’
• Select the one of your choice and press ‘Enter’ on the remote control
• A list of option will be displayed
Pictures by tag:
• All pictures will be organized by tags.
• For WinXP, only the ‘No Keyword’ tag is supported.
• Choose your tag and press ‘Enter’.
• A list of pictures that are identified by the tag will be displayed.
• Press ‘Play’ to start the slideshow.
Pictures by date taken:
• All pictures will be organized by year, month, and day.
• Choose the year and press ‘Enter’.
• Choose the month and press ‘Enter’.
• Choose the day and press ‘Enter’.
• A list of pictures that are identified by the ‘date taken’ will be displayed.
• Press ‘Play’ to start the slideshow.
Pictures by folder:
Page 25
• Select the folder of your choice, and press ‘Enter’.
• A list of pictures in the selected folder will be displayed.
• Press ‘Play’ to start the slideshow.
Pictures by rating:
• All pictures will be organized by rating (Not rated, 1 star, 2 star, 3 star, 4 star, or 5 star).
• For WinXP, only the ‘Not rated’ is supported.
• Select the rating of your choice, press ‘Enter’.
• A list of pictures that are identified by the rating will be displayed.
• Press ‘Play’ to start the slideshow.
Play Slideshow from Memory card
Automatic slideshow:
Insert a memory card (CF card, USB drive, SD/MMC card) into the back of your Digital Picture Frame, all pictures in your memory card will be played.
Play content, copy content, or delete content from internal storage, CF storage, USB storage, or SD/MMC storage
Pictures:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• To play slideshow, copy pictures or delete pictures, select ‘Pictures’ and press ‘Enter’
In the next screen:
• To play slideshow, select ‘Play Slideshow’ and press ‘Enter’
• To copy pictures, select ‘Copy pictures’ and press ‘Enter’
• To delete pictures, select ‘Delete pictures’ and press ‘Enter’
In the next screen:
• To play slideshow from internal memory, select ‘Internal memory’ and press ‘Enter’
• To play slideshow from memory cards, select your memory card (CF, USB, SD/MMC) and press ‘Enter’
• To copy pictures, select your memory card (CF, USB, SD/MMC) and press ‘Enter’
• To delete all pictures, select ‘Delete all pictures from memory’ and press ‘Enter’
• To delete selected pictures, select ‘Delete selected pictures from memory’ and press ‘Enter
In the next screen:
• To play all pictures, select ‘Play all pictures’ and press ‘Enter’
• To play selected pictures, select ‘Choose individual pictures’ and press ‘Enter’
• To sort pictures by date, select ‘Choose picture(s) by date’ and press ‘Enter’. Then select the date by pressing ‘Enter’ on the remote control to select/deselect it. When you are done, select ‘Select’ and press ‘Enter’ on
the remote control.
• To copy all pictures, select ‘Copy all pictures to memory’ and press ‘Enter’
• To copy selected pictures, select ‘Copy selected picture(s) to memory’ and press ‘Enter’
• To delete all pictures, select ‘Delete all picture(s) from memory’ and press ‘Enter’
• To delete selected pictures, select ‘Delete selected picture(s) from memory’ and press ‘Enter’
In the next screen:
Use navigation buttons to select the pictures, press ‘Enter’ to select/deselect it.
• To play selected pictures, press ‘Play’ in remote control or select ‘PLAY’ icon, and press ‘Enter’
• To copy selected pictures, press ‘Play’ in remote control or select ‘COPY’ icon, and press ‘Enter’
• To delete selected pictures, press ‘Play’ in remote control or select ‘DELETE’ icon, and press ‘Enter’
Video:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Page 26
Or at the main menu:
• To play video, copy video or delete video, select ‘Video’ and press ‘Enter’
In the next screen:
• To play video, select ‘Play video file’ and press ‘Enter’
• To copy video, select ‘Copy video file(s) to memory’ and press ‘Enter’
• To delete video, select ‘Delete video files from memory’ and press ‘Enter’
In the next screen:
• To play video from internal memory, select ‘Internal memory’ and press ‘Enter’
• To play video from memory cards, select your memory card (CF, USB, SD/MMC) and press ‘Enter’
• To copy video, select your memory card (CF, USB, SD/MMC) and press ‘Enter’
• To delete all video, select ‘Delete all video file(s) from memory’ and press ‘Enter’
• To delete selected video, select ‘Delete selected video file(s) from memory’ and press ‘Enter
In the next screen:
• Select your video and press ‘Enter’ to play
• To copy all videos, select ‘Copy all video file(s) to memory’ and press ‘Enter’
• To copy selected videos, select ‘Copy selected video file(s) to memory’ and press ‘Enter’
• To delete all videos, select ‘Delete all video file(s) from memory’ and press ‘Enter’
• To delete selected videos, select ‘Delete selected video file(s) from memory’ and press ‘Enter’
In the next screen:
• Use navigation buttons to select the video, press ‘Enter’ to select/deselect it.
• To copy selected video, select ‘COPY’ icon, and press ‘Enter’
• To delete selected video, select ‘DELETE’ icon, and press ‘Enter’
Music:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• To play music, copy music or delete music, select ‘Music’ and press ‘Enter’
In the next screen:
• To play music, select ‘Play music’ and press ‘Enter’
• To copy music, select ‘Copy music file(s) to memory’ and press ‘Enter’
• To delete music, select ‘Delete music file(s) from memory’ and press ‘Enter’
In the next screen:
• To play previous song list, select ‘Play previous song list’ and press ‘Enter’
• To play new song list, select ‘Select new song list’ and press ‘Enter’
• To toggle song list with ID3 tag, select ‘Show ID3 tag - off’ or ‘Show ID3 tag - on’ and press ‘Enter’
• To play background music, ‘Show ID3 tag - off’ should be displayed
• To copy music, select your memory card (CF, USB, SD/MMC) and press ‘Enter’
• To delete all music, select ‘Delete all music file(s) from memory’ and press ‘Enter’
• To delete selected music, select ‘Delete selected music file(s) from memory’ and press ‘Enter
In the next screen:
• To play song from internal memory, select ‘Internal memory’ and press ‘Enter’
• To play song from memory cards, select your memory card (CF, USB, SD/MMC) and press ‘Enter’
• To copy all songs, select ‘Copy all music file(s) to memory’ and press ‘Enter’
• To copy selected song, select ‘Copy selected music file(s) to memory’ and press ‘Enter’
• To delete selected song, use navigation buttons to select the pictures, press ‘Enter’ to select/deselect it.
• Select ‘DELETE’ icon, and press ‘Enter’
In the next screen:
• To play all music, select ‘Play all music file(s)’ and press ‘Enter’
• To play selected music, select ‘Choose individual music file(s)’ and press ‘Enter’
In the next screen:
• Use navigation buttons to select the music, press ‘Enter’ to select/deselect it.
• To play selected music, select ‘PLAY’ icon, and press ‘Enter’
• To copy selected music, select ‘COPY’ icon, and press ‘Enter’
Page 27
Play Slideshow from Bluetooth Phone
• Plug Bluetooth USB Dongle into USB Port on the MemoryFrame
TM
.
• Under Settings, confirm Bluetooth setting is set to “Accept all pictures (Default), or Prompt me”.
• On a Bluetooth equipped phone, select the photo to be transferred and select “Send”.
• Locate the MemoryFrame
TM
using the phone’s Bluetooth scan option. Once located, the phone may need to be paired with the MemoryFrameTM. (Note: Some phones may differ from these instructions. Please consult
the phone’s manual for additional info).
• If pairing is required, enter a 4 digit key on the phone to set the pairing key.
• Once the phone attempts connection, enter the 4 digit pairing key that was set on the phone as indicated in the screenshot.
• Once the photo has been transferred, if the Bluetooth setting on the MemoryFrame
TM
is set to “Prompt me”, the user will be presented with a prompt to accept the photo. If set to “Accept all pictures”, the frame will
automatically display the transferred photo. Press “Menu” to close the transferred photo and return to the main menu.
Display the Time:
While the slideshow is playing, press ‘Clock’ on the remote control to display the current time.
To Search for other Wireless Network:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Search wireless network’ and press ‘Enter’
• A list of wireless networks will be displayed.
• Select the one of your choice and press ‘Enter’ to connect
• Enter the security key if necessary
To turn off Music if Background Music is playing:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Stop music’ and press ‘Enter’
To set Portrait/Landscape Mode:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Use ‘Up’ ‘Down’ buttons on the remote control to select ‘Settings’ and press ‘Enter’
• Use ‘Up’ ‘Down’ buttons on the remote control to select ‘Frame orientation’ and press ‘Enter’
• Select ‘Landscape’ or ‘Portrait’ and press ‘Enter’
Page 28
To Set the Slide Duration:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Slideshow settings’ and press ‘Enter’ on the remote control
• Select ‘Slide duration’ and press ‘Enter’ on the remote control
• Select the duration of your choice and press ‘Enter’ on the remote control
• (Optional) Press ‘Play’ to play the previous slideshow
To Set the Slide Transition:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Slideshow settings’ and press ‘Enter’ on the remote control
• Select ‘Slide transition’ and press ‘Enter’ on the remote control
• Select the transition of your choice and press ‘Enter’ on the remote control
• (Optional) Press ‘Play’ to play the previous slideshow
To Toggle Picture order (Sequential or Random):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Slideshow settings’ and press ‘Enter’ on the remote control
• Select ‘Picture order - Sequential’ or ‘Picture order – Random’ and press ‘Enter’ on the remote control. This will toggle the picture order settings between ‘Sequential’ and ‘Random’.
To Enable Auto Slideshow Update (Yes or No):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Slideshow settings’ and press ‘Enter’ on the remote control
• Select ‘Auto slideshow update - yes’ or ‘Auto slideshow update - no’ and press ‘Enter’ on the remote control. This will enable or disable updating of slideshow. If enabled, update will occur at the end of current
slideshow.
To Toggle Music order (Sequential or Random):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Slideshow settings’ and press ‘Enter’ on the remote control
• Select ‘Music option’ and press ‘Enter’ on the remote control
• Select ‘Music order - Sequential’ or ‘Music order – Random’ and press ‘Enter’ on the remote control. This will toggle the music order settings between ‘Sequential’ and ‘Random’.
To Enable Music Repeat (Yes or No):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Slideshow settings’ and press ‘Enter’ on the remote control
• Select ‘Music option’ and press ‘Enter’ on the remote control
Page 29
• Select ‘Music repeat - Yes’ or ‘Music repeat – No’ and press ‘Enter’ on the remote control. This will enable/disable replaying of the music playlist. If this feature is disabled, music will stop at the end of the current
playlist.
Set Time:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Set Time’ and press Enter on the remote control.
• Select ‘Up’ ‘Down’ buttons on the remote control to set the day
• Select ‘Right’ on the remote control to select ‘day’
• Select ‘Up’ ‘Down’ buttons on the remote control to set the date
• Select ‘Right’ on the remote control to select ‘year’
• Select ‘Up’ ‘Down’ buttons on the remote control to set the year
• Press ‘Right’ on the remote control to select ‘hour’
• Select ‘Up’ ‘Down’ buttons on the remote control to set the hour
• Press ‘Right’ on the remote control to select ‘minutes’
• Select ‘Up’ ‘Down’ buttons on the remote control to set the minutes
• Press ‘Right’ on the remote control to select ‘AM/PM’
• Select ‘Up’ ‘Down’ buttons on the remote control to set the AM/PM
• Press ‘Enter’ on the remote control to set the time.
Set Time Zone:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’
• Select ‘Set time zone’ and press ‘Enter’
• Select your time zone and press ‘Enter’
To Set Language:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’
• Select ‘Language’ and press ‘Enter’
• Select language of your choice and press ‘Enter’
To Configure DPF to Connect to the Photo Sharing Site:
See section ‘Play slideshow from Photo Sharing Site’ above to configure the Digital Picture Frame to connect to your Photo sharing site accounts (Webshots, Flickr, or Windows Live Space)
To view Network Info:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Network info’ and press ‘Enter’ on the remote control
• The Digital Picture Frame network info (IP address, DHCP, etc) will be displayed
• Press ‘Enter’ to go to the main menu
• (Optional) Press ‘Play’ to play the previous slideshow
Page 30
To Check Updates:
Frequently, we post updates that add features/enhancements to your Digital Picture Frame. To retrieve the updates:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Check updates’ and press ‘Enter’ on the remote control
• If your Digital Picture Frame is already connected to the internet, it will check for any update
• If the update is available. Select ‘OK’ and press ‘Enter’ will download the updates
• Depending on the network speed, traffic, and the size of the updates, it might take a few minutes to download the updates
• If the update is available and you do not want to update at this time, select ‘Not at this time’ and press ‘Enter’
• Once the download is complete, the frame will upgrade the software and reboot upon completion.
To Register your Digital Picture Frame:
See section ‘Push slideshow to your Digital Picture Frame’ above to register your fame and the benefit of registering your frame.
To Restore Default Settings:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Restore default settings’ and press ‘Enter’ on the remote control
To enable Auto Check Update:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Auto Check Update – yes/no’ and toggle ‘Auto Check Update – yes/no’ by pressing ‘Enter’ on the remote control
When Auto Check Update is enabled, frame will check for latest update when switched on.
To Set Standby Time:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’
• Select ‘Set standby time’ and press ‘Enter’
• Use ‘Up’ ‘Down’ buttons on the remote control to set the ‘hours’ when the Digital Picture Frame will turn off
• Press ‘Right’ on the remote control to select ‘Off mins’
• Use ‘Up’ ‘Down’ buttons on the remote control to set the ‘minutes’ when the Digital Picture Frame will turn off
• Press ‘Right’ on the remote control to select ‘Off AM/PM’
• Use ‘Up’ ‘Down’ buttons on the remote control to set the AM or PM
• Press ‘Right’ on the remote control to select ‘On hours’
• Use ‘Up’ ‘Down’ buttons on the remote control to set the ‘hours’ when the Digital Picture Frame will turn on
• Press ‘Right’ on the remote control to select ‘On mins’
• Use ‘Up’ ‘Down’ buttons on the remote control to set the ‘minutes’ when the Digital Picture Frame will turn on
• Press ‘Right’ on the remote control to select ‘On AM/PM’
• Use ‘Up’ ‘Down’ buttons on the remote control to set the AM or PM
• Press ‘Enter’ on the remote control to set the standby time.
Page 31
To Enable Standby (Yes or No):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Enable standby - yes’ or ‘Enable standby - no’ and press ‘Enter’ on the remote control
• If standby is disabled, the Digital Picture Frame will not turn off at preset standby time.
To Enable daylight saving time (Yes or No):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Daylight time - yes’ or ‘Daylight time - no’ and press ‘Enter’ on the remote control
• If enabled, the Digital Picture Frame will synchronize clock based on Daylight saving time.
To Enable play rec’d pics only (Yes or No):
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Play rec’d pics only - yes’ or ‘Play rec’d pics only - no’ and press ‘Enter’ on the remote control
• If enabled, the Digital Picture Frame will play received pictures only (received via email attachments, received from other shared frames, received from www.memoryframe.com
).
• If disabled, the Digital Picture Frame will play the received pictures first and then resume the current slideshow.
To Enable prompt me for new pics:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Prompt me for new pics - yes’ or ‘Prompt me fo r new pics - no’ and press ‘Enter’ on the remote control
• If enabled, the Digital Picture Frame will play display confirmation when received pictures via email attachments, from other shared frames, or from www.memoryframe.com
).
• If disabled, the Digital Picture Frame will automatically receive and play the pictures.
To Enable show online status:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Show OnLine status - yes’ or ‘Show OnLine status - no’ and press ‘Enter’ on the remote control
• If enabled, the Digital Picture Frame will display online status icon while playing slideshow. Frame MUST be online to receive pictures via email attachments, from other shared frames, or from
www.memoryframe.com.
To Set Bluetooth option:
With slideshow playing:
• Press ‘Menu’ on the remote control to go to the main menu
Or at the main menu:
• Select ‘Settings’ and press ‘Enter’ on the remote control
• Select ‘Bluetooth’ and press ‘Enter’ on the remote control
• Select ‘Accept all pictures’, ‘Reject all pictures’, or ‘Prompt me’ and press ‘Enter’ on the remote control.
When ‘Accept all pictures’ option is selected, frame will accept all pictures beamed from Bluetooth phones or PDAs’, when ‘Reject all pictures’ option is selected, frame will NOT accept any picture, when ‘Prompt me’ option is
selected, frame will prompt user for any picture beamed from Bluetooth devices.
Page 32
Resume Previous Slideshow
:
While the menu is displayed, press ‘Play’ button on the remote control will resume the previous slideshow.
Auto Resume
If the menu stays idle for more than 15 minutes, previous slideshow will resume.
Supported Media Type:
• For pictures: Supports GIF, JPG, BMP, PNG.
• For audio: Supports WAV, MP3, WMA
• For video: Supports WMV encoded at 320X240 – Digital Picture Frame will play video at 640X480
• For DivX, MPEG1-2, or WMV video that is larger than 320X240, install the ‘WMVConverter’ and encode it before dropping it to the Digital Picture Frame.
WMVConverter:
• You will need a computer to install WMVConverter.
• Insert the included CD into a CDRom drive of your computer,
• Go to the folder ‘WMVConverter’
• Double click Setup.exe to install ‘WMVConverter’ to your computer.
• Follow the instructions to complete the installation
• After the installation is complete, go to ‘Start’ menu in your computer, ‘WMVConverter – Digital Spectrum Inc’, and launch ‘WMVConverter – Digital Spectrum Inc’.
• Click on ‘Browse’ to browse to your video, click ‘Start’ to start the encoding. Once it is finished, the video will be stored in the same folder as the source video. The converted video will have _DSI appended to its
original filename.
• If you encounter an error “ClassFactory cannot supply requested class” when you convert your video, go to the folder ‘WMVConverter’
• Install WMEncoder.exe.
• Convert your video again
PC Connection:
Via USB cable:
• Connect your computer to the Digital Picture Frame using the USB cable.
• Click on ‘Explore’ to view the file contents of the Digital Picture Frame.
• To drop media to internal storage, double click on the drive letter that pertains to the picture frame.
• You can drag and drop media in here. The internal storage capacity is 256Mb, of which 40Mb is reserved. There is roughly 216Mb of user space.
Page 33
Specifications:
Model
MF-8000 Premium MF-8104 Premium MF-8115 Premium
Unit Size H x W x D
8.5” x 10.5” x 2” 8.5” x 10.5” x 2” 13” x 15.625” x 2.25”
Display Area
4.8” H x 6.4” W 6.5” H x 8.5” W 9.125” H x 12” W
Resolution
800x600 640x480 1024x768
Colors
262,144
Brightness
250cd/m2 max. 250cd/m2 max. 260cd/m2 max
Contrast ratio
250:1 500:1 350:1
Viewing angle
65/65 (l/r) 45/35(u/d)
Input voltage：
AC110—240V(50HZ—60HZ)
Operating Temperature
0ºC - 50ºC
Unit Weight
4.2 lbs. 4.3 lbs. 5.6 lbs.
Formats
JPEG, BMP, GIF, MP3, WMA, WMV
Media
CF/SD/XD/MMC
Max Image Size
10MP
Default Start Mode
Auto Slide Show jpeg
Photo Playback Mode
1. Loop
2. Auto Slide Show
3. Slide Show with background MP3 music
4. Interval Time Setup
5. Transition Setup
6. Play/Stop/Pause
Music Playback Mode
1. Play/Stop/Pause
2. Volume Adjust
3. Mute Function
4. Repeat Mode Setup
Video Playback Mode
1. Play/Stop/Pause
2. Volume Adjust
3. Mute Function
Accessories
1. Remote Controller
2. AC Adapter
3. Desktop stand
4. Operation manual
5. Setup CD
6. xD Card Reader
Notes
Page 34
Notes
Page 35
Page 36
Digital Spectrum Solutions, Inc.
Irvine, CA 92614
www.dsicentral.com
Contact us at [email protected]
700-0008
Loading...
