Installation Instructions for
FIB1-1000MG Gigabit Series
Single Mode to Multi-mode
1000BASE-SX / 1000BASE-LX
Fiber Transceiver Media Converters
Description
The FIB1-1000MG single-mode to multi-mode fiber converter gives you the most
popular gigabit multi-mode connectors, SC or LC.
The FIB1-1000MG-GBIC matches the industry standard GBIC module interface
with a standard gigabit multi-mode SC transceiver. Three LED indicators linking
status of single mode, multi-mode and the power status of the converter
.
-
-1-
Specifications
Standard
Fiber IEEE802.3z 1000Base-SX/LX, Gigabit Standards
Supports Full Duplex Ethernet mode (2000Mbps)
Fiber Optic Connectors
Depending on model, a fixed SC or LC, GBIC socket with SC, or SFP socket with LC is provided
Environment Dimensions Power
Temperature 0℃ - 50℃ (operating) 122.6mm x 85.6mm x 20mm AC Input : 90~264VAC
0℃ - 70℃ (storage) (L x W x H) Frequency : 47~63 Hz
Humidity 20-80% non condensing (operating) Output : DC12V+/- 5%, 1A
10-90% (storage) Consumption : <4W
Weight
340g (110z )
Installation
Connect the fiber interface cable to the FIB1-1000MS. Follow the connection examples below. Install the
fiber converter with the DC power adapter provided (+12VDC) and connect the adapter to an AC outlet.
Connections

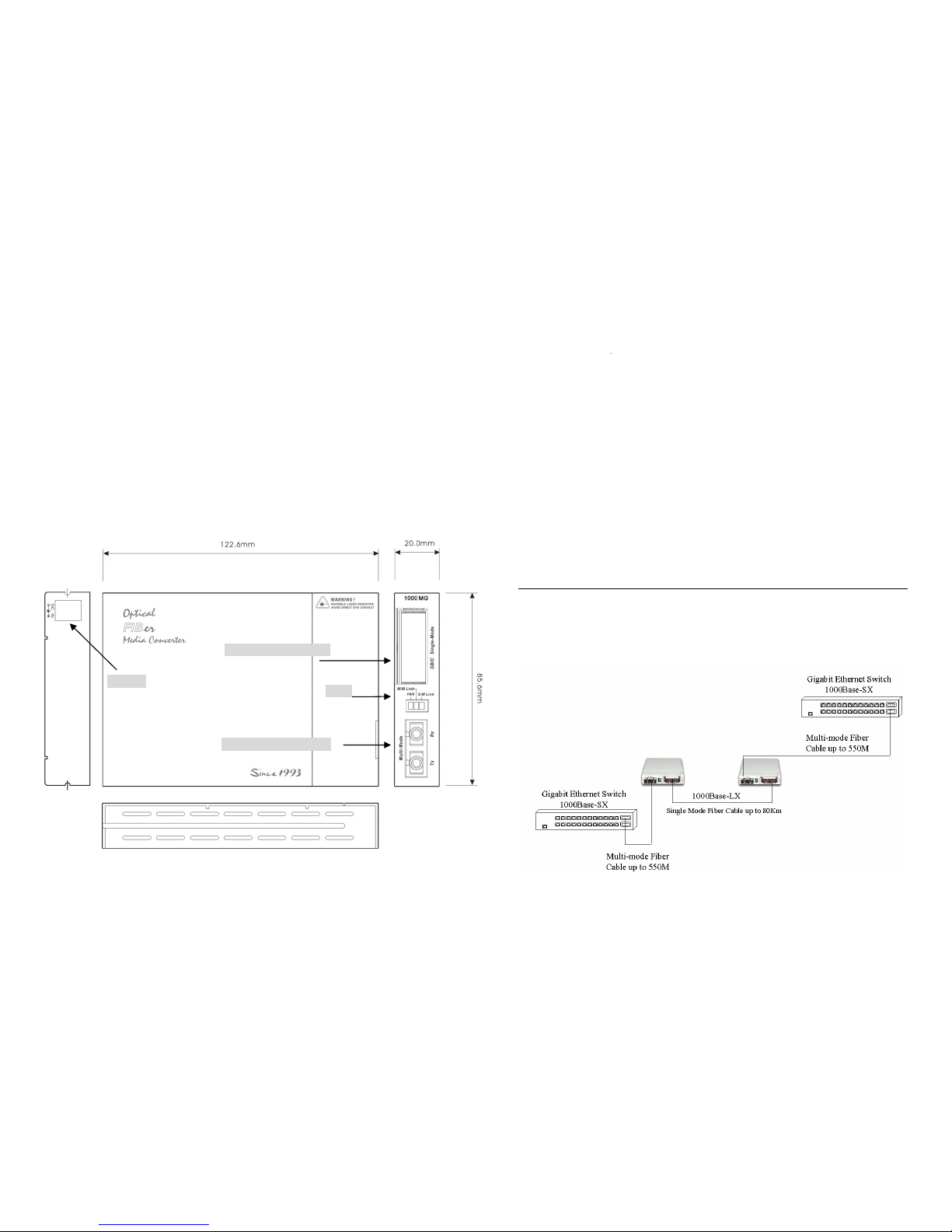

The following example illustrates the fiber connection scheme when connecting from a 1000BASE-SX
port of one Gigabit Ethernet Switch port to a 1000BASE-SX port of another switch through a pair of fiber
converters and single mode fiber cable.
V.1.1
-2-
S/M Fiber Connections
(1000Base-LX)
M/M Fiber Connections
(
1000Base-SX)
DC Jack
LEDs

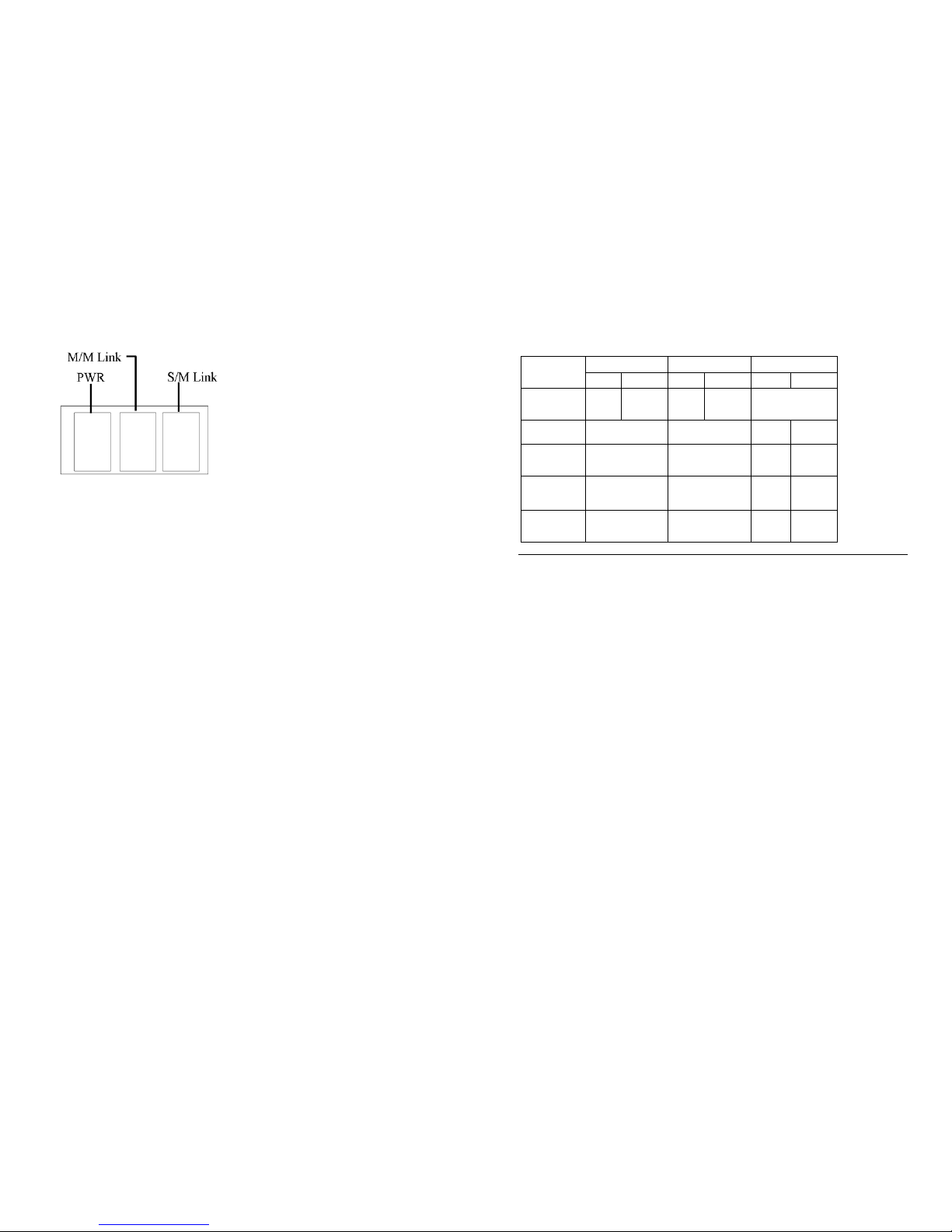

LED Indicators
GBIC Module Type Led Indications
LED Function State Status
PWR Power indicator On Converter has power.
Off Converter has no power.
M/M Link mode display On The multi-mode link is ok
Multimode Link Off No link or the link is faulty
S/M Link mode display On The multi-mode link is ok
Single mode Link Off No link or the link is faulty
-3-
Transceiver Connector Specification
SC LC GBIC SC
Power Sensitivity Power Sensitivity Power Sensitivity
M/M, 850nm,
550M
-9.5dBm -18dBm -9.5dBm -18dBm
X
S/M, 1310nm,
10Km
X
X
-9.5dBm -20dBm
S/M, 1550nm,
30Km
X
X
-4dBm -22dBm
S/M, 1550nm,
50Km
X
X
-4dBm -23dBm
S/M, 1550nm,
80Km
X
X
-0dBm -23dBm
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
ST
®
is a registered trademark of AT&T.
WARNING:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and used in accordance with the
instruction manual may cause harmful interference in which case the user will be required to correct the
interference at his own expense. NOTICE: (1) The changes or modifications not expressively approved by
the party responsible for compliance could void the user's authority to operate the equipment. (2) Shielded
interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
CISPR PUB.22 Class A COMPLIANCE:
This device complies with EMC directive of the European Community and meets or exceeds the
following technical standard. EN 55022 - Limits and Methods of Measurement of Radio Interference
Characteristics of Information Technology Equipment. This device complies with CISPR Class A.
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
CE NOTICE
Marking by the symbol CE indicates compliance of this equipment to the EMC directive of the European
Community. Such marking is indicative that this equipment meets or exceeds the following technical
standards: EN 55022:1994/A1:1995/A2:1997 Class A and EN61000-3-2:1995, EN61000-3-3:1995 and
EN50082-1:1997
