Page 1

PC1575 System Introduction

SECTION1

1.1 Specifications

Control Panel Specifications PC1575 (standard option): one low current PGM output

and one low current PGM output/input. PC1575 (2-wire smoke option): one low current PGM

output and one high current PGM output/input.

Flexible Zone Configuration:

• Six fully programmable zones

• Seven Access Codes: five User, one Master and a second Master code

• Normally Closed, Single EOL, Double EOL

• 2-wire Smoke Zone or Auxiliary Zone

• 21 Zone Types, 6 Programmable Zone Options

Audible Alarm Output:

• Supervised Bell Output (current limited at 3 amps), 12V

• Steady or Pulsed Output

EEPROM Memory:

• Does not lose programming or system status on complete AC and Battery failure

Programmable Outputs:

• One programmable voltage output and one programmable voltage output/input; 30 programmable options

• PC1575 (standard option):

PGM1 = one low current (50mA) PGM output PGM2 = one low current (50mA) PGM output/input.

• PC1575 (2-wire smoke option):

PGM1 = one low current (50mA) PGM output PGM2 = one high current (300mA) PGM output/input with 2-wire smoke detector capability

Please read Appendix D “PGM Output Options” carefully for important information.

Powerful 1 Amp Regulated Power Supply:

• 550 mA Auxiliary Supply, 12 V

• Positive Temperature Coefficient (PTC) components replace fuses

• Supervision for loss of AC Power, Low Battery

• Internal Clock Locked to AC Power Frequency

Power Requirements:

• Transformer = 16.5 V

• Battery = 12 volt 4 Ah minimum rechargeable sealed lead acid

Remote Keypad Specifications:

• Three Different Keypads Available:

- PC5506 six zone LED keypad

- LCD5500 Alphanumeric keypad

- PC1575RK six zone LED keypad

- SL-75 six zone LED keypad

• The PC5506 and LCD5500 keypads have 5 Fully Programmable Function Keys

• Connect up to 8 Keypads

• Four Wire (Quad) Connection to KEYBUS

• Built in Piezoelectric Buzzer

AC, 40VA

Digital Communicator Specifications:

• Supports Major Formats including SIA and Contact ID

• Event Initiated Personal Paging

• Three Programmable Phone Numbers

• Two Account numbers

• Supports LINKS 1000 Cellular Communication

• DTMF and Pulse Dialing

• DPDT Line Seizure

• Anti-jam Feature

• Split Reporting of Selected Transmissions to Each Telephone Number

System Supervision Features:

The PC1575 continuously monitors a number of possible trouble conditions including:

• AC Power Failure

• Trouble by Zone

• Tamper by Zone

• Fire Trouble

• Telephone Line Trouble

• Failure to Communicate

• Low Battery Condition

• Bell Output Trouble

• Module Fault (Supervisory or Loss of Internal Clock AUX Power Supply Fault Tamper)

False Alarm Prevention Features:

• Audible Exit Delay

• Audible Exit Fault

• Communication Delay

• Urgency on Entry Delay

• Quick Exit

Additional Features:

• Auto Arm at Specified Time

• Keypad Activated Alarm Output and Communicator Test

• All modules connect to the system via a four wire KEYBUS up to 1000’/300m from main panel

• Event Buffer can be printed using PC5400 RS232 Serial Interface module

• Supports the ESCORT 5580 Voice Prompt Module with Automation/Lighting Control

• An Event Buffer which records the past 100 events with both the time and date at which they occurred

• Uploading and Downloading capability

• Local Downloading capability through the use of the PC-LINK Adaptor

UL Installation

This equipment is UL Listed in accordance with UL1023 (Household Burglar Alarm System Units), UL985 (Household Fire Warning System Units), UL1635 (Digital Alarm Annunciator System Units), UL365 (Police Station Connected Burglar Alarm Units and Systems), UL609 (Local Burglar Alarm Units and Systems), UL1610 (Central Station Burglar Alarm Units). This equipment has the capability of being programmed for operational features that are not allowed for UL Listed Systems

Refer toRefer to

or being connected to accessories not permitted.

Appendix E for summary of requirements.Appendix E for summary of requirements.

Appendix E for summary of requirements.

Appendix E for summary of requirements.Appendix E for summary of requirements.

Refer to

Refer toRefer to

Page 2

SYSTEMVINTRODUCTION

1.2 Additional Devices

1.2.1 Keypads

A maximum of eight keypads can be connected to the control panel and can be any combination of the following listed.

• PC5506 6 zone LED keypad with function keys

• LCD5500 LCD keypad with function keys

• PC1575RK 6 zone LED keypad

• SL-75 6 zone Slimline LED keypad

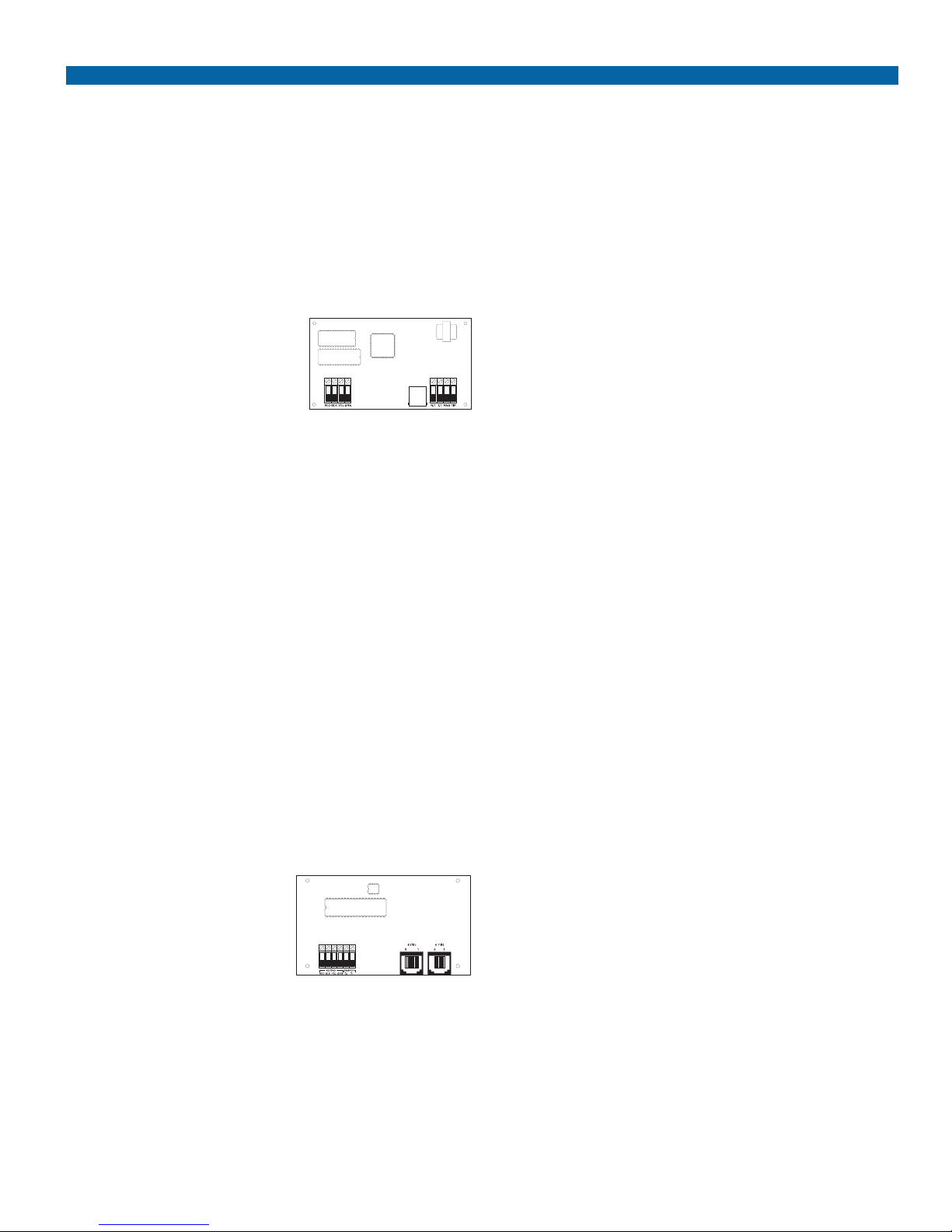

1.2.2 ESCORT5580 Module

There are many benefits to adding the ESCORT5580 module to a security system. The ESCORT5580 module will turn any touch tone phone in the world into a fully functional keypad. Imagine the security a customer would feel if they had the ability to arm, disarm and check status of their alarm system while at the office or on vacation.

All touch tone phones in the home also become system keypads. For example, at bedtime, the phone beside the bed can be used to arm the system. The addition of the ESCORT5580 may reduce the cost of the overall installation, eliminating the need for additional keypads and the labour of running wires.

The ESCORT5580 will also act as a tutor for the system. By using clear, easy to understand sentences, the voice module helps guide the user through functions they may otherwise find difficult to navigate. Programmable zone labels (up to 6 words each from our library of over 240 words) makes the system even easier to use.

The module also has a built-in power line control interface and can control up to 32 power line control devices for lighting and temperature control, giving you the power to add home automation in a very cost effective manner. Devices can be activated individually, as a group, by schedule or can be activated when an event occurs on the system, such as an alarm.

These are just a few of the applications available with the addition of the ESCORT5580 module. For more information, please refer to the ESCORT5580 Installation Manual.

1.2.3 PC5400 Printer Module

This module will give you the added advantage for the commercial customers who like the idea of a permanent record of openings and closing but are put off by the additional monthly monitoring charge. In addition, as reports are generated in real-time, the customer will not have to wait for a monthly report form the monitoring station.

The PC5400 Printer Module will allow the panel to print out all events that occur on the system to any serial printer. The printout will contain the time, date and the event that occurred

(see Section – 5.24 “On-site Printer”).(see Section – 5.24 “On-site Printer”).

(see Section – 5.24 “On-site Printer”).

(see Section – 5.24 “On-site Printer”).(see Section – 5.24 “On-site Printer”).

1.2.4 Downlook Video Transmission Module

The Downlook Still-Frame Video Transmission Module (DLM1/DLM-4) is the ideal solution for all business and residential environments which require visual surveillance but where the presence of on-site security personnel is impossible, undesirable or unaffordable.

Downlook is the smart and inexpensive way to add visual backup to your regular remote alarm signalling system, meeting your demand for tighter security on a tight budget. The added visual protection will reduce the incidence of false alarms as well as surveillance costs, thus improving overall security protection.

For more information regarding the Downlook Video Transmission Module, please consult the DLM-1/DLM-4 Installation Manuals.

1.2.5 LINKS 1000 Cellular Communicator

The LINKS 1000 Cellular Communicator provides an efficient, cost-effective method for adding cellular back up to the security system. The LINKS 1000 Cellular Communicator can be used three different ways: as the sole communicator for the panel, as a back up for either or both phone numbers or as a redundant back up to the land line communicator where the panel will call both the land line and via the LINKS. The unit comes in its own cabinet with antenna and requires

(see Section 5.23 (see Section 5.23

a separate battery and transformer

“LINKS 1000 Cellular Communicator”).“LINKS 1000 Cellular Communicator”).

“LINKS 1000 Cellular Communicator”).

“LINKS 1000 Cellular Communicator”).“LINKS 1000 Cellular Communicator”).

1.2.6 Cabinets

Several different cabinets are available for the PC1575 modules. They are as follows:

PC5003C Cabinet

Main control cabinet for the PC1575 main panel. Dimensions 288mm x 298mm x 78mm / 11.3” x 11.7” x 3” approximately.

PC5004C Cabinet

Cabinet to house the PC5580 ESCORT Module or the PC5400 Printer Module. Dimensions 229mm x 178mm x 65mm / 9” x 7” x 2.6” approximately.

(see Section 5.23

(see Section 5.23 (see Section 5.23

1.3 Out of the Box

Please verify that each of the following components is included in your system:

• one PC1575 main control cabinet

• one PC1575 main control circuit board

• one PC1575 keypad (LED keypad or LCD keypad)

• one Installation Manual including Programming

Worksheets

• one Instruction Manual for the end user

• one hardware pack consisting of:

- four plastic circuit board standoffs

- twelve 5600 Ω (5.6K) resistors

- one 2200 Ω (2.2K) resistors

- one 1000 Ω (1K) resistor

- EGND Assembly

- one cabinet door plug

Page 3

Getting Started

SECTION2

The following Sections provide a thorough description of how to wire and configure devices and zones.

2.1 Installation Steps

The following steps are provided to assist you with installing the panel. We suggest that you read this section completely before you begin. Once you have an overall understanding of the installation process, carefully work through each step. Working in this manner will reduce the number of problems as well as the amount of time required for a complete installation.

Step 1 Create a Layout

Draw a rough sketch of the building to get an idea of where all alarm detection devices, keypads and other modules are to be located.

Step 2 Mounting the Panel

Locate the panel in a dry area close to an unswitched AC power source and the incoming telephone line. Before attaching the cabinet to the wall, be sure to press the four circuit board mounting studs into the cabinet from the back. After you have attached the cabinet to the wall, stick the provided DSC logo sticker on the front of the cabinet.

You must complete all wiring before applying AC or connecting the battery to the panel

Step 3 Wiring the KEYBUS

Wire the KEYBUS to each of the modules following the guidelines provided in Section 2.3 of this manual.

Step 4 Zone Wiring

You must power down the control panel to complete all zone wiring. Please refer to Section 2.8 when connecting zones using normally closed loops, single EOL resistors, double EOL resistors, Fire zones and Keyswitch Arming zones.

Step 5 Complete Wiring

Complete all other wiring including bells or sirens, phone line connections, and ground connections following the guidelines provided in Section 2.2 (“Terminal Descriptions”).

Step 6 Power up the Control

Once all zone and KEYBUS wiring is complete, power up the control panel.

(Section 2.8)

(Section 2.3)

(Section 2.2)

The panel will not power up on the battery connection alone.

Step 7 Keypad Assignment

In order for keypads to be properly supervised, each must be assigned to a different slot. Please follow the guidelines provided in Section 2.5 when assigning keypads.

Step 8 Supervision

The supervision of every module by the panel is automatically enabled upon power up. Please verify that all modules appear on the system according to the instructions in Section 2.6.

Step 9 Programming the System

Section 4 explains how to program the panel. Section 5 contains a complete description of the various

(Section 2.6)

(Section 2.5)

(Sections 4 and 5)

programmable features, which options are available and how they function. The Programming Worksheets (pages 25-33) should be filled out completely before attempting to program the system.

Step 10 Testing the System

The panel must be thoroughly tested to ensure that all features and functions are operating as programmed.

2.2 Terminal Descriptions

AC Terminals – AC

The panel requires a 16.5 volt, 40 VA transformer. Connect the transformer to an unswitched AC source and connect the transformer to these terminals.

Do not connect the transformer until all other wiring is complete

Battery Connection

A 12V 4Ah rechargable gel-cell battery is used as a back up source of power in the event of an AC power failure. The battery also provides additional current when the panel’s demands exceed the power output of the transformer, such as when the panel is in alarm.

Do not connect the battery until all other wiring is complete

Connect the RED battery lead to the positive battery terminal; connect the BLACK lead to negative.

Auxiliary Power Terminals – AUX+ and AUX-

These terminals provide up to 500mA of additional current

DC for devices requiring power. Connect the positive

at 12 V side of any device requiring power to the AUX+ terminal, the negative side to AUX- (ground). The AUX output is protected. This means that if too much current is drawn from these terminals (such as a wiring short), the panel will temporarily shut off the output until the problem is corrected.

Bell Output Terminals – BELL+ and BELL-

These terminals provide up to 700 mA of continuous current at 12 V

DC for powering bells, sirens, strobes or other warning-

type equipment. Connect the positive side of any alarm warning device to BELL+, the negative side to BELL–. Please note that the Bell output is protected: if too much current is drawn from these terminals (such as a wiring short), the Bell fuse will open. Three Amps can be drawn for short periods only.

The Bell output is supervised. If no alarm warning devices are in use, connect a 1000Ω resistor across BELL+ and BELL– to prevent the panel from displaying a trouble condition. For more information, please refer to Section 3.4 (“[

✱] [2] Trouble Display”).

The bell is programmed by default to terminate after four minutes. The Bell Cutoff time can be adjusted in programming section [02] (“System Times”).

KEYBUS Terminals – AUX+, AUX-, YEL, GRN

The KEYBUS is used by the panel to communicate with modules and vice versa. Each module has four KEYBUS terminals that must be connected to the four KEYBUS terminals on the panel. For more information, see

2.3 (“KEYBUS Operation and Wiring”).2.3 (“KEYBUS Operation and Wiring”).

2.3 (“KEYBUS Operation and Wiring”).

2.3 (“KEYBUS Operation and Wiring”).2.3 (“KEYBUS Operation and Wiring”).

(Section 3.4)

(Section 2.3)

SectionSection

Section

SectionSection

Page 4

G E T T I N G S T A R T E D

PANEL

500’

150’

PANEL

500’

150’

Programmable Output Terminals – PGM1 and PGM2

Appendix D “PGM Output Options”Appendix D “PGM Output Options”

Please refer to output hookup and descriptions.

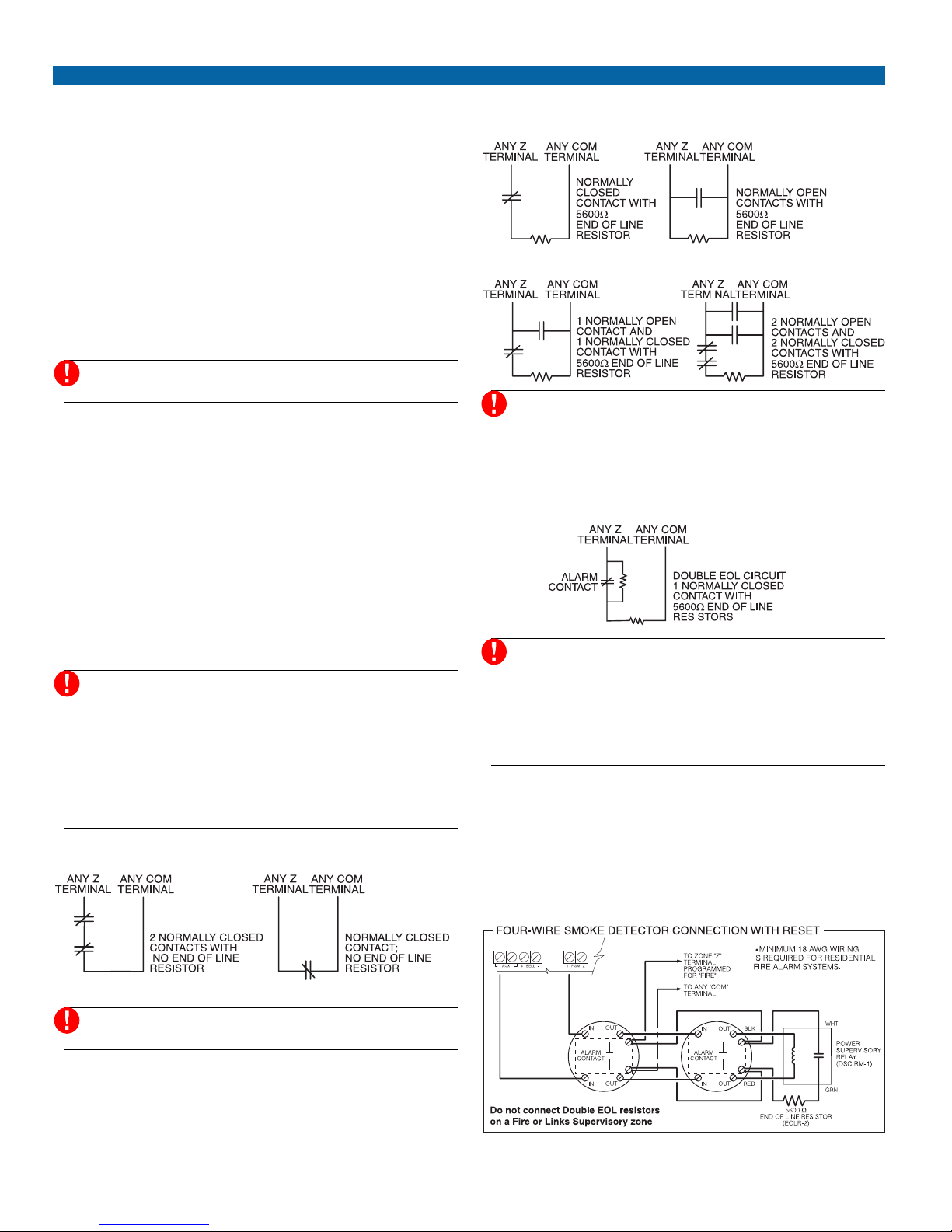

Zone Input Terminals – Z1 to Z6

Each detection device must be connected to a zone on the control panel. We suggest that one detection device be connected to each zone; wiring multiple detection devices to a single zone, however, is possible. For zone wiring specifics, please see

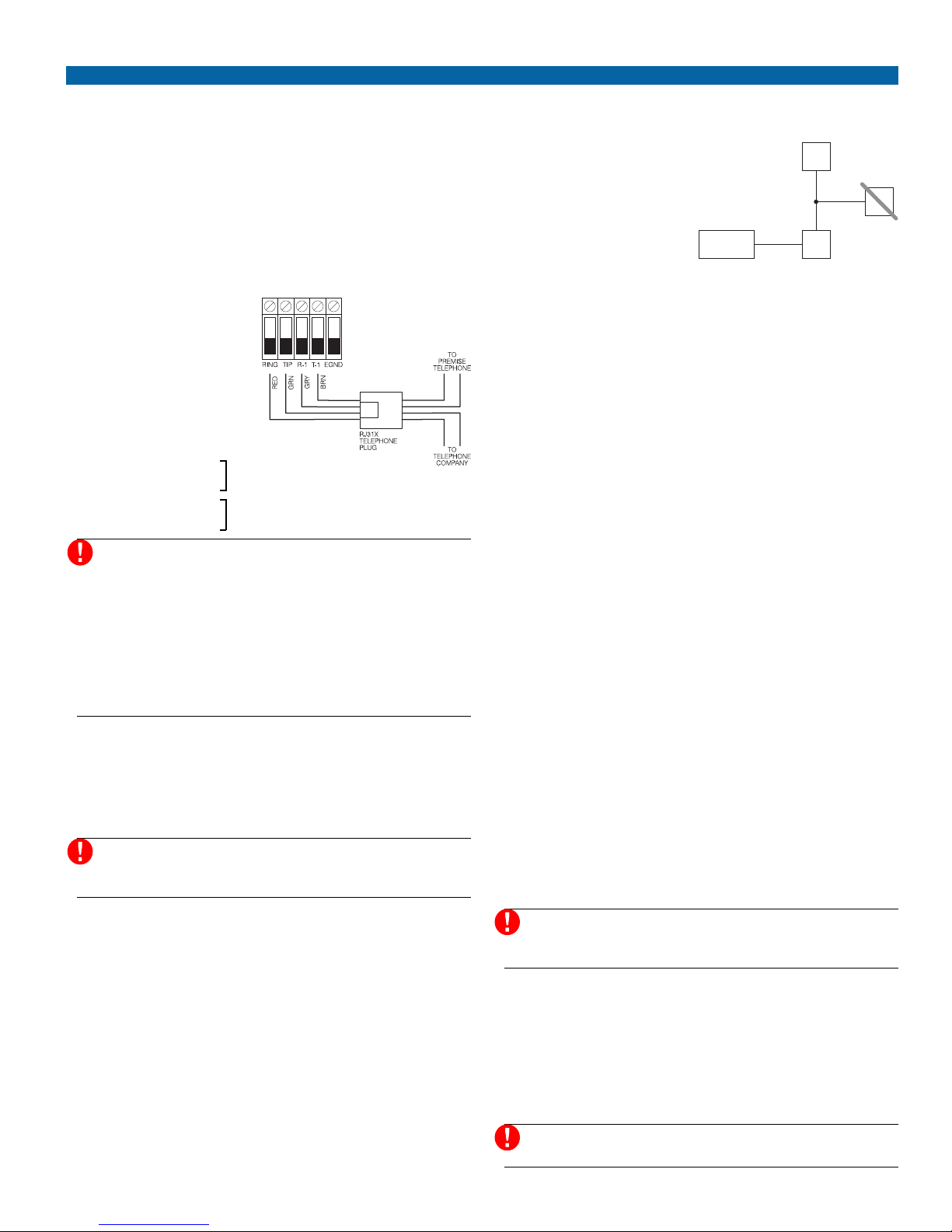

Telephone Connection Terminals – TIP, RING, T-1, R-1

If a telephone line is required for central station communication or downloading, connect an RJ-31X telephone jack in the following manner:

• TIP - Green Wire incoming line from

• RING - Red Wire telephone company

• T-1 - Grey Wire outgoing line to

• R-1 - Brown Wire house telephone(s)

Appendix D “PGM Output Options”

Appendix D “PGM Output Options”Appendix D “PGM Output Options”

Section 2.8 (“Zone Wiring”).Section 2.8 (“Zone Wiring”).

Section 2.8 (“Zone Wiring”).

Section 2.8 (“Zone Wiring”).Section 2.8 (“Zone Wiring”).

Please ensure that all plugs and jacks meet the dimension, tolerance and metallic plating requirements of 47 C.F .R. Part 68, SubP art F. For proper operation, no other telephone equipment should be connected between the control panel and the telephone company facilities. Do not connect the alarm panel communicator to telephone lines intended for use with a fax machine. These lines may incorporate a voice filter which disconnects the line if anything other than fax signals are detected, resulting in incomplete transmissions

2.3 KEYBUS Operation and Wiring

The KEYBUS is used by the panel to communicate with all connected modules and vice versa. The red (AUX+) and black (AUX-) terminals are used to provide power, while the yellow (YEL) and green (GRN) terminals are clock and data respectively.

The four KEYBUS terminals of the panel must be connected to the four KEYBUS terminals or wires of all modules.

The following restrictions apply to KEYBUS wiring:

• KEYBUS should be run in minimum 22 gauge quad (0.5mm); two pair twist is preferred.

• The modules should be home-run to the panel but can be connected in series or T-tapped.

• Any module can be connected anywhere along the KEYBUS. You do not need to run a separate KEYBUS wire for keypads, etc.

• No module can be more than 1,000'/300m (in wire length) from the panel.

• Shielded wire should not be used unless wires are run in an area that presents excessive RF noise or other such interference.

Example of KEYBUS Wiring. NOTE:

for

Module (A) is correctly wired within 1,000'/330m of wire from the panel.

Module (B) is correctly wired within 1,000'/330m of wire from the panel.

Module (C) is NOT wired correctly as it is further than 1,000'/330m from the panel, in wire distance.

2.4 Current Ratings – Modules and Accessories

In order for the PC1575 system to operate properly, the power output capabilities of the main control and the expansion devices must not be exceeded. Use the data presented below to ensure that no part of the system is overloaded and cannot function properly.

PC1575 (12 V

VAUX: 500mA. Includes one keypad. Subtract for each

BELL: 700 mA. Continuous Rating. 3.0 A. Short Term.

PC1575 Device Ratings (@ 12 V

• LCD5500 Keypad: 50 mA

• PC5400 Serial Module: 65 mA

• PC5506 Keypad: 45 mA

• PC1575RK Keypad: 50 mA

• DLM-4: 160 mA standby / 180 mA on-line

• Escort: 65mA standby / 130 mA on-line

Other Devices

Please read the manufacturer’s literature carefully to determine the maximum current requirements for each device—during activation or alarm—and include the proper values for loading calculations. Connected devices must not exceed system capabilities during any possible operational mode.

DC)

additional keypad, expansion module and accessory connected to VAUX or KEYBUS.

Available only with stand-by battery connected.

DC)

2.5 Keypad Assignment

There are eight available slots for keypads. LED keypads by default are always assigned to slot 1; the LCD5500 is always assigned to slot 8. Whereas the PC1575 LED keypad must always be assigned to slot 1, the PC5506 and LCD5500 keypads can each be assigned to a different slot (1 to 8). Keypad enrollment is required since the panel must know which slots are occupied in order to generate a fault when a supervisory is not present.

How to Assign Keypads

Each keypad must be assigned one at a time. After assigning all keypads, a supervisory reset should be performed.

To assign a keypad to a slot, enter the following:

1. Enter Installer Programming

2. Press [00] for Keypad Programming

3. Press [0] for Slot Assignment

4. Enter a two digit number (11-18) to specify which supervisory slot the keypad will occupy. Press the [#] key twice to exit programming. Continue this procedure at each keypad until they have all been assigned to the correct slot.

When using more than one LCD keypad, be sure that only one is assigned to slot number 8.

Page 5

G E T T I N G S T A R T E D

2.6 Supervision

By default, all modules are supervised upon installation. Supervision is enabled at all times so that the panel can indicate a trouble if a module is removed from the system.

A connected module which does not show as being present will appear as a trouble condition and the Trouble light on the keypad will turn ON. This condition may be due to one or more of the following reasons:

• the module is not connected to the KEYBUS

• there is a KEYBUS wiring problem

• the module is more than 1,000'/300m from the panel

• the module does not have enough power For more information regarding module supervision troubles, please refer to

Section 3.4 (“[Section 3.4 (“[

Section 3.4 (“[

Section 3.4 (“[Section 3.4 (“[

] [2] Trouble Conditions”).] [2] Trouble Conditions”).

✱✱

✱

] [2] Trouble Conditions”).

✱✱

] [2] Trouble Conditions”).] [2] Trouble Conditions”).

Modules will not be automatically supervised if connected while in installers mode.

2.7 Removing Modules

The panel must be instructed to no longer supervise a module being removed from the system. To remove the module, disconnect it from the KEYBUS and reset the supervision field by entering [92] in the installer’s programming. The panel will be reset to recognize and supervise all existing modules on the system.

2.8 Zone Wiring

For a complete description of the operation of all zone types, please refer to

There are several different ways in which zones may be wired, depending on which programming options have been selected. Please refer to the following diagrams to study each type of individually supervised zone wiring.

Any zone defined as Fire or 24 Hour Links Supervisory will automatically require a single End of Line (EOL) resistor regardless of which type of zone wiring supervision is selected Definitions”) a non-default setting—from DEOL to EOL or from NC to DEOL—may disable zones 1-6 while open or in trouble. To prevent this situation, the system should be powered down completely and powered up a gain.

2.8.1 Normally Closed (NC) Loops

Section 5.2 (“Zone Definitions”).Section 5.2 (“Zone Definitions”).

Section 5.2 (“Zone Definitions”).

Section 5.2 (“Zone Definitions”).Section 5.2 (“Zone Definitions”).

(See Section 5.2 “Zone

Reconfiguring the zone supervision from

2.8.2 Single End Of Line (EOL) Resistors (5600Ω)

This option should be selected if either Normally Closed (NC) or Normally Open (NO) detection devices or contacts are being used

2.8.3 Double End of Line (DEOL) Resistors

Double End of Line resistors allow the panel to determine if the zone is in alarm, tampered or faulted.

This option can only be selected if Normally Closed (NC) detection devices or contacts are being used (ie: Do not use DEOL resistors for Fire zones or LINKS Supervisory zones). Only one NC contact can be connected to each zone. Multiple detection devices or contacts on a single loop is not allowed

The following chart shows zone status under certain conditions:

• Loop Resistance ............................... Loop Status

• 0Ω (shorted wire, loop shorted) ....... Fault

• 5600Ω (contact closed).................... Secure

• Infinite (broken wire, loop open) ...... Tamper

• 11200Ω (contact open) .................... Violated

2.8.4 Fire Zone Wiring — 4-Wire Smoke Detectors

This option should only be selected if Normally Closed (NC) detection devices or contacts are being used

Page 6

G E T T I N G S T A R T E D

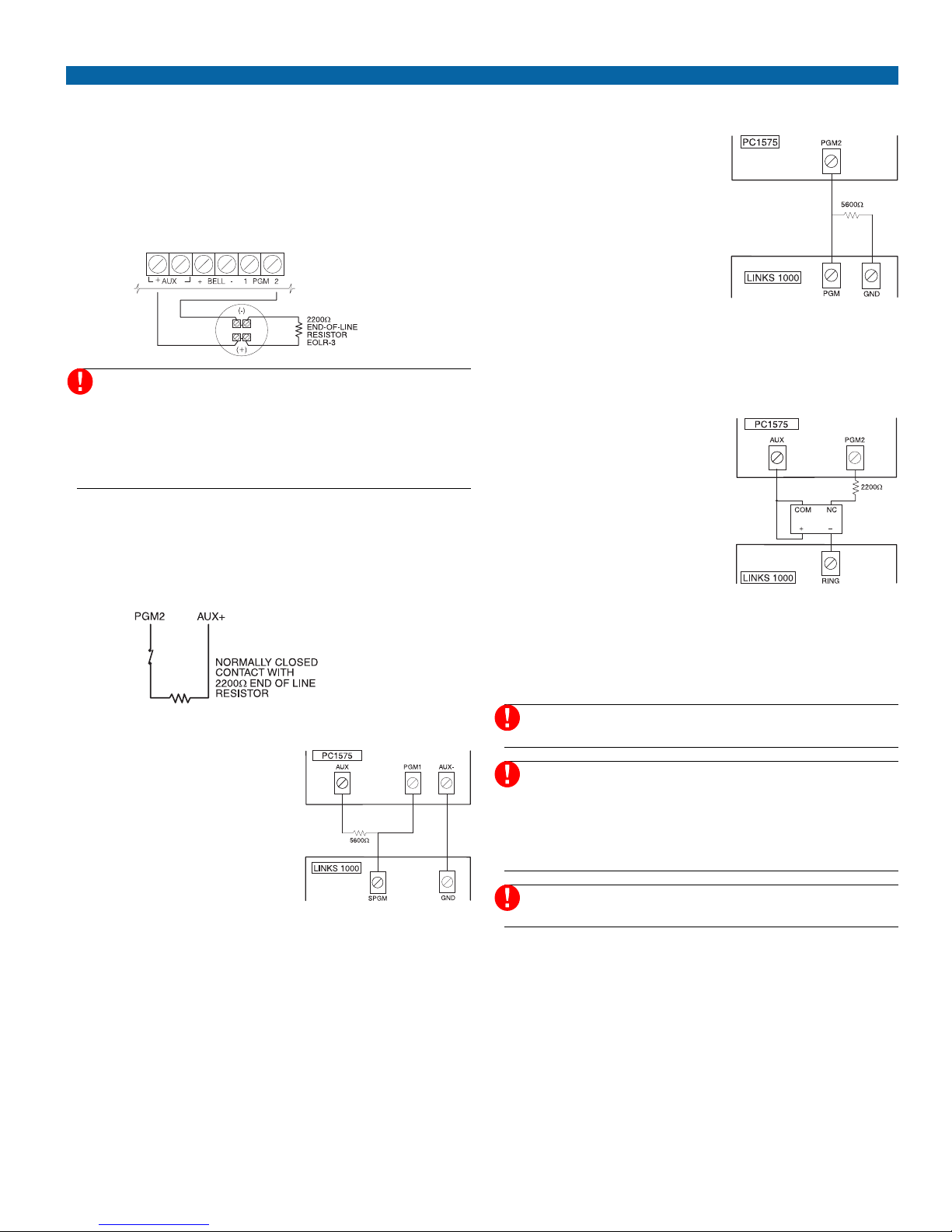

All fire zones must be wired according to the following diagram:

2.8.5 Fire Zone Wiring – 2-Wire Smoke Detectors

This option is for PC1575 (2-wire smoke option) only. If PGM2 has been programmed for a 2-wire Smoke Detector

connection following diagram:

the detectors must be wired according to the

2-wire smoke is only available for PC1575 with the 2wire smoke option because it has a 300mA PGM2.

Please refer to Appendix D “PGM Output Options” to

verify whether you have the correct output type. If a PC1575 (2-wire smoke option) 300mA PGM2 is programmed for 2-wire smoke support, the connector CON1 on the main board must be removed.

2.8.6 Keyswitch Zone Wiring (PGM2)

This option is available for either of either a PC1575 (standard option) or PC1575 (2-wire smoke option). If PGM2 has been programmed for keyswitch operation (momentary or maintained) or 24 hour operation, the keyswitches must be wired according to the following diagram:

2.8.7 LINKS Support

When using the LINKS 1000 cellular communicator, the connection must be made according to the accompanying diagram.

2.8.8 LINKS Supervisory

When using the LINKS 1000 cellular communicator, any zone may be configured for LINKS Supervisory.

With a LINKS Supervisory zone, if the LINKS 1000 experiences a trouble, the zone will be violated, causing the panel to report the event to the central station. This type of

always

zone EOL resistor (5600Ω).

The LINKS Supervisory zone must be wired according to the accompanying diagram.

2.8.9 LINKS Answer

When using the LINKS 1000 cellular communicator, PGM2 of either a PC1575 (standard option) or PC1575 (2-wire smoke option) may be configured for LINKS Answer

(see Appendix D).(see Appendix D).

(see Appendix D).

(see Appendix D).(see Appendix D).

A PGM configured for LINKS Answer allows downloading to be performed in the event of phone line failure. When the LINKS receives a phone call, it will activate the RING terminal on the LINKS circuit board. The PGM programmed as LINKS Answer (2200Ω).

The LINKS Answer zone must be wired according to the accompanying diagram.

requires a single

always

requires a single EOL resistor

The LINKS Answer zone is only required for downloading to the panel via the LINKS.

If PGM2 is programmed for LINKS Answer, Jumper CON1 on the main board of a PC1575 (2-wire smoke option) must be removed. If your PC1575 is the standard option, then connector CON1 is already removed (please see Appendix D “PGM Output

Options” for more information).

When using the LINKS, Busy Tone Detection must not be used.

Page 7

Keypad Commands

SECTION3

The PC1575 alarm panel can be accessed, controlled and completely programmed via any keypad on the system. The LED keypad uses function and zone indicator lights to represent alarm functions and status. The LCD keypad provides a written description on the liquid crystal display and uses function indicator lights to communicate alarm status to the user.

The following sections describe how to arm and disarm the system from each type of keypad, and how to perform other keypad functions.

3.1 Arming and Disarming

The system cannot be armed unless the Ready light is ON. In order for the system to be in the Ready state, all protected doors and windows must be secured and all movement in areas covered by motion detectors must cease. When the Ready light is ON, enter any valid access code. As each digit is pressed, the keypad will beep. If the correct code is entered when the system is not in the Ready state, the panel will sound six quick beeps followed by a long two second beep.

If an incorrect code is entered, the keypad will emit a steady two second beep to indicate the invalid access code. When the correct code is entered and the system is Ready, the panel will emit six short beeps and the Armed light will turn ON. Exit the premises through the designated entry/exit door. For other methods of arming,

✱✱

3.4 (“[3.4 (“[

3.4 (“[

3.4 (“[3.4 (“[ Delay”) Delay”)

Delay”)

Delay”) Delay”)

In an attempt to prevent false alarms, the Audible Exit Fault is designed to notify the user of an improper exit when they arm their system. If a non force-arming Delay 1 or Delay 2 type zone is left open at the end of the exit delay, the entry delay will begin immediately and the bell or siren will sound a steady alarm for the entry delay period. At the end of the entry delay period, if the system has not been disarmed it will go into alarm.

When you enter the premises through a designated entry/ exit door while the system is armed, the keypad will emit a steady beep to remind you to disarm the system. Enter a valid access code from any keypad to disarm the system. If an error is made, press the [#] key and enter the code again. When a correct code is entered, the Armed light will turn OFF and the keypad will stop beeping. During the last 10 seconds of entry delay, the panel will pulse the keypad beeper ON and OFF rapidly to warn you that the entry delay is about to expire.

If an alarm occurred while the panel was armed, the Memory light and the zone indicator lights corresponding to the zones which caused the alarm will be flashing. Press the [#] key to return the keypad to the Ready state.

] [0] Quick Exit” and “[] [0] Quick Exit” and “[

✱

] [0] Quick Exit” and “[

✱✱

] [0] Quick Exit” and “[] [0] Quick Exit” and “[

section 3.5 (“Function Keys”).section 3.5 (“Function Keys”).

and

section 3.5 (“Function Keys”).

section 3.5 (“Function Keys”).section 3.5 (“Function Keys”).

please refer to sectionplease refer to section

please refer to section

please refer to sectionplease refer to section

✱✱

] [9] Arming Without Entry] [9] Arming Without Entry

✱

] [9] Arming Without Entry

✱✱

] [9] Arming Without Entry] [9] Arming Without Entry

3.2 Auto Bypass – Stay Arming

Stay arming allows the user to arm the system without leaving the premises. All interior zones can be programmed to be bypassed during Stay arming so that the user does not have to bypass interior zones manually.

When the system is armed using a valid user code, if any zones on the system have been programmed as Stay/Away zones, the Bypass light will turn ON. The panel will then monitor all zones programmed as Delay 1 and Delay 2

zones, such as designated entry/exit doors. If no delay type zone is violated by the end of the exit delay, the panel will bypass all Stay/Away type zones. The Bypass light will remain ON to inform the user that the interior protection has been automatically bypassed by the panel. If a delay zone is violated during the exit delay, the Stay/Away zones will be active after the exit delay expires.

The user can add the Stay/Away zones back into the system at any time by entering the [✱]

✱✱

section 3.4 “[section 3.4 “[

section 3.4 “[

section 3.4 “[section 3.4 “[

Stay arming can also be initiated by pressing and holding the Stay function key for two seconds on the PC5506 and LCD5500 keypads, if programmed by the installer. For more information regarding Stay arming, please see section 3.5 (“Function Keys”).

] [1] Zone Bypass”).] [1] Zone Bypass”).

✱

] [1] Zone Bypass”).

✱✱

] [1] Zone Bypass”).] [1] Zone Bypass”).

[1] keypad command

3.3 Automatic Arming

The system can be programmed to Auto-Arm at a specific time every day if it is in the disarmed condition.

In order for the Auto-Arm function to work properly, the correct Time of Day must be programmed. For programming the clock and Auto-Arm times, see Section 3.4 (“[✱] Functions”).

When the system’s internal clock matches the Auto-Arm Time, the panel will check the system status. If the system is armed, the panel will do nothing until the next day at the Auto- Arm Time, when it will check the system again. If disarmed, the panel will sound the buzzer of all keypads for one minute. If a valid User Code is entered, Auto-Arming will be aborted.

If no code is entered, the panel will Auto-Arm. If a zone is violated, the panel will transmit a Partial Closing Reporting Code – if programmed – to indicate to the central station that the system is not secure. If the zone is restored, the panel will add the zone back into the system

“Communicator – Reporting Codes”).“Communicator – Reporting Codes”).

“Communicator – Reporting Codes”).

“Communicator – Reporting Codes”).“Communicator – Reporting Codes”).

(see Section 5.7 (see Section 5.7

(see Section 5.7

(see Section 5.7 (see Section 5.7

3.4 [✱] Commands

The [✱] key commands provide an easy way for the user to access basic system programming – such as entering user codes or bypassing zones. The user can also use the [✱] key commands to check on the system’s status, including viewing trouble conditions and displaying the event buffer on the LCD keypad.

The [✱] and LED keypads. The LED keypad uses the zone indicator lights to display command information. The LCD display provides written information, guiding the user through each command. The commands in this section are explained as viewed from an LED keypad. When using an LCD keypad, use the arrow keys (< >) to scroll through information provided. Otherwise, the functions remain the same for both keypad types.

[✱] [1] Bypassing and Reactivating Stay/Away Zones

The [✱] [1] keypad command can be used to bypass individual zones. A bypassed zone will not cause an alarm. The user can bypass zones to gain access to an area while arming the rest of the system or to override a defective

key commands can be performed from both LCD

(see (see

(see

(see (see

[6] User

Page 8

KEYPADVCOMMANDS

zone—due to a bad contact or damaged wiring—until service can be provided.

If the Code Required for Bypass option is enabled, only user codes with the bypass attribute will be able to bypass zones (see Section 5.1 “Programming Security Codes”).

If the Bypass Status Displayed While Armed option is chosen, the Bypass light will be ON while the system is

(see Section 5.15(see Section 5.15

armed to indicate any bypassed zones

“Arming / Disarming Options”).“Arming / Disarming Options”).

“Arming / Disarming Options”).

“Arming / Disarming Options”).“Arming / Disarming Options”).

(see Section 5.15

(see Section 5.15(see Section 5.15

Zones can only be bypassed when the system is disarmed.

To bypass a zone:

1.Enter [✱]

2. The keypad will flash the Bypass light. The zone indicator lights corresponding to any zones already bypassed will turn ON.

3. Enter the number corresponding to the zone you wish to bypass. The corresponding zone indicator light will turn ON.

4. Press [#] to exit the function. All zones whose indicator lights are ON when the [#] key is pressed will be bypassed. The Bypass light will turn ON, indicating that one or more zones are bypassed.

To reactivate a bypassed zone:

1.Enter [✱]

2. The keypad will flash the Bypass light. The zone indicator lights corresponding to any zones already bypassed will turn ON.

3. Enter the number corresponding to the bypassed zone you wish to reactivate. The corresponding zone indicator light will turn OFF.

4. Press [#] to exit the function. All zones whose indicator lights are ON when the [#] key is pressed will be bypassed. If no zone indicator lights were ON, the Bypass light will be OFF and no zones will be bypassed.

[1] (and an access code, if required).

[1] (and an access code if required).

When the system is disarmed, all manually-bypassed zones will be unbypassed.

Reactivate Interior

If the system is armed in the Stay mode can be used to reactivate the Stay/Away zones.

✱✱

[

✱

] [1] Reactivate Stay/Away cannot be used with an

✱✱

the [✱] [1] command

alarm in memory.

Please ensure all force-armed zones are restored before reactivating the Stay/Away zones (See

Section 5.3 “Zone Attributes”).

[✱] [2] Trouble Display

The panel constantly monitors itself for several different trouble conditions. If a trouble condition is present, the Trouble light will be ON and the keypad will beep twice every 10 seconds. The trouble beep can be silenced by pressing any key on any keypad.

To view trouble conditions from an LED keypad:

1.Press [✱]

2. The keypad will flash the Trouble light. The zone indicator lights corresponding to the present trouble conditions will be ON.

When using an LCD keypad, the trouble conditions will be listed on the display; the user must simply use the arrow (< >) keys to scroll through the list of present trouble conditions.

The various troubles are described below:

Trouble [1] – Service Required

If zone indicator light [1] is ON, a “service required” trouble is present. Press [1] to determine the specific trouble. The following is a list of “service required” trouble conditions:

• Light [1] – Low Battery The main panel backup battery is low. The trouble will be generated if the battery drops below 11.5 volts under load and will be restored when the battery charges over 12.5 volts.

• Light [2] – Bell Circuit Trouble The panel will indicate this trouble if the Bell fuse is blown or if the panel senses an open condition on the bell circuit

• Light [3] – General System Trouble This trouble will be present if the printer connected to the PC5400 Printer module has a fault and is off-line, or if the ESCORT module does not detect the Power Line Interface Module.

• Light [4] – General System Tamper This trouble will be indicated if any peripheral module tamper is detected.

• Light [5] – General System Supervisory This trouble will be indicated if the panel loses communication with any module connected to the KEYBUS buffer will log a detailed description of the event.

Trouble [2] – AC Failure

This trouble indicates that AC power is no longer being supplied to the control unit. The reporting codes in sections [43] and [44] can be programmed to communicate a power failure to the monitoring station. To avoid reporting short power failures, an AC Failure Communication Delay from 000-255 minutes can be programmed in section [62].

Trouble [3] – Communication Troubles

There are two types of telephone line trouble conditions. Press [3] to display which type of trouble is present:

• [1] – Telephone Line Monitoring Trouble (TLM) The telephone connection to the control unit is monitored every 10 seconds. If the voltage drops below one to three volts for the number of consecutive checks programmed in section [62], a telephone line trouble is generated. If the system has a LINKS 1000, this trouble can be reported to a monitoring station by programming reporting codes in sections [43] and [44].

• [2] – Failure to Communicate (FTC) This trouble will be generated if the communicator fails to communicate with any of the programmed telephone numbers. If a later attempt is successful, the FTC

[2].

(see Section 5.12 “Siren Supervision”).(see Section 5.12 “Siren Supervision”).

(see Section 5.12 “Siren Supervision”).

(see Section 5.12 “Siren Supervision”).(see Section 5.12 “Siren Supervision”).

(see Section 2. (see Section 2.

(see Section 2.

(see Section 2. (see Section 2.

“Supervision”). “Supervision”).

“Supervision”).

“Supervision”). “Supervision”).

The event

Page 9

KEYPADVCOMMANDS

reporting code(s) programmed in section [45] will be transmitted along with the unreported events from an earlier unsuccessful communication.

Trouble [4] – Zone Fault (including Fire Zone)

This trouble will be generated if any zone on the system is experiencing trouble, meaning that a zone could not provide an alarm to the panel if required to do so. When a zone fault trouble condition occurs, the keypad(s) on the system will start to beep.

Press [4] while in Trouble mode to view the affected zones. If 2-wire smoke detectors are being used, a trouble on that zone will be indicated by the “Fire” LED.

A Fire zone trouble will be generated and displayed in the armed state. A Fire zone trouble will also restart the trouble beeps from all keypads.

Trouble [5] – Zone Tamper

This trouble is only generated by zones configured for Double End Of Line resistor supervision when a tamper condition is present. When a tamper condition occurs, the keypad(s) will start to beep. Press [5] while in the Trouble mode to view the affected zones.

Trouble [6] – Loss of System Time

This trouble occurs when the control unit is powered up and the internal clock has not been set. Setting the time with User Function [

✱][6][Master Code][1] will clear this trouble.

[✱] [3] Alarm Memory

The ‘Memory’ light will be on if any alarm occurred during the last armed period or – in the case of 24 hour zones – if an alarm occurred while the panel was disarmed.

To view alarm memory:

Press [✱]

[3]. The keypad will flash the Memory light and the zone indicator lights corresponding to the alarm or tamper conditions which occurred during or since the last armed period. To clear the Memory light, arm and disarm the system.

[✱] [4] Door Chime On/Off

The door chime feature is used to sound a tone from the keypad whenever a zone programmed as a chime zone is activated (see Section 5.3 – “Zone Attributes”). If the door chime feature is enabled, the keypad will emit five short beeps whenever a chime zone is activated. Designated entry/exit doors are often defined as chime zones; when the feature is enabled, the keypads will sound when an entry/exit door is opened.

To turn Door Chime ON or OFF:

1. Press [✱] [4].

2. The keypad will emit three short beeps if the Door

Chime feature is enabled and one long beep when disabled.

The function can also be peformed by pressing and holding the Chime function key for two seconds on any PC5506 or LCD5500 keypad.

[✱] [5] Programming Access Codes

There are 6 access codes available to the user. They are as follows:

Access code (1) ............................ One Master Code

Access codes (2) to (6)................. Five User Codes

All access codes have the ability to arm or disarm the system and can activate the PGM Outputs using the [✱] [7] [1] [Access Code] and [✱] [7] [2] commands.

Master Code – Access Code (1)

By default, the Master Code is enabled to perform any keypad function. This code can be used to program all User Codes. If the Master Code Not Changeable option is enabled, the Master Code can only be changed by the Installer.

User Codes – Access Codes (2) to (6)

User codes can arm and disarm the system. By selecting the No Code Required for Bypassing option, each user can also have the ability to bypass zones without entering an access code.

Duress Code – Access Code (6)

If the Sixth Code is Duress Code option is enabled, the sixth code can be programmed by the user as a Duress Code which will send a Duress reporting code to the central station when entered.

For more information regarding access code options, please see Section 5.1 – “Programming Security Codes.”

How to program User Codes:

1.Enter [✱]

[5] [Master Code]. The keypad will flash the Program light. The zone indicator lights corresponding to access codes already programmed will turn ON.

2. Enter the number corresponding to the code you wish to program. The corresponding zone light will flash.

3.Enter a 4 digit code. The zone light will turn ON.

4.Continue from step 2 until all codes are programmed. Once the process is complete, press the [#] key to return to the Ready state.

Do not press [✱] or [#] when programming the 4 digit code.

How to erase an Access Code:

✱]

Enter [

[5] [Master Code], select the code to be

erased and press [✱].

[✱] [6] User Functions

This keypad command can be used to program several different functions. The programmable items are listed and described below.

To program User Functions:

✱]

1.Press [

[6] [Master Code]. The Program light will

flash.

2.Press the number [0] to [9] for the item to be programmed.

• [1] – Time and Date

The time and date must be accurate for the Auto-Arm or Test Transmission functions to work properly and for the event buffer to time and date stamp all events.

- Enter the time (hour and minute) using military format [HH MM] from 00:00 to 23:59.

- Enter the date by month, day and year [MM DD YY].

Page 10

KEYPADVCOMMANDS

• [2] – Auto-Arm Enable/Disable

Auto-Arming will not work unless it is enabled for the system. To enable or disable auto-arming, press [2]. The keypad will emit three short beeps if the Auto-Arm feature is enabled and one long beep when disabled. For more information, see Section 3.3 – “Auto-Arming”.

• [3] – Auto-Arm Time

The system can be programmed to Auto-Arm at a certain time. When programming the auto-arming time, enter the time (hour and minute) using military format [HH MM]. For more information, see Section 3.3 – “Auto-Arming”.

• [4] – System Test

When [4] is pressed the panel will test the bell output, keypad lights and the communicator for two seconds. The panel will also send a System Test Reporting

(see Section 5.7 – “Communi-(see Section 5.7 – “Communi-

code, if programmed

cator – Reporcator – Repor

cator – Repor

cator – Reporcator – Repor

• [5] – Enable DLS (Downloading)

When [5] is pressed, the panel will enable the downloading option for one hour. During this time, the panel will answer incoming downloading calls

5.9 “Downloading”).5.9 “Downloading”).

5.9 “Downloading”).

5.9 “Downloading”).5.9 “Downloading”).

• [6] – User Initiated Call-Up

When [6] is pressed, the panel will initiate call-out to the downloading computer.

• [7] and [9] – Last Code to Disarm and Arm

Pressing [7] will display the last code to disarm the system and then pressing [9] will display the last code to arm the system.

• [0] – Walk Test Enable / Disable

The Installer Walk Test can be used to verify that each zone of the panel is functioning properly. Any zone violated during a walk test will cause the panel to activate the Bell Output for two seconds, log the event to the Event Buffer and communicate the alarm to central station.

Additional Features using the LCD Keypad

Additional features, including access to the Event Buffer, are available using the LCD keypad. Use the arrow keys (< >) to scroll through the [✱] [6] menu and press the [✱] key to select the following commands:

Viewing the Event Buffer from an LCD Keypad

Select “View Event Buffer” from the [ keypad will display the event, event number, time and date along with the zone number and user code, if applicable. Press [✱] to toggle between this information and the event itself. Use the arrow keys (<>) to scroll through the events in the buffer. When you have finished viewing the Event Buffer, press the [#] key to exit.

Brightness Control

The LCD keypad will allow you to select from 10 different backlighting levels. Use the arrow keys (< >) to scroll to the desired backlighting level and press the [#] key to exit.

Contrast Control

The LCD keypad will allow you to select from 10 different display contrast levels. Use the arrow keys (< >) to scroll to the desired contrast level and press the [#] key to exit.

(see Section 5.7 – “Communi-

(see Section 5.7 – “Communi-(see Section 5.7 – “Communi-

ting Codes”).ting Codes”).

ting Codes”).

ting Codes”).ting Codes”).

✱] [6] menu. The

(see Section(see Section

(see Section

(see Section(see Section

Keypad Beeper Control

The LCD keypad will allow you to select from 21 different keypad beeper tones. Use the arrow keys (< >) to scroll to the desired keypad beeper level and press the [#] key to exit. This featured can be accessed on LED keypads by

✱]

holding the [

key.

[✱] [7] Output Functions

There are two output functions available to the user: Utility Output and Sensor Reset.

To activate Utility Output:

Press [✱] [7] [1] [Access Code]. The panel will activate all PGM Outputs programmed as utility outputs for five seconds

(see Appendix D – “PGM Output Options”).(see Appendix D – “PGM Output Options”).

(see Appendix D – “PGM Output Options”).

(see Appendix D – “PGM Output Options”).(see Appendix D – “PGM Output Options”).

To activate Sensor Reset:

Press [✱] [7] [2]. The panel will activate all PGM Outputs programmed as Sensor Reset for five seconds. This command will also reset 2-wire smoke detectors connected to PGM2 if programmed to do so

Output Options”). Output Options”).

Output Options”).

Output Options”). Output Options”).

This function can also be performed by pressing and holding the Reset function key for two seconds on any PC5506 or LCD5500 keypad.

(see Appendix D – “PGM (see Appendix D – “PGM

(see Appendix D – “PGM

(see Appendix D – “PGM (see Appendix D – “PGM

[✱] [8] Installer’s Programming

Enter [✱] [8] followed by the Installer’s Code to enter this function. Installer’s Programming is outlined in detail in Sections 4 and 5 of this manual.

[✱] [9] Arming Without Entry Delay

When the system is armed with the [✱] [9] command, the panel will cancel the entry delay. Once the exit delay has expired, Delay 1 and Delay 2 type zones will be instant and Stay/ Away zones will be bypassed

“Zone Definitions”)“Zone Definitions”)

“Zone Definitions”)

“Zone Definitions”)“Zone Definitions”)

after pressing [✱] [9].

. A valid access code must be entered

(see Section 5.2 – (see Section 5.2 –

(see Section 5.2 –

(see Section 5.2 – (see Section 5.2 –

[✱] [0] Quick Arm

If the Quick Arm option is enabled, the panel can be armed without a user code by entering [✱] [0] (See Section 5.15 “Arming / Disarming Options”).

Quick Arm cannot be used to cancel auto arm.

Quick Exit

The Quick Exit function, if enabled, will allow someone to leave an armed premises through a Delay type zone without having to disarm and rearm the system

“Arming / Disarming Options”).“Arming / Disarming Options”).

“Arming / Disarming Options”).

“Arming / Disarming Options”).“Arming / Disarming Options”).

When [✱] [0] is entered, the panel will provide a two minute window for the user to exit the premises. During this time, the panel will ignore the Delay zone is secured, the panel will end the two minute quick exit delay.

If a second Delay zone is tripped, or if the zone is not restored after two minutes, the panel will begin the entry delay.

only one

activation of a Delay zone. When

(See Section 5.15(See Section 5.15

(See Section 5.15

(See Section 5.15(See Section 5.15

If the Exit Delay is in progress, performing a Quick Exit will not extend the Exit Delay.

Page 11

KEYPADVCOMMANDS

✱✱

[05] – [

✱]

[9] No-Entry Delay Arm

3.5 Function Keys

The function keys only appear on the PC5506 and LCD5500 keypads

There are five function keys on the PC5506 and LCD5500 keypads located to the right of the number pad labelled Stay, Away, Chime, Reset and Exit. Each of these keys is programmed by default to perform one of the functions described below. A function is activated by pressing and holding the appropriate key for two seconds.

“Stay” – Stay Arm

Pressing this key will arm the system in the Stay mode, meaning that all Stay/Away type zones will be automatically bypassed. Delay type zones will provide entry and exit delay. The Quick Arm feature must be enabled in order for this key to function (programming section [10], option [6]).

“Away” – Away Arm

Pressing this key will arm the system in the Away mode. All Stay/Away type zones and all other non-bypassed zones will be active at the end of the exit delay. Delay type zones will provide entry and exit delay. The Quick Arm feature must be enabled in order for this key to function.

“Chime” – Door Chime On / Off

Pressing this key will toggle the Door Chime feature ON or OFF. One solid beep means that the feature has been disabled and three short beeps means that it has been enabled

Section 3.4 – “[Section 3.4 – “[

Section 3.4 – “[

Section 3.4 – “[Section 3.4 – “[

“Reset” – Reset Smoke Detectors

Pressing this key will cause the panel to activate for five seconds all PGM outputs programmed as Sensor Reset. In addition, 2-wire smoke detectors connected to PGM2 will also be reset (See Section 3.4 – “[

“Exit” – Activate Quick Exit

Pressing this key will cause the panel to activate the Quick Exit feature (See Section 3.4 – “[✱] [0] Quick Exit”).

3.5.1 Function Key Options

The following is a list of Function Key options available. Each option is listed according to their programming code, followed by their corresponding [✱] key command. For more information regarding each function, please refer to the appropriate segment in section 3.4 (“[✱] Commands”)

[00] – Null Key

The key is not used and will perform no function when pressed.

[01]-[02]– Not Used [03] – Stay Arm

Same as described in Function Keys – Section 3.5.

] [4] Door Chime”).] [4] Door Chime”).

✱✱

✱

] [4] Door Chime”).

✱✱

] [4] Door Chime”).] [4] Door Chime”).

✱] [7][2] Output Functions”).

(see (see

(see

(see (see

✱✱

Once this function key is pressed the user must enter a valid user code. The system will arm and remove the entry delay

(see Section(see Section

from the system when the exit delay expires

3.4 – “[3.4 – “[

3.4 – “[

3.4 – “[3.4 – “[

[06] – [

] [9] Arming Without Entry Delay”). ] [9] Arming Without Entry Delay”).

✱✱

✱

] [9] Arming Without Entry Delay”).

✱✱

] [9] Arming Without Entry Delay”). ] [9] Arming Without Entry Delay”).

✱✱

✱]

[4] Door Chime On / Off

✱✱

(see Section

(see Section(see Section

Same as described in Function Keys – Section 3.5.

✱✱

[07] – [

✱]

[6] [----] [4] System Test

✱✱

This function key provides the user with a simple method for testing the system.

✱✱

[08] – [

✱]

[1] Bypass Mode

✱✱

This function key provides the user with a simple method for entering the Bypass Mode. If a user code is required, it must be entered before zone bypassing can be performed.

✱✱

[09] – [

✱]

[2] Trouble Display

✱✱

This function key provides the user with a simple method for entering the Trouble Display Mode.

✱✱

[10] – [

✱]

[3] Alarm Memory

✱✱

This function key provides the user with a simple method for entering the Alarm Memory Display Mode.

✱✱

[11] – [

✱]

[5] Programming Access Codes

✱✱

This function key provides the user with a simple method for programming user codes. Once this key is pressed, a valid master code must be entered before the panel will allow programming to be performed.

✱✱

[12] – [

✱]

[6] User Functions

✱✱

This function key provides the user with a simple method for programming user functions. Once this key is pressed, the Master code must be entered before the panel will allow user functions to be performed.

✱✱

✱]

[13] – [

[7] [1] Utility Output

✱✱

This function key provides the user with a simple method for

(see (see

activating a PGM Output programmed as utility output

Appendix D – “PGM Output OptionsAppendix D – “PGM Output Options

Appendix D – “PGM Output Options

Appendix D – “PGM Output OptionsAppendix D – “PGM Output Options

”).”).

”).

Once this key is

”).”).

(see

(see (see

pressed, a valid user code must be entered.

✱✱

[14] – [

✱]

[7] [2] Sensor Reset

✱✱

Same as described in Function Keys – Section 3.5.

[15] – Not Used

✱✱

[16] – [

✱]

[0] Quick Exit

✱✱

Same as described in Function Keys – Section 3.5.

✱✱

[17] – [

✱]

[1] Reactivate Stay/Away Zones

✱✱

This function key provides the user with a simple method for adding Stay/Away zones back into the system at night-time

(see Section 3.4 – “[(see Section 3.4 – “[

(see Section 3.4 – “[

(see Section 3.4 – “[(see Section 3.4 – “[ Stay/Away Zones”).Stay/Away Zones”).

Stay/Away Zones”).

Stay/Away Zones”).Stay/Away Zones”).

] [1] Bypassing and Reactivating] [1] Bypassing and Reactivating

✱✱

✱

] [1] Bypassing and Reactivating

✱✱

] [1] Bypassing and Reactivating] [1] Bypassing and Reactivating

[04] – Away Arm

Same as described in Function Keys – Section 3.5.

Page 12

How to Program

SECTION4

The following section of the manual describes the Installer’s Programming function and how to program the various sections.

You must read the following section of the manual very carefully before you begin programming. We also recommend filling out the Programming Worksheets section before you program the panel.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

For your reference, the corresponding programming sections for the functions listed are highlighted in text boxes such as this one.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

4.1 Installer’s Programming

Installer’s Programming is used to program all communicator and panel options. The Installer’s Code is [1575] by default but may be changed to prevent unauthorized access to programming.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Installer Code.................................................... Section [03]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

From an LED Keypad: Step 1 Enter [

Step 2 Enter the two digit Section number corresponding

Step 3 Enter the information required to complete

If the two digit Section numbered entered is invalid, or if the module which pertains to the section is not present, the keypad will sound a two second error tone.

From an LCD Keypad:

Step 1 From any keypad, enter [

Step 2 Enter the two digit number corresponding to

Step 3 Enter the information required to complete

If you enter information into a section and make a mistake, press the [#] key to exit the section. Select that section again and re-enter the information correctly.

✱] [8] [Installer’s Code].

• The Program light (if present) will flash to indicate that you are in programming mode.

• The Armed light will turn ON to indicate that the panel is waiting for the two digit programming section number.

to the section you wish to program.

• The Armed light will turn OFF.

• The Ready light will turn ON to indicate that the panel is waiting for the information required to complete programming the selected section.

section programming (ie: numbers, HEX data, or ON/OFF options).

✱] [8] [Installer’s

Code]. The Keypad will display ‘Enter Section’ followed by two dashes.

the programming section number you wish to program. The keypad will now display the information required to complete programming the selected section.

section programming (ie: numbers, HEX data, or ON/OFF options).

4.2 Programming Decimal Data

A set number of programming boxes are allotted for each section requiring decimal data (e.g.: codes, telephone numbers). If a digit is entered for each program box, the panel will automatically exit from the selected programming section. The Ready light will turn OFF and the Armed light will turn ON.

You can also press the [#] key to exit a programming section without entering data for every box. This is handy if you only need to change digits in the first few programming boxes. All other digits in the programming section will remain unchanged.

4.3 Programming HEX Data

On occasion, hexadecimal (HEX) digits may be required. To program a HEX digit press the [✱] key. The panel will enter HEX programming and Ready light will begin to flash.

The following are the numbers which should be pressed to enter the appropriate HEX digit:

1 = A 2 = B 3 = C 4 = D 5 = E 6 = F

Once the correct HEX digit has been entered, the Ready light will continue to flash. If another HEX digit is required, press the corresponding number. If a decimal digit is required, press the [

✱] key again. The Ready light will turn

ON and the panel will return to regular decimal programming.

Example:

To enter ‘C1’ for a closing by user 1, you would enter

✱] [3] [✱] , [1]

[

[✱] to enter Hexadecimal mode (Ready light flashes) [3] to enter C [✱] to return to decimal mode (Ready light is solid) [1] to enter digit 1

If Ready light is flashing, any number you enter will be programmed as the HEX equivalent.

If you are using a pulse format, a decimal zero [0] does not transmit. Programming a zero [0] tells the panel not to send any pulses for that digit. Decimal zero [0] is a filler digit. To transmit a zero [0], it must be programmed as a Hexadecimal ‘A’.

Example:

For the three digit account number ‘403’, you would enter

[4], [✱] [1] [✱] [3], [0]. [4] to enter the digit 4 [✱] to enter Hexadecimal mode (Ready light flashes) [1] to enter A; [

✱] to return to decimal mode (Ready light

is solid) [3] to enter the digit 3 [0] to enter the digit 0 as a filler digit.

4.4 Programming Toggle Option Sections

Some Sections contain several toggle options. The panel will use zone lights 1 through 6 to indicate if the different options are enabled or disabled. Press the number corresponding to the option to turn it ON or OFF. Once all the toggle options have been selected correctly, press the [#] key to exit the section and save the changes. The Ready light will turn OFF and the Armed light will turn ON.

Page 13

HOWVTOVPROGRAM

Refer to Section 5 in this manual to determine what each option represents and whether the light should be ON or OFF for your application.

4.5 Viewing Programming

LED Keypads

Any programming section can be viewed from an LED keypad. When a programming section is entered, the keypad will immediately display the first digit of information programmed in that section.

The keypad displays the information using a binary format, where

Zone Light 1 = 1 Zone Light 2 = 2 Zone Light 3 = 4 Zone Light 4 = 8

Add up the values for the zone lights to determine the number displayed (for example, no zone lights = 0, all 4 zone lights = 15 HEX ‘F’).

Press any of the Emergency Keys (Fire, Auxiliary or Panic) to advance to the next digit. When all the digits in a section have been viewed, the panel will exit the section; the Ready Light will turn OFF and the Armed light will turn ON, waiting for the next two digit programming section number to be entered. Press the [#] key to exit the section

LCD Keypad

When a programming section is entered, the keypad will immediately display all the information programmed in that section.

Use the arrow keys (< >) to scroll through the data being displayed.

Scroll past the end of the data displayed or press the [#] key to exit the section.

Page 14

Program Descriptions

SECTION5

The following section explains the operation of all programmable features and options and provides a summary of all corresponding programming locations.

5.1 Programming Security Codes

There are three codes which can be programmed by the installer in the Installer’s Programming function: the Master Code, a Second Master Code, and the Installer’s Code. All other access codes can be programmed through the [✱] [5] command

The Master Code can also be programmed by the user as access code (1). If the Master Code Not Changeable option is enabled, the System Master Code can only be changed by the Installer.

User codes can arm and disarm the system. By selecting the No Code Required for Bypassing option, each user code can also have the ability to bypass zones without entering the Master Code.

If the Sixth Code is Duress Code option is enabled, the sixth code can be programmed by the user as a Duress Code which will send a Duress Reporting Code to the central station when entered.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

(see Section 3.4). (see Section 3.4).

(see Section 3.4).

(see Section 3.4). (see Section 3.4).

Installer’s Code.................................................. Section [03]

Master Code ....................................................... Section [04]

Second Master Code......................................... Section [05]

Master Code Not Changeable ........Section [09], option [1]

No Code Required for Bypassing.. Section [09], option [2

Sixth Code is Duress Code ............Section [09], option [3]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

]

5.2 Zone Definitions

These sections will allow you to select how each of the 6 zones will operate. Each zone requires a two digit entry. In addition to zone definitions, six different attributes may be programmed by zone (see Section 5.3 – “Zone Attributes”).

[00] Null Zone

The zone is vacant. Unused zones should be programmed as Null zones.

[01] Delay 1

This zone type, normally used for entry/exit doors, can be violated during the exit delay time without causing an alarm. Once the exit delay has expired, opening the zone will start the entry delay timer. During the entry delay time, the keypad buzzer will sound steadily to advise the user that the system should be disarmed. If the panel is disarmed before the entry time expires, no alarm will be generated.

[02] Delay 2

The Delay 2 entry delay time can be set independent of Delay 1 in programming section [02] (System Times).

[03] Instant Zone

This zone type will cause an instant alarm if it is violated when the panel is armed. Typically, this zone is used for windows, patio doors or other perimeter zones.

[04] Interior Zone

This zone will not cause an alarm if violated during the entry delay. If the zone is violated before the entry delay has

begun, it will cause an instant alarm. Typically, this zone is used for interior protection devices, such as motion detectors.

[05] Interior Stay /Away Zone

This zone type works similar to the Interior zone type except that it will be automatically bypassed under the following conditions:

(see (see

• When the panel is armed in the Stay Mode

Section 3.5 – “Function Keys”).Section 3.5 – “Function Keys”).

Section 3.5 – “Function Keys”).

Section 3.5 – “Function Keys”).Section 3.5 – “Function Keys”).

• When the panel is armed without entry delay

Section 3.4 – “[Section 3.4 – “[

Section 3.4 – “[

Section 3.4 – “[Section 3.4 – “[

• When the panel is armed with a user code and a Delay

type zone is NOT tripped during the exit delay.

The automatic bypass prevents the user from having to manually bypass interior type zones when arming at home. This zone is typically used for interior protection devices, such as motion detectors.

[06] Delay Stay /Away Zone

This zone type will operate similar to Interior Stay/Away zones except that it will always provide an entry delay. Typically, this zone is used for interior protection devices, such as motion detectors. This zone option will help prevent false alarms since it always provides an entry delay time for the user to turn off the panel.

[07] Delayed 24 Hour Fire Zone

When this zone is violated, the alarm output will be immediately activated but the communicator will be delayed for 30 seconds. If the user presses any key on any keypad during this delay, the alarm output and the communicator will be delayed an additional 90 seconds, giving the user time to correct the problem. If the zone is still violated after the 90 second delay, the panel will sound the alarm output and delay the communicator for 30 seconds. If the user does not press a key during the 30 second delay, the alarm output will latch and the panel will communicate the alarm to the central station. The alarm will sound for the Bell Cutoff time programmed in Section [02] (“System Times”).

✱✱

] [9] Arming Without Entry Delay”] [9] Arming Without Entry Delay”

✱

] [9] Arming Without Entry Delay”

✱✱

] [9] Arming Without Entry Delay”] [9] Arming Without Entry Delay”

(see

(see (see

If a second Fire type zone is violated or if the Fire keys are pressed during the delay period, the panel will latch the alarm output and will immediately communicate the alarm.

A violated Fire zone will be displayed on all keypads and can be delayed at any keypad. Typically this zone is used for latching smoke detectors.

[08] Standard 24 Hour Fire Zone

When this zone is violated, the panel will immediately latch the alarm output and communicate to the central station. The alarm will sound for the Bell Cutoff time programmed in Section [02] (“System Times”). A violated Fire zone will be displayed on all keypads. Typically this zone is used for pull stations.

[09] 24 Hour Supervisory Zone (with LINKS)

If this zone is violated when the system is either armed or disarmed, the panel will report to the central station, and will log the zone fault to the Event Buffer.

(see (see

(see

(see (see

Page 15

P R O G R A M D E S C R I P T I O N S

[10] 24 Hour Supervisory Buzzer Zone

If this zone is violated when the system is either armed or disarmed, the panel will immediately latch the keypad buzzer until a valid user code is entered and will immediately communicate to the central station.

[11] 24 Hour Burglary Zone

If this zone is violated when the system is either armed or disarmed, the panel will immediately latch the alarm output and communicate to the central station. The alarm will sound for the Bell Cutoff time programmed in Section [02] (“System Times”) or until a valid user code is entered.

[12] -[20]

The following zone definitions operate similar to the 24 Hour Burglary except for the System Event output type and the SIA identifier:

[12] 24 Hour Heat Zone [17] 24 Hour Intrusion [13]

Not Used

Emergency Zone [14] 24 Hour Holdup Zone [18] 24 Hour Sprinkler Zone [15] 24 Hour Auxiliary Zone [19] 24 Hour Water Flow Zone [16] 24 Hour Panic Zone [20] 24 Hour Freezer Zone

[21] 24 Hour Latching Tamper

If this zone is violated, the installer must enter Installer’s Programming before the system can be armed.

5.35.3

Zone AttributesZone Attributes

5.3

Zone Attributes

5.35.3

Zone AttributesZone Attributes

All zones, with the exception of 24 Hour and Fire, have an exit delay. When the system is armed, the zones may be violated during the exit delay without causing an alarm. Attributes for Fire Zones should not be changed from the default settings.

Additional zone attributes can be programmed to customize the operation of a zone for a specific application. The following attributes are programmable for each zone:

• Audible / Silent – This attribute determines whether or not the zone will activate the alarm output.

• Pulsed / Steady – This attribute determines whether the alarm output will be steady or will pulse ON and OFF every second.

• Activate Chime – This attribute determines whether or not the zone will activate the chime feature

✱✱

3.4 – “[3.4 – “[

3.4 – “[

3.4 – “[3.4 – “[

] [4] Door Chime On/Off”).] [4] Door Chime On/Off”).

✱

] [4] Door Chime On/Off”).

✱✱

] [4] Door Chime On/Off”).] [4] Door Chime On/Off”).

(see Section(see Section

(see Section

(see Section(see Section

• Bypass Enable – This attribute determines whether or not the zone can be manually bypassed

✱✱

] [1] Bypassing and Reactivating Stay/Away Zones”).] [1] Bypassing and Reactivating Stay/Away Zones”).

“[“[

✱

] [1] Bypassing and Reactivating Stay/Away Zones”).

“[

✱✱

] [1] Bypassing and Reactivating Stay/Away Zones”).] [1] Bypassing and Reactivating Stay/Away Zones”).

“[“[

(see Section 3.4 –(see Section 3.4 –

(see Section 3.4 –

(see Section 3.4 –(see Section 3.4 –

• Force Arm Enable – This attribute determines whether or not the system can be armed while a zone is violated. At the end of the exit delay, if this type of zone is violated, it will be ignored by the panel. Once the zone is secured, it will be monitored by the system. This zone attribute, for example, will allow the user to arm the system with the garage door open. Later, when the door is closed, it will be armed along with the rest of the system.

• Downlook Activation Option (Video) – If enabled, this attribute will activate the DLM-1/DLM-4 Downlook module. When a given zone goes into alarm, it will activate the DLM to take a picture of that zone.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Zones Attributes....... Sections [21] - [26], Options [1] - [6]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.4 Communicator – Dialing

If the Communicator Disable option is selected, the panel will not attempt to call central station. If communication is enabled, the panel will attempt to call central station when an event with a valid Reporting Code occurs

5.7 “Communicator – Reporting Code”). 5.7 “Communicator – Reporting Code”).

5.7 “Communicator – Reporting Code”).

5.7 “Communicator – Reporting Code”). 5.7 “Communicator – Reporting Code”).

(See Section(See Section

(See Section

(See Section(See Section

The Communicator Call Direction Options are used to select which phone number the panel will dial when an event occurs.

If the DTMF Dialing option is enabled, the panel will dial using DTMF (touch tone). If the Switch to Pulse Dial option is enabled, the panel will switch to pulse dialing on the fifth attempt to call the central station. When this option is disabled, the panel will always dial using DTMF. If DTMF Dialing is disabled, the panel will always pulse dial.

If the Busy Tone Detection option is enabled, the panel will hang up and redial 60 seconds after having detected a busy tone for four seconds.

The panel will attempt to send a signal to central station eight times before indicating a Failure to Communicate (FTC) trouble condition. The Third Phone Number can be

(see (see

used as a back up for the first number in this situation

Section 5.6 “Communicator – Phone Numbers”).Section 5.6 “Communicator – Phone Numbers”).

Section 5.6 “Communicator – Phone Numbers”).

Section 5.6 “Communicator – Phone Numbers”).Section 5.6 “Communicator – Phone Numbers”).

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

(see

(see (see

DTMF or Pulse Dialing ................... Section [60], Option [2]

Switch to Pulse Dialing on 5th attemptSection [60], Option [3]

Communicator Enable/Disable ..... Section [60], Option [1]

Communicator Call Direction Options Section [51] to [55]

Busy Tone Detection ...................... Section [61], Option [4]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.5 Communicator – Account Numbers

The account number is used by the central station to distinguish between panels. There are two account numbers programmable for the PC1575.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

First Account Code (4 digits)........................... Section [34]

Second Account Code (4 digits) ..................... Section [35]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.6 Communicator – Phone Numbers

The panel can use three different phone numbers for communicating with the central station. The First Phone Number is the primary number, the Second Phone Number is the secondary number and the Third Phone Number will back up the First phone number if enabled.

The Third Phone Number will NOT back up the Second Phone Number.

If the Alternate Dial option is enabled, the panel will alternate between the first and third phone numbers when attempting to call the central station. If the option is disabled, the panel will only attempt to call the Third phone number after failing to communicate with the first phone number.

In order for Alternate Dialing to work properly, the Third Phone Number must be enabled.

Page 16

P R O G R A M D E S C R I P T I O N S

Phone numbers can be up to 32 digits which will allow you to add special digits if required. To program the phone number, enter the numbers 0 through 9 as required. The following is a list of programmable HEX digits and the function they perform:

HEX (B) - simulates the [✱] key on a touch tone phone HEX (E) - forces the panel to pause for 2 seconds HEX (C) - simulates the [#] key on a touch tone phone HEX (F) - marks the end of the phone number HEX (D) - forces the panel to search for dial tone

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

First Phone Number ......................................... Section [31]

Second Phone Number.................................... Section [32]

Third Phone Number......................................... Section [33]

Third Phone Number Enable......... Section [60], Option [4]

Alternate Dial .................................. Section [60], Option [5]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

If no Dial Tone Detect (HEX D) is used in the phone number, a 2-second pause (HEX E) should be inserted.

5.7 Communicator – Reporting Codes

The panel can be programmed to report events to the central station by sending the Reporting Code programmed for a particular event.

Reporting codes can be one or two digits and can use HEX digits (A through F). The following is a description of the different Reporting Codes that can be programmed and when the events will be reported to central station.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Reporting Codes ................................... Section [36] to [46]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.1 Zone Alarm

The panel will transmit the Zone Alarm Reporting Code when a zone goes into alarm. 24 hour type zones will go into alarm whether the panel is armed or disarmed and report to the central station. All other types of zones will only go into alarm if the panel is armed. The Police Code reporting code will be sent after 2 zones have gone into alarm within the same armed period.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Zone Alarm Reporting Codes .......................... Section [36]

Police Code Reporting Code ........................... Section [36]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Only Zone Alarms will count towards the Police Code

5.7.2 Zone Restoral

If the Restoral on Bell Time-out option is selected, the panel will send the Zone Restoral Reporting Code for the

and

zone if the alarm output times out If the zone is not secured when the alarm output times out, the panel will send the restoral immediately once the zone is secured.

If the Restoral on Bell Time-out option is not selected, the panel will immediately send the Zone Restoral Reporting Code when the zone is secured, regardless of whether or not the alarm output is active.

24 Hour type zones will report the restoral immediately once the zone is secured.

the zone is secured.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Zone Restoral Reporting Codes... Section [37], Option [6]

Restoral on Bell Time-out.............. Section [60], Option [6]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.3 Closings (Arming Codes)

The panel will transmit a Closing Reporting Code to indicate that the system is armed. A different Reporting Code can be transmitted for each User Code and Master Code to identify who has armed the system.

If programmed, a Partial Closing Reporting Code will be sent along with the Closing Reporting Code if one or more zones were manually bypassed when the system was armed to warn the monitoring station of a security compromise.

If the Closing Confirmation option is enabled, the keypad will sound a series of eight beeps to confirm to the user that the closing code was sent and received by the central station.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Closing (Arming) Reporting CodesSection [41], Option [6]

Partial Closing Reporting Code....................... Section [41]

Closing Confirmation..................... Section [61], Option [1]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.4 Openings (Disarming Codes)

The panel will transmit an Opening Reporting Code to indicate that the system has been disarmed. A different Reporting Code can be transmitted for each User Code and the Master Code to identify who has disarmed the system.

Opening After Alarm Keypad RingbackOpening After Alarm Keypad Ringback

If the

Opening After Alarm Keypad Ringback option is

Opening After Alarm Keypad RingbackOpening After Alarm Keypad Ringback

enabled, the keypad will emit a series of eight beeps after an Opening Reporting Code was sent and received by the monitoring station. If the Opening After Alarm Bell Ringback option is enabled, the bell will squawk eight times instead of the keypad to notify the user of a successful transmission.

The Opening After Alarm code

must

be programmed when the Transmission Delay is being used. See Section 5.17 “Transmission Delay”.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Opening (Disarming) Reporting Codes . Section [42], Option [6] Opening After Alarm Keypad Ringback. Section [61], Option [2]

Opening After Alarm Bell Ringback....... Section [61], Option [3]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.5 Tampers

(see(see

If the panel is programmed for Double EOL zones

Section 2.8 – “Zone Wiring”)Section 2.8 – “Zone Wiring”)

Section 2.8 – “Zone Wiring”)

Section 2.8 – “Zone Wiring”)Section 2.8 – “Zone Wiring”)

, the panel will report a Zone

(see

(see(see

Tamper Alarm Reporting Code if an open condition is present. A different Reporting Code can be programmed to identify each zone. The Zone Tamper Restoral Reporting Code will be transmitted immediately when the tamper condition is restored.

A General System Tamper Reporting Code will be transmitted when the tamper zone on any module is violated. The General System Tamper Restoral Reporting Code will be transmitted when the tamper zone on the module is restored.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Tamper Alarm Reporting Codes ...................... Section [38]

General System Tamper Alarm ........................ Section [38]

Tamper Restoral Reporting Codes.................. Section [39]

General System Tamper Restoral.................... Section [39]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.6 Priority/Emergency

The panel will transmit a Keypad Fire Alarm Reporting

and

Code

the Keypad Fire Restoral Reporting Code when

Page 17

P R O G R A M D E S C R I P T I O N S

the Fire Keys on any keypad are pressed for two seconds. The panel will transmit a Keypad Auxiliary Alarm Reporting

Code

and

the Keypad Auxiliary Restoral Reporting Code when the Auxiliary Keys on any keypad are pressed for two seconds.

The panel will transmit a Keypad Panic Alarm Reporting

and

Code

the Keypad Panic Restoral Reporting Code when

the Panic Keys on any keypad are pressed for two seconds. The panel will transmit a Duress Reporting Code any time

the Duress Code is entered at any keypad. If PGM2 is being used for 2-wire smoke detectors or 24 hour

operation, the panel will send a PGM2 Alarm Reporting

(see (see

Code if the zone goes into alarm

Output OptionsOutput Options

Output Options

Output OptionsOutput Options

”)”)

”)

. The panel will transmit the PGM2 Restoral

”)”)

Appendix D – “PGMAppendix D – “PGM

(see

Appendix D – “PGM

(see (see

Appendix D – “PGMAppendix D – “PGM

Reporting Code when the zone is restored.

The above is only applicable to pulse format.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Priority Alarm and Restoral Reporting Codes Section [40]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.7 Maintenance

The panel will transmit a Battery Trouble Alarm Reporting Code when the backup battery charge drops below 11.5

DC. The Battery Trouble Restoral Reporting Code will not

V be transmitted until the battery has been charged to over

12.5 VDC. To prevent the panel from transmitting an AC Failure Trouble

Alarm Reporting Code during short power outages, the panel will not send the signal unless AC power is lost for the amount of minutes programmed for the AC Failure Communication Delay. The AC Failure Trouble Restoral Reporting Code will be transmitted as soon as AC power is restored.

A Bell Circuit Trouble Alarm Reporting Code will be transmitted immediately when an open condition is measured for the Bell Output of the main panel. The Bell Circuit Trouble Restoral Reporting Code will be transmitted as soon as the problem is corrected.

A Fire Trouble Alarm Reporting Code will be immediately transmitted when an open condition is measured on any Fire type zone

(see Section 5.2 – “Zone Definitions”).

(see Section 5.2 – “Zone Definitions”). (see Section 5.2 – “Zone Definitions”).

The Fire

(see Section 5.2 – “Zone Definitions”). (see Section 5.2 – “Zone Definitions”).

Trouble Restoral Reporting Code will be transmitted as soon as the problem is corrected.

The Auxiliary Power Supply Trouble Alarm Reporting Code will be transmitted if the AUX output is shorted out. The AUX output of the control incorporates a fuseless design. When excessive current is drawn, the panel will automatically shut off the output. The panel will constantly check the AUX output; when the excessive current draw is removed, the panel will reset the output and transmit an Auxiliary Power Supply Trouble Restoral Reporting Code.

A TLM Trouble Reporting Code can only be transmitted if a

(see(see

LINKS 1000 Cellular Communicator is being used

Section 5.23 “LINKS 1000 Cellular Communicator”)Section 5.23 “LINKS 1000 Cellular Communicator”)

Section 5.23 “LINKS 1000 Cellular Communicator”)

Section 5.23 “LINKS 1000 Cellular Communicator”)Section 5.23 “LINKS 1000 Cellular Communicator”)

(see

(see(see

. The panel will only transmit the signal after the time programmed for the TLM Trouble Delay. The TLM Restoral Reporting Code will be transmitted within 10 seconds of the problem being corrected.

A General System Supervisory Trouble Reporting Code will be transmitted if any module goes missing from the KEYBUS. The panel will send a General System Supervisory Restoral Reporting Code when the problem is corrected.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Maintenance Alarm Reporting Codes............. Section [43]

Maintenance Restoral Reporting Codes ........ Section [44]

AC Failure Communication Delay ................... Section [62]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.7.8 Test Transmissions

The panel can be programmed to transmit a Periodic Test

(see Section 5.13 – “Test(see Section 5.13 – “Test

Transmission Reporting Code

Transmissions”)Transmissions”)

Transmissions”)

Transmissions”)Transmissions”) Section 3.4 – “[Section 3.4 – “[

Section 3.4 – “[

Section 3.4 – “[Section 3.4 – “[

, a System Test Reporting Code

✱✱

] [6] User Functions”] [6] User Functions”

✱

] [6] User Functions”

✱✱

] [6] User Functions”] [6] User Functions”

Test Transmission Reporting Code

“LINKS 1000 Cellular Communicator”).“LINKS 1000 Cellular Communicator”).

“LINKS 1000 Cellular Communicator”).

“LINKS 1000 Cellular Communicator”).“LINKS 1000 Cellular Communicator”).

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Test Transmission Reporting Codes............... Section [46]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

(see Section 5.13 – “Test

(see Section 5.13 – “Test(see Section 5.13 – “Test

(see(see

(see

(see(see

) or a LINKS 1000

(see Section 5.23 –(see Section 5.23 –

(see Section 5.23 –

(see Section 5.23 –(see Section 5.23 –

5.7.9 Miscellaneous

If the panel fails to transmit information to the central station, it will display a Failure To Communicate (FTC) trouble condition. The panel will transmit a Phone Number 1 Failure

to Communicate Reporting Code or a Phone Number 2 Failure to Communicate Reporting Code the next time it

calls the central station. The panel will transmit the old events, followed by the FTC message, followed by the new events. This will allow central station to determine which events are old or new.

If the Event Buffer is uploaded or printed on-site on a regular basis, an Event Buffer 75% Full Reporting Code can be transmitted to warn that the buffer is almost full. This code is good for use with the PC5400 Printer Module.

The General Zone Fault Alarm Reporting Code is sent whenever a DEOL hardwired zone is shorted out. The faulted zone will also be displayed in the Trouble section. The General Zone Fault Restoral Reporting Code will be sent when the problem zone is repaired.

The Delinquency Reporting Code is sent whenever the panel is not armed within the number of days programmed for the Delinquency Transmission Delay.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Miscellaneous Maintenance Reporting CodesSection [45]

Delinquency T ransmission Delay .................... Section [62]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

If the Delinquency Tx Delay is set for 1 day, there must be 24 hours of no arming or disarming before the Delinquency Code will be sent.

After a Delinquency Code has been transmitted, it will not send again until the system has been armed and disarmed.

5.8 Communicator – Reporting Formats

Each central station communication phone number can be programmed to report using any one of the 4 formats available. A 20 BPS pulse format is supported in addition to Contact ID, SIA and a Pager format.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Communicator Format Options....................... Section [50]

Communicator Call Directions ............ Section [51] to [55]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

The following is a description of each reporting format:

5.8.1 Pulse Formats

Depending on which pulse format is selected, the panel will communicate using the following specifications:

Page 18

P R O G R A M D E S C R I P T I O N S

• 3/1, 3/2, 4/1 or 4/2 • 1400 or 2300 Hz handshake

• 20 bits per second • non-extended

Additional Notes on Pulse Formats

1.The digit ‘0’ will send no pulses and is used as a filler digit.

2. When programming account numbers, enter four digits. When programming a three digit account number, the fourth digit must be programmed as ‘0’.

• 3 digit account number [123] - program [1230]

3.If an account number has a ‘0’ in it, substitute a HEX digit ‘A’ for the ‘0’. For example:

• 3 digit account number [502] - program [5A20]

• 4 digit account number [4079] - program [4A79]

4. Reporting codes are two digits. When programming single-digit Reporting Codes, the second digit must be programmed as a ‘0’. If a ‘0’ is to be transmitted, substitute HEX digit ‘A’. For example:

• 1 digit Reporting Code [3] - program [30]

• 2 digit Reporting Code [30] - program [3A]

5.To prevent the panel from reporting an event, the Reporting Code should be programmed as [00] or [FF].

5.8.2 Contact ID

Contact ID is a specialized format that will communicate information using tones rather than pulses. This format allows more information to be sent faster than other formats. For example, in addition to reporting an alarm in zone one, the Contact ID format will also report the type of alarm, such as an Entry/Exit alarm.

To program Contact ID, a two digit number from Appendix A must be entered in order for every event to be transmitted. The two digit number determines the type of alarm. The panel will automatically generate all other information, including the zone number.

Additional Notes on Contact ID

1. Account Numbers must be four digits.

2. All Reporting Codes must be two digits.

3. Substitute the HEX digit ‘A’ for the ‘0’.

4.To prevent the panel from reporting an event, the Reporting Code should be programmed as [00] or [FF].

Please refer to Appendix A for a list of Contact ID Identifiers.

5.8.3 SIA

SIA is a specialized format that will communicate information quickly using Frequency Shift Keying (FSK) rather than pulses. The SIA format will automatically generate the type of signal being transmitted, such as Burglary, Fire, Panic etc. The two digit Reporting Code is used to identify the zone or user code number.

If the SIA format is selected, the panel can be programmed to automatically generate all zone and user code numbers, thus eliminating the need to program these items.

If the SIA Sends Automatic Reporting Codes option is enabled, the panel will operate as follows:

1.If an event’s Reporting Code is programmed as [00], the panel will not attempt to call the central station.

2.If the Reporting Code for an event is programmed as anything from [01] to [FF], the panel will

automatically

generate the zone or user code number.

The Communicator Call Direction options can be used to disable the reporting of events such as Openings and Closings. If all of the Opening and Closing Reporting Codes are programmed as [00], the panel will not report.

If the SIA Sends Automatic Reporting Codes option is disabled, the panel will operate as follows:

1.If an event’s Reporting Code is programmed as [00] or [FF], the panel will not attempt to call central station.

2.If the Reporting Code for an event is programmed as anything from [01] to [FE], the panel will send the programmed Reporting Code.

Please refer to Appendix B for a list of SIA identifiers.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

SIA Sends Automatic Reporting Codes. Section [61], Option [6]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.8.4 Pager Format

The Communicator Format option for either phone number can be programmed as the Pager Format. If an event occurs and the Communicator Call Direction options direct the call to a phone number with the Pager Format selected, the panel will attempt to page.

When calling a pager, extra digits will be required in order for the format to function properly. The following is a list of Hex digits and the functions they perform:

Hex [B] - simulates the [

✱] key on a touch tone phone

Hex [E] - two second pause Hex [C] - simulates the [#] key on a touch tone phone Hex [F] - marks the end of the phone number Hex [D] - forces the panel to search for dial tone

The panel will attempt to call the pager once. Once the appropriate phone number is dialed, the panel will send the account number and Reporting Code followed by the [#] key (Hex [C]).

The panel has no way of confirming if the pager was called successfully; a Failure To Communicate trouble will thus never be generated.

The Pager Format cannot be used with the LINKS 1000 cellular communicator.

It is recommended not to use the digit C in a reporting code when using Pager Format. In most cases, the digit C will be interpreted as a [#], which will terminate the page before it has finished.

Pager Format will not force dial, but will check for busy tone regardless of the busy tone detect option.

5.9 Downloading

Downloading allows you to program the entire control panel via a computer, a modem and a telephone line. All functions and features and their changes and status – such as trouble conditions and open zones – can be viewed or programmed through downloading.

Page 19

P R O G R A M D E S C R I P T I O N S

When power is applied to the panel, downloading will be enabled for six hours. This will allow you to perform downloading without having to do any keypad programming.

If the Downloading Answer option is enabled, or during the first six hours after power up, the panel will answer calls for downloading when the programmed Number of Rings is heard by the panel.

If the Answering Machine Override option is enabled (or during the first six hours after power up), the panel will answer incoming calls for downloading in the following manner:

1. The panel hears one or two rings then misses a ring.

2. At this point the panel will start a timer.

3. If the panel hears another ring before the Answering Machine Double-Call Timer expires, it will answer on the first ring of the second call.

The panel will immediately go on line and begin downloading. If the Call-Back option is enabled, the panel and the computer will both hang up. The panel will then call the Downloading Computer’s Telephone Number and wait for the computer to answer. Once the computer answers, downloading will begin.

If the User Enabled DLS Window for One Hour option is ON, the user can activate the downloading feature for one hour by entering [

✱] [6] [Master Code] [5]. After one hour,

the panel will not answer incoming calls unless the Downloading Answer option is enabled.

The Download Access Code and Panel Identifier Code are for security and proper identification. Both the panel and the computer file should contain the same information programmed before attempting to download.

The time to complete a successful download can be significantly reduced with the use of the PC-LINK. This adaptor will allow on-site downloading of supported panels to occur. To Initiate Local Downloading via the PC-LINK,

✱] [8] [Installer’s Code] [77] [Installer’s Code] [77].

enter [ Downloading can also be performed through the LINKS 1000

cellular communicator if the phone line is disconnected. If Call Back is being used, you may have to program the LINKS

1000 Preamble to have the panel call the computer correctly.

When a Zone Status Upload is performed through PC-Link, the information uploaded may not be accurate. For more information refer to the Download Manual included with the computer software.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Downloading Answer ..................... Section [71], Option [1]

Number of Rings ................................................Section [70

]

Answering Machine Override........ Section [71], Option [6]

User Enable DLS Window for One Hour ........ Section [71],

Option [2]

Call-Back ........................................ Section [71], Option [3]

Answering Machine Double Call Timer .......... Section [75]

Download Computer Telephone Number....... Section [72]

Download Access Code .................................. Section [73]

Panel Identification Code ................................ Section [74]

Initiate Local Downloading (PC-LINK) ............ Section [77]

LINKS 1000 Preamble (Downloading)............. Section [79]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.10 Telephone Line Monitor (TLM)

The panel will supervise the presence of the phone line and will indicate a trouble condition if the phone line is disconnected. If the TLM Enabled option is selected, the panel will wait for the TLM Trouble Delay time period before indicating the trouble so that a momentary interruption of the phone line will not cause a trouble condition.

If the TLM Trouble Only option is enabled, the panel will indicate a TLM trouble only at the keypad if the system is armed. To activate the bell output in the case of a TLM trouble while the system is armed, the Audible When Armed option must be selected.

When the trouble condition is restored, the panel can send a TLM Restoral Reporting Code. Any events which occur while the phone line is down will also be communicated.

If the LINKS 1000 Cellular Communicator is being used, the panel can be programmed to report a TLM Trouble Reporting Code.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TLM Enable/Disable

.......................

Section [08], Option [5]

TLM T rouble Only or

Audible When Armed .................... Section [08], Option [6]

TLM Tr ouble Reporting Code TLM Restoral Reporting Code TLM Tr ouble Delay

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

..........................

.........................

Section [43]

Section [44]

Section [62], Option [1]

5.11 Siren Supervision

The panel supervises the Bell output. If an open condition is detected or if the fuse is blown, the panel will immediately indicate a trouble condition by beeping the keypad twice every 10 seconds to alert the owner of the problem. The panel can send a Bell Circuit Trouble Reporting Code immediately. Once the problem is corrected, the panel can send a Bell Circuit Trouble Restoral Reporting Code.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Bell Circuit Trouble Reporting Code ............... Section [43]

Bell Circuit Trouble Restoral Reporting Code Section [44]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.12 Test Transmission

To ensure that the communication link with the central station is functioning properly, the panel can be programmed to send a test transmission signal on a regular basis.

The panel can send a Periodic Test Transmission

Reporting Code at the programmed Test Transmission Time of Day. The Test Transmission Cycle determines the

number of days (001 to 255) between tests. If the test transmission cycle being programmed is of a lesser value than the previous value, the system will wait the original period before the next test transmission is sent, and then begin reporting with the new interval.

The panel can also send a test for the LINKS 1000 Cellular Communicator, if being used. If the LINKS 1000 Test Transmission Code is programmed, the panel will send a cellular test at the same time as the land line test transmission.

The end user can generate a communicator test. If the System Test Reporting Code is programmed, the panel will send the signal when the System Test keypad command

(see Section 3.4 – “[(see Section 3.4 – “[

is entered

Functions”).Functions”).

Functions”).

Functions”).Functions”).

(see Section 3.4 – “[

(see Section 3.4 – “[(see Section 3.4 – “[

] Commands; [] Commands; [

✱✱

✱

] Commands; [

✱✱

] Commands; [] Commands; [

] [6] User] [6] User

✱✱

✱

] [6] User

✱✱

] [6] User] [6] User

Page 20

P R O G R A M D E S C R I P T I O N S

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Periodic T est T ransmission Reporting Code.. Section [46]

Test Transmission Time of Day ........................ Section [63]

Test T ransmission Cycle.................................. Section [62]

LINKS 1000 Test T ransmission Reporting Code Section [46]

System Test Reporting Code ........................... Section [46]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.13 Fire, Auxiliary and Panic Keys – [F], [A], [P]

The emergency keys are available on all keypads. These keys must be pressed and held for two seconds before they will activate. This two second delay is designed to help prevent accidental activation.

If the [F] Key option is enabled, when the Fire keys are pressed and held for two seconds, the panel will activate the alarm output, pulsing one second ON, one second OFF. The alarm output will sound until a code is entered or until the alarm output times out. Communication of the signal to central station is immediate.

If the [A] Key is pressed and held for two seconds, the panel will sound the keypad beeper three times to verify activation. The panel will beep the keypad ten times rapidly to verify communication to the central station.

If the [P] Key is pressed and held for two seconds, the panel will immediately communicate the signal to central station. If [P] Key Audible Bell and Buzzer option is enabled, the panel will beep the keypad three times upon activation and activate the alarm output until a code is entered or the alarm output times out. Otherwise the alarm will be completely silent.

The Fire, Auxiliary, Panic keys will operate even if Keypad Blanking is active (See Section 5.20 “Keypad Blanking”).

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

[F] Key Enable................................. Section [08], Option [3]

[P] Key Audible Bell and Buzzer.. Section [08], Option [4]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.14 Arming / Disarming Options

If the Quick Arm option is enabled, the panel can be armed without a user code by entering [✱] [0] or by pressing the Stay or Away key on the LCD5500 or PC5506 keypads.

The Quick Exit option, if enabled, will allow someone to leave an armed premises through a Delay type zone without having to disarm and rearm the system.

If the Arm/Disarm Bell Squawk option is enabled, the panel will squawk the alarm output once upon arming and twice upon disarming. The Opening After Alarm Keypad Ringback option will give you the ability to beep the keypad 10 times rapidly if the panel is disarmed after an alarm occurred. The Opening After Alarm Bell Squawk will give you the ability to squawk the bell output 10 times rapidly if the panel is disarmed after an alarm occurred.

Closing Confirmation, if enabled, will cause the keypad to beep 10 times rapidly after the closing Reporting Code has been transmitted to central station.

If the Bypass Status Displayed While Armed is chosen, the Bypass light will be ON while the system is armed to indicate any bypassed zones.

option

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Quick Arm Enable ......................... Section [10], Option [6]

Quick Exit Enable ........................... Section [09], Option [4]

Arm/Disarm Bell Squawk............... Section [10], Option [1]

Closing Confirmation..................... Section [61], Option [1]

Opening After Alarm Keypad Ringback. Section [61], Option [2] Opening After Alarm Bell Ringback . Section [61], Option [3] Bypass Status Displayed While Armed . Section [09], Option [5]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

With Arm/Disarm Bell Squawk enabled, when a

✱✱

[

✱

][9] arming is performed, no squawk will sound.

✱✱

5.15 Entry/Exit Delay Options

Upon arming, the panel will begin the exit delay. If the Audible Exit Delay with Urgency option is enabled, the keypad will beep at one second intervals until the exit delay expires. The keypad will beep rapidly for the last 10 seconds of exit delay to warn the user that the system is about to arm.

For commercial applications, the Bell Squawk on Exit Delay option may be enabled. The panel will squawk the alarm output once every second when the exit delay is initiated and three times per second for the last 10 seconds until the exit delay expires.

Upon entry, if a Delay type zone is violated, the panel will begin the entry delay. The keypad will emit a steady tone. The keypad will pulse the keypad sounder during the last 10 seconds to warn the user the system is about to go into alarm. If there was an alarm during the armed period, the keypad will pulse for the entire entry delay to warn the user of the previous alarm.

For commercial applications Bell Squawk on Entry Delay may be enabled. The panel will squawk the alarm output once every second until the entry delay expires or the system is disarmed.

Since two Delay zones – and therefore two different Entry Delays – are programmable, when the panel is armed, the Entry Delay will begin when the first delay zone violated.

If the Bell Squawk During Auto Arm option is enabled, the bell will squawk when the system is auto-armed in order to notify anyone on the premises that the system is being armed.

If the Exit Delay Termination option is enabled, the panel will monitor the Delay zones during exit delay. During the exit delay, if a Delay type zone is violated and then secured, the exit delay will be terminated and the panel will be armed immediately.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Entry Delay 1 and 2 (System Times) ............... Section [02]

Exit Delay (System Times)................................ Section [02]

Bell Squawk Options......................................... Section [10]

Audible Exit Delay .......................... Section [10], Option [5]

Exit Delay Termination .................. Section [11], Option [4]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.16 Swinger Shutdown

The Swinger Shutdown feature is designed to prevent a runaway communicator from tying up the central station. After the panel has communicated the programmed number of transmissions for an event, it will no longer report that event until the Swinger Shutdown is reset.

Page 21

P R O G R A M D E S C R I P T I O N S

By default, the Swinger Shutdown limit is set to [003]. The panel will not send more than three alarm signals for each zone until the Swinger Shutdown is reset.

Swinger Shutdown will be reset every day at midnight or when the panel is armed. Once reset, the panel will again communicate normally.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Swinger Shutdown .......................................... Section [62]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.17 Transmission Delay

If Transmission Delay is being used, the Opening After Alarm code must be programmed. See section

5.7 “Communicator Reporting Codes”.

New customers often cause false alarms while becoming familiar with the system. The Transmission Delay is designed to delay the communication of a zone alarm for a programmed period of time. If the system is disarmed before the transmission delay time expires, the panel will not report the alarm to the central station. The Opening After Alarm code, however, will still be communicated to the central station. By default, the Transmission Delay is not programmed.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Transmission Delay ........................................... Section [62]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.18 Event Buffer

The panel will store the last 100 events which occurred on the system. The Event Buffer will contain the name, time and date of each event, along with the zone number, user code number or any other information pertaining to the event.

If the Event Buffer Follows Swinger Shutdown option is enabled, the Event Buffer will not store events after the Swinger Shutdown level has been reached. This will prevent the panel from overwriting the entire buffer if a problem exists.

The Event Buffer can be viewed in three different ways: from

(see Section 3.4 – [(see Section 3.4 – [

an LCD keypad

(see Section 3.4 – [

(see Section 3.4 – [(see Section 3.4 – [

printed on-site using the PC5400 printer module

5.24 – “On-Site Printer”5.24 – “On-Site Printer”

5.24 – “On-Site Printer”

5.24 – “On-Site Printer”5.24 – “On-Site Printer”

software.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

) or it can be uploaded using DLS

] [6] “User Functions”)] [6] “User Functions”)

✱✱

✱

] [6] “User Functions”)

✱✱

] [6] “User Functions”)] [6] “User Functions”)

(see Section(see Section

(see Section

(see Section(see Section

Event Buffer Follows

Swinger Shutdown ......................... Section [11], Option [2]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.19 Keypad Lockout

The panel can be programmed to “lock out” keypads if a series of incorrect user codes are entered. Once the Number of Invalid Codes Before Lockout limit has been reached, the panel will lock out the keypad for the Lockout Duration and log the event to the Event Buffer. For the duration of the Lockout, the panel will sound an error tone when any key is pressed.

Keypad Lockout will reset every hour.

To disable the keypad lockout option, program the Number of Invalid Codes Before Lockout as [00].

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Number of Invalid Codes Before Lockout ...... Section [07]

Lockout Duration............................................... Section [07]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.20 Keypad Blanking

If the Keypad Blanking option is enabled, the panel will turn off all lights on the keypads when no keys are pressed for 30 seconds. The keys, however, will remain backlit.

The panel will turn the lights back on when any key is pressed or when the entry delay begins or if an audible alarm occurs.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Keypad Blanking Option ............. Section [11], Option [5]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.21 Loop Response

The normal loop response time for all zones is 500 milliseconds. The panel will not consider a zone violated unless it is violated for at least 500 milliseconds.

5.22 Keypad Tampers

If the Keypad Tampers Enable option is selected, the panel will display and transmit a General System Tamper Reporting Code if any keypad is removed from the wall. When the keypad tamper is restored, the panel will transmit the General System Tamper Restoral Reporting Code. All keypads should be properly installed and secured before enabling this option.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Keypad Tamper Enable .................. Section [11], Option [6]

General System Tamper Reporting Code ....... Section [38]

General System Tamper Restoral Reporting Code

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

After enabling Keypad Tampers, it is recommended to tamper and restore all keypads to ensure proper functionality.

If Keypad Tampers are disabled and Keypad Tampers had previously been indicated, the panel must be powered down to clear the trouble.

5.23 LINKS 1000 Cellular Communicator

The LINKS 1000 Cellular Communicator can be used three different ways: as the sole communicator for the panel, as a back up for either or both phone numbers or as a redundant back up to the land line communicator, where the panel will call both the land line and via the LINKS. A LINKS Preamble is programmable for each phone number in the event that the land line number is local but the LINKS is required to dial an exchange. When programming a LINKS Preamble, all unused digits must be programmed with a hexadecimal “F”.

5.23.1 Using LINKS 1000 as the Sole Communicator

The panel can be programmed to report an event only using the LINKS 1000 cellular communicator. To program this option, select only the LINKS 1000 in the Communicator

Call Direction Options. The Call LINKS as well as Land Line option must also be enabled.

When the selected event occurs the panel will only attempt to call central station using the LINKS.

5.23.2 Using the LINKS 1000 as a Backup Communicator

The panel can be programmed to call using the LINKS 1000 Cellular Communicator if the panel is having difficulty communicating an event using the land line. To program this option, select both the phone number and LINKS options in the Communicator Call Direction Options. The

..................................

Section [39]

Page 22

P R O G R A M D E S C R I P T I O N S

LINKS is Backup of Land Lines option must be selected.

When used as a backup communicator, the panel will attempt to call the central station in the following manner:

• the panel will try to call using land lines – if unsuccessful, the panel will try to call using the LINKS

• if unsuccessful, the panel will try to call using the land lines

• if unsuccessful, the panel will try to call using the LINKS

This process will continue until the panel has successfully communicated with the central station or until the panel’s eight dialing attempts have been exhausted.

5.23.3 Using the LINKS as a Redundant Communicator

The panel can be programmed to call using first the land line and then the LINKS 1000 Cellular Communicator when an event occurs. To program this option, select both the phone number and the LINKS options for the Communicator Call

Direction Options for the event. The Call LINKS as well as Land Line options must be selected.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

LINKS Preamble

(First Telephone Number).............. Section [67], Option [5]

LINKS Preamble (Second Telephone Number)Section [68] LINKS Preamble (Third Telephone Number)..Section [69]

LINKS Preamble (Downloading Telephone Number)

Communicator Call Direction Options Section [51] to [55] Call LINKS as well as Land Line

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

..................

...

Section [61], Option [5]

Section [79]

5.24 On-Site Printer

With the addition of the PC5400 printer module, the panel will print all events as they occur to a local, on-site serial printer. All events will include the time and date when they occurred.

If a problem develops with the printer – such as power loss or a paper shortage – the panel will store events in the Event Buffer and print the events once the problem is corrected. The panel can store up to 100 events if such a condition occurs.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

PC5400 Programming....................................... Section [87]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5.25 Downlook Video Transmission Module

The Number of Pictures the DLM Module will take is programmable from one to eight.

The Delay Before Capture Timer allows the programmer to delay the camera in taking a picture once a zone is tripped in order to make sure that the intruder steps into the camera’s field of view. This timer is programmed in increments of 100 milliseconds from 00 to 99.

For more information regarding the operation of the DLM-1 and DLM-4 Modules, please refer to their respective installation manuals.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

DLM-1/DLM-4 Support Timers

(Downlook Modules) ......................................... Section [88]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

A valid zone alarm reporting code must be programmed for zones that have Downlook enabled.

5.26 Resetting Factory Defaults

On occasion, it may be necessary to default the main control panel or one of the connected modules: the ESCORT5580 module and the PC5400 Printer module.

To default the main control panel (hardware) perform the following:

1. Remove AC and battery from the panel.

2. Remove all wires from the Zone 1 and PGM1 terminals.

3. With a piece of wire short the Zone 1 terminal to the PGM1 terminal.

4. Apply AC power to the main panel.

5. When Zone Light 1 is lit on the keypad the default is complete.

6. Remove AC power from the control

7. Reconnect all original wiring and power up the control.

AC power must be used to power the panel. The panel will not default if the battery is used.

To default the main control panel software and other

modules, perform the following:

1. Enter the Installer’s Programming mode.

2. Enter the appropriate programming section [XY].

3. Enter the Installer’s Code.

4. Re-enter the appropriate programming section [XY].

The panel will take a few seconds to perform the default. When the keypad is again operational the default is complete.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Restore ESCORT to

Factory Default Programming ......................... Section [95]

Restore PC5400 to Factory Default Programming

Restore Panel to Factory Default Pr ogramming..Section [99]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

.........................

Section [97]

5.27 Installer’s Lockout

If Installer’s Lockout is selected, a hardware default cannot be performed. If a software default is performed, all programming will restore to factory default.

If Installer’s Lockout Disable is selected, the panel will restore all programming to factory defaults when a hardware or software default is performed on the main control panel.

To enable or disable Installer’s Lockout, perform the

following:

1. Enter the Installer’s Programming mode.

2. Enter the appropriate programming section [XY].

3. Enter the Installer’s Code.

4. Re-enter the appropriate programming section [XY].

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Installer Lockout Enable ................................... Section [90]

Installer Lockout Disable .................................. Section [91]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Downlook will only transmit to phone number 1. Downlook and Tx Delay must not be enabled at the

same time.

Page 23

Programming Worksheets

NOTE: For UL listed systems, refer to the UL Requirements section in Appendix E.

For the Record

Customer:_______________________________________________________________________________________ Address:________________________________________________________________________________________

_______________________________________________________________________________________________

Phone: __________________________________________ Installation Date: _____________________________________

Installer’s Code: __________________________________

Module Name Description Physical Location

PC1575 Main Panel

I_____________________________________________________________________________________________I

PC5400* Serial Printer Module I___________________________________________________________________________________________I Escort 5580* Voice Prompt Module I___________________________________________________________________________________________I DLM-1/DLM-4* Downlook Module I___________________________________________________________________________________________I

* Not UL Listed

Keypads Keypad T ype Physical Location

Keypad 1 I_____________________________________________I I_________________________________________________________________________________________________________________I Keypad 2 I_____________________________________________I I_________________________________________________________________________________________________________________I Keypad 3 I_____________________________________________I I_________________________________________________________________________________________________________________I Keypad 4 I_____________________________________________I I_______________________________________________ __________________________________________________________________I Keypad 5 I_____________________________________________I I_________________________________________________ ________________________________________________________________I Keypad 6 I_____________________________________________I I___________________________________________________ ______________________________________________________________I Keypad 7 I_____________________________________________I I_____________________________________________________ ____________________________________________________________I Keypad 8 I_____________________________________________I I_______________________________________________________ __________________________________________________________I

PC1575 Zone 1 to 6 Assignment

System Zone Label Zone Attributes

Zone Type

Zone 1

Zone 2

Zone 3

Zone 4

Zone 5

Zone 6

AUDIBLE

STEADY

CHIME

FORCE

ARM

BYPASS

DOWN-

LOOK

Page 24

P R O G R A M M I N G W O R K S H E E T S

Keypad Programming

P R O G R A M M I N G W O R K S H E E T S

[00] Keypad Assignment

Note: This must be done at each keypad requiring programming. [0] Slot (Valid entries are 11-18 for the Slot) [1] - [5] Function Keys 1 to 5 Assignment (Valid entries are 00-18)

00 Null Key (Not Used) 07 [ 01 Not used 08 [ 02 Not used 09 [ 03 Stay Arm 10 [ 04 Away Arm 11 [ 05 [

✱][9] No-Entry Arm 12 [✱][6] User Functions 18 Not Used

✱][4] Chime On / Off

06 [

Slot (Address) Key 1 Key 2 Key 3 Key 4 Key 5

1575RK defaults 11 – – – – – PC5506 defaults 11 03 04 06 14 16 LCD5500 defaults 18 03 04 06 14 16

KEYPAD 1 I________I________I I________I I________I I________I I________I I________I KEYPAD 2 I________I________I I________I I________I I________I I________I I________I KEYPAD 3 I________I________I I________I I________I I________I I________I I________I KEYPAD 4 I________I________I I________I I________I I________I I________I I________I KEYPAD 5 I________I________I I________I I________I I________I I________I I________I KEYPAD 6 I________I________I I________I I________I I________I I________I I________I KEYPAD 7 I________I________I I________I I________I I________I I________I I________I

KEYPAD 8 I________I________I I________I I________I I________I I________I I________I

(Section 2.6 “Keypad Assignment”)(Section 2.6 “Keypad Assignment”)

(Section 2.6 “Keypad Assignment”)

(Section 2.6 “Keypad Assignment”)(Section 2.6 “Keypad Assignment”)

✱][6][——][4] System Test 13 [✱][7][1] Utility Output ✱][1] Bypass Mode 14 [✱][7][2] Sensor Reset ✱][2] Trouble Display 15 Not Used ✱][3] Alarm Memory 16 [✱][0] Quick Exit ✱][5] User Programming 17 [✱][1] Reactivate Stay/Away’s

Function Function Function Function Function

Basic System Programming

P R O G R A M M I N G W O R K S H E E T S

Zone Definitions

00 Null Zone (Not Used) 08 Standard 24 Hour Fire 15 24 Hour Auxiliary 01 Delay 1 09 24 Hour Supervisory (LINKS) 16 24 Hour Panic 02 Delay 2 10 24 Hour Supervisory Buzzer 03 Instant 11 24 Hour Burglary 18 24 Hour Sprinkler 04 Interior 12 24 Hour Heat 19 24 Hour Water2 05 Interior, Stay/Away 13 06 Delay, Stay/Away 14 24 Hour Hold-up24 LINKS Answer 21 24 Hour Latching Tamper 07 Delayed 24 Hour Fire

[01] Zone 1-6 Definitions

Default Default 01 I_______I_______I Zone 1 03 I______ _I_______I Zone 4 06 I_______I_______I Zone 2 03 I______ _I_______I Zone 5 03

I_______I_______I Zone 3 03 I______ _I_______I Zone 6

(Section 5.2 “Zone Definitions”)

not used

[02] System Times

Default [000-255] 030 I_______I_______I_______I Entry Delay 1 045 120 I_______I_______I_______I Exit Delay 004 I_______I_______I_______I Bell Cutoff

I_______I_______I_______I Entry Delay 2

24 Hour Emergency

20 24 Hour Freeze 3

Page 25

P R O G R A M M I N G W O R K S H E E T S

[03] Installer’s Code (Section 4 “How to Program”)

Default 1575 I_______I_______I_______I_______I

[04] Master Code

Default 1234 I_______I_______I_______I_______I

(Section 5.1 “Pr(Section 5.1 “Pr

(Section 5.1 “Pr

(Section 5.1 “Pr(Section 5.1 “Pr

[05] Second Master Code

Default AAAA

I_______I__ _____I_______I_______I

ogramming Security Codes”)ogramming Security Codes”)

ogramming Security Codes”)

ogramming Security Codes”)ogramming Security Codes”)

(Section 5.1 “Pr(Section 5.1 “Pr

(Section 5.1 “Pr

(Section 5.1 “Pr(Section 5.1 “Pr

ogramming Security Codes”)ogramming Security Codes”)

ogramming Security Codes”)

ogramming Security Codes”)ogramming Security Codes”)

Programmable Output Options

Please refer to Appendix D “PGM Output Options” for output descriptions and important information.

01 Ground Start Pulse 13 20 Minute Latched Alarm 02 Utility Output with Any Access Code 14 Line Seizure

([✱] [7] [1] + [Access Code]) 15 Ready to Arm Status 03 Sensor Reset ([✱] [7] [2]) 16 LINKS Support (PGM 1 Only) 04 Courtesy Pulse 17 Downlook Support (PGM1 and PGM2 must be 05 Keypad Buzzer Follower Mode programmed with 17) 06 System Armed Status 25 2-Wire Smoke Support (PC1575 2-wire smoke option PGM2 Only) 07 Strobe Output 26 Momentary Key Switch Arm (PGM2 Only) 08 Fail to Communicate / TLM Trouble Output 27 Maintained Key Switch Arm (PGM2 Only) 09 Entry Delay Follower 28 Silent 24 Hour (PGM2 Only) 10 Exit Delay Follower 29 Audible 24 Hour (PGM2 Only) 11 TLM and Alarm 30 Forced Answer (PGM2 Only) 12 Police Code Follower

[06] Programmable Terminals PGM 1 and 2

Default Default 02

I_______I_______I PGM1 08 I_______I_______I PGM2

(Appendix D “PGM Output Options”)(Appendix D “PGM Output Options”)

(Appendix D “PGM Output Options”)

(Appendix D “PGM Output Options”)(Appendix D “PGM Output Options”)

[07] Keypad Lockout Options

Default 00 I_______I_______I Number of Invalid Codes Before Lockout

00 I_______I_______I Lockout Duration (in minutes)

(Section 5.19 “Keypad Lockout”)(Section 5.19 “Keypad Lockout”)

(Section 5.19 “Keypad Lockout”)

(Section 5.19 “Keypad Lockout”)(Section 5.19 “Keypad Lockout”)

[08] First System Option Code

Default Option ON OFF Section OFF I________I 1 Nor mally Closed Loops End-of-Line Resistors OFF I________I 2 Double End-of-Line Resistors Single End-of-Line Resistors

ON I________I 3 [F] Key Enabled [F] Key Disabled OFF I________I 4 [P] Key Audible Bell and Buzzer [P] Key Silent Bell and Buzzer ON I________I 5 TLM Enabled TLM Disabled OFF I________I 6 TLM Audible When Armed TLM Trouble Only When Armed

[09] Second System Option Code

Default Option ON OFF Section OFF I________I 1 Master Code Not Changeable Master Code Changeable

OFF I________I 2 Code Required For Bypassing No Code Required OFF I________I 3 6th Code is Duress Code 6th Code is Normal Code OFF I________I 4 Quick Exit Enabled Quick Exit Disabled OFF I________I 5 Bypass Status Displayed While Armed Bypass Status Not Displayed While Armed ON I________I 6 AC Trouble Displayed AC Trouble Not Displayed

2.82.8

2.8

2.82.8

2.8

2.82.8

5.135.13

5.13

5.135.13

5.13

5.135.13

5.105.10

5.10

5.105.10

5.10

5.105.10

5.15.1

5.1

5.15.1

5.1

5.15.1

5.1

5.15.1

3.43.4

3.4

3.43.4

3.4

3.43.4

3.4

3.43.4

Page 26

P R O G R A M M I N G W O R K S H E E T S

[10] Third System Option Code

Default Option ON OFF Section OFF OFF I________I 2 Bell Squawk During Auto Arm No Bell Squawk During Auto Arm OFF I________I 3 Bell Squawk On Exit Delay No Bell Squawk On Exit Delay OFF I________I 4 Bell Squawk On Entry Delay No Bell Squawk On Entr y Delay ON I________I 5 Audible Exit With Urgency Silent Exit Delay ON I________I 6 Quick Arm Enabled Quick Arm Disabled

I_ _______I 1 Arm / Disarm Bell Squawk Enabled Arm / Disarm Bell Squawk Disabled

5.145.14

5.14

5.145.14

5.155.15

5.15

5.155.15

5.15

5.155.15

5.15

5.155.15

5.15

5.155.15

3.43.4

3.4

3.43.4

[11] Fourth System Option Code

Default Option ON OFF Section OFF ON I________I 2 Event Buffer Follow Swinger Shutdown Event Buffer Never Shuts Down ON I________I 3 Trouble Light Flashes If AC Fails Trouble Light Does Not Flash If AC Fails OFF I________I 4 Exit Delay Termination Enabled Exit Delay Termination Disabled OFF I________I 5 Keypad Blanking Enabled Keypad Blanking Disabled OFF I________I 6 Keypad Tampers Enabled Keypad Tampers Disabled

I_ _______I 1 For Future Use

5.185.18

5.18

5.185.18

3.43.4

3.4

3.43.4

5.155.15

5.15

5.155.15

5.205.20

5.20

5.205.20

5.225.22

5.22

5.225.22

Advanced System Programming

P R O G R A M M I N G W O R K S H E E T S

24hr Emergency

Zone Attribute Defaults

Option 1 – Audible / Silent N Y Y Y Y Y Y Y Y N N Y Y N Y Y Y Y Y Y Y Option 2 – Steady / Pulsed N Y Y Y Y Y Y N N Y Y Y N Y Y Y Y Y Y Y Y Option 3 – Chime N Y Y Y N N N N N N N N N N N N N N N N N Option 4 – Force N N N N N Y Y N N Y N N N N N N N N N N N Option 5 – Bypass N Y Y Y Y Y Y N N N Y Y N N N N N N N N N Option 6 – Downlook N N N N N N N N N N N N N N N N N N N N N

Zone 1-6 Attributes

[21] Zone 1 [22] Zone 2 I________| I________| I________| I________| I________I I________I [23] Zone 3 I________| I________| I________| I________| I________I I________I [24] Zone 4 I________| I________| I________| I________| I________I I________I [25] Zone 5 I________| I________| I________| I________| I________I I________I [26] Zone 6 I________| I________| I________| I________| I________I I________I

(Section 5.3 “Zone Attributes”)(Section 5.3 “Zone Attributes”)

(Section 5.3 “Zone Attributes”)

(Section 5.3 “Zone Attributes”)(Section 5.3 “Zone Attributes”)

On Audible Steady Chime Force Bypass Downlook

Off Silent Pulsed No No No No

00 Null Zone (Not Used)

01 Delay 1

02 Delay 2

03 Instant

Y = Option ON N = Option OFF

Opt. 1 Opt. 2 Opt. 3 Opt. 4 Opt. 5 Opt. 6

I________| I________| I________| I________| I________| I________I

05 Interior, Stay/Away

04 Interior

06 Delay, Stay/Away

07 Delayed 24hr Fire

09 24hr Supervisory (LINKS)

08 Standard 24hr Fire

10 24hr Supervisory Buzzer

11 24hr Burglary

12 24hr Heat

14 24hr Hold-up24

15 24hr Auxiliary

16 24hr Panic

18 24hr Sprinkler

19 24hr Water2

20 24hr Freeze 3

21 24hr Latching Tamper

Page 27

P R O G R A M M I N G W O R K S H E E T S

Communicator Programming

P R O G R A M M I N G W O R K S H E E T S

Note: For sections [31] to [46], the contents of every section by default is [F].

[31] First Telephone Number (32 Digits)

I___ _ _I__ _ _ _I__ __ _I__ _ _ _I___ _ _ I__ _ _ _I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I

[32] Second Telephone Number (32 Digits)

[33] Third Telephone Number (32 Digits)

[34] First Account Code (4 digits)

I_______I_______I_______I_______I

(Section 5.5 “Communicator – Account Numbers”)(Section 5.5 “Communicator – Account Numbers”)

(Section 5.5 “Communicator – Account Numbers”)

(Section 5.5 “Communicator – Account Numbers”)(Section 5.5 “Communicator – Account Numbers”)

[35] Second Account Code (4 digits)

I_______I_______I_______I_______I

[36] Alarm Reporting Codes, Zones 1-6

I_______I_______I Zone 1 I_______I_______I Zone 4 I_______I_______I Police Code Alarm I_______I_______I Zone 2 I_______I_______I Zone 5 I_______I_______I Zone 3 I_______I_______I Zone 6

[37] Alarm Restoral Reporting Codes, Zones 1-6

I_______I_______I Zone 1 I_______I_______I Zone 4 I_______I_______I Opening After Alarm I_______I_______I Zone 2 I_______I_______I Zone 5 I_______I_______I Zone 3 I_______I_______I Zone 6

(Section 5.6 “Communicator – Phone Numbers”)(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.6 “Communicator – Phone Numbers”)(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.6 “Communicator – Phone Numbers”)(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.6 “Communicator – Phone Numbers”)(Section 5.6 “Communicator – Phone Numbers”)

(Section 5.5 “Communicator – Account Numbers”)(Section 5.5 “Communicator – Account Numbers”)

(Section 5.5 “Communicator – Account Numbers”)

(Section 5.5 “Communicator – Account Numbers”)(Section 5.5 “Communicator – Account Numbers”)

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

[38] Tamper Reporting Codes, Zones 1-6

I_______I_______I Zone 1 I_______I_______I Zone 4 I_______I_______I General System I_______I_______I Zone 2 I_______I_______I Zone 5 Tamper Alar m I_______I_______I Zone 3 I_______I_______I Zone 6

[39] Tamper Restoral Reporting Codes, Zones 1-6

I_______I_______I Zone 1 I_______I_______I Zone 4 I_______I_______I General System I_______I_______I Zone 2 I_______I_______I Zone 5 Tamper Restoral I_______I_______I Zone 3 I_______I_______I Zone 6

[40] Priority Alarm and Restoral Reporting Codes

I_______I_______I Keypad [F]ire Alarm I_______I_______I PGM2 Alarm I_______I_______I Keypad [A]uxiliary Restoral I_______I_______I Keypad [A]uxiliary Alarm I_______I_______I Duress Code Alarm I_______I_______I Keypad [P]anic Restoral I_______I_______I Keypad [P]anic Alarm I_______I_______I Keypad [F]ire Restoral I_______I_______I PGM2 Restoral

[41] Closing (Arming) Reporting Codes, Access Codes 1-6

Codes”)Codes”)

Codes”)

Codes”)Codes”)

I_______I_______I Closing by Access Code 1 / 2nd Master / Key switch / Auto Ar m I_______I_______I Closing by Access Code 2 I_______I_______I Closing by Access Code 5 I_______I_______I Closing by Access Code 3 I_______I_______I Closing by Access Code 6 I_______I_______I Closing by Access Code 4 I_______I_______I Partial Closing Code

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor (Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor (Section 5.7 “Communicator – Repor

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

tingting

ting

tingting

Page 28

P R O G R A M M I N G W O R K S H E E T S

[42] Opening (Disarming) Reporting Codes, Access Codes 1-6

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

Codes”)

I_______I_______I Opening by Access Code 1 / 2nd Master / Key switch I_______I_______I Opening by Access Code 2 I_______I_______I Opening by Access Code 5 I_______I_______I Opening by Access Code 3 I_______I_______I Opening by Access Code 6 I_______I_______I Opening by Access Code 4

[43] Miscellaneous Closing (Arming) Reporting Codes

I_______I_______I Batter y Trouble Alarm I_______I_______I AUX Fuse Failure Alarm I_______I_______I AC Failure Trouble Alarm I_______I_______I TLM Trouble Code (via LINKS) I_______I_______I Bell Circuit Trouble Alarm I_______I_______I General System Supervisory I_______I_______I Fire Trouble Alarm

[44] Maintenance Restoral Reporting Codes

I_______I_______I Batter y Trouble Restoral I_______I_______I AUX Fuse Trouble Restoral I_______I_______I AC Failure Trouble Restoral I_______I_______I TLM Restoral I_______I_______I Bell Circuit Trouble Restoral I_______I_______I General System Supervisory Restoral I_______I_______I Fire Trouble Restoral

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

[45] Miscellaneous Maintenance Reporting Codes

I_______I_______I Phone Number 1 Failure to Communicate I_______I_______I General Zone Fault Alarm I_______I_______I Phone Number 2 Failure to Communicate I_______I_______I General Zone Fault Restoral I_______I_______I Event Buffer is 75% Full Since Last Upload I_______I_______I Delinquency Reporting Code

[46] Test Transmission Reporting Codes

I_______I_______I Periodic Test Transmission I_______I_______I System Test I_______I_______I LINKS 1000 Test Transmission Code

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor(Section 5.7 “Communicator – Repor

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

(Section 5.7 “Communicator – Repor (Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor

(Section 5.7 “Communicator – Repor (Section 5.7 “Communicator – Repor

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

ting Codes”)

ting Codes”)ting Codes”)

tingting

ting

tingting

[50] Communicator Format Options

(Section 5.8 “Communicator – Repor(Section 5.8 “Communicator – Repor

(Section 5.8 “Communicator – Repor

(Section 5.8 “Communicator – Repor(Section 5.8 “Communicator – Repor

ting Forting For

ting For

ting Forting For

mats”)mats”)

mats”)

mats”)mats”)

Default 02 I_______I_______I 1st Phone Number

I_______I_______I 2nd Phone Number

01 20 BPS, 1400 HZ handshake 04 SIA FSK 02 20 BPS, 2300 HZ handshake 05 Pager Format 03 DTMF CONTACT I.D.

[51] Zone Alarms & Restorals Communicator Call Directions

(Section 5.4 “Communicator – Dialing”)(Section 5.4 “Communicator – Dialing”)

(Section 5.4 “Communicator – Dialing”)

(Section 5.4 “Communicator – Dialing”)(Section 5.4 “Communicator – Dialing”)

Default Option ON OFF ON I_______I 1 1st Telephone Number Disabled OFF

I_______I 2 2nd Telephone Number Disabled

OFF I_______I 3 1st Telephone Number (via LINKS) Disabled OFF I_______I 4 2nd Telephone Number (via LINKS) Disabled

[52] Zone Tamper Alarms & Tamper Restorals Communicator Call Directions

cator – Dialing”)cator – Dialing”)

cator – Dialing”)

cator – Dialing”)cator – Dialing”)

Default Option ON OFF ON I________I 1 1st Telephone Number Disabled OFF I________I 2 2nd Telephone Number Disabled OFF OFF I________I 4 2nd Telephone Number (via LINKS) Disabled

I________I 3 1st Telephone Number (via LINKS) Disabled

(Section 5.4 “Communi-(Section 5.4 “Communi-

(Section 5.4 “Communi-

(Section 5.4 “Communi-(Section 5.4 “Communi-

Page 29

P R O G R A M M I N G W O R K S H E E T S

[53] Openings & Closings Communicator Call Directions

(Section 5.4 “Communicator – Dialing”)(Section 5.4 “Communicator – Dialing”)

(Section 5.4 “Communicator – Dialing”)

(Section 5.4 “Communicator – Dialing”)(Section 5.4 “Communicator – Dialing”)

Default Option ON OFF ON I________I 1 1st Telephone Number Disabled OFF

I________I 2 2nd Telephone Number Disabled

OFF I________I 3 1st Telephone Number (via LINKS) Disabled OFF I________I 4 2nd Telephone Number (via LINKS) Disabled

[54] System Maintenance Alarms & Restorals Communicator Call Directions

cator – Dialing”)cator – Dialing”)

cator – Dialing”)

cator – Dialing”)cator – Dialing”)

(Section 5.4 “Communi-(Section 5.4 “Communi-

(Section 5.4 “Communi-

(Section 5.4 “Communi-(Section 5.4 “Communi-

Default Option ON OFF ON I________I 1 1st Telephone Number Disabled OFF I________I 2 2nd Telephone Number Disabled OFF

I________I 3 1st Telephone Number (via LINKS) Disabled

OFF I________I 4 2nd Telephone Number (via LINKS) Disabled

[55] System Test Transmissions Communicator Call Dir ections

(Section 5.4 “Communicator – Dialing”)(Section 5.4 “Communicator – Dialing”)

(Section 5.4 “Communicator – Dialing”)

(Section 5.4 “Communicator – Dialing”)(Section 5.4 “Communicator – Dialing”)

Default Option ON OFF ON I________I 1 1st Telephone Number (Periodic Test TX and System Test Only) Disabled OFF

I________I 2 2nd Telephone Number (Periodic Test TX and System Test Only) Disabled

OFF I________I 3 1st Telephone Number (via LINKS) (LINKS 1000 Test TX Code Only) Disabled OFF I________I 4 2nd Telephone Number (via LINKS) (LINKS 1000 Test TX Code Only) Disabled

[60] First Communicator Option Code

Default Option ON OFF Section ON I_______I 1 Communications Enabled Communications Disabled ON I_______I 2 DTMF Dialing Pulse Dialing ON I_______I 3 Switch to Pulse Dialing on 5th Attempt DTMF Dial For All 8 Attempts OFF I_______I 4 3rd Phone Number Enabled 3rd Phone Number Disabled OFF I_______I 5 Alternate Dial (1st and 3rd) Call 1st Number, Backup to 3rd (If programmed) OFF I_______I 6 Restorals on Bell Time-out Restorals Follow Zones

5.45.4

5.4

5.45.4

5.4

5.45.4

5.4

5.45.4

5.65.6

5.6

5.65.6

5.6

5.65.6

5.7.25.7.2

5.7.2

5.7.25.7.2

[61] Second Communicator Option Code

Default Option ON OFF Section OFF

I_ ______I 1

Closing Confirmation Enabled

Closing Confirmation Disabled

OFF I_______I 2 Opening After Alarm Keypad Open After Alarm Bell Ringback Disabled

Ringback Enabled

OFF

I_______I 3 Opening After Alarm Bell Opening After Alarm Bell Ringback Disabled

Ringback Enabled

OFF

I_______I 4 Busy Tone Detection Enabled Busy Tone Detection Disabled

OFF I_______I 5 Call LINKS As Well As Land Line LINKS is Backup of Land Line(s) OFF

I_______I 6 SIA Sends Programmed Rep. Codes SIA Sends Automatic Rep. Codes

[62] Communication Variables

Default Section 003

I_ ______I_______I_______I Swinger Shutdown (Alarms and Rest) (001-014 Transmissions, 000=disabled)

000 I_______I_______I_______I Transmission Delay (001-255 seconds) 030 I_______I_______I_______I AC Failure Communication Delay (001-255 minutes) 003 I_______I_______I_______I TLM Trouble Delay 030 I_______I_______I_______I Test Transmission Cycle (001-255 days) 030 I_______I_______I_______I Delinquency Transmission Delay (000-255 days)

[63] Test Transmission Time of Day

(Section 5.12 “T(Section 5.12 “T

(Section 5.12 “T

(Section 5.12 “T(Section 5.12 “T

est Test T

est T

est Test T

Default 9999

I_______I_______I_______I_______I (Valid entries are 0000-2359, 9999 to disable)

(No. of valid checks required - 000-255 x 10s)

ransmission”)ransmission”)

ransmission”)

ransmission”)ransmission”)

5.7.35.7.3

5.7.3

5.7.35.7.3

5.7.45.7.4

5.7.4

5.7.45.7.4

5.7.4

5.7.45.7.4

5.45.4

5.4

5.45.4

5.8.35.8.3

5.8.3

5.8.35.8.3

5.165.16

5.16

5.165.16

5.175.17

5.17

5.175.17

5.7.75.7.7

5.7.7

5.7.75.7.7

5.105.10

5.10

5.105.10

5.125.12

5.12

5.125.12

5.7.95.7.9

5.7.9

5.7.95.7.9

Page 30

P R O G R A M M I N G W O R K S H E E T S

[67] LINKS 1000 Preamble (First Telephone Number)

Default FFFF

I_______I_______I_______I_______I (Program all unused digits with Hex F)

(Section 5.23 “LINKS 1000 Cellular Communicator”)(Section 5.23 “LINKS 1000 Cellular Communicator”)

(Section 5.23 “LINKS 1000 Cellular Communicator”)

(Section 5.23 “LINKS 1000 Cellular Communicator”)(Section 5.23 “LINKS 1000 Cellular Communicator”)

[68] LINKS 1000 Preamble (Second Telephone Number)

Default FFFF I_______I_______I_______I_______I (Program all unused digits with Hex F)

[69] LINKS 1000 Preamble (Third Telephone Number)

Default FFFF I_______I_______I_______I_______I (Program all unused digits with Hex F)

(Section 5.23 “LINKS 1000 Cellular Communicator”)(Section 5.23 “LINKS 1000 Cellular Communicator”)

(Section 5.23 “LINKS 1000 Cellular Communicator”)

(Section 5.23 “LINKS 1000 Cellular Communicator”)(Section 5.23 “LINKS 1000 Cellular Communicator”)

(Section 5.23 “LINKS 1000 Cellular Communicator”)

(Section 5.23 “LINKS 1000 Cellular Communicator”)(Section 5.23 “LINKS 1000 Cellular Communicator”)

Downloading Programming

P R O G R A M M I N G W O R K S H E E T S

[70] Number of Rings to Answer On

Default 1 2

I_______I_______I (Valid entries are 00-99)

[71] First Downloading Option Code

Default Option ON OFF OFF I_______I 1 Downloading Answer Enabled Downloading Answer Disabled ON I_______I 2 User Can Enable DLS Window for One Hour User Cannot Enable DLS Window OFF OFF I_______I 4 User Initiated Call-up Enabled User Initiated Call-up Disabled OFF I_______I 5 Periodic Download at Test TX Time No Periodic Download OFF

I_______I 3 Call-Back Enabled Call-Back Disabled

I_______I 6 Answering Machine Override Enabled Answering Machine Override Disabled

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

[72] Downloading Computer’s Telephone Number (32 Digits)

I___ _ _I__ _ _ _I__ __ _I__ _ _ _I___ _ _ I__ _ _ _I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I _____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____ I_____I_____I_____I

[73] Downloading Access Code

Default 1575

I_______I_______I_______I_______I Enter 4 Hexadecimal Digits

[74] Panel Identification Code

Default 1575

I_______I_______I_______I_______I Enter 4 Hexadecimal Digits

[75] Answering Machine Double-call Timer

Default 060

I_______I_______I_______ I (Valid entries are 001-255 seconds)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

[77] [Installer Code] [77] Initiate Local Downloading (PC-LINK) [79] LINKS 1000 Preamble (Downloading Telephone Number)

Default FFFF

I_ ______I_______I_______I_______I (Program all unused digits with Hex F)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)

(Section 5.9 “Downloading”)(Section 5.9 “Downloading”)

Page 31

P R O G R A M M I N G W O R K S H E E T S

Module Programming

P R O G R A M M I N G W O R K S H E E T S

[87]PC5400 Programming (Printer Module)

[01] Printer Configuration

Default Option ON OFF OFF I________I 1 Printer Enabled Printer Disabled

I________I 2 Handshake from Printer No Handshake

I________I 3 80 Column Printer 40 Column Printer

OFF

I________I 4 300 Baud Enabled Disabled

OFF

I________I 5 1200 Baud Enabled Disabled

OFF

I________I 6 2400 Baud Enabled Disabled

[05] Printer Language Selection

Default 01 I________I________I (01=English 02=French 03=Spanish)

[88] DLM-1/DLM-4 Support Timers

Default 01 I________I________I Number of Pictures (Valid Entries are 01-08) 00 I________I________I Delay Before Capture at 100ms increments (Valid Entries are 00-99)

(Section 5.25 “Downlook V(Section 5.25 “Downlook V

(Section 5.25 “Downlook V

(Section 5.25 “Downlook V(Section 5.25 “Downlook V

(Section 5.24 “On-Site Printer”)(Section 5.24 “On-Site Printer”)

(Section 5.24 “On-Site Printer”)

(Section 5.24 “On-Site Printer”)(Section 5.24 “On-Site Printer”)

ideo Tideo T

ransmission Module”)ransmission Module”)

ideo T

ransmission Module”)

ideo Tideo T

ransmission Module”)ransmission Module”)

Special Installer Functions

P R O G R A M M I N G W O R K S H E E T S

[90] [Installer’s Code] [90] Installer Lockout Enable

Enter [90] [Installer’s Code] [90]

[91] [Installer’s Code] [91] Installer Lockout Disable

Enter [91] [Installer’s Code] [91]

[92] [Installer’s Code] [92] Module Supervision Reset

Enter [91] [Installer’s Code] [91]

(Section 5.27 “Installer(Section 5.27 “Installer

(Section 5.27 “Installer

(Section 5.27 “Installer(Section 5.27 “Installer

(Section 5.27 “Installer

(Section 5.27 “Installer(Section 5.27 “Installer

(Section 2.6 “Super(Section 2.6 “Super

(Section 2.6 “Super

(Section 2.6 “Super(Section 2.6 “Super

[95] [Installer’s Code] [95] Restore ESCORT to Factory Default Programming

FactorFactor

y Defaults”)y Defaults”)

Factor

y Defaults”)

FactorFactor

y Defaults”)y Defaults”)

Enter [95] [Installer’s Code] [95]

[97] [Installer’s Code] [97] Restore PC5400 to Factory Default Programming

FactorFactor

y Defaults”)y Defaults”)

Factor

y Defaults”)

FactorFactor

y Defaults”)y Defaults”)

Enter [96] [Installer’s Code] [96]

[99] [Installer’s Code] [99] Restore PC1575 to Factory Default Programming

FactorFactor

y Defaults”)y Defaults”)

Factor

y Defaults”)

FactorFactor

y Defaults”)y Defaults”)

Enter [99] [Installer’s Code] [99]

’’

s Lockout”)s Lockout”)

’

s Lockout”)

’’

s Lockout”)s Lockout”)

’’

s Lockout”)s Lockout”)

’

s Lockout”)

’’

s Lockout”)s Lockout”)

vision”)vision”)

vision”)

vision”)vision”)

(Section 5.26 “Resetting(Section 5.26 “Resetting

(Section 5.26 “Resetting

(Section 5.26 “Resetting(Section 5.26 “Resetting

(Section 5.26 “Resetting

(Section 5.26 “Resetting(Section 5.26 “Resetting

(Section 5.26 “Resetting

(Section 5.26 “Resetting(Section 5.26 “Resetting

Page 32

Contact ID

A P P E N D I X A

The Partition ID Codes must be 4 digits. All reporting codes must be 2 digits. The following is a list of Contact ID reporting codes. The first digit (in parentheses) will automatically be sent by the control.

The last two digits are programmed to indicate specific information about the signal. For example, if zone 1 is an entry/exit point, the alarm reporting code could be programmed as [34]. The central station

would receive the following:

*BURG - ENTRY/EXIT - 1

In the above example, the “1” indicates which zone went into alarm.

Do not program the following reporting codes:

Event Buffer 75% Full

When using a 2-wire smoke and Contact ID, the zone number will be identified as 99.

Event Codes (as per ADEMCO):

Medical Alarms

(1)AA Medical (1)A1 Pendant Transmitter (1)A2 Fail to Report In

Fire Alarms

(1)1A Fire Alarm (1)11 Smoke (1)12 Combustion (1)13 Water Flow (1)14 Heat (1)15 Pull Station (1)16 Duct (1)17 Flame (1)18 Near Alarm

Panic Alarms

(1)2A Panic (1)21 Duress (1)22 Silent (1)23 Audible

Burglar Alarms

(1)3A Burglary (1)31 Perimeter (1)32 Interior (1)33 24 Hour (1)34 Entry / Exit (1)35 Day / Night (1)36 Outdoor (1)37 Tamper (1)38 Near Alarm

General Alarms

(1)4A General Alarm (1)43 Exp. module failure (1)44 Sensor tamper (1)45 Module Tamper

24 Hour Non-Burglary

(1)5A 24 Hour non-Burg (1)52 Refrigeration (1)53 Loss of Heat (1)54 Water Leakage (1)55 Foil Break (1)56 Day Trouble (1)57 Low bottled Gas level (1)58 High Temp (1)59 Low Temp (1)61 Loss of Air Flow

Fire Supervisory

(2)AA 24 Hour non-Burg (2)A1 Low Water Pressure (2)A2 Low CO2 (2)A3 Gate Valve Sensor (2)A4 Low water level (2)A5 Pump activated (2)A6 Pump failure

System Troubles

(3)AA System Trouble (3)A1 AC Loss (3)A2 Low System Battery (3)A3 RAM checksum bad* (3)A4 ROM checksum bad* (3)A5 System Reset* (3)A6 Panel prog. changed* (3)A7 Self-test failure (3)A8 System Shutdown (3)A9 Battery Test Failure (3)1A Ground Fault

Sounder / Relay Troubles

(3)2A Sounder / Relay (3)21 Bell 1 (3)22 Bell 2 (3)23 Alarm Relay (3)24 Trouble Relay (3)25 Reversing

Opening After Alarm, Recent Closing

System Peripheral Troubles

(3)3A System Peripheral (3)31 Polling Loop Open (3)32 Polling Loop Short (3)33 Exp. Module Failure (3)34 Repeater Failure (3)35 Local Printer Paper Out (3)36 Local Printer Failure

Communication Troubles

(3)5A Communication (3)51 Telco 1 Fault (3)52 Telco 2 Fault (3)53 Lng-Rnge Rad. xmttr. fault (3)54 Fail to Communicate (3)55 Loss of radio super. (3)56 Loss of central polling

Protection Loop Troubles

(3)7A Protection Loop (3)71 Protection Loop open (3)72 Protection Loop short (3)73 Fire Trouble

Sensor Troubles

(3)8A Sensor Trouble (3)81 Loss of super. RF (3)82 Loss of super. RPM (3)83 Sensor Tamper (3)84 RF xmitter low batter

Open / Close

(4)AA Open / Close (4)A1 O / C by User (4)A2 Group O / C (4)A3 Automatic O / C (4)A4 Late to O / C (4)A5 Deferred O / C (4)A6 Cancel (4)A7 Remote Arm / Disarm (4)A8 Quick Arm (4)A9 Keyswitch O / C

Remote Access

(4)11 Callback request made* (4)12 Successful Download

(4)13 Unsuccessful access* (4)14 System Shutdown (4)15 Dialer Shutdown

Access Control

(4)21 Access denied (4)22 Access report by user

System Disables

(5)AA-(5)1A

Sounder / Relay Disables

(5)2A Sounder / Relay disable (5)21 Bell 1 disable (5)22 Bell 2 disable (5)23 Alarm relay disable (5)24 Trouble relay disable (5)25 Reversing relay disable

System Peripheral Disables

(5)3A-54A

Communication Disables

(5)51 Dialer disabled (5)52 Radio xmitter disabled

Bypasses

(5)7A Zone bypass (5)71 Fire bypass (5)72 24 Hour zone bypass (5)73 Burg bypass (5)74 Group bypass

Test / Misc.

(6)A1 Manual Trigger Test* (6)A2 Periodic Test report* (6)A3 Periodic RF xmission* (6)A4 Fire test* (6)A5 Status report to follow* (6)A6 Listen-in to follow (6)A7 Walk test mode

and

zaccess*

* Restore not applicable

Page 33

SIA Format

A P P E N D I X B

SIA Format

Level 2 (Hardcoded)

The SIA communication format used in this product follows the level 2 specifications of the SIA Digital Communication Standard - February 1993. This format will send the Account Code along with its data transmission. At the receiver, the transmission would look similar to this example:

N Ri01 BA 01

N = New Event

Ri01 = Partition /Area Identifier

BA = Burglary Alarm

01 = Zone 1

PC1575 Reporting Codes SIA Identifiers &

Auto-Reporting Code

Delay Zone Alarm / Restore .................................. BA-XX / BH-XX*

Instant Zone Alarm / Restore ................................ BA-XX / BH-XX*

Interior Zone Alarm / Restore ................................ BA-XX / BH-XX*

Delay H.A. Zone Alarm / Restore.......................... BA-XX / BH-XX*

Interior H.A. Zone Alarm / Restore........................ BA-XX / BH-XX*

24 Hr Burg Zone Alarm / Restore ......................... BA-XX / BH-XX*

Standard Fire Zone Alarm / Restore ...................... FA-XX / FH-XX*

Delayed Fire Zone Alarm / Restore ....................... FA-XX / FH-XX*

24 Hr Supervisory Buzzer Zone Alarm / Restore ..UA-XX/ UH-XX*

24 Hr Supervisory Zone Alarm / Restore.............. UA-XX / UH-XX*

24 Hr Medical Zone Alarm / Restore ...................MA-XX / MH-XX*

24 Hr Panic Zone Alarm / Restore ........................ PA-XX / PH-XX*

24 Hr Holdup Zone Alarm / Restore .....................HA-XX / HH-XX*

24 Hr Heat Zone Alarm / Restore.......................... KA-XX / KH-XX*

24 Hr Emergency Zone Alarm / Restore ............. QA-XX / QH-XX*

24 Hr Sprinkler Zone Alarm / Restore................... SA-XX / SH-XX*

24 Hr Water Zone Alarm / Restore...................... WA-XX / WH-XX*

24 Hr Freeze Zone Alarm / Restore ...................... ZA-XX / ZH-XX*

24 Hr Latching Tamper Alarm / Restore............... BA-XX / BH-XX*

Duress Alarm ......................................................................... HA-00

Opening After Alarm..............................................................OR-00

Keypad Fire Alarm / Restore.................................... FA-00 / FH-00

Keypad Auxiliary Alarm / Restore.......................... MA-00 / MH-00

PC1575 Reporting Codes SIA Identifiers &

Auto-Reporting Code

Keypad Panic Alarm / Restore.................................PA-00 / PH-00

2-Wire Smoke Alarm / Restore ................................. FA-00 / FH-00

Zone Tamper (1-6)................................................................TA-XX*

Zone Tamper Restorals (1-6) ...............................................TR-XX*

General System Tamper / Restore ........................... TA-00 / TR-00

Closing By Access Codes 1-6 .............................................. CL-XX

Partial Closing ...................................................................CG-XX ▼

Opening By Access Codes 1-6 ....................................... OP-XX ◆

Battery Trouble Alarm / Restore ............................... YT-00 / YR-00

AC Failure Trouble Alarm / Restore ......................... AT-00 / AR-00

Bell Circuit Trouble Alarm / Restore ........................ UT-99 / UJ-99

Fire Trouble Alarm / Restore ..................................... FT-00 / FJ-00

Auxiliary Power Supply Trouble Alarm / Restore ....YP-00 / YQ-00

TLM Trouble Code (via LINKS) .............................................. LT-00

General System Supervisory / Restore .................... ET-00 / ER-00

TLM Restoral .......................................................................... LR-00

FTC Restoral .......................................................................... YK-00

Event Buffer 75% Full Since Last Upload ............................. JL-00

Periodic Test Transmission ................................................... RP-00

System Test ............................................................................ RX-00

LINKS1000 Test Transmission Code .....................................TX-00

General Zone Fault Alarm/ Restore ........................UT-00 / UJ-00*

Burglary Verified .................................................................... BV-00

Closing Delinquent ................................................................CD-00

* Zone Number is Identified

◆ User Number is Identified ▼ Each Zone Number is Identified (using UB-XX)

Page 34

Programming LCD Keypads

A P P E N D I X C

If you have an LCD5500 Keypad, additional programming is required for proper operation. The following is a description of the available programming options and their accompanying programming sections:

How to Enter LCD Programming

Follow the programming procedure as outlined in Section 4 by pressing [✱] [8] [Installer’s Code]. Press the [✱] key. Enter the two digit Section number to be programmed.

Programmable Labels – Sections [01] - [06], [40], [44], [51], [52], [60] - [64], [66]

Zone labels and other LCD display identifiers can be customized to make operation of the system easier for the end user. The following procedure should be used for creating all LCD labels:

• Enter Installer’s Programming. Enter the Number corresponding to the label to be programmed.

• Use the arrow keys (<>) to move the underline bar underneath the letter to be changed.

• Press the number key [1] to [9] corresponding to the letter you require. The first time you press the number the first letter will appear. Pressing the number key again will display the next letter. Refer to the following chart: [1] - A, B, C, 1 [2] - D, E, F, 2 [3] - G, H, I, 3 [4] - J, K, L, 4 [5] - M, N, O, 5 [6] - P, Q, R, 6 [7] - S, T, U, 7 [8] - V, W, X, 8 [9] - Y, Z, 9,0 [0] - Space

• When the required letter or number is displayed use the arrow keys (<>) to scroll to the next letter.

• When you are finished programming the Zone Label, press the [

• Continue from Step 2 until all Labels are programmed.

[01] to [06] Zone Labels (14 Characters)

Default to

Zone_____1____

Zone_____6____

✱] key, scroll to “Save,” then press [✱].

[33] Fire Alarm Label (14 Characters) [34] System Label (14 Characters)

Default Default

Fire_Zone_____

System________

[40] “Utility Output” Label (14 Characters) [44] “Sensor Reset” Label (14 Characters)

Default Default

Utility_Output

Sensor_Reset__

[51] Fail to Arm Event Message [52] Alarm When Armed Event Message

Default Default

System_Has_____

Failed_to_Arm___

Alarm_Occurred__

While_Armed___< >

[60] First User Display Mask

Default Option ON OFF ON

I_______I 1 Hold [P]anic Keys prompt ON Hold [P]anic Keys prompt OFF

ON I_______I 2 Zone Bypassing prompt ON Zone Bypass prompt OFF ON ON ON ON ON

I_______I 3 Troubles prompt ON Troubles prompt OFF I_______I 4 Alarm Memory prompt ON Alarm Memory prompt OFF I_______I 5 Door Chime Control prompt ON Door Chime Control prompt OFF I_______I 6 Access Codes prompt ON Access Codes prompt OFF I_______I 7 User Functions prompt ON User Functions prompt OFF

ON I_______I 8 Output Control prompt ON Output Control prompt OFF

[61] Second User Display Mask

Default Option ON OFF OFF ON ON ON OFF ON

I_______I 1 Installer Programming prompt ON Installer Programming prompt OFF I_______I 2 Stay Arm prompt ON Stay Arm prompt OFF I_______I 3 Quick Arm prompt ON Quick Arm prompt OFF I_______I 4 Interior Arm prompt ON Interior Arm prompt OFF I_______I 5 Quick Exit prompt ON Quick Exit prompt OFF I_______I 6 View Event Buffer prompt ON View Event Buffer prompt OFF

OFF I_______I 7 Baby Input prompt ON Baby Input prompt OFF OFF

I_______I 8 Music Input ON Music Input OFF

Page 35

P R O G R A M M M I N G L C D K E Y P A D S

[62] Third User Display Mask

Default Option ON OFF ON I_______I 1 System Test prompt ON System Test prompt OFF ON ON ON

I_______I 2 Time and Date prompt ON Time and Date prompt OFF I_______I 3 Auto-Arm Control prompt ON Auto-Arm Days prompt OFF I_______I 4 Auto-Arm Time prompt ON Auto-Arm Time prompt OFF

ON I_______I 5 Download Enable prompt ON Download Enable prompt OFF ON ON ON

I_______I 6 Bright Control prompt ON Bright Control prompt OFF I_______I 7 Contrast Control prompt ON Contrast Control prompt OFF I_______I 8 Buzzer Control prompt ON Buzzer Control prompt OFF

[63] Downloaded LCD Message Duration

Default 003

I______I______I______I (Valid entries are 000-255, 000=Unlimited Message Display. This number represents the number of times

the Downloaded message is cleared by pressing any key while the message is up after timeout)

[64] Key Options

Default Option ON OFF ON

I_______I 1 [F]ire Keys enabled [F]ire Keys disabled

ON I_______I 2 [A]uxiliary Keys enabled [A]uxiliary Keys disabled ON

I_______I 3 [P]anic Keys enabled [P]anic Keys disabled

OFF I_______I 4-8 For Future Use

[65] Four th User Display Mask

Default Option ON OFF ON I_______I 1 User Initiated Call-up Prompt ON User Initiated Call-up Prompt OFF ON I_______I 2 Last Code to Disarm/Arm Prompt ON Last Code to Disarm/Arm Prompt OFF ON I_______I 3 Walk Test Prompt ON Walk Test prompt OFF

[66] Keypad Options

Default Option ON OFF

ON I_______I 1 Display Access Code when Programming Display ‘X’ when Programming ON I_______I 2 Local Clock Display Enabled Local Clock Display Disabled OFF I_______I 3-8 For Future Use

[97] View Software Version [98] Initiate Global Label Broadcast

All LCD programming is done per keypad. If more than one LCD keypad are present on the system, labels programmed at one keypad can be broadcast to all other LCD keypads. Perform the following procedure in order to broadcast labels: Step 1 - Program one LCD keypad completely. Step 2 - Make sure all LCD keypads are connected to the KEYBUS. Step 3 - Enter Installer’s Programming, then enter Section [98] at the keypad that was programmed. The keypad will now broadcast all the information programmed to all the other LCD keypads on the system. Step 4 - When the keypad is finished press the [#] key to exit.

[99] Reset LCD EEPROM to Factory Defaults

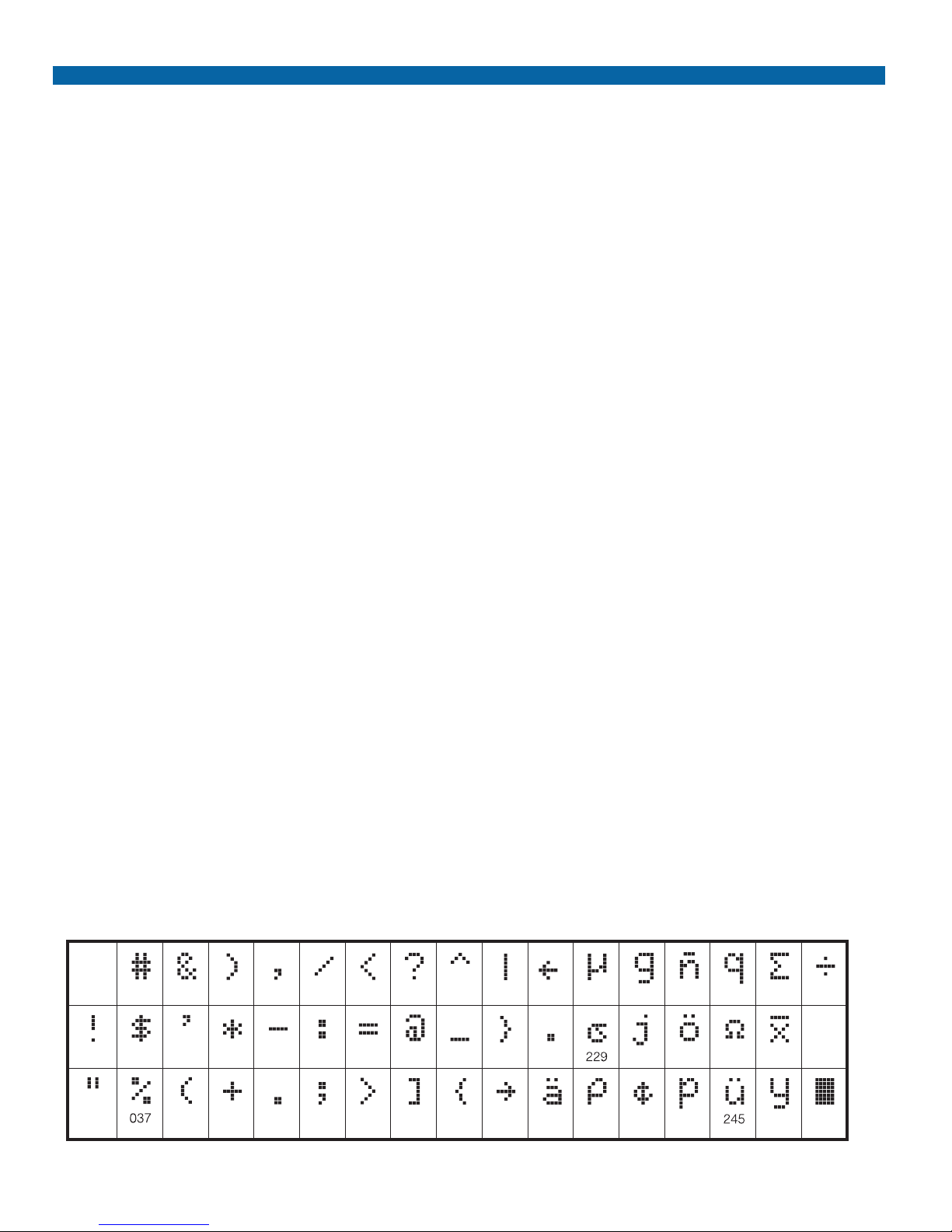

ASCII Characters

032

033

035

036

034

038

039

040

041

042

043

044

045

046

047 063

058

059

060

061

062

094

095

064 176

126

123

093

124

125

127

225

228

230

231

234

236

238

239

240

241

244

246

248

249

253

254

255

Page 36

PGM Output Options

A P P E N D I X D

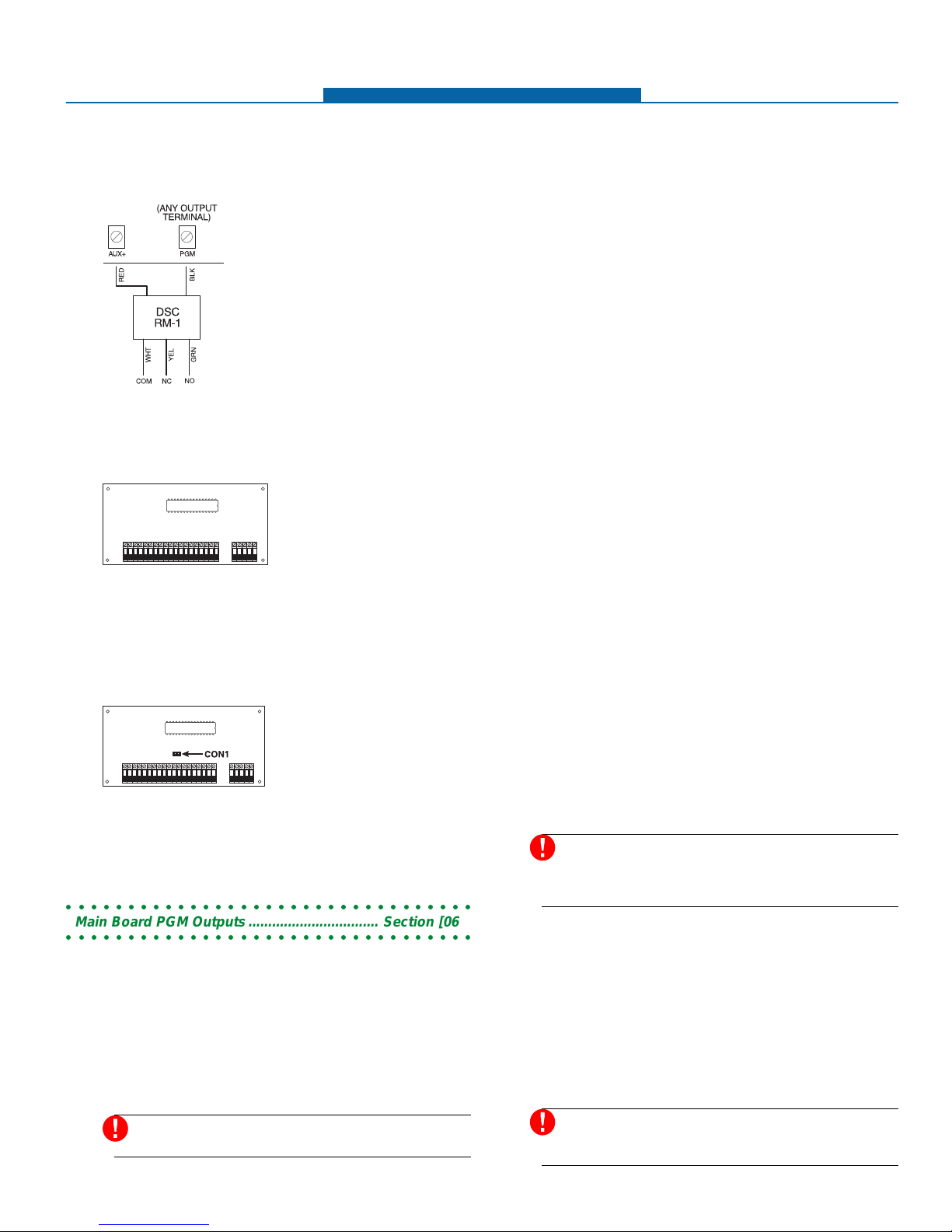

Establishing PGM Output Types

Each PGM output is designed so that when activated by the panel, the terminal will switch to ground.

PGM 1 – 50mA Current

PGM 2 – 50mA Current (Standard Option)

Because jumper CON1 is not present on the circuit board diagram below, the panel is a PC1575 (standard option). This means that PGM2 is rated at 50mA and does not support 2-wire smoke detectors.

PGM2 – 300mA Current (2-wire Smoke Option)

Because jumper CON1 is present on the circuit board diagram below, the panel is a PC1575 (2-wire smoke option). This means that PGM2 is rated at 300mA and will support 2-wire smoke detectors. (See Section 2.8 “Zone Wiring – Fire Zone Wiring”). Note that the jumper CON1 must be removed when PGM2 is programmed for for Downlook, 2-wire smoke support, keyswitch arming, 24 hour operation or forced answer.

PGM1 can sink up to 50 mA of current to activate LEDs or a small buzzer. Connect the positive side of the LED or buzzer to AUX+, the negative side to PGM1. If more than 50 mA of current are required, a relay must be used. Please study PGM wiring in the accompanying diagram.

PGM2 outputs are connected the same way as PGM1 outputs.

PGM Output Options [01] - [15]

Both programmable outputs – PGM1 and PGM2 – on the main board can be programmed by selecting one of the output options listed below. PGM output options [01] to [15] can be programmed for both PGM1 and PGM2.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Main Board PGM Outputs................................. Section [06]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

[01] Ground Start Pulse

The PGM Output will activate for two seconds to obtain a dial tone on Ground Start telephone equipment before the panel attempts to dial. Two 2-second pauses should be inserted at the beginning of the phone number when using this option.

[02] Utility Output with any Access Code

The PGM output will activate for 5 seconds when the [ [1] [Access Code] command is entered (see Section 3.0 – “Keypad Commands”).

[03] Sensor Reset

This output will normally be active and switched to ground.

✱] [7]

This option is used to reset power for latching smoke detectors. The output will deactivate for five seconds when

✱] [7] [2] command is entered (see Section 3.4 “[✱] [7]

the [ Output Functions”). The keypad buzzer will not sound for the five second period.

Please refer to the Hook-Up diagram in this manual for wiring instructions.

[04] Courtesy Pulse

Upon arming, the PGM output will activate for the duration of the exit delay plus an additional two minutes. Upon entry, the PGM output will activate for the duration of the entry delay plus an additional two minutes.

[05] Keypad Buzzer Follower Mode

The PGM will activate when any of the following events occur and will remain active for as long as the keypad buzzer is active:

• Door Chime • Entry Delay

• Auto-Arm Prealert • Audible Exit Delay

• 24 Hour Supervisory Buzzer Zone

[06] System Armed Status

When the system is armed, the PGM output will switch to ground at the beginning of the exit delay. The output goes high (open) when the panel is disarmed.

[07] Latched System Event (Strobe Output)

The PGM output will switch to ground when any of the system events (alarms) occur on the system. In the armed state, the output will deactivate only when the system is disarmed. If an alarm activates this output in the disarmed state, the output will deactivate if the bell is silenced during a bell time-out, or if the system is armed after the bell timeout. This PGM output can be used to indicate that an alarm has occurred before entering the premises.

This output will activate for all silent and audible alarms of the following types:

Burglary .......Delay, Instant, Interior, Stay/Away and 24

Fire ............... Fire Keys, Fire Zone and 2-wire Smoke Zone

Panic............ Panic Keys and Panic

Auxiliary .......Auxiliary Keys, Auxiliary and Emergency

Supervisory.. Supervisory, Freezer and Water Zones

Priority..........Heat, Sprinkler and 24 Hour Latching Zones

Hour Burglary Zones (PGM Output)

Zones

This output will activate for alarm conditions only. Pre-alerts or delays will not activate the output. This output should only be activated for all audible alarms or medical conditions

[08] Failure to Communicate or Telephone Line

Monitoring Trouble

The PGM output switches to ground when either of the two telephone line troubles are detected on the system (see Section 3.4 – “[ The output will deactivate when neither trouble is present.

[09] Entry Delay Follower

The PGM output switches to ground for the duration of the Entry Delay.

[10] Exit Delay Follower

The PGM output switches to ground for the duration of the Exit Delay.

✱] Commands; [✱] [2] Trouble Conditions”).

If this feature is used in conjunction with courtesy pulse, it will terminate at the end of the courtesy pulse time, not at the end of the exit delay.

Page 37

P G M O U T P U T O P T I O N S

[11] TLM and Alarm

The PGM output switches to ground when the system experiences both a telephone line trouble and an alarm. When the system is armed, the output will deactivate only if an access code is entered. If the output is activated by an alarm in the disarmed state, it will only deactivate if the bell is silenced during bell time-out or if the system is armed after the bell time-out.

This output will activate for all silent and audible alarms except the Duress alarm.

[12] Police Code Follower

The PGM output switches to ground if two different zones go into alarm during the same armed period. The Police Code will be sent to the central station and this output will activate. This output is latched.

[13] 20 Minute Latched Alarm

The PGM output will switch to ground upon an alarm and will latch for 20 minutes or until disarmed. If activated while disarmed, this output will be deactivated after 20 minutes or if a code is entered during bell time out or if the panel is armed.

[14] Line Seizure

The output will switch to ground while the panel has seized the telephone line for downloading purposes or to communicate to the central station.

[15] Ready To Arm

The PGM switches to ground as long as the system is ready to arm and all non-force armable zones on the system are restored. Once an access code is entered to arm the system and the exit delay begins, the PGM output is deactivated.

PGM Output Options [16] - [30]

PGM output options [16] to [30] have specific PGM output requirements and are represented by the following icons:

Option [16] is for PGM1 ONLY. Options [25] - [30] is for PGM2 ONLY Options [17] - [30] require that the connector CON1

be removed from the PC1575 (2-wire smoke option) control board. If you have a PC1575 (standard option), CON1 is already removed.

Option [25] “2-wire Smoke Support” requires a PC1575 (2-wire smoke option). This option cannot

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Main Board PGM Outputs................................. Section [06]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

be programmed on a PC1575 (standard option).

[16] LINKS 1000 Support

The PGM output will be used as a data wire to communicate phone number information for the LINKS 1000 cellular unit.

[17] Downlook Support

This option configures the PGM terminals for operation with the DLM-1 or DLM-4 Video Capture module.

Option 17 must be used on both PGM1 and PGM2 for Downlook Support. PGM1 connects to the DLM DTA and the PGM2 connects to the DLM CLK.

[25] 2-Wire Smoke Support

When this option is selected, the PGM functions much like option [03] in that it is a normally low output supplying the negative return. However, 2-wire smoke detectors can be supported, meaning that a zone input need not be used. The 2-wire smoke detector input is an instant and latching alarm requiring manual resetting. This input does not follow Swinger Shutdown.

2-Wire smoke detectors use PGM2 as a supervised input. A trouble condition will be gener-

ΩΩ

Ω

ated with the absence of a 2200

resistor

ΩΩ

between PGM2 and Aux+ .

[26] Momentary Key Switch Arm

A key switch module may be connected to the zone programmed as Momentary Key Switch Arm. Momentary activation of this zone will alternately arm and disarm the system and silence alarms. Note that the keypad will not display an indication when this type of zone is activated. This input does not follow Swinger Shutdown.

[27] Maintained Key Switch Arm

A Normally Open Key Switch module may be connected to the zone programmed as Maintained Key Switch Arm. In the restored state, the panel is disarmed. Any violation of the zone will cause the system to arm (alarm, tamper or fault). To be used with the Block Schloss module. This input does not follow Swinger Shutdown.

Both types of Key Switch zones will sound a keypad error tone if zones are open and if the user attempts to arm the system. The Maintained Key Switch will provide an error tone if an attempt is made to arm an already armed system, or to disarm an already disarmed system.

[28] Silent 24 Hour

A Panic button may be placed on the PGM2 terminal for use as a silent 24 hour Panic. The keypad will not indicate the alarm in any way and the Bell will remain silent but the PGM2 Alarm reporting code will be sent to the central station. This input does not follow Swinger Shutdown.

[29] Audible 24 Hour

A Panic button may be placed on the PGM2 Terminal for use as an Audible 24 Hour Panic. The keypad will not indicate the alarm in any way but the bell will sound for the duration of the bell time out and the PGM2 Alarm reporting code will be sent to the central station. This input does not follow Swinger Shutdown.

[30] Forced (LINKS) Answer

This output provides the ability to have the panel answer the phone line and look for a downloading computer without having to see the programmed number of rings or a valid double call. This output is also for use with a LINKS 1000 for downloading purposes. This zone is similar to a fire zone in that the supervision options (NC,EOL,DEOL) do not e affect zone functioning.

The restored state of this zone type is 2200Ω; the open state causes the panel to answer. A 2200 ohm resistor must be placed across the LINKS RING and zone terminals. Normally, the RING terminal would be ground, therefore presenting the 2200 ohms to the zone input. If the RING terminal opens, the panel will seize the telephone line. This input does not follow Swinger Shutdown.

Page 38

Appendix E

U L R E Q U I R E M E N T S

The following requirements apply to UL Listed systems:

1. All components of the system should be UL listed for the intended application.

2. If this system is configured for “fire”, the installer should refer to chapter 2 of NFPA 72 for details in locating smoke detectors and the typical installation layout shown below.

3. Note that at least one UL listed compatible audible signal appliance shall be installed indoors.

4. The maximum entry delay times are as follows: Residential - 45s; Commercial - 60s.

5. The maximum exit delay times are as follows: Residential and Commercial: 60s.

6. The minimum bell cutoff times are: Residential - 4 min; Commercial - 15 min.

The installer should advise the user on system operation and record the source organization name, telephone number, entry and exit times.

7. Remote programming shall be disabled.

8. The following accessories/modules are not UL listed and shall not be used with the control unit: PC5400, RS232 serial interface module, ESCORT5580 voice prompt modules, PC-Link adaptor, LINKS1000, DLM-1/DLM-4 Downlook modules, PC5004C cabinet.

9. Obvious or common user codes such as 1111 or 1234 should be avoided.

10. The following programming shall be performed:

A. The delayed 24hr Fire Zone shall not be used. B. If used, the 24hr heat, 24hr auxiliary, 24hr intrusion

emergency, 24hr sprinkler, 24hr waterflow and 24hr freezer

zones shall be programmed as silent. C. The Force Arm enable attribute shall be disabled for all zones. D. The Downlook Activation option shall be disabled for all zones.

E. In commercial burglary applications, the Communications

Enable option shall be selected.

F. In commercial burglary applications, the Closing Confirmation

option shall be enabled. G. The test transmission cycle shall be 1 day. H. The Quick Exit feature shall be disabled. I. The Bypass Status Displayed While Armed feature shall be

disabled. J. The Swinger Shutdown feature shall be disabled. K. The Call LINKS as well as Land Line option shall be disabled. L. The Code Required for Bypassing option shall be enabled. M. The AC Trouble Displayed feature shall be enabled. N. The Trouble Light Flashes if AC Fails location shall be

enabled. O. The Transmission Delay shall not exceed 15s. P. The Downloading Answer, Call-back and User Initiated Call-

up and Periodic Download features shall be disabled. Q. For a fire type zone, the bell output shall be passing. R. For burglary type zones, the bell output shall be steady.

11. The PC1575 shall be used with the following listed receivers and formats:

Silent Knight Model 9000 - 3/1, 4/1, 4/2 non-extended; 3/1 extended, 10md 20 bps, 1400Hz handshake

Ademco 685 - 3/1, 4/1 and 4/2 non-extended; 3/1 extended, 20bps, 1400Hz handshake. Sescoa super speed and Sescoa super speed with identified openings/closings.

Lincar Model 3000 - 3/1, 4/1 and 4/2 non-extended; 3/1 extended, 20bps, 1400Hz handshake. Sescoa super speed and Sescoa super speed with identified openings/closings.

Radionics Model D6500 - 3/1, 4/2 non-extended; 3/1 extended with and without parity, 1400 and 2300Hz handshake.

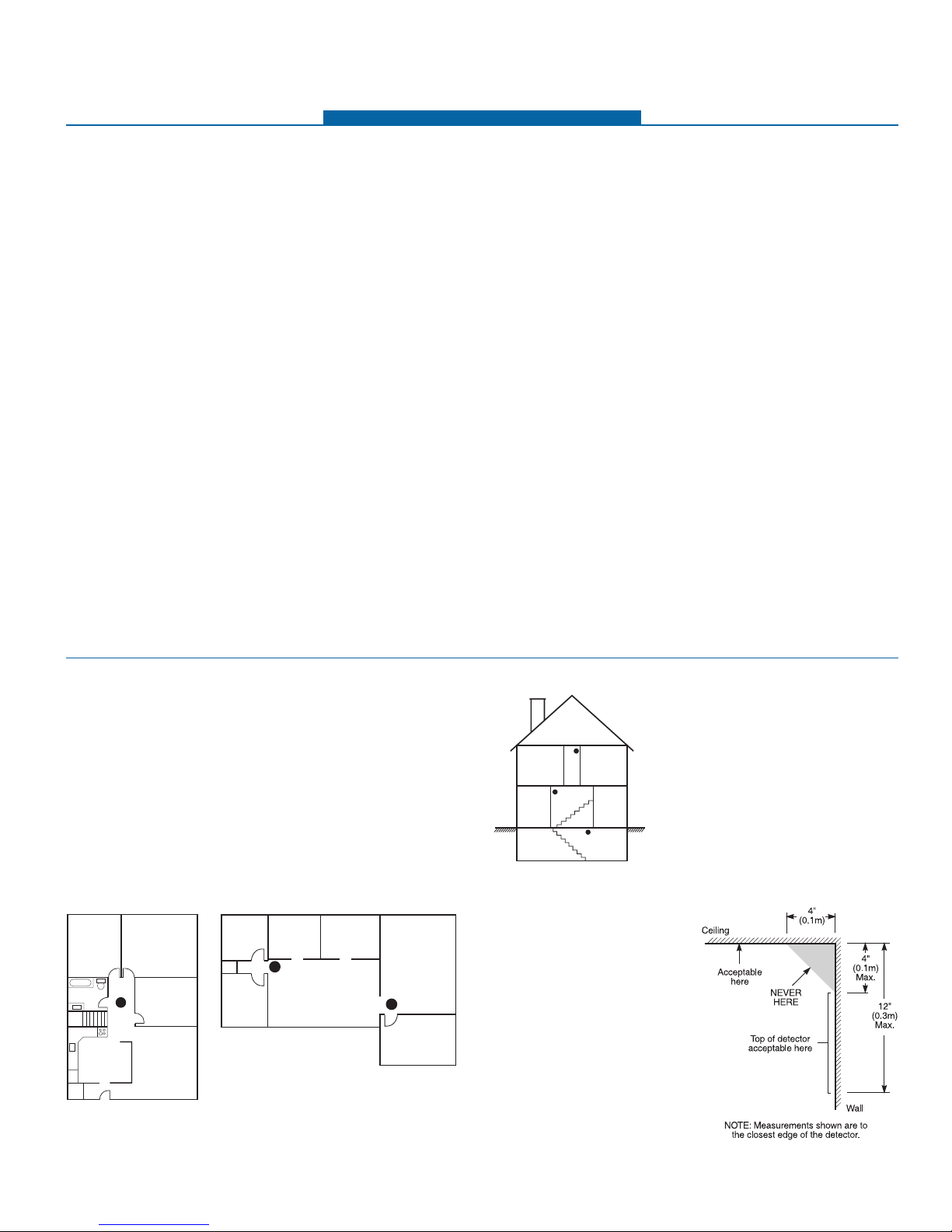

Guidelines for Locating Smoke Detectors

Experience has shown that all hostile fires in family living units generate smoke to a greater or lesser extent. Experiments using typical fires in family living units indicate that detectable quantities of smoke precede detectable levels of heat in most cases. For these reasons, NFPA standard 72 requires smoke detectors to be installed outside of each sleeping area and on each additional story of the family unit.

The following information is for general guidance only and it is recommended that NFPA standard 72 be consulted and that the smoke detector manufacturer's literature be used for detailed installation instructions.

It is recommended that additional smoke detectors beyond those required be installed for increased protection. The added areas include: basement, bedrooms, dining rooms, furnace room, utility room and hallways not protected by the required detectors.

Living Room

Dining

Room

Family Room

Bedroom

Bedroom Bedroom

Bedroom

Living RoomKitchen

FIG. 1: A smoke detector should be located between the sleeping area and the rest of the family unit.

Bedroom

Kitchen

FIG. 2: In the family living units with more than one sleeping area, a smoke detector should be located to protect each sleeping area.

Bedroom Bedroom

Living Room

Basement

Dining

Room

FIG. 3: A smoke detector should be located on each story of the living unit.

FIG. 4: Smoke Detector mounting

- “Dead” Air Space. The smoke from a fire generally rises to the ceiling, spreads out across the ceiling surface and begins to bank down from the ceiling. The corner where the ceiling and wall meet is an air space into which the smoke may have difficulty penetrating. In most fires, this “dead” air space measures about 4 in. (0.1m) along the ceiling from the corner and about 4 in. (0.1m) down the wall as shown in Figure 4. Detectors should not be placed in the “dead” air space.

Page 39

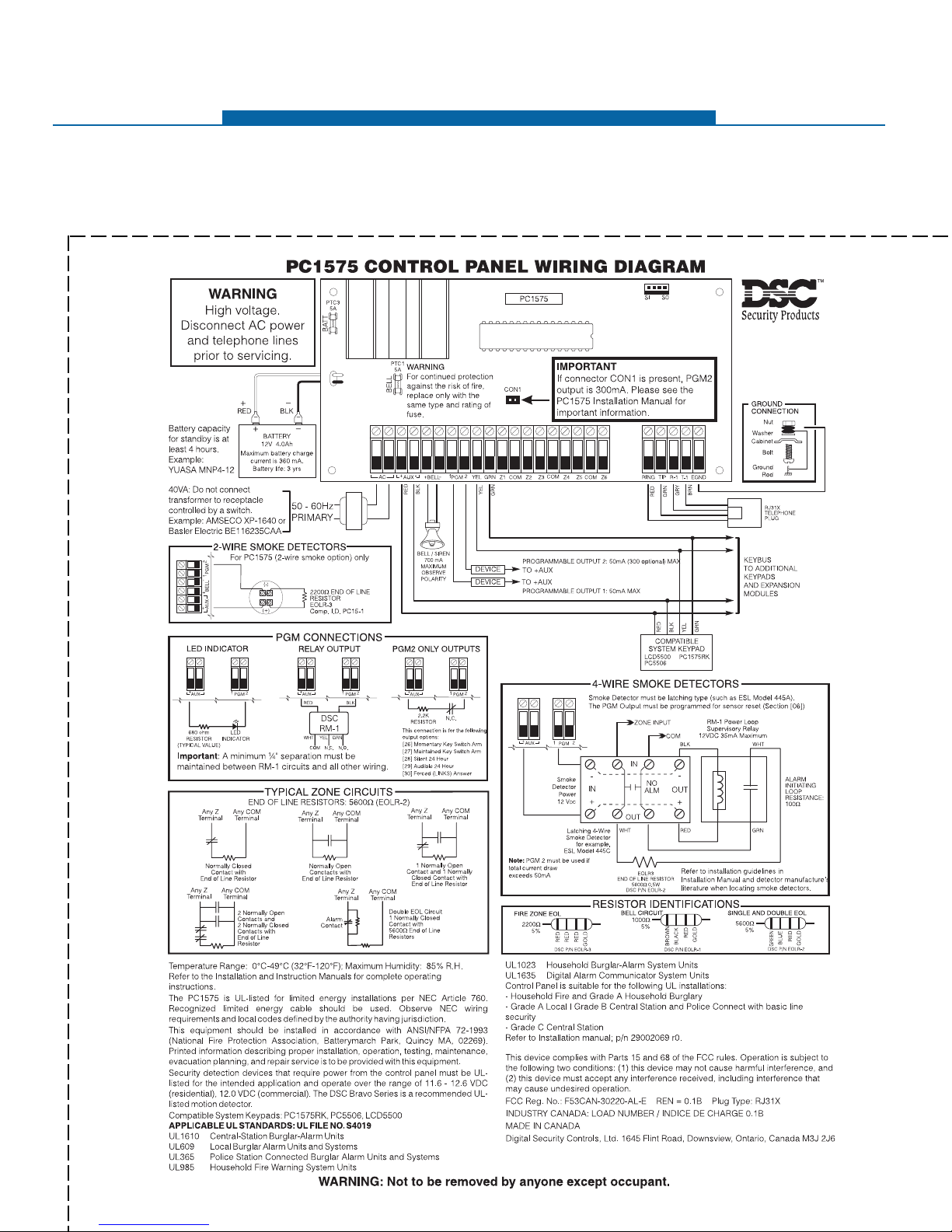

Control Panel Wiring Diagram

Page 40

NOTICE!

You must read this entire manual, including all notices and warnings, in order to install this

system so that it is fully functional.

WARNING!

This entire system must be completely tested on a regular basis to verify the operation of all

system functions, in accordance with the recommendations of the security systems industry.

However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical

disruption, it is possible that this product could fail to perform as expected.

Table of Contents

Section 1 - PC1575 System Introduction .............................. 1

1.1 Specifications ..................................................................... 1

1.2 Additional Devices.............................................................. 2

1.2.1 Keypads ................................................................. 2

1.2.2 ESCORT5580 Module............................................. 2

1.2.3 PC5400 Printer Module .......................................... 2

1.2.4 Downlook Video Transmission Module................... 2

1.2.5 LINKS 1000 Cellular Communicator....................... 2

1.2.6 Cabinets ................................................................. 2

1.3 Out of the Box ..................................................................... 2

Section 2 - Getting Started ..................................................... 3

2.1 Installation Steps ................................................................ 3

2.2 Terminal Descriptions ......................................................... 3

2.3 KEYBUS Operation and Wiring .......................................... 4

2.4 Current Ratings – Modules and Accessories..................... 4

2.5 Keypad Assignment ........................................................... 4

2.6 Supervision ......................................................................... 5

2.7 Removing Modules ............................................................. 5

2.8 Zone Wiring......................................................................... 5

2.8.1 Normally Closed (NC) Loops ................................ 5

2.8.2 Single End Of Line (EOL) Resistors (5600W)........ 5

2.8.3 Double End of Line (DEOL) Resistors .................... 5

2.8.4 Fire Zone Wiring — 4-Wire Smoke Detectors......... 5

2.8.5 Fire Zone Wiring – 2-Wire Smoke Detectors .......... 6

2.8.6 Keyswitch Zone Wiring (PGM2) ............................. 6

2.8.7 LINKS Support........................................................ 6

2.8.8 LINKS Supervisory ................................................. 6

2.8.9 LINKS Answer......................................................... 6

Section 3 - Keypad Commands ............................................. 7

3.1 Arming and Disarming........................................................ 7

3.2 Auto Bypass – Stay Arming ................................................ 7

3.3 Automatic Arming ............................................................... 7

3.4 [Q] Commands ................................................................... 7

3.5 Function Keys ................................................................... 11

3.5.1 Function Key Options ........................................... 11

Section 4 - How to Program ................................................. 12

4.1 Installer’s Programming .................................................... 12

4.2 Programming Decimal Data ............................................. 12

4.3 Programming HEX Data.................................................... 12

4.4 Programming Toggle Option Sections.............................. 12

4.5 Viewing Programming....................................................... 13

Section 5 - Program Descriptions ....................................... 14

5.1 Programming Security Codes........................................... 14

5.2 Zone Definitions ................................................................ 14

5.3 Zone Attributes ................................................................. 15

5.4 Communicator – Dialing ................................................... 15

5.5 Communicator – Account Numbers ................................. 15

5.6 Communicator – Phone Numbers .................................... 15

5.7 Communicator – Reporting Codes ................................... 16

5.7.1 Zone Alarm ........................................................... 16

5.7.2 Zone Restoral ....................................................... 16

5.7.3 Closings (Arming Codes) ..................................... 16

5.7.4 Openings (Disarming Codes) .............................. 16

5.7.5 Tampers ................................................................ 16

5.7.6 Priority/Emergency ............................................... 16

5.7.7 Maintenance ......................................................... 17

5.7.8 Test Transmissions................................................ 17

5.7.9 Miscellaneous....................................................... 17

TABLE OF CONTENTS

Page 41

TABLEVOFVCONTENTS

5.8 Communicator – Reporting Formats ................................ 17

5.8.1 Pulse Formats ....................................................... 17

5.8.2 Contact ID............................................................. 18

5.8.3 SIA ........................................................................ 18

5.8.4 Pager Format ........................................................ 18

5.9 Downloading..................................................................... 18

5.10 Telephone Line Monitor (TLM) ........................................ 19

5.11 Siren Supervision............................................................ 19

5.12 Test Transmission............................................................ 19

5.13 Fire, Auxiliary and Panic Keys – [F], [A], [P] .................. 20

5.14 Arming/Disarming Options ............................................. 20

5.15 Entry/Exit Delay Options ................................................. 20

5.16 Swinger Shutdown .......................................................... 20

5.17 Transmission Delay......................................................... 21

5.18 Event Buffer .................................................................... 21

5.19 Keypad Lockout ............................................................. 21

5.20 Keypad Blanking ............................................................ 21

5.21 Loop Response .............................................................. 21

5.22 Keypad Tampers ............................................................. 21

5.23 LINKS 1000 Cellular Communicator............................... 21

5.23.1 Using LINKS 1000 as the Sole Communicator .. 21

5.23.2 Using the LINKS 1000 as a Backup Communicator 21

5.23.3 Using the LINKS as a Redundant Communicator. 22

5.24 On-Site Printer................................................................. 22

5.25 Downlook Video Transmission Module........................... 22

5.26 Resetting Factory Defaults ............................................. 22

5.27 Installer’s Lockout ........................................................... 2 2

Programming W orksheets.................................................... 23

Appendix A - Contact ID....................................................... 32

Appendix B - SIA Format...................................................... 33

Appendix C - Programming LCD Keypads ......................... 34

ASCII Characters .................................................................... 35

Appendix D - PGM Output Options ..................................... 36

Appendix E - UL Requirements ........................................... 38

Control Panel Wiring Diagram ............................................. 39

Table of Contents .................................................................. 40

Limited Warranty ................................................................... 41

Industry Canada Notice........................................................ 42

FCC COMPLIANCE STATEMENT ......................................... 42

Limited Warranty

Digital Security Controls Ltd. warrants that for a period of twelve months from the date of purchase, the product shall be free of defect in materials and workmanship under normal use and that in fulfilment of any breach of such warranty, Digital Security Controls Ltd. shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot. This warranty applies only to defects in parts and workmanship and not to damage incurred in shipping or handling, or damage due to causes beyond the control of Digital Security Controls Ltd. such as lightning, excessive voltage, mechanical shock, water damage, or damage arising out of abuse, alteration or improper application of the equipment.

The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Digital Security Controls Ltd. This warranty contains the entire warranty. Digital Security Controls Ltd. neither assumes, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product.

In no event shall Digital Security Controls Ltd. be liable for any direct, indirect or consequential damages, loss of anticipated profits, loss of time or any other losses incurred by the buyer in connection with the purchase, installation or operation or failure of this product.

WARNING: This entire system must be completely tested on a regular basis to verify the operation of all system functions, in accordance with the recommendations of the security systems industry. However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this product to fail to perform as expected.

TABLE OF CONTENTS

Page 42

Industry Canada Notice AVIS: L’étiquette de l’Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme à certaines normes de protection,

d’exploitation et de sécurité des réseaux de télécommunications. Industrie Canada n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empêchent pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être effectuées par un centre d’entretien canadien autorisé désigné par le fournisseur. La compagnie de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’énergie électrique, les lignes téléphoniques et les canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

AVERTISSEMENT: L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.

L’indice de charge (IC) assigné a chaque dispositif terminal indique, pour éviter toute surcharge, le pourcentage de la charge totale qui peut être raccordée à un circuit téléphonique bouclé utilisé par ce dispositif. La terminaison du circuit bouclé peut être constituée de n’importe quelle combinaison de dispositifs, pourvu que la somme des indices de charge de l’ensemble des dispositifs ne dépasse pas 100.

L’Indice de charge de ce produit est 2. NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network

protective, operational and safety requirements. Industry Canada does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The

equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

User should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by the device, to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the total of the Load Numbers of all the devices does not exceed 100.

The Load Number of this unit is 2.

FCC COMPLIANCE STATEMENT

CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■

Re-orient the receiving antenna.

■

Increase the separation between the equipment and receiver.

■

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■

Consult the dealer or an experienced radio/television technician for help. The user may find the following booklet prepared by the FCC useful: “How to Identify and Resolve Radio/Television Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington D.C. 20402, Stock # 004-000-00345-4.

IMPORTANT INFORMATION

This equipment complies with Part 68 of the FCC Rules. On the side of this equipment is a label that contains, among other information, the FCC registration number of this equipment. NOTIFICATION TO TELEPHONE COMPANY Upon request, the customer shall notify the telephone company of the particular line to which the connection will be made, and

provide the FCC registration number and the ringer equivalence of the protective circuit. FCC Registration Number: F53CAN-30220-AL-E Ringer Equivalence Number: 0.1B USOC Jack: RJ-31X

TELEPHONE CONNECTION REQUIREMENTS Except for the telephone company provided ringers, all connections to the telephone network shall be made through standard plugs and telephone company provided jacks, or equivalent, in such a manner as to allow for easy, immediate disconnection of the terminal equipment. Standard jacks shall be so arranged that, if the plug connected thereto is withdrawn, no interference to the operation of the equipment at the customer’s premises which remains connected to the telephone network shall occur by reason of such withdrawal.

INCIDENCE OF HARM Should terminal equipment or protective circuitry cause harm to the telephone network, the telephone company shall, where practicable, notify the customer that temporary disconnection of service may be required; however, where prior notice is not practicable, the telephone company may temporarily discontinue service if such action is deemed reasonable in the circumstances. In the case of such temporary discontinuance, the telephone company shall promptly notify the customer and will be given the opportunity to correct the situation.

ADDITIONAL TELEPHONE COMPANY INFORMATION The security control panel must be properly connected to the telephone line with a USOC RJ-31X telephone jack. The FCC prohibits customer-provided terminal equipment be connected to party lines or to be used in conjunction with coin telephone service. Interconnect rules may vary from state to

state. CHANGES IN TELEPHONE COMPANY EQUIPMENT OR FACILITIES The telephone company may make changes in its communications facilities, equipment, operations or

procedures, where such actions are reasonably required and proper in its business. Should any such changes render the customer’s terminal equipment incompatible with the telephone company facilities the customer shall be given adequate notice to the effect modifications to maintain uninterrupted service.

RINGER EQUIVALENCE NUMBER (REN) The REN is useful to determine the quantity of devices that you may connect to your telephone line and still have all of those devices ring when your telephone number is called. In most, but not all areas, the sum of the RENs of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices that you may connect to your line, you may want to contact your local telephone company.

EQUIPMENT MAINTENANCE FACILITY If you experience trouble with this telephone equipment, please contact the facility indicated below for information on obtaining service or repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning.

Digital Security Controls Ltd. 160 Washburn St., Lockport, NY 14094

Page 43

1645 Flint Road, Downsview, Ontario, Canada M3J 2J6

Tel. (416) 665-8460 • Fax (416) 665-7498 • Tech. Line 1-800-387-3630

Printed in Canada 29002069 R1

Digital Security Controls PC1575 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
