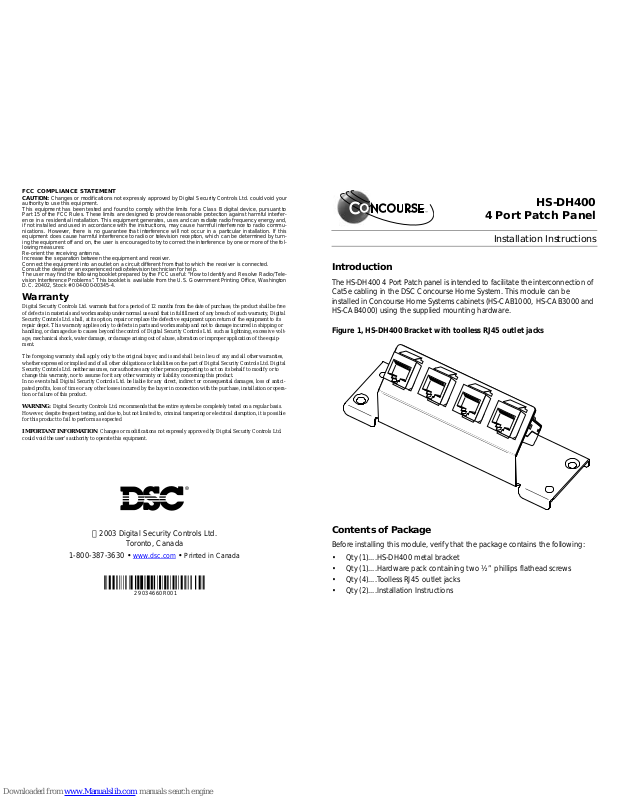

HS-DH400
4 Port Patch Panel
Installation Instructions
Introduction
The HS-DH400 4 Port Patch panel is intend ed to facilitate the inte rconnec tion of
Cat5e cabling in the DSC Concourse Home System. This module can be
installed in Concourse Home Systems cabinets (HS-CAB1000, HS-CAB3000 and
HS-CAB4000) using the supplied mounting hardware.

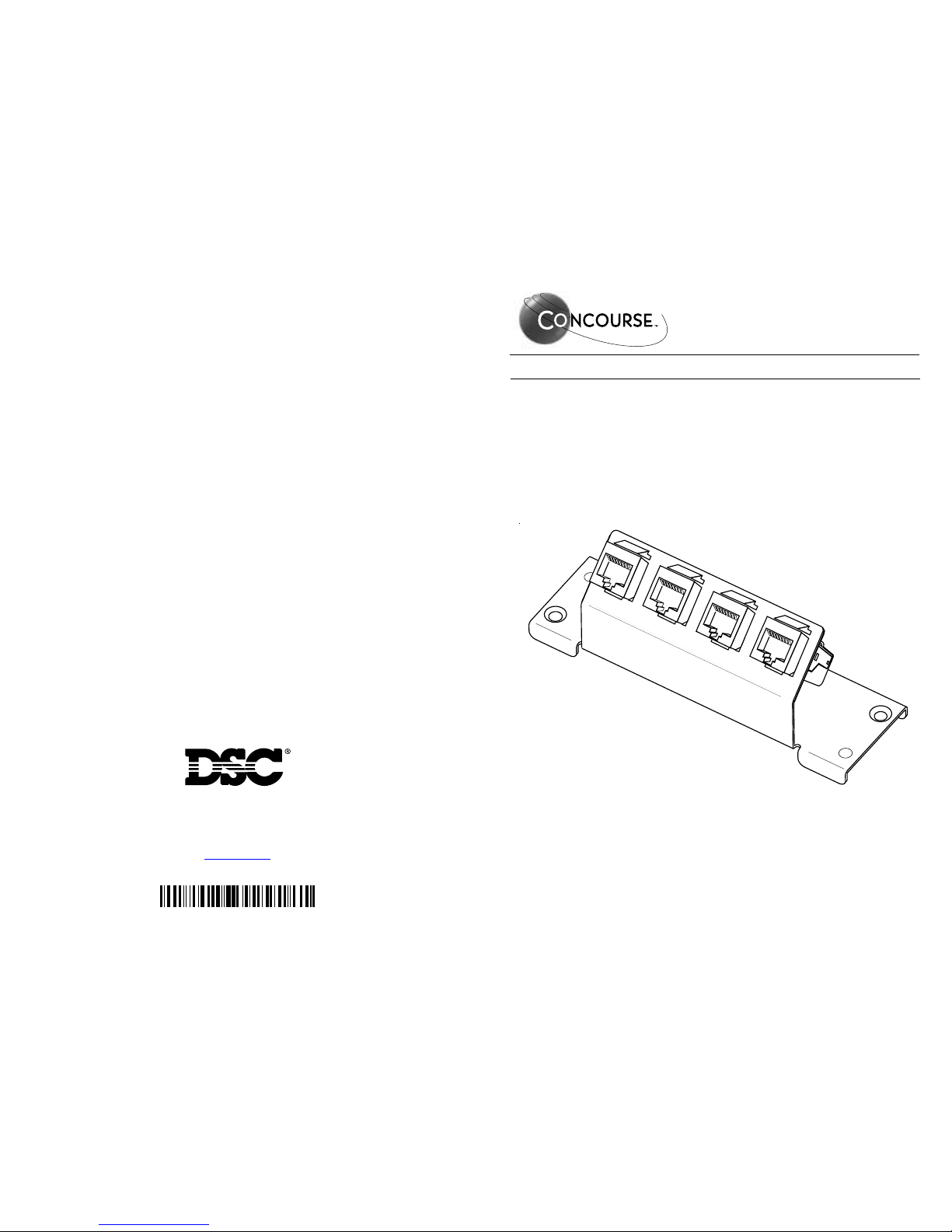

Figure 1, HS-DH400 Bracket with toolless RJ45 outlet jacks
Contents of Package
Before installing this module, verify that the package contains the following:
• Qty (1)....HS-DH400 metal bracket
• Qty (1)....Hardware pack containing two ½” phillips flathead screws
• Qty (4)....Toolless RJ45 outlet jacks
• Qty (2)....Installation Instructions
29034660R001
Page 2
Installation
1. Align and snap the toolless jacks in bracket.
2. Locate a suitable mounting location for the HS-DH400 Ethernet Hub inside
the cabinet. Note that the unit can be installed in various positions, the
toolless jacks may face the top or the bo ttom of the cabinet.
3. Align the two mounting pins with the holes in the back of the cabinet and
insert as per Figure 2.
4. Snap the module in place by pressing both sides towards the back of the
cabinet.
5. Secure the metal bracket to the cabinet using the two screws.
6. With the plate in position cut the CAT 5 cable to the appropriate length.
7. Follow the instructions for the ‘ Toolless Outlet Jack’ for corr ect installation.

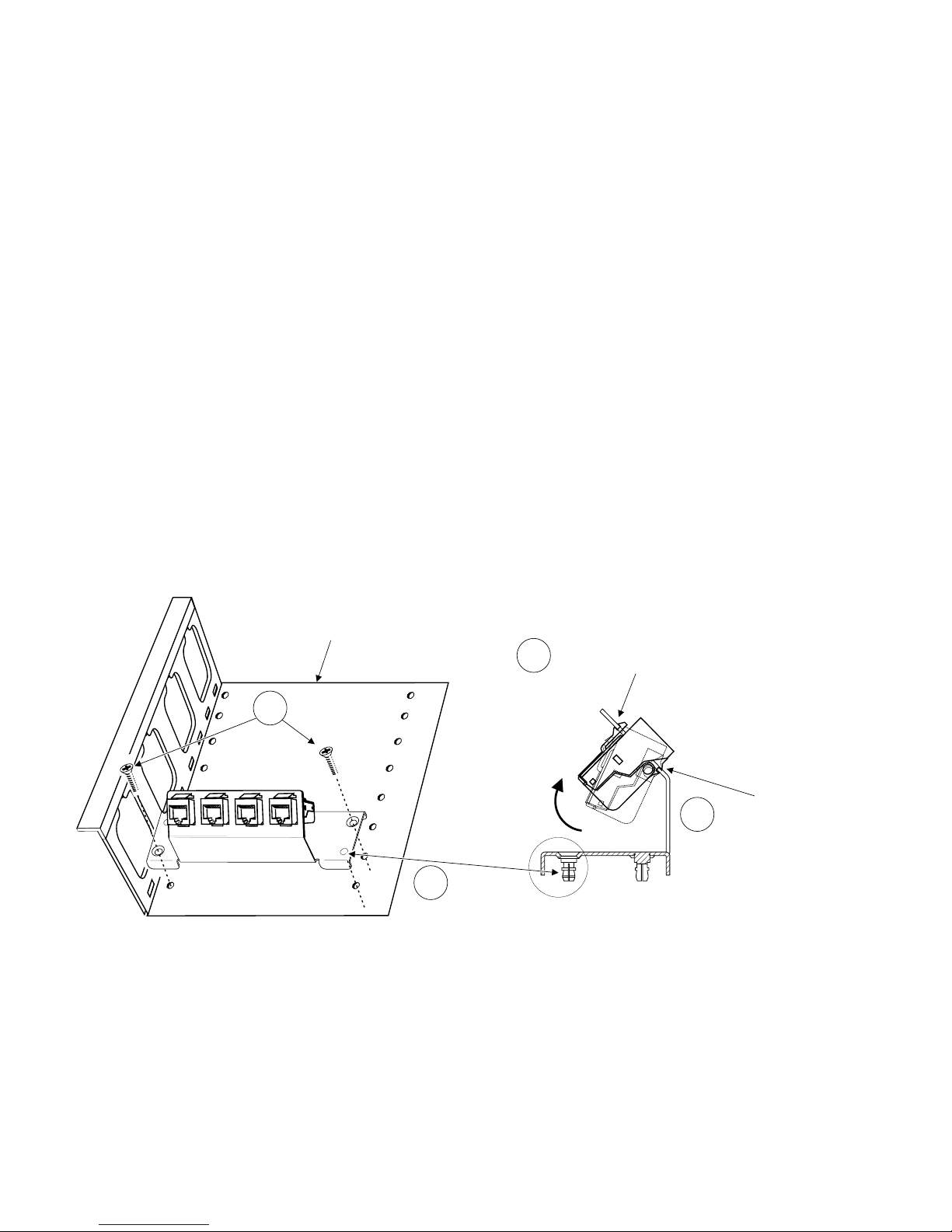

Figure 2, Installation
Important
The following requirements for installation of CAT5 cable must be met for
proper operation of connected equipment.
•Do NOT strip off cable sheathing more than required for proper
termination.
•Do NOT kink or knot cable.
•Do NOT crush cable with cable ties.
•Do NOT splice cable.
•Do NOT bend cable at right angles or make any other sharp bends. All
cable bends must have a minimum of a 2" radius.
•Do NOT untwist CAT5 pairs more than ½”
Insert Toolless outlet jack
bottom slot in bracket
5
HS-CAB1000, HS-CAB3000
or HS-CAB4000 cabinet
Rotate jack upward until
upper slot snaps in place
3
1
a
1
b
