Digital Projection TITAN XG-500 User Manual
TITAN XG-500
High Brightness Digital Video Projector
4:3 widescreen display
User Manual
106-615A
Digital Projection TITAN XG-500 User Manual
Declaration of Conformity
Directives covered by this Declaration
89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC and 93/68/EEC.
73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.
Products covered by this Declaration
Large screen video projector type TITAN XG-500
Basis on which Conformity is being declared
The products identied above comply with the protection requirements of the above EU directives, and the
manufacturer has applied the following standards.
EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information
Technology Equipment.
EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology
Equipment.
EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control
apparatus for Professional Use.
EN 60950:2000 - Specication for Safety of Information Technology Equipment, including Electrical Business
equipment.
The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage
directive has been compiled by the signatory below and is available for inspection by the relevant enforcement
authorities. The CE mark was rst applied in July 2006.
Signed:
Authority: D.J. Quinn, Product Development Director
Date: 28 July 2006
Attention!
The attention of the specier, purchaser, installer, or user is drawn to special measures and limitations to use which
must be observed when these products are taken into service to maintain compliance with the above directives.
Details of these special measures are available on request, and are also contained in the product manuals.
Page iii Rev A August 2006
Please read this user manual carefully before using the projector, and keep
the manual handy for future reference.
A serial number is located on the side of the projector. Record it here:
Symbols used in this guide
Warnings
ELECTRICAL WARNING: this symbol indicates that there is a danger of
electrical shock unless the instructions are closely followed.
WARNING: this symbol indicates that there is a danger of physical
injury to yourself and/or damage to the equipment unless the
instructions are closely followed.
NOTE: this symbol indicates that there is some important information that
you should read.
Trademarks
IBM is a registered trademark of International Business Machines Corporation.
Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.
Other product and company names mentioned in this user’s manual may be the
trademarks of their respective holders.
Product revision
Because we at Digital Projection continually strive to improve our products, we
may change specications and designs, and add new features without prior
notice. Projectors built prior to this revision of the User Manual may therefore not
include all the features described.
Manual revision
Date Description Revision
August 2006 Rev A
•
•
•
•
Important Information
Page iv Rev A August 2006
Important Information Digital Projection TITAN XG-500 User Manual
General precautions
Do not open the cabinet. There are no user serviceable parts inside.
Use only the power cable provided.
Ensure that the power outlet includes a Ground connection, as this
equipment MUST be earthed.
Take care to prevent small objects such as paper or wire from falling
into the projector. If this does happen, switch off immediately, and have
the objects removed by authorised service personnel.
Do not expose the projector to rain or moisture, and do not place any
liquids on top of the projector.
Unplug before cleaning, and use a damp, not wet, cloth.
Do not touch the power plug with wet hands.
Do not touch the power plug during a thunder storm.
Handle the power cable carefully and avoid sharp bends. Do not use a
damaged power cable.
There are no user-serviceable parts inside the lamp module. The whole
module should be replaced.
Take care when removing the lamp module.
NEVERtouchthelamporreector.
Take care not to touch the glass surface of the lamp module. If you
do accidentally touch the glass, it should be cleaned before use. (see
section 5. Maintenance.)
Do not use the lamp for more than 1500 hours, as this may cause
serious lamp failure, damage the lamp module and cause extra cost on
replacement.
HID lamps produce high intensity light. Do not look directly at the light
coming from the lamp housing, or the lens, or allow items such as
magnifying lenses to be placed in the light path. This could result in
serious eye damage.
Do not touch the ventilation outlets, as they will become hot in use.
Do not cover or obstruct the ventilation outlets or inlets.
Do not cover the lens whilst the projector is switched on. This could
causeare
Always allow the projector to cool for 5 minutes before disconnecting
the power, moving the projector or changing the lamp.
Never use strong detergents or solvents such as alcohol or thinners to
clean the projector and lens.
Notes
Rev A August 2006 Page v
Digital Projection XG-500 User Manual Important Information
Installation precautions
Connect the LAN cable only to a computer LAN connection. Other
similar connectors may have a dangerously high voltage source.
Theprojectormustbeinstalledonlybysuitablyqualiedpersonnel,in
accordance with local building codes.
The projector should be installed as close to the power outlet as
possible.
The power connection should be easily accessible, so that it can be
disconnected in an emergency.
Ensure that there is at least 30cm (12in) of space between the
ventilation outlets and any wall, and 10cm (4in) on all other sides.
Do not install the projector close to anything that might be affected by
its operational heat, for instance, polystyrene ceiling tiles, curtains etc.
The projector weighs approximately 24kg (53lb). Use safe handling
techniques when lifting the projector.
When stacking projectors, the stack MUST be vertical, to ensure that
the stresses are distributed to all frame couplings.
Before installation, make sure that the surface, ceiling or rigging that is
to support the projector is capable of supporting the combined weight
of the projector and lens (see specication for exact weights).
Separate backup safety chains or wires should always be used for each
projector.
Do not place heavy objects on top of the projector chassis. Only
the rigging frame is capable of withstanding the weight of another
projector.
Do not stack more than 3 projectors.
Do not drop or jarr the projector.
Place the projector in a dry area away from sources of dust, moisture,
steam, smoke, sunlight or heat.
Do not tilt the projector more than ±12° from side to side when in use,
as this may cause serious lamp failure, damage the lamp module and
cause extra cost on replacement. The projector my be tilted forwards
and backwards as necessary.
Operationandcongurationprecautions
Donotmakechangestothenetworkingcongurationunlessyou
understand what you are doing, or have taken advice from your
Network Manager. If you make a mistake, it is possible that you will lose
contact with the projector. Always double-check your settings before
pressing the APPLY button. Always keep a written note of the original
settings, and any changes you have made.
Software update should NOT be carried out except by, or with the
supervision of, Digital Projection Service personnel.
Notes
±12°
360°
Page vi Rev A August 2006
Important Information Digital Projection TITAN XG-500 User Manual
Compliance with international standards
Noise
GSGV Acoustic Noise Information Ordinance
The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.
RF Interference
FCC
The Federal Communications Commission does not allow any modications or
changes to the unit EXCEPT those specied by Digital Projection in this manual.
Failure to comply with this government regulation could void your right to operate
this equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment contains an FCC approved RF transmitter module with FCC ID:
R68WIPORT.
European Waste Electrical and Electronic Equipment
(WEEE) Directive
Digital Projection Ltd is fully committed to minimising Waste Electrical and
Electronic Equipment. Our products are designed with reuse, recycling
and recovery of all components in mind. To this end, at end of life, your
projector may be returned to Digital Projection Ltd or its agent so that the
environmental impact can be minimised.
•
•
•
•
Notes
Rev A August 2006 Page vii
Digital Projection XG-500 User Manual Important Information
Digital Projection Contact details
Digital Projection Limited,
Greenside Way, Middleton, Manchester M24 1XX, UK.
Registered in England No. 2207264, Registered Ofce: as above
Tel: +44 (0) 161 947 3300
Fax:+44 (0) 161 684 7674
Email enquiries@digitalprojection.co.uk, service@digitalprojection.co.uk
Web Site:www.digitalprojection.co.uk
Digital Projection Inc.
55 Chastain Road, Suite 115, Kennesaw, GA 30144. USA
Tel: (USA) 770 420 1350
Fax: (USA) 770 420 1360
Email: powerinfo@digitalprojection.com
Web Site: www.digitalprojection.com
Notes
Page viii Rev A August 2006
Important Information Digital Projection TITAN XG-500 User Manual
Page ix Rev A August 2006
continued
Titan User Manual
Contents
Declaration of Conformity ............................................................................................................ii
Important Information
Symbols used in this guide ........................................................................................................iii
Warnings ...........................................................................................................................................iii
Trademarks .......................................................................................................................................iii
Product revision ...............................................................................................................................iii
Manual revision .................................................................................................................................iii
General precautions .......................................................................................................................iv
Installation precautions .................................................................................................................v
Operationandcongurationprecautions ............................................................................v
Compliance with international standards ...........................................................................vi
Noise .................................................................................................................................................vi
RF Interference .................................................................................................................................vi
European Waste Electrical and Electronic Equipment (WEEE) Directive .........................................vi
Digital Projection Contact details ...........................................................................................vii
1. Introduction
What’s in the box? ........................................................................................................................ 1.2
Key features of the projector .................................................................................................. 1.3
Getting to know the projector ................................................................................................. 1.4
Front panel, – lens and power ........................................................................................................ 1.4
Rear panel – lamp and air lter ...................................................................................................... 1.4
Side panel – connection and control .............................................................................................. 1.5
Page x Rev A August 2006
Table of Contents Digital Projection TITAN XG-500 User Manual
continued
2. Installation
Screen requirements ................................................................................................................... 2.2
Aspect ratio .................................................................................................................................... 2.2
Positioning the screen and projector .............................................................................................. 2.5
Choosing a lens ............................................................................................................................. 2.6
Choosing a lens using the lens charts ........................................................................................... 2.7
Choosing a lens by calculation ....................................................................................................... 2.9
Useful lens calculations ..........................................................................................................2.10
Fitting the lens ...............................................................................................................................2.11
Shifting the image ....................................................................................................................... 2.12
Mounting the projector ............................................................................................................. 2.13
Chassis adjustment ...................................................................................................................... 2.13
Fitting the rigging frame ............................................................................................................... 2.13
Stacking projectors .................................................................................................................... 2.15
Connecting the projector ........................................................................................................ 2.16
Signal Inputs ................................................................................................................................ 2.16
Control connection examples ....................................................................................................... 2.17
Power connection ......................................................................................................................... 2.18
3. Getting Started
Switching the projector on ....................................................................................................... 3.2
Selecting an input or test pattern ......................................................................................... 3.2
Input ............................................................................................................................................... 3.2
Test pattern .................................................................................................................................... 3.2
Adjusting the lens ......................................................................................................................... 3.3
Focus ............................................................................................................................................. 3.3
Zoom .............................................................................................................................................. 3.3
Shift ................................................................................................................................................ 3.3
Adjusting the projected image ............................................................................................... 3.4
Picture settings ............................................................................................................................... 3.4
Geometry settings .......................................................................................................................... 3.4
Switching the projector off....................................................................................................... 3.4
Rev A August 2006 Page xi
Digital Projection XG-500 User Manual Table of Contents
continued
4. Controlling the projector
Overview ............................................................................................................................................ 4.4
Controlling the projector ................................................................................................................. 4.4
Input modes and settings ............................................................................................................... 4.5
Indicators ........................................................................................................................................... 4.7
Input status indicators .................................................................................................................... 4.7
The control panel ..........................................................................................................................4.8
Keypad layout ................................................................................................................................ 4.8
Projector status indicators .............................................................................................................. 4.8
The remote control ....................................................................................................................... 4.9
Layout ............................................................................................................................................ 4.9
Timeout .......................................................................................................................................... 4.9
Using the control keys .............................................................................................................4.10
Power ........................................................................................................................................... 4.10
Shutter .......................................................................................................................................... 4.10
On-Screen-Display ....................................................................................................................... 4.10
Focus ........................................................................................................................................... 4.10
Zoom ............................................................................................................................................ 4.10
Shift .............................................................................................................................................. 4.10
Auto-detect input mode .................................................................................................................4.11
Source information ........................................................................................................................4.11
Input ..............................................................................................................................................4.11
Input Presets ................................................................................................................................ 4.12
Red, Green and Blue ................................................................................................................... 4.13
Test pattern .................................................................................................................................. 4.13
Picture settings ............................................................................................................................. 4.13
Geometry settings ........................................................................................................................ 4.13
Magnify and pan ........................................................................................................................... 4.14
On-screen-display size ................................................................................................................. 4.14
Remote control address ............................................................................................................... 4.14
Remote control backlight .............................................................................................................. 4.14

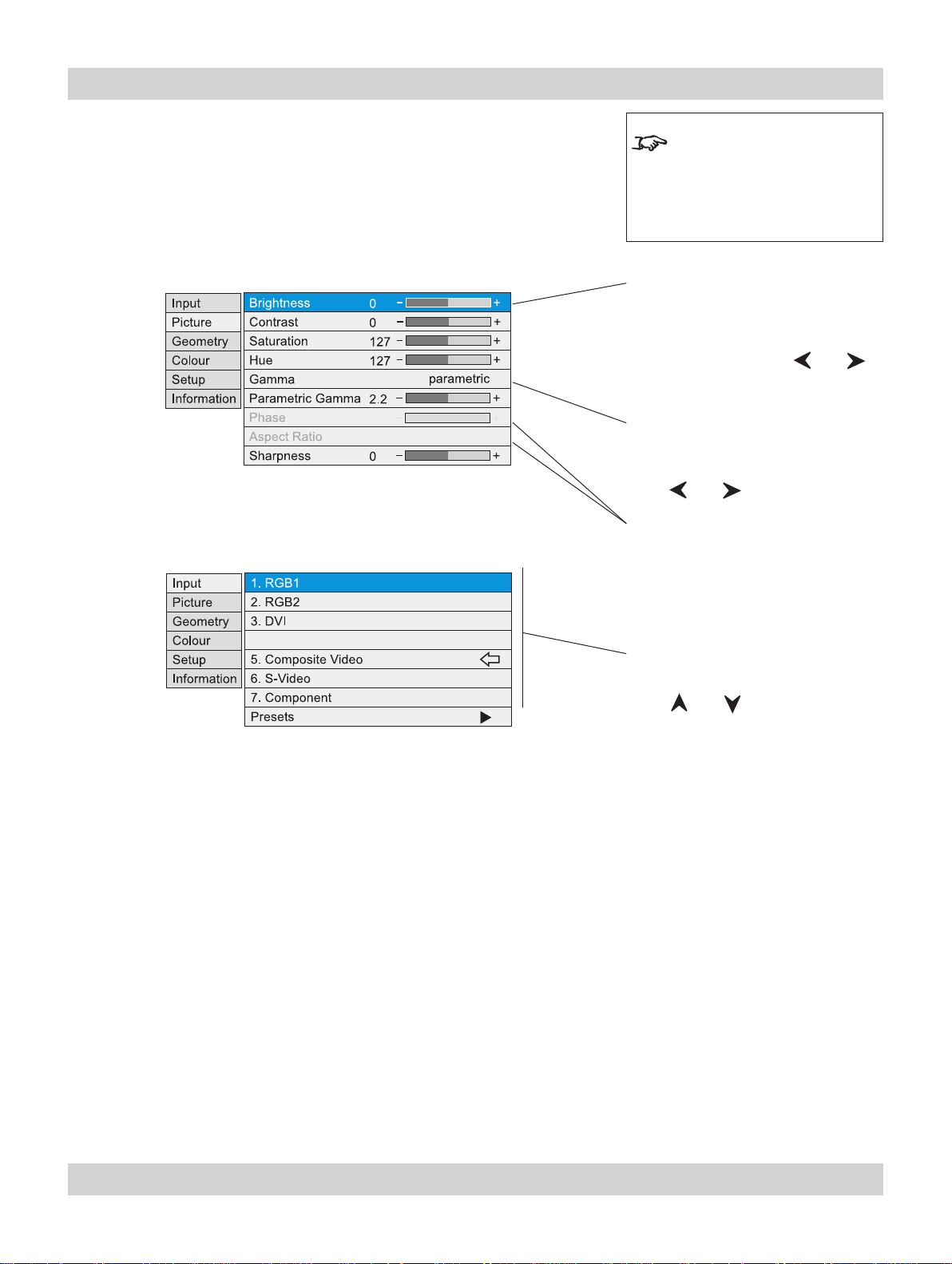

Using the menus .......................................................................................................................... 4.15
Navigating menus and submenus ................................................................................................ 4.15
Menu controls ............................................................................................................................... 4.17
Input menu ...................................................................................................................................... 4.18
Input Source ................................................................................................................................. 4.18
Presets ......................................................................................................................................... 4.19
Page xii Rev A August 2006
Table of Contents Digital Projection TITAN XG-500 User Manual
continued
Picture menu.................................................................................................................................. 4.21
Brightness .................................................................................................................................... 4.21
Contrast ........................................................................................................................................ 4.21
Saturation ..................................................................................................................................... 4.21
Hue ............................................................................................................................................... 4.21
Gamma Correction ....................................................................................................................... 4.22
Parametric Gamma ...................................................................................................................... 4.22
Phase ........................................................................................................................................... 4.22
Aspect Ratio ................................................................................................................................. 4.23
Sharpness .................................................................................................................................... 4.23
Geometry menu ............................................................................................................................ 4.24
Horizontal Position ....................................................................................................................... 4.24
Vertical Position ............................................................................................................................4.24
Aspect Ratio ................................................................................................................................. 4.24
User Horizontal Aspect Ratio ....................................................................................................... 4.25
User Vertical Aspect Ratio ............................................................................................................ 4.25
Keystone ...................................................................................................................................... 4.25
Phase ........................................................................................................................................... 4.25
Pixels per line ............................................................................................................................... 4.25
Blanking ....................................................................................................................................... 4.26
Colour menu .................................................................................................................................. 4.27
Colour Mode ................................................................................................................................. 4.28
Colour Temperature...................................................................................................................... 4.28
RGB Lift ........................................................................................................................................ 4.28
RGB Gain ..................................................................................................................................... 4.28
Component Type .......................................................................................................................... 4.28
Trim .............................................................................................................................................. 4.29
Setup menu ....................................................................................................................................4.30
Projector ....................................................................................................................................... 4.31
Global Colourimetry ..................................................................................................................... 4.33
Lamp ............................................................................................................................................ 4.35
On Screen Display ....................................................................................................................... 4.37
Password ..................................................................................................................................... 4.38

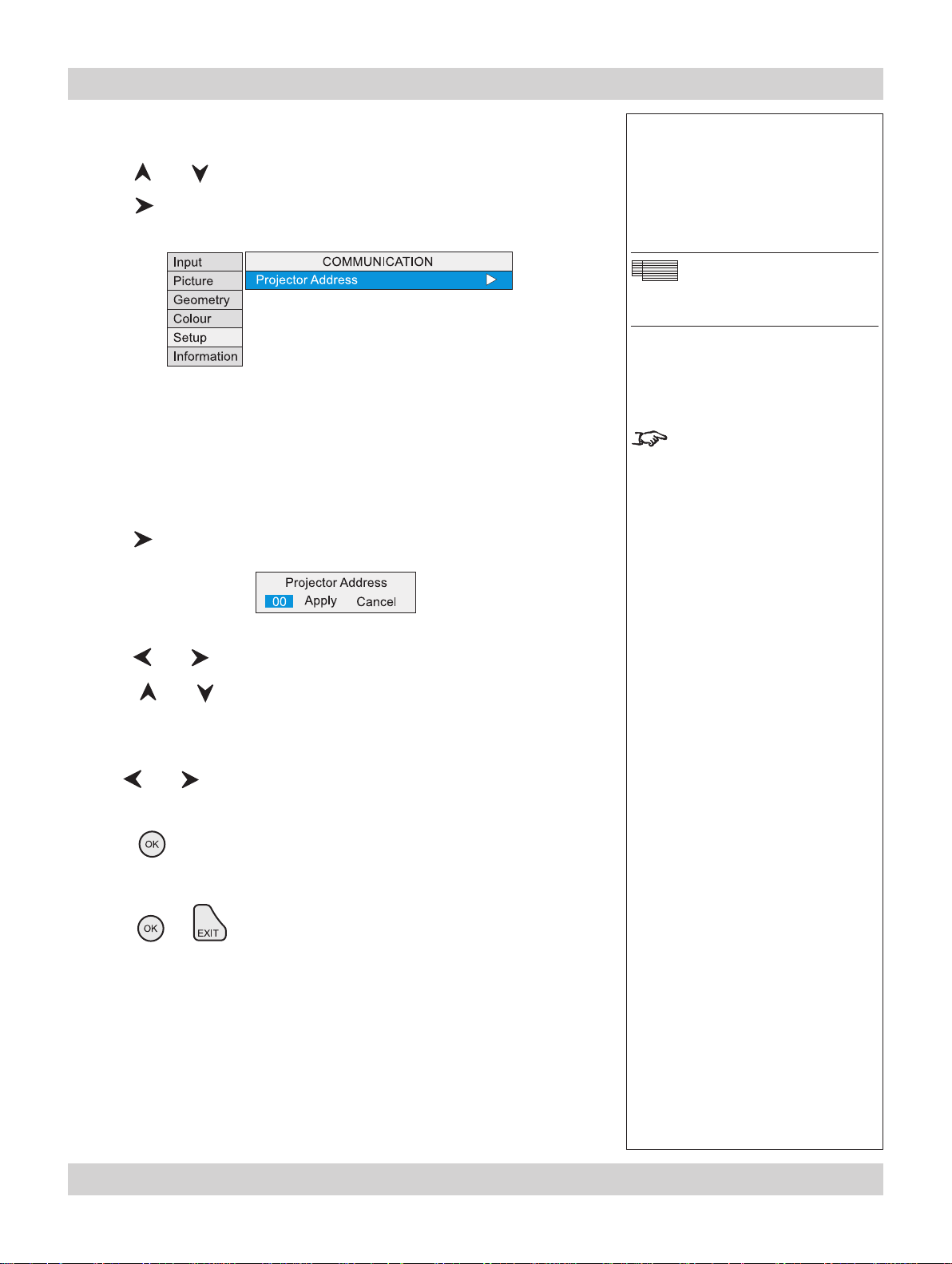

Communication ............................................................................................................................ 4.39
Network ........................................................................................................................................ 4.40
Restore Defaults .......................................................................................................................... 4.45
Information menu ........................................................................................................................ 4.46
Projector Information .................................................................................................................... 4.46
Source Information ....................................................................................................................... 4.46
Digital Projection Information ....................................................................................................... 4.47
Rev A August 2006 Page xiii
Digital Projection XG-500 User Manual Table of Contents
5. Userware
6. Maintenance
Changing the lamp module ...................................................................................................... 6.2
Changingtheairlter ................................................................................................................. 6.3
Cleaning ............................................................................................................................................. 6.4
Projector ......................................................................................................................................... 6.4
Lens ............................................................................................................................................... 6.4
Lamp module ................................................................................................................................. 6.4
7. Appendix
Troubleshooting ............................................................................................................................. 7.2
Specications ................................................................................................................................. 7.4
Part numbers .................................................................................................................................. 7.4
Optical ............................................................................................................................................ 7.4
Electrical ......................................................................................................................................... 7.5
Physical .......................................................................................................................................... 7.5
Lens Data ....................................................................................................................................... 7.6
Input modes supported .............................................................................................................. 7.8
Input connections ......................................................................................................................... 7.9
1. RGB1 input ................................................................................................................................. 7.9
2. RGB2 input ................................................................................................................................. 7.9
3. DVI-D input ............................................................................................................................... 7.10
4. (not used in this projector) .........................................................................................................7.11
5. Composite video input ...............................................................................................................7.11
6. S-Video input .............................................................................................................................7.11
7. Component video input .............................................................................................................7.11
Control connections .................................................................................................................. 7.12
LAN connection ............................................................................................................................ 7.12
Serial control input ....................................................................................................................... 7.13
Using Windows Hyperterminal to connect to the projector .......................................................... 7.14
Dimensions ..................................................................................................................................... 7.15
Page xiv Rev A August 2006
Table of Contents Digital Projection TITAN XG-500 User Manual
Page 1.1 Rev A August 2006
1. Introduction
Contents
What’s in the box? ........................................................................................................................ 1.2
Key features of the projector .................................................................................................. 1.3
Getting to know the projector ................................................................................................. 1.4
Front panel, – lens and power ........................................................................................................ 1.4
Rear panel – lamp and air lter ...................................................................................................... 1.4
Side panel – connection and control .............................................................................................. 1.5
Page 1.2 Rev A August 2006
1. Introduction Digital Projection TITAN XG-500 User Manual
What’s in the box?
Make sure your box contains everything listed. If any pieces are missing, contact
your dealer.
You should save the original box and packing materials, in case you ever need
to ship your Projector.
•
•
Notes
Lenses are optional. Order
lenses from your Digital
Projection dealer.
For more detailed information
about lenses, see Choosing a
lens, in section 2. Installation.
Only one power cable -
dependent on the destination
territory - will be supplied with
the projector.
Projector
(106-239)
Power cable 13A
North America
(102-165)
Power cable 10A
Europe
(102-163)
Important Information
(106-617)
User manual on CD
(106-616)
Remote control
(105-023)
Power cable 10A
United Kingdom
(102-180)
4x AAA batteries
(105-922)
Remote cable 5m
(102-162)
Rev A August 2006 Page 1.3
Digital Projection XG-500 User Manual 1. Introduction
Notes
Key features of the projector
Congratulations on your purchase of the Digital Projection Titan XG-500
projector.
Digital Projection International, Texas Instruments’ rst DLP™ partner and the
original innovator of the 3-chip DLP™ projector, proudly introduces the Titan
XG. Incredibly bright, high resolution and high in contrast, the Titan XG offers a
radically new electronics conguration ideally suited for the staging and large-venue
permanent installation markets.
The Titan XG harnesses the power of the Texas Instruments’ 11024 x 768 pixel
HPO DMD’s™. Alongside the LIGHTNING and HIGHlite Pro, the Titan XG is to set
new standards for Staging and is destined to be the rst choice of professionals
who stage prestigious events such as the Grammy® Awards and the Oscars®. With
a contrast of better than 1200:1 and awe-inspiring brightness of 4500 lumens, the
Titan XG is unmatched for applications as diverse as world class staged events,
commercial entertainment, major outdoor venues, large-scale simulation, gaming,
home theatre and houses of worship.
Key Features
High resolution, large venue projector
Applications: Large Screen; Fixed install and Rental
4,500 ANSI lumens ±20%
Contrast >1200:1 ±10%
1024 x 768 resolution
Precision mechanical design ensuring maximum amount of light from lamp
housing reaches optics, without any operator adjustment
750W single phase, 100-240VAC
Compact size, light weight - approximately 24kg (53lb)
Motorised lens mount
Optional Rigging frame with Quick-lock stack system
Ruggedised robust metal case
Floating chassis - 3 point pitch & roll adjustment for accurate alignment
LAN & RS232 connection for network operation
Six selectable Digital and Analogue Video inputs for display of the latest as well
as legacy video standards.
DVI, RGBHV, Component, S-Video, Composite all as standard
Wi- connection wireless remote control
IR/cable remote control for easy setup
Browser host for LAN operation
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 1.4 Rev A August 2006
1. Introduction Digital Projection TITAN XG-500 User Manual
Getting to know the projector
Front panel, – lens and power
Notes
For more detailed information
about lenses, see
section 2. Installation
For information about how to
change the lamp or the lter,
see section 6. Maintenance.
Rearpanel–lampandairlter
Power
connection
Lens
Air outlet
Air inlet -
around lens
Front Infra-red window
(remote control)
Air lter
Lamp
compartment
Lamp
module
Screws x 3
Rear
door
Rear Infra-red window (remote control)
Rev A August 2006 Page 1.5
Digital Projection XG-500 User Manual 1. Introduction
Side panel – connection and control
Notes
For information about how
to connect the projector, see
Connecting the projector in
section 2. Installation, and
Connections in section 7.
Appendix.
For information about how
to use the control panel, see
section 4. Controlling the
projector.
For information about how to
mount and stack projectors, see
section 2. Installation.
Input
connections
Control
connections
Control panel
Adjustable
foot
Page 1.6 Rev A August 2006
1. Introduction Digital Projection TITAN XG-500 User Manual
Page 2.1 Rev A August 2006
2. Installation
Contents
Screen requirements ................................................................................................................... 2.2
Aspect ratio .................................................................................................................................... 2.2
Fitting the image to the DMD ..................................................................................................... 2.2
Images displayed full width ........................................................................................................ 2.2
Images displayed full height ...................................................................................................... 2.2
Diagonal screen sizes ..............................................................................................................2.3
Fitting the image to the screen .................................................................................................. 2.4
Positioning the screen and projector .............................................................................................. 2.5
Choosing a lens ............................................................................................................................. 2.6
Choosing a lens using the lens charts ........................................................................................... 2.7
Full width images, including 2.35:1, 1.85:1, 16:9, 1.66:1, 4:3 .................................................... 2.7
example ..................................................................................................................................... 2.7
Full height image 5:4 ................................................................................................................. 2.8
Choosing a lens by calculation ....................................................................................................... 2.9
example ..................................................................................................................................... 2.9
Useful lens calculations ..........................................................................................................2.10
Lens extension ........................................................................................................................2.10
Fitting the lens ...............................................................................................................................2.11
Shifting the image ....................................................................................................................... 2.12
Mounting the projector ............................................................................................................. 2.13
Chassis adjustment ...................................................................................................................... 2.13
Fitting the rigging frame ............................................................................................................... 2.13
Adjusting the rigging frame ...................................................................................................... 2.14
Stacking projectors .................................................................................................................... 2.15
Connecting the projector ........................................................................................................ 2.16
Signal Inputs ................................................................................................................................ 2.16
EDID handshaking on the DVI and RGB2 inputs .................................................................... 2.16
Control connection examples ....................................................................................................... 2.17
LAN connection ....................................................................................................................... 2.17
RS232 connection ................................................................................................................... 2.17
Power connection ......................................................................................................................... 2.18
Page 2.2 Rev A August 2006
2. Installation Digital Projection TITAN XG-500 User Manual
Notes
The images are shown here
scaled automatically by the
projector.
The image may be scaled
differently if the Aspect Ratio is
set differently in the Picture or
Geometry menus.
full height = 768 pixels
5:4 = 1.25 = 960 pixels
4:3 = 1.33:1 = 1024 pixels
(native resolution)
Screen requirements
Aspect ratio
Fitting the image to the DMD
If the source image supplied to the projector is smaller than 1024 x 768 pixels,
then the image will not ll the DMD. The following example shows how a number
of common formats may be displayed.
Images displayed full width
Images displayed full height
2.35:1(Scope)
= 435 pixels
full width = 1024 pixels
1.85:1
= 553 pixels
16:9 = 1.78:1
= 576 pixels
1.66:1 (Vista)
= 616 pixels
4:3 = 1.33
= 768 pixels
(native resolution)
Rev A August 2006 Page 2.3
Digital Projection XG-500 User Manual 2. Installation
Diagonal screen sizes
Screen sizes are sometimes specied by their diagonal size (D) in inches. When
dealing with large screens and projection distances at different aspect ratios, it is
more convenient to measure screen width (W) and height (H).
The example calculations below show how to convert diagonal sizes in inches into
width and height, at various aspect ratios.
2.35:1 (Scope)
W = D x 0.92in (D x .023m) H = D x 0.39in (D x .01m)
1.85:1
W = D x 0.88in (D x .022m) H = D x 0.47in (D x .012m)
16:9 = 1.78:1
W = D x 0.87in (D x .022m) H = D x 0.49in (D x .0125m)
1.66:1 (Vista)
W = D x 0.86in (D x .022m) H = D x 0.52in (D x .013m)
4:3 = 1.33:1 (native aspect ratio)
W = D x 0.8in (D x .02m) H = D x 0.6in (D x .015m)
5:4 = 1.25:1
W = D x 0.78in (D x .02m) H = D x 0.625in (D x .016m)
Notes
D = diagonal (inches)
W = width
H = height
Page 2.4 Rev A August 2006
2. Installation Digital Projection TITAN XG-500 User Manual
Fitting the image to the screen
It is important that your screen is of sufcient height and width to display images at
all the aspect ratios you are planning to use.
Use the conversion chart, or the sample calculations below to check that you are
able to display the full image on your screen. If you have insufcient height or width,
you will have to reduce the overall image size in order to display the full image on
your screen.
Notes
1 2 3 4 5 6 7 8 9 10
Screen width
Screen height
4:3
5:4
16:9
2.35:1
Aspect ratio
10
9
8
7
6
5
4
3
2
1
2.35:1 (Scope)
W = H x 2.35 H = W x 0.426
1.85:1
W = H x 1.85 H = W x 0.54
16:9 = 1.78:1
W = H x 1.78 H = W x 0.56
1.66:1 (Vista)
W = H x 1.66 H = W x 0.6
4:3 = 1.33:1 (native aspect ratio)
W = H x 1.33 H = W x 0.75
5:4 = 1.25:1
W = H x 1.25 H = W x 0.8
1.85:1
1.66:1
Rev A August 2006 Page 2.5
Digital Projection XG-500 User Manual 2. Installation
Positioning the screen and projector
For optimum viewing, the screen should be a at surface perpendicular to the oor.
The bottom of the screen should be 1.2m (4 feet) above the oor and the front row
of the audience should not have to look up more than 30° to see the top of the
screen.
The distance between the front row of the audience and the screen should be at
least twice the screen height and the distance between the back row and the screen
should be a maximum of 8 times the screen height. The screen viewing area should
be within a 60° range from the face of the screen.
Notes
The projector should be
installed as close to the
power outlet as possible.
The power connection should
be easily accessible, so that
it can be disconnected in an
emergency.
Ensure that there is at least
30cm (12in) of space between
the ventilation outlets and
any wall, and 10cm (4in) on
all other sides.
Do not install the projector
close to anything that
might be affected by its
operational heat, for instance,
polystyrene ceiling tiles,
curtains etc.
The image can be ipped for
rear projection (see section
4. Using the menus, Image
menu) and displayed without
the need for extra mirrors or
equipment.
However, you must ensure
that there is sufcient distance
behind the screen for the
projector to be correctly located.
Rear installation is generally
more complicated and advice
should be sought from your
local dealer before attempting it.
Page 2.6 Rev A August 2006
2. Installation Digital Projection TITAN XG-500 User Manual
Notes
For more information about
Throw ratio factor (TRF), see
Useful lens calculations, later
in this section.
Choosing a lens
A number of lenses are available for use with the projector. Which lens you choose
will depend on the screen size, image aspect ratio, projection distance and light
output.
The lenses available and their part numbers are listed below:
0.8 : 1 xed lens 001-734
1.2 : 1 xed lens 001-735
1.5 - 1.8 : 1 zoom lens 001-736
1.8 - 2.25 : 1 zoom lens 001-737
2.25 - 3.0 : 1 zoom lens 001-738
3.0 - 4.5 : 1 zoom lens 001-739
4.5 - 7.0 : 1 zoom lens 001-740
If you are simply connecting the output of a camera or computer directly to the
projector, then the image size (in pixels) may well be xed. If, however, you are
using commercially available image processing equipment, such as the Digital
Projection VIP1000, you may be able to resize the image to t the DMD.
If the image does not ll the full width of the DMD, this effectively increases the
throw ratio of the lens. This can be corrected for by applying a Throw ratio factor.
Method one: using the lens charts
For the screen sizes listed below, use the charts on the following pages, to choose
the most suitable lens.
Full width images, including:
2.35:1 (Scope) 1024 x 435 pixels
1.85:1 1024 x 553 pixels
16:9 = 1.78:1 1024 x 576 pixels
1.66:1 (Vista) 1024 x 616 pixels
4:3 = 1.33:1 1024 x 768 pixels (native resolution)
Full height images
A Throw ratio factor (TRF) has been applied to the following chart:
5:4 = 1.25:1 960 x 768 pixels TRF = 1.07
Method two: by calculation
See the calculations, on the page immediately following the lens chart.
Rev A August 2006 Page 2.7
Digital Projection XG-500 User Manual 2. Installation
Notes
This chart has a TRF of 1.0, for
use with the following images:
Choosing a lens using the lens charts
Use the charts on this page and on the following pages to choose which lens best
suits your application.
Full width images, including 2.35:1, 1.85:1, 16:9, 1.66:1, 4:3
example
For a screen width of 5m at a distance of 13m, the 1.8 - 2.4: 1 zoom lens would
be best suited.
For the same screen size at a distance of 18m, the 2.4 - 3.6: 1 zoom lens would
be best suited.
if you need to be more precise, then use the calculations on the page immediately
following the lens charts.
•
•
2.35:1 (Scope), 1.85:1
16:9 = 1.78:1, 1.66:1 (Vista)
4:3 = 1.33:1
1.2 : 1 xed lens
001-735
1.5 - 1.8 : 1
zoom lens
001-736
1.8 - 2.25 : 1
zoom lens
001-737
3.0 - 4.5 : 1
zoom lens
001-739
4.5 - 7.0 : 1
zoom lens
001-740
0.8 : 1 xed lens
001-734
feet
metres
Screen width
5 10 15 20 25 30 metres
16 33 49 66 82 98 feet
33 10
16 5
Throw distance
2.25 - 3.0 : 1
zoom lens
001-738
Page 2.8 Rev A August 2006
2. Installation Digital Projection TITAN XG-500 User Manual
Notes
This chart has a TRF of 1.07,
for use with the following image:
5:4 = 1.25:1
Lens charts continued
Full height image 5:4
Use the chart below to choose which lens best suits your application.
if you need to be more precise, then use the calculations on the page immediately
following the lens charts.
feet
metres
Screen width
5 10 15 20 25 30 metres
16 33 49 66 82 98 feet
33 10
16 5
Throw distance
1.2 : 1 xed lens
001-735
1.5 - 1.8 : 1
zoom lens
001-736
1.8 - 2.25 : 1
zoom lens
001-737
3.0 - 4.5 : 1
zoom lens
001-739
4.5 - 7.0 : 1
zoom lens
001-740
0.8 : 1 xed lens
001-734
2.25 - 3.0 : 1
zoom lens
001-738
Rev A August 2006 Page 2.9
Digital Projection XG-500 User Manual 2. Installation
Notes
The Throw ratio for a particular
lens is xed, and assumes that
the image lls the width of the
DMD.
For images that do not ll the
width of the DMD, the Throw
ratio is effectively increased. To
correct for this, a Throw Ratio
Factor (TRF) is used.
The lenses available and their
part numbers are listed below:
0.8 : 1 xed lens 001-734
1.2 : 1 xed lens 001-735
1.5 - 1.8 : 1 zoom lens 001-736
1.8 - 2.25 : 1 zoom lens 001-737
2.25 - 3.0 : 1 zoom lens 001-738
3.0 - 4.5 : 1 zoom lens 001-739
4.5 - 7.0 : 1 zoom lens 001-740
Lens extension is measured
when the lens is focused at
innity, and fully extended.
At other focus settings, the
extension could be up to 10mm
less
Choosing a lens by calculation
For any screen size not listed above, or if you need to be more precise, then use the
calculations below.
Identify actual width of the image in pixels.
Calculate the Throw Ratio Factor: TRF = DMD width (1024)
Image width in pixels
Identify the screen width required.
Identify the throw distance required.
Calculate the throw ratio required. Throw ratio = Throw distance
Screen width x TRF
Choose a lens with the required throw ratio.
Check from the lens charts or the specication (see section 7. Appendix), that
the lens chosen has a sufcient throw range.
example
An image, 800 x 600 pixels, screen width 6.5m, throw distance 18m from the
outer end of the lens.
Throw Ratio Factor (TRF) = 1024 = 1.28
800
Throw ratio required = 18 = 2.16
6.5 x 1.28
Choose the 1.8 - 2.4 zoom lens.
Throw distance calculations are based on the distance from the outer end
of the lens, which will vary from lens to lens. For each lens, the nominal
distance between the front of the projector and the outer end of the lens
(lens extension) will be as listed on the next page.
•
•
•
•
•
•
•
•
•
•
lens extension,
measured from front
of corner post
Page 2.10 Rev A August 2006
2. Installation Digital Projection TITAN XG-500 User Manual
Notes
The Throw ratio for a particular
lens is xed, but assumes that
the image lls the width of the
DMD.
For images that do not ll the
width of the DMD, the Throw
ratio is effectively increased. To
correct for this, a Throw Ratio
Factor (TRF) is used.
Lens extension is measured
when the lens is focused at
innity, and fully extended.
At other focus settings, the
extension could be up to 10mm
less
Useful lens calculations
The following lens calculations may be useful:
Throw ratio = Throw distance
Screen width
Throw ratio factor (TRF) = DMD width in pixels = 1024
image width in pixels image
width in pixels
Therefore:
Screen width = Throw distance
Throw ratio x TRF
Throw distance = Screen width x Throw ratio x TRF
Lens extension
The throw distance calculated above is to the outer end of the lens. For each lens,
the nominal distance between the front of the projector and the outer end of the lens
(lens extension) will be as listed below.
Lens extension
0.8 : 1 xed lens 001-734 100 mm (3.9 in)
1.2 : 1 xed lens 001-735 75 mm (3.0 in)
1.5 - 1.8 : 1 zoom lens 001-736 47 mm (1.8 in)
1.8 - 2.25 : 1 zoom lens 001-737 1 mm (0.1 in)
2.25 - 3.0 : 1 zoom lens 001-738 5 mm (0.2 in)
3.0 - 4.5 : 1 zoom lens 001-739 5 mm (0.2 in)
4.5 - 7.0 : 1 zoom lens 001-740 12 mm (0.5 in)
lens extension,
measured from front
of corner post
