Digital Projection M-Vision Cine LED 1000 1080p, M-Vision Cine LED 1000 WUXGA User Manual

M-Vision Cine LED
Digital Video Projector 16:9 widescreen display
User Manual
Rev E October 2014
111-184E
Digital Projection M-Vision Cine LED User Manual
Digital Projection M-Vision Cine LED User Manual

Declaration of Conformity

2004/108/EC Electromagnetic Compatibility Directive.
2006/95/EC Low Voltage Equipment Directive.
Products covered by this Declaration
Large screen video projector type The CE mark was rst applied in:
M-Vision Cine LED December 2009
Basis on which Conformity is being declared
The products identied above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards.
EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information
Technology Equipment.
EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology
Equipment.
EN 60950-1:2001 - Specication for Safety of Information Technology Equipment, including Electrical Business
equipment.
The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage directive has been compiled by the signatory below and is available for inspection by the relevant enforcement
authorities.
Signed:
Authority: D.J. Quinn, Product Development Director
Date: 1 December 2009
Attention!
The attention of the specier, purchaser, installer, or user is drawn to special measures and limitations to use which
must be observed when these products are taken into service to maintain compliance with the above directives.
Details of these special measures are available on request, and are also contained in the product manuals.
Digital Projection M-Vision Cine LED User Manual

Important Information

Please read this user manual carefully before using the projector, and keep the manual handy for future reference.
A serial number is located on the back of the projector. Record it here:

Symbols used in this guide

Warnings

ELECTRICAL WARNING: this symbol indicates that there is a danger of
electrical shock unless the instructions are closely followed.
WARNING: this symbol indicates that there is a danger of physical
injury to yourself and/or damage to the equipment unless the instructions are closely followed.
NOTE: this symbol indicates that there is some important information that
you should read.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
• Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.
• Other product and company names mentioned in this user’s manual may be the
trademarks of their respective holders.

Product revision

• Because we at Digital Projection continually strive to improve our products, we may change specications and designs, and add new features without prior notice. Projectors built prior to this revision of the User Manual may therefore not include all the features described.

Manual revision

Date Description Revision
September 2010 Rev A
December 2010 correction to switch on sequence in section
4, Trigger output in sections 2 and 4, extra connection examples
Rev B
Rev E October 2014 Page v
Important Information Digital Projection M-Vision Cine LED User Manual

General precautions

Do not open the cabinet. There are no user serviceable parts inside.
Use only the power cable provided.
Ensure that the power outlet includes a Ground connection, as this
equipment MUST be earthed.
Take care to prevent small objects such as paper or wire from falling
into the projector. If this does happen, switch off immediately, and have the objects removed by authorised service personnel.
Do not expose the projector to rain or moisture, and do not place any
liquids on top of the projector.
Unplug before cleaning, and use a damp, not wet, cloth.
Do not touch the power plug with wet hands.
Do not touch the power plug during a thunder storm.
Handle the power cable carefully and avoid sharp bends. Do not use a
damaged power cable.
The LED module in this projector should be changed ONLY by
authorised and qualied service personnel.
Notes
Do not touch the ventilation outlets, as they will become hot in use.
Do not cover or obstruct the ventilation outlets or inlets.
Do not cover the lens whilst the projector is switched on. This could
cause a re
Never use strong detergents or solvents such as alcohol or thinners to
clean the projector and lens.
Page vi Rev E October 2014
Digital Projection M-Vision Cine LED User Manual Important Information

Installation precautions

The projector must be installed only by suitably qualied personnel, in
accordance with local building codes.
The projector should be installed as close to the power outlet as
possible.
The power connection should be easily accessible, so that it can be
disconnected in an emergency.
Ensure that there is at least 30cm (12in) of space between the
ventilation outlets and any wall, and 10cm (4in) on all other sides.
Do not install the projector close to anything that might be affected by
its operational heat, for instance, polystyrene ceiling tiles, curtains etc.
The projector weighs approximately 15 kg (33 lbs). Use safe handling
techniques when lifting the projector.
Do not stack more than three projectors.
When stacking projectors, the stack MUST be vertical, to ensure that
the stresses are distributed to all four chassis corners.
Before installation, make sure that the surface, ceiling or rigging that is
to support the projector is capable of supporting the combined weight of all the projectors.
Notes
Backup safety chains or wires should always be used with ceiling
mount installations.
Do not place heavy objects on top of the projector chassis. Only the
chassis corners are capable of withstanding the weight of another projector.
Do not drop or knock the projector.
Place the projector in a dry area away from sources of dust, moisture,
steam, smoke, sunlight or heat.
Operation and conguration precautions
Software update should NOT be carried out except by, or with the
supervision of, Digital Projection Service personnel.
Rev E October 2014 Page vii
Important Information Digital Projection M-Vision Cine LED User Manual

Compliance with international standards

Noise

GSGV Acoustic Noise Information Ordinance
The sound pressure level is less than 32 dB (A) according to ISO 3744 or ISO 7779.

RF Interference

FCC
The Federal Communications Commission does not allow any modications or changes to the unit EXCEPT those specied by Digital Projection in this manual.
Failure to comply with this government regulation could void your right to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

European Waste Electrical and Electronic Equipment (WEEE) Directive

Digital Projection Ltd is fully committed to minimising Waste Electrical and Electronic Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the
environmental impact can be minimised.
Notes
Page viii Rev E October 2014
Digital Projection M-Vision Cine LED User Manual Important Information

Digital Projection Contact details

Digital Projection Limited,
Greenside Way, Middleton, Manchester M24 1XX, UK.
Registered in England No. 2207264, Registered Ofce: as above
Tel +44 (0) 161 947 3300
Fax +44 (0) 161 684 7674
Email enquiries@digitalprojection.co.uk, service@digitalprojection.co.uk
Web Site www.digitalprojection.co.uk
Digital Projection Inc.
55 Chastain Road, Suite 115, Kennesaw, GA 30144. USA
Tel (USA) 770 420 1350
Fax (USA) 770 420 1360
Email powerinfo@digitalprojection.com
Notes
Web Site www.digitalprojection.com
Rev E October 2014 Page ix
Important Information Digital Projection M-Vision Cine LED User Manual
Page x Rev E October 2014
M-Vision Cine LED User Manual
Contents
Declaration of Conformity ...................................................................................................................iii
Important Information
Symbols used in this guide ..................................................................................................................v
Warnings ..............................................................................................................................................v
Trademarks ..........................................................................................................................................v
Product revision ......................................................................................................................................v
Manual revision .......................................................................................................................................v
General precautions ..............................................................................................................................vi
Installation precautions ......................................................................................................................vii
Operation and conguration precautions ......................................................................................vii
Compliance with international standards ...................................................................................... viii
Noise ................................................................................................................................................ viii
RF Interference.................................................................................................................................. viii
European Waste Electrical and Electronic Equipment (WEEE) Directive ................................................. viii
Digital Projection Contact details ......................................................................................................ix
1. Introduction
What’s in the box? .............................................................................................................................. 1.2
Key features of the projector ........................................................................................................... 1.3
Getting to know the projector .......................................................................................................... 1.4
Front view ........................................................................................................................................ 1.4
Rear view ......................................................................................................................................... 1.4
2. Installation
Screen requirements ......................................................................................................................... 2.2
Aspect ratio ...................................................................................................................................... 2.2
Positioning the screen and projector ................................................................................................... 2.6
Screen size vs throw distance ............................................................................................................ 2.7
Shifting the image............................................................................................................................. 2.10
Mounting the projector .....................................................................................................................2.11

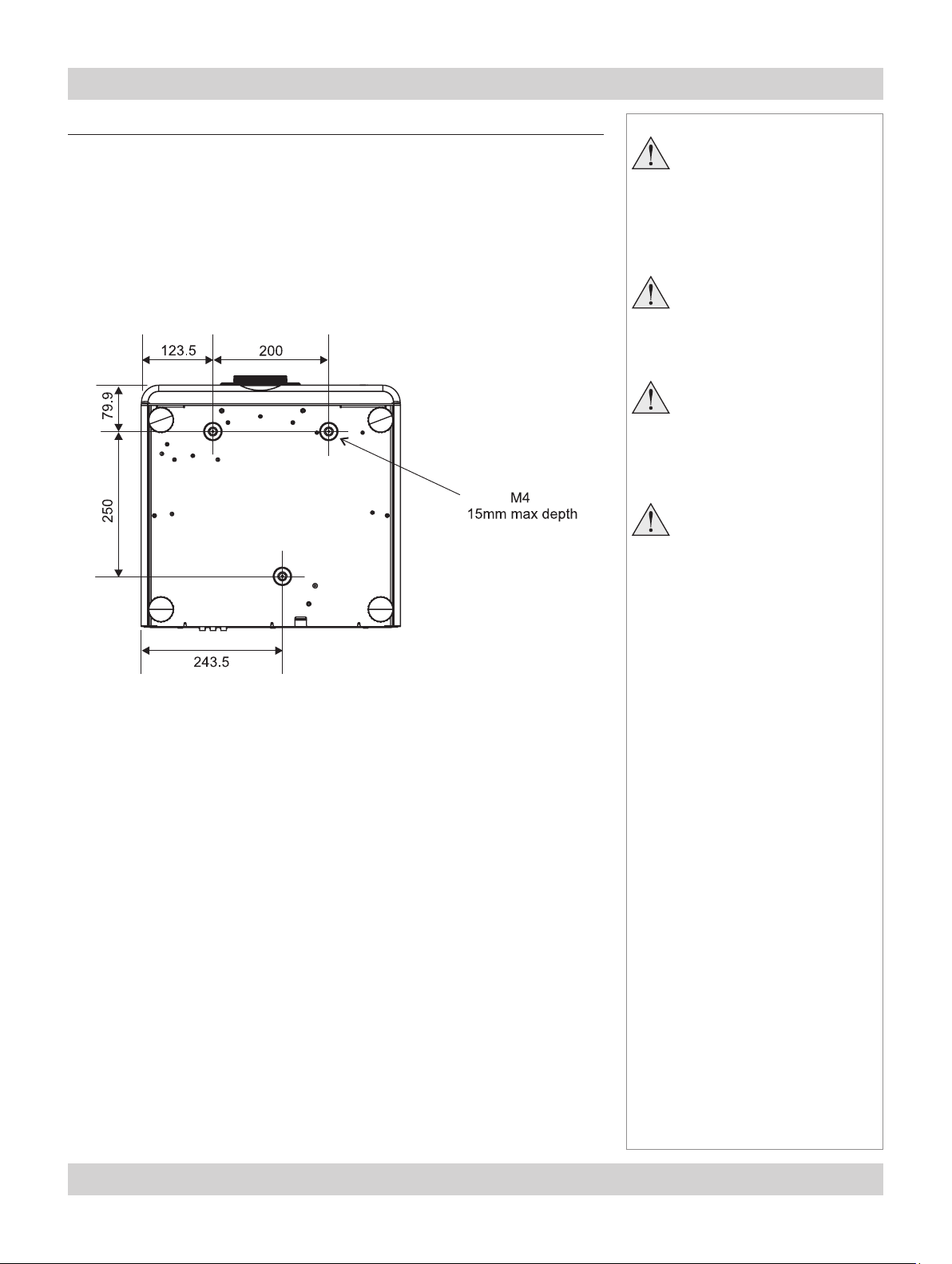

Ceiling mounting ..............................................................................................................................2.11
Level adjustment..............................................................................................................................2.11
Rear projection ............................................................................................................................... 2.12
Stacking projectors .......................................................................................................................... 2.12
continued
Rev E October 2014 Page xi
Table of Contents Digital Projection M-Vision Cine LED User Manual

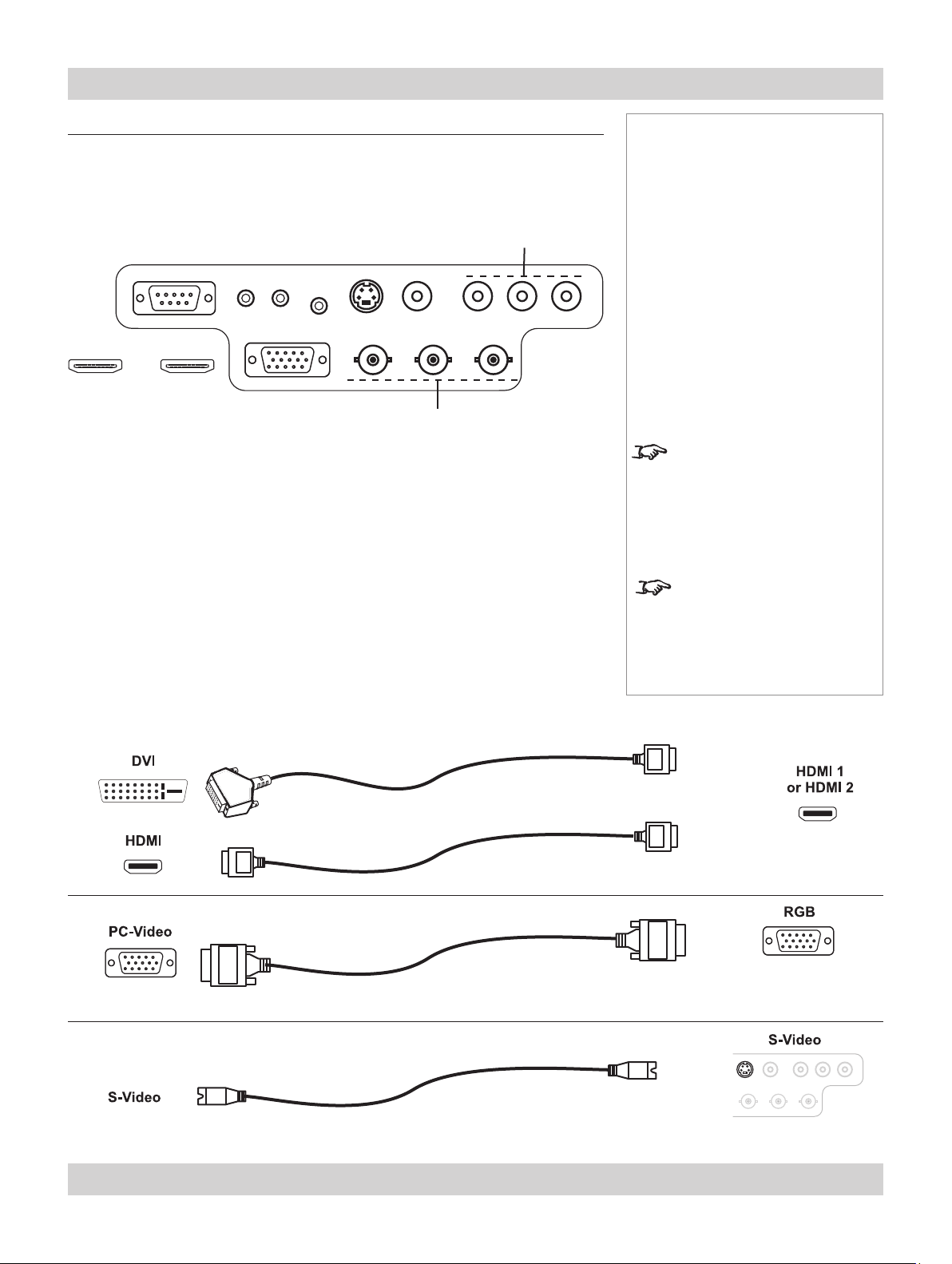

Connecting the projector ................................................................................................................ 2.13

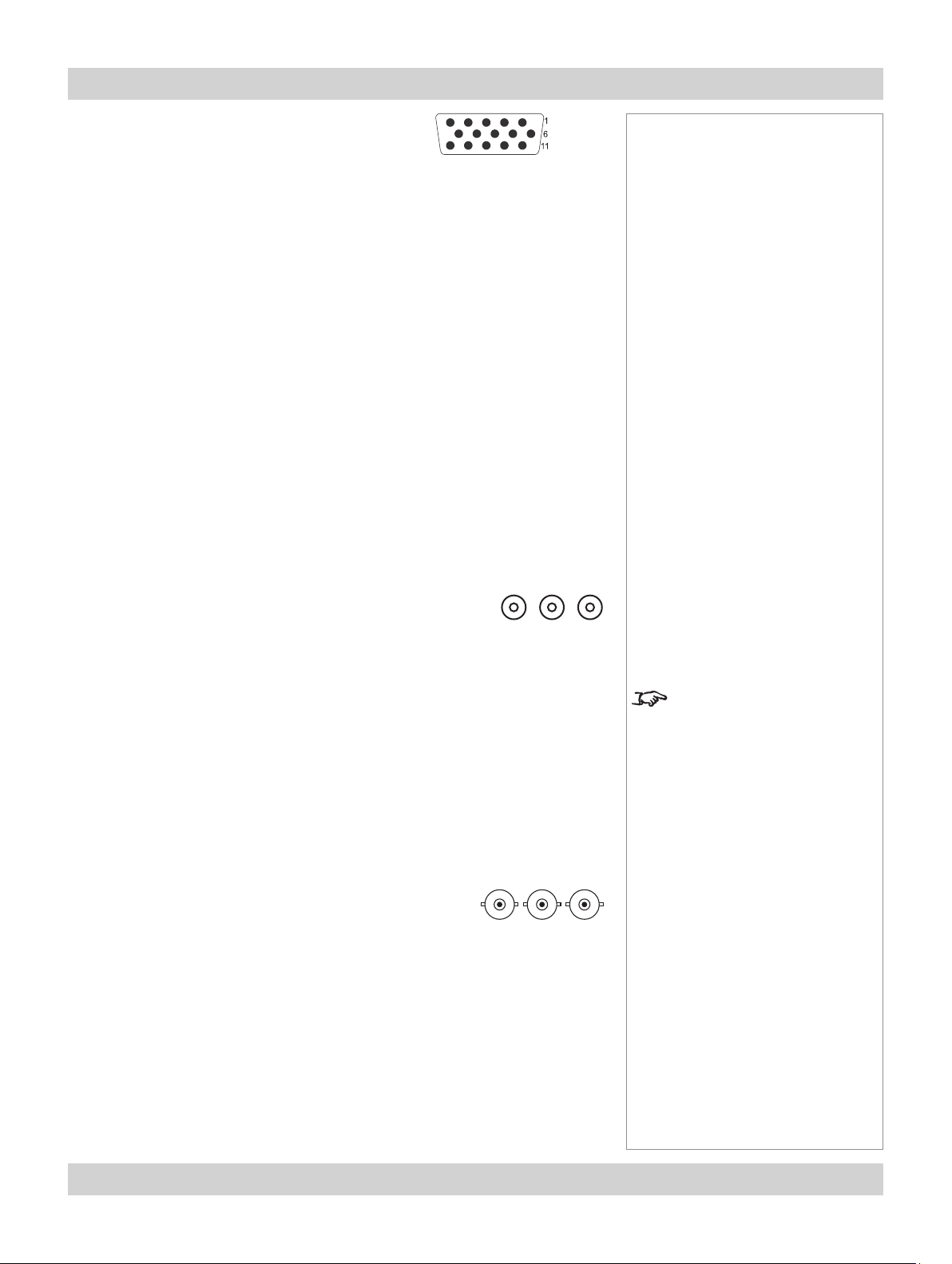

Signal Inputs .................................................................................................................................. 2.13
Control connections ........................................................................................................................ 2.15
Power connection ........................................................................................................................... 2.16
3. Getting Started
Positioning the screen and projector ............................................................................................ 3.2
Switching the projector on ............................................................................................................... 3.2
Inserting batteries into the remote control ................................................................................... 3.2
Selecting an input signal or test pattern ....................................................................................... 3.3
Input ................................................................................................................................................ 3.3
Test pattern ...................................................................................................................................... 3.3
Adjusting the lens............................................................................................................................... 3.3
Zoom ............................................................................................................................................... 3.3
Focus .............................................................................................................................................. 3.3
Shift ................................................................................................................................................. 3.3
Adjusting the projected image ........................................................................................................ 3.4
Aspect ratio ...................................................................................................................................... 3.4
Image quality settings ........................................................................................................................ 3.4
Switching the projector off ............................................................................................................... 3.4
4. Controlling the projector
Overview ............................................................................................................................................... 4.3
Controlling the projector..................................................................................................................... 4.3
The control panel ................................................................................................................................ 4.4
LED status indicators ........................................................................................................................ 4.4

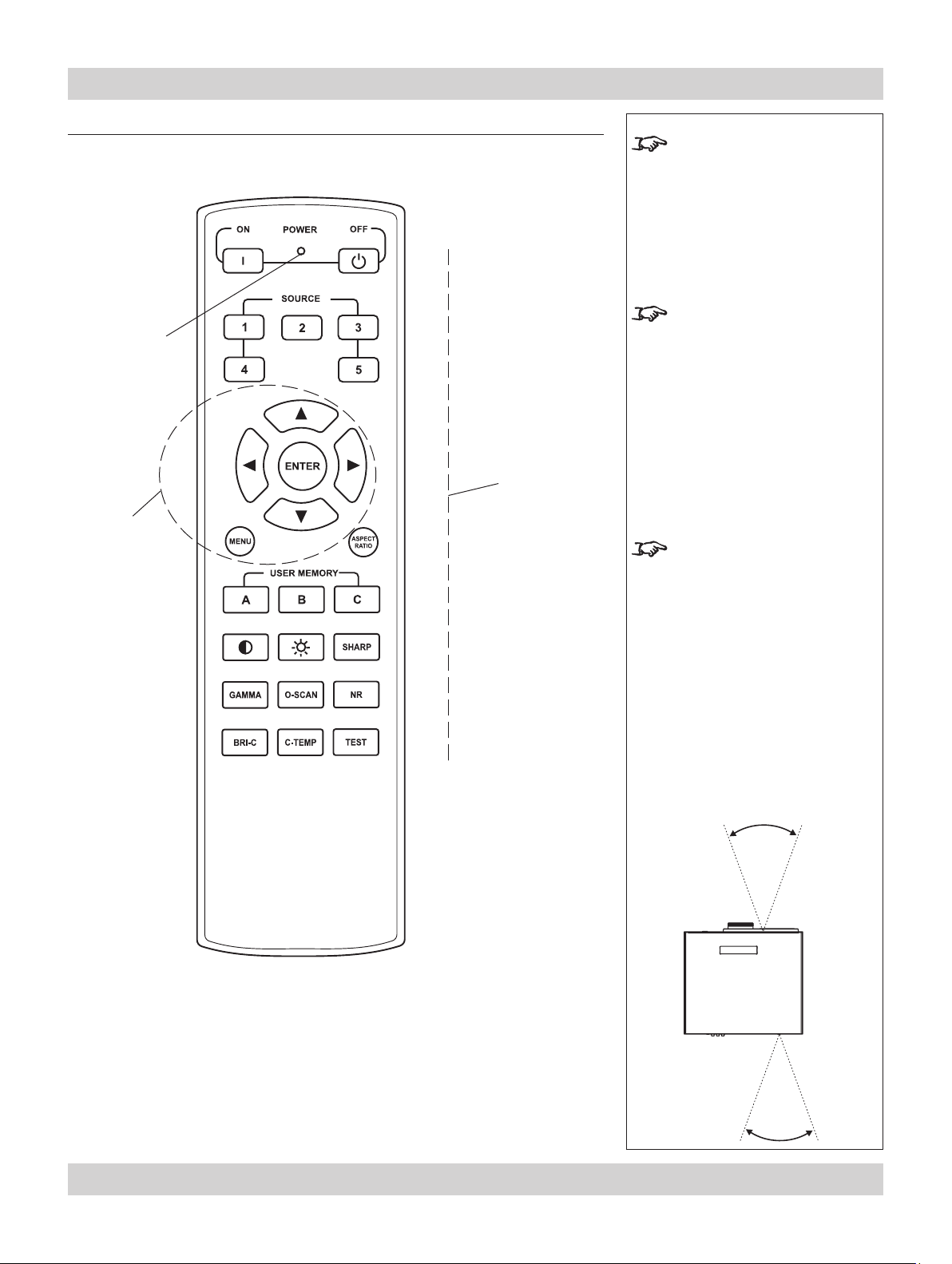

The remote control ............................................................................................................................. 4.5
Layout ............................................................................................................................................. 4.5
Timeout ............................................................................................................................................ 4.5
Using the control keys ...................................................................................................................... 4.6
Power .............................................................................................................................................. 4.6
Source ............................................................................................................................................. 4.6
Aspect ratio ...................................................................................................................................... 4.6
User memory .................................................................................................................................... 4.6
Image quality settings ........................................................................................................................ 4.7
Test pattern ...................................................................................................................................... 4.7
Using the menus ................................................................................................................................. 4.8
Navigating menus and submenus ....................................................................................................... 4.8
continued
Page xii Rev E October 2014
Digital Projection M-Vision Cine LED User Manual Table of Contents
Main menu ............................................................................................................................................ 4.9
Aspect Ratio ..................................................................................................................................... 4.9
Presets .......................................................................................................................................... 4.10
Brightness .......................................................................................................................................4.11
Contrast ..........................................................................................................................................4.11
Saturation .......................................................................................................................................4.11
Hue ................................................................................................................................................4.11
Sharpness ...................................................................................................................................... 4.12
Noise Reduction ............................................................................................................................. 4.12
Overscan ....................................................................................................................................... 4.12
Input Select .................................................................................................................................... 4.13
Resync .......................................................................................................................................... 4.13
Advanced menu ................................................................................................................................ 4.14
Colour Space ................................................................................................................................. 4.14
Video Standard ............................................................................................................................... 4.15
Gamma .......................................................................................................................................... 4.15
Colour Temperature ........................................................................................................................ 4.15
Colour Gamut ................................................................................................................................. 4.16
Brilliant Color® ............................................................................................................................... 4.16
Dynamic Black ................................................................................................................................ 4.16
Adaptive Contrast ........................................................................................................................... 4.16
RGB Adjust .................................................................................................................................... 4.17
Fine Sync ....................................................................................................................................... 4.18
HSG .............................................................................................................................................. 4.19

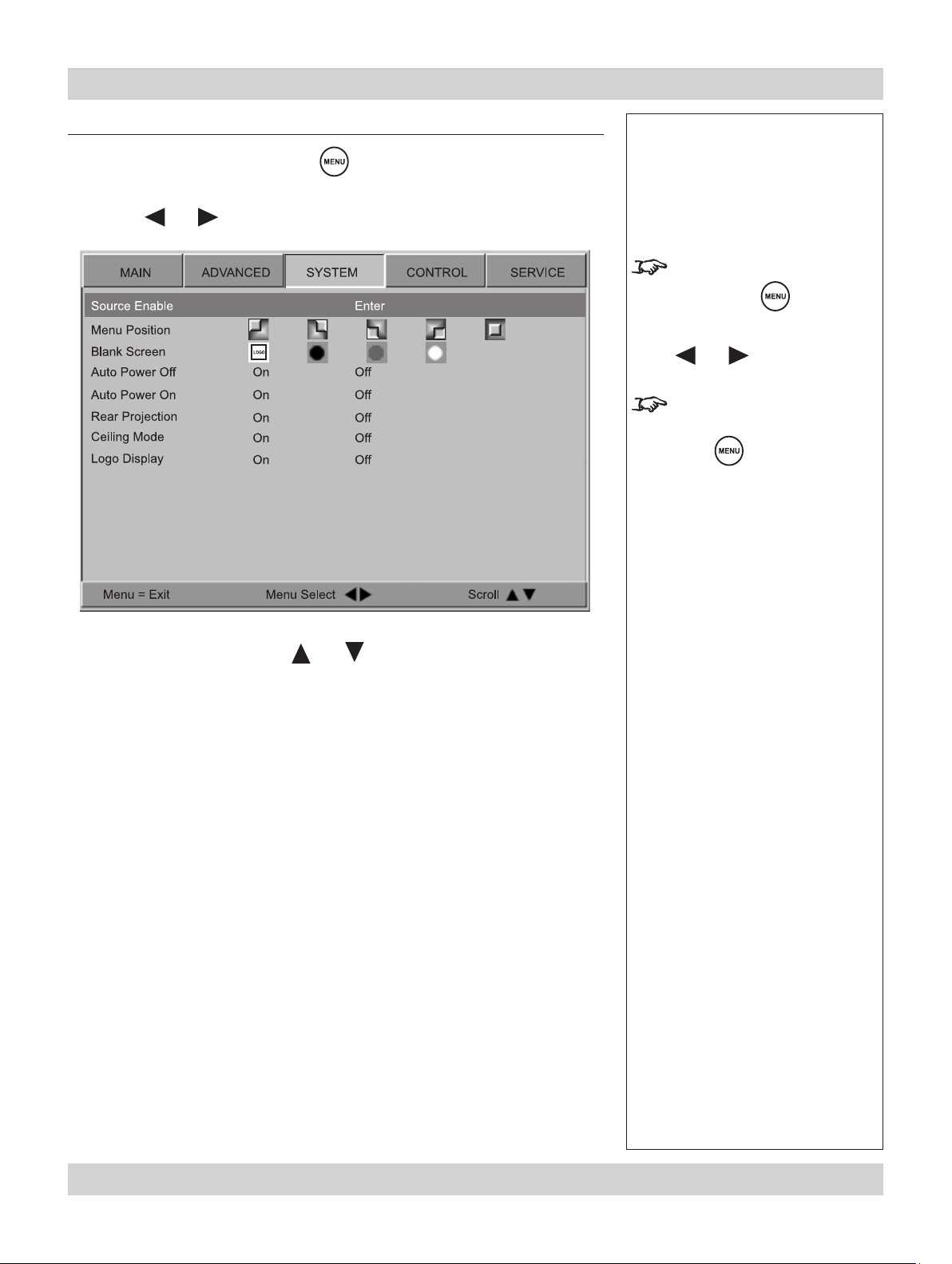

System menu ..................................................................................................................................... 4.20

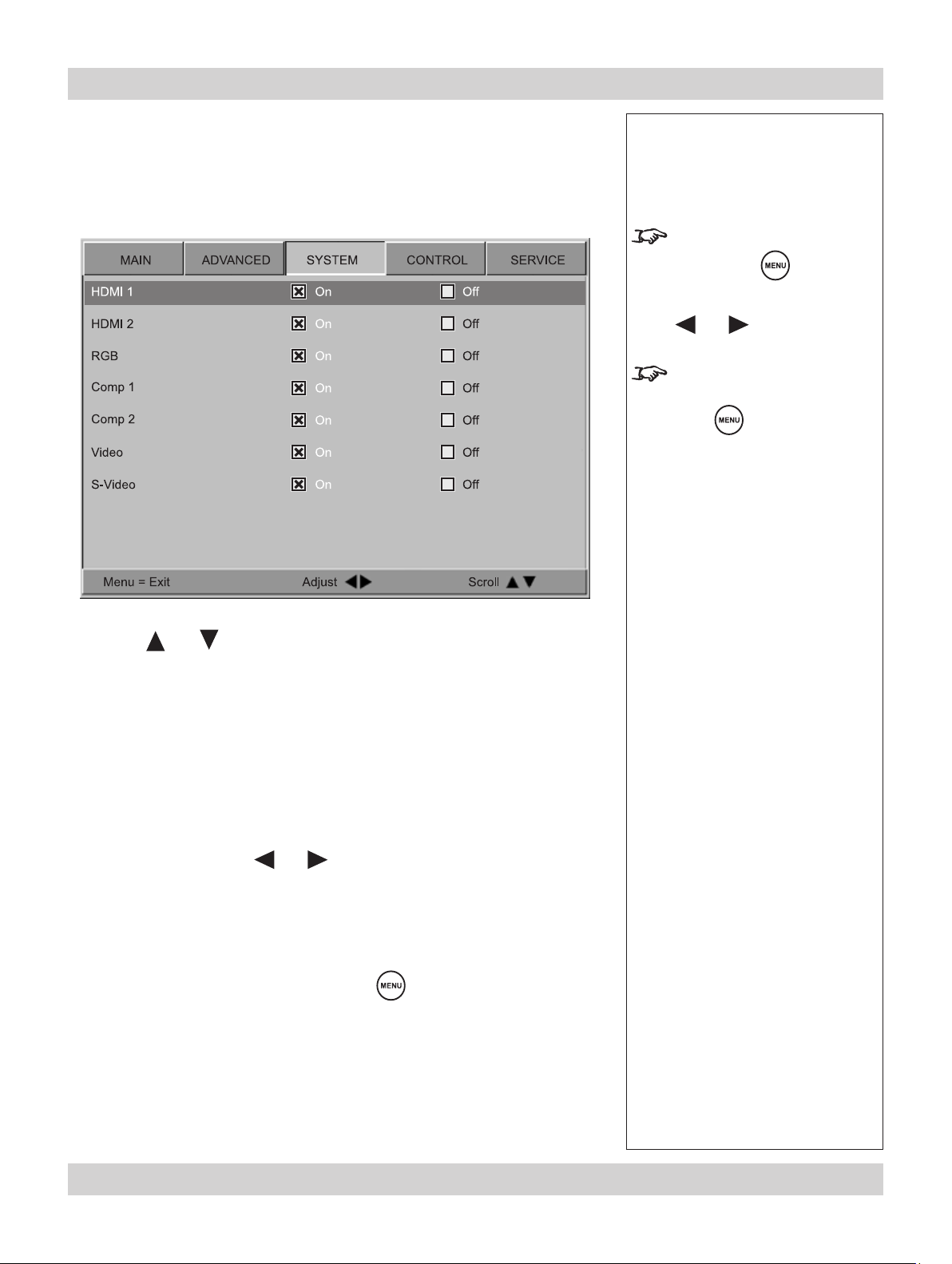

Source Enable ................................................................................................................................ 4.21
Menu Position................................................................................................................................. 4.22
Blank Screen .................................................................................................................................. 4.22
Auto Power On ............................................................................................................................... 4.22
Auto Power Off ............................................................................................................................... 4.22
Rear Projection ............................................................................................................................... 4.23
Ceiling Mode .................................................................................................................................. 4.23
Logo Display .................................................................................................................................. 4.23

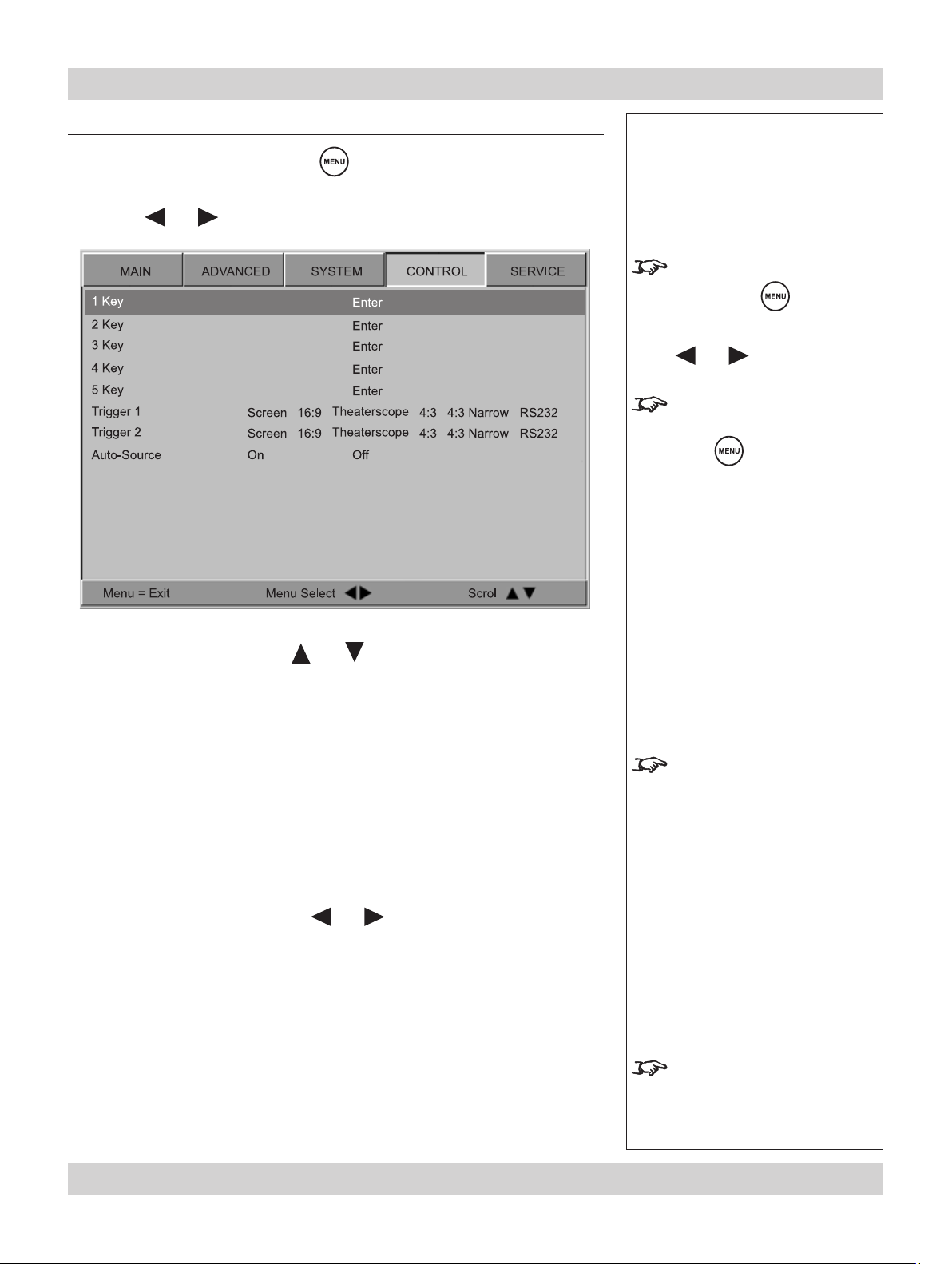

Control menu ..................................................................................................................................... 4.24
Trigger 1 & 2 .................................................................................................................................. 4.24
Auto Source ................................................................................................................................... 4.25

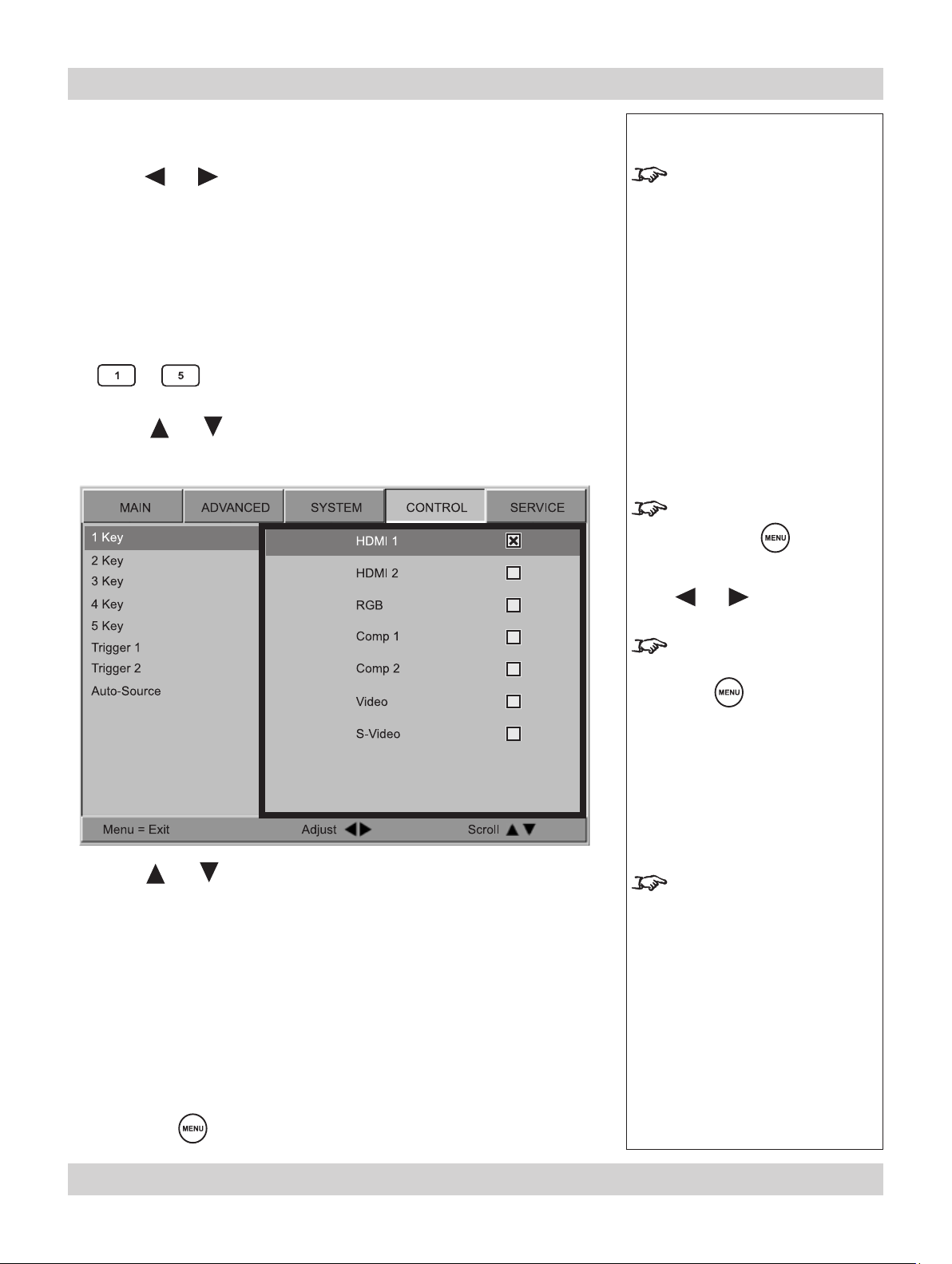

Keys 1 to 5 ..................................................................................................................................... 4.25
Service menu ..................................................................................................................................... 4.26
Factory Reset ................................................................................................................................. 4.26
Blue Only ....................................................................................................................................... 4.27
Test Patterns .................................................................................................................................. 4.27
Altitude .......................................................................................................................................... 4.27
continued
Rev E October 2014 Page xiii
Table of Contents Digital Projection M-Vision Cine LED User Manual
5. Maintenance
Changing the LED module ............................................................................................................... 5.2
Cleaning the fans ................................................................................................................................ 5.2
6. Appendix
Troubleshooting .................................................................................................................................. 6.2
Error codes ...................................................................................................................................... 6.4
Specications ...................................................................................................................................... 6.5
Part numbers .................................................................................................................................... 6.5
Optical ............................................................................................................................................. 6.5
Electrical .......................................................................................................................................... 6.6
Physical ........................................................................................................................................... 6.6

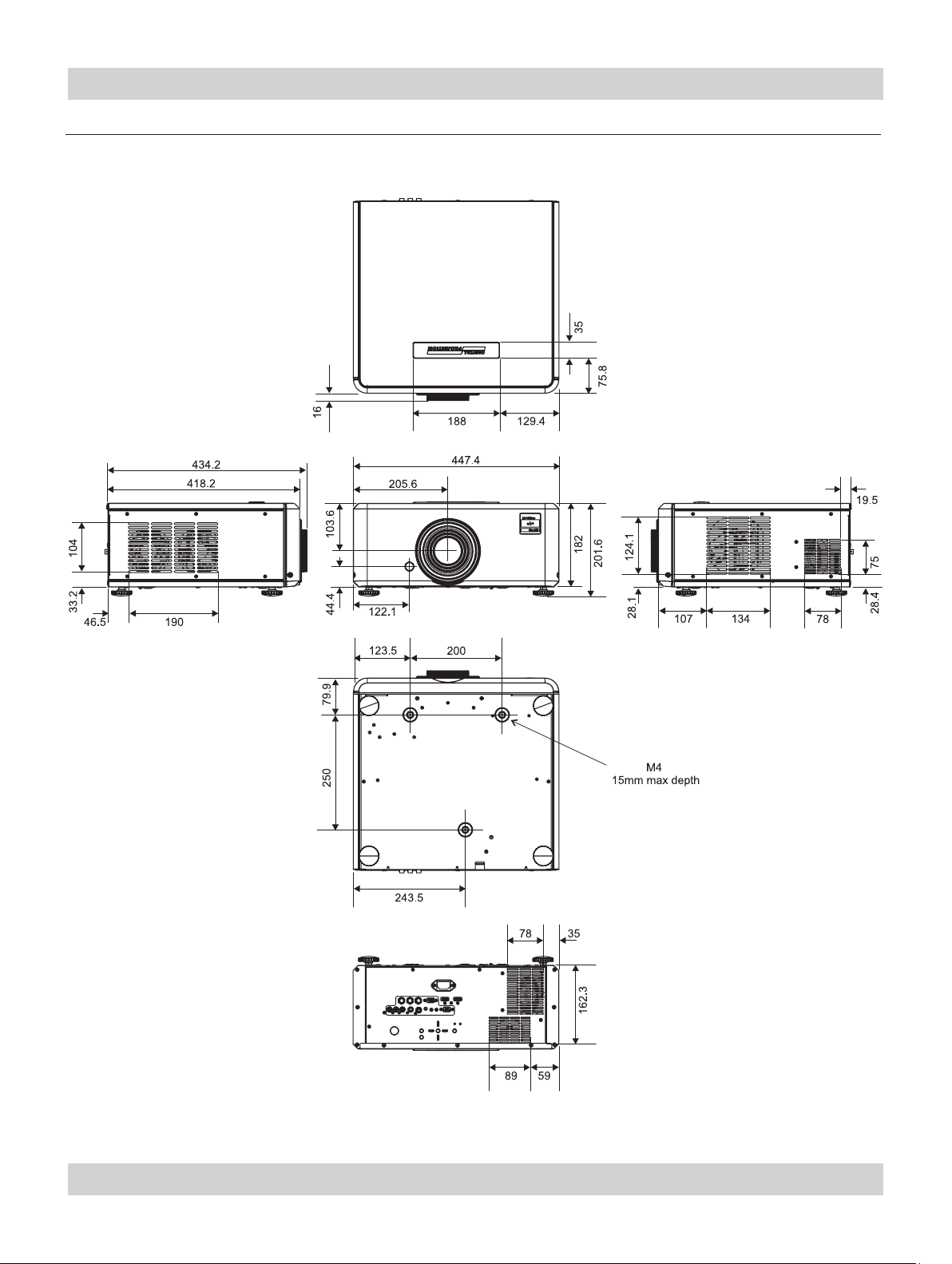

Dimensions .......................................................................................................................................... 6.7
Video formats supported .................................................................................................................. 6.8
Input connections ............................................................................................................................. 6.10
HDMI 1 & 2 inputs ........................................................................................................................... 6.10
Composite video input ..................................................................................................................... 6.10
S-Video input .................................................................................................................................. 6.10
RGB input .......................................................................................................................................6.11
Component 1 input ...........................................................................................................................6.11
Component 2 input ...........................................................................................................................6.11
Control connections ........................................................................................................................ 6.12
Wired Remote control connection ..................................................................................................... 6.12
Trigger 1 & 2 output ........................................................................................................................ 6.12
Serial control input .......................................................................................................................... 6.12
Remote communications protocol ............................................................................................... 6.13
Introduction .................................................................................................................................... 6.13
Key Commands .............................................................................................................................. 6.13
Operation Commands ..................................................................................................................... 6.15
Page xiv Rev E October 2014

1. Introduction

Contents
What’s in the box? .............................................................................................................................. 1.2
Key features of the projector ........................................................................................................... 1.3
Getting to know the projector .......................................................................................................... 1.4
Front view ........................................................................................................................................ 1.4
Rear view ......................................................................................................................................... 1.4
Rev E October 2014 Page 1.1
1. Introduction Digital Projection M-Vision Cine LED User Manual

What’s in the box?

• Make sure your box contains everything listed. If any pieces are missing, contact
your dealer.
• You should save the original box and packing materials, in case you ever need to ship your Projector.
Projector
(0.73:1 xed lens 110-001
1.56–1.86:1 zoom lens 110-002
1.85–2.40:1 zoom lens 110-003)
Notes
For more detailed information
about lenses, see Screen size
vs throw distance, in section
2. Installation.
Only one power cable -
dependent on the destination
territory - will be supplied with the projector.
Power cable 10A
Europe
(102-163)
Remote control
(109-685)
2x AA batteries
Power cable 13A
North America
(102-165)
User Manual on disc
(115-759)
Power cable 10A
United Kingdom
(102-180)
Important Information
(110-287)
HDMI cable
Getting Started Guide
(111-185)
5mm Allen
wrench
Page 1.2 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 1. Introduction

Key features of the projector

Congratulations on your purchase of the Digital Projection M-Vision Cine LED projector.
The imagery benets associated with the M-Vision are plentiful, including an expanded colour gamut range and accelerated contrast performance. Augmenting these benets is the over 60,000 hour lamp life, courtesy of solid state illumination technology, which guarantees a long and low-maintenance display life.
Installation is incredibly exible due to the M-Vision’s compact and lightweight chassis design, and extraordinary lens shift range of .15 of frame horizontal and .6 of frame vertical. Multiple lens options provide further exibility, with a throw range from .73 to 2.40:1. Connectivity includes two HDMI inputs, as well as RGB via D-15, component, composite and S-Video inputs.
Providing 3-chip colour saturation from a small-form single-chip display, the M­Vision Cine LED presents a powerful yet remarkably affordable solution for a variety of commercial and home entertainment applications where image quality and long-life usage are equally important. In any environment where ambient light can be controlled, the M-Vision Cine LED represents the perfect low maintenance home theater projector in limited ambient light.
As is the case with all Digital Projection displays, our advanced engineering
guarantees the M-Vision Cine LED provides remarkable contrast and color
saturation for years to come. Equally important, our legacy in superior customer and technical services assures our experienced support staff is always available to
address your needs.
Notes
Key Features
• High resolution projector for low ambient light venues
• Applications: Command and Control, Simulation, Home Cinema, Fixed Install
and Rental
• Brightness 1000 ANSI lumens ±10%
• Contrast 10,000:1 ±10%
• 1920 x 1080 resolution
• Precision mechanical design ensuring maximum amount of light from LED
module reaches optics, without any operator adjustment
• 230-280W single phase, 100-240VAC ±10%
• Compact size, light weight - approximately 15 kg (33 lbs)
• Robust metal case
• RS232 connection for remote operation using control codes
• Seven selectable Digital and Analogue Video inputs for display of the latest as
well as legacy video standards.
HDMI, RGBHV, Component, S-Video, Composite all as standard
• IR remote control for easy setup
Rev E October 2014 Page 1.3
1. Introduction Digital Projection M-Vision Cine LED User Manual
Vertical shift
adjustment

Getting to know the projector

Front view

Zoom
ring
Focus
ring
Front Infra-red
window
(remote control)
Lens
Horizontal shift
adjustment
Notes
(adjustments
under badge)
For more detailed information
about lenses or lens shift, see
section 2. Installation
Air inlet
Air inlet

Rear view

Air
inlets
Projector
control
panel
Adjustable feet
For information about how to
change the LED module, see section 5. Maintenance.
For information about controls
and indicators, see section
4. Controlling the projector.
Air outlet
Page 1.4 Rev E October 2014
Power
connection
Input
connections
Rear Infra-red
window (remote
control)

2. Installation

Contents
Screen requirements ......................................................................................................................... 2.2
Aspect ratio ...................................................................................................................................... 2.2
Fitting the image to the DMD ............................................................................................................. 2.2
Examples of 16:9 images displayed with different aspect ratio settings ........................................................ 2.2
Examples of 4:3 images displayed with different aspect ratio settings ......................................................... 2.3
Examples of 2.35:1 images displayed with different aspect ratio settings ..................................................... 2.3
Diagonal screen sizes ...................................................................................................................... 2.4
Fitting the image to the screen ........................................................................................................... 2.5
Positioning the screen and projector ................................................................................................... 2.6
Optimum viewing position ................................................................................................................. 2.6
Screen size vs throw distance ............................................................................................................ 2.7
Calculating screen width and throw distance ......................................................................................... 2.7
Lens charts for the short throw zoom lens ............................................................................................. 2.8
example ....................................................................................................................................... 2.8
Lens charts for the long throw zoom lens .............................................................................................. 2.9
example ....................................................................................................................................... 2.9
Shifting the image............................................................................................................................. 2.10
Mounting the projector .....................................................................................................................2.11
Ceiling mounting ..............................................................................................................................2.11
Level adjustment..............................................................................................................................2.11
Rear projection ............................................................................................................................... 2.12
Stacking projectors .......................................................................................................................... 2.12
Connecting the projector ................................................................................................................ 2.13
Signal Inputs .................................................................................................................................. 2.13
Input connection examples .............................................................................................................. 2.13
Control connections ........................................................................................................................ 2.15
Remote control ............................................................................................................................. 2.15
RS232 connection ......................................................................................................................... 2.15
Trigger 1 & 2 ................................................................................................................................ 2.15
Power connection ........................................................................................................................... 2.16
Rev E October 2014 Page 2.1
2. Installation Digital Projection M-Vision Cine LED User Manual

Screen requirements

Aspect ratio

Fitting the image to the DMD
The projector uses a DMD (Digital Mirror Device) to create the image that is projected onto the screen. The resolution of the DMD in this projector is 1920 x 1080 pixels, or to put it another way, its aspect ratio is 16:9.
1920 pixels
1080 pixels
16 units
If the source image supplied to the projector has a different aspect ratio from this, or even if it has the same aspect ratio but fewer pixels, then the image will not ll the DMD. The projector therefore needs to scale the image.
9 units
Notes
The projector has ve aspect ratio settings, so that you can choose the one that is most suitable for your image source. The settings are:
16:9 the image is scaled to ll the DMD (and thus, a 16:9 screen).
Theaterscope the image is scaled such that a 2.35:1 image will be displayed
at the correct aspect ratio when the projector is tted with an anamorphic lens. Thus an image with an aspect ratio of 2.35:1 can be displayed using the full 16:9 resolution of the DMD.
4:3 the image is scaled to t a 4:3 screen, using the full height of the
DMD.
4:3 Narrow to be used for 4:3 images in combination with an anamorphic
lens. The image is scaled to t the DMD vertically, but squeezed
horizontally such that the lens will stretch it to the correct ratio.
Native the image is displayed with no scaling, at its original resolution, in
the centre of the screen.
Examples of 16:9 images displayed with different aspect ratio settings
For more information about
changing the Aspect ratio
setting, see Using the control keys and Using the menus in section 4. Controlling the Projector.
The 16:9 image shown here has
far fewer pixels than the 1920 x 1080 of the DMD. Your image may be different.
16:9
Note that, as the aspect ratio of the image matches that of the DMD, the 16:9 setting is best, unless there is some specic reason for wanting the smaller image, for instance, to maintain the same scale as other images from the same source.
Native
Page 2.2 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation
Examples of 4:3 images displayed with different aspect ratio settings
4:3
The 4:3 setting is best, unless there is some specic reason for wanting the smaller Native image, for instance, to maintain the same scale as other images from the
same source.
If you are using an anamorphic lens, the 4:3 Narrow setting should be used. The
lens will stretch the image to the correct width.
4:3 Narrow
without anamorphic lens
Native
4:3 Narrow
with anamorphic lens
Notes
The 4:3 image shown here has
far fewer pixels than the 1920 x 1080 of the DMD. Your image may be different.
If you are using an anamorphic
lens, you will need to use the 4:3 Narrow setting to correct the image.
Examples of 2.35:1 images displayed with different aspect ratio settings
16:9 Native
The 16:9 setting is best, unless there is some specic reason for wanting the smaller Native image, for instance, to maintain the same scale as other images from
the same source.
If you have an anamorphic lens, the Theaterscope setting would be a much better option. Because it uses the whole of the DMD, it will be a much brighter image than the letterboxed options shown above, and will ll a wider screen if this is available.
Theaterscope
without Anamorphic lens
with Anamorphic lens,
stretched to ll wider screen
The 2.35 image shown here has
far fewer pixels than the 1920 x 1080 of the DMD. Your image may be different.
To take advantage of the
Theaterscope setting, you
MUST have an anamorphic
lens.
Rev E October 2014 Page 2.3
2. Installation Digital Projection M-Vision Cine LED User Manual
Diagonal screen sizes
Screen sizes are sometimes specied by their diagonal size (D) in inches. When dealing with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H).
W = width
H = height
D = diagonal (inches)
The example calculations below show how to convert diagonal sizes in inches into width and height, at various aspect ratios.
2.35:1 (Scope)
W = D x 0.92in (D x .023m) H = D x 0.39in (D x .01m)
1.85:1
W = D x 0.88in (D x .022m) H = D x 0.47in (D x .012m)
16:9 = 1.78:1 (native aspect ratio)
W = D x 0.87in (D x .022m) H = D x 0.49in (D x .0125m)
Notes
1.66:1 (Vista)
W = D x 0.86in (D x .022m) H = D x 0.52in (D x .013m)
16:10 = 1.6:1
W = D x 0.85in (D x .022m) H = D x 0.53in (D x .014m)
4:3 = 1.33:1
W = D x 0.8in (D x .02m) H = D x 0.6in (D x .015m)
Page 2.4 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation
Fitting the image to the screen
It is important that your screen is of sufcient height and width to display images at
all the aspect ratios you are planning to use.
Use the conversion chart, or the sample calculations below to check that you are able to display the full image on your screen. If you have insufcient height or width, you will have to reduce the overall image size in order to display the full image on
your screen.
10
9
8
4:3
7
6
5
Screen height
4
Aspect ratio
1.66:1
1.85:1
2.35:1
16:10
16:9
Notes
3
2
1
1 2 3 4 5 6 7 8 9 10
2.35:1 (Scope)
W = H x 2.35 H = W x 0.426
1.85:1
W = H x 1.85 H = W x 0.54
16:9 = 1.78:1 (native aspect ratio)
W = H x 1.78 H = W x 0.56
1.66:1 (Vista)
W = H x 1.66 H = W x 0.6
16:10 = 1.6:1
W = H x 1.6 H = W x 0.625
4:3 = 1.33:1
W = H x 1.33 H = W x 0.75
Screen width
Rev E October 2014 Page 2.5
2. Installation Digital Projection M-Vision Cine LED User Manual

Positioning the screen and projector

Optimum viewing position
For optimum viewing, the screen should be a at surface perpendicular to the oor. The bottom of the screen should be 1.2m (4 feet) above the oor and the front row of the audience should not have to look up more than 30° to see the top of the
screen.
The distance between the front row of the audience and the screen should be at
least twice the screen height and the distance between the back row and the screen
should be a maximum of 8 times the screen height. The screen viewing area should be within a 60° range from the face of the screen.
Notes
The projector should be
installed as close to the power outlet as possible.
The power connection should
be easily accessible, so that it can be disconnected in an emergency.
Ensure that there is at least
30cm (12in) of space between the ventilation outlets and any wall, and 10cm (4in) on all other sides.
Do not install the projector
close to anything that might be affected by its operational heat, for instance, polystyrene ceiling tiles, curtains etc.
The image can be ipped for
rear projection (see section
4. Using the menus, Image menu) and displayed without
the need for extra mirrors or equipment.
However, you must ensure
that there is sufcient distance behind the screen for the projector to be correctly located.
Rear installation is generally
more complicated and advice should be sought from your local dealer before attempting it.
Page 2.6 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation

Screen size vs throw distance

Throw distance is the distance measured from the front of the projector to the screen. This is an important calculation in any projector installation as it determines whether or not you have enough room to install your projector with the desired screen size, and if your image will be the right size for your screen.
Calculating screen width and throw distance
Throw Distance = Screen Width x Lens Throw Ratio
Screen Width = Throw Distance Lens Throw Ratio
Notes
For more information about the
relationship between screen size, throw distance and converter lenses, see the Lens charts on the following pages.
Three models of the projector are available, tted with the following lenses:
Throw Ratio Focus range
• Fixed lens 0.73:1 to be conrmed
• Short-throw lens 1.56–1.86:1 zoom 2–7m (6.6 - 23ft)
• Long-throw lens 1.85–2.40:1 zoom 2.5–10m (8.2 - 32.8ft)
Two optional converter lenses are available, which modify the throw ratios as shown
below:
0.8x converter 1.25x converter
• Short-throw lens 1.25–1.49:1 1.95–2.33:1
• Long-throw lens 1.48–1.92:1 2.31–3:1
These throw ratios are correct for images that ll the full width of the DMD. For images that do not ll the full width, the throw ratio will be larger. For 4:3 images, the throw ratio is increased by a factor of 1.33. The effect of this can be seen on the lens charts on the following pages.
Do not confuse the focus range
with the zoom range:
- the focus range is the distance
over which the image can be
focused using the focus ring.
- the zoom range is the range
over which the throw ratio can
be changed using the zoom ring.
The converter lenes are not
physically compatible with the Fixed lens.
The 0.8:1 conversion lens
introduces up to 4% bow distortion. Digital Projection recommends caution when using this lens
Rev E October 2014 Page 2.7
2. Installation Digital Projection M-Vision Cine LED User Manual
Lens charts for the short throw zoom lens
example
• You can display a 16:9 image with a screen width of 3m at a distance of 5m, but for a screen width of 3.5m, you will need to use the 0.8x converter lens.
feet
metres
23 7
20 6
16 5
13 4
10 3
Screen width
7 2
16:9 images
Notes
using the 0.8x converter lens
without a
converter lens
using the 1.25x
converter lens
3 1
1 2 3 4 5 6 7 8 9 10 11 12 metres
3 7 10 13 16 20 23 26 30 33 36 39 feet
23 7
20 6
16 5
13 4
10 3
Screen width
7 2
3 1
Throw distance
using the 0.8x converter lens
4:3 images
without a
converter lens
using the 1.25x
converter lens
1 2 3 4 5 6 7 8 9 10 11 12 metres
3 7 10 13 16 20 23 26 30 33 36 39 feet
Throw distance
Page 2.8 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation
Lens charts for the long throw zoom lens
example
• You can display a 4:3 image with a screen width of 3m at a distance of 6m, but for a screen width of 2m, you will need to use the 1.25x converter lens.
feet
metres
23 7
20 6
16 5
13 4
10 3
Screen width
7 2
16:9 images
Notes
Note that for the long throw
lens, there is some overlap between the range available using the converter lenses and that using no converter lens.
using the 0.8x converter lens
without a
converter lens
using the 1.25x
converter lens
3 1
1 2 3 4 5 6 7 8 9 10 11 12 metres
3 7 10 13 16 20 23 26 30 33 36 39 feet
23 7
20 6
16 5
13 4
10 3
Screen width
7 2
3 1
Throw distance
using the 0.8x converter lens
4:3 images
without a
converter lens
using the 1.25x
converter lens
1 2 3 4 5 6 7 8 9 10 11 12 metres
3 7 10 13 16 20 23 26 30 33 36 39 feet
Rev E October 2014 Page 2.9
2. Installation Digital Projection M-Vision Cine LED User Manual

Shifting the image

Ideally, the projector should be positioned perpendicular to the screen.
The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image
using the Lens shift controls on the top of the projector to maintain a geometrically correct image.
Horizontal shift
adjustment
Vertical shift
adjustment
(Remove
the badge)
Notes
If the projector is tted with the
xed 0.73:1 lens then there are no mechanical controls for lens shift.
Slide the badge in the
direction shown below, then gently lift off by hand.
Do NOT prise off using a tool.
If the lens is to be shifted in
two directions combined, the
maximum range is somewhat
less, as can be seen below.
The image can be shifted by up to:
• ± 0.6 of the height of a full screen image (known as 120% shift)
• ± 0.15 of the width of a full screen image (known as 30%)
It is physically possible to shift the lens further than this, however there will be some distortion of the image beyond the ranges specied above.
+ 0.6 H
– 0.15 W
– 0.6 H
+ 0.15 W
full horizontal or vertical shift
without distortion
combined shift
is reduced
Page 2.10 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation

Mounting the projector

The four adjustable feet under the chassis allow the projector to be lowered onto a at surface without any danger of hands being trapped between the bottom frame and the surface.

Ceiling mounting

The projector is designed to be used on a at surface, but it can be suspended from a ceiling. Three M4 mounting holes with a 0.7mm pitch are provided under the projector to allow bolting to a ceiling mounting plate.
Dimensions
in mm
Notes
BEFORE INSTALLING THE
PROJECTOR, READ ALL THE WARNINGS BELOW AND ALL THOSE IN IMPORTANT INFORMATION AT THE FRONT OF THIS MANUAL.
The projector weighs
approximately 15 kg (33 lbs). Use safe handling techniques when lifting the projector.
Make sure that the surface,
ceiling or rigging that is to support the projector is capable of supporting the weight of the projector.
Backup safety chains or
wires should always be used with ceiling mount installations.
To use the projector upside down, set Ceiling mode to On, in the System menu, to invert the image.

Level adjustment

If the projector is to be operated from a at surface such as a projector table, then adjustment of projector level should be made by turning the four feet under the
chassis.
Ideally, the projector should be positioned perpendicular to the screen, and the lens shift controls used to align the image with the screen, to maintain a geometrically
correct image.
Rev E October 2014 Page 2.11
2. Installation Digital Projection M-Vision Cine LED User Manual

Rear projection

To use rear projection, set Rear Projection to On, in the System menu, to reverse the image.
In rear-screen applications where space behind the projector is limited, a mirror may be used to fold the optical path. The position of the projector and mirror must be accurately set. If you are considering this type of installation, contact your dealer for
assistance

Stacking projectors

The projector is capable of supporting the weight of up to three other projectors safely. The stack should be positioned vertically and perpendicular to the screen, and the lens shift controls used to align the image with the screen, to maintain a
geometrically correct image.
• Carefully lower each projector down onto the top of the others, making sure that they are vertically aligned with each other, and protected from becoming pushed
over.
• Align the images from the projectors, using the Lens shift controls on the top of the projector.
Notes
For more detailed information
about using the menus, see
section 4. Controlling the projector.
Do not try to stack more than
three projectors.
When stacking projectors,
the stack MUST be vertical, to ensure that the stresses are distributed to all four chassis corners.
Make sure that the surface,
ceiling or rigging that is to support the projector is capable of supporting the combined weight of all the projectors.
Do not place heavy objects
on top of the projector chassis. Only the chassis corners are capable of withstanding the weight of another projector.
Backup safety chains or
wires should always be used with ceiling mount installations.
If the projector is tted with the
xed 0.73:1 lens then there are no mechanical controls for lens shift.
Page 2.12 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation

Connecting the projector

Signal Inputs

The following inputs are available:
VideoS-Video
HDMI 1 HDMI 2
RGB
Component 2
HDMI 1 & 2 HDCP-compliant digital video inputs from HDMI or DVI sources.
RGB 15 pin D-type VGA style input from personal computer
Component 1 RCA phono connectors for RGBS, (using Video input for sync)
or YPbPr
Component 2 BNC connectors for YPbPr
Video RCA phono connector for composite video
or used as sync input for Component 1
S-Video standard 4 pin S-Video connector
Component 1
Notes
For more information on
selecting an input source, see
section 4. Overview, Using the control keys, and Using the menus.
For more information about pin
connections and control codes
see section 6. Appendix.
Input connection examples
Rev E October 2014 Page 2.13
2. Installation Digital Projection M-Vision Cine LED User Manual
Input connection examples, continued
Page 2.14 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 2. Installation

Control connections

The following connections are available:
Trigger 1
Trigger 2
RS232
Remote control
If infrared signals from the remote control cannot reach the projector due to excessive distance or obstructions such as walls or cabinet doors, you can connect an external IR repeater to the Remote control input, and position its IR sensor within range of the operator.
RS232 connection
All of the projector’s features can be controlled via a serial connection, using the text strings described in Remote communications protocol, in section 6. Appendix.
Remote control
Notes
For more information about pin
connections and control codes
see section 6. Appendix.
The RS232 connection can also be used to download the rmware updates, issued from time to time by Digital Projection.
Projector
Computer
Trigger 1 & 2
The Trigger 1 and Trigger 2 outputs are interchangeable:
Screen trigger: can be connected to an electrically operated screen,
automatically deploying the screen when the projector starts up, and retracting the screen when the projector
shuts down.
Aspect Ratio trigger: can be used to control screen shuttering for different
aspect ratios
For more information about the
Trigger outputs see Control Menu in section 4. Controlling the projector.
Rev E October 2014 Page 2.15
2. Installation Digital Projection M-Vision Cine LED User Manual

Power connection

Power
connection
Notes
Use only the power cable
provided.
Ensure that the power
outlet includes a Ground connection, as this equipment MUST be earthed.
Handle the power cable
carefully and avoid sharp bends. Do not use a damaged power cable.
Page 2.16 Rev E October 2014

3. Getting Started

Contents
Positioning the screen and projector ............................................................................................ 3.2
Switching the projector on ............................................................................................................... 3.2
Inserting batteries into the remote control ................................................................................... 3.2
Selecting an input signal or test pattern ....................................................................................... 3.3
Input ................................................................................................................................................ 3.3
Test pattern ...................................................................................................................................... 3.3
Adjusting the lens............................................................................................................................... 3.3
Zoom ............................................................................................................................................... 3.3
Focus .............................................................................................................................................. 3.3
Shift ................................................................................................................................................. 3.3
Adjusting the projected image ........................................................................................................ 3.4
Aspect ratio ...................................................................................................................................... 3.4
Image quality settings ........................................................................................................................ 3.4
Switching the projector off ............................................................................................................... 3.4
Rev E October 2014 Page 3.1
3. Getting Started Digital Projection M-Vision Cine LED User Manual

Positioning the screen and projector

• Install the screen, ensuring that it is in the best position for viewing by your
audience.
• Mount the projector, ensuring that it is at a suitable distance from the screen for the image to ll the screen, and that it is perpendicular to the sceen.

Switching the projector on

• Connect the power cable between the mains supply and the projector.
Wait until the self-test has completed and the power indicator on the projector control panel shows steady blue. The LED module will be off and the projector will be in STANDBY mode.
Projector
control panel
Notes
For more information about
positioning the screen and
projector, see Positioning the screen and projector, in section 2. of the User Manual: Installation.
For more detailed information
about:
- using the control keys on the remote control or the projector control panel,
Power
connection
• Press POWER ON on the remote control or POWER on the projector control panel to switch the projector ON. The power indicator on the control panel will ash blue for approximately 30 seconds, whilst the projector initialises. When the projector is ready for use, the power indicator will switch off.

Inserting batteries into the remote control

• Open the battery compartment and insert two AA size batteries, making sure they are inserted the correct way round, as shown below.
- using the menus,
see section 4. of the User
Manual: Controlling the projector.
If the red ISSUE indicator is
illuminated continuously or ashing, see Error Codes in
section 6 of the User Manual: Appendix, for more information
Note that the blue POWER
indicator light will be OFF when the projector is in normal RUNNING MODE.
Do not mix an old battery with
a new one or different types of batteries.
If you will not use the remote
control for a long time, remove
the batteries to avoid damage
from battery leakage.
Page 3.2 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 3. Getting Started

Selecting an input signal or test pattern

Input

• Connect an video source to the projector. The signal should be automatically detected by the projector, and should be displayed within a two or three
seconds.
• If more than one signal is connected to the projector, then select which signal is to be displayed, using the to buttons on the remote control, or
by pressing the SOURCE button on the projector control panel until the correct
signal is displayed.

Test pattern

If you have no video source connected to the projector, then you can display a test pattern as follows:
• Press on the remote control, until the desired test pattern is displayed.

Adjusting the lens

Notes
For more information about
connecting input signals, see
Signal Inputs, in section 2. of the User Manual: Installation.
For more detailed information
about input connections, see
Input signals in section 6. of the User Manual: Controlling the projector.

Zoom

• Turn the smooth ring on the lens, closest to the case, to adjust the zoom so that the image lls the screen.

Focus

• Turn the knurled ring at the outer end of the lens, to adjust the focus until the
image is sharp.

Shift

• Rotate the Digital Projection badge on top of the projector to reveal the shift adjustment access holes. Use the 5mm allen wrench to adjust the horizontal and vertical position of the image.
Horizontal shift
adjustment
Zoom
ring
(Remove
the badge)
Vertical shift
adjustment
For more information about lens
shift, see Shifting the image in
section 2. of the User Manual: Installation.
If the projector is tted with the
xed 0.73:1 lens then there are no mechanical controls for lens shift.
Slide the badge in the
direction shown below, then gently lift off by hand.
Do NOT prise off using a tool.
Focus
ring
Rev E October 2014 Page 3.3
3. Getting Started Digital Projection M-Vision Cine LED User Manual

Adjusting the projected image

Aspect ratio

• Press on the remote control until the image is displayed in the corect aspect ratio.

Image quality settings

• Press any of the following keys on the remote control, followed by and , to adjust these image quality settings:
Brightness
Contrast
Sharpness
Notes
For more detailed information
about:
- using all the control keys on the remote control or the projector control panel,
- using the menus,
see section 4. of the User
Manual: Controlling the projector.
For the picture setting
adjustments shown here:
- after 5 seconds, if no adjustment has been made, the indicator will go out and
the adjustment key must be
pressed again.
- to end the adjustment before 5 seconds has elapsed, press a different adjustment key, or press the key again.

Switching the projector off

• Press POWER OFF on the remote control or POWER on the projector control panel, then press the button a second time to conrm your intention to switch off.
The LED module will switch off, and the power indicator on the control panel will ash blue for approximately 30 seconds until the projector has cooled down.
• Wait until the power indicator shows steady blue. The projector will now be in STANDBY mode.
• Disconnect the power cable from the projector.
Page 3.4 Rev E October 2014

4. Controlling the projector

Contents
Overview ............................................................................................................................................... 4.3
Controlling the projector..................................................................................................................... 4.3
The control panel ................................................................................................................................ 4.4
LED status indicators ........................................................................................................................ 4.4
The remote control ............................................................................................................................. 4.5
Layout ............................................................................................................................................. 4.5
Timeout ............................................................................................................................................ 4.5
Using the control keys ...................................................................................................................... 4.6
Power .............................................................................................................................................. 4.6
Source ............................................................................................................................................. 4.6
Aspect ratio ...................................................................................................................................... 4.6
User memory .................................................................................................................................... 4.6
Image quality settings ........................................................................................................................ 4.7
Example - Brightness screen control: .................................................................................................. 4.7
Test pattern ...................................................................................................................................... 4.7
Using the menus ................................................................................................................................. 4.8
Navigating menus and submenus ....................................................................................................... 4.8
Main menu ............................................................................................................................................ 4.9
Aspect Ratio ..................................................................................................................................... 4.9
Presets .......................................................................................................................................... 4.10
Recall Presets .............................................................................................................................. 4.10
Save Presets ............................................................................................................................... 4.10
Brightness .......................................................................................................................................4.11
Contrast ..........................................................................................................................................4.11
Saturation .......................................................................................................................................4.11
Hue ................................................................................................................................................4.11
Sharpness ...................................................................................................................................... 4.12
Noise Reduction ............................................................................................................................. 4.12
Overscan ....................................................................................................................................... 4.12
Input Select .................................................................................................................................... 4.13
Resync .......................................................................................................................................... 4.13
Advanced menu ................................................................................................................................ 4.14
Colour Space ................................................................................................................................. 4.14
Video Standard ............................................................................................................................... 4.15
Gamma .......................................................................................................................................... 4.15
Colour Temperature ........................................................................................................................ 4.15
Colour Gamut ................................................................................................................................. 4.16
Brilliant Color® ............................................................................................................................... 4.16
continued
Rev E October 2014 Page 4.1
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
Dynamic Black ................................................................................................................................ 4.16
Adaptive Contrast ........................................................................................................................... 4.16
RGB Adjust .................................................................................................................................... 4.17
Offsets ....................................................................................................................................... 4.17
Gains ......................................................................................................................................... 4.17
Fine Sync ....................................................................................................................................... 4.18
HSG .............................................................................................................................................. 4.19
System menu ..................................................................................................................................... 4.20
Source Enable ................................................................................................................................ 4.21
Menu Position................................................................................................................................. 4.22
Blank Screen .................................................................................................................................. 4.22
Auto Power On ............................................................................................................................... 4.22
Auto Power Off ............................................................................................................................... 4.22
Rear Projection ............................................................................................................................... 4.23
Ceiling Mode .................................................................................................................................. 4.23
Logo Display .................................................................................................................................. 4.23
Control menu ..................................................................................................................................... 4.24
Trigger 1 & 2 .................................................................................................................................. 4.24
Auto Source ................................................................................................................................... 4.25
Keys 1 to 5 ..................................................................................................................................... 4.25
Service menu ..................................................................................................................................... 4.26
Factory Reset ................................................................................................................................. 4.26
Blue Only ....................................................................................................................................... 4.27
Test Patterns .................................................................................................................................. 4.27
Altitude .......................................................................................................................................... 4.27
continued
Page 4.2 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector

Overview

Controlling the projector

The projector can be controlled from:
• the remote control
• the projector control panel
• the RS232 input
For more information about controlling the projector using the RS232 input, see
Remote communications protocol in section 6. Appendix.
For information about how to connect the projector, see Connecting the projector in section 2. Installation, and Connections in section 6. Appendix.
• Many features are controlled from the menus using the menu navigation keys on the remote control or the projector control panel.
For more information about using the menus, see later in this section, Using the
menus.
• Some of the menu features, for example brightness, contrast and sharpness, can be accessed directly using the control keys at the bottom of the remote
control.
Notes
Rev E October 2014 Page 4.3
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

The control panel

The projector control panel is designed to be read in both table top or ceiling orientation, for ease of use.
Menu
navigation
keys
The menu navigation keys are similar to those on the remote control, and are
described in detail in Using the menus, later in this section.
POWER Press this once to switch the projector ON or twice to switch it to
STANDBY mode.
SOURCE Press this repeatedly to cycle through the input sources, in the
following order:
Notes
Many features are controlled
from the menus using the menu
navigation keys on the remote
control or the projector control panel.
For more information about
using the menus, see later in this section, Using the menus.
HDMI 1, HDMI 2, RGB, Component 1, Component 2, Video,
S-Video, HDMI 1...
If you select a source that IS connected and active, the projector
will automatically adjust to the parameters of the signal, and
display it.
If you select a source that is NOT connected or active, the
projector will continue searching through the input sources until it nds a valid signal.

LED status indicators

The indicators on the control panel are as follows:
POWER off = NO POWER or normal RUNNING mode
steady blue = STANDBY mode
ashing blue = WARM-UP or COOL-DOWN mode
ISSUE off = NO ERROR ashing or steady red = ERROR
If the red ISSUE indicator is
illuminated continuously or ashing, see Error Codes in section 6. Appendix, for more information
Page 4.4 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector

The remote control

Layout

Transmit indicator
Menu
navigation
keys
Control keys
Notes
Many features are controlled
from the menus using the menu
navigation keys on the remote
control or the projector control panel.
For more information about
using the menus, see later in this section, Using the menus.
Some of the menu features,
for example brightness, contrast and sharpness, can be accessed directly using the control keys at the bottom of the remote control.
For more information about
using the control keys, see later in this section, Using the
control keys.
In most situations, you can
simply point the remote control at the screen which will reect the IR signal from the remote
back toward the receiver on the
projector.

Timeout

There is a 5 second timeout for the control keys at the bottom of the remote control:
- after 5 seconds, if no adjustment has been made, the indicator will go out and the adjustment key must be pressed again.
- to end the adjustment before 5 seconds has elapsed, press a different adjustment key, or press the key again.
In some cases, however,
ambient conditions may prevent
this. In this case, point the remote control directly at the projector.
Remote reception angle
40°
40°
There is a 30 second timeout for the menu navigation keys.
Rev E October 2014 Page 4.5
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

Using the control keys

Power

• Press POWER ON on the remote control to switch the projector ON.
The power indicator on the control panel will ash blue for approximately 30 seconds, whilst the projector initialises. When the projector is ready for use, the power indicator will switch off.
• Press POWER OFF on the remote control to switch the projector to STANDBY mode.
Press the button a second time to conrm your intention to switch to STANDBY
mode.
The LED module will switch off, and the power indicator on the control panel will ash blue for approximately 30 seconds until the projector has cooled down. Wait until the power indicator shows steady blue. The projector will now be in STANDBY mode.

Source

• To switch to one of the ve sources programmed into the SOURCE buttons, then
select using the to keys.
If you select a source that IS connected and active, the projector will automatically adjust to the parameters of the signal, and display it.
Notes
Note that the blue POWER
indicator light will be OFF when the projector is in normal RUNNING MODE.
For more information about the
sources programmed into the
SOURCE keys, see Control menu later in this section, Using the menus.
If you select a source that is NOT connected or active, the projector will continue searching through the input sources until it nds a valid signal, in this order.
HDMI 1, HDMI 2, RGB, Component 1, Component 2, Video, S-Video, HDMI 1...

Aspect ratio

• Press repeatedly to cycle through the Aspect ratio settings, in the following order:
16:9, Theaterscope, 4:3, 4:3 Narrow, Native, 16:9...

User memory

• To switch to one of the three sets of image settings programmed into the USER MEMORY buttons, then select using the or keys.
For more information about
the Aspect ratio settings, see Screen requirements in
section 2. Installation.
For more information about
the settings programmed into
the USER MEMORY keys,
see Control menu later in this section.
Note: User memory D is
available only through the Control menu.
Page 4.6 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector

Image quality settings

• Press any of the following keys on the remote control, followed by and , to adjust these image quality settings:
Brightness
Contrast
Sharpness
Gamma
Overscan
Noise reduction
Brilliant-color
Colour temperature
Example - Brightness screen control:
Notes
For more information about all
these image quality settings, and more, see Main menu and Advanced menu later in this section, Using the menus.
Some of the settings will not be
available for some of the input sources.

Test pattern

• Press the key repeatedly to cycle through the Test patterns, in the following order:
White, Black, Red, Green, Blue, Cyan, Magenta, Yellow, Chequerboard, Greyscale, Alignment grid, White...
Rev E October 2014 Page 4.7
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

Using the menus

Navigating menus and submenus

The menus are organised into ve pages. When the menus are in use, the menu page headings are always visible at the top of the menu panel.
Most menu items can be adjusted directly, but some items lead to a submenu.
The menus will always open at the same page that was last viewed. The example below shows the rst menu page displayed following power on, which is always the
Main menu.
Notes
Some menu controls can be
accessed directly using the control keys (see earlier in this section).
There is a 30 second timeout
for the menu navigation keys. If a menu times out, simply press the Menu key again.
• Use the navigation keys on the remote control or the projector control panel to
navigate through the menus:
• To display the menus, press MENU on the remote control or the projector
control panel.
• To select a different menu page, use the and keys.
• To select a menu item, use the and keys.
• To close a menu, press MENU again.
The SELECT key on the
projector control panel has exactly the same funtion as
the ENTER key on the remote
control.
To exit from the menus
completely, you may need to
press up to three times.
Page 4.8 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector

Main menu

• To display the menus, press MENU on the remote control or the projector
control panel.
• Use the and keys to select the Main menu page,
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
• To select a menu item, use the and keys until the item is highlighted.

Aspect Ratio

• Use the and keys to select from:
16:9 the image is scaled to ll the DMD (and thus, a 16:9 screen).
Theaterscope the image is scaled such that a 2.35:1 image will be displayed
at the correct aspect ratio when the projector is tted with an anamorphic lens. Thus an image with an aspect ratio of 2.35:1 can be displayed using the full 16:9 resolution of the DMD.
4:3 the image is scaled to t a 4:3 screen, using the full height of the
DMD.
4:3 Narrow to be used for 4:3 images in combination with an anamorphic
lens. The image is scaled to t the DMD vertically, but squeezed
horizontally such that the lens will stretch it to the correct ratio.
Native the image is displayed with no scaling, at its original resolution, in
the centre of the screen.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
For more information about
the Aspect ratio settings, see Screen requirements in
section 2. Installation.
Rev E October 2014 Page 4.9
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
Main menu continued

Presets

• Press ENTER or SELECT.
The Presets submenu will appear:
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
• Use the and keys to select from:
Recall Presets
Save Presets
Recall Presets
Recall a set of image settings that have previously been saved to Presets A, B,
C or D.
• Use the or keys to select which Preset is to be recalled.
• Select Default, to recall the factory default settings.
Save Presets
Save the the image settings for all seven inputs to the selected Preset.
• Use the or keys to select which Preset the settings will be saved to.
The following settings will be saved:
Brightness Contrast Saturation
Hue Sharpness Noise Reduction
Color Space Video Standard Gamma
Colour Temperature Color Gamut Brilliant Color
Adaptive Contrast RGB Offsets RGB Gains
The Presets can also be
recalled using the USER MEMORY keys on the remote control. See Using the control keys earlier in this section.
Note: Preset D is available only
through the Control menu, not through the remote control.
When Save Presets is
selected, the image settings for ALL seven inputs are saved.
• To return to the Main menu, press once.
Page 4.10 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Main menu continued

Brightness

• Press or once.
After the rst press, the Brightness adjustment bar will appear:
• Use the and keys to adjust the Brightness from 0 to 200:
• To return to the Main menu, press once.

Contrast

• Press or once.
After the rst press, the Contrast adjustment bar will appear.
• Use the and keys to adjust the Contrast from 0 to 200:
• To return to the Main menu, press once.

Saturation

Saturation is the amount of colour in the image. Decrease this setting if colors are too bright; increase it if colors appear muted or washed out.
• Press or once.
After the rst press, the Saturation adjustment bar will appear.
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
Image quality settings are often
interactive - a change in one setting may require a change to
be made in another setting.
• Use the and keys to adjust the Saturation from 0 to 200:
• To return to the Main menu, press once.
Setting Adaptive Contrast to
On in the Advanced menu will affect any image quality settings made in other menus.
Hue
Hue is the ratio of red to green in the image. Decrease this setting to shift the hue toward red; increase it to shift the hue toward green.
• Press or once.
After the rst press, the Hue adjustment bar will appear.
• Use the and keys to adjust the Hue from 0 to 200:
• To return to the Main menu, press once.
Rev E October 2014 Page 4.11
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
Main menu continued

Sharpness

• Press or once.
After the rst press, the Sharpness adjustment bar will appear.
• Use the and keys to adjust the Sharpness from 0 to 200:
• To return to the Main menu, press once.

Noise Reduction

• Press or once.
After the rst press, the Noise reduction adjustment bar will appear.
• Use the and keys to adjust the Noise reduction from 0 to 200:
• To return to the Main menu, press once.
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.

Overscan

Some television programs are produced based on the assumption that older
television sets may not display the outer edges of the broadcast picture area. Consequently the edges of the image may be noisy or badly dened. Overscan is used to compensate for this, by hiding the outer edges of the image.
• Use the or keys to select from:
Off
Crop blanks a 3% border from the left and right edges of the image
Zoom increases the horizontal and vertical resolution of the displayed
image by 6%, so that the all four edges fall outside the screen
area
When the Aspect Ratio is set
to Native, Overscan can only be set to Off or Crop
Page 4.12 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Main menu continued

Input Select

• Press ENTER or SELECT.
The Input select submenu will appear:
• Use the and keys to select from:
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
HDMI 1
HDMI 2
RGB
Component 1
Component 2
Video
S-Video
• Press ENTER or SELECT, to select a different input source.
• To return to the Main menu, press once.

Resync

If the image has become unstable or degraded, it may be possible to improve the
display:
• Press ENTER or SELECT.
The projector will attempt to re-synchronise to the current input source.
If you select a source that IS
connected and active, the projector will automatically adjust to the parameters of the signal, and display it.
If you select a source that is
NOT connected or active, the projector will continue searching through the input sources until it nds a valid signal, in this order.
HDMI 1, HDMI 2, RGB,
Component 1, Component 2, Video, S-Video, HDMI 1...
Rev E October 2014 Page 4.13
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

Advanced menu

• To display the menus, press MENU on the remote control or the projector
control panel.
• Use the and keys to select the Advanced menu page,
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
• To select a menu item, use the and keys until the item is highlighted.

Colour Space

In most cases, the Auto setting will determine the correct color space to use. If it does not, you can select the appropriate setting manually.
• Use the and keys to select from:
Auto
YPbPr
YCbCr
RGB-PC
RGB Video
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
To determine what is the correct
colour space to use, consult the user manual for the video source.
Page 4.14 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Advanced menu continued

Video Standard

In most cases, the Auto setting will determine the correct video standard to use. If it does not, you can select the appropriate setting manually.
• Use the and keys to select from:
Auto
NTSC used mainly in the United States and Japan
PAL used in Europe, Australia and many other parts of the world,
typically with a 50Hz frame rate
SECAM used mainly in France and Russia

Gamma

Video recordings are often supplied with a gamma adjustment applied. The projector’s gamma setting can be used to correct for this. If you are unsure, then choose a setting that gives a decent level of contrast, whilst maintaining good detail in the darkest and lightest areas of the image.
• Use the and keys to select from:
CRT gamma of 2.5
Film gamma of 2.2
Video similar to Film but improves the dark areas of the image -
especially suitable for images from video cameras
Punch enhanced brightness and increased colour saturation for high
ambient light environments
Graphics enhanced highlights and contrast, especially suitable for computer
presentations
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
Image quality settings are often
interactive - a change in one setting may require a change to
be made in another setting.
Setting Adaptive Contrast to
On will affect any image quality settings made in other menus.

Colour Temperature

In general, a higher colour temperature gives a cooler feeling to the image, and a lower temperature gives a warmer feeling.
• Use the and keys to select from:
5500K
6500K
7500K
9300K
Rev E October 2014 Page 4.15
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
Advanced menu continued

Colour Gamut

In most cases, the Auto setting will determine the correct colour gamut to use. If it does not, you can select the appropriate setting manually.
Each setting denes the precise hue of each primary (red, green and blue) and secondary (yellow, cyan and magenta) color component used to generate the
image.
• Use the and keys to select from:
Auto
SMPTE-C for NTSC, 480i and 480p sources
EBU for PAL, SECAM, 576i and 576p sources
REC709 for most other sources
Native uncorrected

Brilliant Color®

Brilliant Color® allows for increased projector brightness and improved color saturation by addling two extra colours to the normal Red – Green – Blue cycle. (extra colours are: Red + Green = Yellow, and Green + Blue = Cyan)
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
• Use the and keys to select from:
On (recommended)
Off

Dynamic Black

Dynamic Black reduces the overall light output for images that contain a lot of black.
This improves the perceived contrast ratio.
• Use the and keys to select from:
4x
8x
Max.
Off

Adaptive Contrast

Adaptive Contrast expands the light and dark portions of the contrast curve of the image, depending on the mean luminance of the image.
• Use the and keys to select from:
In most cases, Brilliant Color
should be left On – switching it Off will result in reduced brilliance and contrast.
Setting Dynamic Black to On
will affect any image quality settings made in other menus.
Setting Adaptive Contrast to
On will affect any image quality settings made in other menus.
On
Off
Page 4.16 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Advanced menu continued

RGB Adjust

• Press ENTER or SELECT.
The RGB Adjust submenu will appear:
Use the Gain controls to correct color imbalances in the bright areas of the image. Use the Offset controls in the RGB Adjust sub-menu to correct color imbalances in the dark areas of the image.
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
• Use the and keys to select from:
Red Offset
Blue Offset
Green Offset
Red Gain
Blue Gain
Green Gain
Offsets
• Use the and keys to adjust the Offset from 0 to 200.
Gains
• Use the and keys to adjust the Gain from 0 to 200.
• To return to the Advanced menu, press once.
A good way to carry out this
adjustment is to use the
chequerboard test pattern.
RGB settings are interactive
- a change in one setting may require a change to be made in
the other.
Rev E October 2014 Page 4.17
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
Advanced menu continued

Fine Sync

• Press ENTER or SELECT.
The Fine Sync submenu will appear:
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
• Use the and keys to select from:
V Position ne tunes the vertical position of the image
H Position ne tunes the horizontal position of the image
Tracking adjusts the frequency of the pixel sampling clock, so that all pixels
generated by the video source are sampled. Steady ickering or several soft vertical stripes or bands across the entire image indicate poor pixel tracking.
Phase adjusts the phase of the pixel sampling clock relative to the
incoming signal. Adjust the phase when an RGB or Component image still shows shimmer or noise after the tracking has been
optimized.
Sync Level adjusts the voltage level of the projector’s sync signal detection
circuitry. Sync Level adjustment is occasionally necessary when a signal source signal drops “below black” (for example, during scenes with explosions or when subtitles are present) and causes the projector to temporarily lose sync.
• Use the and keys to adjust the setting from 0 to 200.
• To return to the Advanced menu, press once.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
A good way to carry out tracking
and phase adjustments is to
use the grey scale test pattern.
Always adjust the tracking
before adjusting the phase
Page 4.18 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Advanced menu continued
HSG
• Press ENTER or SELECT.
The HSG submenu will appear:
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
• Use the and keys to select:
HSG Select
Use the and keys to select from Hue, Saturation or Gain.
• Use the and keys to select from:
Red
Green
Blue
Cyan
Magenta
Yellow
• Use the and keys to adjust the setting from 0 to 200.
These settings can be adjusted independently for Hue, Saturation and Gain, by returning to HSG Select at the top of the menu.
• To return to the Advanced menu, press once.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
Rev E October 2014 Page 4.19
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

System menu

• To display the menus, press MENU on the remote control or the projector
control panel.
• Use the and keys to select the System menu page,
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
• To select a menu item, use the and keys until the item is highlighted.
Page 4.20 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
System menu continued

Source Enable

• Press ENTER or SELECT.
The Source Enable submenu will appear:
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
• Use the and keys to select from:
HDMI 1
HDMI 2
RGB
Component 1
Component 2
Video
S-Video
• For each source, use the and keys to select from:
On the selected source will be included in an automatic input source
search
Off the selected source will not be included in an automatic input
source search
• To return to the System menu, press MENU once.
Rev E October 2014 Page 4.21
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
System menu continued

Menu Position

• Use the and keys to select from:
Top left
Top right
Bottom left
Bottom right
Centre

Blank Screen

This option determines what appears on screen when the projector is searching for
a valid input source.
• Use the and keys to select from:
Digital Projection logo
Black screen
Blue screen
White screen
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.

Auto Power On

• Use the and keys to select from:
On When power is connected, the projector starts up imediately.
Off When power is connected, the projector goes into Standy mode,
and does not start until POWER ON on the remote control or POWER on the projector control panel is pressed.

Auto Power Off

When the projector is searching for a valid input source, this option determines what
appears on screen.
• Use the and keys to select from:
On The projector automatically goes into Standby mode if no input
source is detected for 20 minutes.
Off The projector stays on until POWER OFF on the remote
control or POWER on the projector control panel is pressed.
Page 4.22 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
System menu continued

Rear Projection

• Use the and keys to select from:
On Projected image is reversed, left to right
Off

Ceiling Mode

• Use the and keys to select from:
On Projected image is reversed, top to bottom
Off

Logo Display

• Use the and keys to select from:
On The Digital Projection logo is displayed during power up
Off
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Rev E October 2014 Page 4.23
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

Control menu

• To display the menus, press MENU on the remote control or the projector
control panel.
• Use the and keys to select the Control menu page,
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
• To select a menu item, use the and keys until the item is highlighted.

Trigger 1 & 2

The Trigger 1 and Trigger 2 outputs are interchangeable:
Screen trigger: can be connected to an electrically operated screen,
automatically deploying the screen when the projector starts up, and retracting the screen when the projector
shuts down.
Aspect Ratio trigger: can be used to control screen shuttering for different
aspect ratios
• For each Trigger setting, use the and keys to select from:
Screen trigger occurs when the projector is in RUNNING mode
16:9 trigger occurs when 16:9 aspect ratio is selected
Theaterscope trigger occurs when Theaterscope aspect ratio is selected
4:3 trigger occurs when 4:3 aspect ratio is selected
4:3 Narrow trigger occurs when 4:3 Narrow aspect ratio is selected
RS232 trigger output follows the On or Off setting specied in a trig.1 or
trig.2 command received from a PC via the RS232 serial input.
For more information about
the trigger output, see Control
connections in section
6. Appendix.
For more information about
RS232 commands, see Remote
communications protocol in section 6. Appendix.
Page 4.24 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Control menu continued

Auto Source

• Use the and keys to select from:
On projector searches for an alternative input source when the current
input source is disconnected
Off projector shows a ‘blank’ screen when the current input source is
disconnected

Keys 1 to 5

The to keys on the remote control can each be programmed to switch
to one of the seven input sources.
• Use the and keys to select a Key, then press ENTER or SELECT.
The Key submenu will appear:
Notes
To set what a ‘blank’ screen
looks like, use the Blank
Screen setting in the System menu.
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
• Use the and keys to select from:
HDMI 1
HDMI 2
RGB
Component 1
Component 2
Video
S-Video
• Press ENTER or SELECT to conrm your selection.
To exit from the menus
completely, you may need to
press up to three times.
If a source has been disabled in
the System menu, then a key programmed with that source
will have no effect.
• Press MENU to return to the Control menu and select another key.
Rev E October 2014 Page 4.25
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual

Service menu

• To display the menus, press MENU on the remote control or the projector
control panel.
• Use the and keys to select the Service menu page,
Notes
To select a different menu,
press MENU once or
twice, so that no items are highlighted, then use the the
and keys to select a
different page.
To exit from the menus
completely, you may need to
press up to three times.
The rst eight items are for information only, and cannot be changed.
• To select a menu item, use the and keys until the item is highlighted.

Factory Reset

• Press ENTER or SELECT to request a Factory Reset.
The following message will be displayed.
• Use the and keys to select from:
Yes all settings will be restored to factory defaults
No
Press ENTER or SELECT to conrm your choice.
Restore Defaults will restore
all settings to factory defaults.
If you are not sure this is
what you want to do, then either:
make a record of all settings
rst
or select No, then press ENTER or SELECT
Page 4.26 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 4. Controlling the projector
Service menu continued

Blue Only

This is useful for color-calibrating the projector or other video components.
• Use the and keys to select from:
On only the blue signal is displayed - green and red are turned off
Off all three signals - red, green and blue - are displayed

Test Patterns

• Use the and keys to select from:
Test Pattern Off
White
Black
Red
Green
Notes
To exit from the menus
completely, you may need to
press up to three times.
Image changes made using
the menus will take effect immediately.
Some menu items may be
greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.
Blue
Cyan
Magenta
Yellow
Chequerboard
Greyscale
Alignment grid
• To turn the test pattern Off, press any other key.

Altitude

For use at high altitudes where the air is thinner, the fan speed can be increased.
• Use the and keys to select from:
Low normal speed fan
High high speed fan
If the projector frequently
overheats when used in a high
altitude environment, then it may help to use the High Altitude setting.
In most cases, the Low Altitude
setting should be satisfactory.
Rev E October 2014 Page 4.27
4. Controlling the projector Digital Projection M-Vision Cine LED User Manual
Page 4.28 Rev E October 2014

5. Maintenance

Contents
Changing the LED module ............................................................................................................... 5.2
Cleaning the fans ................................................................................................................................ 5.2
Rev E October 2014 Page 5.1
5. Maintenance Digital Projection M-Vision Cine LED User Manual

Changing the LED module

• The LED module should be changed only by qualied and authorised service
personnel.
• Contact your Digital Projection Dealer.

Cleaning the fans

• Turn the power OFF and wait until the fans stop.
• Use a vacuum cleaner to clean the inlet and outlet fans, as shown below.
Notes
The LED module in this
projector should be changed ONLY by authorised and
qualied service personnel.
Always switch the projector
OFF before cleaning the fans.
The fans should be cleaned
regularly:
• In a clean environment such as an ofce, after 500 hours.
• In a dusty or smoky environment such as a theatre
or public area, more frequent cleaning may be necessary.
Page 5.2 Rev E October 2014

6. Appendix

Contents
Troubleshooting .................................................................................................................................. 6.2
Error codes ...................................................................................................................................... 6.4
Specications ...................................................................................................................................... 6.5
Part numbers .................................................................................................................................... 6.5
Optical ............................................................................................................................................. 6.5
Electrical .......................................................................................................................................... 6.6
Physical ........................................................................................................................................... 6.6
Dimensions .......................................................................................................................................... 6.7
Video formats supported .................................................................................................................. 6.8
Input connections ............................................................................................................................. 6.10
HDMI 1 & 2 inputs ........................................................................................................................... 6.10
Composite video input ..................................................................................................................... 6.10
S-Video input .................................................................................................................................. 6.10
RGB input .......................................................................................................................................6.11
Component 1 input ...........................................................................................................................6.11
Component 2 input ...........................................................................................................................6.11
Control connections ........................................................................................................................ 6.12
Wired Remote control connection ..................................................................................................... 6.12
Trigger 1 & 2 output ........................................................................................................................ 6.12
Serial control input .......................................................................................................................... 6.12
Null-modem cable ......................................................................................................................... 6.12
Serial port settings ........................................................................................................................ 6.12
Remote communications protocol ............................................................................................... 6.13
Introduction .................................................................................................................................... 6.13
Key Commands .............................................................................................................................. 6.13
Example ..................................................................................................................................... 6.13
The commands ............................................................................................................................ 6.13
Operation Commands ..................................................................................................................... 6.15
Example ..................................................................................................................................... 6.15
The commands ............................................................................................................................ 6.15
Rev E October 2014 Page 6.1
6. Appendix Digital Projection M-Vision Cine LED User Manual

Troubleshooting

Problem Possible solutions
The red ISSUE indicator is illuminated
continuously or ashing.
The projector will not power up. Note that the blue POWER indicator light will be OFF when the projector is in
Check the Error codes detailed on the next page.
normal RUNNING MODE.
Check that the mains plug is plugged in and that the mains supply is switched on.
Check any external fuses or breakers.
The projector will not power up shortly after being switched off.
The projector shuts down after it has been in use for some time.
No image is displayed. Check that the input source is switched on and connected to the projector
To protect the LED module, the projector cannot be switched on when in it is in cool-down mode. Wait until the power indicator shows steady blue. showing that it
is in standby mode.
The projector may be overheating. Check that the air inlets and outlets are clear of any obstruction.
See section 5. Maintenance, Cleaning the fans
It is possible to increase the speed of the fans for use in a high altitude
environment:
See section 4. Controlling the projector, System menu
correctly.
Check that the correct image source is selected.
Check that the brightness and contrast settings are set correctly.
See section 4. Controlling the projector, Using the control keys and Main
menu
The projector may be overheating. Check that the air inlets and outlets are clear of any obstruction.
The image does not t the screen
correctly.
Uneven image quality. Check that the projector is parallel to the screen.
Check that the projector and screen size are positioned correctly, and that the zoom is adjusted correctly.
See section 2. Installation, Screen size vs throw distance
Check the aspect ratio setting.
See section 4. Controlling the projector, Main menus
Check that the screen is at, and securely mounted.
Page 6.2 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix
Problem Possible solutions
Image is split or otherwise scrambled. Check that the image source is not set to progressive scan.
Image is blurred. Check that the lens is focussed correctly.
Image is too bright, and lacks
denition in the bright areas.
Image appears ‘washed out’ and is too bright in the dark areas
Colors in the image are swapped. for example, reds appear blue or vice versa.
Projector does not respond to control commands from a computer.
Projector does not respond to control commands from the remote control.
Decrease the contrast setting.
See section 4. Controlling the projector, Using the control keys and Main
menu
Decrease the brightness setting.
See section 4. Controlling the projector, Using the control keys and Main
menu
Check that the Component signals are connected correctly.
See Section 4. Installation, Connecting the projector.
Check that the serial cable is connected correctly.
Check that the baud rate is set correctly.
See this section 6. Appendix, Connections
Check that the correct control codes are being used.
See this section 6. Appendix. Serial communications protocol
Check that the infra red windows at the front and rear of the projector or on the IR
repeater are not obstructed. Check that the batteries are in good condition.
If you are using an IR repeater, check that the cable is connected properly at both ends, and that the cable is not damaged.
See section 4. Controlling the projector, The remote control
In the event that this troubleshooting guide has not solved the problem, then contact your Digital Projection dealer or service centre.
Rev E October 2014 Page 6.3
6. Appendix Digital Projection M-Vision Cine LED User Manual

Error codes

If the projector detects an error, the red Issue indicator will ash, as shown in the
chart below.
For example, if the fan fails, the red indicator will ash twice followed by a pause,
then the sequence will repeat until the error condition is corrected.
Notes
Page 6.4 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix
Specications

Part numbers

Projector
0.73:1 xed lens 110-001
1.56–1.86:1 zoom lens 110-002
1.85–2.40:1 zoom lens 110-003
Power cable 10A, Europe 102-163
Power cable 13A, North America 102-165
Power cable 10A, United Kingdom 102-180
Remote control 109-685
User manual on CD 110-288
Important Information 110-287
Getting Started Guide 111-185
Replacement parts
LED module 109-683
0.8x converter lens 109-727
1.25x converter lens 109-735

Optical

Digital Light Processor 1 x 0.95” Texas Instruments DMD™, resolution 1920 x 1080 pixels
Colour system 3-cycle (nomal running mode): Red/Green/Blue
5-cycle (Brilliant Color on): Red/Green/Blue/Yellow/Cyan
Contrast Ratio 10000:1 (±10%)
Colour temperature adjustable: 5500K - 9300K
Pixel ll factor 87%
Lamp life (typical) 60000 hours
Brightness 1000 ANSI lumens (±10%)
Uniformity 85%
Focus range
0.73:1 Fixed lens to be conrmed
1.56–1.86:1 zoom lens 2–7m (6.6 - 23ft)
1.85–2.40:1 zoom lens 2.5–10m (8.2 - 32.8ft)
Image width
0.73:1 xed lens to be conrmed
1.56–1.86:1 zoom lens 0.86 to 5.6m (2.8 - 18.4ft) depending on lens converter
1.85–2.40:1 zoom lens 0.81 to 6.86m (2.7 - 22.2ft) depending on lens converter
Rev E October 2014 Page 6.5
6. Appendix Digital Projection M-Vision Cine LED User Manual
Lens aperture
0.73:1 xed lens F/2.5
1.56–1.86:1 zoom lens F/2.5–2.76
1.85–2.40:1 zoom lens F/2.17–2.46
Lens shift (zoom lenses only)
Vertical ± 0.6 H (120%)
Horizontal ± 0.15 W (30%)

Electrical

Inputs HDMI x 2, RGB, Component x 2, Video, S-Video
Pixel clock (digital) up to 165MHz
Bandwidth (analog) 200MHz
Control inputs 1 x RS232 serial: 38400 baud, 8 bits, 1 stop bit, no parity
1 x remote control
Mains voltage 100-240 VAC ±10%, 47-63Hz (single phase)
Power consumption
110V normal running mode: 240W, Brilliant Color on: 280W, Standby: <1W
240V normal running mode: 230W, Brilliant Color on: 270W, Standby: <1W
International Regulations Meets FCC Class B requirements
Meets EMC Directives (EN 55022, EN 55024) Meets Low Voltage Directive (EN60950)
Indicators Power, Issue (Fault)

Physical

Temperature
Operating 10 to 35°C
Storage -20 to 60°C
Thermal Dissipation 478 BTU/hr
Humidity
Operating 20% to 90% non condensing
Storage 10% to 90%
Altitude
Operating up to 10,000 feet
Storage up to 40,000 feet
Weight 15 kg (33 lbs)
Noise level < 30 dB
Specications are subject to change without notice.
Page 6.6 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix

Dimensions

All dimensions in mm
unless otherwise stated
Rev E October 2014 Page 6.7
6. Appendix Digital Projection M-Vision Cine LED User Manual

Video formats supported

Signal Type Resolution
PC 640x480 59.94 x x x VESA DMT
640x480 74.99 x x x VESA DMT
640x480 85 x x x VESA DMT
800x600 60.32 x x x VESA DMT
800x600 75 x x x VESA DMT
800x600 85.06 x x x VESA DMT
848x480 47.95 x x x VESA CVT
848x480 59.94 x x x VESA CVT
1024x768 60 x x x VESA DMT
1024x768 75.03 x x x VESA DMT
1024x768 85.03 x x x VESA DMT
1024x768 70.1 x x x VESA DMT
1280x720 47.95 x x x VESA GTF
1280 x 768 60 x x x VESA DMT
1280 x 768 60 x x x VESA DMT Reduced Blanking
1280 x 768 75 x x x VESA DMT
1280 x 768 85 x x x VESA DMT
1280 x 800 50 x x x VESA DMT
1280 x 800 60 x x x VESA DMT
1280 x 800 75 x x x VESA DMT
1280x1024 60.02 x x x VESA DMT
1280x1024 75.02 x x x VESA DMT
1280x1024 85.02 x x x VESA DMT
1440 x 900 60 x x x VESA DMT
1440 x 900 75 x x x VESA DMT
1400 x 1050 60 x x x VESA DMT
1400 x 1050 75 x x x VESA DMT
1600x1200 60 x x x VESA DMT
1920x1080 47.95 x x x VESA CVT
1600 x 1200 60 x x x VESA DMT
1920 x 1200 60 x x x VESA DMT Reduced Blanking
1680x1050 59.94 x x x VESA CVT
Apple Mac 640x480 66.59 x x x VESA DMT
832x624 74.54 x x x VESA DMT
Frame
Rate
HDMI
RGB
Component 1:
RGB
Component 1:
Y/Pr/Pb Y/Cr/Cb
Video
Y/Pr/Pb Y/Cr
Component 2:
S-Video
Reference
Page 6.8 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix
Signal Type Resolution
NTSC NTSC (M, 4.43) 59.94 x x ITU-R BT.1700, SMPTE 170M
PAL PAL (B,G,H,I) 50 x x ITU-R BT.1700
PAL (N) 50 x x ITU-R BT.1700
PAL (M) 59.94 x x ITU-R BT.1700
SECAM SECAM (M) 50 x x ITU-R BT.1700
480i 59.94 x x x SMPTE 125M, CEA-861-D
576i 50 x x x ITU-R BT.601, CEA-861-D
EDTV 480p 59.94 x x x x x SMPTE 293M, CEA-861-D
576p 50 x x x x x ITU-R BT.1358, CEA-861-D
HDTV 1035i 60 x x x x x SMPTE 260M
1080i 50 x x x x x SMPTE 274M, CEA-861-D
1080i (Aus) 50 x x x x x SMPTE 295M
1080i 59.94 x x x x x SMPTE 274M, CEA-861-D
1080i 60 x x x x x SMPTE 274M, CEA-861-D
720p 50 x x x x x SMPTE 296M, CEA-861-D
720p 59.94 x x x x x SMPTE 296M, CEA-861-D
720p 60 x x x x x SMPTE 296M, CEA-861-D
1080p 23.98 x x x x x SMPTE 274M, CEA-861-D
1080p 24 x x x x x SMPTE 274M, CEA-861-D
1080p 25 x x x x x SMPTE 274M, CEA-861-D
1080p 29.97 x x x x x SMPTE 274M, CEA-861-D
1080p 30 x x x x x SMPTE 274M, CEA-861-D
1080p 50 x x x x x SMPTE 274M, CEA-861-D
1080p 59.94 x x x x x SMPTE 274M, CEA-861-D
1080p 60 x x x x x SMPTE 274M, CEA-861-D
Frame
Rate
HDMI
RGB
Component 1:
RGB
Component 1:
Y/Pr/Pb Y/Cr/Cb
Video
Y/Pr/Pb Y/Cr
Component 2:
Reference
S-Video
Rev E October 2014 Page 6.9
6. Appendix Digital Projection M-Vision Cine LED User Manual

Input connections

HDMI 1 & 2 inputs

19 way type A connector
1 TMDS Data 2+
2 TMDS Data 2 Shield
3 TMDS Data 2-
4 TMDS Data 1+
5 TMDS Data 1 Shield
6 TMDS Data 1-
7 TMDS Data 0+
8 TMDS Data 0 Shield
9 TMDS Data 0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 not connected
15 SCL (DDC Clock)
16 SCA (DDC Data)
17 DDC/CEC Ground
18 +5 V Power
19 Hot Plug Detect
Notes
pin view of panel connector

Composite video input

1 x RCA phono connector
PAL or NTSC video

S-Video input

4 pin mini-DIN
1 Y Ground
2 C Ground
3 Luminance (Y)
4 Chrominance (C)
Page 6.10 Rev E October 2014
pin view of female connector
Digital Projection M-Vision Cine LED User Manual 6. Appendix

RGB input

15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
Notes
pin view of female connector

Component 1 input

3 x RCA phono connectors
RGsB YPbPr YCbCr
Green + Sync Y Y
Blue Pb Cb
Red Pr Cr
RGBS
connect Sync to Video input

Component 2 input

3 x 75 ohm BNC
RGsB YPbPr YCbCr
Green + Sync Y Y
Blue Pb Cb
Red Pr Cr
In most cases, the Auto setting
will determine the correct color space to use. If it does not, you can select the appropriate setting manually.
To select between RGB and
YPrPb signals, see Advanced Menu, in 4.Controlling the Projector.
Rev E October 2014 Page 6.11
6. Appendix Digital Projection M-Vision Cine LED User Manual

Control connections

Wired Remote control connection

3.5mm mini jack
Tip Signal
Ring Not connected
Sleeve Ground

Trigger 1 & 2 output

3.5mm mini jack
Tip Signal
Sleeve Ground

Serial control input

1 unused
2 Received Data (RX)
3 Transmitted Data (TX)
4 unused
5 Signal Ground
6 unused
7 unused
8 unused
9 unused
Tip
Sleeve
Ring
Tip
Sleeve
pin view of female connector
Notes
Trigger outputs are normally
at 0V, and rise to +12V when triggered.
Null-modem cable
(used to connect the projector to a modem)
RX 2 --- 3 TX
TX 3 --- 2 RX
GND 5 --- 5 GND
The projector is a DCE, so use:
• a straight cable to connect to a computer, or
• a null-modem cable as shown
here to connect to another DCE
such as a modem.
Serial port settings
• Baud rate 38400 bps
• Data length 8 bits
• Stop bits one
• Parity none
• Flow control none
Page 6.12 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix

Remote communications protocol

Introduction

The projector can be controlled by using an external control system or a PC via an RS232 serial interface, using a terminal-emulation program, such as HyperTerminal.
There are 2 types of commands:
• Key commands
• Operation commands
All commands consist of ascii text strings starting with 2 letters:
• ky for key commands.
• op for operations commands.
All commands end with an ascii Carriage Return character.

Key Commands

Key commands are used to simulate remote control key presses, and use the following format:
ky <keyname> [CR]
Notes
Details of how to connect to
the projector, using the serial control input, can be found earlier in this section.
Example
ky pow.on [CR] simulates the POWER ON key being pressed.
Note: in the example, spaces
are included for clarity, but are not necessary in the actual command.
The commands
Code transmitted <keyname> Description
0x01 pow.on Turn power on.
0x09 pow.off Turn power off.
0x15 menu Bring up or cancel menu display.
0x17 enter Keypad enter.
0x18 cur.down Keypad down arrow.
0x1A cur.up Keypad up arrow.
0x1D cur.left Keypad left arrow.
0x1F cur.righ Keypad right arrow.
0x80 bright Bring up or cancel brightness slide bar.
0x81 contrast Bring up or cancel contrast slide bar.
Rev E October 2014 Page 6.13
6. Appendix Digital Projection M-Vision Cine LED User Manual
Code transmitted <keyname> Description
0x82 sharp Bring up or cancel sharpness slide bar.
0x83 nr Bring up or cancel noise reduction slide bar.
0x85 gam.sw Switch to the next gamma value.
0x8B src.1 Switch the active source to source 1.
0x8C src.2 Switch the active source to source 2.
0x8D src.3 Switch the active source to source 3.
0x8E src.4 Switch the active source to source 4.
0x8F src.5 Switch the active source to source 5.
0x93 osc.sw Switch to the next Overscan mode.
0x98 mem.1 Recall user memory associated with the User Memory A key.
0x99 mem.2 Recall user memory associated with the User Memory B key.
0x9A mem.3 Recall user memory associated with the User Memory C key.
0x9D asp.sw Switch to the next aspect ratio setting.
0xA3 bcolor.sw Switch Brilliant Color on or off.
0xAA ctemp.sw Switch to the next colour temperature value.
0xAD pattern.sw Switch to the next test pattern.
Page 6.14 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix

Operation Commands

Operation commands are used to simulate menu operations and determine the
settings of the projector, and use the following format:
op <operation> <command> [CR]
The <command> string can take one of the following formats:
<command> Description
Set = <value> Makes the setting take that value.
Get ? Asks what the current value is.
The value is returned as an ascii text string.
Increment + Adds 1 to the current value.
Decrement - Subtracts 1 from the current value.
Execute (none) Performs an action.
Example
op aspect =1 [CR] sets the aspect ratio to Theaterscope.
op aspect ? [CR] asks what is the current aspect ratio.
op bright + [CR] increments the brightness setting.
op resync [CR] commands the projector to attempt to re-synchronise to the
current input source.
The commands
Operation <command> Values Notes
aspect = ? 0 = 16:9
1 = Theaterscope 2 = 4:3 3 = 4:3 Narrow 4 = Native
memory = ? 0 = Preset A
1 = Preset B 2 = Preset C 3 = Preset D 4 = Default
save.mem = 0 = Preset A
1 = Preset B 2 = Preset C 3 = Preset D
bright = ? + - 0 - 200
contrast = ? + - 0 - 200
saturat = ? + - 0 - 200
tint = ? + - 0 - 200
sharp = ? + - 0 - 200
noise.thresh = ? + - 0 - 200
nr.simple = ? + - 0 - 200
nr.mode = ? 0 = Simple
1 = Advanced
Notes
Note: in the examples, spaces
are included for clarity, but are not necessary in the actual command.
Rev E October 2014 Page 6.15
6. Appendix Digital Projection M-Vision Cine LED User Manual
Operation <command> Values Notes
nr.general = ? + - 0 - 200
block.reduct = ? + - 0 - 200
mosq.noise = ? + - 0 - 200
overscan = ? 0 = Off
1 = Crop 2 = Zoom
source.sel = ? 0 = HDMI 1
1 = HDMI 2 2 = RGB 3 = YPrPb 1 4 = YPrPb 2
5 = S-Video 6 = Video
resync (execute)
color.space = ? 0 = Auto
1 = YPbPr ( = REC709) 2 = YCbCr ( = REC601) 3 = RGB-PC 4 = RGB-Video
video.stand = ? 0 = Auto
1 = NTSC 2 = PAL 3 = SECAM
gamma = ? 0 = CRT
1 = Film 2 = Video 3 = Punch 4 = Graphics
color.temp = ? 0 = 5500K
1 = 6500K 2 = 7500K 3 = 9300K
dlp.frame = ? 0 = Auto
2 = 48 Hz 3 = 50 Hz 4 = 60 Hz
color.gamut = ? 0 = Auto
1 = REC709 2 = SMPTE C 3 = EBU
4 = Native
bcolor = ? 0 = Off
1 = On
red.off = ? + - 0-200
green.off = ? + - 0-200
blue.off = ? + - 0-200
red.gain = ? + - 0-200
green.gain = ? + - 0-200
blue.gain = ? + - 0-200
vert.pos = ? + - 0-200
horiz.pos = ? + - 0-200
Page 6.16 Rev E October 2014
Digital Projection M-Vision Cine LED User Manual 6. Appendix
Operation <command> Values Notes
phase = ? + - 0-200
tracking = ? + - 0-200
sync.level = ? + - 0-200
menu.pos = ? 0 = Top left
1 = Top right
2 = Bottom left 3 = Bottom right
4 = Centre
blank.screen = ? 0 = Black
1 = Blue 2 = White
3 = Logo
auto.pow.off = ? 0 = Off
1 = On
auto.pow.on = ? 0 = Off
1 = On
rear.proj = ? 0 = Off
1 = On
ceil.mode = ? 0 = Off
1 = On
logo.disp = ? 0 = Off
1 = On
trig.1 = ? 0 = Screen
1 = 16:9 2 = Theaterscope 3 = 4:3 4 = 4:3 Narrow 5 = RS232 6 = On
7 = Off
trig.2 = ? 0 = Screen
1 = 16:9 2 = Theaterscope 3 = 4:3 4 = 4:3 Narrow 5 = RS232 6 = On
7 = Off
auto.source = ? 0 = Off
1 = On
model.name ? <string>
ser.number ? <string>
soft.version ? <string>
act.source ? 0 = HDMI 1
1 = HDMI 2 2 = RGB 3 = YPrPb 1 4 = YPrPb 2
5 = S-video 6 = Video
h.refresh ? <number> KHz
v.refresh ? <number> Hz
0: Trigger occurs when the projector is in
RUNNING mode
0: Trigger occurs when the projector is in
RUNNING mode
Rev E October 2014 Page 6.17
6. Appendix Digital Projection M-Vision Cine LED User Manual
Operation <command> Values Notes
pixel.clock ? <number> MHz
signal ? <string>
lamp.hours ? <number>
total.hours ? <number>
environment ? <string> Temperatures
fact.reset (execute)
blue.only = 0 = Off
1 = On
pattern = 0 = White
1 = Black 2 = Red
3 = Green 4 = Blue 5 = Cyan 6 = Magenta 7 = Yellow 8 = Chequerboard 9 = Greyscale 10 = Alignment Grid
11 = Off
altitude = ? 0 = Low
1 = High
status.check ? 0 = standby mode
1 = warm up mode 2 = running mode 3 = cooling mode 4 = error
Page 6.18 Rev E October 2014
