Super High Brightness Digital Video Projector User’s Manual

16:9 widescreen display

103 512 A

Digital Projection MERCURY HD

Declaration of Conformity

Directives covered by this Declaration

89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC and 93/68/EEC. 73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.

Products covered by this Directive

Large Screen Projector type MERCURY HD

Basis on which Conformity is being declared

The products identified above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards.

EN 50081-1:1992 - EMC Generic Emission Standard for Residential, Commercial and Light Industrial Equipment.

EN 50082-1:1992 - EMC Generic Immunity Standard for Residential, Commercial and Light Industrial Equipment.

EN 55022:1995 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Technology Equipment.

EN 60950:1992 - Specification for Safety of Information Technology Equipment, including Electrical Business equipment.

The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage directive has been compiled by the signatory below and is available for inspection by the relevant enforcement authorities. The CE mark was first applied in 2004.

Signed:

Authority: D.J. Quinn, Director - Product Development

Date: 23 April 2004

Attention!

The attention of the specifier, purchaser, installer, or user is drawn to special measures and limitations to use which must be observed when these products are taken into service to maintain compliance with the above directives. Details of these special measures are available on request, and are also contained in the product manuals.

iii

Important Information Digital Projection MERCURY HD

Precautions

Please read this manual carefully before using your Digital Projection MERCURY HD Projector and keep the manual handy for future reference. Your serial number is located on the side of your projector. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED Digital Projection SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED Digital Projection SERVICE PERSONNEL.

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture. Do not tilt the projector more than ±12° from side to side, as this will reduce lamp life. The projector may be tilted forwards or backwards as necessary.

±12°

360°

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

• IBM is a registered trademark of International Business Machines Corporation.

• Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.

• Other product and company names mentioned in this user's manual may be the trademarks of their respective holders.

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal components.

5. Handle your projector carefully. Do not hold the lens hood and the terminal covers. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

Digital Projection MERCURY HD Important Information

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself.

b. The projector must be installed by qualified technicians in

order to ensure proper operation and reduce the risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the

projector and the installation must be in accordance with any local building codes.

d. Please consult your dealer for more information.

To Dealer or Installer:

To prevent the projector from falling, install it in a place and fasten it in a way with sufficient strength to support the combined weight of the projector (25 kg / 55 lbs), the lens and any mounting hardware, for an extended period of time as well as to withstand earthquakes.

Power Supply

1. The projector is designed to operate on a power supply of 100-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.

2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

3. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

4. Do not touch the power plug with wet hand. Doing so can cause electrical shock or fire.

5. Do not touch the power plug during a thunder storm. Doing so can cause electrical shock or fire.

Cleaning

1. Unplug the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily

soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not

to scratch or mar the lens.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

• While the message "Please wait a moment." appears. This

message will be displayed after the projector is turned off.

• Immediately after the power cable is plugged into the wall outlet

(the POWER indicator has not changed to a steady orange glow).

• Immediately after the cooling fan stops working (The cooling fan

continues to work for 90 seconds after the projector is turned off).

Lamp Replacement

• To replace the lamp, follow all instructions provided on page 9-2.

• Be sure to replace the lamp when the message "The Lamp has reached the end of its usable life. Please replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case.

CAUTION: Do not touch them as the pieces of glass may

cause injury. If this happens, contact your Digital Projection dealer for lamp replacement.

• Allow a minimum of 90 seconds to elapse after turning off the projector. Then turn off the main power and disconnect the power cable and allow 15 minutes to cool the projector before replacing the lamp.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall, except to the rear and the ventilation outlet on the right side, where there should be at least 12 inches (30cm) of space.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified Digital Projection service personnel.

3. Do not place any liquids on top of your projector.

4. When using a LAN cable:

For safety, do not connect to the connector for peripheral device wiring that might have excessive Voltage.

CAUTION

• Do not look into the lens while the projector is on. Serious damage to your eyes could result.

• Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

• Do not cover the lens with the supplied lens hood cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

CAUTION

• Do not try to touch the ventilation outlets as they can become heated while the projector is turned on.

• Do not put the projector on its side when the lamp is turned on.

Doing so may cause damage to the projector.

• Before shipping this projector, remove the lens and attach the lens hood cap.

The Lens Shift mechanism may encounter damage caused by improper handling during transportation.

• Do not eject a PC card or LAN card while its data is being accessed. Doing so can damage your PC card or LAN card.

Digital Projection MERCURY HD

Table of Contents Digital Projection MERCURY HD

1. Introduction

What's in the Box? ................................................................... 1-2

Introduction to the Projector .................................................. 1-3

Getting to Know Your Projector ............................................. 1-4

Control Panel Features ............................................................... 1-6

Terminal Panel Features ............................................................. 1-7

Remote Control Features ........................................................ 1-9

Remote Control Precautions .................................................... 1-11

Remote Control Battery Installation .......................................... 1-11

Operating Range for Wireless Remote Control ........................ 1-11

Using the Remote Control in Wired Operation ......................... 1-12

2. Installation

Setting Up Your Projector ....................................................... 2-2

Screen Size and Projection Distance ......................................... 2-2

Lens Shift Adjustable Range................................................... 2-4

Optional Lens Installation ....................................................... 2-5

Making Connections ................................................................ 2-6

Connecting Your PC or Macintosh .............................................. 2-6

To connect Scart Output ............................................................. 2-7

Connecting an External Monitor ................................................. 2-7

Connecting Your DVD Player ...................................................... 2-8

Connecting Your VCR or Laser Disc Player ............................... 2-9

Connecting to a Network .......................................................... 2-10

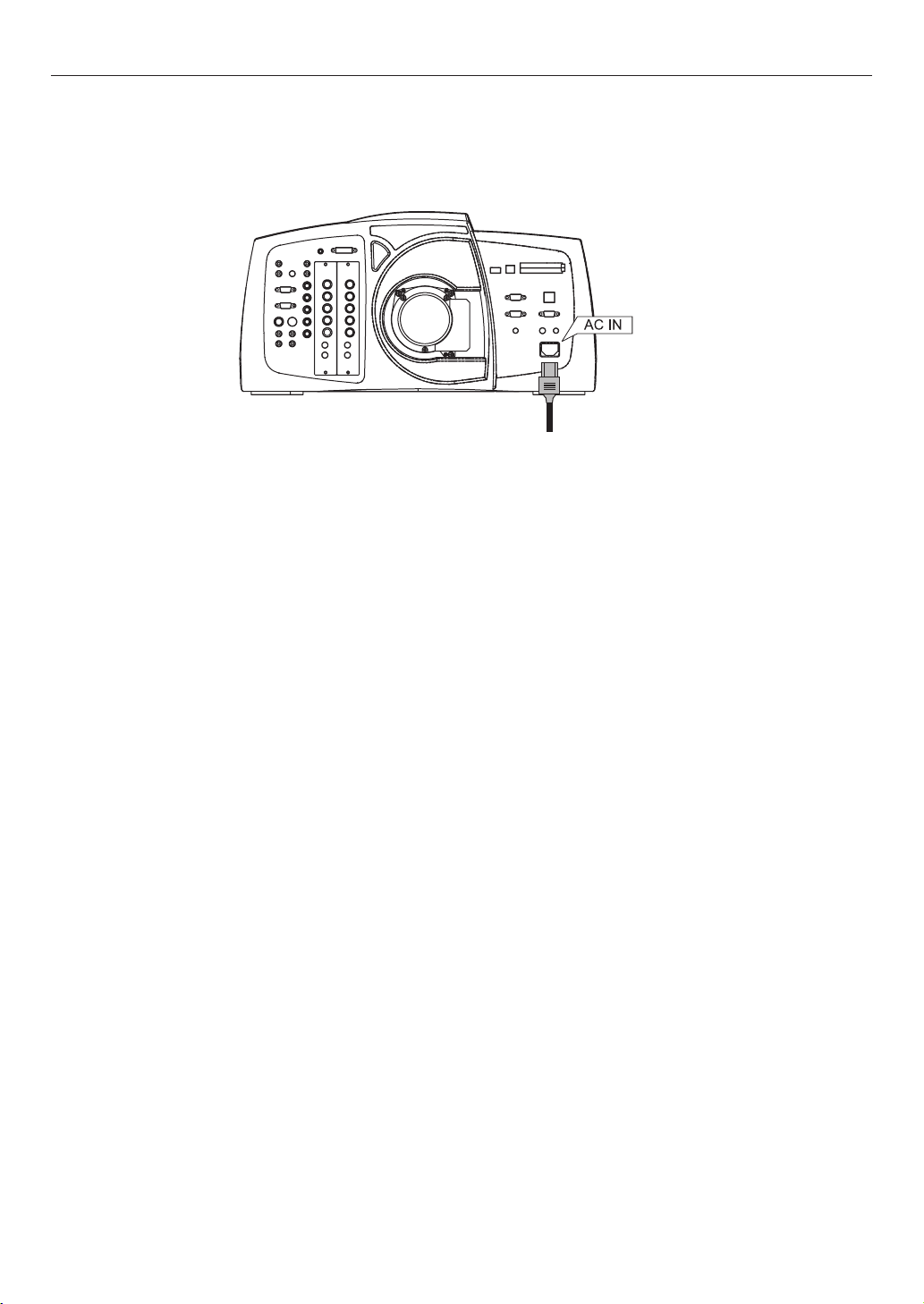

Connecting the Supplied Power Cable ..................................... 2-11

3. Projecting an Image (Basic Operation)

Turning on the Projector ......................................................... 3-2

Selecting a Source ................................................................... 3-3

Adjusting the Picture Size and Position ................................ 3-3

Correcting the Horizontal and Vertical Keystone Distortion

(3D Reform) .............................................................................. 3-4

Optimizing RGB Picture Automatically .................................. 3-6

Turning Up or Down Volume ................................................... 3-6

Turning off the Projector ......................................................... 3-7

4. Convenient Features

Turning Off the Image and Sound .......................................... 4-2

Enlarging and Moving a Picture ............................................. 4-2

Getting the On-line Help and Information .............................. 4-2

Using a USB Mouse ................................................................. 4-3

Using a USB HUB Function .................................................... 4-3

Changing Background Logo ................................................... 4-4

Making Freehand Drawings on Projected Image

(ChalkBoard) ............................................................................ 4-4

5. Using the Viewer

Making the Most out of the Viewer Function ........................ 5-2

Operating the Viewer Function from the Projector

(playback) ................................................................................. 5-3

6. Using the Projector in a Network

Introduction .............................................................................. 6-2

Supported Equipment ............................................................. 6-3

Equipment Connections and Settings ................................... 6-4

Software Installation ................................................................ 6-5

Starting/Exiting the Software .................................................. 6-6

Troubleshooting ....................................................................... 6-7

Double Stacking and Link Mode

Stacking and Connecting the Projectors ............................... 7-2

Adjusting and Registering Signals to Be Projected ............. 7-5

Adjusting the Lens Shift, Zoom and Focus to Clearly Display

all projected patterns .............................................................. 7-5

Link Mode Setting .................................................................... 7-5

List of Menu Items Available in Link Mode ............................ 7-6

8. Using the On-Screen Menus

Basic Menu Operation ............................................................. 8-2

List of Direct Button Combinations ....................................... 8-3

Menu tree .................................................................................. 8-4

Menu Descriptions & Functions ............................................. 8-7

Source Select ............................................................................. 8-7

Adjust Source ............................................................................. 8-7

Picture ................................................................................. 8-8

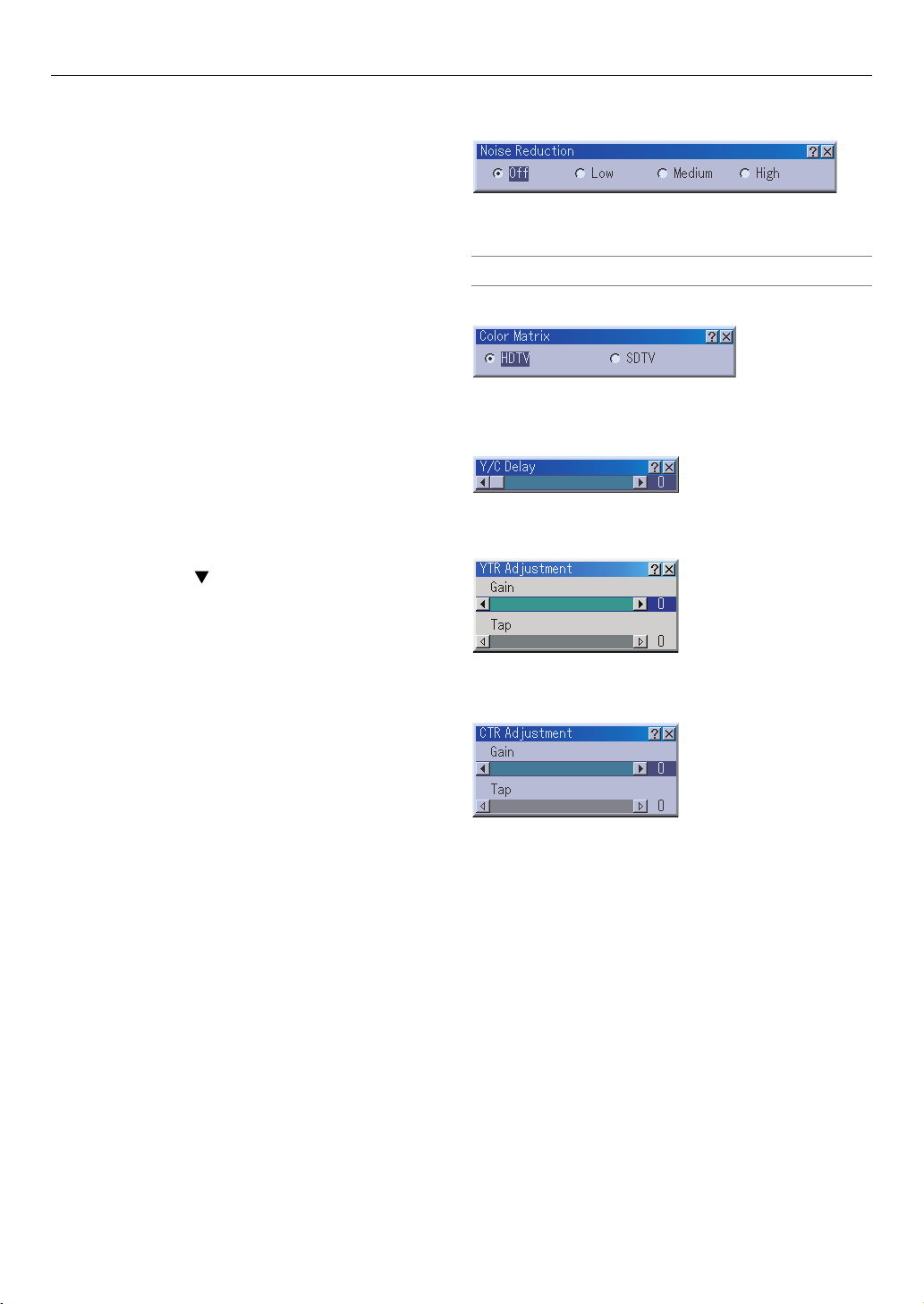

Video Adjust ........................................................................ 8-8

Picture Management ........................................................... 8-9

Image Options ................................................................... 8-10

Option Adjust ..................................................................... 8-10

Signal Type ........................................................................ 8-11

Sound ....................................................................................... 8-11

Ref. Adjust ................................................................................ 8-12

Using 3D Reform ............................................................... 8-12

Screen Type ...................................................................... 8-12

Reference White Balance ................................................. 8-12

Reference Color Correction ............................................... 8-12

Factory Default ......................................................................... 8-13

Projector Options ...................................................................... 8-13

Menu ................................................................................. 8-13

Setup ................................................................................. 8-15

Lamp Settings ................................................................... 8-18

Link Mode .......................................................................... 8-18

LAN Mode ......................................................................... 8-19

Password ........................................................................... 8-23

Security ............................................................................. 8-24

Tools ......................................................................................... 8-25

Timer ................................................................................. 8-25

Capture .............................................................................. 8-27

PC Card Files .................................................................... 8-27

ChalkBoard ........................................................................ 8-27

Help .......................................................................................... 8-27

Contents ............................................................................ 8-27

Source Information ............................................................ 8-27

Projector Information ......................................................... 8-28

Test Pattern .............................................................................. 8-28

9. Routine Maintenance

Replacing the Lamp ................................................................. 9-2

Replacing or Cleaning the Filter ............................................. 9-3

Cleaning the Cabinet and the Lens ........................................ 9-3

10. Appendix

USB Memory Device or

USB Memory Card Reader Support ..........................................

Troubleshooting ..................................................................... 10-3

Specifications ......................................................................... 10-5

Cabinet Dimensions .............................................................. 10-7

Pin Assignments of D-Sub RGB Input Connector .............. 10-7

Compatible Input Signal List ................................................ 10-8

REMOTE 1 Connector ............................................................ 10-9

PC Control Codes and Cable Connection ......................... 10-10

Cable Connection ................................................................... 10-10

PC Control Connector (D-SUB 9P) ........................................ 10-10

Using Software Keyboard ................................................... 10-10

Operation Using an HTTP Browser .................................... 10-11

10-2

vii

Digital Projection MERCURY HD

viii

Introduction

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

What's in the Box? ....................................1-2

Introduction to the Projector ....................1-3

Getting to Know Your Projector ............... 1-4

Control Panel Features ...................................................................................... 1-6

Terminal Panel Features.................................................................................... 1-7

Remote Control Features ..........................1-9

Remote Control Precautions .......................................................................... 1-11

Remote Control Battery Installation ............................................................... 1-11

Operating Range for Wireless Remote Control ............................................ 1-11

Using the Remote Control in Wired Operation ............................................. 1-12

1. Introduction Digital Projection MERCURY HD

What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector.

NOTE: Lenses are optional. Order lenses from your Digital Projection dealer.

ZOOM

MAGNIFY/

FOCUS

Projector (001-731)

ENTER

OSD

MUTE

SOUND

E-LIST/


SHUT

ADJUST

ADDRES

MENU/

PICT/

LENS

UTO

POSI/

PIXEL

AMP/

KEYST

OFF

INFO

HELP

PQR

GHI

MNO

DEF

INPUT

ABC

VWX

STU

WHITEBAL.

JKL

PROJECTOR

IMAGE/

OFF

TEST

POWER

Remote control (102-161) and batteries (AAx2)

CTL

CANCEL

UNDO

Power cable for United Kingdom (AC 230V) (102-180)

Power cable for Japan (AC 100V) (102-164)

16Mb PC card (102-112)

User Supportware (102-191)

Power cable for North America (AC 120V) (102-165)

Power cable for Europe (AC 230V) (102-163)

User Manual (103-512)

Remote cable (102-162)

DVI cable (102-166)

Important Information (103-513)

1-2

Digital Projection MERCURY HD 1. Introduction

Introduction to the Projector

This chapter introduces you to the MERCURY HD high end fixed installation projector and describes key features and controls.

Congratulations on Your Purchase of the MERCURY

HD projector

The MERCURY HD is a compact three chip, HD DLP™ projector, utilising the unique Dark Metal DMD™ technology from Texas Instruments. With the MERCURY HD you will be able to project images up to 500" (measured diagonally) from your DVD player, VCR, satellite hookup, HDTV source, PC, Workstation or Macintosh computer (desktop or notebook) and images from you digital camera PC Card or compact flash memory. The MERCURY HD incorporates integrated networking access through the RJ45 input or provides for wireless network connectivity from an optional wireless network PC card. With extensive input and output panels, full suite of quick-change lenses and a full function remote, the MERCURY HD will let you immerse yourself in large screen viewing.

Features you’ll enjoy on the MERCURY HD:

• Integrated RJ45 connector for wired networking ability

• Two optional modular card slots allow for future projector growth with the ability to add additional input cards

• Dual PC card slots provide for optional wireless/wired network connectivity or PC Card usage

• Email projector error status information to selected individuals

• Power Horizontal and Vertical lens shift for optical display corrections

• Digital Projection DigiView for enhanced video image display, more vibrant colors and blacks richer with detail

• DigiScale enhanced image technology for increased projector versatility that provides for horizontal, vertical and diagonal keystone correction (allows for positioning the projector in off center locations in the room and still get aligned images)

• HDTV (1080p, 1080i, 720p) and SDTV (576p, 576i, 480p, 480i) compatibility

• Native resolution of 1280 x 720, 16:9 widescreen display.

• Smart security settings for password protection, control panel lock, menu lock and PC card protection key to help prevent unauthorized access and adjustments to the projector

• ADA508 and Executive Order 13221 Federal Government compliance *

• DigiView 10-bit video decoder for expanded black levels and adaptive gamma correction

• Digital photo viewer to display larger than life images from your digital cameras PC card or compact flash card

• Double stackable for built in redundancy and high light output requirements

• Two timer settings - On/Off with programming or Sleep timer that counts down at selected intervals

• 12V low voltage Screen Trigger output

• Easy set up and operation

• Eco-mode™ lamp technology for increased lamp life and energy savings

• DigiView for uncompromising display of video and data. Improves white level, color accuracy, dynamic range, and display of varying levels of black in an image

• Wireless remote control operation

• External control via RS232, USB or Network

• DigiScale intelligent pixel blending technology provides for extremely accurate image compression and HDTV (1920x1080) display resolution*2.

• Supports most IBM VGA, SVGA, XGA, Macintosh, component signal (YCbCr/YPbPr) or other RGB signals within a horizontal frequency range of 15 to 100 kHz and a vertical frequency range of 48 to 120 Hz. This includes NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60 and SECAM standard video signals

NOTE: Composite video standards are as follows: NTSC: U.S. TV standard for video in U.S. and Canada.

NTSC4.43: TV standard used in Middle East countries. PAL: TV standard used in Western Europe. PAL-M: TV standard used in Brazil. PAL-N: TV standard used in Argentine, Paraguay and Uruguay. PAL60: TV standard used for NTSC playback on PAL TVs.

SECAM: TV standard used in France and Eastern Europe.

*1This projector meets ADA508 compliance, the latest

American government regulation which provides for closed captioning, including a menu system that can be viewed by colorblind users. This model also meets Executive Order 13221 requirement for standby operation, which consumes less than 1 watt.

*2HDTV 1080p (1920x1080), HDTV 1080i (1920x1080), and

1600x1200 are displayed with DigiScale.

1-3

1. Introduction Digital Projection MERCURY HD

Getting to Know Your Projector

Remote control sensor

Ventilation outlet

Terminal panel (Left)

Lens (optional)

Remote control sensor

Rear cover

Controls

Mounting holes for stacking adaptors

Remote control sensor

Terminal panel (Right)

AC INPUT Connect the supplied power cable’s three-pin plug here.

Remote control sensor

Ventilation inlet

1-4

Digital Projection MERCURY HD 1. Introduction

Ventilation outlet

Remote control sensors

2 x 5/8 UNC mounting holes (maximum depth 1¼”)

4 x M8 mounting holes (maximum depth 16mm)

Feet (rotate to fine-adjust the height and level of the projector)

1-5

1. Introduction Digital Projection MERCURY HD

Control Panel Features

1. POWER Button (ON / STAND BY)( )

Use this button to turn the power on and off when the main power is supplied and the projector is in standby mode or idle mode.

NOTE: To turn on or off the projector, press and hold this button for a minimum of two seconds.

2. POWER Indicator

When this indicator is green, the projector is on; when this indicator is orange, it is in standby or idle mode. See the Power Indicator section on page 10-3 for more details.

3. STATUS Indicator

If this light blinks red rapidly, it indicates that an error has occurred, the lamp cover is not attached properly or the projector has overheated. If this light remains orange, it indicates that you have pressed a cabinet key while the Control Panel Key Lock is enabled. See the Status Indicator section on page 10-3 for more details.

4. LAMP Indicator 1/2

If this light blinks red rapidly, it's warning you that the lamp has reached the end of its usable life. After this light appears, replace the lamp as soon as possible (See page 9-2). See the Lamp Indicator section on page 10-3 for more details.

5. PC CARD Access Indicator 1/2

Lights while accessing a PC card.

6. 3D REFORM Button

Press this button to enter 3D Reform mode to correct the keystone (trapezoidal) distortion, and make the image square. Press to toggle between Cornerstone and Keystone adjustment mode.

NOTE: Pressing and holding this button for a minimum of 2 seconds will reset 3D Reform correction setting values to zero.

7. AUTO ADJUST Button

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. See page 3-6.

8. MENU Button

Displays the menu.

9. SELECT (+) (–) / Volume Buttons

: Use these buttons to select the menu of the item you

: Use these buttons to change the level of a selected

10. ENTER Button

Executes your menu selection and activates items selected from the menu.

11. CANCEL Button

Press this button to exit "Menus". Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

12. LENS SHIFT Button

Adjust the lens offset by shifting the projected image position horizontally and / or vertically.

13. ZOOM Button (+/-)

Zoom the lens in and out.

14. FOCUS Button (+/-)

Adjust the lens focus.

wish to adjust. When no menus appear, these buttons work as a volume control.

menu item. A press of the button executes the selection. When the menus or the Viewer tool bar is not displayed, these buttons can be used to select a slide, or to move the cursor in Folder List or Slide List.

1-6

Digital Projection MERCURY HD 1. Introduction

Terminal Panel (left) Features

1. RGB 1 Connectors [R/Cr, G/Y, B/Cb, H/V, V] (BNC) Connect R,G,B,H (Horizontal sync) and V (Vertical sync) outputs of external equipment. If using a component with a combined sync (SYNC) output, connect it to the H/V terminal. When using luminance and color-difference signals of HDTV and DVD, connect Pr/Cr to the R, Y to the G and Pb/Cb to the B input of the projector.

DVI AUDIO Input Mini Jack (Stereo Mini) This is where you connect the audio output from your computer when connected to the DVI input. A commercially available audio cable is required.

4. RGB OUT Connector (Mini D-Sub 15 Pin) You can use this connector to loop your computer image to an external monitor from the RGB 1 or 2 input source.

5. VIDEO IN Connector (BNC) Connect a VCR, DVD player, laser disc player, or document camera here to project video.

VIDEO AUDIO Input Jacks R/L (RCA) These are your left and right channel audio inputs for stereo sound from a Video source.

6. S-VIDEO IN Connector (Mini DIN 4 Pin) Here is where you connect the S-Video input from an external source like a VCR.

NOTE: S-Video provides more vivid color and higher resolution than the traditional composite video format.

S-VIDEO AUDIO Input Jacks R/L (RCA) These are your left and right channel audio inputs for stereo sound from an S-Video source.

7. AUDIO OUT Jacks R/L (RCA) You can use this connector to output sound from the currently selected input source (RGB 1, RGB 2, DVI (DIGITAL), Video or S-Video). Output sound level can be adjusted in accordance with the sound level of the internal speaker.

8. Slot 1/2 For optional RGB or SDI board.

RGB 1 Audio Input Jacks (RCA) L/MONO: This is your left channel audio input for stereo sound coming from the RGB Input 1 source. This also serves as your monaural audio input.

R: This is your right channel audio input for stereo sound from the RGB Input 1 source.

2. RGB 2 Connector (Mini D-sub 15 Pin) Connect your computer or other analog RGB equipment such as IBM compatible or Macintosh computers. This also serves as a component input connector that allows you to connect a component video output of component equipment such as a DVD player. This connector also supports SCART output signal. See page 2-9 for more details.

RGB 2 Audio Iput Mini Jack (Stereo Mini) This is where you connect audio output from your computer or DVD player connected to the RGB2 input. A commercially available audio cable is required.

3. DVI IN Connector (DVI-D 24 Pin) This connector can be used to accept digital signal output from a computer with a DVI connector.

1-7

1. Introduction Digital Projection MERCURY HD

Terminal Panel (right) Features

1. USB Port [MOUSE/HUB] (Type A) Connect a USB mouse. You can operate the menu or Viewer with a USB mouse via this port.

• A USB-supported scanner or PC peripheral can be connected to this port. (USB Hub Function. See page 4-3)

2. USB Port [PC] (Type B) Connect this port to the USB port (type A) of your PC using a USB cable. This port also serves as a PC Control port by using Dynamic Image Utility 2.0 included on the supplied CD-ROM.

3. PC CARD Slot 1/2 Insert a PC card, commercially available flash memory card or Digital Projection optional wireless LAN card here. There are two slots: Slot 1 and Slot 2.

4. PC CARD Eject Button 1/2 Press to eject a PC card partially. Each slot has its own eject button: 1 and 2.

5. PC CONTROL Connectors (Mini D-Sub 9 pin) For system expansion such as PC-Control using Dynamic Image Utility included on the supplied User Supportware CDROM or RS232C control from an external control system.

6. SC. TRIGGER Mini Jack When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up.

NOTE: To use this feature, you must turn on the Screen Trigger function. See page 8-17.

Stereo mini cable (not supplied)

NOTE: Screen controllers are supplied and supported by screen manufacturers.

NOTE: Do not use this jack for anything other than intended use. Connecting wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.

7. LAN Port (RJ-45) This port is typically used for UTP Ethernet/Fast Ethernet. Use this connector to control the projector on a LAN. See page 2-12.

8. REMOTE 1 (Mini D-Sub 15 Pin) This terminal allows external control of the projector by use of contact closure. See page 10-9.

9. REMOTE 2 Mini Jacks (IN/OUT)

IN: wired remote control input.

OUT: for daisy-chaining multiple projectors and operating them with the same remote control. To do so, connect to a second projector’ s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected.

10. AC IN When you plug the supplied power cable into an active wall outlet and turn on the Main Power switch, the POWER indicator turns orange and the projector is in standby mode. See page 3-2. Three types of power cable are supplied with this projector: a three-pin type for the United Kingdom b three-pin type for U. S. A. and Canada. c Two-pin type for Europe and Japan.

Tip (12V)

Ring (0V)

Sleeve (ground. 0V)

IN: connect to the external equipment such as a PC or control system.

OUT: for daisy-chaining multiple projectors and operating them with the same external equipment. To do so, connect to a second projector’ s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected.

1-8

Digital Projection MERCURY HD 1. Introduction

Remote Control Features

POWER INPUT

OFF

ABC1DEF2GHI

WHITE BAL.

AMP

JKL4MNO5PQR

STU7VWX

E-LIST/

13 28

TEST

PROJECTOR

IMAGE/


OFF

ADJUST

KEY ST./

LENS

POSI/

15 17

PIXEL SOUND

AUTO

PICT/

ADDRESS

MENU/

UNDO

CANCEL

FOCUS

CTL

SHUT

MAGNIFY/

HELP

MUTE

ENTER

ZOOM

INFO

OSD

1. POWER ON Press and hold this button for a minimum of two seconds to turn on the projector when the main power is supplied and the projector is in standby mode or idle mode.

2. POWER OFF

Press and hold this button for a minimum of two seconds to turn off the projector.

3. MENU Press to display the main menu. While pressing and holding CTL, press this button to display the Remote Control ID dialog box to specify the remote control ID. See page 7-2.

4. ENTER

YZ/

Executes the menu selection and activates items selected from the menu. When the slider or dialog box is displayed: Pressing this button confirms adjustments/setting and returns to the previous menu display.

23 14

5. Select (Up/Down/Left/Right)

: Use these buttons to select the menu of the item you

wish to adjust. When no menus appear, these buttons work as a volume control.

19 18

: Use these buttons to change the level of a selected

menu item. A press of the button executes the selection.

Pressing and holding CTL, then pressing button works as a Back Space key in the entry screen. Pressing and holding CTL, then pressing this button moves the menu, slider, toolbar or dialog box.

6. ADJUST WHITE BAL. Press to display the Picture Management screen.

7. ADJUST PICTURE Press to display the Picture adjustment screen. Pressing this button sequentially selects adjustment screens.

8. IMAGE/PROJECTOR Press to display the Image Option screen. Pressing this button sequentially selects Image Options screens. While pressing and holding CTL, pressing this button rotates Projector Options screens.

9. Source / Input Press to select input or to name a signal.

1 Selects RGB 1 input. 2 Selects RGB 2 input. 3 Selects DVI (DIGITAL) input. 4 Selects VIDEO input. 5 Selects S-VIDEO input. 6 Selects Viewer input 7 Selects LAN input 8 Selects OPTION SLOT 1* (optional RGB or SDI board) 9 Selects OPTION SLOT 2* (optional RGB or SDI board) 0 Sequentially selects: RGB1 (VIDEO)→ RGB1 (S-VIDEO)

* This button toggles between input 1 and 2.

NOTE: While pressing and holding CTL, pressing this button switches to the selected signal found in the Entry List.

1-9

→

1. Introduction Digital Projection MERCURY HD

10. UNDO Press to return the adjustments and settings to the previous condition. While pressing and holding CTL, pressing this button clears the entire menus or adjustment/setting screen. At this time the adjustments/settings are stored in memory except the items on the setting screen with "OK" and "Cancel" buttons such as the Menu and the Setup screen.

11. CANCEL Press to exit the menu. Press this button with CTL to return to the previous menu without closing adjustment/setting screen while the menus appear. This feature allows you to adjust or set several items concurrently.

12. INFO Displays the "Source Information" or "Projector Information" window. This button toggles between these two windows. While pressing and holding CTL, pressing this button stores lens position settings.

13. TEST Press to display the test pattern. Pressing this button sequentially selects test patterns.

21. KEYSTONE (R) Press to display the Keystone Correction (3D Reform) screen. This button toggles between “Cornerstone” and “Keystone”. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a red test pattern.

NOTE: Pressing and holding this button for a minimum of two seconds will reset 3D Reform correction setting values to zero.

22. AMPLITUDE (G) Service personnel only. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a green test pattern.

23. ENTRY LIST (B) Press to display the Entry List screen. Pressing and holding CTL and then ENTRY LIST buttons simultaneously, enters a signal in the Entry List when you are not displaying a test pattern. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a blue test pattern.

14. HELP Provides online help.

15. PIXEL Displays the Position/Clock screen to adjust the clock and phase.

16. AUTO (RGB only) Press to adjust Position-H/V and Pixel Clock for an optimal picture.

17. POSITION Press to display the Position screen; press again to display the Blanking screen. While pressing and holding CTL, pressing this button displays the Lens Shift adjustment screen.

18. MUTE SOUND Turns off the sound for a short period of time. Press again to restore the sound.

19. MUTE OSD Press to turn off the on-screen display. Press again to restore the on-screen display.

NOTE: You can also turn off the on-screen display forcibly by pressing and holding CTL and then pressing MUTE OSD (Forced On-Screen Mute Mode) ; doing this again restores it. In this case any adjustment will still change the projector's memory settings. This mode is available even when input is switched to another or the power is turned off the main power.

24. FOCUS (+/–) While pressing and holding CTL, pressing this button allows you to adjust the lens focus.

25. MAGNIFY/ZOOM (+/–) Magnify the size of a target portion. While pressing and holding CTL, pressing this button allows you to zoom the lens in and out.

26. CTL Used in conjunction with other buttons, similar to a shift key on a computer.

N O

29 27

27. Remote Jack Connect your remote cable here for wired operation.

20. MUTE PICTURE Press to turn off the picture for a short period of time. Press again to restore the picture.

28. Backlight Switch When using the remote control wirelessly: Turns the backlight on and off. If no button is pressed within 30 seconds, the backlight will turn off to conserve battery life.

29. Infrared Transmitter Direct the remote control toward the remote sensor on the projector cabinet.

1-10

Digital Projection MERCURY HD 1. Introduction

Remote Control Precautions

• The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the main unit, or when there is an obstacle in the path.

• When remote control buttons are pressed and held, projector’s function keys may not operate.

• Do not subject to strong shock.

• Do not allow water or other liquid to splash on the remote control. If the remote control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Remove the batteries from the remote control when the remote control is not going to be used for a long period.

Remote Control Battery Installation

Installing the Remote Control Batteries When it comes time to replace the batteries, two "AA" type will be required.

1. Press and open the cover.

Operating Range for Wireless Remote Control

The infrared signal operates by line-of-sight up to a distance of approximately 7m (20 feet) and a 60 degree angle of the remote sensor. The projector will not function if there are objects between the remote sensor and the remote control or if strong light falls on the remote sensor. Weak batteries will also prevent the projector from operating properly.

Side View

Remote sensors on the projector cabinet

Remote

control

2. Align and insert the batteries according to the (+) and (-) indications inside the case.

3. Replace the cover.

Remote

control

NOTE: Not to scale. NOTE: You cannot operate the projector using the remote control if:

• The remote control ID is not set to [None].

• The remote ID is not the same as the projector ID. See page 7-2 for setting remote ID and projector ID.

1-11

1. Introduction Digital Projection MERCURY HD

Using the Remote Control in Wired Operation

Connect one end of the supplied remote cable to the REMOTE 2 IN mini jack and the other end to the remote jack on the remote control.

NOTE: Do not use this jack for anything other than intended use. Connecting the wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.

REMOTE 2

Remote cable (supplied)

1-12

Installation

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Setting Up Your Projector ........................ 2-2

Screen Size and Projection Distance .......................................................... 2-2

Lens Shift Adjustable Range ................... 2-4

Optional Lens Installation ....................... 2-5

Making Connections ................................ 2-6

Connecting Your PC or Macintosh ............................................................... 2-6

To connect Scart Output ................................................................................ 2-7

Connecting an External Monitor ................................................................... 2-7

Connecting Your DVD Player ......................................................................... 2-8

Connecting Your VCR or Laser Disc Player ............................................... 2-9

Connecting to a Network ............................................................................. 2-10

Connecting the Supplied Power Cable .................................................... 2-11

2. Installation Digital Projection MERCURY HD

This chapter describes how to set up your projector and how to connect video and audio sources.

Setting Up Your Projector

Your Projector is simple to set up and use. But before you get started, you must first:

1. Determine the image size

2. Set up a screen or select a non-glossy white wall onto which you can project your image.

3. Install the optional lens to the projector.

Screen Sizes

Height

Screen size (Diagonal)

Width

Formulas: Screen width W (m)= Screen size x 0.87 x 0.0254

Screen height H (m)= Screen size x 0.49 x 0.0254 Screen width W (inch)= Screen size x 0.87 Screen height H (inch)= Screen size x 0.45

4. Connect the supplied power cable.

5. Set up the projector.

6. Connect a PC, VCR, DVD player, or other equipment.

7. Make settings or adjustments on the projector.

Examples of Screen Sizes (in HD (16x9) format)

Screen size (D) Width (W) Height (H)

inches m inches m inches

60 1.3 52 0.7 29 67 1.5 58 0.8 33 72 1.6 63 0.9 35 80 1.8 70 1.0 39 84 1.9 73 1.0 41

90 2.0 78 1.1 44 100 2.2 87 1.2 49 120 2.7 105 1.5 59 150 3.3 131 1.9 74 180 4.0 157 2.2 88 200 4.4 174 2.5 98 210 4.6 183 2.6 103 240 5.3 209 3.0 118 250 5.5 218 3.1 123 270 6.0 235 3.4 132 300 6.6 261 3.7 147 400 8.9 349 5.0 196

Table of Throw Distances and Screen Sizes for Optional Fixed Lenses

NOTE: applicable to XGA and all wide-screen formats that use the full width of the DMD™.

NOTE: Actual throw distances may vary from those shown in the table below by up to +/-5%.

Screen

size

(D)

(inches)

60 67 72 80 84

90 100 120 150 180 200 210 240 250 270 300 400

fixed

(102-373)

0.64 : 1 m)(inches)

(

1.0

1.1

1.2

1.3

1.4

1.6

1.8

2.3

----

39 43 46 50 52 56 61 73 89

----

fixed

(102-835)

0.96 : 1

(m)

(inches)

1.4

1.5

1.6

1.8

1.9

2.0

2.2

2.7

105

3.3

130

3.9

155

4.4

172

4.6

180

5.2

205

5.4

214

5.8

230

6.5

255

8.6

339

2-2

Digital Projection MERCURY HD 2. Installation

Table of Throw Distances and Screen Sizes for Optional Zoom Lenses

NOTE: applicable to all wide-screen formats that use the full width of the DMD™.

NOTE: Actual throw distances may vary from those shown in the table below by up to +/-5%.

(m)

2.0 2.4

2.2 2.7

2.3 2.9

2.6 3.2

2.7 3.4

2.9 3.6

3.2 4.0

3.9 4.8

4.8 6.0

5.8 7.2

6.4 8.0

6.7 8.4

7.7 9.6

8.0 10.0

---- ----

zoom

(102-375)

1.44 - 1.8 : 1 (inches)

77 96

86 107

92 115

102 127

107 133

11 5 143

127 159

152 190

190 237

228 284

253 315

265 331

303 378

315 394

---- ----

(m)

3.2 4.8

3.6 5.4

3.9 5.8

4.3 6.4

4.5 6.7

4.8 7.2

5.4 8.0

6.4 9.6

8.0 12.0

9.6 14.4

zoom

(102-377)

(inches)

127 190 142 212 152 228 169 253 178 265 190 284 21 1 316 253 378 316 473 378 567 420 629 441 661 504 755 525 786 567 849 629 943

---- ----

4.8 7.5

5.4 8.4

5.8 9.0

6.4 10.0

6.7 10.5

7.2 11.2

8.0 12.5

9.6 14.9

12.0 18.7

14.4 22.4

16.0 24.8

16.8 26.1

19.2 29.8

---- ----

zoom

(102-376)

1.8 - 2.4 : 1 2.4 - 3.6 : 1 3.6 - 5.6 : 1

(m)

2.4 3.2

2.7 3.6

2.9 3.9

3.2 4.3

3.4 4.5

3.6 4.8

4.0 5.4

4.8 6.4

6.0 8.0

7.2 9.6

8.0 10.7

8.4 11.2

9.6 12.8

10.0 13.3

10.8 14.4

12.0 16.0

16.0 21.3

(inches)

96 127

107 142

11 5 152

127 169

134 178

143 190

159 211

190 253

237 316

284 378

316 420

331 441

378 504

394 525

425 567

473 629

629 839

10.7 16.0

11. 2 16.8

12.8 19.2

13.3 20.0

14.4 21.6

16.0 24.0

---- ----

(102-378)

(m)

zoom

(inches)

190 295

212 329

228 354

253 393

266 412

285 441

316 490

379 588

473 734

567 881

630 978

661 1027

755 1174

---- ----

Screen

size

(D)

(inches)

60 67 72 80 84

90 100 120 150 180 200 210 240 250 270 300 400

(102-374)

1.2 - 1.44 : 1

(m)

1.7 2.0

1.9 2.2

2.0 2.4

2.2 2.6

2.3 2.8

2.5 3.0

2.7 3.3

3.3 3.9

4.1 4.9

4.9 5.8

5.4 6.5

---- ----

zoom

108 129 129 154 160 192 192 229 213 255

(inches)

66 79

74 88

79 94

87 104

91 109

98 116

---- ----

For screen sizes between 60" and 400" not indicated on the tables, use the formula below:

Throw Distance (distance from front of casing to screen) = [Screen Width (W) x Throw Ratio (magnification)] +/- [ extension]

(where [extension] = distance between front of casing and end of lens)

Example: Throw Distance for 2.5m wide screen using zoom lens 001-736 set to 1.3 : 1

Throw Distance = 2.5m x 1.3 = 3.25m + .088m = 3.34m

= 98in x 1.3 = 127in + 3.5in = 130.5in

Lens extensions and useable ranges are as follows:

magnification extension useable range

Fixed lens 001-734 0.64 : 1 142mm (5.6in) 1.0m - 2.3m (3ft 3in - 7ft 5in)

Fixed lens 001-735 0.96 : 1 110mm (4.3in) 1.4m - 8.6m (4ft 7in - 28ft 3in)

Zoom lens 001-736 1.2 : 1 88mm (3.5in) 1.7m - 5.4m (5ft 6in - 17ft 9in)

1.44 : 1 2.0m - 6.5m (6ft 7in - 21ft 3in)

Zoom lens 001-737 1.44 : 1 43mm (1.7in) 2.0m - 8.0m (6ft 5in - 26ft 3in)

1.8 : 1 2.4m - 10.0m (8ft - 32ft 10in)

Zoom lens 001-738 1.8 : 1 47mm (1.9in) 2.4m - 16.0m (8ft - 52ft)

2.4 : 1 3.2m - 21.3m (11ft - 70ft)

Zoom lens 001-739 2.4 : 1 47mm (1.9in) 3.2m - 16.0m (11ft - 52ft)

3.6 : 1 4.8m - 24.0m (16ft - 79ft)

Zoom lens 001-740 3.6 : 1 54mm (2.1in) 4.8m - 19.2m (16ft - 63ft)

5.6 : 1 7.5m - 29.8m (25ft - 98ft)

2-3

2. Installation Digital Projection MERCURY HD

Lens Shift Adjustable Range

The diagram shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.

Maximum Possible Range (for zoom lenses only: fixed lens cannot be shifted): Up: 0.5 H where H: height of projected image Down: 0.16 H Right: 0.1 W where W: width of projected image Left: 0.1 W

NOTE: If lens is shifted in two directions combined, maximum range in both directions cannot be obtained due to circular shape of lens. (example: shift up and right - see dotted box in diagram below.)

NOTE: zoom lenses only: fixed lenses cannot be shifted without losing the corners of the image

Desktop Mounting

Normal projection position

Ceiling Mounting

WARNING

* Installing the projector on the ceiling must be done by a qualified

technician.

• Tilting the projector from side to side by more than 12° from level will reduce lamp life (see page iv).

• Only use your projector on a solid, level surface. If the projector falls, you could be injured and the projector severely damaged.

• Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 32°F (0°C) and 95°F (35°C).

• Do not expose the projector to moisture, dust, or smoke. This will reduce the quality of the image.

• Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the projector.

2-4

Digital Projection MERCURY HD 2. Installation

Optional Lens Installation

This section describes how to install the lens.

Before installation

* Determine the optional lens to be used to obtain a desired projection distance. There are six optional lenses available:

0.64 : 1 fixed part no. 102-373

0.96 : 1 fixed part no. 102-835

1.2 - 1.44 : 1 zoom part no. 102-374

1.44 - 1.8 : 1 zoom part no. 102-375

1.8 - 2.4 : 1 zoom part no. 102-376

2.4 - 3.6 : 1 zoom part no. 102-377

3.6 - 5.6 zoom part no. 102-378

* Press the power button (ON/STAND BY) on the projector or POWER OFF button on the remote control for a minimum of two seconds to turn

off the power, wait 90 seconds for the cooling fan to stop, then disconnect the power cable.

Check that the projector has cooled off sufficiently before proceeding.

CAUTION

* The projector and lens contain high-precision parts. Do not induce shock to the projector or the lens.

* Do not touch the lens surface. Doing so can degrade the optical performance.

Preparation: Tools needed for installation:

A cross head screwdriver.

NOTE: It is possble that the ‘Lens Shift’ feature (described on the previous page and in Section 3. Projecting an Image) may have used to move the lens mount to the far right side, making installation difficult. If this is the case, then turn the projector back on again and use the Position buttons to shift the lens back towards the mid-position. When this has been done, turn the projector off as decribed above, before continuing.

1. Remove the rear lens cover, but leave the front cover on to protect the lens surface during installation.

2. Insert the lens into the lens mount with the connector to the right, taking care to line up the locating pin on the lens with the locating hole above the opening. Push the lens in firmly to engage the connector.

locating hole

3. Secure the lens using the three cross-head screws.

NOTE. Remove the lens cover before use

fixing screws

2-5

2. Installation Digital Projection MERCURY HD

Making Connections

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software. * If you accidentally hit the POWER button on the remote control, wait 90 seconds and then press the POWER button again to resume.

When Viewing a DVI Digital Signal:

To project a DVI digital signal, be sure to connect the PC and the projector using a DVI-D signal cable (not supplied) before turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu before turning on your PC. Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC. Do not disconnect the DVI-D signal cable while the projector is running. If the signal cable has been disconnected and then reconnected, an image may not be correctly displayed. Should this happen, restart your PC.

NOTE:

• Use the DVI-D cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. The DVI-D cable should be within 5 m (196") long.

• The DVI (DIGITAL) connector accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768) and SXGA (1280x1024 @ up to 60Hz).

Connecting your PC or Macintosh Computer

Audio cable (not supplied)

RGB signal cable (not supplied) To mini D-Sub 15-pin connector on the projector.

IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)

Connecting your PC or Macintosh computer to your projector will enable you to project your computer's screen image for an impressive presentation. To connect to a PC or Macintosh, simply:

1. Turn off the power to your projector and computer.

2. Use a commercially available signal cable to connect your PC or Macintosh to the projector.

3. Turn on the projector and the computer.

4. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the projector.

BNC x 5 cable (not supplied)

Audio cable (not supplied)

IBM PC or Compatibles (Desktop type) or Macintosh (Desktop type)

DVI-D cable with ferrite core (not supplied)

Audio cable (not supplied)

NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

Connecting to RGB 1 IN connectors (BNC)

Use a BNC25 cable (not supplied) to connect your PC and the RGB 1 IN connectors on your projector.

Connecting to RGB2 IN connector (D-Sub 15 Pin)

Use an RGB signal cable (not supplied) to connect your PC and the RGB2 IN connector on your projector.

Connecting Your PC with a DVI Connector

Use a DVI-D signal cable (not supplied) to connect a DVI connector of your PC to the projector.

2-6

Digital Projection MERCURY HD 2. Installation

To connect SCART output (RGB)

Before connections: An exclusive SCART adapter (ADPSC1) and a commercially available SCART cable are required for this connection.

NOTE:

• Audio signal is not available for this connection.

• The RGB 1 IN connector does not support Plug & Play.

Video equipment such as DVD player

Projector

1. Turn off the power to the projector and your video equipment.

2. Use the ADP-SC1 SCART adapter and a commercially available SCART cable to connect the RGB 2 input of your projector and a SCART output (RGB) of your video equipment.

3. Turn on the power to the projector and your video equipment.

4. Use the RGB 2 button on the remote control to select the RGB 2 input.

5. Press the MENU button on the remote control to display the menu.

6. From the Advanced menu, select [Projector Options] [Page 3] ∅ [Signal Select RGB2] ∅ [Scart]. SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro-connector.

∅

[Setup]

∅

Commercially available SCART cable

Female

Connecting an External Monitor

RGB signal cable (not supplied) To mini D-Sub 15-pin connector on the projector.

ADP-SC1

To RGB 2 IN

NOTE: The ADP-SC1 SCART adapter is obtainable from your Digital Projection dealer. Contact your Digital Projection dealer for more information.

Audio cable (not supplied)

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog image you're projecting. To do so:

1. Turn off the power to your projector, monitor and computer.

2. Use a 15-pin cable to connect your monitor to the RGB OUT (Mini DSub 15 pin) connector on your projector.

3. Turn on the projector, monitor and the computer.

RGB signal cable (not supplied) To mini D-Sub 15-pin connector on the projector.

NOTE:

• The RGB OUT connector outputs RGB signal during idle mode (See page 8-15). When the projector goes into idle mode, the image on an external monitor disappears for a moment. Note that the RGB OUT connector will not output RGB signal during Standby mode.

• When the projector is in the Idle mode, the image may not be correctly displayed while the cooling fans are running immediately after turning on or off the power. Note that the RGB OUT connector will not output RGB signal during Standby mode.

• Daisy chain connection is not possible.

2-7

2. Installation Digital Projection MERCURY HD

Connecting Your DVD Player

Optional 15-pin-to-RCA (female) x 3 cable (ADP-CV1)

RCA(female)-to-BNC(male) adapter (not supplied)

Component video RCA x 3 cable (not supplied)

Audio cable (not supplied)

DVD player

You can connect your projector to a DVD player with component output or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component video cable (RCAX3) and the optional 15-pin-to-RCA (female) x 3 cable to connect your DVD player to the RGB 1 IN or 2 IN connector on the projector.

For a DVD player without a component video (Y,Cb,Cr) output, use an

Audio Equipment

Audio cable (not supplied)

S-Video cable (not supplied) to connect an S-Video output of the DVD player to the S-Video input of the projector. Use an appropriate type of audio cable (not supplied) to connect the desired type of audio from your DVD player to your audio equipment.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements,

2-8

Digital Projection MERCURY HD 2. Installation

Connecting Your VCR or Laser Disc Player

Audio cable (not supplied)

VCR/ Laser disc player

Use common RCA cables (not provided) to connect your VCR, laser disc player or document camera to your projector. To make these connections, simply:

1. Turn off the power to the projector and VCR, laser disc player or document camera.

2. Connect one end of an RCA cable (not supplied) to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your projector (an RCA to BNC adapter is necessary). Use an audio cable (not supplied) to connect the audio from your VCR or laser disc player to your audio equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the projector and the VCR or laser disc player.

Video cable (not supplied)

S-video cable (not supplied)

Audio equipment

Audio cable (not supplied)

NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or SVideo source is played back in fast-forward or fast-rewind via a scan converter.

2-9

2. Installation Digital Projection MERCURY HD

Connecting to a Network

With the LAN connection, you can control the projector over the network using a computer to switch the unit on/off, select the input and others.

* To control the projector over the network using a computer, use the Dynamic Image Utility 2.0 contained on the User Supportware CD-ROM or

the HTTP Server feature.

* With the Image Express Utility 1.0 contained on the supplied User Supportware CD-ROM, you can project your PC screen image to the

projector over the network.

* With a use of the supplied User Supportware CD-ROM and the optional wireless LAN card (SWL-2100-N*), you can control the projector

wirelessly or send your PC screen image to the projector over the network using a computer.

Example of LAN connection

Server

Hub

LAN cable (not supplied)

Using the HTTP Server function

1. Configure your LAN settings such as IP address on the projector. (See “LAN Mode” on page 8-19)

2. Start the Web browser on the computer connected to the network and execute HTTP server functions. (See “Operation Using an HTTP Browser” on page 10-11)

Using the User Supportware

1. Configure your LAN settings such as IP address on the projector. (See “LAN Mode” on page 8-19)

2. Install the software contained on the User Supportware CD-ROM into the computer connected to the network. See “6 Using the Projector in a Network” on page 6-1.

2-10

Digital Projection MERCURY HD 2. Installation

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector. First connect the supplied power cable's three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.

2-11

2. Installation Digital Projection MERCURY HD

2-12

Projecting an Image

(Basic Operation)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Turning on the Projector ......................... 3-2

Selecting a Source .................................. 3-3

Adjusting the Picture Size and Position .. 3-3

Correcting the Horizontal and

Vertical Keystone Distortion

(DigiScale - 3D Reform) ............................ 3-4

Optimizing RGB Picture Automatically .... 3-6

Turning Up or Down Volume .................... 3-6

Turning off the Projector ......................... 3-7

3. Projecting an Image Digital Projection MERCURY HD

This chapter describes how to turn on the projector and to project a picture onto the screen.

Turning on the Projector

NOTE:

• The projector is turned on using the POWER ON button on the remote control or the ON/STANDBY button on the projector control panel. The mains cable should not be unplugged whilst the projector is turned on (see ‘Turning off the Projector’ at the end of this chapter).

• The projector has a feature to prevent itself from being used by

unauthorized individuals. To use this feature, register your PC card as a protect key. See "Security" in "Projector Options" on page 8-23 for more details.

POWER

OFF

Standby or Idle

Steady orange light

Before you turn on your projector, ensure that the computer or video source is turned on and that the lens hood cap is removed. Only after you press the ON/STAND BY button on the projector cabinet or POWER ON button on the remote control for a minimum of 2 seconds will the power indicator turn to green and the projector become ready to use.

Flashing for 1 minute.

Flashing green light

Steady light

Steady green light

languages for the menu.

2. Press the ENTER button to execute the selection.

3. The Basic menu will be displayed in the language you have selected.

To close the menu, press the CANCEL button.

NOTE: You cannot turn off the projector for 60 seconds immediately after turning on the projector.

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Italian, Spanish, Swedish and Japanese. To select a menu language, follow these steps:

1. Use the SELECT or button to select one of the seven

After this has been done, you can proceed to the advanced menu operation. If you want, you can select the menu language later. See "Language" on page 8-13.

NOTE: To turn the projector on by plugging in the power cable, first turn on the Main Power switch to ON and use the menu and enable the "Auto Start" feature. (See page 8-16.) Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait 3 to 5 minutes until the lamp lighting is stabilized.

• If one of the following things happens, the projector will not turn on.

* If the internal temperature of the projector is too high, the projector

detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.

* When the lamp reaches its end of usable life, the projector will not

turn on. If this happens, replace the lamp.

* If the lamp fails to light, and if the LAMP indicator 1 or 2 flashes on

and off in a cycle of six times, wait a full minute and then turn on the power.

3-2

Digital Projection MERCURY HD 3. Projecting an Image

Selecting a Source

Selecting the computer or video source

POWER INPUT

ABC1DEF2GHI

JKL4MNO5PQR

STU7VWX

E-LIST/

HELP

SHUT

PICT/

MUTE

ENTER

MAGNIFY/

Press the Source/Number button (0-9) to select input.

YZ/

1 ...... RGB 1 input

2 ...... RGB 2 input

3 ...... DVI (DIGITAL) input

INFO

OSD

4 ...... VIDEO input

5 ...... S-VIDEO input

6 ...... Viewer

7 ...... LAN

8 ...... SLOT 1

9 ...... SLOT 2

ZOOM

0 ...... Sequentially selects:

........ RGB1 (VIDEO) ¤

........ RGB2 (S-VIDEO) ¤

........ RGB1 (VIDEO) etc

OFF

TEST

PROJECTOR

IMAGE/

WHITEBAL.


OFF

ADJUST

KEY ST./

AMP

LENS

POSI/

PIXEL SOUND

AUTO

ADDRESS

MENU/

UNDO

CANCEL

CTL

FOCUS

Adjusting the Picture Size and Position

1. Turn on the projector

2. Select your type of projector orientation. Desktop front, ceiling rear, desktop rear, and ceiling front.

3. Display the test pattern by pressing the TEST button on the remote control or using the menu.

TEST

4. Adjust the image position and the image size.

Using the Remote Control

NOTE: If no input signal is available, the projector will display a blue background (factory preset).

Using the menu

You can also select the computer or video source using the menu.

ADDRESS

MENU/

(1) Press and hold the CTL button and press the POSITION button

to display the Lens Shift adjustment screen.

Use the SELECT button on the remote control or the LENS SHIFT button on the projector cabinet to move the image horizontally and vertically.

To close the Lens Shift adjustment screen, press the CANCEL button. See pages 2-4 and 2-5 for “Lens Shift Adjustable Range”.

LENS

POSI/

CTL

ENTER

3-3

3. Projecting an Image Digital Projection MERCURY HD

(2) Press and hold the CTL and press the ZOOM + or - button to

adjust the image size. You can also adjust the image size by using the ZOOM + or - button on the projector cabinet.

ZOOM

MAGNIFY/

FOCUS

CTL

(3) Press and hold the CTL button and press the FOCUS + or -

button to obtain the best focus. You can also adjust the focus by using the FOCUS + or - button on the projector cabinet.

FOCUS

Preparation (Recommended): Warm up the projector for about 60 minutes.

Adjusting the Focus

1. Practice focusing Use the FOCUS (+) or (-) button on the projector or the remote control to increase or decrease the focus values to verify the accuracy of focusing.

2. Try optimizing defocus Use the FOCUS button (-) to decrease the focus values until pixel patterns are too blurry to be visible.

3. Obtain correct focus Use the FOCUS button (+) to obtain the best focus. Do not use the FOCUS (-) button at this time.

Finally store the adjustments in memory.

If you adjust beyond the best focus point, go back to step 2 and repeat the procedures. Always adjust the focus from the negative direction towards the positive direction.

CTL

Tips on Adjusting Focus

Optimum focus adjustments can be achieved on the projector by paying special attention in a few areas. Focus adjustment after the projector has warmed up to normal operating temperature is better than doing so when the projector is cold. Lens mechanism interacts differently when adjusting focus from one direction to the other. For this reason final focus adjustments should be done in a specific direction.

For optimum focus, follow the steps below. For the zoom and the lens shift adjustment, perform the normal procedures.

Correcting the Horizontal and Vertical

Keystone Distortion (DigiScale - 3D Reform)

Use the DigiScale - 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right side of the screen longer or shorter so that the projected image is rectangular. In the following description, DigiScale - 3D Reform (Cornerstone) correction can be done with the USB mouse, remote control or cabinet buttons.

When using the USB mouse connected to the projector

Preparation: Connect the USB mouse to the projector. See page 4-3.

1. Project an image so that the screen is smaller than the area of the raster.

2. Pick up any one of the corners and align the corner of the screen with the one of the image. (The drawing shows the upper right corner.)

Projected image

Screen

3-4

Digital Projection MERCURY HD 3. Projecting an Image

3. Press the 3D REFORM button on the projector cabinet or the KEYSTONE button on the remote control. The Cornerstone adjustment screen is displayed. The Cornerstone adjustment screen will disappear when you move the USB mouse cursor.

4. Point to one of the remaining 3 corners and left-click on it.

Left-click on the corner.

Screen

5. Do the above step 4 for the other two corners so that the projected area becomes smaller than the screen.

Screen

When using the remote control or cabinet buttons:

1. Project an image so that the screen is smaller than the area of the raster.

Projected image

Screen

2. Pick up any one of the corners and align the corner of the screen with the one of the image. (The drawing shows the upper right corner.)

Left-click on each corner.

6. To complete the procedure, right-click anywhere on the screen. The confirmation screen is displayed.

7. Left-click on "OK". This completes the Cornerstone adjustment.

* To return the Cornerstone adjustment to the default settings, left-click

on "Reset" in Step 7.

You can save your Cornerstone changes. The changes are saved when you turn off the projector. To do so, select [Projector Options] ¤ [Setup]¤ [Page 4]. Select the 3D Reform Save check box. This is not selected at the time of shipment.

* There are limitations of shapes which can be corrected using the Cornerstone adjustment. When adjusting the Cornerstone beyond these limits, you will get the message "Out of adjustment range!" and no correction can be done. Should this happen, do the Cornerstone adjustment again within the allowable range. * Due to limitations of accuracy within internal processes, there may be some discrepancy of positions between the mouse cursor and corrected shape or one corner and the other 3 corners.

3. Press the 3D REFORM button on the projector or the KEYSTONE button on the remote control. The Cornerstone adjustment screen is displayed.

NOTE: Press the 3D REFORM button to toggle between "Cornerstone" and "Keystone."

4. Use the SELECT the direction you wish to move the projected image frame.

5. Press the ENTER button.

6. Use the SELECT as shown on the example.

7. Press the ENTER button.

button to select one icon which points in

Screen

button to move the projected image frame

Screen

3-5

3. Projecting an Image Digital Projection MERCURY HD

8. Use the SELECT points in the direction.

On the Cornerstone adjustment screen, select “Exit” and then “OK”, or press the CANCEL button on the remote control.

The confirmation screen is displayed.

9. Press the SELECT ENTER button.

This completes the keystone correction. Selecting “Cancel” will return to the adjustment screen without saving changes (Step 3). Selecting "Reset" will return to the factory default. Selecting "Undo" will exit without saving changes.

NOTE: To return the 3D Reform correction setting values to the factory default, press and hold the 3D REFORM button on the projector cabinet or the KEYSTONE button on the remote control for a minimum of 2 seconds.

button to select another icon which

Screen

or button to highlight the [OK] and press the

Optimizing RGB Picture Automatically

Adjusting the Image Using Auto Adjust

Optimizing RGB image automatically Press the Auto Adjust button to optimize an RGB image automatically.

[Poor picture]

AUTO

[Normal picture]

Press the AUTO ADJUST or AUTO button to fine-tune the computer image or to remove any vertical banding that might appear and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) This adjustment may be necessary when you connect your computer for the first time.

NOTE: During 3D Reform adjustment, "Aspect Ratio" and "Screen" may not be available. Should this happen, first reset the 3D Reform data and then do each setting. Second repeat the 3D Reform adjustment. Changing Aspect Ratio and/or Screen setting can limit 3D Reform in its adjustable range.

The adjustable ranges for 3D Reform are as follows:

Horizontal ........... Max ±30° approx.

Vertical ............... Max ±40° approx.

* The following are conditions at the above maximum angle when all

of the following are met

• Image is projected in Wide (Zoom)

• The lens is positioned at the center (when not, adjustable range increases or decreases)

• Resolution is 1280 x 720

Higher resolution than XGA limits 3D Reform in its adjustable range.

• Menu items should be set as follows:

Aspect Ratio ............................... 4:3

Screen Type ............................... 4:3

• Horizontal and Vertical are adjusted separately.

A combination of both adjustments limits 3D Reform in its adjustable range.

• When “Native” is selected in “Resolution”, “3D Reform” is not available.

NOTE:

• Some signals may not be displayed correctly or take time.

• The Auto Adjust function does not work for component and video signal.

• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock and Phase manually. See page 8-10.

Turning Up or Down Volume

Sound level from the AUDIO OUT jack (RCA) on the projector can be adjusted.

increase volume

decrease volume

NOTE: The SELECT or button works as a volume control only when no menu appears.

Volume bar

NOTE: The volume bar can be displayed by selecting “Sound” from “Basic Menu” or “Advanced Menu”.

3-6

Digital Projection MERCURY HD 3. Projecting an Image

Turning off the Projector

To turn off the projector:

First press the POWER (ON/STAND BY) button on the projector cabinet or the POWER OFF button on the remote control for a minimum of two seconds. The POWER indicator will glow orange. After the projector turns off, the cooling fans keep operating for 90 seconds (Cooling-off time).

NOTE: You cannot turn off the projector for 1 minute immediately after turning on the projector.

POWER

OFF

Power on

Steady green light

CAUTION Do not unplug the power cable from the wall outlet or do not turn off the main power under any one of the following circumstances. Doing so can cause damage to the projector:

• While the Hour Glass icon appears.

• While the message "Please wait a moment." appears. This message will be displayed after the projector is turned off.

• While the cooling fans are running. (The cooling fans continue to work for 90 seconds after the projector is turned off).

• While accessing a PC card or LAN card. (The PC Card Access indicator lights.)

Fan working

Flashing orange light

Standby or Idle

Steady orange light

3-7

3. Projecting an Image Digital Projection MERCURY HD

3-8

Convenient Features

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Turning Off the Image and Sound ........... 4-2

Enlarging and Moving a Picture............... 4-2

Getting the On-line Help and Information 4-2

Using a USB Mouse .................................. 4-3

Using a USB HUB Function ...................... 4-3

Changing Background Logo .................... 4-4

Making Freehand Drawings on

a Projected Image (ChalkBoard) ............. 4-4

4. Convenient Features Digital Projection MERCURY HD

Turning Off the Image and Sound

Press the MUTE PICTURE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

SHUT

PICT/

SOUND

OSD

MUTE

Press the MUTE SOUND button to turn off the sound for a short period of time. Press again to restore the sound.

SHUT

PICT/

SOUND

OSD

MUTE

Press the MUTE OSD button to turn off the on-screen display. Press again to restore the on-screen display.

SHUT

PICT/

SOUND

OSD

MUTE

Enlarging and Moving a Picture

You can enlarge the area you want up to 400 percent. To do so:

Press the MAGNIFY button. Enlarge the selected area. When the MAGNIFY (+) button is pressed, the image is magnified. To

ZOOM

MAGNIFY/

move the magnified image, use the SELECT button. Return the image to the original size.

ZOOM

MAGNIFY/

Getting the On-line Help and Information

You get the contents about Help.

HELP

Display Help

Exit Help

You get the source and projector information.

INFO

Press this button once to display “Source Information” and press twice to display “Projector Information”. Press third time to close it.

4-2

Digital Projection MERCURY HD 4. Convenient Features

Using the USB Mouse

Using a commercially available USB mouse gives you smooth operation.

NOTE: There may be some brands of USB mouse that the projector does not support.

Operate the Projector Menus using the USB mouse

Mouse Cursor

When connecting a USB mouse to the projector, you get a mouse cursor on the screen. Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.

Operate the PC mouse using the USB mouse

NOTE: You can select the operation mode of the USB mouse connected to the USB port of the projector.

Using the USB HUB Function

When using the projector with a PC via the supplied USB cable, both the USB port(type A) on the projector can be connected to a USB-supported scanner or other USB-supported device. (USB Hub Function)

Example: When connecting a PC and a scanner to each USB port respec-

tively

Menu Display

Clicking with a mouse button displays the menu. Clicking displays the pull-down menu. To close the menu, click anywhere in the background.

Adjusting and Setting Display

You can select a menu item and click with a mouse button to make adjustments and setting.

Examples

Click (or press and hold) the mouse button or to adjust the brightness. Or click and drag the mouse button on the slide bar horizontally to adjust it.

To save the adjustments, click . This closes the menu. If you click anywhere in the background while displaying an adjustment and setting menu or dialog box, you will go to the main menu after clicking with the mouse.

Clicking displays help.

Using the Middle Button/Wheel on a Mouse (when available)

The projector supports the middle button/wheel on a mouse. With the middle button/wheel you can use a scroll bar or click the middle button/wheel to display or hide the Chalkboard toolbar.

An example of how a scanned image is projected

1. Install the Dynamic Image Utility on your PC.

NOTE: The Dynamic Image Utility is contained on the supplied CDROM. See “6-5 Software Installation” for the installation procedure.

2. Use your scanner to scan an image.

NOTE: A scanner driver must be installed on your PC before use.

3. Load the scanned image on your PC using the Dynamic Image Utility.

4. Transmit the scanned image from your PC to the projector via the USB cable and project the image on the screen.

NOTE:

• The USB HUB function is effective only when “Auto” is selected in Operation Mode Select.

• The PCs using the USB Host Controller may not be available.

• When connecting a USB hub to the USB port (type B) on the projector, be sure to use a USB hub capable of supplying 500mA per port of downstream current.

4-3

4. Convenient Features Digital Projection MERCURY HD

Changing Background Logo

You can change the default background logo using the PC Card Files feature.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available.

1. From the menu, select [Tools] the files stored in the PC card so that you can select a file you want to use as a background logo.

2. The Logo button allows you to select a background logo from graphic files on a PC card and change to it as the background logo.

3. Use the SELECT your background logo.

4. Use the SELECT

5. Press the ENTER button on the remote control or the cabinet. You will get the confirmation dialog box.

6. Select "OK" and press the ENTER button. This completes changing a logo for the background.

or button to select a JPEG or BMP file for

and then button to select "Logo".

∅

[PC Card Files] to display a list of all

Making Freehand Drawings on a Projected

Image (ChalkBoard)

The ChalkBoard feature allows you to write and draw messages on a projected image.

NOTE: The ChalkBoard feature is available only when a USB mouse is used.

From the menu, select [Tools] ∅ [ChalkBoard] to display the ChalkBoard tool bar that contains the following icons.

NOTE: You can also display the ChalkBoard tool bar by clicking the scroll button on your USB mouse.

Pen

Pen .............. Left-click and drag to draw. Left-click

pen icon to display the pen palette containing four lines of different thickness from which you can select a line you prefer by left-clicking.

Color ........... Selects a color. Left-click to display the color palette from

which you can select a color you prefer by left-clicking.

Capture ....... Left click to capture and save freehand drawings in the PC

card.

Eraser .......... Left-click and drag to erase part of a drawing. Left-click or

right-click the eraser icon to display the eraser palette containing four eraser of different thickness from which you can select an eraser you prefer by left-clicking.

Clear ........... Le ft-click to clear the drawing completely from the

ChalkBoard screen.

Drive ........... Switches between PC Card slot.

Hide ............. Hides the tool bar by left-clicking. Right-clicking anywhere

on the screen displays the ChalkBoard tool bar again.

Exit .............. Clears the complete drawing and exits the ChalkBoard.

Eraser Drive

Capture

Exit

ClearColor

Hide

or right-click the

* Once you have changed the background from the Digital

Projection logo to another, you cannot return the logo to background even by using Factory Default. To do so, repeat the above steps. The Digital Projection logo file is included on the supplied CD-ROM Projector User Supportware in folder (“/Logo/” ).

NOTE:

• The menu is not available while you display the ChalkBoard screen.

• Switching slides clears a drawing completely.

4-4

Using the Viewer

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Making the Most out of the

Viewer Function ....................................... 5-2

Operating the Viewer Function from the

Projector (playback) ................................ 5-3

5. Using the Viewer Digital Projection MERCURY HD

NOTE:

• To use the Viewer, first you need to create presentation materials on your PC using the Dynamic Image Utility 2.0 contained on the supplied Projector User Supportware CD-ROM. For installation, see

“6-

Software Installation”. For creating presentation materials, see the Slide show function on the on-line manual of the Dynamic Image Utility 2.0.

• Selecting Viewer sets the audio input for DVI input.

Making the Most out of the Viewer

Function

Features

You can view presentation data, capture and play images on the projector. A PC card is used to view presentation data prepared on the computer and to capture and play images projected with the projector. The Viewer feature allows you to view slides stored on a PC memory card (referred to as PC card in this manual) on the projector. Even if no computer is available, presentations can be conducted simply with the projector. This feature is convenient for holding presentations at meetings and in offices, as well as for playing images taken on digital cameras.

Easy to use

• Presentations can be started immediately simply by inserting a PC card (not supplied)

• Easy slide switching

• Remote control operation

• Jumping to list of slides or any specific slide

Inserting and Removing a PC Card

NOTE:

• Do not try to force the PC card into the slot.

PC Card Type

The PC Card slot accepts PCMCIA Type II only.

NOTE: When using two PC cards, do not insert both PC cards into the two PC card slots simultaneously. Doing so may cause projector malfunction such as shutting down. Each PC card must be inserted slowly one at a time.

NOTE: The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction. It cannot be inserted backwards or upside-down. Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card slot. Refer to the PC card's operating instructions for the proper direction of insertion.

Inserting the PC Card

• Hold the PC card horizontally and insert it slowly into PC card slot 1 or 2 with its top facing up.

PC card slot

Eject button

High quality images

• High resolution up to 1280 x 720 dots

• 24-bit full color playback

• Viewing of digital camera images

Simple utility software (for computer)

• Dynamic Image Utility 2.0 operable on Windows 98/Me/XP/2000

• Slides can be created by capturing the currently displayed image

• Control screen for displaying lists of slides and editing

* Microsoft, Windows and PowerPoint are registered trademarks

of Microsoft Corporation.

Removing the PC Card

Press the eject button slowly. The eject button card pops out a little. Press the eject button slowly again. Grasp the edges of the PC card and pull it out. Push and insert the eject button fully until it stops.

NOTE: Do not eject the PC card while its data is being accessed.

CAUTION: Make sure that the PC card or LAN card is removed during Standby mode (NOT Idle mode)or with the main power off.Failure to do so may cause damage to the data on your PC card or LAN card,or may cause the projector to malfunction.Should a malfunction occur, turn off the main power and turn it back on.

5-2

Digital Projection MERCURY HD 5. Using the Viewer

Operating the Viewer Function from the

Projector (playback)

This section describes the operation for showing slides of presentation documents created using the Viewer function with the projector. It is also possible to make slides directly from the images projected with the projector.

Projecting slides (Viewer)

1. Insert a PC card into the PC card slot.

Insert the PC card so that the end with the insertion direction arrow on the top goes in first.

* Press the eject button to eject the card.

2. Select the "Viewer" from the Source Select menu.

3. Project slides.

Checking "Show Folder List", means that selecting Viewer input displays a list of the folders in the PC card and if "Auto Play" is checked the projector automatically starts to play slides at the first slide of the folder you have selected.

A tool bar will appear when you press the MENU button on the remote control or the projector cabinet or clicking with the right button of a mouse.

Prev Play Jump Drive

Delete

When the tool bar is not displayed:

You can use the and button on the cabinet to select folders or slides.

Multi cursor (blue marks)

Current folder number

Current slide number

Number of all slides in folder

Use the SELECT or button to advance to the next folder or return to the previous folder.

Next Stop Select

Setup

View

The tool bar includes the following buttons:

Prev .......... Returns to the previous slide or folder. Or this lets

you play slides back in reverse.

Next .......... Advances to the next slide or folder. Or this lets you

play slides back.

Play .......... Plays back automatically or manually depending on

the setting on Viewer Options of the menu. This allows you to move on to the next slide when "Manual Play" is selected.

Stop .......... This allows you to stop Auto Play while you are play-

ing back and to resume playing from the selected

slide or folder when "Auto Play" is selected.

Jump ........ Displays a list of slides while you are playing back.

Select ....... Displays a list of folders while you are playing back.

Drive ......... Switches between PC Card slot.

Setup ........ Displays the Viewer Options dialog box on Page 2 of

the Setup dialog box.

Delete ....... Deletes a captured slide(s) or all the captured slides

in the Capture - specific folder. ????

View ......... Hides the tool bar while you are playing back. Press-

ing the MENU button or clicking with the right button

of a mouse shows it again.

NOTE: If no memory card is inserted in the PC CARD slot, there is no signal, and a black, blue or logo background is displayed, depending on the setting. Playback is stopped when Auto Play mode. Up to 12 indexes can be displayed on the list of folders The folder in the bottom right is always a folder exclusively for captured images, but is only displayed when images have been captured..

button on the cabinet is pressed in

Use the SELECT or button to advance to the next slide or return to the previous slide.

Slide(Table) cursor (green marks)

5-3

5. Using the Viewer Digital Projection MERCURY HD

Auto Play Mode

If the "Auto Play" option is selected in "Viewer Options" of the menu, any given slide will start to play automatically. You can also specify Auto Play Interval between 5 and 300 seconds.

Switching to Slides Directly from Other Input Modes

With this function it is possible to switch directly to a slide when the picture of a VCR or computer is being projected. Example: When conducting presentations using a combination of slides and moving pictures from a VCR, etc., it is possible to switch from a Viewer slide to the video picture then back to the Viewer slide simply by using the SELECT button.

NOTE: Even if you switch the current Viewer source to another source, the current slide is retained. When you return back to the Viewer, you will get the slide that has been retained.

The PC card editing operation cannot be performed from the projector. Do so using the Dynamic Image Utility 2.0 software.

Viewing Digital Images

Digital images can be played with the Viewer if the following conditions are met:

• If the image can be stored on an MS-DOS format PC card

• If the image can be stored in a format supported by the Viewer.

With the Viewer, images on the card are searched for in directories and images in JPEG or BMP format are recognized as slides. Searchable directories are directories within two steps from the root directory, and searchable images are images within the first 12 files in the directory. Only file and slide switching are possible.

NOTE: The maximum number of images recognized as slides within one directory is 128.

Storing Images Displayed on the Projector on the PC card (Capture)

The Capture features allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the PC card. When you select Capture from the menu, you will get a tool bar. You can capture an image directly using the tool bar when the menu is not displayed.

NOTE: * Unless a PC card is inserted into the PC Card slot of the projector,

the Capture feature is not available.

* The "Card Error" display means that the free space of the PC card is

insufficient for saving images. Make more space available on the card by erasing unwanted images with your PC. The number of images that can be captured depends on the size of the PC card.

Preparations:

Insert the PC card into the card slot.

Insert the PC card so that the end with the insertion direction arrow on the top goes in first. * Press the eject button to eject the card.

1. Project the image you wish to store on the projector.

2. Select the "Capture" from the Tools menu.

3. A tool bar will appear. Capture

Freeze

Exit

Drive

The tool bar includes the following buttons:

Capture .... Captures an image and save it as a JPEG file on a

PC card.

Freeze ...... Freezes and unfreezes images.

Drive ......... Switches between PC Card slot.

Exit ........... Exits the Capture function. Another option to exit the

Capture function is to press MENU or CANCEL but-

ton on the remote control or projector cabinet.

NOTE: You can compress a captured file (JPEG) using the Capture Options in the Setup dialog. See page 8-15.

Captured images with higher resolution than the projector's native resolution cannot be displayed correctly.

• File size of the captured image varies depending on the resolution of

an input signal.

• An hourglass indicating that an image is being captured appears on

the projector's display. Do not eject the PC card or turn off the projector's power while this icon is displayed. Doing so will damage the PC card data. If the PC card data is damaged, use a computer to repair the data.

CAUTION: Make sure that the PC card is removed during Standby mode (NOT Idle mode) or with the main power off. Failure to do so may cause damage to the data on your PC card, or may cause the projector to malfunction. Should a malfunction occur, turn off the main power and turn it back on.

5-4

Digital Projection MERCURY HD 5. Using the Viewer

Deleting Captured Images

Using the Delete button on the tool bar for Viewer can delete captured images.

Setup

Delete

View

Prev Play Jump Drive

Next Stop Select

To delete captured images:

1. Select Viewer and display a folder list of captured images.

2. Use

3. Press the MENU button to display the tool bar.

4. Use the

button to select the Capture folder “Cap” in the right bottom

of the screen.

or button to select the Delete icon and press the

ENTER button or click with a mouse button.

Using the PC Card Files Fucntion (PC Card Files)

The PC Card Files function allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. Although a list of all the files in the PC card is displayed, you can view files in idx, text, HTML, JPEG and BMP format only. Selecting BMP and JPEG files automatically switches to the Viewer source. See also page 5-3.

NOTE: This option is not available for selection unless a PC card is inserted properly.

Selecting "Execute" displays the file you selected. When you select a JPEG or BMP file and press the ENTER button on the remote or the cabinet, or "Execute" on the above, you will get a toolbar. This toolbar is used to return to the PC Card Files screen.

Return

Return ......... Returns to the PC Card Files screen.

Close ........... Close the toolbar.

5-5

5. Using the Viewer Digital Projection MERCURY HD

5-6

Using the Projector in a Network

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Introduction ............................................. 6-2

Supported Equipment .............................. 6-3

Equipment Connections and Settings .... 6-4

Software Installation ............................... 6-5

Starting/Exiting the Software .................. 6-6

Troubleshooting ....................................... 6-7

6. Using the Projector in a Network Digital Projection MERCURY HD

Introduction

Thank you for your purchase of the Digital Projection portable projector (hereafter referred to as "unit" or "projector"). This projector is connected to a personal computer or other equipment and clearly projects text or graphics to a screen.

This projector is supplied with convenient software that allows presentations to be made more simply and effectively. This guide gives an overview and describes the use of the accompanying software (contained in the CD-ROM that is supplied with this projector). Look over this guide in conjunction with the Help functions of the software programs.

Contents of the Supplied CD-ROM

The supplied CD-ROM contains the following software programs:

• Dynamic Image Utility 2.0

• Viewer PPT Converter 2.0

• Image Express Utility 1.0

Please see the Help functions of the software programs for information about their functions and operation.

What Can Be Accomplished with the Supplied Software

Dynamic Image Utility 2.0

• Converts PowerPoint files, JPEG images, and other files and creates slides that can be displayed with the viewer function of the projector.

• Captures portions of the image from the screens of word processors, spreadsheets, browsers, and other programs for use in presentations.

• By saving the created slides on a flash memory card (*1) and inserting the card into the PC Card slot of the projector, the slides can be projected to the screen without connecting a personal computer.

• The connection of personal computers and projectors by means of a network environment (*2) or connection with USB cable (*3) or serial cable allows the following uses. (In a network environment or USB cable connection (*3) , support of multiple units is permitted.)

(1) Images and slides can be sent from the personal computer to the

projector and then projected to the screen. When using Microsoft PowerPoint 2000/2002, slides can be sent synchronized with the slide show page feed.

(2) A personal computer can be used to switch the projector power

on/off, control the adjustment of image quality and other settings, and to display the remaining lamp life.

Image Express Utility 1.0

• Using a network environment (*2), this program enables the screen image displayed by the personal computer to be sent to the projector and then projected to a screen.

• Two methods are available for sending the screen image to the projector. "Continuous Transmit" automatically sends the screen image of the personal computer at a fixed interval. "Single Frame Transmit" sends the screen image by clicking the screen button (or pressing a key).

*1: Please purchase a commercially available PCMCIA Type 2 (ATA

specification) flash memory card.

*2: Please check the network environment on the next page.

*3: USB cable connection is not supported by the LT260/LT240/

LT2 20.

Information about Upgrading this Software

Please see the service page for Digital Projection projectors on the Digital Projection web site for information about software upgrades of Digital Projection Projector User Supportware (i.e., Dynamic Image Utility, Viewer PPT Converter, and Image Express Utility).

Projector "Easy Connection" Settings

The "Easy Connection" option is a mode that can abbreviate the troublesome LAN settings when using the Image Express Utility and connecting the PC and projector via a wireless LAN.

• From the Advanced menu, select [Projector Options] → [LAN Mode] → [Status] → [Advanced] → [Network Type] → [Mode] → [Easy Connection] on the projector. (No setting for IP address, SSID and channel are required.)

• After you have installed the software from the supplied CD-ROM to your PC, before executing Easy Connection" using Image Express Utility, visit our website to update the information about Image Express Utility and its related software.

Software can be downloaded from our website at no charge.

• Easy Connection is available on Windows 2000 Professional, Windows XP Professional and Windows XP Home Edition (not available on Windows XP Tablet PC Edition [with Image Express Utility 1.0 version 1.01.0003]).

• Easy Connection is available only when both PC and projector use the Digital Projection optional wireless cards.

• Easy Connection is not available on Dynamic Image Utility included on the supplied CD-ROM.

Viewer PPT Converter 2.0

• Converts files created with Microsoft PowerPoint 95/97/2000/ 2002 to an independent index format with a simple operation to enable direct playback with the viewer function of the projector.

• When using Microsoft PowerPoint 2000/2002, Viewer PPT Converter 2.0 can be started from PowerPoint (by means of addin registration to PowerPoint).

6-2

Digital Projection MERCURY HD 6. Using the Projector in a Network

Supported Equipment

Operating Environment

Supported Equipment

CPU

Memory

Network Environment (when used)

Supported OS

Resolution

IBM PC/AT compatible computers

• CD-ROM drive a requirement (at time of installation) Pentium MMX processor or higher a requirement Pentium III 800 MHz or higher recommended For Windows XP

• 128 MB or more a requirement

• 192 MB or more recommended For other operating systems

• 64 MB or more a requirement

• 128 MB or more recommended

* More memory may be necessary when other applications are run at the same time.

A LAN that supports TCP/IP or a wireless LAN environment is a requirement.

• For information on supported LAN cards, contact Digital Projection

• For wireless LAN connection, use Digital Projection optional wireless LAN card (001-723 or 001-

762 for France).

Windows 98 Windows 98 Second Edition Windows Me Windows 2000 Professional Windows XP Home Edition Windows XP Professional/Windows XP Tablet PC Edition

* Microsoft Internet Explorer 5.01 or higher is required for the aforementioned environments. * Does not support Windows power-saving function.

1280 dots x 720 lines recommended

Screen Colors

High Color (15 bit, 16 bit) True Color (24 bit, 32 bit)

6-3

6. Using the Projector in a Network Digital Projection MERCURY HD

Equipment Connections and Settings

When Using a Network Environment

What Can Be Accomplished

• Using Image Express Utility 1.0, the screen image displayed by the personal computer can be sent to the projector and then projected to a screen.

• Using Dynamic Image Utility 2.0, a picture or slide can be sent to the projector and then projected to a screen.

• Using the projector control function of Dynamic Image Utility 2.0 allows operations to be performed from the personal computer which include switching the projector power on/off, signal selection, and adjustment of the picture quality.

Equipment to Be Prepared

• Projector (This unit) • Personal computer (with LAN card)

• LAN cable (not supplied) or wireless LAN card (optional)

Settings at the Projector Side

Preparation:

(1) Connect a LAN cable (not supplied) to the LAN port (RJ-45) of the

projector.

(For the use of an optional wireless LAN card, insert the wireless LAN card into the PC CARD slot 1 or 2 of the projector.)

(2) Switch on the projector power and project to the screen. (chapter 3)

(3) Switch to the advanced menu.

1. Press the MENU button. The menu will be displayed.

2. Use the SELECT Options], then press the ENTER button. The sub menu will be displayed.

button to align the cursor with [Projector

Equipment to Be Prepared

• Projector (This unit)

• Personal computer

• USB cable (included with the projector)

Connection at the Projector Side

Plug the B type connector of the USB cable to the USB port [PC] (type B).

NOTE: When switching the power of the projector on/off with the projector control function, please set [Projector Options] →[Setup] [Page 4] → [Idle Mode] to “On”.

→

Connection at the Personal Computer Side

Plug the A type connector of the USB cable to the USB port [PC] (type A).

[For Connections with Serial Cable]

Equipment to Be Prepared

• Projector (This unit)

• Personal computer

• Serial cable (A commercially available RS-232C cross cable)

Connection at the Projector Side

Plug the serial cable into the PC CONTROL connector. (“Terminal Panel Features” and “PC Control Connector” on pages 1-9 and 10-10)

Connection at the Personal Computer Side

Plug the serial cable into the (RS-232C) serial connector.

3. Use the SELECT press the ENTER button. The LAN mode setting screen will be displayed.

4. Set the various items. See "Setting LAN Mode" on page 8-19 for information about the various items.

NOTE: When switching the power of the projector on/off with the projector control function, please set [Projector Options] →[Setup]

→

[Page 4] → [Idle Mode] to "On".

button to align the cursor with [LAN Mode], then

Settings at the Personal Computer Side

Perform the regular LAN connections settings according to the instruction manual of the LAN card (adapter). There are no special settings to be made in the connections with the projector.

When Making Connections with Serial Cable or USB Cable

What Can Be Accomplished

• Using Dynamic Image Utility 2.0, a picture or slide can be sent to the projector and then projected to a screen.

[For Connections with USB Cable]

6-4

Digital Projection MERCURY HD 6. Using the Projector in a Network

Software Installation

NOTE

• Windows 98 operations will be described in examples given here.

• When using Windows 2000, please perform software installation/

uninstalling with "Administrators" authority. When using Windows XP, perform with "Computer Administrator" authority.

Installation

Dynamic Image Utility 2.0, Viewer PPT Converter 2.0, and Image Express Utility 1.0 will all be installed together. The various programs cannot be installed individually.

Preparation: Start Windows. If Windows has already been started, please exit all running application software. The installation may not be completed properly unless all software has been exited.

1. Place the supplied CD-ROM in the CD-ROM drive. The "Welcome" screen will appear.

Reference

Should the "Welcome" screen not appear...

1) Click [Start].

2) Click [Run]. The [Run] screen will appear.

3) Enter the CD-ROM drive name (e.g., "Q: \") and then "SETUP.EXE" to [Open (O)].

4) Click [OK]. The "Welcome" screen will appear.

7. Now, follow the operations described in the screen messages. When the uninstall procedure is completed, there will be a return to the "Add/Remove Programs Properties" screen.

8. Click [OK]. There will be a return to the "Control Panel" screen

2. Click [Next >] at the "Welcome" screen. The "End User License Agreement" screen will appear.

• Please carefully read the contents of the "End User License Agreement".

3. If you agree, click [Yes].

• If you do not agree, please click [No] and exit the installer.

4. Now, follow the operations described in the screen messages.

• Please remove the CD-ROM from the CD-ROM drive when the installation is completed.

Reference

• To cancel the installation of the supplied software part way through the installation, click [Cancel] and follow the instructions of the dialog box.

Uninstalling

Dynamic Image Utility 2.0, Viewer PPT Converter 2.0, and Image Express Utility 1.0 will all be uninstalled together. The various programs cannot be uninstalled individually.

1. Click [Start].

2. Click [Settings] → [Control Panel]. The "Control Panel" screen will be displayed.

3. Double click [Add/Remove Programs]. The "Add/Remove Programs Properties" screen will appear.

4. Click "Projector User Supportware" from the list.

5. Click [Add/Remove. . . ]. The "Confirm File Deletion" screen will appear.

6. Check the message and click [Yes].

6-5

6. Using the Projector in a Network Digital Projection MERCURY HD

Starting/Exiting the Software

Dynamic Image Utility 2.0 Start the Software

Preparation: Install the software on the personal computer from the supplied CD-ROM. (Page 6-6) The software cannot be started from the supplied CD-ROM.

From the [Start] menu click [Program] →[Projector User Supportware] → [Dynamic Image Utility 2.0]. Dynamic Image Utility 2.0 will start.

Reference

• By selecting a PowerPoint file with Dynamic Image Utility 2.0 and clicking [Tools] → [Converting PowerPoint file], the function equivalent to Viewer PPT Converter 2.0 can be executed.

• Image Express Utility 1.0 can be started by clicking [Tools] → [Image Express Utility 1.0 Start] of Dynamic Image Utility 2.0.

Display Help

Preparation: Please start Dynamic Image Utility 2.0.

1. Click [Help]. The [Help] menu will appear.

2. Click [Help]. The [Help] screen will appear.

Exit the Software

1. Click [File]. The [File] menu will appear.

2. Click [Exit]. Dynamic Image Utility 2.0 will close.

Exit the Software

1. Click [Exit]. Viewer PPT Converter 2.0 will close.

Image Express Utility 1.0 Start the Software

Preparation: Install the software on the personal computer from the supplied CD-ROM. (Page 6-6) The software cannot be started from the supplied CD-ROM.

1. From the [Start] menu click [Program] →[Projector User Supportware]

→

[Image Express Utility 1.0].

Image Express Utility 1.0 will start.

Reference

• Image Express Utility 1.0 can also be started from the [Tools] [Image Express Utility 1.0 Start] menu of Dynamic Image Utility

2.0.

→

Display Help

Preparation: Please start Image Express Utility 1.0.

1. Click the [ ] or [ ] icon of the Windows screen task tray. The main menu of Image Express Utility 1.0 will appear.

2. Click [Help] . The Help screen will appear.

Exit the Software

1. Click the [ ] or [ ] icon of the Windows screen task tray. The main menu of Image Express Utility 1.0 will appear.

2. Click [Exit]. Image Express Utility 1.0 will close.

Viewer PPT Converter 2.0 Start the Software

Preparation:

(1) Check that Microsoft PowerPoint has been installed. Viewer PPT

Converter 2.0 cannot be used unless PowerPoint has been installed.

(2) Install the software on the personal computer from the supplied

CD-ROM. (Page 6-6)

The software cannot be started from the supplied CD-ROM.

1. From the [Start] menu click [Program] Supportware] → [Viewer PPT Converter 2.0]. Dynamic Image Utility 2.0 will start.

Reference

• A function equivalent to Viewer PPT Converter 2.0 can also be executed from the Dynamic Image Utility 2.0 [Tools] [Converting PowerPoint file] menu.

• Viewer PPT Converter 2.0 can also be started from the Microsoft PowerPoint 2000/2002 [Tools]

→

[Output Viewer] menu.

→

[Projector User

→

[Projector User Supportware]

Display Help

Preparation: Please start Viewer PPT Converter 2.0.

1. Click [Help]. The [Help] menu will appear.

6-6

Digital Projection MERCURY HD 6. Using the Projector in a Network

Troubleshooting

In this section, the software names have been abbreviated as follows: Dynamic Image Utility 2.0 to DIU 2.0, Viewer PPT Converter 2.0 to PPTC 2.0, and Image Express Utility 1.0 to IEU 1.0.

<Problem> Installation does not complete normally.

Check Points

When using Windows 2000, did you log on with "Administrators" authority? When using Windows XP, did you log on with "Computer Administrator" authority?

When using Windows 2000 or Windows XP, log on with the authority described at the left and then install.

Countermeasures

Has Microsoft PowerPoint 2000/2002 been installed on the personal computer to which this projector software is being installed? When this projector software is installed on a personal computer that does not have PowerPoint 2000/2002 installed, a message to the effect of "Error in the automatic registration of PPTViewer2.dll" will appear part way through the installation.

<Problem> Viewer PPT Converter 2.0 does not function. (PPTC 2.0)

Check Points

Has Microsoft PowerPoint been installed on the personal computer?

<Problem> When using the projector control function, the projector power does not switch on. (DIU 2.0)

Check Points

Are the personal computer and the projector connected by a serial cable? Or, are the personal computer and the projector connected by a LAN?

When the personal computer and the projector are connected with a LAN, is the projector in the idle mode?

When the message described at the left appears part way through the installation, add-in registration will not be made to PowerPoint; however, the installation of this projector software will be completed normally. To have add-in registration made to PowerPoint, please install this projector software to a personal computer on which PowerPoint 2000/2002 has been installed.

Countermeasures

Install PowerPoint on the personal computer. Or, install Viewer PPT Converter 2.0 on a personal computer on which PowerPoint has been installed.

Countermeasures

Connect the personal computer and the projector with an serial cable or USB cable. Or, check the LAN port (RJ-45) of the projector. Purchase the optional wireless LAN card for wireless LAN connection.

In the [Projector Options]→[Setup] menu of the projector, place checkmark in “Idle Mode”. Connect a power cable to the power outlet and set the main power switch to "I (On)".

<Problem> You want to delete the PowerPoint add-in registration. (PPTC 2.0)

Check Points

Installing this projector software when Microsoft PowerPoint 2000/2002 has already been installed on the personal computer, will result in the automatic registration of the add-in to PowerPoint.

Please see the PowerPoint Help function for the method of deleting PowerPoint add-in registrations. The PowerPoint add-in registration will not be deleted even when this projector software is uninstalled.

6-7

Countermeasures

6. Using the Projector in a Network Digital Projection MERCURY HD

<Problem> Projection to the screen is not possible when using the LAN environment. (DIU 2.0, IEU 1.0)

Check Points

Have LAN cards (i.e., adapters) been put into both the personal computer and the projector?

Have the LAN settings (for both the personal computer and the projector) been completed?

Are a wired LAN and a wireless LAN being used simultaneously with the same personal computer?

Image Express Utility 1.0 does not support the following: (1) Software using Direct X (2) MS-DOS screens (3) Microsoft Office assistant (4) IME (5) Moving pictures

<Problem> Operation of this projector software becomes unstable. (DIU 2.0, IEU 1.0)

Check Points

When the network settings of the projector or personal computer are changed while this projector software (i.e., Dynamic Image Utility 2.0 or Image Express Utility 1.0) is starting or running, the operation of the projector software may become unstable.

Put LAN cards (i.e., adapters) into both the personal computer and the projector.

Perform the LAN settings for both the personal computer and the projector.

Please cancel either one of the LAN connections. When a builtin type is used, set it to "not used" under Properties.

Please restart the projector and the personal computer. When changes are to be made to the network settings, exit the projector software before making the changes.

Countermeasures

An application error occurs under Image Express Utility 1.0 when the screen resolution is changed during Continuous Transmit.

<Problem> The colors become strange when Windows is set to 256 colors. (IEU 1.0)

Check Points

Image Express Utility 1.0 does not support 256 colors. Please set the Windows number of colors setting to High Color

When changes are to be made to the screen resolution, exit Image Express Utility 1.0 before making the changes.

Countermeasures

(15 bit) or higher.

6-8

Digital Projection MERCURY HD 6. Using the Projector in a Network

<Problem> The projector cannot be found with "General search". (IEU 1.0)

Check Points Countermeasures

Are the wireless LAN settings appropriate? Are the channel numbers for the personal computer and the projector set to the same number? When WEP (encryption) has been set, has the same value been set for both the personal computer and the projector?

Please check the access points, the personal computer setting values and the projector [LAN Mode] setting values. When using the infrastructure or 802.11 Ad Hoc, please set to the same character string since SSID distinguishes between upper and lower case characters.

Are radio communication conditions satisfactory? Check whether there are obstacles located between the

Are the TCP/IP settings (e.g., IP address, sub net mask, etc.) of the personal computer and the projector correct?

Are more than one network interface cards (NIC) being used with the same computer?

<Problem> Sometimes it takes a long time for screen transmission from the personal computer to the projector. (IEU 1.0)

Check Points

• Transmission time may be long depending on the image pattern.

• When screens are sent to multiple projectors simultaneously, a larger number of projectors will result in longer transmission times.

• The transmission time may vary depending on the network environment.

• The transmission time may vary depending on the performance of the personal computer as well as other application software that is running at the same time.

access point and the personal computer. Try moving the personal computer closer to the access point.

Check whether the network settings are within the same segment.

Set only the network interface card (NIC) that is connected to the projector to "Valid". For a network card that is not connected to the projector, click the network card name under "Control Panel" → "System" → "Device Manager" → "Network Adapter" and then click [Properties (R)] and set the device usage to "Not used".

Countermeasures

Transmission time will be longer when the resolution of the personal computer and that of the projector differ since there will be an increase in resolution conversion processing.

<Problem> Cannot follow the screen switching processing of the PowerPoint slide show, etc. (IEU 1.0)

Check Points

Smooth screen switching processing or animation effects cannot be followed because in Image Express Utility 1.0, the screen condition of the personal computer is sent to the projector at a fixed time interval.

We recommend that the resolution of the personal computer and that of the projector be set to the same setting value. The resolution of this projector is 1280 x 720 dots. Select the resolution to 1280 x 720 on your PC for sending an image to the projector.

Countermeasures

Use the software with " the PowerPoint screen switching effects, animation effects, and other settings set to "None".

6-9

6. Using the Projector in a Network Digital Projection MERCURY HD

6-10

Using Double Stacking and

Link Mode

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Stacking and Connecting the Projectors 7-2

Adjusting and Registering Signals to Be

Projected .................................................. 7-5

Adjusting the Lens Shift, Zoom and Focus to

Clearly Display all projected patterns .... 7-5

Link Mode Setting .................................... 7-5

List of Menu Items Available in Link

Mode ......................................................... 7-6

7. Double Stacking and Link Mode Digital Projection MERCURY HD

Stacking and Connecting the Projectors

NOTE: Up to three units can be gravity stacked without external support. In some cases, however, two images will not align on the screen correctly. This will become more apparent when displaying small text and detailed graphics.

Master projector

CAUTION: To prevent the projectors from falling, install them in a place and fasten

Slave projector

them in a way with sufficient strength to support the two projectors plus the weight of the lens. (See weight specification in: 10. Appendix.)

Assigning Projector IDs

You can operate multiple projectors with the same remote control. To do so:

1. Select [Projector Options] → [Link Mode] → [Settings] → [Projector ID] and assign an ID number to each projector. See also page 8-18.

2. Select the same communication speed for both the projector.

NOTE: Do not turn on [Master] or [Slave] at this time.

3. On the remote control specify the ID number of the projector to be adjusted. Press and hold the CTL and press MENU (ADDRESS) button to enter the ID number. You can operate the projector assigned the same ID number as the remote control.

NOTE: Specifying "None" for projector ID allows you to operate multiple projectors concurrently. However, some projectors may not synchronize to the other projectors.

7-2

Digital Projection MERCURY HD 7. Double Stacking and Link Mode

Throw Distances for Optional Lenses

Master projector

Screen center

Slave projector

Throw Distance

Refer to the table of throw distances in chapter 2, and ensure that the distance between the projectors and the screen is in the middle part of the recommended range for both lenses.

NOTE: The optional lenses for this projector have different geometrical distortions in wide zoom and tele. Select the best zoom position for stacking where the geometrical distortion is as small as possible.

Stacking the Projectors

Place the projectors at the proper height for best screen to projector relationship. Make sure that all projectors have the same display orientation.

7-3

7. Double Stacking and Link Mode Digital Projection MERCURY HD

Hookup

1. Use commercially available RGB signal cables to connect the RGB output of the master projector to the RGB input of the slave projector until all the projectors are connected.

2. Next, using a commercially available, bi-directional RS-232C cable connect the PC CONTROL OUT terminal of the master projector to the PC CONTROL IN terminal of the slave projector until all the projectors are connected.

3. Turn all the projectors on and roughly make some optical adjustments to each projector.

Example: Composite signal

Distribution amplifer

S-Video cable (not supplied)

Video equipment

NOTE: Connect a commercially available distribution amplifier to both the master and the slave projectors to distribute signal to two outputs of the master and the slave projectors.

S-Video cables (not supplied)

Bi-directional RS232C cable (not supplied)

7-4

Digital Projection MERCURY HD 7. Double Stacking and Link Mode

Adjusting and Registering Signals to Be

Projected

1. Display a desired input signal on the master projector.

2. Make adjustment to the signal, then save (register) adjustments on the master projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

3. Repeat steps 1. and 2. for all signals you want to project. Display all the signals you registered and check. To check, select [Source Select] →[Entry List].

4. Transferring Signal Data in the Entry List

 Transfer the data from the master projector to the slave

projector so that both the projectors have the same data in memory.

Adjusting the Lens Shift, Zoom and Focus

to Clearly Display all projected patterns

1. Display the internal crosshatch test pattern.

NOTE: Use a different single color for each projector. Example: Turn on Green of master projctor, then Red of the slave projector.

2. Adjust the Lens Shift by pressing and holding CTL and pressing the POSITION button on the remote control. For lens shift adjustable range, see page 2-4 and 2-5. Lens Shift Adjustable Range.

3. Zoom the lens in and out by pressing and holding CTL and pressing the MAGNIFY(ZOOM)+/- button on the remote control.

4. Adjust the lens focus by pressing and holding CTL and pressing the FOCUS +/- button on the remote control.

NOTE: If the physical (vertical) alignment of the projector is not correct, adjust the height of the feet. If there is any keystone distortion, use 3D-Reform (Keystone) adjustment to correct and save the settings on each projector. See page 3-4 for 3D-Reform correction.

Link Mode Setting

1. Set the Link Mode on each projector.

NOTE: Be sure to set the Link Mode on the slave projector before the master projector. If you do this first on the master projector, you will not be able to set the Link Mode on the slave projector.

 Select [Projector Options] → [Link Mode] on the master

projector.

 Select [Entry List Copy] and press the ENTER button.

The following will be displayed.

 Select [OK] and press the ENTER button.

The data has been transferred from the master projector to the slave projector.

5. Making Adjustments to the Slave Projector

 Display a desired input signal on the slave projector.

 Make adjustment to the signal, then save (register)

adjustments on the slave projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

 Repeat steps  and  for all signals you want to

project.

Display all the signals you registered and check. To

check, select [Source Select] → [Entry List].

 Select [Projector Options] → [Link Mode] → [Settings].

 First select [Slave] on the slave projector.

 Select [Master] on the master projector.

2. Projecting a Source Image from both the Projectors.

3. Display any signal onto the screen.

4. Check to see if the images on the master projector are displayed in synchronization with the ones on the slave projector while the projectors are in Link Mode.

NOTE: Registering signals is not possible in the Link mode. To register a signal, first set "Link Mode" to "Standalone" on the menu and then repeat the steps from “Adjusting and Registering Signals to Be Projected”. If you select an unregistered signal, the master projector displays the image, but the slave projector doesn't. To view the information on the currently displayed signal, select [Help] → [Source Information].

7-5

7. Double Stacking and Link Mode Digital Projection MERCURY HD

List of Menu Items Available in Link Mode

Available Menu Items NOTE Source Select *1 Sound Menu Link Mode On/Off Timer Sleep Timer Source Information Projector Information

Direct Button NOTE LENS SHIFT Projector *2 FOCUS Projector *2

Remote Control *2

ZOOM Projector *2

Remote Control *2 "MENU/SELECT/ ENTER/CANCEL" Projector

Remote Control POWER Projector *3 POWER ON Remote Control *3 POWER OFF Remote Control *3 INPUT Remote Control *1 MUTE(PICTURE) Remote Control MUTE(SOUND) Remote Control MUTE(OSD) Remote Control

*1: Unregistered signal is displayed on the master projector only and the picture is muted on the slave projector. *2: Adjustment is possible on each projector independently. *3: You can also turn on the slave projector only.

7-6

Using the On-Screen Menus

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Basic Menu Operation........ 8-2

List of Direct Button

Combinations ..................... 8-3

Menu tree ........................... 8-4

Entering Alphanumeric Characters by

Using the Menu ........................................................ 8-7

Menu Descriptions &

Functions ........................... 8-7

Source Select ........................................................... 8-7

Entry List ................................................................. 8-7

Adjust Source ........................................................... 8-7

Picture ..................................................................... 8-8

Video Adjust ........................................................... 8-8

Picture Management ............................................... 8-9

Image Options ....................................................... 8-10

Option Adjust ........................................................ 8-10

Signal Type ........................................................... 8-11

Sound ....................................................................... 8-11

Projector Options .................................................. 8-13

Menu ..................................................................... 8-13

Setup ..................................................................... 8-15

Lamp Settings ....................................................... 8-18

Link Mode .............................................................. 8-18

LAN Mode ............................................................. 8-19

Password ............................................................. 8-23

Security................................................................. 8-24

Tools ......................................................................... 8-25

Timer ..................................................................... 8-25

Capture ................................................................. 8-27

PC Card Files ........................................................ 8-27

ChalkBoard ........................................................... 8-27

Help ........................................................................... 8-27

Contents ............................................................... 8-27

Source Information ............................................... 8-27

Projector Information ............................................ 8-28

Test Pattern ............................................................ 8-28

Ref. Adjust ............................................................... 8-12

3D Reform ............................................................. 8-12

Screen .................................................................. 8-12

Reference White Balance .................................... 8-12

Reference Color Correction ................................. 8-12

Factory Default ........................................................ 8-13

8. Using the On-Screen Menus Digital Projection MERCURY HD

Basic Menu Operation

Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.

1. Press the MENU button on the remote control or projector cabinet to display the Basic, Advanced or Custom Menu.

NOTE: When using a USB mouse, click the mouse button to display the menu. For other operations, do the same way as you use your PC mouse.

2. Press the SELECT projector cabinet to highlight the menu for the item you want to adjust or set.

3. Press the SELECT control or the projector cabinet to select a submenu or item.

4. Adjust the level or turn the selected item on or off by using SELECT

or buttons on the remote control or the projector cabinet.

The on-screen slide bar will show you the amount of increase or decrease.

ADDRESS

MENU/

buttons on the remote control or the

ENTER

button or the ENTER button on the remote

ENTER

Customizing the Menu

The Custom menu can be customized to meet your requirements. Selecting a menu item from the "Custom Menu Edit" list, allows you to custom tailor the menu items to your needs.

1. Select "Custom Menu Edit" to display the "Custom Menu Edit" screen.

2. Use the SELECT press the ENTER button to place a check mark next to an option.

This action enables that feature. Press the ENTER button again to clear the check box.

If you select an item with a solid triangle button on the remote control or the projector cabinet, you can enable all the items within that submenu. Also you can turn on an item within the submenu without placing a check mark on the main menu item.

NOTE: Up to 12 main menu items (within Custom Menu Edit, not including submenu items) can be selected.

3. In order for the changes to take effect, use the SELECT button on the remote control or the projector cabinet to highlight "OK", then press the ENTER button. To cancel the changes, use the SELECT or buttons to highlight "Cancel" and press the ENTER button. To return to the factory default, select "Reset" then press the ENTER button.

NOTE: Once you have selected OK on the Custom Menu Edit screen, you cannot cancel the changes on the Menu screen. However, you can reedit the menu items over again as described in the steps above.

NOTE: If the "Advanced Menu" item has been selected on the Menu mode, you get the "Change Custom menu now?" upon completion of "Custom Menu" editing. In this case, selecting "Yes" then "ENTER" will close all the menus and apply the changes from the Advanced menu to the Custom Menu. If you select "No" then "ENTER" functions, then all menu items will return to the Advanced menu, but your changes will still be available within the "Custom Menu" selection. To display the previously tailored Custom Menu, select "Custom Menu" from the "Menu Mode".

or buttons to highlight your selection and

and press the ENTER

An item "To Advanced Menu" will be added to the bottom of the Custom Menu. Selecting this item and pressing the ENTER button will display the "Advanced Menu" features.

ENTER

5. Changes are stored until you adjust it again.

ENTER

CANCEL

ENTER ......... Stores the setting or adjustments.

CANCEL ..... Return to the previous screen without storing set-

tings or adjustments.

6. Repeat steps 2-5 to adjust an additional item, or press the CANCEL button on the projector cabinet or the remote control to quit the menu display.

8-2

Digital Projection MERCURY HD 8. Using the On-Screen Menus

List of Direct Button Combinations

CTL+ Input (1-10) Switches to any selected signal found in the Entry List.

To enable this combination, you must first assign specific remote buttons for direct input selection in the Entry Edit window.

CTL+ ENTER (While displaying Entry list) Displays the selected signal.

CTL+ CANCEL Returns to the previous menu without closing the slidebar or dialog.

CTL+ UNDO Clears all menus or adjustment/setting screens. All adjustments are saved

automatically.

CTL+ Moves the slidebar or dialog box horizontally or vertically.

While using zoom on remote control: Displays the magnifying glass icon.

CTL+ (BS) Deletes one letter or numeral in the entry screen.

CTL+MUTE OSD Turns off the on-screen display forciblly.

CTL+ MENU (ADDRESS) Displays the remote ID entry window.

CTL+ IMAGE (PROJECTOR) Sequentially selects the Projector Options sub menu.

CTL+ POSITION (LENS) Displays the Lens Shift adjustment window.

CTL+ KEYSTONE (R) Turns on red. Available only when the projector is in the test pattern mode.

CTL+ AMPLITUDE (G) Turns on green. Available only when the projector is in the test pattern

mode.

CTL+ ENTRY LIST (B) Turns on blue. Available only when the projector is in the test pattern mode.

Stores a signal in the Entry List when you are not displaying a test pattern.

CTL+ MAGNIFY (ZOOM) Zooms the lens in and out

CTL+ (FOCUS) Adjusts the lens focus.

CTL+ INFO. Stores lens position settings.

8-3

8. Using the On-Screen Menus Digital Projection MERCURY HD

Menu tree

NOTE: The item appears dimmed on the menu, it is unavailable.

8-4

Digital Projection MERCURY HD 8. Using the On-Screen Menus

NOTE: The shaded item indicates the default setting.

8-5

8. Using the On-Screen Menus Digital Projection MERCURY HD

* When selecting “PC

Card”, the “Network Type” and the “WEP” setting screens appear.

8-6

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Entering Alphanumeric Characters by Using the Menu

Alphabet or numeric characters are used for your IP address or projector name. To enter IP Address or projector name, use the software keyboard. For using the software keyboard, see page 10-10.

Entering Alphanumeric Characters by Using the Remote Control Numeric Buttons

Input alphanumeric characters by selecting one character at a time with the numeric (Source/Input) buttons 1through 10(0) and by moving the cursor with the SELECT button. After finishing the selection of the characters, press the ENTER button. Whenever one of the Source/Input buttons on the remote control is pressed, characters will be rotated.

For example: A → B → C → 1 → A → ...

NOTE: When holding and pressing the CTL button and pressing one of the Source/Input buttons, another group of characters will be rotated. For example: a → b → c → ! → a → ...

The alphanumeric characters corresponding to these Source/ Input buttons are as follows:

Numeric buttons Press Press with CTL

1A → B → C → 1a → b → c → ! 2D → E → F → 2d → e → f → ” 3G → H → I → 3g → h → i → # 4J → K → L → 4j → k → l → $ 5M → N → O → 5m → n → o → % 6P → Q → R → 6p → q → r → & 7S → T → U → 7s → t → u → ' 8V → W → X → 8v → w → x → ( 9Y → Z → / → 9y → z → ? → ) 0* → , → . → 0; → : → + → -

* If you have made an error in the input of a character, use

the SELECT button and enter the correct letter or number.

NOTE: Only numbers can be entered when you use the remote control Source/Input buttons while displaying the Software Keyboard.

Menu Descriptions & Functions

Source Select

Enables you to select a video source such as a VCR, DVD player, laser disc player, computer or document camera depending on what is connected to your inputs. Press the up/down buttons on your remote control or the projector cabinet to highlight the menu for the item you want to project.

* RGB1,2 * Viewer * DVI DIGITAL * LAN * Video * RGB 1 (Video) * S-Video * RGB 1 (S-Video)

Entry List

Displays the list of the entry signals. Use the SELECT buttons on your remote control or the projector cabinet to select the signal and press the ENTER button on the remote control or the projector cabinet to display the Entry Edit Command screen.

Using the Entry List

Making any adjustments to the current picture will automatically register its adjustments to the Entry List. The registered signal can be loaded any time from the Entry List.

NOTE: Up to 100 presets can be registered.

Entry Edit Command

You can edit signals on the Entry List.

Load ............ Enables you to select a signal from the list.

NOTE: This can be done by pressing CTL and ENTER buttons.

Store............ Enables you to store the currently projected

signal.

NOTE: This can be done by pressing CTL and ENTRY LIST buttons.

Cut ............... Enables you to remove a selected signal from

the list and place it on the "clipboard" in the projector.

Copy .............. Enables you to copy a selected signal from

the list and place it on the "clipboard" in the projector.

Paste ........... Enables you to paste the signal placed on the

"clipboard" to any other line of the list. To do this, select "Paste" and then select the line number you want to paste to. Last press ENTER.

8-7

8. Using the On-Screen Menus Digital Projection MERCURY HD

Edit .............. Enables you to change source names or

assign the direct key.

Source Name

Enter a signal name. Up to 18 alphanumeric characters can be used.

Input Terminal

Change the input terminal. RGB1 and RGB2 are available for RGB signal; Video and SVideo are available for composite signal.

Direct key

You can assign specific remote keys for direct signal input selection.

Lock

Set so that the selected signal cannot be deleted when "All Delete" is executed. The changes cannot be saved.

Skip

Set so that the selected signal will be skipped during auto search.

When complete, select OK and press ENTER. To exit without storing setting, select Cancel. Select "Source Name" and press ENTER to display the Source Name Edit window. You can change source name on this window. Press to display the software keyboard, which you can enter alphanumeric characters. See page 10-10 for the key function of the software keyboard.

All Delete ..... This feature enables you to delete all the

registered signals in the Entry List.

Video Adjust (not available for RGB)

Noise Reduction

Select one of the three levels for reducing video noise: Low, Medium or High.

NOTE: The lower the Noise Reduction level, the better the image quality by way of higher video bandwidth.

Color Matrix

Select an appropriate color matrix for your input signal, either HDTV or SDTV.

Y/C Delay

Adjusts Y/C delay level.

YTR Adjustment

Adjusts luminance transient time.

The following buttons are not available for the currently projecting signals:

1) The Cut and Paste buttons on the Entry Edit Command screen

2) The Input Terminal button on the Entry Edit screen

Adjust (Source)


Brightness

Adjusts the brightness level or the back raster intensity.

Contrast

Adjusts the intensity of the image according to the incoming signal.

Saturation

Adjust saturation at the white peak.

Color

Increases or decreases the color saturation level (not available for RGB).

Hue

Varies the color level from +/- green to +/-blue. The red level is used as reference. This adjustment is only valid for Video and Component inputs (not available for RGB).

Sharpness

Controls the detail of the image for Video (not available for RGB).

CTR Adjustment

Adjusts chroma transient time.

8-8

Digital Projection MERCURY HD 8. Using the On-Screen Menus

DigiView - SweetVision

The SweetVision feature provides improvement of contrast using a proprietary detail enhancement technology.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Off ............... Turns off the SweetVision feature

Low ............. Selects low level

Medium ........ Selects medium level

High ............. Selects high level

Split Mode

This feature turns on or off to show the effect of the Sweet Vision.

NOTE: When the projector is turned off, Split Mode will return to Off.

Deinterlace

Turns on or off the deinterlace function for a telecine signal.

On ............... Default standard setting.

Off ............... Select this option if there is any jitter or

artifacts in video.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Telecine

3D Y/C Separation

This option turns on or off the 3 dimension separation feature.

NOTE: This feature is available for NTSC3.58 of Video signal only.

Picture Management

This option allows you to adjust neutral tint for yellow, cyan or magenta. There are 5 factory presets optimized for various types of images, or you can set a user adjustable setting.

Presentation ..

Recommended for making a presentation

using a PowerPoint file.

sRGB ........... Standard color values

Graphic ....... Recommended for graphics

Video ........... Recommended for regular picture such as TV

program

Movie ........... Recommended for movies

User ............ User adjustable

NOTE: When "sRGB", "Graphic", "Video" or "Movie" is selected, the brightness decreases slightly when compared to "Presentation". This is not a malfunction.

User Adjust

Use 3:2 pull down correction to eliminate jitter and artifacts in video.

Auto ............ For film source such as a DVD player

Off ............... For signals other than film sources

NOTE:

• This feature is not available for 480p, 576p and HDTV signals.

• When “Off” is selected in Deinterlace, this feature is not available.

Black Expansion

Minimizes blacks that appear more like shades of gray to provide a true black and white image at high contrast.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Contrast Enhancement

This option allows you to provide a high contrast image in a bright scene.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

When selecting the user adjustable presetting (User), the submenu will be displayed. You can customize each gamma or color. To do so, first select [Setting] and press the ENTER button, and then proceed the following steps.

8-9

8. Using the On-Screen Menus Digital Projection MERCURY HD

Selecting Gamma Correction Mode

Use the or buttons to choose one mode from the seven listed:

Video-Lo ..... Video originated material in a Theatrical

environment with low ambient light

Film-Lo ......... Film originated material in a Theatrical

environment with low ambient light

Graphics ..... Emphasising detail - spreadsheets,

Powerpoint slides etc in high ambient light

Media ........... High saturation bright colours in high ambient

light

Video-Hi ...... Video originated material in a Theatrical

environment with high ambient light

Film-Hi .......... Film originated material in a Theatrical

environment with high ambient light

Download ... User downloadable from a PC - Using DP

Gamma Designer software

Selecting Color Correction

Adjusts red, green, blue, yellow, magenta, cyan and color gain each independently to correct the tint on whole screen.

Adjusting Color Temperature

This feature adjusts the color temperature using the slide bar. Checking "Color Temperature" enables the color temperature slide bar.

Adjusting White Balance

Press the White Balance button to access the Contrast/ Brightness adjustment for each R, G, and B.

NOTE: The White Balance is not available for Viewer and LAN.

Selecting Base Setting

This feature allows you to use color correction or gamma values as reference data to optimize for various types of images. You can select one of the following five settings.

• Presentation

• sRGB

• Graphic

• Video

• Movie

Image Options

Pixel Adjust

Displays the Clock and Phase adjustments.

Clock ........... Use this item to fine tune the computer image

or to remove any vertical banding that might appear.

Phase .......... Use this item to adjust the clock phase or to

reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) Use the and buttons to adjust the image.

Use "Phase" only after the "Clock" is complete.

Position

Adjusts the image location horizontally and vertically using the SELECT and buttons.

Aspect Ratio

NOTE: To ensure correct display for ALL sources, the Aspect Ratio must be set to 4:3.

This projector has a native aspect ratio of 16:9 and is targetted at presenting wide-screen images. True 16:9 sources will be displayed correctly with the aspect ratio set as shown above. For sources with other aspect ratios, refer to the signal list table on page 10-8 to see how the image will be displayed.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the aspect ratio is set to “1.33:1 (4:3)”.

NOTE: When “S2” is selected in “S-Video Mode Select” and the S2 signal is detected, this feature is not available.

Resolution

This allows you to activate or deactivate the Advanced AccuBlend feature.

Auto ............ Turns on the Advanced AccuBlend feature.

The projector automatically reduces or

enlarges the current image to fit the full

screen.

Native .......... Turns off the Advanced AccuBlend feature.

The projector displays the current image in its

true resolution.

NOTE: * When "Resolution" is set to "Native", "3D Reform", "Aspect Ratio",

"Screen" and "Overscan" are not available.

* While you are displaying an image with higher resolution than the

projector's native resolution (SXGA+ or XGA), "Resolution" is not available.

Overscan

Select overscan percentage (0%, 5%, 10% and 25%) for signal.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the stored settings and adjustments are invalid.

NOTE: The "0%" option may not be available depending upon the input signal.

Video Filter (not available for Video, Component, Viewer and LAN)

This function reduces video noise.

Off ............... The filter is removed.

Less ............ The low-pass filter is applied partially.

More ............ The low-pass filter is applied fully.

Blanking

This feature allows you to mask any unwanted area of the screen image. Adjust the Top, Bottom, Left or Right blanking with the SELECT

or button.

8-10

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Option Adjust

Clamp Timing

According to the signal, this function sets the detection position (i.e., clamp position) of the black level reproduction of the analog input signal. Normally this is not used.

Mode 0-4 ..... Select the appropriate one.

Adjust .......... This permits the video clamp position for each

signal to be set. Use "Adjust" when a clamp timing error occurs at the time of special analog signal reception such as 1080P. Note that "Adjust" is not valid for doubler signals such as NTSC and PAL.

To delete the "Clamp Timing" setting screen, select the SELECT button and press the ENTER button, or press the remote control CANCEL button.

Sync Protection

Signal Level

R/G/B, Y/Cb/Cr or Y/Pb/Pr Gain: Adjust RGB, Component or HDTV Gain to match multiple projector color uniformity.

When a VCR, DVD, or some other equipment that supports Copyguard (a copy prevention system) is played back, the screen may be displayed in a curved manner. Adjustments are made in such circumstances. Use the SELECT or button to adjust the VD level.

VD Delay

Adjustment: This feature is used to correct vertical jitter of a signal.

NOTE: When connecting with a scan converter: If an image from the scan converter is not correctly displayed, adjust to select the best level point so that the image is displayed correctly.

Field Invert: This feature is used to correct diagonal lines of a nonstandard interlaced signal when they appear jaggy. Invert the odd or even field of a video signal.

Signal Type

RGB/Component

Select either the RGB signal type or the Component signal type.

RGB ............. RGB signal

Component .. Component signals such as Y/Cb/Cr, Y/Pb/Pr

NOTE: This feature is available on RGB 1 and 2 only. If you do not get a better picture even when you set "Signal Select" to "Component" in Setup, set this to "Component".

Sound

Volume/Bass/Treble

Controlling Volume, Bass and Treble. Adjusts the sound, bass and treble level of the AUDIO OUT signal (RCA).

8-11

8. Using the On-Screen Menus Digital Projection MERCURY HD

Ref. Adjust

Using DigiScale - 3D Reform

This feature corrects trapezoidal distortion so that the projected image is rectangular. Two options are available for correcting procedures. You can save adjustment settings by using the 3D Reform Save option on Setup (See page 8-16).

Cornerstone

See page 3-4.

* When "Resolution" is set to "Native", "Cornerstone" and "Keystone" are not available.

Keystone

Position

This feature adjusts the vertical position of the image when viewing video with an aspect ratio selected. When some aspect ratios are selected in Image Options, the image is displayed with black borders on the top and bottom. You can adjust the vertical position between top and bottom.

NOTE: This option is available only when "1.78:1 (16:9)", "1.85:1" and "2.35:1 " are selected in Screen Type and Aspect Ratio. However, to ensure correct display for ALL sources, the Screen Type must be set to 4:3.

NOTE: During 3D Reform adjustment, "Screen Type" and "Screen Position" may not be available. To make available, first reset the 3D Reform data and then do settings again. Secondly repeat the 3D Reform adjustment. Changing "Screen Type" and "Screen Position" can limit 3D Reform in its adjustable range.

Reference White Balance [Ref. White Balance]

1. Press the SELECT or button to adjust the horizontal keystone.

2. Press the SELECT or button to select "Vertical".

3. Press the SELECT

4. After completing, press the ENTER button. This will return to the menu screen.

or button to adjust the vertical keystone.

Screen

Screen Type

NOTE: To ensure correct display for ALL sources, the Screen Type must be set to 4:3.

NOTE: When "Resolution" is set to "Native", this selection is inactive.

Brightness R/G/B, Contrast R/G/B

This feature adjusts the white balance that is used as a reference. This adjustment affects all sources.

Reference Color Correction [Ref. Color Correction]

Red/Green/Blue/Yellow/Magenta/Cyan/Color Gain

This option allows you to adjust red, green, blue, yellow, cyan, magenta or color gain.

8-12

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Factory Default

All Data /Current Signal

The Factory Default feature allows you to change adjustments and setting to the factory preset for source.

All Data........ Reset all the adjustments and settings for all

the signals to the factory preset except Language, Background Logo, Communication Speed, Projector ID, Lamp Settings, LAN Mode, Password, Security, Remaining Lamp1/ 2 Time, Lamp 1/2 Hour Meter, Filter Usage and Projector Usage.

Including Entry List:

Also deletes all the signals in the Entry List and returns to the factory preset.

NOTE: Locked signals in Entry List cannot be deleted.

Current Signal

.................... Resets the adjustments for the current signal

to the factory preset levels. All the items in "Adjust (Source)" and "Sound"

can be reset.

NOTE: Locked signals in Entry List cannot be reset.

Projector Options

Menu Page 1

Selecting Menu Language [Language]

You can choose one of seven languages for on-screen instructions. The options are: English, German, French, Italian, Spanish, Swedish and Japanese.

Selecting Menu Mode [Menu Mode]

This feature allows you to select 4 menu modes: Advanced, Custom, Basic and Service Menu.

Advanced Menu ...... This is the menu that contains all the

available menus and commands.

Basic Menu .............. This is the basic menu that contains

minimum essentials of menus and commands.

Custom Menu ........... This is the menu that you can

customize using the Custom Menu Edit to fit your needs.

Service Menu ........... For service personnel only.

Customizing the Menu [Custom Menu Edit]

See page 8-2 for instructions about how to customize the Menu.

8-13

8. Using the On-Screen Menus Digital Projection MERCURY HD

Selecting Menu Display Time

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The preset choices are "Manual", "Auto 5 sec", "Auto 15 sec", and "Auto 45 sec". The "Auto 45 sec" is the factory preset.

Manual ......... The menu can be turned off manually.

Auto 5 sec .. The menu will automatically be turned off in 5

seconds if no buttons are pressed within 5 seconds.

Auto 15 sec The menu will automatically be turned off in

15 seconds if no buttons are pressed within 15 seconds.

Auto 45 sec The menu will automatically be turned off in

45 seconds if no buttons are pressed within 45 seconds.

Selecting Date Format

Eight display formats can be selected. This date format sets the current date that appears on the upper left corner of the screen.

Setting the Current Date and Time [Date, Time Preset]

You can set the current time, month, date, and year.

1. Type in date. Enter month, date and year in this order using Source/Input buttons on the remote control. Month and date must be entered in two digits. For example, to display "February", press "0" and "2".

2. Type in time. Time is expressed in the 24-hour format. For example, 6:00 p.m. is entered as 18:00.

3. Select "OK" and press ENTER. Closing the window allows the clock to start. The current year, month, date and time are displayed on the top of the screen.

Menu Page 2

Display Select

You can choose the desired status information to be displayed on the screen.

The information selections are: Date, Time, Input Terminal, Source Name, Projector ID and Message.

The Message selections are: Lamp life warning, lamp error, 3-minute before power off time, clearn filter, lock in Security and “Wait a moment”.

Menu Page 3

NOTE: The projector has a built-in clock. The clock will keep working for about 3 days after the main power is turned off. If the main power is off for 3 days or more, the built-in clock will cease. If the built-in clock ceases, set the date and time again. The built-in clock will not cease while in the standby or idle condition.

Selecting Menu Color [Menu Color Select]

You can choose between two color modes for menu color: color and monochrome.

Selecting Mouse Pointer Icon [Mouse Pointer]

This enables you to select from nine different mouse icons when using a USB mouse.

NOTE: There may be cases where the Pointer function is not available (ex. a non-interlace signal at 15kHz such as video game.)

8-14

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Setup

Setup Page 1

Selecting Projector Orientation [Orientation]

This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Selecting a Color or Logo for Background [Background]

Use this feature to display a blue/ black screen or logo when no signal is available. The default background is "Blue". You can change the logo screen using the PC Card Files feature. See pages 4-4.

Setting RGB 1 or 2 for RGB OUT [RGBOUT Terminal]

This option allows you to determine which RGB source is output from the RGBOUT connector during Idle mode.

Last ............. The signal from the last RGB input will be

output to the RGBOUT connector.

RGB 1 .......... The signal from RGB1 will be output to the

RGBOUT connector.

RGB 2 .......... The signal from RGB2 will be output to the

RGBOUT connector.

NOTE:

• The AUDIO OUT jack (RCA) will not output sound during the Idle

mode.

• The RGB signal can be output even when Video, S-Video, Viewer and

LAN is selected.

• When the DVI (DIGITAL) input is selected, the RGB OUTPUT terminal

will not output signal.

Setting Closed Caption

This option sets several closed caption modes that allows text to be superimposed on the projected image of Video or S-Video.

CAPTION 1-4

Text is superimposed.

TEXT 1-4 ..... Text is displayed in full screen.

OFF ............. This exits the closed caption mode.

Setup Page 2

Setting Viewer Options

Show Folder List: If this option is checked, when the Viewer source is selected on the projector, the folder lists will be displayed and allows you to select the presentation from a PC card.

Auto Play: If this option is checked, when the Viewer source is selected on the projector any given slide will start to play automatically.

Auto Play Interval: You can specify interval time between 5 and 300 seconds.

NOTE: The Auto Play Interval time set on "Slide Show Settings" of the Dynamic Image Utility 2.0 overrides the one set here.

Manual Play: Views a slide manually when the Viewer source is selected.

Selecting Capture Options

(available for JPEG only)

These options are used for the Capture function that you can select from Tools. You have three options for JPEG compression quality: High quality, Normal and High Compression.

High Quality.............. Gives quality of JPEG a priority.

Normal ...................... Gives normal JPEG quality.

High Compression.... Gives compression a priority.

Setting Mouse Button and Sensitivity

This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only. Choose the settings you want:

Mouse Button ........... "Right Hand" or "Left Hand"

Mouse Sensitivity ..... "Fast", "Medium" or "Slow"

Sync Termination (RGB1)

This function is used to select the impedance of the sync signal. Select " 75Ω" or "Hi-Z".

NOTE: This should be "75Ω" for normal use. Select the "Hi-Z" when inputting a TTL signal.

8-15

8. Using the On-Screen Menus Digital Projection MERCURY HD

Selecting Operation Mode

Set the operation mode of the USB mouse connected to the USB port (MOUSE/HUB) on the projector

Auto ............ Depending on connection of the USB port

(PC) on the projector and a USB port (type A)

on your PC, the USB mouse is operated in the

following way:

* When connecting the projector to your PC

The USB mouse connected to the projector can be used as a PC mouse.

* When not connecting the projector to your

PC The USB mouse connected to the projector

can perform menu operation of the projector.

Projector ...... The USB mouse connected to the projector

can perform menu operation of the projector.

Setup Page 3

Setup Page 4

Enabling Auto Adjust [Auto Adjust]

When "Auto Adjust" is set to "On", the projector automatically determines the best resolution for the current RGB input signal to project an image using Digital Projection's DigiScale Intelligent Pixel Blending Technology. The image can be automatically adjusted for position and stability; "Horizontal Position", "Vertical Position", "Clock", "Phase", and "Resolution".

On ............... Automatically adjusts image "Horizontal

Position", "Vertical Position", "Clock", "Phase" and "Resolution".

Off ............... User can adjust the image display functions

("Horizontal Position", "Vertical Position", "Clock", "Phase" and "Resolution") manually.

Selecting Signal Format

RGB1/2 Allows you to choose "RGB" for an RGB source such as a computer, or "Component" for a component video source such as a DVD player. Normally select "RGB/Component" and the projector automatically detects an either incoming signal. However there may be some component signals that the projector is unable to detect. If this is the case, select "Component". Select "Scart" in RGB 1 or 2 for the European Scart.

VIDEO, S-VIDEO and RGB1 (Video and S-Video) This feature enables you to select composite video standards manually. Normally select "Auto". Select the video standard from the pulldown menu. This must be done for Video and S-Video separately and "VIDEO" or "S-VIDEO" for RGB1 connector.

Enabling Auto Start [Auto Start]

Turns the projector on automatically when the power cable is inserted into an active power outlet and the main power switch is turned on. This eliminates the need to always use the "Power" button on the remote control or projector cabinet.

Enabling Power Management [Power Management]

When this option is on and there is no input for five minutes or more, the projector will automatically turn itself off.

Enabling Power Off Confirmation [Power Off Confirmation]

This option determines whether a confirmation dialog for turning off the projector will appear or not.

Enabling Horizontal and Vertical Keystone Correction Save [3D Reform Save]

This option enables you to save your current 3D Reform settings. Saving your change once affects all sources. The changes are saved when you turn off the projector.

8-16

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Enabling Last Memory [Last Memory]

The projector stores the last signal data in memory for each input (RGB1, RGB2, DVI DIGITAL, Video, S-Video and Slot 1/2). This feature will reduce switching time between sources. If a commercially available switcher is connected, turning on this feature may cause the image to appear incorrectly. Should this happen, turn this feature off to mute the screen during switching.

Enabling Idle Mode [Idle Mode]

The projector has two standby modes: Standby and Idle. Standby mode consumes less power than the idle mode. The projector is preset for Standby at the factory. When this check box is turned on, you allow the RGB OUT connector to output RGB signal during Idle mode.

NOTE: * The RGB OUT connector will not output signal during the Standby

mode.

* Via the USB interface the projector can be turned on from your PC

using Dynamic Image Utility 2.0 during the Standby or Idle mode. On the LAN connection the projector can be controlled or monitored from your PC using Dynamic Image Utility 2.0 only in the Idle mode.

* The HTTP server functions are not available during Standby mode.

See page 10-11.

Turning on or off the Back Light [Back Light]

This function turns on or off the backlight of the buttons on the cabinet.

NOTE: The Back Light feature is available in the normal operating mode or the idle mode only.

S-Video Mode Select:

This feature is used to select the S-Video signal detection mode. This allows identifying of the S-Video signals with different aspect ratio (16:9 and 4:3).

Off ............... Does not identify any S-video signal.

S2 ................ Identifies the 16:9 or 4:3 signal.

NOTE: The Aspect Ratio is not available when S2 signal is detected.

Resetting the Filter Usage Hours [Clear Filter Usage Meter]

Resets the filter usage back to zero. Pressing this button appears a confirmation dialog box. To reset the filter usage hours, press "OK".

Setup Page 6

Enabling Screen Trigger [Screen Trigger]

When "Screen Trigger" is selected and the projector is powered ON, the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up. Use a commercially available stereo mini cable.

Setup Page 5

Remote Sensor

This option determines which remote sensors on the projector are enabled in wireless mode. The options are: front, rear, right, or left. All checked boxes indicate that they can accept the infrared signal from the supplied remote control.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (D-Sub 9 Pin). It supports data rates from 4800 to 38400 bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

Enabling and Disabling Projector ID

Each projector needs its own unique addresses when used in serial communication mode. You can choose one of 64 unique address using the spin box. First select Enable. Keep pressing button increases the number. To make your setting available, select OK.

Selecting Default Source [Default Source Select]

You can set the projector to default to any one of its inputs each time the projector is turned on.

Last ............. Sets the projector to default to the previous or

last active input each time the projector is turned on.

Auto ............ Searches for an active source in order of

RGB1 → RGB2 → DVI(DIGITAL) → Video → SVideo → Viewer → Slot 1 → Slot 2 → RGB1(Video) → RGB1(S-Video) → RGB1 and displays the first found source.

Select .......... Displays the selected source input every time

the projector is started up. Select an input from the pull-down menu.

8-17

8. Using the On-Screen Menus Digital Projection MERCURY HD

Disabling the Cabinet Buttons [Control Panel Key Lock]

This option turns on or off the Control Panel Key Lock function.

NOTE: * This Control Panel Key Lock does not affect the remote control

functions.

* When the cabinet buttons are disabled, pressing and holding the

CANCEL button for about 10 seconds will change the setting to enable.

Lamp Settings

Lamp Mode

This feature enables you to select two modes of the lamp: Normal and Eco. The lamp life can be extended by using the Eco mode.

Normal Mode . This is the default setting (100% Brightness).

Eco Mode .... Select this mode to increase the lamp life

(80% Brightness).

NOTE: The Mercury HD projector is designed to accept only one lamp (Lamp 1), so the Lamp Select and Interval settings below will be ignored.

Lamp Select

This feature allows you to select which lamp to be used.

NOTE: This option is not displayed in the Basic menu.

* Changes to these options will not take effect for 90 seconds

immediately after the lamp is turned off.

* The lamp cannot be turned off for 60 seconds immediately after

the lamp is turned on. Changes to these options cannot take effect until then.

Lamp Type:

The lamp type you use and its information are displayed here. The information displayed here is: Light on or off.

Link Mode

Link Mode Settings Page

Selecting Standalone/Master/Slave

This feature is used for multiple projector connection. The master projector is set to Master. The other slave projectors are set to Slave. When not using Link mode, set to Standalone. See page 7-5 for setting up for double stacking in link mode.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (D-Sub 9 Pin). This is the same procedure as in “Page 6” of “Setup”.

Enabling and Disabling Projector ID:

Each projector needs its own unique addresses when used in serial communication mode. This is the same procedure as in “Page 6” of “Setup”.

Copying Signals in the Entry List

Press the Entry List Copy button to copy all of the signals recorded in the Entry List from one projector to another.

Dual ............. Select to use the two lamps at the same time

to increase brightness.

Lamp1/2 ...... Select to use one lamp of the two lamps.

(Lamp 1 on the right side and Lamp 2 on the

left side when viewed from the front)

Interval

This allows you to specify the time for switching between the two lamps alternately. This option is available only when “Lamp1” or “Lamp2” is selected. When Auto is selected and one lamp has reached the end of its usable life, the other lamp is turned on. The lamp cannot be turned off for 60 seconds immediately after the lamp is turned on.

NOTE: This option is not displayed in the Basic menu.

8-18

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Link Mode Status Page

Displaying Current Status of Link Mode

When selecting the tab "Status", you will get the following dialog box.

Master I D ................. Indicates the Master projector

Status ....................... Indicates the status of the master

projector

Connected PJ ........... Indicates number of connected slave

projectors

Slave No ................... Indicates serial number of the slave

projector

I D ............................. Indicates I D of a slave projector

Status ....................... Indicates the status of the slave

projector

Reconnect button .... Confirms connection of all linked

projectors

LAN Mode

This feature allows you to set various setting items when the projector is used on your network. Consult with your network administrator about these settings.

NOTE:

• Connect an Ethernet LAN cable to the LAN port (RJ-45) of the projector for network connection.

• Digital Projection's optional wireless LAN card is available. For more information on inserting or ejecting a LAN card, see page 5-2.

• Either PC Card Slots 1 or 2 can accept LAN card. If two LAN cards are inserted into both PC card slots, the first inserted one is effective.

• The standard built-in LAN feature and a commercially LAN card are available for network connection, but only one can be used at a time (mutual exclusion).

CAUTION: Make sure that the LAN card is removed during Standby mode (NOT Idle mode)or with the main power off.Failure to do so may cause damage to the LAN card,or may cause the projector to malfunction.Should a malfunction occur, turn off the main power and turn it back on.

LAN Mode Status Page

Status items

Running .................... The projector is now working

Cooling Lamp ........... The fan is now cooling the lamp

Standby .................... The projector is in stand-by or idle.

Communication Error ....

A communication error has occurred

Connecting ...............The projector is now verifying for

connection

Error Standby ........... An error caused the projector to enter

the stand-by mode.

LAN Card

This option selects to use either LAN feature between the standard LAN port (RJ-45) and an optional LAN card inserted in the PC CARD slot.

Projector Name

Specify a unique projector name. Press to display the software keyboard and type in. Up to 16 alphanumeric characters can be used.

IP Address ............... Indicates the IP address of the

projector.

Subnet Mask ............ Indicates the subnet mask of the

projector.

Gateway .................. Indicates the gateway of network

connected to the projector.

MAC Address .......... Indicates the MAC address of the LAN

card.

Advanced ................ Displays the IP Address setting

window.

Reconnect ............... Use this button to connect the

projector to a network.

NOTE: Once you have selected "OK" on the Advanced screen, you cannot cancel the changes using "Cancel" on the LAN Mode screen.

8-19

8. Using the On-Screen Menus Digital Projection MERCURY HD

Advanced

IP Address

An IP address can be automatically assigned to this projector by your DHCP server. If your network does not automatically assign IP address, ask your network administrator for an address, and then register it manually.

Automatic .... Automatically assigns an IP address to the

projector from a DHCP server.

Manual ......... Provides a space for you to register the IP

address or subnet mask number obtained from your network administrator.

IP Address .. Set your IP address. Press to display the

software keyboard and type in 12 numeric characters.

Subnet Mask Set your subnet mask number. Press to

display the software keyboard and type in 12 numeric characters.

Gateway ..... Set the default gateway of the network

connected to the projector. Press to display the software keyboard and type in 12 numeric characters.

Checking this box will make the set default route valid.

When data is sent from the LAN card, the transfer location will be searched according to the previously set routing information; however, when the transfer location has not been found as a result of the search, the data will be sent to the device that holds the IP address set here. The IP address that is set here must be one that can be identified by a search of the routing information.

DNS Configuration

.................... Type in the IP address of DNS server on the

network connected to the projector. 12 numeric characters are used.

Domain Name

.................... Type in domain name of the network

connected to the projector. Up to 60 alphanumeric characters can be used.

Network Type (required for wireless only)

Mode:

Select communication method when using wireless LAN.

Infrastructure

.................... Select this option when communicating with

one or more equipment connected to the wireless or wired LAN network via an access point.

802.11 Ad Hoc

.................... Select this option when using the wireless

LAN to communicate with a computer in a one-to-one correspondence. This is a method that meets the IEEE802.11 wireless standard.

Ad Hoc ........ Select this option when using the wireless

LAN to communicate with a computer in a one-to-one correspondence.

Easy Connection

.................... This allows you to easily set up wireless LAN

connection. See the Software Utility Installation section for more information.

See chapter 6 “Using the Projector in a Network”.

SSID (Network name):

Enter an identifier (SSID) for wireless LAN. Communication can be done only with equipment whose SSID matches SSID for your wireless LAN. Up to 32 alphanumeric characters can be used (Case sensitive).

NOTE: To disable SSID, select a space (null) or "ANY"(All caps).

Channel:

Set this option when selecting [802.11 Ad Hoc] or [Ad Hoc] in [Mode]. Select a channel number from the pull-down list. The channel must match for all wireless devices communicating on your wireless LAN.

NOTE: Channels in the pull-down list are different depending on which country you live in.

TX rate:

Select a wireless transmission speed. Normally leave it as Automatic. Try another transmission speed when the connection fails.

8-20

Digital Projection MERCURY HD 8. Using the On-Screen Menus

WEP (for Wireless only)

Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption, specify WEP key.

Disable ........ Will not turn on the encryption feature. Your

communications may be monitored by someone.

64bit ............ Uses 64-bit datalength for secure

transmission.

128bit .......... Uses 128-bit datalength for secure

transmission. This option will increase privacy and security when compared to use of 64bit datalength encryption.

NOTE: The WEP settings must be the same as communication devices such as PC or access point in your wireless network. When you use WEP, your image transmission speed will slow down.

Key Select:

Selects one key from the four keys below when selecting [64bit] or [128bit] in [WEP].

Key1-4:

Enter encryption key when selecting [64bit] or [128bit] in [WEP]. Up to 5 characters can be set in 64 bit and up to 13 characters in 128 bit. Press the “HEX” button to change to “ASCII” to set the key in ASCII digit. You can toggle this button between “ASCII” and “HEX”.

The key can also be set in hexadecimal digit. * Hexadecimal uses 0 to 9 and A to F. * Up to 10 characters can be set in 64 bit and up to 26

characters in 128 bit.

NOTE: Only numbers can be entered when you use the remote control Source/Input buttons.

DHCP

Depending on your network environment, acquiring an IP address from a DHCP server may not be possible. Should this happen, consult your network administrator to make changes to the following settings.

Host Name option

Select whether or not to add option hostname for DHCP.

None .........................Not add

Request .................... Add at the time of DHCP_REQUEST.

Discover/Request .... Add at the time of DHCP_DISCOVER

and DHCP_REQUEST.

Host Name

Type in a hostname. This field is available only when “Request” or “Discover/Request.”

Client-identifier option

Select whether or not to add option client identifier for DHCP.

None .........................Not add

Request .................... Add at the time of DHCP_REQUEST.

Discover/Request .... Add at the time of DHCP_DISCOVER

and DHCP_REQUEST.

Use MAC address

Turn on to use MAC address for Client-identifier.

Client-identifier

Type in a client identifier.

8-21

8. Using the On-Screen Menus Digital Projection MERCURY HD

LAN Mode Mail Page

NOTE: To the Mail Alert feature on wireless LAN connection, select "Infrastructure" for "Mode" in "Network Type." .

Alert Mail:

Checking this box enables Alert Mail feature. This option notifies your computer of an error message via e-mail when using wireless or wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the projector.

Test Mail:

Send a test mail to check if your settings are correct.

NOTE: If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correctly set.

NOTE: Unless any one of the "Sender's Address", "SMTP Server's Name" or "Recipient's Address 1-3" is selected, "Test Mail" is not available.

NOTE: Be sure to highlight “OK” and press the ENTER button before executing “Test Mail”.

Sample of a message sent from the projector:

The lamp is at the end of its usable life. Please replace the lamp.

Projector Name: X X X X Lamp 1 Hour Meter: xxxx [H] Lamp 2 Hour Meter: xxxx [H] Projector Usage: xxxxxx [H]

Sender's Address:

Specify the senders address. Use the Software keyboard. Up to 60 alphanumeric and symbols characters can be used. See "Using Software Keyboard" in Appendix for more details.

SMTP Server Name:

Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters can be used.

Recipient's Address 1 to 3:

Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.

8-22

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Password

A password can be set for your projector to avoid operation by an unauthorized person.

There are two password options: one for menu and the other for logo. When a password is set, doing any one of the following four operations will display the Password input screen.

For Menu:

* Changing the menu to Advanced

* Editing the custom menu

For Logo:

* Changing the background

* Changing the logo data in PC Card Files

Procedures for Password setting apply to both Menu and Logo.

Entry

To assign your password:

NOTE: Up to 15 alphanumeric characters can be assigned.

• Only numbers can be entered when you use the remote control Source/Input buttons.

1. Type a password.

Highlight "Entry" and press the ENTER button. The "Enter the Password screen" will be displayed.

Make sure that " The Software keyboard appears. Use the Software keyboard to type a password and then highlight "OK" on the “Enter the Password” screen and press the ENTER button. The [Confirm Password] screen will be displayed.

2. Type the same password again. Highlight "OK" on the “Enter the

Password” screen and press the ENTER button.

" is highlighted and then press the ENTER button.

Delete

To delete your password:

1. Highlight [Delete] and press the ENTER button. The "Current Password" screen will be displayed.

2. Use the Software keyboard to type your password. Highlight "OK" on the “Current Password” screen and then press the ENTER button.

Your password will be deleted.

In case you forget your password, follow the steps below to delete it.

1. Select the Advanced menu from the Basic menu. The "Password" entry screen will be displayed.

2. Use the Software keyboard to type "1111". Highlight "OK" on the “Password” entry screen and then press the ENTER button. The "Password Warning!!" message will be displayed.

3. Use the Software keyboard to type "3333". Highlight "OK" on the “Password” entry screen and then press the ENTER button. The "Password Warning!!" message will be displayed.

4. Use the Software keyboard to type "5555". Highlight "OK" on the “Password” entry screen and then press the ENTER button. The "Delete Password. Are you sure? Yes/No" dialog box will be displayed.

5. Use the SELECT ENTER button.

or button to highlight "Yes" and press the

Your password will be deleted.

Your password will be assigned.

8-23

8. Using the On-Screen Menus Digital Projection MERCURY HD

Security

The Security function enables you to protect your projector so that the projector will not project a signal unless you enter a keyword. There is also an option to lock the projector by using a registered PC card as a protect key. Once you have registered your PC card as a protect key, you are required to insert the registered PC card into the PC card slot of the projector each time you turn on the projector. You can enable the Security function by using a keyword only.

Enable/Disable ......... This turns the Security function on or

off.

Keyword .................. Enter an appropriate keyword when

you use the Security function. (Up to 10 characters can be used.) The Security function is available only

when your keyword is entered.

Use Protect key ....... Check this box to lock your projector

when using a PC card. To use a keyword without a PC card, do not

check this box.

Drive ......................... Switches between PC Card slots.

Read .........................Reads data of a PC card.

The Security function is not available

unless at least one PC card is

registered. (if the “Use Protect key”

check box is selected)

Up to 5 PC cards can be registered.

Delete ....................... Deletes data of a registered PC card.

To set up a keyword to enable the Security function without using a registered PC card.

To register a PC card as a protect key.

1. Insert a PC card into the PC card slot of the projector.

2. Use the SELECT the ENTER button. A check mark will be placed.

3. Use the SELECT button.

Data of the PC card will be read into the projector.

4. Use the SELECT ENTER button.

Downloaded data will be registered and be displayed in the list window.

5. Use the SELECT software keyboard to enter a keyword.

NOTE: To use a PC card as a protect key, you must also set up a keyword. Please make a note of your keyword.

button to select “Use Protect key” and press

button to select "Read" and press the ENTER

button to select "Register" and press the

button to select "Keyword" and use the

This completes registration of your PC card.

To enable Security, use the SELECT button to select "Enable" and use the SELECT button to select "OK" and "Security function will be enabled. An “Are you sure?" message will appear. Use the SELECT button and press the ENTER button. The Security function takes effect.

To turn on the projector when Security is enabled (when using your keyword only).

NOTE: Only numbers can be entered when you use the remote control Source/Input buttons.

1. Press and hold the POWER button for a minimum of two seconds.

The projector will be turned on and display a message to the effect that the projector is security-protected.

2. Select [Projector Options] ENTER button.

The Release Code input screen will be displayed.

3. Enter your keyword in the Release Code input screen. You can view the projected image.

NOTE: Do not forget your keyword. However, if you forget your keyword, Digital Projection or your dealer will provide you with your Release Code. See more information at the end of this section.

→

[Security] from the menu and press the

To turn on the projector when Security is enabled (when using a PC card as a protect key).

1. Insert your registered PC card into the PC card slot.

2. Press and hold the POWER button for a minimum of two seconds. The projector will turn on and then recognize the PC card. Once the image has been projected, it will stay on without the PC card.

NOTE: Only numbers can be entered when you use the remote control Source/Input buttons.

1. Use the SELECT software keyboard to enter a keyword.

NOTE: Please make a note of your keyword.

2. Use the SELECT button to select “Enable” and use the SELECT

button to select “OK”, then the Security function will be

enabled. An “Are you sure?” message will appear. Use the SELECT

button and press the ENTER button.

The Security function takes effect.

button to select “Keyword” and use the

• The security disable mode is maintained until the main power is turned off (by setting the main power switch to "O" or unplugging the power cable).

In the following cases you will be asked to check the protect key or input the keyword:

(1) When "OK" is selected at an image for which security is set and

the power is turned off then back on

(2) When the main power is turned off then back on while the

security function is enabled

(3) When you attempt to display an image for which security is set

while the security function is enabled

• Blanks (spaces) cannot be used in the Keyword section.

8-24

Digital Projection MERCURY HD 8. Using the On-Screen Menus

To delete PC card data you registered.

1. Use the SELECT button to select "Delete" and use the SELECT button to select the list window.

2. Use the SELECT

delete.

3. Press the SELECT

button.

The PC card data will be deleted.

button to select the PC card data you wish to

button to select "Delete" and press the ENTER

If you've lost your registered PC card, proceed as follows:

NOTE: Digital Projection or your dealer will provide you with your Release Code in exchange for your registered keyword and Request Code.

1. Press and hold the POWER button for a minimum of two seconds.

The projector will be turned on and display a message to the effect that the projector is security-protected.

2. Select [Projector Options]

ENTER button.

The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric characters).

3. Enter your Release Code in the Release Code Input screen.

* If the projector is turned on by entering the Release Code, your

Security will be disabled.

NOTE: * Some types of PC cards cannot be registered as your protect key. * It is recommended that you register two or more PC cards in case you

lose or damage your registered PC card.

* Formatting your registered PC card will disable your protect key

function.

→

[Security] from the menu and press hte

Tools

Provides tools for setting On/Off timer, sleep timer, capturing images, displaying files or changing your background logo in a PC Card and drawing.

Timer

Enables you to turn on or off your projector automatically at a specified time. Two timer functions are available: On/Off Timer and Sleep Timer.

NOTE: The projector has a built-in clock. The clock will keep working for about three days after the main power is turned off. If the main power is not supplied to the projector for three days or more, the built-in clock stops working.

On/Off Timer

Up to 10 settings can be programmed.

• Before setting On/Off Timer, make sure that Date, Time Preset feature is set.

• Even after setting On/Off Timer, turning the projector on or off with the remote control is possible.

Setting the On or Off Timer

1. Open the On/Off Timer window.

2. Select a program number (No. 1 to 10) by using the SELECT or button.

8-25

8. Using the On-Screen Menus Digital Projection MERCURY HD

3. Select “Edit” and press the ENTER button to open the Edit window.

4. Set the Day, Time (24 hours format), On-Time and Off-Time using the SELECT buttons and the Software keyboard (1 thru 10).

5. Select On Timer or Off Timer

Enabling the On or Off Timer

1. To execute the setting, select “Active” .

2. Select “OK” and press the ENTER button.

NOTE: When one program or more are specified, all the settings are active.

NOTE: The settings will be executed in numerical order. Finished settings will be automatically deleted.

NOTE: The On/Off Timer will not work while the cooling fans are running or an error message appears. Do not turn off the main power switch in this condition.

Disabling the On or Off Timer

To disable the setting, select “Inactive”. Select “OK” and press the ENTER button.

6. Repeat the Timer To repeat the On Timer or Off Timer program every week, place a check mark in “Repeat”.

7. Select “OK” and press the ENTER button on the remote control to complete the setting. To cancel this and return to its previous screen, select “Cancel”.

NOTE: If there is no operation for 4 hours or more after the projector is turned on with On-Timer function, the projector will enter the standby or idle mode.

Deleting the On or Off Timer settings

1. Select the setting you want to delete.

2. Select “Delete” and press the ENTER button.

3. Select “OK” and press the ENTER button to complete the deletion.

4. Select “Delete” again and press the ENTER button to return to the previous screen.

8-26

Digital Projection MERCURY HD 8. Using the On-Screen Menus

Enabling Sleep Timer

1. Select your desired time between 30 minutes and 16 hours: Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.

2. Select “Set” and press the ENTER button on the remote control.

3. The remaining time starts counting down.

4. The projector will turn off after the countdown is complete.

NOTE:

• To cancel the preset time, set "Off" for the preset time or turn off the

power.

• When the remaining time reaches 3 minutes before the projector is

turned off, the "Projector will turn off in 3 minutes" message will be displayed on the bottom of the screen.

Capture

Allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the PC card. When you select Capture from the menu, you will get a tool bar. You can capture an image directly using the tool bar when the menu is not displayed. See page 5-4.

PC Card Files

ChalkBoard

The ChalkBoard feature allows you to write and draw messages on a projected image. See page 4-4.

NOTE: This feature is available only when using with USB mouse.

Help

Contents

Provides an online help about how to use the menus. An underlined link means that you can move to an adjustment item directly. Selecting the underlined link and pressing ENTER moves to the corresponding adjustment item.

NOTE: The Help menu may not be displayed correctly when an image is overscanned.

The PC Card Files feature allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. See page 4-4. Changing Background Logo: You can change the default background logo using the PC Card Files feature. See page 4-4.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available. See page 4-4.

Source Information

Displays the status of the current signal. This dialog box has two pages.

Source Information Page 1

Source Name, Input Terminal, Entry No., Horizontal Frequency, Vertical Frequency, Sync Polarity

8-27

8. Using the On-Screen Menus Digital Projection MERCURY HD

Source Information Page 2

Signal Type, Video Type, Sync Type, Interlace, Direct Key

Projector Information

Displays the information for your projector such as lamp usage, filter usage, version number and others. This dialog box has three pages.

Projector Information Page 1

Projector Information Page 2

Filter Usage, Projector Usage, Projector ID

Projector Information Page 3

Version (BIOS/Firmware/Data/FPGA)

Lamp 1 Hour Meter, Lamp 2 Hour Meter

NOTE: The meters show the sum of Eco and Normal hours. A warning message will appear on screen near the expected end of life. This will also be shown by the Lamp Indicators on the control panel at the rear of the projector (see page 1-6).

NOTE: The life of a Standard lamp (part number 001-742) life is typically 1500 hours in Normal mode. The lamp life, however, may be decreased under certain conditions and the lamp could reach end of life within the specified time.

Test Pattern

Press to display the test pattern. Pressing this button sequentially selects 11 test patterns for each red, green and blue.

8-28

Routine Maintenance

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Replacing the Lamp ................................. 9-2

Replacing or Cleaning the Filter .............. 9-3

Cleaning the Cabinet and the Lens ......... 9-3

9. Routine Maintenance Digital Projection MERCURY HD

Replacing the Lamp

The projector has a single lamp pre-wired into the lamp module. After the lamp has been operating for 1000 hours (Normal mode using the standard lamp, part number 102-246), the "Lamp" indicator on the control panel will blink red and a warning message will appear. Even though the lamp may still be working, replace it as soon as possible to maintain optimal projector performance.

CAUTION

• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait 90 seconds, and then disconnect the power cable. Allow at least 15 minutes for the lamp to cool before handling.

• DO NOT REMOVE ANY SCREWS except the rear cover screw and the two lamp module screws. You could receive an electric shock.

• If you continue to use the lamp after 1000 hours, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp module. glass may cause injury. If this happens, contact your Digital Projection dealer for lamp replacement.

• The projector will turn off and go into stand by mode after 1500 hours of service (Normal mode using the standard lamp - this time is extended when using Eco mode). If this happens, the lamp must be replaced.

• The projector contains high-precision parts, so make sure that no dust or dirt can get into the cabinet during lamp replacement. Clean the outside of the cabinet before opening the rear cover.

CAUTION: Do not touch them as the pieces of

4. Pull the lamp module to the right, then to the rear to remove it from the projector.

To replace the lamp module:

1. Loosen the rear cover fastening by turning it through 45° and open the cover, using the support if the projector is upside down.

NOTE: There is an interlock on the rear cover to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

2. Squeezing the plug latch firmly, unplug the lamp control cable from the connector at the rear of the lamp module.

Cover Support

3. Loosen the two screws securing the lamp module until the screws go into a freewheeling condition. The two screws are not removable.

5. Insert a new lamp module, manoeuvreing it carefully so that the plug on the top of the module mates properly with the socket in the roof of the cabinet.

CAUTION: Do not use a lamp other than the Digital Projection replacement lamp (Standard life lamp: 102-246).

6. Secure it in place with the two screws. Be sure to tighten the screws.

7. Re-connect the lamp control cable to the connector at the rear of the lamp housing.

8. We recommend that you clean or change the filter, as described on the next page, whenever the lamp is changed.

9. Close the rear cover firmly, ensuring that the catch clicks shut.

NOTE: Installing a new lamp module automatically clears the lamp usage hours, as the lamp memory chip is built-in to the module. You can check the current lamp useage hours via the Projector Information Menu.

9-2

Digital Projection MERCURY HD 9. Routine Maintenance

Replacing or Cleaning the Filter

The air-filter prevents dust or dirt from getting inside the projector and should be cleaned after every 100 hours of operation (more often in dusty conditions). If the filter is dirty or clogged, your projector may overheat.

NOTE: The message "Please clean the filters" will be displayed each time the projector is turned on after it has been used in excess of 168 hours. Should this message appear, clean the filters as a matter of urgency.

CAUTION

• Turn the projector off, wait 90 seconds, and then disconnect the power cable, before cleaning the filter.

• Do not attempt to operate the projector without a filter.

• The projector contains high-precision parts, so make sure that no dust or dirt can get into the cabinet during filter replacement. Clean the outside of the cabinet before opening the rear cover.

To replace or clean the filter:

1. Loosen the rear cover fastening by turning it through 45° and open the cover, using the support if the projector is upside down.

NOTE: There is an interlock on the rear cover to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

2. Remove the single cross-headed screw securing the top edge of the filter, and remove the filter.

Screw

Filter

Cleaning the Cabinet and the Lens

1. Turn off the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

Cover Support

3. If the filter is severely clogged, or damaged, then it should be replaced.

NOTE: Do not wash the filter with water, as this will damage the filter membrane.

4. Clean the filter using a vacuum cleaner.

5. Install the new or cleaned filter by first locating the bottom edge into the recess, then hinging the filter upwards. Secure the filter by replacing the screw.

6. Close the rear cover firmly, ensuring that the catch clicks shut.

NOTE: After the filter has been changed, the message "Please clean the filters" will continue to be displayed until the Filter Usage Meter has been cleared

7. Following the instructions in Section 8, go to Page 5 in the Projector Setup menu, and press the button marked “Clear Filter Usage Meter”.

9-3

9. Routine Maintenance Digital Projection MERCURY HD

9-4

Appendix

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

USB Memory Device or USB Memory

Card Reader Support ............................. 10-2

Troubleshooting ..................................... 10-3

Specifications ........................................ 10-5

Cabinet Dimensions ............................... 10-7

Pin Assignments of D-Sub RGB Input

Connector ............................................... 10-7

Compatible Input Signal List ................. 10-8

REMOTE 1 Connector ............................ 10-9

PC Control Codes and Cable

Connection ........................................... 10-10

Cable Connection ........................................................................................ 10-10

PC Control Connector (D-SUB 9P) ............................................................ 10-10

Using Software Keyboard .................... 10-10

Operation Using an HTTP Browser ..... 10-11

10. Appendix Digital Projection MERCURY HD

USB Memory Device or USB Memory Card

Reader Support

The projector is compatible with either a USB memory device or USB memory card reader which supports the viewer and security features.

• To use a USB memory device or USB memory card reader, connect the device to the USB port (type A).

• Select one of the Drive icons in the Viewer toolbar, Capture toolbar and PC Card File setting screen. Up to four drives can be accepted.

• To use a USB memory device as a Protect key for Security function, select one from the Drive icons in the Security setting screen.

NOTE:

• Some USB memory devices (brands) or USB memory card readers may not work.

• You cannot use a USB memory device and a USB memory card reader when connecting a USB mouse to the projector. Using a USB HUB that allows multiple USB memory devices or card readers is not supported either.

• Do not do the following while the USB memory device or USB memory card reader’s access indicator is lit or flashing (while data is being accessed.) Doing so can damage your USB memory device or USB memory card in the reader. Back up your data in case it will need to be restored. * Pulling out the USB memory device or USB memory card reader

from the USB port of the projector. * Pulling out the memory card from the USB memory card reader * Turning off the main power switch or unplugging the power cable.

• The drive for ”USB 1-4” is displayed only when the USB memory device or USB memory card reader is connected to the projector. The drive for “USB 1-4” may be displayed differently from the one in the USB memory card reader.

• Some USB memory devices (brands) or USB memory cards cannot be used as Protect key for the projector’s Security function.

10-2
