LIGHTNING 35HD
Super High Brightness Digital Video Projector
User Manual
104-272A
Digital Projection LIGHTNING 35HD User Manual
Declaration of Conformity
Directives covered by this Declaration
89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC and 93/68/EEC.
73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.
Products covered by this Declaration
Large screen video projector type LIGHTING 35HD
Basis on which Conformity is being declared
The products identified above comply with the protection requirements of the above EU directives, and the
manufacturer has applied the following standards.
EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information
Technology Equipment.
EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology
Equipment.
EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control
apparatus for Professional Use.
EN 60950:1992 - Specification for Safety of Information Technology Equipment, including Electrical Business
equipment.
The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage
directive has been compiled by the signatory below and is available for inspection by the relevant enforcement
authorities. The CE mark was first applied in March 2004.
Signed:
Authority: D.J. Quinn, Product Development Director
Date: 25 March 2004
Attention!
The attention of the specifier, purchaser, installer, or user is drawn to special measures and limitations to use which
must be observed when these products are taken into service to maintain compliance with the above directives.
Details of these special measures are available on request, and are also contained in the product manuals.
Digital Projection LIGHTNING 35HD User Manual Important Information
Important Information
Please read this user manual carefully before using the projector, and keep
the manual handy for future reference.
A serial number is located on the side of the projector. Record it here:
Symbols used in this guide
Warnings
ELECTRICAL WARNING: this symbol indicates that there is a danger of
electrical shock unless the instructions are not closely followed.
WARNING: this symbol indicates that there is a danger of physical
injury to yourself and/or damage to the equipment unless the
instructions are not closely followed.
NOTE: this symbol indicates that there is some important information that
you should read.
Trademarks
• IBM is a registered trademark of International Business Machines Corporation.
• Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.
• Other product and company names mentioned in this user's manual may be the
trademarks of their respective holders.
Product revision
• Because we at Digital Projection continually strive to improve our products, we
may change specifications and designs, and add new features without prior
notice. Projectors built prior to this revision of the User Manual may therefore not
include all the features described.
Manual revision
Date Description Revision
October 2004 Firmware release 1.2 Patch A
page i
Important Information Digital Projection LIGHTNING 35HD User Manual
General precautions
Do not open the cabinet. There are no user serviceable parts inside.
Use only the power cable provided.
Ensure that the power outlet includes a Ground connection, as this
equipment MUST be earthed.
Take care to prevent small objects such as paper or wire from falling
into the projector. If this does happen, switch off immediately, and have
the objects removed by authorised service personnel.
Do not expose the projector to rain or moisture, and do not place any
liquids on top of the projector.
Unplug before cleaning, and use a damp, not wet, cloth.
Do not touch the power plug with wet hands.
Do not touch the power plug during a thunder storm.
Handle the power cable carefully and avoid sharp bends. Do not use a
damaged power cable.
There are no user-serviceable parts inside the lamp module. The whole
module should be replaced and returned to Digital Projection for re-
furbishment.
Notes
Take care when removing the lamp module, as it is heavy (>10kg).
Take care not to touch the glass surface of the lamp module. If you do
accidentally touch the glass, it should be cleaned before use.
Do not use the lamp for more than 750 hours, as this may cause
serious lamp failure, damage the lamp module and cause extra cost on
replacement.
Xenon lamps produce high intensity light. Do not look directly at the
light coming from the lamp housing, or the lens, or allow items such as
magnifying lenses to be placed in the light path. This could result in
serious eye damage.
Do not touch the ventilation outlets, as they will become hot in use.
Do not cover the ventilation outlets or inlets.
Do not cover the lens whilst the projector is switched on. This could
cause a fire
Always allow the projector to cool for 5 minutes before switching off
the power, moving the projector or changing the lamp.
Never use strong detergents or solvents such as alcohol or thinners to
clean the projector and lens.
page ii
Digital Projection LIGHTNING 35HD User Manual Important Information
Installation precautions
Connect the LAN cable only to a computer LAN connection. Other
similar connectors may have a dangerously high voltage source.
The projector must be installed only by suitably qualified personnel, in
accordance with local building codes.
The projector should be installed as close to the power outlet as
possible.
The power connection should be easily accessible, so that it can be
disconnected in an emergency.
Ensure that there is at least 30cm (12in) of space between the
ventilation outlets and any wall, and 10cm (4in) on all other sides.
Do not install the projector close to anything that might be affected by
its operational heat, for instance, polystyrene ceiling tiles, curtains etc.
The projector weighs over 100kg (200lbs). Use safe handling
techniques when lifting the projector.
When stacking projectors, the stack MUST be vertical, to ensure that
the stresses are distributed to all for frame couplings.
Before installation, make sure that the surface, ceiling or rigging that is
to support the projector is capable of supporting the combined weight
of the projector and lens (see specification for exact weights).
Notes
Separate backup safety chains or wires should always be used for each
projector.
Do not place heavy objects on top of the projector chassis. Only the
rigging frame is capable of withstanding the weight of another
projector.
Do not stack more than four projectors.
Do not drop or jarr the projector.
Place the projector in a dry area away from sources of dust, moisture,
steam, smoke, sunlight or heat.
Do not tilt the projector more than ±12° from side to side when in use,
as this may cause serious lamp failure, damage the lamp module and
cause extra cost on replacement. The projector my be tilted forwards
and backwards as necessary.
Each time a new lens is fitted to the projector, the calibration procedure
must be carried out. See Lens menu, in Section 4. Using the menus.
The zoom drive mechanism should always be set to the engaged
position, even when using the non-zoom lens, as it provides an extra
level of protection, should the lens release lever fail.
±12°
360°
page iii
Important Information Digital Projection LIGHTNING 35HD User Manual
Operation and configuration precautions
Do not try to operate the touch screen using anything harder than your
finger. This could damage the LCD.

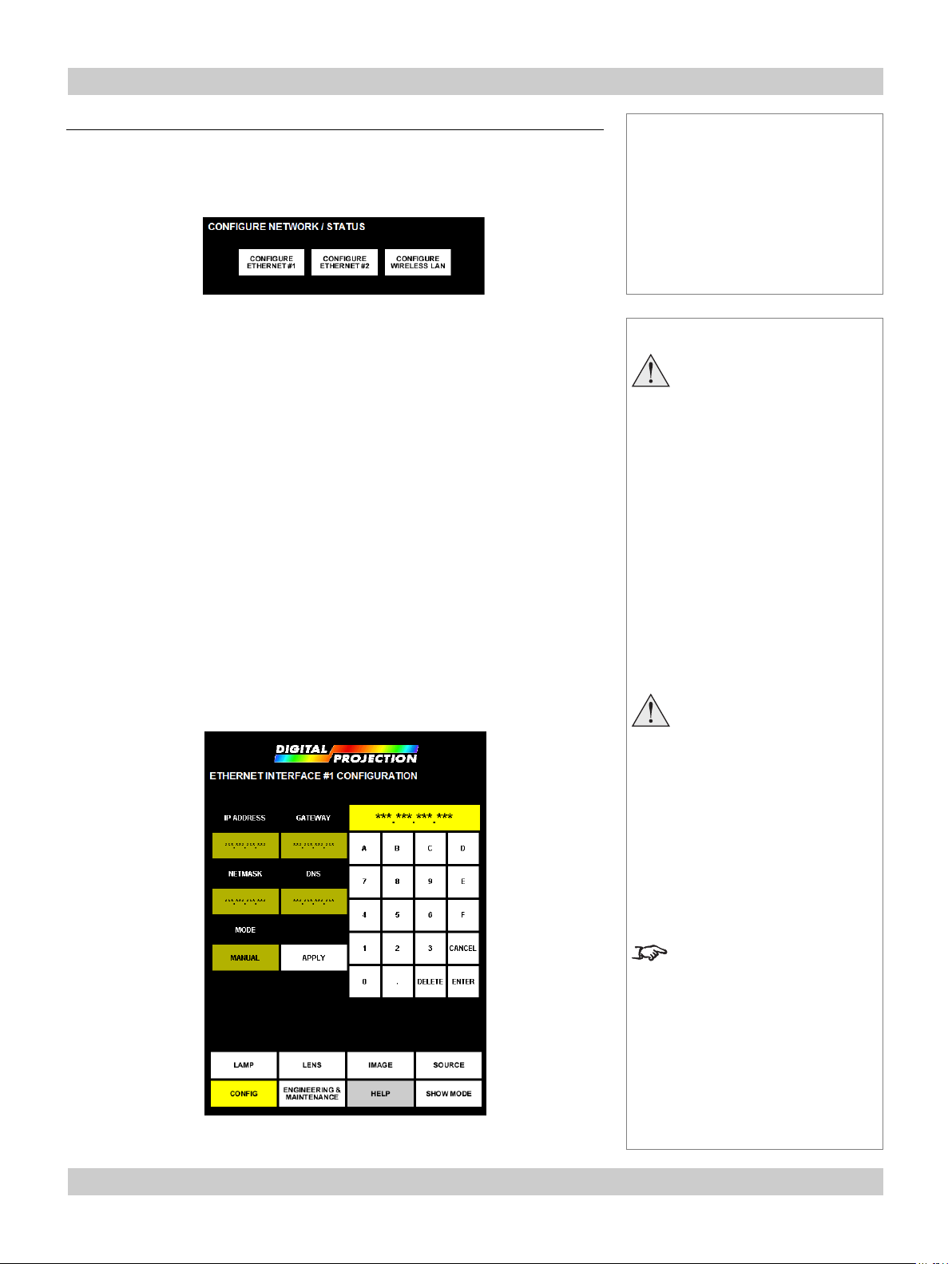

Do not make changes to the networking configuration unless you
understand what you are doing, or have taken advice from your
Network Manager. If you make a mistake, it is possible that you will lose
contact with the projector.Always double-check your settings before
pressing the APPLY button. Always keep a written note of the original
settings, and any changes you have made.
If using DHCP, then keep the projector switched on at all times, and
make sure the projector is accessible, as the IP address could be reassigned on power-up or after a lost connection.
Software update should NOT be carried out except by, or with the
supervision of, Digital Projection Service personnel.
Compliance with international standards
Noise
GSGC Acoustic Noise Information Ordinance
The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.
Notes
RF Interference
FCC
The Federal Communications Commission does not allow any modifications or
changes to the unit EXCEPT those specified by Digital Projection in this manual.
Failure to comply with this government regulation could void your right to operate
this equipment.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant with Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area may cause harmful interference, in
which case the user will be responsible for correcting any interference.
page iv
Digital Projection LIGHTNING 35HD User Manual Contents
LIGHTNING 35HD User Manual
CONTENTS
Important Information i
Symbols used in this guide ...............................................................................................i
Warnings .................................................................................................................................................... i
Trademarks ................................................................................................................................................ i
Product revision ........................................................................................................................................ i
Manual revision ......................................................................................................................................... i
General precautions ..........................................................................................................ii
Installation precautions .................................................................................................... iii
Operation and configuration precautions ......................................................................iv
Compliance with international standards .......................................................................iv
Noise ........................................................................................................................................................ iv
RF Interference ........................................................................................................................................ iv
1. Introduction 1.1
What’s in the box? ..........................................................................................................1.2
Key features of the projector .........................................................................................1.3
Getting to know the projector ........................................................................................1.4
Chassis – lamp, lens and filter ............................................................................................................. 1.4
Lamp-hours meter................................................................................................................................. 1.5
Rear panel – connection and control .................................................................................................. 1.6
Rigging frame ........................................................................................................................................ 1.6
2. Installation 2.1
Screen requirements ......................................................................................................2.2
Aspect ratio ........................................................................................................................................... 2.2
Positioning the screen and projector .................................................................................................. 2.4
Choosing a lens ..............................................................................................................2.5
Method one: using the lens charts ...................................................................................................... 2.5
Lens charts ............................................................................................................................................ 2.6
Method two: Choosing a lens by calculation ................................................................................... 2.12
Useful lens calculations ...............................................................................................2.13
Shifting the image .........................................................................................................2.14
Fitting the lens .............................................................................................................. 2.15
Mounting the projector ................................................................................................. 2.16
Levelling............................................................................................................................................... 2.16
Stacking projectors....................................................................................................... 2.17
Connecting the projector ............................................................................................. 2.18
Input Formats ...................................................................................................................................... 2.19
EDID handshaking .............................................................................................................................. 2.20
Projector Outputs................................................................................................................................ 2.20
Input connection examples ................................................................................................................ 2.21
Control connection examples ............................................................................................................ 2.22
Power connections ............................................................................................................................. 2.23
page v
Contents Digital Projection LIGHTNING 35HD User Manual
3. Getting started 3.1
Switching the power on .................................................................................................3.2
Using the touch screen ..................................................................................................3.2
Switching the lamp on ....................................................................................................3.3
Adjusting the lamp power ..............................................................................................3.3
Selecting an image source............................................................................................. 3.4
Adjusting the projected image ......................................................................................3.4
Switching the power off ................................................................................................. 3.6
4. Using the Menus 4.1
Introduction ..................................................................................................................... 4.4
Menu structure ...................................................................................................................................... 4.5
Show mode......................................................................................................................4.6
Lamp status ........................................................................................................................................... 4.6
Video source.......................................................................................................................................... 4.6
Warnings ................................................................................................................................................ 4.7
Projector status ..................................................................................................................................... 4.7
LCD screen blank .................................................................................................................................. 4.7
IP addresses .......................................................................................................................................... 4.7
Lamp menu ...................................................................................................................... 4.8
Lamp power ........................................................................................................................................... 4.8
Lamp on ................................................................................................................................................. 4.8
Lamp off ................................................................................................................................................. 4.8
Shutter open/closed .............................................................................................................................. 4.8
Lamp/Lens memories ........................................................................................................................... 4.9
Advanced menu .................................................................................................................................... 4.9
Lens menu ..................................................................................................................... 4.10
Shift, zoom and focus ......................................................................................................................... 4.10
Shutter open/closed ............................................................................................................................ 4.10
Centre ................................................................................................................................................... 4.10
Calibration ........................................................................................................................................... 4.10
Stop all movement .............................................................................................................................. 4.10
Test patterns ......................................................................................................................................... 4.11
Lamp/Lens memories ..........................................................................................................................4.11
Advanced Lens menu ..........................................................................................................................4.11
Image menu ................................................................................................................... 4.12
Test Patterns........................................................................................................................................ 4.12
Shutter open/closed ............................................................................................................................ 4.13
Contrast ............................................................................................................................................... 4.14
Brightness ........................................................................................................................................... 4.15
Gamma ................................................................................................................................................. 4.16
User Gamma Presets .......................................................................................................................... 4.17
Advanced Gamma Setup .................................................................................................................... 4.17
Advanced image setup ....................................................................................................................... 4.18
Source menu .................................................................................................................4.22
Source select ....................................................................................................................................... 4.22
DVI Repeater on/off ............................................................................................................................. 4.22
page vi
Digital Projection LIGHTNING 35HD User Manual Contents
Configuration menu ......................................................................................................4.23
Detailed status..................................................................................................................................... 4.23
Networking configuration ................................................................................................................... 4.24
Touchscreen calibration ..................................................................................................................... 4.27
Reset IP addresses ............................................................................................................................. 4.27
Engineering & Maintenance menu .............................................................................. 4.28
Log files ............................................................................................................................................... 4.28
Software update .................................................................................................................................. 4.28
Help menu .....................................................................................................................4.29
5. Maintenance 5.1
Changing the lamp.......................................................................................................... 5.2
Lamp-hours meter................................................................................................................................. 5.3
Changing the filter ..........................................................................................................5.5
Cleaning the projector and lens .................................................................................... 5.6
6. Appendix 6.1
Troubleshooting.............................................................................................................. 6.2
Specifications..................................................................................................................6.4
Part numbers ......................................................................................................................................... 6.4
Optical .................................................................................................................................................... 6.4
Electrical ................................................................................................................................................ 6.4
Physical ................................................................................................................................................. 6.5
Lens Data ............................................................................................................................................... 6.6
Connections ....................................................................................................................6.8
DVI-D connection .................................................................................................................................. 6.8
LAN connection..................................................................................................................................... 6.9
Serial control input ............................................................................................................................. 6.10
Using Windows Hyperterminal to connect to the projector .............................................................6.11
Remote communications protocol .............................................................................. 6.12
Image commands ................................................................................................................................ 6.12
Lens Commands ................................................................................................................................. 6.21
PSU Commands .................................................................................................................................. 6.23
Dimensions ...................................................................................................................6.25
page vii
Contents Digital Projection LIGHTNING 35HD User Manual
page viii
1. Introduction
Contents
1. Introduction 1.1
What’s in the box?...................................................................................................................1.2
Key features of the projector..................................................................................................1.3
Getting to know the projector ................................................................................................ 1.4
Chassis – lamp, lens and filter ....................................................................................................................... 1.4
Lamp-hours meter ........................................................................................................................................... 1.5
Rear panel – connection and control ............................................................................................................ 1.6
Rigging frame .................................................................................................................................................. 1.6
1. Introduction Digital Projection LIGHTNING 35HD User Manual
What’s in the box?
• Make sure your box contains everything listed. If any pieces are missing, contact
your dealer.
• You should save the original box and packing materials, in case you ever need to
ship your Projector.
Projector
(USA: 102-061) (Rest of World: 103-398)
Notes
Lenses are optional. Order
lenses from your Digital
Projection dealer.
For more detailed information
about lenses, see Choosing a
lens, in Section 2. Installation.
Power cable USA
(LA00098)
User manual
(104-272A)
Power cable Rest of World
(LA00097)
Important Information
(104-273A)
DVI-D dual link
2metre cable
(104-274A)
page 1.2
Digital Projection LIGHTNING 35HD User Manual 1. Introduction
Key features of the projector
Congratulations on your purchase of the Digital Projection LIGHTNING 35HD
projector.
Digital Projection International, Texas Instruments’ first DLP™ partner and the
original innovator of the 3-chip DLP™ projector, proudly introduces our thirdgeneration LIGHTNING series — the LIGHTNING 35HD. Incredibly bright, high
resolution and high in contrast, the 35HD offers a radically new electronics
configuration ideally suited for the staging and large-venue permanent installation
markets.
The LIGHTNING 35HD harnesses the power of Texas Instruments’ new 2048 x
1080 pixel HPO DMD’s™. Like its LIGHTNING predecessors, the 35HD is destined
to be the first choice of professionals who stage prestigious events such as the
Grammy® Awards and the Oscars®. With contrast of 1600:1 and awe-inspiring
lumen capability, the 35HD is unmatched for applications as diverse as world class
staged events, commercial entertainment, major outdoor venues, large-scale
simulation, gaming and houses of worship.
Key Features
• High resolution, large venue projector
• Applications: Large Screen; Fixed install and Rental
• 18,000 Centre lumens / 16,000 ANSI lumens ±10%
• Contrast 1600:1 ±10%
Notes
For inputs other than DVI,
including analog or digital,
composite or component, RGB
and S-video, and features such
as scaling, soft-edge blend,
cross-fade, and user definable
geometric warp: use in
conjunction with the Digital
Projection MMS 1000 multimedia switcher.
• True 2K HD (2048x1080)
• Precision mechanical design ensuring maximum amount of light from lamp
housing reaches optics, without any operator adjustment
• 110kg, 3kW single phase
• Compact size, light weight
• Intelligent lens mount with ½ pixel accuracy pre-sets
• Rigging frame with Quick-lock stack system
• Ruggedised robust metal case
• Floating chassis - 3 point pitch & roll adjustment for accurate alignment
• LAN & RS232 connection for network operation
• Single, Dual, or Twin DVI input with loop through for second projector
• 3D capability, using Dual DVI and switched LCD spectacles (not supplied)
• Wi-fi connection for handheld PDA operation (not supplied)
• Touch panel operation for all setup commands
• Browser host for LAN operation
page 1.3
1. Introduction Digital Projection LIGHTNING 35HD User Manual
Getting to know the projector
Chassis – lamp, lens and filter
Air outlets
Lamp
compartment
Air inlet
Notes
For information about how to
change the lamp or the filter,
see section 5. Maintenance.
For more detailed information
about lenses, see
section 2. Installation
Lens
Air filter
Lamp module
page 1.4
Digital Projection LIGHTNING 35HD User Manual 1. Introduction
Lamp-hours meter
There are two types of Lamp-hours meter, depending on the lamp module that has
been fitted, as shown below.
Mercury meter
Notes
LCD meter
display button
The LCD Lamp-hours meter has two modes of operation:
• When the lamp is switched on, the LCD will show lamp run hours.
• When the lamp is switched off, the LCD will be blank.
Press the button and hold for 5 seconds to display lamp run hours.
page 1.5
1. Introduction Digital Projection LIGHTNING 35HD User Manual
Rear panel – connection and control
Input
connections
Power
switch
Power
connection
5V auxilliary
power outputs
Control
connections
LCD
touch screen
control panel
Notes
For information about how to
connect the projector, see
Connecting the projector in
section 2. Installation, and
Connections in section
6. Appendix.
For information about how to
use the touch screen control
panel, see section 4. Using the
menus.
Rigging frame
Frame
coupling
Foot
Rigging
frame
Frame
adjuster
For information about how to
mount and stack projectors, see
section 2. Installation.
page 1.6
2. Installation
Contents
2. Installation 2.1
Screen requirements...............................................................................................................2.2
Aspect ratio ..................................................................................................................................................... 2.2
Fitting the image to the DMD ........................................................................................................................ 2.2
Diagonal screen sizes .................................................................................................................................. 2.2
Fitting the image to the screen ..................................................................................................................... 2.3
Positioning the screen and projector ............................................................................................................ 2.4
Choosing a lens ....................................................................................................................... 2.5
Method one: using the lens charts ................................................................................................................ 2.5
Lens charts ...................................................................................................................................................... 2.6
Full width image, including native resolution 2048x1080, and 2.35:1 .......................................................... 2.6
16:9 full height image ................................................................................................................................... 2.7
4:3 full height image ..................................................................................................................................... 2.8
5:4 full height image ..................................................................................................................................... 2.9
5:4 un-resized image .................................................................................................................................. 2.10
4:3 un-resized image ................................................................................................................................... 2.11
Method two: Choosing a lens by calculation .............................................................................................. 2.12
Useful lens calculations .......................................................................................................2.13
Shifting the image .................................................................................................................2.14
Fitting the lens .......................................................................................................................2.15
Mounting the projector .........................................................................................................2.16
Levelling ......................................................................................................................................................... 2.16
Coarse frame adjustment ........................................................................................................................... 2.16
Fine frame adjustment ............................................................................................................................... 2.16
Chassis adjustment .................................................................................................................................... 2.16
Stacking projectors ...............................................................................................................2.17
Connecting the projector ......................................................................................................2.18
Digilink ....................................................................................................................................................... 2.18
Input Formats ................................................................................................................................................ 2.19
Single DVI-D .............................................................................................................................................. 2.19
Single DVI-D .............................................................................................................................................. 2.19
Dual DVI-D ................................................................................................................................................. 2.19
Twin Link (Twin Single DVI-D) .................................................................................................................... 2.19
Dual Twin (Dual Twin DVI-D) ...................................................................................................................... 2.19
EDID handshaking ........................................................................................................................................ 2.20
Example: setting up the MMS 1000 multimedia switcher ........................................................................... 2.20
Projector Outputs .......................................................................................................................................... 2.20
Input connection examples .......................................................................................................................... 2.21
Control connection examples ...................................................................................................................... 2.22
LAN connection .......................................................................................................................................... 2.22
Serial connection........................................................................................................................................ 2.22
Power connections ....................................................................................................................................... 2.23
USA power input ........................................................................................................................................ 2.23
Rest of World power input .......................................................................................................................... 2.23
Auxilliary Power Output (Stage 2 models only) .......................................................................................... 2.24
2. Installation Digital Projection LIGHTNING 35HD User Manual
Screen requirements
Aspect ratio
Fitting the image to the DMD
If the source image supplied to the projector is smaller than 2048 x 1080 pixels, then
the image will not fill the DMD. The following example shows how a number of
common formats may be displayed without the use of an external scaling processor.
2048 pixels
2048 x 871 (2.35:1)
1920
1024 x 768 (4:3)
1080 pixels
1280 x 1024 (5:4)
x 1080
(16:9)
Notes
The resolution of the DMD fitted
to the projector is 2048 x 1080
pixels.
This projector does not perform
any image processing - the
MMS 1000 is recommended for
this purpose.
Diagonal screen sizes
Screen sizes are sometimes specified by their diagonal size (D) in inches. When
dealing with large screens and projection distances at different aspect ratios, it is
more convenient to measure screen width (W) and height (H).
The example calculations below show how to convert diagonal sizes in inches into
width and height, at various aspect ratios.
W = width
H = height
2.35:1 aspect ratio
W = D x 0.92in (D x .023m) H = D x 0.39in (D x .01m)
2048x1080, native resolution
W = D x 0.88in (D x .022m) H = D x 0.47in (D x .012m)
16:9 aspect ratio
W = D x 0.87in (D x .022m) H = D x 0.49in (D x .0125m)
4:3 aspect ratio
W = D x 0.8in (D x .02m) H = D x 0.6in (D x .015m)
D = diagonal (in)
5:4 aspect ratio
W = D x 0.78in (D x .02m) H = D x 0.625in (D x .016m)
page 2.2
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Fitting the image to the screen
It is important that your screen is of sufficient height and width to display images at
all the aspect ratios you are planning to use.
Use the conversion chart, or the sample calculations below to check that you are
able to display the full image on your screen. If you have insufficient height or width,
you will have to reduce the overall image size in order to display the full image on
your screen.
10
9
8
7
6
5
Screen height
4
Aspect ratio
16:9
2048x1080
2.35:1
4:3
5:4
Notes
3
2
1
1 2 3 4 5 6 7 8 9 10
2.35:1 aspect ratio
W = H x 2.35 H = W x 0.426
2048x1080, native resolution
W = H x 1.896 H = W x 0.527
16:9 aspect ratio
W = H x 1.777 H = W x 0.562
4:3 aspect ratio
W = H x 1.333 H = W x 0.75
5:4 aspect ratio
W = H x 1.25 H = W x 0.8
Screen width
page 2.3
2. Installation Digital Projection LIGHTNING 35HD User Manual
Positioning the screen and projector
For optimum viewing, the screen should be a flat surface perpendicular to the floor.
The bottom of the screen should be 1.2m (4 feet) above the floor and the front row
of the audience should not have to look up more than 30° to see the top of the
screen.
The distance between the front row of the audience and the screen should be at
least twice the screen height and the distance between the back row and the screen
should be a maximum of 8 times the screen height. The screen viewing area should
be within a 60° range from the face of the screen.
Notes
The projector should be
installed as close to the
power outlet as possible.
The power connection should
be easily accessible, so that it
can be disconnected in an
emergency.
Ensure that there is at least
30cm (12in) of space between
the ventilation outlets and
any wall, and 10cm (4in) on
all other sides.
Do not install the projector
close to anything that might
be affected by its operational
heat, for instance,
polystyrene ceiling tiles,
curtains etc.
The image can be flipped for
rear projection (see section 4.
Using the menus, Image
menu) and displayed without
the need for extra mirrors or
equipment.
However, you must ensure that
there is sufficient distance
behind the screen for the
projector to be correctly located.
Rear installation is generally
more complicated and advice
should be sought from your
local dealer before attempting it.
page 2.4
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Choosing a lens
A number of lenses are available for use with the projector. Which lens you choose
will depend on the screen size, image aspect ratio and projection distance.
If you are simply connecting the output of a camera or computer directly to the
projector, then the image size (in pixels) may well be fixed. If, however, you are
using commercially available image processing equipment, such as the Digital
Projection MMS 1000, you may be able to resize the image to fit the DMD.
If the image does not fill the full width of the DMD, this effectively increases the
throw ratio of the lens. This can be corrected for by applying a Throw ratio factor.
Method one: using the lens charts
For the screen sizes listed below, use one of the charts on the following pages, to
choose a lens.
any full width image, including:
native resolution 2048 x 1080 pixels
2.35:1 full width 2048 x 871 pixels
A Throw ratio factor (TRF) has been applied to the following charts:
16:9 full height 1920 x 1080 pixels
4:3 full height 1440 x 1080 pixels
Notes
For more information about
Throw ratio factor (TRF), see
Useful lens calculations, later
in this section.
5:4 full height 1350 x 1080 pixels
4:3 unresized 1024 x 768 pixels
5:4 unresized 1280 x 1024 pixels
Method two: by calculation
See the calculations, on the page immediately following the lens charts.
page 2.5
2. Installation Digital Projection LIGHTNING 35HD User Manual
Lens charts
Full width image, including native resolution 2048x1080, and 2.35:1
2048 x 871 pixels
2048 x 1080 pixels
Use the chart below to choose which lens best suits your application.
example
• For a screen width of 25m at a distance of 33m, the 1.25 - 1.45: 1 zoom lens
would be best suited.
• For the same screen size at a distance of 40m, the 1.45 - 1.8: 1 lens would be
best suited.
if you need to be more precise, then use the calculations on page 5.
Notes
feet
metres
148 45
131 40
115 35
98 30
82 25
66 20
Screen width
49 15
33 10
16 5
The lenses available and their
part numbers are listed below:
1.0: 1 fixed lens 103-350
TRF (see page 12) = 1.0
1.25 - 1.45: 1 zoom lens 103-351
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
5 10 15 20 25 30 35 40 45 metres
16 33 49 66 82 98 115 131 148 feet
Throw distance
page 2.6
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Lens charts, continued
16:9 full height image
1920 x 1080 pixels
Use the chart below to choose which lens best suits your application.
if you need to be more precise, then use the calculations on page 5:
feet
metres
148 45
Notes
The lenses available and their
part numbers are listed below:
1.0: 1 fixed lens 103-350
131 40
115 35
98 30
82 25
66 20
Screen width
49 15
33 10
16 5
TRF (see page 12) = 1.07
1.25 - 1.45: 1 zoom lens 103-351
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
5 10 15 20 25 30 35 40 45 metres
16 33 49 66 82 98 115 131 148 feet
Throw distance
page 2.7
2. Installation Digital Projection LIGHTNING 35HD User Manual
Lens charts, continued
4:3 full height image
1440 x 1080 pixels
1440 x 1080 pixels
Use the chart below to choose which lens best suits your application.
if you need to be more precise, then use the calculations on page 5:
feet
metres
148 45
Notes
The lenses available and their
part numbers are listed below:
131 40
115 35
98 30
82 25
66 20
Screen width
49 15
33 10
16 5
TRF (see page 12) = 1.42
5 10 15 20 25 30 35 40 45 metres
16 33 49 66 82 98 115 131 148 feet
Throw distance
1.0: 1 fixed lens 103-350
1.25 - 1.45: 1 zoom lens 103-351
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
page 2.8
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Lens charts, continued
5:4 full height image
1350 x 1080 pixels
1350 x 1080 pixels
Use the chart below to choose which lens best suits your application.
if you need to be more precise, then use the calculations on page 5:
feet
metres
148 45
Notes
The lenses available and their
part numbers are listed below:
131 40
115 35
98 30
82 25
Screen width
66 20
49 15
33 10
16 5
TRF (see page 12) = 1.52
5 10 15 20 25 30 35 40 45 metres
16 33 49 66 82 98 115 131 148 feet
Throw distance
1.0: 1 fixed lens 103-350
1.25 - 1.45: 1 zoom lens 103-351
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
page 2.9
2. Installation Digital Projection LIGHTNING 35HD User Manual
Lens charts, continued
5:4 un-resized image
1280 x 1024 pixels
Use the chart below to choose which lens best suits your application.
if you need to be more precise, then use the calculations on page 5:
feet
metres
148 45
131 40
115 35
TRF (see page 12) = 1.6
Notes
The lenses available and their
part numbers are listed below:
1.0: 1 fixed lens 103-350
98 30
82 25
66 20
Screen width
49 15
33 10
16 5
5 10 15 20 25 30 35 40 45 metres
16 33 49 66 82 98 115 131 148 feet
Throw distance
1.25 - 1.45: 1 zoom lens 103-351
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
page 2.10
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Lens charts, continued
4:3 un-resized image
1024 x 768 pixels
Use the chart below to choose which lens best suits your application.
if you need to be more precise, then use the calculations on page 5:
feet
metres
148 45
Notes
131 40
115 35
98 30
82 25
66 20
Screen width
49 15
33 10
16 5
TRF (see page 12) = 2.0
5 10 15 20 25 30 35 40 45 metres
16 33 49 66 82 98 115 131 148 feet
Throw distance
The lenses available and their
part numbers are listed below:
1.0: 1 fixed lens 103-350
1.25 - 1.45: 1 zoom lens 103-351
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
page 2.11
2. Installation Digital Projection LIGHTNING 35HD User Manual
Method two: Choosing a lens by calculation
For any screen size not listed above, or if you need to be more precise, then use the
calculations below.
• Identify actual width of the image in pixels.
• Calculate the Throw Ratio Factor: TRF =
• Identify the screen width required.
• Identify the throw distance required.
Throw distance calculations are based on the distance from the outer end of the
lens, which will vary from lens to lens. Once a lens has been chosen, the figures
can be checked using the more accurate figures given on the next page.
• Calculate the throw ratio required. Throw ratio =
• Choose a lens with the required throw ratio from the list to the right.
example
• An unresized image, 1280 x 1024 pixels, screen width 11m, throw distance 26m
from the outer end of the lens.
• Throw Ratio Factor (TRF) =
• Throw ratio required =
2048 = 1.6
1280
26 = 1.48
11 x 1.6
DMD width (2048)
Image width in pixels
Throw distance
Screen width x TRF
Notes
The Throw ratio for a particular
lens is fixed, but assumes that
the image fills the width of the
DMD.
For images that do not fill the
width of the DMD, the Throw
ratio is effectively increased. To
correct for this in these
calculations, a Throw Ratio
Factor (TRF) is used.
The lenses available and their
part numbers are listed below:
1.0: 1 fixed lens 103-350
1.25 - 1.45: 1 zoom lens 103-351
• Choose the 1.45 - 1.8: 1 zoom lens (102-676)
1.45 - 1.8: 1 zoom lens 102-451
1.8 - 2.4: 1 zoom lens 102-676
(note: these two lenses overlap)
2.2 - 3.0: 1 zoom lens 102-677
3.0 - 4.3: 1 zoom lens 102-678
4.3 - 6.0: 1 zoom lens 104-189
page 2.12
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Useful lens calculations
The following lens calculations may be useful:
Throw ratio =
Throw ratio factor (TRF) =
Therefore:
Screen width =
Throw distance = Screen width x Throw ratio x TRF
The throw distance calculated above is to the outer end of the lens. For each lens,
the nominal distance between the front of the projector and the outer end of the lens
(lens extension) will be as listed below:
Throw distance
Screen width
DMD width in pixels = 2048
image width in pixels image width in pixels
Throw distance (from outer end of lens)
Throw ratio x TRF
Notes
The Throw ratio for a particular
lens is fixed, but assumes that
the image fills the width of the
DMD.
For images that do not fill the
width of the DMD, the Throw
ratio is effectively increased. To
correct for this in these
calculations, a Throw Ratio
Factor (TRF) is used.
lens extension
1.0: 1 fixed lens 103-350 185mm (7.3in)
1.25 - 1.45: 1 zoom lens 103-351 161mm (6.3in)
1.45 - 1.8: 1 zoom lens 102-451 109mm (4.3in)
1.8 - 2.4: 1 zoom lens 102-676 97mm (3.8in)
2.2 - 3.0: 1 zoom lens 102-677 53mm (2.1in)
3.0 - 4.3: 1 zoom lens 102-678 98mm (3.9in)
4.3 - 6.0: 1 zoom lens 104-189 170mm (6.7in)
lens extension,
measured from front
of corner post
Lens extension is measured
when the lens is focussed at
infinity, and fully extended. At
other focus settings, the
extension could be up to 10mm
less
page 2.13
2. Installation Digital Projection LIGHTNING 35HD User Manual
Shifting the image
The normal position for the projector is at the centre of the screen. However, you
can set the projector above or below the centre, or to one side, and adjust the image
using the Lens shift feature to maintain a geometrically correct image.
• Any single adjustment outside the ranges specified below may result in an
unacceptable level of distortion, paricularly at the corners of the image, due to
the image passing through the periphery of the lens optics.
• If the lens is to be shifted in two directions combined, the maximum range
without distortion will be somewhat less, as can be seen in the diagrams to the
right.
The maximum range available with no distortion is dependent on which lens is used.
The tables below show the maximum range for images that fill the DMD. For images
which do not use the full height or width, extra shift will be possible, up to the limit of
the lens mount movement.
1.0 :1 fixed lens (103-350)
Notes
For more information on using
the Lens shift feature, see
section 4. Using the menus,
Lens menu.
If the lens is to be shifted in two
directions combined, the
maximum range is somewhat
less, as can be seen below.
full horizontal and vertical shift
without distortion
vertical horizontal vertical horizontal
(pixels) (pixels) (vs DMD height) (vs DMD width)
± 400 ± 256 ± 0.37H ± 0.125W
1.25 - 1.45 :1 zoom lens (103-351)
vertical horizontal vertical horizontal
(pixels) (pixels) (vs DMD height) (vs DMD width)
± 540 ± 365 ± 0.5H ± 0.178W
1.45 - 1.8 :1 zoom lens (102-451)
1.8 - 2.4 :1 zoom lens (102-676)
2.2 - 3.0 :1 zoom lens (102-677)
3.0 - 4.3 :1 zoom lens (102-678)
4.3 - 6.0 :1 zoom lens (104-189)
vertical horizontal vertical horizontal
(pixels) (pixels) (vs DMD height) (vs DMD width)
± 282 ± 172 ± 0.26H ± 0.085W
It is physically possible to shift the lens further than this, up to the number of pixels
shown in the diagram to the right. However:
• There will be some distortion of the image beyond the ranges specified above.
• Due to internal hardware layout, the shift towards the upper-right is limited as
shown in the diagram.
• Due to continuing product development, these figures may vary by ±25 pixels.
combined shift without distortion
is reduced
520
(0.48H)
384
(0.19W)
560
(0.52H)
135
(0.31W)
total lens mount shift available
in pixels and vs DMD size
449
640
page 2.14
Digital Projection LIGHTNING 35HD User Manual 2. Installation

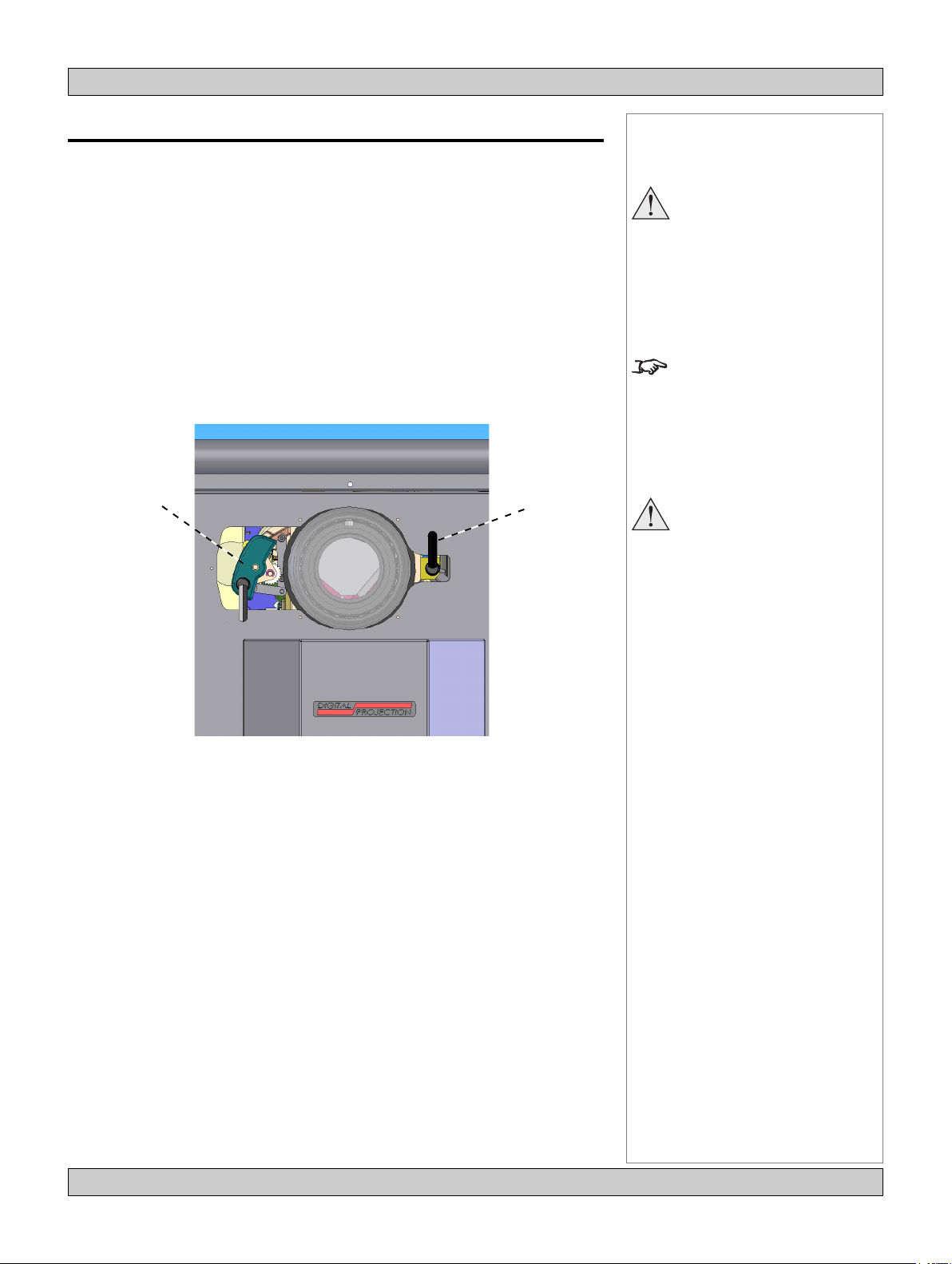

Fitting the lens
• Turn the lens release lever anti-clockwise to open the lock.
• Turn the zoom drive mechanism anti-clockwise to disengage the drive.
• Insert the lens into the lens aperture, making sure that the two notches on the
lens engage with the locating tab inside the lens mount.
• Turn the lens release lever clockwise to lock the lens in place. When the lock is
fully closed, the lever should feel loose.
• Turn the zoom drive mechanism clockwise to engage the drive.
Zoom drive
mechanism
Lens
release
lever
Notes
Each time a new lens is fitted
to the projector, the
calibration procedure must
be carried out. See Lens
menu, in Section 4. Using the
menus.
Be careful not to scratch the
lens surfaces. If you do
accidentally touch a lens, then
clean the surface using a lens
paper.
The zoom drive mechanism
should always be set to the
engaged position, even when
using the non-zoom lens, as
it provides an extra level of
protection, should the lens
release lever fail.
page 2.15
2. Installation Digital Projection LIGHTNING 35HD User Manual
Mounting the projector
The projector is designed to be suspended from a lighting truss by its rigging frame.
However, the four adjustable feet under the chassis allow the projector to be
lowered onto a flat surface without any danger of hands being trapped between the
bottom frame and the surface.
Levelling
Before suspending the projector, make sure that the three frame adjusters are set
roughly midway.
Coarse frame adjustment
If the projector is to be suspended by its rigging frame, coarse adjustment of
projector level should be made by adjusting the length of the supporting wires or
chains, or by adjusting the position of the truss.
Fine frame adjustment
Once the initial coarse adjustment has been made, fine adjustment should be made
by turning the three frame adjusters on the rigging frame.
The frame adjusters will provide approximately ±10mm of movement relative to the
rear right corner. Centering lines are scribed on the shafts to show the centre of
adjustment.
Notes
BEFORE INSTALLING THE
PROJECTOR, READ ALL THE
WARNINGS BELOW AND ALL
THOSE IN IMPORTANT
INFORMATION AT THE
FRONT OF THIS MANUAL.
The projector weighs over
100kg (200lbs). Use safe
handling techniques when
lifting the projector.
Make sure that the surface,
ceiling or rigging that is to
support the projector is
capable of supporting the
combined weight of the
projector and lens (see
specification for weights).
Centering
line
Frame
adjuster
Chassis adjustment
If the projector is to be operated from a flat surface such as a projector table, then
adjustment of projector level should be made by turning the four feet under the
chassis.
Backup safety chains or
wires should always be used.
Do not tilt the projector more
than ±12° from side to side
when in use, as this may
cause serious lamp failure,
damage the lamp module and
cause extra cost on
replacement. The projector
my be tilted forwards and
backwards as necessary.
±12°
360°
page 2.16
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Stacking projectors
The rigging frame is capable of supporting the weight of up to three other projectors,
using the built-in frame couplings. The projectors can be stacked on top of each
other, or suspended below each other.
• Carefully lower each projector down onto the top of the others, making sure that
all four frame couplings engage fully.
• Fit a locking pin into each coupling. A ball in the end of the pin prevents the pin
from falling out – to insert or remove a locking pin, press the button on the t-bar
to release the ball.
• Align the images from the projectors, following the instructions in section
3. Getting started, Adjusting the projected image.
Frame
coupling
Hole for
locking pin
Notes
When stacking projectors, the
stack MUST be vertical, to
ensure that the stresses are
distributed to all for frame
couplings.
Make sure that the surface,
ceiling or rigging that is to
support the projector is
capable of supporting the
combined weight of all the
projectors and lenses (see
specification for weights).
Do not place heavy objects
on top of the projector
chassis. Only the rigging
frame is capable of
withstanding the weight of
another projector.
Do not try to stack more than
four projectors.
Separate backup safety
chains or wires should
always be used for each
projector.
page 2.17
2. Installation Digital Projection LIGHTNING 35HD User Manual

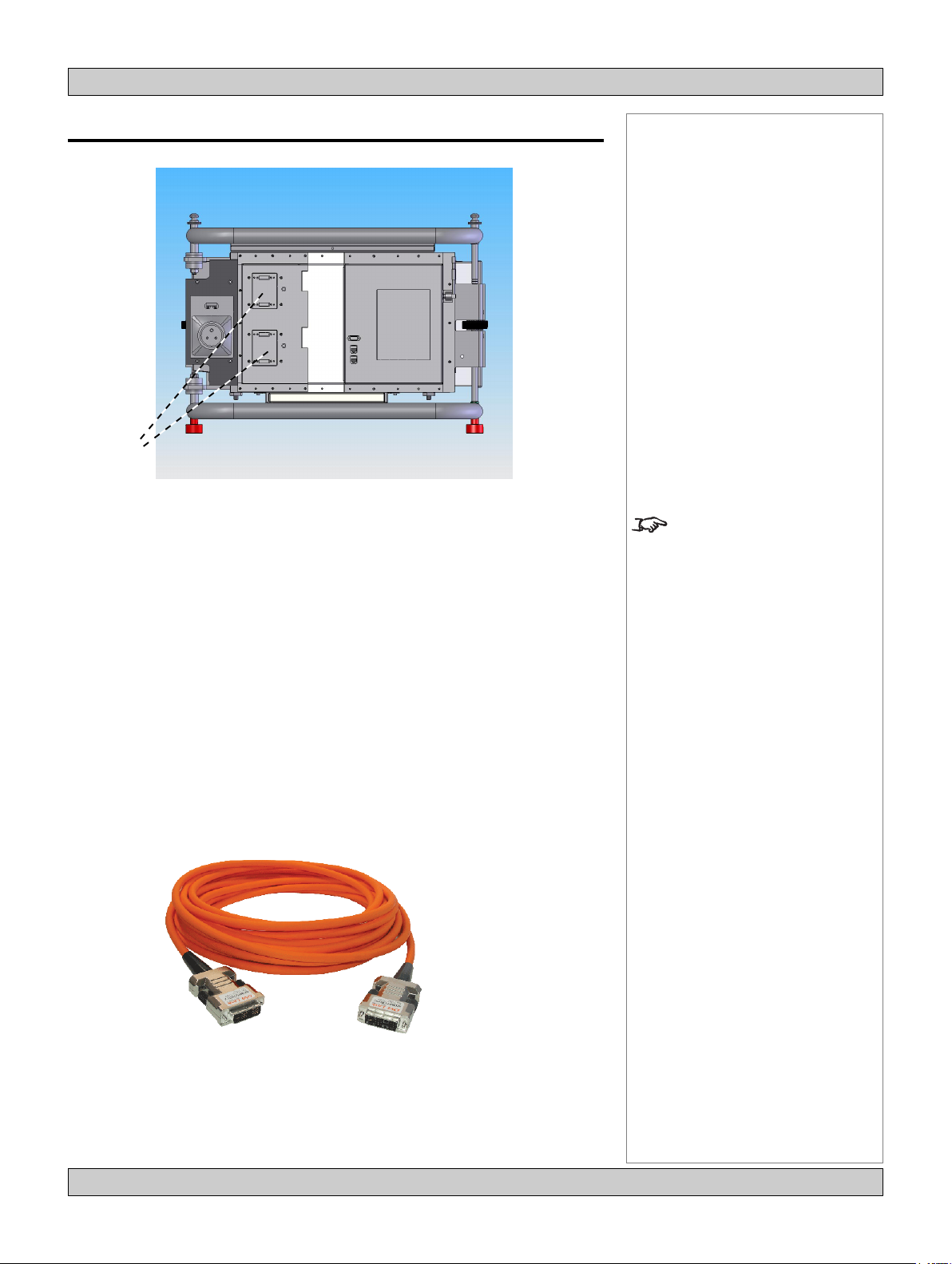

Connecting the projector
Input
connection
panels
This projector is designed to be the projection head of a projection system enabling
the user to use a variety of commercially available image-scaling and processing
products including the Digital Projection MMS1000. The processing unit can be
located close to source equipment such as computers, video tape players and DVD
players etc. Therefore, only the projector needs to be located in the lighting gantry.
Only one connection is required between the processing equipment and head. For
short distances, a regular DVI-D cable may be used, but for distances greater than
5 metres the DigiLink high bandwidth optical connection system is recommended.
Digilink
The DigiLink system is fully compatible with DVI-D, but uses optical fibre to transmit
the RGB and clock signals, and copper wires to transmit the DDC signal and 5V
power line. These are all integrated into a single cable. DigiLink allows cable lengths
up to 100m to be used with the added benefit of reduced picture interference.
Notes
This projector does not include
any image-scaling or
processing functions. Sources
presented to the projector can
only be mapped pixel for pixel
to the display.
More information about
selecting (blanking) and
positioning of the image can be
found in section 4. Using the
menus.
page 2.18
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Input Formats
Stage 1 model:
Single DVI-D
A single input is available.
A IN
Sources upto 2048x1080 resolution @ 24- 60Hz and 8bits per colour.
Stage 2 model:
Single DVI-D
Up to two selectable inputs are possible.
A IN or B IN
Sources upto 2048x1080 resolution @ 24- 60Hz and 8bits per colour.
Dual DVI-D
Up to two selectable inputs are possible.
A IN or B IN
Notes
On earlier models, known as
‘Stage 1’ models, only Single
DVI-D was available.
On later models, from ‘Stage 2’
onwards, Dual, Twin and Dual
Twin DVI-D inputs are also
available.
Sources upto 2048x1080 resolution @ 24-96Hz and 8bits per colour.
Twin Link (Twin Single DVI-D)
A single input using both Input A and Input B together.
A IN AND B IN
Sources up to 2048x1080 resolution @ 24-60Hz and increased bit depth, ie 10 or
12bits per colour.
Dual Twin (Dual Twin DVI-D)
A single input using both Input A and Input B together.
A IN AND B IN
Sources up to 2048x1080 resolution @ 24-96Hz and increased bit depth, for
example 10 or 12bits per colour.
page 2.19
2. Installation Digital Projection LIGHTNING 35HD User Manual
EDID handshaking
If you are using a computer DVI card or other DVI source that obeys the EDID
handshaking protocol, then the card or source will automatically configure itself to
suit the projector.
If not, then you should refer to the documentation supplied with the DVI source to
manually set the resolution to 2048 x 1080 or the nearest suitable setting.
Example: setting up the MMS 1000 multimedia switcher
The MMS multimedia switcher does not use EDID protocols, therefore you should
use the MMS menus to manually set the output resolution as follows:
• Switcher Options → Page 5 →Output Resolution → 2k x 1k (2048 x 1080)
Projector Outputs
The LIGHTNING 35HD has loop-through outputs for each input. This enables
signals to be passed through to a second projector in a stacking situation.
Ensure that DVI Repeater is ON - see Source menu, in section 4. Using the
menus.
Notes

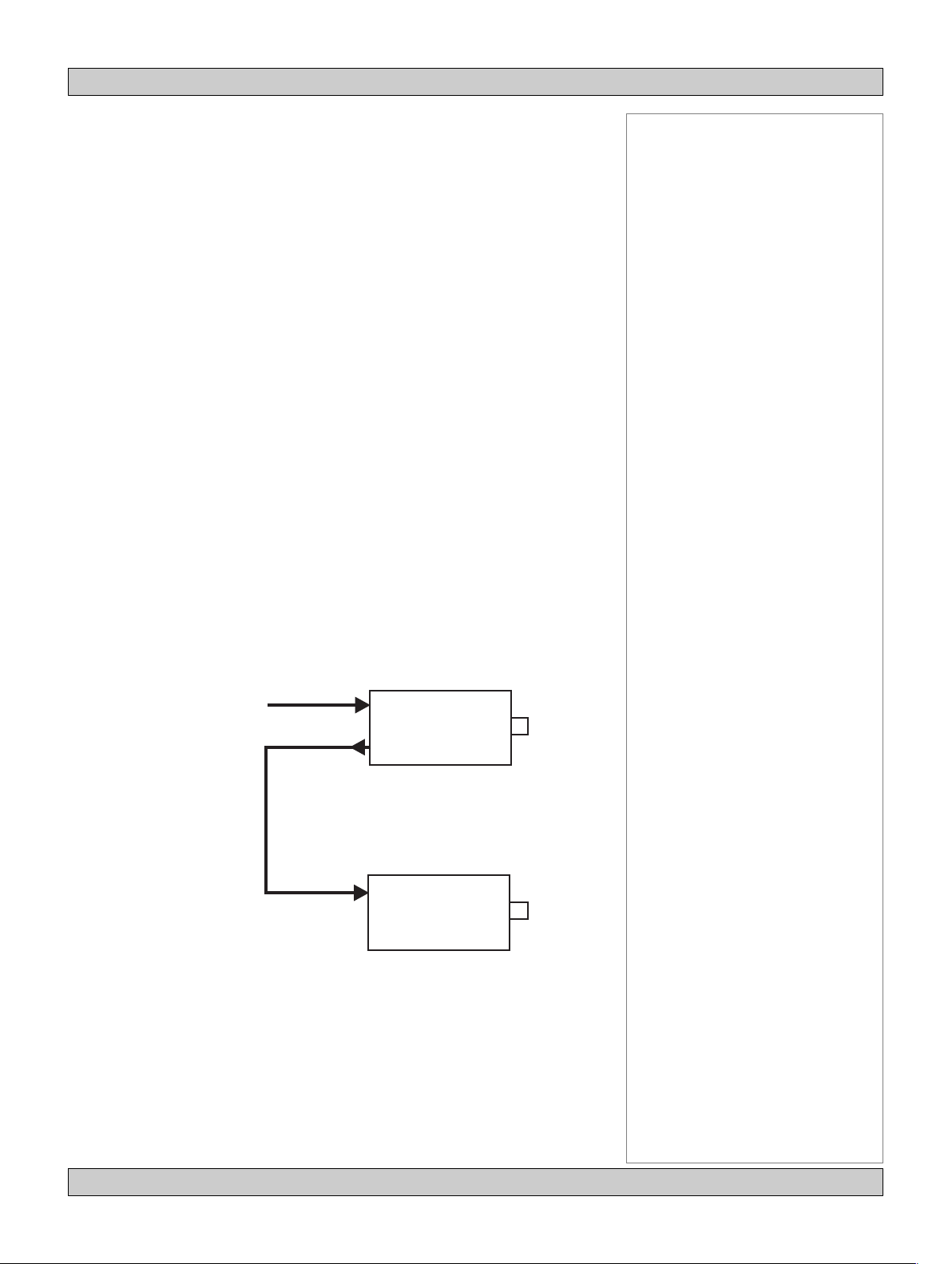

Example
DVI video source
35HD
A in
A out
35HD
A in
page 2.20
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Input connection examples
examples
DVI video source
DVI video source
non DVI video source
non DVI video source
35HD
A in
B in
MMS 1000
Notes
More information about pin
connections can be found in
section 6. Appendix.
Cable complexity and
interference can be reduced by
using the Digilink high
bandwidth optical connection
system. Contact your dealer for
more information.
Main
DVI video source
high resolution
video source
35HD
A in
B in
MMS 1000
Main
Sub
35HD in twin mode
A in
B in
page 2.21
2. Installation Digital Projection LIGHTNING 35HD User Manual
Control connection examples
LAN connection
All of the projector’s features can be controlled via a LAN connection, using a
standard internet browser package such as Internet Explorer.
Crossed
LAN cable
Computer
Un-crossed
LAN cables
Hub or
LAN
35HD
Computer
Notes
More information about pin
connections can be found in
section 6. Appendix.
More information about using a
browser to control the projector
can be found in section 4.
Using the menus.
Computer
Null-modem
cable
35HD
35HD
More information about pin
connections and control codes
can be found in section 6.
Appendix.
35HD
page 2.22
Digital Projection LIGHTNING 35HD User Manual 2. Installation
Power connections
USA power input
Make sure the main power switch is off before connecting the power cable.
Firmly push in the Hubbell connector, then turn clockwise to lock.
Rest of World power input
Make sure the main power switch is off before connecting.
Lift the lid of the C-form connector then firmly push in the connector.
Notes
Use only the power cable
provided.
Ensure that the power outlet
includes a Ground
connection, as this
equipment MUST be earthed.
Handle the power cable
carefully and avoid sharp
bends. Do not use a damaged
power cable.
page 2.23
2. Installation Digital Projection LIGHTNING 35HD User Manual
Auxilliary Power Output (Stage 2 models only)
Two auxilliary power outputs are available, for powering line drivers etc.
5V@1A fused
auxilliary power
outputs
Notes
Should the 5V auxilliary output
become overloaded, a resetable
fuse will operate. To reset the
fuse, disconnect from the
auxilliary output for a short
period, then reconnect.
page 2.24
3. Getting started
Contents
3. Getting started 3.1
Switching the power on ..........................................................................................................3.2
Using the touch screen ...........................................................................................................3.2
Switching the lamp on ............................................................................................................3.3
Adjusting the lamp power ...................................................................................................... 3.3
Selecting an image source .....................................................................................................3.4
Adjusting the projected image ...............................................................................................3.4
Switching the power off ..........................................................................................................3.6
3. Getting started Digital Projection LIGHTNING 35HD User Manual
Switching the power on
• Connect the power cable between the mains supply and the projector.
• Push the main power switch upwards to switch on the power.
• The projector software will take several seconds to boot up. When the main
menu is displayed on the touch screen display, the projector is ready for use.
Main power
switch
Using the touch screen
All of the projector’s features can be controlled using the touch screen.
Notes
For more information about
connecting the power cable,
see Power Connections, in
Section 2. Installation.
Note that when the projector is
switched on, the lamp will be
OFF until switched ON (see
next page).
The Main Menu is shown below. The eight buttons at the bottom of the screen are
visible whenever the projector is switched on. Buttons and controls relating to the
Sub Menus will appear above these eight buttons.
Buttons on the touch screen are activated by light short taps using the tip of your
finger. Slider controls are activated by gently stroking the surface of the screen.
Do not try to operate the
touch screen using anything
harder than your finger. This
could damage the LCD.
If you have difficulty getting the
touch screen display to respond
correctly, then try varying the
length and pressure of your
finger movements until you
have more success.
For more detailed information
about all the touch screen
menus, see the next section:
Using the menus.
page 3.2
Digital Projection LIGHTNING 35HD User Manual 3. Getting started
Switching the lamp on
• Press the LAMP button on the Main menu..
• Press the LAMP ON button.
The projector will reset momentarily, whilst the lamp strikes. You will not be able
to make any further settings until the Main Menu returns.
Notes
Whenever you switch the lamp
on, the projector will reset
momentarily, whilst the lamp
strikes. This is to protect the
control circuitry from the effects
of the lamp strike pulse.
Any settings made before you
switched the lamp on will be
retained.
Adjusting the lamp power
Either:
• Touch and drag the red slider up and down
OR
• for fine adjustment, press either arrow head.
For more detailed information
about all the touch screen
menus, see the next section:
Using the menus.
page 3.3
3. Getting started Digital Projection LIGHTNING 35HD User Manual
Selecting an image source
• If you have a video source connected, Select Source A or Source B, and the
mode you wish to use.
Notes
For more detailed information
about all the touch screen
menus, see the next section:
Using the menus.
Adjusting the projected image
If you have no video source connected to the projector, then you can display a test
pattern as follows:
• Press the IMAGE button on the Main menu.
• Select a test pattern.
page 3.4
Digital Projection LIGHTNING 35HD User Manual 3. Getting started
Once you have an image or a test pattern displayed:
• Press the LENS button on the Main menu:
• To adjust the shift, zoom and focus settings, press the MOVE, ZOOM and
FOCUS arrow heads.
Notes
For more detailed information
about all the touch screen
menus, see the next section:
Using the menus.
• Press the IMAGE button on the Main menu.
• Press the CONTRAST, BRIGHTNESS or GAMMA buttons.
• Touch and drag the red sliders up and down, or for fine adjustment, press the
arrow heads.
page 3.5
3. Getting started Digital Projection LIGHTNING 35HD User Manual
Switching the power off
• Press the LAMP button on the Main menu.
• Press LAMP OFF. Hold the button pressed until the button turns to yellow, then
release. The lamp power will ramp down to minimum then go off after a further 3
seconds.
• Allow the lamp to cool for 5 minutes.
• Push the main power switch downwards to switch off the power.
• When the power is switched off, all current settings are retained, and will be
restored next time the power is switched back on again.
Notes
Always allow the lamp to cool
for 5 minutes before:
Switching off the power
Moving the projector
page 3.6
4. Using the Menus
Contents
4. Using the Menus 4.1
Introduction ............................................................................................................................. 4.4
Menu structure ................................................................................................................................................ 4.5
Show mode ..............................................................................................................................4.6
Lamp status ..................................................................................................................................................... 4.6
Video source .................................................................................................................................................... 4.6
Warnings .......................................................................................................................................................... 4.7
Projector status ............................................................................................................................................... 4.7
LCD screen blank ............................................................................................................................................ 4.7
IP addresses .................................................................................................................................................... 4.7
Lamp menu ..............................................................................................................................4.8
Lamp power ..................................................................................................................................................... 4.8
Lamp on ........................................................................................................................................................... 4.8
Lamp off ........................................................................................................................................................... 4.8
Shutter open/closed ........................................................................................................................................ 4.8
Lamp/Lens memories ..................................................................................................................................... 4.9
Store............................................................................................................................................................. 4.9
Recall ........................................................................................................................................................... 4.9
Advanced menu .............................................................................................................................................. 4.9
Lens menu ............................................................................................................................. 4.10
Shift, zoom and focus ................................................................................................................................... 4.10
Shutter open/closed ...................................................................................................................................... 4.10
Centre ............................................................................................................................................................. 4.10
Calibration ..................................................................................................................................................... 4.10
Stop all movement ........................................................................................................................................ 4.10
Test patterns ...................................................................................................................................................4.11
Lamp/Lens memories .................................................................................................................................... 4.11
Advanced Lens menu ....................................................................................................................................4.11
Image menu ...........................................................................................................................4.12
Test Patterns .................................................................................................................................................. 4.12
Shutter open/closed ...................................................................................................................................... 4.13
Contrast ......................................................................................................................................................... 4.14
Brightness ..................................................................................................................................................... 4.15
Gamma ........................................................................................................................................................... 4.16
User Gamma Presets .................................................................................................................................... 4.17
Advanced Gamma Setup .............................................................................................................................. 4.17
Advanced image setup ................................................................................................................................. 4.18
Input window .............................................................................................................................................. 4.18
Input preset ................................................................................................................................................ 4.18
Input pan .................................................................................................................................................... 4.18
Image position ............................................................................................................................................ 4.20
Image orientation ....................................................................................................................................... 4.21
Continued on next page
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
page 4.2
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Contents, continued
Source menu..........................................................................................................................4.22
Source select ................................................................................................................................................. 4.22
Single DVI-D (Stage 1 model): ................................................................................................................... 4.22
Single DVI-D (Stage 2 model only):............................................................................................................ 4.22
Dual DVI-D (Stage 2 model only): .............................................................................................................. 4.22
Twin Link (Stage 2 model only): ................................................................................................................. 4.22
Dual Twin (Stage 2 model only):................................................................................................................. 4.22
10 Bit or 12 Bit (Stage 2 model only): ......................................................................................................... 4.22
DVI Repeater on/off ....................................................................................................................................... 4.22
Configuration menu ..............................................................................................................4.23
Detailed status ............................................................................................................................................... 4.23
Networking configuration ............................................................................................................................. 4.24
Ethernet configuration choices ................................................................................................................... 4.24
Setting the Ethernet port for DHCP or Manual ........................................................................................... 4.25
Making the IP address and other settings .................................................................................................. 4.25
Example ..................................................................................................................................................... 4.25
Wireless LAN configuration ........................................................................................................................ 4.26
Touchscreen calibration ............................................................................................................................... 4.27
Reset IP addresses ....................................................................................................................................... 4.27
Engineering & Maintenance menu .......................................................................................4.28
Log files ......................................................................................................................................................... 4.28
Software update ............................................................................................................................................ 4.28
Help menu ..............................................................................................................................4.29
page 4.3
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Introduction
All of the projector’s features can be controlled using:
• the menus on the touch screen or
• the same menus on a remote computer using a web browser
(with the IP address of the projector typed into the browser address field)
None of the menus are ever displayed on the projection screen.
In these instructions, it is assumed that the touch screen is being used, so the
expressions ‘press the button’, or ‘touch and drag the slider control’ will be used,
rather than the familiar ‘click’ or ‘click and drag’ used on a web browser.
The buttons and controls react in the following way when operated:
• A button or control will be coloured white if its function is available. It will be
coloured grey if not (some functions are not yet available).
• Buttons and single-headed arrow controls will change to yellow when pressed.
• Slider controls can be adjusted by touching and dragging the slider, or for fine
adjustment, by pressing either arrow head. The numerical value will change to
grey until the projector hardware has responded, when the value will change to
white.
• Some sliders and arrow controls can be centred, or reset to default values, by
pressing on the number next to the slider or in the middle of the arrows. These
operations are described in more detail later in this section.
• Some functions require the button to be pressed and held for a short period, to
avoid accidental operation. In these cases, the button will turn grey when
pressed, turning yellow only when the function has been activated.
Notes
Do not try to operate the
touch screen using anything
harder than your finger. This
could damage the LCD.
If you have difficulty getting the
touch screen to respond
correctly, then try varying the
length and pressure of your
finger movements until you
have more success.
For more information about
using a web browser to control
the projector, see Config
menu... Networking
configuration, later in this
section.
For information about how to
connect the projector, see
Connecting the projector in
section 2. Installation, and
Connections in section
6. Appendix.
When the projector is first switched on, the control panel will be in Show mode, as
described on the page 4.
The eight buttons of the Main menu are always visible at the bottom of the display.
Buttons and controls relating to the Sub Menus will appear in the top part of the
display.
page 4.4
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Menu structure
Lamp menu (p8)
Controls
Lamp power slider
Menu buttons...
Shutter open
Shutter close
Lamp on
Lamp off
Maximum power
Minimum power
Lamp/lens memories
Advanced lamp menu
Lens menu (p10)
Controls
Move
Zoom
Focus
Menu buttons...
Shutter open
Shutter close
Centre
Calibration
Stop all movement
Test patterns (image menu)
Lamp/Lens memories (lamp menu)
Advanced lens menu
Image menu (p12)
Controls
Test patterns
Menu buttons...
Shutter open
Shutter close
Contrast
Brightness
Gamma
Advanced gamma setup
Test patterns
Advanced image setup
Advanced image setup (p18)....
Controls
Input window
Input pan
Menu buttons...
Shutter open
Shutter close
Image orientation
Image position
Gamma
Input preset
Test Patterns
Main menu:
(p6)
Config menu (p23)
Menu buttons...
Projector name (not yet available)
Language (not yet available)
Set date & time (not yet available)
Check compact flash (not yet available)
Detailed status
Networking config
Touchscreen calibration
Reset IP addresses
Engineering & Maintenance menu (p28)
Controls
Log files
Menu buttons...
Software update
Software update should NOT be
carried out except by, or with the
supervision of, Digital Projection
Service personnel.
Help menu (p29)
(not yet available)
Source menu (p22)
Controls
Source select (not yet available)
Menu buttons...
Shutter open
Shutter close
DVI repeater on
DVI Repeater off
Advanced menu
Show mode (p6)
Show mode indicators
Lamp status
Video source
Warnings
Projector status
LCD screen blank
IP addresses
Menu buttons....
Main menu
page 4.5
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Show mode
When the projector is first switched on, the control panel will be in Show mode, as
shown below:
In Show mode, these icons are displayed:
Lamp status
Main menu
Show mode indicators
Lamp status
Video source
Warnings
Projector status
LCD screen blank
IP addresses
Menu buttons....
Lamp menu
Lens menu
Image menu
Source menu
Config menu
Engineering & Maintenance menu
Help menu
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display, as shown
here.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Lamp off Lamp off Lamp on Lamp on
Shutter closed Shutter open Shutter closed Shutter open
Video source
Source A Source B Sources A and B
Single/Dual mode Single/Dual mode Twin mode
(Single mode (these two not available in Stage 1 models)
only in Stage 1
model)
page 4.6
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Warnings
If a projector fault is detected, the warning symbol will be displayed, with an
explanatory message.
Projector status
Feature not yet available
LCD screen blank
To blank the LCD screen, press and hold the Digital projection logo at the top of the
screen for about two seconds. On release, the screen will blank.
To restore the display, press anywhere on the screen.
Notes
IP addresses
The IP addresses of the two ethernet ports are shown.
page 4.7
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Lamp menu
Press the LAMP button on the Main menu:
Lamp menu
Controls
Lamp power slider
Menu buttons...
Shutter open
Shutter close
Lamp on
Lamp off
Maximum power
Minimum power
Lamp/lens memories
Advanced lamp menu
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Lamp power
To adjust the lamp power, touch and drag the red slider up and down, or for fine
adjustment, press the arrow heads. The numerical value will change to grey until the
projector hardware has responded, when the value will change to white.
The minimum setting for a 3kW lamp is 50%.
To set maximum or minimum power, press the MAXIMUM or MINIMUM button.
Lamp on
Press the LAMP ON button.
When you switch the lamp ON, the projector will reset, whilst the lamp strikes. This
is to protect the control circuitry from the effects of the lamp strike pulse. Any
settings made before the lamp was switched on will be retained.
Lamp off
Press the LAMP OFF button. Hold the button pressed until the button turns to
yellow, then release. The lamp power will ramp down to minimum then go off after a
further 3 seconds.
Shutter open/closed
Press the SHUTTER OPEN or SHUTTER CLOSE button.
page 4.8
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Lamp/Lens memories
Press the LAMP/LENS MEMORIES button.
Notes
The Lamp/Lens memories are
useful if you need to swap
repeatedly and easily between
the settings for a number of
different lenses, or venues.
Store
To store the current Lamp power, Shutter status, Lens shift, zoom and focus
settings for future recall, press and hold one of the five numbered STORE buttons.
The button will turn grey - hold it until it turns yellow. If you release the button before
it turns yellow, the new settings will not be stored, and any previous settings will not
be lost.
Recall
To recall a previously stored set of Lamp power, Shutter status, Lens shift, zoom
and focus settings press one of the five numbered RECALL buttons.
Advanced menu
Feature not yet available
page 4.9
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Lens menu
Press the LENS button on the Main menu:
Shift, zoom and focus
Lens menu
Controls
Move
Zoom
Focus
Menu buttons...
Shutter open
Shutter close
Centre
Calibration
Stop all movement
Test patterns (image menu)
Lamp/Lens memories (lamp menu)
Advanced lens menu
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
To adjust the shift, zoom and focus settings, press the MOVE, ZOOM and FOCUS
arrow heads.
Lens movements will start slowly, then speed up as the button is held. To make fine
adjustments therefore, use a number of short presses.
Shutter open/closed
Press the SHUTTER OPEN or SHUTTER CLOSE button.
Centre
To centre the lens, press the CENTRE button.
Calibration
To calibrate the projector to a new lens, press and hold the CALIBRATION button.
The button will turn grey - hold it until it turns yellow, then release.
The zoom and focus mechanism will operate for about a minute, whilst the minimum
and maximum travel distances are determined.
Stop all movement
To cancel, for instance, a CENTRE operation or a LAMP/LENS MEMORY recall,
press the STOP ALL MOVEMENT button.
Each time you change the lens,
the projector will need to be
calibrated, in order that its
minimum and maximum travel
distances can be determined.
page 4.10
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Test patterns
Pressing the Test patterns button takes you directly to the Test pattern function in
the Image menu. See Image menu, later in this section.
Lamp/Lens memories
Pressing the Lamp/Lens memories button takes you directly to the Lamp/Lens
memories function in the Lamp menu. See Lamp menu, earlier in this section.
Advanced Lens menu
Feature not yet available
Notes
page 4.11
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Image menu
Press the IMAGE button on the Main menu:
Image menu
Controls
Test patterns
Menu buttons...
Shutter open
Shutter close
Contrast
Brightness
Gamma
Advanced gamma setup
Test patterns
Advanced image setup
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Test Patterns
Choose from:
• BLACK
• BALANCED WHITE
• RED
• GREEN
• BLUE
• ALIGNMENT PATTERN
• HORIZONTAL RAMP
• VERTICAL RAMP
• CHECKER BOARD
All of the above are affected by the contrast, brightness and gamma controls.
The four alignment patterns are illustrated on the next page.
• NATIVE WHITE
Native white is not affected by the contrast, brightness and gamma controls. All
pixels are fully illuminated, and no colour balancing is possible.
• NORMAL MODE
When Test patterns are
selected, the actual colours
displayed may depend on the
settings of the contrast,
brightness and gamma controls.
It may be necessary to set all
brightness controls to 0.0, and
all contrast controls to 1.0,
before making any light level
measurements.
There are two ways of creating
a blank screen:
Shutter closed: the screen is
completely black.
All black test pattern: all pixels
are set to off, but there may be
an extremely small amount of
light leakage through the prism
and DMD assembly.
Normal mode turns off all test patterns, and restores the source image.
page 4.12
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus

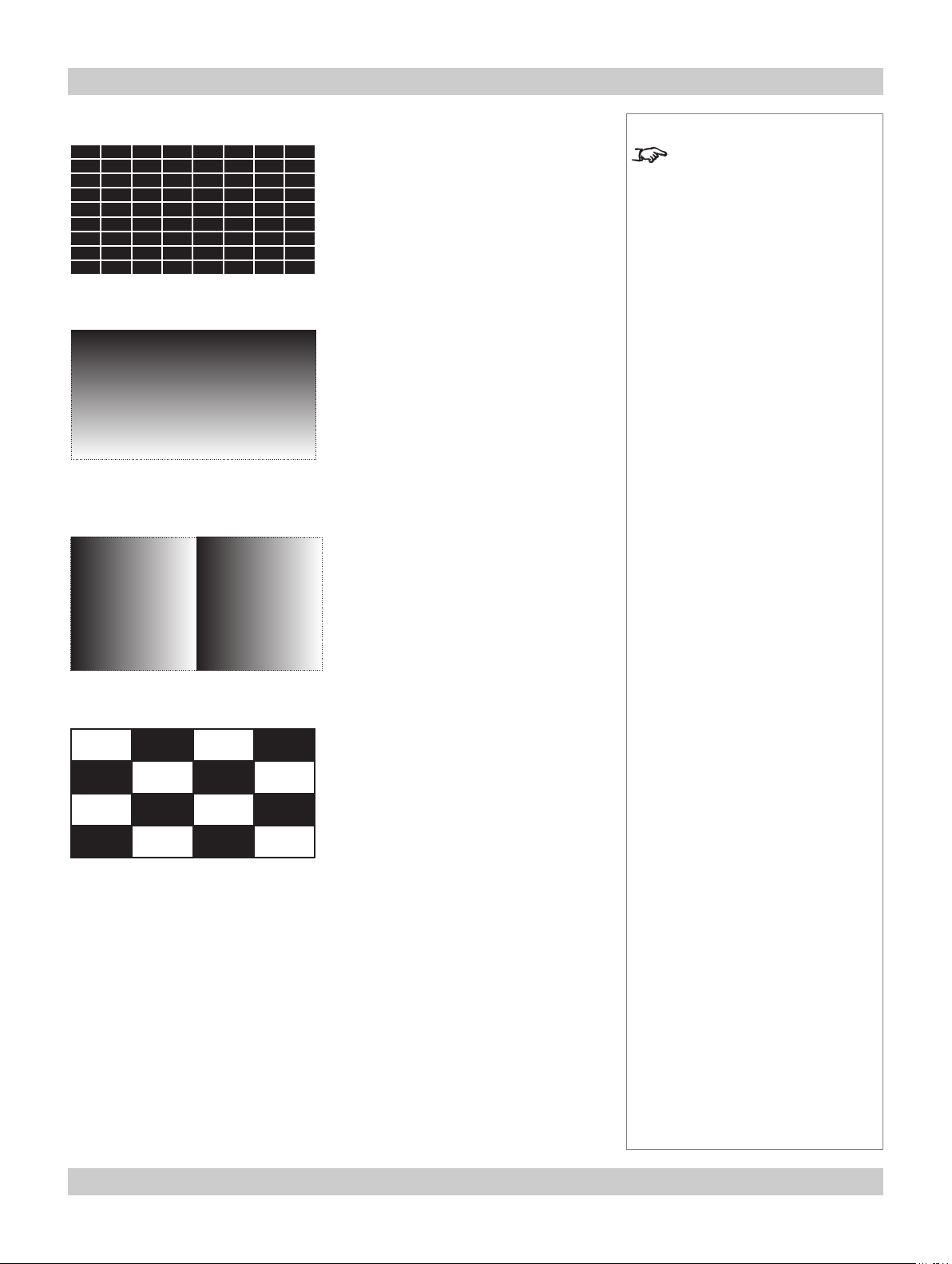

Alignment pattern
Horizontal ramp
Vertical ramp
Notes
When Test patterns are
selected, the actual colours
displayed may depend on the
settings of the contrast,
brightness and gamma controls.
It may be necessary to set all
brightness controls to 0.0, and
all contrast controls to 1.0,
before making any light level
measurements.
Checker board
Shutter open/closed
Press the SHUTTER OPEN or SHUTTER CLOSE button.
page 4.13
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Image menu, continued
Contrast
Press the CONTRAST button:
To adjust the OVERALL, RED, GREEN or BLUE contrast settings, touch and drag
the sliders up and down or for fine adjustment, press the arrow heads. To reset a
slider to its midpoint (1.0), press on the numerical value.
Image menu...
Contrast
Controls
Contrast sliders
Menu buttons...
Shutter open
Shutter close
Contrast
Brightness
Gamma
Advanced gamma setup
Test patterns
Advanced image setup
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
The numerical values displayed, ranging from 0 to 2.0 are not absolute, but relative
values. When the OVERALL slider is used, all three colours on the projected image
will change, but the individual values displayed on the sliders will not.
To maintain optimum overall image contrast and light output, press the AUTO
button. The OVERALL slider will grey out and become inoperable. The actual
contrast settings will be automatically adjusted such that your colour balance
settings are maintained but the optimum contrast and light output will be achieved.
The contrast, brightness and
gamma controls in the Image
menu are all interactive, so
settings made with one control
may directly affect the setting of
another control.
All these controls allow extreme
settings to be made. However,
in normal use, it should never
be necessary to set any of the
controls far from midpoint.
If in doubt, reset the contrast,
brightness and gamma controls
to midpoint, then make your
adjustments in small steps.
Better still, use the AUTO
feature.
page 4.14
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus

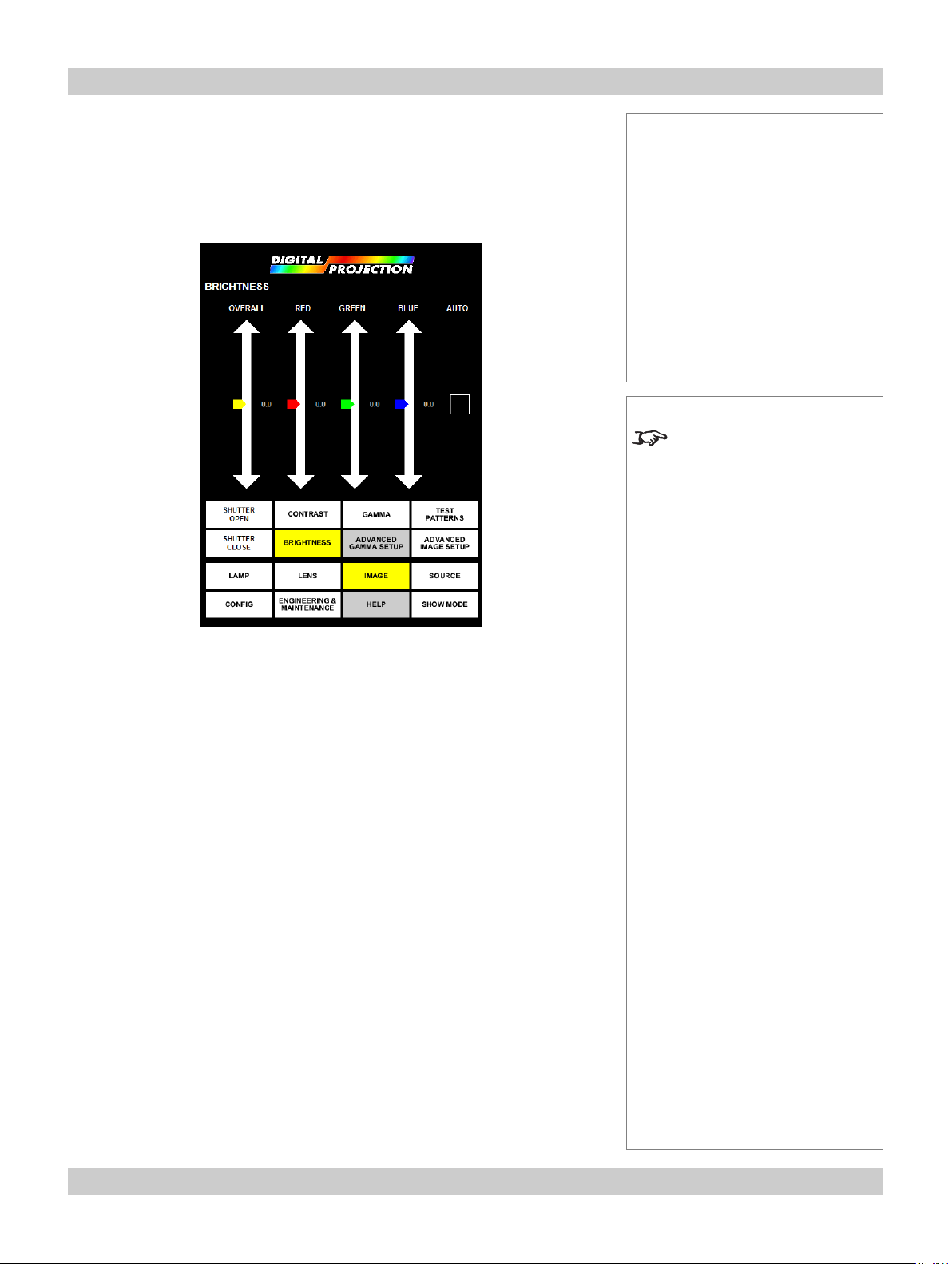

Brightness
Press the BRIGHTNESS button:
To adjust the OVERALL, RED, GREEN or BLUE brightness settings, touch and
drag the sliders up and down or for fine adjustment, press the arrow heads. To reset
a slider to its midpoint (0.0), press on the numerical value.
The numerical values displayed, ranging from -0.5 to +0.5 are not absolute, but
relative values. When the OVERALL slider is used, all three colours on the
projected image will change, but the individual values displayed on the sliders will
not.
To maintain optimum overall image brightness, press the AUTO button. The
OVERALL slider will grey out and become inoperable. The actual brightness
settings will be automatically adjusted such that your colour balance settings are
maintained but the optimum shadow detail and black level will be achieved.
Image menu...
Brightness
Controls
Brightness sliders
Menu buttons...
Shutter open
Shutter close
Contrast
Brightness
Gamma
Advanced gamma setup
Test patterns
Advanced image setup
Notes
The contrast, brightness and
gamma controls in the Image
menu are all interactive, so
settings made with one control
may directly affect the setting of
another control.
All these controls allow extreme
settings to be made. However,
in normal use, it should never
be necessary to set any of the
controls far from midpoint.
If in doubt, reset the contrast,
brightness and gamma controls
to midpoint, then make your
adjustments in small steps.
Better still, use the AUTO
feature.
page 4.15
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Image menu, continued
Gamma
Press the GAMMA button.
To adjust the Gamma setting manually, touch and drag the PARAMETRIC slider up
and down or for fine adjustment, press the arrow heads. To reset a slider to its
midpoint (2.0), press on the numerical value.
Image menu...
Gamma
Controls
Parametric slider
User Presets
Menu buttons...
Shutter open
Shutter close
Contrast
Brightness
Gamma
Advanced gamma setup
Test patterns
Advanced image setup
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Or choose from one of the PRESETS:
• GRAPHICS NTSC
• GRAPHICS ENHANCED
• NTSC ENHANCED
• PAL/SECAM 2.8
• PAL/SECAM ENHANCED
The PARAMETRIC slider will grey out and become inoperable whenever a preset is
selected.
To return from one of the Gamma PRESETS, to manual setting, simply touch and
drag the PARAMETRIC slider or press one of the arrow heads. The PRESET button
will grey out and the slider will become yellow again.
The contrast, brightness and
gamma controls in the Image
menu are all interactive, so
settings made with one control
may directly affect the setting of
another control.
All these controls allow extreme
settings to be made. However,
in normal use, it should never
be necessary to set any of the
controls far from midpoint.
If in doubt, reset the contrast,
brightness and gamma controls
to midpoint, then make your
adjustments in small steps.
Better still, use the AUTO
feature.
page 4.16
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
User Gamma Presets
Feature not yet available
Advanced Gamma Setup
Feature not yet available
Notes
The contrast, brightness and
gamma controls in the Image
menu are all interactive, so
settings made with one control
may directly affect the setting of
another control.
All these controls allow extreme
settings to be made. However,
in normal use, it should never
be necessary to set any of the
controls far from midpoint.
If in doubt, reset the contrast,
brightness and gamma controls
to midpoint, then make your
adjustments in small steps.
Better still, use the AUTO
feature.
page 4.17
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Advanced image setup
Press the ADVANCED IMAGE SETUP button on the Image menu:
Input window
Press the arrow heads to select a portion of the video image to be displayed, hiding
or revealing more or less of the image, as shown on the next page.
Image menu...
Advanced image setup
Controls
Input window
Input pan
Menu buttons...
Shutter open
Shutter close
Image orientation
Image position
Gamma
Input preset
Test Patterns
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
OR
Input preset
Press INPUT PRESET to see all six preset image sizes. Choose by pressing on the
required Preset button.
OR
Press on the number in the middle of the Input window arrows, to cycle through the
preset image sizes. Choose (up to the maximum set in Input preset) from:
• 2048x1080 • 1920x1080 • 1400x1050
• 1280x1024 • 1280x720 • 640x480
Input pan
Press the arrow heads to pan the video image within the window, as shown on the
next page.
OR
Press on 0,0 in the middle of the Input pan arrows, to pan to the centre of the
image.
The Input adjust controls allow
you to select which portion of
the video image is to be
displayed.
These controls DO NOT change
the position or size of the whole
image on the projection screen.
To change the position or size
of the whole image on the
projection screen, use the Move
and Zoom controls in the Lens
menu.
page 4.18
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Example
The original
Input window:
width reduced
Notes
The Input adjust controls allow
you to select which portion of
the video image is to be
displayed.
These controls DO NOT change
the position or size of the whole
image on the projection screen.
To change the position or size
of the whole image on the
projection screen, use the Move
and Zoom controls in the Lens
menu.
Note how the Input window
controls change the size of the
window, not the image
Input window:
height reduced
Input pan:
image moved
down and left
Note how the Input pan
controls move the image, not
the window, rather like the scroll
bars in many familiar
wordprocessor and desktop
publishing programs.
DMD
page 4.19
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Advanced image setup, continued
Image position
Press the IMAGE POSITION button on the Advanced image menu:
Image menu...
Advanced image setup...
Image position
Controls
Image position adjust
Centre image
Menu buttons...
Shutter open
Shutter close
Image orientation
Image position
Gamma
Input preset
Test Patterns
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Press the arrow heads to reposition the selected portion of the video image on the
DMD, as shown below.
position moved
down and right
DMD
OR
Press the CENTRE button, to centre the image on the DMD.
The Image position controls
are useful for multiple projector
applications, where the images
need to be tiled.
The Image position controls
affect how the selected video
image is positioned on the
DMD.
DO NOT use these controls to
change the position of the
whole image on the projection
screen.
To change the position of the
whole image on the projection
screen, use the Move and
Zoom controls in the Lens
menu.
Note that in subsequent
adjustments to the Input adjust
controls the image will be
limited to the edges of the
DMD.
page 4.20
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Image orientation
Press the IMAGE ORIENTATION button on the Advanced image menu:
Notes
The Image Orientation controls
allow the projected image to be
flipped for rear or reflected
projection, or to correct for
incorrectly oriented images.
Choose from:
• FLIP HORIZONTAL
Horizontal inverts the image left to right for rear projection.
• FLIP VERTICAL
Vertical inverts the image top to bottom for when the projector is mounted upside
down.
• FLIP BOTH
Both inverts the image left to right and top to bottom for rear projection and inverted
operation.
• NORMAL
Normal restores the image to its correct orientation.
DMD
Flip vertical
page 4.21
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Source menu
Press the SOURCE button on the Main menu:
Source menu
Controls
Source select
Menu buttons...
Shutter open
Shutter close
DVI repeater on
DVI Repeater off
Advanced menu
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
On earlier models, known as
‘Stage 1’ models, only Single
DVI-D on input A was available.
Source select
Single DVI-D (Stage 1 model):
A IN (single mode)
Single DVI-D (Stage 2 model only):
Select from: A IN (single mode) or B IN (single mode)
Dual DVI-D (Stage 2 model only):
Select from: A IN (dual mode) or B IN (dual mode)
Twin Link (Stage 2 model only):
A single input using both: A IN (single mode) AND B IN (single mode)
Dual Twin (Stage 2 model only):
A single input using both: A IN (dual mode) AND B IN (dual mode)
10 Bit or 12 Bit (Stage 2 model only):
When using Twin Link or Dual Twin, select either 10 bit or 12 bit image depth
DVI Repeater on/off
On later models, from ‘Stage 2’
onwards, Dual, Twin and Dual
Twin DVI-D inputs are also
available.
For more information about
input formats, see section 2.
Installation, Input formats.
Turns the DVI loop-through ON or OFF
page 4.22
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Configuration menu
Press the CONFIG button on the Main menu:
Config menu
Menu buttons...
Projector name (not yet available)
Language (not yet available)
Set date & time (not yet available)
Check compact flash (not yet available)
Detailed status
Networking config
Touchscreen calibration
Reset IP addresses
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Greyed out buttons: Feature not yet available
Detailed status
Press the DETAILED STATUS button.
The Software release version and the total number of hours of operation are shown.
page 4.23
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Configuration menu, continued
Networking configuration
Press the NETWORK CONFIG button on the Config menu, then choose from:
Ethernet configuration choices
• You can use either the Ethernet #1 or #2 port to connect the projector to a
controlling computer, but the two ports should always be set differently.
• If you are connecting the projector to an existing computer network that has a
DHCP (Dynamic Host Configuration Protocol) domain controller located in a
network server or router, then you should set the port to DHCP mode, and the
projector will determine its settings automatically.
• If you are connecting the projector to an existing computer network that does not
support DHCP, then you should set the port to MANUAL mode, obtain the
network settings from your Network Manager, and configure the projector as
described on the next page.
• If you are connecting a number of projectors and computers in a self contained
network, then you should set the port to MANUAL mode, configure the IP
address and Netmask settings as shown in the example on the next page.
• If you are connecting a single projector to a computer using a crossed LAN
cable, then you should set the port to MANUAL mode and leave the IP address
and Netmask settings at their default values. Configure the computer to match
the projector, but with the last number of the IP address different.
Config menu...
Network configuration...
Ethernet #1 or #2
Settings...
IP address
Netmask
Mode
Gateway (not yet available)
DNS (not yet available)
Notes
Do not make changes to the
networking configuration
unless you understand what
you are doing, or have taken
advice from your Network
Manager.
If you make a mistake, it is
possible that you will lose
contact with the projector.
Always double-check your
settings before pressing the
APPLY button.
Always keep a written note of
the original settings, and any
changes you have made.
page 4.24
If using DHCP, then keep the
projector switched on at all
times, and make sure the
projector is accessible, as the
IP address could be reassigned on power-up or
after a lost connection.
For information about how to
connect the projector, see
Connecting the projector in
section 2. Installation, and
Connections in section
6. Appendix.
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Setting the Ethernet port for DHCP or Manual
• Press the MODE button to set the Ethernet port to DHCP or MANUAL mode as
required, then press the APPLY button.
Making the IP address and other settings
• Press the IP ADDRESS field.
• Use the on-screen keypad to enter the IP address, remembering to include
leading zeroes for numbers less than 3 digits in length. The numbers will appear
in the field at the top of the keypad as you type.
If you make a mistake, press DELETE to undo your typing one character at a
time, or press CANCEL to start again completely.
• Press ENTER to transfer the completed address from the keypad display to the
IP ADDRESS field.
repeat for NETMASK.
leave DNS and GATEWAY blank.
• When all settings are complete, double check, then press APPLY.
Example
To connect a number of projectors and computers in a self contained network,
using a hub:
• Set to MANUAL mode, not DHCP.
• For each projector and computer, set the first three IP address number groups
the same, and the last number different (any number between 001 and 254).
Notes
Do not make changes to the
networking configuration
unless you understand what
you are doing, or have taken
advice from your Network
Manager.
If you make a mistake, it is
possible that you will lose
contact with the projector.
Always double-check your
settings before pressing the
APPLY button.
Always keep a written note of
the original settings, and any
changes you have made.
When making these settings,
leading zeroes must be used
for numbers less than 3 digits in
length. eg 192.168.010.001
When making a network
connection, eg via the address
box in a browser, leading
zeroes are not necessary.
The example below follows the convention for a private non-resolvable network
(cannot be seen on the internet).
172 . 016 . 010 . 001
172 . 016 . 010 . 002
172 . 016 . 010 . 003 etc
• Set the Netmask field for all projectors and computers to
255 . 255 . 255 . 000
To control more than one
projector from a single
computer, either open a
separate browser window for
each projector, or set a
bookmark for each projector in
Favourites.
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
page 4.25
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Wireless LAN configuration
Feature not yet available
Config menu...
Network configuration...
Wireless LAN
(not yet available)
Notes
Do not make changes to the
networking configuration
unless you understand what
you are doing, or have taken
advice from your Network
Manager.
If you make a mistake, it is
possible that you will lose
contact with the projector.
Always double-check your
settings before pressing the
APPLY button.
Always keep a written note of
the original settings, and any
changes you have made.
If using DHCP, then keep the
projector switched on at all
times, and make sure the
projector is accessible, as the
IP address could be reassigned on power-up or
after a lost connection.
page 4.26
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Configuration menu, continued
Touchscreen calibration
If you suspect that the LCD touchscreen has drifted out of calibration, press and
hold the TOUCHSCREEN CALIBRATION button on the Config menu:
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
Touchscreen calibration should
not normally be necessary
except after many hours of
heavy use.
A target appears in one corner of the screen. Press on the centre of the target and
repeat as the target moves around the screen.
After touching all four corners, you can wait a few seconds and carry out the
calibration again, or exit by pressing the button in the centre of the screen.
Reset IP addresses
To reset these to their factory settings, press and hold the RESET IP ADDRESSES
button. The button will turn grey - hold it until it turns yellow, then release.
Do not make changes to the
networking configuration
unless you understand what
you are doing, or have taken
advice from your Network
Manager.
If you make a mistake, it is
possible that you will lose
contact with the projector.
Always double-check your
settings before pressing the
APPLY button.
Always keep a written note of
the original settings, and any
changes you have made.
page 4.27
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
Engineering & Maintenance menu
Press the ENGINEERING & MAINTENANCE button on the Main menu:
Engineering & Maintenance
menu
Controls
Log files
Menu buttons...
Software update
Notes
Software update should NOT
be carried out except by, or
with the supervision of,
Digital Projection Service
personnel.
Log files
A single log file is created for each day that the projector is switched on. There will
only be one file per day, regardless of how many times the projector has been
switched on and off.
The log files cannot be accessed from the projector touch screen. However, in the
event of a problem with the projector, the log files can be downloaded to a remote
computer via a network connection, and emailed to Digital Projection for analysis.
To open a log file on a remote computer:
• Click on the log file name.
Software update
(only available via a browser, not when operating directly from the projector touch
screen)
This should NOT be carried out except by, or with the supervision of, Digital
Projection Service personnel.
page 4.28
Digital Projection LIGHTNING 35HD User Manual 4. Using the menus
Help menu
Feature not yet available
Help menu
(not yet available)
Notes
The eight buttons of the Main
menu are always visible at the
bottom of the display.
To go back to a previous menu
option that is no longer visible,
call up the menu again using
the appropriate Main menu
button.
page 4.29
4. Using the menus Digital Projection LIGHTNING 35HD User Manual
page 4.30
5. Maintenance
Contents
5. Maintenance 5.1
Changing the lamp ..................................................................................................................5.2
Lamp-hours meter ........................................................................................................................................... 5.3
Changing the filter................................................................................................................... 5.5
Cleaning the projector and lens .............................................................................................5.6
5. Maintenance Digital Projection LIGHTNING 35HD User Manual
Changing the lamp
The lamp should be changed after 750 hours of use, as indicated on the lamp-hours
meter. The meter is located on the front of the lamp module, and is accesible inside
the lamp compartment door.
To open the lamp compartment door:
• Give the catch half a turn anti-clockwise, to release the catch.
Door
catch
Notes
Always allow the lamp to cool
for 5 minutes before
removing the lamp module.
There are no user-serviceable
parts inside the lamp module.
The whole module should be
replaced and returned to
Digital Projection for refurbishment.
Do not use the lamp for more
than 750 hours, as this may
cause serious lamp failure,
damage the lamp module and
cause extra cost on
replacement.
Lamp module
Xenon lamps produce high
intensity light. Do not look
directly at the light coming
from the lamp housing or the
lens.
page 5.2
Digital Projection LIGHTNING 35HD User Manual 5. Maintenance
Lamp-hours meter
There are two types of Lamp-hours meter, depending on the lamp module that has
been fitted, as shown below.
Mercury meter
Notes
LCD meter
display button
The LCD Lamp-hours meter has two modes of operation:
• When the lamp is switched on, the LCD will show lamp run hours.
• When the lamp is switched off, the LCD will be blank.
Press the button and hold for 5 seconds to display lamp run hours.
page 5.3
5. Maintenance Digital Projection LIGHTNING 35HD User Manual
To change the lamp:
• Press the LAMP button on the Main menu.
• Press LAMP OFF and hold for 3 seconds. The lamp will ramp down to minimum
and go off after a further 3 seconds.
• Allow the lamp to cool for 5 minutes.
• Push the main power switch downwards to switch off the power.
• Open the lamp compartment door.
• Unscrew each of the three lamp module screws until the thread disengages and
the knob can be pulled out a little against its spring pressure.
Lamp module
screws
Notes
Take care when removing the
lamp module, as it is heavy
(>10kg).
Take care not to touch the
glass surface of the lamp
module. If you do accidentally
touch the glass, it should be
cleaned before use.
• Pull the lamp module out of the projector.
To fit the new lamp module:
• Rest the lamp module on the edge of the compartment and line up the white
nylon guides.
• Gently but firmly, push the lamp module in all the way until the connector
engages.
• Screw in each of the three lamp module screws until finger tight.
• Push the lamp compartment door closed.
page 5.4
Digital Projection LIGHTNING 35HD User Manual 5. Maintenance
Changing the filter
To change the filter:
• Press the LAMP button on the Main menu.
• Press LAMP OFF and hold for 3 seconds. The lamp will ramp down to minimum
and go off after a further 3 seconds.
• Allow the lamp to cool for 5 minutes.
• Push the main power switch downwards to switch off the power.
• Pull the filter out from under the front of the projector, under the lens, by pulling
on the strap.
Notes
The filter should be changed
regularly:
• In a clean environment such as
an office, change after 750
hours, at the same time as the
lamp is changed.
• In a dusty or smoky
environment such as a theatre
or public area, more frequent
changes may be necessary.
If you have an early fibre-board
filter, then it should be replaced
by a new refillable metal filter
when dirty.
• Replenish the filter material.
• Push the replenished filter firmly back into the slot, taking care to fit it the right
way up, as shown by the arrow.
page 5.5
5. Maintenance Digital Projection LIGHTNING 35HD User Manual
Cleaning the projector and lens
Turn the projector off before cleaning.
Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild
detergent.
Use a blower or lens paper to clean the lens, taking care not to scratch the glass.
Notes
Never use strong detergents
or solvents such as alcohol
or thinners to clean the
projector and lens.
page 5.6
6. Appendix
Contents
6. Appendix 6.1
Troubleshooting ......................................................................................................................6.2
Specifications ..........................................................................................................................6.4
Part numbers ................................................................................................................................................... 6.4
Optical .............................................................................................................................................................. 6.4
Electrical .......................................................................................................................................................... 6.4
Physical ............................................................................................................................................................ 6.5
Lens Data ......................................................................................................................................................... 6.6
Connections.............................................................................................................................6.8
DVI-D connection ............................................................................................................................................ 6.8
LAN connection ............................................................................................................................................... 6.9
10BaseT Unshielded Twisted Pair cable ...................................................................................................... 6.9
Crossed cable .............................................................................................................................................. 6.9
Serial control input ........................................................................................................................................ 6.10
Null-modem cable ...................................................................................................................................... 6.10
Modem settings .......................................................................................................................................... 6.10
Using Windows Hyperterminal to connect to the projector .......................................................................6.11
Remote communications protocol ...................................................................................... 6.12
Image commands .......................................................................................................................................... 6.12
Image Brightness ....................................................................................................................................... 6.12
Image Contrast ........................................................................................................................................... 6.13
Image Projection Mode .............................................................................................................................. 6.13
Image Orientation ....................................................................................................................................... 6.14
Image Mirror Park ...................................................................................................................................... 6.14
Image Colour Temperature Gain ................................................................................................................ 6.15
Input Image Size ........................................................................................................................................ 6.15
Input Image Window Size .......................................................................................................................... 6.16
Image Position ........................................................................................................................................... 6.16
Input Capture Offset ................................................................................................................................... 6.17
Test Patterns .............................................................................................................................................. 6.18
Degamma Table Select .............................................................................................................................. 6.19
Picture Mute ............................................................................................................................................... 6.20
Lens Commands ........................................................................................................................................... 6.21
Lens Stop All .............................................................................................................................................. 6.21
Lens Move ................................................................................................................................................. 6.21
Lens Goto Absolute Position ...................................................................................................................... 6.22
Lens Goto Centre ....................................................................................................................................... 6.22
Lens Calibrate Zoom .................................................................................................................................. 6.22
PSU Commands ............................................................................................................................................ 6.23
Lamp On .................................................................................................................................................... 6.23
Lamp Off .................................................................................................................................................... 6.23
Lamp Power ............................................................................................................................................... 6.24
Dimensions ............................................................................................................................ 6.25
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Troubleshooting
Problem
The projector will not power up.
The projector shuts down after it has
been in use for some time.
The lamp is not lit.
The menus say the lamp is lit but no
image is displayed.
Possible solutions
Check that the mains plug is plugged in and that the mains supply is switched on.
Check any external fuses or breakers.
The projector may be overheating. Check that the air inlets and outlets are clear of
any obstruction. Check that the air filter is clean, and if it is dirty, fit a new one.
See Section 1. Introduction, Getting to know the projector
Check in the
See Section 4. Using the menus, Lamp menu
Check the lamp-hours meter. If the lamp has been in use for over 750 hours, the
lamp module should be changed.
See Section 5. Maintenance, Changing the lamp
The lamp may be faulty. Check by fitting a new lamp module.
See Section 5. Maintenance, Changing the lamp
Check that the input source is switched on and connected to the projector
correctly.
Check that the correct image source is selected.
LAMP menu that the lamp is turned on.
The image does not fit the screen
correctly.
See Section 4. Using the menus, Source menu
Check that the brightness and contrast settings are set correctly.
See Section 4. Using the menus, Image menu
If the input source is connected via a device powered from the 5V auxilliary power
outlet, check that this power cable is connected correctly.
The projector may be overheating. Check that the air inlets and outlets are clear of
any obstruction. Check that the air filter is clean, and if it is dirty, fit a new one.
If the image is smaller than 2048 x 1080 pixels, then the image will NOT fill the
screen. The projector does not perform any image processing - the MMS 1000 is
recommended for this purpose.
Check that the correct lens is being used for the combination of screen size and
projection distance.
See Section 1. Introduction, Choosing a lens
Check the settings in the
See Section 4. Using the menus, Image menu
IMAGE menu.
page 6.2
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
Problem Possible solutions
Poor colour depth reproduction.
Uneven image quality.
Projector does not respond to remote
control commands from a computer.
Colour depth is 8 bits using Single or Dual inputs. If using Twin inputs for greater
colour depth, check that both source cables are connected correctly, and that
Twin mode is selected.
See Section 4. Using the menus, Source menu
Check that the projector is parallel to the screen.
Check that the screen is flat, and securely mounted.
Check that the LAN or serial cable is connected correctly.
See this section 6. Appendix, Connections
If using a LAN, check that the address setting is made correctly.
See Section 4. Using the menus, Configuration menu
If using a serial cable, check that the modem settings are made correctly.
See this section 6. Appendix, Connections
Check that the correct control codes are being used.
See this section 6. Appendix, Serial communications protocol
In the event that this troubleshooting guide has not solved the problem, then
contact your Digital Projection dealer or service centre.
page 6.3
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Specifications
Part numbers
Projector
USA model 102-061
Rest of World model 103-398
Lenses
1.0 :1 fixed lens 103-350
1.25 - 1.45 :1 zoom lens 103-351
1.45 - 1.8 :1 zoom lens 102-451
1.8 - 2.4 :1 zoom lens 102-676
2.2 - 3.0 :1 zoom lens 102-677
3.0 - 4.3 :1 zoom lens 102-678
4.3 - 6.0 :1 zoom lens 104-189
Replacement parts
Lamp module LM00519
Air filter, complete replacement for early fibre-board model 104-154A
Air filter, replacement filling only, for later model 103-609B
Optical
Digital Light Processor 3 x 1.26” Texas Instruments DMD™, resolution 2048 x 1080 pixels
Lamp power 3kW
Lamp life (typical) 750 hours
Brightness 18,000 Center lumens, 16,000 ANSI lumens (±10%)
Colour temperature 3000-9300°K
Contrast Ratio 1600:1 full field (±10%)
Pixel fill factor 87%
Electrical
Inputs DVI-D single, DVI-D dual, DVI-D single twin or DVI-D dual twin
Pixel clock single: up to 165MHz, dual: up to 220MHz
Outputs DVI-D single, DVI-D dual, DVI-D single twin or DVI-D dual twin loop through
Control inputs 2 x LAN
1 x RS232 serial
Mains voltage 208-264 VAC, 48-62Hz (single phase)
Power consumption 4000 W
International Regulations Meets FCC Class A requirements
Meets EMC Directives (EN 50081-1, EN 50082-1, EN 55022)
MeetsLow Voltage Directive (EN60950)
page 6.4
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
Physical
Operating Temperature 10 to 35°C
Storage Temperature -10 to 50°C
Thermal Dissipation 13640 BTU
Operating Humidity up to 80% non-condensing
Weight 114kg (249lbs)
page 6.5
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Lens Data
103-350 103-351 102-451 102-676
throw ratio 1.0 :1 fixed 1.25 - 1.45 :1 zoom 1.45 - 1.8 :1 zoom 1.8 - 2.4 :1 zoom
full DMD image width 2.2m - 6.9m 3.5 - 31m 3 - 25m 2 - 19m
(7.4 - 22.6ft) (11 - 102ft) (9 - 82ft) (7 - 62ft)
throw distance 2.2m - 6.9m 5 - 45m 5 - 45m 5 - 45m
(7.4 - 22.6ft) (16 - 148ft) (16 - 148ft) (16 - 148ft)
lens shift vertical ± 400 pixels ± 540 ± 282 ± 282
(vs DMD height) ± 0.37H ± 0.5H ± 0.26H ± 0.26H
lens shift horizontal ± 256 ± 365 ± 172 ± 172
(vs DMD width) ± 0.125W ± 0.178W ± 0.085W ± 0.085W
Aperture F/2.5 F/2.5 F/2.5 F/2.5
Max object field size 38.04mm dia 36.0mm dia 36.0mm dia 36.0mm dia
Effective focal length 28.95mm 35.28 - 40.97mm 40.71 - 50.89mm 50.72 - 62.12mm
(1.14in) (1.39 - 1.61in) (1.6 - 2.0in) (2 - 2.5in)
Distortion <0.6% <1.5% <1.5% <1.5%
Transmission >85% avg. >88% avg >88% avg >88%
Mechanical
Lens extension* 185mm 161mm 109mm 97mm
(7.3in) (6.3in) (4.3in) (3.8in)
Length 457.5mm 433.6mm 381mm 368.4mm
(18.0in) (17.1in) (15in) (14.5in)
Maximum diameter 144.5mm 144.5mm 139mm 139mm
(5.69in) (5.69in) (5.47in) (5.47in)
* Lens extension is the distance from the outer end of the lens to the front of the projector. It is measured when the lens is
focussed at infinity and fully extended. At other focus settings, the extension could be up to 10mm less.
It is important for calculating throw distance accurately (see Useful lens calculations, in Section 2. Installation).
lens extension,
measured from front
of corner post
page 6.6
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
102-677 102-678 104-189
throw ratio 2.2 - 3.0 :1 zoom 3.0 - 4.3 :1 zoom 4.3 - 6.0 :1 zoom
full DMD image width 2 - 15m 1 - 11m 1 - 8m
(5 - 49ft) (4 - 34ft) (3 - 25ft)
throw distance 2.2m - 6.9m 5 - 45m 5 - 45m
(7.4 - 22.6ft) (16 - 148ft) (16 - 148ft)
lens shift vertical ± 282 ± 282 ± 282
(vs DMD height) ± 0.26H ± 0.26H ± 0.26H
lens shift horizontal ± 172 ± 172 ± 172
(vs DMD width) ± 0.085W ± 0.085W ± 0.085W
Aperture F/2.5 F/2.5 F/2.5
Max object field size 36.0mm dia 36.0mm dia 36.0mm dia
Effective focal length 62.35 - 84.79mm 84.0 - 120.5mm 122.8 - 172.3mm
(2.46 - 3.34in) (3.31 - 4.74in) (4.83 - 6.78 in)
Distortion <1.5% <1.5% <1.5%
Transmission >88% avg >88% avg >88% avg
Mechanical
Lens extension 53mm 98mm 170mm
(2.1in) (3.9in) (6.7in)
Length 324.9mm 370.8mm 442mm
(12.8in) (14.6in) (17.4in)
Maximum diameter 139mm 139mm 139mm
(5.47in) (5.47in) (5.47in)
page 6.7
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Connections
DVI-D connection
1 TMDS Data 2-
2 TMDS Data 2+
3 TMDS Data 2/4 Shield
4 TMDS Data 4-
5 TMDS Data 4+
6 DDC Clock
7 DDC Data
8 unused
9 TMDS Data 1-
10 TMDS Data 1+
11 TMDS Data 1/3 Shield
12 TMDS Data 3-
13 TMDS Data 3+
14 +5 V Power
15 Ground
16 Hot Plug Detect*
17 TMDS Data 0-
18 TMDS Data 0+
19 TMDS Data 0+
20 TMDS Data 0/5 Shield
21 TMDS Data 5 -
22 TMDS Data 5+
23 TMDS Clock Shield
24 TMDS Clock+
Notes
Cable complexity and
interference can be reduced by
using the Digilink high
bandwidth optical connection
system. Contact your dealer for
more information.
pin view of female connector
* Hot plug detect (HPD) is fully DVI compliant. DVI sources detect the presence of
a display device by providing +5V on pin 14 and looking for +5V on pin 16.
Whenever the projector is operational, and 5V is present on pin 14, pin 16 will be
held at +5V.
EDID is available even when the projector is switched off.
Operational means that the projector is powered up. Non operational states are
powered down and some self test and reprogramming modes.
page 6.8
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
LAN connection
10BaseT Unshielded Twisted Pair cable
The standard wire colours as as follows:
1 White / Orange stripe
2 Orange
3 White / Green stripe
4 Blue
5 White / Blue stripe
6 Green
7 White / Brown stripe
8 Brown
Crossed cable
(used to connect directly to a computer with no hub or network.)
(Note that only the green and blue pairs are crossed)
1 White / Orange stripe White / Green stripe 1
2 Orange Green 2
3 White / Green stripe White / Orange stripe 3
4 Blue Blue 4
5 White / Blue stripe White / Blue stripe 5
6 Green Orange 6
7 White / Brown stripe White / Brown stripe 7
8 Brown Brown 8
top view of cable connector
(clip is underneath)
Notes
Use:
• a straight cable to connect to a
hub or network, or
• a crossed cable as shown here
to connect ONLY to a computer
directly.
page 6.9
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Serial control input
1 unused
2 Received Data
3 Transmitted Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 unused at present
Null-modem cable
(used to connect the projector to a computer)
RD 2 --- 3 TD
TD 3 --- 2 RD
DTR 4 --- 6 DSR
GND 5 --- 5 GND
DSR 6 --- 4 DTR
pin view of female connector
Notes
The projector is a DTE, so use:
• a straight cable to connect to a
modem, or
• a null-modem cable as shown
here to connect to another DTE
such as a computer.
RTS 7 --- 8 CTS
CTS 8 --- 7 RTS
Modem settings
• Baud rate 38,400 bps
• Data length 8 bits
• Parity none
• Stop bits one
• Handshaking Full duplex RTS/CTS
Xon/Xoff not supported
page 6.10
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
Using Windows Hyperterminal to connect to the projector
Many features of the projector can be controlled remotely by sending ascii character
strings to the serial control input, or via a LAN, using the protocol and syntax
described in the following pages.
If you are using a PC running Windows 95, 98, Me, NT, 2000 or XP, you can send
the control codes using Windows Hyperterminal. This can usually be found in:
Start → All Programs → Accessories → Communications → Hyperterminal:
In File → Properties, set the connection either to your serial link or LAN connection.
For a serial connection, use the settings detailed on the previous page. For a LAN
connection, connect to the server using port number 7000.
Notes
For a full description of all the
Control codes available, see the
Lightning 35HD
Communications Protocol, on
the following pages.
In File → Properties → Settings → Ascii Setup, set the sending and receiving
characters as shown below:
Commands can be sent to the projector simply by typing in the Hyperterminal
window. Replies will also be seen in the window.
page 6.11
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Remote communications protocol
Version 1.2 Patch A
Each command string sent to the projector should start with character 0x0a and end
with character 0x0d. If you are using Windows Hyperterminal, then this will be taken
care of by the Ascii Setup described on the previous page.
Prefix each command with:
"[id],[user],[time],[date],[command priority],[projector id],[projector name],"
for example:
1234,external,16:37:31,01/04/2004,5,543210,DPL-123,
example lens command (close shutter)
1234,external,15:20:25,14/10/2004,5,543210,DPL-123,lens,move,write,s,c,0,0
example lens command (open shutter)
1234,external,15:20:30,14/10/2004,5,543210,DPL-123,lens,move,write,s,o,0,0
Image commands
Image Brightness
Used to set and query image brightness (lift) levels.
Notes
Details of how to connect to the
projector, using the serial
control input or via a LAN, can
be found on the previous page.
CALL : "image,brightness,write,r,[level],g,[level],b,[level],o,[level],a,[mode]"
: Where [level] is -0.5 to 0.5 in steps of 0.001
: and [mode] is either "on" or "off"
: 'o' is overall level - only valid if 'a' is set to 'off'.
: 'a' is auto level control.
RETURNS : "[msg id],ACK,brightness,r,[level],g,[level],b,[level],o,[level],a,[mode]"
: OR
: "[msg id],NAK,brightness"
CALL : "image,brightness,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],brightness,[r level],[g level],[b level],[o level],[a mode]"
: OR
: "[msg id],NAK,brightness"
page 6.12
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
Image Contrast
Used to set and query image contrast (gain) levels.
CALL : "image,contrast,write,r,[r level],g,[g level],b,[b level],o,[level],a,[mode]"
: Where [level] is 0.0 to 2.0 in steps of 0.001
: and [mode] is either "on" or "off"
: 'o' is overall level - only valid if 'a' is set to 'off'.
: 'a' is auto level control.
RETURNS : "[msg id],ACK,contrast,r,[r level],g,[g level],b,[b
level],o,[level],a,[mode]"
: OR
: "[msg id],NAK,contrast"
CALL : "image,contrast,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],contrast,[r level],[g level],[b level],[o level],[a mode]"
: OR
Notes
: "[msg id],NAK,contrast"
Image Projection Mode
Used to set and query image projection mode.
CALL : "image,projectionmode,write,[mode]"
: Where [mode] is one of "curtain", "testpattern" or "normal"
RETURNS : "[msg id],ACK,projectionmode,[mode]"
: OR
: "[msg id],NAK,projectionmode"
CALL : "image,projectionmode,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],projectionmode,[mode]"
: OR
: "[msg id],NAK,projectionmode"
page 6.13
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Image Orientation
Used to set and query image orientation.
CALL : "image,imageorient,write,[orient]"
: Where [orient] is one of "normal", "nsflip", "ewflip" or "newsflip"
RETURNS : "[msg id],ACK,imageorient,[orient]"
: OR
: "[msg id],NAK,imageorient"
CALL : "image,imageorient,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],imageorient,[orient]"
: OR
: "[msg id],NAK,imageorient"
Image Mirror Park
Used to set and query mirror park.
Notes
CALL : "image,mirrorpark,write,[mode]"
: Where [mode] is one of "park" or "release"
RETURNS : "[msg id],ACK,mirrorpark,[orient]"
: OR
: "[msg id],NAK,mirrorpark"
CALL : "image,mirrorpark,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],mirrorpark,[mode]"
: OR
: "[msg id],NAK,mirrorpark"
page 6.14
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
Image Colour Temperature Gain
Used to set and query image colour temperature levels.
CALL : "image,colourtempgain,write,r,[r level],g,[g level],b,[b level]"
: Where [level] is 0.0 to 2.0 in steps of 0.001
RETURNS : "[msg id],ACK,colourtempgain,r,[r level],g,[g level],b,[b level]"
: OR
: "[msg id],NAK,colourtempgain"
CALL : "image,colourtempgain,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],colourtempgain,[r level],[g level],[b level]"
: OR
: "[msg id],NAK,colourtempgain"
Input Image Size
Used to set and query image input size.
Notes
CALL : "image,inputimagesize,write,c,[cols],r,[rows]"
: Where [cols] is the number of pixels range 640 to DMD size
: and [rows] is the number of lines range 480 to DMD size.
RETURNS : "[msg id],ACK,inputimagesize,c,[cols],r,[rows]"
: OR
: "[msg id],NAK,inputimagesize"
CALL : "image,inputimagesize,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],ACK,inputimagesize,[cols],[rows]"
: OR
: "[msg id],NAK,inputimagesize"
page 6.15
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Input Image Window Size
Used to set and query image input window size.
CALL : "image,inputimagewindow,write,c,[cols],r,[rows]"
: Where [cols] is the number of pixels range 640 to DMD size
: and [rows] is the number of lines range 480 to DMD size.
RETURNS : "[msg id],ACK,inputimagewindow,c,[cols],r,[rows]"
: OR
: "[msg id],NAK,inputimagewindow"
CALL : "image,inputimagewindow,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],ACK,inputimagewindow,[cols],[rows]"
: OR
: "[msg id],NAK,inputimagewindow"
Notes
Image Position
Used to set and query image position.
CALL : "image,imageposition,write,c,[cols offset],r,[rows offset]"
: Where [cols] is the number of pixels offset from centre
: and [rows] is the number of lines offset from centre.
: Positive values move the image down and right and negative move
: the image up and left.
RETURNS : "[msg id],ACK,imageposition,c,[cols offset],r,[rows offset]"
: OR
: "[msg id],NAK,imageposition"
CALL : "image,imageposition,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],ACK,imageposition,[cols offset],[rows offset]"
: OR
: "[msg id],NAK,imageposition"
page 6.16
Digital Projection LIGHTNING 35HD User Manual 6. Appendix
Input Capture Offset
Used to set and query image capture offset.
CALL : "image,inputcaptureoffset,write,c,[cols offset],r,[rows offset]"
: Where [cols] is the number of pixels offset from centre
: and [rows] is the number of lines offset from centre.
: Positive values move the image down and right and negative move
the image up and left.
RETURNS : "[msg id],ACK,inputcaptureoffset,c,[cols offset],r,[rows offset]"
: OR
: "[msg id],NAK,inputcaptureoffset"
CALL : "image,inputcaptureoffset,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],ACK,inputcaptureoffset,[cols offset],[rows offset]"
: OR
: "[msg id],NAK,inputcaptureoffset"
Notes
page 6.17
6. Appendix Digital Projection LIGHTNING 35HD User Manual
Test Patterns
Used to set and query test patterns.
CALL : "image,testpattern,write,[pattern name][vertical rate]"
: Where [pattern name] is one of:
: black - Full Screen Black
: white - Full Screen White
: green - Full Screen Green
: red - Full Screen Red
: blue - Full Screen Blue
: checker - ANSI Checkerboard
: align - Alignment Pattern
: h_ramp - Horizontal Ramp
: v_ramp - Vertical Ramp
: max_lumens - Native White
: native_white - Native White
: off - Normal Picture
Notes
: and [vertical rate] is 60.
RETURNS : "[msg id],ACK,testpattern,[pattern name][vertical rate]"
: OR
: "[msg id],NAK,testpattern"
CALL : "image,testpattern,read,[urgency switch]"
NOTE : Urgency switch is currently ignored (can be set to 0).
RETURNS : "[msg id],testpattern,[pattern name][vertical rate]"
: OR
: "[msg id],NAK,testpattern"
page 6.18
Loading...
