Digital Projection Lightning 40isx+, Lightning 30i sx+ User Manual

Download

LIGHTNING 30isx+, 40isx+

Super High Brightness Digital Video Projector User Manual

106-268B

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Declaration of Conformity

Directives covered by this Declaration

2004/108/EC Electromagnetic Compatibility Directive. 2006/95/EC Low Voltage Equipment Directive.

Products covered by this Declaration

Large screen video projector type The CE mark was ﬁ rst applied in:

LIGHTNING 30

Basis on which Conformity is being declared

The products identiﬁ ed above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards.

EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Technology Equipment.

EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology Equipment.

EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control apparatus for Professional Use.

sx+ February 2007

EN 60950-1:2001 - Speciﬁ cation for Safety of Information Technology Equipment, including Electrical Business equipment.

The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage directive has been compiled by the signatory below and is available for inspection by the relevant enforcement authorities.

Signed:

Authority: D.J. Quinn, Product Development Director

Date: 12 February 2007

Attention!

The attention of the speciﬁ er, purchaser, installer, or user is drawn to special measures and limitations to use which must be observed when these products are taken into service to maintain compliance with the above directives. Details of these special measures are available on request, and are also contained in the product manuals.

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Declaration of Conformity

Directives covered by this Declaration

2004/108/EC Electromagnetic Compatibility Directive. 2006/95/EC Low Voltage Equipment Directive.

Products covered by this Declaration

Large screen video projector type The CE mark was ﬁ rst applied in:

LIGHTNING 40

Basis on which Conformity is being declared

The products identiﬁ ed above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards.

EN 55022:1998 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Technology Equipment.

EN 55024:1998 - Limits and Methods of Measurement of Immunity Characteristics of Information Technology Equipment.

EN 55103:1997 - Product family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control apparatus for Professional Use.

sx+ February 2007

EN 60950-1:2001 - Speciﬁ cation for Safety of Information Technology Equipment, including Electrical Business equipment.

Signed:

Authority: D.J. Quinn, Product Development Director

Date: 12 February 2007

Attention!

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Important Information

Please read this user manual carefully before using the projector, and keep the manual handy for future reference.

A serial number is located on the side of the projector. Record it here:

Symbols used in this guide

Warnings

ELECTRICAL WARNING: this symbol indicates that there is a danger of

electrical shock unless the instructions are closely followed.

WARNING: this symbol indicates that there is a danger of physical

injury to yourself and/or damage to the equipment unless the instructions are closely followed.

NOTE: this symbol indicates that there is some important information that

you should read.

Trademarks

•

IBM is a registered trademark of International Business Machines Corporation.

•

Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.

•

Other product and company names mentioned in this user’s manual may be the trademarks of their respective holders.

Product revision

•

Because we at Digital Projection continually strive to improve our products, we may change speciﬁ cations and designs, and add new features without prior notice. Projectors built prior to this revision of the User Manual may therefore not include all the features described.

Manual revision

Date Description Revision

March 2008 Yaw adjustment, Resolution menu Rev B

Rev B March 2008 Page v

Important Information Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

General precautions

Do not open the cabinet. There are no user serviceable parts inside. Use only the power cable provided. Ensure that the power outlet includes a Ground connection, as this

equipment MUST be earthed.

Take care to prevent small objects such as paper or wire from falling

into the projector. If this does happen, switch off immediately, and have the objects removed by authorised service personnel.

Do not expose the projector to rain or moisture, and do not place any

liquids on top of the projector. Unplug before cleaning, and use a damp, not wet, cloth. Do not touch the power plug with wet hands. Do not touch the power plug during a thunder storm. Handle the power cable carefully and avoid sharp bends. Do not use a

damaged power cable.

There are no user-serviceable parts inside the lamp module. The whole

module should be replaced and returned to Digital Projection for re-

furbishment.

Notes

Take care when removing the lamp module, as it is heavy (>10kg). Take care not to touch the glass surface of the lamp module. If you do

accidentally touch the glass, it should be cleaned before use. Do not use the lamp for more than 750 hours, as this may cause

serious lamp failure, damage the lamp module and cause extra cost on

replacement. Xenon lamps produce high intensity light. Do not look directly at the

light coming from the lamp housing, or the lens, or allow items such

as magnifying lenses to be placed in the light path. This could result in

serious eye damage. Do not touch the ventilation outlets, as they will become hot in use. Do not cover the ventilation outlets or inlets. Do not cover the lens whilst the projector is switched on. This could

cause a ﬁ re Always allow the projector to cool for 5 minutes before switching off

the power, moving the projector or changing the lamp. Never use strong detergents or solvents such as alcohol or thinners to

clean the projector and lens.

Page vi Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual Important Information

Installation precautions

Connect the LAN cable only to a computer LAN connection. Other

similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualiﬁ ed personnel, in

accordance with local building codes. The projector should be installed as close to the power outlet as

possible. The power connection should be easily accessible, so that it can be

disconnected in an emergency. Ensure that there is at least 30cm (12in) of space between the

ventilation outlets and any wall, and 10cm (4in) on all other sides. Do not install the projector close to anything that might be affected by

its operational heat, for instance, polystyrene ceiling tiles, curtains etc. The projector weighs over 100kg (200lbs). Use safe handling

techniques when lifting the projector. Do not stack more than four projectors. When stacking projectors, the stack MUST be vertical, to ensure that

the stresses are distributed to all for frame couplings. Before installation, make sure that the surface, ceiling or rigging that is

to support the projector is capable of supporting the combined weight

of the projector and lens (see speciﬁ cation for exact weights).

Notes

±12°

Separate backup safety chains or wires should always be used for each

projector. Do not place heavy objects on top of the projector chassis. Only

the rigging frame is capable of withstanding the weight of another

projector. Do not drop or jarr the projector. The lens release lever should always be set to the locked position to

prevent the lens from falling out. Place the projector in a dry area away from sources of dust, moisture,

steam, smoke, sunlight or heat. Do not tilt the projector more than ±12° from side to side when in use,

as this may cause serious lamp failure, damage the lamp module and

cause extra cost on replacement. The projector my be tilted forwards

and backwards as necessary.

360°

Rev B March 2008 Page vii

Important Information Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Operation and conﬁ guration precautions

Do not make changes to the networking conﬁ guration unless you

understand what you are doing, or have taken advice from your

Network Manager. If you make a mistake, it is possible that you will lose

contact with the projector. Always double-check your settings before

pressing the APPLY button. Always keep a written note of the original

settings, and any changes you have made. Software update should NOT be carried out except by, or with the

supervision of, Digital Projection Service personnel.

Compliance with international standards

Noise

GSGV Acoustic Noise Information Ordinance

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

RF Interference

FCC

The Federal Communications Commission does not allow any modiﬁ cations or changes to the unit EXCEPT those speciﬁ ed by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment.

Notes

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be responsible for correcting any interference.

This equipment contains an FCC approved RF transmitter module with FCC ID: R68WIPORT.

European Waste Electrical and Electronic Equipment (WEEE) Directive

Digital Projection Ltd is fully committed to minimising Waste Electrical and Electronic Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised.

Page viii Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual Important Information

Digital Projection Contact details

Digital Projection Limited,

Greenside Way, Middleton, Manchester M24 1XX, UK.

Registered in England No. 2207264, Registered Ofﬁ ce: as above

Tel +44 (0) 161 947 3300 Fax +44 (0) 161 684 7674 Email enquiries@digitalprojection.co.uk, service@digitalprojection.co.uk Web Site www.digitalprojection.co.uk

Digital Projection Inc.

55 Chastain Road, Suite 115, Kennesaw, GA 30144. USA Tel (USA) 770 420 1350 Fax (USA) 770 420 1360

Notes

Email powerinfo@digitalprojection.com Web Site www.digitalprojection.com

Rev B March 2008 Page ix

Important Information Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Page x Rev B March 2008

Lightning 30isx+, 40isx+ User Manual

Contents

Declaration of Conformity ....................................................................................................................ii

Important Information

Symbols used in this guide ..................................................................................................................v

Warnings ..............................................................................................................................................v

Trademarks ..........................................................................................................................................v

Product revision ......................................................................................................................................v

Manual revision .......................................................................................................................................v

General precautions ..............................................................................................................................vi

Installation precautions ......................................................................................................................vii

Operation and conﬁ guration precautions ..................................................................................... viii

Compliance with international standards ......................................................................................viii

Noise ................................................................................................................................................viii

RF Interference..................................................................................................................................viii

European Waste Electrical and Electronic Equipment (WEEE) Directive .................................................viii

Digital Projection Contact details ......................................................................................................ix

1. Introduction

What’s in the box? ..............................................................................................................................1.2

Key features of the projector ........................................................................................................... 1.3

Getting to know the projector .......................................................................................................... 1.4

Chassis – lamp, lens and ﬁ lter ............................................................................................................ 1.4

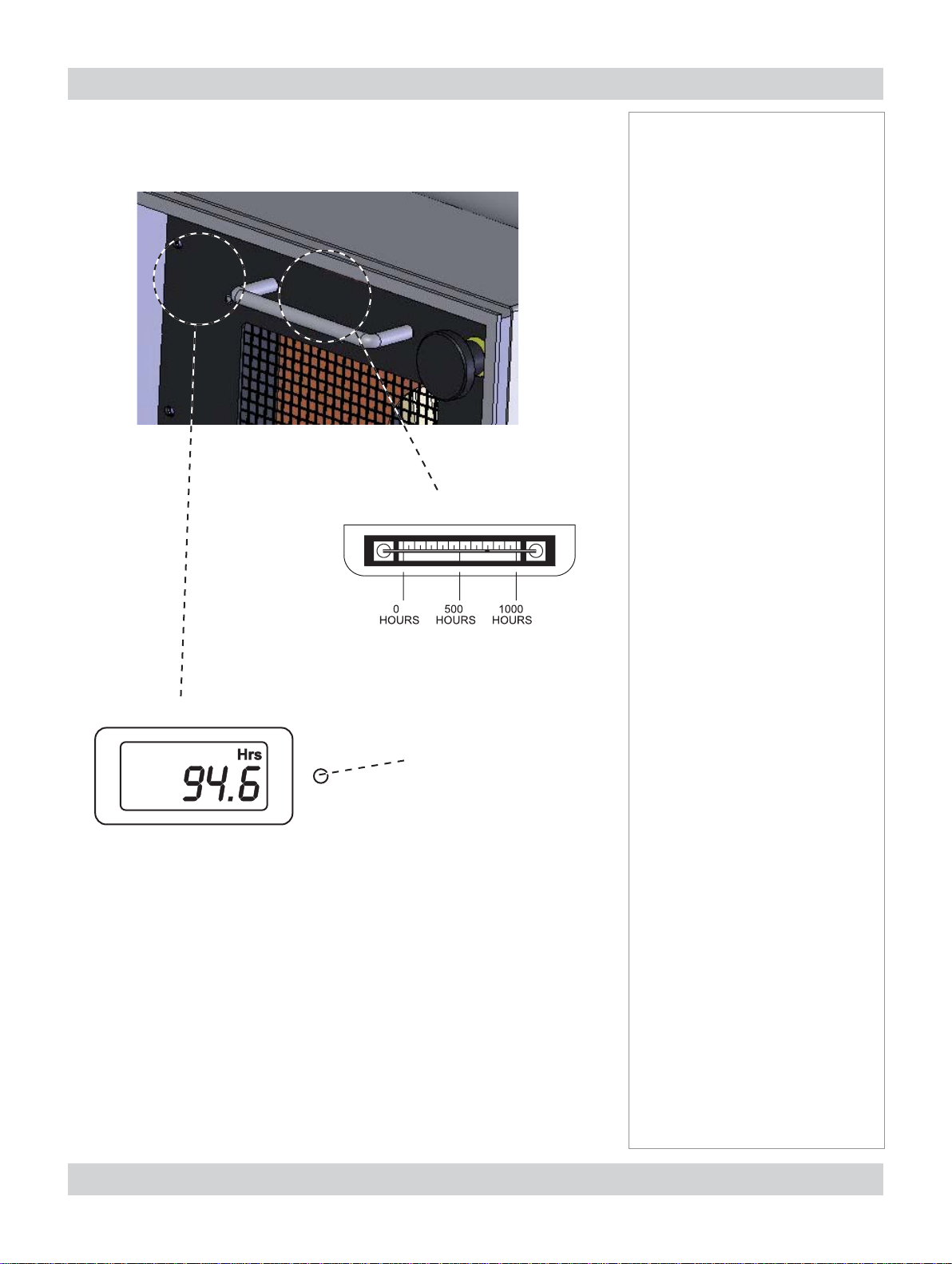

Lamp-hours meter............................................................................................................................. 1.5

Rear panel – connection and control ................................................................................................... 1.6

2. Installation

Screen requirements ......................................................................................................................... 2.2

Aspect ratio ...................................................................................................................................... 2.2

Positioning the screen and projector ................................................................................................... 2.5

Choosing a lens .................................................................................................................................. 2.6

Choosing a lens using the lens charts ................................................................................................. 2.7

Choosing a lens by calculation ........................................................................................................... 2.9

Useful lens calculations .................................................................................................................. 2.10

Fitting the lens ....................................................................................................................................2.11

Shifting the image............................................................................................................................. 2.12

continued

Rev B March 2008 Page xi

Table of Contents Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Mounting the projector .................................................................................................................... 2.13

Adjustment for table mounting .......................................................................................................... 2.13

Adjusting the rigging frame .............................................................................................................. 2.13

Stacking projectors .......................................................................................................................... 2.15

Connecting the projector ................................................................................................................ 2.16

Signal Inputs .................................................................................................................................. 2.16

Control connection examples ........................................................................................................... 2.17

Power connection ........................................................................................................................... 2.18

3. Getting started

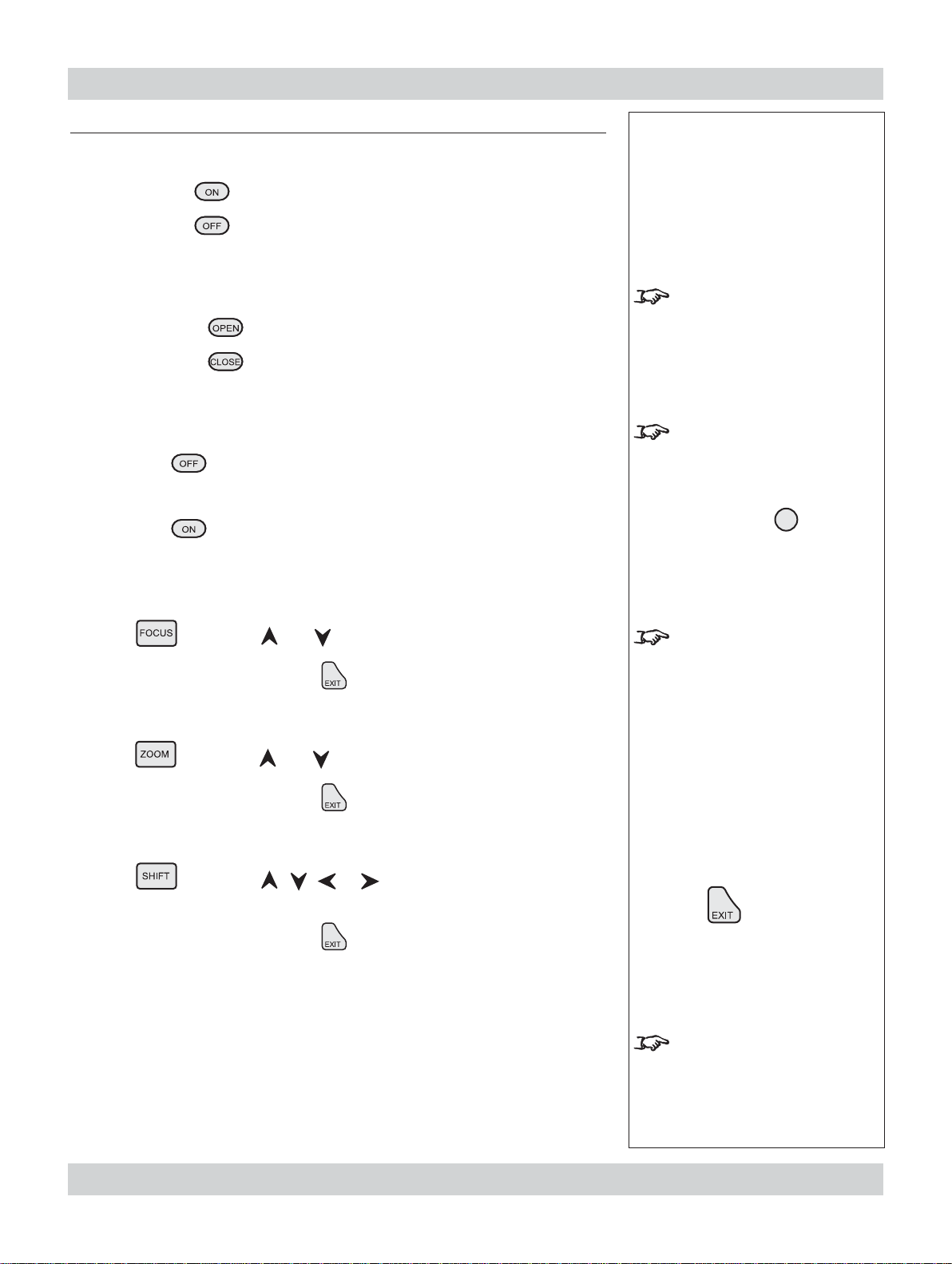

Switching the projector on ............................................................................................................... 3.2

Selecting an input or test pattern ................................................................................................... 3.2

Input ................................................................................................................................................ 3.2

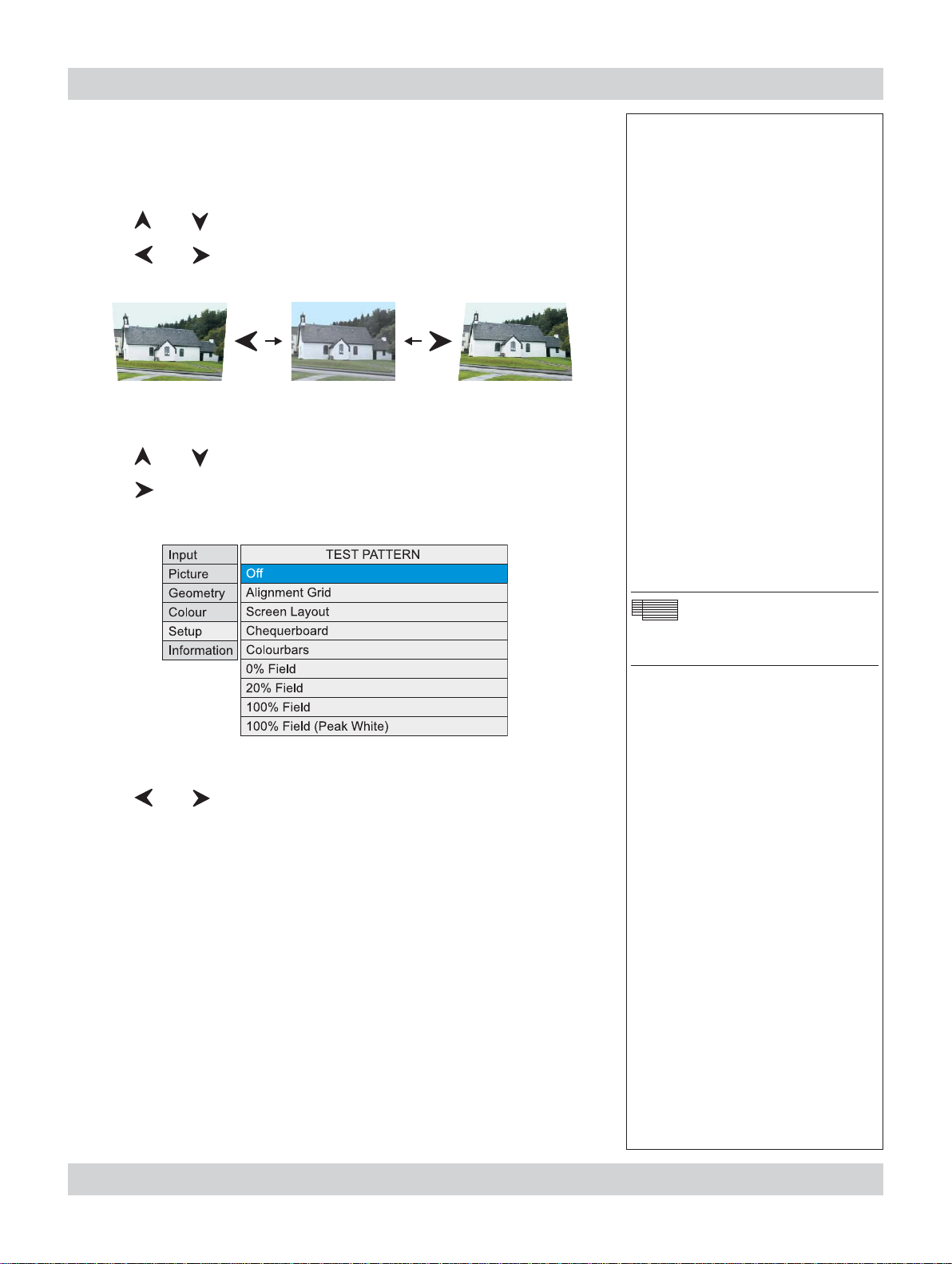

Test pattern ...................................................................................................................................... 3.2

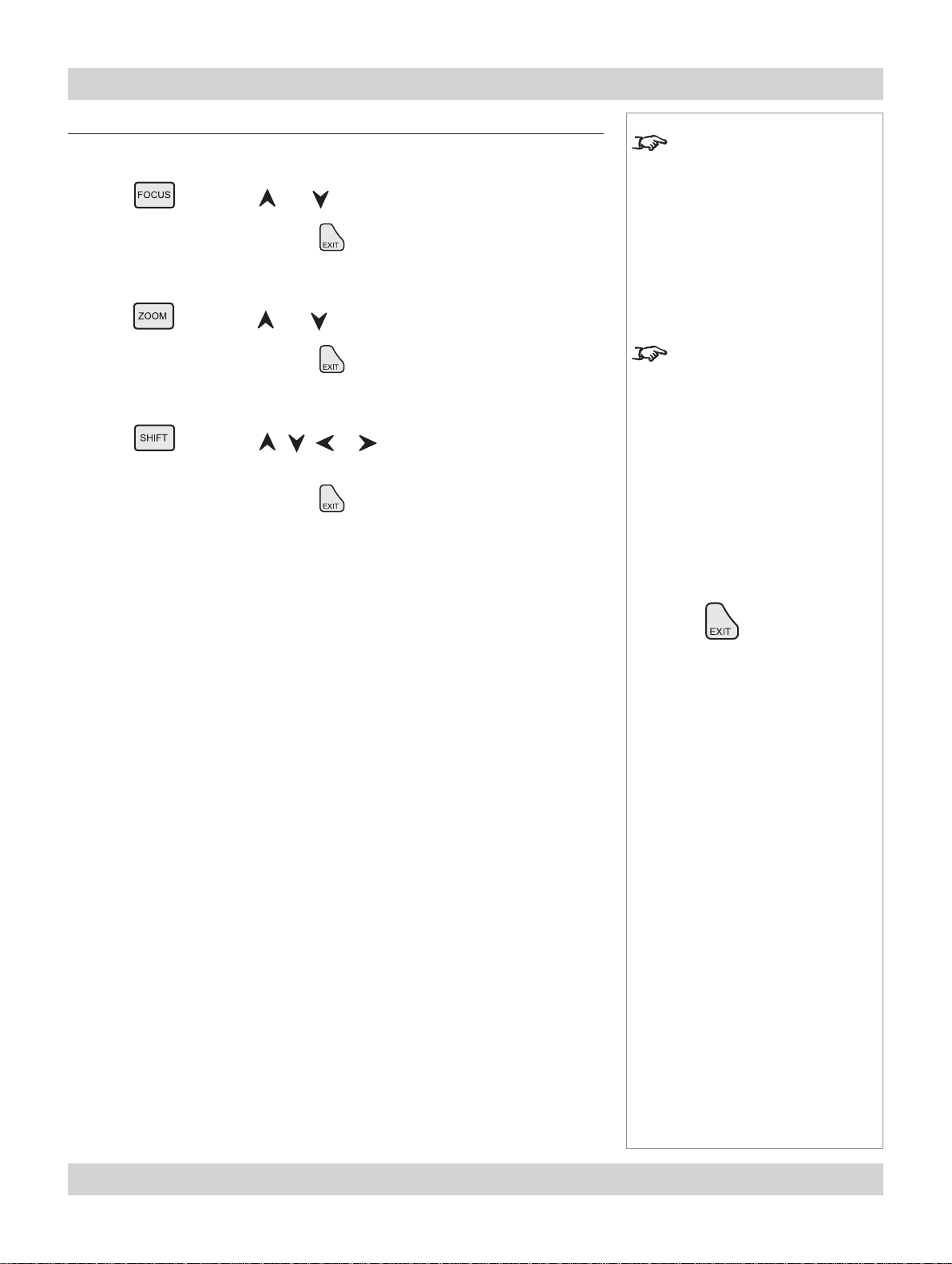

Adjusting the lens............................................................................................................................... 3.3

Focus .............................................................................................................................................. 3.3

Zoom ............................................................................................................................................... 3.3

Shift ................................................................................................................................................. 3.3

Adjusting the projected image ........................................................................................................ 3.4

Picture settings ................................................................................................................................. 3.4

Geometry settings ............................................................................................................................. 3.4

Switching the projector off ............................................................................................................... 3.4

4. Controlling the projector

Overview ............................................................................................................................................... 4.4

Controlling the projector..................................................................................................................... 4.4

Input modes and settings ................................................................................................................... 4.5

Indicators .............................................................................................................................................. 4.7

Input status indicators ....................................................................................................................... 4.7

The control panel ................................................................................................................................ 4.8

Keypad layout................................................................................................................................... 4.8

Projector status indicators .................................................................................................................. 4.8

The remote control ............................................................................................................................. 4.9

Layout ............................................................................................................................................. 4.9

Timeout ............................................................................................................................................ 4.9

continued

Page xii Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual Table of Contents

Using the control keys .................................................................................................................... 4.10

Power ............................................................................................................................................ 4.10

Shutter ........................................................................................................................................... 4.10

On-Screen-Display .......................................................................................................................... 4.10

Focus ............................................................................................................................................ 4.10

Zoom ............................................................................................................................................. 4.10

Shift ............................................................................................................................................... 4.10

Auto-detect input mode ....................................................................................................................4.11

Source information ...........................................................................................................................4.11

Input ...............................................................................................................................................4.11

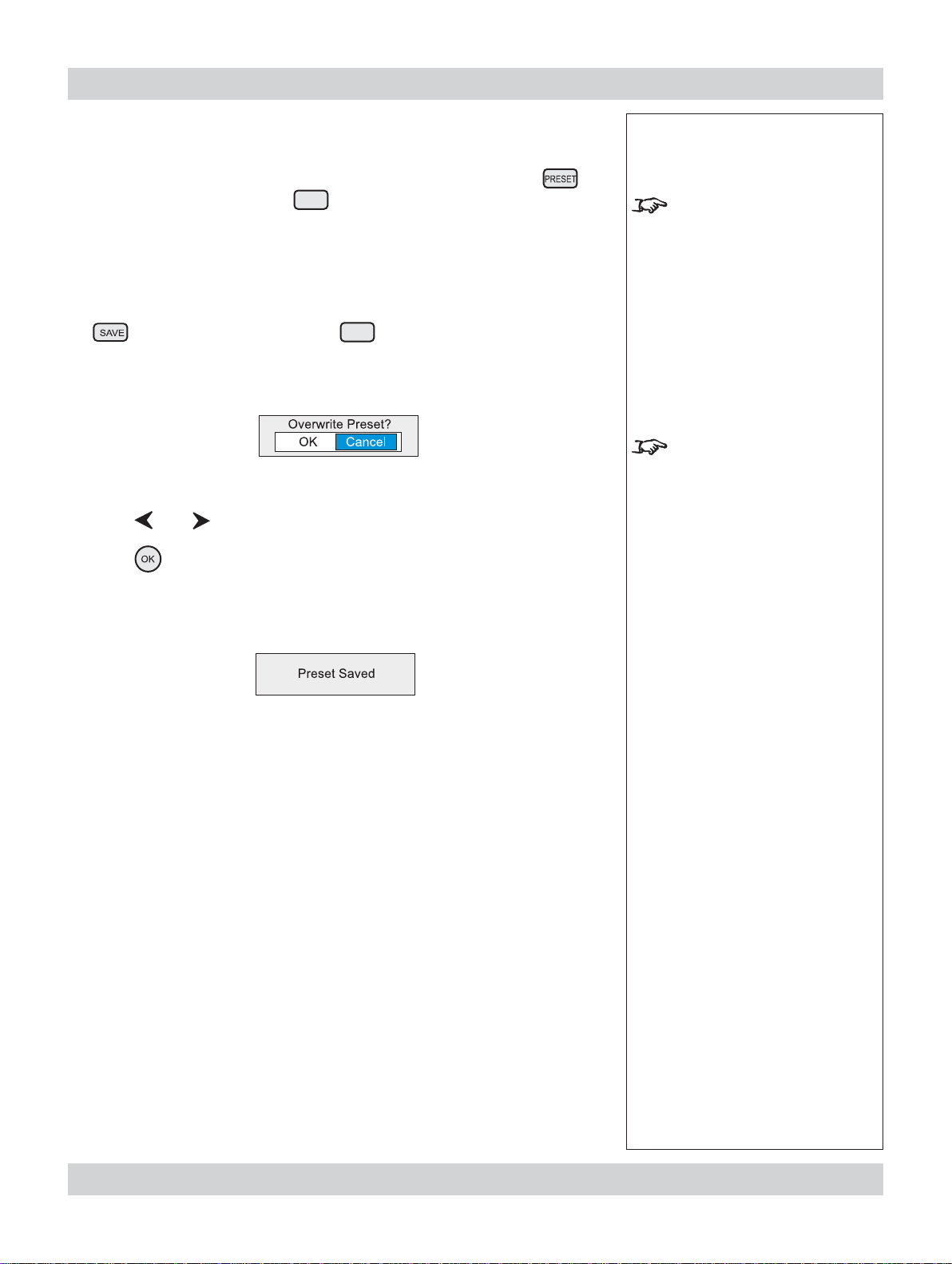

Input Presets .................................................................................................................................. 4.12

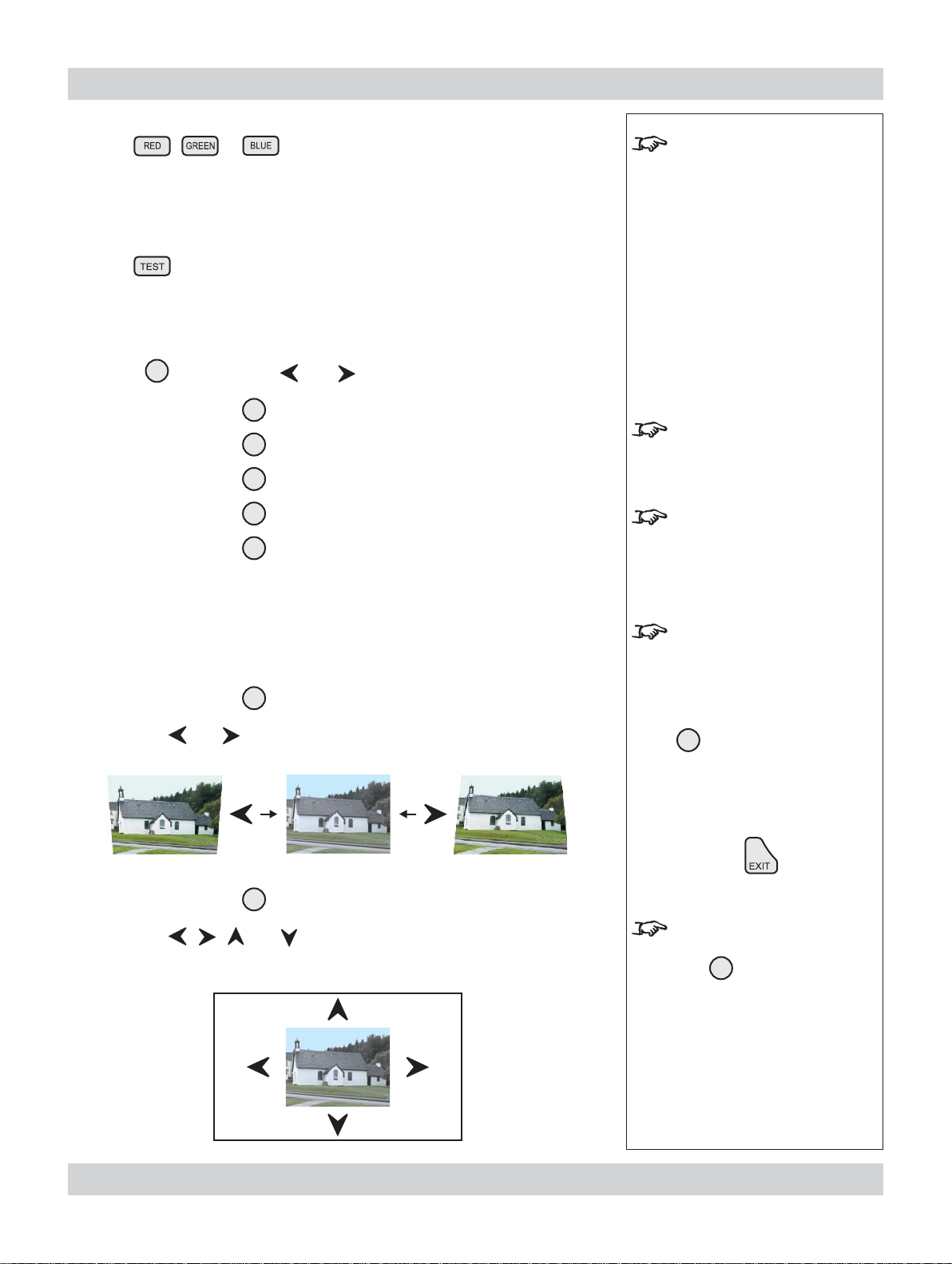

Red, Green and Blue....................................................................................................................... 4.13

Test pattern .................................................................................................................................... 4.13

Picture settings ............................................................................................................................... 4.13

Geometry settings ........................................................................................................................... 4.13

Magnify and pan ............................................................................................................................. 4.14

On-screen-display size .................................................................................................................... 4.14

Remote control address................................................................................................................... 4.14

Remote control backlight ................................................................................................................. 4.14

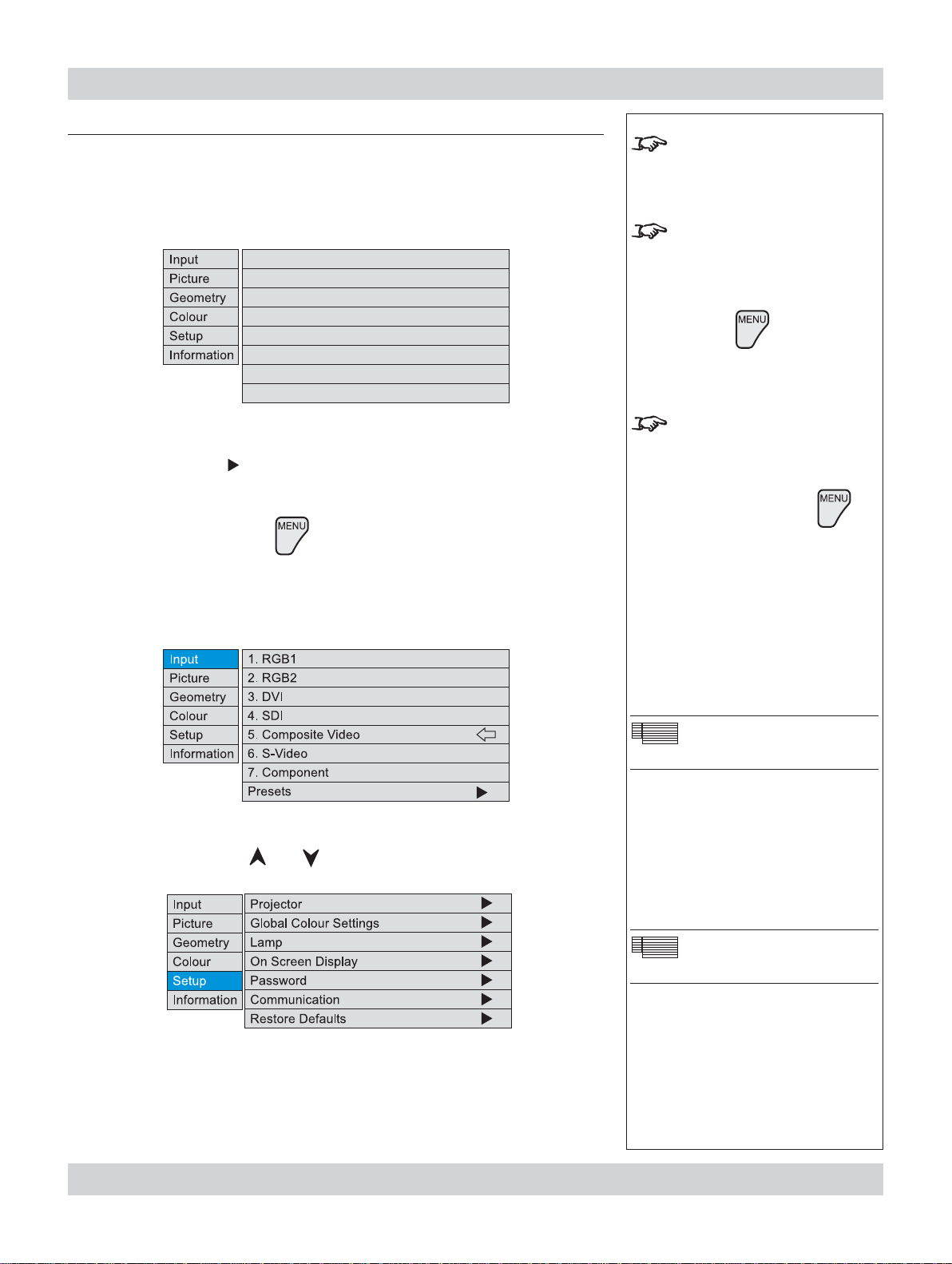

Using the menus ............................................................................................................................... 4.15

Navigating menus and submenus ..................................................................................................... 4.15

Menu controls ................................................................................................................................. 4.17

Input menu ......................................................................................................................................... 4.18

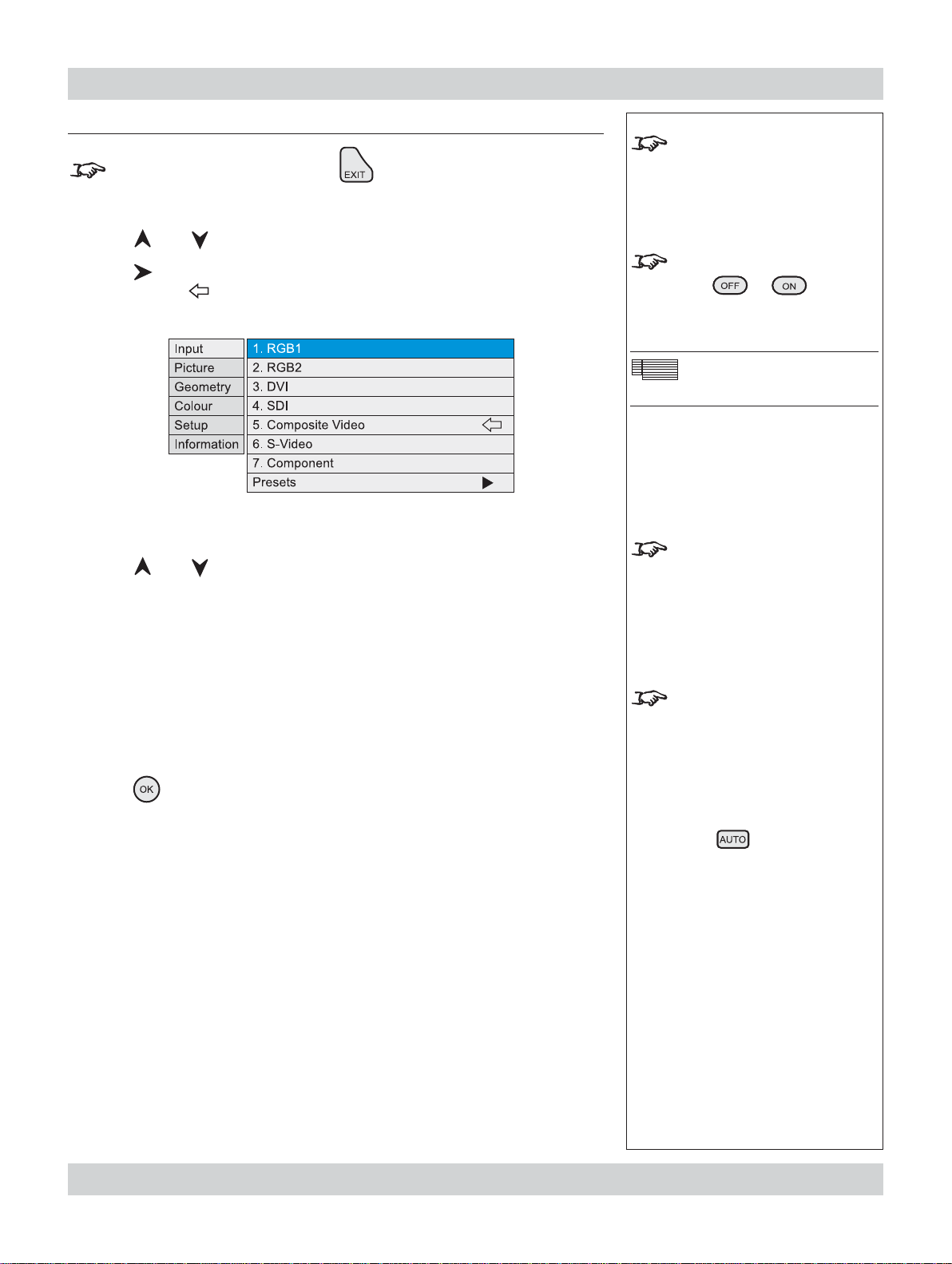

Input Source ................................................................................................................................... 4.18

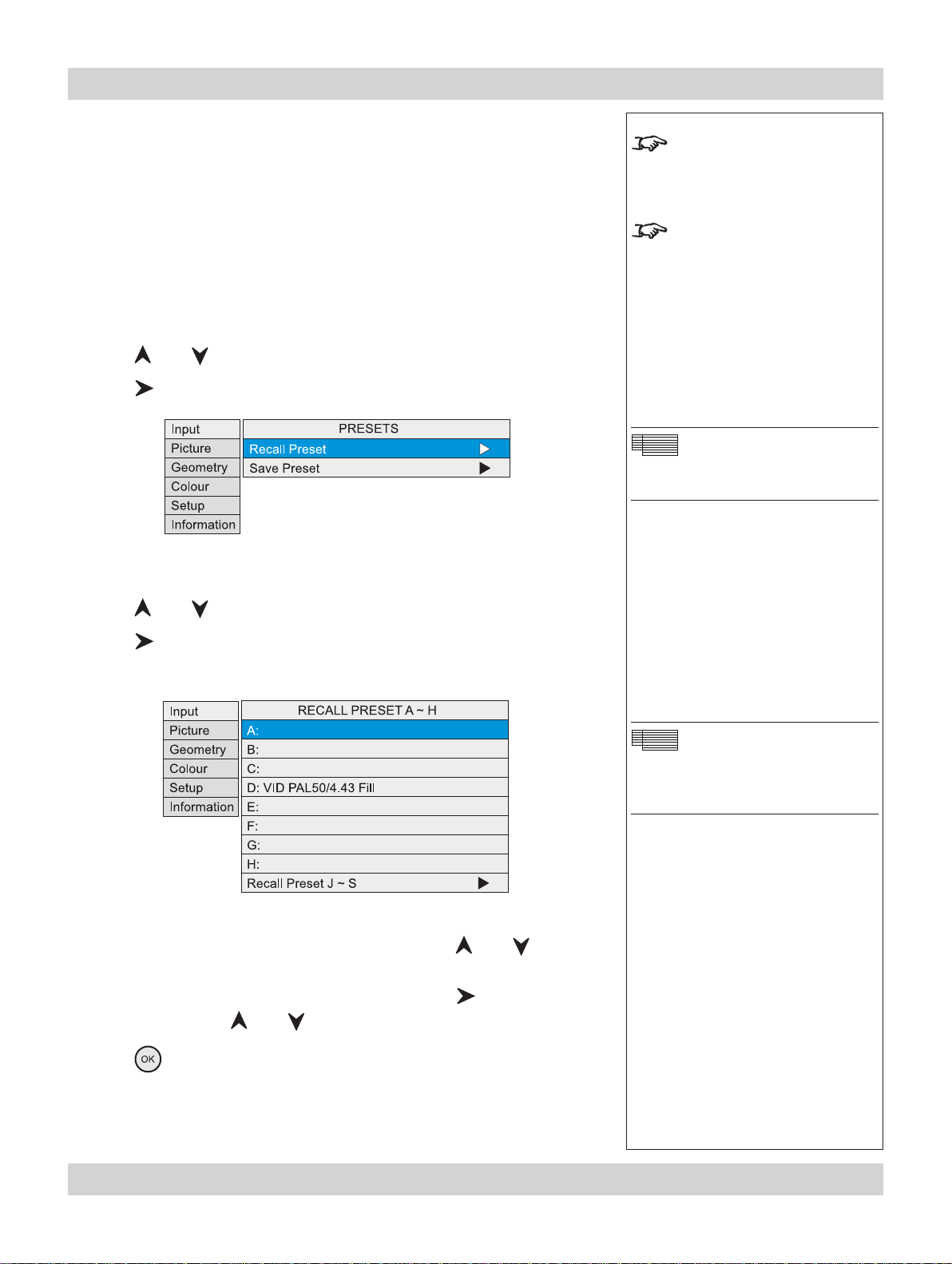

Presets .......................................................................................................................................... 4.19

Picture menu ...................................................................................................................................... 4.21

Brightness ...................................................................................................................................... 4.21

Contrast ......................................................................................................................................... 4.21

Saturation ...................................................................................................................................... 4.21

Hue ............................................................................................................................................... 4.21

Gamma Correction .......................................................................................................................... 4.22

Parametric Gamma ......................................................................................................................... 4.22

Phase ............................................................................................................................................ 4.22

Aspect Ratio ................................................................................................................................... 4.23

Sharpness ...................................................................................................................................... 4.23

continued

Rev B March 2008 Page xiii

Table of Contents Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Geometry menu ................................................................................................................................. 4.24

Horizontal Position .......................................................................................................................... 4.24

Vertical Position ..............................................................................................................................4.24

Aspect Ratio ................................................................................................................................... 4.24

User Horizontal Aspect Ratio ........................................................................................................... 4.25

User Vertical Aspect Ratio ............................................................................................................... 4.25

Keystone ........................................................................................................................................ 4.25

Phase ............................................................................................................................................ 4.25

Resolution ...................................................................................................................................... 4.26

Blanking ......................................................................................................................................... 4.27

Colour menu ...................................................................................................................................... 4.28

Colour Mode................................................................................................................................... 4.29

Colour Temperature ........................................................................................................................ 4.29

RGB Lift ......................................................................................................................................... 4.29

RGB Gain ...................................................................................................................................... 4.29

Component Type ............................................................................................................................ 4.29

Trim ...............................................................................................................................................4.30

Setup menu ........................................................................................................................................ 4.31

Projector ........................................................................................................................................ 4.32

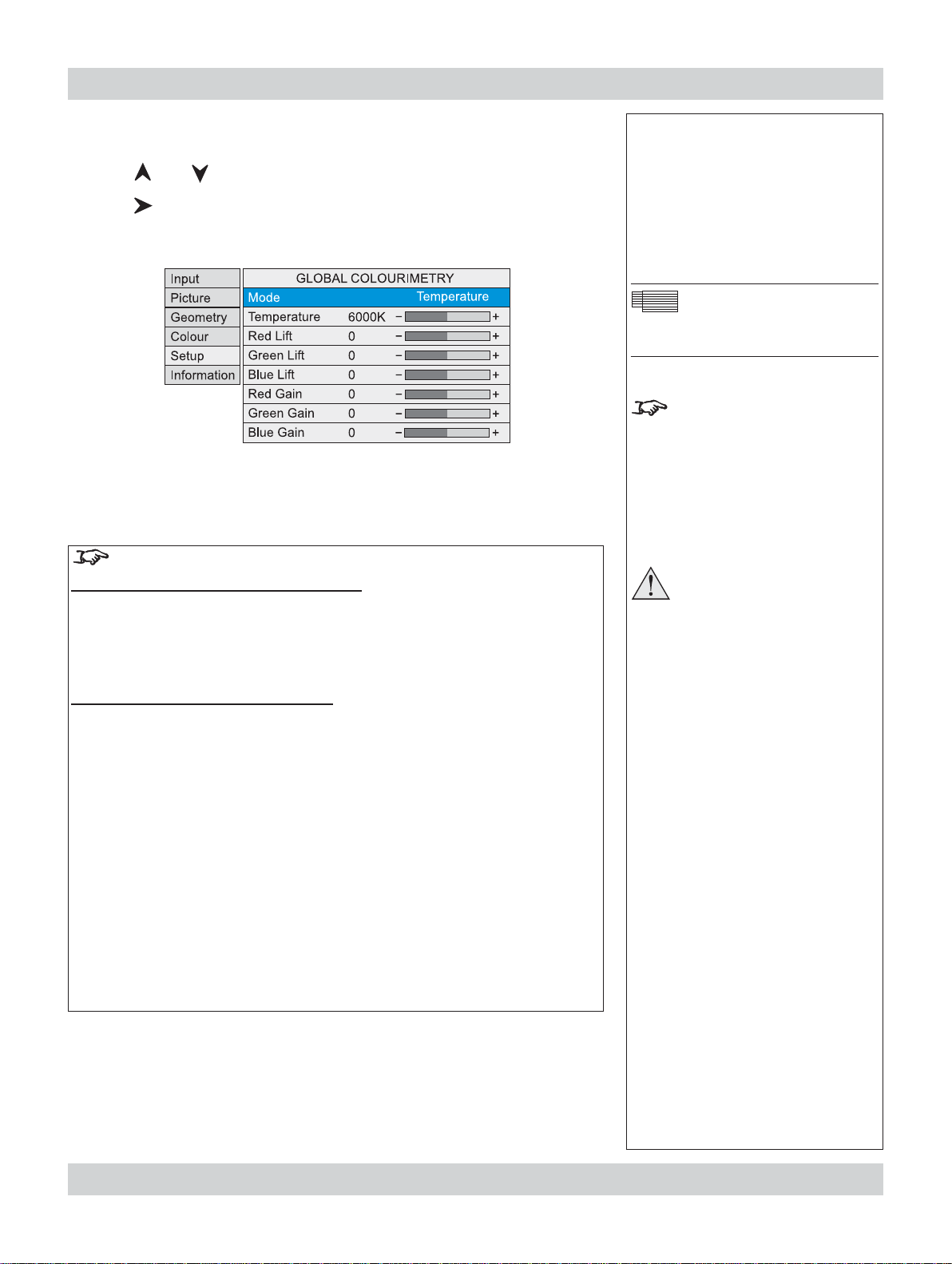

Global Colourimetry ........................................................................................................................ 4.34

Lamp ............................................................................................................................................. 4.36

On Screen Display .......................................................................................................................... 4.37

Password ....................................................................................................................................... 4.38

Communication............................................................................................................................... 4.39

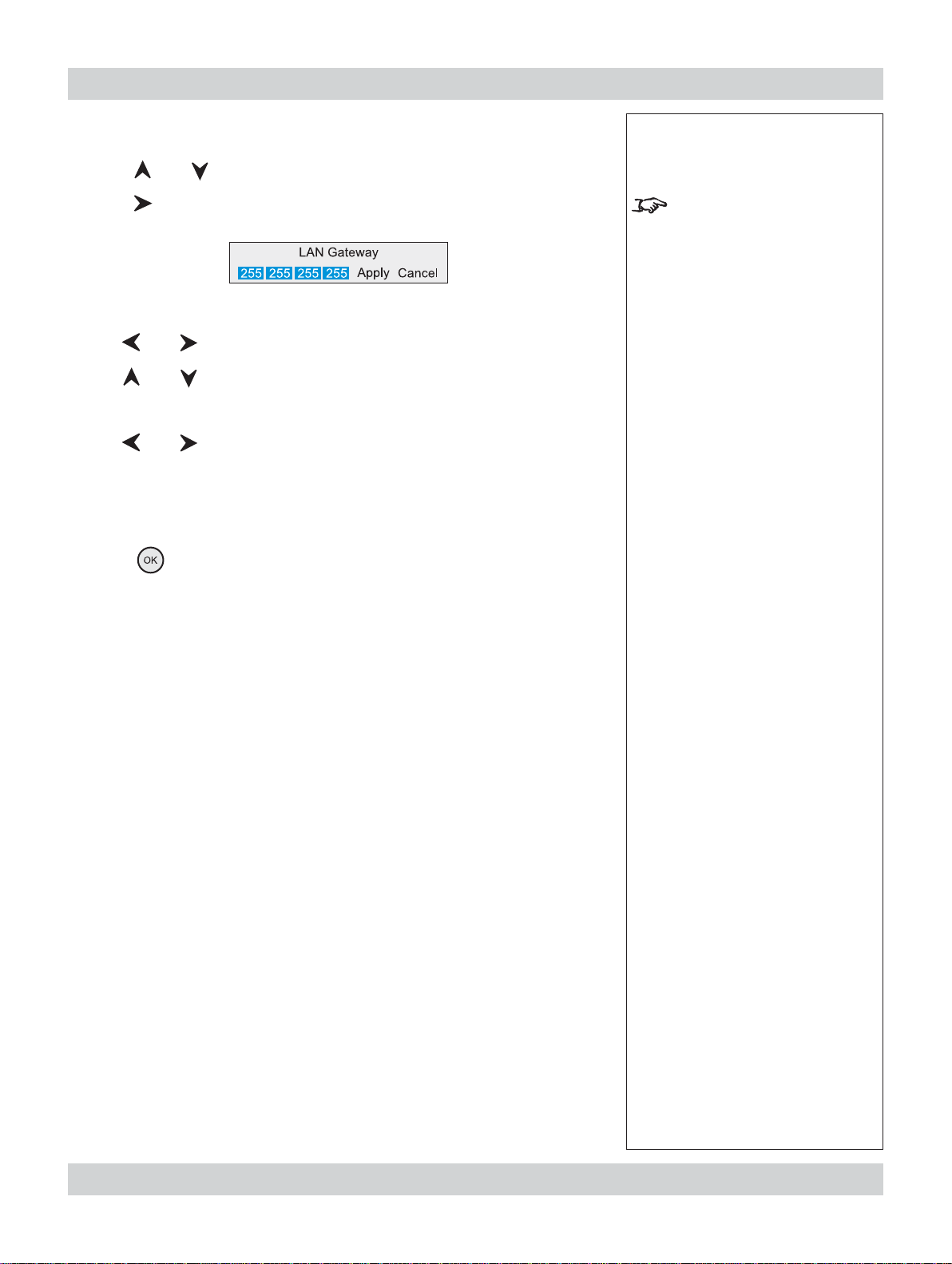

Network ......................................................................................................................................... 4.40

Restore Defaults ............................................................................................................................. 4.45

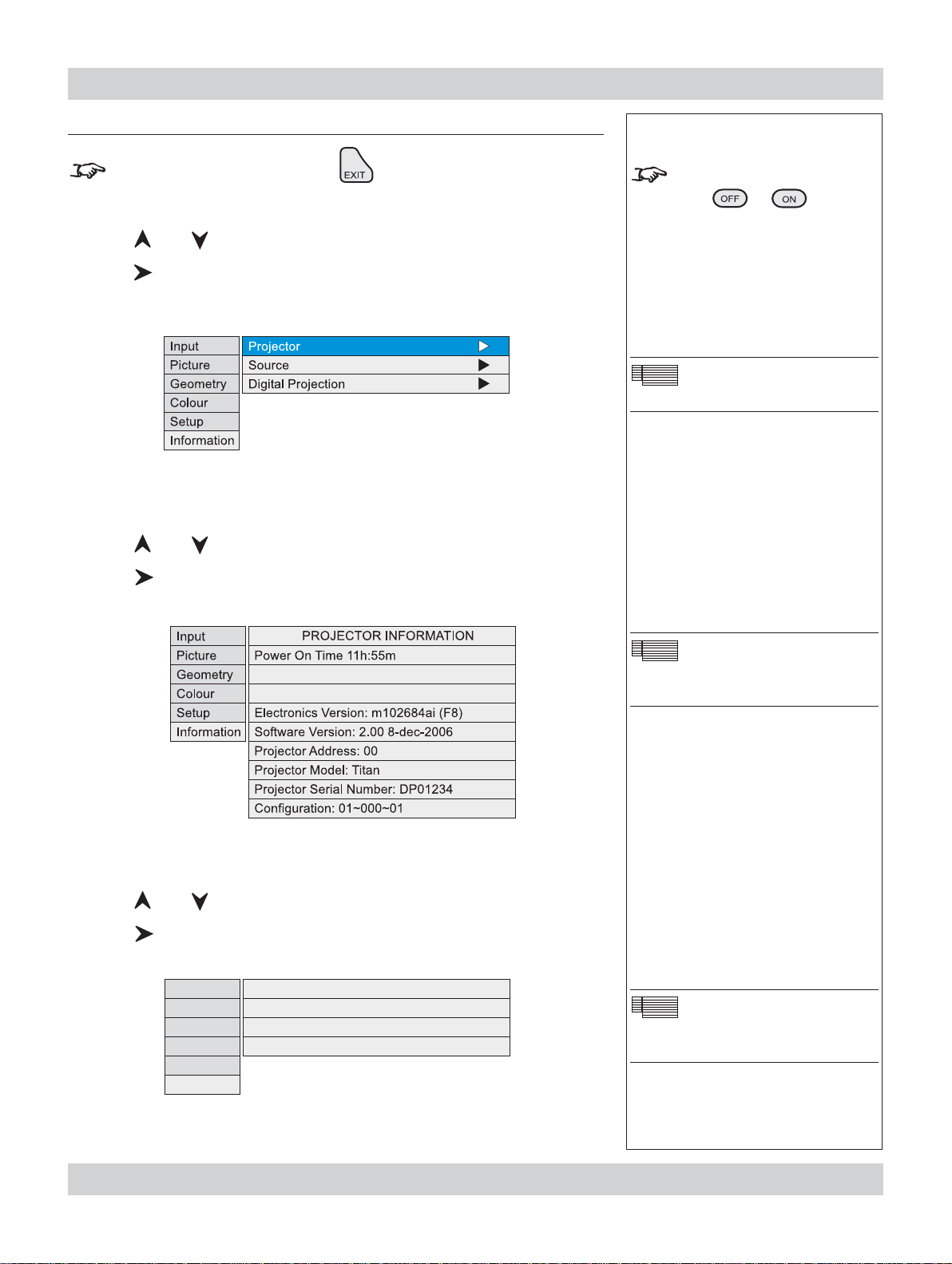

Information menu ............................................................................................................................. 4.46

Projector Information ....................................................................................................................... 4.46

Source Information .......................................................................................................................... 4.46

Digital Projection Information ........................................................................................................... 4.47

continued

Page xiv Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual Table of Contents

5. Userware

6. Maintenance

Changing the lamp ............................................................................................................................. 6.2

Readind the lamp-hours meter ........................................................................................................... 6.3

Removing the lamp module ............................................................................................................... 6.4

Fitting the new lamp module .............................................................................................................. 6.4

Changing the ﬁ lter .............................................................................................................................. 6.5

Cleaning ................................................................................................................................................ 6.6

Projector .......................................................................................................................................... 6.6

Lens ................................................................................................................................................ 6.6

Lamp module ................................................................................................................................... 6.6

7. Appendix

Troubleshooting .................................................................................................................................. 7.2

Speciﬁ cations ...................................................................................................................................... 7.4

Part numbers .................................................................................................................................... 7.4

Optical ............................................................................................................................................. 7.4

Electrical .......................................................................................................................................... 7.5

Physical ........................................................................................................................................... 7.5

Lens Data ........................................................................................................................................ 7.6

Dimensions .......................................................................................................................................... 7.8

Input modes supported ..................................................................................................................... 7.9

Input connections ............................................................................................................................. 7.10

1. RGB1 input ................................................................................................................................. 7.10

2. RGB2 input ................................................................................................................................. 7.10

3. DVI-D input ..................................................................................................................................7.11

4. SDI ............................................................................................................................................ 7.12

5. Composite video input ................................................................................................................. 7.12

6. S-Video input .............................................................................................................................. 7.12

7. Component video input ................................................................................................................ 7.12

Control connections ........................................................................................................................ 7.13

LAN connection .............................................................................................................................. 7.13

Serial control input .......................................................................................................................... 7.14

Remote communications protocol ............................................................................................... 7.15

Introduction .................................................................................................................................... 7.15

Message Structure .......................................................................................................................... 7.15

Operation Command examples ........................................................................................................ 7.18

Quick Reference chart ..................................................................................................................... 7.23

Rev B March 2008 Page xv

Table of Contents Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Page xvi Rev B March 2008

1. Introduction Contents

What’s in the box? ..............................................................................................................................1.2

Key features of the projector ........................................................................................................... 1.3

Getting to know the projector .......................................................................................................... 1.4

Chassis – lamp, lens and ﬁ lter ............................................................................................................ 1.4

Lamp-hours meter............................................................................................................................. 1.5

Rear panel – connection and control ................................................................................................... 1.6

Rev B March 2008 Page 1.1

1. Introduction Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

What’s in the box?

Make sure your box contains everything listed. If any pieces are missing, contact

•

your dealer. You should save the original box and packing materials, in case you ever need

•

to ship your Projector.

Projector

USA models 30isx+: 106-262 40isx+: 106-387

Rest of World models 30isx+: 106-263 40isx+: 106-388

Notes

Lenses are optional. Order

lenses from your Digital Projection dealer.

For more detailed information

about lenses, see Choosing a lens, in section 2. Installation.

Only one power cable -

dependent on the destination territory - will be supplied with the projector.

Power cable -

USA

(LA00098)

User manual

(106-267B)

Power cable Rest of World

(LA00097)

Important Information

(106-266B)

Remote control

(105-023)

4x AAA batteries

(105-922)

Remote cable 5m

(102-162)

Page 1.2 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 1. Introduction

Key features of the projector

Congratulations on your purchase of the Digital Projection LIGHTNING 30isx+ or 40isx+ projector.

Digital Projection International, Texas Instruments’ ﬁ rst DLP™ partner and the original innovator of the 3-chip DLP™ projector, proudly introduces our thirdgeneration LIGHTNING series — the LIGHTNING 30/40isx+. Incredibly bright, high resolution and high in contrast, the 30sx+c offers a radically new electronics conﬁ guration ideally suited for the staging and large-venue permanent installation markets.

The LIGHTNING 30/40isx+ harnesses the power of Texas Instruments’ new 1400 x 1050 pixel HPO DMD’s™. Like its LIGHTNING predecessors, the 30/40isx+ is destined to be the ﬁ rst choice of professionals who stage prestigious events such as the Grammy® Awards and the Oscars®. With contrast of 1800:1 and awe-inspiring brightness of up to 22,000 lumens, the 30/40isx+ is unmatched for applications as diverse as world class staged events, commercial entertainment, major outdoor venues, large-scale simulation, gaming and houses of worship.

Key Features

High resolution, large venue projector

•

Applications: Large Screen; Fixed install and Rental

•

30isx+: 18,000 Centre lumens / 16,000 ANSI lumens ±10%

•

40isx+: 22,000 Centre lumens / 21,000 ANSI lumens ±10%

Notes

Contrast 1800:1 ±10%

•

1400 x 1050 resolution

•

Precision mechanical design ensuring maximum amount of light from lamp

•

housing reaches optics, without any operator adjustment 3000W , 4000W single phase

•

Compact size, light weight 114kg (249ibs)

•

Motorised lens mount

•

Rigging frame with Quick-lock stack system- 3 point pitch & roll adjustment and

•

yaw adjustment for accurate alignment Ruggedised robust metal case

•

LAN & RS232 connection for network operation

•

Seven selectable Digital and Analogue Video inputs for display of the latest as

•

well as legacy video standards. DVI, SD and HD SDI, RGBHV, Component, S-Video, Composite all as standard. Wi-ﬁ connection wireless remote control

•

IR/cable remote control for easy setup

•

LAN operation using control codes or Integrated Userware

•

Rev B March 2008 Page 1.3

1. Introduction Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Getting to know the projector

Chassis – lamp, lens and ﬁ lter

Air outlets

Rear Infra-

red window

(remote control)

Lamp

compartment

Notes

For information about how to

change the lamp or the ﬁ lter, see section 5. Maintenance.

For more detailed information

about lenses, see section 2. Installation

Lens

Front Infra-red window

(remote control)

Air inlet

Air ﬁ lter

Lamp module

Page 1.4 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 1. Introduction

Lamp-hours meter

There are two types of Lamp-hours meter, depending on the lamp module that has been ﬁ tted, as shown below.

Mercury meter

Notes

LCD meter

display button

The LCD Lamp-hours meter has two modes of operation:

When the lamp is switched on, the LCD will show lamp run hours.

•

When the lamp is switched off, the LCD will be blank.

•

Press the button and hold for 5 seconds to display lamp run hours.

Rev B March 2008 Page 1.5

1. Introduction Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Rear panel – connection and control

Input

connections

Power switch

Power

connection

Control

connections

Control panel

Frame

adjuster

Rear Infra-

red window

(remote control)

Notes

For information about how

to connect the projector, see Connecting the projector in section 2. Installation, and Connections in section

6. Appendix.

For information about how

to use the control panel, see section 4. Controlling the

projector.

Rigging frame

Frame

coupling

Foot

For information about how to

mount and stack projectors, see section 2. Installation.

Rigging

frame

Page 1.6 Rev B March 2008

2. Installation Contents

Screen requirements ......................................................................................................................... 2.2

Aspect ratio ...................................................................................................................................... 2.2

Fitting the image to the DMD ............................................................................................................. 2.2

Diagonal screen sizes ...................................................................................................................... 2.2

Fitting the image to the screen ........................................................................................................... 2.3

Positioning the screen and projector ................................................................................................... 2.4

Choosing a lens .................................................................................................................................. 2.5

Choosing a lens using the lens charts ................................................................................................. 2.6

Full width images ............................................................................................................................ 2.6

5:4 full height image (TRF = 1.07) ....................................................................................................... 2.7

Choosing a lens by calculation ........................................................................................................... 2.8

example ....................................................................................................................................... 2.8

Useful lens calculations .................................................................................................................... 2.9

Fitting the lens ...................................................................................................................................2.10

Shifting the image..............................................................................................................................2.11

Mounting the projector .................................................................................................................... 2.12

Levelling ........................................................................................................................................ 2.12

Coarse frame adjustment ................................................................................................................ 2.12

Fine frame adjustment ................................................................................................................... 2.12

Chassis adjustment ....................................................................................................................... 2.12

Stacking projectors .......................................................................................................................... 2.13

Connecting the projector ................................................................................................................ 2.14

Signal Inputs .................................................................................................................................. 2.14

EDID handshaking on the DVI and RGB2 inputs .................................................................................. 2.14

Control connection examples ........................................................................................................... 2.15

LAN connection ............................................................................................................................ 2.15

RS232 connection ......................................................................................................................... 2.15

Power connection ........................................................................................................................... 2.16

USA power input ........................................................................................................................... 2.16

Rest of World power input ............................................................................................................... 2.16

continued

Rev B March 2008 Page 2.1

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Screen requirements

Aspect ratio

Fitting the image to the DMD

If the source image supplied to the projector is smaller than 1400 x 1050 pixels, then the image will not ﬁ ll the DMD. The following example shows how a number of common formats may be displayed without the use of an external scaling processor.

Images displayed full width

1.85:1

= 596 pixels

2.35:1(Scope)

Notes

The images are shown here

scaled automatically by the projector.

The image may be scaled

differently if the Aspect Ratio is set differently in the Picture or Geometry menus.

= 757 pixels

= 787 pixels

16:9 = 1.78:1

= 843 pixels

1.66:1 (Vista)

full width = 1400 pixels

Images displayed full height

5:4 = 1.25:1 = 1313 pixels

4:3 = 1.33:1 (native) = 1400 pixels

full height = 1050 pixels

Page 2.2 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Diagonal screen sizes

Screen sizes are sometimes speciﬁ ed by their diagonal size (D) in inches. When dealing with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H).

W = width

H = height

D = diagonal (inches)

The example calculations below show how to convert diagonal sizes in inches into width and height, at various aspect ratios.

2.35:1 (Scope)

W = D x 0.92in (D x .023m) H = D x 0.39in (D x .01m)

1.85:1

W = D x 0.88in (D x .022m) H = D x 0.47in (D x .012m)

16:9 = 1.78:1

W = D x 0.87in (D x .022m) H = D x 0.49in (D x .0125m)

Notes

1.66:1 (Vista)

W = D x 0.86in (D x .022m) H = D x 0.52in (D x .013m)

4:3 = 1.33:1 (native aspect ratio)

W = D x 0.8in (D x .02m) H = D x 0.6in (D x .015m)

5:4 = 1.25:1

W = D x 0.78in (D x .02m) H = D x 0.625in (D x .016m)

Rev B March 2008 Page 2.3

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Fitting the image to the screen

It is important that your screen is of sufﬁ cient height and width to display images at all the aspect ratios you are planning to use.

Use the conversion chart, or the sample calculations below to check that you are able to display the full image on your screen. If you have insufﬁ cient height or width, you will have to reduce the overall image size in order to display the full image on your screen.

Screen height

Aspect ratio

1.85:1

2.35:1

16:9

1.66:1

5:4

4:3

Notes

1 2 3 4 5 6 7 8 9 10

2.35:1 (Scope)

W = H x 2.35 H = W x 0.426

1.85:1

W = H x 1.85 H = W x 0.54

16:9 = 1.78:1

W = H x 1.78 H = W x 0.56

1.66:1 (Vista)

W = H x 1.66 H = W x 0.6

4:3 = 1.33:1 (native aspect ratio)

W = H x 1.33 H = W x 0.75

5:4 = 1.25:1

W = H x 1.25 H = W x 0.8

Screen width

Page 2.4 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Positioning the screen and projector

For optimum viewing, the screen should be a ﬂ at surface perpendicular to the ﬂ oor. The bottom of the screen should be 1.2m (4 feet) above the ﬂ oor and the front row of the audience should not have to look up more than 30° to see the top of the screen.

The distance between the front row of the audience and the screen should be at least twice the screen height and the distance between the back row and the screen should be a maximum of 8 times the screen height. The screen viewing area should be within a 60° range from the face of the screen.

Notes

The projector should be

installed as close to the power outlet as possible.

The power connection should

be easily accessible, so that it can be disconnected in an emergency.

Ensure that there is at least

30cm (12in) of space between the ventilation outlets and any wall, and 10cm (4in) on all other sides.

Do not install the projector

close to anything that might be affected by its operational heat, for instance, polystyrene ceiling tiles, curtains etc.

The image can be ﬂ ipped for

rear projection (see section

4. Using the menus, Image menu) and displayed without

the need for extra mirrors or equipment.

However, you must ensure

that there is sufﬁ cient distance behind the screen for the projector to be correctly located.

Rear installation is generally

more complicated and advice should be sought from your local dealer before attempting it.

Rev B March 2008 Page 2.5

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Choosing a lens

A number of lenses are available for use with the projector. Which lens you choose will depend on the screen size, image aspect ratio and projection distance.

If you are simply connecting the output of a camera or computer directly to the projector, then the image size (in pixels) may well be ﬁ xed. If, however, you are using commercially available image processing equipment, such as the Digital Projection VIP 2000, you may be able to resize the image to ﬁ t the DMD.

If the image does not ﬁ ll the full width of the DMD, this effectively increases the throw ratio of the lens. This can be corrected for by applying a Throw ratio factor.

Method one: using the lens charts

For the screen sizes listed below, use one of the charts on the following pages, to choose a lens.

any full width image, including: 4:3 1400 x 1050 pixels (native resolution)

1.66:1 (Vista) 1400 x 843 pixels 16:9 1400 x 788 pixels

1.85:1 1400 x 757 pixels

Notes

For more information about

Throw ratio factor (TRF), see Useful lens calculations, later in this section.

2.35:1 (Scope) 1400 x 596 pixels

A Throw ratio factor (TRF) of 1.07 has been applied to the following chart:

5:4 full height 1313 x 1050 pixels

Method two: by calculation

See the calculations, on the page immediately following the lens charts.

Page 2.6 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Choosing a lens using the lens charts

Full width images Use the chart below to choose which lens best suits your application. example

For a screen width of 10m at a distance of 35m, the 2.77 - 4.51: 1 zoom lens

•

(105-612) would be best suited. For the same screen size at a distance of 60m, the 4.51 - 7.53: 1 lens (105-613)

•

would be best suited. if you need to be more precise, then use the calculations on the page

immediately following the lens charts.

feet

66 20

metres

1.5 - 2.02 : 1 zoom lens

105-610

2.02 - 2.77 : 1 zoom lens

105-611

Notes

This chart has a TRF of 1.0, for

use with the following images:

2.35:1 (Scope),

1.85:1, 16:9,

1.66:1 (Vista) and 4:3

2.77 - 4.51 : 1 zoom lens

105-612

4.51 - 7.53 : 1 zoom lens

105-613

1.2 : 1 ﬁ xed lens (3 - 15m)

105-608

0.73 : 1 ﬁ xed lens 105-607

1.2 : 1 ﬁ xed lens (1.2 - 2m)

105-609

49 15

Screen width

33 10

16 5

10 20 30 40 50 60 70 80 metres 33 66 98 131 164 197 230 262 feet

Throw distance

Rev B March 2008 Page 2.7

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Lens charts continued

5:4 full height image (TRF = 1.07)

Use the chart below to choose which lens best suits your application. if you need to be more precise, then use the calculations on the page immediately

following the lens charts.

feet

66 20

metres

1.5 - 2.02 : 1 zoom lens

105-610

2.02 - 2.77 : 1 zoom lens

105-611

Notes

This chart has a TRF of 1.07,

for use with the following image:

5:4

2.77 - 4.51 : 1 zoom lens

105-612

4.51 - 7.53 : 1 zoom lens

105-613

1.2 : 1 ﬁ xed lens (3 - 15m)

105-608

0.73 : 1 ﬁ xed lens 105-607

1.2 : 1 ﬁ xed lens (1.2 - 2m)

105-609

49 15

Screen width

33 10

16 5

10 20 30 40 50 60 70 80 metres 33 66 98 131 164 197 230 262 feet

Throw distance

Page 2.8 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Choosing a lens by calculation

For any screen size not listed above, or if you need to be more precise, then use the calculations below.

Identify actual width of the image in pixels.

•

Calculate the Throw Ratio Factor: TRF = DMD width (1400)

•

Image width in pixels Identify the screen width required.

•

Identify the throw distance required.

•

Throw distance calculations are based on the distance from the outer end of the lens, which will vary from lens to lens. Once a lens has been chosen, the ﬁ gures can be checked using the lens extension values given on the next page.

Calculate the throw ratio required. Throw ratio = Throw distance

•

Screen width x TRF Choose a lens with the required throw ratio.

•

Check from the lens charts or the speciﬁ cation (see section 6. Appendix), that the lens chosen has a sufﬁ cient throw range.

example

An unresized image, 1280 x 1024 pixels, screen width 11m, throw distance 40m

•

from the outer end of the lens.

Notes

The Throw ratio for a particular

lens is ﬁ xed, but assumes that the image ﬁ lls the width of the DMD.

For images that do not ﬁ ll the

width of the DMD, the Throw ratio is effectively increased. To correct for this in these calculations, a Throw Ratio Factor (TRF) is used.

The lenses available and their

part numbers are listed below:

0.73 : 1 ﬁ xed lens 105-607

1.2 : 1 ﬁ xed lens (3 - 15m) 105-608

1.2 : 1 zoom lens (1.2 - 2m) 105-609

Throw Ratio Factor (TRF) = 1400 = 1.09

•

1280 Throw ratio required = 40 = 3.34

•

11 x 1.09 Choose the 2.77 - 4.51: 1 zoom lens (105-612)

•

1.5 - 2.02 : 1 zoom lens 105-610

2.02 - 2.77 : 1 zoom lens 105-611

2.77 - 4.51 : 1 zoom lens 105-612

4.51 - 7.53 : 1 zoom lens 105-613

Rev B March 2008 Page 2.9

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Useful lens calculations

The following lens calculations may be useful:

Throw ratio = Throw distance

Screen width

Throw ratio factor (TRF) = DMD width in pixels = 1400 image width in pixels image width in pixels

Therefore: Screen width = Throw distance (from outer end of lens)

Throw ratio x TRF

Throw distance = Screen width x Throw ratio x TRF

The throw distance calculated above is to the outer end of the lens. For each lens, the nominal distance between the front of the projector and the outer end of the lens (lens extension) will be as listed below:

Notes

The Throw ratio for a particular

lens is ﬁ xed, but assumes that the image ﬁ lls the width of the DMD.

For images that do not ﬁ ll the

width of the DMD, the Throw ratio is effectively increased. To correct for this in these calculations, a Throw Ratio Factor (TRF) is used.

lens extension

0.73 : 1 ﬁ xed lens 105-607 204 mm (8.0 in)

1.2 : 1 ﬁ xed lens (3 - 15m) 105-608 268 mm (10.6 in)

1.2 : 1 zoom lens (1.2 - 2m) 105-609 268 mm (10.6 in)

1.5 - 2.02 : 1 zoom lens 105-610 194 mm (7.6 in)

2.02 - 2.77 : 1 zoom lens 105-611 159 mm (6.3 in)

2.77 - 4.51 : 1 zoom lens 105-612 152 mm (6.0 in)

4.51 - 7.53 : 1 zoom lens 105-613 118 mm (4.6 in)

lens extension,

measured from front

of corner post

Lens extension is measured

when the lens is focussed at inﬁ nity, and fully extended. At other focus settings, the extension could be up to 10mm less

Page 2.10 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Fitting the lens

Turn the lens release lever anti-clockwise so that it is pointing upwards, to open

•

the lock. Remove the rear lens cap from the lens.

•

Insert the lens into the lens aperture, making sure that the plug on the drive

•

mechanism engages with the socket on the front of the projector, and that the lens is pushed ﬁ rmly into place.

Lens

release

lever,

open

Zoom drive mechanism

Notes

Make sure the rear lens cap is

removed, before ﬁ tting the lens.

Make sure the front lens cap is

removed, before switching on the projector.

Be careful not to scratch

the lens surfaces. If you do accidentally touch a lens, then clean the surface using a lens paper.

The lens release lever should

always be set to the locked position to prevent the lens from falling out.

Turn the lens release lever clockwise to lock the lens in place. When the lock is

•

fully closed, the lever should feel loose.

Lens

release

lever,

locked

Rev B March 2008 Page 2.11

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Shifting the image

The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature to maintain a geometrically correct image.

•

Any single adjustment outside the ranges speciﬁ ed below may result in an unacceptable level of distortion, paricularly at the corners of the image, due to the image passing through the periphery of the lens optics.

•

If the lens is to be shifted in two directions combined, the maximum range without distortion will be somewhat less, as can be seen in the diagrams to the right.

The maximum range available with no distortion is shown below. The table shows the maximum range for images that ﬁ ll the DMD. For images which do not use the full height or width, extra shift will be possible, up to the limit of the lens mount movement.

0.73 : 1 ﬁ xed lens 105-607

Notes

For more information on using

the Lens shift feature, see section 4. Using the menus, Lens menu.

If the lens is to be shifted in

two directions combined, the maximum range is somewhat less, as can be seen below.

full horizontal and vertical shift

without distortion

vertical (pixels)

± 115 ± 98 ± 0.11H ± 0.07W

1.21 : 1 ﬁ xed lenses 105-608 and 105-609 zoom lenses 105-610 to 105-613

vertical (pixels)

± 525 ± 175 ± 0.5H ± 0.125W

It is physically possible to shift the lens further than this, however there will be some vignetting of the image beyond the ranges speciﬁ ed above.

horizontal

(pixels)

horizontal

(pixels)

vertical

(vs DMD height)

vertical

(vs DMD height)

horizontal

(vs DMD width)

horizontal

(vs DMD width)

combined shift without distortion

is reduced

Page 2.12 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Mounting the projector

The projector is designed to be suspended from a lighting truss by its rigging frame. However, the four adjustable feet under the chassis allow the projector to be lowered onto a ﬂ at surface without any danger of hands being trapped between the bottom frame and the surface.

Adjustment for table mounting

If the projector is to be operated from a ﬂ at surface such as a projector table, then adjustment of projector level should be made by turning the four feet under the chassis.

Adjusting the rigging frame

Before suspending the projector, make sure that the three frame adjusters and the yaw adjustment are set roughly midway. Centering lines are scribed on the shafts to show the centres of adjustment.

Coarse frame adjustment

Coarse adjustment of projector level should be made by adjusting the length of the supporting wires or chains, or by adjusting the position of the truss.

Once the initial coarse frame adjustment has been made, ﬁ ne adjustment should be made using the three frame adjusters and the yaw handle (if ﬁ ttled) on the rigging frame.

Tilt and Roll adjustment

The frame adjusters can provide approximately ±10mm of vertical movement relative to the rear right corner, giving approximately ±0.65° tilt and ±0.85° roll. It is not possible, however, to achieve maximum adjustment in both tilt, roll and yaw simultaneously.

Centering

line

Notes

BEFORE INSTALLING THE

PROJECTOR, READ ALL THE WARNINGS BELOW AND ALL THOSE IN IMPORTANT INFORMA TION A T THE FRONT OF THIS MANUAL.

The projector weighs over

100kg (200lbs). Use safe handling techniques when lifting the projector.

Make sure that the surface,

ceiling or rigging that is to support the projector is capable of supporting the combined weight of the projector and lens (see speciﬁ cation for weights).

Backup safety chains or

wires should always be used.

Do not tilt the projector more

than ±12° from side to side when in use, as this may cause serious lamp failure, damage the lamp module and cause extra cost on replacement. The projector my be tilted forwards and backwards as necessary.

±12°

Frame

adjuster

360°

Rev B March 2008 Page 2.13

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Yaw adjustment

The yaw handle uses a ratchet to move the front of the projector from left to right. To change the direction of movement, push the direction lever on the handle up or down.

The yaw handle can provide approximately ±11mm of left-right movement relative to the rear right corner, giving approximately ±0.75° yaw. It is not possible, however, to achieve maximum adjustment in both tilt, roll and yaw simultaneously.

Yaw

handle

Notes

Yaw adjustment is available

only on later models.

Direction

lever

Ratchet

Page 2.14 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Stacking projectors

The rigging frame is capable of supporting the weight of up to three other projectors, using the built-in frame couplings. The projectors can be stacked on top of each other, or suspended below each other.

Carefully lower each projector down onto the top of the others, making sure that

•

all four frame couplings engage fully. Fit a locking pin into each coupling. A ball in the end of the pin prevents the pin

•

from falling out – to insert or remove a locking pin, press the button on the t-bar to release the ball.

Align the images from the projectors, following the instructions in section

•

3. Getting started, Adjusting the projected image.

Frame

coupling

Notes

Do not try to stack more than

four projectors.

When stacking projectors,

the stack MUST be vertical, to ensure that the stresses are distributed to all four frame couplings.

Make sure that the surface,

ceiling or rigging that is to support the projector is capable of supporting the combined weight of all the projectors and lenses (see speciﬁ cation for weights).

Do not place heavy objects

on top of the projector chassis. Only the rigging frame is capable of withstanding the weight of another projector.

Hole for

locking pin

Separate backup safety

chains or wires should always be used for each projector.

Rev B March 2008 Page 2.15

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Connecting the projector

Input

connection panel

Signal Inputs

4. SDI

1. RGB1

Control

connection panel

3. DVI

2. RGB2

Notes

For more information on

selecting an input source, see

section 4. Overview, Using the control keys, and Using the menus.

For more information about pin

connections and control codes see section 7. Appendix.

7. Component

The following inputs are available:

5. Composite Video

6. S-Video

For more information on

input modes see section

4. Overview.

EDID handshaking on the DVI and RGB2 inputs

If you are using a computer DVI card or other source that obeys the EDID handshaking protocol, then the card or source will automatically conﬁ gure itself to suit the projector.

If not, then you should refer to the documentation supplied with the source to manually set the resolution to 1400 x 1050 or the nearest suitable setting. Switch off the source, connect to the projector, then switch the source back on again.

Page 2.16 Rev B March 2008

Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual 2. Installation

Control connection examples

LAN connection

All of the projector’s features can be controlled via a LAN connection, using a standard internet browser package such as Internet Explorer.

Crossed

LAN cable

Computer

Un-crossed LAN cables

Hub or

LAN

LIGHTNING

Computer

Notes

For more information about pin

connections and control codes see section 7. Appendix.

For more information about

using a browser to control the projector see section 4. Using the menus.

RS232 connection

Computer

Null-modem

cable

LIGHTNING

Rev B March 2008 Page 2.17

2. Installation Digital Projection LIGHTNING 30

sx+, 40

sx+ User Manual

Power connection

USA power input

Make sure the main power switch is off before connecting the power cable. Firmly push in the Hubbell connector, then turn clockwise to lock.

Rest of World power input

Make sure the main power switch is off before connecting. Lift the lid of the C-form connector then ﬁ rmly push in the connector.

Notes

Use only the power cable

provided.

Ensure that the power

outlet includes a Ground connection, as this equipment MUST be earthed.

Handle the power cable

carefully and avoid sharp bends. Do not use a damaged power cable.

Page 2.18 Rev B March 2008
