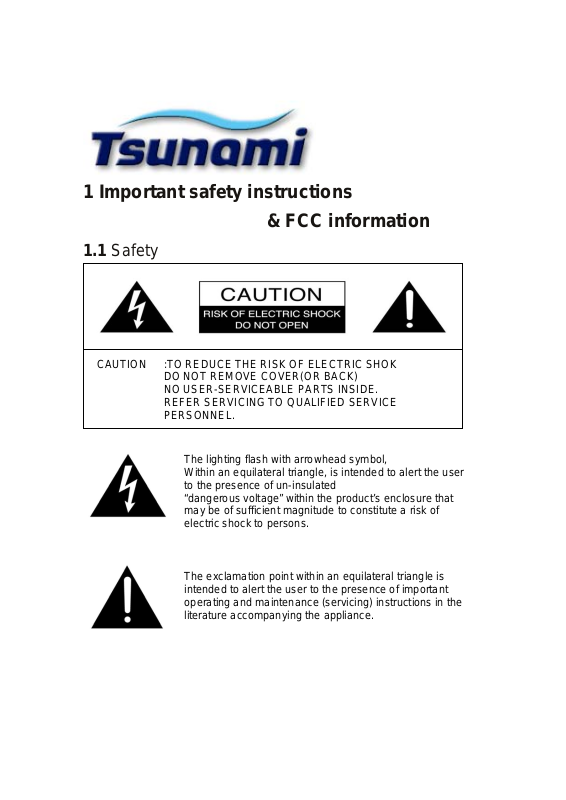

Digital Multimedia Technology DMT1730 User Manual

1 Important safety instructions

& FCC information

1.1 Safety

CAUTION :TO REDUCE THE RISK OF ELECTRIC SHOK

DO NOT REMOVE COVER(OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

The lighting flash with arrowhead symbol,
Within an equilateral triangle, is intended to alert the user
to the presence of un-insulated
“dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of
electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

FOR YOUR SAFETY

- The space around the receiver should be clear to allow for proper
ventilation of the receiver.

- Do not cover the receiver or place it on a unit that emits heat

- Use a damp soft cloth to clean the casing.

- Do not connect or disconnect cables when the receiver is plugged in.

- Do not remove the cover.

- Do not allow the unit to be exposed to hot, cold or humid conditions.

- Never allow liquids, spray or other materials to come into contact with the
inside of the receiver.

Outdoor Use Marking

Warning : To prevent fire of electric shock, do not expose this appliance to rain or
moisture.

Cable System Installation Marking

Note to CATV System Installer:

This reminder is provided to call CATV system installer’s attention to Article
820-40 of the NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical

Polarized Attachment plug Marking

Caution : To prevent electric shock, match wide blade of plug to wide slot, fully

insert.

Important Safety Instruction

1) Read Instructions : All the safety and operating instructions should be
read before the product is operated.

2) Retain Instructions : The safety and operating instruction should be
retained for future reference.

3) Head Warnings : All warnings on the product and in the operating
instructions should be adhered to.

4) Follow instructions : All operating and use instructions should be
followed.

5) Cleaning : Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaner. Use a damp cloth for cleaning.

6) Exception : A product that is meant or uninterrupted service
and that for some specific reason, such as the
possibility of the loss of and authorization code for c
CATV converter, is not intended to be unplugged by
the user for cleaning or any other purpose, may
exclude the reference to unplugging the product in
the cleaning description otherwise required in this
article.

7) Attachment : Do not use attachments not recommended by the

product manufacturer as they may cause hazards.

8) Water and Moisture : Do not use the product near water for example,
near a bath, wash bowl, kitchen sink, or laundry tub ;
in a wet basement; or rear a swimming pool; and the
like.

9) Accessories : Do not place this product on an unstable cart, stand,

tripod, bracket, or table. This product may fall,
causing serious injury to a child or adult, and serious
damage to the product.

10) A product and cart combination should be moved with care. Quick stops,

excessive force, and uneven surface may cause the product and cart
combination to overturn. Please refer to picture 1 in the end of this chapter.

11) Ventilation : Slot and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protest it from overheating, and these
openings must not be blocked by covered. The
openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in
installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instructions have been adhered to.

12) Power sources : This product should be operated only from the type
of power source indicated on the marking label. If
you are not sure of the type of power supply to your
home, consult your product dealer or local power
company. For products intended to operate from
battery power, or other sources, refer to the perating
instructions.

13) Grounding or Polarization
: This product may be equipped with a polarized

alternating current line plug(a plug having on blade
wider than the other). This plug will fit into the power
outlet only on way. This is a safety feature. If you are
unable to insert the plug gully into the outlet, try
reversing the plug. If the plug should still fail to fir,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
polarizing plug.

Alternate Warning : This product is equipped with a three-wire
grounding-type plug, a plug having a third

(grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding-type plug.

14) Power-Cord Protection : Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.

15) Protective Attachment Plug

: The product is equipped with an attachment

plug having overload protection. This is a safety
feature. See instruction Manual for replacement or
resetting of protective device. If replacement of the
plug is required, be sure the service technician has
used a replacement plug specified by the mnufactu­rer that has the same overload protection as the
original plug.

16) Outdoor Antenna Grounding

: If an outside antenna or cable system is connected

to the product, be sure the antenna or cable system
is grounded so as to provide some protection
against voltage surges and built-up static charges.
Article 810 of the National Electric Code,
ANSI/NFPA 70, provides information with regards.

17) Lighting : For added protection for this product during a
lighting storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due
to lighting and power-line surges.

18) Power Lines : An outside antenna system should not be located
in the vicinity of overhead power lines or other
electric light or power circuits. Or where it can fall
into such power lines or circuits. When installing an
outside antenna system, extreme care should be
taken to keep from touching such power lines or
circuits as contact with them might be fatal.

19) Overloading : Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in
a risk of fire of electric shock.

20) Object and Liquid Entry

: Never push objects of any kind into this product

through opening as they may touch dangerous
voltage points or short-out parts that could result in a
fire of electric shock. Never spill liquid of any kind on
the product.

21) Serving : Do not attempt to service this product yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
serving to qualified service personnel.

22) Damage Requiring Service

: Unplug this product from the wall outlet and refer

servicing to qualified service personnel under the
following conditions:

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.

d) If the product dose not operate normally by following the
operating instructions. Adjust only those controls that are covered
by the operating instructions as an importer adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the product to its normal
operation.

e) If the product has been dropped or damaged in any way

f) When the product exhibits a distinct change in performance-this
indicate a need for service.

23) Replacement Parts : When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or
other hazards.

24) Safety Check : Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in proper
operating condition.

25) Wall or Ceiling Mounting

: The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.

26) Heat : The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products(including amplifier) that produce heat.

Important Safety Instruction

Picture 1) Example of Portable cart warning (Symbol provided by RETAC)

Picture 2) Example of antenna grounding as per national Electrical code, ANSI /
NFPA70

1.2 FCC Information

FCC ID : PFNDMT1730
This device complies with part 15 of the FCC Rules, Operation is subject to the

following two conditions :
(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference
that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

◎ Reorient or relocate the receiving antenna.
◎ Increase the separation between the equipment and receiver.
◎ Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

◎ Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's
authority to operated the equipment under FCC rules.

2 View Programmes

2.1 Programme Information

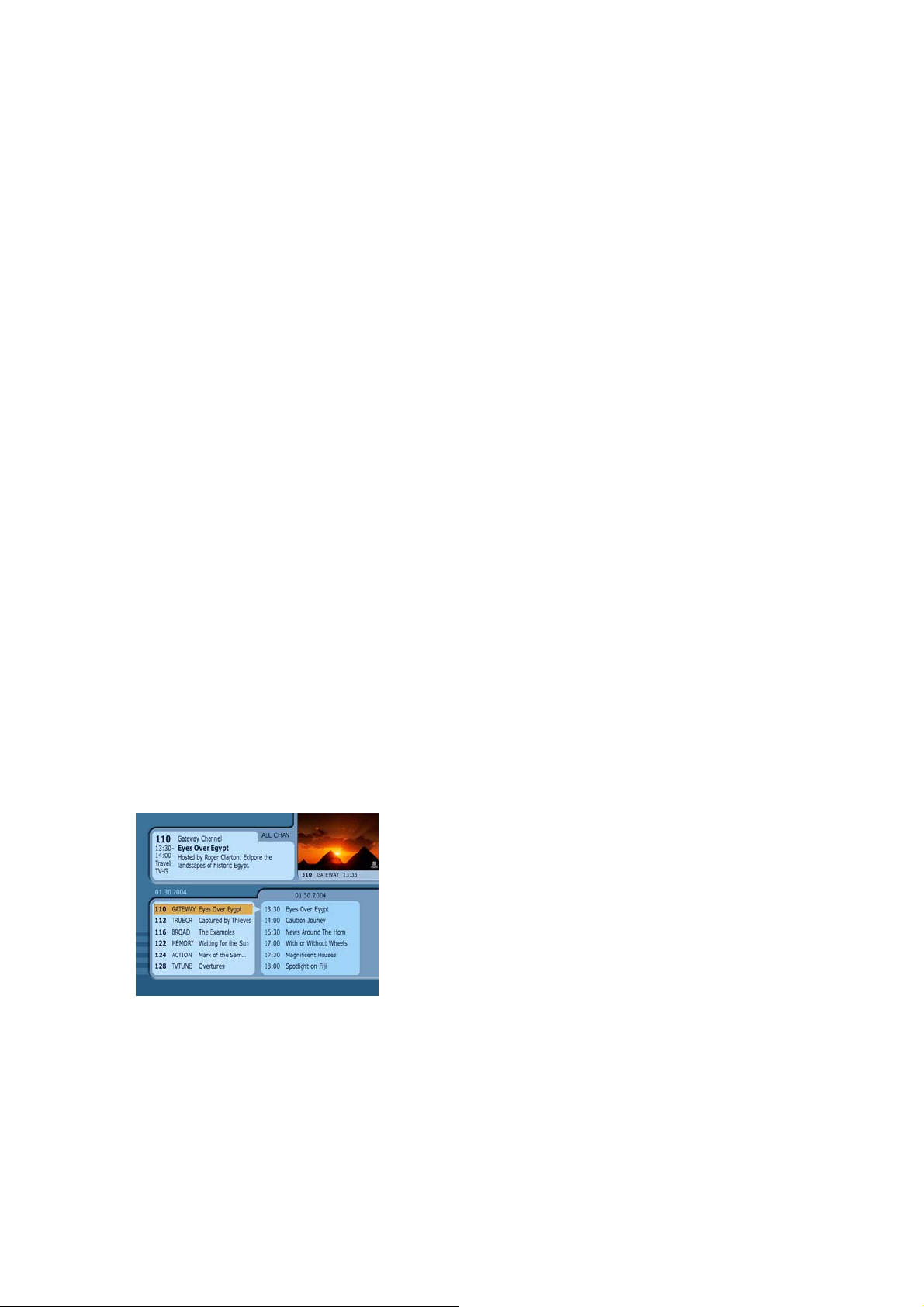

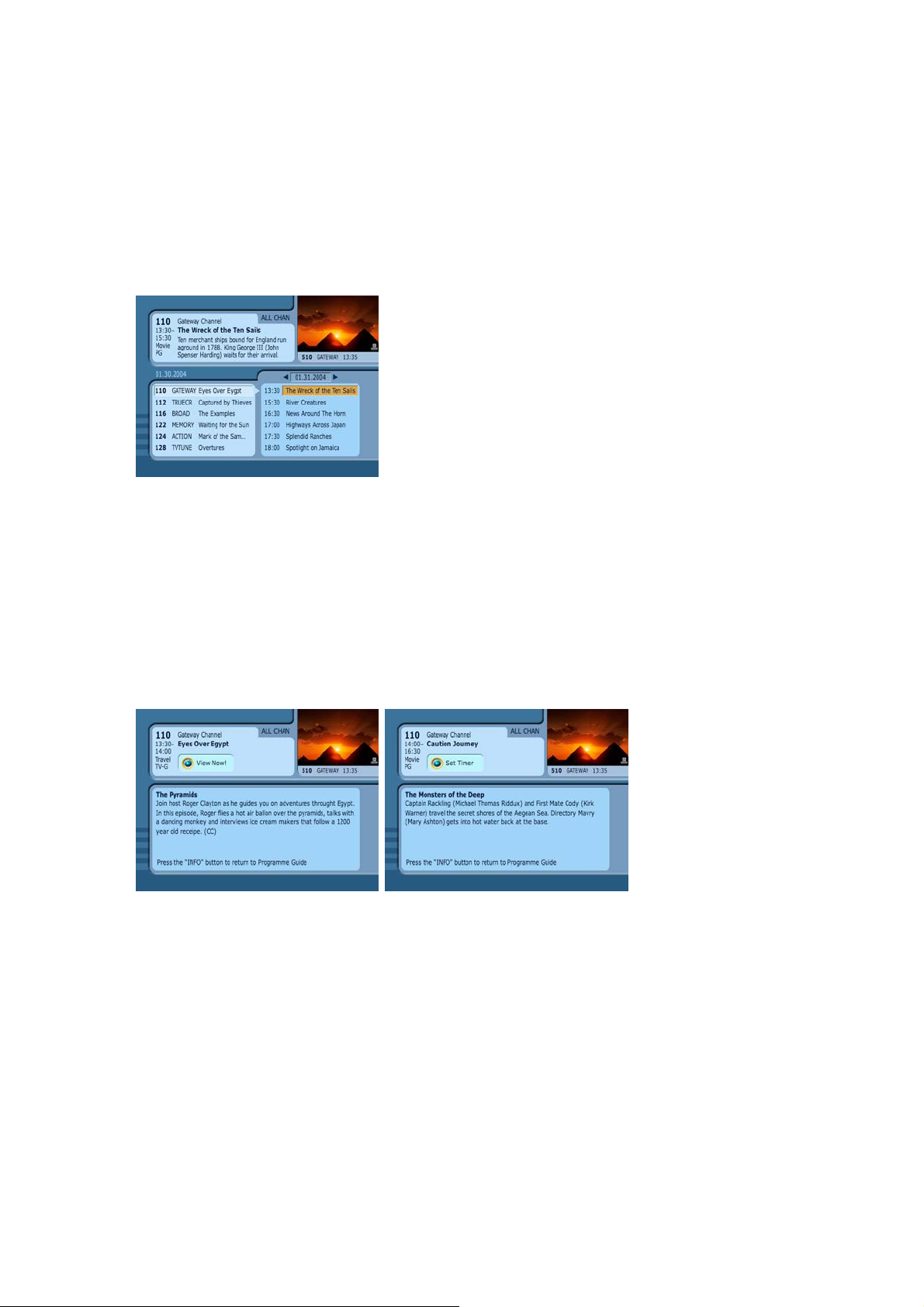

INFO MODE

You can view information about the current programme by pressing the "Info"
button on the Remote Control. Each time you press the button, more information
about the programme will be displayed onscreen. To exit INFO MODE, continue
to press the “Info” button until the information screens disappear, or press “Exit”
at any time.

INFO 1 MODE

Displays the following information:

• Channel Name

• Channel Number

• Programme Name

• Current Favourite List Name
