Digital Multimedia Technology DC10HD Users Manual

Instruction Manual

For

DC10HD

Digital Multimedia Technology Co., Ltd

HDuDTA Manual 2

Contents

Ⅰ . Installing DC10HD

1. Component .......................................................................................... 3

2. Name of parts and role ....................................................................... 3

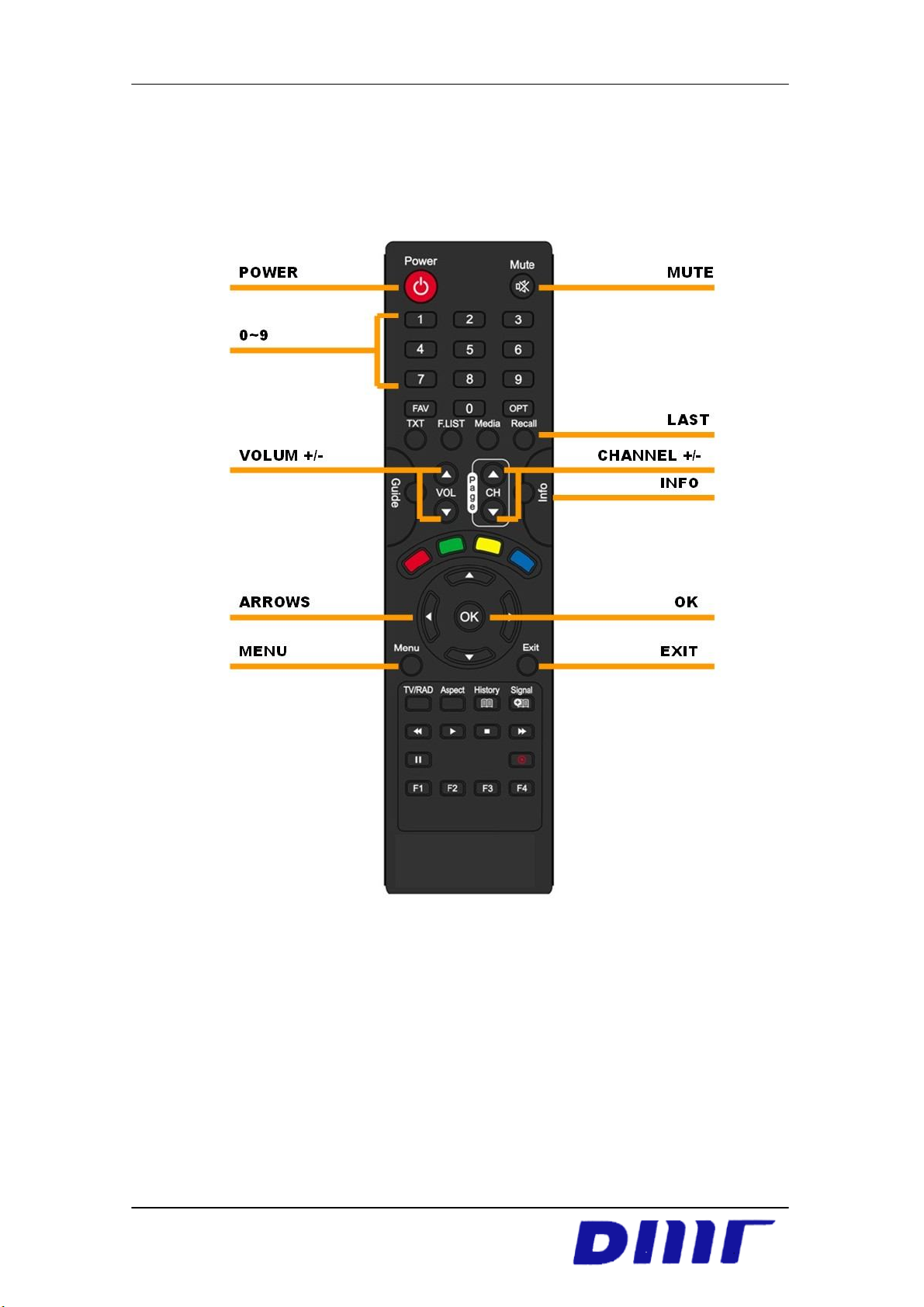

2-1. Remote control ................................................................................ 5

Ⅱ . Notice DC10HD

3. Installing .............................................................................................. 7

1. Dolby ................................................................................................... 8

2. UL ........................................................................................................ 9

3. FCC .................................................................................................... 11

Ⅰ . Installing DC10HD

1. Component

The following parts are included in the product package. Make sure that you received all the

parts.

 Main body of DC10HD

 Remote Control

 Power adaptor

 RF Cable

HDuDTA Manual 3

 User Manual

 HDMI Cable

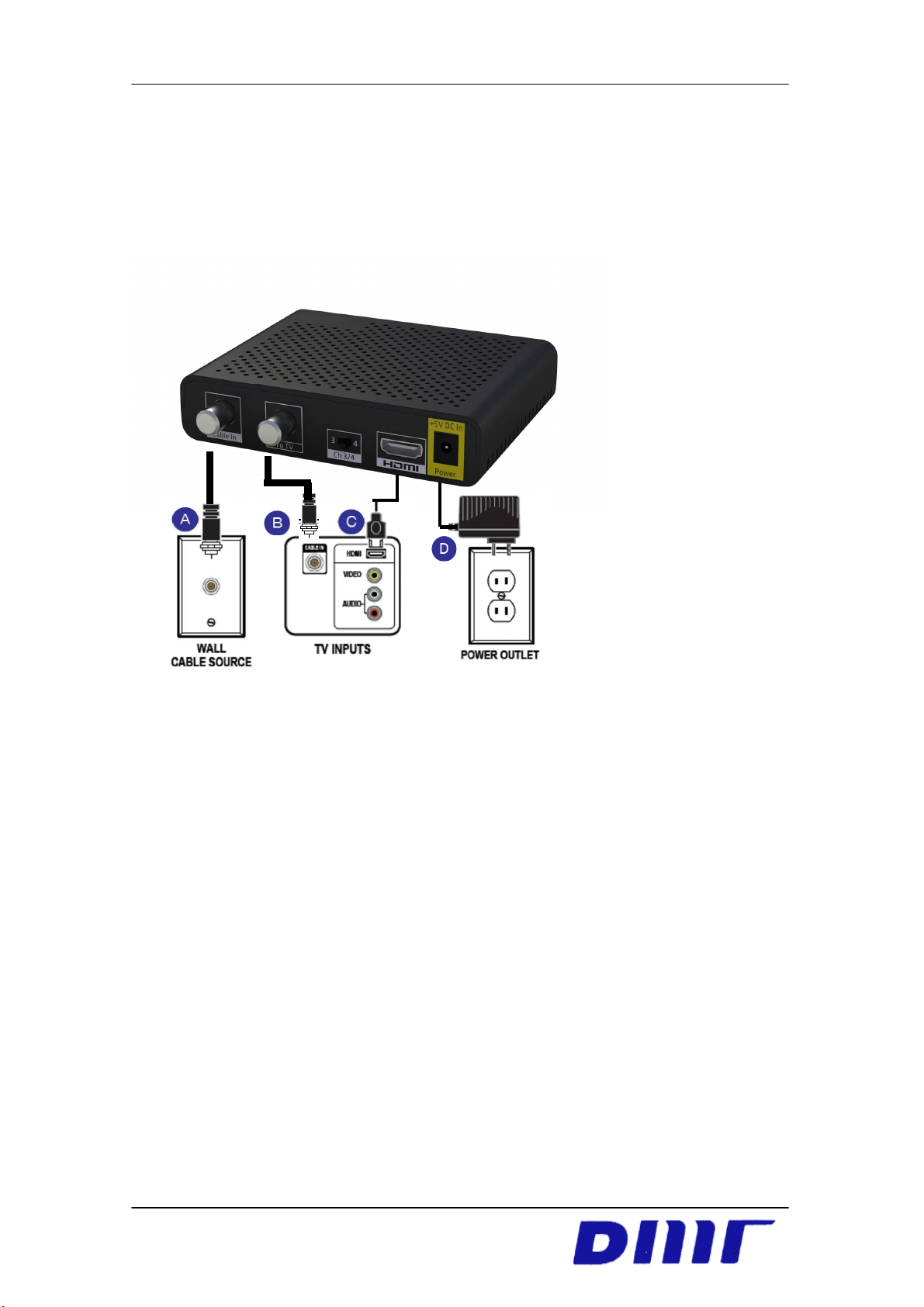

2. Name of parts and role

1

2

 LED : LED Lights up green when power is on. Lights up red when in Stand-By Mode.

 IR Receiver

Cable In

TV out

HDuDTA Manual 4

Power In

CH3/CH4

Cable In

TV Out

HDMI Out

CH3/CH4

Power In Connects the All Digital Device to a power source.

(Coax Cable) Connects the All Digital Device to a TV, VCR or
receiver using a coax cable.
(Coax Cable) Connects the All Digital Device to a TV, VCR or
receiver using a coax cable.
(HDMI Cable) Connects All Digital Device to a high
definition TV, VCR or receiver.
Selects TV Channel 3 or 4 as the output channel to your TV
when the All Digital Device is connected using a coax cable from
TV Out.

HDMI Out
